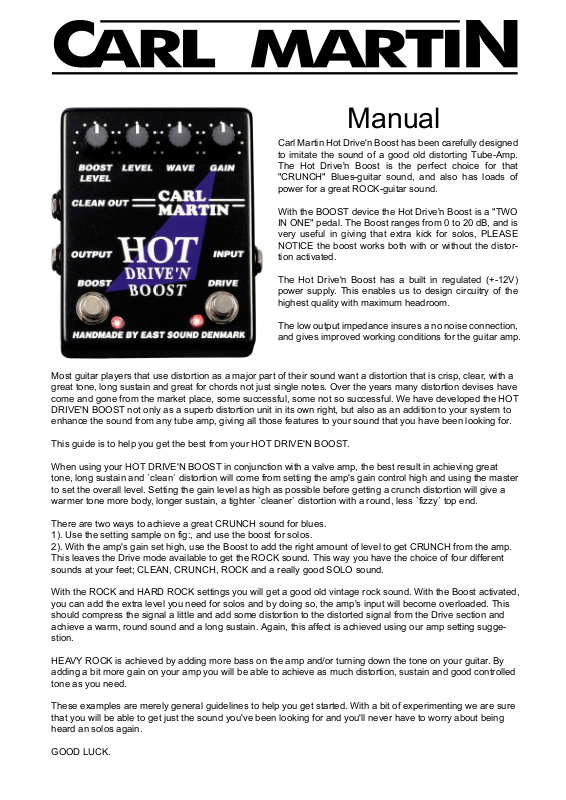

Carl Martin Hot Driven Boost User Manual

Manual

Carl Martin Hot Drive'n Boost has been carefully designed
to imitate the sound of a good old distorting Tube-Amp.
The Hot Drive'n Boost is the perfect choice for that
"CRUNCH" Blues-guitar sound, and also has loads of
power for a great ROCK-guitar sound.

With the BOOST device the Hot Drive'n Boost is a "TWO
IN ONE" pedal. The Boost ranges from 0 to 20 dB, and is
very useful in giving that extra kick for solos, PLEASE
NOTICE the boost works both with or without the distor
tion activated.

The Hot Drive'n Boost has a built in regulated (+-12V)
power supply. This enables us to design circuitry of the
highest quality with maximum headroom.

The low output impedance insures a no noise connection,
and gives improved working conditions for the guitar amp.

Most guitar players that use distortion as a major part of their sound want a distortion that is crisp, clear, with a
great tone, long sustain and great for chords not just single notes. Over the years many distortion devises have
come and gone from the market place, some successful, some not so successful. We have developed the HOT
DRIVE'N BOOST not only as a superb distortion unit in its own right, but also as an addition to your system to
enhance the sound from any tube amp, giving all those features to your sound that you have been looking for.

-

This guide is to help you get the best from your HOT DRIVE'N BOOST.

When using your HOT DRIVE'N BOOST in conjunction with a valve amp, the best result in achieving great
tone, long sustain and `clean` distortion will come from setting the amp's gain control high and using the master
to set the overall level. Setting the gain level as high as possible before getting a crunch distortion will give a
warmer tone more body, longer sustain, a tighter `cleaner` distortion with a round, less `fizzy` top end.

There are two ways to achieve a great CRUNCH sound for blues.

1). Use the setting sample on fig:, and use the boost for solos.

2). With the amp's gain set high, use the Boost to add the right amount of level to get CRUNCH from the amp.
This leaves the Drive mode available to get the ROCK sound. This way you have the choice of four different
sounds at your feet; CLEAN, CRUNCH, ROCK and a really good SOLO sound.

With the ROCK and HARD ROCK settings you will get a good old vintage rock sound. With the Boost activated,
you can add the extra level you need for solos and by doing so, the amp's input will become overloaded. This
should compress the signal a little and add some distortion to the distorted signal from the Drive section and
achieve a warm, round sound and a long sustain. Again, this affect is achieved using our amp setting sugge­stion.

HEAVY ROCK is achieved by adding more bass on the amp and/or turning down the tone on your guitar. By
adding a bit more gain on your amp you will be able to achieve as much distortion, sustain and good controlled
tone as you need.

These examples are merely general guidelines to help you get started. With a bit of experimenting we are sure
that you will be able to get just the sound you've been looking for and you'll never have to worry about being
heard an solos again.

GOOD LUCK.

Sample Settings

Amplifier

Gain

Bass

Middle Treble

Master

Boost

Rock

Boost

Power Requirements
Unit’s built after January 2016 comes with the innovative Carl Martin DC/DC circuitry that delivers internally

+-12V regulated.
Power consumption: max. 60 mA
Power supply: 9 V DC (regulated), 80 mA minimum, 2.1 mm female plug, center negative (-)
PLEASE NOTICE: It’s not possible to use battery, only external power supply (not included)
ATTENTION: Please Use DC Power Supply Only! Failure to do so may damage the unit and void the warranty.

Unit’s built before January 2016 comes with a built in mains power supply either in 100 or 115 or 230 VAC
50/60 Hz, that deliver internally +-12V regulated Power consumption: 2,4Watts.
PLEASE NOTICE: If purchased in USA (115V) it cannot be used in country’s where 230V is used, you will burn
the built in transformer.

Level Wave

Gain

Boost

Crunch

Level Wave

Heavy

Level Wave

Gain

Gain

Specifications

Input……..........……........ 1M Ohm

Output………………........ 200 Ohm

S/N Ratio......................... 80 dB (clean out)

Gain Max......................... +80 dB

Warranty: Carl Martin Research warrants the manufacturing, material and proper operation for a period of one
year from date of purchase. Carl Martin will replace defective parts, make necessary repairs or replace the
unit at the discression of our technicians. The warranty applies only to the original purchaser of this product,
and excludes any damage or faulty operation resulting from misuse, neglect or unauthorized service.

HandMade in Denmark
East Sound Research Raadmandsvej 24 8500 Grenaa Denmark Phone: [phone]
E-Mail: [e-mail]

Boost Max....................... +20 dB

Dimensions .................... 120 (W) x 95 (D) x 56 (H) mm

4.72” (W) x 3.74” (D) x 2.2” (H)

Weight............................. 625g / 1,38lbs
