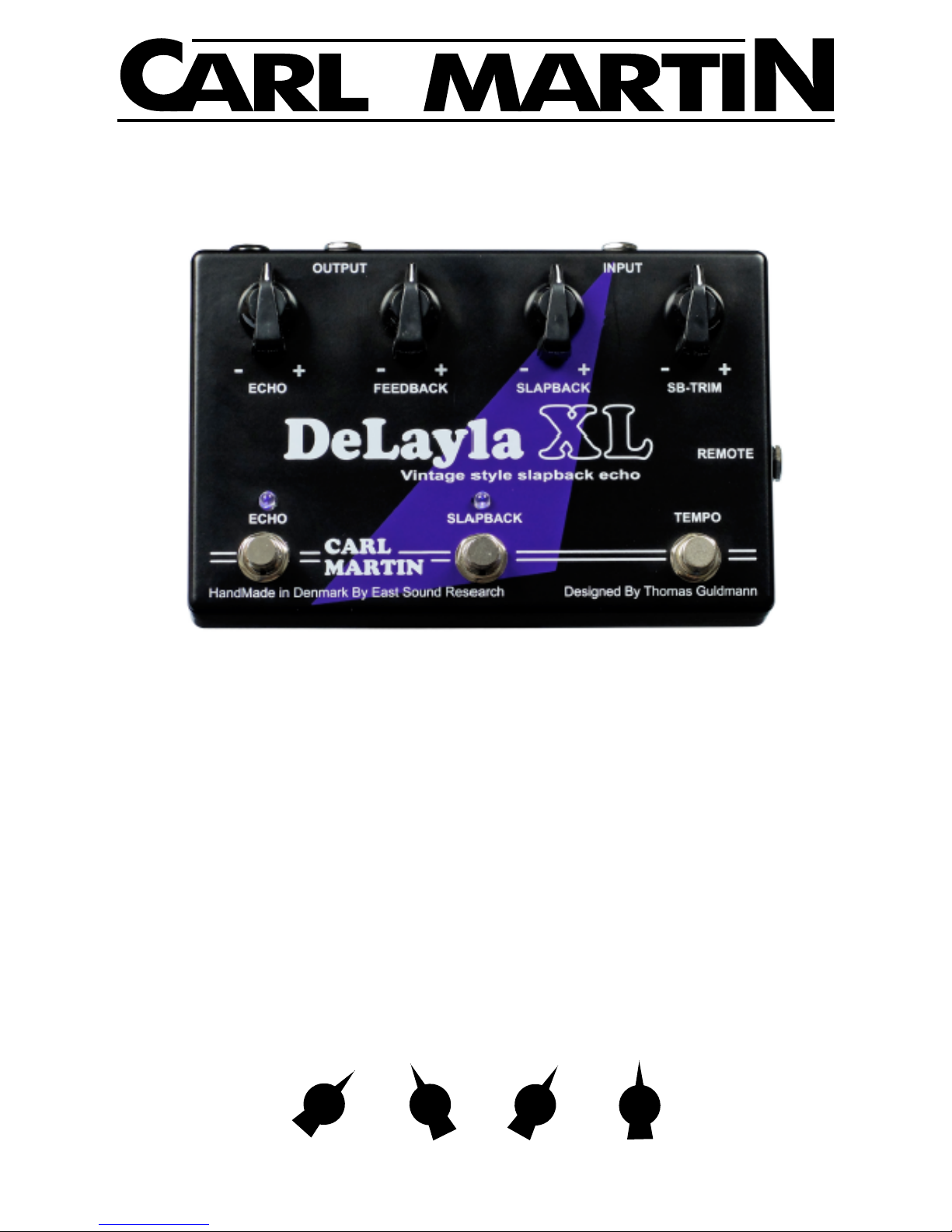

Carl Martin DeLayla XL User Manual

Manual

The Carl Martin DeLayla XL is designed and developed with one goal in mind: To create a superior echo pedal,
with the same sonic quality as the original DeLayla but with new extended features, yet incorporating some of
the same features used in vintage tape delay units.
To achieve this, we have incorporated a second delay head (slapback) (similar to using two heads simultane­ously on a tape delay).
The SLAPBACK footswitch is used to turn the second delay head on or off.
The SLAPBACK knob controls the mix of main delay vs. second delay head. Clockwise movement favors the
second delay head; Counter clockwise favors the main delay.
The SB-TRIM knob fine tune the second delay head's time setting compared to the original delay head, by this
it's possible to create different delay patterns, going from strict slapback to way offbeat. The TEMPO tap is a real
time tempo learn function, allowing you to foot tap the delay time to match the exact beat of the song.
The Carl Martin DeLayla XL also features a built in regulated power supply.
The result is a warm, smooth sound reminiscent of the vintage tape units used in the 50's and 60's, combined
with modern features.
The Carl Martin DeLayla XL is able to capture one of the hardest sounds: That authentic rock'n roll slapback
echo, that digital processors are unable to emulate.

ECHO FEEDBACK

SLAPBACK

SB-TRIM

Sample Settings

Echo and slapback activated, and with SB-trim in center position will give a slapback effect with the second tone
head 50% after the original echo (double the tempo).

- +

- +- +

- +

ECHO FEEDBACK

SLAPBACK

SB-TRIM

Echo and slapback activated, and with SB-trim in center position will give a slapback effect with the second tone
head 50% after the original echo (double the tempo).

- +

- +- +

- +

Echo and slapback activated, and with SB-trim clockwise will give an effect with the second tone head
between 50-90 % after the original echo, these settings will with longer feedback settings give a more on beat
rhythm pattern depending on the actual SM-trim setting.

ECHO FEEDBACK

SLAPBACK

SB-TRIM

- +

- +- +

- +

PLEASE NOTICE: When plugging in the mains power, the unit will be either at minimum or max delay time,
therefore always tap the tempo needed before start playing.

Warranty: Carl Martin Research warrants the manufacturing, material and proper operation for a period of one
year from date of purchase. Carl Martin will replace defective parts, make necessary repairs or replace the
unit at the discression of our technicians. The warranty applies only to the original purchaser of this product,
and excludes any damage or faulty operation resulting from misuse, neglect or unauthorized service.

HandMade in Denmark
East Sound Research Raadmandsvej 24 8500 Grenaa Denmark Phone: [phone]
E-Mail: [e-mail]

Specifications

Input……..........……........ 1M Ohm

Output………………........ 100 Ohm

S/N Ratio......................... 68 dB

THD distortion.................. 0,1%

Frequency range.............. 40 hZ - 16kHz

Delay Min........................ 20 m.sec

Delay max....................... 1000 m.sec

Dimensions .................... 186 (W) x 120 (D) x 55 (H) mm

7.31” (W) x 4.72” (D) x 2.16” (H)

Weight............................. 820g / 1,81lbs

Power Requirements

The DeLayLa XL comes with a built in mains power supply, that deliver internally +-12V regulated
Power consumption: 2,1Watts.
The DeLayLa XL will be delivered either in 100 or 115 or 230 VAC 50/60 Hz versions depending on the
country’s requirements
PLEASE NOTICE: If the PlexiTone is purchased in USA (115V) it can not be used in country’s where 230V is
used, you will burn the built in transformer.
