Carina Sewing Machine Instruction Book

GEBRAUCHSANLEITUNG

INSTRUCTION BOOK

GEBRAUCHSANLEITUNG

INSTRUCTION BOOK

WIEDERVERWERTUNG

RECYCLING

Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection
facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new one, the retailer is legally obligated to take back
your old appliance for disposal at least for free of charge.

Entsorgen Sie elektrische Geräte nicht im Hausmüll, nutzen Sie die Sammelstellen der Gemeinde.

Fragen Sie ihre Gemeindeverwaltung nach den Standorten der Sammelstellen.

Wenn elektrische Geräte unkontrolliert entsorgt werden, können während der Verwitterung
gefährliche Stoffe ins Grundwasser und damit in die Nahrungskette gelangen, oder die Flora
und Fauna auf Jahre vergiftet werden.

Wenn Sie das Gerät durch ein neues ersetzen, ist der Verkäufer gesetzlich verpflichtet, das
alte mindestens kostenlos zur Entsorgung entgegenzunehmen.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed:
Read all instructions before using this needle felting machine.

1

1. Do not allow this appliance to be used as a toy. Close attention is necessary when the machine
is used by or near children.

2. Use this appliance only for its intended use as described in this manual.
Use only attachments recommended by the manufacturer as contained in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly , if it has
been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized
dealer of service center for examination, repair,electrical or mechanical adjustment.

4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the felting
machine and foot controller free from the accumulation of lint, dust, and loose cloth.

5. Keep fingers away from all moving parts. Special care is required around the felting machine needles.

6. Always use the proper needle plate. The wrong plate can cause the needle to break.

7. Do not use bent needles.

8. Do not pull of push fabric while stitching. It may deflect the needle causing it to break.

9. Switch the sewing machine off "O" when making any adjustments in the needle area.
Such as changing needle, changing needle plate, or changing cloth presser foot, and the like.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons.

DANGER - To reduce the the risk of electric shock:

1. The appliance should never be left unattended when plugged in.

2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.

3. Always unplug before re-lamping.
Replace bulb with same type rated 15watts/110 volts in 110V/120V area.
( 15 watts 230 volts in 220V/240V area ).

"Read all instructions before using"

2

10. Always unplug the machine from the electrical outlet when removing covers, lubricating, or when
making any other user servicing adjustments mentioned in the instruction manual.

11. Never drop or insert any object into any opening.

12. Do not use outdoors.

13. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.

14. To disconnect, turn all controls to the off O” position, then remove plug from outlet.

15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

“

"SAVE THESE INSTRUCTIONS"

"This needle felting machine is intended for household use only"

1. Overview of the felting machine

1. Screwdriver

2. Hexagon wrench

3. Set of needles

4. Cleaning brush

5. Machine cover

6. Instruction book

7. Foot controller

1. Hand wheel

2. Socket for foot controller

3. Power switch

4. Needle clamp holder

5. Needle plate

6. Sewing table

7. Accessory strage.

8. Cloth presser height adjusting screw

9. Cloth presser

9

8

7

6

5

4

3

2

1

1

5

6

2

3

4

7

3

Accessories

ON

OFF

4

2. Setting up machine

4. Cloth Press

The cloth presser is to prevent
cloth/fabric/materials
from flapping during the felting process.
Place the cloth/fabric/materials on the
needle plate and under the cloth presser.
Loosen the presser height adjusting
screw to adjust the height of the cloth
presser until you get the correct height for
your cloth/fabric/material, then tighten the
presser height adjusting screw.
The cloth/fabric/materials should move
freely under the cloth presser without any
restrictions.

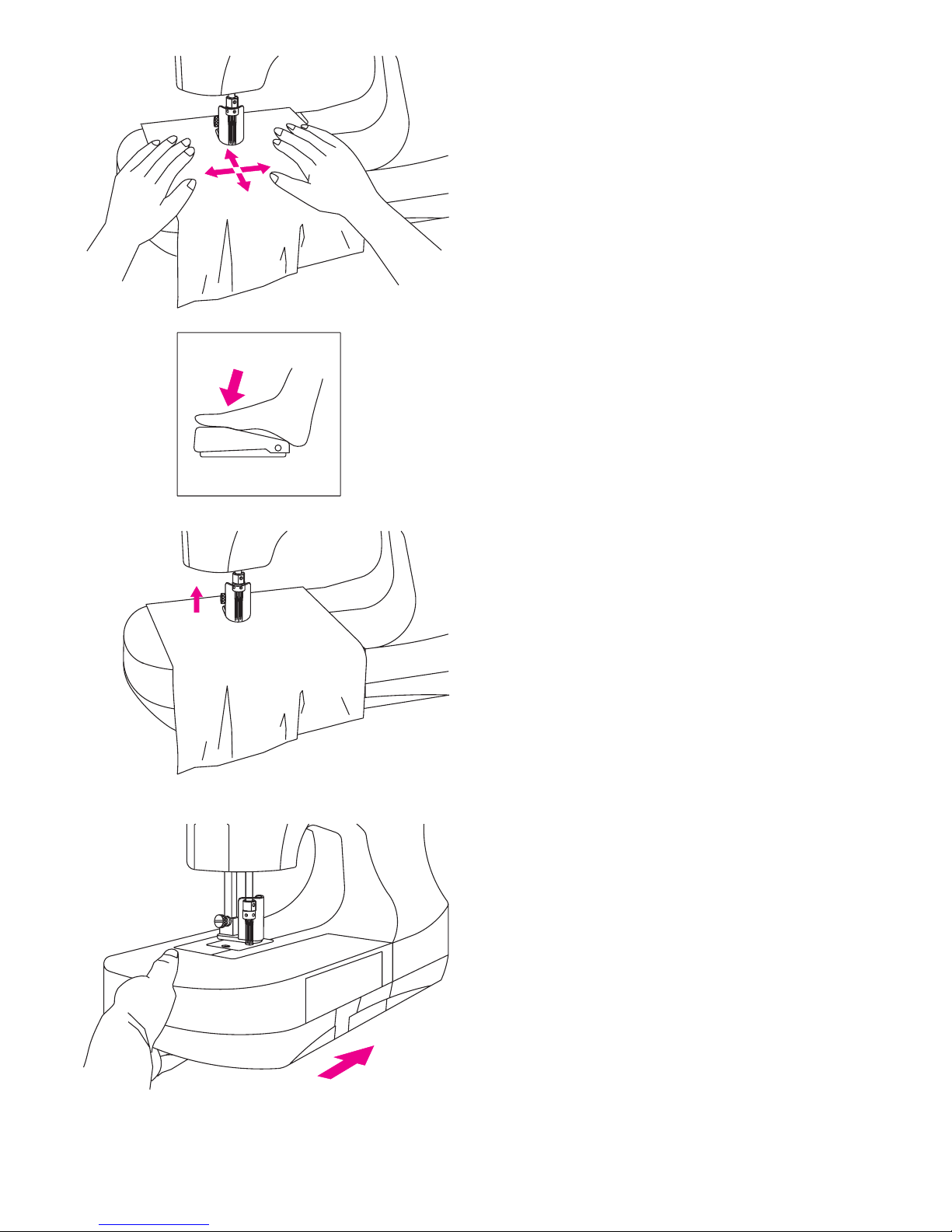

3. Felting speed

The felting speed can be adjusted by
increasing or decreasing the pressure on the
foot controller.

2. Polarized Plug

This appliance has a polarized plug(one
blade wider than the other). To reduce the
risk of electric shock, this plug is intended
to fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet,
reverse the plug. If is still does not fit,
contact a qualified electrician to install the
proper outlet.
Do not modify the plug in any way.

Use only foot controller provided with this
machine.
(Type 4C-316B for U.S.A. & CANADA only)

1. Attaching the foot control

Plug the power cord of foot controller into
machine socket, then into a wall outlet.
Always make sure the power is off and
remove the plug from the wall outlet when
the machine is not in use, or when making
any adjustments such as changing needles
or light bulb.

WARNING:

5

Pre-washing all fabrics before sewing does not apply. With the needle felting machine, you want the
finished project to “shrink” so the felted fibers will stay meshed.
With this in mind, be sure to make the project a little large to allow for shrinkage.

Because of not pre-washing fibers before embellishing, color fading can occur when working with
bright and contrasting colors. Be sure to make a test sample and wash it for best results.

NOTE: Laundering rules of “pre-washing”:

To determine if your embellished project is washable, it is recommended that you do a test sample
first from the fabrics you intend to use. Wash the finished sample the same way you will wash it after
the project is completed.
For example, if you plan on washing the completed project with a load of jeans and then into the dryer,
then do so with the sample. Do not “pamper” unless you plan on pampering the finished project.

Can I launder my embellished projects?

Just about any fabric can be felted with the needle felting machine, however, Some fabrics tend to
have more favorable results when embellishing or laundering afterward.
The recommended fabrics and trims are those made from natural fibers, such as linen, wool, wool
roving, and wool or cotton yarns. The best characteristic for fabrics is a napped or textured surface.
A napped surface will adhere to a natural fiber/napped surface/or mixed fiber base.
Avoid synthetics with “wash and wear” type of weaves and finishes that has a smooth surface.

What kind of fabrics and trims can I use with the needle felting machine?

Let your creativity soar with this needle felting machine! Now you can create your projects even
more distinctive. Let your imagination run unlimitedly to create beautiful felted embellishment on
your arts and crafts, home decorating, quilting, sewing, and scrap booking.

3. Start Embellishing
