Carewell Electric Technology FAN67T3SP User Manual

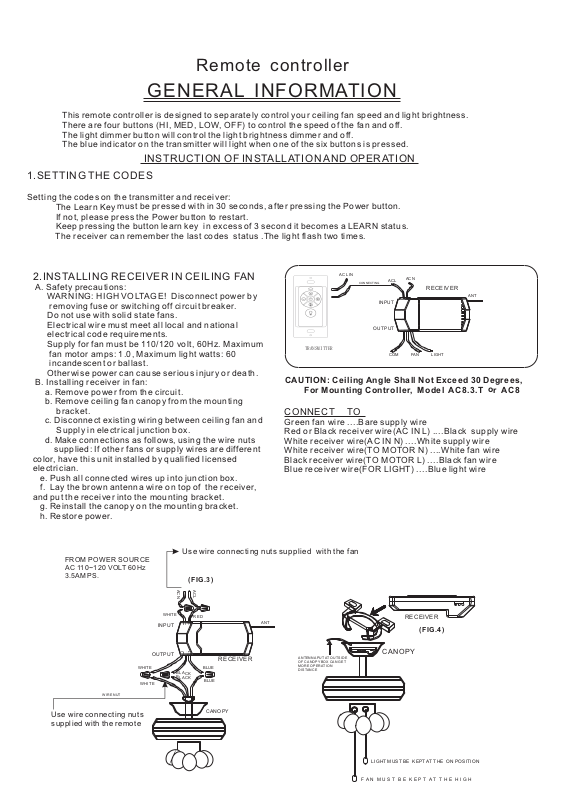

Remote controller

GENERAL INFORMATION

This remote controller is designed to separately control your ceiling fan speed and light brightness. There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off. The light dimmer button will control the light brightness dimmer and off. The blue indicator on the transmitter will light when one of the six buttons is pressed.

INSTRUCTION OF INSTALLATION AND OPERATION

1.SETTING THE CODES

Setting the codes on the transmitter and receiver:

The Learn Key

If not, please press the Power button to restart.

Keep pressing the button learn key in excess of 3 second it becomes a LEARN status.

The receiver can remember the last codes status .The light flash two times.

must be pressed with in 30 seconds, after pressing the Power button.

2.INSTALLING RECEIVER IN CEILING FAN

A. Safety precautions: WAR NI NG : HI GH V OLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with solid state fans. Electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor amps: 1.0, Maximum light watts: 60 incandescent or ballast. Otherwise power can cause serious injury or death. B. Installing receiver in fan: a. Remove power from the circuit. b. Remove ceiling fan canopy from the mounting bracket. c. Disconnect existing wiring between ceiling fan and Supply in electrical junction box. d. Make connections as follows, using the wire nuts supplied: If other fans or supply wires are different color, have this unit installed by qualified licensed electrician. e. Push all connected wires up into junction box. f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket. g. Reinstall the canopy on the mounting bracket. h. Restore power.

ACL IN

CONN ECTIN G

OUT PUT

TRANSMITTER

INP UT

ACL

COM

ACN

FAN

RECEIV ER

LIG HT

ANT

CAUTION: Ceiling An gl e Sh al l No t Ex ce ed 3 0 De gr ee s,

For Mounting Controller, Model AC8 .3 .T

CONN ECT TO

Green fan wire ....Bare supply wire

Red or Black receiver wire(AC IN L) ....Black supply wire

White receiver wire(AC IN N) ....White supply wire

White receiver wire(TO MOTO R N) . .. .W hi te f an w ir e

Black receiver wire(TO MOTO R L) . .. .B la ck f an w ir e

Blue receiver wire(FOR LIGHT) ....Blue light wire

AC8

FROM PO WER SOU RC E AC 110~1 20 VOLT 60H z

3.5AM PS.

WHI TE

WIRE N UT

Use wire co nn ecting nu ts supplie d wi th the remo te

WHI TE

INP UT

OUT PUT

Use wire conn ec ting nuts suppl ie d with the fan

(FIG. 3)

ACN

A C L

RED

BLU E

CAN OPY

ANT

ANTE NNA PUT AT OUTS IDE OF CAN OPY BOX C AN GET MORE O PERATI ON DISTA NCE

RECEI VER

(FIG. 4)

CANOPY

LIG HT MUST BE K EPT AT THE ON PO SITIO N

F A N M U S T B E K E P T A T T H E H I G H

3. OPERATING TRANSMITTER: A. Install12volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).

B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go on and off without using your remote control, simply change the code combination in your transmitter and receiver. D. Operating the buttons on the panel of the transmitter. HI key -for fan high speed. MED key-for fan medium speed. LOW key-for fan low speed. OFF key-for fan off. LIGHT/DIMMER key-for light brightness and off. LIGHT/DELAY ke y- fo r li gh t af te r 3 mi nu te s de la y off. The light function is controlled by pressing the LIGHT/DIMMER key down to increase or decrease light. Tap k ey q ui ck ly t o tu rn l ig ht o ff or on. Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second. The receiver can remember the last status of the light brightness when the light was switched, so that it can resume to adjust the light brightness.

FCC Statement:

1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to Part 15 or the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may casue harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--- Reorient or relocate the receiving antenna.

--- Increase the separation between the equipment and receiver.

--- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--- Consult the dealer or an experienced radio/ TV technician for help. Industry Canada Notice This device complies with Industry Canada licence-exempt RSS standard(s). 1.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."

2.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Avis d’Industrie Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil numérique ne dépasse pas les Rèlements sur l’interférence radio par un appareil numérique de classe B stipulées dans les Règlement sur l’interférence redio d’industrie Canada.

YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.

Optional Wa ll M ou nt in g fo r Tra ns mi tt er H ol de r Place in accessible area of your home, and screw the transmitter holder into wall using the two screws provided, slide hand unit into holder.

OPERATION D ISTA NCE 2 0 FEET

4. TROUBLE SHOOTING GUIDE

1. Fails to operate a. Power to receiver ? b. Receiver wired correctly ? c. Fan manual speed control in highest position ? d. Light kit switch turned on ? e. Good battery in the transmitter ? f. Code set at exact same positions in both transmitter and receiver ?

2. Won't o pe ra te a t di st an ce If transmitter operates fan/light kit when up close, but not at 20 feet away. Try placing the brown antenna wire higher, up through ceiling/outside the junction box.

TRANS MIT TER

MODEL: FAN

NOTICE !

Your ceiling fan and light kit assembly must meet the following requirements:

1. Do not use with solid state fans.

2. Electrical rating: 120v 60Hz 3.5A MAX. Motor amps: 1.0 MAX. Light watts: 60-(incandescent or ballast)

WARNING

TO RE DU CE THE RISK OF SHOCK, THIS FAN MUST BE I NS TALLED WITH A WALL CONTROL/SWITCH. NOTE: THE MANUFACTURER IS NOT RE SP ON SI BL E FO R ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATI ON S TO TH IS E QU IP ME NT. SU CH M OD IF IC ATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

67T-3SP
