Carewell Electric Technology DC1 Users manual

Remote controller

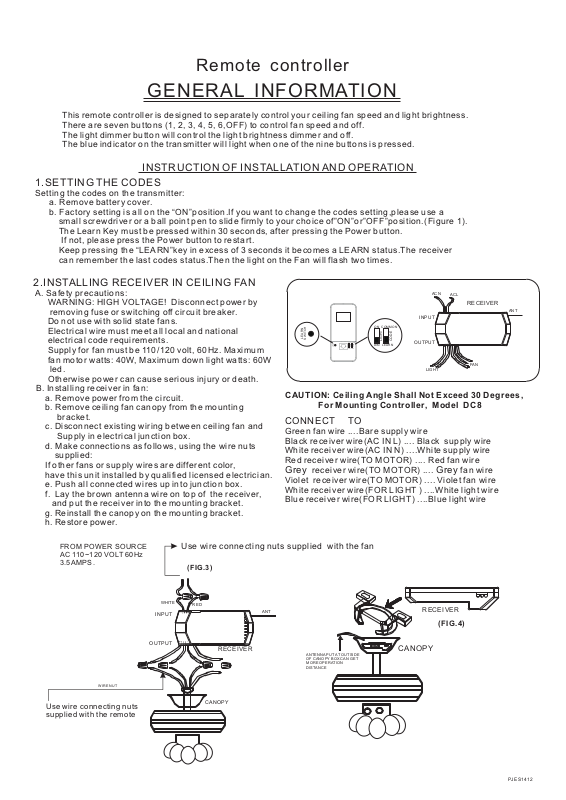

GENERAL INFORMATION

This remote controller is designed to separately control your ceiling fan speed and light brightness. There are seven buttons (1, 2, 3, 4, 5, 6,OFF) to control fan speed and off. The light dimmer button will control the light brightness dimmer and off. The blue indicator on the transmitter will light when one of the nine buttons is pressed.

INSTRUCTION OF INSTALLATION AND OPERATION

1.SETTING THE CODES

Setting the codes on the transmitter: a. Remove battery cover. b. Factory setting is all on the “ON”position.If you want to change the codes setting,please use a small screwdriver or a ball point pen to slide firmly to your choice of”ON”or”OFF”position.(Figure 1).

The Learn Key must be pressed within 30 seconds, after pressing the Power button. If not, please press the Power button to restart. Keep pressing the “LEARN”key in excess of 3 seconds it becomes a LEARN status.The receiver can remember the last codes status.Then the light on the Fan will flash two times.

2.INSTALLING RECEIVER IN CEILING FAN

ACN

A. Safety precautions: WAR NI NG : HI GH V OLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with solid state fans. Electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor watts: 40W, Maximum down light watts: 60W led. Otherwise power can cause serious injury or death. B. Installing receiver in fan: a. Remove power from the circuit. b. Remove ceiling fan canopy from the mounting bracket. c. Disconnect existing wiring between ceiling fan and Supply in electrical junction box. d. Make connections as follows, using the wire nuts supplied:

If other fans or supply wires are different color, have this unit installed by qualified licensed electrician. e. Push all connected wires up into junction box. f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket. g. Reinstall the canopy on the mounting bracket. h. Restore power.

COMM ON

LEAR N

SWIT CH

COMMON

LEARN

SWITCH

CODE

LIGHT

DIM

LEARN

LIGH T

DIM

LEAR N

INP UT

CODE

OUT PUT

CAUTION: Ceiling An gl e Sh al l No t Ex ce ed 3 0 De gr ee s, For Mounting Controller, Model DC8

CONN ECT TO

Green fan wire ....Bare supply wire

Black receiver wire(AC IN L) .... Black supply wire

White receiver wire(AC IN N) ....White supply wire

Red receiver wire(TO MOTO R) . .. . Re d fa n wi re

Grey r ec ei ve r wi re (TO MOTOR) .... Grey fan wire

Violet receiver wire(TO M OTOR) .... Violet fan wire

White receiver wire(FOR LIGHT ) ....White light wire

Blue receiver wire(FOR LIGHT) ....Blue light wire

ACL

LIG HT

RECEIV ER

FAN

ANT

FROM POWE R SOURC E AC 110~1 20 VOLT 60Hz

3.5AMPS .

WIRE N UT

Use wire co nn ecting nu ts supplie d wi th the remo te

WHI TE

INP UT

OUT PUT

Use wire connecting nuts supplied with the fan

(FIG.3)

RED

CAN OPY

ECEI

VER

ANT

ANTE NNA PUT AT OUT SIDE OF CAN OPY BOX C AN GET MORE O PERATI ON DISTA NCE

RECEI VER

(FIG.4)

CANOPY

PJE S1412

3. OPERATING TRANSMITTER: A. Install 3 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).

B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with rolling code combinations. In order to prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go on and off without using your remote control, simply change the code combination in your transmitter and receiver. D. Operating the buttons on the panel of the transmitter. 1-6 key -for fan speed control. REV key-for fan REV. OFF key-for fan off. LIGHT key-for down light brightness . The light function is controlled by pressing the LIGHT ke y do wn t o in cr ea se o r de cr ea se l ig ht . Tap k ey q ui ck ly t o tu rn l ig ht o ff or on. Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second. The receiver can remember the last status of the light brightness when the light was switched, so that it can resume to adjust the light brightness. FCC Statement:

Th is de vice is in con formance w ith Par t 15 of the F CC Rules and Reg ula tions f or In formatio n Tec hnolo gy Eq uip ment. Operat ion o f this produ ct is s ubjec t to th e follo win g two condit ion s: Th is de vice ma y not c ause ha rmf ul inte rfe rence , and ( 2) this devi ce mu st acce pt any inter ference re cei ve d, in clu ding inter ference th at may ca use u ndesired o perat ion .

Industry Canada Notice This device complies with Industry Canada licence- exempt RSS standard(s) .

1. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. "

2.Changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.

Avis d'Industrie Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L' exploitation est autorisée aux deux conditions suivantes : (1) l ' ap pa re il n e do it p as p ro du ir e de b ro ui ll ag e, et ( 2 ) l'utilisateur de l'a pp ar ei l do it a cc ep te r to ut b ro ui ll ag e ra di oéle ct ri qu e su bi , même si le brouillage est susceptible d' en compromettre le fonctionnement. Cet appareil numérique ne dépasse pas les Rèlemenrs sur l' interférence radio par un appareil numérique de classe B stipulées dans les Règlement ent sur l'interférence redio d'industrie Canada.

YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.

OPERATIO N DI STANCE 20 FE ET

SIZ E: AAA 1.5V

COMMON

SIZE: AA A 1.5V

CODE

LIGHT

DIM

LEARN

SWITCH

Optional Wa ll M ou nt in g fo r Tra ns mi tt er H ol de r Place in accessible area of your home, and screw the transmitter holder into wall using the two screws provided, slide hand unit into holder.

4. TROUBLE SHOOTING GUIDE

1. Fails to operate a. Power to receiver ? b. Receiver wired correctly ? c. Fan manual speed control in highest position ? d. Light kit switch turned on ? e. Good battery in the transmitter ? f. Code set at exact same positions in both transmitter ?

2. Won't o pe ra te a t di st an ce If transmitter operates fan/light kit when up close, but not at 20 feet away. Try placing the brown antenna wire higher, up through ceiling/outside the junction box.

NOTICE !

Your ceiling fan and light kit assembly must meet the following requirements:

1. Do not use with solid state fans.

2. Electrical rating: 120v 60Hz 3.5A MAX. Motor watts: 40W MAX. Light watts: 60W (led)

SIZ E: AAA 1.5V

TRANSMITTER

MODEL: DC1

WARNING

TO RE DU CE THE RISK OF SHOCK, THIS FAN MUST BE I NS TALLED WITH A WALL CONTROL/SWITCH. CAUTION: High Voltage-Disconnect power supply before servicing. DANGER-To Reduce the RISK of Electric Shock-Do not connect to a circuit operating at more than 150 volts to ground.

PJE S1412
