Carewell Electric Technology AC83T1 User Manual

Remote controller

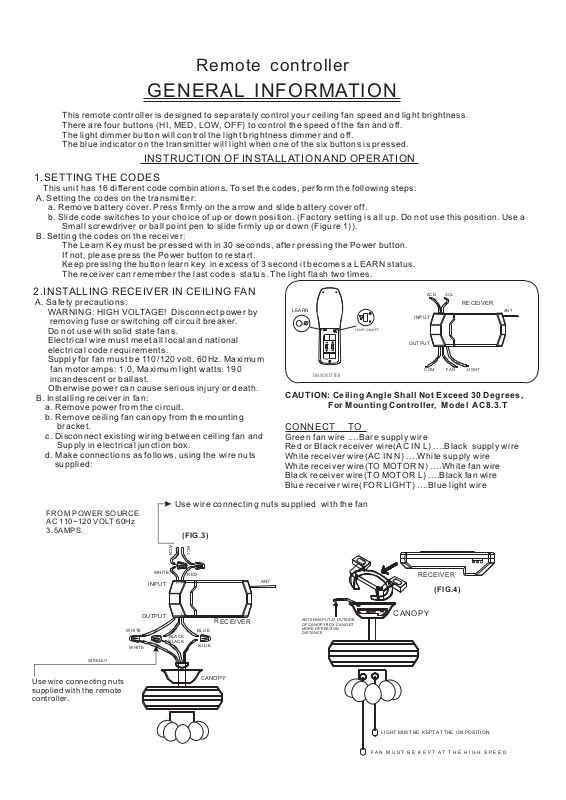

GENERAL INFORMATION

This remote controller is designed to separately control your ceiling fan speed and light brightness.
There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
The light dimmer button will control the light brightness dimmer and off.
The blue indicator on the transmitter will light when one of the six buttons is pressed.

INSTRUCTION OF INSTALLATION AND OPERATION

1.SETTING THE CODES

This unit has 16 diff er en t co de c om bi na ti on s. To set the codes, perform the following steps:
A. Setting the codes on the transmitter:
a. Remove battery cover. Press firmly on the arrow and slide battery cover off.
b. Slide code switches to your choice of up or down position. (Factory setting is all up. Do not use this position. Use a
Small screwdriver or ball point pen to slide firmly up or down (Figure 1)).
B. Setting the codes on the receiver:

If not, please press the Power button to restart.

The receiver can remember the last codes status .The light flash two times.

The Learn Key must be pressed with in 30 seconds, after pressing the Power button.

Keep pressing the button learn key in excess of 3 second it becomes a LEARN status.

2.INSTALLING RECEIVER IN CEILING FAN

A. Safety precautions:
WAR NI NG : HI GH V OLTAGE! Disconnect power by
removing fuse or switching off circuit breaker.
Do not use with solid state fans.
Electrical wire must meet all local and national
electrical code requirements.
Supply for fan must be 110/120 volt, 60Hz. Maximum
fan motor amps: 1.0, Maximum light watts: 190
incandescent or ballast.
Otherwise power can cause serious injury or death.
B. Installing receiver in fan:
a. Remove power from the circuit.
b. Remove ceiling fan canopy from the mounting
bracket.
c. Disconnect existing wiring between ceiling fan and
Supply in electrical junction box.
d. Make connections as follows, using the wire nuts
supplied:

FROM POWE R SO URCE
AC 110~1 20 V OLT 60 Hz

3.5AMPS .

Use wire connecting nuts supplied with the fan

(FIG.3)

ACN

A
C
L

ACN

ACL

FAN

RECEIV ER

LIG HT

ANT

LEA RN

TRANSMITTER

INP UT

LIGH T ON/OF F

OUT PUT

COM

CAUTION: Ceiling An gl e Sh al l No t Ex ce ed 3 0 De gr ee s,
For Mounting Controller, Model AC8 .3 .T

CONN ECT TO

Green fan wire ....Bare supply wire

Red or Black receiver wire(AC IN L) ....Black supply wire

White receiver wire(AC IN N) ....White supply wire

White receiver wire(TO MOTO R N) . .. .W hi te f an w ir e

Black receiver wire(TO MOTO R L) . .. .B la ck f an w ir e

Blue receiver wire(FOR LIGHT) ....Blue light wire

WIRE N UT

Use wire co nn ecting nu ts
supplie d wi th the remo te
control le r.

WHI TE

WHI TE

WHI TE

INP UT

OUT PUT

RED

ANT

RECEI VER

(FIG.4)

R

ECE

IV

E

BLU E

B

L

AC

K

B

L

ACK

BLU E

CAN OPY

R

ANTE NNA PUT AT OUT SIDE
OF CAN OPY BOX C AN GET
MORE O PERATI ON
DIS TANCE

CANOPY

LIG HT MUST BE K EPT AT THE ON PO SITIO N

F A N M U S T B E K E P T A T T H E H I G H S P E E D

If other fans or supply wires are different color, have this unit installed by qualified licensed electrician.
e. Push all connected wires up into junction box.
f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket.
g. Reinstall the canopy on the mounting bracket.
h. Restore power.

3. OPERATING TRANSMITTER:
A. Install 12 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).

B. Store the transmitter away from excessive heat or humidity.
C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to
other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go
on and off without using your remote control, simply change the code combination in your transmitter and receiver.
D. Operating the buttons on the panel of the transmitter.
HI key -for fan high speed.
MED key-for fan medium speed.
LOW key-for fan low speed.
OFF key-for fan off.
LIGHT/DIMMER key-for light brightness and off.
LIGHT/DELAY ke y- fo r li gh t af te r 3 mi nu te s de la y off.
The light function is controlled by pressing the LIGHT/DIMMER key down to increase or decrease light.
Tap k ey q ui ck ly t o tu rn l ig ht o ff or on.
Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second.
The receiver can remember the last status of the light brightness when the light was switched, so that it can
resume to adjust the light brightness.

YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.

OPERATIO N DI STANCE 20 FE ET

LR0 3 1.5V AAA

LR0 3 1.5V AAA

Optional Wa ll M ou nt in g fo r Tra ns mi tt er H ol de r
Place in accessible area of your home, and screw the
transmitter holder into wall using the two screws
provided, slide hand unit into holder.

4. TROUBLE SHOOTING GUIDE

1. Fails to operate
a. Power to receiver ?
b. Receiver wired correctly ?
c. Fan manual speed control in highest position ?
d. Light kit switch turned on ?
e. Good battery in the transmitter ?
f. Code set at exact same positions in both transmitter and receiver ?

2. Won't o pe ra te a t di st an ce
If transmitter operates fan/light kit when up close, but not at 20 feet away.
Try placing the brown antenna wire higher, up through ceiling/outside the junction box.

TRANSMITTER

MODEL:
FAN61T-3S

NOTICE !

Your ceiling fan and light kit assembly must meet the following requirements:

1. Do not use with solid state fans.

2. Electrical rating: 120v 60Hz 3.5A
MAX. Motor amps: 1.0
MAX. Light watts: 190-(incandescent or ballast)

WARNING

TO RE DU CE THE RISK OF SHOCK, THIS FAN MUST BE I NS TALLED WITH A WALL CONTROL/SWITCH.
NOTE: THE MANUFACTURER IS NOT RE SP ON SI BL E FO R ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATI ON S TO TH IS E QU IP ME NT. SU CH M OD IF IC ATIONS COULD VOID THE

USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
