Carel pCO series, pCO3 series, pCO1 series, pCOxs series, pCOC series User Manual

pCO sistema

General manual

User manual

LEGGI E CONSERVA

QUESTE ISTRUZIONI



READ AND SAVE 

THESE INSTRUCTIONS

We wish to save you time and money! We can assure you that the thorough reading of this manual will guarantee correct installation and safe use of the product described.

IMPORTANT WARNINGS

CAREL bases the development of its products on decades of experience in HVAC, on the continuous investments in technological innovations to products, procedures and strict quality processes with in-circuit and functional testing on 100% of its products, and on the most innovative production technology available on the market. CAREL and its subsidiaries nonetheless cannot guarantee that all the aspects of the product and the software included with the product respond to the requirements of the final application, despite the product being developed according to start-of-the-art techniques. The customer (manufacturer, developer or installer of the final equipment) accepts all liability and risk relating to the configuration of the product in order to reach the expected results in relation to the specific final installation and/or equipment. CAREL may, based on specific agreements, acts as a consultant for the positive commissioning of the final unit/application, however in no case does it accept liability for the correct operation of the final equipment/system.

The CAREL product is a state-of-the-art product, whose operation is specified in the technical documentation supplied with the product or can be downloaded, even prior to purchase, from the website www.carel.com. Each CAREL product, in relation to its advanced level of technology, requires setup/configuration/programming/commissioning to be able to operate in the best possible way for the specific application. The failure to complete such operations, which are required/indicated in the user manual, may cause the final product to malfunction; CAREL accepts no liability in such cases. Only qualified personnel may install or carry out technical service on the product. The customer must only use the product in the manner described in the documentation relating to the product.

In addition to observing any further warnings described in this manual, the following warnings must be heeded for all CAREL products:

• Prevent the electronic circuits from getting wet. Rain, humidity and all types of liquids or condensate contain corrosive minerals

that may damage the electronic circuits. In any case, the product should be used or stored in environments that comply with the temperature and humidity limits specified in the manual.

• Do not install the device in particularly hot environments. Too high temperatures may reduce the life of electronic devices,

damage them and deform or melt the plastic parts. In any case, the product should be used or stored in environments that comply with the temperature and humidity limits specified in the manual.

• Do not attempt to open the device in any way other than described in the manual.

• Do not drop, hit or shake the device, as the internal circuits and mechanisms may be irreparably damaged.

• Do not use corrosive chemicals, solvents or aggressive detergents to clean the device.

• Do not use the product for applications other than those specified in the technical manual.

All of the above suggestions likewise apply to the controllers, serial boards, programming keys or any other accessory in the CAREL product portfolio.

CAREL adopts a policy of continual development. Consequently, CAREL reserves the right to make changes and improvements to any product described in this document without prior warning.

The technical specifications shown in the manual may be changed without prior warning.

The liability of CAREL in relation to its products is specified in the CAREL general contract conditions, available on the website

www.carel.com

and/or by specific agreements with customers; specifically, to the extent where allowed by applicable legislation, in no case will CAREL, its employees or subsidiaries be liable for any lost earnings or sales, losses of data and information, costs of replacement goods or services, damage to things or people, downtime or any direct, indirect, incidental, actual, punitive, exemplary, special or consequential damage of any kind whatsoever, whether contractual, extra-contractual or due to negligence, or any other liabilities deriving from the installation, use or impossibility to use the product, even if CAREL or its subsidiaries are warned of the possibility of such damage.

Disposing of the parts of the controller

Disposing of the parts of the controllerDisposing of the parts of the controller

Disposing of the parts of the controller::::

INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE ELECTRICAL AND

INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE ELECTRICAL AND INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE ELECTRICAL AND

INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

ELECTRONIC EQUIPMENT (WEEE)ELECTRONIC EQUIPMENT (WEEE)

ELECTRONIC EQUIPMENT (WEEE)

In reference to European Union directive 2002/96/EC issued on 27 January 2003 and the related national legislation, please note that:

1. WEEE cannot be disposed of as municipal waste and such waste must be collected and disposed of separately;

2. The public or private waste collection systems defined by local legislation must be used. In addition, the equipment can be returned to the distributor at the end of its working life when buying new equipment;

3. The equipment may contain hazardous substances: the improper use or incorrect disposal of such may have negative effects on human health and on the environment;

4. The symbol (crossed-out wheeled bin) shown on the product or on the packaging and on the instruction sheet indicates that the equipment has been introduced onto the market after 13 August 2005 and that it must be disposed of separately;

5. In the event of illegal disposal of electrical and electronic waste, the penalties are specified by local waste disposal legislation.

Contents

ContentsContents

Contents

INTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION ................................

................................................................

.............................................

..........................

............. 7777

1.

1.1.

1. GENERAL FEATURES

GENERAL FEATURESGENERAL FEATURES

GENERAL FEATURES ................................

................................................................

.........................................................

..................................................

......................... 7777

1.1 Programmability .............................................................................................................................................................................................................................7

2.

2.2.

2. DESCRIPTION OF THE PRODUCTS

DESCRIPTION OF THE PRODUCTSDESCRIPTION OF THE PRODUCTS

DESCRIPTION OF THE PRODUCTS ................................

................................................................

.................................... 8888

2.1 pCO3 controller...............................................................................................................................................................................................................................8

2.2 pCO3 technical specifications .......................................................................................................................................................................................................11

2.3 pCO1 controller.............................................................................................................................................................................................................................14

2.4 pCO1 technical specifications .......................................................................................................................................................................................................16

2.5 pCOxs board ..................................................................................................................................................................................................................................19

2.6 pCOxs technical specifications .......................................................................................................................................................................................................20

2.7 pCOC controller.............................................................................................................................................................................................................................22

2.8 pCOC technical specifications .......................................................................................................................................................................................................24

3.

3.3.

3. USER TERMINALS

USER TERMINALSUSER TERMINALS

USER TERMINALS ................................

................................................................

............................................................

........................................................

............................ 27

2727

27

3.1 pGD0/pGD1, pGD2/pGD3 graphic terminals .............................................................................................................................................................................27

4.

4.4.

4. INSTALLING THE pCO CONTROLLER

INSTALLING THE pCO CONTROLLERINSTALLING THE pCO CONTROLLER

INSTALLING THE pCO CONTROLLER ................................

................................................................

...........................................................

......................................................

........................... 31

3131

31

4.1 General installation instructions ...................................................................................................................................................................................................31

4.2 Power supply ................................................................................................................................................................................................................................32

4.3 Connecting the analogue inputs ..................................................................................................................................................................................................32

4.4 Connecting the digital inputs .......................................................................................................................................................................................................36

4.5 Connecting the analogue outputs................................................................................................................................................................................................38

4.6 Connecting the digital outputs .....................................................................................................................................................................................................39

5.

5.5.

5. Configuration of the pLAN network

Configuration of the pLAN networkConfiguration of the pLAN network

Configuration of the pLAN network ................................

................................................................

..............................................................

............................................................

.............................. 41

4141

41

5.1 Introduction ..................................................................................................................................................................................................................................41

5.2 Installing the pGD0 and pGD1 terminals ....................................................................................................................................................................................43

5.3 Installing the pGD2 and pGD3 terminals ....................................................................................................................................................................................44

5.4 Installing the Aria terminal ...........................................................................................................................................................................................................45

5.5 Setting the pLAN address on the pCO1, pCOXS, pCOC and pCO3 .................................................................................................................................................46

5.6 pLAN electrical connections between the pCO controllers .........................................................................................................................................................46

5.7 Remote installation of a terminal in a pLAN network..................................................................................................................................................................47

5.8 pLAN network technical specifications.........................................................................................................................................................................................48

6.

6.6.

6. OPTIONS AND EXTERNAL MODULES

OPTIONS AND EXTERNAL MODULESOPTIONS AND EXTERNAL MODULES

OPTIONS AND EXTERNAL MODULES ................................

................................................................

...........................................................

......................................................

........................... 49

4949

49

6.1 Connectors ...................................................................................................................................................................................................................................50

6.2 Optional pCO sistema boards......................................................................................................................................................................................................50

6.3 Signal LEDs and software updates ...............................................................................................................................................................................................54

7.

7.7.

7. Updates,

Updates,Updates,

Updates, Firmware and Logs for pCO controllers

Firmware and Logs for pCO controllersFirmware and Logs for pCO controllers

Firmware and Logs for pCO controllers ................................

................................................................

.....................................................

..........................................

..................... 55

5555

55

7.1 WINLOAD.....................................................................................................................................................................................................................................55

7.2 Smart Key .....................................................................................................................................................................................................................................56

7.3 NAND FLASH memory.................................................................................................................................................................................................................56

7.4 Checking the software installed on the pCO and other information ..........................................................................................................................................56

8.

8.8.

8. General connection

General connectionGeneral connection

General connection diagrams

diagramsdiagrams

diagrams ................................

................................................................

........................................

................

........ 58

5858

58

9.

9.9.

9. Troubleshooting

TroubleshootingTroubleshooting

Troubleshooting ................................

................................................................

..............................................................

............................................................

.............................. 62

6262

62

10.

10.10.

10.

Networks and Protocols

Networks and ProtocolsNetworks and Protocols

Networks and Protocols................................

................................................................

..................................................

....................................

.................. 64

6464

64

10.1 pLAN protocol ..............................................................................................................................................................................................................................64

10.2 Local terminal protocol ................................................................................................................................................................................................................64

10.3 CAREL Slave protocol ...................................................................................................................................................................................................................64

10.4 CAREL Master protocol.................................................................................................................................................................................................................65

10.5 CAREL Master 5 expansions protocol ..........................................................................................................................................................................................65

10.6 WinLoad protocol.........................................................................................................................................................................................................................66

10.7 PST protocol .................................................................................................................................................................................................................................67

10.8 Modbus Slave protocol ................................................................................................................................................................................................................67

10.9 Modbus Master protocol..............................................................................................................................................................................................................68

10.10 Modbus Master protocol - Benshaw .....................................................................................................................................................................................68

10.11 PSTN protocol (modem) .......................................................................................................................................................................................................68

10.12 GSM protocol (GSM modem) ...............................................................................................................................................................................................69

10.13 MP-Bus protocol ....................................................................................................................................................................................................................69

10.14 Serial printer protocol ............................................................................................................................................................................................................70

Appendix:

Appendix:Appendix:

Appendix: Devices that can be connected to the pCO ………..………………………………………………………………………………………………… 71

Overview of the pCO ………………………………………………………………………………………………………………............................... 79

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

7

INTRODUCTION

pCO sistema: the CAREL range of programmable controllers. This consists of programmable controllers, user interfaces, gateways and communication and remote management interfaces to offer the HVAC/R market a control system that is powerful, flexible and easy to interface with the more commonly-used building management systems. pCO sistema is very reliable and can be easily customised to differentiate the controller on the manufacturer’s own air-conditioning or refrigeration unit.

1. GENERAL FEATURES

All versions of these controllers use a 16-bit microprocessor and up to 4 Mbytes of memory to ensure high performance in terms of speed and memory space. The pCO sistema controllers also come in different sizes according to the number of inputs and outputs so as to always offer the best cost/performance ratio. Given the increasing demand for integration, the pCO sistema family can communicate using some of the most commonly-used communication serial standards, and with the addition of optional boards can be integrated into the most widely available BMS systems. The pCO* family features the possibility to connect ratiometric sensors, the integration of a Built-In terminal, an upgraded programming key and a serial port for connection to the controlled field devices (valves, I/O expansions, electronic valve drivers…). All these features ensure our controllers a level of excellence in responding to the needs of the HVAC/R market.

1.1 Programmability

The CAREL pCO sistema controllers can be programmed using the EasyTools development system, with the following advantages:

• transfer of the software to different types of CAREL hardware. The applications developed for the pCO can simply and quickly transferred from one hardware

platform to another (and vice-versa), simply adapting only the inputs and the outputs;

• rapid development, at competitive costs, of custom programs;

• reliability guaranteed by the use of standard routines, tested in the field.

The use of EasyTools, moreover, ensures the customer the maximum level of privacy and self-management when developing new programs on their own. The possibility to use the same hardware for different applications allows standardisation, with the clear advantages of being able to feature in-circuit and functional testing and burn-in procedures on all of the products and consequently reach a high level of reliability, both overall and in terms of the individual electronic components. EasyTools: exclusive CAREL development software, easy to use, for the programming, simulation, supervision and definition of pLAN networks using CAREL terminals and pCO programmable controllers.

1.1.1

1.1.11.1.1

1.1.1 Applications

ApplicationsApplications

Applications

The programmability of the pCO sistema controllers ensures the absolute flexibility of the applications. The same standard hardware can be used to control:

• chillers and heat pumps;

• roof-top units;

• air-conditioners;

• small / medium air handling units (upon request);

• showcases (upon request and to specifications);

• cold rooms (upon request and to specifications);

• seasoning rooms;

• compressor packs;

• universal circuit-closing switches.

Other types of programs can be developed to specific customer requirements.

1.1.2

1.1.21.1.2

1.1.2 Hardware architecture

Hardware architectureHardware architecture

Hardware architecture

The structure of the pCO sistema controllers features:

• the pCO controller

pCO controllerpCO controller

pCO controller, fitted with a 16-bit microprocessor for running the control program, and the set of terminals required for connection to the controlled devices (for example: valves, compressors, fans). The program and the parameters are saved permanently in the flash memory, preventing data loss in the event of power failure (without requiring a backup battery). The pCO can also be connected to pLAN networks made up of a maximum of 32 pCO controllers and terminals. Each board can exchange information without the need for additional hardware (any variable, digital or analogue, according to the application software) at high transmission speeds. The connection to the supervisor/telemaintenance serial line, based on the RS485 standard, is made using the optional serial boards (PCOS004850) and the CAREL communication protocol.

• The terminal

terminalterminal

terminal, also managed by microprocessor, fitted with display, keypad and LEDs to allow the programming of the control parameters (set point, differential band, alarm thresholds) and basic functions by the user (ON/OFF, display of the controlled values, optional printing). The terminal does not have to be connected to the pCO for normal operation, but can be used for the initial programming of the fundamental parameters.

The power of the application software means that the user terminal allows:

• the initial programming of the unit, with password-protected access;

• the possibility to modify, at any time, the fundamental operating parameters, optionally protected by password;

• the display and audible signalling (by buzzer) of any alarms;

• the display of the active functions, using the LEDs;

• the display of all the values measured.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

8

2. DESCRIPTION OF THE PRODUCTS

2.1 pCO

3

controller

Rx-/Tx-

Rx+/Tx+

GND

C1

NO1

NO2

NO3

C1

C4

NO4

NO5

NO6

C4

C7

NO7C7NO8

C8

NC8

NO12

C12

NC12

NO13

C13

NC13

C9

NO9

NO10

NO11

C9

G

G0

B1B2B3

GND

+VDC

+V

term

GND

+5 V

REF

B4

BC4B5BC5

VG

VG0Y1Y2Y3Y4

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

IDC1B6B7B8GND

ID9

ID10

ID11

ID12

IDC9

ID13H

ID13

IDC13

ID14

ID14H

J1

10

1

11

J24 J2 J3

J4 J5 J7

J8

J20

J21

J14

J11

J10J9

J13J12

J22

J16 J17

J18J15

J23

J6

J19

3

7

4

6

5

NO14

C14

NC14

NO15

C15

NC15

C16

NO16

NO17

NO18

C16

E-

E+

GND

8

9

2

13

ID15H

ID15

IDC15

ID16

ID16H

Y5

Y6

ID17

ID18

IDC17

B9

BC9

B10

BC10

15

14

field card serial card

8

6

5

7

12

11

16

input: 24 V / ; 50 to60 Hz max. power: 40 VA/15W

J20

J21

J22 J23

J19

C14

NO14

NO15

NO16

C14

C17

NO17

NO18

NO19

NO20

C17

E-

E+

GND

C25

NO25

NO26

NO27

NO28

NO29

C25

C21

NO21

NO22

NO23

NO24

C21

12

11

J20 J25

J21

J22 J23

J19

C14

NC14

NC15

NC16

C14

C17

NC17

NC18

NC19

NC20

C17

E-

E+

GND

B9

B10

BC9

C25

NC25

NC26

NC27

C25

C21

NC21

NC22

NC23

NC24

C21

5

12

11

Fig. 2.a

Fig. 2.aFig. 2.a

Fig. 2.a

Key:

Key:Key:

Key:

1. power supply connector [G (+), G0 (-)];

2. yellow power LED and 3 status LEDs (see paragraph 6.3);

3. additional power supply for the terminal and 0 to 5 V ratiometric probes;

4. universal analogue inputs: NTC, 0 to 1 V, 0 to 5 V ratiometric, 0 to 10 V, 0 to 20 mA, 4 to 20 mA;

5. passive analogue inputs: NTC, PT1000, ON/OFF;

6. 0 to 10 V analogue outputs;

7. 24 Vac/Vdc digital inputs;

8. 230 Vac or 24 Vac/Vdc digital inputs;

9. connector for the display panel (external panel with direct signals);

10. connector for all standard pCO series terminals and for downloading the application program;

11. relay digital outputs;

12. connector for connection to the I/O expansion board;

13. pLAN network connector;

14. cover for inserting the supervisor and telemaintenance option;

15. cover for inserting the field card option;

16. Built-In terminal (LCD, buttons and LEDs).

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

9

2.1.1

2.1.12.1.1

2.1.1 Meaning of the pCO

Meaning of the pCOMeaning of the pCO

Meaning of the pCO

3333

inputs/outputs

inputs/outputsinputs/outputs

inputs/outputs

Connector

Connector Connector

Connector Signal

Signal Signal

Signal Description

DescriptionDescription

Description J1-1 G +24 Vdc or 24 Vac power supply J1-2 G0 power supply reference J2-1 B1 universal analogue input 1 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J2-2 B2 universal analogue input 2 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J2-3 B3 universal analogue input 3 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J2-4 GND common for analogue inputs J2-5 +VDC 21 Vdc power supply for active probes (maximum current 200 mA) J3-1 B4 passive analogue input 4 (NTC, PT1000, ON/OFF) J3-2 BC4 common for analogue input 4 J3-3 B5 passive analogue input 5 (NTC, PT1000, ON/OFF) J3-4 BC5 common for analogue input 5 J4-1 VG power to optically-isolated analogue output, 24 Vac/Vdc J4-2 VG0 power to optically-isolated analogue output, 0 Vac/Vdc J4-3 Y1 analogue output no. 1, 0 to 10 V J4-4 Y2 analogue output no. 2, 0 to 10 V J4-5 Y3 analogue output no. 3, 0 to 10 V J4-6 Y4 analogue output no. 4, 0 to 10 V J5-1 ID1 digital input no. 1, 24 Vac/Vdc J5-2 ID2 digital input no. 2, 24 Vac/Vdc J5-3 ID3 digital input no. 3, 24 Vac/Vdc J5-4 ID4 digital input no. 4, 24 Vac/Vdc J5-5 ID5 digital input no. 5, 24 Vac/Vdc J5-6 ID6 digital input no. 6, 24 Vac/Vdc J5-7 ID7 digital input no. 7, 24 Vac/Vdc J5-8 ID8 digital input no. 8, 24 Vac/Vdc J5-9 IDC1 common for digital inputs from 1 to 8 (negative pole for DC power supply) J6-1 B6 universal analogue input 6 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J6-2 B7 universal analogue input 7 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J6-3 B8 universal analogue input 8 (NTC, 0 to 1 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA) J6-4 GND common for analogue inputs J7-1 ID9 digital input no. 9, 24 Vac/Vdc J7-2 ID10 digital input no. 10, 24 Vac/Vdc J7-3 ID11 digital input no. 11, 24 Vac/Vdc J7-4 ID12 digital input no. 12, 24 Vac/Vdc J7-5 IDC9 common for digital inputs from 9 to 12 (negative pole for DC power supply) J8-1 ID13H digital input 13, 230 Vac J8-2 ID13 digital input 13, 24 Vac/Vdc J8-3 IDC13 common for digital inputs 13 and 14 (negative pole for DC power supply) J8-4 ID14 digital input 14, 24 Vac/Vdc J8-5 ID14H digital input 14, 230 Vac J9 8-pin telephone connector for connection to a display panel J10 6-pin telephone connector for connection to the standard user terminal J11-1 RX-/TX- RX-/TX- connector for RS485 connection to the pLAN network J11-2 RX+/TX+ RX+/TX+ connector for RS485 connection to the pLAN network J11-3 GND GND connector for RS485 connection to the pLAN network J12-1 C1 common for relays: 1, 2, 3 J12-2 NO1 normally open contact, relay no. 1 J12-3 NO2 normally open contact, relay no. 2 J12-4 NO3 normally open contact, relay no. 3 J12-5 C1 common for relays: 1, 2, 3 J13-1 C4 common for relays: 4, 5, 6 J13-2 NO4 normally open contact, relay no. 4 J13-3 NO5 normally open contact, relay no. 5 J13-4 NO6 normally open contact, relay no. 6 J13-5 C4 common for relays: 4, 5, 6 J14-1 C7 common for relay no. 7

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

10

Connector

ConnectorConnector

Connector Signal

Signal Signal

Signal Description

DescriptionDescription

Description J14-2 NO7 normally open contact, relay no. 7 J14-3 C7 common for relay no. 7 J15-1 NO8 normally open contact, relay no. 8 J15-2 C8 common for relay no. 8 J15-3 NC8 normally closed contact, relay no. 8 J16-1 C9 common for relays: 9, 10, 11 J16-2 NO9 normally open contact, relay no. 9 J16-3 NO10 normally open contact, relay no. 10 J16-4 NO11 normally open contact, relay no. 11 J16-5 C9 common for relays: 9, 10, 11 J17-1 NO12 normally open contact, relay no. 12 J17-2 C12 common for relay no. 12 J17-3 NC12 normally closed contact, relay no. 12 J18-1 NO13 normally open contact, relay no. 13 J18-2 C13 common for relay no. 13 J18-3 NC13 normally closed contact, relay no. 13 J19-1 ID15H digital input 15, 230 Vac J19-2 ID15 digital input 15, 24 Vac/Vdc J19-3 IDC15 common for digital inputs 15 and 16 (negative pole for DC power supply) J19-4 ID16 digital input 16, 24 Vac/Vdc J19-5 ID16H digital input 16, 230 Vac J20-1 Y5 analogue output no. 5 to 0 to 10 V J20-2 Y6 analogue output no. 6 to 0 to 10 V J20-3 B9 passive analogue input 9 (NTC, PT1000, ON/OFF) J20-4 BC9 common for analogue input 9 J20-5 B10 passive analogue input 10 (NTC, PT1000, ON/OFF) J20-6 BC10 common for analogue input 10 J20-7 ID17 digital input no. 17, 24 Vac/Vdc J20-8 ID18 digital input no. 18, 24 Vac/Vdc J20-9 IDC17 common for digital inputs 17 and 18 (negative pole for DC power supply) J21-1 NO14 normally open contact, relay no. 14 J21-2 C14 common for relay no. 14 J21-3 NC14 normally closed contact, relay no. 14 J21-4 NO15 normally open contact, relay no. 15 J21-5 C15 common for relay no. 15 J21-6 NC15 normally closed contact, relay no. 15 J22-1 C16 common for relays: 16, 17, 18 J22-2 NO16 normally open contact no. 16 J22-3 NO17 normally open contact no. 17 J22-4 NO18 normally open contact no. 18 J22-5 C16 common for relays: 16, 17, 18 J23-1 E- E- terminal for RS485 connection to the I/O expansion modules J23-2 E+ E+ terminal for RS485 connection to the I/O expansion modules J23-3 GND GND terminal for RS485 connection to the I/O expansion modules J24-1 +V term additional power supply terminal for Aria J24-2 GND power supply common J24-3 +5 Vref power supply for 0/5 V ratiometric probes

Note:

Note: Note:

Note: J19, J20, J21, J22 and J23 correspond to the “LARGE” model.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

11

2.2 pCO

3

technical specifications

• pCO

pCOpCO

pCO

3333

analogue inpu ts

analogue inputsanalogue inputs

analogue inputs

Analogue conversion 10-bit A/D converter embedded in CPU Maximum number SMALL MEDIUM and EXTRALARGE NO LARGE and EXTRALARGE NC

5 8 10

Type Universal: 6 (inputs B1, B2, B3, B6, B7, B8)

-CAREL NTC (-50T90°C; R/T 10kΩ±1% at 25°C) or HT NTC (0T150°C)

-Voltage: 0 to 1 Vdc, 0 to 5 Vdc ratiometric or 0 to 10 Vdc

-Current: 0 to 20 mA or 4 to 20 mA. Input resistance: 100Ω

Can be selected via software. Passive: 4 (inputs B4, B5, B9, B10)

-CAREL NTC (-50T90°C; R/T 10kΩ ±1% at 25°C) or HT NTC (0T150°C)

-PT1000 (-100T200°C; R/T 1kΩ at 0°C) or digital input from voltage-free contact

Can be selected via software.

Minimum normally-open voltage-free digital input detection time

Normally open (open-closed-open) 250 ms Normally closed (closed-open-closed) 250 ms

NTC input precision ± 0.5°C PT1000 input precision ± 1°C 0-1V input precision ± 3 mV 0-10V input precision ± 30 mV 0-5V input precision ± 15 mV 0-20 mA input precision ± 0.06 mA

Warning:

Warning:Warning:

Warning: for the power supply of any active probes, the 21 Vdc available at the +Vdc terminal (J2) can be used. The maximum current is 150 mA, protected against short-circuits. To supply the 0/5V ratiometric probes, use the 5V available at the +5Vref (terminal J24). The maximum current is 60 mA.

• pCO

pCOpCO

pCO

3333

digital inputs

digital inputsdigital inputs

digital inputs

Type optically

-

isolated

Maximum number

no. optically

-

isolated inputs at 24 Vac

50/60 Hz or 24Vdc

no. optically

-

isolated inputs at 24

Vac/Vdc or 230 Vac 50/60 Hz

Total

SMALL 8 None 8

MEDIUM/EXTRALARGE

12 2 14

LARGE 14 2+2 18

Minimum digital input pulse detection time

Normally open (open-closed-open) 200 ms

Normally closed

(closed

-

open-closed) 400 ms

Power supply to the inputs External

230 Vac

or 24 Vac (50/60 Hz)

+10/-15%

24Vdc +10/-20%

Classification of the measurement circuits

(IEC EN 61010-1)

Category 1 24 Vac/Vdc

Category 3 230 Vac

Warnings:

Warnings: Warnings:

Warnings:

• the two 230 Vac or 24 Vac/Vdc inputs at terminals J8 (ID13, ID14) or J19 (ID15, ID16) have the same common pole and consequently both must be set to the

same voltage (230 Vac or 24 Vac/Vdc). There is primary insulation between the two inputs;

• for DC voltage inputs (24Vdc) connect the negative pole to the common terminal.

• pCO

pCOpCO

pCO

3333

analogue outputs

analogue outputsanalogue outputs

analogue outputs

Type optically-isolated Maximum number 4 outputs (Y1-Y4), 0 to 10 Vdc SMALL, MEDIUM and EXTRALARGE

6 outputs (Y1-Y6), 0 to 10 Vdc LARGE

Power supply external 24 Vac/Vdc

Precision

outputs Y1-Y4 ± 2% of full scale outputs Y5-Y6 -2/+5% of full scale

Resolution 8 bit

Settling time

outputs Y1-Y4 2s outputs Y5-Y6 2s or 15s can be selected via software

Maximum load

1 kΩ (10mA)

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

12

• pCO

pCOpCO

pCO

3333

digital outputs

digital outputsdigital outputs

digital outputs

Insulation distance

The relay outputs have different features depending on the model of pCO3. The outputs can be divided into groups. There is double insulation between the groups (cells in the table) and consequently these may have different voltages. There is also double insulation between each terminal of the digital outputs and the rest of the controller. The relays belonging to the same group (individual cells in the table) have basic insulation and therefore must have the same power supply (24 Vac or 230 Vac).

Makeup of the

groups

Version Reference of the relays with the same insulation

Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7

SMALL

SMALLSMALL

SMALL 1 to 7 8 Type of relay Type A Type A MEDIUM

MEDIUMMEDIUM

MEDIUM 1 to 7 8 9 to 13 Type of relay Type A Type A Type A LARGE

LARGELARGE

LARGE 1 to 7 8 9 to 13 14 to 18 Type of relay Type A Type A Type A Type A EXTRALARGE NO

EXTRALARGE NOEXTRALARGE NO

EXTRALARGE NO 1 to 7 8 9 to 13 14 to 16 17 to 20 21 to 24 25 to 29 Type of relay Type A Type A Type A Type B Type B Type B Type B EXTRALARGE NC

EXTRALARGE NCEXTRALARGE NC

EXTRALARGE NC 1 to 7 8 9 to 13 14 to 16 17 to 20 21 to 24 25 to 27 Type of relay Type A Type A Type A Type C Type C Type C Type C

Number of

changeover contacts

1: SMALL (output 8); 3:MEDIUM and EXTRALARGE NO/NC (outputs 8.12 and 13); 5: LARGE (outputs 8, 12, 13, 14 and 15)

Switchable power

Relay type A

Relay ratings SPDT, 2000 VA, 250 Vac, 8 A resistive

pCO3approval

UL873

2.5 A resistive, 2 A FLA, 12 A LRA, 250 Vac, C300 pilot duty (30,000 cycles)

EN 60730-1

2 A resistive, 2 A inductive, cosϕ=0.6, 2(2)A (100,000 cycles)

Relay type B

Relay ratings SPDT, 1250 VA, 250 Vac, 5 A resistive

pCO3approval

UL873 1 A resistive, 1 A FLA, 6 A LRA, 250 Vac, D300 pilot duty (30,000 cycles) EN 60730-1 1 A resistive, 1 A inductive, cosϕ=0.6, 1(1)A (100,000 cycles)

Relay type C

Relay ratings SPDT, 1250 VA, 250 Vac, 5 A resistive

pCO3approval

UL873 1 A resistive, 1 A FLA, 6 A LRA, 250 Vac, D300 pilot duty (30,000 cycles) EN 60730-1 1 A resistive, 1 A inductive, cosϕ=0.6, 1(1)A (100,000 cycles)

Maximum number

of SSR outputs

1: SMALL (output 7); 2:MEDIUM and EXTRALARGE NO/NC (outputs 7 and 12); 3: LARGE (outputs 7, 12 and 14) Electrical specifications: working voltage 24 Vac/Vdc, maximum switchable output 10 Watts

Warnings:

Warnings:Warnings:

Warnings:

• The groups that the digital outputs are divided into have two common pole terminals to simplify wiring;

• make sure that the current running through the common terminals does not exceed the rated current of an individual terminal, that is, 8 A.

• pCO

pCOpCO

pCO

3

3 3

3

mechanical specifications

mechanical specificationsmechanical specifications

mechanical specifications Mechanical dimensions SMALL 13 DIN modules 110 x 227.5 x 60mm MEDIUM, LARGE, EXTRALARGE 18 DIN modules 110 x 315 x 60mm

Plastic container Assembly Fitted on DIN rail as per DIN 43880 and IEC EN 50022 Material Technopolymer Flame retardancy V0 (UL94) and 960°C (IEC 695) Ball pressure test 125°C Resistance to creeping current

≥

250 V

Colour Grey RAL7035

• pCO

pCOpCO

pCO

3333

other features

other featuresother features

other features Operating conditions -25T70°C, 90% RH non-condensing Storage conditions -40T70°C, 90% RH non-condensing Index of protection IP20, IP40 on the front panel only Environmental pollution 2 Class according to protection against electric shock to be integrated into Class 1 and/or 2 appliances PTI of the insulating materials 250 V Period of stress across the insulating parts long Type of action 1C Type of disconnection or microswitching microswitching, for all relay outputs Category of resistance to heat and fire Category D Immunity against voltage surges Category 1 Ageing characteristics (operating hours) 80,000 No. of automatic operating cycles 100,000 (EN 60730-1); 30,000 (UL 873) Software class and structure Class A Category of immunity to voltage surges (IEC EN 61000-4-5) Category 3

Clock Error at 25 °C

±5.3 min/year

Error in the temperature range

–

10T60 °C

±27 min/year

Ageing < ± 5ppm (±2.7min/year)

Battery duration

typically 6 months (maximum 8 months)

Recharge time

typ

ically 5 hours (<8 hours maximum)

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

13

• pCO

pCOpCO

pCO

3333

electrical specifications

electrical specificationselectrical specifications

electrical specifications

Power supply

24 Vac +10/

-

15% 50/60 Hz and 28 to 36Vdc +10/

-

20%

Maximum current with terminal connected

40 VA (Vac) / 15 W (Vdc)

Type of insulation of the power supply from the rest of t

he controller

-

Terminal block

with male/female plug

-

in connectors (250 Vac max, 8 A max)

Cable cross

-

section min 0.5 mm

2

–

max 2.5 mm

2

CPU H8S2320, 16 bit, 24 MHz

Program memory (FLASH MEMORY)

2+2 Mbyte (Dual Bank) 16 bit

Data memory (RAM)

512 Kbyte,

16 bit

T memory, buffer (EEPROM)

13 Kbyte

P memory, parameters (EEPROM)

32 Kbyte, not available to the pLAN network

Working cycle duration (application of average complexity)

0.2 s

Clock with battery

standard

pCO

pCOpCO

pCO

3333

dimensions (in mm)

dimensions (in mm)dimensions (in mm)

dimensions (in mm)

•

MEDIUM, LAR

MEDIUM, LARMEDIUM, LAR

MEDIUM, LARGE, EXTRALARGE N.O. and N.C.: 18 DIN modules

GE, EXTRALARGE N.O. and N.C.: 18 DIN modulesGE, EXTRALARGE N.O. and N.C.: 18 DIN modules

GE, EXTRALARGE N.O. and N.C.: 18 DIN modules

110

45

315

60

44

Fig. 2.b

Fig. 2.bFig. 2.b

Fig. 2.b

•

SMALL: 13 DIN modules

SMALL: 13 DIN modulesSMALL: 13 DIN modules

SMALL: 13 DIN modules

227,5

110

45

60

44

Fig. 2.c

Fig. 2.cFig. 2.c

Fig. 2.c

Product certification:

Product certification:Product certification:

Product certification:

• IEC EN 50155 standard: “Railway applications • Electronic equipment used on rolling stock”;

• UL 873 and C22.2 No. 24-93: “Temperature-Indicating and -Regulating Equipment”;

• EC regulations 37/2005 of 12 January 2005; in particular, if the electronic controller is fitted with standard Carel NTC probes, it is compliant with standard

EN13485 on “Thermometers for measuring the air temperature in applications on units for the conservation and sale of refrigerated, frozen and deep-frozen food and ice cream”.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

14

2.3 pCO

1

controller

Rx-/Tx-

Rx+/Tx+

GND

C1

NO1

NO2

NO3C1C4

NO4

NO5

NO6C4C7

NO7C7NO8C8NC8

NO13

C13

NC13

C9

NO9

NO10

NO11

C9

G

G0

B1B2B3

B4

+VDC

B5

GNDB6GND

VG

VG0

Y1Y2Y3

Y4

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

IDC1B7GNDB8GND

ID9

ID10

ID11

ID12

IDC9

ID13H

ID13

IDC13

ID14

ID14H

Fuse

Analog Selec tion Serial Card

Clock card

Programming Key

J1

J2

J3

J5

J6

J7

J8

J10

J11

J12

J13

J14

J15

J16

J17

J18

+5VRif

GND

+VTerm

J9

J4

10

1

11

12

14

3

7

8

4

6

5

8

9

2

16

15

17

13

Fig.. 2.d

Fig.. 2.dFig.. 2.d

Fig.. 2.d

Key:

Key:Key:

Key:

1. power supply connector [G (+), G0 (-)]

2. 250 Vac, 2 A slow-blow fuse (T2 A)

3. universal analogue inputs: NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA

4. passive analogue inputs: NTC and ON/OFF

5. passive analogue inputs: NTC

6. yellow power LED and 3 status LEDs (see paragraph 6.3)

7. 0 to 10 V analogue outputs and PWM outputs

8. 24 Vac/Vdc digital inputs

9. 230 Vac or 24 Vac/Vdc digital inputs

10. connector with Vref for power supply to 5V ratiometric probe and V term for power supply to Aria terminal

11. connector for all standard pCO* series terminals and for downloading the application program

12. pLAN network connector

13. programming key connector

14. relay digital outputs

15. port for selecting the type of analogue inputs

16. cover for inserting the optional supervisor and telemaintenance board

17. cover for inserting the clock board

2.3.1

2.3.12.3.1

2.3.1 Meaning of

Meaning of Meaning of

Meaning of the pCO

the pCOthe pCO

the pCO

1111

inputs/outputs

inputs/outputsinputs/outputs

inputs/outputs

Connector

Connector Connector

Connector Signal

Signal Signal

Signal Description

DescriptionDescription

Description J1-1 G +24 Vdc or 24 Vac power supply J1-2 G0 power supply reference J2-1 B1 universal analogue input 1 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-2 B2 universal analogue input 2 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-3 B3 universal analogue input 3 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-4 B4 universal analogue input 4 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-5 +VDC 24 Vdc power supply for active probes (maximum current 100 mA) J3-1 B5 passive analogue input 5 (NTC, ON/OFF) J3-2 GND common for analogue input 5 J3-3 B6 passive analogue input 6 (NTC, ON/OFF) J3-4 GND common for analogue input 6 J4-1 VG power to optically-isolated analogue output, 24 Vac/Vdc J4-2 VG0 power to optically-isolated analogue output, 0 Vac/Vdc J4-3 Y1 analogue output no. 1, 0/10 V J4-4 Y2 analogue output no. 2, 0/10 V J4-5 Y3 analogue output no. 3, PWM (for phase cutting speed controllers) J4-6 Y4 analogue output no. 4, PWM (for phase cutting speed controllers) J5-1 ID1 digital input no. 1, 24 Vac/Vdc

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

15

Connector

Connector Connector

Connector Signal

Signal Signal

Signal Description

DescriptionDescription

Description J5-2 ID2 digital input no. 2, 24 Vac/Vdc J5-3 ID3 digital input no. 3, 24 Vac/Vdc J5-4 ID4 digital input no. 4, 24 Vac/Vdc J5-5 ID5 digital input no. 5, 24 Vac/Vdc J5-6 ID6 digital input no. 6, 24 Vac/Vdc J5-7 ID7 digital input no. 7, 24 Vac/Vdc J5-8 ID8 digital input no. 8, 24 Vac/Vdc J5-9 IDC1 common for digital inputs from 1 to 8 (negative pole for DC power supply) J6-1 B7 passive analogue input 7 (NTC) J6-2 GND common for analogue input 7 J6-3 B8 passive analogue input 8 (NTC) J6-4 GND common for analogue input 8 J7-1 ID9 digital input no. 9, 24 Vac/Vdc J7-2 ID10 digital input no. 10, 24 Vac/Vdc J7-3 ID11 digital input no. 11, 24 Vac/Vdc J7-4 ID12 digital input no. 12, 24 Vac/Vdc J7-5 IDC9 common for digital inputs from 9 to 12 (negative pole for DC power supply) J8-1 ID13H digital input 13, 230 Vac J8-2 ID13 digital input 13, 24 Vac/Vdc J8-3 IDC13 common for digital inputs 13 and 14 (negative pole for DC power supply) J8-4 ID14 digital input 14, 24 Vac/Vdc J8-5 ID14H digital input 14, 230 Vac J9-1 + 5 V ref power supply for 0/5 V ratiometric probes J9-2 GND power supply common J93 + Vterm additional power supply terminal for Aria J10 6-pin telephone connector for connection to the standard user terminal J11-1 TX- RX-/TX- connector for RS485 connection to the pLAN network J11-2 TX+ RX+/TX+ connector for RS485 connection to the pLAN network J11-3 GND GND connector for RS485 connection to the pLAN network J12-1 C1 common for relays: 1, 2, 3 J12-2 NO1 normally open contact, relay no. 1 J12-3 NO2 normally open contact, relay no. 2 J12-4 NO3 normally open contact, relay no. 3 J12-5 C1 common for relays: 1, 2, 3 J13-1 C4 common for relays: 4, 5, 6 J13-2 NO4 normally open contact, relay no. 4 J13-3 NO5 normally open contact, relay no. 5 J13-4 NO6 normally open contact, relay no. 6 J13-5 C4 common for relays: 4, 5, 6 J14-1 C7 common for relay no. 7 J14-2 NO7 normally open contact, relay no. 7 J14-3 C7 common for relay no. 7 J15-1 NO8 normally open contact, relay no. 8 J15-2 C8 common for relay no. 8 J15-3 NC8 normally closed contact, relay no. 8 J16-1 C9 common for relays: 9, 10, 11 J16-2 NO9 normally open contact, relay no. 9 J16-3 NO10 normally open contact, relay no. 10 J16-4 NO11 normally open contact, relay no. 11 J16-5 C9 common for relays: 9, 10, 11 J17-1 NO12 normally open contact, relay no. 12 J17-2 C12 common for relay no. 12 J17-3 NC12 normally closed contact, relay no. 12 J18-1 NO13 normally open contact, relay no. 13 J18-2 C13 common for relay no. 13 J18-3 NC13 normally closed contact, relay no. 13

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

16

2.4 pCO

1

technical specifications

• pCO

pCOpCO

pCO

1111

analogue inputs

analogue inputsanalogue inputs

analogue inputs

Analogue conversion 10-bit A/D converter embedded in CPU Maximum number SMALL MEDIUM

6 8

Type Universal: 4 (inputs B1, B2, B3, B4)

-CAREL NTC (-50T90°C; R/T 10kΩ±1% at 25°C) HT NTC (0T150°C)

-Voltage 0 to 1 Vdc, 0 to 5 Vdc ratiometric

-Current 0 to 20 mA or 4 to 20 mA. Input resistance: 100Ω.

Can be selected via dipswitch Passive: 4 (inputs B5, B6, B7, B8)

-CAREL NTC (-50T90°C; R/T 10kΩ±1% at 25°C) HT NTC (0T150°C)

-Digital input (inputs B5, B6) from voltage-free contact Can be selected via dipswitch

Minimum normally-open voltage-free digital input detection time

Normally open (open-closed-open) 250 ms Normally closed (closed-open-closed) 250 ms

Time constant for each input 2s Input precision NTC ± 0.5°C Input precision 0-1V ± 3 mV Input precision 0-5V ± 15 mV Input precision 0-20 mA ± 0.06 mA

Warning:

Warning:Warning:

Warning: for the power supply of any active probes, the 24 Vdc available at the +Vdc terminal (J2) can be used. The maximum current is 100 mA, protected against short-circuits. To supply the 0/5V ratiometric probes, use the 5V available at the +5Vref (terminal J9). The maximum current is 60 mA.

• pCO

pCOpCO

pCO

1111

digital inputs

digital inputsdigital inputs

digital inputs

Type optically-isolated Maximum number no. optically-isolated inputs

at 24 Vac 50/60 Hz or 24Vdc

no. optically-isolated inputs

at 24 Vac/Vdc or 230 Vac

50/60 Hz

Total

SMALL 8 None 8 MEDIUM 12 2 14

Minimum digital input pulse detection time

Normally open (open-closed-open) 200 ms Normally closed (closed-open-closed) 400 ms

Power supply to the inputs external

230 Vac or 24 Vac (50/60 Hz) +10/-15%

24Vdc +10/-20%

Warnings:

• the two 230 Vac or 24 Vac/Vdc inputs at terminals J8 have the same common pole and consequently both must be set to the same voltage (230 Vac or 24

Vac/Vdc). There is primary insulation between the two inputs;

• for DC voltage inputs (24Vdc) connect the negative pole to the common terminal.

• pCO

pCOpCO

pCO

1111

analogue outputs

analogue outputsanalogue outputs

analogue outputs

Type optically-isolated Maximum number 2 outputs (Y1-Y2), 0 to 10 Vdc and

2 outputs (Y3-Y4) PWM with 5 V pulse of programmable duration

SMALL, MEDIUM

Power supply external 24 Vac/Vdc Precision outputs Y1-Y2 ± 1% of full scale Resolution 0.5% Settling time outputs Y1-Y2 2s Maximum load

1 kΩ (10mA) for 0 to 10 Vdc and 470Ω (10mA) for PWM

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

17

• pCO

pCOpCO

pCO

1111

digital outputs

digital outputsdigital outputs

digital outputs

Insulation distance

The relay outputs have different features depending on the model of pCO

1

The outputs can be divided into groups. There is double insulation between the groups (cells in the table) and consequently these may have different voltages. There is also double insulation between each terminal of the digital outputs and the rest of the controller. The relays belonging to the same group (individual cells in the table) have basic insulation and therefore must have the same power supply (24 Vac or 230 Vac).

Makeup of the

groups

Version Reference of the relays with the same insulation

Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7

SMALL

SMALLSMALL

SMALL 1 to 3 4 to 6 7 8 Type of relay Type A Type A Type A Type A MEDIUM

MEDIUMMEDIUM

MEDIUM 1 to 3 4 to 6 7 8 9 to 11 12 13 Type of relay Type A Type A Type A Type A Type A Type A Type A

Number of

changeover contacts

1: SMALL (output 8); 3: MEDIUM (outputs 8, 12 and 13);

Switchable power Relay type A

Relay ratings SPDT, 2000 VA, 250 Vac, 8 A resistive

pCO1 approval

UL873 2.5 A resistive, 2 A FLA, 12 A LRA, 250 Vac, C300 pilot duty (30,000 cycles) EN 60730-1 2 A resistive, 2 A inductive, cosϕ=0.6, 2(2)A (100,000 cycles)

Maximum number

of SSR outputs

2: SMALL (output 7 and 8); 4: MEDIUM (outputs 7, 8, 12 and 13); Electrical specifications: working voltage 24 Vac/Vdc, maximum switchable output 10 Watts

Warnings:

• The groups that the digital outputs are divided into have two common pole terminals to simplify wiring.

• Make sure that the current running through the common terminals does not exceed the rated current of an individual terminal, that is, 8 A

• pCO

pCOpCO

pCO

1111

mechanical specifications

mechanical specificationsmechanical specifications

mechanical specifications Mechanical dimensions SMALL

SMALLSMALL

SMALL 13 DIN modules 110 x 227.5 x 60mm MEDIUM

MEDIUMMEDIUM

MEDIUM 18 DIN modules 110 x 315 x 60mm

Plastic container Assembly Fitted on DIN rail as per DIN 43880 and IEC EN 50022 Material technopolymer Flame retardancy V0 (UL94) and 960°C (IEC 695) Ball pressure test 125°C Resistance to creeping current

≥

250 V

Colour Grey RAL7035

• pCO

pCOpCO

pCO

1111

other features

other featuresother features

other features Operating conditions -10T60°C, 90% RH non-condensing Storage conditions -20T70°C, 90% RH non-condensing Index of protection IP20, IP40 on the front panel only Environmental pollution 2 Class according to protection against electric shock to be integrated into Class 1 and/or 2 appliances PTI of the insulating materials 250 V Period of stress across the insulating parts long Type of action 1C Type of disconnection or microswitching microswitching, for all relay outputs Category of resistance to heat and fire Category D Immunity against voltage surges Category 1 Ageing characteristics (operating hours) 80,000 No. of automatic operating cycles 100,000 (EN 60730-1); 30,000 (UL 873) Software class and structure Class A Category of immunity to voltage surges (IEC EN 61000-4-5) Category 3

Clock Error at 2

5 °C ±5.3 min/year

Error in the temperature range

–

10T60 °C

±27 min/year

Ageing < ± 5ppm (±2.7min/year)

Battery duration

typically 6 months (maximum 8 months)

Recharge time

typically 5 hours (<8 hours maximum)

• pCO

pCOpCO

pCO

1111

electrical specifications

electrical specificationselectrical specifications

electrical specifications Power supply 24 Vac +10/-15% 50/60 Hz and 22 to 38Vdc +10/-20% Maximum current with terminal connected P=13 W Type of insulation of the power supply from the rest of the controller Terminal block with male/female plug-in connectors (250 Vac max, 8 A max) Cable cross-section min 0.5 mm2 – max 2.5 mm

2

CPU H8S2320, 16 bit, 14 MHz Program memory (FLASH MEMORY) 2 Mbyte, 16 bit Data memory (RAM) 512 Kbyte, 8 bit T memory, buffer (FLASH MEMORY) 4 Kbyte, 16 bit P memory, parameters (EEPROM) optional (32 Kbyte not available to the pLAN network) Working cycle duration (application of average complexity) 0.5 s Clock with battery optional

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

18

Dipswitches for selecting the type of probe

Dipswitches for selecting the type of probeDipswitches for selecting the type of probe

Dipswitches for selecting the type of probe

1 2 3 4 5 6

ON OFF

1 2 3 4 5 6 1 2

1 2 3 4 5 6 1 2 3 4 5 6

1 2 3 4 5 6

NTC

Esempio/ Example

1 2 3 4 5 6

B1 B2 B3 B4 B5 B6

Input B1, B2, B3, B4

Input

ON digital input

OFF N TC

Input B5, B6

B1 B2 B3 B4 B5 B6

NTC NTC digital input

ON

OFF

ON

OFF

NTCdigital

input

pCO

pCOpCO

pCO

1111

dimensions (in mm.)

dimensions (in mm.)dimensions (in mm.)

dimensions (in mm.)

•

MEDIUM 18 DIN modules

MEDIUM 18 DIN modulesMEDIUM 18 DIN modules

MEDIUM 18 DIN modules

44

Fig. 2.e

Fig. 2.eFig. 2.e

Fig. 2.e

•

SMALL 18 DIN

SMALL 18 DINSMALL 18 DIN

SMALL 18 DIN modules

modulesmodules

modules

44

Fig.. 2.f

Fig.. 2.fFig.. 2.f

Fig.. 2.f

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

19

2.5 pCO

xs

board

Key:

Key:Key:

Key: 1 Power supply connector [G (+), G0 (-)], 24 Vac or 24 to 48 Vdc;

2 Input (24 Vac) for phase control and NTC, 0/1 V, 0/5 V, 0/20 mA, 4/20 mA analogue inputs, +5Vref for power supply to 5V ratiometric probe and

+24 Vdc power to active probes; 3 0 to 10 V analogue outputs and PWM output; 4 Digital inputs with voltage-free contact; 5 Connector for all standard pCO* series terminals and for downloading the

application program; 6 pLAN network connector; 7 tLAN terminal connector; 8 tLAN or MP-Bus network connector; 9 Relay digital outputs with one common; 10 Relay/SSR digital output; 11 Digital output for alarm relay with changeover contact/SSR;

12 Yellow power LED and 3 status LEDs (see paragraph 6.3)

13 Cover for inserting the supervisor and telemaintenance option 14 Cover for inserting the clock board; 15 Built-In terminal.

Fig. 2.f

Fig. 2.fFig. 2.f

Fig. 2.f

2.5.1

2.5.12.5.1

2.5.1 Meaning of the pCO

Meaning of the pCOMeaning of the pCO

Meaning of the pCO

xs

xsxs

xs

board inputs/outputs

board inputs/outputsboard inputs/outputs

board inputs/outputs

Connector

Connector Connector

Connector Signal

Signal Signal

Signal D escription

DescriptionDescription

Description

J1-1 G 24 Vac or 24 to 48 Vdc power supply J1-2 G0 power supply reference J2-1 SYNC synchronicity input for phase control (G0 is the reference) J2-2 B1 universal analogue input 1 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-3 B2 universal analogue input 2 (NTC, 0/1V, 0/5 V, 0/20 mA, 4/20 mA) J2-4 B3 universal analogue input 3 (NTC, 0/5 V) J2-5 B4 universal analogue input 4 (NTC, 0/5 V) J2-6 GND reference for the analogue inputs J2-7 +5VREF power supply for 0/5 V ratiometric probes J2-8 +24VDC 24 Vdc power supply for active probes J3-1 Y1 analogue output no. 1, 0/10 V J3-2 Y2 analogue output no. 2, 0/10 V J3-3 Y3 analogue output no. 3, PWM (for phase cutting speed controllers) J3-4 GND reference for analogue output

J4-1 ID1 digital input no. 1 J4-2 ID2 digital input no. 2 J4-3 ID3 digital input no. 3 J4-4 ID4 digital input no. 4 J4-5 ID5 digital input no. 5 J4-6 ID6 digital input no. 6 J4-7 IDC1 common for digital inputs from 1 to 6 J5 6-pin telephone connector for connection to the standard user terminal J6-1 RX-/TX- RX-/TX- connector for RS485 connection to the pLAN network J6-2 RX+/TX+ RX+/TX+ connector for RS485 connection to the pLAN network J6-3 GND reference for RS485 connection to the pLAN network J7 tLAN terminal connector J8-1 TLAN connector to the tLAN network J8-2 GND reference for connection to the tLAN network J9-1 C1 common for relays: 1, 2, 3 J9-2 NO1 normally open contact, relay no. 1 J9-3 NO2 normally open contact, relay no. 2 J9-4 NO3 normally open contact, relay no. 3 J10-1 C4 common for relays: 4 J10-2 NO4 normally open contact, relay no. 4 J11-1 NO5 normally open contact, relay no. 5 J11-2 C5 common for relays: 5 J11-3 NC5 normally closed contact, relay no. 5

Tab. 2.e

Tab. 2.eTab. 2.e

Tab. 2.e

G

G0

SYNC

B1B2B3

B4

GND

+5VREF

+24VDC

Y1Y2Y3

GND

ID1

ID2

ID3

ID4

ID5

ID6

IDC1

RXTX-

RXTX+

GND

TLAN

GND

C1

NO1

NO2

NO3C4NO4

NO5C5NC5

J1

J5

J6

J7

J8

J9

J10

J11

J2

J3

J4

CLOCKCARD

SERIALCARD

13

1

12

14

5 6 7 8 9 10 11

3 42

built-in terminal

xs

15

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

20

2.6 pCO

xs

technical specifications

• pCO

pCOpCO

pCO

XS

XSXS

XS

ana

anaana

analogue inputs

logue inputslogue inputs

logue inputs

Analogue conversion 10-bit A/D converter embedded in CPU Maximum number 4 Type Universal: 2 (inputs B1, B2)

-CAREL NTC (-50T90°C; R/T 10kΩ±1% at 25°C)

-Voltage 0 to 1 Vdc, 0 to 5 Vdc ratiometric;

-Current 0 to 20 mA or 4 to 20 mA. Input resistance: 100Ω

Can be selected via software Universal: 2 (inputs B3, B4)

-CAREL NTC (-50T90°C; R/T 10kΩ±1% at 25°C)

-Voltage 0 to 5 Vdc ratiometric

Can be selected via software Time constant for each input 1 s Input precision NTC ± 0.5°C Input precision 0-1V ± 3 mV Input precision 0-5V ± 15 mV Input precision 0-20 mA ± 0.06 mA

Warning:

Warning:Warning:

Warning: for the power supply of any active probes, the 24 Vdc available at the +Vdc terminal (J2) can be used. The maximum current is 80 mA, protected against short-circuits. To supply the 0/5V ratiometric probes, use the 5V available at the +5Vref (terminal J2). The maximum current is 60 mA.

• pCO

pCOpCO

pCO

XS

XSXS

XS

digital inputs

digital inputsdigital inputs

digital inputs

Type Not optically-isolated with voltage-free contact

Maximum number

no. optically-isolated inputs at 24 Vac 50/60 Hz

or 24Vdc

no. optically-isolated inputs at 24 Vac/Vdc or 230

Vac 50/60 Hz

Total

6 None 6

Minimum digital input pulse detection time

Normally open (open-closed-open) 150 ms Normally closed (closed-open-closed) 400 ms

Power supply to the inputs internal

• pCO

pCOpCO

pCO

XS

XSXS

XS

analogue outputs

analogue outputsanalogue outputs

analogue outputs

Type Not optically-isolated Maximum number 2 outputs (Y1 and Y2), 0 to 10 Vdc and

1 output (Y3), PWM with 5V pulse of programmable duration Power supply internal Precision outputs Y1-Y2 ± 3% of full scale Resolution 8 bit Settling time outputs Y1-Y2 2s Maximum load

1 kΩ (10 mA) for 0 to 10 Vdc and 470Ω (10 mA) for PWM

Note:

Note:Note:

Note: the synchronicity for the PWM output derives from the SYNC and G0 inputs. The PWM output (Y3) can become a pulse modulation output (duration of the pulse proportional to the analogue value) by setting the software. The PWM may be in synchronicity with the SYNC signal or have a fixed cycle duration of 2 ms.

• pCO

pCOpCO

pCO

XS

XSXS

XS

digital outputs

digital outputsdigital outputs

digital outputs

Insulation distance

The relay outputs have different features depending on the model of PCOXS. The outputs can be divided into groups. There is double insulation between the groups (cells in the table) and consequently these may have different voltages. There is also double insulation between each terminal of the digital outputs and the rest of the controller. The relays belonging to the same group (individual cells in the table) have basic insulation and therefore can have the same power supply (24 Vac or 230 Vac).

Makeup of the

groups

Version Reference of the relays with the same insulation

Group 1 Group 2 Group 3

- 1 to 3 4 5 Type of relay Type A Type A Type A

Number of

changeover contacts

1: output 5

Switchable power Relay type A

Relay ratings SPDT, 2000 VA, 250 Vac, 8 A resistive

pCOxs approval

UL873 2.5 A resistive, 2 A FLA, 12 A LRA, 250 Vac, (30,000 cycles) EN 60730-1 2 A resistive, 2 A inductive, cosϕ=0.6, 2(2)A (100,000 cycles)

Maximum number

of SSR outputs

2: outputs 4 and 5; Electrical specifications: working voltage 24 Vac/Vdc, maximum switchable output 10 Watts

Warnings:

Warnings:Warnings:

Warnings:

• the groups that the digital outputs are divided into have two common pole terminals to simplify wiring.

• Make sure that the current running through the common terminals does not exceed the rated current of an individual terminal, that is, 8 A.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

21

• pCO

pCOpCO

pCO

XS

XSXS

XS

Mechanical specifications

Mechanical specificationsMechanical specifications

Mechanical specifications

Mechanical dimensions

Mechanical dimensionsMechanical dimensions

Mechanical dimensions

SMALL 13 DIN modules

110 x 227.5 x 60mm

Plastic container

Plastic containerPlastic container

Plastic container

Assembly

Fitted on DIN rail as per DIN 43880 and IEC EN 50022

Materia

l technopolymer

Flame retardancy

V0 (UL94) and 960°C (IEC 695)

Ball pressure test

125°C

Resistance to creeping current

± 250 V

Colour

Grey RAL7035

• pCO

pCOpCO

pCO

XS

XSXS

XS

other features

other featuresother features

other features

Operating conditions -10T60°C, 90% RH non-condensing (vers. standard) -25T70°C, 90% RH non-condensing (extended range vers.) Storage conditions -20T70°C, 90% RH non-condensing (standard vers.) -40T70°C, 90% RH non-condensing (extended range vers.) Index of protection IP20, IP40 on the front panel only Environmental pollution 2 Class according to protection against electric shock to be integrated into Class 1 and/or 2 appliances PTI of the insulating materials 250 V Period of stress across the insulating parts long Type of action 1C Type of disconnection or microswitching microswitching, for all relay outputs Category of resistance to heat and fire Category D Immunity against voltage surges Category 1 Ageing characteristics (operating hours) 80,000 No. of automatic operating cycles 100,000 (EN 60730-1); 30,000 (UL 873) Software class and structure Class A Category of immunity to voltage surges (IEC EN 610004-5)

Category 3

Clock Error at 25 °C

±5.3 min/year

Error in the temperature range

–

10T60 °C

±27 min/year

Ageing < ± 5ppm (±2.7min/year)

Battery

duration

typically 6 months (maximum 8 months)

Recharge time

typically 5 hours (<8 hours maximum)

• pCO

pCOpCO

pCO

XS

XSXS

XS

electrical specifications

electrical specificationselectrical specifications

electrical specifications

Power supply 24 Vac +10/-15% 50/60 Hz and 24 to 48Vdc +10/-20%, isolated

Type of insulation of the power supply from the

rest of the

controller

functional

Maximum current with terminal connected P=8 W Terminal block with male/female plug-in connectors (250 Vac max, 8 A max) Cable cross-section min 0.5 mm2 – max 2.5 mm

2

CPU H8S2320, 16 bit, 24 MHz Program memory (FLASH MEMORY) 1 Mbyte, 16 bit (expandable up to 1+1 Mbyte Dual Bank) Data memory (RAM) 128 Kbyte, 8 bit (expandable up to 512 Kbyte) T memory, buffer (FLASH MEMORY) 4 Kbyte, 16 bit P memory, parameters (EEPROM) 32 Kbyte not available to the pLAN network Working cycle duration (application of average complexity)

0.3 s

Clock with battery Optional

pCO

pCOpCO

pCO

xs

xsxs

xs

dimensions (in mm): 8 DIN modules

dimensions (in mm): 8 DIN modulesdimensions (in mm): 8 DIN modules

dimensions (in mm): 8 DIN modules

110

140

44

Fig. 2.g

Fig. 2.gFig. 2.g

Fig. 2.g

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

22

2.7 pCO

C

controller

1

10

13

4

5

15

14

13

2

11

12

J17

J11

J20

J21

J22

J24

J1

J2

J3

J4

J5

J6

B8

+24Vdc

B7

B6

AVSSB5B4

AVSSB3B2

AVSSB1IDCM2

ID10

ID9

ID8

ID7

ID6

IDCM1

ID5

ID4

ID3

ID2

ID1C1NO1

-------C2NO2C3NO3

-------C4NO4

-------C5NO5

-------

C12

NO12

NO8

C8

-------

NO7

C7

-------

NO6

C6

-------

NO13

C13

NO11

C11

NC11

--------

NO10

C10

NC10

--------

NO9C9NC9

ID230

ID24

ID11R

--------

ID12R

ID24

ID230

VG0

VG1

Y1

Y0

G

G0

J19

pCO

c

I/O board

GND

RX/TX-

RX/TX+

3

7

6

9

8

Fig. 2.h

Fig. 2.hFig. 2.h

Fig. 2.h

Key:

Key:Key:

Key:

1. Connector for 24 Vac power supply, 50/60 Hz, 15 VA, or 24 Vdc, 10 W.

2. 250 Vac, 2 A slow-blow fuse (T2A).

3. Yellow mains power LED and 3 status LEDs.

4. Connector for connecting the pCOC boards to the pLAN network (see paragraph 6.3).

5. Telephone connector for connecting a user terminal (PCOT*, PCOI*) or local network.

6. Connector for inserting the optional real time clock board PCO100CLK0.

7. Connector for programming key PCO100KEY0.

8. Connector for inserting the optional supervision and/or telemaintenance boards.

9. Jumpers for selecting the analogue inputs: J14-J3=B5; J15-J10=B6; J28-J11=B7; J29-J12=B8.

10. Universal analogue inputs: NTC, 0/1V, 0/20 mA, 4/20 mA.

11. Passive analogue inputs: NTC.

12. Digital inputs at 24 Vac/Vdc.

13. Relay digital outputs.

14. 230 Vac or 24 Vac/Vdc digital inputs.

15. 0 to 10 V analogue outputs.

2.7.1

2.7.12.7.1

2.7.1 Meaning of the pCO

Meaning of the pCOMeaning of the pCO

Meaning of the pCO

CCCC

board inputs/outputs

board inputs/outputsboard inputs/outputs

board inputs/outputs

connector

connectorconnector

connector signals

signals signals

signals description

descriptiondescription

description J17 G power supply, +24 Vdc, 10 W or 24 Vac, 50/60 Hz, 15 VA J17 G0 power supply reference J11 RX+/TX+ RX+/TX+ connector for RS485 connection to the pLAN network - Note: different pin conf. from the pCO

3

/pCO

xs

and pCO1

J11 RX-/TX- RX-/TX- connector for RS485 connection to the pLAN network - Note: different pin conf. from the pCO

3

/pCO

xs

and pCO1

J11 GND GND connector for RS485 connection to the pLAN network J19 Terminal connector for terminal 6-pin telephone cable

J20 VG0 power to optically-isolated analogue output, 0 Vac J20 VG1 power to optically-isolated analogue output, 24 Vac/Vdc J20 Y1 analogue output 2 J20 Y0 analogue output 1 J21 ID230 Vac digital input 11, 230 Vac J21 ID24 Vac digital input 11, 24 Vac/Vdc J21 ID11R common for digital input 11 J21 ——— not connected J21 ID12R common for digital input 12 J21 ID24 Vac digital input 12, 24 Vac/Vdc J21 ID230 Vac digital input 12, 230 Vac J22 NO-11 normally open contact, relay 11 J22 C-11 common for relay 11 J22 NC-11 normally closed contact, relay 11 J22 ——— not connected J22 NO-10 normally open contact, relay 10 J22 C10 common for relay 10 J22 NC-10 normally closed contact, relay 10

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

23

J22 ——— not connected J22 NO-9 normally open contact, relay 9 J22 C9 common for relay 9 J22 NC-9 normally closed contact, relay 9 J24 NO-8 normally open contact, relay 8 J24 C8 common for relay 8 J24 ——— not connected J24 NO-7 normally open contact, relay 7 J24 C7 common for relay 7 J24 ——— not connected J24 NO-6 normally open contact, relay 6 J24 C6 common for relay 6 J24 ——— not connected J24 NO-13 normally open contact, relay 13 J24 C13 common for relay 13 J6 NO-12 normally open contact, relay 12 J6 C12 common for relay 12 J6 ——— not connected J6 NO-5 normally open contact, relay 5 J6 C5 common for relay 5 J6 ——— not connected J6 NO-4 normally open contact, relay 4 J6 C4 common for relay 4 J6 ——— not connected J6 NO-3 normally open contact, relay 3 J6 C3 common for relay 3 J5 NO-2 normally open contact, relay 2 J5 C2 common for relay 2 J5 ——— not connected J5 NO-1 normally open contact, relay 1 J5 C1 common for relay 1 J4 ID1 digital input 1 J4 ID2 digital input 2 J4 ID3 digital input 3 J4 ID4 digital input 4 J4 ID5 digital input 5 J4 IDCM1 common for digital inputs ID1-ID5 J3 ID6 digital input 6 J3 ID7 digital input 7 J3 ID8 digital input 8 J3 ID9 digital input 9 J3 ID10 digital input 10

J3 IDCM2 common for digital inputs ID6-ID10 J2 B1 analogue input 1 (NTC probe only) J2 AVSS common for analogue inputs J2 B2 analogue input 2 (NTC probe only) J2 B3 analogue input 3 (NTC probe only) J2 AVSS common for analogue inputs J2 B4 analogue input 4 (NTC probe only) J2 B5 analogue input 5 (active probe, 0/1 V or 4/20 mA or NTC) J2 AVSS common for analogue inputs J2 B6 analogue input 6 (NTC, active probe, 0/1V or 4/20 mA) J1 B7 analogue input 7 (NTC, active probe, 0/1V or 4/20 mA) J1 +24 Vdc 24 Vdc power supply for external active probes (max. current 100 mA) J1 B8 analogue input 8 (NTC, active probe, 0/1V or 4/20 mA)

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

24

2.8 pCO

C

technical specifications

• pCO

pCOpCO

pCO

CCCC

analogue inputs

analogue inputsanalogue inputs

analogue inputs

Analogue conversion 10-bit A/D converter embedded in CPU Maximum number 8 Type

Universal: 4 (inputs B5, B6, B7, B8)

-Carel NTC (-50T90°C; R/T 10KΩ at 25°C)

-Voltage 0 to 1 V

-Current 0 to 20 mA or 4 to 20 mA. Input resistance 100Ω

Can be selected by jumper. Passive: 4 (inputs B1, B2, B3, B4)

-Carel NTC (-50T90°C; R/T 10KΩ at 25°C)

Settling time 2 s Input precision NTC ± 0.5 °C Input precision 0-1V ± 3 mV Input precision 0-20 mA ± 0.06 mA

Warning:

Warning:Warning:

Warning: for the power supply of any active probes, the 24 Vdc available at the +Vdc terminal (J1) can be used. The maximum current is 100 mA, protected against short-circuits.

On the pCOC, unlike the pCOB, the 0/1 Vdc signal is limited to the restricted 0-1 V range and therefore is not always compatible with the standard 10 mV/°C signal of the Carel probes (for temperatures below 0°C and above 100°C, a probe alarm may be generated). For the temperature signals, use 4/20 mA or NTC. This is also true for the pCO3, pCO1 and pCOxs.

• pCO

pCOpCO

pCO

CCCC

digital inputs

digital inputsdigital inputs

digital inputs

Type optically-isolated

Maximum number

no. optically-isolated inputs at 24 Vac 50/60 Hz

or 24Vdc

no. optically-isolated inputs at 24 Vac/Vdc or 230

Vac 50/60 Hz

Total

10 2 12

Minimum digital input pulse detection time

Normally open (open-closed-open) 200 ms Normally closed (closed-open-closed) 400 ms

Power supply to the inputs external

230 Vac or 24 Vac (50/60 Hz) +10/-15%

24Vdc +10/-20%

Warnings:

Warnings: Warnings:

Warnings:

• the two 230 Vac or 24 Vac/Vdc inputs at terminals J21 have the same common pole and consequently both must be set to the same voltage (230 Vac or 24

Vac/Vdc). There is primary insulation between the two inputs;

• for DC voltage inputs (24Vdc) connect the negative pole to the common terminal

• pCO

pCOpCO

pCO

CCCC

analogue outputs

analogue outputsanalogue outputs

analogue outputs

Type optically-isolated Maximum number 2 outputs (Y1 and Y2), 0 to 10 Vdc Power supply external 24 Vac/Vdc Precision outputs Y1-Y2 ± 1% of full scale Resolution 0.5% Settling time outputs Y1-Y2 2s Maximum load

1 kΩ (10mA)

Note:

Note:Note:

Note: unlike the pCOB, outputs Y1 and Y2 are not linked to digital outputs 12 and 13.

• pCO

pCOpCO

pCO

CCCC

digital outputs

digital outputsdigital outputs

digital outputs

Insulation distance

The relay outputs have different features depending on the model of PCOC. The outputs can be divided into groups. There is double insulation between the groups (cells in the table) and consequently these may have different voltages. There is also double insulation between each terminal of the digital outputs and the rest of the controller. The relays belonging to the same group (individual cells in the table) have basic insulation and can therefore have the same power supply (24 Vac or 230 Vac).

Makeup of the

groups

Version Reference of the relays with the same insulation

Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7

- 1 to 2 3 to 5, 12 6 to 8, 13 9 to 11 Type of relay Type A Type A Type A Type A

Number of

changeover contacts

3: outputs 9, 10 and 11

Switchable power Relay type A

Relay ratings SPDT, 2000 VA, 250 Vac, 8 A resistive

pCOC approval

UL873 2.5 A resistive, 2 A FLA, 12 A LRA, 250 Vac (30,000 cycles) EN 60730-1 2 A resistive, 2 A inductive, cosϕ=0.6, 2(2)A (100,000 cycles)

Maximum number

of SSR outputs

-

Warnings:

Warnings:Warnings:

Warnings:

• The groups that the digital outputs are divided into have two common pole terminals to simplify wiring.

• Make sure that the current running through the common terminals does not exceed the rated current of an individual terminal, that is, 8 A.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

25

• pCO

pCOpCO

pCO

CCCC

mechanical specifications

mechanical specificationsmechanical specifications

mechanical specifications

Mechanical dimensions Electronic board only available, without plastic case: 108 x 292 x 25mm

• pCO

pCOpCO

pCO

CCCC

other features

other featuresother features

other features

Operating conditions -10T60°C, 90% RH non-condensing Storage conditions -20T70°C, 90% RH non-condensing Index of protection IP20 Environmental pollution 2 Class according to protection against electric shock to be integrated into Class 1 and/or 2 appliances PTI of the insulating materials 250 V Period of stress across the insulating parts long Type of action 1C Type of disconnection or microswitching microswitching, for all relay outputs Category of resistance to heat and fire Category D Immunity against voltage surges Category 1 Ageing characteristics (operating hours) 80,000 No. of automatic operating cycles 100,000 (EN 60730-1); 30,000 (UL 873) Software class and structure Class A Category of immunity to voltage surges (IEC EN 61000-4-5) Category 3

Clock Err

or at 25 °C

±5.3 min/year

Error in the temperature range

–

10T60 °C

±27 min/year

Ageing < ± 5ppm (±2.7min/year)

Battery duration

typically 6 months (maximum 8 months)

Recharge time

typically 5 hours (<8 hours maximum)

• pCO

pCOpCO

pCO

CCCC

electrical specifications

Power supply 24 Vac +10/-15% 50/60 Hz and 22 to 38Vdc +10/-20% Maximum current with terminal connected P=10 W Type of insulation of the power supply from the rest of the controller Terminal block with male/female plug-in connectors (250 Vac max, 8 A max) Cable cross-section min 0.5 mm2 – max 2.5 mm

2

CPU H8S2320, 16 bit, 14MHz Program memory (FLASH MEMORY) 1 Mbyte, 16 bit Data memory (RAM) 128 Kbyte, 8 bit T memory, buffer (FLASH MEMORY) 4 Kbyte, 16 bit P memory, parameters (EEPROM) optional (32 Kbyte not available to the pLAN network) Working cycle duration (application of average complexity) 0.5 s Clock with battery optional

 Procedure for selecting the analogue inputs by jumpers J3, J10, J11, J12, J14, J15, J28 and J29

Procedure for selecting the analogue inputs by jumpers J3, J10, J11, J12, J14, J15, J28 and J29Procedure for selecting the analogue inputs by jumpers J3, J10, J11, J12, J14, J15, J28 and J29

Procedure for selecting the analogue inputs by jumpers J3, J10, J11, J12, J14, J15, J28 and J29

Input B5, B6, B7

Input B5, B6, B7Input B5, B6, B7

Input B5, B6, B7 and B8:

and B8:and B8:

and B8:

J14, J15, J28 and J29

J14, J15, J28 and J29J14, J15, J28 and J29

J14, J15, J28 and J29

1-2 2-3

J3, J10,J11

J3, J10,J11 J3, J10,J11

J3, J10,J11

and J12

and J12and J12

and J12

1-2 4÷20 mA

(default)

0÷1V

2-3 -------------- NTC

 pCO

pCOpCO

pCO

CCCC

dimensions ( in mm)

dimensions ( in mm)dimensions ( in mm)

dimensions ( in mm)

292

108

25

Fig. 2.h

Fig. 2.hFig. 2.h

Fig. 2.h

J29 J28

J12 J11

J10

J3

J14

J15

J1 J2

3 2 1 3 2 1

3 2 1

B8 B7

B6

B5

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

26

Model

ModelModel

Model

PCO3*S

PCO3*SPCO3*S

PCO3*S

PCO3*M

PCO3*MPCO3*M

PCO3*M

PCO3*L

PCO3*LPCO3*L

PCO3*L

PCO3*XL

PCO3*XLPCO3*XL

PCO3*XL

PCO3*XLPCO3*XL

PCO3*XL

PCO1*S

PCO1*SPCO1*S

PCO1*S

PCO1*M

PCO1*MPCO1*M

PCO1*M

PCO1*X

PCO1*XPCO1*X

PCO1*X

PCOC*

PCOC*PCOC*

PCOC*

Maximum flash memory capacity

4 MB 4 MB 4 MB 4 MB 4 MB 2 MB 2 MB 2 MB 1 MB

NAND Flash

    

Real Time Clock



       

pLAN



       

Opto-isolated pLAN

    

tLAN



     





Accepts SMART KEY



       

PGD0

built-in display



   

PGD1

built-in display

    

4x20 built

-

in display



LED display



   

Serial port for I/O expansion

       

Black box

    



 

CAREL protocol

        

Metasys

®

compatible

        

Modbus

®

RTU protocol

        

LonWorks

®

protocol



       

BACnet™ Ethernet™ protocol

        

BACnet™ MS/TP protocol

        

HTTP/FTP/SNMP protocol



       

CANbus protocol

       

Belimo MP

-

BUS



     



Ready for modem, GSM modem, SMS

        

Max no. of analogue inputs

5 8 10 8 10 6 8 4 8

PT1000 inputs

2 2 4 2 4

0 to 10 Vdc inputs

3 6 6 6 6

0 to 1 Vdc inputs

3 6 6 6 6 4 4 2 4

4 to 20 mA or 0 to 20 mA inputs

3 6 6 6 6 4 4 2 4

NTC inputs

5 8 10 8 10 6 8 4 8

0 to 5 Vdc ratiometric inputs

3 6 6 6 6 4 4 4

AIN selected via software

   



AIN selected via dipswitch

 



Max no. of digital inputs

8 14 18 14 14 8 14 6 12

24 Vac/dc inputs

8 14 18 14 14 8 14 12

230 Vac/dc inputs

2 4 2 2 8 2 2

Inputs with voltage

-

free contacts

2 2 4 2 4 2 2 6

Max no. of analogue outputs

4 4 6 4 4 4 4 3 2

0 to 10 Vdc outputs

4 4 6 4 4 2 2 2 2

PWM outputs (phase cuttin

g)

2 2 1

Max no. of digital outputs

8 13 18 29 27 8 13 5 13

SPST relay outputs

7 10 13 26 24 7 10 4 10

SPDT relay outputs

1 3 5 3 3 1 3 1 3

SPDT relay outputs SSR outputs

2 4 6 6 6 2 4 2

48 Vdc power supply

      

 

 Standard  Optional

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

27

3. USER TERMINALS

There are various types of user terminals, which differ in terms of:

• dimensions;

• liquid crystal display (LCD);

• number of buttons;

• number of LEDs;

3.1 pGD0/pGD1, pGD2/pGD3 graphic terminals

3.1.1

3.1.13.1.1

3.1.1 pGD

pGDpGD

pGD0000 and pGD

and pGDand pGD

and pGD1111 graphic displays

graphic displaysgraphic displays

graphic displays

These are terminals, compatible with the previous PCOI/PCOT, which ensure complete management of the graphics by displaying icons (defined during the development of the application program) and the management of international fonts in two sizes: 5x7 and 11x15 pixels. The terminal does not require any additional software. PGD0: is a monochromatic LCD graphic terminal with 120x32 pixel resolution and LED backlighting; pGD1: is a monochromatic LCD graphic terminal with 132x64 pixel resolution and LED backlighting.

Versio

VersioVersio

Versionnnn PGD

PGDPGD

PGD Model codes

Model codesModel codes

Model codes Instruction sheet

Instruction sheetInstruction sheet

Instruction sheet

Built-in or panel version PGD0 PGD0000F00

+050001040

Wall-mounted version PGD0 PGD0000W00 Built-in or panel version PGD1 PGD1000F00

+050001050

Wall-mounted version PGD1 PGD1000W00 Built-in or panel version – white backlighting PGD1 PGD1000FW0 +050001050 Built-in or panel version - white backlighting with buzzer PGD1 PGD1000FX0 +050001050 Wall-mounted version – white backlighting PGD1 PGD1000WW0 Wall-mounted version- white backlighting with buzzer PGD1 PGD1000WX0 Panel installation PGD0 PGD0000I00 +050001045 Panel installation (in PCOI case) PGD1 PGD1000I00 +050001055 Panel installation - white backlighting (in PCOI case) PGD1 PGD1000IW0

Tab. 3.a

Tab. 3.aTab. 3.a

Tab. 3.a

3.1.2

3.1.23.1.2

3.1.2 pGD

pGDpGD

pGD2222 and pGD

and pGDand pGD

and pGD3333 graphic displays

graphic displaysgraphic displays

graphic displays

These are electronic devices designed as the user interface for the pCO family controllers (contact CAREL to find out the most suitable controller that supports the PGD2/3 for the specific application). pGD

pGDpGD

pGD

2

2 2

2

is a monochromatic (blue/white) LCD graphic terminal with 320x240 pixel resolution (code PGD2*******) and LED backlighting.

pGD

pGDpGD

pGD

3

3 3

3

is a 256-colour LCD graphic terminal with 320x240 pixel resolution (code PGD3*******) and CCFL fluorescent backlighting.

Version

VersionVersion

Version PGD

PGDPGD

PGD Model codes

Model codesModel codes

Model codes Instruction sheet

Instruction sheetInstruction sheet

Instruction sheet

Panel installation PGD2 PGD200*F0*

+050001041

Wall-mounting PGD2 PGD200*W0* Panel installation PGD3 PGD300*F0* Wall-mounting PGD3 PGD300*W0*

Tab. 3.b

Tab. 3.bTab. 3.b

Tab. 3.b

3.1.3

3.1.33.1.3

3.1.3 PGD0000F00 terminal (built

PGD0000F00 terminal (builtPGD0000F00 terminal (built

PGD0000F00 terminal (built----in/panel)/PGD0000W00 pCO graphic display (wall)

in/panel)/PGD0000W00 pCO graphic display (wall)in/panel)/PGD0000W00 pCO graphic display (wall)

in/panel)/PGD0000W00 pCO graphic display (wall)

Display

DisplayDisplay

Display Type: FSTN graphic Backlighting: green LEDs (managed by “application program”) Graphic resolution: 120x32 pixels Text modes: 4 rows x 20 columns (5x7 and 11x15 pixel fonts) 2 rows x 10 columns (11x15 pixel fonts) or mixed modes Character height: 4.5 mm (5x7 pixel fonts) 9 mm (11x15 pixel fonts) Size of the active area: 71.95x20.75 mm Size of the display area: 76x25.2 mm

LEDs on keypad

LEDs on keypadLEDs on keypad

LEDs on keypad

- 2 programmable by “application program”, red and orange (Prg and Alarm buttons);

- 4 green, for backlighting the LCD (↑ ↓ Enter and Esc buttons).

Power supply

Power supplyPower supply

Power supply Voltage: power supply from pCO via telephone connector or from external source 18/30 Vdc protected by 250 mAT external fuse. Maximum power input: 0.8 W.

Fig. 3.a

Fig. 3.aFig. 3.a

Fig. 3.a

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

28

3.1.4

3.1.43.1.4

3.1.4 PGD1000F00 (built

PGD1000F00 (builtPGD1000F00 (built

PGD1000F00 (built----in/panel) / PGD1000W00 pCO graphic display (wall)

in/panel) / PGD1000W00 pCO graphic display (wall)in/panel) / PGD1000W00 pCO graphic display (wall)

in/panel) / PGD1000W00 pCO graphic display (wall)

Display

DisplayDisplay

Display Type: FSTN graphic Backlighting: green or white LEDs (managed by “application program”) Graphic resolution: 132x64 pixel Text modes: 8 rows x 22 columns (5x7 and 11x15 pixel fonts) 4 rows x 11 columns (11x15 pixel fonts) or mixed modes Character height: 3.5 mm (5x7 pixel fonts)

7.5 mm (11x15 pixel fonts) Size of the active area: 66x32 mm Size of the display area: 72x36 mm

LEDs on keypad

LEDs on keypadLEDs on keypad

LEDs on keypad 2 programmable by “application program”, red and orange (Prg and Alarm buttons);

4 green, for backlighting the LCD (↑ ↓ Enter and Esc buttons).

Power supply

Power supplyPower supply

Power supply Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by 250 mAT external fuse. Maximum power input: 1.2 W

3.1.5

3.1.53.1.5

3.1.5 PGD0000I00 pCO graphic display (panel installation)

PGD0000I00 pCO graphic display (panel installation)PGD0000I00 pCO graphic display (panel installation)

PGD0000I00 pCO graphic display (panel installation)

Display

DisplayDisplay

Display Type: FSTN graphic Backlighting: green LEDs (managed by “application program”) Graphic resolution: 120x32 pixels Text modes: 4 rows x 20 columns (5x7 and 11x15 pixel fonts) 2 rows x 10 columns (11x15 pixel fonts) or mixed modes Character height: 4.5 mm (5x7 pixel fonts) 9 mm (11x15 pixel fonts) Size of the active area: 71.95x20.75 mm Size of the display area 76x25.2 mm Keypad 15 buttons, the “ESC” button is replaced by the “MENU” button

Power supply

Power supplyPower supply

Power supply Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by external 250 mAT fuse. Maximum power input: 1.5 W

3.1.6

3.1.63.1.6

3.1.6 PGD1000I00

PGD1000I00 PGD1000I00

PGD1000I00 pCO graphic display (panel installation)

pCO graphic display (panel installation)pCO graphic display (panel installation)

pCO graphic display (panel installation)

Display

DisplayDisplay

Display Type: FSTN graphic Backlighting: green LEDs (managed by “application program”) Graphic resolution: 132x64 pixel Text modes: 8 rows x 22 columns (5x7 and 11x15 pixel fonts)

4 rows x 11 columns (11x15 pixel fonts) or mixed modes

Character height: 3.5 mm (5x7 pixel fonts)

7.5 mm (11x15 pixel fonts) Size of the active area: 66x32 mm Size of the display area: 72x36 mm Keypad 15 buttons, the “ESC” button is replaced by the “MENU” button

Power supply

Power supplyPower supply

Power supply Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by external 250 mAT fuse Maximum power input: 1.8 W.

Fig. 3.b

Fig. 3.bFig. 3.b

Fig. 3.b

Fig. 3.c

Fig. 3.cFig. 3.c

Fig. 3.c

Fig. 3.d

Fig. 3.dFig. 3.d

Fig. 3.d

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

29

3.1.7

3.1.73.1.7

3.1.7 pGD2/3

pGD2/3 pGD2/3

pGD2/3 ---- pCO graphic display

pCO graphic displaypCO graphic display

pCO graphic display

Versions:

Versions:Versions:

Versions:

- Panel installation (code PGD*00*F0*)

- Wall-mounting (code PGD*00*W0*)

pGD

pGDpGD

pGD

2222

LCD colours monochromatic (blue/white) resolution 320x240 pixels backlighting by LED. pGD

pGDpGD

pGD

3333

LCD colours 256 colours resolution 320x240 pixel backlighting by CCFL fluorescent light.

protocols supported: pLAN protocol, “Local terminal” protocol (text mode only) LEDs 2 controlled by application

Configuration:

Configuration:Configuration:

Configuration: pGD 2/3 is configured in the factory for the most common user requirements, nonetheless some settings can be changed to adapt it to specific needs.

Updating the firmware:

Updating the firmware:Updating the firmware:

Updating the firmware: The firmware of the pGD2/3 terminal can be updated when new versions become available, using the “Display Firmware Update” function accessible from the “General Options” menu.

Power supply:

Power supply:Power supply:

Power supply: power supply: 24 Vac ±15%, 50/60 Hz or 30 Vdc ± 25% rated power: 10 W Use a class 2 safety transformer with a minimum rating of 15 VA.

3.1.8

3.1.83.1.8

3.1.8 Built

BuiltBuilt

Built----in display

in displayin display

in display

The pCO

XS

and pCO3 feature versions with a Built-In terminal: the display and keypad are incorporated directly into the plastic case. It is availabele for the pCO3 specifically, a graphic LCD and in all versions ( SMALL, MEDIUM, LARGE, EXTRALARGE NO, EXTRALARGE NC). The built-in terminal on the pCOXS does not have a graphic display.

Features

FeaturesFeatures

Features

codes PCO3000*S0, PCO3000*M0, PCO3000*L0,

PCO3000*Z0, PCO3000*C0 * = B, D, H

PCO3000*S0, PCO3000*M0, PCO3000*L0,

PCO3000*Z0, PCO3000*C0 * = E, F, I

PCO1000*S0

* = B, D

LCD 4x20, backlit (pGD0)

8x22, backlit (pGD1)

4x20, backlit

number of buttons

6 6 6

number of LEDs

4 4 4

Tab. 3.c

Tab. 3.cTab. 3.c

Tab. 3.c These versions with integrated LCD and keypad also support connection to all the pCO series terminals (the two displays, built-in and standard, work at the same time, displaying the same information).

built-in terminal

Fig. 3.f

Fig. 3.fFig. 3.f

Fig. 3.f

The display contrast can be adjusted on this version of the terminal. To do this :

1. press the Enter and Esc buttons together;

2. holding the two buttons, use UP or Down to adjust the contrast as required (increase or decrease respectively).

3.1.9

3.1.93.1.9

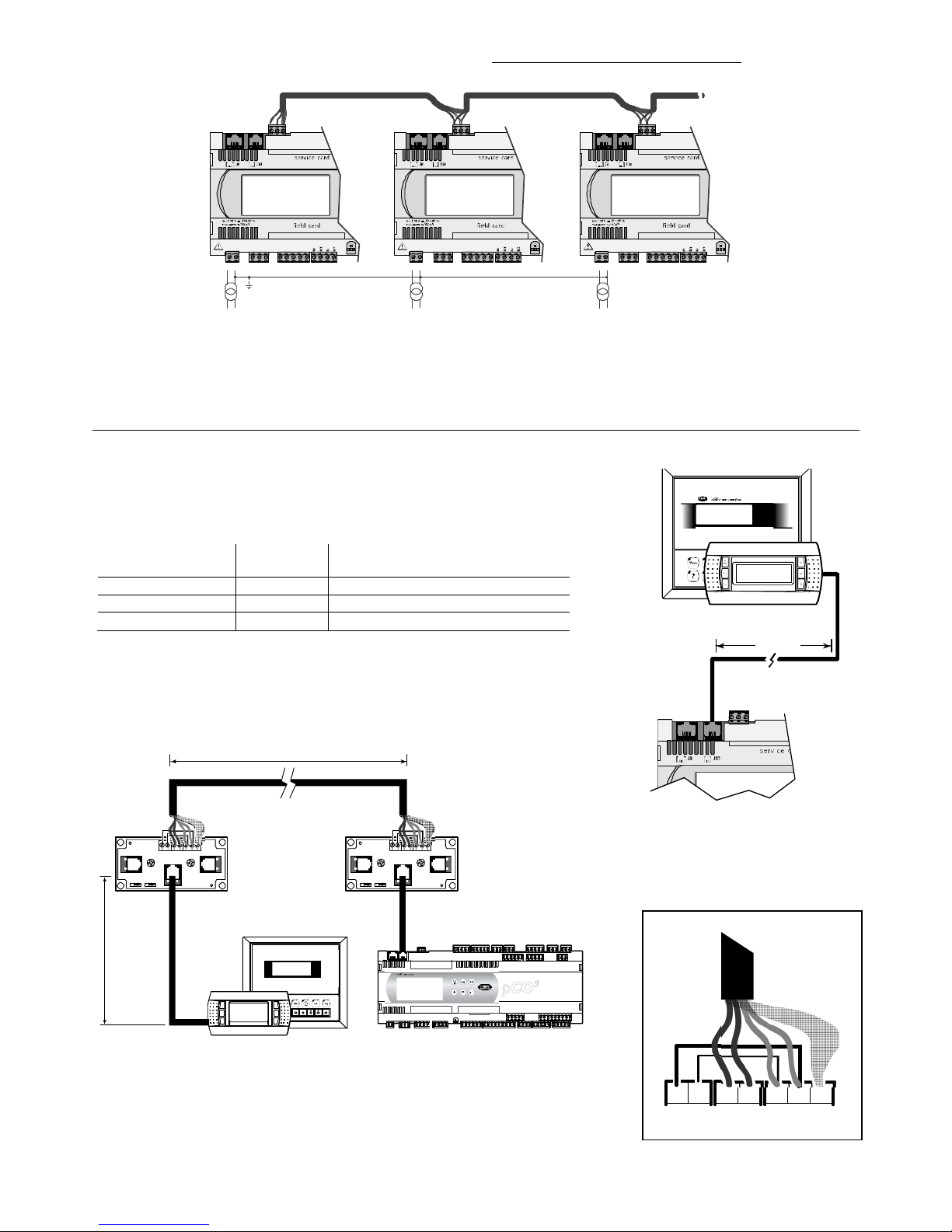

3.1.9 Connecting the user terminal to the pCO

Connecting the user terminal to the pCOConnecting the user terminal to the pCO

Connecting the user terminal to the pCO

The typical connection between the pGD terminal and the pCO is made using a 6-wire telephone cable supplied by Carel (code S90CONN00*). To make the connection simply plug the cable into the 6-pin connector on the pCO (J10 for pCO3 and pCO1, J5 for pCOXS, J19 pCOC), so that it clicks into place. To remove the connector, lightly press the plastic tab and pull out the cable. The telephone connector provides both the data link and the power supply to the terminal, and is the simplest connection method; in more complex configurations, where more than one terminal is connected to the pCO or to cover lengths in excess of 50 m, a twistedpair cable with shield is required (see the diagrams in chap. 5).

Shielded cable must also be used if the pCO is installed in domestic or similar environments, and consequently subject to the requirements of IEC EN 55014-1 of 04/98) – (see paragraph 5.7). When developing a pLAN network of pCO controllers and terminals, always remember that a pCO can only supply power to one pGD0/1 or old pCOT/I terminal. If it is necessary to manage more than one terminal or the pGD2/3 versions, an independent power supply is required (see the diagrams in chap. 5). The DC voltage at Vterm (J24 for pCO

3

, J9 for pCO1) can supply an ARIA or PLD terminal with a maximum power input of 2 W. The pCO can operate perfectly without the terminal

connected.

Fig. 3.e

Fig. 3.eFig. 3.e

Fig. 3.e

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

30

3.1.10

3.1.103.1.10

3.1.10 Maximum distance

Maximum distanceMaximum distance

Maximum distance

The maximum distances between the pCO and the user terminal are shown in the following table. type of cable

type of cable type of cable

type of cable power supply distance

power supply distancepower supply distance

power supply distance power supply

power supplypower supply

power supply telephone 50 m taken from pCO (150 mA) AWG24 shielded cable 200 m taken from pCO (150 mA) AWG20/22 shielded cable 500 m separate power supply via TCONN6J000

Tab. 3.d

Tab. 3.dTab. 3.d

Tab. 3.d

The maximum distance between two pCO controllers with AWG20/22 shielded twisted pair cables is 500 m. When developing the network, use a bus layout with branches that do not exceed 5 m. For further information, see Chapter 5.

User terminal/interface connecti

User terminal/interface connectiUser terminal/interface connecti

User terminal/interface connection cables

on cableson cables

on cables

length (m)

length (m)length (m)

length (m) type

typetype

type code

code code

code

0.8 telephone connectors S90CONN002

1.5 telephone connectors S90CONN000 3 telephone connectors S90CONN001 6 telephone connectors S90CONN003

Tab. 3.e

Tab. 3.eTab. 3.e

Tab. 3.e

3.1.11

3.1.113.1.11

3.1.11 Dimensioni display (in mm)

Dimensioni display (in mm)Dimensioni display (in mm)

Dimensioni display (in mm)

Remote terminal installation

Remote terminal installationRemote terminal installation

Remote terminal installation acce

acceacce

accessories for electrical connections

ssories for electrical connectionsssories for electrical connections

ssories for electrical connections code

code code

code

board for remote terminal installation TCONN6J000

Dimensions: PGD0/1

Dimensions: PGD0/1Dimensions: PGD0/1

Dimensions: PGD0/1

156

30

31

18

67

82

Built-in assembly

Wall mounting

pGD1* display dimensions

Fig. 3.g

Fig. 3.gFig. 3.g

Fig. 3.g

Dimensions: PGD2/3

Dimensions: PGD2/3Dimensions: PGD2/3

Dimensions: PGD2/3

221

58

56,3

40,5

148

127,5

Built-in

assembly

W

all

mounting

Fig. 3.h

Fig. 3.hFig. 3.h

Fig. 3.h

Dimensions: PGDI

Dimensions: PGDIDimensions: PGDI

Dimensions: PGDI

202

53

43

177

Fig. 3.i

Fig. 3.iFig. 3.i

Fig. 3.i

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

31

4. INSTALLING THE pCO CONTROLLER

4.1 General installation instructions

4.1.1

4.1.14.1.1

4.1.1 Installation procedure

Installation procedureInstallation procedure

Installation procedure

Environmental conditions

Environmental conditionsEnvironmental conditions

Environmental conditions Avoid assembling the pCO and the terminal in environments with the following situations:

 temperature and humidity that do not conform to the rated operating data of the product;  strong vibrations or knocks;  exposure to aggressive and polluting atmospheres (e.g.: sulphur and ammonia fumes, saline mist, smoke) so as to avoid corrosion and/or oxidation;  strong magnetic and/or radio frequency interference (there avoid installing the units near transmitting antennae);  exposure of the pCO to direct sunlight and to the elements in general;  large and rapid fluctuations in the room temperature;  environments containing explosives or mixes of flammable gases;  exposure to dust (formation of corrosive patina with possible oxidation and reduction of insulation).

Positioning the instrument inside the panel

Positioning the instrument inside the panelPositioning the instrument inside the panel

Positioning the instrument inside the panel The instrument must be positioned inside the electrical cabinet so as to guarantee sufficient physical separation of the instrument from the power components (solenoids, contactors, actuators, inverters, ...) and the cables connected to these. Proximity to such devices may cause random malfunctions that are not immediately evident. The panel must feature good ventilation for cooling.

4.1.2

4.1.24.1.2

4.1.2 Wiring procedure

Wiring procedureWiring procedure

Wiring procedure

When laying the wires, "physically" separate the power from the control section. The proximity of the wiring of these two sections will, in most cases, cause problems of induced disturbance or, over time, malfunctions or damage to the components. The ideal condition involves running the two

circuits in two separate cabinets. Sometimes, however, this is not possible, and consequently the power section and the control section need to be placed in two separate areas inside the same panel. For the control signals, use shielded cables with twisted wires. If the control cables need to cross over the power cables, the point of crossing should have angles of intersection as near as possible to 90 degrees; never run the control cables parallel to the power cables. CAREL suggests to pay attention to the following wornings:

• Use cable ends suitable for the corresponding terminals. Loosen each screw and insert the cable ends, then tighten the screws. When the operation is

completed, slightly tug the cables to check they are sufficiently tight;

• separate as much as possible the probe and digital input signal cables from the cables carrying inductive loads and power cables to avoid possible

electromagnetic disturbance. Never insert power cables (including the electrical cables) and probe signal cables in the same conduits. Do not install the probe cables in the immediate vicinity of power devices (contactors, circuit breakers or similar);

• reduce the path of the probe cables as much as possible, and avoid spiral paths that enclose power devices;

• avoid touching or nearly touching the electronic components fitted on the boards, so as to avoid electrostatic discharges (extremely dangerous) from the

operator to the components.

• if the power transformer secondary is earthed, check that the earth wire corresponds to the wire that runs to the controller and enters terminal G0; this

must be followed for all devices connected to the pCO;

• when fastening the cables to the terminals, do not push the screwdriver with excessive force, so as to avoid damaging the pCO;

• for applications subject to considerable vibrations (1.5 mm pk-pk 10/55 Hz), secure the cables connected to the pCO around 3 cm from the connectors

using clamps;

• if the product is installed in industrial environments (application of the EN 61000-6-2 standard), the length of the connections must be less than 30m;

• all the very low voltage connections (analogue and digital inputs at 24 Vac/24Vdc, analogue outputs, serial bus connections, power) must have reinforced or

double insulation from the mains;

• in residential environments, the connection cable between the pCO and the terminal must be shielded.

• there is no limit to the number of wires that can be connected to an individual terminal. The only limit concerns the maximum current running through

the terminal: this must not exceed 8 A;

• the maximum cross-section of the wires connected to the terminals is 2.5 mm2 (12 AWG);

• the maximum value of the twisting moment (or torque) for tightening the screws on the terminal (tightening torque) is 0.6 Nm.

4.1.3

4.1.34.1.3

4.1.3 Warnings

WarningsWarnings

Warnings

• Installation must be performed according to the standards and legislation in force in the country where the appliance is used;

• for safety reasons, the appliance must be housed inside an electrical panel, so that the only accessible part is the display and the keypad;

• in the event of malfunctions, do not attempt to repair the appliance, but deliver the item directly to CAREL;

4.1.4

4.1.44.1.4

4.1.4 Anchoring the pCO

Anchoring the pCOAnchoring the pCO

Anchoring the pCO

The pCO should be installed on a DIN rail. To secure the controller to the DIN rail, simply rest the device on the rail and press lightly. The rear tabs click into place to fasten the device to the rail. To remove the device, use a screwdriver as a lever in the corresponding opening to lift the locking tabs. The tabs are held in the locked position by return springs.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

32

4.2 Power supply

Power supply to the pCO3, pCO1 and pCOC (controller with terminal connected): 28 to 36 Vdc +10/-20% or 24 Vac +10/-15% 50 to 60 Hz; Maximum current P= 15 W (Vdc power supply), P= 40 VA (Vac)

Power supply to the pCOXS: 20/60 Vdc or 24 Vac ± 15% 50 to 60 Hz. Maximum current P=6.1 W (Vdc), P=8 VA (Vac)

 power supplies other than those specified may seriously damage the system;  use a Class 2 safety transformer, rated to 50 VA in the installation to supply just one pCO3, pCO1 and pCOC controller; for pCOXS controller is used a same

transformer of 25VA.

 separate the power supply to the pCO controller and the terminal (or multiple pCO controllers and terminals) from the power supply to the other electrical

devices (contactors and other electromechanical components) inside the electrical panel;

 if the power transformer secondary is earthed, check that the earth wire is connected to terminal G0; this must be followed for all devices connected to the pCO;  if more than one pCO board is connected in pLAN network, make sure that G and G0 are always connected in the same way (G0 must be the reference for

make sure that G and G0 are always connected in the same way (G0 must be the reference for make sure that G and G0 are always connected in the same way (G0 must be the reference for

make sure that G and G0 are always connected in the same way (G0 must be the reference for

all the boards);

all the boards);all the boards);

all the boards);

 a yellow LED indicates when the pCO is powered.

4.3 Connecting the analogue inputs

The analogue inputs on the pCO can be configured for the most commonly used sensors on the market: NTC, PT1000, 0 to 1 V, 0 to 5 V ratiometric, 0 to 10 V, 0 to 20 mA, 4 to 20 mA. The type of sensor can be selected by setting a parameter on the user terminal (if featured by the application program) and from hardware selection for pCO1 or pCOc

4.3.1

4.3.14.3.1

4.3.1 Connecting active temperature and humidity probes

Connecting active temperature and humidity probesConnecting active temperature and humidity probes

Connecting active temperature and humidity probes

The pCO can be connected to all CAREL AS*2 series active temperature and humidity probes configured with 0 to 1 V or 4 to 20 mA signals. For the temperature probes, use the 4 to 20 mA or NTC configuration, as the 0/1 Vdc signal is limited to the restricted 0-1 V range and therefore is not always compatible with the standard 10 mV/°C signal of the CAREL probes (for temperatures below 0°C and above 100°C, a probe alarm may be generated). The inputs must be configured for 0 to 1 V or 4 to 20 mA signals by the application program resident in flash memory. The connection diagram is shown below:

Fig. 4.a

Fig. 4.aFig. 4.a

Fig. 4.a

4.3.2

4.3.24.3.2

4.3.2 Connecting universal NTC temperature probes

Connecting universal NTC temperature probesConnecting universal NTC temperature probes

Connecting universal NTC temperature probes

All the analogue inputs are compatible with 2-wire NTC sensors. The inputs must be configured for NTC signals by the application program resident in flash memory. The connection diagram is shown below:

G

G0

+V

term

GND

+5 V

REF

VG

VG0Y1Y2Y3Y4

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

J1 J24 J2 J3

J4 J5

J21

J10J9

ID15H

field card serial card

input: 24 V / ;50 to 60 Hz max. po wer:40VA/15W

B1B2B3

GND

+VDC

B4

BC4B5BC5

Fig. 4.b

Fig. 4.bFig. 4.b

Fig. 4.b

Warning:

Warning: Warning:

Warning: the two NTC probe wires are equivalent, as there is no polarity, therefore no special order needs to be followed when connecting to the terminal block.

Controller

ControllerController

Controller

pCO terminals

pCO terminalsp CO terminals

pCO terminals

NTC probe wire

NTC probe wireNTC probe wire

NTC probe wire

pCO

pCOpCO

pCO

3333

GND, BC4, BC5, BC9, BC10

1111

B1, B2, B3, B4, B5, B6, B7, B8, B9, B10

2222

pCO

pCOpCO

pCO

XS

XSXS

XS

GND 1111

B1, B2, B3, B4,

2222

pCO

pCOpCO

pCO

1111

GND 1111

B1, B2, B3, B4, B5, B6, B7, B8

2222

pCO

pCOpCO

pCO

CCCC

AVSS 1111

B1, B2, B3, B4, B5, B6, B7, B8

2222

Tab. 4.b

Tab. 4.bTab. 4.b

Tab. 4.b

Controller

ControllerController

Controller

pCO terminals

pCO terminalsp CO terminals

pCO terminals

Probe

Probe Probe

Probe

terminals

terminalsterminals

terminals

Descript ion

Descript ionDescription

Descript ion

PCO3

GND M Reference

+Vdc +(G) Power supply

B1, B2, B3, B6, B7, B8

out H Active humidity output

B1, B2, B3, B6, B7, B8

out T Active temperature output

PCO1

GND M Reference

+Vdc +(G) Power supply

B1, B2, B3, B4

out H Active humidity output

B1, B2, B3, B4

out T Active temperature output

PCOXS

GND M Reference

+24Vdc

+(G) Power supply

B1,B2 out H Active humidity output

B1,B2 out T Active temperature output

PCOC

GND M Reference

+24Vdc

+(G) Power supply

B5, B6, B7, B8

out H Active humidity output

B5, B6, B7,

B8 out T Active temperature output

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

33

4.3.3

4.3.34.3.3

4.3.3 Connecting PT1000 tempera ture probes

Connecting PT1000 temperature probesConnecting PT1000 temperature probes

Connecting PT1000 temperature probes

The pCO can be connected to 2-wire PT1000 sensors for all high temperature applications; the operating range is: -100 to 200 °C. The inputs must be configured for PT1000 signals by the application program resident in flash memory. The connection diagram is shown below:

G

G0

+Vterm

GND

+5 VREF

VG

VG0Y1Y2Y3

Y4

ID1

ID2

ID3

ID4

J1 J24 J2 J3

J4

field card serial card

input: 24 V / ;50 to60 Hz max. power:4 0VA/15W

B1B2B3

GND

+VDC

B4

BC4

B5

BC5

Fig. 4.c

Fig. 4.cFig. 4.c

Fig. 4.c

Warnings:

Warnings:Warnings:

Warnings:

• to ensure a correct measurement by the PT1000 sensor, each sensor wire must be connected to a separate terminal, as shown in Figure 4.c;

• the two PT1000 probe wires are equivalent, as there is no polarity, therefore no special order needs to be followed when connecting to the terminal block.

4.3.4

4.3.44.3.4

4.3.4 Connecting pressur

Connecting pr essurConnecting pr essur

Connecting pr essure probes with current signal

e probes with current signale probes with current signal

e probes with current signal

The pCO can be connected to all CAREL SPK* series active pressure probes or any pressure sensor available on the market with a 0 to 20 mA or 4 to 20 mA signal. The inputs must be configured for 0 to 20 mA or 4 to 20 mA signals by the application program resident in flash memory. The connection diagram is shown below:

G

G0

+Vterm

GN D

+5 VREF

J1 J 24 J2 J3

field card

input: 24 V / ;50 to 60 Hz max. po wer:40VA/15W

B1B2B3

GND

+VDC

Fig. 4.d

Fig. 4.dFig. 4.d

Fig. 4.d

Cont.

Cont.Cont.

Cont.

PT1000 probe wire

PT1000 probe wirePT1000 probe wire

PT1000 probe wire

pCO

pCOpCO

pCO

3333

probe 1 probe 2 probe 3 probe 4

BC4 BC5 BC9 BC10

1111

B4 B5 B9 B10

2222

pCO

pCOpCO

pCO

xs

xsxs

xs

not availabl

e

pCO

pCOpCO

pCO

1111

not available

pCO

pCOpCO

pCO

CCCC

not available

Tab. 4.c

Tab. 4.cTab. 4.c

Tab. 4.c

Controller

ControllerController

Controller

pCO terminals

pCO terminalsp CO terminals

pCO terminals

Probe wire colour

Probe wire colourProbe wire colour

Probe wire colour

Descript ion

Descript ionDescription

Descript ion

pCO

pCOpCO

pCO

3333

+Vdc brown power supply

B1, B2, B3

B6, B7, B8

white signal

pCO

pCOpCO

pCO

xs

xsxs

xs

+Vdc brown power supply

B1, B2,

white signal

pCO

pCOpCO

pCO

1111

+Vdc brown power supply

B1, B2, B3, B4

white signal

pCO

pCOpCO

pCO

CCCC

+Vdc brown power supply

B5, B6, B7, B8

white signal

Tab. 4.d

Tab. 4.dTab. 4.d

Tab. 4.d

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

34

G

G0

+V

term

GN D

+5 V

REF

J1 J24 J2 J3

B1B2B3

GND

+VDC

GND

20.5k

out H M

out T

+( G)

4.3.5

4.3.54.3.5

4.3.5 Connecting 0/5 V rat iome tric pressure probes

Connecting 0/5 V ratiometric pressure probesConnecting 0/5 V ratiometric pressure probes

Connecting 0/5 V ratiometric pressure probes

The pCO can be connected to all CAREL SPKT series active pressure probes or any pressure sensor available on the market with 0/5 V ratiometric signal. The inputs must be configured for 0/5V ratiometric signals by the application program resident in the memory.

G

G0

+Vterm

GND

+5VREF

J1 J 24 J2 J3

field card

input: 24 V / ;50 to 60 Hz max. power:40 VA/15W

B1B2B3

GND

+VDC

Fig. 4.e

Fig. 4.eFig. 4.e

Fig. 4.e

4.3.6

4.3.64.3.6

4.3.6 Connecting active probes with 0 to 10 V output

Connecting active probes with 0 to 10 V outputConnecting active probes with 0 to 10 V output

Connecting active probes with 0 to 10 V output

The inputs must be configured for 0 to 10 V signals by the application program resident in flash memory.

G

G0

+Vterm

GND

+5 VREF

VG

VG0Y1Y2Y3

Y4

ID1

ID2

J1 J24 J2 J3

J4

field card serial card

input: 24 V / ;5 0 to60 Hz max. power:40VA/15W

B1B2B3

GND

+VDC

out H

M

out T

+( G)

Fig. 4.f

Fig. 4.fFig. 4.f

Fig. 4.f

 Reading 0 to 10 V inputs with the pCO

Reading 0 to 10 V inputs with the pCOReading 0 to 10 V inputs with the pCO

Reading 0 to 10 V inputs with the pCO

1111

and pCO

and pCOand pCO

and pCO

XS

XSXS

XS

Warning: the pCO

Warning: the pCOWarning: the pCO

Warning: the pCO

1111

and pCO

and pCOand pCO

and pCO

xs

xsxs

xs

cannot read 0 to 10 Volt inputs.

cannot read 0 to 10 Volt inputs.cannot read 0 to 10 Volt inputs.

cannot read 0 to 10 Volt inputs.

On both controllers, to read this type of input simply set it as 0-5 V at an application level and then fit a 20.5KΩ, 1/4W, 1% resistor in series with terminal Bn, as shown

in the drawing below.

• In this way, for the pCO

pCOpCO

pCO

1111

a measurement error of approx 1.2% is introduced. This error can be easily

overcome by modifying the reading of the analogue input by the application using a gain coefficient of

1.0125, or using two 10K resistors in series instead of one 20.5K.

• For the pCO

pCOpCO

pCO

XS

XSXS

XS

, the following formula must be applied to reading of the analogue input : X= (value of

Ainpco2 – 504 ) * 2.1.

Where: “Value of Ainpco2” is the value of the input read by the software.

Note:

Note: Note:

Note:

• the impedance of the pCO

1

input configured as 0 to 5 V is 20KΩ;

• the impedance of the pCO

xs,

input configured as 0 to 5 V is 6.6KΩ.

The probe must have an output resistance

output resistanceoutput resistance

output resistance that is much lower than the input resistance of the pCO as

indicated above; otherwise the formula applied to the reading will need to be adjusted.

VG

VG0

Y1

Y2

J4

serial card

Controller

ControllerController

Controller

pCO terminals

pCO terminalsp CO terminals

pCO terminals

Probe wire colour

Probe wire colourProbe wire colour

Probe wire colour

Descript ion

Descript ionDescription

Descript ion

pCO

pCOpCO

pCO

3333

+5V Ref

black power supply

GND green power supply reference

B1, B2, B3

B6, B7, B8

wh

ite signal

pCO

pCOpCO

pCO

xs

xsxs

xs

+5V Ref

black power supply

GND green power supply reference

B1, B2 white signal

pCO

pCOpCO

pCO

1111

+5V Ref

black power supply

GND green power supply reference

B1, B2, B3, B4

white signal

pCO

pCOpCO

pCO

CCCC

Not available

Controller

ControllerController

Controller

0 to 10 V probe cable

0 to 10 V probe cable0 to 10 V probe cable

0 to 10 V probe cable

pCO

pCOpCO

pCO

3333

GND reference

B1, B2, B3, B6, B7, B8

signal

+Vdc brown

Power supply (if used)

pCO

pCOpCO

pCO

xs

xsxs

xs

Not available directly

pCO

pCOpCO

pCO

1111

Not

available directly

pCO

pCOpCO

pCO

CCCC

Not available

Tab. 4.f

Tab. 4.fTab. 4.f

Tab. 4.f

Fig. 4.f1

Fig. 4.f1Fig. 4.f1

Fig. 4.f1

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

35

4.3.7

4.3.74.3.7

4.3.7 Connecting the analogue inputs selected as ON/OFF

Connecting the analogue inputs selected as ON/OFFConnecting the analogue inputs selected as ON/OFF

Connecting the analogue inputs selected as ON/OFF

A number of analogue inputs on the pCO can be configured as voltage-free digital inputs, not optoisolated. The inputs must be configured as voltage-free digital inputs by the application program resident in flash memory.

G

G0

+V

term

GND

+5 V

REF

B4

BC4B5BC5

J1 J24 J2 J3

field card

input: 24 V / ;50 to 60 Hz max. power:40 VA/15W

B4

BC4B5BC5

Fig. 4.g

Fig. 4.gFig. 4.g

Fig. 4.g

Warnings:

Warnings: Warnings:

Warnings: the maximum current available at the digital input is 5 mA (thus the rating of the external contact must be at least 5 mA).

4.3.8

4.3.84.3.8

4.3.8 Distance of the analogue inputs

Distance of the analogue inputsDistance of the analogue inputs

Distance of the analogue inputs

The sizes of the cables used for connecting the analogue inputs over a distance are shown in the following table:

type of in

type of intype of in

type of in

put

putput

put

size (mm

size (mmsize (mm

size (mm

2222

) for length up to 50 m

) for length up to 50 m) for l ength up to 50 m

) for length up to 50 m

size (mm

size (mmsize (mm

size (mm

2222

) for length up to 100 m

) for length up to 100 m) for length up to 100 m

) for length up to 100 m

NTC 0.5 1.0

PT1000 0.75 1.5

I (current)

0.25 0.5

V (voltage)

0.25 0.5

Tab. 4.h

Tab. 4.hTab. 4.h

Tab. 4.h

If the product is installed in industrial environments (application of the EN 61000-6-2 standard) the length of the connections must be less than 30m. In any case, this length should not be exceeded so as to prevent measurement errors.

Controller

ControllerController

Controller

pCO terminals

pCO terminalsp CO terminals

pCO terminals

Digital input wire

Digital input wireDigital input wire

Digital input wire

pCO

pCOpCO

pCO

3333

digit 1 digit 2 digit 3 digit4

BC4 BC5 BC9 BC10

1111

B4 B5 B9 B10

2222

pCO

pCOpCO

pCO

xs

xsxs

xs

Not available

pCO

pCOpCO

pCO

1111

B5 B6

GND GND

1111

2222

pCO

pCOpCO

pCO

CCCC

Not available

Tab. 4.g

Tab. 4.gTab. 4.g

Tab. 4.g

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

36

4.4 Connecting the digital inputs

The pCO features digital inputs for connection to safety devices, alarms, device status indictors and remote control signals. These inputs are all optically-isolated from the other terminals and can operate at 24 Vac, 24 Vdc and some at 230 Vac. Note:

Note: Note:

Note: separate as much as possible the probe and digital input signal cables from the cables carrying inductive loads and power cables to avoid possible electromagnetic disturbance.

IMPORTANT WARNINGS:

IMPORTANT WARNINGS: IMPORTANT WARNINGS:

IMPORTANT WARNINGS: if the control voltage is taken in parallel from a battery, install a dedicated RC filter in parallel with the battery (the typical features are 100

Ω, 0.5 µF, 630 V).

If connecting the digital inputs to safety systems (alarms), remember that

remember thatremember that

remember that: voltage across the contact must be considered as the normal operating condition, while no

voltage must represent an alarm situation. In this way, any interruption (or disconnection) of the input will also be signalled. Do not connect the neutral to an open

digital input. Always make sure that it is the line that is disconnected. The 24 Vac/Vdc digital inputs have a resistance of around 5 kΩ.

4.4.1

4.4.14.4.1

4.4.1 24 Vac digital inputs

24 Vac digital inputs24 Vac digital inputs

24 Vac digital inputs

For pCO

For pCOFor pCO

For pCO

3333

, pCO

, pCO, pCO

, pCO

1111

and pCO

and pCOand pCO

and pCO

CCCC

: all inputs can be 24 Vac.

: all inputs can be 24 Vac.: all inputs can be 24 Vac.

: all inputs can be 24 Vac.

The following figure represents one of the most common diagrams for connecting the 24 Vac digital inputs, for a pCO3.

G

G0

24Vac

G

G0

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

IDC1

ID9

ID10

ID11

ID12

IDC9

ID13H

ID13

IDC13

ID14

ID14H

ID15H

ID15

IDC15

ID16

ID16H

Y5

Y6

ID17

ID18

IDC17

B9

BC9

B10

BC10

Serial Card

Fig. 4.h

Fig. 4.hFig. 4.h

Fig. 4.h

4.4.2

4.4.24.4.2

4.4.2 24 Vdc digital inputs

24 Vdc digital inputs24 Vdc digital inputs

24 Vdc digital inputs

For pCO

For pCOFor pCO

For pCO

3333

, pCO

, pCO, pCO

, pCO

1111

and pCO

and pCOand pCO

and pCO

CCCC

: all inputs can be 24Vdc.

: all inputs can be 24Vdc.: all inputs can be 24Vdc.

: all inputs can be 24Vdc.

The following figure represents one of the most common diagrams for connecting the 24 Vdc digital inputs, for a pCO3.

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

IDC1

ID9

ID10

ID11

ID12

IDC9

ID13H

ID13

IDC13

ID14

ID14H

ID15H

ID15

IDC15

ID16

ID16H

Y5

Y6

ID17

ID18

IDC17

B9

BC9

B10

BC10

Serial Card

24Vdc +

-

24Vdc +

-

Fig.4.i

Fig.4.iFig.4.i

Fig.4.i

To maintain the optical isolation of the digital inputs, a separate power supply must be used just for the digital inputs; Figs. 4.h and 4.i show the connection diagrams for the versions: MEDIUM (extended) and LARGE (limited to the part regarding the terminals located inside, on the board). While being the more common and the simplest diagrams to complete, these do not exclude the possibility of powering the digital inputs independently from the power supply to the pCO. In any case, the inputs only have functional insulation from the rest of the controller.

Note:

Note:Note:

Note: there are no digital inputs in the Extra Large zone.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

37

4.4.3

4.4.34.4.3

4.4.3 Connecting the digital inputs to the pCO

Connecting the digital inputs to the pCOConnecting the digital inputs to the pCO

Connecting the digital inputs to the pCOXS

XSXS

XS

The pCOXS features up to 6 not optoisolated digital inputs, with voltage-free contacts, for connection to safety devices, alarms, device status indictors and remote control signals, etc. These operate at 24 Vdc (supplied by the pCOXS) with a guaranteed current at the contact of 6 mA. Warning:

Warning: Warning:

Warning: separate as much as possible the probe and digital input signal cables from the cables carrying inductive loads and power cables to avoid possible electromagnetic disturbance.

The following figure shows the diagram for connecting the digital inputs.

4.4.4

4.4.44.4.4

4.4.4 230 Vac digital input

230 Vac digital input230 Vac digital input

230 Vac digital inputssss

FOR PCO

FOR PCOFOR PCO

FOR PCO

3333

, PCO

, PCO, PCO

, PCO

1111

AND PCO

AND PCOAND PCO

AND PCO

CCCC

ONLY

ONLYONLY

ONLY There are up to two groups of 230 Vac inputs. Each group features two inputs and the groups have double insulation between them and therefore may have different reference voltages. The digital inputs cannot be independent within each group: for example, with reference to Fig. 4.m, inputs ID15 and ID16, due to the common terminal, must be powered at the same voltage to avoid dangerous short-circuits and/or 230 Vac being supplied to circuits operating at lower voltages. In any case the inputs have double insulation from the rest of the controller. The following figure represents one of the most common diagrams for connecting the 230 Vac digital inputs.

The uncertainty of the switching threshold ranges from 43 to 90 Vac. It is recommended to use a 100 mA fuse in series with the digital inputs.

input

inputinput

input

pCO

pCOpCO

pCO

3333

termi nals

termi nalsterminals

termi nals

13, 14, 15, 16

pCO

pCOpCO

pCO

XS

XSXS

XS

termi nals

termi nalsterminals

termi nals

Not available

pCO

pCOpCO

pCO

1111

termi nals

termi nalsterminals

termi nals

13, 14

pCO

pCOpCO

pCO

CCCC

termi nals

termi nalsterminals

termi nals

11, 12

Tab. 4.i

Tab. 4.iTab. 4.i

Tab. 4.i

Warnings for the 230 Vac digital inputs

Warnings for the 230 Vac digital inputsWarnings for the 230 Vac digital inputs

Warnings for the 230 Vac digital inputs:

• 230 Vac 50/60 Hz +10/-15 %;

• for each group, the two inputs, 24 Vac/Vdc or 230 Vac have the same common pole, the inputs will both work at the same voltage (24 Vac/Vdc or 230 Vac).

Insulation is primary.

4.4.5

4.4.54.4.5

4.4.5 Distance of the digital inputs

Distance of the digital inputsDistance of the digital inputs

Distance of the digital inputs

Important note

Important noteImportant note

Important note: do not connect other devices to the digital inputs. The sizes of the cables used for connecting the digital inputs over a distance are shown in the following table:

size (mm

size (mmsize (mm

size (mm

2222

) for length up to 50 m

) for length up to 50 m) for length up to 50 m

) for length up to 50 m size (mm

size (mmsize (mm

size (mm

2222

) for length up to 00 m

) for length up to 00 m) for length up to 00 m

) for length up to 00 m

0.25 0.5

If the product is installed in industrial environments (application of the EN 61000-6-2 standard) the length of the connections must be less than 30m. In any case, this length should not be exceeded so as to prevent reading errors.

J4

built-in terminal

Fig. 4.l

Fig. 4.lFig. 4.l

Fig. 4.l

ID15H

ID15

IDC15

ID16

ID16H

Y5

Y6

ID17

ID18

IDC17

B9

BC9

B10

BC10

SerialCard

Fig. 4.m

Fig. 4.mFig. 4.m

Fig. 4.m

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

38

4.5 Connecting the analogue outputs

4.5.1

4.5.14.5.1

4.5.1 Connecting the 0 to 10 V

Connecting the 0 to 10 V Connecting the 0 to 10 V

Connecting the 0 to 10 V analogue outputs

analogue outputsanalogue outputs

analogue outputs

The pCO provides 0-10V optically-isolated analogue outputs, powered externally at 24Vac/Vdc. Fig. 4.n shows the electrical connection diagram; the 0 V (zero) of the power supply is also the reference for the output voltage. The table below shown summarises the distribution of the analogue outputs according to the versions available.

VG

VG0

Y1Y2Y3

Y4

Y5Y6B9

BC9

B10

BC10

ID17

ID18

IDC17

Serial Card

24Vac/Vdc

V

out

V

out

V

out

V

out

V

out

V

out

0V

Fig. 4.n

Fig. 4.nFig. 4.n

Fig. 4.n

no. of analogue outputs

no. of analogue outputsno. of analogue outputs

no. of analogue outputs

refe rence

refe rencereference

refe rence

pCO

pCOpCO

pCO

3333

termi nals

termi nalsterminals

termi nals

SMALL Y1, Y2, Y3, Y4

VG0

MEDIUM

Y1, Y2, Y3, Y4

LARGE Y1, Y2, Y3, Y4, Y5, Y6

XL NO Y1, Y2

, Y3, Y4

XL NC Y1, Y2, Y3, Y4

pCO

pCOpCO

pCO

XS

XSXS

XS

termi nals

termi nalsterminals

termi nals

Y1, Y2 G0

pCO

pCOpCO

pCO

1111

termi nals

termi nalsterminals

termi nals

SMALL Y1, Y2, VG0

MEDIUM

Y1, Y2,

pCO

pCOpCO

pCO

CCCC

termi nals

termi nalsterminals

termi nals

VG0

Tab. 4.l

Tab. 4.lTab. 4.l

Tab. 4.l

Warning: on the pCO

Warning: on the pCOWarning: on the pCO

Warning: on the pCO

XS

XSXS

XS

the outputs are not optically-isolated. Also remember that the internal circuit of the power supply to the pCOXS is isolated.

4.5.2

4.5.24.5.2

4.5.2 Connecting the PWM analogue outputs

Connecting the PWM analogue outputsConnecting the PWM analogue outputs

Connecting the PWM analogue outputs

The pCO1 and the pCO

XS

provide a PWM analogue output for phase cutting speed controllers. Fig.4.o shows the most common electrical connection diagrams.

Y1Y2Y3

GND

SYNC

B1B2B3

B4

GND

+5VREF

+24VDC

G

G0

J3

SERIAL CARD

built-in terminal

xs

L1

N

Y1Y2Y3

GND

SYNC

B1B2B3

B4

GND

+5VREF

+24VDC

G

G0

J3

SERIAL CARD

built-in terminal

xs

MCHRTF

L1

N

MCHRTF

+

Fig. 4.o

Fig. 4.oFig. 4.o

Fig. 4.o

no. of analogu

no. of analoguno. of analogu

no. of analogue outputs

e outputse outputs

e outputs

reference

referencereference

reference

pCO

pCOpCO

pCO

3333

terminals

terminalsterminals

terminals not available

pCO

pCOpCO

pCO

XS

XSXS

XS

terminals

terminalsterminals

terminals Y3 G0

pCO

pCOpCO

pCO

1111

terminals

terminalsterminals

terminals Y3, Y4 VG0

pCO

pCOpCO

pCO

CCCC

terminals

terminalsterminals

terminals not available

Tab. 4.m

Tab. 4.mTab. 4.m

Tab. 4.m

Note:

Note: Note:

Note: the power supply to the circuit measuring the zero crossing is at terminal G on the pCO1 and terminal SYNC on the pCOXS, and must be 24 Vac, in phase with the power supply to the actuator: for three-phase power supply, use the same phase to power the pCOXS and the actuator.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

39

4.5.3

4.5.34.5.3

4.5.3 Optional modules

Optional modulesOptional modules

Optional modules

Module for

Module forModule for

Module for converting a PWM output to a 0 to 10 V analogue output or 4

converting a PWM output to a 0 to 10 V analogue output or 4 converting a PWM output to a 0 to 10 V analogue output or 4

converting a PWM output to a 0 to 10 V analogue output or 4 to 20 mA.

to 20 mA.to 20 mA.

to 20 mA. A special module is used to convert a PWM output (5 V pulses) into a linear 0 to 10 V or 4 to 20 mA analogue output (code CONV0/10A0). The control signal (at the input terminals it is optically-isolated from the rest of the module) must have a maximum amplitude of 5 V and a period of between 8ms and

200 ms. The 0 to 10 V output can be connected to a maximum load of 2kΩ, with a maximum ripple of 100 mV, while the 4 to 20 mA current output can be connected to a maximum load of 280Ω, with a maximum overshoot of 0.3 mA.

The module measures 87x36x60 mm (2 DIN modules) and has IP20 index of protection.

Module for converting a 0 to 10 V analogue output to an SPDT digital output (code CONVON OFF0)

Module for converting a 0 to 10 V analogue output to an SPDT digital output (code CONVON OFF0)Module for converting a 0 to 10 V analogue output to an SPDT digital output (code CONVON OFF0)

Module for converting a 0 to 10 V analogue output to an SPDT digital output (code CONVON OFF0) This module is used to convert a 0 to 10 V analogue output (Yn) to an ON/OFF relay output. The control signal Yn (at the input terminals it is optically-isolated from the rest of the module), to ensure the relay switches from OFF to ON, must have a minimum amplitude of 3.3 V. The relay is SPDT with a maximum current of 10 A and a maximum inductive load of 1/3 HP. The module measures 87x36x60 mm (2 DIN modules) and has IP20 index of protection.

Module for dividing the number of pulses at the digital input by 8 (code PCO208DI00)

Module for dividing the number of pulses at the digital input by 8 (code PCO208DI00)Module for dividing the number of pulses at the digital input by 8 (code PCO208DI00)

Module for dividing the number of pulses at the digital input by 8 (code PCO208DI00) This module is used to independently divide the frequency of two signals by a factor of 8. The two input signals (at the input terminals they are optically-isolated from the rest of the module) must have a amplitude of between 10 and 20V, a duration greater than 10 ms and a maximum frequency of 10 Hz. The module measures 87x36x60 mm (2 DIN modules) and has IP20 index of protection.

4.6 Connecting the digital outputs

The pCO features digital outputs with electromechanical relays and for ease of installation, the common terminals of some of the relays have been grouped together. If a diagram in Fig. 4.p is used, the current at the common terminals must not exceed the rating (nominal current) of an individual terminal (8 A).

4.6.1

4.6.14.6.1

4.6.1 Electromechanical relay digital outputs

Electromechanical relay digital outputsElectromechanical relay digital outputs

Electromechanical relay digital outputs

C1

NO1

NO2

NO3C1C4

NO4

NO5

NO6C4C7

NO7C7NO8C8NC8

NO13

C13

NC13

C9

NO9

NO10

NO11

C9

N

L

110/23 0-24Vac

NO14

C14

NC14

NO15

C15

NC15

C16

NO16

NO17

NO18

C16

N

L

110/23 0-24Vac

Fig. 4.p

Fig. 4.pFig. 4.p

Fig. 4.p

The relays are divided into groups, according to the insulation distance. Inside each group, the relays have just basic insulation and thus must have the same voltage (generally 24Vac or 110-230Vac). Between the groups, instead, there is double insulation and thus the groups can have different voltages. In any case there is double insulation from the rest of the controller.

4.6.2

4.6.24.6.2

4.6.2 Changeover outputs

Changeover outputsChangeover outputs

Changeover outputs

Some relays feature changeover outputs:

Relay changeover reference

Relay changeover referenceRel ay changeover reference

Relay changeover reference

pCO

pCOpCO

pCO

3333

termi nals

termi nalsterminals

termi nals

8, 12, 13, 14.15

pCO

pCOpCO

pCO

XS

XSXS

XS

termi nals

termi nalsterminals

termi nals

5

pCO

pCOpCO

pCO

1111

te

tete

te

rminals

rminalsrminals

rminals

8, 12, 13,

pCO

pCOpCO

pCO

CCCC

termi nals

termi nalsterminals

termi nals

9, 10, 11

Tab. 4.n

Tab. 4.nTab. 4.n

Tab. 4.n

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

40

4.6.3

4.6.34.6.3

4.6.3 Solid state relay (SSR) digital outputs

Solid state relay (SSR) digital outputsSolid state relay (SSR) digital outputs

Solid state relay (SSR) digital outputs

The pCO also features a version with solid state relays (SSR) for controlling devices which require an unlimited number of switching cycles and thus would not be supported by electromechanical versions. This outputs are dedicated to loads powered at 24Vac/Vdc with a maximum power Pmax = 10W.

C1

NO1

NO2

NO3C1C4

NO4

NO5

NO6C4C7

NO7C7NO8C8NC8

24Vac/Vdc

Fig. 4.p

Fig. 4.pFig. 4.p

Fig. 4.p

Warning:

Warning:Warning:

Warning: the load of the SSR relay is powered at 24Vac/Vdc, thus all the other terminals in the group, from 1 to 6, must be powered with the same tension due to the absence of double insulation within the group. Moreover, terminals from 1 to 6 can be powered at 110 to 230 Vac using a safety transformer (Class 2).

4.6.4

4.6.44.6.4

4.6.4 Summary table of the digital outputs accor

Summary table of the digital outputs accorSummary table of the digital outputs accor

Summary table of the digital outputs according to the versions available

ding to the versions availableding to the versions available

ding to the versions available

NO conta cts

NO conta ctsNO contacts

NO conta cts

NC contacts

NC contactsNC contacts

NC contacts

changeover reference

changeover referencechange ove r refe rence

changeover reference

total no. outputs

total no. outputstotal no. outputs

total no. outputs

SSR relay refe rence

SSR relay refe renceSSR rel ay refere nce

SSR relay refe rence

pCO

pCOpCO

pCO

3333

termi nals

termi nalsterminals

termi nals

SMALL 7 - 1 (8) 8 1 (7)

MEDIUM

10 -

3 (8, 12, 13)

13

2 (7, 12)

LARGE 13 - (8, 12, 13, 14, 15)

18

3 (7, 12, 14) o 4

(7, 12, 14, 15)

XL NO 26 - (8, 12, 13)

29

7, 12

XL NC 10 14 (8, 12, 13)

27

7, 12

pCO

pCOpCO

pCO

XS

XSXS

XS

termi nals

termi nals terminal s

termi nals

4 -

(8, 12, 13)

5

4, 5

pCO

pCOpCO

pCO

1111

termi nals

termi nalsterminals

termi nals

SMALL 7 - 8 8 7, 8

MEDIUM

10 -

8, 12, 13

13

7, 8, 12, 13

pCO

pCOpCO

pCO

CCCC

termi nals

termi nalsterminals

termi nals

10 -

9, 10, 11

13

---

Tab. 4.p

Tab. 4.pTab. 4.p

Tab. 4.p

4.6.5

4.6.54.6.5

4.6.5 Distance of the digital outputs

Distance of the digital outputsDistance of the digital outputs

Distance of the digital outputs

The sizes of the cables used for connecting the digital outputs over a distance are shown in the following table:

AWG Size (mm

2

) Current

20 0.5 2

15 1.5 6

14 2.5 8

Tab. 4.q

Tab. 4.qTab. 4.q

Tab. 4.q

If the product is installed in industrial environments (application of the EN 61000-6-2 standard) the length of the connections must be less than 30m. In any case, this length should not be exceeded so as to prevent measurement errors.

Relay changeover reference

Relay changeover referenceRel ay changeover reference

Relay changeover reference

pCO

pCOpCO

pCO

3333

termi nals

termi nalsterminals

termi nals

SMALL 7

MEDIUM

7, 12

LARGE 7, 12, 14

XL NO 7, 12

XL NC 7, 12

pCO

pCOpCO

pCO

XS

XSXS

XS

termi nals

termi nalsterminals

termi nals

4, 5

pCO

pCOpCO

pCO

1111

termi nals

termi nalsterminals

termi nals

SMALL 7, 8

MEDIUM

7, 8, 12, 13

pCO

pCOpCO

pCO

CCCC

termi nals

termi nalsterminals

termi nals

not available

Tab. 4.o

Tab. 4.oTab. 4.o

Tab. 4.o

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

41

5. CONFIGURATION OF THE PLAN NETWORK

5.1 Introduction

All the pCO controllers can be connected together and to other Carel devices in a local network (pLAN), without requiring optional devices, thus allowing the communication of data and information from one location (node) to another. The pCO terminals can display the variables (temperature, humidity, pressure, I/O, alarms) from one controller only at any one time. The terminal does not need to be connected to the pCO for the normal operation of the controller, however it can be used for the initial programming of the fundamental parameters. If one or more terminals are disconnected or malfunctioning, the control program continues to operate correctly on each pCO board. In general, the application program can monitor the status of the network and the terminals and respond in the event of malfunctions. The figure below shows a possible pLAN network connection diagram.

pCO

3

ADD: 1

pGD3

pCO

1

pGD1

pGD0

pLAN (RS485 62.5 kbit)

J1

J5

J6

J7

J8

J9

J10

J11

J2

J3

J4

C

L

OC K C

AR D

SE RI AL C AR D

bui

ltin

ter

mi

nal

s

Fu se

J1

J2

J3

J5

J6

J7

J8

J11

J12

J13

J14

J15

J16

J17

J18

J9

J4

ADD: 2

pCO

XS

ADD: N

Fig. 5.a

Fig. 5.aFig. 5.a

Fig. 5.a

The standard communication speed over the network is 62500 bps but some devices also support speeds of 115200 bps. All the units in the network must in any case use the same speed. A maximum of 32 units can be connected, including:

- pCO controllers, running the control program;

- boards that extend the I/O functions (such as the EVD200 driver);

- terminals (LED, 4x20 LCD and graphic).

Each unit in the pLAN is identified by a unique address, that is, a number between 1 and 32. Address 32 can only be assigned to a terminal. The programs for the different applications (e.g.: standard chiller, standard air-conditioners, compressor racks, ...) cannot be automatically integrated into a local network: they must be configured considering the architecture of the system and using the developing CAREL tool. Each pCO board connected to the network can manage up to 3 pLAN terminals at the same time. The values are displayed simultaneously and not independently on each terminal, as if they were connected in parallel: for this reason, the pCO cannot control different types of terminals at the same time (for example, one pGD

1

and

one pGD3).

A terminal associated with a certain board is defined as:

- private (“Pr

PrPr

Pr”) if it exclusively displays the output of that board;

- shared (“Sh

ShSh

Sh”) if either automatically or from the keypad it can be switched between more than one board;

- shared with printer (“Sp

SpSp

Sp”) if, as well as being shared, it is fitted with a RS232 serial board for connecting a printer (only for the old PCOT and PCOI terminals, not the

pGD).

Each pCO maintains constantly updates the display on the private terminals, while the shared terminals are only updated only if the pCO controller in question has control over the terminal at that moment.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

42

From the logical point of view, the connections are shown in the following figure:

Fuse

Programming Ke y

1 2

4 3

pCOXS 3

Private

pCO1 4

Private

pCO3 2

Private

pCO3 1

Private

Shared

CLOCKCARD

SERIALCARD

built-in terminal

xs

Fig. 5.b

Fig. 5.bFig. 5.b

Fig. 5.b

In the example, the shared terminal is associated with 4 pCOC controllers, however currently only controller 1 can display data and receive commands from the keypad.

The terminal is switched between the different controllers cyclically (1→2→3→4→1 …) by pressing a predefined button. Switching can also occur automatically,

managed directly by the program; in this case, in fact, a pCO controller can request control over the shared terminal to display new alarms or, vice-versa, give up control to the next pCO after a preset time (cyclical rotation). The data corresponding to the number and type of terminals are established during the initial configuration of the network, and are saved in the permanent memory on each individual pCO controller. The details of the configuration are described below. The pLAN connection between two pCO controllers can only be made using an AWG20/22 shielded cable, made up of a twisted pair plus the shield. The terminal and the pCO can be connected using a 6-wire telephone cable or AWG20/22 shielded cable, depending on the model of terminal. Further details on the installation of the terminals are provided in the section on “pLAN electrical connections

pLAN electrical connectionspLAN electrical connections

pLAN electrical connections”.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

43

5.2 Installing the pGD0 and pGD1 terminals

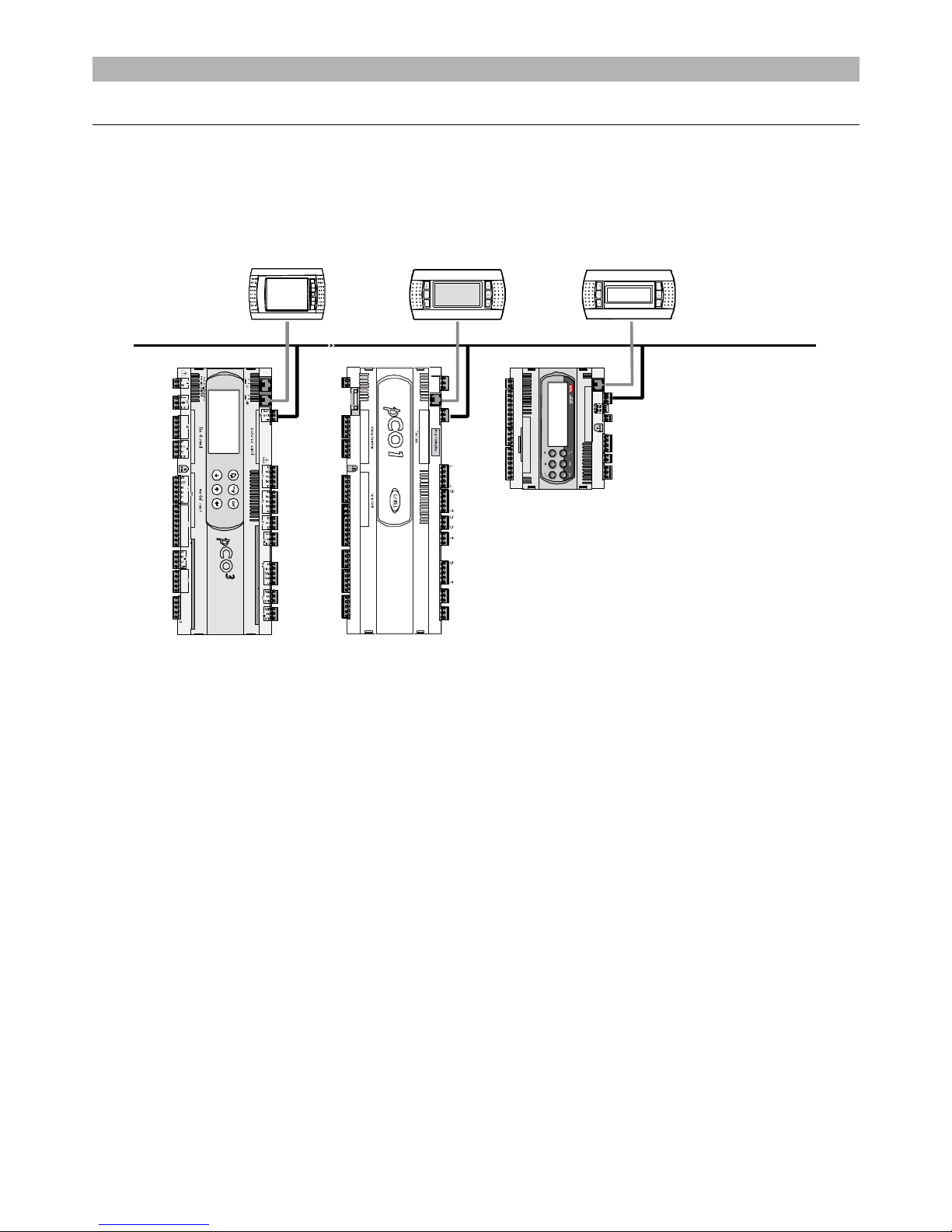

The connection between the terminal and the pCO is made using a 6-wire telephone cable, supplied by CAREL (code S90CONN). To make the connection, simply plug the telephone connector into the RJ12 jack on the rear of the terminal, and in connector:

• J19 on the pCO

C

;

• J5 on the pCO

XS

;

• J10 on the pCO

1

, pCO3.

The address of the terminal can be set in the range between 0 and 32; addresses from 1 to 32 are used by the pLAN protocol, while address 0 identifies the Local terminal

Local terminal Local terminal

Local terminal

protocol

protocolprotocol

protocol, used for point-to-point connections without graphics and to configure the pCO. The default address is 32. The address can only be set after having powered up the terminal via the RJ12 connector. To access configuration mode, press the UP, DOWN and ENTER ( ,  ,  ) buttons together for at least 5 seconds; the terminal will display a screen similar to the one shown below, with the cursor flashing in the top left corner:

Display address

setting.........:32

I/O Board

.Fig. 5.d

Fig. 5.dFig. 5.d

Fig. 5.d

To change the address of the terminal (“Display address setting”), proceed as follows. Press the ENTER button once: the cursor will move to the “Display address setting” field. Select the desired value using the UP and DOWN buttons, and confirm by pressing ENTER again. If the value selected is different from the value previously saved, the following screen will be displayed and the new value will be saved to the permanent memory.

Display address changed

Fig. 5.

Fig. 5.Fig. 5.

Fig. 5.eeee

If the address field is set to 0, the terminal communicates with the pCO board using the Local terminal protocol and the “I/O Board address” field is no longer shown, as it has no meaning. To change the list of terminals (private and shared) associated with a pCO board, proceed as follows:

- enter configuration mode (see above) by pressing the UP, DOWN and ENTER buttons together for at least 5 seconds.

- press the ENTER button twice: the cursor will move to the “I/O Board address” field.

- select the address of the desired pCO board and confirm by pressing ENTER.

The pCO will then enter the configuration procedure, showing a screen similar to the one below.

Terminal config Press ENTER to continue

Fig. 5.

Fig. 5.Fig. 5.

Fig. 5.ffff

1) Press ENTER again: the configuration screen will be displayed, similar to the one below.

P:01 Adr Priv/Shared Trm1 32 Sh Trm2 02 Pr Trm3 -- --

Fig. 5.

Fig. 5.Fig. 5.

Fig. 5.gggg

Change the configuration of the terminals as required. The ENTER button is used to move the cursor from one field to another, while the UP and DOWN buttons change the value of the current field. P:xx shows the address of the selected pCO board (in the example shown in the figure, this is board 1).

To exit the configuration procedure and save the data, select the “Ok?” field, set “Yes” and confirm by pressing ENTER. During the configuration procedure, if the terminal remains inactive (no button is pressed) for more than 30 seconds, the pCO board automatically exits the procedure without saving any changes.

Important:

Important:Important:

Important: the pGD* terminals cannot be configured as “Sp” (shared with printer) as they do not have the printer output. Selecting this mode has no effect on the management of the printed messages. If during operation the terminal detects the inactivity of the pCO board whose output it is displaying, it cancels the display completely and then shows a message similar to one below.

I/O board 01 fault

Fig. 5.

Fig. 5.Fig. 5.

Fig. 5.hhhh

If the terminal detects the inactivity of the entire pLAN network, that is, it does not receive any message from the network for 10 consecutive seconds, it cancels the display completely and shows the following message:

NO LINK

Fig. 5.

Fig. 5.Fig. 5.

Fig. 5.iiii

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

44

5.3 Installing the pGD2 and pGD3 terminals

The connection between the terminal and the pCO is made only using an AWG20/22 shielded cable, terminated with 3-pin plug-in connectors. To make the connection, simply plug one of the connectors into the “RS485” jack on the terminal and the other to connector

• J6 on the pCO

XS

,

• J11 on the pCO

1

, pCOC, pCO3.

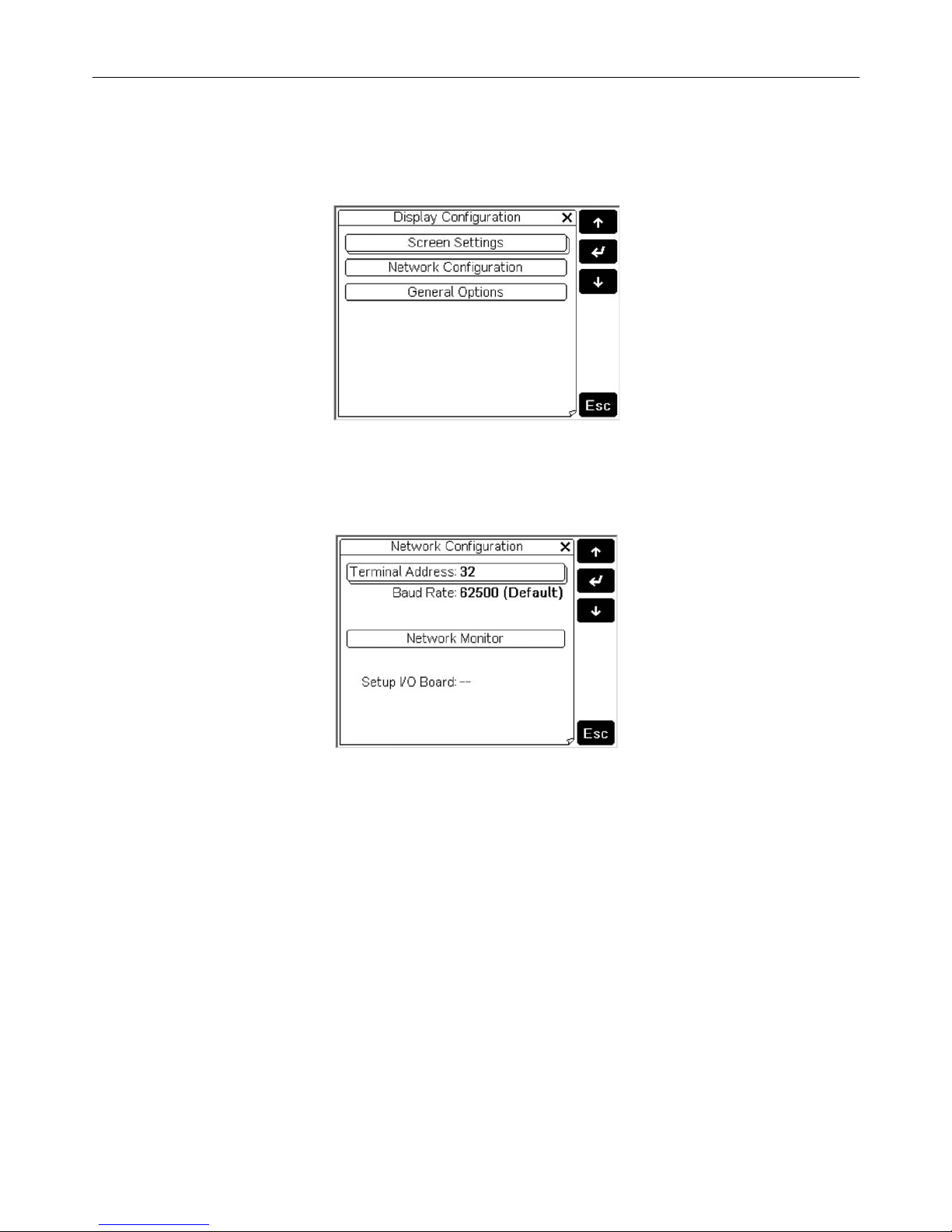

The pGD2 and pGD3 terminals can set the network address and communication speed from a menu. To access this menu, press any point on the touch screen together with the UP and PRG buttons; alternatively, access is also possible by pressing UP, DOWN, ENTER at the same time. In both cases, after 1 second a screen similar to the one below will be displayed:

Fig. 5.l

Fig. 5.lFig. 5.l

Fig. 5.l

To access a menu item, simply press the touch screen on the item or, alternatively, press the UP or DOWN button until selecting the item, then confirm with ENTER. To change the value of a field after having selected it (a field is selected when the cursor is flashing on the field), press the UP or DOWN button until reaching the desired value, then press ENTER to save the value. Pressing ESC before ENTER cancels the changes made to the field. The buttons available during the configuration phase are visible on the right-hand side of the display. The network configuration options are available under “Network Configuration”. When selecting this item, the terminal will display a screen similar to the one below:

Fig. 5.m

Fig. 5.mFig. 5.m

Fig. 5.m

The following options are available.

The following options are available.The following options are available.

The following options are available.

• Terminal Address

Terminal AddressTerminal Address

Terminal Address: used to set the address of the terminal, from 1 to 32. If the value “--” is set (two dashes are displayed) the terminal will communicate with the pCO board using the Local terminal protocol (point-to-point) rather than pLAN: the “Baud Rate”, “Network Monitor” and “Setup I/O Board” fields will no longer be displayed, as they have no meaning.

• Baud Rate

Baud RateBaud Rate

Baud Rate: used to set the pLAN communication baud rate. The options are 62500 bps (default) and 115200 bps. The 115200 bps option must only be set if all the devices in the network are configured for this speed; note that not all pLAN support devices the 115200 bps setting.

• Network Monitor

Network MonitorNetwork Monitor

Network Monitor: used to display the network status. For further information, see the user manual for the pGD2/3 terminals.

• Setup I/O Board

Setup I/O BoardSetup I/O Board

Setup I/O Board: used to modify the list of terminals associated with each individual pCO board. To do this, select the address of the desired board (only the boards that are effectively on line can be selected) and confirm by pressing ENTER: then press the “Setup” button on the display to start the configuration procedure already described for the pCOI/pCOT terminals.

Important:

Important:Important:

Important: like all the pGD* terminals, the pGD2 and pGD3 cannot be configured as “Sp” (shared with printer) as they have no printer output. Selecting this mode has no effect on the management of the printed messages. During operation, the terminal monitors special conditions of the pLAN network, and highlights these with messages on the display, as illustrated below.

• Message “Starting up, please wait to ”: the terminal has just been started and/or is initiating communication.

• Message “Please wait...”: the procedure for assigning the private or shared terminals to a pCO has just ended and the terminal is awaiting the start of

communication.

• Message “No network link: terminal alone”: the pLAN protocol has been selected and no pCO is detected within 40 s from power-up, or alternatively the

network is inactive (no package received) for at least 20 s during normal operation.

• Message “I/O board (at address xx) fault”: the pLAN protocol has been selected and the terminal has lost communication with the pCO whose output it was

displaying for more than least 8 s.

• Message “No I/O board configured for this terminal”: the pLAN protocol has been selected and the terminal is not among those configured for the pCO in the

network. The message is displayed 40 s after power-up or around 8 seconds after ending the procedure for assigning the terminals to a pCO.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

45

5.4 Installing the Aria terminal

The connection between terminal and pCO is made using AWG20/22 shielded cable only. To connect the cable to the terminal, proceed as follows.

1) Disconnect power to the terminal.

2) Separate the front of the terminal from the bottom shell (for further details, see the user manual or the instruction sheet).

3) Fasten one end of the cable shield to the terminals marked “GND”, “Rx/Tx+” and “Rx/Tx-” in the bottom shell.

4) Close the terminal again.

To connect the cable to the pCO, the end not connected to the Aria terminal must be terminated with a 3-pin plug-in connector, then plug this into connector:

• J6 on the pCO

XS

,

• J11 on the pCO

1

, pCOC, pCO3. The Aria terminal communicates with the pCO boards by exchanging variables across pLAN. As the code that manages the terminal is resident in ROM, and therefore cannot be changed depending on the devices that make up the network (as normally occurs for pCO boards), the terminal can receive variables from any device in the network, but can only send data to one device, selected by the user. Overall, there are five parameters used to configure pLAN communication on the Aria terminal:

• L1

L1L1

L1: pLAN address of the Aria terminal (between 1 and 31);

• L2

L2L2

L2: pLAN address of the device the variables are sent to (between 1 and 31);

• L3

L3L3

L3: pLAN page (between 0 and 255);

• L5

L5L5

L5: used to selectively inhibit the reception of some variables;

• L6

L6L6

L6: communication protocol over RS485 line, selectable as pLAN or CAREL Slave.

For further information on the parameters and on the variables that can be exchanged, see to the user manual. The Aria terminal parameters can be set on the keypad or by copying the settings from a hardware key programmed previously using a sample device. In the first case (programming by keypad), proceed as follows:

1) power up the terminal;

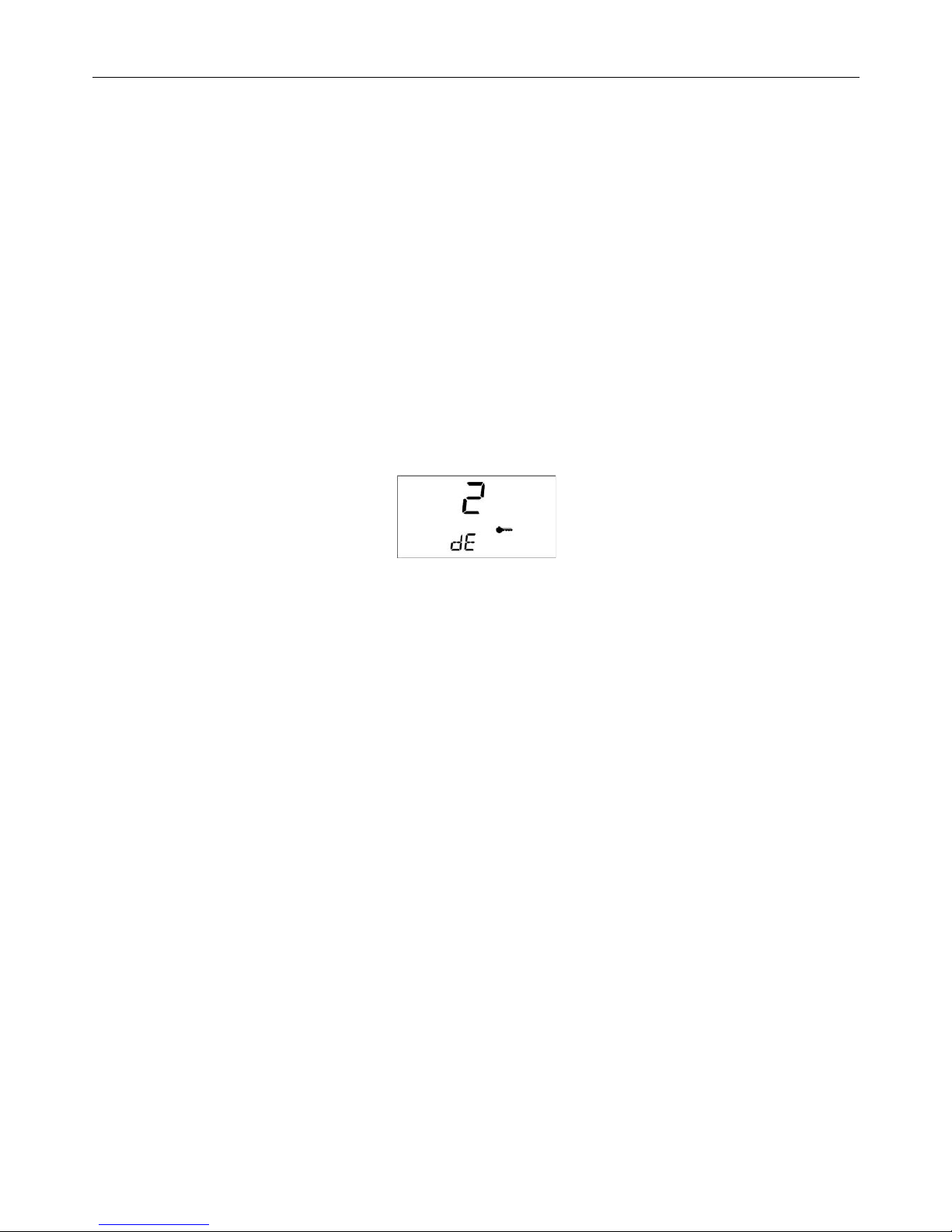

2) press the SET and MODE buttons together: the terminal will display a screen for entering the enabling code;

3) using UP or DOWN enter the code “22” and confirm by pressing SET: the terminal enters parameter configuration mode, showing a screen similar to the one

below (the code at the bottom is the name of the parameter, while the number at the top is the value of the parameter).

4) Press the UP and DOWN buttons until the terminal shows the desired parameter.

5) Press SET to make the change: the selected parameter flashes.

6) Enter the desired value using the UP and DOWN buttons, then confirm by pressing SET.

7) Exit programming mode by pressing the HOLD button.

Important:

Important: Important:

Important: after having changed the pLAN address (parameter L1), turn the terminal off and on again for the changes to take effect.

If wanting to set the parameters using a hardware key, first of all copy the parameters from the sample device as follows:

1) connect the key;

2) power up the sample device by pressing and holding SET and DOWN;

3) the device starts copying the data to the key: the display shows the message “EC”;

4) at the end of the copy operation the message OK or NO is shown, depending on the outcome of the data transfer.

To then copy the parameters from the removable hardware key to the terminal, simply proceed as follows:

1) connect the key;

2) power up the terminal by pressing and holding the UP button;

3) the terminal starts copying the data from the key: the display shows the message “CE”;

4) at the end of the copy operation the message OK or NO is shown, depending on the outcome of the data transfer.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

46

5.5 Setting the pLAN address on the pCO

1

, pCOXS, pCOC and pCO3

The pCO1, pCOXS, pCOC and pCO3 controllers do not have dipswitches for setting the pLAN network address: the pLAN address can set from any terminal, pGD0, pGD1, pGD2, pGD3 or built-in on the models where fitted. To set the address from an external terminal (not built-in), proceed as follows.

1) Set address 0 on the terminal (see the previous sections for details on how to set this address).

2) Power down the pCO.

3) Remove any pLAN connections from the pCO to other controllers.

4) Connect the terminal to the pCO.

5) Power up the pCO, pressing the UP and ALARM buttons together on the terminal. After a few seconds, the pCO commences the start-up sequence, and the

display shows a screen similar to the one below:

#################### selftest please wait... ####################

Fig. 5.n

Fig. 5.nFig. 5.n

Fig. 5.n

6) When this screen appears, wait 10 seconds and then release the buttons.

7) The pCO stops the start-up sequence and shows a configuration screen similar to the one below:

pLan address: 0 UP: increase DOWN: decrease ENTER: save & exit

Fig. 5.o

Fig. 5.oFig. 5.o

Fig. 5.o

1) Then set the pLAN address using the UP and DOWN buttons on the terminal.

8) Confirm the address by pressing the ENTER button: the pCO completes the start-up sequence and uses the specified address.

Note:

Note:Note:

Note: step 6) is only required for the pGD2 or pGD3 terminals. To modify the address from a Built-In terminal, steps 1) and 3) are not needed; the rest of the procedure is the same as described above.

5.6 pLAN electrical connections between the pCO controllers

The connection of the pCO controllers in the pLAN is carried out using an AWG20/22 shielded cable, twisted pair plus shield, with a capacitance between the wires of less than 90 PF/m. Maximum pLAN network length:

Maximum pLAN network length: Maximum pLAN network length:

Maximum pLAN network length: 500 m with AWG22 cable, twisted pair with shield. The boards are connected in parallel with reference to plug-in connector J11. IMPORTANT:

IMPORTANT:IMPORTANT:

IMPORTANT: observe the network polarity: RX/TX+ on one board must be connected to RX/TX+ on the other boards; the same is true for RX/TX-.

Fig. 5.p shows a diagram of a number of boards connected in a pLAN network and powered by the same transformer, typical for a number of boards connected inside the same electrical panel.

AWG 20/2 2 AWG 20/22 AWG 20/22

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

Fig. 5.p

Fig. 5.pFig. 5.p

Fig. 5.p

Fig. 5.q shows a diagram of a number of boards connected in a pLAN network and powered by different transformers (with G0 not earthed), typical of a number of boards inside different electrical panels.

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

AWG 20/2 2 AWG 20/22 AWG 20 /22

Fig. 5.q

Fig. 5.qFig. 5.q

Fig. 5.q

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

47

Fig. Fig. 5.r shows a diagram of a number of boards connected in a pLAN network and powered by different transformers with the same earth

; this is a typical

application for a number of boards inside different electrical panels.

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

AWG 20/22 AWG 20/22 AWG 20/22

Fig. 5.r

Fig. 5.rFig. 5.r

Fig. 5.r

IMPORTANT WARNINGS:

IMPORTANT WARNINGS:IMPORTANT WARNINGS:

IMPORTANT WARNINGS:

• the earth connection must be made to the same point in the earth line (same earth pole, for all the pCO boards)

• with these configurations (Figs. 5.e, 5.f and 5.g) Class 2 safety transformers must be installed.

• if the G0 terminals of the pCO controllers are connected toget

if the G0 terminals of the pCO controllers are connected togetif the G0 terminals of the pCO controllers are connected toget

if the G0 terminals of the pCO controllers are connected together, connect the pLAN cable shield to one pCO only

her, connect the pLAN cable shield to one pCO onlyher, connect the pLAN cable shield to one pCO only

her, connect the pLAN cable shield to one pCO only

.

5.7 Remote installation of a terminal in a pLAN network

When the pCO boards are connected in a pLAN network, the terminal can be remotely-installed at a distance of up to 50 metres, if using a telephone cable, while it can be located at a distance of up to 500 metres if using a shielded cable, TCONN6J000 and a separate power supply. Note

NoteNote

Note: to reach the maximum length, use a bus layout with branches that do not exceed 5 m. The following figures show the connection diagrams for the various configurations. If using the terminal in a residential environment, the cable must be always shielded

If using the terminal in a residential environment, the cable must be always shieldedIf using the terminal in a residential environment, the cable must be always shielded

If using the terminal in a residential environment, the cable must be always shielded. The maximum distance between the pCO and the user terminal is shown in the following table:

type of cable

type of cabletype of cable

type of cable power supply

power supply power supply

power supply

di

didi

distance

stancestance

stance

power supply

power supplypower supply

power supply

telephone 50 m taken from pCO (150 mA) AWG24 shielded cable 200 m taken from pCO (150 mA) AWG20/22 shielded cable 500 m separate power supply via TCONN6J000

Tab. 5.a

Tab. 5.aTab. 5.a

Tab. 5.a

The maximum distance between two pCO3 controllers with AWG20/22 shielded cable is 500 m.

Important:

Important: Important:

Important: do not reverse the GND and +Vdc cables.

0,8 m

200 m

S90CONN002

S90CONN

Cavo schermato

AWG20/22

2 twisted pair

on/offalarm enter

menu I/O set prog.

?

info

Graphic

BMSField-Bus

6 5 4 3 2 1 0 6 5 4 3 2 1 0

Fig. 5.s1

Fig. 5.s1Fig. 5.s1

Fig. 5.s1

on/of falar m enter

menu

I/ O se t

prog.

?

info

Graphic

R

X

-

/

T

X+

R

X+

T

X

G N

max 50 m

c a v o t ele f oni c o

telephone cable

Fig. 5.s

Fig. 5.sFig. 5.s

Fig. 5.s

Connection to TCONN cable

Connection to TCONN cableConnection to TCONN cable

Connection to TCONN cable

0123456

+–TX

R

X

TX

R

X

–+

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

48

The Fig. 5.i represents the shunt code TCONN6J000, used in pairs for the remote installation of the pCO

in the pLAN network

with AWG20/22 shielded cable.

CCCCable AWG20/22 (with power supply)

able AWG20/22 (with power supply)able AWG20/22 (w ith power supply)

able AWG20/22 (with power supply)

Terminal

TerminalTerminal

Terminal Function

FunctionFunction

Function Cable connections

Cable connectionsCable connections

Cable connections 0 Earth Shield 1 +VRL (H30 Vdc) First pair A 2 GND Second pair A 3 Rx/Tx- Third pair A 4 Rx/Tx+ Third pair B 5 GND Second pair B 6 +VRL (H30 Vdc) First pair B

Tab. 5.b

Tab. 5.bTab. 5.b

Tab. 5.b

5.7.1

5.7.15.7.1

5.7.1 Remote

Remote Remote

Remote installation of the te rminal up to 500 m in pLAN network with AWG20/22 shielded cable

installation of the terminal up to 500 m in pLAN network with AWG20/22 shielded cableinstallation of the terminal up to 500 m in pLAN network with AWG20/22 shielded cable

installation of the terminal up to 500 m in pLAN network with AWG20/22 shielded cable

This installation is shown in Fig. 5.l. It requires a separate power supply via TCONN6J000.

J14 and J15 on 2-3

pLAN - to pCO

AWG20/22

1 twisted pair

+

-

on/offalar m enter

menu I/O set prog.

?

info

Graphic

6 5 4 3 2 1 0

solo TCONN6J000

alimentatore

power supply

20...30 Vdc -150 mA

Fig. 5.u

Fig. 5.uFig. 5.u

Fig. 5.u

Important:

Important:Important:

Important: the overall length of the network must not exceed 500 m. Consequently if the terminal is also remote the length of the cable to the terminal is

included in the calculation of the total length.

The terminal

The terminalThe terminal

The terminal cable

cable cable

cable represents a branch of the network, and therefore if this is greater than 5 m in length it can only be connected to the first or the last pCO in

the network.

5.8 pLAN network technical specifications

The technical specifications of the pLAN network are summarised in the following table:

description

descriptiondescription

description

characte ristic

characte risticcharacteristic

characte ristic

Standard communication

Asynchronous

HALF DUPLEX RS485

Baud rate (kbit/s)

62.5

115.2 for pCO3 (selected by software)

Protocol

Multimaster (CAREL proprietary protocol)

Maximum length of the network (m)

500

5.8.1

5.8.15.8.1

5.8.1 Optically

OpticallyOptically

Optically----isolated pLAN (pCO

isolated pLAN (pCOisolated pLAN (pCO

isolated pLAN (pCO

3

3 3

3

only)

only)only)

only)

The pCO3 is also available with an optically-isolated serial pLAN. This simplifies installation, as the earthing requirements of the pCO3 do not need to be observed. The pCO3 controllers can be connected to earth points with different voltages without the shield carrying current.

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

G

G0

RX-/TX+

RX+/TX-

GND

AWG 20/22 AWG 20/22 AWG 20/22

Fig. 5.v

Fig. 5.vFig. 5.v

Fig. 5.v

6 5 4 3 2 1 0

Fig. 5.i

Fig. 5.iFig. 5.i

Fig. 5.i

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

49

6. OPTIONS AND EXTERNAL MODULES

CAREL has always offered its customers different to interface the pCO sistema controllers with the more commonly-used BMS (Building Management Systems).. Today in fact, with the expansion of BMS, the issue of communication between controllers made by different companies is increasingly important. CAREL has consequently developed compatibility with all the protocols that are emerging as the standards in HVAC/R and intelligent management systems, such as Modbus®, LonWorks®, BACnet™, SNMP. As regards communication between controllers made by different companies, CAREL offers an excellent variety of solutions that allow the pCO family controllers to interface with controlled field devices, such as valves, VFD, serial sensors, Belimo actuators etc. In this way, the pCO controller does not just manage the single unit, but the entire air-conditioning / refrigeration system.

pAD

e-dronic

BELIMO

Sonde utilizzabili

PCOS004850: scheda se riale RS485

PCO20DCDC0: modulo alimenta tore DC/DC

dispositivi terze parti

controllori CAREL (ir33, µC2, ecc...)

PCO100MDM0: scheda modem

PCO10000F0: schede LON

S90CONN*:

cavo di collegame nto

CVSTDUTLF0: conver titore USB/RS485

Sinottico

ASP*: sonde di temperatur a e umidità per ambiente indust riale

ASD*: sonde di tempe ratura e umidità per condotta

ASW*: sonde di temper atura e umidità per ambie nte

SPKT: sonde di p ressione

4...20 mA - sonde raziometriche 0...5 V

NTC/PT1000: sonde di tempe ratura

PCOUMI2000: interfaccia umidificato re per kit OEM

PCOE004850: scheda espansione pCO I/O RS485

EVD*2* EVD*4* driver per E EV

BMS

Field-Bus

FCM* modulo di comando elettronico

PCO*: co ntrolli programmabili

PCO1000BA0: scheda interfaccia BACnet™ RS485

PCOS00HBB0: schede CAN bus

PCO1000WB0:  pCO Web - sch. in terfaccia Ethernet™/B ACnet™

PGD0-1*: display grafico

PGD2-3*: displ ay grafico touch screen per mo ntagg io ad incasso e pa rete

e-dronic

RS485 Modbus® master/ CAREL master

Servocontr ollo

della se

rranda

Valvola di servo controllo

MP-BUS

PCOS00FD20:

scheda modem

PCO100MPB0: scheda M P-BUS

PCOS00HBF0:

scheda CANbus

PCO100FD10:

scheda se riale FieldBus

PLD*: t erminale uten te

PCOE004850:

scheda espansione

pCO I/O RS485

PCOE00TLN0:

scheda espansione

pCO I/O tLAN

EVD00004*

driver per E EV

PCO100TLN0:

scheda se riale tLAN

(*):Alla tLAN NON possono esser ecollegati contemporaneamente PCOE00TLN0 eterminali PLD*!

CP*: schede

controllo

umidificatori

KUE*

GND H+ H–

CANbus

GND H+ H–

CANbus

status RS485

GNX RS485+ –

P1 P2 P3

BACnet™ MS/TP

ADP*: terminale

TAT*: terminale

PCO100CLP0:  scheda TREND

start

mode

PCOS00AKY0: smart key chiave di programmazione

Fig. 6.a

Fig. 6.aFig . 6.a

Fig. 6.a

Field Bus options

Field Bus optionsField Bus options

Field Bus options BMS options

BMS optionsBMS options

BMS options

LonWorks

LonWorksLonWorks

LonWorks

Opti

cally isolated 485

PCO100FD10

CANbus

PCOS00HBB0

LonWorks

FTT10 PCO10000F0

tLAN PCO100TLN0

485/Modbus

PCOS004850

LonWorks

FTT10 standard chiller profile

PCO10001F0

Belimo MPbus

PCO100MPB0

modem

PCO100MDM0

modem

PCOS00FD20

Trend board

PCO1

00CLP0

CAN hydronic

PCOS00HBF0

Ethernet board

PCO1000WB0

PCO1000BA0

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

50

6.1 Connectors

Example of coding: PCO3CON**0 see the following table for the description:

PCO3CON

* * 0

0= screw

1= spring

S

= small

M= medium L= large Z= extra large N.O. C= extra large N.C.

6.2 Optional pCO sistema boards

6.2.1

6.2.16.2.1

6.2.1 Serial boards for supervision and telemaintenance

Serial boards for supervision and telema intenanceSerial boards for supervision and telema intenance

Serial boards for supervision and telema intenance

RS485:

RS485: RS485:

RS485: PCOS004850

PCOS004850PCOS004850

PCOS004850 The PCOS004850 board is an option for the pCO electronic controllers that is used to interface these with a RS485 network. It guarantees the optical isolation of the controller from the RS485 serial network. The maximum baud rate is 19200 baud (settable via software). For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003237).

RS232 serial board for modem management:

RS232 serial board for modem management: RS232 serial board for modem management:

RS232 serial board for modem management: PCO100MDM0

PCO100MDM0PCO100MDM0

PCO100MDM0 The PCO100MDM0 is an option for the pCO electronic controllers that is used to interface these with a standard HAYES modem, managing the following.

• output, "request to send" (RTS) in parallel with "data terminal ready" (DTR);

• input, "carrier detect" (CD).

The maximum baud rate is 19200 baud. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003240).

Ethernet

EthernetEthernet

Ethernet serial board

serial boardserial board

serial board: PCO1000WB0

: PCO1000WB0: PCO1000WB0

: PCO1000WB0

Used to interface the pCO controllers with the BACnet™ Ethernet™, IP, SNMP V1, 2, 3, FTP and HTTP protocols.

BACnet™ MSTP RS485 interface board

BACnet™ MSTP RS485 interface board BACnet™ MSTP RS485 interface board

BACnet™ MSTP RS485 interface board

(PCO1000BA0)

(PCO1000BA0)(PCO1000BA0)

(PCO1000BA0)

Used to interface the pCO controllers with the BACnet™ MSTP protocol, an emerging protocol in the HVAC market.

CANbus

CANbusCANbus

CANbus serial board

serial boardserial board

serial board: PCOS00HBB0

: PCOS00HBB0: PCOS00HBB0

: PCOS00HBB0 These devices allow the pCO controllers to be connected to CANbus networks, and more precisely, to the e-drofan controllers for fan coils, exploiting the potential of the e-dronic system. This ensures simpler management of the installation, optimising comfort, synergies between the controllers and running costs. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050000162).

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

51

LonWorks®

LonWorks® LonWorks®

LonWorks® serial board

serial boardserial board

serial board:

: :

: PCO10000F0

PCO10000F0PCO10000F0

PCO10000F0

The PCO10000F0 and PCO10000R0 optional boards for the pCO electronic controllers are used to interface these with a LonWorks network®. Warning:

Warning:Warning:

Warning: in order to be operational, the interface board must be programmed based on the application installed on the pCO. Information on the procedure for programming the board is provided in the manual code +030221960. The program is resident in flash memory fitted on a socket, and can be programmed directly via the LonWorks® network, using the network installation and maintenance tools such as LonMaker™. The boards differ based on the type of LonWorks® network interface and the type of electronic controller it can be fitted on:

• PCO*0000F0 - interface to FTT-10A 78 kbs (TP/FT-10);

• PCO*0000R0 - interface to RS485 39 kbs (TP/485-39).

The baud rate of the pCO must be set to 4800, while the pCO address is not significant, as this is automatically recognised by the board. An option already programmed with the standard chiller profile is also available: code PCO10001F0. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the

board, follow the instructions shown on the instruction sheet provided in the packaging (code +050004040).

TREND board

TREND boardTREND board

TREND board:

: :

: PCO100CLP0

PCO100CLP0PCO100CLP0

PCO100CLP0 This is used for communication with the TREND interface, a building automation system that is very widespread in English-speaking countries.

6.2.2

6.2.26.2.2

6.2.2 Serial boards for connec tion to a “field bus” network

Serial boards for connection to a “field bus” networkSerial boards for connection to a “field bus” network

Serial boards for connection to a “field bus” network

The optional Field bus boards offer a serial interface that allows the pCO3 and pCO1 to communicate with other devices over various standards. In fact, the tLAN, MP bus and RS485 options interface the pCO to a network of devices including actuators, probes, expansions and terminals.

Electrically insulated RS485 serial board:

Electrically insulated RS485 serial board: Electrically insulated RS485 serial board:

Electrically insulated RS485 serial board: PCO100FD10

PCO100FD10PCO100FD10

PCO100FD10 The PCO100FD10 option is used to connect the pCO3 and pCO1, via an electrically insulated interface, to an RS485 network, using the connector with plug-in terminals on the board. The controller consequently acts as the MASTER (i.e. supervisor), and therefore other pCO controllers or SLAVE devices can also be connected. The meaning of the pins on the connector are denoted by the screen printing on the board. A maximum of 207 connectable devices using this type of connection. If the optional board occupies the last position on the supervisor serial line and the line is longer than 100m, the

line must be terminated by connecting a 120Ω - 1/4 W resistor to the terminal pins.

If the function set is SLAVE, on the other hand, only one pCO with this optional board can be connected to the network.

tLAN and PST board:

tLAN and PST board: tLAN and PST board:

tLAN and PST board: PCO100TLN0

PCO100TLN0PCO100TLN0

PCO100TLN0

The PCO100TLN0 option is used to connect the pCO

1

to a tLAN network using two separate connectors. The first connector is used to connect the pCO3 and pCO1 to a tLAN network. Using this connection and a suitably-configured application in TLAN MASTER mode, the pCO1 can interact with the pCO I/O expansion (tLAN version - PCOE00TLN0) or with other pCO controllers fitted with a tLAN connection, configured in tLAN SLAVE mode. A maximum of 5 connectable devices using this type of connection. The second connector, on the other hand, is used to connect a PNT or PST terminal. Using this connection and a suitablyconfigured application, the pCO3 and pCO1 can interact with a PNT terminal. Both connections require a shielded cable with a maximum length of 10 m. Important:

Important:Important:

Important: the two connectors cannot be used at the same time.

MP

MPMP

MP----Bus board:

Bus board: Bus board:

Bus board: PCO100MPB0

PCO100MPB0PCO100MPB0

PCO100MPB0 The PCO100MPB0 option is used to connect the pCO3 and pCO1 to an MP-Bus network made up of I/O devices according to the Belimo standard. Up to 8 actuators can be connected at the same time, over a maximum distance of 30 m. For the connection of a temperature sensor, active or passive, or a digital contact, see the specific Belimo documents (www.belimo.ch). As regards the procedure for setting the network addresses, these are described in the specific manuals on the individual applications. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003270).

RS232 serial board for modem management:

RS232 serial board for modem management: RS232 serial board for modem management:

RS232 serial board for modem management: PCOS00FD20

PCOS00FD20PCOS00FD20

PCOS00FD20 The PCOS00FD20 board is an option for the pCO1/pCO3 electronic controllers to interface these directly with a standard HAYES modem. The board manages the “request to send” (RTS) in parallel with the “data terminal ready” (DTR). For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003295)

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

52

CANbus

CANbusCANbus

CANbus serial board

serial boardserial board

serial board: PCOS00HBF0

: PCOS00HBF0: PCOS00HBF0

: PCOS00HBF0 These devices allow the pCO controllers to be connected to CANbus networks, and more precisely, to the e-drofan controllers for fan coils, exploiting the potential of the e-dronic system. This ensures simpler management of the installation, optimising comfort, synergies between the controllers and running costs. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050000162).

6.2.3

6.2.36.2.3

6.2.3 Other types of optional boards

Other types of optional boardsOther types of optional boards

Other types of optional boards

Memory expansion PCO100CEF0

Memory expansion PCO100CEF0Memory expansion PCO100CEF0

Memory expansion PCO100CEF0 If the flash memory is not sufficient for the application program or the logs, the capacity of the pCO1 can be expanded by fitting an expansion board. This option also includes the clock board and 32 KB of E2PROM memory. Consequently, remove the PCO100CLK0 if the PCO100CEF0 is used. For the technical specifications and details on how to insert the expansion board, carefully follow the instructions shown on the instruction sheet provided in the packaging. For information on the connections and the sequence of the operations, see the instruction sheet (code +050003245).

Clock boar

Clock boarClock boar

Clock board PCO100CLK0

d PCO100CLK0d PCO100CLK0

d PCO100CLK0

For the pCO

1

and pCO

XS

, the PCO100CLK0 board option is used to manage the time and date, as well as providing and extra 52 bytes of RAM with battery backup. Do not fit this option on a pCO1 that has been installed with the PCO100CEF0. For the technical specifications and the meanings of the connections (pins), as well as details on how to insert the expansion board, follow the instructions shown on the instruction sheet provided in the packaging. For information on the connections and the sequence of the operations, see the instruction sheet (code +050003230).

IMPORTANT WARNINGS

IMPORTANT WARNINGSIM PORTANT WARNING S

IMPORTANT WARNINGS: operator safety and precautions to be observed when handling the board/boards. To safeguard operators and the boards, disconnect power before performing any operations. Electrical damage may occur to the electronic components as a result of electrostatic discharges from the operator. Suitable precautions must be therefore be taken when handling these components. Specifically:

• before using any electronic component or board, touch an earthed object (simply not touching the board does not

prevent discharges, as static electricity can produce a 10000V spike, which can form an arc of about 1cm);

• all components must be kept inside their original package as long as possible. If necessary, take the board from its

package and place it into an antistatic bag, without touching the back of the board;

• absolutely avoid using non-antistatic plastic bags, polystyrene or sponge, and avoid passing the board directly to other

operators (to prevent electrostatic induction and consequent discharges).

6.2.4

6.2.46.2.4

6.2.4 External modules and interfaces

External modules and interfacesExternal modules and interfaces

External modules and interfaces

Interface for the OEM series humidifiers (PCOUMI2000)

Interface for the OEM series humidifiers (PCOUMI2000)Interface for the OEM series humidifiers (PCOUMI2000)

Interface for the OEM series humidifiers (PCOUMI2000) The PCOUMI2000 module is an interface for the pCO electronic controllers. This allows the control of the fundamental parameters of the OEM humidifiers manufactured by CAREL (level and conductivity of the water in the cylinder, TAM sensor for current input) directly from the pCO electronic microprocessor controller. The values measured by the sensors are converted into signals that can be read by the inputs on the pCO (for more information refer to the user manual for the application program). The PCOUMI2000 interface differs from the PCOUMID000 interface due to:

- greater precision and immunity to disturbance both as regards the conductivity reading and the level sensor;

- the “high water level” signal can be managed either as a digital or analogue output.

Consequently, the controller can be connected to both the PCOUMID000 and the PCOUMI2000 board, with the only difference being the setting of the corresponding parameter, so as to tell the software to use the correct conductivity curve.

44

Fig. 6.b

Fig. 6.bFig. 6.b

Fig. 6.b

For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003210).

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

53

DC/DC module (PCO20D CDC0)

DC/DC module (PCO20D CDC0)DC/DC module (PCO20DCDC0)

DC/DC module (PCO20D CDC0) The PCO20DCDC0 power supply module is an option for the pCO electronic controllers. It stabilises the DC output voltage at 24±1 Vdc/0.7 A (pCO controller side) for input voltages (power source) from 21 to 58 Vdc (for example, from 48 Vdc storage batteries, typically used in telephone applications). The maximum power delivered is 17 W, which can supply any pCO electronic controller. The input and output of the power supply module feature functional galvanic isolation. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050004020).

SMART KEY (PCOS00AKY0 and PCOS00AKC0)

SMART KEY (PCOS00AKY0 and PCOS00AKC0) SMART KEY (PCOS00AKY0 and PCOS00AKC0)

SMART KEY (PCOS00AKY0 and PCOS00AKC0) The PCOS00AKY0 key is an electronic device used to program and manage the pCO sistema family controllers. PCOS00AKY0 simplifies the transfer of data between the installed controllers and a personal computer, and features ample flash memory for storing software applications, Bios and variable logs. The key is connected to the pCO directly via the telephone connector using the cable supplied, while to transfer data to/from a personal computer, the USB adapter code PCOS00AKC0 is required (not optically-isolated converter, for the Smart Key only). The power supply can come either from the USB port on the PC or from the controller, therefore no external power supply is required. For the technical specifications and the meanings of the connections (pins as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003420).

USB/RS485 converter (CVSTDUMOR0/CVSTDUTLF0)

USB/RS485 converter (CVSTDUMOR0/CVSTDUTLF0)USB/RS485 converter (CVSTDUMOR0/CVSTDUTLF0)

USB/RS485 converter (CVSTDUMOR0/CVSTDUTLF0) The USB-RS485 converter is an electronic device that is used to interface a RS485 network with a personal computer via the USB port, to be used with WINLOAD. The converter is available in two versions: CVSTDUTLF0, fitted with a sixpin telephone connector, and CVSTDUMOR0, fitted with a three-pin terminal block. These are optically-isolated and cannot be used with the Smart Key. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050000590).

pCO I/O expansion boards

pCO I/O expansion boardspCO I/O expansion boards

pCO I/O expansion boards The “PCOE000TLN0 and PCOE0004850” expansion boards are electronic devices that are part of the pCO sistema family and have been designed to increase the number of I/Os available for the pCO controllers. A maximum of 5 expansion boards can be connected to each pCO controller.

Versions available:

Versions available:Versions available:

Versions available:

• PCOE00TLN0 tLAN version (CAREL proprietary protocol);

• PCOE004850 RS485 version (CAREL 3.0 supervisor protocol).

For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003265).

Driver

Driver Driver

Driver for electronic expansion valves (EVD*400)

for electronic expansion valves (EVD*400)for electronic expansion valves (EVD*400)

for electronic expansion valves (EVD*400) The EVD0000400 module for electronic expansion valves with two-pole stepper motor is a controller that manages the expansion of the refrigerant in a refrigerant circuit. This function is achieved by optimising the opening of the valve using a PID algorithm and some special auxiliary control routines. The driver has a tLAN interface for connection to a Master unit, an RS485 adapter (featured in models *410, *411, *420 and *421) that allows connection to units with the supervisor protocol, from 4800 to 19200 baud, or with the pLAN protocol. The driver automatically recognises the protocol and the baud rate. Alternatively, the driver can operate in stand-alone mode. As well as the serial connection, in any configuration described above, the driver can be accessed for configuration or monitoring via an auxiliary “service” serial port at 4800 baud with supervisor/tLAN protocol and network address = 1 (fixed). The USB converter CVSTDUTTL0 is required to use the “service” serial port. This connection is for temporary use. If using the “service” serial port or the supervisor protocol on the main serial port, the EVD4UI program is available; this has a user-friendly graphic interface and is available on the KSA site.

Phase control module

Phase control modulePhase control module

Phase control module The controller works with two-pole stepper motors. It operates with a theoretical sinusoidal waveform, in micro-steps and with speeds from 5 to 1000 steps; the current and the control speed effectively achievable depend on the resistance and the inductance of the motor windings used. If the driver is connected to a pCO, it receives all the individual operating parameters for the motor from the pCO controller. The controller can manage motors with maximum positions of up to 32000 steps. For connection use 4-wire shielded cables, AWG18/22, max. length 9.5 m. The shield should be connected to the closest possible earth point in the panel. For the technical specifications and the meanings of the connections (pins), as well as details on the procedure for fitting the board, follow the instructions shown on the instruction sheet provided in the packaging (code +050003875).

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

54

6.3 Signal LEDs and software updates

Decoding the LED signals on the pCO board

Decoding the LED signals on the pCO boardDecoding the LED signals on the pCO board

Decoding the LED signals on the pCO board The pCO boards feature 3 signal LEDs (red, yellow and green) that provide information on the operation of the pCO board itself and the status of the pLAN serial link, regardless of whether or not the built-in display is included. Note:

Note: Note:

Note: the following is valid for the pCO3 and in certain cases for the pCO1, pCO

C

and pCO

XS

.

Corresponding to J23 is a LED that flashes to indicate traffic over the connection between the pCO LARGE and the I/O expansion network.

Key

KeyKey

Key

 LED off  LED on  LED flashing

RED LED

RED LEDRED LED

RED LED

YELLOW LED

YELLOW LEDY ELLOW LED

YELLOW LED

GREE N LED

GREE N LEDGREEN LE D

GREE N LED

pCO²

pCO²pCO²

pCO²

NOT in pLA N (address= 0)

NOT in pLA N (address= 0) NOT in pLAN (address= 0)

NOT in pLA N (address= 0)

  

correct operation with or without local terminal.

pCO²

pCO²pCO²

pCO²

pLAN address se t

pLAN address se tpLAN address set

pLAN address se t



 

application error or no pLAN table.

  

application error or

no pLAN table. pCO

ONLY connected to a terminal.







application with correct pLAN table.



 

correct pLAN operation.

pCO²

pCO²pCO²

pCO²

in low le vel mode (*)

in low le vel mode (*)in low l evel mode (*)

in low le vel mode (*)

 



awaiting communication with WinLoad.

check pCO address on WinLoad





/  

/ 

(LED flashin

g alternately) invalid communication with WinLoad.

Possible causes:

- no power supply to the RS232/485 converter

- wrong driver on the PC.

  

communicating with WinLoad.

pCO²

pCO²pCO²

pCO²

in normal operation

in normal operationin normal operation

in normal operation

 



communication with WinLoad suspended.

After 20 s the original protocol is reset on the pCO.

 



Winload not suitable or incorrect Software Protection Password.







communicating with WinLoad.

pCO²

pCO²pCO²

pCO²

used as I/O expansion

used as I/O expansionused as I/O expansion

used as I/O expansion

 



CAREL supervisor protocol (slave) active on serial 0.

Ta

TaTa

Tab. 6.a

b. 6.ab. 6.a

b. 6.a

6.3.1

6.3.16.3.1

6.3.1 Cases in which th e pCO enters "LOW LEVEL" status

Cases in which the pCO enters "LOW LEVEL" statusCases in which the pCO enters "LOW LEVEL" status

Cases in which the pCO enters "LOW LEVEL" status

- During start-up, the pCO sees that WinLoad is connected (only up to BIOS 3.57).

- During start-up, the pCO detects an "Application corrupted.." (only up to BIOS 3.57).

- During normal operation, the pCO runs a JMP atom that is missing the correct reference or refers backwards. After 20 seconds of Low level status without WinLoad connected, the pCO is reset automatically.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

55

7. UPDATES, FIRMWARE AND LOGS FOR PCO CONTROLLERS

The following systems can be used to update and acquire the firmware and logs to/from the pCO controllers:

• Winload;

• SmartKey.

7.1

7.17.1

7.1 WINLOAD

WINLOADWINLOAD

WINLOAD

In all CAREL 16-bit pCO sistema controllers the resident software can be updated from a PC. To do this, CAREL provides the WinLoad32.exe program and an RS485 serial converter for the pCO. The special driver needs to be installed on the PC, again supplied by CAREL. WinLoad32.exe is included in the installation of the “Easy Tools” program suite, inside the pCO Manager program or alternatively is available separately at the site http://ksa.carel.com in the “download : support : software utilities” section. The installation includes, as well as WinLoad32.exe, the user manual and the driver for the RS232-485 converter. The pCO controller can be connected directly to the PC via the RS485 serial port used for the “pLAN” connection, or alternatively via the optional BMS serial port used for the “supervisor” connection, with the RS485 serial board. The BMS serial port and the optional RS232 serial port can be used to connect the pCO to an analogue (PSTN) or GSM modem and consequently establish a remote connection to WinLoad32. Winload can communicate with all the pCO family programmable controllers. The program is used in general to update and download to the PC the BOOT, BIOS, application, configuration files and logs, and in special cases, such as with the pCO

3

, also save files to the new NAND flash.

It should be stressed that updating the BOOT is generally NOT RECOMMENDED by Carel; Carel always loads the BOOT required for the correct operation of the unit directly during production. Only in very special cases will Carel ask the user to update the BOOT. The BIOS can only be loaded using the pLAN serial connection. Updating the BIOS changes the unit operating mode to low level. In this mode, the data logs cannot be downloaded to the PC nor the application loaded in compressed format. To restore the unit to normal communication mode with Winload, reset the pCO after having successfully loaded the BIOS. Winload is configured automatically for the unit connected, for example, certain versions of Bios can be loaded or are inhibited, the log configuration may or may not be available for download, the possibility of the unit to use the expanded RAM is recognised and therefore an application that uses all the RAM available may or may not be loaded. In special cases, nonetheless, certain options need to be set, for example, the baud rate if the pCO is a pCO with 14.7 MHz or 16 MHz quartz, using the command line of a normal Windows connection with the Winload32.exe executable. The on-line help and the “CHANGELOG” register file in any case provide help to the user. In general, the sequence of operations for establishing communication between Winload in graphic mode and pCO is as follows:

• connect the serial converter or USB to the PC and to the pCO;

• open the Winload program on the PC, by double clicking the icon after having activated any options by command line;

• on the main screen, set the serial port on the PC that the serial converter is connected to and the pLAN address of the pCO in question;

• power up the pCO;

• wait for the controller to come online, as indicated at the bottom left of the main screen;

• then select the desired directory on the main page to perform the desired operation.

For “EASYWINLOAD” mode, used for automatic loading with the settings made before running the program, and for the remote connection via MODEM, see the online help in the Winload program. The download options are listed in the tables below:

LOCAL pLAN serial

BMS serial

FieldBus serial

Load Boot and Bios

YES NO NO

Load application and parameters

YES YES YES

Load/download logs

YES YES YES

Load/download NAND flash (pCO3)

YES NO NO

REMOTE

pLAN serial

BMS serial

FieldBus serial

Load Boot an

d Bios NO –

modem not connectable

NO

Load application and parameters

NO –

modem not connectable

YES NO

Load/download logs

NO –

modem not connectable

YES NO

Load/download NAND flash (pCO3)

NO NO NO

All the WinLoad32 program functions are also available in the PcoManager tool, which includes the Commissioning Tool.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

56

7.1.1

7.1.17.1.1

7.1.1 Commissioning Tool

Commissioning ToolCommissioning Tool

Commissioning Tool

Settings required to use the Commissioning Tool Settings on the pCO for using the Commissioning Tool:

1) the application must feature a screen used to set the Winload protocol on the serial port where the PC with the Commissioning Tool is connected.

Otherwise, there must be another possible procedure for selecting the protocol (e.g. from supervisor).

2) In the remote connection correctly set the system variables relating to the PSTN or GSM modem.

3) To run the operations made available with the commissioning tool, connect when the application is already running; this means that procedures must be

available for setting in advance (screen in the application or supervisor) the Winload protocol after that the pCO has been powered up. If the pCO is directly connected via pLAN serial on power-up, it enters Winload mode and the operations relating to the commissioning tool cannot be managed.

4) If the firmware and the application are updated, the pCO must be reset before being able to use the Commissioning Tool.

5) Once the protocol has been set correctly on the desired serial port, the PC can be connected. IMPORTANT: if using the BMS or FIELDBUS serial port, once

the pCO is disconnected by command from the PC (for example, when switching from the PCOLOAD window to the Commissioning Tool window and vice-versa) the pCO restores the protocol that was previously set on the serial port in question. If the application was previously updated, on the other hand, the pCO is automatically reset. To reconnect the pCO in these cases, restore the Winload protocol on the pCO.

Memory limits:

Memory limits:Memory limits:

Memory limits: The periodical monitoring of the variables in the application is limited to a maximum of 250 WORDS, which can be defined as desired from the entire memory available to the application. The application variable virtualisation function is limited to a maximum of 50 WORDS, which can be defined as desired from the entire memory available to the application. There are no address setting limits to writing and reading the individual “one-shot” variables: all the memory addresses reserved for the application are available, in all types of memory on the pCO: X memory, T memory, P memory, E memory.

7.2 Smart Key

The new SMARTKEY programming key is used to emulate the operation of the parallel programming key on the models of pCO where this is not available (pCOXS, pCO3), with the exception of the BOOT, which is not loaded by the SMARTKEY. Specifically, the key can clone the contents of a pCO and then download these to another identical pCO using the telephone connector on the terminals (the pLAN must be disconnected). This function is obviously available for all the pCO controllers, even those with the parallel key. As well as this mode, the key can also copy the logged data from a series of pCO controllers and then copy the data to a PC. Using a PC running the “SMARTKEY PROGRAMMER”, the key can be configured to run certain operations: copy logs, program applications, program the Bios, etc. For further details, see the online help in the “SMARTKEY PROGRAMMER” and the SMARTKEY instruction sheet.

7.3 NAND FLASH memory

This type of memory is only available on the pCO3 versions with codes pCO3 * * * C/D/F/G/H/I * *. Using Winload version 3.37 and the new pCOLOAD routine in the pCOMANAGER program, any type of file can be loaded into the NAND FLASH memory, for example, source files of the application on the unit. As well as this function, the IUP, BLB (or BIN) and DEV files, representing the files of parameters, the screens to be displayed in the various languages and the control logic, can also be loaded to the NAND flash and then selected from a screen on the terminal to be used as the current application on the pCO. This means that multiple applications, or multiple languages, or alternatively multiple parameter files can be loaded to the NAND flash memory and then the desired application, language or set of parameters can be selected and loaded to main flash memory. The files in NAND flash memory can be selected for copying the main flash from a screen managed directly by the Bios. The procedure is described in the following paragraph.

Limits:

Limits:Limits:

Limits:

• Currently (Bios 4.01) the number of files that can be saved to NAND flash memory is limited to 40.

• The NAND flash memory can only be updated using the local Winload connection and via pLAN serial.

• The maximum overall capacity of the memory is in any case limited to 32 Mbytes.

7.4 Checking the software installed on the pCO and other information

The current program version can be checked at any time (CRC code expressed in hexadecimal format), as well as whether this is run from the key or resident. To do this, simply proceed as described below.

7.4.1

7.4.17.4.1

7.4.1 Screens manage d by the BIOS

Screens managed by the BIOSScreens managed by the BIOS

Screens managed by the BIOS

Press the ALARM and ENTER buttons together for 3 seconds to display the following screen.

> S Y S T E M I N F O R M A T I O N

L O G D A T A

O T H E R I N F O R M A T I O N

N A N D F L A S H F I L E S

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

57

Each of the four rows displayed accesses further screens, managed by BIOS and therefore always present, regardless of the application loaded. To access the functions relating to a row, simply select the row by moving the cursor “<” using the UP and DOWN buttons, and then confirm by pressing the ENTER button. To exit the screen press the MENU or Esc button on the terminal, or wait around 40 seconds. The screens provide various types of information.

1. SYSTEM INFORMATION

SYSTEM INFORMATIONSYSTEM INFORMATION

SYSTEM INFORMATION:::: selecting this function displays information on the software loaded and on the size of the RAM and Flash installed. The screen displayed is similar to the one below.

B O O T V 4 . 0 0 1 0 / 0 1 / 0 6

B I O S V 4 . 0 0 0 3 / 0 2 / 0 6

> 2 + 2 M B <

A P P . C R C : 3 3 5 D 2 M B

The first row displays the BOOT version and date. In the example shown in the figure, the pCO is working with BOOT 4.00 of 10 January 2006. The second row displays the BIOS version and date. In the example shown in the figure, the pCO is working with BIOS 4.00 of 3 February 2006. The third row indicates the size of the Flash on board and, on the pCO1 and pCO2, also the size of the Flash in the parallel key or on the expansion board, if featured. The “>” and “<”characters indicate the starting Flash used by the pCO: to the left if the pCO starts from the Flash on board, to the right if the pCO starts from the key. In the example, the pCO is running the BOOT, BIOS and application loaded on the board, and there is no key nor memory expansion. The fourth row displays the CRC of the application and the amount of Flash it occupied. In the example, the CRC of the application is 335D and it requires 2 MB of memory to run. If this row shows 1 MB, a pCO with 1 MB Flash can run the program. The CRC is a number that summarises the application loaded in the flash memory on the pCO, as well as some other system information. Consequently, the version of the application can be recognised using the corresponding screen.

2. LOG DATA

LOG DATALOG DATA

LOG DATA :

: :

: selecting this function shows the data on any logs loaded on the pCO. If no log is present, the following screen is displayed.

0

N O L O G D A T A

P R E S S

[ M E N U ] O R [ E S C ]

If, on the other hand, at least one log is present, the first screen that is displayed is similar to the following.

1 D I S P L A Y L O G D A T A

W h i c h m e m o r y ?

I N T E R N A L M E M O R Y

Detailed information on the use of the screens relating to the logs is available in the WinLoad manual.

3. OTHER INFORM

OTHER INFORMOTHER INFORM

OTHER INFORMATION

ATIONATION

ATION :::: selecting this function displays the ID number associated with the pCO. The ID number is a unique code for each pCO manufactured

by CAREL; this will be used in future applications.

I D N U M B E R :

0 0 2 6 3 1 1 4 4 1 - 1 8 0 8 2

Not all the CAREL pCO controllers have an ID number; if this is not present, the following screen informs the user of this situation.

I D N U M B E R :

N O T P R E S E N T

4. NAND FLASH FILES

NAND FLASH FILESNAND FLASH FILES

NAND FLASH FILES:::: this row is only displayed on the pCO3 boards that have additional NAND flash memory. Selecting this function displays the names of the IUP, BLB, GRP and DEV files saved in the NAND memory; an application can also be copied from the NAND memory to the main flash memory on the pCO. Each file name is shown on a screen similar to the one below.

[ X ]

P G D 2 3 _ A L L . g r p

To move from one file to the next simply press the UP and DOWN buttons. Press the ENTER button to select the current file and copy it to the main flash memory. The files selected for the copy operation are marked by an “X” on the first row of their screen; in the example shown in the figure, the file called “PGD23_ALL.grp” is selected to be copies. To start the copy procedure, press the UP or DOWN button until reaching the following screen:

P r e s s E n t e r

t o s t a r t c o p y i n g

and then confirm by pressing ENTER. For further information on the use of the NAND memory, see the WinLoad manual.

To exit these two screens, press the Menu button on the local terminal or wait around 40 seconds.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

58

8. GENERAL CONNECTION DIAGRAMS

pCO

pCOpCO

pCO

3333

M

OUT

+V

analog output 1 (0/10Vdc)

analog output 2 (0/10Vdc)

analog output 3 (0/10Vdc)

analog output 4 (0/10Vdc)

analog output 5 (0/10Vdc)

L

N

analog output 6 (0/10Vdc)

service card

Rx-/TxRx+/Tx+ GND

C1 NO1 NO2

NO3 C1

C4 NO4 NO5 NO6 C4

C7

NO7 C7

NO8 C8

NC8

G

G0

B1

B2 B3

GND

+VDC

+Vterm

GND

+5 VRE F

B4

BC4

B5

BC5

VG

VG0

Y1 Y2

Y3

Y4 ID1 ID2 ID3

ID4 ID5 ID6 ID7

ID8

IDC1

J1 J24 J2 J3

J10J9

field card serial card

input: 24 V / ;50 to60 Hz

max. power:40 VA/15W

out H

M NTC NTC

+ (G)

NO12 C12

NC12

NO13

C13 NC13

C9

NO9 NO10 NO11 C9

B6 B7 B8

GND

ID9

ID10 ID11

ID12 IDC9

ID13H

ID13

IDC13

ID14

ID14H

SMALL MEDIUM LARGE

Fig. 8.a

Fig. 8.aFig. 8.a

Fig. 8.a

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

59

pCO

pCOpCO

pCO

1111

C1

NO1

NO2

NO3

C1

C4

NO4

NO5

NO6

C4

C7

NO7

C7

NO8

C8

NC8

NO13

C13

NC13

C9

NO9

NO10

NO11

C9

Fuse

Programming Key

J10

J11

J12

J13

J14

J15

J16

J17

J18

J9

G

G0

230/24Vac

G

G0

B1

B2

B3

B4

+VDC

B5

GND

B6

GND

VG

VG0

Y1

Y2

Y3

Y4

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

IDC1

B7

GND

B8

GND

ID9

ID10

ID11

ID12

IDC9

ID13H

ID13

IDC13

ID14

ID14H

J1

J2

J3

J5

J6

J7

J8

J4

out H

M NTC NTC

+(G)

M

OUT

+V

analog output 1 (0/10Vdc)

analog output 2 (0/10Vdc)

analog output 3 (PWM taglio di fase)

analog output 4 (PWM taglio di fase)

Rx-/Tx-

Rx+/Tx+

GND

+5VRif

GND

+VTerm

L

N

TERMINALE

ARIA

digital output 1

digital output 2

digital output 3

digital output 4

digital input 1

digital input 2

digital input 3

digital input 4

digital input 5

digital input 6

digital input 7

digital input 8

digital input 9

CP

digital input 10

digital input 11

digital input 12

digital input 13

digital input 14

digital output 5

digital output 6

digital output 7

digital output 8

digital output 9

dig

ital output 10

dig

ital output 11

dig

ital output 12

dig

ital output 13

probe 1

probe 2

probe 3

probe 7 - 8

(0/1V dc o 4/20 mA)

arel NTC probe

ON-OFF

CLOCKCARD

ANALOG SELECTION SERIALCARD

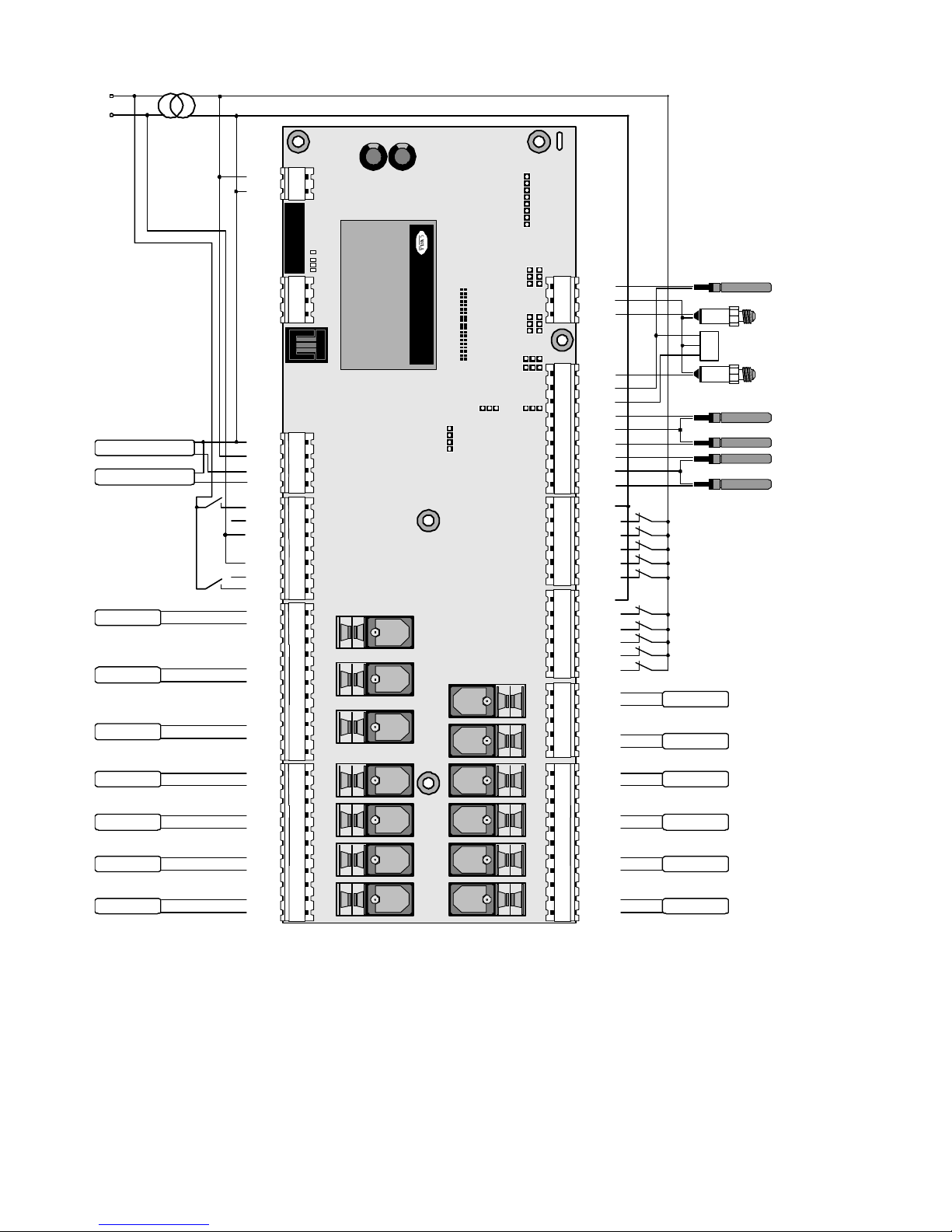

Fig. 8.b

Fig. 8.bFig. 8.b

Fig. 8.b

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

60

pCO

pCOpCO

pCO

XS

XSXS

XS

230/24 Vac

M

OUT

+V

analog output 1 (0/10 Vdc)

analog output 2 (0/10 Vdc)

analog output 3 (PWM taglio di fase/ p hase cutting)

L

N

digital input 1

digital input 2

digital input 3

digital input 4

digital input 5

digital input 6

digital output 1

digital output 2

digital output 3

digital output 4

digital output 5

probe 3 (0/5V)

p

robe 4 (Carel NTC)

probe 2 (4/20 mA)

probe 1

(0/1 Vdc o 4/20 mA )

G

G0

SYNC

B1

B2

B3

B4

GND

+5VREF

+24VDC

Y1

Y2

Y3

GND

ID1

ID2

ID3

ID4

ID5

ID6

IDC1

RXTX-

RXTX+

GND

TLAN

GND

C1

NO1

NO2

NO3

C4

NO4

NO5

C5

NC5

J1

J5

J6

J7

J8

J9

J10

J11

J2

J3

J4

CLOCK CARD

SERIAL C ARD

built-in terminal

xs

Fig. 8.c

Fig. 8.cFig. 8.c

Fig. 8.c

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

61

pCO

pCOpCO

pCO

cccc

G

G0

230/24 Vac

M

OUT

+V

Digital output 1

Digital output 2

Digital output 3

Digital output 4

Digital output 5

Digital output 12

Digital output 10

Digital output 11

Analogue output 1 (0+10Vdc)

Digital input 11 (230Vac)

Digital input 12 (230Vac)

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital input 5

Digital input 6

Digital input 7

Digital input 8

Digital input 9

Digital input 10

Carel NTC probe 1

Carel NTC probe 2

Carel NTC probe 3

Carel NTC probe 4

Probe 6 (0 1Vdc o/or 4 20mA)

Probe 5 (0 1Vdc o/or 4 20mA)

Probe 7* (0 1Vdc o/or 4 20mA)

Carel NTC probe 8

Digital output 9

Digital output 8

Digital output 7

Digital output 6

Digital output 13

L

N

J17J11J20J21J22J24

J1J2J3J4J5J6

B8 +24Vdc B7

B6 AVSS B5 B4 AVSS B3 B2 AVSS B1

IDCM2 ID10 ID9 ID8 ID7 ID6

IDCM1 ID5 ID4 ID3 ID2 ID1

C1 NO1

------C2 NO2

C3 NO3

------C4 NO4

------C5 NO5

------C12 NO12

NO8

C8

------NO7

C7

------NO6

C6

-------

NO13

C13

NO11

C11

NC11

-------NO10

C10

NC10

--------

NO9

C9

NC9

ID230

ID24

ID11R

-------ID12R

ID24

ID230

VG0 VG1

Y1 Y0

G

G0

J19

pCO

c

I/O board

GND

RX/TX-

RX/TX+

Fig. 8.d

Fig. 8.dFig. 8.d

Fig. 8.d

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

62

9. TROUBLESHOOTING

 The unit does not start (power LED off)

The unit does not start (power LED off)The unit does not start (power LED off)

The unit does not start (power LED off)

Check:

1. the mains power supply;

2. that 24 Vac/Vdc is available downstream of the power transformer;

3. that the 24 Vac/Vdc power connecter is plugged in correctly;

4. that the protection fuse is intact (if featured);

 On power

On powerOn power

On power----up or during operation an error is signalled by the 3 LEDs: see chapter 6.3.

up or during operation an error is signalled by the 3 LEDs: see chapter 6.3.up or during operation an error is signalled by the 3 LEDs: see chapter 6.3.

up or during operation an error is signalled by the 3 LEDs: see chapter 6.3.

 On power

On powerOn power

On power----up various problems occur on the LCD (strange characters,

up various problems occur on the LCD (strange characters,up various problems occur on the LCD (strange characters,

up various problems occur on the LCD (strange characters, blank display).

blank display).blank display).

blank display).

Check:

1. correct software in the flash;

2. the pLAN address on the pCO

and the terminal (compliant with the requirements of the application used);

3. if that the built-in display, is featured, is working correctly; the problem lies in the connection between the pCO

and the terminal: make sure that the cable is

plugged in correctly.

 Incorrect reading of the input signals

Incorrect reading of the input signalsIncorrect reading of the input signals

Incorrect reading of the input signals

Check:

1. the correct power supply to the pCO;

2. the correct power supply to the probes: if the voltage (+Vdc>20V) is near zero, disconnect the probe and measure the power supplied by the pCO. If this is

still near zero, turn the controller off and wait a few minutes. If the problem persists, contact CAREL service; otherwise the connection that was removed was short-circuiting the power supply.

3. the separation of the power supply to the digital inputs from the power supply to the pCO. A 24 Vac/24 Vac transformer with a minimum rating of 5 VA can

be used.

4. that the probe wires are connected according to the instructions;

5. that the probe wires are positioned a sufficient distance from possible sources of electromagnetic disturbance (power cable, contactors, cables with high

voltages and running to devices with high peak current);

6. that there is not a high thermal resistance between the sensor and any probe socket that may be used. If necessary, place conductive paste or oil in the

socket to ensure correct transfer of the temperature;

7. if there is a probe error or a conversion error on the pCO, the checks to be made depend on the type of probe.

 Ac

AcAc

Active humidity probes with 0 to 1 V signal:

tive humidity probes with 0 to 1 V signal: tive humidity probes with 0 to 1 V signal:

tive humidity probes with 0 to 1 V signal: use a voltmeter to check the probe signal between terminals Bn and GND and check that the voltage

corresponds to the value: 1 mVdc corresponds to 0.1% RH

Example:

Example: Example:

Example: reading 200 mVdc (0.2 Vdc), the probe sends a signal that corresponds to 20% RH

• Pressure probes: if errors occur in the reading of these probes, check that:

Pressure probes: if errors occur in the reading of these probes, check that:Pressure probes: if errors occur in the reading of these probes, check that:

Pressure probes: if errors occur in the reading of these probes, check that:

1. the analogue inputs used for the probes are set to accept 4 to 20 mA signals (in the application program);

2. the full scale set via software corresponds to the probes used;

3. the probe capillary is not blocked.

4. Measuring the voltage across terminals Bn and GND gives an indirect indication of the probe signal current, as the input has an impedance of 100Ω,

applying the formula:

I= V/R (2V= 20 mA).

The pressure value “Ps” that the probe is sending can be calculated as follows (FS= Full scale):

Ps= (Vmeas/100 - 0.004) x (FSmax - FSmin) / 0.016 + FSmin Example: the probe used has FSmin= -0.5 bar, FSmax = 7 bar; the voltage read is equal to Vmeas= 1 Vdc.

The pressure Ps that the probe is measuring is equal to: Ps= (1/100 - 0.004) x [7 - (-0.5)] / 0.016 + (-0.5) = 2.3 bars.

• NTC probes:

NTC probes: NTC probes:

NTC probes: the probe signal is a resistance value that depends on the temperature. Below are some resistance values at different temperatures. Disconnecting the probe from the input to the interface and measuring its resistance with a multimeter gives the corresponding temperature, based on the values in the table.

°C

°C°C

°C

KKKK

ΩΩΩΩ

°C

°C°C

°C

KKKK

ΩΩΩΩ

°C

°C°C

°C

KKKK

ΩΩΩΩ

-20

67.71 0 27.28 20 12.09

-15

53.39 5 22.05 25 10.00

-10

42.25 17 17.96 30 8.31

-5

33.89 15 14.68 35 6.94

When measuring the voltage across terminals Bn and GND, with an NTC fitted, the voltage measured is equal to: VIN = 2.5 x R

NTC

10000 + R

NTC

Example: inserting a 10 KΩ resistor in the input (corresponding to 25°C) gives:

VIN = 2.5 x 10000 = 1.25 V 20000

In the case of the pCO

XS

, the following formula is used:

VIN = 5 x RP where R

P

is the resistance expressed in ohm of the parallel between the resistance of the NTC and 20000 Ω

10000 + RP

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

63

 To check the settings of the probe inputs

To check the settings of the probe inputs To check the settings of the probe inputs

To check the settings of the probe inputs

Switch off the pCO and make the following measurements using a tester between the probe input Bn and GND:

For inputs B1, B2, B3, B6, B7 and B8 the resistance should be around 150 KΩ. For inputs B4, B5, B9 and B10 the resistance should be around 10 kΩ.

As the type of analogue input on the pCO is set via software, where featured by the application, a more accurate check can be performed by disconnecting the sensors and powering up the pCO. Measure:

probe type

probe typeprobe type

probe type

vol tage measure d

vol tage measure d voltage measured

vol tage measure d

NTC

2.5 V (3.3 V for pCOxs)

4/20 mA

0 V

PT1000

2.5 V

0 to 1 V or 0 to 10 V

0 V

0 to 5 V

0 V (3.3 V for pCOxs)

 Dub

DubDub

Dubious alarm signal from digital input (pCO

ious alarm signal from digital input (pCOious alar m signal from digital input (pCO

ious alarm signal from digital input (pCO

1111

, pCO

, pCO, pCO

, pCO

CCCC

and pCO

and pCOand pCO

and pCO

3333

)

) )

)

Check the voltage between the common terminal “IDC1” and the terminal of the digital input indicating the alarm “IDn”, in the following conditions:

1. if there is voltage (24 Vac or 24 Vdc, depending on the power supply used for the digital inputs) the contact of the alarm device connected is closed;

2. if the voltage is less than around 10 Vac or 10 Vdc (see above) the contact is open;

3. if not specified otherwise, the controller signals an alarm when the contacts are open.

 The pCO

The pCOThe pCO

The pCO repeatedly goes into Watch

repeatedly goes into Watchrepeatedly goes into Watch

repeatedly goes into Watch----dog mod e, that is,

dog mode, that is, dog mode, that is,

dog mode, that is, it switches off and on again for a few seconds as if there were a brief power failure or it

it switches off and on again for a few seconds as if there were a brief power failure or it it switches off and on again for a few seconds as if there were a brief power failure or it

it switches off and on again for a few seconds as if there were a brief power failure or it

activates some outputs at random (digital and/or analogue)

activates some outputs at random (digital and/or analogue)activates some outputs at random (digital and/or analogue)

activates some outputs at random (digital and/or analogue) Check:

1. that the power cable does not run near the pCO;

2. that the rating of the power transformer (not supplied by CAREL) is correct (see the paragraph on the POWER SUPPLY);

3. that the cables running to the probes and the digital inputs are kept separate from the other cables (multi-conduit panels).

 The serial connection to the local supervisor does not work

The serial connection to the local supervisor does not workThe serial connection to the local supervisor does not work

The serial connection to the local supervisor does not work

Check:

1. that the serial board code PCOS004850 is connected correctly

2. that the identification number of the pCO

has been set correctly (see the manual for the application program);

3. that the serial cables are connected correctly according to the CAREL diagram shown in the documents corresponding to the supervisor network;

 The user terminal is block ed (it does not respond to the buttons)

The user terminal is blocked (it does not respond to the buttons)The user terminal is blocked (it does not respond to the buttons)

The user terminal is blocked (it does not respond to the buttons)

Check:

1. that the terminal has not been disconnected and then reconnected to the pCO without waiting 5 seconds. In this case, turn the pCO off and on again with

the terminal connected;

2. that the software on the pCO

has been installed correctly using the SMARTKEY or from a PC using WinLoad;

3. see Chap. 5.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

64

10. NETWORKS AND PROTOCOLS

10.1

10.110.1

10.1 pLAN protocol

pLAN protocolpLAN protocol

pLAN protocol

All the components in the pCO sistema can exchange information across the pLAN local network. The pLAN protocol is a multimaster protocol that can be used to build, simply and reliably, a distributed system for the optimum control of HVAC/R equipment.

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port

How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2

0 – pLAN

Set the pLAN address

to a value other than 0

pCO1

pCOXS

pCOC

pCO3

Tab. 10.a

Tab. 10.aTab. 10.a

Tab. 10.a Connectable devices Management of the terminals:

Connectable terminals: pCOT – pCOI – pGD0 – pGD1 – pGD2 – pGD3 . Exchange of variables with other devices. Connectable devices: any pCO – graphic pCO – Aria – EVD200 – EVD400 – FCM. Exchangeable variables: maximum 2048 per device Specifications Baud rate: 62500 bps on all models 115200 bps on pCO3 (selectable via software) Maximum number of connectable terminals: 3 Maximum number of connectable devices: 32 in total (including the terminals) For the type of cable and the maximum distance see chapter 5.

10.2

10.210.2

10.2 Local te

Local teLocal te

Local terminal protocol

rminal protocolrminal protocol

rminal protocol

This protocol can be used to simply manage the point-to-point connection of a terminal to a pCO controller. The protocol is used to assign the address to the pCO1, pCO3, pCOxs and pCOC.

pCO model

pCO modelpCO model

pCO model Serial port

Serial portSerial port

Serial port How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2

0 – pLAN

Set the pLAN address of the pCO and

the terminal to 0

pCO1

pCOXS

pCOC pCO3

Tab. 10.b

Tab. 10.bTab. 10.b

Tab. 10.b

Connectable devices

Terminals: pCOT – pCOI – pGD0 – pGD1 – pGD2 – pGD3 (4x20 alphanumeric mode only)

Specifications

Baud rate: 10416 bps Maximum number of connectable terminals: 1

10.3

10.310.3

10.3 CAREL Slave protocol

CAREL Slave protocolCAREL Slave protocol

CAREL Slave protocol

The CAREL slave protocol is used to make the pCO sistema network variables available to one of the CAREL proprietary supervisors: PlantVisor, PlantWatch, PCGate, WebGate, pCOWEB, pCONET. Using a series of plug-in boards, the pCO controllers can also interface with the most commonly-used management and supervision systems available on the market: LON-Echelon, BACnet, TREND and SNMP. The FieldBus serial port features an additional security feature, that is, the calculation of the CRC, to ensure that communication is correct in all circumstances.

pCO model

pCO modelpCO model

pCO model Serial port

Serial portSerial port

Serial port How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2

0 – pLAN * SERIAL0_PROTOCOL = 1

1 – BMS SERIAL1_PROTOCOL = 1

pCO1

0 – pLAN * SERIAL0_PROTOCOL = 1

1 – BMS SERIAL1_PROTOCOL = 1

2 – FieldBus SERIAL2_PROTOCOL = 4

pCOXS

0 – pLAN * SERIAL0_PROTOCOL = 1

1 – BMS SERIAL1_PROTOCOL = 1

2 – FieldBus SERIAL2_PROTOCOL = 4

pCOC

0 – pLAN * SERIAL0_PROTOCOL = 1

1 – BMS SERIAL1_PROTOCOL = 1

pCO3

0 – pLAN * SERIAL0_PROTOCOL = 1

1 – BMS SERIAL1_PROTOCOL = 1

2 – FieldBus SERIAL2_PROTOCOL = 4

Tab. 10.c

Tab. 10.cTab. 10.c

Tab. 10.c

Note for

Note for Note for

Note for pCO

pCOpCO

pCO

2222

, pCO

, pCO, pCO

, pCO

1111

128KB, pCO

128KB, pCO128KB, pCO

128KB, pCO

XS

XSXS

XS

128KB, pCO

128KB, pCO128KB, pCO

128KB, pCO

CCCC

:::: the protocol cannot be activated on more than one serial port at the same time. The protocol is incompatible with the following protocols: PSTN, GSM, Modbus Slave, tLAN Slave. Note for pCO

Note for pCONote for pCO

Note for pCO

1111

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

XS

XSXS

XS

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

3333

:::: the protocol can be activated at the same time on the BMS serial and FieldBus serial ports; in all other cases, the protocol can only be activated on

one serial port. If CAREL Slave is active on the pLAN serial port the following protocols cannot be used: PSTN, GSM, Modbus Slave, tLAN Slave. * The CAREL SLAVE protocol may be slower on the O-pLAN serial port than on serial 1-BMS or serial 2-FieldBus, where available

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

65

Connectable devices

Connectable devicesConnectable devices

Connectable devices Connectable supervisors: PlantVisor – PlantWatch – PCGate – WebGate – Gateway Modbus – Gateway BACnet – pCOWEB – pCONET – any pCO with CAREL Master protocol. Using plug-in boards: LON-Echelon, BACnet, TREND, SNMP supervisors Specifications Baud rate: Serial port

Serial portSerial port

Serial port 0 – pLAN 1 – BMS 2 – FIELDBUS bps

bpsbps

bps 19200 1200 – 2400 – 4800 – 9600 – 19200 Exchangeable variables: 127 analogue – 127 integer – 199 digital or 207 analogue – 207 integer – 207 digital settable with SUPERVISOR-EXTENSION system variable Connectable devices: supervisor Type of cable / max. distance: on RS485 line: AWG 20/22 shielded cable / max 1000 m total on LON line: according to LON standards on TREND line: according to TREND standards on Ethernet line: according to IEEE 802.3 specifications.

10.4

10.410.4

10.4 CAREL Master protocol

CAREL Master protocolCAREL Master protocol

CAREL Master protocol

The CAREL Master protocol can be used to read and write variables from/to peripherals that use the CAREL Slave protocol. This protocol is used to talk to I/O expansions, drivers and fan coil controllers in a simple and economical manner. There are two versions of the CAREL Master protocol: both versions use a list allocated in the application RAM. The second version also uses atoms to simplify the development of the application and make the commands and the reading of the variables by the peripherals faster. Both versions allow the supervision of up to 207 devices and 207 variables per device. The limits depend on the availability of user memory.

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port How to se

How to seHow to se

How to select the protocol

lect the protocollect the protocol

lect the protocol

pCO2 1 – BMS Specify the address of the control list using the system

variables

CARELMASTER_POINTER_H, CARELMASTER_POINTER_L;

set the serial port required in the control list

Set the value of the corresponding

SERIALX_PROTOCOL

variable

(see EasyTools documents)

pCO1

0 – pLAN 1 - BMS 2 – FieldBus

pCOXS

0 – pLAN 1- BMS

pCOC 1 – BMS

pCO3

0 - pLAN 1 - BMS 2 – FieldBus

Tab. 10.d

Tab. 10.dTab. 10.d

Tab. 10.d

The CAREL Master protocol is only available on the pLAN serial port in the second version (PCO* with 512 KB RAM only).

Connectable devices

Connectable devicesConnectable devices

Connectable devices All CAREL devices that support the CAREL Slave protocol, for example: pCOe 485, Hydronic fan coil with CANbus, e-drofan, PCGate, Wireless probe, EVD300, EVD400, Energy², IR33, MasterCase, MasterCella, PowerSplit, Power Compact, µC

2

, µC3, vAC, any pCO with CAREL Slave protocol. Specifications Baud rate: 1200 – 2400 – 4800 – 9600 – 19200 bps

Baud rate available with the second version : 1200, 2400, 4800, 9600, 19200, 38400 (where available ), 115200 (where available ) bps

Connectable slaves: 207 slaves Exchangeable variables: 207 analogue – 207 integer – 207 digital Type of cable / max. distance: on RS485 line: AWG 20/22 shielded cable / max 1000 m total on tLAN line: AWG 20/22 shielded cable / max 10 m total on CANbus line: from [AWG 16 / max 1100 m] to [AWG 24 / max 200 m]

10.5 CAREL Master 5 expansions protocol

The CAREL Master 5 expansions protocol is a protocol that is optimised for reading and writing variables from/to peripherals that speak the CAREL Slave protocol and that act as I/O expansions, without intelligence.

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2

0 – pLAN SERIAL0_PROTOCOL = 7 3 – connector J23 no action required

pCO1

0 – pLAN SERIAL0_PROTOCOL = 7 2 – FieldBus SERIAL2_PROTOCOL = 20

pCOXS

0 – pLAN SERIAL0_PROTOCOL = 7 2 – FieldBus SERIAL2_PROTOCOL = 20

pCOC 0 – pLAN SERIAL0_PROTOCOL = 7

pCO3

0 – pLAN SERIAL0_PROTOCOL = 7 2 – FieldBus SERIAL2_PROTOCOL = 20 3 – connector J23 no action required

Tab. 10.e

Tab. 10.eTab. 10.e

Tab. 10.e

No

NoNo

Note:

te:te:

te: the protocol cannot be activated on more than one serial port at the same time.

Note for

Note for Note for

Note for pCO

pCOpCO

pCO

2222

and pCO

and pCOand pCO

and pCO

3333

:::: connector J23 is only available in the Large and XL versions.

Note for pCO

Note for pCONote for pCO

Note for pCO

XS

XS XS

XS

and pCO

and pCOand pCO

and pCO

3333

:::: if the protocol is activated on the FieldBus serial port, PST or PLD terminals cannot be connected.

If the protocol is activated on the FIELDBUS serial port it cannot be activated on J23 and vice-versa.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

66

Connectable devices

Connectable devicesConnectable devices

Connectable devices Any pCO with CAREL Slave protocol; pCOe 485 I/O expansions – pCOe tLAN; EVD300; EVD400; µC

2

expansion. Specifications Baud rate: 1200 – 2400 – 4800 – 9600 – 19200 bps on FieldBus serial 19200 bps on the other serial ports Connectable slaves: maximum 5 slaves (addresses 1, 2, 3, 4, 5) Exchangeable variables: for each slave: 20 analogue – 40 integer – 40 digital Type of cable / max. distance: on RS485 line: AWG 20/22 shielded cable / max 1000 m total on tLAN line: AWG 20/22 shielded cable / max 10 m total

Fig. 10.a

Fig. 10.aFig. 10.a

Fig. 10.a

Note:

Note:Note:

Note: The same CAREL Master protocol (i.e. the same setting of the SERIAL_PROTOCOL system variable) cannot be set on more than one serial port at the same time.

10.6 WinLoad protocol

The WinLoad protocol is used to create a point-to-point connection of pCO controllers using the WinLoad software, part of the EasyTools package. With WinLoad, the user can completely manage the unit in a simple and intuitive manner. Specifically:

• update the BOOT file;

• update the BIOS file;

• download the applications (*.IUP – *.BLB – flash1.BIN - *.DEV files);

• update the files with the rules for acquiring the data log (*.PVT – *.LCT files);

• acquire the logged data;

• acquire the values of the parameters in the buffer memory.

Available on the following serial ports

pCO model

pCO modelpCO model

pCO model

Serial port

How to select the protocol

pCO2

0 –

pLAN SERIAL0_PROTOCOL = 4

1 –

BMS SERIAL1_PROTOCOL = 4

pCO1

0 –

pLAN SERIAL0_PROTOCOL = 4

1 –

BMS

2 - FIELDBUS

SERIAL1_PROTOCOL = 4

SERIAL2_PROTOCOL = 16

pCOXS

0 –

pLAN SERIAL0_PROTOCOL = 4

1 –

BMS

2 - FIELDBUS

SERIAL1_PROTOCOL = 4

SERIAL2_PROTOCOL = 16

pCOC

0 –

pLAN SERIAL0_PROTOCOL = 4

1 – BMS SERIAL1_PROTOCOL = 4

pCO3

0 –

pLAN SERIAL0_PROTOCOL = 4

1 –

BMS

2 - FIELDBUS

SERIAL1_PROTOCOL = 4

SERIAL2_PROTOCOL = 16

Tab. 10.f

Tab. 10.fTab. 10.f

Tab. 10.f

Note:

Note:Note :

Note: the protocol cannot be activated on more than one serial port at the same time.

CAREL

MASTER

"5

expansions"

"207

expansions"

no CRC

with CRC

("TLAN Master")

first version

with CRC (no automati

c

polling)

second

version with CRC (with automatic polling)

can be

activated on

J23 and pLAN

serial

can be activated on

FIELDBUS serial

can be activated on

all serial ports except J23 and pLAN

can be activate

d on

all serial ports except J23

cannot be activated together

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

67

Conne ctable de vices

Conne ctable de vicesConnectable de vices

Conne ctable de vices Connectable WinLoad versions: WinLoad, Easy WinLoad Other devices: Smart Key (pLAN serial only) Specifications Baud rate: 54211 bps for pCO2/pCO1/pCOC with Smart Key

83781 bps for pCOXS with Smart Key 115200 or 375000 bps for pCO3 on pLAN serial 28800 bps in all other cases Connectable devices: 1 Type of cable / max. distance: on pLAN aerial only: telephone cable / max 5 m on all serial ports: AWG 20/22 shielded cable / max 1000 m total

10.7 PST protocol

The PST protocol is used to manage the PST and PLD family terminals with numeric LED displays, both with and without keypads.

pCO model

pCO modelpCO model

pCO model

Seria l po rt

Seria l po rtSerial por t

Seria l po rt

How to select the protocol

How to select the protocolHow to select th e pro tocol

How to select the protocol

pCO1

2 – FieldBus SERIAL2_PROTOCOL = 3

pCOXS

pCO3

Tab. 10.g

Tab. 10.gTab. 10.g

Tab. 10.g

Conne ctable de vices

Conne ctable de vicesConnectable de vices

Conne ctable de vices PST terminals code PST**V****, PST**S****, PST**L****. PLD terminals code PLD**S****, PLD**L****. Specifications Baud rate: 4800 or 19200 bps for PST00LR200 4800 bps for all other terminals Connectable devices: 1 Type of cable / max. distance: cables wired with 2 connectors in lengths 0.5 m – 1 m – 1.5 m – 3 m – 5 m cable wired with 1 connector / max length 10 m

10.8 Modbus Slave protocol

The Modbus Slave protocol is used to make the variables and configuration parameters of the pCO controllers available to a generic Modbus supervisory system. It is available in two versions: normal (SERIAL*_PROTOCOL=3 or 5), extended (SERIAL*_PROTOCOL=30 or 50)

Note

NoteNote

Note: if used on serial 0-pLAN, set the pLAN address to 0

Note

NoteNote

Note: the ModBus slave protocol cannot be selected at the same time on different serial ports.

Note

NoteNote

Note for pCO1 128KB, pCOXS 128KB, pCOC, pCO2: the protocol is incompatible with CAREL Slave, PSTN, GSM.

Note

NoteNote

Note for pCO1 512KB, pCOXS 512KB, pCO3: the protocol is incompatible with CAREL Slave only if the latter is

activated on the pLAN serial port.

Conne ctable de vices

Conne ctable de vicesConnectable de vices

Conne ctable de vices One Modbus supervisor in RTU mode (REMOTE TERMINAL UNIT). Specifications communication: 1 Start, 8 data, 2 Stop, no parity Baud rate: 1200 – 2400 – 4800 – 9600 – 19200 bps (half duplex on RS232) Exchangeable variables: see Tab. 10.a and 10.b (Analogue and integer mapped on Modbus “registers”, digital on Modbus “coils”) Type of cable / max. distance: on RS485 line: AWG 20/22 shielded cable / max 1000 m total on RS232 line: RS232 cable / max 5 m

CCCConfiguration of the connectable “supervisor” device

onfig uration of the connectable “supervisor” deviceonfiguration of the connectable “supervisor” de vice

onfig uration of the connectable “supervisor” device

Timeout and polling rate parameters

The timeout and polling rate parameters (WAIT, TREATMENTS, TURNAROUND DELAY, INTERPACKET DELAY) must be set correctly. Typical values are as follows:

timeout: 1000ms or higher; turnarounds delay = from 100ms to 200ms. interpacket delay = turnarounds delay.

• Exchangeable variables in normal version:

Exchangeable variabl es in normal ve rsion:Exchangeable variables in normal version:

Exchangeable variabl es in normal ve rsion:

SERIAL1_PROTOCOL = 3 or 5 (see Tab. 10.h)

SUPERVISOR_EXTENSION = 0

SUPERVISOR_EXTENSION = 1

127 analogue

127 integer

199 digital 207 analogue

207 integer

207 digital

Tab. 10.i

Tab. 10.iTab. 10.i

Tab. 10.i

• Exchanged variables in extended version:

Exchanged variable s in extended version:Exchanged variables in exte nded version:

Exchanged variable s in extended version:

SERIAL1_PROTOCOL = 30 or 50 (see Tab. 10.h)

5000 analogue

5000 integer

2048 digital

TTTTab. 10.l

ab. 10.lab. 10. l

ab. 10.l

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port

How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2 1 – BMS SERIAL1_PROTOCOL = 3

pCO1

0 – pLAN SERIAL0_PROTOCOL = 3; 30

1 – BMS SERIAL1_PROTOCOL = 3; 30

2 – FieldBus SERIAL2_PROTOCOL = 5; 50

pCOXS

0 – pLAN SERIAL0_PROTOCOL = 3; 30

1 – BMS SERIAL1_PROTOCOL = 3; 30

2 – FieldBus SERIAL2_PROTOCOL = 5; 50

pCOC

0 – pLAN SERIAL0_PROTOCOL = 3

1 – BMS SERIAL1_PROTOCOL = 3

pCO3

0 – pLAN SERIAL0_PROTOCOL = 3; 30

1 – BMS SERIAL1_PROTOCOL = 3; 30

0 – pLAN SERIAL2_PROTOCOL = 5; 50

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

68

10.9 Modbus Master protocol

The Modbus RTU full option protocol is optimised for acquiring and writing integer, analogue and digital variables from/to generic Modbus Slave devices.

pCO model

pCO modelpCO model

pCO model

Seria l po rt

Seria l po rtSerial por t

Seria l po rt

How to select the protocol

How to select the protocolHow to select th e pro tocol

How to select the protocol

pCO2

0 –

pLAN SER

IAL0_PROTOCOL = 21; select address from control list

1 –

BMS SERIAL1_PROTOCOL = 21; select address from control list

pCO1 512KB

0 –

pLAN SERIAL0_PROTOCOL = 21; select address from control list

1 –

BMS SERIAL1_PROTOCOL = 21; select address from control

list

2 –

FieldBus

SERIAL2_PROTOCOL = 21; select address from control list

pCOXS

0 –

pLAN SERIAL0_PROTOCOL = 21; select address from control list

1 –

BMS SERIAL1_PROTOCOL = 21; select address from control list

2 –

FieldBus

SERIAL2_PROTOCOL = 21; s

elect address from control list

pCOC

0 –

pLAN SERIAL0_PROTOCOL = 21; select address from control list

1 –

BMS SERIAL1_PROTOCOL = 21; select address from control list

pCO3

0 –

pLAN SERIAL0_PROTOCOL = 21; select address from control list

1 –

BMS SERIAL

1_PROTOCOL = 21; select address from control list

2 –

FieldBus

SERIAL2_PROTOCOL = 21; select address from control list

Tab. 10.m

Tab. 10.mTab. 10.m

Tab. 10.m

Note:

Note: Note:

Note: the protocol cannot be activated on more than one serial port at the same time.

Connectable devices

Connectable devicesConnectable devices

Connectable devices

CAREL devices: any pCO with Modbus Slave protocol, pCOe Modbus, µC2, µC

3

, e-drofan. Other devices: any device that uses the Modbus Slave protocol (RTU mode) at baud rate specified below. Specifications communication: 1 Start, 8 data, selectable Stop bits (def. 1), selectable parity (def. no) Baud rate: 1200 – 2400 – 4800 – 9600 – 19200 bps; some baud rates may not be supported by all the devices Connectable devices: Max 247 in Unicast mode (devices with address different from 0) Exchangeable variables: Modbus variables: 65533 analogue/integer (“registers”) – 65533 digital (“coils”) Type of cable / max. distance: AWG 20/22 shielded cable / max 1000 m total

The acquisition time for all the variables on a slave device depends on the consecutiveness of the ModBus addresses of the device variables and the management software (application). Typically, at 19200 bps a read command requested by the application is executed by the Bios on the pCO in around 60 to 80 ms regardless of the number of variables read. As the read commands are requested by the application, the acquisition of all the variables on a slave device depends not only on how many there are and whether they are consecutive, but also on the structure of the application.

10.10 Modbus Master protocol - Benshaw

This protocol has been specifically developed for the control and management of the Benshaw VFD. This communication protocol can be used to interface directly with these devices, set the configuration parameters and read the operating values.

pCO model

pCO modelpCO model

pCO model

Seria l po r

Seria l po rSerial por

Seria l po r

tttt

How to select the protocol

How to select the protocolHow to select th e pro tocol

How to select the protocol

pCO2

1 – BMS SERIAL1_PROTOCOL = 9

pCO1

pCOXS

pCOC

pCO3

Tab 10.n

Tab 10.nTab 10.n

Tab 10.n Connectable devices Maximum of two Benshaw devices. Specifications Baud rate: 1200 – 2400 – 4800 – 9600 – 19200 bps Connectable devices: 2 (addresses 1 and 2) Exchangeable variables: Modbus variables: 64 registers Type of cable / max. distance: AWG 20/22 shielded cable / max 1000 m total

10.11 PSTN protocol (modem)

The PSTN protocol allows the pCO controllers to automatically connect to a remote CAREL supervisor and be called by a remote CAREL supervisor or by a remote WinLoad application (see note after Tab. 10.o). A series of analogue, integer and digital variables can be exchanged across the connection to a remote CAREL supervisor. The connection to the remote WinLoad application can be used to completely manage the unit, including updating the application files, updating the rules for the logs, acquiring the logged data (see below for further details on the operations that are available).

pCO model

pCO modelpCO model

pCO model

Seria l po rt

Seria l po rtSerial por t

Seria l po rt

How to select the protocol

How to select the protocolHow to select th e pro tocol

How to select the protocol

pCO2 1 – BMS SERIAL1_PROTOCOL = 2

pCO1

128KB

pCOXS 128KB

1 – BMS SERIAL1_PROTOCOL = 2

pCO1

512KB

pCOXS 512KB

1 –

BMS SERIAL1_PROTOCOL = 2

2 –

FieldBus

SERIAL2_PROTOCOL = 12

pCOC 1 – BMS SERIAL1_PROTOCOL = 2

pCO3

1 –

BMS SERIAL1_PROTOCOL = 2

2 –

FieldBus

SERIAL2_PROTOCOL = 12

Tab 10.o

Tab 10.oTab 10.o

Tab 10.o

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

and pCO

and pCOand pCO

and pCO

3333

: the protocol cannot be activated on more than one serial port at the same time and is incompatible with the GSM protocol and the Winload protocol.

Note fo

Note foNote fo

Note for

r r

r pCO

pCOpCO

pCO

2222

, pCO

, pCO, pCO

, pCO

1111

128KB, pCO

128KB, pCO128KB, pCO

128KB, pCO

XS

XSXS

XS

128KB, pCO

128KB, pCO128KB, pCO

128KB, pCO

CCCC

:::: the protocol is also incompatible with CAREL Slave and Modbus.

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

XS

XSXS

XS

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

3333

:::: if set on the BMS serial port the protocol is incompatible with the CAREL Slave set on the pLAN serial port. When the protocol is set on the FieldBus serial port, the remote WinLoad connection is not possible. Note for pCO

Note for pCONote for pCO

Note for pCO

1111

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

XS

XSXS

XS

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

3333

:::: the remote WinLoad connection is not possible on the FieldBus serial port.

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

69

Connectable devices

Connectable devicesConnectable devices

Connectable devices Remote CAREL supervisor or remote WinLoad.

Specifications

SpecificationsSpecifications

Specifications The following variables can be exchanged across the connection to a remote CAREL supervisor: 127 analogue – 127 integer – 199 digital. If the system variable BMS_EXTENSION= 0 207 analogue – 207 integer – 207 digital. If the system variable BMS_EXTENSION= 1 The following operations can be performed across the remote WinLoad connection:

- update the application files (*.IUP – *.BLB – flash1.BIN - *.DEV);

- update the log files (*.PVT – *.LCT);

- acquire the logged data;

- acquire the parameters in buffer memory.

10.12 GSM protocol (GSM modem)

The GSM protocol allows the pCO controllers to automatically connect to a remote CAREL supervisor and be called by a remote CAREL supervisor or by a remote WinLoad application (see note after Tab. 10.p). All the supervision and management operations already described for the PSTN protocol can thus be performed. In addition to these functions, the GSM protocol is used to send and receive SMS messages over the GSM network using the wireless modems that support this function; the SMS messages are sent upon certain events or alarms, according to rules that are established in the application program.

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port

How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2 1 – BMS SERIAL1_PROTOCOL = 10 for Kyocera (not GSM

): SERIAL1_PROTOCOL = 11

pCO1

1 –

BMS SERIAL1_PROTOCOL = 10 for Kyocera (not GSM): SERIAL1_PROTOCOL = 11

2 –

FieldBus

SERIAL2_PROTOCOL = 10 for Kyocera (not GSM): SERIAL2_PROTOCOL = 11

pCOXS 1 – BMS SERIAL1_PROTOCOL = 10 for Kyocera (not GSM): SERIA

L1_PROTOCOL = 11

pCOC 1 – BMS SERIAL1_PROTOCOL = 10 for Kyocera (not GSM): SERIAL1_PROTOCOL = 11

pCO3

1 –

BMS SERIAL1_PROTOCOL = 10 for Kyocera (not GSM): SERIAL1_PROTOCOL = 11

2 –

FieldBus

SERIAL2_PROTOCOL = 10 for Kyocera (not GSM): SERIAL2_PROTOC

OL = 11

Tab 10.p

Tab 10.pTab 10.p

Tab 10.p

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

and pCO

and pCOand pCO

and pCO

3333

:::: the protocol cannot be activated on more than one serial port at the same time.

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

and pCO

and pCOand pCO

and pCO

3333

:::: the protocol cannot be activated on more than one serial port at the same time and is incompatible with the PSTN protocol and the Winload protocol.

Note for

Note for Note for

Note for pCO

pCOpCO

pCO

2222

, pCO

, pCO, pCO

, pCO

1111

128KB, pCO

128KB, pCO128KB, pCO

128KB, pCO

XS

XSXS

XS

128KB, pCOC:

128KB, pCOC: 128KB, pCOC:

128KB, pCOC: the protocol is also incompatible with CAREL Slave and Modbus.

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

512KB , pCO

512KB, pCO512KB, pCO

512KB, pCO

XS

XSXS

XS

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

3333

: if set on the BMS serial the protocol is incompatible with CAREL Slave only if the latter is set on the pLAN serial port.

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

XS

XSXS

XS

512KB, pCO

512KB, pCO512KB, pCO

512KB, pCO

3333

:::: the remote WinLoad connection is not possible on the FieldBus serial port. Note:

Note: Note:

Note: with the Kyocera wireless modem (not GSM) only the remote supervisor connection is possible.

Connectable devices

Connectable devicesConnectable devices

Connectable devices Remote CAREL supervisor or remote WinLoad. To establish the connection to the supervisor or WinLoad, connect the pCO to a GSM modem; recommended models are Wavecom WMOD2B*, FALCOM A2D* or Siemens TC35*.

Specifications

SpecificationsSpecifications

Specifications The following variables can be exchanged across the connection to a remote CAREL supervisor: 127 analogue – 127 integer – 199 digital. If the system variable BMS_EXTENSION= 0 207 analogue – 207 integer – 207 digital. If the system variable BMS_EXTENSION= 1 The following operations can be performed across the remote WinLoad connection:

- update the application files (*.IUP – *.BLB – flash1.BIN - *.DEV);

- update the log files (*.PVT – *.LCT);

- acquire the logged data;

- acquire the parameters in buffer memory.

In addition, SMS messages can be exchange, as follows:

- send the pCO a suitably formatted SMS to set the supervisor variables;

- send, from the pCO, SMS messages in the desired format to signal alarms or any other information specified by the application.

10.13 MP-Bus protocol

The MP-Bus protocol is used to manage the BELIMO series actuators, exchanging variables, writing the configuration parameters and reading the values of any probes connected to the actuators.

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port

How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pC

O1

2 – FieldBus SERIAL2_PROTOCOL = 1

pCOXS

pCO3

Connectable devices

Connectable devicesConnectable devices

Connectable devices Maximum 8 Belimo actuators. Specifications

SpecificationsSpecifications

Specifications Baud rate: 1200 bps Exchangeable variables: specific commands for the actuator used Connectable devices: 8 Type of cable / max. distance: AWG 20/22 shielded cable / max 30 m total

pCO Sistema

Code: +030220336 - rel. 1.5 - 22/12/10

70

10.14 Serial printer protocol

The Serial printer protocol is used to connect the pCO to any printer fitted with an RS232 interface; this allows paper copies to be generated of particularly important information, for example the trend in the temperature in a cold room over time. The information to be printed can be completely configured in the application. Instead of the printer, other devices with RS232 serial interface can be connected, for example a terminal emulator or a PC with a program that saves the data received via the serial link to the hard disk. Available on the following serial ports

pCO model

pCO modelpCO model

pCO model

Serial port

Serial portSerial port

Serial port

How to select the protocol

How to select the protocolHow to select the protocol

How to select the protocol

pCO2 1 – BMS SERIAL1_PROTOCOL = 14

pCO1

1 –

BMS SERIAL1_PROTOCOL = 1

4

2 –

FieldBus

SERIAL2_PROTOCOL = 14

pCOXS 1 – BMS SERIAL1_PROTOCOL = 14

pCOC 1 – BMS SERIAL1_PROTOCOL = 14

pCO3

1 –

BMS SERIAL1_PROTOCOL = 14

2 –

FieldBus

SERIAL2_PROTOCOL = 14

Note for pCO

Note for pCONote for pCO

Note for pCO

1111

and pCO

and pCOand pCO

and pCO

3333

:::: the protocol cannot be activated on more than one serial port at the same time.

Connectable devices: one serial printer or any other device fitted with RS232 interface. Specifications Baud rate: 1200 bps Communication mode: 8 data bits, no parity, 1 stop bit, no flow control Connectable devices: 1 Type of cable / max. distance: RS232 cable / max 5m

Devices that can be connected to the pCOC

Device

connector J11

connector J19

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

Protocol active on the pCO Notes

pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X

pLAN or CAREL Master or CAREL Master 5 expansions Can only be activated on one serial port

CAREL Slave devices (RS485) X X X

CAREL Master or CAREL Master: can only be activated on BMS serial.

pCOexp 485 X X X

CAREL Master 5 exp. CAREL Master 5 expansions: can only be activated on pLAN serial Hydronic fan coil and CANbus X CAREL Master PlantVisor local X X X PlantWatch X X X PCGate X X X WebGate X X X Can only be activated on one serial port GATEWAY**0 X X X LON - Echelon RS485 X Incompatible with protocols LON - Echelon FTT10 X CAREL Slave PSTN TREND X GSM HTTP client X Modbus Slave BACnet/Ethernet X BACnet/IP X BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X Modbus Slave

Incompatible with CAREL Slave, PSTN, GSM Modbus Slave devices X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local X X X X WinLoad Can only be activated on 1 serial. Incompatible with PSTN & GSM WinLoad remote, analogue modem X PSTN Incompatible with CAREL Slave and Winload PlantVisor remote, analogue modem X WinLoad remote, GSM modem X PlantVisor remote, GSM modem X GSM Incompatible with CAREL Slave and Winload Send and receive SMS X Serial printer X Serial printer

71

serial 0 -

pLAN serial 1 - BMS

Devices that can be connected to the pCO1 128KB

serial 1 - BMS serial 2 - FieldBus

Device

connector J11

connector J10

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

PCO100FD10

PCOS00FD20

PCO100TLN0

PCO100MPB0

PCOS00HBF0

Protocol active on the pCO Notes

PST terminal X PST terminal Incompatible with tLAN Master 5 expansions PLD terminal X pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X X

pLAN or CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (tLAN) X

CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (RS485) X X X X

CAREL Master or

CAREL Master: can only be activated on one port, BMS serial or FieldBus serial.

pCOexp 485 X X X X

CAREL Master 5 exp.

CAREL Master 5 exp.: can only be activated on one port, pLAN serial or FieldBus serial

pCOexp tLAN X CAREL Master 5 exp.

Can only be activated on one port, pLAN serial or FieldBus serial μChiller2 expansion X Hydronic fan coil and CANbus X X CAREL Master

Can only be activated on one port, BMS serial or FieldBus serial PlantVisor local X X X X PlantWatch X X X X PCGate X X X X WebGate X X X X Can only be activated on one serial port GATEWAY**0 X X X X LON - Echelon RS485 X Incompatible with protocols LON - Echelon FTT10 X CAREL Slave PSTN TREND X GSM HTTP client X Modbus Slave BACnet/Ethernet X BACnet/IP X BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X X Modbus Slave

Incompatible with CAREL Slave, PSTN, GSM Modbus Slave devices X X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices

WinLoad local XXXX XX WinLoad

Can only be activated on 1 serial. Incompatible with PSTN & GSM; on

FieldBus serial from Bios 4.00 WinLoad remote, analogue modem X PSTN Incompatible with CAREL Slave and Modbus Slave PlantVisor remote, analogue modem X WinLoad remote, GSM modem X PlantVisor remote, GSM modem X GSM Incompatible with CAREL Slave and Modbus Slave Send and receive SMS X Belimo devices (max 8) X MP-Bus Serial printer X X Serial printer

Can only be activated on one port, BMS serial or FieldBus serial

72

serial 0 -

pLAN

Devices that can be connected to the pCOXS 128KB (tLAN and Belimo versions)

Device

connector J6

connector J5

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

connector J7

connett. J8 (pCOXS tLAN)

connett. J8 (pCOXS Belimo)

Protocol active on the pCO Notes

PST terminal X PST terminal Incompatible with tLAN Master 5 expansions PLD terminal X pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X X

pLAN or CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (tLAN) X

CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (RS485) X X X

CAREL Master or

CAREL Master: can only be activated on one port, BMS serial or FieldBus serial.

pCOexp 485 X X X

CAREL Master 5 exp.

CAREL Master 5 exp.: can only be activated on one port, pLAN serial or FieldBus serial

pCOexp tLAN X CAREL Master 5 exp.

Can only be activated on one port, pLAN serial or FieldBus serial

μChiller2 expansion

X

Hydronic fan coil and CANbus X CAREL Master

Can only be activated on one port, BMS serial or FieldBus serial PlantVisor local X X X PlantWatch X X X PCGate X X X WebGate X X X Can only be activated on one serial port GATEWAY**0 X X X LON - Echelon RS485 X Incompatible with protocols LON - Echelon FTT10 X CAREL Slave PSTN TREND X GSM HTTP client X Modbus Slave BACnet/Ethernet X BACnet/IP X BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X Modbus Slave

Incompatible with CAREL Slave, PSTN, GSM Modbus Slave devices X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local XXXX WinLoad Can only be activated on 1 serial. Incompatible with PSTN & GSM WinLoad remote, analogue modem X PSTN Incompatible with CAREL Slave and Modbus Slave PlantVisor remote, analogue modem X WinLoad remote, GSM modem X PlantVisor remote, GSM modem X GSM Incompatible with CAREL Slave and Modbus Slave Send and receive SMS X Belimo devices (max 8) X MP-Bus

Maximum of 8 devices Serial printer X Serial printer

73

serial 0 -

pLAN serial 1 - BMS

serial 2 FieldBus

Devices that can be connected to the pCO1 512KB

Device

connector J11

connector J10

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

PCO100FD10

PCOS00FD20

PCO100TLN0

PCO100MPB0

PCOS00HBF0

Protocol active on the pCO Notes

PST terminal X PST terminal Incompatible with CAREL Master 5 exp. PLD terminal X pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X X

pLAN or CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (tLAN) X

CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (485) X X X X

CAREL Master or

CAREL Master: can only be activated on one port, BMS serial or FieldBus serial or pLAN.

pCOexp 485 X X X X

CAREL Master 5 exp.

CAREL Master 5 exp.: can only be activated on one port, pLAN serial or FieldBus serial

pCOexp tLAN X CAREL Master 5 exp.

Can only be activated on one serial port; incompatible with PST terminal

μChiller2 expansion

X

Hydronic fan coil and CANbus X X CAREL Master

Can only be activated on one serial port PlantVisor local X X X X PlantWatch X X X X PCGate X X X X Can only be activated WebGate X X X X on one serial port; GATEWAY**0 X X X X at the same time, BMS or FieldBus LON - Echelon RS485 X LON - Echelon FTT10 X CAREL Slave If active on pLAN serial, these protocols cannot be used TREND X PSTN HTTP client X GSM BACnet/Ethernet X Modbus Slave BACnet/IP X on BMS serial BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X X Modbus Slave Modbus Slave devices X X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local XXXX XX WinLoad Can only be activated on one serial port; on FieldBus serial from Bios 4.00 WinLoad remote, analogue modem X PSTN

Can only be activated on one serial port

PlantVisor remote, analogue modem X X

Incompatible with the GSM protocol; if activated on BMS serial is incompatible

with Carel Slave set on pLAN serial WinLoad remote, GSM modem X Can only be activated on one serial port. PlantVisor remote, GSM modem X X GSM

Send and receive SMS X X

Incompatible with the protocol PSTN; if activated on BMS serial is incompatible

with Carel Slave set on pLAN serial Belimo devices X MP-Bus

Maximum of 8 devices Serial printer X X Serial printer

Can only be activated on one serial port

74

serial 0 -

pLAN serial 1 - BMS serial 2 - FieldBus

Devices that can be connected to the pCOXS 512KB (tLAN and Belimo versions)

Device

connector J6

connector J5

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

connector J7

connett. J8 (pCOXS tLAN)

connett. J8 (pCOXS Belimo)

Protocol active on the pCO Notes

PST terminal X PST terminal Incompatible with CAREL Master 5 exp. PLD terminal X pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X X

pLAN or CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (tLAN) X

CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (485) X X X

CAREL Master or

CAREL Master: can only be activated on one port, BMS serial or FieldBus serial or pLAN.

pCOexp 485 X X X

CAREL Master 5 exp.

CAREL Master 5 exp.: can only be activated on one port, pLAN serial or FieldBus serial

pCOexp tLAN X CAREL Master 5 exp.

Can only be activated on one serial port; incompatible with PST terminal μChiller2 expansion X Hydronic fan coil and CANbus X CAREL Master

Can only be activated on one serial port PlantVisor local X X X PlantWatch X X X Can only be activated PCGate X X X on one serial port; WebGate X X X at the same time, BMS or FieldBus GATEWAY**0 X X X LON - Echelon RS485 X If active on pLAN serial, these protocols cannot be used LON - Echelon FTT10 X CAREL Slave PSTN TREND X GSM HTTP client X Modbus Slave BACnet/Ethernet X on BMS serial BACnet/IP X BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X Modbus Slave Modbus Slave devices X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local XXXX WinLoad Can only be activated on one serial port WinLoad remote, analogue modem X PSTN

Can only be activated on one serial port

PlantVisor remote, analogue modem X

Incompatible with the GSM protocol; if activated on BMS serial is incompatible with

Carel Slave set on pLAN serial WinLoad remote, GSM modem X Can only be activated on one serial port. PlantVisor remote, GSM modem X GSM

Send and receive SMS X

Incompatible with the protocol PSTN; if activated on BMS serial is incompatible with

Carel Slave set on pLAN serial Belimo devices X MP-Bus

Maximum of 8 devices Serial printer X Serial printer

75

serial 0 -

pLAN serial 1 - BMS

serial 2 FieldBus

Devices that can be connected to the pCO3

serial 3

(L & XL) serial 5

Device

connector J11

connector J10

PCO1004850

PCOS004850

PCO100MDM0

PCO10000F0

PCO10000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

PCO100FD10

PCOS00FD20

PCO100TLN0

PCO100MPB0

PCOS00HBF0

connector J23

connector J9

Protocol active on the pCO Notes

Display panel X Display panel PST terminal X PST terminal Incompatible with CAREL Master 5 exp. PLD terminal X pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X

EVD400 X X

pLAN or CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal

CAREL Slave devices (tLAN) X

CAREL Master or CAREL Master 5 exp.

Can only be activated on one serial port. CAREL Master 5 exp.: incompatible with PST terminal. If the protocol is activated, other devices cannot be supervised on J23.

CAREL Slave devices (485) X X X X X CAREL Master or CAREL Master: can only be activated on one port, BMS serial or FieldBus serial or

pLAN.

pCOexp 485 X X X X X

CAREL Master 5 exp.

CAREL Master 5 exp.: can only be activated on one port, pLAN serial or FieldBus serial. Activating the protocol on FieldBus serial deactivates the protocol on J23.

pCOexp tLAN X CAREL Master 5 exp.

Can only be activated on one serial port; incompatible with PST terminal

μChiller2 expansion

X

Hydronic fan coil and CANbus X X CAREL Master

Can only be activated on one serial port PlantVisor local X X X X PlantWatch X X X X PCGate X X X X Can only be activated WebGate X X X X on one serial port; GATEWAY**0 X X X X at the same time, BMS or FieldBus LON - Echelon RS485 X LON - Echelon FTT10 X CAREL Slave If active on pLAN serial, these protocols cannot be used TREND X PSTN HTTP client X GSM BACnet/Ethernet X Modbus Slave BACnet/IP X on BMS serial BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X X X Modbus Slave Modbus Slave devices X X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local XXXX XX WinLoad Can only be activated on one serial port; on FieldBus serial from Bios 4.00 WinLoad remote, analogue modem X PSTN

Can only be activated on one serial port

PlantVisor remote, analogue modem X X

Incompatible with the GSM protocol; if activated on BMS serial is incompatible with

Carel Slave set on pLAN serial WinLoad remote, GSM modem X Can only be activated on one serial port. PlantVisor remote, GSM modem X X GSM

Send and receive SMS X X

Incompatible with the protocol PSTN; if activated on BMS serial is incompatible with

Carel Slave set on pLAN serial Belimo devices X MP-Bus

Maximum of 8 devices Serial printer X X Serial printer

Can only be activated on one serial port

76

serial 0 -

pLAN serial 1 - BMS serial 2 - FieldBus

Devices that can be connected to the pCO2

serial 3 (L

& XL) serial 5

Device

connector J11

connector J10

PCO2004850

PCOS004850

PCO200MDM0

PCO20000F0

PCO20000R0

PCO100CLP0

PCO1000WB0

PCO1000BA0

PCOS00HBB0

connector J23

connector J9

Protocol active on the pCO Notes

Display panel X Display panel pCOT - pCOI terminal X Local terminal or pLAN pGD0 - pGD1 terminal X Local terminal or pLAN With Local terminal the pGD* works in pCOT emulation mode pGD2 - pGD3 terminal X Local terminal or pLAN Aria terminal X pCO in pLAN X pLAN FCM series controllers X EVD200 X EVD400 X CAREL Slave devices (RS485) X X X X

CAREL Master or CAREL Master: can only be activated on BMS serial

pCOexp 485 X X X X

CAREL Master 5 exp. CAREL Master 5 exp.: can only be activated on pLAN serial Hydronic fan coil and CANbus X CAREL Master PlantVisor local X X X PlantWatch X X X PCGate X X X WebGate X X X Can only be activated on one serial port GATEWAY**0 X X X LON - Echelon RS485 X Incompatible with protocols LON - Echelon FTT10 X CAREL Slave PSTN TREND X GSM HTTP client X Modbus Slave BACnet/Ethernet X BACnet/IP X BACnet/MSTP (RS485) X SNMP v1, SNMP v2C X SNMP v3 X For SNMP v3 special pCOWEB software is used Modbus supervisor (RTU) X X Modbus Slave Incompatible with CAREL Slave, PSTN, GSM Modbus Slave devices X X X Modbus Master Can only be activated on one serial port pCOexp Modbus X X X BenShaw devices X X Modbus Master - Benshaw Maximum of two Benshaw devices WinLoad local XXXX WinLoad Can only be activated on 1 serial. Incompatible with PSTN & GSM WinLoad remote, analogue modem X PSTN Incompatible with CAREL Slave and Modbus Slave PlantVisor remote, analogue modem X WinLoad remote, GSM modem X PlantVisor remote, GSM modem X GSM Incompatible with CAREL Slave and Modbus Slave Send and receive SMS X Serial printer X Serial printer

77

ser

ial 0

-

pLAN serial 1 - BMS

pGD

1

user interface

pA D

e-dronic

BELIMO

BMS

Field-Bus

e-dronic

RS485 Modbus

®

master/

CAREL master

MP-BUS

GND H+ H–

CANbus

GND H+ H–

CANbus

584SRsutats

GNX RS485+ –

P1 P2 P3

BACnet™ MS/TP

start

mode

PCOS00AKC0:

USB smart-key adapter

PCO100CLP0:

TREND board

e-dronic

Available probes

PCOS004850:

RS485 serial board

PCO100MDM0:

modem board

PCO10000F0:

LON board

Synoptic

PCOE004850:

scheda espansione pCO I/O RS485

EVD*2* EVD*4*

EEV driver

ADP*:

user terminal

TAT*:

user terminal

PCOS00HBB0:

CANbus board

PCOS00FD20:

modem board

PCO100MPB0:

MP-BUS board

PCOS00HBF0:

CANbus board

PLD*: user terminal

EVD00004*

EEV driver

PCO100TLN0:

tLAN serial board

S90CONN*:

connection cable

PCOS00AKY0: smart programming key

CVSTDUTLF0:

USB/RS485 converter

FCM*

electronic control module

PCO*: program. controller

PGD0-1*:

graphic display

PGD2-3*: touch screen graphic display for panel and wall mounting

PCO20DCDC0:

DC/DC power supplay module

third parties devices

CAREL controllers (ir33, µC

2

, etc.)

PCO100FD10:

FieldBus serial board

PCOE004850:

pCO I/O RS485

expansion board

CP*: KUE*

humidier

control board

PCOE00TLN0:

pCO I/O tLAN

expansion board

(*): PCOE00TLN0 and PLD* teminals CANNOT be connected to the tLAN at the same time!

Damper

servocontrol

Servocontrol valve

PCO1000BA0: BACnet™ RS485 interface board

PCO1000WB0:

pCO Web - Ethernet™ /BACnet™ interface board

PCOUMI2000:

interface for OEM series humidiers

ASP*: industrial ambient temperature and humidity probes

ASD*: duct temperature and humidity probes

ASW*: ambient temperature and humidity probes

SPKT: 4 to 20 mA pressure transducers 0 to 5 V ratiometric transducers

NTC: temperature probes

pCO

3

ar i a

BELIMO

e-dronic

RS485 Modbus

®

master

CAREL master

584SRsutats

GNX RS485+ –

P1 P2 P3

BACnet™ MS/TP

GND H+ H–

CANbus

GND H+ H–

CANbus

third parties devices

CAREL controllers (ir33, µC

2

, etc.)

start

mode

PCO100CLP0:

TREND board

Available probes

PCOS004850:

RS485 serial board

PCO20DCDC0:

DC/DC power

supplay module

PCO100MDM0:

modem board

PCO10000F0:

LON board

S90CONN*:

connection cable

PCOS00AKY0: smart programming key

CVSTDUTLF0:

USB/RS485 converter

PCOS00AKC0:

USB smart-key adapter

ASP*: industrial ambient temperature and humidity probes

ASD*: duct temperature and humidity probes

ASW*: ambient temperature and humidity probes

SPKT: 4 to 20 mA pressure transducers 0 to 5 V ratiometric transducers

NTC: temperature probes

PCOUMI2000:

interface for OEM series humidiers

Damper

servocontrol

Servocontrol valve

EVD*2* EVD*4*

EEV driver

TAT* and ADP*

terminal

FCM*

electronic control module

PCO*: program. controller

PCO1000BA0: BACnet™ RS485 interface board

PCOS00HBB0:

CANbus board

PGD0-1*:

graphic display

PGD2-3*: touch screen graphic display for panel and wall mounting

MP-BUS

PCOS00FD20:

modem board

PCO100MPB0:

MP-BUS

®

board

PCOS00HBF0:

CANbus board

PCO100CLK0:

clock board

PCO100CEF0:

expansion

memory board

and clock board

PCO100FD10:

FieldBus serial board

PLD*: user terminal

PCOE004850:

pCO I/O RS485

expansion board

PCOE00TLN0:

pCO I/O tLAN

expansion board

EVD0000400

EEV driver

PCO100TLN0:

tLAN serial board

(*): PCOE00TLN0 and PLD* teminals CANNOT be connected to the tLAN at the same time!

CP*: KUE*

humidier

control board

BMSField-Bus

PCO1000WB0:

pCO Web - Ethernet™ /BACnet™ interface board

pCO

1

16

xs

BELIMO

ar i a

e-dronic

MP-BUS

only PCO1MP0*X0

GND H+ H–

CANbus

PCO100CLP0:

TREND board

PCOUMI2000:

interface for OEM series humidiers

Available probes

PCO100CLK0:

clock board

ASP*: industrial ambient temperature and humidity probes

ASD*: duct temperature and humidity probes

ASW*: ambient temperature and humidity probes

SPKT: 4 to 20 mA pressure transducers

NTC: temperature probes

Damper

servocontrol

Servocontrol valve

PLD*:

user terminal

PCOE00TLN0:

pCO I/O tLAN

expansion board

PGD2-3*:

touch screen graphic display for panel and wall mounting

(*): PCOE00TLN0 and PLD* teminals CANNOT be connected to the tLAN at the same time!

EVD*4* EVD*2*

EEV driver

EVD*2* EVD*4*

EEV driver

TAT* and ADP*

terminal

FCM*

electronic control module

PCO*: programmable controller

PCOS004850:

RS485 serial board

PCO100MDM0:

modem board

PCO10000F0:

LON board

PCO1000BA0: BACnet™ RS485 interface board

PCOS00HBB0:

CANbus board

PCO1000WB0:

pCO Web - Ethernet ™ interface board

WARNING!!!

start

mode

S90CONN*:

connection cable

PCOS00AKY0:

smart program. key

CVSTDUTLF0:

USB/RS485

converter

PGD0-1*:

graphic

display

584SRsutats

GNX RS485

+ –

P1 P2 P3

BACnet™ MS/TP

BMS

PCOS00AKC0:

USB smart-key adapter

ar i a

GND H + H–

CANbus

PCO1000BA0:

BACnet RS485 interface board

PCO1000WB0:

pCO Web - Ethernet™ interface board

584SRsutats

GNX RS485+ –

P1 P2 P3

BACnet™ MS/TP

CVSTDUTLF0:

USB/RS485 converter

PCOS00AKY0:

smart programming key

PGD0-1*: graphic display

start

mode

PCOS00AKC0:

USB smart-key adapter

PCO100CLP0:

TREND board

S90CONN*:

connection cable

Available probes

ASP*: industrial

ambient temperature and humidity probes

ASD*: duct temperature and humidity probes

ASW*: ambient temperature and humidity probes

SPKT: 4 to 20 mA pressure transducers

NTC: temperature probes

EVD*4* EVD*2*

EEV driver

TAT* and ADP* terminal

FCM*

electronic

control

module

PCO*: programmable controller

PCO20DCDC0:

DC/DC power

supplay module

e-dronic

PCOS004850:

RS485 serial board

PCO100MDM0:

modem board

PCO10000F0:

LON board

PCOS00HBB0:

CANbus board

PCO100CLK0:

clock board

PCOUMI2000:

interface for OEM series humidiers
