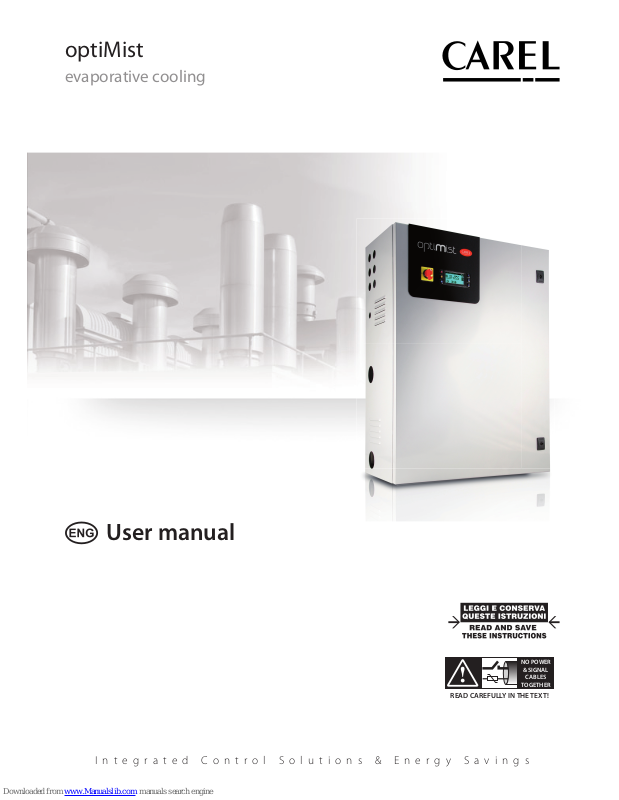

Carel optiMist User Manual

Download

Integrated Control Solutions & Energy Savings

optiMist

NO POWER

& SIGNAL

CABLES

TOGETHER

READ CAREFULLY IN THE TEXT!

User manual

evaporative cooling

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

GENERAL WARNINGS

The CAREL Industries humidiﬁ ers are advanced products, whose operation is speciﬁ ed in the technical documentation supplied with the product or can be downloaded, even prior to purchase, from the website www.carel.com. Each CAREL Industries product, in relation to its advanced level of technology, requires setup/conﬁ guration/programming/commissioning to be able to operate in the best possible way for the speciﬁ c application. The failure to complete such operations, which are required/indicated in the user manual, may cause the ﬁ nal product to malfunction; CAREL Industries accepts no liability in such cases. The customer (manufacturer, developer or installer of the ﬁ nal equipment) accepts all liability and risk relating to the conﬁ guration of the product in order to reach the expected results in relation to the speciﬁ c ﬁ nal installation and/or equipment. CAREL Industries may, based on speciﬁ c agreements, acts as a consultant for the installation/commissioning/use of the unit, however in no case does it accept liability for the correct operation of the humidiﬁ er and the ﬁ nal installation if the warnings or suggestions provided in this manual or in other product technical documents are not heeded. In addition to observing the above warnings and suggestions, the following warnings must be followed for the correct use of the product:

• DANGER OF ELECTRIC SHOCK : The humidiﬁ er contains live electrical

components. Disconnect the power supply before accessing inside parts or during maintenance and installation.

• DANGER OF WATER LEAKS: The humidiﬁ er automatically and constantly

ﬁ lls/drains certain quantities of water. Malfunctions in the connections or in the humidiﬁ er may cause leaks.

• DANGER OF BURNS: The humidiﬁ er contains high temperature

components and delivers steam at 100°C/ 212°F.

IMPORTANT

• The installation of the product must include an earth connection, using the

special yellow-green terminal available in the humidiﬁ er.

• The environmental and power supply conditions must conform to the

values speciﬁ ed on the product rating labels.

• The product is designed exclusively to humidify rooms either directly or

through distribution systems (ducts).

• Only qualiﬁ ed personnel who are aware of the necessary precautions and

able to perform the required operations correctly may install, operate or carry out technical service on the product.

• Only water with the characteristics indicated in this manual must be used

for steam production.

• All operations on the product must be carried out according to the

instructions provided in this manual and on the labels applied to the product. Any uses or modiﬁ cations that are not authorized by the manufacturer are considered improper. CAREL Industries declines all liability for any such unauthorized use.

• Do not attempt to open the humidiﬁ er in ways other than those speciﬁ ed

in the manual.

• Observe the standards in force in the place where the humidiﬁ er is installed.

• Keep the humidiﬁ er out of the reach of children and animals.

• Do not install and use the product near objects that may be damaged when

in contact with water (or condensate). CAREL Industries declines all liability for direct or indirect damage following water leaks from the humidiﬁ er.

• Do not use corrosive chemicals, solvents or aggressive detergents to clean

the inside and outside parts of the humidiﬁ er, unless speciﬁ cally indicated in the user manual.

• Do not drop, hit or shake the humidiﬁ er, as the inside parts and the linings

may be irreparably damaged.

CAREL Industries adopts a policy of continual development. Consequently, CAREL reserves the right to make changes and improvements to any product described in this document without prior warning. The technical speciﬁ cations shown in the manual may be changed without prior warning. The liability of CAREL Industries in relation to its products is speciﬁ ed in the CAREL Industries general contract conditions, available on the website www.carel. com and/or by speciﬁ c agreements with customers; speciﬁ cally, to the extent where allowed by applicable legislation, in no case will CAREL Industries, its employees or subsidiaries be liable for any lost earnings or sales, losses of data and information, costs of replacement goods or services, damage to things or people, downtime or any direct, indirect, incidental, actual, punitive, exemplary, special or consequential damage of any kind whatsoever, whether contractual, extra-contractual or due to negligence, or any other liabilities deriving from the installation, use or impossibility to use the product, even if CAREL Industries or its subsidiaries are warned of the possibility of such damage.

DISPOSAL:

The humidiﬁ er is made up of metal parts and plastic parts. In reference to European Union directive 2002/96/EC issued on 27 January 2003 and the related national legislation, please note that:

1. WEEE cannot be disposed of as municipal waste and such waste must be

collected and disposed of separately;

2. the public or private waste collection systems deﬁ ned by local legislation must

be used. In addition, the equipment can be returned to the distributor at the end of its working life when buying new equipment;

3. the equipment may contain hazardous substances: the improper use or

incorrect disposal of such may have negative eﬀ ects on human health and on the environment;

4. the symbol (crossed-out wheeled bin) shown on the product or on the

packaging and on the instruction sheet indicates that the equipment has been introduced onto the market after 13 August 2005 and that it must be disposed of separately;

5. in the event of illegal disposal of electrical and electronic waste, the penalties

are speciﬁ ed by local waste disposal legislation.

Warranty on the materials: 2 years (from the date of production, excluding consumables).

Approval: the quality and safety of CAREL INDUSTRIES Hqs products are guaranteed by the ISO 9001 certiﬁ ed design and production system.

NO POWER

& SIGNAL

CABLES

TOGETHER

READ CAREFULLY IN THE TEXT!

WARNING:

separate as much as possible the probe and digital input signal cables from the cables carrying inductive loads and power cables to avoid possible electromagnetic disturbance. Never run power cables (including the electrical panel wiring) and signal cables in the same conduits.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Content

1. INTRODUCTION AND MOUNTING 7

1.1 optiMist description .....................................................................................7

1.2 Components of the system .....................................................................7

1.3 Conﬁ guration of the optiMist system................................................7

1.4 Dimensions and weights ...........................................................................8

1.5 Components .....................................................................................................9

1.6 Electrical speciﬁ cations .............................................................................10

1.7 Opening the packaging ............................................................................. 10

1.8 Positioning the cabinet ..............................................................................10

1.9 Wall mounting.................................................................................................. 10

1.10 Opening the cabinet door ........................................................................11

1.11 Components and accessories ................................................................11

2. WATER CONNECTIONS 12

2.1 Supply water characteristics ....................................................................12

2.2 Type of supply water ....................................................................................13

2.3 Water circuit installation: checklist ......................................................13

3. ELEC TRICAL CONNECTIONS 14

3.1 Wiring inlets .......................................................................................................14

3.2 Power supply ................................................................................................... 14

3.3 Connections to the pCO ............................................................................14

3.4 Connections to the terminal board. ...................................................14

3.5 Remoto ON/OFF ............................................................................................. 14

3.6 Control signals from external voltage-free contact, humidostat

or thermostat type ..........................................................................................................14

3.7 Modulating control signal ........................................................................16

3.8 Discharge solenoid valve connection for distribution (optional) 17

3.9 Water treatment system control ...........................................................17

3.10 Cumulative alarm relay (J15) ................................................................... 18

3.11 Alarm inputs from external devices ....................................................18

3.12 Backup cabinet signal ..................................................................................18

3.13 Supervisor network ...................................................................................... 19

3.14 Supervisory optiMist Table .......................................................................19

4. PUMPING UNITS 22

4.1 Pumping unit with ﬂ ow control conﬁ guration ...........................22

5. DISTRIBUTION SYSTEM 23

5.1 Distribution and atomisation rack .......................................................23

5.2 Droplet separator ........................................................................................... 23

6. APPLICATIONS 25

6.1 Main advantages of optiMist ..................................................................25

7. CONTROL 26

7.1 Humidiﬁ cation.................................................................................................. 26

7.2 Evaporative Cooling...................................................................................... 27

7.3 Humidiﬁ cation + Evaporative Cooling .............................................. 28

8. STARTING AND USER INTERFACE 29

8.1 Starting ................................................................................................................. 29

8.2 Stopping ..............................................................................................................29

8.3 First start-up (setting the language) ................................................... 29

8.4 Wizard .................................................................................................................29

8.5 Keypad .................................................................................................................29

8.6 “Main” screen .................................................................................................... 29

8.7 “INFO” screens ..................................................................................................30

8.8 “SET” screen .......................................................................................................30

8.9 “Warnings” screen ..........................................................................................30

8.10 Main menu ......................................................................................................... 30

8.11 User menu ..........................................................................................................33

8.12 Installer menu..................................................................................................34

8.13 Maintenance menu.......................................................................................36

9. TABLE OF ALARMS 38

10. WIRING DIAGRAMS 40

10.1 optiMist wiring diagram.............................................................................40

11. STARTUP 41

11.1 Startup ...................................................................................................................41

12. MAINTENANCE AND REPLACEMENT PA R TS 42

12.1 Maintenance procedures .......................................................................... 42

12.2 Replacement parts ........................................................................................42

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

1. INTRODUCTION AND MOUNTING

1.1 optiMist description

optiMist is an evaporative cooler and humidiﬁ er that atomises water in ﬁ ne droplets which then spontaneously evaporate, removing heat from the humidiﬁ ed and cooled air. optiMist uses a vane pump to pressurise the water, subsequently atomising it through special nozzles. The sophisticated control system combines the action of an inverter, which regulates the speed and consequently the ﬂ ow-rate of the pump, with two solenoid valves that activate only the necessary nozzles, allowing the system to always work at the ideal pressure to atomise the water, across a wide range of ﬂ ow-rates. The eﬀ ect of cooling the air is due to the spontaneous evaporation of the droplets of water: the change in state from liquid to vapour occurs by subtracting energy from the air that, as a consequence, is cooled. Each kilogram of water evaporated absorbs 0.69 kW of heat from the air. optiMist is a complete evaporative cooling and humidiﬁ cation system that can be used to treat the air in an AHU (air handling units) and to both humidify and to indirectly cool the renewal air, in order to increase the energy eﬃ ciency of the AHU.

1.2 Components of the system

optiMist is comprised of

• a pumping station that pressurizes the water (4-15 bar). It also contains

the electronic controller that completely manages the pumping station, controlling the temperature/humidity in each section. Since it is equipped with an inverter and pressure sensor, it manages to control the ﬂ ow of water produced at any moment, thus ensuring maximum precision and minimum energy and water consumption.

• distribution and atomisation system of pipes for transporting the

pressurised water, which contain the atomisation nozzles and drain valves;

• droplet separator;

• temperature and/or humidity probes or control through external

signal;

• water treatment system: typically this is a reverse osmosis demineraliser

that supplies water with a low mineral salt content to the optiMist.

1.3 Conﬁ guration of the optiMist system

The optiMist system can be conﬁ gured to:

1. Control the air humidity, installing a pumping station and a distribution

system (with two-step modulation) in the AHU humidiﬁ cation section.

Fig. 1.a

2. Control indirect evaporative cooling (IEC) by installing a pumping

station and a distribution system (with two-step modulation) in the upstream section of the AHU heat recovery unit.

Fig. 1.b

3. Control both humidiﬁ cation and evaporative cooling with a pumping

system that will serve the two distribution systems, each with onestep modulation.

Fig. 1.c

The conﬁ guration for indirect evaporative cooling applications is of particular importance. Besides humidiﬁ cation of the air in the winter, optiMist can be used in the summer to cool the discharged air in the summer before it enters a heat recovery unit. This conﬁ guration is explained in the detail in the chapters below.

optiMist humidiﬁ ers are available for:

• ﬂ ow-rates: 50 l/h (EC005...), 100 l/h (EC010...) 200 l/h (EC020..), 400 l/h

(EC040..), 800 l/h (EC080..) and 1000 l/h (EC100..);

• power supply voltage: D = 230 V 50 Hz; U= 230 V 60 Hz;

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

1.4 Dimensions and weights

front view

605

805

hydraulic connection side view electrical connection side view

300

100 150

480

100

300

50 50 50

100

50 50

Fig. 1.d

Cabinet dimensions

• Heigh (H): 800 mmm (31.50 inch);

• Width (W ): 600 mmm (23.62 inch).

• Depth (D): 300 mmm (11.82 inch).

Packaging dimensions

• Heigh (H): 1020 mmm (40 inch);

• Width (W ): 720 mmm (28.5 inch).

• Depth (D): 410 mmm (16 inch).

Weight:

• models EC005****: 53 kg (117 lb);

• models EC010****: 53 kg (117 lb);

• models EC020****: 55 kg (121 lb);

• models EC040****: 55 kg (121 lb);

• models EC080****: 59 kg (130 lb);

• models EC100****: 59 kg (130 lb).

Weight with package:

• models EC005****: 56 kg (124 lb);

• models EC010****: 56 kg (124 lb);

• models EC020****: 58 kg (128 lb);

• models EC040****: 58 kg (128 lb);

• models EC080****: 62 kg (137 lb);

• models EC100****: 62 kg (137 lb).

Mechanical characteristics

• Installation: wall-mounted

• IP20

• operating conditions: 5 to 40 °C (34 to 104 °F) <80 % RH non-condensing

• storage conditions: 5 to 50 °C (34 to 122 °F) <80 % RH non-condensing

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

1.5 Components

Components of the electrical section

Key:

1. Main switch

2. Display

3. Electrical power terminals

3.a External signal terminals

4. Electronic controller

5. Trasformer

6. Inverter

7. Fan

Fig. 1.e

Components of the hydraulic section

Key:

1. Motor

2. Pump

3. Temperature probe

4. Solenoid valve step.1

5. Monometer

6. Temperature valve

7. Solenoid valve step 2

8. Pressure probe

9. Cabinet drain valve

10. Filter case

11. Filter cartdige

12. Pressure reducer

13. Fill solenoid valve

14. Pressure switch

15. Manometer

16. Filter drain

Fig. 1.f

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

1.6 Electrical speciﬁ cations

EC*******0 (230 V 50 Hz) Modells

voltage

Vac

phases frequencyHzpowerkWcurrent

EC005****0 230 1 50 0,275 1,2 EC010****0 230 1 50 0,275 1,5 EC020****0 230 1 50 0,475 1,6 EC040****0 230 1 50 0,475 2,3 EC080****0 230 1 50 0,75 3,0 EC100****0 230 1 50 0,75 3,2

Tab. 1.a

Product in compliance with EN55014, EN61000, EN60204. Insulation grade III

Modelli EC*******U 230V 60 Hz

voltage

Vac

phases frequ.HzpowerkWcurrent

FLA SCCR

EC005****U 230 1 60 0,375

1,2

0.35 HP/2A 5 KA

EC010****U 230 1 60 0,375

1,5

0.35 HP/2A 5 KA

EC020****U 230 1 60 0,375

1,6

0.5 HP/3.2A 5 KA

EC040****U 230 1 60 0,375

2,3

0.5 HP/3.2A 5 KA EC080****U 230 1 60 0,75 3,0 1 HP/6.0A 5 KA EC100****U 230 1 60 0,75 3,2 1 HP/6.0A 5 KA

Tab. 1.b

Product in compliance with UL998

1.7 Opening the packaging

 make sure the humidiﬁ er is intact upon delivery and immediately

notify the transporter, in writing, of any damage that may be due to careless or improper transport;

 move the humidiﬁ er to the site of installation before removing from

the packaging, grasping the neck only from underneath the base;

 open the cardboard box, remove the protective material and remove

the humidiﬁ er, keeping it vertical at all times.

Store the packaging in a dry location (cardboard boxes, pallets, bolts and ﬁ llers) so that they may be reused.

• humidity 20-80% RH, non condensing

• temperature 1-40 °C;

1.8 Positioning the cabinet

The humidiﬁ er should be positioned so as to guarantee the following:

• open the front panel;

• access to the inside parts for checks and maintenance;

• connection of the water supply lines;

• connection to the water distribution lines;

• power and control connections;

Recommended clearance for routine maintenance:

• from the front 1m;

• right and left sides around 0.3 m.

Attention: the maximum distance between the cabinet and the

distribution system/frame is:

1. 10 meters if discharge solenoid valves are used

2. 5 meters if mechanical solenoid valves are used;

3. for larger distances, contact CAREL INDUSTRIES.

Positioning procedure:

• after opening the packaging:

• position the cabinet in the ﬁ nal position;

• position the cabinet horizontally.

1.9 Wall mounting

Fasten the humidiﬁ er to a solid support surface using the screws and bracket supplied. Make sure there is enough space to connect the air and water inlet and outlet lines.

Drilling for wall mounting

retro cabinet

531

790

649

Fig. 1.g

sezione staﬀ e

Fig. 1.h

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

1.10 Opening the cabinet door

1. press and turn anticlockwise using a the k ey supplied until releasing the door;

2. open the door on the cabinet by swinging it to the right (in the direction

of the arrow).

Fig. 1.i

1.11 Components and accessories

Once having opened the packaging, check the following are includedi:

• opening key;

• kit of screws with plugs for wall-mounting (inside the cabinet);

• cable glands for the electrical connections;

• tool for opening the water ﬁlter casing;

• wall ﬁ t brackets;

• ferrite (see par. 3.4);

• user manual.

Fig. 1.j Fig. 1.k

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

2. WATER CONNECTIONS

Important: before making the connections, make sure that the unit is disconnected from the mains.

CABINET

water drain 3/4”f

water inlet 3/4”f

pressurized water G1/2”m

CABINET

water drain 3/4”f

water inlet 3/4”f

pressurized water G1/2”m

key:

1. install a manual valve upstream

of the installation to allow the water line to be isolated (not supplied by CAREL);

2. install a 10 µ water ﬁ lter (CAREL

code ACKF000000 to remove solid particles from the supply water;

3. ﬂ exible hose (not supplied by

CAREL);

4. optiMist cabinet;

5. hoses complete with adapters;

6. nozzles (see Chap. 4);

7. manifolds;

8. manifold connection hoses;

9. drain valves.

Fig. 2.a

N.B.: for direct connection to the mains water supply use pipes and ﬁ ttings compliant with IEC 61770.

Connections:

Fig. 2.b

Key:

1. water inlet (

G3/4” femmina);

2a. pressurised water outlet step 1 (

G1/2” male);

2b. pressurised water outlet step 2 (

G1/2” male);

3. tank-drain water (G3/4” female).

Notes for connection between cabinet and rack:

1. Mount the pipes with u-bolts or clamps with steps of about 30 cm. (not

supplied by Carel).

2. In the case of two racks or one two-step rack, mount the pipes parallel,

avoiding any contact.

3. In laying the pipes, avoid conditions that could cause the water to

stagnate with the system is halted.

Connect an expansion tank (not supplied by CAREL SpA) with a capacity of at least 5 litres, upstream from the cabinet in order to prevent water hammering which can damage the system. The connection to the cabinet must be performed using ﬂ exible piping..

2.1 Supply water characteristics

Water connection characteristics

VERSION CE - Models EC*******0

Model EC005*0 EC010*0 EC020*0 EC040*0 EC080*0 EC100*0

ﬂ ow-rate 50 100 200 400 800 1000 Maximum 110 220 440 880 1760 2200 (l/h;lb/h;Gd) 317 634 1268 2536 5072 6340 inlet

(Mpa, Bar, Psi)

(0.2..0.7); (2..7); (29..100).

Temperature 5T40 ºC / 41T104 ºF Inlet G3/4”f Outlet 1 and 2

(solenoid)

G1/2”m

Drain Stainless steel pipe G3/4f interior,

Φ exterior ~35 mm/ 1.18 inch.

Tab. 2.a

VERSION UL - Models EC*******U

Model EC005*U EC010*U EC020*U EC040*U EC080*U EC100*U

ﬂ ow-rate 50 100 200 400 800 1000 Maximum 110 220 440 880 1760 2200 (l/h;lb/h;Gd) 317 634 1268 2536 5072 6340 inlet

(Mpa, Bar, Psi)

(0.2..0.7); (2..7); (29..100).

Temperature 5T40 ºC / 41T104 ºF Inlet NPT 3/4”f Adapter outlet

(pump)

NPT1/2”f

Drain Stainless steel pipe NPT3/4”f interior,

Φ exterior ~35 mm/ 1.18 inch.

Tab. 2.b

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

2.2 Type of supply water

optiMist can work with:

• demineralised water

• soft water

• tap water

Following the evaporation process, the minerals dissolved in the supply water will be partially transported by the air ﬂ ow as very ﬁ ne powder and part of them will be deposited on the surfaces of the separator and the ﬁ ns of the heat exchanger.

The type and amount of minerals contained in the supply water determine the frequency of regular maintenance operations needed to remove these deposits from inside the AHU.

The main components of the system supplied by Carel which are aﬀ ected by any incrustations and which require regular periodic inspection and maintenance are the nozzles and droplet separator.

In order to maintain system hygiene and to reduce system management costs, Carel recommends supplying optiMist with water that has been demineralised by reverse osmosis, as provided for in the principal norms such as UNI 8884. In particular, Norm UNI 8884 “Characteristics and treatment of water for cooling and humidiﬁ cation circuits” suggests that evaporative humidiﬁ ers be supplied with fresh water (as indicated in directive 98/83/EC) having the following characteristics:

• electrical conductivity <100 S/cm;

• total hardness <5 °fH (50 ppm CaCO3);

• 6.5<pH< 8.5;

• chloride content <20 mg/l;

• silica content <5 mg/l;

Note 1: If demineralised water is not available, softened water may be used. In this case, in order to limit the aggressiveness of softened water, a minimum hardness no less than 3°f should be ensured.

Note 2: Carel recommends using mains water only if it has a hardness of less than 16°f or a conductivity of less than 400S/cm. The use of mains water leads to ordinary maintenance operations (nozzle and droplet separator cleaning) whose frequency depends on the chemical composition of the water.

2.3 Water circuit installation: checklist

optiMist system name: ______________________________________

Description Notes

 Cabinet level  Distance between cabinet-rack/water distribution system: ≤10 m.  Water supply connection  Water inlet pressure ≥2 bar (0.2 MPA, 29 PSI)  Filters ﬁ lled with water  Drain connected to the water drain system  Supply water within the limit values. See section “Supply water

characteristics”

 Calibration optional separator diﬀ erential switch (if present)

Date: _______________

Signature: _______________________________________

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

3. ELECTRICAL CONNECTIONS

3.1 Wiring inlets

Fig. 3.a

1. power supply

2. control terminal block

3.2 Power supply

Depending on the model:

• EC*******0 voltage 230Vac 50Hz

• EC*******U voltage 230Vac 60Hz

N L

230 Vac

Fig. 3.b

Important: The cables must conform to local standards. Install a power switch outside the humidiﬁ er to completely isolate

the mains power supply, with earth fault protection (30 mA).

3.3 Connections to the pCO

The connections listed below are to be made directly to the pCO terminals.

J2 B1 Main humidiﬁ cation/winter (DEC) control probe

B2 Humidiﬁ cation/winter (DEC) limit probe

B3 Recovery activation signal (IEC) signal 0-10V J3 B5 AUX temperature probe (only NTC or PT100) J4 Y1 0-10V signal output for controlling another cabinet J6 B6 Main evaporative cooling/summer (IEC) control probe

B7 Evaporative cooling/summer (IEC) limit probe

Tab. 3.a

3.4 Connections to the terminal board.

PEN/GO Cabinet and pump / On-Oﬀ remote enabling DEC/GO Humidiﬁ cation control signals from external voltage-free

contact, humidistat type ON/OFF

IEC/GO Evaporative cooling control signals from external voltage-free

contact, thermostat type ON/OFF PR/GO Humidiﬁ cation/winter or evaporative cooling/summer priority REC/GO Recovery activation (IEC) signal, type ON/OFF ROAL/GO Water treatment system alarm signal ROW/GO Water treatment system anomaly/warning signal BKUP/GO Backup cabinet signal FLUX/GO Air ﬂ ow switch SC/GO Droplet separator clogging signal from diﬀ erential pressure switch RWL/GO Recirculation water level AF/C13 Antifreeze activation output HBT/C12 Sign of life, this cabinet RWP/GO Recirculation water recovery pump output activation ROEN/GO Water treatment system control AL/C8 Cumulative alarm relay output NO1/GO Solenoid valve (optional) step 1 NO2/GO Solenoid valve (optional) step 2

Tab. 3.b

3.5 Remoto ON/OFF

Cables • up to 30 m: two-wire cable AWG20/22 electrical speciﬁ cations for the contact voltage-free contact

PEN

Fig. 3.c

Key:

Remote pump ON/OFF

CONNECTIONS

Cabinet Remote ON/OFF

PEN (pump enabling) NC/NO G0A COM

Please Note: the unit is supplied with jumpers on the PEN-G0A

contacts.

3.6 Control signals from external voltage-free contact, humidostat or thermostat type

ON/OFF (control C)

For humidiﬁ cation / direct evaporative cooling (DEC):

DEC

Fig. 3.d

Cabinet

DEC NO (OFF) /NC (ON) GO COM

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

For indirect evaporative cooling (IEC):

IEC

Fig. 3.e

Cabinet

IEC NO (OFF) /NC (ON) GO COM

Priority humidifcation / cooling (PR):

Fig. 3.f

Cabinet

PR NO (winter) /NC (summer) GO COM

Indirect evporative cooling enable (REC):

REC

Fig. 3.g

Cabinet

REC NO (OFF) /NC (ON) GO COM

Starting up damper

Fig. 3.h

ON/OFF and limit probe (control CH/CT)

For direct/winter (DEC) humidiﬁ cation:

J24

DEC

+(G) M out H

Vterm

GND

+5Vdc

GND

+VDC

B1B2B3

BC4B5BC5

Fig. 3.i

Key:

1. humidistat ON/OFF

2. humidity/temperature limit probe

ON/OFF and limit probe (control CH/CT)

For evaporative cooling / indirect humidifcation (IEC)

B6B7B8

GND

IEC

+VDC

+(G) M out H

Fig. 3.j

Key:

1. humidostat ON/OFF

2. humidity/temperature limit probe or signal

ON/OFF and limit  ow signal (control CF)

For evaporative cooling / indirect humidifcation (IEC)

B6B7B8

GND

IEC

+VDC

REF

OUT

Fig. 3.k

Key:

1. IEC fan / damper modulating signal

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

3.7 Modulating control signal

The control signal input connections depend on the activated control algorithm.

Cables up to 30 m: two-wire cables cross-section 0.5 mm2 (AWG20)

To control the section for direct humidiﬁ cation (DEC: Direct Evaporative Cooling), the signal can come from:

• modulating control with external controller

• modulating control with limit probe (temperature or humidity)

• modulating control with humidity probe

• modulating control with humidity probe and limit probe

(temperature or humidity

To control the section for indirect humidiﬁ cation (IEC: Indirect Evaporative Cooling), on the other hand, the signal can come from:

• modulating control with external signal

• modulating control with limit signal (temperature or humidity

probe or air ﬂ ow-rate/ﬂ ow limit signal)

• modulating control with temperature probe

• modulating control with temperature probe with limit signal

(temperature or humidity probe or air ﬂ ow-rate/ﬂ ow limit signal)

Tab. 3.c

To set the type of operation, control and signal: “installer menu > control type

(see chap. 9.11 Installer Menu).”

Note: The use of shielded cables is recommended. The cables must not be lodged near power cables at 230 V/208 V or near remote control switch wiring: this way, the risk of measurement error risks from electromagnetic interference can be avoided.

Modulating control with external controller (contr. P)

For humidiﬁ cation / direct evaporative cooling (DEC):

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA.

SERIAL CARD

J24

FIELD CARD

Vterm

GND

+5Vdc

GND

+VDC

B1B2B3

BC4B5BC5

REF

OUT

Fig. 3.l

Key:

1. external controller

Connections:

Cabinet optiMist External controller

J2 B1 OUT

GND Reference, Shield

Per raﬀ rescamento evaporativo (IEC)

Collegamenti:

Cabinet optiMist External controller

J2 B6 OUT

GND Reference, Shield

Modulating control with control probe

For humidiﬁ cation / direct evaporative cooling (DEC) and ambient humidity control (H control):

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA

SERI

J24

FIELD CARD

Vterm

GND

+5Vdc

GND

+VDC

B1B2B3

BC4B5BC5

+(G) M out H

Fig. 3.m

Key:

1. humidity sensor controller

Connections:

Cabinet optiMist Ambient humidity probe

J2 B1 OUT

+Vdc +(G) GND Reference, shield

For evaporative cooling (IEC), temperature control (T control):

B6B7B8

GND

+VDC

+(G) M

out T

Fig. 3.n

Key:

2. temperature probe

Connections:

Cabinet optiMist Temperature probe

J6 B6 OUT

+Vdc +(G) GND Reference, shield

Modulating control with controller and limit probe (PH/PT control)

For direct/winter (DEC) humdiﬁ cation:

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA

SERIAL

J24

FIELD CARD

Vterm

GND

+5Vdc

GND

+VDC

B1B2B3

BC4B5BC5

REF OUT

+(G) M

out H/T

Fig. 3.o

Key:

1. humidity/temperature limit probe

2. external controller

Connections:

Cabinet optiMist External controller Ambient humidity probe

J2 B1 OUT

B2 OUT H/T +Vdc +(G) GND Reference, shield

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

For evaporative cooling (IEC),

B6B7B8

GND

+(G) M out H

REF OUT

Fig. 3.p

CONNECTIONS

Cabinet optiMist External controller Ambient humidity probe

J6 B6 OUT

B7 OUT H/T +Vdc +(G) GND Reference, shield

Modulating control with controller and limit  ow signal (PF control)

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA

For evaporative cooling (IEC),

B6B7B8

GND

+VDC

REF

OUT

REF

OUT

Fig. 3.q

Key:

1. external controller.

2. IEC fan / damper modulating signal

Modulating control with ambient humidity probe and temperature and humidity limit probe (HH/HT control)

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA

For direct/winter (DEC) humdiﬁ cation:

SERIAL C

J24

FIELD CARD

+(G) M

out H

+(G) M

out H

Vterm

GND

+5Vdc

GND

+VDC

B1B2B3

BC4B5BC5

Fig. 3.r

Key:

1. humidity/temperature limit probe;

2. humidity probe .

CONNECTIONS

Cabinet optiMist Humidity sensor Ambient humidity probe

J2 B1 OUT H

B2 OUT H/T +Vdc +(G) GND Reference, shield

For evaporative cooling (IEC):

B6B7B8

GND

+(G) M out H

Fig. 3.s

Modulating control with ambient temperature probe and  ow limit signal (TF control)

0...1 V; 0...10 V; 2...10 V; 0...20 mA; 4...20 mA

For evaporative cooling / indirect humidifcation (IEC)

B6B7B8

GND

OUT

+(G) M out H

REF

Fig. 3.t

Key:

1. IEC fan / damper modulating signal

2. temperature probe

3.8 Discharge solenoid valve connection for distribution (optional)

For distribution system management, the cabinet controls the discharge solenoid valves for the two steps: two solenoid valves of the normally open type (NO). Recommended connection cables: two-wire plus earth AWG13 (sec. 1.5 mm2) for lengths up to 100 m. Insert solenoid valve terminal board connection diagram.

NO1

NO2

Fig. 3.u

3.9 Water treatment system control

Water treatment activated:

ROEN

Fig. 3.v

Cabinet

ROEN NO (OFF) /NC (ON) GO COM

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Warning signal from water treatment system:

ROW

Fig. 3.w

Cabinet

ROW NO (warning signal) /NC (active) GO COM

Alarm from water treatment system:

ROAL

Fig. 3.x

Cabinet

ROAL NO (warning) /NC (attivo) GO COM

N.B.: the unit is supplied with a jumper on ROAL-G0 terminals

3.10 Cumulative alarm relay (J15)

Fig. 3.y

CONNECTIONS:

Cabinet optiMist Terminal

J15 ALL normally open

ALL COM

3.11 Alarm inputs from external devices

FLUX

Fig. 3.z

Alarm / Anti-freeze activation (AF):

Cabinet

AF NO (T>5°C OFF) / NC (T<5°C ON) AF COM

Alarm air-ﬂ ux (FLUX):

Cabinet

FLUX NO (Alarm) / NC (ON) G0 COM

Alarm drop separator clogged (SC):

Cabinet

SC NO (Alarm) / NC (ON) G0 COM

N.B.: the unit is supplied with a jumper on SC-G0 and FLUX-G0 terminals

3.12 Backup cabinet signal

HBT

BCKP

Fig. 3.aa

Backup function

The backup function allows the activation of a supporting cabinet in case of unexpected switch-oﬀ of the main cabinet.

Two types of backup management are available:

• HBT: control on the heartbeat of the main control

• BMS: control by supervisor

The HBT control allows the activation of the backup cabinet keeping controlled the heartbeat (digital output HBT) of the main Optimist. Wiring the digital contact HBT with the BKUP input of the backup cabin, the backup function check if the heartbeat is active (BKUP contact closed). If the signal dies (BKUP contact opened), the backup cabin starts working.

The BMS control check the status of the DIG 75 variable. If the variable is 1, the backup cabin is oﬀ ; if it switches to 0, the backup cabin starts working.

Note: The enabling of the backup function must be set only in the Optimist for backup, inside “Zone Menu  Special Function 2/3” in Installer menu

Backup cabinet signal (BCKP):

Cabinet

BCKP

NO (main OFF) / NC (principale ON)

G0 COM

Segnale di vita cabinet (HBT):

Cabinet

HBT NO (back up OFF) / NC (back up ON) HBT COM

Rotation function

The rotation function allows the periodical activation of the two cabins.

In the main cabin:

• enable Rotation function,without enabling the backup;

• set the Rotation time value.

In the backup cabin the HBT control must be set.

To permit the rotation to work, the wiring of the HBT control must be done from the main cabin to the backup one and vice versa.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

3.13 Supervisor network

J32

serial card

eld card

ID1

ID2

ID3

ID4

ID5

ID7

ID8

IDC1

VG0Y1Y2Y3Y4

BC4B5BC5

GND

+VDC

eld car

ID8ID

+VD

Fig. 3.ab

Optional CAREL cards

network/card protocol supported

PCOS004850 RS485 (stand.)- CAREL, Modbus®

PCO100MDM0 RS232 (external modem) CAREL for remote connections

PCO1000WB0 Ethernet™

TCP/IP SNMP v1 &v2c BACnet™ Ethernet™ ISO8802-2/8802-3 BACnet/IP

PCO1000BA0 Ethernet™ (Modbus®) BACnet™ MS/TP

Tab. 3.d

Important: Follow the instructions shown on the optional cards

for the technical speciﬁ cations, connections and expansion boards.

Default: CAREL supervisor protocol.

All the new features are supplied as standard with the RS485 card, other cards and protocols are optional.

3.14 Supervisory optiMist Table

Type Carel

Index

Modbus



Index

Name Description R/W Min

Limit

Max

limit

Def. Unit of

measure

Alarms

1 1 Al_No_Model Alarm: model not yet conﬁ gured R 0 1 2 2 Al_Setting_Nominal_MFR Alarm: capacity of the distribuition system not yet conﬁ gured R 0 1 3 3 Al_RO_Not_Ready Alarm: Water Treatement System R 0 1 4 4 mAl_LP_Detected_New Alarm: Low Pressure by pressostat (ID5) R 0 1 5 5 Al_high_Temp_Bypass Alarm: High temperature water in bypass R 0 1 6 6 Al_VFD_Not_Ready Alarm: Inverter R 0 1 8 8 Al_Antifreeze_Temp Alarm: low temperature in cabinet R 0 1 9 9 Al_HP_Detected Alarm: drop separator clogged R 0 1 10 10 mAl_High_Press Allarme: alta pressione da sonda R 0 1 11 11 mAl_LP_Probe Alarm: low pressure by probe R 0 1 12 12 mAl_Probe8_Broken Alarm: pressure probe broken or unconnected R 0 1 13 13 mAl_Probe1_Broken Alarm: I.E.C. - main probe broken or unconnected R 0 1 14 14 mAl_Probe2_Broken Alarm: I.E.C. - limit probe broken or unconnected R 0 1 15 15 mAl_Probe6_Broken Alarm: I.E.C. - main probe broken or unconnected R 0 1 16 16 mAl_Probe7_Broken Alarm: I.E.C. - limit probe broken or unconnected R 0 1 17 17 mAl_Probe5_Broken Alarm: AUX probe broken or unconnected R 0 1 18 18 Clock_Error Error reading/writing the RTC (real time clock) data and/or clock RAM R 0 1 19 19 mAl_Probe4_Broken Alarm: water temperature probe broken or unconnectd R 0 1 20 20 Al_High_humid Alarm: HUMIDIFICATION high humidity R 0 1 21 21 Al_Low_Humid Alarm: HUMIDIFICATION low humidity R 0 1 22 22 Al_Limit_Humid Alarm: HUMIDIFICATION high limit temperature/humidity R 0 1 23 23 Al_High_Temp_EC Alarm: I.E.C. high limit temperature R 0 1 24 24 Al_Limit_Humid_EC Alarm: I.E.C. high limit temperature/humidity R 0 1 25 25 mAl_Probe3_Broken Alarm: I.E.C. heat recovery activation signal by analog input broken or

unconnected

R0 1

26 26 Al_warn_RO Warning: Water Treatment System R 0 1

Analg.

1 1 View_Value HUMID: main/regulation probe [B1] R -20,0

-4,0 0 0

70,0 158,0 100,0 100,0

°C /°F / %rH

/ %

2 2 View_Value_Lim HUMID:: limit probe [B2] R -20,0

-4,0 0 1

70,0 158,0 100,0 100,0

°C /°F / %rH

/ %

3 3 View_Value_EC I.E.C.: main/regulation probe [B6] R -20,0

-4,0 0 2

70,0 158,0 100,0 100,0

°C /°F / %rH

/ %

4 4 View_Value_Lim_EC I.E.C.: limit probe [B7] R -20,0

-4,0 0 3

70,0 158,0 100,0 100,0

°C /°F / %rH

/ %

5 5 Probe3_Value I.E.C.; Heating recovery activation analog signal [B3] R 0 100,0 % 6 6 T_Probe_View Water temperature [B4] R -20,0

-4,0

70,0 158,0

°C/°F

7 7 View_Value_AUX AUX probe temperature [B5] R -20,0

-4,0

70,0 158,0

°C/°F

8 8 P_Probe_View Pressure of outlet water [B8] R 0 20,0 /300 bar/psi 9 9 Setp_Humid HUMID: Main regulation humidity sepoint R/W 0 100,0 50,0 %rH

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Analg.

10 10 Humid_Diﬀ HUMID: Main regulation humidity delta R/W 0 100,0 5,0 %rH 11 11 L_Humid_Set HUMID.: Limit probe humidity sepoint [%rH] R/W 0 100,0 100,0 %rH 12 12 L_Humid_Diﬀ Humid: Limit probe humidity delta [%rH] R/W 0 100,0 5,0 %rH 13 13 L_Temp_Set Humid.: Limit probe temperature sepoint R/W 0 100,0 25,0

77,0

°C/°F

14 14 L_Temp_Diﬀ Humid: Limit probe temperature delta R/W 0 100,0 5,0

°C/°F

15 15 Main_Prb_Setpoint_EC I.E.C.: Main regulation temperature sepoint R/W 0 99,9 25,0/77,0 °C/°F 16 16 Main_Prb_Delta_EC I.E.C.: Main regulation temperature delta R/W 0 99,9 2,0 / 35 °C/°F 17 17 Main_Prb_Band_EC I.E.C.: Main regulation temperature band R/W 0 99,9 5,0 / 41 °C/°F 18 18 Limit_Prb_Setp_HF_EC I.E.C.: Limit probe humidity sepoint R/W 0 100,0 95,0 %rH 19 19 Limit_Prb_Band_HF_ECHF I.E.C.: Limit probe humidity delta R/W 0 100,0 5,0 %rH 20 20 Limit_Prb_Setp_T_EC I.E.C.: Limit probe temperature sepoint R/W 0 99,9 20,0 / 68 °C/°F 21 21 Limit_Prb_Band_T_ECHF I.E.C.: Limit probe temperature delta R/W 0 99,9 5,0 / 41 °C/°F 22 22 High_Room_Humid HUMID: threshold high humidity by main regulation probe reading R/W 0 100,0 100,0 %rH 23 23 Low_Room_Humid HUMID: threshold low humidity by main regulation probe reading R/W 0 100,0 0 %rH 24 24 High_Limit_Humid HUMID. threshold high humidity by limit probe reading R/W 0 100,0 100,0 %rH 25 25 High_Limit_Temp HUMID: threshold high temperature by limit probe reading R/W 0 150,0 40,0/104 °C/°F 26 26 High_Room_Temp_EC I.E.C.: threshold high temperature by main regulation probe reading R/W 0 150,0 40,0/104 °C/°F 27 27 Low_Room_Temp_EC I.E.C.: threshold low temperature by main regulation probe reading R/W 0 150,0 10,0 / 50 °C/°F 28 28 High_Limit_Humid_EC I.E.C.: threshold high humidity by limit probe reading R/W 0 100,0 100,0 %rH 29 29 High_Limit_Temp_EC I.E.C.: threshold high temperature by limit probe reading R/W 0 150,0 40,0/104 °C/°F

Dig.

41 41 Unit_Measure Unit measure (0=International System; 1= Imperial) R/W 0 1 42 42 Type_Machine_208 Supply voltage (0= 230V 50Hz; 1=230V 60Hz) R 0 1 43 43 Priority_Humidity_Running Zone running (0=I.E.C., 1= Humidiﬁ cation) R 0 1 44 44 Priority_Humidity_Din Priority summer/winter mode by digital input (0=I.E.C., 1=Humidiﬁ cation) R 0 1 45 45 Heat_Recovery_Active I.E.C.: heat recovery status (0=Not active; 1=Active) R/W 0 1 46 46 Lim_Flow_EC_Type I.E.C.: Flow limit signal type( 0=Damper; 1=Fan) R 0 1 47 47 Dout_02 Pump activation status [Dout 02] R 0 1 48 48 Dout_10 Water treatment system status [Dout 10] R 0 1 49 49 Dout_01 Main line ﬁ ll valve status (0=closed; 1=opened) [Dout 1] R 0 1 50 50 Dout_04 Step 1 ﬁ ll valve status (0=closed; 1=opened) [Dout 4] R 0 1 51 51 Dout_05 p 2 ﬁ ll valve status (0=closed; 1=opened) [Dout 5] R 0 1 52 52 Dout_06 Step 1 drain valve status (0=closed; 1=opened) [Dout 6] R 0 1

Dig.

53 53 Dout_09 Step 2 drain valve status (0=closed; 1=opened) [Dout 9] R 0 1 54 54 Dout_03 Main line drain valve status (0=closed; 1=opened) [Dout 3] R 0 1 55 55 Req_Wash Request of wash procedure running R 0 1 56 56 Dout_13 Anti-freeze procedure activation[Dout 13] R 0 1 57 57 Dout_12 Heartbeat of this cabinet [Dout 12] R 0 1 58 58 Heartbeat_Din BACKUP: Other cabinet heartbeat by digital input [ID 4] R 0 1 59 59 Superv_OnOﬀ On/Oﬀ by supervisor (0=Oﬀ , 1=On) R/W 0 1 60 60 En_Scheduler Enable time scheduler R/W 0 1 0 61 61 En_Reg_From_Superv HUMIDIFICATION: enable regulation by supervisor R/W 0 1 0 62 62 En_Reg_EC_From_Superv I.E.C.: enable regulation by supervisor R/W 0 1 0 63 63 Heat_Recovery_Active_BMS Enable heat recovery by supervisor R/W 0 1 0 64 64 En_Defrost Enable anti-freeze function R/W 0 1 0 65 65 RESET_ALARMS Request to reset/clear alarm memories R/W 0 1 0 66 66 SET_DAY Request to copy NEW_DAY into DAY R/W 0 1 0 67 67 SET_MONTH Request to copy NEW_MONTH into MONTH R/W 0 1 0 68 68 SET_YEAR Request to copy NEW_YEAR into YEAR R/W 0 1 0 69 69 SET_HOUR Request to copy NEW_HOUR into HOUR R/W 0 1 0 70 70 SET_MINUTE Request to copy NEW_MINUTE into MINUTE R/W 0 1 0 71 71 Remote_Hum_Req HUMIDIFICATION: request by on/oﬀ contact R 0 1 72 72 Remote_EC_Req I.E.C.: request by on/oﬀ contact R 0 1 73 73 Air_Flow_Switch Flux digital input status [ID 9] R 0 1 74 74 Aux_Enabled Enable AUX probe [B5] R/W 0 1 75 75 HeartBeat_Superv BACKUP: heart heartbeat other cabinet (by supervisor) R/W 0 1 76 76 En_rotation Enable rotation between two cabinets R/W 0 1 87 87 Default_Ahead Memory erasing and default values intallation running R 0 1 90 90 Heart_Beat_RC2 Test pCO (write 1, after 2 s this variable is reset) R/W 0 1

Int.

1 209 Type_Machine_Display Model of the cabinet R 1 13 2 210 Qa_N_Pump_Display Pump capacity R 0 1000

2200

kg/h / lb/h

3 211 N_Steps Number of steps present R 1 2 4 212 Qa_N_Rack_X HUMIDIFICATION: steps capacity R 0 1000

2200

5 213 Qa_N_Rack_2_X I.E.C.: steps capacity R 0 1000

2200 6 214 Installation_Type Installation type ( 0=I.E.C., 1=Humidiﬁ cation, 2= Humidiﬁ cation.+ I.E.C. ) R 0 2 7 215 Unit_Status Main mask status visualization (0=OFF BY SCHEDULER;1=REMOTE

OFF;2=OFF BY KEYBOARD;3=OFF BY SUPERVISOR;4=OFF BY FLUXOSTAT;5=PUMP OFF BY KEYBOARD.;6=PUMP OFF BY REMOTE.;7=PRE SSURIZATION;8=WATER INLET WAITING;9=OFF BACKUP;10=ALARM;11=W ARNING;12=not used...;13=TEST PRESS. IN;14=FILLING;15=WASHING;16=R EADY;17=PRODUCTION;18=BYPASS CALIBRATION;19=INIZIALIZATION;)

R0 19

8 216 Main_Status Main status R 0 25 9 217 Qr_Pump 0-10V signal to inverter (0-1000) [Aout Y2] R 0 1000

10 218 Regulation_Type HUMIDIFICATION: Regulation type 0=Reg.Humidity, 1=Reg.hum.+Limit

Humid., 2=Reg.Humid+Limit Temp, 3=Not used, 4=Not used, 5=Not used, 6=External prop.signal., 7=Ext.signal+limit Humid, 8=Ext.signal+limit Temp,9=ON/OFF ext.contact

R0 9

11 219 Humidity_Cfg HUMIDIFICATION: Main probe type ( 0=NTC;1=0-1 V; 2=2-10 V;3= 0-10 V;

4=0-20 mA; 5=4-20 mA; 6=0-135 ohm; 7=135-1k ohm )

R0 7

12 220 Limit_Cfg HUMIDIFICATION: Limit probe type ( 0=NTC;1=0-1 V; 2=2-10 V;3= 0-10 V;

4=0-20 mA; 5=4-20 mA; 6=0-135 ohm; 7=135-1k ohm )

R0 7

13 221 Regulation_Type_EC I.E.C.:Regulation type (0=Temp.reg., 1=Temp.+Lim.Hum,2=Temp..+Lim.

Temp,3=Temp.+Lim.Flow, 4=prop.signal., 5=prop.signal+lim.Hum,6=prop. signal+lim.Temp., 7=prop.signal+lim.Flow, 8=ON/OFF cont.,9=ON/ OFF+lim.Humid,10=ON/OFF+lim.Temp,11=ON/OFF+lim.ﬂ ow

R0 11

14 222 Main_Cfg_EC I.E.C.:Main probe type ( 0=NTC;1=0-1 V; 2=2-10 V;3= 0-10 V; 4=0-20 mA;

5=4-20 mA; 6=0-135 ohm; 7=135-1k ohm )

R0 7

15 223 Limit_Cfg_EC I.E.C.: Limit probe type ( 0=NTC;1=0-1 V; 2=2-10 V;3= 0-10 V; 4=0-20 mA;

5=4-20 mA; 6=0-135 ohm; 7=135-1k ohm )

R0 7

16 224 Reg_Superv_Value HUMIDIFICATION: 0-1000 request by supervisor (active only if regulation

by supervisor enabled)

R/W 0 1000 0

17 225 Reg_EC_Superv_Value I.E.C.: 0-1000 request by supervisor (active only if regulation by supervisor

enabled)

R/W 0 1000 0

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Int.

18 226 Act_production_RC Actual production R 0 1000 /

2200

kg/h / lb/h

19 227 RC_Kg_Req_View Actual request R 0 1000 /

2200

kg/h / lb/h

20 228 P_High Maximum step modulation pressure R P_Low 150 15,0 /

217

decimi di

bar psi

21 229 P_Low Minimum step modulation pressure R 0 P_High 4,0 / 58 decimi di

bar psi 22 230 LP_Probe_Dly Low pressure by probe alarm delay R/W 0 999 60 s 23 231 Auto_Wash_Type Wash type (0=Only drain; 1=daily wash; 2=Periodical wash) R/W 0 2 2 24 232 Auto_Wash_Every_Time Periodical wash: time beween two washing requests [hours] R/W 0 999 24 hours 25 233 Auto_Wash_Hour Daily washing: activation hour R/W 0 23 12 hours 26 234 Auto_Wash_Minute Daily washing: activation minute R/W 0 59 0 min 27 235 Wash_Duration Washing time duration R/W 1 120 2 min 28 236 Running_H_Pump_TOT_

Compact

Pump working hours R 0 32767 hours

29 237 Running_H_Pump_Compact Cabinet working hours R 0 32767 hours 30 238 fascia1_ore_on1 Scheduler: P1-1 ON hour R/W 0 23 0 hours 31 239 fascia1_min_on1 Scheduler: P1-1 ON minute R/W 0 59 0 min 32 240 fascia1_ore_oﬀ 1 Scheduler: P1-1 OFF hour R/W 0 23 0 hours 33 241 fascia1_min_oﬀ 1 Scheduler: P1-1 OFF minute R/W 0 59 0 min 34 242 fascia1_ore_on2 Scheduler: P1-2 ON hour R/W 0 23 0 hours 35 243 fascia1_min_on2 Scheduler: P1-2 ON minute R/W 0 59 0 min 36 244 fascia1_ore_oﬀ 2 Scheduler: P1-2 OFF hour R/W 0 23 0 hours 37 245 fascia1_min_oﬀ 2 Scheduler: P1-2 OFF minute R/W 0 59 0 min 38 246 fascia2_ore_on Scheduler: P2 ON hour R/W 0 23 0 hours 39 247 fascia2_min_on Scheduler: P2 ON minute R/W 0 59 0 min 40 248 fascia2_ore_oﬀ Scheduler: P2 OFF hour R/W 0 23 0 hours 41 249 fascia2_min_oﬀ Scheduler: P2 OFF minute R/W 0 59 0 min 42 250 monday_type Monday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0

Int.

43 251 tuesday_type Tuesday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 44 252 wednesday_type Wedneday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 45 253 thursday_type Thursday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 46 254 friday_type Friday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 47 255 saturday_type Saturday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 48 256 Sunday_type Sunday scheduling (0=P1; 1=P2; 2=P3 [always ON]; 3=P4 [always OFF]) R/W 0 3 0 49 257 BMS_Time_Oﬄ ine Waiting time before supervisor oﬄ ine alarm R/W 0 60 s 50 258 BIOS_RELEASE Indicates the release of the BIOS R 0 999 51 259 Mod_HWSW_check_02.

Bios_Day

Data rilascio bios: giorno R 1 31

52 260 Mod_HWSW_check_02.

Bios_Month

Data rilascio bios: mese R 1 12

53 261 Mod_HWSW_check_02.

Bios_Year

Data rilascio bios: anno R 0 99

54 262 BOOT_RELEASE Indicates the release of the BOOT R 0 999 55 263 Mod_HWSW_check_02.

Boot_Day

Data rilascio boot: giorno R 1 31

56 264 Mod_HWSW_check_02.

Boot_Month

Data rilascio boot: month R 1 12

57 265 Mod_HWSW_check_02.

Boot_Year

Data rilascio boot: anno R 0 99

60 268 Mod_HWSW_check_02.

Day_Sw_Version

Giorno versione applicativo R 1 31

61 269 Mod_HWSW_check_02.

Month_Sw_Version

Mese versione applicativo R 1 12

62 270 Mod_HWSW_check_02.

Year_Sw_Version

Anno versione applicativo R 0 99

63 271 NEW_DAY New day R/W 1 31 64 272 NEW_MONTH New month R/W 1 12 65 273 NEW_YEAR New Year R/W 0 99 66 274 NEW_HOUR New Hour R/W 0 23 hours 67 275 NEW_MINUTE New minute R/W 0 59 min 68 276 CURRENT_DAY Current day R 1 31 69 277 CURRENT_MONTH Current month R 1 12 70 278 CURRENT_YEAR Current year R 0 99 71 279 CURRENT_HOUR Current Hour R 0 23 hours 72 280 CURRENT_MINUTE Current minute R 0 59 min 73 281 En_Backup Backup function activation: 0=Oﬀ , 1= On by Ingr.dig., 2=On by Supervisor R/W 0 2 0 74 282 Max_Prod HUMIDIFICATION: maximum production R/W 0 100 100 % 75 283 Max_Prod_EC I.E.C.: maximum production R/W 0 100 100 % 76 284 Delay_Al_min HUMIDIFICATION: high/low humidty and high/low limit temperature/

umidity alarm delay

R/W 0 999 60 s

77 285 Delay_Al_min_EC I.E.C.: high/low temperature and high/low limit temperature/umidity

alarm delay

R/W 0 999 60 s

81 289 Humiset_Check_App_Ver SW version ( X.Y = XY) [E.g.:1.0B23 -->10] R 10 999 82 290 Humiset_Beta_App_Ver BETA sw release [0=Oﬃ cial, n°>0=Beta version n°] R 0 999

Tab. 3.e

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

4. PUMPING UNITS

4.1 Pumping unit with ﬂ ow control conﬁ guration

optiMist controls the humidiﬁ cation and/or cooling capacity by continuously controlling the atomised water ﬂ ow-rate across a wide range of modulation.

This conﬁ guration is used in the following applications:

• humidiﬁ cation and/or evaporative cooling (direct) in an AHU;

• humidiﬁ cation and indirect evaporative cooling in an AHU equipped

with a heat recovery unit (a single atomisation system atomises the water).

optiMist is equipped with an inverter to continuously and precisely control the speed of the pump and, consequently, the ﬂ ow-rate.

The outlet pressure is kept within the optimum water atomisation limits by the range of modulation of the pump speed and control of the number of nozzles that atomise the water.

Based on the ﬂ ow-rate of water to be atomised, optiMist will activate the number of nozzles that ensures the pressure is within the range indicated above.

If the ﬂ ow-rate required for humidiﬁ cation or evaporative cooling is small then a few nozzles will be enough to atomise the water; if the request increases, the increase in ﬂ ow-rate will cause an increase in pressure that, if it exceeds 15 bar, will activate other atomising nozzles (from the second modulation step) with a subsequent decrease in the pressure, bringing it within the optimum range. Similarly, if the humidiﬁ cation request decreases, the ﬂ ow-rate and thus the pressure will decrease and, if the latter approaches 4 bars, some nozzles will be closed so that the pressure returns within the optimum atomisation range.

This is possible because the nozzles are assembled into groups of up to four, with diﬀ erent capacities; when suitably activated, these guarantee continuous modulation of the ﬂ ow-rate across a wide range, nominally from 40 or 20 at 100% (40% for pump 50, 100 and 200 l/h, 20% for 400, 800, 1000 l/h) the maximum ﬂ ow-rate.

Questo è possibile perchè gli ugelli sono raggruppati in gruppi, ﬁ no a 2, di capacita diversa che, opportunamente attivati, sono in grado di garantire una modulazione continua della portata in un ampio range, nominalmente dal 40 o 20 al 100% (20% per pompe 50, 100 e 200 l/h, 40% per 400, 800, 1000 l/h) della portata massima.

The groups of nozzles are normally conﬁ gured when selecting the optiMist system, and the procedure is clearly described in the documents supplied with the water distribution system (rack). The continuous ﬂ ow control guarantees maximum humidiﬁ cation and evaporative cooling precision as capacity is controlled continuously and across a wide range.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

with a diameter of 35mm.

3. The discharge solenoid valves must be connected to the lower horizontal

collection with a diameter of 35mm.

4. The rack must be tilted at least 1° towards the discharge valves.

5. The connection pipes between the rack and pumping station must be

without pockets that could cause water stagnation.

When the rack has a ﬂ ow-rate of about 75% less than the maximum ﬂ ow-rate of the pump, instead of discharge solenoid valves, mechanical discharge valves may be used, which do not require wiring; in this case water consumption and discharge and reﬁ lling times are slightly increased. The discharge solenoid valves and mechanical valves can be connected directly to the rack and to discharge inside the pipe or they can be moved outside the pipe using the appropriate extension kit (see example kit ACKT1F0500). In the event of solenoid valve installation directly on the rack, inside the pipe, the width of the rack increases by 10cm. The collectors are populated with atomising nozzles in brass in the appropriate number to achieve the ﬂ ow-rate reported in the related code digit. The corner brackets are equipped with holes for mounting in the pipe.

Please Note: IF THE optiMist IS USED AS A CHILLBOOSTER AND WITH THE SAME DISTRIBUTION SYSTEM, SET THE MAXIMUM PRESSURE CONTROL AT 10 BARS.

5.2 Droplet separator

The droplet separator catches the droplets of water that aren’t completely evaporated in the air, to prevent them from getting downstream objects wet. They are made up of standard size modules that are assembled on a support structure to cover the section of the AHU. The structure, which is entirely made from stainless steel, facilitates drainage of the water captured by the droplet separator. To facilitate maintenance of the individual modules, removal and replacement is done from the front, by removing the appropriate front frame. The modules are available with glass ﬁ bre or stainless steel ﬁ ltering material. They are available in 3 sizes in height and width of the modules, the combination of which leads to 9 standard modules.

5. DISTRIBUTION SYSTEM

This paragraph brieﬂ y describes the distribution and atomisation systems for AHUs (rack and droplet separator) and for rooms. These are described in detail in the “optiMist – distribution systems” manual.

Fig. 5.a Fig. 5.b

5.1 Distribution and atomisation rack

“n” racks are available which are diﬀ erentiated by:

• Width (in modules, each module is 152mm: the total value is obtained

by adding 94 to the product of 152 and the number of modules).

• Height (in modules, each module is 152mm: the total value is obtained

by adding 68 to the product of 152 and the number of modules).

• water ﬂ ow-rate in l/h (multiply value *10).

• number of circuits

example: ER0_11_07_22_1

• width: 94+(“11”*152).

• Height 68 +(“7”*152).

• Number of nozzles: 22

• Number of circuits “1”

The racks are supplied in unassembled kits; customers are responsible for assembly. Rack components:

1. AISI 316 stainless steel nozzles with brass adapters from NPT1/8m

2. AISI 304 collectors for nozzles, diameter 20mm with oriﬁ ces from NPT1/8f.

3. AISI 304 distributor collectors, diameter 35mm with oriﬁ ces from G1/2m

for compression ﬁ ttings.

4. Compression ﬁ ttings for pipes from 20mm and ﬁ tting from G1/2f.

5. Corner brackets in AISI304 plate.

6. Vertical proﬁ les in AISI304.

7. Pipe gripping clamps for pipes from 35mm (single or double according to

the number of circuits on the rack).

8. Screws for pipe gripping clamps: M8 for double clamp and M6 for single

clamp.

9. G1/2m caps in brass to close the oriﬁ ces not used by the collectors, d.35.

10. M6 screws in AISI304 to assemble the corner brackets and vertical proﬁ les

(insert ﬁ gure) To connect the nozzles and compression ﬁ ttings to the discharge valves, use sealants suitable for:

• Thread size.

• Maximum operating temperature.

• Maximum operating pressure.

To correctly discharge the system, each rack is conﬁ gured for the installation of a discharge solenoid valve. To ensure the discharge of the rack, they must satisfy the following conditions:

1. The collectors with atomising nozzles must be in the vertical position.

2. The water supply must be connected to the upper horizontal collector

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

W=760 mm

W=608 mm

W= 456 mm

moduli in H

3 4 5

H= 456 mm

H= 608 mm

H= 760 mm

moduli in W

Fig. 5.c

The following table shows the height and width dimensions available and the combinations in installable modules Separators are diﬀ erentiated by:

• Width

• Height

They are available in the following heights and widths and number of standard modules:

WIDTH “W”

MODULES 3 4567 8 9 1011 1213 14 151617 18 19 20 mm 514 666 818 974 1126 1278 1430 1582 1736 1888 2040 2192 2344 2498 2650 2802 2954 3106 no. separators 1 1122 2 2 2 3 3 3 3 3 4 4 4 4 4 type separators 1x3 1x4 1x5 2x3 1x3+1x4 2x4 1x4+1x5 2x5 1x3+2x4 3x4 1x3+2x5 1x4+2x5 3x5 4x4 1x5+3x4 3x5+1x3 3x5+1x4 4x5

Tab. 5.a

HIGHT “W”

MODULES

345678 910111213 141516 17 18 19 20

527 679 831 1022 1174 1326 1478 1630 1820 1972 2124 2276 2428 2618 2770 2922 3074 3226

no. separators

11122222333334444 4

type separators

3 4 5 3 + 3 3 + 4 4 + 4 5 + 4 5 + 5 4 + 4 + 3 4 + 4

+ 4

5 + 4 + 4 5 + 5 + 4 5 + 5

+ 5

4 + 4 +

4 +4

5 + 4 + 4

+ 4

5 + 5 + 5

+ 3

5 + 5 + 5

+ 4

5 + 5 + 5

+ 5

Tab. 5.b

There are 324 possible combinations identiﬁ ed by the following coding: Example: ECDS000710

• width: 07 (mm1126).

• height: 10 (mm1630).

Fig. 5.d Fig. 5.e

In cases where the droplet separator does not exactly cover the section of the AHU, the free spaces must be closed to prevent the air from bypassing the droplet separator itself. The necessary plugging materials is not supplied by Carel. Flexible or stainless steel pipes are also supplied to connection the pumping station to the rack. Please note that the installation of a properly drained droplet collection tray is always necessary for the rack, the droplet evaporation chamber and the droplet separator. The tray is not supplied by CAREL.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

6. APPLICATIONS

ripresa

mandata

Fig. 6.a

optiMist for AHU/ducts is suitable for all applications in which the air can be humidiﬁ ed and/or cooled evaporativeally, atomising demineralised water. Below are some possible applications of optiMist:

• data center

• oﬃ ce buildings

• hotels and call centers

• printing and paper industries

• cleanrooms

• libraries and museums

• textiles industry

• food industry

• direct/indirect evaporative cooling

• timber industry

• other industrial applications.

The possibility of using an atomising rack for indirect evaporative cooling is especially interesting: the air to be discharged is cooled evaporativeally (bringing it to saturation) and is then used to cool the fresh outside air using an air-air heat exchanger, as shown in the following ﬁ gure.

6.1 Main advantages of optiMist

The main advantages of optiMist are:

• Highly reduced electrical consumption: about 1 Watt for every litre/

hour of humidiﬁ cation capacity;

• Maximum capacity: 1000 kg/h;

• Loading solenoid valves for the distribution system inside the cabinet;

• Excellent humidiﬁ cation and cooling eﬀ ect in the AHU due to the rack

being customised based on the AHU section;

• Very low maintenance required.

• Washing and draining cycles;

• Absence of dripping

• Silent nozzles

• Connectivity: optiMist can be connected to external systems such as

BMS using the ModBus protocols, ...

• Back up and rotation between two cabinets.

Key:

1. pumping unit and zone controller for

humidiﬁ cation in winter;

2. pressurised water line;

3. rack for cooling in summer;

4. rack for humidiﬁ cation in winter;

5. droplet separator;

6. heat recovery unit.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

7. CONTROL

7.1 Humidiﬁ cation

lgorithms, which can be selected from the installer menu.

• HH control:

modulates the capacity (water ﬂ ow-rate) using two humidity probes, one control probe normally installed in the AHU in the return air, and one limit probe, usually installed downstream of the droplet separator.

• HT control:

modulates the capacity (water ﬂ ow-rate) with two probes, one humidity control probe and one limit temperature probe. This conﬁ guration is recommended for systems in which a certainly humidity level is required without however excessively cooling the air.

• H control:

like the HH algorithm but without the limit humidity probe;

Below is the diagram of operation using humidity control probes

100%

Set point

Fig. 7.a

Key:

1. production

2. humidity control probe

3. maximum production

4. minimum production

5. proportional band

6. hysteresis (10% of “5”)

• PH/PT control:

capacity is modulated proportionally to an external control signal and is limited based on the value measured by the limit temperature or humidity probe. This is the typical conﬁ guration used in optiMist installations connected to a Building Management System that generates a control signal;

• P control:

like the PH/PT algorithm but without the limit humidity probe; Below is the diagram of operation with proportional control.

100%

max

5% 5%

Fig. 7.b

Key:

1. production

2. external request

3. maximum production

4. minimum production

• CH/CT control:

operation in on/oﬀ mode, based on a voltage-free external contact (for example, a humidistat). The capacity will thus be either the maximum set or nothing, depending on the status of the external contact, and is limited based on the value measured by the limit probe.

• C control:

like the CH/CT algorithm but without the limit probe;

The HH and TH algorithms are the most commonly-used, and recommended for optiMist installations.

The limit humidity probe described above is usually set to high values, e.g. 80% rH, so as to limit the maximum moisture in the air introduced into the duct and into the room. This is especially recommended in installations where air ﬂ ow-rate and operating, temperature and humidity conditions, may change over time and, consequently an additional safety system is required to prevent the humidiﬁ er from over-humidifying the air and, in the worse case scenario, condensing in the ducts downstream.

Below are the two diagrams of operation with humidity or temperature probes

100%

Set point

Fig. 7.c

Key:

1. production

2. limit probe

3. maximum production

4. minimum production

5. proportional band

6. hysteresis (10% of the set point)

N.B.: for convenience, the diagrams show continuous modulation of the ﬂ ow-rate while, depending on the model, control may be continuous or in steps.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

7.2 Evaporative Cooling

If optiMist is used as an application dedicated to evaporative cooling, the possible controls are:

• TT Control

• TH Control

• TF Control

• T Control

• PH/PT/PF Control

• P Control

• C Control

• CH/CT/CF Control

IMPORTANT: All of these controls require a consent signal that lets the humidiﬁ er know when it can operate. This indication corresponds with the activation of the recovery unit in the Air Treatment Unit (ATU); this information can be sent to the humidiﬁ er through:

• a modulating 0-10V signal (corresponding to the opening of the

renewal air locks) or

• a digital contact or

• a digital variable via supervision (DIG 63).

A delay in the humidiﬁ er activation can be set, starting from the activation signal from the recovery unit previously described.

T CONTROL

This type of control consists of a Proportional+Integral type control of the temperature detected by a probe located in the return air, downstream from the exchanger. The proportional action will allow for the control of the ﬂ ow-rate as a function of the distance between the temperature detected and the setpoint. The integral action, on the other hand, will act on the reaction speed of the system.t. L’azione integrale, invece, agirà sulla velocità di reazione del sistema.

Graﬁco 1

Temp.

Fatt.P

SET

+ ∆

Band

Hyst=10%Band

Fig. 7.d

As seen in the ﬁ gure, increasing factor P (dashed red line) reduces sensibility to temperature variations, resulting in a decreased reduction request in correspondence to the same temperature variation. The integral contribution, on the other hand, reduces the request to a greater extent the longer the deviation from the control temperature setpoint remains.

• controllo TH:

This type of control is used to modulate the capacity (water ﬂ ow-rate) with a temperature probe, installed in the return air, downstream from exchanger, an a limit humidity probe, usually installed downstream from the droplet separator. In order to enable this conﬁ guration, a droplet separator is NECESSARY, otherwise there is a risk that the probe could get wet, thus constantly detecting humidity values close to the saturation point. The humidity probe will further limit the maximum request.

TT CONTROL

This type of control is used to modulate the capacity (water ﬂ ow-rate) with a temperature control probe and a temperature limit probe. The control probe is usually installed in the centre of the room and the limit probe in another “critical” point where the temperature must absolutely not be lower than a settable limit value.

TF CONTROL (T + air ﬂ ow/ﬂ ow-rate limit)

This type of control is used to modulate the capacity (water ﬂ ow-rate) with a temperature control probe and an air ﬂ ow modulator, which can correspond to:

• the modulating opening signal of the recirculation air lock;

• the modulating signal from the fan

In this case, the limit signal will function as:

• a temperature limit signal, in the event of a modulating signal from

the fan

• a humidity limit signal, in the event of a air lock opening modulating

signal.

PH/PT/PF CONTROL

The modulation of the capacity is proportional to an external control signal and limited based on the measured value of the temperature, humidity or ﬂ ow limit signal. This is the typical conﬁ guration when the control is entrusted to a Building Management System that generates a control signal.

• P Control

This control is like the PH control, but without humidity limit probe. The following is a graphic with proportional control.

100%

max

5% 5%

Fig. 7.e

Key:

1. production

2. external request

3. maximum production

4. minimum production

CH/CT/CF CONTROL

This control mode corresponds to the ON/OFF operation, from a nonpowered external contact (for example, a humidistat). The capacity will therefore be the maximum set or nothing (no modulation) according to the status of the external contact and limited based on the limit signal. See sections TT/TH/TF for more information regarding limit signals.

C CONTROL

This control corresponds to the ON/OFF operation mode without any limit probe. The request directly follows only the control contact.

NOTE: Whenever the activation signal from the recovery unit is a digital signal, the control contact will NOT be the same signal; they will be two distinct signals.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

LIMIT PROBE

In the following graphics, the ﬁ rst represents the limitation of the maximum production with a temperature limit probe or an activation signal from the IEC ventilator. The second graphic, on the other hand, represents the case in which the limit probe is a humidity probe or an opening signal from the recirculation air lock.

H=10%Band

Band

SET °C/°F

% Fan

Fig. 7.f

H=10%Band

Band

SET %RH or

% Opening

Fig. 7.g

7.3 Humidiﬁ cation + Evaporative Cooling

The optiMist humidiﬁ er provides the ability to conﬁ gure the outlet humidity control and the indirect evaporative cooling contribution control at the same time.

ATTENTION: the operation of the two zones is mutually exclusive;

the two zones, therefore, will never work at the same time.

Selecting the active zone will depend upon: a) the priority assigned by digital input ID4 (closed contact for I.E.C., open contact for Humidiﬁ cation) [see section 3.x]; b) the current request for humidity/cooling.

Once the priority is selected, the system will evaluate if the priority zone will be in request, otherwise it will satisfy the request from the other zone.

The following examples shows the case where the priority is set for indirect evaporative cooling, with step 1 dedicated to humidiﬁ cation and step 2 to indirect cooling.

Heating recovery

Req IEC

Max

OFF

Req HUM

Max

OPTIMIST

ON ON OFF

Fig. 7.h

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

8. STARTING AND USER INTERFACE

Before starting the humidiﬁ er check:

 water and air connections (chap. 2). In the event of water leaks do not

start the humidiﬁ er before having resolved the problem;

 electrical connections (cap. 3)

8.1 Starting

8.2 Stopping

OFF

Note: if the system is stopped for an extended time, open the

valve at the end of the water line to assist drainage. If the system is ﬁ tted with drain solenoid valves at the end of the line (optional), this is done automatically.

8.3 First start-up (setting the language)

On power-up, the following screen is displayed:

Display Description Range Def. UoM LANGUAGE

Language View current languages English, Italiano,

Deutsche,

Espanol, Français ENTER to change, ESC to conﬁ rm

Pressing ENTER changes the chosen language, ESC exits to the next page

Tab. 8.a

Legenda: Display = visualized on display; Def. = default; UoM = unit of measure

Note: The language can also be changed from the maintenance menu (maintenance menu > system info > language).

8.4 Wizard

At machine start-up, once the language is selected, a guided procedure (Wizard) is accessed which allows the installer to conﬁ gure the principle machine operations.

The following lists the parameters that can be conﬁ gured using this procedure:

• Unit of measure.

• Number of steps and respective nominal ﬂ ow-rates

• Type of installation (only Humidiﬁ cation, only Evaporative Cooling,

Humidiﬁ cation+ Evaporative Cooling).

• Conﬁ guration of the control inputs (with indications for verifying the

ﬁ tness of the electrical connections).

Once this procedure is correctly completed, the machine will be ready to operate.

Access to the Wizard section will then be possible through the Installer Menu - Wizard, or when the machine is restarted (if the option “Show Wizard at start-up” has not been disabled).

8.5 Keypad

Fig. 8.a

button function 1

alarm list active alarms and reset any alarms present

PRG return to the “main” screen

from the “main” screen access the main menu

ESC return to the previous screen/display

UP circular navigation inside the menus, the screens, the

parameters and the values of the parameters from the “main” screen, access an “INFO menu”

ENTER select and conﬁ rm (like the “Enter” key on a computer

keyboard) from the main menu, access the “SET” screen

DOWN circular navigation inside the menus, the screens, the

parameters and the values of the parameters from the main screen, access the warning screens

Tab. 8.b

8.6 “Main” screen

Fig. 8.b

Button Function

Zone status description (*)

Main control signal from the active zone.

Limit signal reading from the active zone.

Active work zone (humidiﬁ cation or indirect evaporative cooling)

Display:

• pump in operation (ﬂ ashing triangle in the centre of the icon);

• pump not in operation (triangle not ﬂ ashing in the centre of the icon, empty)

Status of the atomising nozzles:

• atomising nozzles in operation;

• atomising nozzles not in operation;

• zone disabled

Scheduler set

Accesses the "Warnings" screen which contains the alarm messages that have been received (DOWN key)

Accesses the "SET" screen (ENTER key)

Accesses the "INFO" screen (UP key)

Tab. 8.c

(*) Types of descriptions:

1. < OFF FROM SCHEDULER / OFF FROM REMOTE / OFF FROM KEYPAD / OFF SUPERVISOR / OFF FLOW SWITCH / OFF BACKUP / ALARM / WARNING / FILLING / WASHING / OPERATING >

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

8.7 “INFO” screens

Series of read-only screens for displaying the main humidiﬁ er status values. To access, press UP from the “Main” screen. There are three “INFO” screens; to move from one screen to the next, press UP or DOWN. Press ESC to return to the “Main” screen.

Display Value and notes UoM

Zone info 1/2 Request

Capacity request kg/h

Production

Current humidiﬁ er capacity kg/h

Aux probe

Display value read by auxiliary probe (not control, display only)

%rH or °C/°F

1 L 2

See note below (*)

F Hr Pr

See note below (*)

Date and time

Tab. 8.d

(*) The display shows a table where the columns represent the 2 capacity

modulation steps and the rows contain the following information:

Row F - the symbol “” is displayed if the branch is atomising, otherwise “-” is shown Row D - the symbol “” appears if the branch is draining (valve open), otherwise “-” is displayed if the drain valve is closed. In column Hr, if the heat recovery is active, the symbol “ “, otherwise “ “. In column Pr, the priority choice will be shown: the symbol “ “ if priority is given to Humidiﬁ cation, “ “ if given to evaporative cooling.

For example, the table may be as follows:

12L

F--Hr

D---

This indicates that branch 2 is active, heat recovery is active and priority is given to evaporative cooling. Another example may be as follows:

12L

F--- Hr



This indicates that no branch is active, the drain valve for branch 1 is open, the heat recovery unity is oﬀ and priority is given to humidiﬁ cation.

Using the UP and DOWN keys accesses the Info 2/2 screen.

Display Value and notes UoM

Zone info 2/2

Title (screen 2 of 3)

Pump Press.

outlet pressure bar / psi

Main probe

Displays the value read from the main control probe (zone not active)

°C/°F/%rH/%

Limit probe:

Displays the value read from the limit probe (zone not active)

°C/°F/%rH/%

Temp.bypass

Displays the value read by the bypass temperature probe

°C/°F

Prod. max. red. HUM

Maximum production due to reduction for high pressure

kg/h-lb/h

Prod. max. red. IEC

Maximum production due to reduction for high pressure

kg/h-lb/h

Tab. 8.e

Whenever the optiMist humidiﬁ er is conﬁ gured to control the section dedicated to Evaporative Cooling (IEC) and the heat recovery activation is giving by an analog signal, the value of that signal will be shown in screen Info 3/3.

8.8 “SET” screen

This is used to set the main values for the humidiﬁ er. From the main screen press:

• ENTER to access the menu;

• ENTER to move from one value to another;

• UP and DOWN to modify the selected value;

• ENTER to conﬁ rm and go to the next value.

Display Value and notes Default UoM

SET HUM

Title

Setpoint

Humidity setpoint 50%rH %U.R

Funzionamento

Auto (in control) or OFF Auto

Prod. max

Maximum capacity that can be generated, as a percentage of the nominal capacity

100 %

Banda prop.

Proportional Band (modulation) 5 %

Set point lim

Temperature or humidity limit (limit probe)

90%rH or 20°C / 70°F

°C/°F o %U.R.

Banda prop. Lim.

Proportional band for the limit probe (modulation)

Abil. Pompa

Enable pump /Yes/No) Yes

Tab. 8.f

Display Value and notes Default UoM SET I.E.C.

Setpoint

Temperature setpoint 25°C / 77°F °C/°F

Funzionamento

Auto (in control) or OFF [visible only if the Humidiﬁ cation zone is not conﬁ gured]

Auto

Prod.max

Maximum capacity that can be generated, as a percentage of the nominal capacity

100 %

Banda prop.

Proportional band 5°C/ 41°F

Differenziale

Activation diﬀ erential (only temperature control)

2°C/ 36°F

Setpoint lim

Temperature, humidity or ﬂ ow limit (limit probe)

90%rH or 20°C / 70°F

°C/°F o %U.R.

Banda prop. Lim.

Proportional band 5 %

Tab. 8.g

8.9 “Warnings” screen

The warning screen spontaneously displays messages generated by ﬁ xed events. One typical example is a lack of supply water, which generates an alarm but that, when supply pressure returns, is automatically reset and optiMist resumes operation: the reset alarm message will appear on the warning screen.

8.10 Main menu

To access press PRG from the main screen Buttons:

• UP and DOWN: navigation inside the submenus, screens, and range of

values and settings;

• ENTER: conﬁ rm and save the changes made;

• ESC: to go back (pressed more than once returns to the “Main” screen)

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Menu tree

1. User

1. Alarm threshold 1/2 (Humidification)

Main probe threshold High alarm Low alarm Limit probe thresholds Alarm threshold Alarm delay

1. Alarm threshold 1/2 (Evaporating cooling)

Main probe threshold High alarm Low alarm Limit probe thresholds Alarm threshold Alarm delay

2. Clock Hour Day Month Year Format Day of the week

3. Enable scheduler Scheduler on/off Off and postpone sched.

4. Set scheduler P1-1 P1-2 P2 P3 P4

5. Weekly scheduler Monday Tuesday Wednesday Thursday Friday Saturday Sunday

2. Installer (password 77)

1. Pump menu 1. Pump Setting (i) Operation mode: flow-rate control

High press. Low press.

2. Water supply 1/2 Low pressure probe

Alarm delay Water treatment alarm logic Water treatment warning logic

2. Water supply 2/2 TEST PRESS. INLET

Check time Retries every:

3. Special pump functions 1/2 FILLING

Enable valve delay Duration Automatic washing Mode<only draining/ washing daily / periodic washing > Hour of the day / time Duration

3. Special pump functions 2/2 Enable valve delay

Valve delay Min Ton step

2. Menu Zona 1. Config. Inputs 1/8 Installation type

1. Config. Inputs 2/8 HUMIDIFICATION

Operation type Control Signal Signal Type Min Max Offset

1. Config. Inputs 3/8 Limit signal

Signal Type Min Max Offset

1. Config. Inputs 4/8 EVAPORATIVE COOLING

Operation type Control Signal Signal Type Min Max Offset

1. Config. Inputs 5/8 Limit signal

Signal Type Type (only if flow limit) Min Max Offset

1. Config. Inputs 6/8 Heat recovery activation

Min (*) Max (*) Offset (*) Ist: On Off (*) (*) only if heat recovery from ANALOG INLET

1. Config. Inputs 7/8 EVAPORATIVE COOLING

Control Temperature P Factor Integral time

1. Config. Inputs 8/8 Aux probe

Signal Type Offset

2. Distribution system (note i)

Steps: Nominal (HUM) Nominal (IEC) Min production Hum. Min production I.E.C.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

2. Installer (password 77)

3.Special zone functions 1/3 Al. relay logic Flowswitch logic Language Show languages list at startup?

3.Special zone functions 2/3

01-Feb

optiMist as backup Rotation (*) Rotation time (hours) (*)enabling available only if backup is not yet set

3.Special zone functions 3/3 01-Feb Digit new installer password

4. Supervision 1/2 Id for BMS Baud rate Protocol type

4. Supervision 1/2 On/off by supervisor Reg. by superv. Hum. Reg. by superv. IEC

5. External Alarms Drop separator alarm logic

3. Wizard 1/10 Type: ...........optiMist

Model Unit of measure

3. Wizard 2/10 Installation type

3. Wizard 3/10 Number branches Nominal flow-rate Nominal flow-rate IEC

3. Wizard 4/10 HUMIDIFICATION Operation type Control Signal Signal Type Min Max Offset

3. Wizard 5/10 Limit signal Signal Type Min Max Offset

3. Wizard 6/10 EVAPORATIVE COOLING Operation type Control Signal Signal Type Min Max Offset

3. Wizard 7/10 Limit signal Signal Type Type (only if flow limit) Min Max Offset

3. Wizard 8/10 Heat recovery activation Min (*) Max (*) Offset (*) Ist: On Off (*) (*) only if heat recovery from ANALOG INLET

3. Wizard 9/10 Connection control HUMIDIFICATION Main Limit EVAPORATIVE COOLING Main Limit

3. Wizard 10/10 Show wizard at start-up Confirm data upon exiting Wizard

Maintenance (password 77)

1. Reset conf Restore default Model:

2. System info 1/3 Model Flow-rate Supply Unit of measure

2. System info 2/3 Bios (version / date) Boot (version / date) SW application code Version Date

2. System info 3/3 New maintenance password

3. Instantaneous

readings

Main Humidification Humidification Limit Main IEC IEC Limit Heat recovery AUX

4. Manual procedure Request production zone Analog and digital input readings Analog and digital output writing

5. System status info Machine status

6. Hour gauge Pump hours Total hours Reset pump hours Reset data

7. Alarm history No. xxx hour date Alarm message

Tab. 8.h

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

8.11 User menu

From the main screen press:

• PROG to access the main menu;

• ENTER to select and access the selected menu;

• UP/DOWN to move between the submenus;

• ENTER to enter the submenus

• ENTER to select the parameter and move between the parameters;

• UP/DOWN to modify the parameter;

• ENTER to conﬁ rm selected parameter and go to the next parameter;

• ESC to return to the previous menu.

To navigate inside the screens:

• UP or DOWN to modify the value (within the options/range),

• ENTER to conﬁ rm and move the cursor to the next value

• ESC to return to the installer menu.

User menu screens:

1. User 1. Alarm threshold

2. Clock

3. Enable scheduler

4. Set scheduler

5. Weekly scheduler

6. Scheduled set point

Submenu: 1.Alarm threshold

If the zone dedicated to humidiﬁ cation is conﬁ gured, the following screen appears:

Display Description Range Def. UoM Main probe threshold

Alarm high

High humidity alarm threshold 0…100%rH 100 %rH %rH

Alarm low

Low humidity alarm threshold 0…100%rH 0 %rH %rH

Limit probe thresh.

Alarm high

High humidity/temperature limit alarm threshold

0…150°C/°F o 0…100%rH

100 %rH °C o°F

o %rH

Alarm delay

Alarm signalling delay 0…99 1 min

Tab. 8.i

Where there is a zone dedicated to evaporative cooling, the following screen will also appear:

Display Description Range Def. UoM

Main probe threshold

Alarm high

High temper. alarm threshold 40 °C 100 %rH %rH

Alarm low

Low temper. alarm threshold 20 °C 0 %rH %rH

Limit probe thresh.

Alarm high

High humidity/temperature limit alarm threshold

40 °C 100 %rH °C o°F

o %rH

Alarm delay

Alarm signalling delay 0…99 1 min

Tab. 8.j

Submenu: 2.Clock

Display Description Range

Hour

Setting the time on the internal clock

Day

Setting the day on the internal clock

Month

Setting the month on the internal clock

Year

Setting the year on the internal clock

Format

Setting data format dd/mm/yy - mm/dd/yy

Week day

Day of the week corresponding to the date

Monday to Sunday

Tab. 8.k

Submenu: 3. Enable scheduler

Display Description Range Def. UoM Enable scheduler

Scheduler ON/ OFF

Enable scheduler NO/YES NO

Delay scheduler:

Temporarily shut down the optiMist which will restart after ____ minutes

0…999 0 min

Tab. 8.l

Submenu: 4. Set scheduler

Note: the screen is visible if “scheduler ON/OFF” has been enabled (see

enable scheduler screen).

Setting the intervals for the operation of the humidiﬁ er over one day (24h):

Display Description Ora ON Ora OFF

P1-1

First P1 interval 9:00 13:00

P1-2

Second P1 interval 14:00 21:00

First P2 interval 8:00 18:00

Time slot always ON ON always

Time slot always ON OFF always

Tab. 8.m

Parameters P1...P4 can be used to set how many times atomised water production is enabled or disabled over a 24 hour period.

P1-1 P1-2

OFF

ONOFF OFF

ON ONOFF OFFOFF

24 h

024 h

Fig. 8.c

P1 2 daily time slots ON P2 Single time slot ON P3 always ON P4 always OFF

Submenu: 5. Weekly scheduler

Note: the screen is visible if “scheduler ON/OFF” has been enabled (see

enable scheduler screen).

Setting of the weekly operation of the humidiﬁ er, using parameters P1... P4 (conﬁ gured in the previous screen)

Display Range

Monday

P1...P4

Tuesday

P1...P4

Wednesday

P1...P4

Thursday

P1...P4

Friday

P1...P4

Saturday

P1...P4

Sunday

P1...P4

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

8.12 Installer menu

From the main screen press:

• PRG to access the main menu;

• DOWN to move to the installer menu;

• ENTER to move to the password;

• UP/DOWN to enter the password “77“

• ENTER to access the selected menu;

• UP/DOWN to move between the submenus;

• ENTER to select the parameter and move between the parameters;

• UP/DOWN to modify the parameter;

• ENTER to conﬁ rm the selected parameter and go to the next parameter;

• ESC to return to the previous menu.

To navigate inside the screens:

• UP or DOWN to modify the value (within the options/range),

• ENTER to conﬁ rm and move the cursor to the next value

• ESC to return to the installer menu.

The installer menu is divided into four submenus

Display Description

1. Pump menu

Contains the menus with the installer parameters corresponding to the pumping station

2. Zone Menu

Contains the menus with the installer parameters for the controlled zone (rack or distribution system for room)

3. Wizard

Contains the parameters for basic machine conﬁ guration.

Tab. 8.n

Submenu: 1. Pump Menu - 1. Pump Setting

Contains the menus with the installer parameters corresponding to the pumping station.

Display Description Range Def. UoM

PUMP SETTINGS

Mode: Flow-rate control

optiMist operating mode

High press.

Maximum modulation limit; activation threshold for the next modulation step

4..15 bar / 58…218 psi

15 bar / 218 psi

bar/psi

Low press.

Minimum modulation limit; deactivation limit for the modulation step

4..15 bar / 58…218 psi

4 bar / 58 psi

bar/psi

Tab. 8.o

Submenu: 1. Pump Menu - 2. Water supply

Display Description Range Def. UoM

WATER SUPPLY 1/2

Low pressure probe.Alarm delay:

low pressure supply alarm signalling delay

0…999 60 S

Water treatment alarm logic

Water treatment inlet alarm logic

N.C, N.O. N.C.

Water treatment warning logic

Water treatment inlet Warning logic

N.C, N.O. N.C.

Tab. 8.p

Display Description Range Def. UoM

WATER SUPPLY 2/2 TEST PRESS. INLET

Check time

Water presence veriﬁ cation duration 0…999 15 s

Retries every

Delay before the next veriﬁ cation 0…999 15 s

Tab. 8.q

Submenu: 1. Pump Menu - 3. Special functions

Display Description Range Def. UoM

Special pump functions 1/2 FILLING

Enable Enable ﬁ lling NO/YES NO Duration Filling duration 1 to 60 2 Min

AUTOMATIC WASHING

Mode automatic washing mode only emptying/

periodic/daily

only

emptying Hour of the day

Washing activation schedule (only for daily washing)

00:00 to 23:59 0.00 hour:

minute

Time Interval between two washings

(only for periodic washing)

1 to 120 24 hours

Tab. 8.r

Display Description Range Def. UoM Special pump functions 2/2

Enable valve delay

Enable delay in closing step NO..YES YES

Valve delay

Delay in closing step 0..60 5 S

Min Ton step

Minimum ON time for one step (avoid surges)

0...9999 30 s

Tab. 8.s

Submenu: 2. Zone Menu - 1. Input configuration

Display Description Range Def. UoM Conﬁ g.Inputs 1/8

Installation type

Operation mode selection

1) Evaporative Cooling,

2) Humidiﬁ cation,

3)Humidiﬁ cation+ Evaporative Cooling

1) Evaporative cooling

Tab. 8.t

Conﬁ guration of the control inputs for the zone dedicated to humidiﬁ cation is done through the following screens.

Display Description Range Def. UoM

Conﬁ g.Inputs 2/8 HUMIDIFICATION

Operation type:

Set control type Humidity

Humidity+Limit Humid. Humidity+Temp. Limit External prop.Signal Prop.+Humid.Lim. Sign. Prop.+Temp.Lim.Sign. Contact On/Oﬀ Cont. On/Oﬀ +Hum.Lim Cont. On/Oﬀ +Temp.Lim

Control Signal

Type of control signal [B1 analog inlet]

NTC, 0 to 135oh, 0-1V, 0-10V, 4-20mA,0-20mA

Min:

Minimum control signal value

0 to 100 0 %rH/%

Max.

Maximum control signal value

0 to 100 100 %rH/%

Offset:

Probe reading correction oﬀ set

0 to 100 0 %rH/%

Tab. 8.u

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Display Description Range Def. UoM

Conﬁ g.Inputs 3/8 HUMIDIFICATION

Limit

Type of control signal [B2 analog inlet]

NTC, 0...135oh, 0-1V, 0-10V, 4-20mA, 0-20mA

Min:

Minimum control signal value

0…100%rH/

-20…70°C

0% rH /

-20°C

%rH/ °C-°F

Max:

Maximum control signal value

0…100%rH/

-20…70°C

100%rH / 70°C

%rH/ °C-°F

Offset:

Probe reading correction oﬀ set

0…100%rH/

-20…70°C

0 %rH/

°C-°F

Tab. 8.v

The conﬁ guration of the control inputs for the zone dedicated to evaporative cooling (IEC) is done through the following screens.

Display Description Range Def. UoM Conﬁ g.Inputs 4/8

EVAPORATIVE COOLING

Operation type:

Set control type Temperature

Temp.+Humid. Limit Temp.+Temp. Limit Temp.+Flow Limit Signal prop.external Sign.prop+Humid.Lim. Prop.+Temp.Lim.Sign. Prop.+FlowLim.Sign. Contact On/Oﬀ Cont. On/Oﬀ +Humid.Lim. Cont.On/Oﬀ +TempLim. Cont.On/Oﬀ +FlowLim

External prop. sign.

Control Signal

Type of control signal [B6] analog inlet]

NTC, 0 to 135oh, 0-1V, 0-10V, 4-20mA,0-20mA

0 to 10V

Min:

Minimum control signal value

0 to 100% / -20°C to 70°C 0% /

-20°C

% / °C-°F

Max:

Maximum control signal value

0 to 100% / -20°C to 70°C 100% /

70°C

% / °C-°F

Offset:

Probe reading correction oﬀ set

0 to 100% / -20°C to 70°C 0 % /

°C-°F

Tab. 8.w

Display Description Range Def. UoM Conﬁ g.Inputs 5/8

EVAPORATIVE COOLING

Limit

Type of limit signal [B7 analog inlet]

NTC, 0...135oh, 0-1V, 0-10V, 4-20mA, 0-20mA

Type

limit signal correspondence (only if ﬂ ow signal)

Air lock or Fan Air lock

Min:

Minimum control signal value

0…100%rH/

-20…70°C

0 % / %rH/

°C-°F

Max:

Maximum control signal value

0…100%rH/

-20…70°C

100% - %rH o 70°C

% / %rH/ °C-°F

Offset:

Probe reading correction oﬀ set

0…100%rH/

-20…70°C

0 % / %rH/

°C-°F

Tab. 8.x

optiMist’s operation as an evaporative cooling (IEC) system requires the indication of the activation of heat recovery. The next screen is dedicated to setting that signal.

Display Description Range Def. UoM Conﬁ g.Inputs 6/8 EVAPORATIVE COOLING

Heat recovery activation from:

Recovery signal origin selection

Digital or analog input or supervision contact

Digital contact

Min:

Minimum control signal value

0 to 100% 0 %

Max:

Maximum control signal value

0 to 100% 100 %

Offset:

Probe reading correction oﬀ set

0 to 100% 0 %

Ist:

Hysteresis type selection (ONLY if analog input is selected)

Direct or inverse direct

On:

Hysteresis activation threshold (ONLY if analog input is selected)

0 to 99.9% 50 %

Off:

Hysteresis deactivation threshold (ONLY if analog input is selected)

0 to 99.9 0 %

Tab. 8.y

Display Description Range Def. UoM Conﬁ g.Inputs 7/8 TEMPERATURE CONTROL

P Factor:

proportional contribution reduction factor

1..99 1

Integral time:

integration time 1 to 32767 60 S

Tab. 8.z

It is possible to enable the conﬁ guration of an auxiliary temperature probe (view only, not control).

Display Description Range Def. UoM

Conﬁ g.Inputs 8/8

Aux Pobe

Enable auxiliary probe NO to °C/°F NO

AUX

Type of probe NTC or PT1000 NTC

Offset

Probe reading correction oﬀ set -20 to +20°C/°F 0 °C/°F

Tab. 8.aa

Submenu: 2. Zone Menu – 2. Distribution system

Display Description Range Def. UoM DISTRIBUTION SYSTEM

Step number

step number 1 or 2 1

Nominal

nominal ﬂ ow-rate of the humidiﬁ cation rack

1 to Max pump ﬂ ow-rate

0 kg/h /

lb/h

Nominal IEC

nominal ﬂ ow-rate of the IEC rack

1 to Max pump ﬂ ow-rate

0 kg/h /

lb/h

Hum. min production

minimum production for humidiﬁ cation

0 to 100 40 %

IEC min production

minimum production for IEC 0 to 100 40 %

Tab. 8.ab

Submenu: 2. Zone Menu - 3. Special functions

Display Description Range Def. UoM SPECIAL FUNCTIONS 1/3

Alarm relay logic

Logic of the alarm relay N.O, N.C. N.O

Flow switch logic

Flow switch digital input logic

N.O, N.C. N.C

Language

User language choice English, Italiano,

Deutsche, Espanol, Français

English

Show language choice at start-up

Show language choice in the ﬁ rst start-up screen

YES to NO YES

Tab. 8.ac

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Display Description Range Def. UoM SPECIAL FUNCTIONS 2/3

optiMist as backup:

Select enabling of this cabinet as a backup cabinet

NO, ID8 (life sign control other cabinet from digital input), BMS

N.O

Rotation

Enable rotation (settable only if the option "Backup optiMist" is not enabled)

DISABLE, ENABLE DISABLE

Rotation time

Every how many hours the active pump station changes

0 to 8 1 hours

Tab. 8.ad

Display Description Range Def. UoM CHANGE PASSWORD

Insert new installer password

Change installer password 0000 to 9999 77

Tab. 8.ae

Submenu: 2. Zone Menu - 4. Supervision

Display Description Range Def. UoM CONFIG.SUPERVISION 1/2

Id for BMS:

Supervision address selection

NO, ID8 (life sign control other cabinet from digital input), BMS

N.O

Baudrate:

communication speed between the pCO and the supervisory system

1200,2400,4800, 9600,19200

19200 bps

Protocol type

Every how many hours the active pump station changes

Carel, Modbus, Lon, RS232, WinLoad

Carel hours

Tab. 8.af

Display Description Range Def. UoM CONFIG.SUPERVISION 2/2

On/Off from Superv.

Enable on/oﬀ from supervision NO,YES NO

Control from Superv (Humid)

Enable control from supervision (Humidiﬁ cation if Humidiﬁ cation +IEC conﬁ guration)

NO,YES NO

Control from Superv IEC

Enabled control from IEC supervision

NO,YES NO

Tab. 8.ag

Submenu: 2. Zone Menu - 5. External Alarms

Display Description Range Def. UoM

External Alarms

Droplet separator alarm logic

Droplet separator diﬀ erential pressure switch alarm input logic

N.O. = (normally open) when connecting as described in the previous paragraphs, optiMist will show the Water treatment alarm if the connection is interrupted or,

N.C

N.C. = (normally closed) when connecting as described in the previous paragraphs, optiMist will show the Water treatment alarm if the connection is not interrupted (contact closed)

Tab. 8.ah

Submenu: 3. - Wizard

In this section, which can be accessed on start-up or through the Installer menu, the fundamental machine start-up parameters can be set. The screens in this section, recall the parameter settings mainly covered in the sections “Input conﬁ guration” and “Distribution System” shown previously.

8.13 Maintenance menu

Attenzione: le operazioni descritte in questo menu devono essere esclusivamente eseguite da personale qualiﬁ cato.

From the main screen press:

• PRG to access the main menu;

• DOWN to move to the installer menu;

• ENTER to move to the password;

• UP/DOWN to enter the password “77“

• ENTER to access the selected menu;

• UP/DOWN to move between the submenus;

• ENTER to select the parameter and move between the parameters;

• UP/DOWN to modify the parameter;

• ENTER to conﬁ rm the selected parameter and go to the next parameter;

• ESC to return to the previous menu.

Installer menu screens:

Display

1. Reset conf

2. System info

3. Instantaneous readings

4. Manual procedure

5. System status info

6. Hour gauge

7. Alarm history

Submenu: 1.Reset conf

Display Description Range Def.

Reset config. Reset default:

Activating recalls the default factory settings

NO,YES NO

Set model

Setting the machine model

All machine models available

The same model

shown on the

cabinet label

Tab. 8.ai

Submenu: 2.System info

Display Description Range Def. UoM

MACHINE INFO 1/2

Model

View machine model

All machine models available

The same model shown on the cabinet label

Flowrate

Nominal ﬂ owrate of the pump

50, 100, 200, 400, 800, 1000 [kg/h]

ﬂ ow-rate in according with the pump ﬂ ow-rate

kg/h lb/h

Voltage

Voltage supply 230V 50Hz, 230

60Hz

230V 50Hz if model EC***DH**0, 230V 60Hz if model EC***DH**U

Unit of measure

Setting unit of measure

International, Imperial

International if model EC***DH**0, Imperial if model EC***DH**U

Tab. 8.aj

Display Description Range SYSTEM INFO 2/2

Boot

Boot data and version

Bios

Boot data and version

Code

Software code loaded FLSTDMOPTF

Version

Software version loaded

Date

Compilation date of loaded software

Tab. 8.ak

Display Description Range Def. UoM

CHANGE PASSWORD

Insert new installer password

Change Maintenance password

0000 to 9999

7683

Tab. 8.al

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Submenu: 3. Instantaneous readings

Display Description Range Def. UoM INSTANTANEOUS READINGS 1/2

Main (Humidification)

View signal read by humidiﬁ cation main input, B1

Humid. Limit

View signal read by humidiﬁ cation limit input, B2

AUX

View signal read by auxiliary temperature input B5

Tab. 8.am

Display Description Range Def. UoM

INSTANTANEOUS READINGS 2/2

Main IEC

View signal read by IEC main input [B6]

IEC Limit

View signal read by IEC limit input, [B7]

Tab. 8.an

Submenu: 4. Manual procedure

Display Description Range Def. UoM

Manual procedure Request production zone

Set the capacity % that the system must generate.

0…100 0 %

Manual controls to all I/O

Manual setting of the optiMist outputs and inputs

Tab. 8.ao

Submenu: 5. System status info

Display Description Range Def. UoM

SYSTEM STATUS INFO

System status

Current machine status

Standby empty, Standby full, production, washing, slowing, initialisation

Tab. 8.ap

Submenu: 6. Hour gauge

Display Description Range Def. UoM

HOUR GAUGE

Pump hours:

Pump operation time 0 to 999999 0 hours

Total hours:

Machine life in hours 0 to 999999 0 hours

Reset hours

Reset pump hour counter

YES, NO

Last reset date:

Last pump hour reset date:

dd/mm/yy Last model

setup date

Tab. 8.aq

Submenu: 7. Alarm history

Display Description Range Def. UoM ALARM HISTORY

No. xxx hour date

Succession of screens containing the progressive number of alarms detected, the hour and date saved.

Alarm message

Tab. 8.ar

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

9. TABLE OF ALARMS

Message displayed Cause Solution Reset Alarm

status

Action

symbol

Notes

Water Treatment System alarm

Dig. input Id6 open, check any water treatment unit

anomalies

Close dig. input ID6 with a jumper, if the alarm disappears, check the water treatment system: if the alarm persists, replace the controller

automatic active stop production on

Water Treatment System warning

Digital input ID7 open/ closed (check logic): verify water treatment system anomaly

Close dig. input ID7 with a jumper, if the alarm disappears, check the water treatment system: if the alarm persists, replace the controller

automatic not active stop signalling on

Inlet line low pressure alarm

Low water pressure inlet

check supply circuit, water supply pressure and if inlet ﬁ lter is clogged

automatic not active Stop production on check inlet pressure three

times before generating

next alarm (LP Test) High bypass temperature alarm

excess water recirculation in bypass

check operating temperature (surrounding ambient air and water); check that the pressurised water distribution system is not blocked so as to cause water recirculation in the pump.

automatic not active signal only +

opening of cabinet drain valve for 10 s ?*

on * make sure there is no

LP alarm from the probe

during these 10s.

High bypass temperature alarm

excess water recirculation in bypass, warning active for 60s

check operating temperature (surrounding ambient air and water); check that the pressurised water distribution system is not blocked so as to cause water recirculation in the pump

automatic active Stop production on

Inverter VFD alarm inverter fault check the status of the inverter

and replace if necessary

Note* active Stop production on * automatic reset on the

inverter control depends

on the type of alarm, see

chapter 7 inverter manual Low pump cabinet temperature alarm

water inlet temperature less than 5°C

heat supply water or the cabinet with a suitably rated heater*

automatic active Stop production on * possibility of activating

the defrost

Droplet separator clogged alarm

droplet separator clogged check the status of the droplet

separator(s)

manual active Stop production on * signal given by a

diﬀ erential pressure switch

that sees an upstream-

downstream pressure

diﬀ erence for the droplet

separator. When there

are 2 droplet separators

(Humidiﬁ cation+IEC), 2

pressure switches will be

connected in series. P

selectable, delay selectable High pressure warning from pressure probe

outlet pressure greater than 20 bars

check bypass valve calibration automatic active signal only on * before arriving at 20

base, the "Auto-tuning"

procedure causes the

system to operate at a

max of 15.5 bars. Distribution system maintenance request warning

the ﬂ ow-rate is 40% lower in comparison to the MAX production set.

The SW continues auto-tuning automatically Check if the distribution system is clogged

automatic not active signal only on

Low pressure warning from pressure probe

outlet pressure less than 1 Bar*

check tightness of outlet water circuit

manual active Stop production on * threshold settable by

parameter Pressure probe broken or disconnected alarm

pressure probe broken or disconnected

check connection and operation of the pressure probe

manual active Stop production on * active only if conﬁ gured

Main probe (Humidiﬁ cation) broken or disconnected alarm

main probe disconnected or broken

check connection and operation of the main probe

manual active Stop production on * active only if conﬁ gured

Secondary probe (Humidiﬁ cation) broken or disconnected alarm

secondary probe disconnected or broken

check connection and operation of the secondary probe

manual active Stop production on * active only if conﬁ gured

Main probe (IEC) broken or disconnected alarm

main probe disconnected or broken

check connection and operation of the main probe

manual active Stop production on * active only if conﬁ gured

Secondary probe (IEC) broken or disconnected alarm

secondary probe disconnected or broken

check connection and operation of the secondary probe

manual active Stop production on * active only if conﬁ gured

Auxiliary probe broken or disconnected alarm

auxiliary probe disconnected or broken

check connection and operation of the auxiliary probe

manual not active signal only on * active only if conﬁ gured

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Message displayed Cause Solution Reset Alarm

status

Action

symbol

Notes

Clock fault alarm backup battery completely

discharged or general clock fault

replace/repair electronic controller

Note* not active Stop production oﬀ * switch the unit oﬀ to

repair or replace the

electronic controller Temperature bypass probe faulty or disconnected alarm

bypass temperature probe disconnected or broken

check connection and operation of the probe

manual active Stop production on

High humidity alarm (Humidiﬁ cation)

value measured by the main probe is greater than the humidity alarm threshold

check the parameter setting manual not active signal only on

Low humidity alarm (Humidiﬁ cation)

value measured by the main probe is less than the humidity alarm threshold

check the parameter setting manual not active signal only on

Limit probe high humidity alarm (Humidiﬁ cation)

value measured by the limit probe is greater than the humidity alarm threshold

check the parameter setting manual not active signal only on * Active only if limit probe

is present and set to

humidity High temperature main probe (IEC) alarm

value measured by the main probe is greater than the humidity alarm threshold

check the parameter setting manual not active signal only on

Low temperature main probe (IEC) alarm

value measured by the main probe is less than the humidity alarm threshold

check the parameter setting manual not active signal only on

High humidity/ temperature limit alarm (IEC)

value measured by the limit probe is greater than the humidity alarm threshold

check the parameter setting manual not active signal only on * Active only if limit probe

is present and set to

humidity Rack capacity not set alarm

Wizard did not complete correctly. One or more rack capacities are set to zero.

check the parameter set by the Wizard or the Installer menu

automatic active Stop production on * not visible during the

Wizard

Alarms: Heat recovery activation from analog input signal broken or disconnected

Value outside of range (generally -9999 or +9999)

Check electrical connection manual not active Stop production * on * only IEC production

Tab. 9.a

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

10. WIRING DIAGRAMS

10.1 optiMist wiring diagram

+(G)

out H

NO1

NO2

ROAL

FAN

FILL VALVE NC

VFD

PE N

NLL

out H

STEP 1 NC

STEP 2 NC

REC

+(G)

out H

+(G)

IECG0DEC

ROWG0BKUP

RWP

HBT

PEN

FLUX

out B

RWL

POWER

T(ntc acqua)

FILTRI

INTASATI

NA1

NA2

DRAIN

CABINET NO

HT winter

C1 NO1 NO2 NO3 C1

GND

Rx-/Tx-

Rx+/Tx+

C4 NO4 NO5 NO6 C4

C7 NO7 C7

NO8 C8 NC8

G G0

Vterm

GND

+5 Vdc

B1 B2 B3 GND

+VDC

B4 BC4 B5 BC5

VG VG0

Y1 Y2 Y3 Y4

ID1 ID2 ID3 ID4 ID5 ID6 ID7 ID8

IDC1

C9 NO9 NO10 NO11 C9

NC12 C12 NO12

NO13 C13 NC13

B6 B7 B8 GND

ID9 ID10 ID11 ID12 IDC9

CT winter

HT summer

CT summer

ROAL/SW

allarm

T AUX

uscita prop. % per slave

ID13H ID13 ID13C ID14 ID14H

"BELIMO"

FLUX

ON/OFF

REMOTO

ROAL/SW

warning

BACK UP

LIVELLO

REC. H2O

Segnale da attuatore

serranda recupero

Filtro Anti-disturbo

Noise-Free Filter

Tabella Fusibili - Fuses Table F1=F2 -> 12A F 10,3x38 600V F3=F4 -> 4A F 5x20 600V F6 -> 2,5A T 5x20 250V

AAB

J10

J12

J11

J13

J14 J15

SERIAL CARD

J24

pCO3

J17 J18

Sonda umidità/T

principale inverno

1.0.10V_4...20mA NTC

Sonda umidità/T

limite inverno

1.0.10V_4...20mA NTC

Sonda umidità/T

principale estate

1.0.10V_4...20mA NTC

Sonda umidità/T

limite estate

1.0.10V_4...20mA NTC

ON/OFF

WINTER

ON/OFF

SUMMER

ESTATE

INVERNO

Uscita antigelo

Backup

Abilitazione

recupero H2O

ROEN

relè allarme

comulativo

J16

Fig. 10.a

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

11. STARTUP

11.1 Startup

!Attention: before proceeding, make sure the unit is not connected to the mains.

Once the distribution system is assembled and the pumping station is installed, perform the operations listed below:

• Connection characteristics for connecting the water line to the

optiMist water inlet: G3/4”f;

• Connect a drainpipe to the discharge solenoid valve at the pipe

coupling, G3/4”f

• Connect the connection pipe(s) between the cabinet, G1/2”f and the

distribution system G1/2”f

• of the pressurized water outlet of the pump towards the lower oriﬁ ce

• connect the control signals and check that the control settings are

compatible;

• Connect the discharge solenoid valve to the related clamps;

• Connect the electric supply cable to the appropriate clamps L, N, PE;9.

• Open the manual water valve upstream of the cabinet;

• Set the knife switch to position “1”;

• At this point, voltage can be added using the external power switch;

• Activate the system using the control contact (Ref. par. 3.2);

• Check for any water leaks in the water circuit.

ENG

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

12. MAINTENANCE AND REPLACEMENT PARTS

12.1 Maintenance procedures

Since the optiMist humidiﬁ cation system does not require special maintenance in general, it is best to regularly perform systematic preventative maintenance. The interval depends on the water quality: the more salts or impurities in the water, the more frequently the inspections must be performed.

Components to check inside the cabinet:

• Check the water inlet manometer pressure value

• Check and clean the water ﬁ lter inside the cabinet.

• Check the water tightness of the corrugated stainless steel pipes inside

the cabinet.

• Pump: check for leaks or drips

Water lines:

• Check the tightness of the seals on the connection pipes between the

Cabinet and Rack.

Distribution system:

• Check the condition of the nozzles; clean or replace if necessary.

• Check the tightness of the connections whether threaded or

compression

Droplet separator:

• Check for clogging in the separator

12.2 Replacement parts

Replacement parts for cabinet:

Code Description

MCKDSVWC00 solenoid valve kit N.A water drain MCKFSVBC00 solenoid valve kit N.C water drain ECKMA10000 manometer 0 to 12 bars, glycerine ECKMA25000 manometer 0 to 25 bars, glycerine ACKPS00000 Pressure switch kit, NW UAKRID00000 Water pressure reducer kit, EC050-400 ACKR100000 Water pressure reducer kit, EC800-1K0 ECKP000500 Pump kit 50 l/h NW ECKP001000 Pump kit 100 l/h NW ECKP002000 Pump kit 200 l/h NW ECKP004000 Pump kit 400 l/h NW ECKP008000 Pump kit 800 l/h NW ECKP010000 Pump kit 1000 l/h NW ECKM253F50 motor kit 0.25 Kw 3~ 4 poles 230 V 50 Hz CE ECKM373F50 motor kit 0.37 Kw 3~ 4 poles 230 V 50 Hz CE ECKM753F50 motor kit 0.75 Kw 3~ 4 poles 230 V 50 Hz CE ECKVFD0400 EC050/400***** - inverter 0.4 KW 230 V UAKVFD0750 EC050/400***** - inverter 0.4 KW 230 V URKTR20000 transformer 100 VA ECKPCO3000 pCO3 medium for EC******* ECKFUSE100 fuse kit EC050-100 ECKFUSE200 fuse kit EC200-400 ECKFUSE300 fuse kit EC800-1K0 SPKT0043R0 pressure probe

Tab. 12.a

Rack replacement parts kit

Code Description

MCKDSVWC00 solenoid valve kit N.A water drain ECKDMV0000 DRAINAGE VALVE KIT ECKN050000 NOZZLES 6L/H 15BARS ACKRDM0000 direct automatic ﬁ tting R1/2"m pipe d.20 ACKRN01000 direct nipple m/m from G1/2" ECKMOR1X35 single clamp for pipe d.35 ECKMOR2X35 double clamp for pipe d.35

Tab. 12.b

CAREL INDUSTRIES HQs

Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com

Agenzia / Agency:

“optiMist” +0300065EN- rel. 1.1 - 29/01/2013

Carel optiMist User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
