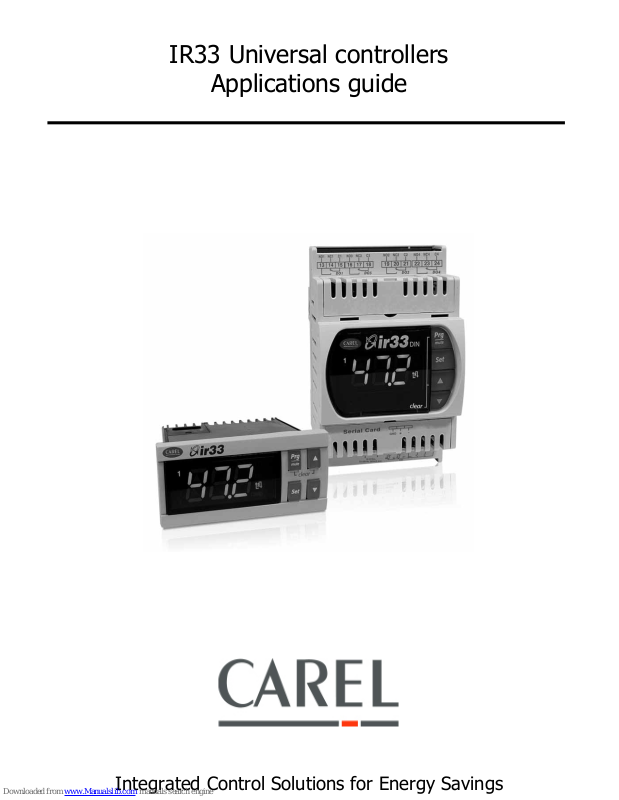

IR33 Universal Series
IR33 Universal controllers
Applications guide
Integrated Control Solutions for Energy Savings
2
3
• IR33V7 – 1 Cool
• IR33V7 – Alarm control (low temperature or high temperature)
• IR33W7 – 1 Heat / 1 Cool
• IR33W7 – 1 Heat / 1 Cool (heat pump)
• IR33Z7 – 1 Heat / 1 Cool with alarms
• IR33Z7 – 2 Heat / 2 Cool
• DN33Z7 – 2 Heat / 2 Cool (heat pump)
• IR33Z7 – 4 Cool
• IR33Z7 – 4 Heat
Standard temperature applications 13
page
Selection matrix 5
Accessories for IR33/DN33 Universal 39
Replacement table 6
Programming instructions, parameters and alarm table 7
• IR33W7 – 2 Cool circuits
• IR33E7H – 2 Heat / Modulating Cool
• DN33E7H – 2 Heat / Modulating Cool
• IR33E7H – Modulating 1 Heat / 1 Cool with pump call
Special temperature applications 23
• IR33V9 – 1 Humidification
• IR33V9 – 1 De humidification
• IR33W9 – 1 Humidification / 1 De humidification
• DN33W9 – 1 Humidification / 1 De humidification
Standard humidity applications 28
• IR33V9 – 1 Stage Direct Acting Pressure
• IR33Z9 – 4 Stages Direct Acting Pressure
• DN33Z9 – 4 Stages Direct Acting Pressure
• IR33Z9 – 4 Stages Reverse Acting Pressure
Standard pressure applications 33
Index
• DN33W9 – 1 Cool / 1 Humidification
Combined applications 37
4
5
Selection Matrix
Z
V
IR
W
0
33
7
D
A
2
One relay output
Two relay output
Four relay output
One solid state output
Four solid state output
Carel IR33 Universal Series – Part Number Guide
DN
Panel Mount
Din Rail Mount
B
E
One relay + one 0-10V output
Two relay + two 0-10V output
IR, buzzer, Real Time ClockB
R
H 115-230 Vac p. supply
IR, buzzer
L 12-24 Vac/12-30 Vdc p. supply
Temperature inputs
M 24 Vac/dc p. supply
9 Universal inputs
Selection matrix
6
Type Old Code New Code
1 relay IR32V*L000 (12-24 Vac/dc) IR33V*LR20 (12-24 Vac/dc)
2 relay IR32W*0000 (12-24 Vac/dc) IR33W*LR20 (12-24 Vac/dc)
4 relay
IR32Z*0000 (12-24 Vac/dc) IR33Z*LR20 (12-24 Vac/dc)
1 SSR
IR32D*L000 (12-24 Vac/dc) IR33D*LR20 (12-24 Vac/dc)
4 SSR
IR32A*0000 (12-24 Vac/dc) IR33A*LR20 (12-24 Vac/dc)
1 relay +
1 x 0-10V
IR32A*L000 + 1 x CONVONOFF0 +
1 x CONVO/10A0
IR33B*H*20 (230 Vac)
2 relay +
2 x 0-10V
IR32A*0000 + 2 x CONVONOFF0 +
2 x CONVO/10A0
IR33E*H*20 (230 Vac)
Type Old Code New Code
1 relay IRDRV*0000 (24-240 Vac)
DN33V**R20 (12-24 Vac/dc)
4 relay
IRDRZ*0000 (12-24 Vac/dc) DN33Z*LR20 (12-24 Vac/dc)
4 SSR
IRDRA*0000 (12-24 Vac/dc) DN33A*LR20 (12-24 Vac/dc)
1 relay +
1 x 0-10V
IRDRA*0000 + 1 x CONVONOFF0 +
1 x CONVO/10A0
DN33B*H*20 (230 Vac)
2 relay +
2 x 0-10V
IRDRA*0000 + 2 x CONVONOFF0 +
2 x CONVO/10A0
DN33E*H*20 (230 Vac)
DN33V*HR20 (230 Vac)
2 relay IRDRW*0000 (24-240 Vac)
DN33W*LR20 (12-24 Vac/dc)
DN33W*HR20 (230 Vac)
Replacement IR32 to IR33 – Panel mount
Replacement IRDR to DN33 – Din rail mount
Note that in the new IR33 / DN33 range, every model is available with power supply 12-24 Vac/dc
(or 24Vac/dc) OR 240 Vac and optional Real Time Clock. Please contact us for more details.
Replacement tables
7
Programming instructions p. 8
Parameter list p. 9
Alarm table p. 11
Programming instructions, parameters and
alarm table
8
9
10
11
12
13
IR33V7 – 1 Cool p. 14
IR33V7 – Alarm control (low temp or high temp) p. 15
IR33W7 – 1 Heat / 1 Cool p. 16
IR33W7 – 1 Heat / 1 Cool (heat pump) p. 17
IR33Z – 1 Heat / 1 Cool with alarms p. 18
IR33Z7 – 2 Heat / 2 Cool p. 19
DN33Z7 – 2 Heat / 2 Cool (heat pump) p. 20
IR33Z7 – 4 Cool p. 21
IR33Z7 – 4 Heat p. 22
Standard temperature applications
14
15
16
17
18
19
20
21
22
23
IR33W7 – 2 Cool circuits p. 24
IR33E7H – 2 Heat / Modulating Cool p. 25
DN33E7H – 2 Heat / Modulating Cool p. 26
IR33E7H – Modulating 1 Heat / 1 Cool with pump call p. 27
Special temperature applications
24
25
26
27
28
IR33V9 – 1 Humidification p. 29
IR33V9 – 1 Dehumidification p. 30
IR33W9 – 1 Humidification / 1 De humidification p. 31

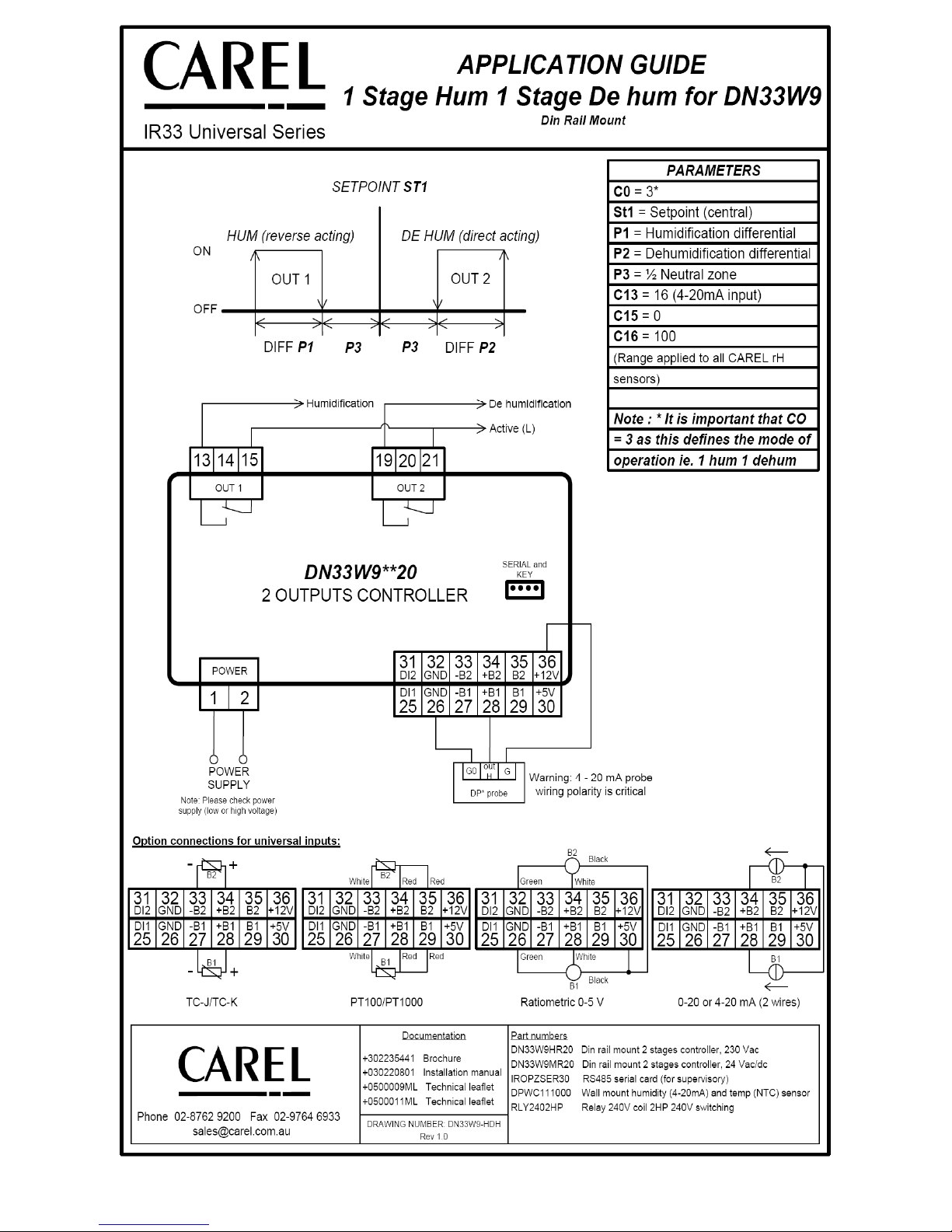

DN33W9 – 1 Humidification / 1 De humidification p. 32
Standard humidity applications
29
30
31
32
33
IR33Z9 – 4 Stages Direct Acting Pressure p. 34

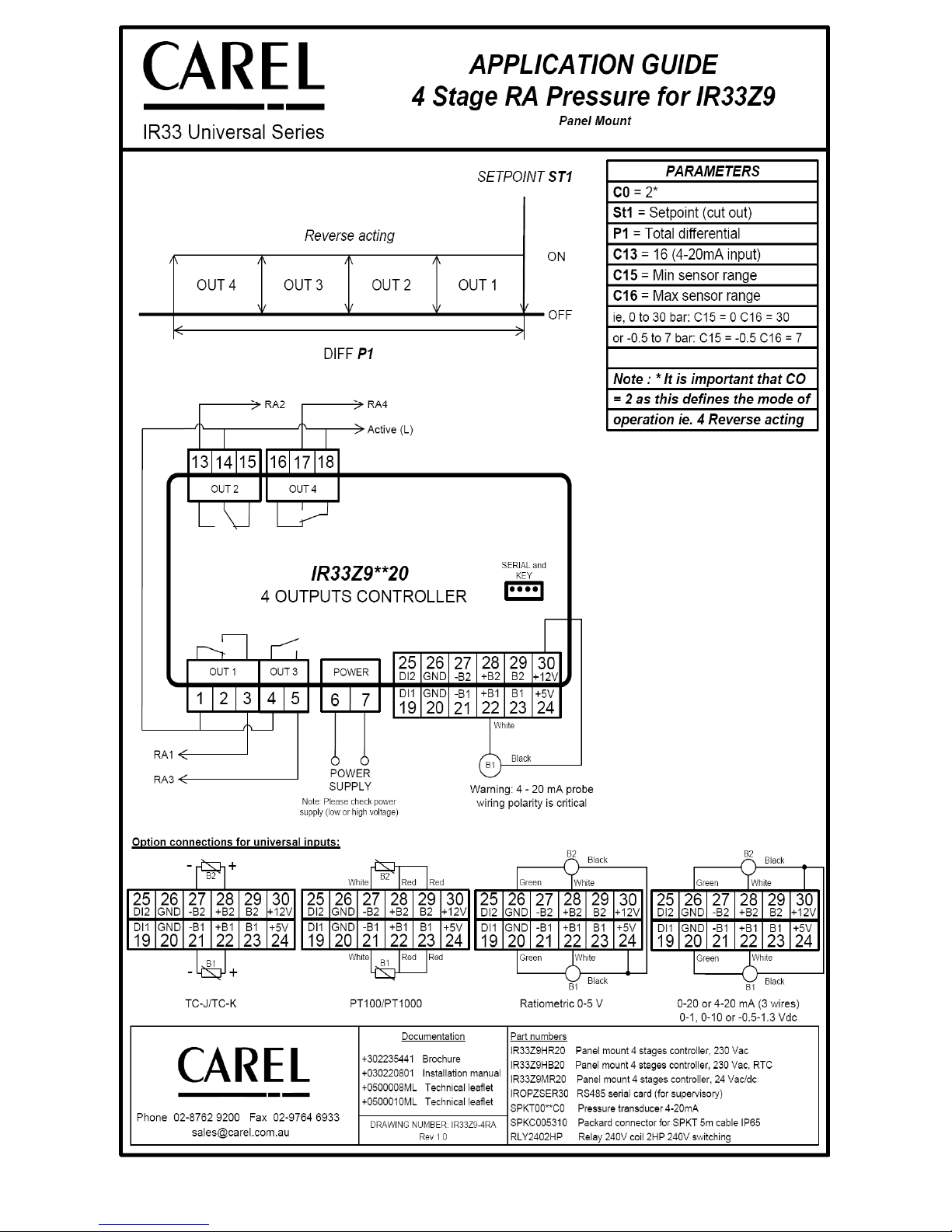

IR33Z9 – 4 stages Reverse Acting Pressure p. 35
DN33Z9 – 4 Stages Direct Acting Pressure p. 36
Standard pressure applications
34
35
36
37

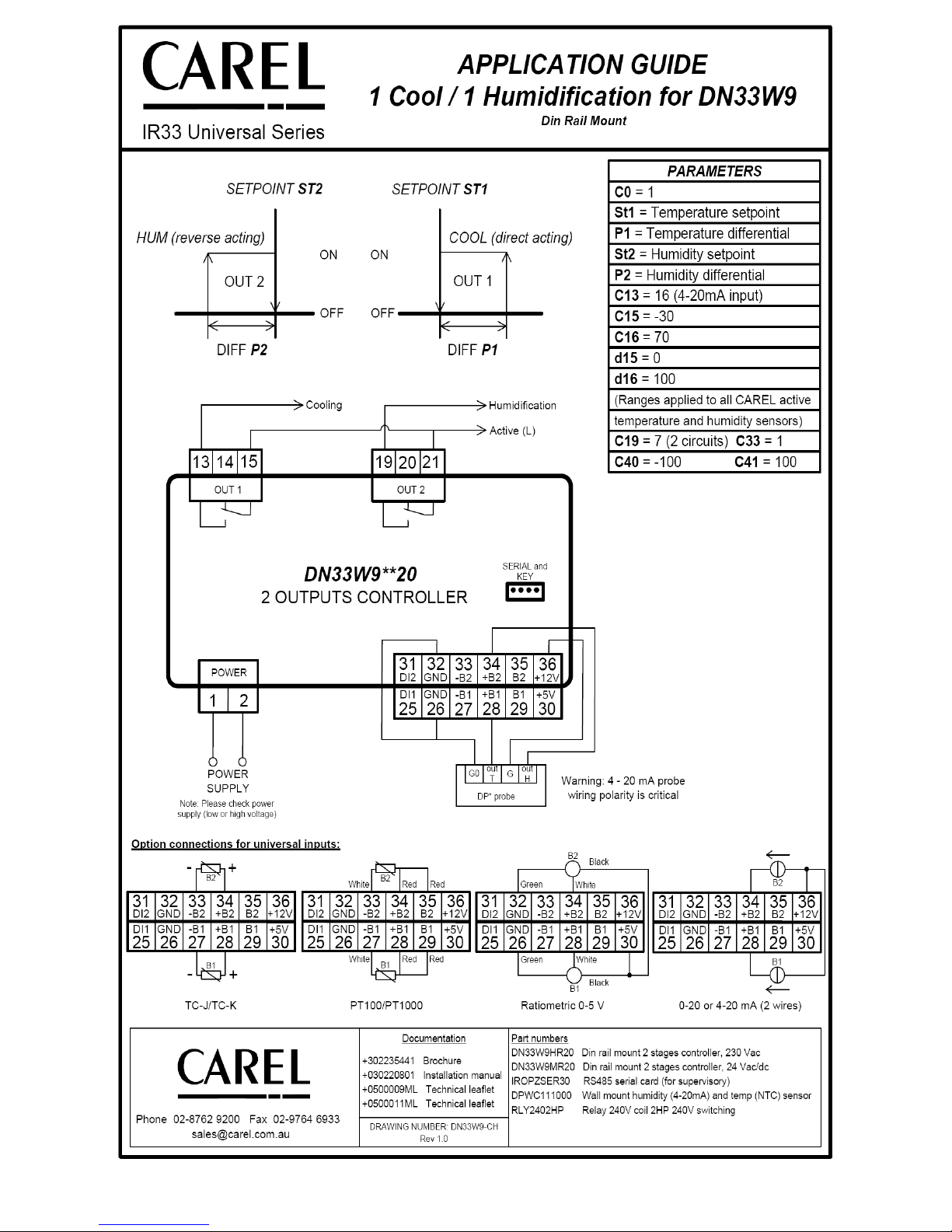

DN33W9 – 1 Cool / 1 Humidification p. 38
Combined applications
38
39
NTC probes
Other probes
1413306AXX: Brass pocket 8*60mm ¼ Gas for NTC probes.
1413309AXX: Stainless steel pocket 8*60mm ¼ Gas for NTC probes.
PTC0150000: Bulb sensor (not waterproof), 1.5m, -50 to +130°C.
SPKT00***0: Pressure probes. SPKC00*310: Cables for pressure probes.
DP*C***000: Combined humidity and temperature probes.
IROPZ48500: Serial card RS485 for IR33.
IROPZSER30: Serial card RS485 for DN33.
IRTRUES000: Remote control for IR33 and DN33 series universal.
IROPZKEY00: Programming key for IR33 (batteries).
IROPZKEYA0: Programming key for IR33 (230V).
Other accessories
Supervisory
PlantVisorPRO is a monitoring and telemaintenance system designed for medium to
large size installations. Its features are: centralisation of the information from the field
devices, monitoring of variables, management of alarms (through fax, SMS, emails or
relay), display of detailed and complete graphs, and a lot of other functions settable
according to your installation.
PlantWatchPRO is a PC-free logging and alarm solution ideal for small – medium size
installations. It features a large colour touch screen, can record variables and manage alarms.
For the connection of the RS485 network, we recommend the use of the Belden 8760
cable (1 pair, 18AWG screened cable with drain wire).
Note: The pre-configuration of PlantWatchPRO and PlantVisorPRO is available. Please contact us for more
information.
PP2STGSXE0: PlantVisorPRO2 Box with floating suction, parameter control and energy modules.
PWPROM0000: PlantWatchPRO with internal PSTN modem.
MODEMGSM: GSM modem for PlantWatchPRO (for SMS sending).
NTC***HP00 : NTC probe -50 to +50°C plastic IP67
NTC***WP00: NTC probe -50 to +90°C stainless steel IP68
NTC***HT00: NTC probe 0 to +150°C plastic IP55
*** lengths available: 008 = 0.8m, 015 = 1.5m, 030 = 3m, 060 = 6m, 120 = 12m.
Accessories
PP2STGSTE0: PlantVisorPRO2 Touch with floating suction, parameter control and energy modules.
40
Head Office – Sydney
Melbourne Office
Brisbane Office
PO Box 6809, Silverwater Business Ctr., NSW 1811
Ph: 02 8762 9200 Fax: 02 9764 6933
PO Box 558, Mt. Waverley, VIC 3149
Ph: 03 9550 0898 Fax: 03 9550 0878
Suite 28, Bldg 6, 2404 Logan Rd, Eight Mile Plains, QLD 4113
Ph: 07 3340 5107 Fax: 07 3341 4390
www.carel.com.au sales@carel.com.au
CAREL Australia Pty Ltd
A.C.N 067 528 269
IR33univ_AG rev1.4 – 29/09/2011
