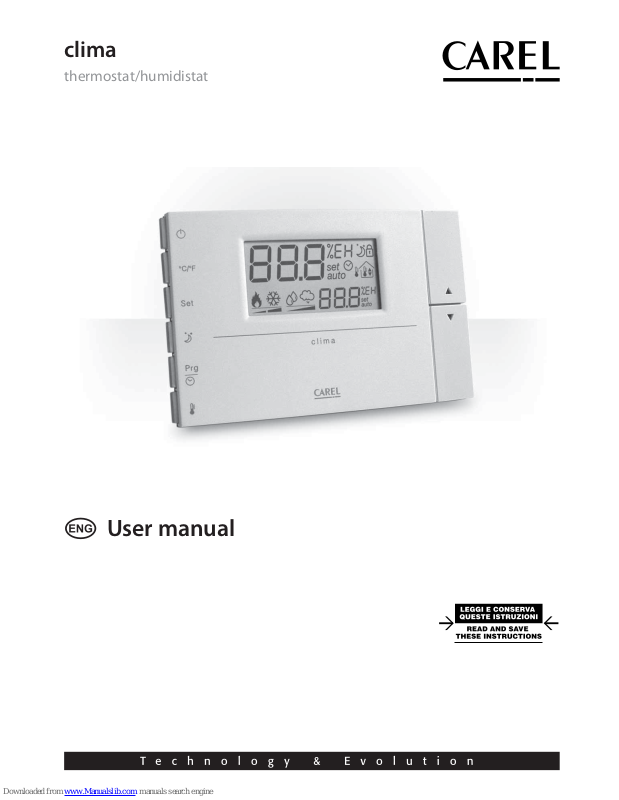

clima

User manual

thermostat/humidistat

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

IMPORTANT

CAREL bases the development of its products on decades of experience in HVAC, on the continuous investments in technological innovations to products, procedures and strict quality processes with in-circuit and functional testing on 100% of its products, and on the most innovative production technology available on the market. CAREL and its subsidiaries nonetheless cannot guarantee that all the aspects of the product and the software included with the product respond to the requirements of the  nal application, despite the product being developed according to start-of-the-art techniques. The customer (manufacturer, developer or installer of the  nal equipment) accepts all liability and risk relating to the con guration of the product in order to reach the expected results in relation to the speci c  nal installation and/or equipment. CAREL may, based on speci c agreements, acts as a consultant for the positive commissioning of the  nal unit/application, however in no case does it accept liability for the correct operation of the  nal equipment/system. The CAREL product is a state-of-the-art product, whose operation is speci ed in the technical documentation supplied with the product or can be downloaded, even prior to purchase, from the website www .carel. com. Each CAREL product, in relation to its advanced level of technology, requires setup / con guration / programming / commissioning to be able to operate in the best possible way for the speci c application. The failure to complete such operations, which are required/indicated in the user manual, may cause the  nal product to malfunction; CAREL accepts no liability in such cases. Only quali ed personnel may install or carry out technical service on the product. The customer must only use the product in the manner described in the documentation relating to the product. In addition to observing any further warnings described in this manual, the following warnings must be heeded for all CAREL products:

prevent the electronic circuits from getting wet. Rain, humidity and all • types of liquids or condensate contain corrosive minerals that may damage the electronic circuits. In any case, the product should be used or stored in environments that comply with the temperature and humidity limits speci ed in the manual; do not install the device in particularly hot environments. Too high • temperatures may reduce the life of electronic devices, damage them and deform or melt the plastic parts. In any case, the product should be used or stored in environments that comply with the temperature and humidity limits speci ed in the manual; do not attempt to open the device in any way other than described in the • manual; do not drop, hit or shake the device, as the internal circuits and mechanisms • may be irreparably damaged; do not use corrosive chemicals, solvents or aggressive detergents to clean • the device; do not use the product for applications other than those speci ed in the • technical manual.

All of the above suggestions likewise apply to the controllers, serial boards, programming keys or any other accessory in the CAREL product portfolio. CAREL adopts a policy of continual development. Consequently, CAREL reserves the right to make changes and improvements to any product described in this document without prior warning.

The technical speci cations shown in the manual may be changed without prior warning.

The liability of CAREL in relation to its products is speci ed in the CAREL general contract conditions, available on the website www .carel. com and/or by speci c agreements with customers; speci cally, to the extent where allowed by applicable legislation, in no case will CAREL, its employees or subsidiaries be liable for any lost earnings or sales, losses of data and information, costs of replacement goods or services, damage to things or people, downtime or any direct, indirect, incidental, actual, punitive, exemplary, special or consequential damage of any kind whatsoever, whether contractual, extra-contractual or due to negligence, or any other liabilities deriving from the installation, use or impossibility to use the product, even if CAREL or its subsidiaries are warned of the possibility of such damage.

DISPOSAL

The product is made from metal parts and plastic parts. IIn reference to European Union directive 2002/96/EC issued on 27 January 2003 and the related national legislation, please note that:

WEEE cannot be disposed of as municipal waste and such waste must be 1. collected and disposed of separately; the public or private waste collection systems de ned by local legislation 2. must be used. In addition, the equipment can be returned to the distributor at the end of its working life when buying new equipment. the equipment may contain hazardous substances: the improper use or 3. incorrect disposal of such may have negative e ects on human health and on the environment; the symbol (crossed-out wheeled bin) shown on the product or on the 4. packaging and on the instruction sheet indicates that the equipment has been introduced onto the market after 13 August 2005 and that it must be disposed of separately; in the event of illegal disposal of electrical and electronic waste, the 5. penalties

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Contents

1. INTRODUCTION 7

1.1 Models available ................................................................................................. 7

2. INSTALLATION 9

2.1 Assembly ..............................................................................................................9

2.2 Dimensions .......................................................................................................... 9

2.3 Electrical connections: .....................................................................................10

3. USER INTERFACE AND MODES 11

3.1 Display and buttons ......................................................................................... 11

3.2 Description of the buttons ............................................................................. 11

4. CONFIGURATIONS 13

4.1 Conﬁ guring the operating modes ................................................................ 13

4.2 Main parameters to be set ............................................................................. 14

4.3 Additional functions ......................................................................................... 14

5. FUNCTIONS 19

5.1 (T) temperature control with single output ................................................ 19

5.2 (T2) temperature control with double output ........................................... 19

5.3 (H) humidity control........................................................................................20

5.4 (T+H) temperature plus humidity control .................................................. 20

5.5 (T2 + H) two-stage temperature and humidity control ........................... 21

5.6 (T2A) automatic temperature control only ................................................ 21

5.7 (T2A + H) automatic temperature and humidity control .......................22

5.8 (T+H radiant ON/OFF) ON/OFF mode for radiant ﬂ oor systems ...... 24

5.9 Proportional control mode for radiant ﬂ oor systems

(code ADCF000610) ...............................................................................................24

6. TABLE OF PARAMETERS 26

6.1 Description of the parameters for the standard version ........................26

6.2 Additional parameters in version T+H for proportional

control of radiant systems ..................................................................................... 29

7. ALARMS AND SIGNALS 29

7.1 Table of alarms...................................................................................................29

8. TECHNICAL SPECIFICATIONS 30

8.1 Technical speciﬁ cations ..................................................................................30

8.2 Wiring ................................................................................................................30

9. APPENDIX 31

9.1 Supervisor parameters for CAREL and Modbus® protocol .................31

9.2 Software updates ............................................................................................36

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

1. INTRODUCTION

The thermostat-humidistat terminal is an instrument that can, according to the model chosen, control the ambient temperature and humidity. It can be used in various operating modes, which are described in this manual. Depending on the model, the following functions/components are included:

Built-in NTC temperature and humidity sensor with digital measurement. • Available on all humidistat codes, not available on thermostat-only codes. Remote NTC temperature sensor, with speci c temperature • compensation functions in the controller. Digital input from voltage-free or 24 Vac contact, with control function • for alarms, on/o , etc. 0 to 10 V output for controlling humidi ers, air-conditioners or •

condensing units. Two relay outputs with class 2 insulation from the rest of the instrument • for controlling the actuators. Advanced algorithms for operation in heating, cooling or automatic • mode. Special functions for the control of under oor heating, radiant  oors in cooling mode and temperature compensation functions. Timer and RTC clock for day and night operation Display in degrees Celsius/Fahrenheit• Serial option for remote control by supervisor.•

1.1 Models available

CLIMA controllers

The clima controller is available in various hardware models, which correspond to di erent possible combinations and operating modes. The following tables describe the possible operating modes for the various hardware models and the speci c features of each model. The various operating modes can be selected using the dipswitches at the rear of the instrument, as explained in chapter 4 “Con guring the operating modes”.

Possible operating mode

ADCA000110

ADCA000100

ADCD000110

ADCD000100

ADCA000210

ADCA000410

ADCF000210

ADCF000410

ADCF000610

√√√√

Basic temperature control only with one relay only (R2). The analogue output is associated with the temperature..

√√

Two-stage temperature control only, with two relays (R1 and R2). The analogue output is associated with the temperature.

T2A

√√

Two-stage temperature control only, with two relays (R1 and R2) and automatic control of cooling/heating mode. The analogue output is associated with the temperature. Other settings for this mode are available by parameter. See the chapter on “Functions”.

√√

Basic humidity control only with one relay only (R2) associated with humidi cation or dehumidi cation control. The analogue output is associated with the humidity.

T+H

√

Temperature and humidity control. One relay is associated with the temperature (R1), the other (R2) associated with humidi cation or dehumidi cation control. Analogue output associated with the humidity.

T2+H

√

Two-stage temperature and proportional humidity control. The two relays are associated with the temperature (R1 and R2), the analogue output is associated with the humidity.

T2A+H

√

Two-stage temperature and proportional humidity control with automatic control of the cooling/ heating mode. The two relays (R1 and R2) are associated with the temperature, the analogue output is associated with the humidity. Other settings for this mode are available by parameter. See the chapter on ‘“Functions”

T+H radiant ON/ OFF

√√√√√

Model for radiant systems, with ON/OFF control. Temperature control only or temperature and humidity control, according to the model purchased. If humidity control is available, the analogue output is associated with this.

T+H radiant proportional

√

Model for radiant systems, with proportional control. Temperature and humidity control.

Tab. 1.a

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Table of hardware codes:

Purchase code Hardware features Functions performed

ADCA000100 Standard thermostat

2 AI temperature: instrument, remote opt. 1 DO: relay output (R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage

Performs temperature control only in manual mode. Based on the set parameters, the thresholds for the activation of the relays and the analogue output are selected, according to the temperature measured by the instrument or the remote temperature sensor.

ADCA000110 Thermostat standard with RTC

2 AI temperature: instrument, remote opt. 1 DO: relay output (R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage 1 clock with backup

As for the previous model, however as this model comes with an internal clock, operation with time bands can also be set, 2 bands a day, the same for all 7 days of the week. In the event of power failures, the time is stored for a maximum of 2 days.

ADCA000210 Advanced thermostat with RTC

2 AI temperature: instrument, remote opt. 2 DO: relay outputs (R1 & R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage 1 clock with backup

Performs temperature control only in manual or automatic mode with time bands. Based on the set parameters, the thresholds for the activation of the relays and the analogue output are selected, according to the temperature measured by the instrument. This model has an internal clock and operation with time bands can be set, 2 bands a day, the same for all 7 days of the week. In the event of power failures the time is stored for a maximum of 2 days.

ADCA000410 Advanced thermostat with RTC & opticallyisolated DI

2 AI temperature: instrument, remote opt. 2 DO: relay output (R1 & R2) 1 DI: optically isolated 1 AO: 0/10 V voltage 1 clock with backup

As for the previous model, but with 24 V optically-isolated digital input..

ADCD000100 Standard humidistat

2 AI temperature: instrument, remote opt. 1 Humidity sensor 1 DO: relay output (R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage

Performs temperature or humidity control in manual mode according to the operating mode selected. If the T operating modes are selected, the humidity sensor is used for display only, and vice-versa if selecting H mode.

ADCD000110 Standard humidistat with RTC

2 AI temperature: instrument, remote opt. 1 Humidity sensor 1 DO: relay output (R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage 1 clock with backup

ADCF000210 Advanced thermostat/ humidistat with RTC

2 AI temperature: instrument, remote opt. 1 Humidity sensor 2 DO: relay outputs (R1 &R2) 1 DI: voltage-free contact 1 AO: 0/10 V voltage 1 clock with backup

Performs temperature and humidity control in manual or automatic mode with time bands. Based on the set parameters, the thresholds for the activation of the relays and the analogue output are selected, according to the temperature measured by the instrument. This model has an internal clock and operation with time bands can be set, 2 bands a day, the same for all 7 days of the week. In the event of power failures the time is stored for a maximum of 2 days.

ADCF000410 Advanced thermostat/ humidistat with RTC & optically-isolated DI

2 AI temperature: instrument, remote opt. 1 Humidity sensor 2 DO: relay outputs (R1 & R2) 1 DI: optically isolated 1 AO: 0/10 V voltage 1 clock with backup

As for the previous model, but with 24 V optically-isolated digital input.

ADCF000610 Advanced thermostat/ humidistat for radiant applications

2 AI temperature: instrument, remote opt. 1 Humidity sensor 2 DO: relay outputs (R1 & R2) 1 DI: optically isolated 1 AO: 0/10 V voltage 1 clock with backup

Performs proportional control using a temperature modulating valve in radiant systems ( oor, ceiling,...). The built-in sensor is used to control the room temperature and the remote sensor to control the water outlet temperature.Relay (R2) is dedicated to humidity control, relay (R1) is dedicated to ON/OFF room temperature control.

Tab. 1.b

Options for CLIMA (to be ordered separately)

Purchase code Functions performed ADCF006500

Remote temperature-humidity sensor in the version for duct applications. Includes 3 metre connection cable.

Note: The remote temperature-humidity sensor must be used as an alternative to the built-in temperature-humidity sensor. Use

speci c HW models (ADCA***) or remove the built-in sensor, as explained in the paragraph “Remote temperature/humidity sensor” (page 17).

IROPZ48500

Adapter for the RS485 serial connection, used to connect the controller to a supervisory network (CAREL or Modbus® protocol)

IROPZKEY00

Key with battery for copying the parameters (Up-DownLoad), used to duplicate the Setup Parameters for all eight models (selected by dipswitch) with speci c values for each model.

IROPZKEYA0

Key with power supply (from mains) for copying the parameters (Up-DownLoad).

Tab. 1.c

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

2. INSTALLATION

Below is a description of the recommended operations for correct installation.

2.1 Assembly

Open the product by detaching the front part from the mounting base, as shown in Fig. 2.a:

Using a screwdriver, remove the screw holding the tab in the • opening. Once having removed the screw, slide the plastic tab as shown in the •  gure so as to remove it from the instrument and be able to lever the catch. To open the instrument, press the tab on the front by inserting a  at-• head screwdriver into the slit in the middle on the bottom of the case and at the same time  ip the front panel upwards.

clock

set

mode

fan

hold

resume

aria

clock

set

mode

fan

hold

resume

aria

Mode

Fig. 2.a

Once having completely removed the cover of the instrument, the two •

parts remain connected by a  at cable that can be disconnected from the front panel. Fasten the bottom of the clima to the wall using the screws contained • in the packaging. For drilling, use the template on the rear of the packaging To connect the wires to the terminal block, remove the terminal covers • by squeezing the two  ns. Make the required connections according to the model chosen,

•

running the connection cables through the hole in the middle of the bottom shell and connecting them to the terminal block, observing the indications on the label. Separate the connection and control cables from the relay cables. The wiring diagrams are shown in paragraph

2.3.

Important: Make sure all the power supply lines have been

connected, both low voltage (24 Vac/dc) and, where necessary, high voltage for the relays (230 V), before reconnecting the front part of the instrument using Front-Rear  at cable.

Note: For the purposes of electrical safety (EN60730-1), once the

controller has been installed, tighten the plastic tab in the housing for opening the instrument.

Accessories and dipswitches (Fig. 2.b)

Connector Function

J1 - Supervisor serial connection using code IROPZ48500.

- Key connector for copying the parameters. The serial connection, if used, must be momentarily disconnected..

J2 Used to connect the remote temperature and humidity

sensor ADCF006500. Also use the centre screw for the lug

connected to the cable shield. FLAT Front-rear

The  at front/rear connection cable must be reconnected

in the position de ned by the plastic part to ensure correct

polarity Dipswitches For con guring operation and cooling/heating,

humidi cation/dehumidi cation modes

Tab. 2.a

J2 = sonda esterna T+H - ADCF006500

J1 per opzione

seriale o chiave di programmazione

FLAT Front-Rear

Dip-switches

Fig. 2.b

2.2 Dimensions

For installation, see the drilling template included in the packaging.

clima

135

Fig. 2.c

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

2.3 Electrical connections:

Fig. 2.d

Models with one relay only:

Code Description

ADCA000100 temperature control ADCA000110 temperature control ADCD000100 humidity control ADCD000110 humidity control

Tab. 2.b

Models with two relays and voltage-free digital input:

Code Description

ADCA000210 temperature control ADCF000210 temperature & humidity control

Tab. 2.c

Models with two relays and optically-isolated digital input:

Code Description

ADCA000410 temperature control ADCF000410 temperature & humidity control ADCF000610 Temperature & humidity control of radiant  oors,

proportional mode relay 2: used for humidity relay 1: used for temperature AO: analogue output for water mixing valve control remote NTC for water temperature ( oor)

Tab. 2.d

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

3. USER INTERFACE AND MODES

3.1 Display and buttons

The  gures below show the display and the representation of the corresponding symbols

side programming buttons

LCD display

immediately change the current set point

clima

Fig. 3.a

Description of the display

3 42

91011

Fig. 3b

Key:

LARGE  eld - Displays the temperature/humidity;1. Mode for setting the active value on the large display;2. Night mode symbol. If o = daytime mode;3. Lock mode. The parameter is not accessible;4. Active time bands;5. Outside/inside/maximum/minimum temperature symbol;6. Mode for setting the active value on the small display;7. Auto operating mode;8. SMALL  eld - Displays the temperature/humidity;9.

Dehum. (10.

) /humid. ( ) operation. When the ramp symbol is on the

corresponding mode is active;

Heating (11.

) /cooling ( ) operation. When the ramp symbol is on the corresponding mode is active. In the clima models with 2 relays, the 2 segments come on independently. In the clima models with 1 relay the 2 segments are either both on or o .

3.2 Description of the buttons

Button Meaning

CLIMA controller On/O . If the remote ON/OFF digital input is connected, the function of the button may be disabled..

Selects the temperature display mode, degrees Celsius or Fahrenheit. Whenever pressed switches the temperature units.. Used to display and where necessary change, using the UP and DOWN buttons, the set point displayed in the SMALL  eld.

If held for more than 5 sec accesses the parameters menu. To scroll the various parameters use UP and DOWN. To edit hem press the SET button a second time and to exit the parameters menu press the PRG button. Access to the parameters is protected by password if parameter PS is enabled. Change mode manually: activates the opposite function (and the corresponding set point) to the current (night if day or day if night), for the set time. To change or reset the timer use the UP and DOWN buttons to increase or decrease the time. Press a second time to exit and return to the main menu. If sleep mode is already active, pressing the button shows the time remaining on the timer.

E.g..: if the clima is in Night mode (moon symbol on) from time band, pressing this button activates daytime mode (moon symbol o ) for the set time. Accesses the menu for setting the clock, the time bands, and the default value of the timer. When  rst pressed displays the current time (RTC); to display the other parameters, use the UP and DOWN arrows. To set a new value, press SET when displaying the desired parameter and change the value using the UP and DOWN buttons. Press a second time to exit and return to the main menu. Accesses the menu for displaying the temperature: current, maximum and minimum outside (from instrument power on), inside and outside. To display the various temperatures, press the button repeatedly. Their meaning is displayed in the box with the home symbol.

Also displays the value of the analogue output when “Out” is shown in the SMALL  eld From the main menu increases the value of the set point displayed in the LARGE  eld. In the other menus displays the variables or the parameters, or alternatively sets the value after having pressed SET. From the main menu decreases the value of the set point displayed in the LARGE  eld. In the other menus displays the variables or the parameters, or alternatively sets the value after having pressed SET

Tab. 3.a

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

The values displayed in the LARGE and SMALL  elds (Fig. 3.b) depend on the setting of parameter dyS, as shown in the following table:

dyS temperature only LARGE FIELD SMALL FIELD Valid for control:

1 temperature temperature set point T, T2, T2A 2 temperature set point temperature 3 temperature set point 4 temperature

dyS humidity only LARGE FIELD SMALL FIELD Valid for control:

1 humidity humidity set point H 2 humidity set point humidity 3 humidity set point 4 humidity

dyS temperature and humidity LARGE FIELD SMALL FIELD Valid for control:

1 humidity temperature T+H, T2+H, T2A+H, T+H radiant 2 temperature humidity 3 temperature set point humidity set point 4 humidity set point temperature set point

Tab. 3.b

Con gurations for displaying temperature and humidity.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

4. CONFIGURATIONS

4.1 Con guring the operating modes

Before closing the instrument again, the chosen model must be con gured. See the table of settings allowed for the possible con gurations according to the model purchased.

Important: The con gurations not allowed for the speci c

hardware can be selected, yet obviously should be avoided, as not all the operations are available; the installer is responsible for checking that this will not cause operating problems in the installation. See the chapter on “Functions“ for a detailed description of each individual operating mode.

Settings allowed for each model

Dip1

Dip2

Dip3

Model

ADCA000100

ADCA000110

ADCD000100

ADCD000110

ADCA000210

ADCA000410

ADCF000210

ADCF000410

ADCF000610

OFF ON OFF

√√√√

Basic temperature control only with one relay only (R2). The analogue output is associated with the temperature..

OFF OFF ON

√√

Two-stage temperature control only, with two relays (R1 and R2). The analogue output is associated with the temperature.

OFF ON ON

T2A

√√

ON OFF OFF

√√

Basic humidity control only with one relay only (R2) associated with humidi cation or dehumidi cation control. The analogue output is associated with the humidity.

ON ON OFF

T+H

√

ON OFF ON

T2+H

√

Two-stage temperature and proportional humidity control. The two relays are associated with the temperature (R1 and R2), the analogue output is associated with the humidity.

ON ON ON

T2A+H

√

Two-stage temperature and proportional humidity control with automatic control of the cooling/heating mode. The two relays (R1 and R2) are associated with the temperature, the analogue output is associated with the humidity. Other settings for this mode are available by parameter. See the chapter on ‘“Functions”

OFF OFF OFF

T+H radiant

ON/OFF

outputR2outputR2outputR1outputR1output

associated with this. Based on radiant model selected (see tab. 4.q)

T+H radiant

proportional

√

Model for radiant systems, with proportional control.

Temperature and humidity control.

Tab. 4.a

Dipswitch con gurations

The 4 dipswitches are used to set the instrument for the required control mode.

Dip 1, 2, 3

Control mode as per the above table

Dip 4

OFF – cooling/dehumidi cation ON – heating/humidi cation

Tab. 4.b

The activation outputs (relays) are assigned to temperature and humidity control as per the table below:

Relay 1 Relay 2 Model

- temperature T temperature temperature T2, T2A

- humidity H temperature humidity T+H. T2+H, T2A+H, T+H rad.

Tab. 4.c

The activation outputs (relays) are assigned to temperature and humidity control as per the table below:

Table of manufacturer default settings

Purchase code

Control set Dip1 Dip2 Dip3 Dip4 Model

ADCA000100 ADCA000110

T OFF ON OFF OFF Basic temperature control only with one relay only. Analogue output associated with the

temperature.

ADCA000210 ADCA000410

T2A OFF ON ON OFF Two-stage temperature control only, automatic cooling/heating, with 2 relays.

The analogue output can be con gured for cooling or heating..

ADCD000100 ADCD000110

H ON OFF OFF ON Basic humidity control with one relay only. Analogue output associated with the humidity.

ADCF000210 ADCF000410

T2A+H ON ON ON ON Two-stage temperature and humidity control, automatic cooling/heating with 2 relays associated

with the temperature. Analogue output associated with the humidity.

ADCF000610

radiant prop. OFF ON OFF ON T+H control for radiant systems, proportional control model.

Tab. 4.d

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

4.3 Additional functions

The controller, as well as the control algorithms for the various types of applications (air-conditioners, boilers, heat pumps, condensing units,...), features a series of additional functions, as described below.

Change night/day mode manually (NIGHT)

This activates the opposite function to the current (night if day or day if night), for the set time. Pressing the NIGHT button once accesses the timer menu and displays the duration. To change the duration of the temporary mode use the UP/DOWN buttons. To change the value of the timer permanently, access the Prg menu and set parameter SLP. To set the current timer to zero and return the instrument to the original mode, press the NIGHT button, the remaining time is displayed, then press DOWN until reaching the value 0. The instrument, after having brie y displayed the message OFF SLP, automatically returns to the main menu. Once having set the timer, pressing the NIGHT button displays the time remaining on the timer. This value can be changed at any time. To exit the menu press the NIGHT button again.

Example of operation with time bands:

RTC:  tted and con gured, the time is 15:55, the symbol is on dAy: 8:00 nIt: 16:00 At 16:00 the controller will switch to Night mode with a lower (in heating) or higher (in cooling) temperature setting. Assuming the user wants to extend Day mode for a further 3 hours, having to work late in the o ce.

The following operations are required:

press the NIGHT button;• set the timer to 3h and 00’ using the DOWN button;• press the NIGHT button to con rm the setting.•

The clima returns to Day mode with the corresponding set point. It will automatically return to Night mode according to the time bands when the timer reaches zero.

4.2 Main parameters to be set

AThe parameters for each operating mode also feature a default value, and these values can be restored by running the “Factory set” operation. The default values are the same for all eight modes. See the table of parameters for details of the default values and settings.

Initially at least the following parameters need to be checked/set:

SET POINT:

• depending on the operating mode, di erent set points

are sued. To set these, access (SET button – 5 seconds) the mode for setting the parameters and set the corresponding values. For the current mode only, the value can be accessed directly using UP, DOWN or set, UP, DOWN (for the SMALL  eld). The following set points need to be de ned:

set point for temperature control•

Daytime (def. 20.0 °C) and night set point (def. 18.0 °C) in heating – Daytime (def. 24.0 °C) and night set point (def. 26.0 °C) in cooling –

set point for humidity control•

Humidi cation set point (def. 30.0 % RH) – Dehumidi cation set point (def. 70.0 % RH) –

Clock, • TIME BANDS Prg/ (clock): Press the corresponding button to display and if necessary set the default duration of the change mode timer, display or set the RTC clock and set the Day and Night time bands.

rtC clock hh:mm SLP manual changeover duration def. 8 hours

dAy start day band def. 08:00 nIt start night band def. 20:00

Once having displayed the desired parameter using the UP/ DOWN buttons, press SET and the parameter starts  ashing. Edit the value using the UP/DOWN buttons and then press SET. To exit the menu, press the PRG button again To disable the time bands function, set parameter rtC o :

Select parameter rtC using PRG/CLOCK and set the value using the

•

DOWN button When reaching 00:00 using the DOWN button the function will be • o .

When parameter rtC is set to o the operating mode is always daytime, and consequently only the daytime set points are used, the night settings are only used when the NIGHT button is pressed, manually changing mode. The same is true for models without the RTC function. When the time bands are set, the CLOCK symbol is shown on the display.

PARAMETERS:

• check/set the other parameters (dIF, dS1,...) based on

the mode used.

The controller is then ready for operation:

Start control by pressing the ON button (or activating the digital input,

•

if featured).

Note: The values of the parameters are speci c for each individual

operating mode (T, T2, T2A,...), the user can therefore de ned a di erent set of parameters for each of the 8 control modes. The speci c set of parameters will be loaded by the clima when changing the con guration of the dipswitches.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Functions that can be associated with the digital input

According to the model chosen, the digital input can be connected to:

a voltage-free ON/OFF contact;• a 24 Vac voltage signal with optically-isolated reference.•

The digital input can be used for the functions listed in the table. These are selected by setting parameter dI from the parameters menu. Parameter POL is used to de ne the polarity of the contact. The digital input has priority over all other settings as regards the

Digital input con guration

OFF: disabled 1: select remote cooling/heating 2: remote ON/OFF 3: select day/night (alternative set point) 4: remote alarm, for example from compactSteam

OFF-4 OFF -

POL

Digital contact polarity Used to choose whether to consider the digital input active when closed or open or alternatively whether or not there is voltage in the optically-isolated version.

Voltage-free contact: nE: active when the input is closed PO: active when the input is open Optically isolated: nE: active when voltage is present at the input PO: active when voltage is not present at the input

nE, PO nE -

Tab. 4.e

Sensor calibration

To make up for any errors due to the length of the cables or the sensors connected, the controller features two parameters for calibrating the values read by the sensors.

The following parameters are involved:

AUTO humidity control

In addition to the modes featured by the control algorithms, the humidity can be controlled automatically, based on the reading of the outside temperature sensor. The aim of this type of control is to simplify the setting of the clima, changing the humidity control according to the outside environmental conditions and therefore minimise the discomfort of the user when moving into/out of the air-conditioned environment. This operating mode is selected by setting parameter AUT. According to the level set using the up/down buttons, with a value from

1 to 7, a di erent humidity set point trend is de ned. To disable this operating mode, in the parameters menu set the value of Aut = 0. AUTO mode for the humidi cation control is only possible if the outside temperature sensor is installed.

code description of the parameter range def. UOM

CAL+ Int

Inside temperature calibration, digital sensor or NTC Within a maximum of ± 10 °C

-10 to 10 0.0 °C

CAL+ ESt

Outside temperature calibration, NTC sensor Within a maximum of ± 10 °C

-10 to 10 0.0 °C

CAL+HUn

Digital humidity sensor calibration. Within a maximum of ± 15% rH

-15 to 15 0.0 % rH

Tab. 4.f

code description of the parameter range def. UOM

AUt

Humidity set point level compensated according to the outside temperature

If humidity control is featured, the ambient humidity is controlled with an automatic set point, de ned from 1H to 7H using the buttons, as speci ed in Table 4.g. If set to OFF, the mode is disabled. Setting one of the levels shown in the table, the controller independently sets a humidity set point in relation to the outside temperature measurement.

OFF

1H to 7H

OFF -

Table: humidity set point according to the setting of AUT (outside temperature in degrees °C)

Level Below: -23 °C -23 °C to -17 °C -17 °C to -12 °C -12 °C to -6 °C -6 °C to -1 °C -1 °C to 4 °C 4 °C to 10 °C Above: 10 °C

1 10% 10% 10% 10% 15% 20% 25% 10%

2 10% 10% 10% 15% 20% 25% 30% 10% 3 10% 10% 15% 20% 25% 30% 35% 10% 4 10% 15% 20% 25% 30% 35% 40% 10% 5 10% 20% 25% 30% 35% 40% 45% 10% 6 10% 25% 30% 35% 40% 45% 45% 10% 7 10% 30% 35% 40% 45% 45% 45% 10%

Tab. 4.g

function it has been enabled for. That is, if dI = 3, the digital input is used to select Day/Night mode, pressing the NIGHT button will have no a ect. If attempting to control the function enabled by the digital input using a button, the clima will show the LOCK symbol to indicate that the operation is disabled. The humidi er alarm dl=4 is immediate, with automatic reset and signal only (no action on the outputs).

code description of the parameter

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Average of the temperature readings between the built-in sensor and the remote sensor

This temperature control mode is based not only on the reading of the built-in sensor (TI), but also the outside temperature sensor (TE). It is in essence a weighted average of the two temperature measurements:

Tm = (TI * (100-nEd) + TE *nEd)/100 Def.=0 (built-in sensor only)

This operating mode is only possible if is the remote sensor is installed, otherwise the instrument shows a remote sensor error and only uses the built-in sensor for control. The average value is both used for control and shown on the display.

code description of the parameter range def. UOM

nEd

Parameter for control with average value sensor values

De nes the average control temperature (Tm), based on the weighted average of the inside temperature (TI) and outside temperature (TE).Both the measurements must be valid and Tm is achieved with the following formula:

Tm = (TI * (100- nEd) + TE * nEd) /100

The average temperature calculated is used for control and display.

0 to 100 0.0 %

Tab. 4.h

RS485 serial communication protocol

The controller features serial communication to the supervisor using CAREL protocol V3.0 and higher and the Modbus® RTU protocol. To connect to the supervisor over RS485, option IROPZ48500 is required.

The transmission speed and communication protocol settings are shown in the table: :

code description of the parameter range def. UOM

SEr

Select serial communication protocol

0: CAREL protocol 9.6 kb/s 3: Modbus® 19.2 kb/s, even parity, 8 bits, 1 stop 1: CAREL protocol 19.2 kb/s 4: Modbus® 9.6 kb/s, no parity, 8 bits, 2 stop 2: Modbus® 9.6 kb/s, even parity, 8 bits, 1 stop 5: Modbus® 19.2 kb/s, no parity, 8 bits, 2 stop

0 to 5 1 -

Tab. 4.i

Temperature set point compensation based on the outside temperature

For control that considers the outside temperature, the outside temperature sensor can be connected to compensate the temperature set point. Such compensation, once activated, is the same for all control modes, day, night, cooling and heating. Parameters Cts and Ctt de ne the di erence between the set point and the outside temperature above which compensation is activated. Parameter CSt de nes the compensation factor and CdF the maximum set point compensation allowed.

Cooling control:

SP comp. = setpoint + (Text – set point – CtS) * CSt

Heating control: SP comp. = setpoint – (set point – Text – Ctt) * CSt

The maximum correction value is limited by parameter CdF, that is, if the compensation calculated is higher (cooling) or lower (heating) than CdF, the controller uses ± CdF as the maximum compensation value. The weight of the correction is de ned by CSt, set in tenths of °C from

-1 to +1.

SP comp.

CdF

CSt positivo regolazione

CSt negativo regolazione

CdF

Ctt

CtS

Set point estateSet point inverno

temperatura esterna

Fig. 4.j

code description of the parameter range def. UOM

CSt

Parameter CSt enables and sets the gain for set point compensation according to the outside temperature. If CSt = 0 compensation is disabled. Also see parameters Ctt and CtS.

-1 to 1 0.0 °C

CdF

The maximum value for the compensated set point is limited by this parameter. In heating mode, if the di erence calculated for set point compensation is higher than CdF, the instrument uses CdF as the maximum di erence from the set point.Similarly, in cooling mode if the di erence calculated for set point compensation is less than CdF, the instrument uses CdF as the maximum di erence from the set point.

0 to 20 2.0 °C

Ctt

Temperature set point compensation in heating based on the outside temperature measurement: compensated set point = set point – (set point – Text – Ctt) * CSt

Compensation is activated only if: Text < set point – Ctt

0 to 25 10.0 °C

CtS

Temperature set point compensation in cooling based on the outside temperature measurement:compensated set point = set point + (Text – set point – CtS) * CSt

Compensation is activated only if: Text > set point + CtS

0 to 25 10.0 °C

Tab. 4.j

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Control the outputs via RS485 serial connection

The status of the analogue output and the relays on the instrument can be controlled via a serial connection to a supervisor.

The variables are read only if LIn=no, or read/write if LIn=yES The variables are described in the table of supervisor variables and must be used according to the current mode (T, T2, T2A,...), the status on the LCD automatically shows the outputs.

Important: This function, if enabled, completely replaces the

control performed by the instrument. In this operating mode, together with the outputs, the symbols displaying the operating status of the instrument are also activated according to the current mode.

Note: If the instrument is not queried for more than two minutes,

“override” mode is disabled:

all the outputs are disabled;• the no link error (ELn) is signalled on the display.•

code description of the parameter

LIn

Enabling this parameter allows the outputs to be controlled directly via the serial connection. Warning, if enabled no control is performed independently by the instrument. If active and the supervisor does not query the instrument for more than two minutes, the outputs are automatically disabled and the no link error (ELn) is signalled on the display. no: The function is disabled. yES: The function is enabled.

no, yES no -

Tab. 4.k

Control cooling/heating mode via RS485 serial connection

This function allows the operating mode, cooling/heating, to be selected by parameter (including via serial connection), rather than on the dipswitches. If the function is enabled, the dipswitch setting is ignored and the operating mode is de ned using parameter EI.

code description of the parameter range def. UOM

Control cooling/heating operating mode Enables the possibility to de ne the operating mode, cooling/heating, by parameter rather than by DIP 4. dIS: Parameter EI is disabled, cooling/heating mode is selected by DIP 4 on the rear. En: Parameter EI is enabled, cooling/heating mode is selected by parameter EI.

dIS, En dIS -

Programming operation cooling heating

Select cooling/heating operation Selects the mode, cooling or heating. This parameter is only active if this mode is enabled by the previous parameter. E: The instrument works in cooling mode I: The instrument works in heating mode

E, I E -

Tab. 4.l

Remote temperature/humidity sensor

For the models without the humidity sensor already installed, a remote sensor for ducts (temperature + humidity) can be connected, up to a maximum distance of 3 m. The sensor is purchased separately, code ADCF006500. This code includes the wired cable in the maximum available length (3 m). The remote temperature/humidity sensor can be installed on all ADCA*** codes.

Note: The remote temperature/humidity sensor cannot be

connected to controller codes ADCF*** and ADCD*** that already have a built-in humidity sensor, as this would cause the temperature and humidity measurements to freeze. To retro t a clima model ADCF*** or ADCD*** already installed with a remote sensor, open the controller and remove the plug-in card with the temperature/humidity sensor from the PCB, as shown in the  gure.

J2 = sonda esterna T+H - ADCF006500

Sonda interna da rimuovere

J1 per opzione

seriale o chiave di programmazione

FLAT Front-Rear

Dip-switches

Fig. 4.k

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Password

On all models a password can be set for accessing the parameters, using parameter PS. Once the value of parameter PS has been set (other than zero), this value must be entered in order to access the parameters.

Note: Make sure the password is kept in a safe place, as without it

the parameters can no longer be accessed. The value can only be

reset from the supervisor or using the parameter copying key.

code description of the parameter

Password for accessing the parameters

Set to 0: no password is required to access the parameters. Set other than zero: the same value must be entered to access the parameters.

0 to 999 0 -

Tab. 4.m

Antifreeze

To prevent the formation of ice and frost, the controller features the antifreeze function, which activates the relay dedicated to the temperature function regardless of the control mode, when in heating operation. Antifreeze is available in all control modes, apart from humidity only, and the corresponding relay is activated when the temperature falls below 5 °C. The function is also active when the instrument is o and is enabled 20 seconds after shutdown.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

range def. UOM

This chapter describes the temperature and humidity control modes available. The control modes for the di erent models of clima are based on a set of parameters, divided into two levels:

Level 1, basic:

• main settings, always required;

Level 2, advanced:• used to customise the features of the controller.

Important note: Some parameters included in the advanced

level, are forced to take on default values in the basic level or are linked to other parameters in the basic level. This rule especially applies to the control di erentials. In each operating mode, the links between the various basic and advanced levels are speci ed.

Note:

Parameters with forced values are NOT visible from the supervisor:

if level 1 is active, the level 2 parameters are not used but rather • replaced by the default values or by the link value with the level 1 parameters; the supervisor can read and set the level 2 parameters that are however not e ectively used for the control functions. the level 2 parameters are e ectively used when level 2 is activated.•

5.1 (T) temperature control with single output

This is used in simple applications to send a start signal to an airconditioner or heat pump/boiler via the relay. The analogue output can be used alternately or together with the relay output to:

control a modulating hot or cold water valve;• as an additional proportional control step to the relay.•

Dipswitch con guration:

dip1: OFF dip2: ON dip3: OFF

This control mode is available in both cooling and heating mode, the selection is made using dipswitch 4, or from the supervisor serial connection or digital input. Depending on the value of LE (level), either only the basic parameters (LE=1) or all (LE=2) can be set.

LE=1

Set point

Temp.

Output

dIF

10 V

0 V

Fig. 5.a

LE=2

Set point

Temp.

Output

dS1

dFA

dIF

10 V

0 V

dSA

Fig. 5.b

Single-stage temperature control only in heating mode. In cooling mode the situation is diametrically opposite with reference to the set point.

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF

temperature di erential 1.0 °C 1 -

dFA

analogue output di erential 1.0 °C 2 = dIF

dS1

relay o set 0.0 °C 2 = 0

dSA

analogue output o set 0.0 °C 2 = 0

Tab. 5.a

Note: When LE=1 proportional and ON/OFF control overlap,

therefore modifying parameter dIF changes the di erential for

both.

Note: Passing to level 2 allows the two types of control,

proportional and ON/OFF, to be positioned independently. Parameters dSA and dS1 can have both positive and negative values, allowing the two types of control, proportional and ON/OFF, to be set as desired.

5.2 (T2) temperature control with double output

Two-stage temperature control only used to send a start signal to an airconditioner or heat pump/boiler with two step operation. The analogue output can be used alternately or together with the relay output to:

control a modulating hot or cold water valve;• as an additional proportional control step to the relay.•

Dipswitch con guration:

dip1: OFF dip2: OFF dip3: ON

This control mode is available in both cooling and heating mode, the selection is made using dipswitch 4, or from the supervisor serial connection or digital input.

LE=1

Set point

Output

Temp.

dIFdIF

10 V

0 V

Fig. 5.c

LE=2

Set point

Output

Heating

Temp.

dS1

dIFdF2

dSAdFA

Fig. 5.d

Two-stage temperature control only in heating mode. In cooling mode the situation is diametrically opposite with reference to the set point.

5. FUNCTIONS

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay 1 di erential 1.0 °C 1 dF2 relay 2 di erential 1.0 °C 2 = dIF dFA analogue output di erential 1.0 °C 2 = 2 * dIF dS1 relay o set 0.0 °C 2 = 0 dSA analogue output o set 0.0 °C 2 = 0

Tab. 5.b

Note: When LE=1 proportional and ON/OFF control overlap,

therefore modifying parameter DIF changes the di erential for

both.

Note: Passing to level 2 allows the two types of control,

5.3 (H) humidity control

This type of control is only possible on the models  tted with digital humidity sensor (ADCD******, ADCF******) It is used in simple applications to send a start signal to a humidi er or dehumidi er. The analogue output can only be used for humidi cation control. Examples of using of the analogue output:

for proportional humidity control by CAREL humidi ers, for example • compactSteam as an additional step to the relay for humidity control.•

Dipswitch con guration:

dip1: ON dip2: OFF dip3: OFF

The control mode is selected using dipswitch 4 located on the rear. dip4 = ON for humidi cation dip4 = OFF for dehumidi cation

LE=1

10 V

0 V

DIP 4 = ON DIP 4 = OFF

dFH

dFd

% U.R

Output Output

Set point umidiﬁca Set point deumidiﬁca

% U.R

Fig. 5.e

LE=2

10 V

0 V

DIP 4 = ON DIP 4 = OFF

dFH dFH dFd

dSA

% U.R

Output Output

Set point umidiﬁca Set point deumidiﬁca

% U.R

R2 R2

Fig. 5.f

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

humidi cation set point 50.0 % rH 1 -

dehumidi cation set point 70.0 % rH 1 -

dFH humidi cation di erential 5.0 % rH 1 dFd dehumidi cation di erential 5.0 % rH 1 dSA analogue output o set 0.0 % rH 2 =0

Tab. 5.c

5.4 (T+H) temperature plus humidity control

This type of control is only possible on the models  tted with digital temperature + humidity sensor (ADCF******) It is used in simple applications, with one stage for the temperature and one for the humidity, to send a start signal to an air-conditioner or heat pump/boiler via the relay. The analogue output is only activated in humidi cation mode.

Dipswitch con guration:

dip1: ON dip2: ON dip3: OFF

Control is available in both cooling and heating (dip4).

DIP 4 = ON DIP 4 = OFF

dFHdFH

dSA

% U.R % U.RdFd

dS1 dS1

Temp. Temp.

Output Output

Set point invernale Set point estivo

Set point umidiﬁca Set point deumidiﬁca

dIF dIF

R1 R1

R2R2

Fig. 5.g

Temperature (top) and humidty control mode (bottom) when LE=2.

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay di erential 1.0 °C 1 dS1 relay o set 0.0 °C 2 = 0 dSA analogue output o set 0.0 % rH 2 =0

humidi cation set point 50.0 % rH 1 -

dehumidi cation set point 70.0 % rH 1 -

dFH humidi cation di erential 5.0 % rH 1 dFd dehumidi cation di . 5.0 % rH 1 -

Tab. 5.d

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

5.5 (T2 + H) two-stage temperature and humidity control

This is used in applications with two outputs dedicated to temperature control to send a start signal to an air-conditioner or heat pump/boiler with two steps. The analogue output is for humidi cation control when the controller is in heating mode. If the controller is in cooling operation, humidity control is disabled, and if attempting to change the set point the lock symbol is shown.

Dipswitch con guration:

dip1: ON dip2: OFF dip3: ON

Control is available in both cooling and heating (dip4).

dFH

dSA

% U.R

Output

Set point umidiﬁca

dS1 dS1

Temp.

Output

Temp

Output

Set point inverno Set point estate

dIFdF2 dIFdF2

Fig. 5.h

Temperature and humidity control mode when LE=2.

Parameters involved:

Code Description Default LE

Value or link

if LE = 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay 1 di erential 1.0 °C 1 dF2 relay 2 di erential 1.0 °C 2 =dIF dS1 relay o set 0.0 °C 2 = 0 dSA analogue output o set 0.0 % rH 2 =0

humidi cation set point 50.0 % rH 1 -

dFH humidi cation di erential 5.0 % rH 1 -

Tab. 5.e

5.6 (T2A) automatic temperature control only

This control mode is available on products with two relay outputs for temperature control (ADCA******) and is used to have three di erent types of automatic cooling/heating control. Typical applications: airconditioner plus boiler, air-conditioner/heat pump, condensing unit. Once having selected the basic con guration using the dipswitches, the three operating modes available are selected by parameter (Adc).

Dipswitch con guration:

dip1: OFF dip2: ON dip3: ON

Con guration 1 (AdC = 1)

For the control of a classic system with air-conditioner + boiler. The controller sends to the start signal to one or other applianceAutomatic operating mode is signalled on the display by the AUTO symbol, next to the set point. The analogue output is de ned for one function only, heating or cooling. The selection is made using dipswitch 4 located on the rear. The  gure illustrates operation:

DIP 4=ON

Temp.

10 V

0 V

dFA

dS1 dS1

dSA

dF2 dIF

Set point temperatura inverno/estate

Output

R2 R1

Fig. 5.i

DIP 4=OFF

Temp.

10 V

0 V

dFA

dS1 dS1

dSA

dF2 dIF

Set point temperatura inverno/estate

Output

R2 R1

Fig. 5.j

Cooling/heating control for air-conditioner/boiler systems. The analogue output is associated with cooling or heating control, as set ny DIP 4 when LE=2.

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point (same for cooling & heating)

20.0 °C 1 -

night set point (same for cooling & heating)

18.0 °C 1 -

dIF relay 1 di erential 1.0 °C 1 dF2 relay 2 di erential 1.0 °C 2 = dIF dFA analogue output di erential 1.0 °C 2 = dIF dS1 relay 1 & 2 o set 0.5 °C 1 dSA analogue output o set 0.0 °C 2 = dS1

Tab. 5.f

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Con guration 2 (AdC = 2) - DiP 4 has no e ect

Used to control a classic system with air-conditioner/heat pump and heating/cooling call. Automatic operating mode is signalled on the display by the AUTO symbol, next to the set point.

Two set points need to be de ned, one for cooling and the other for heating. The mode switches between cooling and heating automatically according to the room temperature measured. The two set points are set by pressing the SET button or the up or down button,  rst the cooling set point is displayed and then the heating set point, the controller automatically checks that there is a di erence of at least 1°C between the two set points. Relay 1 controls the heating/cooling signal. Relay 2, on the other hand, manages the changeover.

See the following graph for the description of this operating mode when LE=2.

Temp.

Tem

Output

Set point invernale Set point estivo

Output

dFA

dF2 dIF

dFA

dS1 dS1

dSA dSA

Temp.

ON (invernale)

OFF (estivo)

R1 R1

Fig. 5.k

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay 1 di . in cooling mode 1.0 °C 1 dF2 relay 1 di . in heating mode 1.0 °C 2 = dIF dFA analogue output di erential 1.0 °C 2 = dIF dS1 relay o set 0.5 °C 2 =0 dSA analogue output o set 0.0 °C 2 =0

Tab. 5.g

Con guration 3 (AdC = 3) - DiP 4 has no e ect

The typical application in this case is a condensing unit, reverse-cycle with ON/OFF control of the outlet fan and automatic changeover. Automatic operating mode is signalled on the display by the AUTO symbol, next to the set point. Like in the previous con guration, there are two set points, one for cooling and the other for heating, both of which can be set. The mode switches between cooling and heating automatically according to the room temperature measured. The two set points are set by pressing the SET button or the up or down button,  rst the cooling set point is displayed and then the heating set point, the controller automatically checks that there is a di erence of at least 1°C between the two set points.

Relay 1 is controlled directly by the ON/OFF button on the instrument, when the instrument is o relay 1 is o , when the instrument is on the relay is always active. Relay 2, on the other hand, manages changeover. The analogue output is dedicated to heating/cooling control.

Relay 1 = FAN control based on the status (ON/OFF) of the clima controller.

dFA dFA

dSA

Temp. Temp.

Output

Set point inverno Set point estate

Output

Temp.

Fig. 5.l

Parameters involved:

Code Description Default LE

Value or

link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dFA analogue output di erential 1.0 °C 1 dSA analogue output o set 0.0 °C 2 = 0

Tab. 5.h

5.7 (T2A + H) automatic temperature and humidity control

This operating mode can be used to perform two types of control (be selected by parameter Adc):

automatic cooling/heating selection for systems with air-conditioner • and boiler, with humidi er control reverse-cycle systems with heating and cooling set point and • humidi er control.

Dipswitch con guration:

dip1: ON dip2: ON dip3: ON

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Con guration 1 (AdC =1) - DiP 4 has no e ect

The typical application is the control of a classic system with airconditioner + boiler and humidity control using a CAREL proportional humidi er, for example the compactSteam series. Dehumidi cation is performed using the air-conditioner, making sure that the temperature conditions are within the comfort limits.

There are two humidity set points, one for humidi cation and the other for dehumidi cation; the changeover points for automatic humidi cation/ dehumidi cation operation are also de ned.

There is just one temperature set point for both cooling and heating, the changeover (cooling/heating) occurs based on the activation points of the two outputs.

Dehumidi cation can only be activated if the humidity exceeds the dehumidi cation set point plus the di erential dFd, and furthermore: Temp > Set – dS1 – dF2

It is deactivated if the humidity is below the dehumidi cation set point and in furthermore: Temp < Set – dS1 – dF2 – 0.5 °C

See the following graph for the description of this operating mode.

dS1dF2 dIF

dS1

Output

Output Output

Set point temperatura inverno/estate

Temp.

%U.R.

dFH

dSA

% U.R

10 V

0 V

Set point umidiﬁca Set point deumidiﬁca

dFd

R2 R2

Fig. 5.m

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

- day set point (same) 20.0 °C 1 night set point (same) 18.0 °C 1 -

dIF relay 1 di erential 1.0 °C 1 dF2 relay 2 di erential 1.0 °C 2 = dIF dS1 relay o set 0.5 °C 1 dSA analogue output o set 0 % rH 2 =0

humidi cation set point 50.0 % rH 1 -

dehumidi cation set point 70.0 % rH 1 -

dFH humidi cation di erential 5.0 % rH 1 dFd dehumidi cation di erential 5.0 % rH 1 -

Tab. 5.i

Con guration 2 (AdC = 2) - DiP 4 has no e ect

For the control of a classic reverse-cycle air-conditioning system, with automatic cooling/heating changeover and proportional humidity control using the CAREL compactSteam humidi er. Automatic operating mode is signalled on the display by the AUTO symbol, next to the set point.

There are two set points, one for cooling and the other for heating, and both can be set. The mode switches between cooling and heating automatically according to the room temperature measured. The two set points are set by pressing the SET button or the UP or DOWN button,  rst the cooling set point is displayed and then the heating set point, the controller automatically checks that there is a di erence of at least 1°C between the two set points.

Relay 1 controls the heating/cooling signal. The analogue output controls humidi cation. Relay output 2 manages the changeover in mode.

See the following graph for the description of this operating mode.

dFH

10 V

0 V

dSA

% U.R

Output

Set point umidica

dS1dF2 dIFdS1

Temp. Temp.

Output Output

Set point estateSet point inverno

R1 R1

Fig. 5.n

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay 1 di . in cooling mode 1.0 °C 1 dF2 relay 1 di . in heating mode 1.0 °C 2 = dIF dS1 relay 1 o set 0.5 °C 2 = 0 dSA analogue output o set 0 % rH 2 = 0

humidi cation set point 50.0 % rH 1 -

dFH analogue output di erential 5.0 % rH 1

Tab. 5.j

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

5.8 (T+H radiant ON/OFF) ON/OFF mode for radiant  oor systems

ON/OFF control mode in radiant systems is available for all models of clima (ADCA*, ADCD*, ADCF*), both with temperature control only and temperature plus humidity (modes T or T + H), and is likewise available for the speci c model for radiant systems, ADCF000610. Temperature control uses one relay only:

R1 for models ADCA000210, ADCA000410 and all models ADCF*;

•

R2 for models ADCA000100, ADCA000110 and all models ADCD*;•

The second relay (R2), if available, is associated with humidity control, as is the analogue output.

Dipswitch con guration:

dip1: OFF dip2: OFF dip3: OFF

The remote sensor is used to control the water outlet temperature, and this must be installed, otherwise an error is signalled. For control two parameters are used that de ne two thresholds for the water temperature:

maximum temperature, in heating mode (EHi);

•

minimum temperature, in cooling mode (ELo).•

To protect the system against critical operating conditions, if such limits are exceeded, an alarm is signalled, EHi (high temperature) or ELo (low temperature) and the actuator is deactivated (relay). For the control mode, see the modes T and T+H, the speci c additional parameters are as follows:

DIP 4 = ON DIP 4 = OFF

dFHdFH

dSA

% U.R % U.RdFd

dS1 dS1

Temp. Temp.

Output Output

Set point invernale Set point estivo

Set point umidiﬁca Set point deumidiﬁca

dIF dIF

R1 R1

R2R2

Fig. 5.o

Temperature (top) and humidty control mode (bottom) when LE=2.

Parameters involved:

Code Description Default LE

Value or link if LE

= 1

day set point in cooling 24.0 °C 1 -

night set point in cooling 26.0 °C 1 -

day set point in heating 20.0 °C 1 -

night set point in heating 18.0 °C 1 -

dIF relay di erential 1.0 °C 1 dS1 relay o set 0.0 °C 2 = 0 dSA analogue output o set 0.0 % rH 2 =0 ELo max. water temp. in heating 40.0 °C 1 EHi max. water temp. in cooling 10.0 °C 1 -

humidi cation set point 50.0 % rH 1 -

dehumidi cation set point 70.0 % rH 1 -

dFH humidi cation di erential 5.0 % rH 1 dFd dehumidi cation di . 5.0 % rH 1 -

Tab. 5.k

5.9 Proportional control mode for radiant  oor systems (code ADCF000610)

The control functions use:

built-in temperature sensor for the room temperature measurement;

•

humidity sensor to avoid condensation in cooling mode;• remote temperature sensor for measuring the heating/cooling water • temperature, which must be installed, otherwise an error is signalled; ON/OFF output (R1) as the general signal for controlling the zone • valve/valves; proportional 0 to 10 V output for the control of the mixing valve;• ON/OFF output (R2) for humidity control.•

The dipswitch settings for this speci c model of clima allow operation to be selected between ON/OFF and proportional, with di erent parameter con gurations saved by setting the individual DIP con gurations, as shown in the table; these can then be recalled by the user based on the selected set of parameters.

The table summarises the con gurations that can be selected:

Dip1 Dip2 Dip3 Model Set param.

OFF OFF OFF T+H radiant ON/OFF #0 ON OFF OFF T+H radiant ON/OFF #1 OFF ON OFF T+H radiant Proportional #2 ON ON OFF T+H radiant Proportional #3 OFF OFF ON T+H radiant Proportional #4 ON OFF ON T+H radiant Proportional #5 OFF ON ON T+H radiant Proportional #6 ON ON ON T+H radiant Proportional #7

Tab. 5.l

DIP 4 sets cooling/dehumidi cation mode (OFF) or heating/humidi cation (ON), as for the standard models.

Heating control logic

The illustrates operation in heating mode.

4 °C

Temp. acqua

Output

Set point calcolato

Fig. 5.p

Fig. 5.q

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Control calculation:

Based on the proportional error (Temperature measured – set 1. point) and the integral error, the clima automatically calculates the water outlet set point. The calculation uses the parameters corresponding to the active operating mode (cooling or heating) active: tHH, tHL, tAH, tAL, where dIF = tAH–tAL. The integral error is only calculated within the control interval, tAH–tAL according to parameter tIn (integration time). The  gure shows an example where when the room temperature = room set point and the total error is null, the water outlet set point is 34 °C (for radiant  oors). The ON/OFF output (R1) is activated when the room temperature

is less than the maximum limit tAH. This output sends the signal to activate the system controller. The water outlet temperature is controlled based on the set 3. point calculated (in point 1) and with a  xed di erential of 4 °C. The control functions use the remote sensor, installed on the outlet manifold:

If the water temperature is greater than or equal to the set point

•

calculated, the valve is closed. If the water temperature is less than (set point – 4 °) the valve is • completely open. In intermediate situations the valve is open proportionally to the • deviation from the set point calculated.

To avoid excessive  oor temperatures, the maximum water 4.

temperature is compensated, which may be lower than the maximum value set for tHH. This occurs when the system responds, during heating, with excessively fast variations of the room temperature. In the  gure this operation is indicated by the dashed line, the line at the bottom, for example, de nes a water set point of around 29 °C rather than 34 °C for the same room temperature. The calculation of the maximum value for tHH is based on parameter tr, which de nes an observation time in minutes on the value of the integral error:

If within the time tr control is active (valve open) and there is an • increase in temperature greater than 0.5 °C => tHH is decreased by 1 °C. If, always in the observation period (tr), the variation was less than •

0.5 °C but the integral error is positive (>20% of dIF) => tHH is again decreased by 1 °C. If, on the other hand, the variation is less than 0.5 °C but the integral • error is negative (>20% of dIF) => tHH is increased by 1 °C. Recommended value of tr = 30 min., yet this depends on the inertia • of the system and the integral error set (tIn).

Note: the value of tHH is not modi ed as a parameter, rather an

o set is added or subtracted. The purpose of the maximum set point compensation for the water temperature is to make the system work with the lowest possible  oor temperature. In operating conditions outside of the room temperature limits, tAH or tAL, the initial conditions are restored for tHH.

Note: When the temperature is read on the SMALL  eld,

the H2O symbol is shown to indicate that this is the system water temperature.

Note: Parameter LE=1 or 2 has no in uence on the settings of the

parameters.

Cooling control logic

4 °C

Temp. acqua

Output

Set point calcolato

Fig. 5.r

Fig. 5.s

The same rules apply as for heating control, with the following di erences:

The values of the parameters are di erent for cooling, in particular tHH • and tHL; The control of the modulating valve is reversed with reference to the • water temperature set point: if the temperature is greater than the set point, the valve is open. The compensation of the temperature limit is activated using tHL • rather than tHH, and the logic is reversed: tHL is increased rather than decreased. There is also another limit on the water temperature set point: based • on the estimated dewpoint, the set point is limited to values greater than Temp_dew + ddP (dewpoint di . parameter).

Note: the value of tHL is not modi ed as a parameter, rather an

o set is added or subtracted. The purpose of the minimum set point compensation for the water temperature is to make the system work with the lowest possible  oor temperature, so as to maximise cooling. In operating conditions outside of the temperature limits greater than tAH or less than tAL, the initial conditions are restored for tHL.

Humidity control for proportional radiant operation: Code ADCF000610 also uses the humidity sensor, for two functions:

In cooling mode, it is used for the estimate the dewpoint.

•

It can also be used for ambient humidity control, via relay 2, connecting • an external humidi er/dehumidi er.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

6. TABLE OF PARAMETERS

6.1 Description of the parameters for the standard version

The parameters available depend on the clima model used and the level set (LE = 1 or 2)

code parameter range default UOM note

day temperature set point in cooling 10 to 50 24.0 °C

night temperature set point in cooling 10 to 50 26.0 °C

day temperature set point in heating 10 to 50 20.0 °C

night temperature set point in heating 10 to 50 18.0 °C

single day temperature set point for automatic modes 10 to 50 20.0 °C

single night temperature set point for automatic modes 10 to 50 18.0 °C

dIF

Temperature di erential for relay 1

This is an absolute value and is added to or subtracted from the set point depending on the control mode, cooling or heating.

0.1 to 10 1.0 °C

dF2

Temperature di erential for relay 2.

This is an absolute value and is added to or subtracted from the set point depending on the control mode, cooling or heating.

0.1 to 10 1.0 °C

dS1

Temperature o set for relay 1

This value is added to or subtracted from the set point based on the active control mode. May be positive or negative, so as to o er complete  exibility in the position of the step.

-10 to 10 0.5 °C

dFA

Analogue output di erential

This value is added to or subtracted from the set point according to the control mode selected, cooling or heating,.

0 to 10 1.0 °C

dSA

Analogue output o set from to the set point

This value is added to or subtracted from to the set point according to the operating mode, cooling or heating.

-10 to 10 0.0

°C/

% rH

EHI

Maximum water temperature for ON/OFF radiant  oor heating control (mode 8, all dipswitches o ). The screen shows alarm EHI and the relay output is deactivated, irrespective of the control mode..

10 to 80 40 °C

ELo

Minimum water temperature for ON/OFF radiant  oor cooling control (mode 8, all dipswitches o ). The screen shows alarm ELo and the relay output is deactivated, irrespective of the control mode.

0 to 50 10 °C

Humidi cation set point 10 to 70 50.0 % rH

Dehumidi cation set point 10 to 70 70.0 % rH

dFH

Humidity di erential for the activation of the analogue output and the relay. 1 to 20 5.0 % rH

dFd

Dehumidi cation di erential for the activation of the relay. 1 to 20 5.0 % rH

SFH

Parameter to de ne the humidi cation/dehumidi cation status in day and night mode

Activates or deactivates humidi cation or dehumidi cation control (based on DIP 4) with the time bands. The parameter can have the following three values 0 - Time bands disabled. The humidi cation/dehumidi cation control is always active, if featured, and is con gured in relation to dip4 1 - Time bands enabled: When switching to the daytime band, humidi cation/dehumidi cation control (depends on dip4) is activated. When switching to the night band, humidi cation/dehumidi cation control (depends on dip4) is deactivated. 2 - Time bands enabled: When switching to the daytime band, humidi cation/dehumidi cation control (depends on dip4) is deactivated. When switching to the night band, humidi cation/dehumidi cation control (depends on dip4) is activated.

0 to 2 0 -

AUt

Humidity set point automatically compensated by the outside temperature

If humidity control is featured, the ambient humidity is controlled with an automatic set point, de ned from 1H to 7H using the buttons, as speci ed in the corresponding table (see page 15). If set to OFF the mode is disabled. Setting one of the levels in the table, the controller independently sets a humidity set point in relation to the outside temperature.

OFF

1H to 7H

OFF -

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

code parameter range default UOM note

CSt

Parameter for set point compensation

Parameter CSt enables and sets the gain for set point compensation according to the outside temperature. If CSt = 0 compensation is disabled. Also see parameters Ctt and CtS.

-1 to 1 0.0 °C

CdF

Max di erential for the compensated set point

The maximum value for the compensated set point is limited by this parameter. In heating mode, if the di erence calculated for set point compensation is higher than CdF, the instrument uses CdF as the maximum di erence from the set point. Similarly, in cooling mode if the di erence calculated for set point compensation is less than CdF, the instrument uses CdF as the maximum di erence from the set point..

0 to 20 2.0 °C

Ctt

Threshold for set point compensation in heating mode

Temperature set point compensation in heating based on the outside temperature measurement:

compensated set point = setpoint – (set point – Text – Ctt) * CSt

Compensation is activated only if: Text < set point – Ctt

0 to 25 10.0 °C

CtS

Threshold for set point compensation in cooling mode.

Temperature set point compensation in cooling based on the outside temperature measurement:

compensated set point = setpoint + (Text – set point – CtS) * CSt

Compensation is activated only if: Text > set point + CtS

0 to 25 10.0 °C

AdC

Con guration T2A e T2A+H

Additional modes for the automatic operation: For temperature control only (T2A):

Con guration 1: temperature control with set point and dead band only (2xdS1). Con guration 2: temperature control only with automatic changeover of the set point. Con guration 3: temperature control only with cooling and heating set point, automatic changeover

and manual ON/OFF control for outlet fan.

1 to 3

For temperature + humidity control (T2A+H):

Con guration 1: temperature control with set point and dead band only (2xdS1). Two set points for

humidity.

Con guration 2: temperature and humidity control with cooling and heating set point and automatic

changeover.

1 to 2 -

dyS

Active display con guration

Used to set the values shown in the large and small  elds on the display

1 to 4 1 -

rtC

Current time

The large  eld displays the hours and the small  eld the minutes

00:00 23:59

00.00 h

SLP

Duration of manual day-night mode changeover

The large  eld displays the hours and the small  eld the minutes (15 minute steps)

0 to 12 8 h h

dAy

Day band threshold

The large  eld displays the hours and the small  eld the minutes (15 minute steps)

00:00 23:59

8.00 h

nIt

Night band threshold

The large  eld displays the hours and the small  eld the minutes (15 minute steps)

00:00 23:59

20.00 h

Digital input con guration OFF: disabled 1 select remote cooling /heating 2 remote ON/OFF 3 select day/night(set alternativo) 4 remote alarm from Compact Steam

OFF to 4 OFF -

POL

Digital contact polarity

Used to choose whether to consider the digital input active when closed or open or alternatively whether or not there is voltage in the optically-isolated version.

Voltage-free contact:

nE: active when the input is closed PO: active when the input is open

Optically isolated:

nE: active when voltage is present at the input PO: active when voltage is not present at the input

nE, PO nE -

Control cooling/heating operating mode

Enables the possibility to de ne the operating mode, cooling/heating, by parameter rather than by DIP 4. dIS: Parameter EI is disabled, cooling/heating mode is selected by DIP 4 on the rear. En: Parameter EI is enabled, cooling/heating mode is selected by parameter EI.

dIS, En dIS -

Select cooling/heating operation

Selects the mode, cooling or heating. This parameter is only active if this mode is enabled by the previous parameter. E: The instrument works in cooling mode I: The instrument works in heating mode

E, I E -

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

code parameter range default UOM note

LIn

Instrument output control mode

no, yES no -

CAL+ Int

Inside temperature calibration, digital sensor or NTC Within a maximum of ± 10 °C

-10 to 10 0.0 °C

CAL+ ESt

Outside temperature calibration, NTC sensor Within a maximum of ± 10 °C

-10 to 10 0.0 °C

CAL+HUn

Digital humidity sensor calibration. Within a maximum of ± 15% rH

-15 to 15 0.0 % rH

Parameter access level

Level of access the control parameters for the active mode:

Level 1: basic access, only the essential parameters for correct operation. Level 2: advanced access, used to set all the parameters for the selected control mode.

1, 2 1 -

LOC

Lock

The lock parameter used to disable some functions of the instrument, as per the following settings:: LOC = OFF LOC = 1: The UP/DOWN and time bands buttons are disabled LOC = 2: Only the time bands button is disabled In these cases, the LOCK symbol is shown on the display whenever attempting to perform an unauthorised operation..

OFF to 2 OFF

Unt

Temperature display mode

Sets the temperature display mode, in degrees Fahrenheit or Centigrade. Unlike direct selection using the button, if changing the temperature display mode using parameter Unt, this becomes the default display mode when switching the instrument on.

°C, °F °C -

nEd

Parameter for control with average value sensor values

De nes the average control temperature (Tm), based on the weighted average of the inside temperature (TI) and outside temperature (TE). Both the measurements must be valid and Tm is achieved with the following formula:

Tm = (TI * (100- nEd) + TE * nEd) /100

The average temperature calculated is used for control and display.

0 to 100 0.0 %

Add

RS485 serial address (the external option code IROPZ48500 is required). The address can be read by the supervisor and can only be changed with direct access on the instrument..

1 to 207 1 -

SEr

Select serial communication protocol 0: CAREL protocol 9.6 kb/s 1: CAREL protocol 19.2 kb/s 2: Modbus 9.6 kb/s, even parity, 8 bits, 1 stop 3: Modbus 19.2 kb/s, even parity, 8 bits, 1 stop 4: Modbus 9.6 kb/s, no parity, 8 bits, 2 stop 5: Modbus 19.2 kb/s, no parity, 8 bits, 2 stop

0 to 5 1 -

Password for accessing the parameters

Set to 0: no password is required to access the parameters. Set other than zero: the same value must be entered to access the parameters.

0 to 999 0 -

FAC + SET

Factory set

Reset the default values (manufacturer) on the instrument for the current mode.

no, yES no -

Tab. 6.a

Note: the “+” symbol means that the parameter is shown on 2

 elds.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

6.2 Additional parameters, available in version T+H for proportional control of radiant systems (cod. ADCF000610)

code parameter range default UOM notes

tHH

High water temperature limit in heating 15 to 80 45.0 °C

tHL

Low water temperature limit in heating 15 to 80 23.0 °C

tHH

High water temperature limit in cooling 5 to 35 30.0 °C

tHL

Low water temperature limit in cooling 5 to 35 10.0 °C

tAH

High room temperature limit in heating 15 to 40 24.0 °C

tAL

Low room temperature limit in heating 15 to 40 16.0 °C

tAH

High room temperature limit in cooling 5 to 35 30.0 °C

tAL

Low room temperature limit in cooling 5 to 35 16.0 °C

tIn

Integration time in minutes to calculate integral error in the water temperature control algorithm 1 to 100 10 min.

Observation time for compensation of the water temperature limit (OFF = compensation not enabled)

OFF to 255 OFF min.

ddP

Dewpoint delta for adjusting the water temp. set point -20...20 0,0 °C

EdP

Enable water temp. set point limit to avoid condensation no, yES no -

Tab. 6.b

7. ALARMS AND SIGNALS

Below is the table of alarms.

Note: When the value is not shown in the SMALL or LARGE  eld, three dashes “---“ are displayed.

7.1 Table of alarms

code on display

description reset e ect

system/memory error manual stops all outputs

Eth

temperature+humidity sensor fault automatic stops all outputs and disables the calculation of the dewpoint

built-in NTC temperature sensor fault automatic stops all outputs

remote temperature sensor fault automatic stops compensation if active, and control on average if enabled

Ert

RTC alarm automatic -

EHi

high control temperature alarm, radiant  oor

automatic stops all outputs

ELo

low control temperature alarm, radiant  oor

automatic stops all outputs

ELn

serial connection alarm automatic only active if I/Os managed via serial connection

ALE

external alarm from digital input automatic signal-only alarm from external contact (humidi er)

Tab. 7.a

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

8. TECHNICAL SPECIFICATIONS

8.1 Technical speci cations

Power supply

24 Vac +10 to -15%, 50/60Hz, 1 VA 22 to 35 Vdc, 0.5W Class 2 safety power supply Min. cable cross-section 0.5 mm

Power supply compatible with compactSteam (G – G0)

Operating temperature

0T60 °C, 10 to 90% rH not-condensing

Storage temperature

-20T70 °C, 10 to 90% rH not-condensing

Environmental pollution

normal

Pollution

degree 2

Software class and structure

Type of action

Index of protection

IP20

Ball pressure test temperature on plastic of front casing

125 °C

Classi cation according to protection against electric shock

2, to be integrated into class 1 or 2 appliances

Period of stress across the insulating parts

long

Immunity against voltage surges

category 2

Wire cross-section (mm2)

from 0.5 to 1.5 mm

Precision of inside temperature measurement

± 1 °C from 0 to 60 °C

Precision of outside temperature measurement

NTC (standard CAREL 10 kΩ) range –40T80 °C precision ± 0.5 °C + sensor precision: ± 1 °C from 0 to 40 °C ± 1.5 °C from -40 to 0 °C and from 40 and 80 °C

0 to 10 V analogue output, not isolated, for proportional control

precision ±5% max load 5 kΩ, max current 2 mA

Relay approval

EN60730-1: NO 1(1)A 250 Vac cos = 0.4, 100,000 cycles UL-873: NO 1A resistive 24 Vac, 30 Vdc, 100,000 cycles PILOT DUTY: 24 Vac, peak 15 A, continuous 1 A, 30,000 cycles

Precision of humidity measurement (in models where featured) range 10 to 90%%

± 3% rH at 25 °C ± 5% rH 0 to 60 °C

Dimensions (mm):

135x86x36mm

Tab. 5.a

8.2 Wiring

Digital input Non-isolated version:

direct connection of the voltage-free contact; contact closing current: 3 to 5 mA.

Isolated version:

with external power supply to 24 Vac contact: class 2 safety external power supply separate from the 24 Vac power supply to the instrument

Outside temperature sensor connection with standard CAREL sensor (10 K 25 °C B=3435):

Maximum length: 30 m, min. cable cross-section 0.5 mm2.

Digital input connection

Maximum length 10 m, min. cable cross-section 0.5 mm2.

Analogue output connection

Maximum length 10 m, min. cable cross-section 0.5 mm2.

Relay output connections:

Maximum length 30 m, cable cross-section from 1.5 to 2.5 mm2, class 2 reinforced insulation from the instrument. Basic insulation between the relays.

UL speci cations for connections:

Use copper wires approved for a temperature of 75 C. Minimum cross-section AWG 22-14 rigid or  exible. To tighten the terminals, apply a torque of 7 Lb/In for the black terminals (SAURO) To use the instrument in compliance with UL-873, a load with a maximum voltage 24 Vac, class 2, can be connected to the relay output.

Tab. 5.b

Warning: All the connections, except for the relays, must be

connected to very low voltage circuits with reinforced insulation.

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

9. APPENDIX

9.1 Supervisor parameters for CAREL and Modbus® protocol

Unit code 57 (all codes except for ADCF000610)

Digital variables

par “CAREL sup

index”

“Modbus index”

description min max def UOM R/W note

- 1 1 “Unit on or o 0= o - 1= on”

010 R/W

LIn 2 2 “Control actuators (relays, analogue output) from serial

0= function disabled - 1= function enabled”

010 R/W

Unt 3 3 “Parameter for setting temperature display mode Farh = 1 -

Celsius =0”

0 1 R/W

- 4 4 “RTC status not enabled 0= RTC operation ok - 1= RTC o ”

0 1 R/W

- 5 5 “RTC  tted 0=  tted - 1= not  tted”

01- R

- 6 6 “Parameter for setting day/night operating mode 0= Day - 1= night”

0 1 R/W

LE 7 7 “Parameter for setting access level to parameters from user

interface 0= level 1 - 1= level 2”

0 1 R/W

POL 8 8 “Parameter for setting digital contact polarity

0= nE - 1= PO”

0 1 R/W

EI 9 9 “Enable Cooling/Heating by parameter (not dipswitch)

0= function disabled (dIS) - 1= function enabled (En)”

0 1 R/W

EI 10 10 “Cooling/heating setting, if EI=En

0= Cooling (E) - 1= Heating (I)”

0 1 R/W if EI=En

- 11 11 “Digital humidity sensor  tted 0=  tted - 1= NOT FITTED”

01- R

- 17 16 “Operating mode for control: 0= Cooling - 1= Heating”

01- R

- 18 17 “Changeover status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 19 18 “Cooling control status of relay 1: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 20 19 “Cooling control status of relay 2: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 21 20 “Heating control status of relay 1: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 22 21 “Heating control status of relay 2: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 23 22 “Humidi cation control status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 24 23 “Dehumidi cation control status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 25 24 “Automatic control status in cooling mode: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 26 25 “Automatic control status in heating mode: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 27 26 “Status of relay 1: 0= open - 1= closed”

01- R

- 28 27 “Status of relay 2: 0= open - 1= closed”

01- R

- 29 28 “Status of external alarm (if ALE is displayed) 0= not active - 1= active”

01- R

- 30 29 “Status of remote NTC sensor alarm 0= not active - 1= active”

01- R

- 31 30 “Status of remote digital sensor T+H 0= not active - 1= active”

01- R

- 32 31 “Control status with antifreeze 0= not active - 1= active”

01- R

- 33 32 “Status of RTC alarm 0= not active - 1= active”

01- R

- 34 33 “Status of inside NTC sensor alarm 0= not active - 1= active”

01- R

- 35 34 “Status of temperature display mode Farh = 1 - Celsius =0”

0 1 R/W temporary status

in RAM

- 36 35 “Status of day/night operating mode 0= Day - 1= night”

0 1 R/W temporary status

in RAM

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

par “CAREL sup

index”

“Modbus index”

description min max def UOM R/W note

- 37 36 “Status of EEProm alarm 0= not active - 1= active”

01- R

- 38 37 “Serial connection alarm if parameter LIn enabled 0= not active - 1= active”

01- R

- 39 38 “High water temperature alarm for model T+H rad. 0= not active - 1= active”

01- R

- 40 39 “Low water temperature alarm for model T+H rad. 0= not active - 1= active”

01- R

- 49 48 “Reading of dipswitch 4 0= o - 1= on”

01- R

- 50 49 “Reading of dipswitch 1 0= o - 1= on”

01- R

- 51 50 “Reading of dipswitch 2 0= o - 1= on”

01- R

- 52 51 “Reading of dipswitch 3 0= o - 1= on”

01- R

- 53 52 “Digital input reading 1= open - 0= closed “

01- R

Tab. 9.a

Integer variables

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

- 1 150

internal RTC reading in minutes (e.g.: 13:13 equals 793 min.)

0 1439 - min R/W

- 3 152

status of the mode changeover timer (day if in night mode, night if in day mode)

0 720 - min R/W

AUt 7 130 parameter AUt 0 7 0 R/W dI 8 131 parameter dI 0 4 0 R/W dyS 9 132 parameter dyS 1 4 1 R/W AdC 10 133 parameter AdC for automatic model selection 1 3 1 R/W

SLP 11 134

duration of the mode changeover timer (day if in night mode, night if in day mode)

0 12 8 h R/W

- 12 135 day band threshold 0 1439 480 min R/W

- 13 136 night band threshold 0 1439 1200 min R/W

Add 14 137 485 serial address 1 207 1 R LOC 15 138 parameter LOC 0 2 0 R/W nEd 16 139 parameter nEd 0 100 0 % R/W

- 17 140 model of unit used 0 7 - R

SFH 18 141 parameter SFH 0 2 0 R/W PS 19 142 parameter PS (if = 0 no password) 0 999 0 R/W SEr 20 143 parameter SEr 0 5 1 R/W

Tab. 9.b

Analogue variables

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

- 1 29 built-in NTC temperature sensor -40 70 - C R

the calibration value is not added

- 2 30 remote NTC temperature sensor -40 80 - C R

the calibration value is not added

- 3 31 minimum inside temperature recorded from unit ON -40 70 - C R

the calibration value is not added

- 4 32 maximum inside temperature recorded from unit ON -40 70 - C R

the calibration value is not added

- 5 33 minimum outside temperature recorded from unit ON -40 80 - C R

the calibration value is not added

- 6 34 maximum outside temperature recorded from unit ON -40 80 - C R

the calibration value is not added

- 7 35 digital temperature sensor -40 70 - C R

the calibration value is not added

- 8 36 digital humidity sensor value 0 99 - %rH R

- 13 41 analogue output value 0 100 - R

- 14 42 PWM value for cooling 0 100 - R/W W if LIn=1

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

- 15 43 PWM value for heating 0 100 - R/W W if LIn=1

- 16 44 PWM value for humidi cation 0 100 - R/W W if LIn=1

22 1 day temperature set point in cooling 10 40 24 C R/W

23 2 night temperature set point in cooling 10 40 26 C R/W

24 3 day temperature set point in heating 10 40 20 C R/W

25 4 night temperature set point in heating 10 40 18 C R/W

dIF 26 5 temperature di erential dIF 0 10 1 C R/W dF2 27 6 temperature di erential dF2 0 10 1 C R/W

dS1 28 7 temperature di erential dS1 -10 10

0.5 T2A+H 0 others

C R/W

dFA 29 8 temperature di erential dFA -10 10 1 C R/W

dSA 30 9 temperature di erential dSA -10 10

0.5 T2A+H 0 others

C R/W

31 10 humidi cation set point 10 70 50 %rH R/W

32 11 dehumidi cation set point 10 70 70 %rH R/W

dFH 33 12 humidi cation di erential dFH 1 20 5 %rH R/W dFd 34 13 dehumidi cation di erential dFd 1 20 5 %rH R/W CAL+Int 35 14 inside temperature calibration -10 10 0 C R/W CAL+ESt 36 15 outside temperature calibration -10 10 0 C R/W CAL+HUn 37 16 humidity sensor calibration -15 15 0 %rh R/W CtS 38 17 threshold for set point compensation in cooling 0 25 10 C R/W Ctt 39 18 threshold for set point compensation in heating 0 25 10 C R/W CdF 40 19 max di erential for set point compensation 0 20 2 C R/W CSt 41 20 parameter for set point compensation -1 1 0 R/W EHi 42 21 maximum water temperature for model T+H radiant 10 80 40 C R/W ELo 43 22 minimum water temperature for model T+H radiant 0 50 10 C R/W

Tab. 9.c

Note: In the supervisor parameters, the set point for the automatic

modes (day and night) is saved to both values (cooling/heating); when setting, simply change the heating set point only, and the setting will be automatically copied to the corresponding cooling set point.

Note: All the analogue variables (set point, di erential, sensor

calibration ...) are expressed in tenths if read with the CAREL protocol, while they are expressed in hundredths if read with the Modbus® protocol (example: 24.3 °C: CAREL supervisor = 243, Modbus® supervisor = 2430)

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Unit code 58 (code ADCF000610 only)

Digital variables

par “CAREL sup

index”

“Modbus index”

description min max def UOM R/W note

- 1 1 “Unit on or o 0= o - 1= on”

010 R/W

LIn 2 2 “Control actuators (relays, analogue output) from serial

0= function disabled - 1= function enabled”

010 R/W

Unt 3 3 “Parameter for setting temperature display mode Farh = 1 -

Celsius =0”

0 1 R/W

- 4 4 “RTC status not enabled 0= RTC operation ok - 1= RTC o ”

0 1 R/W

- 5 5 “RTC  tted 0=  tted - 1= not  tted”

01- R

- 6 6 “Parameter for setting day/night operating mode 0= Day - 1= night”

0 1 R/W

LE 7 7 “Parameter for setting access level to parameters from user

interface 0= level 1 - 1= level 2”

0 1 R/W

POL 8 8 “Parameter for setting digital contact polarity

0= nE - 1= PO”

0 1 R/W

EI 9 9 “Enable Cooling/Heating by parameter (not dipswitch)

0= function disabled (dIS) - 1= function enabled (En)”

0 1 R/W

EI 10 10 “Cooling/heating setting, if EI=En

0= Cooling (E) - 1= Heating (I)”

0 1 R/W if EI=En

- 11 11 “Digital humidity sensor  tted 0=  tted - 1= NOT FITTED”

01- R

EdP 12 12 “Enable dewpoint calculation

0= no - 1= yES”

01- R/W

- 17 16 “Operating mode for control: 0= Cooling - 1= Heating”

01- R

- 18 17 “Changeover status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 19 18 “Cooling control status of relay 1: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 20 19 “Cooling control status of relay 2: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 21 20 “Heating control status of relay 1: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 22 21 “Heating control status of relay 2: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 23 22 “Humidi cation control status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 24 23 “Dehumidi cation control status: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 25 24 “Automatic control status in cooling mode: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 26 25 “Automatic control status in heating mode: 0= not active - 1= active”

0 1 - R/W W if LIn=1

- 27 26 “Status of relay 1: 0= open - 1= closed”

01- R

- 28 27 “Status of relay 2: 0= open - 1= closed”

01- R

- 29 28 “Status of external alarm (if ALE is displayed) 0= not active - 1= active”

01- R

- 30 29 “Status of external NTC sensor alarm (water system)” 0= not active - 1= active”

01- R

- 31 30 “Status of digital sensor T+H” 0= not active - 1= active”

01- R

- 32 31 “Control status with antifreeze 0= not active - 1= active”

01- R

- 33 32 “Status of RTC alarm 0= not active - 1= active”

01- R

- 34 33 “Status of inside NTC sensor alarm 0= not active - 1= active”

01- R

- 35 34 “Status of temperature display mode Farh = 1 - Celsius =0”

0 1 R/W temporary status

in RAM

- 36 35 “Status of day/night operating mode 0= Day - 1= night”

0 1 R/W temporary status

in RAM

- 37 36 “Status of EEProm alarm 0= not active - 1= active”

01-

38 37 “Serial connection alarm if parameter LIn enabled

0= not active - 1= active”

01- R

- 39 38 “High water temperature alarm for model T+H rad. 0= not active - 1= active”

01- R

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

par “CAREL sup

index”

“Modbus index”

description min max def UOM R/W note

- 40 39 “Low water temperature alarm for model T+H rad. 0= not active - 1= active”

01- R

- 49 48 “Reading of dipswitch 4 0= o - 1= on”

01- R

- 50 49 “Reading of dipswitch 1 0= o - 1= on”

01- R

- 51 50 “Reading of dipswitch 2 0= o - 1= on”

01- R

- 52 51 “Reading of dipswitch 3 0= o - 1= on”

01- R

- 53 52 “Digital input reading 1= open - 0= closed “

01- R

Tab. 9.a

Integer variables

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

- 1 150

internal RTC reading in minutes (e.g.: 13:13 equals 793 min.)

0 1439 - min R/W

- 3 152

status of the mode changeover timer (day if in night mode, night if in day mode)

0 720 - min R/W

AUt 6 130 parameter AUt 0 7 0 R/W dI 7 131 parameter dI 0 4 0 R/W dyS 8 132 parameter dyS 1 4 1 R/W

SLP 9 133

duration of the mode changeover timer (day if in night mode, night if in day mode)

0 12 8 h R/W

- 10 134 day band threshold 0 1439 480 min R/W

- 11 135 night band threshold 0 1439 1200 min R/W

Add 12 136 485 serial address 1 207 1 R LOC 13 137 parameter LOC 0 2 0 R/W nEd 14 138 parameter nEd 0 100 0 % R/W

- 15 139 con guration set by dip1, 2 & 3 0 7 0 R/W

SFH 16 140 humidi cation/dehumidi cation & day/night status parameter 0 2 0 - R/W PS 17 141 parameter PS 0 999 0 R/W tIn 18 142 parameter tIn 1 100 10 min. R/W tr 19 143 parameter tr (OFF = 0) 0 255 0 min. R/W SEr 20 144 parameter SEr 0 5 1 R/W

Tab. 9.b

Analogue variables

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

- 1 35 inside NTC temperature sensor -40 70 - C R

the calibration value is not added

- 2 36 remote NTC temperature sensor (water system) -40 80 - C R

the calibration value is not added

- 3 37 minimum inside temperature recorded from unit ON -40 70 - C R

the calibration value is not added

- 4 38 maximum inside temperature recorded from unit ON -40 70 - C R

the calibration value is not added

- 5 39 minimum water temperature recorded from unit ON -40 80 - C R

the calibration value is not added

- 6 40 maximum water temperature recorded from unit ON -40 80 - C R

the calibration value is not added

- 7 41 digital temperature sensor -40 70 - C R

the calibration value is not added

- 8 42 digital humidity sensor value 0 99 - %rH R

- 13 47 analogue output value 0 100 - R

- 14 48 PWM value for cooling 0 100 - R/W W if LIn=1

- 15 49 PWM value for heating 0 100 - R/W W if LIn=1

- 16 50 PWM value for humidi cation 0 100 - R/W W if LIn=1

21 55 set point calculated for radiant system water 5 80 - C R 22 56 dewpoint calculated - - - C R 23 57 maximum temperature limit for water set, tHH calculated tHL tHH - C R 24 58 minimum temperature limit for water set, tHL calculated tHL tHH - C R

25 1 day temperature set point in cooling 10 40 24 C R/W

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

par.

CAREL sup.

index

Modbus®

index

description min max def. UOM R/W

note

26 2 night temperature set point in cooling 10 40 26 C R/W

27 3 day temperature set point in heating 10 40 20 C R/W

28 4 night temperature set point in heating 10 40 18 C R/W

dIF 29 5 temperature di erential dIF 0 10 1 C R/W dS1 30 6 temperature di erential dS1 -10 10 0 C R/W dSA 31

7 temperature di erential dSA -10 10 0.0 C R/W

32 8 humidi cation set point 10 70 50 %rH R/W

33 9 dehumidi cation set point 10 70 70 %rH R/W

dFH 34 10 humidi cation di erential dFH 1 20 5 %rH R/W dFd 35 11 dehumidi cation di erential dFd 1 20 5 %rH R/W CAL+Int 36 12 inside temperature calibration -10 10 0 C R/W CAL+ESt 37 13 outside temperature calibration -10 10 0 C R/W CAL+HUn 38 14 humidity sensor calibration -15 15 0 %rH R/W CtS 39 15 threshold for set point compensation in cooling 0 25 10 C R/W Ctt 40 16 threshold for set point compensation in heating 0 25 10 C R/W CdF 41 17 max di erential for set point compensation 0 20 2 C R/W CSt 42 18 parameter for set point compensation -1 1 0 R/W EHi 43 19 maximum water temperature for model T+H radiant 10 80 40 C R/W ELo 44 20 minimum water temperature for model T+H radiant 0 50 10 C R/W

tHH

45 21 High water temperature limit in heating 15 80 45 C R/W

tHL

46 22 Low water temperature limit in heating 15 80 23 C R/W

tHH

47 23 High water temperature limit in cooling 5 35 30 C R/W

tHL

48 24 Low water temperature limit in cooling 5 35 10 C R/W

tAH

49 25 High room temperature limit in heating 15 40 24 C R/W

tAL

50 26 Low room temperature limit in heating 15 40 16 C R/W

tAH

51 27 High room temperature limit in cooling 5 35 30 C R/W

tAL

52 28 Low room temperature limit in cooling 5 35 16 C R/W

ddP

53 29

Dewpoint delta for adjusting the water temp. set point

-20 20 0 C R/W

Tab. 9.c

9.2 Software updates

From release 2.3 to 2.4:

Resolved the communication problem between multiple instruments • connected in a supervisor network with CAREL protocol

From release 2.4 to 2.5:

Resolved the communication problem involving the digital variables • using the Modbus® protocol Changed the maximum allowable limit of the temperature set point • from 40 °C to 50 °C.

From release 2.5 to 2.6:

Increased the speed for reading the temperature + humidity sensor.• Rearranged operation of T2A mode with AdC=2 and AdC=3.• Changed the alarm signals.• Improved errors management in Modbus®.•

Note: All the analogue variables (set point, di erential, sensor

ENG

clima +030220641 - rel. 1.0 - 07.12.2007

Note

CAREL S.p.A.

Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel @ carel. com - www .carel. com

Agenzia/Agency:

clima +030220641 - rel. 1.0 - 07.12.2007 CAREL reserves the right to make modiﬁ cations or changes to its products without prior warning.

Carel Clima User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
