1. INTRODUCTION

1.1 General description

The µC2SE is a new compact CAREL electronic controller, the same size as a normal thermostat, for the complete management of chillers and heat pumps: it can control air-air, air-water, water-water and condensing units.

1.1.1 Main functions

• control of the water inlet and evaporator outlet temperature;

• defrost management by time and/or by temperature or pressure;

• fan speed control;

• complete alarm management;

• connection to serial line for supervision/telemaintenance;

• elimination of the expansion vessel.

- Driver function

• Management of electronic expansion valves.

1.1.2 Controlled devices

• compressor;

• condenser fans;

• reversing valve;

• water pumps for evaporator and/or condenser, and outlet fan (air-air);

• antifreeze heater;

• alarm signal device.

1.1.3 Programming

CAREL o ers the possibility to con gure all the unit parameters not only from the keypad on the front panel, but also using:

• a hardware key;

• a serial line.

1.2 User interface

1.2.1 Display

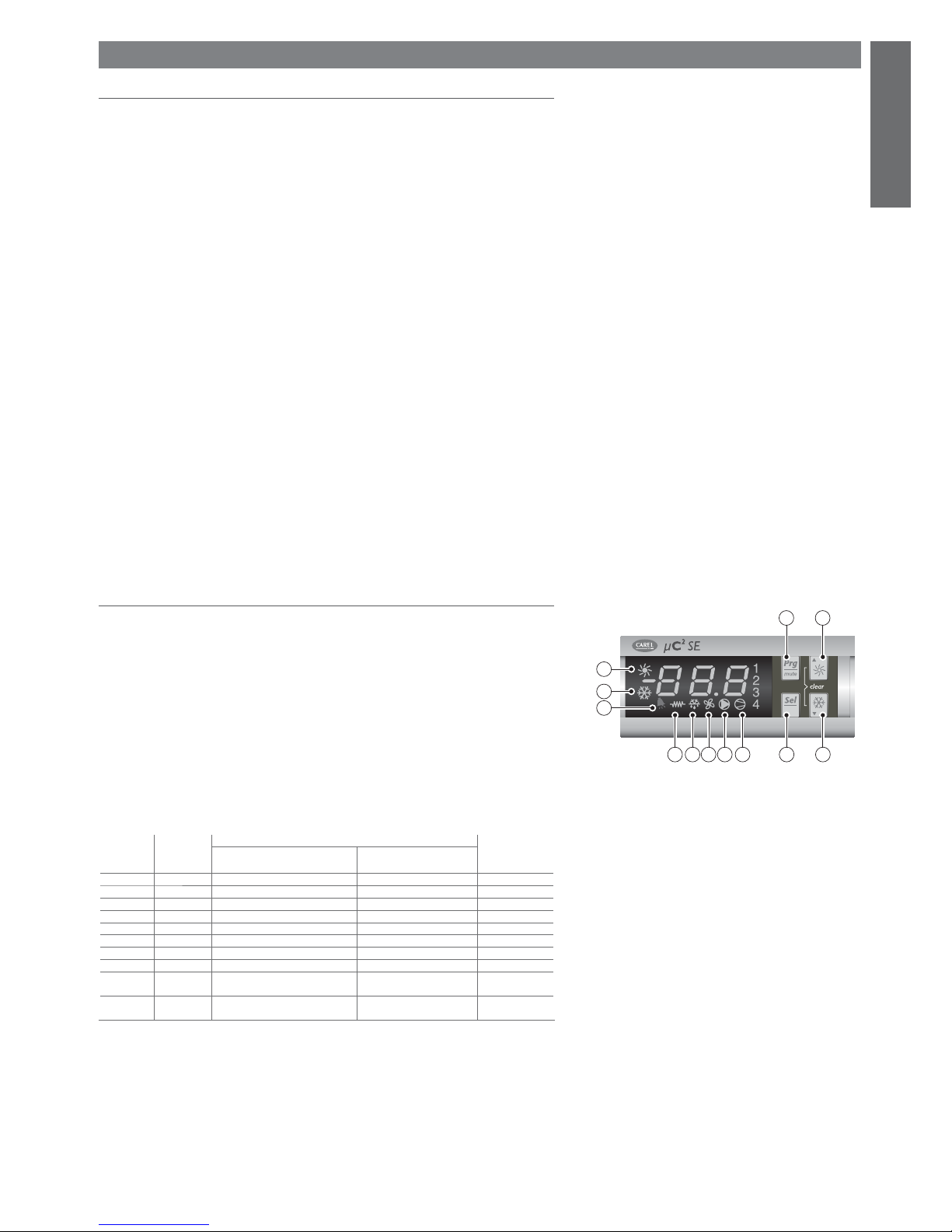

The display features 3 digits, with the display of the decimal point between -99.9 and 99.9. Outside of this range of measurement, the value is automatically displayed without the decimal (even if internally the unit still operates considering the decimal part). In normal operation, the value displayed corresponds to the temperature read by probe B1, that is, the evaporator water inlet temperature (for water chillers) or the ambient air temperature for direct expansion units. Fig. 1.a show the symbols present on the display and on the keypad and their meanings.

1.2.2 Symbols on the display

Display with 3 green digits (plus sign and decimal point), amber symbols and red alarm symbols.

symbol colour meaning reference

refrigerant circuit

with LED ON with LED  ashing

1; 2 amber compressor 1 and/or 2 ON start up request 1 1; 3 amber compressor 1 and/or 3 ON start up request 2 A amber at least one compressor ON 1/2 B amber pump/air outlet fan ON start up request 1/2 C amber condenser fan ON 1/2 D amber defrost active defrost request 1/2 E amber heater ON 1/2 F red alarm active 1/2 G amber heat pump mode (P6=0) heat pump mode request

(P6=0)

1/2

H amber chiller mode (P6=0) chiller mode request

(P6=0)

1/2

Table 1.a

Fig. 1.a

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

1.2.3 Functions associated with the buttons

button unit status button press

I Loading default values press at power ON

Go up a sub-group inside the programming area, until exiting (saving changes to EEPROM) press once In the event of alarms, mute the buzzer (if present) and deactivate the alarm relay press once

L Access the direct parameters press for 5 s

Select item inside the programming area and display value of direct parameters/con rm the changes to the parameters press once I + L Program parameters afters entering password press for 5 s J Select top item inside the programming area press once or press and hold

Increase value press once or press and hold

Switch from standby to chiller mode (P6=0) and vice versa press for 5 s

Provides immediate access to the condenser and evaporator pressure and temperature probes and DTE, DTC1-2 press once K Select bottom item inside the programming area press once or press and hold

Decrease value press once or press and hold

Switch from standby to heat pump mode (P6=0) and vice versa press for 5 s

Provides immediate access to the condenser and evaporator pressure and temperature probes and DTE, DTC1-2 press once J + K

Manual alarm reset

press for 5 s

Immediately reset the hour counter (inside the programming area)

press for 5 s

L + J Force manual defrost on both circuits press for 5 s

Table 1.b

1.2.4 Programming and saving the parameters

1. press “ “ and “ ” for 5 seconds;

2. the heating and cooling symbol and the  gure “00” are displayed;

3. use “ ” and “ ” to set the password (page 25) and con rm by pressing “ ”;

4. use “ ” and “ ” to select the parameter menu (S-P) or levels (L-P) and then press “ ”;

5. use “ ” and “ ” to select the parameter group and then press “ ”;

6. use “ ” and “ “ to select the parameter and then press “ ”;

7. after making the changes to the parameter, press “ ” to con rm or “ ” to cancel the changes;

8. press “ ” to return to the previous menu;

9. to save the modi cations, press “ ” repeatedly until reaching the main menu.

Note:

a. the parameters that have been modi ed without being con rmed using the “ ” button return to

the previous value;

b. if no operations are performed on the keypad for 60 seconds, the controller exits the parameter

modi cation menu by timeout and the changes are cancelled.

1.2.5. Keypad

The keypad is used to set the unit operating values (see Parameters/alarms - Keypad combinations)

EV driver

ESP.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 2.a

Fig. 2.b

Fig. 2.c

2. CONNECTIONS

2.1 General diagram

2.2 Network layout

EVD*40*: driver for electronic expansion valve

MCH200002*: I/O expansion board for µ

EVD*40*: driver for electronic expansion valve

Optional board

CONVONOFF*:

PWM/digital converter

CONV0/10A0*: PWM/analogic converter

MCH2*T*: terminal

PW/Modbus

RTU

CAREL Supervisory

NTC: temperature probes

MCH200485* RS485 serial card

PSOPZKEY*: programming key

PW CAREL Supervisory

SPKT: 0 to 5 V pres. transducer

MCHRTF**A0: fan speed regulator

MCH2*TSV*:

adapter

5 5

6 6

7 7

222

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.a.a

Fig. 3.a.b

3. APPLICATIONS

3.1 Air/air unit

3.1.1 Single circuit

3.1.2 Two circuits

Key:

1 condernser fan overload 2 fan 3 condenser probe 4 supply probe 5 electrical heater 6 evaporator 7 supply fan overload 8 supply fan 9 compressor 1 10 high pressure 11 compressor overload 12 low pressure 13 ambient probe 14 compressor 2

Key:

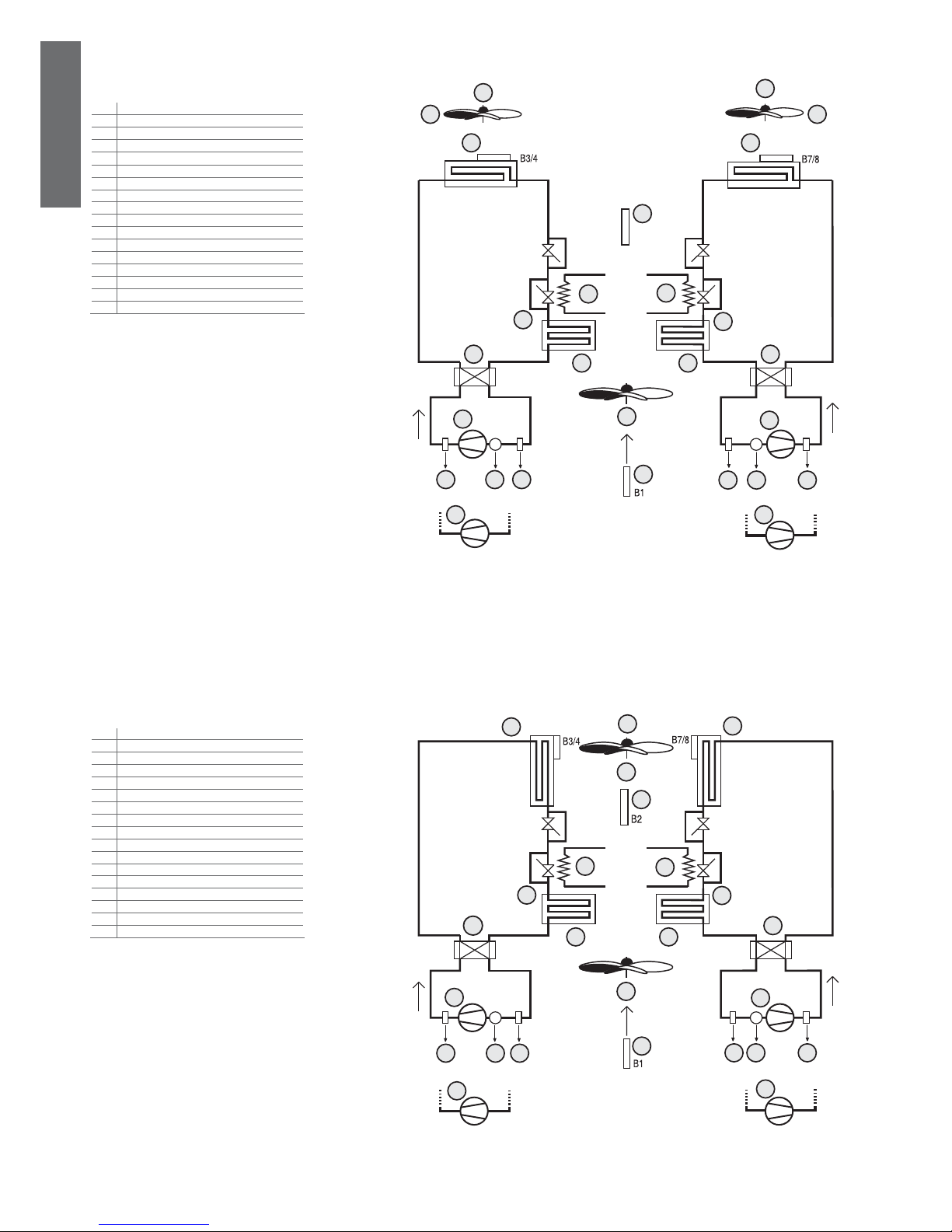

1 condernser fan overload 1 and 2 2 fan 3 condenser probe 4 supply probe 5 electrical heater 1 and 2 6 evaporator 1 e 2 7 supply fan overload 8 supply fan 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1and 2 13 ambient probe 14 compressor 2 15 compressor 3 16 compressor 4

5 5

6 6

222

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.a.c

Fig. 3.b.a

3.1.2 Two circuits, 1 condenser fan circuit

3.2 AIR/AIR heat pump

3.2.1 Single circuit

Key:

1 condernser fan overload 2 fan 3 condenser probe 1 and 2 4 supply probe 5 electrical heater 1 and 2 6 evaporator 1 and 2 7 supply fan 8 ambient probe 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1and 2 13 compressor 2 14 compressor 3 15 compressor 4

Key:

2 2

7 7

11 1

222

15 15

7 7

222

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.b.b

Fig. 3.b.c

3.2.2 Two circuits

3.2.3 Two circuits, 1 condenser fan circuit

Key:

1 condenser fan overload 1 and 2 2 fan 3 condernser probe 4 supply probe 5 electrical heater 1 e 2 6 evaporator 1 and 2 7 supply fan overload 8 supply fan 9 compressor 1 10 high pressure 1 e 2 11 compressor overload 1 and 2 12 low pressure 1and 2 13 ambient probe 14 compressor 2 15 reversing valve 1and 2 16 compressor 3 17 compressor 4

Key:

1 condenser fan overload 2 fan 3 condernser probe 1 and 2 4 supply probe 5 electrical heater 1 e 2 6 evaporator 1 e 2 7 supply fan overload 8 supply fan 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1 and 2 13 ambient probe 14 compressor 2 15 reversing valve 1and 2 16 compressor 3 17 compressor 4

2 2

11 1

3 3

6 6

8 8

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.c.a

Fig. 3.c.b

3.3 AIR/WATER chiller

3.3.1 Single circuit

3.3.2 two circuits, 2 condenser fan circuits and 2 evaporators

Key:

1 condernser fan overload 2 fan 3 condenser probe 4  ow switch 5 outlet evaporator probe 6 fan 7 antifreeze heater 8 inlet evaporator probe 9 compressor 1 10 high pressure 11 compressor overload 12 low pressure 13 water pump 14 compressor 2

Key:

1 condenser fan overload 1 and 2 2 fan 1 and 2 3 condenser probe 1 and 2 4  ow switch 5 outlet temperature probe 6 evaporator 1 and 2 7 outlet evaporator probe 1 and 2 8 antefreeze heater 1 and 2 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1and 2 13 inlet evaporator probe 14 compressor 2 15 water pump 16 compressor 3 17 compressor 4

11 1

222

8 8

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.c.c

Fig. 3.d.a

3.3.2 two circuits, 1 condenser fan circuit

3.4 AIR/WATER heat pump

3.4.1 Single circuit

Key:

1 condenser fan overload 2 fan 3 condenser probe 1 and 2 4  ow switch 5 outlet temperature probe 6 evaporator 1 and 2 7 outlet evaporator probe 1 and 2 8 antifreeze heater 1 and 2 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1and 2 13 inlet evaporator probe 14 compressor 2 15 water pump 16 compressor 3 17 compressor 4

Key:

1 condenser fan overload 2 fan 3 sonda condensatore 4  ow switch 5 outlet evaporator probe 6 evaporator 7 antifreeze heater 8 inlet evaporator probe 9 compressor 1 10 high pressure 11 compressor overload 12 low pressure 13 water pump 14 compressor 2

11 1

222

16 16

11 1

222

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.d.b

Fig. 3.d.c

3.4.2 2 condenser fan circuits

3.4.3 two circuits, 1 condenser fan circuit

Key:

1 condenser fan overload 1 and 2 2 fan 1 and 2 3 condenseer probe 1 and 2 4  ow switch 5 outlet temperature probe 6 evaporator 1 and 2 7 outlet evaporator probe 1 and 2 8 antifreeze heater 1 and 2 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1 and 2 13 inlet evaporator probe 14 compressor 2 15 water pump 16 reversing valve 1 and 2 17 compressor 3 18 compressor 4

Key:

1 condenser fan overload 2 fan 3 condenser probe 1 and 2 4  ow switch 5 outlet temperature probe 6 evaporator 1 and 2 7 outlet evaporator probe 1 and 2 8 antifreeze heater 1 and 2 9 compressor 1 10 hih pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1 and 2 13 inlet evaporator probe 14 compressor 2 15 water pump 16 reversing valve 1 and 2 17 compressor 3 18 compressor 4

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.e.a

Fig. 3.e.b

3.5 WATER/WATER chiller

3.5.1 Single circuit

3.5.2 Two circuits

Key:

1 water condensing temperature probe 2 condensator 3  ow switch 4 outlet evaporator probe 5 evaporator 6 antifreeze heater 7 inlet evaporator probe 8 compressor 1 9 high pressure 10 compressor overload 11 low pressure 12 water pump 13 compressor 2

Key:

1 water condensing temperature probe

1 and 2 2 condensator 1 and 2 3  ow switch 4 outlet evaporator probe 5 evaporator 6 antifreeze heater 1 and 2 7 compressor 1 8 high pressure 1 and 2 9 compressor overload 1 and 2 10 low pressure 1 and 2 11 inlet evaporator probe 12 water pump 13 compressor 2 14 compressor 3 15 compressor 4

6 6

7 7

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.e.c

Fig. 3.f.a

3.5.3 Ttwo circuits, 2 evaporators

3.6 WATER/WATER heat pump with reversal on gas circuit

3.6.1 Single circuit

Key:

1 water condensing temperature probe

1 and 2 2 condensator 1 and 2 3  ow switch 4 outlet temperature probe 5 outlet evaporator probe 1 and 2 6 antifreeze heater 1 and 2 7 evaporator 8 water pump 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1 and 2 13 compressor 3 14 compressor 2 15 compressor 4 16 inlet evaporator pressure

Key:

1 condenser probe 2 condenser 3  ow switch 4 outlet evaporator probe 5 antifreeze heater 6 reversing valve 7 inlet evaporator probe 8 compressor 1 9 high pressure 10 compressor overload 11 low pressure 12 water pump 13 compressor 2

6 6

1616

11 1

6 6

14 14

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.f.b

Fig. 3.f.c

3.6.2 Two circuits

3.6.3 Two circuits, 1 evaporator

Key:

1 water condensing temperature probe

1 and 2 2 condensator 1 and 2 3  ow switch 4 outlet evaporator probe 5 outlet evaporator probe 1 and 2 6 evaporator 1 and 2 7 antifreeze heater 1 and 2 8 water pump 9 compressor 1 10 high pressure 1 and 2 11 compressor overload 1 and 2 12 low pressure 1 and 2 13 inlet evaporator probe 14 compressor 2 15 compressor 3 16 revesing valve 1 and 2 17 compressor 4

Key:

1 condenser probe 1 and 2 2 condenser 1 and 2 3  ow switch 4 outlet evaporator probe 5 evaporator 6 antifreeze heater 1 and 2 7 compressor 1 8 high pressure 1 and 2 9 compressor overload 1 and 2 10 low pressure 1 and 2 11 inlet evaporator probe 12 water pump 13 compressor 2 14 reversing valve 1 and 2 15 compressor 3 16 compressor 4

111

222

19 20

8 8

13 1314 1415 15

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.g.a

Fig. 3.g.b

3.7 WATER/WATER heat pump with reversal on water circuit

3.7.1 Single circuit

3.7.2 Two circuits, H02= 1 and H21= 4

Key:

1 external 2 internal 3 reversing valve 4  ow switch 5 outlet evaporator probe 6 antifreeze heater 7 evaporator 8 condenser 9 condenser probe 10 compressor 1 11 high pressure 12 compressor overload 13 low pressure 14 water pump 15 compressor 2

Key:

1 external 2 internal 3 reversing valve 1 and 2 4 condenser probe 5  ow switch 6 outlet evaporator probe 7 condenser probe 1 and 2 8 condenser 1 and 2 9 outlet evaporator probe 1 and 2 10 antifreeze heater 1 and 2 11 evaporator 1 and 2 12 compressor 1 13 high pressure 1 and 2 14 compressor overload 1 and 2 15 low pressure 1 and 2 16 compressor 3 17 inlet evaporator probe 18 water pump 19 compressor 2 20 compressor 4

111

222

141415

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.g.c

Fig. 3.h.a

3.7.3 Two circuits, 1 evaporator H02= 1 e H21= 4

3.8 Air-cooled condensing unit without reverse cycle

3.8.1 Single circuit

Key:

1 condenser fan overload 2 fan 3 condenser probe 4 compressor 1 5 high pressure 6 compressor overload 7 low pressure 8 compressor 2

2 2

1 1

11 1

22 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.h.b

Fig. 3.i.a

3.8.2 Two circuits

3.9 Reverse-cycle air-cooled condensing unit

3.9.1 Single circuit

Key:

1 condenser fan overload 2 fan 3 condenser probe 4 compressor 1 5 high pressure 1 and 2 6 compressor overload 1 and 2 7 low pressure 1 and 2 8 compressor 2 9 compressor 3 10 compressor 4

Key:

1 condenser fan overload 2 fan 3 condenser probe 4 compressor 1 5 high pressure 6 compressor overload 7 low pressure 8 compressor 2 9 reversing valve

11 11

11 1

22 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.i.b

Fig. 3.j.a

3.9.2 Two circuits with one condenser fan circuit

3.10 Water-cooled condensing unit without reverse cycle

3.10.1 Single circuit

Key:

1 condenser fan overload 2 fan 3 condenser probe 4 compressor 1 5 high pressure 1 and 2 6 compressor overload 1 and 2 7 low pressure 1 and 2 8 compressor 2 9 compressor 3 10 compressor 4 11 reversing valve

Key:

1  ow switch 2 water cond. temperature probe 3 condenser 4 compressor 1 5 high pressure 6 compressor overload 7 low pressure 8 compressor 2

2 2

11 1

22 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.j.b

Fig. 3.k.a

3.10.2 Two circuits

3.11 Reverse-cycle water-cooled condensing unit

3.11.1 Single circuit

Key:

1  ow switch 2 water cond. temperature probe 3 condenser 4 compressor 1 5 high pressure 6 compressor overload 7 lw pressure 8 compressor 2 9 compressor 3 10 compressor 4 11 water pump

Key:

1 condenser probe 2 condenser 3 antifreeze heater 4 compressor 1 5 high pressure 6 compressor overload 7 low pressure 8 compressor 2 9 reversing valve

2 2

1 1

3 3

4 4

12 12

11 1

22 2

7 7

222

11 1

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Fig. 3.k.b

Fig. 3.k.l

3.11.2 Two circuits

Key:

1 condenser probe 2 condenser 1 and 2 3 antifreeze heater 1 and 2 4 reversing valve 5 compressor 1 6 high pressure 1 and 2 7 compressor overload 1 and 2 8 low pressure 1 and 2 9 compressor 3 10 compressor 2 11 compressor 4 12 water pump

Key:

3.12 Roof Top units

3.12.1 Example of Roof Top units with two circuits

F or 5”

And

F or 5”

Sa ve in the EEPROM

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.1 General parameters

The parameters are divided into 4 di erent types, according to their level of access by the user (password) and their function. For each level, only the access to the parameters of the same or lower level can be set. This means that through “factory” password, acessing the menù “levels” (L-P), it is possible to set the desired level for each parameter.

• Factory parameters: Accessible with the 66 “Factory” password, allow the con guration of all the unit parameters.

• Super User parameters: Accessible with the 11 “Super User” password, allow the con guration of the Super User, User and Direct parameters.

• User parameters: Accessible with password 22, allow the con guration of the parameters that typically can be set by the user (User parameters) and the Direct parameters, consequently relating to the options.

• Direct parameters: Accessible without password, this are used to read the probe measurements and any data, by any user, without compromising the operation of the unit.

N.B.: The modi cations to the parameters regarding the con guration of the unit (type, number

of compressors,...) must be performed with the controller in Standby.

4.2 Menu structure

4. PARAMETERS

Fig. 4.a

t* parameters

clock settings

level level name password

_d_ direct no password _U_ user 22 _S_ super user 11 _F_ factory 66

main menù

setting password

parameter

values

parameter level

parameters A*

parameters b*

probes

antifreeze

parameters F*

fan

parameters D*

defrost

parameters c*

compressor

parameters /*

probe settings

parameter values F1 parameters F1 level value F1

parameters Fn

parameters F-r*

parameters r*

regulation

software

parameters P*

alarm

parameters H*

unit setting

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3 Parameter tables

The following tables show of the parameters divided by type/family (e. g. compressor, probes, fans etc.).

• Key to the parameter tables

Level (default)

S= super user F= factory D= direct

Visibility:

The visibility of some groups depends on the type of controller and the value of the parameters.

D= defrost (if D01=1) F= fan (if F01=1) L= low noise (if F15=1-3) N= NTC probe (if /04-/08=2) P= pressure (if /04-/08=3) V= driver (if H08 =1, 3, 4) X= expansion (if H08=2, 3, 4) M= pump down (if D17=1) W= watch (if the clock board is  tted)

- = always present

Supervisor variables:

R/W = supervisor read/write parameter R= supervisor read-only parameter

4.3.1 Evaporator and condenser temperature and pressure values: (d*)

display indicat.

parameter and description default

level

min. max. UOM variat. default visibility supervis.

variable

Modbus variable

type

dtE Current value of DTE D 0 0 - - 0 - 99 (R) 99 Analog dC1 Current value of DTC1 D 0 0 - - 0 - 100 (R) 100 Analog dC2 Current value of DTC2 D 0 0 - - 0 - 101 (R) 101 Analog

Tab. 4.a

4.3.2 Probe setting parameters: (/*)

display indicat.

parameter and description default

level

min. max. UOM variat. default visibility supervis.

variable

Modbus variable

type

/01 Probe type B1 0= not present

1= present

F 0 1 Flag 1 1 - 1 (R/W ) 1 Digital

/02 Probe type B2 0= not present

1= present

F 0 1 Flag 1 0 - 2 (R/W ) 2 Digital

/03 Probe type B3 0= not present

1= NTC Cond. Probe 2= NTC Out. Probe 3= di erential control probe

F 0 3 int 1 0 - 14 (R/W ) 221 Integer

/04 Probe type B4 0= not present

1= ON/OFF (D.I) 2= NTC Out. Probe 3= ratiometric cond. Probe, 5 Vdc 4= di erential control probe

F 0 4 int 1 0 - 15 (R/W ) 222 Integer

/05 Probe type B5 0= not present

1= present

F 0 1 Flag 1 0 X 3 (R/W) 3 Digital

/06 Probe type B6 0= not present

1= present

F 0 1 Flag 1 0 X 4 (R/W) 4 Digital

/07 Probe type B7 0= not present

1= NTC Cond. Probe 2= NTC Out. Probe 3= di erential control probe

F 0 2 int 1 0 X 16 (R/W) 223 Integer

/08 Probe type B8

(expansion)

0= not present 1= ON/OFF 2= NTC Out. Probe 3= ratiometric cond. Probe, 5 Vdc 4= di erential control probe NB. if more than one di erential control probe is con gured, the priority is: B8, B7, B4, B3

F 0 3 int 1 0 X 17 (R/W) 224 Integer

/09 Min. value voltage input F 0 /10 0.01 Vdc 1 50 P 18 (R/W) 225 Integer /10 Max. value voltage input F /09 500 0.01 Vdc 1 450 P 19 (R/W ) 226 Integer /11 Pressure min. value F 0 /12 bar 1 0 P 1 (R/W ) 1 Analog /12 Pressure max. value F /11 99.9 bar 1 34.5 P 2 (R/W) 2 Analog /13 Probe B1 calibration F -12.0 12.0 °C/°F 0.1 0.0 - 3 (R/W ) 3 Analog /14 Probe B2 calibration F -12.0 12.0 °C/°F 0.1 0.0 - 4 (R/W ) 4 Analog /15 Probe B3 calibration F -12.0 12.0 °C/°F 0.1 0.0 - 5 (R/W ) 5 Analog /16 Probe B4 calibration F -12.0 12.0 °C/bar/°F 0.1 0.0 - 6 (R/W ) 6 Analog /17 Probe B5 calibration F -12.0 12.0 °C/°F 0.1 0.0 X 7 (R/W) 7 Analog /18 Probe B6 calibration F -12.0 12.0 °C/°F 0.1 0.0 X 8 (R/W) 8 Analog /19 Probe B7 calibration F -12.0 12.0 °C/°F 0.1 0.0 X 9 (R/W) 9 Analog /20 Probe B8 calibration F -12.0 12.0 °C/bar/°F 0.1 0.0 X 10 (R/W) 10 Analog /21 Digital  lter U 1 15 - 1 4 - 20 (R/W ) 227 Integer /22 Input limitation U 1 15 - 1 8 - 21 (R/W ) 228 Integer /23 Unit of measure 0= °C

1= °F

U 0 1 Flag 1 0 - 5 (R/W ) 5 Digital

Table. 4.b

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.3 Antifreeze/support heater setting parameters (A*)

display indicat.

parameter and description default

level

min. max. UOM variat. default

visibility

supervis. variable

Modbus variable

type

A01 Alarm set point antifreeze/low ambient temperature (air/air) U A07 A04 °C/°F 0.1 30 - 11 (R/W) 11 Analog A02 Di erential for antifreeze/low ambient temperature alarm (air/air) U 3 1220 °C °F 0.1 50 - 12 (R/W ) 12 Analog A03 Bypass time for antifreeze alarm/low ambient temp. when turning on

the unit in heating mode

U 0 150 s 1 0 - 22 (R/W) 229 Integer

A04 Set point for the activation of antifreeze heater/auxiliary heater U A01 r16 °C/°F 0.1 50 AA 13 (R/W) 13 Analog A04 Antifreeze/support heater set point di erential U 0 200 °C/°F 0.1 70 AR 77 (R/W) 77 Analog A05 Di . for antifreeze heater/auxiliary heater U 3 500 °C/°F 0.1 10 - 14 (R/W) 14 Analog A06 Auxiliary heater probe

0= Control probe see (see Table 5.a) 1= Antifreeze probe see (see Table 5.a)

F 0 1 Flag 1 0 - 6 (R/W) 6 Digital

A07 Antifreeze alarm set point limit F -400 1760 °C °F 0.1 -400 - 15 (R/W) 15 Analog A08 Auxiliary heater set point in heating mode U A01 r16 °C °F 0.1 250 AA 16 (R/W ) 16 Analog A08 Antifreeze/support heater set point di erential U 0 200 °C °F 0.1 70 AR 78 (R/W) 78 Analog A09 Auxiliary heater di erential in heating mode U 3 500 °C/°F 0.1 30 - 17 (R/W) 17 Analog A10 Antifreeze automatic start up

0= disabled function 1= Heaters and pump on at the same time on A4/A8 2= Heaters and pump on indipendently on A4/A8 3= Heaters ON on A4/A8

U 0 3 1 0 - 23 (R/W) 230 Integer

A11 Auxiliary heater 2 set point in heating U A01 r16 °C/°F 0.1 250 AA 67 (R/W) 67 Analog A11 Support heater 2 di erential in heating U 0 200 °C/°F 0.1 70 AR 79 (R/W) 79 Analog A12 T di . set point for dirty  lters (air/air) U 0 1760 °C/°F 0.1 150 - 57 (R/W ) 57 Analog A13 Outlet limit set point in freecooling conditions U A07 r16 °C/°F 0.1 30 - 80 (R/W) 80 Analog A14 Antifreeze alarm set point from EVD U A07 A04 °C/°F 0.1 30 - 82 (R/W ) 82 Analog

Table 4.c

4.3.4 Probe reading parameters (b*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. default visibility supervis.

variable

Modbus variable

type

b00 Con g. of probe to be shown on the display

0= probe B1 1= probe B2 2= probe B3 3= probe B4 4= probe B5 5= probe B6 6= probe B7 7= probe B8 8= set point without compensation 9= dynamic set point with possible compensation 10= remote ON/OFF digital input status 11= µAD probe

U 0 11 N 1 0 - 24 (R/W) 231 integer

b01 Value read by probe B1 D 0 0 °C /°F - 0 - 102 (R) 102 Analog b02 Value read by probe B2 D 0 0 °C /°F - 0 - 103 (R) 103 Analog b03 Value read by probe B3 D 0 0 °C /°F - 0 - 104 (R) 104 Analog b04 Value read by probe B4 D 0 0 °C /°F/

Dbar

- 0 - 105 (R) 105 Analog

b05 Value read by probe B5 D 0 0 °C /°F - 0 X 106 (R) 106 Analog b06 Value read by probe B6 D 0 0 °C /°F - 0 X 107 (R) 107 Analog b07 Value read by probe B7 D 0 0 °C /°F - 0 X 108 (R) 108 Analog b08 Value read by probe B8 D 0 0 °C /°F/

Dbar

- 0 X 109 (R) 109 Analog

b09 Driver 1 evaporator temperature D 0 0 °C /°F - 0 V 110 (R) 110 Analog b10 Driver 1 evaporator pressure D 0 0 Dbar - 0 V 111 (R) 111 Analog b11 Driver 1 superheating D 0 0 °C /°F - 0 V 112 (R) 112 Analog b12 Driver 1 saturation temperature D 0 0 °C /°F - 0 V 113 (R) 113 Analog b13 Driver 1 valve position D 0 1000 % - 0 V 114 (R) 114 Analog b14 Driver 2 evaporator temperature D 0 0 °C /°F - 0 XV 115 (R) 115 Analog b15 Driver 2 evaporator pressure D 0 0 Dbar - 0 XV 116 (R) 116 Analog b16 Driver 2 superheating D 0 0 °C /°F - 0 XV 117 (R) 117 Analog b17 Driver 2 saturation temperature D 0 0 °C /°F - 0 XV 118 (R) 118 Analog b18 Driver 2 valve position D 0 1000 % - 0 XV 119 (R) 119 Analog b19 Temp. probe at the outlet of the external coil c1 D 0 0 °C /°F - 0 V 120 (R) 120 Analog b20 Temp. probe at the outlet of the external coil c12 D 0 0 °C /°F - 0 XV 121 (R) 121 Analog b21 Terminal probe (for AD terminal) D -400 800 °C /°F 0.1 0 - 128 (R/W) 128 Analog

Table 4.d

4.3.5 Compressor setting parameters (c*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def. visib. supervis.

variable

Modbus variabile

type

c01 Minimum on time U 0 999 s 1 60 - 25 (R/W) 232 Integer c02 Minimum o time U 0 999 s 1 60 - 26 (R/W) 233 Integer c03 Delay between 2 starts of the same compressor U 0 999 s 1 360 - 27 (R/W) 234 Integer c04 Delay between starts of the 2 compressors U 0 999 s 1 10 - 28 (R/W) 235 Integer c05 Delay between 2 shut-downs of the 2 compressors U 0 999 s 1 0 - 29 (R/W ) 236 Integer c06 Delay at start-up U 0 999 s 1 0 - 30 (R/W ) 237 Integer c07 Delay in switching on the compressor after switching on the

pump/inlet fan (air/air)

U 0 999 s 1 20 - 31 (R/W) 238 Integer

c08 Delay in switching OFF the compressor after switching OFF the

pump/inlet fan (air/air)

U 0 150 min 1 1 - 32 (R/W) 239 Integer

c09 Maximum compressor operating time in tandem U 0 60 min 1 0 - 33 (R/W) 240 Integer c10 Compressor 1 timer D 0 8000 100 hours - 0 - 122 (R) 122 Analog c11 Compressor 2 timer D 0 8000 100 hours - 0 - 123 (R) 123 Analog c12 Compressor 3 timer D 0 8000 100 hours - 0 - 124 (R) 124 Analog c13 Compressor 4 timer D 0 8000 100 hours - 0 - 125 (R) 125 Analog c14 Operation timer threshold U 0 100 100 hours 1 0 - 34 (R/W) 241 Integer c15 Hour counter evaporator pump/fan 1 D 0 8000 100 hours - 0 - 126 (R) 126 Analog c16 Hour counter condenser backup pump/fan 2 D 0 8000 100 hours - 0 - 127 (R) 127 Analog c17 Minimum time between 2 pump starts U 0 150 min 1 30 - 35 (R/W) 242 Integer c18 Minimum pump ON time U 0 15 min 1 3 - 36 (R/W) 243 Integer c19 Delay between valve and compressor U 0 100 s 1 3 - 125(R/W) 332 Integer

Table 4.e

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.6 Defrost setting parameters (d*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat.

default

visibility supervis.

variable

Modbus variable

type

d01 Defrosting cycle/Condenser antifreeze

0= no; 1= yes, with shared defrosting

U 0 1 Flag 1 0 - 7 (R/W) 7 Digital

d02 Time-or temperature-based defrosting

0= time 1= temp. - press 2= pressure start, temperature end 3= activate sliding defrost

U 0 3 Flag 1 0 D 90 (R/W) 297 Integer

d03

Start defrosting temperature Condenser antifreeze alarm set point

U -400 d04 °C/°F 0.1 -50 DN 19 (R/W ) 19 Analog

Start defrosting pressure Condenser antifreeze alarm set point

U /11 d04 Dbar 0.1 35 DP 18 (R/W) 18 Analog

d04

End defrost temperature U d03 /12 Dbar 0.1 140 DP 20 (R/W) 20 Analog

End defrost pressure d03 1760 °C/°F 0.1 200 DN 21 (R/W ) 21 Analog d05 Min. time to start a defrosting cycle U 10 150 s 1 10 D 37 (R/W ) 244 Integer d06 Min. duration of a defrosting cycle U 0 150 s 1 0 D 38 (R/W) 245 Integer d07 Max. duration of a defrosting cycle U 1 150 min 1 5 D 39 (R/W) 246 Integer d08 Delay between 2 defrosting cycle requests within the same

circuit

U 10 150 min 1 30 D 40 (R/W ) 247 Integer

d09 Defrosting delay between the 2 circuits U 0 150 min 1 10 D 41 (R/W) 248 Integer d10 Defrost by external contact

0= disables function

1= external contact start

2= external contact end

3= external contact start and end

F 0 3 Flag 1 0 D 42 (R/W) 249 Integer

d11 Antifreeze heater in defrost U 0 1 Flag 1 0 D 9 (R/W) 9 Digital d12 Waiting time before defrosting F 0 3 min 1 0 D 43 (R/W) 250 Integer d13 Waiting time after defrosting F 0 3 min 1 0 D 44 (R/W ) 251 Integer d14 End defrosting with 2 refrigerating circuits

0= Indipendent

1= If both at end defrost

2= If at least one at end defrost

F 0 2 Flag 1 0 D 45 (R/W) 252 Integer

d15 Start defrost with 2 circuits

0= Indipendent

1= If both at start defrost

2= If at least one at start defrost

F 0 2 Int 1 0 D 46 (R/W ) 253 Integer

d16 Forced ventilation time at the end of the defrosting F 0 360 s 1 0 D 47 (R/W) 254 Integer d17 Set/enable light defrost F 0 800 °C/°F 0.1 0 D 22 (R/W) 22 Analog d18 Max. outside temperature (sliding defrost) F -400 800 °C/°F 0.1 -100 D 62 (R/W) 62 Analog d19 Start defrost di erential (sliding defrost) F -400 800 °C/°F/bar 0.1 30 D 63 (R/W) 63 Analog d20 Outside temperature di erential (sliding defrost) F 10.0 800 °C/°F 0.1 100 D 64 (R/W) 64 Analog

Table 4.f

4.3.7 Fan setting parameters (F*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def. visibility supervis.

variable

Modbus variable

type

F01 Enable Fan output

0=not present 1=present

F 0 1 Flag 1 0 - 10 (R/W) 10 Digital

F02 Fan operating mode

0= always ON 1= depending ON the compressor (in parallel operation mode) 2= depending ON the compressors in ON/OFF control 3= depending ON the compressors in speed control mode

U 0 3 Int 1 0 F 48 (R/W ) 255 Integer

F03 Min. voltage threshold for Triac F 0 F04 step 1 35 F 49 (R/W) 256 Integer F04 Max. voltage threshold for Triac F F03 100 step 1 75 F 50 (R/W) 257 Integer F05 Speed temp. set point in Cooling mode U -400 1760 °C/°F 0.1 350 FN 24 (R/W) 24 Analog

Pressure value for min. speed Cooling U /11 /12 Dbar 0.1 130 FP 23 (R/W) 23 Analog

F06 Di erential value for max. speed Cooling U 0 500 °C/°F 0.1 100 FN 26 (R/W) 26 Analog

Pressure value for max. speed Cooling U 0 300 Dbar 0.1 30 FP 25 (R/W) 25 Analog

F07 Fan shut-down di erential in Cooling mode U 0 500 °C/°F 0.1 150 FN 28 (R/W) 28 Analog

Fan shut-down pressure in Cooling mode U 0 F05 Dbar 0.1 50 FP 27 (R/W) 27 Analog

F08 Speed temp. set point in Heating mode U -400 1760 °C/°F 0.1 350 FN 30 (R/W) 30 Analog

Pressure value for max speed in Heating U /11 /12 Dbar 0.1 130 FP 29 (R/W) 29 Analog

F09 Max. speed di . in Heating mode U 0 500 °C/°F 0.1 50 FN 32 (R/W) 32 Analog

Pressure value for max speed in Heating U 0 F08 Dbar 0.1 40 FP 31 (R/W) 31 Analog

F10 Fan shutdown di . in Heating mode U 0 F08 °C/°F 0.1 50 FN 34 (R/W) 34 Analog

Pressure to turn OFF the fan in Heating U 0 300 Dbar 0.1 30 FP 33 (R/W) 33 Analog F11 Fan starting time U 0 120 s 1 0 F 51 (R/W ) 258 Integer F12 Triac impulse duration (fan start) F 0 10 s 1 2 F 52 (R/W) 259 Integer F13 Fan management in defrost mode

0= Fans deactivated

1= Fans in chiller mode

2= Maximum speed after defrost

F 0 2 Int 1 0 F 53 (R/W) 260 Integer

F14 Fan with high condensing temperature when starting U 0 999 - 1 0 FN 91 (R/W) 298 Integer

F15 Low noise activation

0= deac

tivat

ed 1= activated in cooling 2= activated in heating 3= activated in cooling and heating

U 0 3 - 1 0 F 85 (R/W ) 292 Integer

F16 Low noise di

. in cooling F

0 500 °C/°F/

bar

0.1 0 L 35 (R/W) 35 Analog

F17 Low noise di . in heating F

0 500 °C/°F/

bar

0.1 0 L 36 (R/W) 36 Analog

Table 4.g

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.8 Unit setting parameters (H*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def.

visibility

supervis. variable

Modbus variable

type

H01 Unit model

0= air_air unit 1= air_air heat pump 2= air_water chiller 3= air_water heat pump 4= water_water chiller 5= water_water heat pump with reversal on gas circuit 6= water_water heat pump with reversal on water circuit 7= condensing unit 8= reverse-cycle condensing unit 9= water-cooled condensing unit 10= reverse-cycle water-cooled condensing unit 11= cooling only air-air unit with electric heaters

F 0 11 Flag 1 2 - 54 (R/W) 261 Integer

H02 Number of condensers

0=1 circuit 1=2 circuits

U 0 1 Flag 1 0 F 12 (R/W ) 12 Digital

H03 Number of evaporators

0=1 evaporator 1=2 evaporators

F 0 1 Flag 1 0 - 13 (R/W) 13 Digital

H04 Number of compressors per circuit

0=1 comp. ON 1 circuit (single circuit) 1=2 comp. in tandem ON 1 circuit (single circuit) 2=1 comp. per circuit, 2 circuits (two circuits) 3=2 comp. in Tandem, 2 circuits (two circuits) 4=1 compressor and 1 Capacity step in one circuit 5=1 compressor and 1 capacity Step per circuit

F 0 5 Flag 1 0 - 55 (R/W) 262 Integer

H05 Pump/outlet fan (Air/Air) mode (output N2)

0= absent 1= always ON 2= ON upon request of the controller 3= ON upon request of the controller and for set time 4= follow hot keep or hot start in heating, always on in cooling 5= follow hot keep or hot start in heating, follow the comp. in cooling

F 0 5 Flag 1 1 - 56 (R/W) 263 Integer

H06 Cooling/Heating digital input

0= absent 1= present

U 0 1 Flag 1 0 - 14 (R/W) 14 Digital

H07 ON/OFF digital input

0= absent 1= present

U 0 1 Flag 1 0 - 15 (R/W) 15 Digital

H08

µC2SE network con guration

µC2SE only

µC2SE + valve

µC2SE + exp.

3= C2SE + exp. + valve1 + valve2 4= C2SE + exp. + valve1

F 0 3 Flag 1 0 - 57 (R/W) 264 Integer

H09 Lock keypad

0= disabled 1= enabled

U 0 1 Flag 1 1 - 16 (R/W) 16 Digital

H10 Serial address

0= future use as terminal

U 1 200 - - 1 - 58 (R/W) 265 Integer

H11 Output modes (see pag. 46) F 0 12 Int 1 0 - 59 (R/W) 266 Integer H12 Capacity-control and reversing valve logic

0= Both normally closed 1= Both normally open 2= Inversion valve normally open and capacity-control valve normally closed 3= Inversion valve normally closed and capacity-control valve normally open

F 0 3 Flag 1 1 - 60 (R/W) 267 Integer

H13 Activate pump down F 0 1 - 1 0 V 17 (R/W) 17 Digital H14 Minimum pump down pressure F 0 500 Dbar 0.1 20 M 37(R/W) 37 Analog H15 Maximum pump down time F 0 180 s 1 30 M 61 (R/W ) 268 Integer H16 Activate autotuning F 0 1 Flag 1 0 - 22 (R/W) 22 Digital H17 Minimum DTE value allowed F 0.0 1760 °C/°F 0.1 0 - 68 (R/W ) 68 Analog H18 Maximum DTE value allowed F 0.0 1760 °C/°F 0.1 800 - 69 (R/W) 69 Analog H19 Maximum DTC value allowed F 0.0 1760 °C/°F 0.1 800 - 70 (R/W) 70 Analog H21 Second pump function

0= Disabled 1= Backup and weekly rotation 2= Backup and daily rotation 3= Condensing control on corresponding set point 4= Condensing control always on

F 0 4 int 1 0 - 62 (R/W) 269 Integer

H22 Disable load default values

0= Function disabled 1= Function enabled

F 0 1 Flag 1 0 - 18 (R/W) 18 Digital

H23 Enable Modbus

F 0 1 Flag 1 0 - 11 (R/W) 11 Digital

Table 4.h

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.9 Firmware parameters (F-r*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. default visibility supervis.

variable

Modbus variable

type

H99 Software version, Driver 2 D 0 999 Int - 22 - 1 (R) 208 Integer H98 Software version, Driver 1 D 0 999 Int - 0 X 2 (R) 209 Integer H97 Expansion software version D 0 999 Int - 0 V 3 (R) 210 Integer H96 Software version (displayed when powering up

the instrument)

D 0 999 Int - 0 XV 4 (R) 211 Integer

Table 4.i

4.3.10 Alarm setting parameters (P*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def. visibility supervis.

variable

Modbus

variable type

P01 Flow switch alarm delay when starting the pump U 0 150 s 1 20 - 63 (R/W ) 270 Integer P02 Flow switch alarm delay during steady operation U 0 120 s 1 5 - 64 (R/W) 271 Integer P03 Low pressure alarm delay at compressor start-up U 0 200 s 1 40 - 65 (R/W) 272 Integer P04 Enable compressor capacity-control with high pressure

0= capacity control deactivated 1= capacity-control with high pressure active 2= capacity-control with low pressure active 3= capacity-control with high and low pressure active

U 0 3 Flag 1 0 P 66 (R/W) 273 Integer

P05 Alarm reset

0= HP1-2/LP1-2/A1-2/Lt manual 1= HP1-2/LP1-2/A1-2/Lt automatic 2= HP1-2/A1-2/Lt manual LP1-2 automatic 3= HP1-2 manual LP1-2/A1-2/Lt automatic 4= HP1-2/LP1-2 manual A1-2/Lt automatic 5= HP1-2/LP1-2 (thrice per hour) manual A1-2/Lt automatic 6= HP1-2/LP1-2 (thrice per hour) manual; A1-2/Lt manual

F 0 6 Flag 1 0 - 67 (R/W) 274 Integer

P06 Cooling/heating logic

0=:

Chiller, : Heat pump

1=:

Heat pump, : Chiller

F 0 1 Flag 1 0 - 19 (R/W) 19 Digital

P07 Low pressure alarm with pressure probe

0= Disabled 1= Enabled

F 0 1 Flag 1 0 P 68 (R/W) 275 Integer

P08 Digital input 1 selection

0= N 1=FL man. 2=FL auto. 3=TP man. 4=TP auto 5= TC1

man.

6= TC1 auto. 7= TC2 man.

8= TC2 auto.

9= Cool/ heat

10= Cool/heat with delay

11= LA man.

12= LA auto.

13= 2° Set 14= 2° Set timer 15= stop defrost

c.1 16= stop defrost c.2

17= start defrost c.1

18= start defrost c.2 19= step 1

20 = step 2 21= step 3 22= step 4 23= remote ON/

OFF 24=Comp. alarm1

25=Comp. alarm2

26=Comp. alarm3 27=Comp. alarm4

F 0 23 Int 1 0 - 69 (R/W) 276 Integer

P09 Digital input 2 selection F 0 27 Int 1 0 - 70 (R/W ) 277 Integer P10 Digital input 6 selection F 0 27 Int 1 0 X 71 (R/W) 278 Integer P11 Digital input 7 selection F 0 27 Int 1 0 X 72 (R/W) 279 Integer P12 Digital input 10 selection F 0 27 Int 1 0 X 73 (R/W) 280 Integer P13 Con guration of B4 as P8 if /4=1 (digital input) F 0 27 Int 1 0 - 74 (R/W ) 281 Integer P14 Con guration of B8 as /8=1 (digital input) F 0 27 Int 1 0 X 75 (R/W) 282 Integer P15 Select low pressure alarm

0= not active with compressor OFF 1= active with compressor OFF

F 0 1 Flag 1 0 - 76 (R/W) 283 Integer

P16 High temperature alarm set U -400 1760 °C/°F 0.1 800 - 38 (R/W) 38 Analog P17 High temperature alarm delay at start-up U 0 250 s 1 30 - 77 (R/W) 284 Integer P18 High pressure alarm set from transducer F P33 999 Dbar 0.1 200 P 39 (R/W ) 39 Analog P19 System low temperature alarm set point U -400 1760 °C/°F 0.1 100 - 40 (R/W ) 40 Analog P20 Enable system start-up protection

0= Disabled 1= Enabled

U 0 1 Flag 1 0 - 20 (R/W ) 20 Digital

P21 Alarm relay output logic

0= normally de-activated 1= normally activated

F 0 1 - 1 0 - 8 (R/W) 8 Digital

P22 Low pressure alarm delay at start-up

Compressor in heat pump

U 0 200 s 1 40 - 86 (R/W ) 293 Integer

P23 Low pressure alarm delay at compressor start-up in defrost U 0 999 s 1 40 - 87 (R/W ) 294 Integer P24 Deactivate compressors with HP and LP capacity-control D 0 1 - 1 0 P 21 (R/W) 21 Digital P25 Select digital output 2 F 0 17 Int 1 0 - 108 (R/W ) 315 Integer P26 Select digital output 3 F 0 17 Int 1 0 - 109 (R/W ) 316 Integer P27 Select digital output 4 F 0 17 Int 1 0 - 110 (R/W ) 317 Integer P28 Select digital output 5 F 0 17 Int 1 0 - 111 (R/W ) 318 Integer P29 Select digital output 7 F 0 17 Int 1 0 X 112 (R/W) 319 Integer P30 Select digital output 8 F 0 17 Int 1 0 X 113 (R/W) 320 Integer P31 Select digital output 9 F 0 17 Int 1 0 X 114 (R/W) 321 Integer P32 Select digital output 10 F 0 17 Int 1 0 X 115 (R/W) 322 Integer P33 Low pressure alarm threshold F 0 P18 Dbar 0.1 10 P 76 (R/W) 76 Analog P34 Select digital input 5 F 0 23 Int 1 23 - 122 (R/W) 329 Integer P35 Mute alarm with “mute“ button

0= no 1= yes

F 0 1 - 1 0 - 23 (R/W) 23 Digital

P36 Type of high pressure alarm management

0= always 1= only if compressor active and 2 s after activation

F 0 1 - 1 0 - 24 (R/W) 24 Digital

Table 4.j

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.11 Control setting parameters (r*)

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def.

visibility supervis.

variable

Modbus

variable type

r01 Cooling set point D r13 r14 °C/°F 0.1 12.0 - 41 (R/W) 41 Analog r02 Cooling di erential D 3 500 °C/°F 0.1 30 - 42 (R/W) 42 Analog r03 Heating set point D r15 r16 °C/°F 0.1 400 - 43 (R/W) 43 Analog r04 Heating di erential D 3 500 °C/°F 0.1 30 - 44 (R/W) 44 Analog r05 Compressor rotation

0= disabled; 1= FIFO type 2= hour control 3= direct relation between (D.I. and compressors D.O.)

F 0 3 Flag 1 0 - 78 (R/W) 285 Integer

r06 Type of compressor control

0= proportional on inlet 1= proportional on inlet + dead zone 2= proportional on outlet 3= proportional on outlet + dead zone 4= time on outlet with dead zone

F 0 4 Flag 1 0 - 79 (R/W) 286 Integer

r07 Dead zone di erential F 1 500 °C/°F 0.1 20 - 45 (R/W) 45 Analog r08 Maximum control output activation time F 0 999 s 1 120 - 80 (R/W) 287 Integer r09 Minimum control output activation time F 0 999 s 1 100 - 81 (R/W) 288 Integer r10 Maximum control output deactivation time F 0 999 s 1 120 - 82 (R/W) 289 Integer r11 Minimum control output deactivation time F 0 999 s 1 100 - 83 (R/W) 290 Integer r12 Compressor deactivation di erential F 0 500 °C/°F 0.1 20 - 46 (R/W) 46 Analog r13 Minimum set point in Cooling U -400 r14 °C/°F 0.1 -400 - 47 (R/W) 47 Analog r14 Max. Cooling set point U r13 1760 °C/°F 0.1 800 - 48 (R/W) 48 Analog r15 Min. Heating set point U -400 r16 °C/°F 0.1 -400 - 49 (R/W) 49 Analog r16 Max. Heating set point U r15 1760 °C/°F 0.1 800 - 50 (R/W) 50 Analog r17 Cooling compensation constant U -50 50 - 0.1 0 - 51 (R/W) 51 Analog r18 Maximum distance from the set point U 3 200 °C/°F 0.1 3 - 52 (R/W) 52 Analog r19 Start compensation temperature in cooling mode U -400 1760 °C/°F 0.1 300 - 53 (R/W) 53 Analog r20 Start compensation temperature in heating mode U -400 1760 °C/°F 0.1 0 - 54 (R/W) 54 Analog r21 Second cooling set point from external contact D r13 r14 °C/°F 0.1 120 - 55 (R/W) 55 Analog r22 Second heating set point from external contact D r15 r16 °C/°F 0.1 400 - 56 (R/W) 56 Analog r23 Select automatic changeover probe D 0 8 Flag 1 0 - 84 (R/W) 291 Integer r24 Automatic changeover set point D r15 r16 °C/°F 0.1 400 - 61(R/W) 61 Analog r25 Outside temp set point to stop compressors D -400 800 °C/°F 0.1 -400 - 65 (R/W) 65 Analog r26 Cooling set point in dehumidi cation D r13 r14 °C/°F 0.1 120 - 66 (R/W) 66 Analog r27 Enable accumulation vessel suppression

0= Disabled 1= Enabled in cool 2= Enabled in Heat 3= Always enabled

F 0 3 Flag 1 0 - 88 (R/W) 295 Integer

r28 Min. compressor running time for low load/damper travel time F 0 999 s 1 60 - 89 (R/W) 296 Integer r29 Chiller low load di erential/freecooling di erential F 10 500 °C/°F 0.1 30 - 58 (R/W) 58 Analog r30 Heat pump low load di erential/freeheating di erential F 10 500 °C/°F 0.1 30 - 59 (R/W) 59 Analog r31 Heating compensation constant U -50 50 - 0.1 0 - 60 (R/W) 60 Analog r32 Hot Start set point D r15 r16 °C/°F 0.1 120 - 71(R/W) 71 Analog r33 Hot Start di erential F 3 500 °C/°F 0.1 30 - 72 (R/W) 72 Analog r34 Enable Freecooling/Freeheating

0= disabled 1= freecooling / without compressors / cooling only 2= freecooling / with compressors / cooling only 3= freeheating / without compressors / heating only 4= freeheating / with compressors / heating only 5= freecooling and freeheating / without compressors / freecooling cooling only and freeheating heating only 6= freecooling and freeheating / with compressors / freecooling cooling only and freeheating heating only 7= freecooling / without compressors / always 8= freecooling / with compressors / always 9= freeheating / without compressors / always 10= freeheating / with compressors / always 11= freecooling and freeheating / without compressors / always 12= freecooling and freeheating / with compressors / always

F 0 12 Flag 1 0 - 116

(R/W)

323 Integer

r35 Compressor deactivation time with freecooling/freeheating active F 0 999 s 1 240 - 117

(R/W)

324 Integer

r36 Maximum damper operating time F 0 600 s 1 20 - 118

(R/W)

325 Integer

r37 Damper opening duty cycle di erential F 03 500 °C/°F 0.1 30 - 73 (R/W) 73 Analog r38 Damper closing duty cycle di erential F 03 500 °C/°F 0.1 30 - 74 (R/W) 74 Analog r39 Autotuning correction coe cient F 11 30 - 0.1 13 - 75 (R/W) 75 Analog r40 Indicates when to operate minimum damper opening

0= never 1= only in freecooling 2= only in freeheating 3= in freecooling and in freeheating 4= only if the freecooling and freeheating conditions end 5= only if the freeheating conditions are not present 6= only if the freecooling conditions are not present 7= always

F 0 7 - 1 0 - 119

(R/W)

326 Integer

r41 Minimum damper opening F 0 100 % 1 0 - 120

(R/W)

327 Integer

r42 Freecooling operating threshold with compressors disabled. U A07 1760 °C/°F 0.1 50 - 81 (R/W) 81 Analog r43 Heater set point

0= A4, A8 and A11 absolute values 1= A4 absolute value, A8 and A11 values relative to the set point 2= A4 value relative to the set point, A8 and A11 absolute values 3= A4, A8 and A11 values relative to the set point

F 0 3 - 1 0 - 121

(R/W)

328 Integer

r44 Inactivity time in Freecooling control F 0 240 - 1 5 - 123

(R/W)

330 Integer

Table 4.k

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

4.3.12 Timer setting parameters (t*)

display indicat.

parameter and description default

level

min. max. U.M. variat. def. visibility supervis.

variable

Modbus variabile

type

t01 RTC hours U 0 23 h 1 0 W 129(R/W) 336 Integer t02 RTC minutes U 0 59 min 1 0 W 130 (R/W) 337 Integer t03 RTC day U 1 31 g 1 1 W 131 (R/W) 338 Integer t04 RTC month U 1 12 mesi 1 1 W 132 (R/W) 339 Integer t05 RTC year U 0 99 anni 1 6 W 133 (R/W) 340 Integer t06 Start hours for 2nd set point in cooling U 0 23 h 1 0 W 92 (R/W) 299 Integer t07 Start minutes for 2nd set point in cooling U 0 59 min 1 0 W 93 (R/W) 300 Integer t08 End hours for 2nd set point in cooling U 0 23 h 1 0 W 94 (R/W ) 301 Integer t09 End minutes for 2nd set point in cooling U 0 59 min 1 0 W 95 (R/W) 302 Integer t10 Start hours for 2nd set point in heating U 0 23 h 1 0 W 9 (R/W) 303 Integer t11 Start minutes for 2nd set point in heating U 0 59 min 1 0 W 97 (R/W) 304 Integer t12 End hours for 2nd set point in heating U 0 23 h 1 0 W 98 (R/W ) 305 Integer t13 End minutes for 2nd set point in heating U 0 59 min 1 0 W 99 (R/W) 306 Integer t14 Start hours for 2nd low-noise in cooling U 0 23 h 1 23 W 100 (R/W) 307 Integer t15 Start minutes for 2nd low-noise in cooling U 0 59 min 1 0 W 101 (R/W) 308 Integer t16 End hours for 2nd low-noise in cooling U 0 23 h 1 7 W 102 (R/W) 309 Integer t17 End minutes for 2nd low-noise in cooling U 0 59 min 1 0 W 103 (R/W) 310 Integer t18 Start hours for 2nd low-noise in heating U 0 23 h 1 23 W 104 (R/W) 311 Integer t19 Start minutes for 2nd low-noise in heating U 0 59 min 1 0 W 105 (R/W) 312 Integer t20 End hours for 2nd low-noise in heating U 0 23 h 1 7 W 106 (R/W ) 313 Integer t21 End minutes for 2nd low-noise in heating U 0 59 min 1 0 W 107 (R/W) 314 Integer

Table 4.l

4.3.13 Supervisor-only variables

display indicat.

parameter and description default

level

min. max. U.O.M variat. def. visibility supervis.

variable

Modbus variable

type

- Circuit 1 alarm D 0 1 - 0 41 (R) 41 Digital

- Circuit 2 alarm D 0 1 - 0 42 (R) 42 Digital

- EVD valve 1 alarm D 0 1 - 0 43 (R) 43 Digital

- EVD valve 2 alarm D 0 1 - 0 44 (R) 44 Digital

- General alarm D 0 1 - 0 45 (R) 45 Digital

- Probe alarm D 0 1 - 0 46 (R) 46 Digital

- Compressor warning D 0 1 - 0 47 (R) 47 Digital

Compressor error alarm D 0 1 - 0 25 (R) 25 Digital

- EVD 1 warning D 0 1 - 0 48 (R) 48 Digital

- EVD 2 warning D 0 1 - 0 49 (R) 49 Digital

- General warning D 0 1 - 0 50 (R) 50 Digital

- Temperature warning D 0 1 - 0 51 (R) 51 Digital

- Fan warning D 0 1 - 0 52 (R) 52 Digital

- DTE/DTC alarm D 0 1 - 0 77 (R) 77 Digital

- Digital input 1 D 0 1 - 0 53 (R) 53 Digital

- Digital input 2 D 0 1 - 0 54 (R) 54 Digital

- Digital input 3 D 0 1 - 0 55 (R) 55 Digital

- Digital input 4 D 0 1 - 0 56 (R) 56 Digital

- Digital input 5 D 0 1 - 0 57 (R) 57 Digital

- Digital input B4 D 0 1 - 0 58 (R) 58 Digital

- Digital input 1 D 0 1 1 0 59 (R/W) 59 Digital

- Digital input 2 D 0 1 1 0 60 (R/W) 60 Digital

- Digital input 3 D 0 1 1 0 61 (R/W) 61 Digital

- Digital input 4 D 0 1 1 0 62 (R/W) 62 Digital

- Digital input 5 D 0 1 1 0 63 (R/W) 63 Digital

- Standby/On status 0= Standby 1= On

D 0 1 1 0 64 (R/W) 64 Digital

- Heating/Cooling status: 0= Heating 1= Cooling

D 0 1 1 1 65 (R/W) 65 Digital

- Gain constant for probe 1 calibration F 0 8000 - 1000 5 (R) 212 Integer

- Gain constant for probe 2 calibration F 0 8000 - 1000 6 (R) 213 Integer

- Gain constant for probe 3 calibration F 0 8000 - 1000 7 (R) 214 Integer

- Gain constant for probe 4 calibration F 0 8000 - 1000 8 (R) 215 Integer

-O set constant for probe 1 calibration F -8000 8000 - 0 9 (R) 216 Integer

-O set constant for probe 2 calibration F -8000 8000 - 0 10 (R) 217 Integer

-O set constant for probe 3 calibration F -8000 8000 - 0 11 (R) 218 Integer

-O set constant for probe 4 calibration F -8000 8000 - 0 12 (R) 219 Integer

Digital input 6 D 0 1 - 0 66 (R) 66 Digital

- Digital input 7 D 0 1 - 0 67 (R) 67 Digital

- Digital input 8 D 0 1 - 0 68 (R) 68 Digital

- Digital input 9 D 0 1 - 0 69 (R) 69 Digital

- Digital input 10 D 0 1 - 0 70 (R) 70 Digital

- Digital input B8 D 0 1 - 0 71 (R) 71 Digital

- Digital output 6 D 0 1 1 0 72 (R/W) 72 Digital

- Digital output 7 D 0 1 1 0 73 (R/W) 73 Digital

- Digital output 8 D 0 1 1 0 74 (R/W) 74 Digital

- Digital output 9 D 0 1 1 0 75 (R/W) 75 Digital

- Digital output 10 D 0 1 1 0 76 (R/W) 76 Digital

- Password to control outputs from the supervisor D 0 8000 1 0 13 (R/W ) 220 Integer

Defrost status bit 0= Defrost circuit 1 bit 1= Defrost circuit 2 bit 2= Fan Defrost circuit 1 bit 3= Fan Defrost circuit 2

D 0 255 - 0 134 (R) 341 Integer

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Controls from the UAD: bit0= terminal status (0= not connected; 1= available) bit2; bit1= mode set from AD (00= AUTO; 01= cooling; 10= heating) bit3= enable dehumidi cation bit4= enable humidi cation bit5= terminal probe alarm bit6= activate boiler output bit7= 0= process mode active; 1= process mode disabled

D 0 1023 1 0 135 (R/W) 342 Integer

- Signals to the AD bit0= cool/heat request from uAD in progress bit1= cool/heat request accepted from AD (1= cooling; 0= heating) bit2= start fans bit3= alarm active on CH bit4= RTC available on CH2 SE

D 0 255 - 0 136 (R) 343 Integer

- DTE value saved in EEPROM D 0 0 - 0 98 (R) 98 Analog

- Internal set point compensated in the event of autotuning

D 0 0 - 0 97 (R) 97 Analog

- Ambient set point (from AD) D -400 1760 0,1 0 95 (R/W ) 95 Analog

- Set point variation from AM (edronic) D -100 100 0,1 0 96 (R/W) 96 Analog

- Di erential for the ambient set point D -100 100 0,1 0 94 (R/W) 94 Analog

- Controls by the AD from save D 0 32767 1 0 - 137 (R/W) 344 Integer

- “Active alarm signal: bit0= probe alarm (E1,E2,E,E4,E5,E6,E7,E8) bit1= high pressure alarm (HP1, HP2) bit2= low pressure alarm (LP1, LP2) bit3=  ow switch alarm (FL) bit4= expansion communication alarm (ESP) bit5= EE2PROM alarm (EPB) bit6= antifreeze alarm (A1, A2) bit7= thermal overload alarm (TP, TP1, TP2) bit8= hour counter alarm (H1, H2, H, H4)”

D 0 32767 1 0 - 128 (R/W) 335 Integer

- Terminal humidity probe (per terminal AD) D 0 1000 % 0,1 0 129 (R/W) 129 Analog

- Reset alarms D 0 1 1 0 78 (R/W) 78 Digital

- Digital input B D 0 1 - 0 79 (R) 79 Digital

Table 4.m

4.3.13 Supervisor-only variables

display indicat.

parameter and description default

level

min. max. U.O.M. variat. def. visibility supervis.

variable

Modbus variable

type

- Indicates the unit parameter (Carel SV communication) F 0 250 - 108 (R) 207 Integer

- Gain constant for pressure probe calibration F 0 16000 - 1000 (R) 207 Integer

-O set constant for pressure probe calibration F -8000 8000 - 0 (R) 207 Integer

- Compressor 1 operating hours D 0 8000 - 0 (R) 207 Integer

- Compressor 2 operating hours D 0 8000 - 0 (R) 207 Integer

- Compressor 3 operating hours D 0 8000 - 0 (R) 207 Integer

- Compressor 4 operating hours D 0 8000 - 0 (R) 207 Integer

- Compressor pump operating hours D 0 8000 - 0 (R) 207 Integer

- Evaporator pump operating hours D 0 8000 - 0 (R) 207 Integer

- Alarms/warnings for EVD1: bit0= low superheat alarm bit1= EEPROM alarm bit2= probe alarm bit3= MOP warning bit4= LOP warning bit5= high suction temperature warning bit6= valve open after power failure alarm bit7=  at battery alarm

D 0 0 - 0 (R) 207 Integer

- Controls/status indicators for EVD1: bit0; bit1= comp. load step (0= 0%; 1= 50%; 2= 100%) bit2= standby circuit 2 (0= ON; 1= standby) bit3= chiller/pump circuit 2 (0= chiller; 1= pump) bit4= defrost circuit 2 (0= no defrost; 1= defrost) bit5= forced valve closing (for pump down) bit6= enable smart defrost bit7= enable low noise bit8= type of condenser probe (0= temp/1= press) bit9= condenser temp/press probe available bit10= restart unit after valve open alarm (set in reset_ alarms) bit11= enable control for driver 2

D 0 0 - 0 (R) 207 Integer

- Communication of the logical status of the digital outputs to expansion: bit0= compressor bit1= compressor 4 bit2= heater 2 bit3= reversing valve bit4= warning bit5= condenser pump bit6= fans in alarm status bit7= fan status in alarm (ON= 1; ofF= 0) bit8= speed to be set (100%= 1; speed from probe= 0) bit9= indicates fans 2 for defrost circuit 2 bit10= heater 1 bit11= open damper bit12= close damper bit13= humidi er

D 0 4200 - 0 (R) 207 Integer

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Signals from the expansion board: bit0= probe alarm 5 bit1= probe alarm 6 bit2= probe alarm 7 bit3= probe alarm 8 bit4= zero crossing alarm circuit 2 bit5= tLan alarm valve 2 bit6= fans on signal (symbol on) bit7= fan symbol  ashing circuit 2 bit8= max fan speed circuit 2

D 0 0 - 0 (R) 207 Integer

- Signals to the expansion board: bit0= temporary season (internal) cool= 1; heat= 0; bit1= frozen season (same as SV) bit2= temporary status (1)/stand_by (0) bit3= frozen status (1)/stand_by (0) bit4= low voltage alarm bit5= high voltage alarm bit6= enable control for expansion bit7= enable low_noise in cooling bit8= enable low_noise in heating bit9= boiler bit12= digital signature for Chiller (to the expansion)

D 0 0 - 0 (R) 207 Integer

- Alarms/warnings for EVD2: bit0= low superheat alarm bit1= EEPROM alarm bit2= probe alarm bit3= MOP warning bit4= LOP warning bit5= high suction temperature warning bit6= valve open after power failure alarm bit7=  at battery alarm

D 0 0 - 0 (R) 207 Integer

- Controls/status indicators for EVD2: bit0; bit1= compressor load step (0= 0%; 1= 50%; 2= 100%) bit2= standby circuit 2 (0= ON; 1= standby) bit3= chiller/pump circuit 2 (0= chiller; 1 = pump) bit4= defrost circuit 2 (0= no defrost; 1= defrost) bit5= forced valve closing (for pump down) bit6= enable smart defrost bit7= enable low noise bit8= type of condenser probe (0= temp/1= press) bit9= condenser temp/press probe available bit10= restart unit after valve open alarm (set in reset_ alarms) bit11= enable control for driver 2

D 0 0 - 0 (R) 207 Integer

- Model of unit 0= air-air unit 1= air-air heat pump 2= air-water chiller 3= air-water heat pump 4= water-water chiller 5= water-water heat pump, reversal of gas circ. 6= water-water heat pump, reversal of water circ. 7= condenser 8= condenser with reverse cycle 9= water-cooled condenser 10= water-cooled condenser with reverse cycle

D 0 10  ag 1 2 (R/W) 207 Integer

Table 4.n

OFF

A1 A1+A2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

5. DESCRIPTION OF THE PARAMETERS

To modify the parameters, see chapter 4 “Parameters.”

• Probe settings: parameters (/*) ( see Table 4.a)

- Type of probe: from /01 to /08: enables the reading of the corresponding analogue input or sets the function

•

Functions of the probes

Type of unit Parameter H01 Temp. control

probe 1st circuit

Antifreeze probe 1st circuit

Cond. temp. probe

Press probe 1st circuit 2nd evaporator

Antifreeze probe 2nd circuit

Cond. temp. probe

Press. probe 2nd circuit

0= air/air B1 B2 ( low outlet

temperature)

B3 B4 Not used B7 B8

1= air/air heat pump (cooling/heating) B1 B2 ( low outlet

temperature)

B3 B4 Not used B7 B8

2= air/water Chiller B1/B2 single

circuit (B1/B5 two circuits)

B2 B3 B4 B6 B7 B8

3= air/water heat pump (cooling/heating) B1/B2 single

circuit (B1/B5 two circuits)

B2 B3 B4 B6 B7 B8

4= water/water Chiller B1/B2 single

circuit (B1/B5 two circuits)

B2 Not used Not used B6 Not used Not used

5= water/water heat pump rev. on gas cooling B1/B2 single

circuit (B1/B5 two circuits)

B2 B3 B4 B6 B7 B8

heating B1/B2 single

circuit (B1/B5 two circuits)

B3 B3 B4 B7 B7 B8

6= water/water heat pump rev. on H

O cooling B1/B2 single

circuit (B1/B5 two circuits)

B2 Not used B4 B6 Not used B8

heating B3 B2 Not used B4 B6 Not used B8 7= Air-cooled condensing unit - - B3 B4 - B7 B8 8= Air-cooled condensing unit rev. on gas - - B3 B4 - B7 B8 9= Water-cooled condensing unit - - B3 B4 - B7 B8 10= Water-cooled condensing unit rev. on gas - B3 B3 B4 B7 B7 B8 11= Cooling-only air-air unit with electric

heating

B1 B2 (low outlet

temperature)

B3 B4 Not used B7 B8

Table 5.a

- Min/max voltage and pressure values

From /09 to /12: sets the minimum/maximum voltage and pressure for the ratiometric signal.

- Probe calibration From /13 to /20: calibrates the corresponding sensor (from B1 to B8).

- Digital  lter /21: Establishes the coe cient used in the digital  ltering of the value measured. High values

for this parameter will eliminate any continuous disturbance at the analogue inputs (however decrease the promptness of measurement). The recommended value is 4 (default).

- Input limit /22: Establishes the maximum variation that can be measured by the probes in one unit

program cycle; in practice, the maximum variations allowed in the measurement are between 0. 1 and 1.5 units (bars, °C or °F, depending on the probe and the unit of measure) approximately every one second. Low values for this parameter will limit the e ect of impulsive disturbance. Recommended value 8 (default).

- Unit of measure /23:

Selects the unit of measure as degrees centigrade or Fahrenheit. When the parameter is

modi ed, the µC

SE automatically converts the values read by the NTC temperature probes B1, B2, B3 into the new unit of measure; while all the other parameters set (set point, di erential etc. ) remain unchanged.

• Antifreeze, auxiliary heater: parameters (A*)

- Antifreeze alarm set point/outlet limit (low ambient temp. for air/air units) A01:

when probe B2 is installed on the coil represents the temperature (antifreeze set point) of the water at the evaporator outlet below which an antifreeze alarm is activated; in this condition the compressors corresponding to the circuit in question are stopped, while the pump remains on to decrease the possibility of freezing. The alarm is reset manually (or automatically, depending on parameter P05) only when the water temperature returns within the operating limits (that is, above A01+A02). In the Air/Air units (H1=0,1) the value represents the low room temperature warning threshold; this alarm, activated according to value read by probe B1 or B2 (depending on parameter A06) is signal only, and is reset depending on the value of P05.

If probe B2 is placed in the outlet air  ow (air/air units), A01 becomes the outlet limit, and if the outlet probe reading (B2) < outlet limit (A1) then:

1. bypass waiting time A3;

2. stop the compressors; if already o go to pt. 4;

3. bypass waiting time A3;

4. close damper with 50% duty cycle if FC ac tive and the ambient temperature means damper open

or dead zone. If FC is not active go to pt. 6;

5. bypass waiting time A3 after having closed r28 twice (from the end of the last period);

6. If B2 < A1 the alarm “A1” is activated. The alarm reset depends on P5.

Example of antifreeze/outlet limit management

Fig. 5.a.a

Key:

1. freecooling or comp 2. probe B2

1 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Antifreeze/low room temperature (air/air) alarm di erential A02:

This represents the di erential for the activation of the antifreeze alarm (low room temperature in air/air units); the alarm condition cannot be reset until the temperature exceeds the set point + di erential (A01+A02 or A14+A02).

- Antifreeze alarm bypass time low room temperature from unit start in heating mode A03: This represents the delay in the activation of the antifreeze alarm when starting the system.

In the case of air/air units, this parameter represents the delay time for the low room temperature (return-intake air) signal, only in heating mode. This means that the room being heated is too cold (threshold set by the user).

- Antifreeze heater/auxiliary heater set point in cooling A04: Determines the threshold below which the antifreeze heater is switched on. In the air/air

units (H01=0, 1) this parameter represents the temperature value below which the auxiliary heater is activated. This temperature is compensated according to the following equation: Set_heaters (cooling)= A04+(Compensated set point – Set point set) In the air/air heat pumps (H01=1) the auxiliary heaters are not used in cooling mode.

N.B. The antifreeze set points are not compensated.

- Antifreeze heater/auxiliary heater di erential A05: Di erential for the activation and deactivation of the antifreeze heaters (auxiliary heaters in

air/air units).

Operating diagram of the antifreeze alarm and the antifreeze heaters for air/water and water/ water chillers and heat pumps.

Key:

1. antifreeze alarm di eren. (A2)

2. antifreeze heater di eren (A5)

3. heaters

4. antifreeze alarm

5. antifreeze heater set point (A4)

6. antifreeze alarm set point (A1)

- Auxiliary heater probe in heating A06: This determines which probe is used for control the auxiliary heater. The meaning of the

parameter is the following: A06 = 0 => Control probe see Table 5.a.a A06 = 1 => Antifreeze probe see Table 5.a.a If H1=1 the heaters are disabled in cooling mode. See Functions of the probes. Not valid if A10= 2

- Antifreeze alarm set point limit A07: Establishes the minimum limit for setting the antifreeze alarm set point (A01).

- Antifreeze heater in defrost/auxiliary heater in heating set point A08: Represents the threshold below which the auxiliary heater is ON in defrost and in heating

mode. The set point in heating is compensated according to the following equation: Set_heaters (heating) = A08+(Compensated set point – Set point set) The antifreeze set point is not compensated. In the heat pumps (H01=1-3-6), during heating mode, it represents the set point for the auxiliary heater; during the defrost cycle, it represents the set point for the activation of the antifreeze heaters. In the air/air units (H01=0) it only represents the set point for the heating heaters. In heat pump mode (H1=5-10) this represents the set point for the antifreeze heater and the antifreeze probe becomes B3/B7

- Antifreeze heater/auxiliary heater di erential in heating A09: Represents the di erential for the activation/deactivation of the antifreeze heater in defrost/

auxiliary heater in heating. The di erential is the same for both heaters.

- Automatic start for antifreeze A10: This parameter is valid when the unit is in standby.

The operating mode switchover delay times are ignored. A10=0: function not enabled A10=1: Auxiliary heater and pump are ON at the same time, based to the respective set: points, A04 or A08, according to the settings of the antifreeze or auxiliary heaters; the exception is when H01=1 in cooling, in which case not even the pump will be activated. Each circuit, in the case of two evaporators, will be controlled based on its own probe (B2, B6). A10=2: pump and auxiliary heater ON independently based on the respective set point, A04 or A08. If the temperature falls below the antifreeze alarm set point A01, the unit is started in heating mode, controlling the steps (compressors) based on the set point A01 and di erential A02, in proportional mode. Each circuit, when there are 2 evaporators, will be controlled using its own probe (B2, B6). A10=2: pump and support heaters activated together, based on the set point A04. If there is an alarm in both circuits, control will be performed on the based on the lower of the two. This mode ends automatically when the antifreeze set point A01 + the di erential A02 is reached (returning to the previous mode); in any case, the function can be terminated manually by modifying the parameters or disconnecting the power supply to the device.

CAREL NTC probe (mode H1= 2, 3, 4, 5 and 6)

Fig. 5.a.b

OFF

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

In this case, the display will be as follows:

• operating mode LED OFF;

• cooling heating  ag not switched (not detected by the supervisor);

• antifreeze alarm A01 (remains active even at the end of the special operation if the unit was previously ON, deactivated by manual reset or in standby). A10=3: heaters ON based on the respective set point A04 and A08.

Do not use with H1= 6

- Antifreeze heater 2 set point in defrost/auxiliary in heating

A11: Heater 2 set point in heating, the control of the auxiliary heaters has been separated, each

having its own activation set point (see A08).

- Dirty  lter signal set point (air/air units only)

A12: Set point for the dirty  lter signal based on B1-B2, the deactivation di erential is A05

• Valid in the following conditions:

• air-air units;

• B1 is con gured;

• outlet limit active;

• freecooling not active;

• at least 1 compressor ON. The warning is reset automatically in the following conditions:

• air-air units;

• B1 is con gured;

• outlet limit active;

• freecooling not active.

- Outlet limit set point in freecooling conditions

A13: With freecooling active, and only when the compressors are o , this represents the outlet

limit. When the compressors are on, even if freecooling is active, the outlet limit alarm is bypassed and the antifreeze alarm is used.

- Antifreeze alarm set point from EVD

A14: With the EVD connected in the tLAN, A14 represents the evaporation temperature (sent by

the EVD) below which the antifreeze alarm is activated; when the alarm is active, the compressors in the circuit a ected are switched o , while the pump remains on to reduce the possibility of freezing. Manual reset (or automatic, depending on parameter P05), only occurs when the water temperature returns within the operating limits (that it, exceeds A14+A02

• Probe readings: parameters (B*)

- Select probe to be shown on display.

b00: Sets the probe reading to be displayed.

For the list of parameter-probe associations see Table 4.d

Note: probes that are not present cannot be selected.

• Compressor settings: parameters (c*)

- Minimum ON time

c01: This establishes the time that the compressor must remain ON for when started, even if the

stop signal is sent.

Key:

1. signal;

2. compressor;

3. min. ON time-interval.

- Minimum OFF time

c02: This establishes the time that the compressor must remain OFF for when stopped, even if

the start signal is sent. The compressor LED  ashes in this phase.

Key:

1. signal;

2. compressor;

3. min. OFF time-interval.

- Delay between 2 starts of the compressor

c03: This sets the minimum time that must elapse between two successive starts of the same

compressor (determines the maximum number of starts per hour for the compressor). The compressor LED  ashes in this phase. If by mistake the user enters a value lower than the sum of C01 + C02, this parameter will be ignored and only the times C01 and C02 will be considered.

Key:

1. signal;

2. compressor;

3. min. time-interval between two ON routins.

Fig. 5.a.c

Fig. 5.a.d

Fig. 5.a.e

OFF

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Start delay between compressors c04:

This sets the delay between the starts of the two compressors, so as to reduce the peak power input and make the compressors start more smoothly. The compressor LED  ashes in this phase.

• In the event of capacity control, the delay c04 between compressor and valve becomes c04/2;

• In the event of defrost operation, the delay between compressor and compressor is 3 seconds,

and between compressor and valve is 2 seconds.

Key:

1. 1st signal;

2. 2nd signal;

3. 1st compressore;

4. 2nd compressor;

5. time delay between two compressors ON routines/time-delay of the capacity-controlled

routine.

- Stop delay between compressors c05: This sets the stop delay between the compressors.

Key:

1. 2nd signal;

2. 1st signal;

3. 2nd compressor;

4. 1st compressore;

5. time delay between two compressors OFF routines/time-delay before the capacity-controlled

routine.

- Delay on power-up (reset power supply) c06: At power ON (when the controller is physically switched ON) the activation of all the outputs

is delayed so as to distribute the power input and protect the compressor against repeated starts in the event of frequent power failures. This means that after the delay time, the controller will start to manage the outputs based on the other times and the other normal functions.

- Compressor start delay from pump/outlet fan (air/air) ON. c07: In cooling and heating operation, if the operation of the pump (outlet fan) is subject to the

controller (parameter H05=2), the compressor is started when required after the set time from the activation of the water pump (or outlet fan in air/air units). If the pump/outlet fan is always ON (H05=1) and consequently does not depend on the control logic, the compressor is started after the set time from when the unit starts.

Key:

1. inlet fan;

2. pump;

3. compressor;

4. time-delay between pump-inlet fan and compressor.

- Pump/outlet fan (air/air) start delay from compressor OFF

c08: In cooling and heating operation, if the operation of the pump (outlet fan) is subject to the

controller (parameter H05=2), when the compressor is requested to stop, the control  rst stops the compressor and the pump (outlet fan). If the pump/outlet fan is always ON (H05=1), it is only stopped in standby mode.

Key:

1. compressor;

2. pump;

3. inlet fan;

4. time-delay between pump-inlet fan and compressor.

- Maximum tandem compressor operating time c09: In the case of two compressors in tandem per circuit, one compressor should not operate

for longer than the time set for c09 while the other compressor in the circuit is OFF. This prevents the oil shared in common from migrating over the allowed limit towards the active compressor, and consequently avoids damage when inactive compressor next starts (FIFO logic) due to poor lubrication. As a result, compressor 1 (or 2) in circuit 1, if requested to operate continuously, will actually stop OFF after the time c09 and hand over to compressor 2 (or 1) that was previously OFF. This function always considers the compressor times. Any value lower than the time set for c03 will be ignored, and the compressors (if the above condition is satis ed) will switch over after the time c03. When C9=0, the function is disabled (the compressors will not switch over).

Fig. 5.a.f

Fig. 5.a.g

Fig. 5.a.h

Fig. 5.a.i

C18 C18C17 C17 C17 C17C18 C18

C8 C7 C8

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Hour counter compressor 1-2-3-4 c10, c11, c12, c13:

These indicate the number of operating hours of compressor 1, 2, 3, 4, expressed in hundreds of hours. Pressing  and  together, when the hour counter is displayed, resets the hour counter and, consequently, cancels any maintenance requests in progress.

c10= operating hours comp. 1 c11= operating hours comp. 2 c12= operating hours comp. 3 c13= operating hours comp. 4

- Compressor operating hour counter threshold c14: This sets the number of compressors operating hours, expressed in hundreds of hours, above

which the maintenance request signal is sent. c14= 0: function disabled.

- Evaporator pump/fan 1 hour counter c15: This indicates the number of operating hours for the evaporator

pump or fan 1, expressed in hundreds of hours. Pressing  and  together, when the hour counter is displayed, resets the hour counter and, consequently, cancels any maintenance requests in progress.

- Condenser or backup pump/fan 2 hour counter c16: This indicates the number of operating hours for the condenser pump (or backup) or fan 2,

expressed in hundreds of hours. Pressing  and  together, when the hour counter is displayed, resets the hour counter and, consequently, cancels any maintenance requests in progress.

- Minimum OFF time before the next pump/fan start c17: The diagram below shows an example of the operation of the pump and with burst (active

when H05=3, see parameter H05). The dashed areas on the compressor line indicate the pump-compressor and compressor-pump delay times. Burst mode is disabled in standby and during an alarm when the pump is OFF. At power ON the delay c17 must elapse before burst can start.

- Minimum pump/fan ON time c18: This represents the minimum time that the pump remains ON for, see Fig. 5.i (active with

H05=3 see parameter H05).

- Delay between valve and compressor c19: Represents the delay to ensure the valve opening before the compressor starts. This

parameter is only available when EVD is connected.

• Defrost settings: parameters (d*)

The defrost has priority over the compressor times. For the defrost function the compressors times are ignored, with the exception of C04 (see C04 description for the exceptions).

Key:

1. compressor;

2. pump;

3. burst.

- Enable condenser defrost/antifreeze d01: For heat pumps with air-cooled condensers (H01=1, 3, 8), this establishes whether defrost

control must be performed on the outdoor exchanger (evaporator in heating mode). On the other hand, for water/water heat pumps with reversal on the gas circuit (H01=5-10), it enables antifreeze control on the cooling water for the outdoor exchanger, which becomes the evaporator in heating mode, see d03. If the fan is not present, the function is not enabled for air/ water units. d01=0: condenser defrost/antifreeze disabled; d01=1: condenser defrost/antifreeze enabled. In the defrost is running, the corresponding symbol will be shown on the display.

Fig. 5.a.j

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Type of defrost d02: establishes the type of defrost.

d02=0: the defrost has a  xed duration that depends on d07 d02=1: the defrost starts and ends according to the temperature or pressure thresholds, see d03 and d04; d02=2: the pressure transducer and temperature probe are both located on the outside exchanger; the defrost starts when the value read by the pressure transducer is below the threshold d03 and ends when the value read by the temperature probe is above the threshold d04; during the defrost, the pressure probe controls the fan speed, as in chiller mode, so as to limit the pressure, even if the NTC probe, caked by ice, delays the end defrost. In any case, after the maximum time allowed for the defrost, the unit will always exit the defrost procedure. d02=3: enable sliding defrost. In the event of low outside temperatures, the evaporator pressure or temperature may fall below the threshold set to start the defrost (d03) even if there is e ectively no ice on the coil. This can be corrected by shifting the start of the defrost proportionally to the lowering of the outside temperature. This procedure can be performed based on the temperature or the pressure alone, and not combined. It is disabled if the outside compensation probe is not  tted or is broken. It is performed based on the pressure only if both the pressure probe and temperature probe are con gured.

- Start defrost temperature/pressure or condenser antifreeze alarm set point d03: For heat pumps with air-cooled condensers (H01=1, 3, 8, 10, 12), this sets the temperature

or pressure below which the defrost cycle starts. To start the defrost cycle, the condition must be valid for the time d05. For water/water heat pumps with reversal on the gas circuit (H01=5, 10), it de nes the set point for the activation of the antifreeze alarm for the outdoor exchanger cooling water (evaporator in heating mode, on probe B3). If sliding is defrost enabled, the start defrost temperature decreases (starting from d03) proportionally to the outside temperature.

- End defrost temperature/pressure d04: Establishes the temperature or pressure above which the defrost cycle ends.

- Minimum start defrost time d05: Establishes the time that temperature/pressure must remain below the start defrost

threshold d03, while the compressor is ON, for the defrost cycle to be activated.

Key:

1. end defrost T/P ;

2. start defrostT/P;

3. start defrostT;

4. end defrost;

5. min. time-interval to start a def. cycle (d6);

6. min defrost interval (d5);

7. timer reset.

- Minimum defrost duration d06: Represents the minimum duration of the defrost cycle (the defrost continues even if the

value read by the condenser probe exceeds the end temperature/pressure). If set to 0, the minimum defrost time function is disabled. d06=0: control disabled.

- Maximum defrost duration d07: If timed defrost is set (d02=0), this establishes the duration of the cycle.

If, on the other hand, the defrost ends at a set temperature/pressure, it represents the maximum duration (being in this case a safety feature, an alarm is signalled, “dF1” or “dF2”).

- Delay between two defrost requests in the same circuit d08: Represents the minimum delay between two successive defrost cycles.

- Defrost delay between the 2 circuits d09: Represents the minimum delay between the defrost cycles on the 2 circuits.

- Defrost management from external contact d10: This enables or disables defrost control from an external contact.

This function is typically used to end the defrost based on a signal from a thermostat/pressure switch connected to the corresponding digital input. In this case, the defrost times are ignored. d10 = 0: function disabled.

Note: for the other settings, the start and end defrost are enabled for temperature and pressure

values between the Defrost start and end set points

d10= 1: start defrost from external contact enabled therefore:

• if the contact of the input is open, the start of the defrost is enabled;

• if the contact of the input closed, the defrost follows the normal procedure.

Fig. 5.a.k

Defrost by temperature (d2= 1)

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

d10= 2: end defrost from external contact enabled therefore:

• if the contact of the input is open, the end of the defrost is enabled;

• if the contact of the input is closed, the defrost follows the normal procedure. d10= 3: start and end defrost from external contact enabled therefore:

• if the contact of the input is open, the end/start of the defrost is enabled;

• if the contact of the input is closed, the defrost follows the normal procedure.

- Antifreeze/auxiliary heaters in defrost d11: This parameter determines whether, during the defrost cycle, the antifreeze/auxiliary heaters

should be activated to limit the  ow of cold water/air into the room. d11 = 0: antifreeze/auxiliary heater not activated in defrost; d11 = 1: antifreeze/auxiliary heater activated in defrost.

- Waiting time before defrost/delay in switching from heating to cooling d12: As soon as the defrost condition arises, but before the actual cycle starts, the unit stops the

compressor for the time d12 (selectable from 0 to 3 minutes). When the compressor stops, the four-way valve is switched (reversing of the cycle), after a time equal to d12/2; this waiting time allows the pressure to balance before starting the defrost cycle. In this procedure the compressor protection times are ignored, and consequently the compressor is stopped, and subsequently restarted, immediately. If d12=0, the compressor is not stopped and the reversing valve is switched immediately.

- Waiting time after defrost/delay in switching from cooling to heating d13: At the end of the defrost cycle, the unit stops the compressor for a time d13 (selectable

from 0 to 3 minutes). When the compressor stops, the four-way valves is switched (reversing of the cycle), after a time equal to d13/2; this waiting time allows the pressure to balance and the outdoor coil to drip. In this procedure the compressor protection times are ignored, and consequently the compressor is stopped, and subsequently restarted, immediately. If d13=0, the compressor is not stopped and the reversing valve is switched immediately.

- End defrost with two gas circuits/1 fan circuit

d14: This parameter is used to select, in units with two refrigerant circuits and one fan circuit, the

end defrost mode. d14 = 0 (default): the two circuits end the defrost independently (each according to their own temperature or pressure probe reading), only if H2= 1; d14 = 1: when both the circuits have reached the defrost condition; d14 = 2: when one of the two circuits has reached the end defrost condition.

- Start defrost with 2 circuits d15: This parameter is used to select whether to defrost the two circuits together or separately.

d15 = 0 (default): the two circuits start defrosting independently (each according to their own temperature or pressure probe reading), only if H2=1; d15 = 1: the two circuits start defrosting when both have reached the start defrost conditions; d15 = 2: the two circuits start defrosting when at least one of the two has reached the defrost conditions.

d14= 0 d14= 1 d14= 2

d15= 0 OK OK OK d15= 1 OK OK OK d15= 2 Not possible OK Not possible

Tab 5.b

- Forced ventilation time at end defrost d16: If the parameter F13 = 2, as soon as the end defrost temperature or pressure is reached, the

fans are activated at maximum speed for the set time, before the change in operating mode. Only at the end of this time will the cycle switch back to heat pump mode, with the normal management of the fans.

- Defrost with compressors OFF (Fan Defrost) d17: This function allows the outside temperature to be exploited, when su cient, to defrost the

condenser (outdoor evaporator). In these conditions, the unit, rather than reverse the cycle, simply turns OFF the compressors and activates the fans at maximum speed. The start and end defrost conditions remain unchanged, as does the use of any auxiliary heaters. The parameter has the following settings: d17=0: function disabled, d17>0: function enabled with relative set point (which represents the minimum defrost temperature set by the manufacturer). Above the set point, the unit performs the Fan Defrost.

F04

F05

F06

F09

F04

F08

F04

F03

F05

F07 F06

F04

F03

F08

F09 F10

100%

100 %

100%

1 1

2 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Max outside temperature threshold for sliding defrost d18:

This establishes the maximum value of the outside temperature below which sliding defrost

is activated.

- Maximum temperature/pressure di erential deviation for defrost d19: This value is expressed in °C if the compensation is controlled by temperature, or in bar if

controlled by pressure. The value set is subtracted from d03.

- Outside temperature di erential for compensation saturation d20: The value set is subtracted for d18.

• Fan settings: parameters (F*)

- Fan output F01:

Enables the operation of the fans. F01=0: fans absent; F01=1: fans present. The PWM output (1 or 2, depending on the value of parameter H02) requires the presence of the optional fan control cards (ON/OFF for the CONVONOFF module or speed variation for MCHRTF or FCS three-phase).

- Fan operating mode F02: This establishes the operating logic for the fans:

F02=0: always ON at maximum speed, independently from the compressors. The fans are only switched OFF when the unit is in standby. F02=1: ON at maximum speed when at least one compressor in the corresponding circuit is ON (parallel operation in each circuit). F02=2: ON when the corresponding compressor is ON, with ON/OFF control based on the temperature/pressure settings for the minimum and maximum speed (parameters F05-F06-F08 and F09). When the compressors are stopped, the corresponding fans are also stopped, irrespective of the condensing temperature/pressure.

Fig. 5.a.l

Fig. 5.a.m

Key:

1. speed %;

2. condensing temperature/pressure;

3. hysteresis.

F02=3: ON when the corresponding compressor is ON, with speed control. When the compressors are stopped the corresponding fans are also stopped, irrespective of the condensing temperature/pressure.

With F02=3 and an NTC condenser probe, when the compressor starts the fans are started at maximum speed for the time F11, irrespective of the temperature measured. In the event of a condenser probe fault, the fans will be switched OFF.

- Minimum voltage threshold for Triac F03: In the event of fan speed control, the optional phase cutting cards (MCHRTF*) are required,

 tted with a triac. The voltage delivered by the triac to the electric fan motor corresponding to the minimum speed must be set. The set value does not correspond to the actual voltage in Volts applied, but rather to an internal unit of calculation in the µC2SE. If using FCS controllers, set this parameter to 0. F03 = Represents the minimum threshold for the triac

Cooling ON/OFF Heating ON/OFF

Cooling with speed control Heating with speed control

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Maximum voltage threshold for Triac F04:

In the event of fan speed control, the optional phase cutting cards (MCHRTF*) are required,  tted with a triac. The voltage delivered by the triac to the electric fan motor corresponding to the maximum speed must be set. The set value does not correspond to the actual voltage in Volts applied, but rather to an internal unit of calculation in the µC2SE. If using FCS controllers, set this parameter to 100. F04 = Represents the maximum threshold for the triac

- Temperature/pressure set point for minimum speed in cooling F05: This represents the temperature or pressure below which the fans remain ON at minimum

speed. In the case of ON/OFF control, it represents the temperature or pressure below which the fans are switched OFF (Fig. 5.a.k).

- Temperature/pressure di erential for maximum speed in cooling F06: This represents the temperature or pressure di erential in reference to F05 above which the

fans are started at maximum speed; in the case of ON/OFF control, this represents the di erential above which the fans are started (Fig. 5.a.k).

- Temperature/pressure di erential for fans O in cooling F07: This represents the temperature or pressure di erential in reference to F05 below which the

fans are stopped. The fans are started 1 °C “lower” when using NTC temperature probes, or 0. 5 bars if using pressure probes. (Fig. 5.a.l) If NTC temperature probes or pressure probes are used to control the condensing temperature/ pressure, there is an activation hysteresis of 1 °C or 0.5 bar respectively.

- Temperature/pressure set point for minimum speed in heating F08: This represents the temperature or pressure above which the fans are started at minimum

speed (Fig 5.a.n). For ON/OFF control, this represents the temperature or the pressure above which the fans are switched o (Fig 5.a.l).

- Temperature/pressure di erential for maximum speed in heating) F09: This represents the temperature or pressure above which the fans are started at minimum

speed (Fig 5.a.l). In the case of ON/OFF control, it represents the temperature or pressure above which the fans are switched OFF (Fig.5.a.k). For capacity control for low pressure this represents, subtracted from F08, the pressure limit below which the step disabled during capacity control is re-activated.

- Temperature/pressure di erential for fans O in heating F10: If fan speed control is used, this represents the temperature or pressure di erential in

reference to F08 above which the fans are stopped. The fans are started 1 °C “lower” if using NTC temperature probes or 0. 5 bars lower if using pressure probes. When using NTC temperature or pressure probes for condenser control, the fans are started with an hysteresis of 1 ºC or 0. 5 bar.

- Fan start time F11: This establishes the operating time at maximum speed when the fans are started, so as to

overcome the mechanical inertia of the motor. The same times are observed in reference to the start of the compressor (irrespective of the condensing temperature/pressure), if NTC temperature probes are used on the condenser and speed control is enabled, F02=3; this is done to bring forward the sudden increase in pressure (which does not necessarily correspond to a likewise rapid increase in temperature in the area where the probe is located) and consequently to improve control

F11=0: the function is disabled, that is, the fans are activated at the minimum speed and then

controlled based on the condensing temperature/pressure.

- Triac impulse duration F12: This represents the duration in milliseconds for the impulse applied to the triac. For induction

motors, set the parameter to 2 (default). On the other hand, when using the CONVONOFF0, CONV0/10A0 modules or FCS controllers, set the parameter to 0.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Fan management mode in defrost F13:

This parameter sets the operating logic for the condensing fans during the defrost phase: F13 = 0: (default) the fans are OFF. F13 = 1: the fans are ON as in cooling mode, based on the temperature or pressure. F13 = 2: the fans are OFF until the end defrost temperature or pressure is reached, above which they are started at maximum speed for the time set for parameter d16. Only at the end of this time will the cycle return to heat pump mode with the normal management of the fans.

Note: If the unit is running the Fan Defrost function (parameter d17), the fan management

selected by F13 is disabled.

- Fan on time when starting in high condensing temp. F14: establishes the time the fans are operated at maximum speed if starting with a high

condensing temperature. F14 = 0: function disabled. F14 > 0: fan on time (in seconds). The function is operational only in chiller mode, if the probe on the condenser is a temperature sensor and only for air-cooled units. When the  rst compressor in the circuit in question starts, it is assumed that the temperature of the environment is close to the temperature of the condenser; if the value read by the condenser probe is higher than the value of F05-F07, as well as starting the compressor, the fans in the circuit in question are forced on at maximum speed for the time set by F14.

- Activate low noise

F15: This function moves the condensing pressure set point so as to lower the fan speed and

consequently reduce noise (speci cally at night). If low noise is active in cooling, the condenser control set points are increased by F16. If low noise is active in heating, the set points are reduced by F17. F15= 0: Low noise deactivated. F15= 1: Low noise activated in cooling. F15= 2: Low noise activated in heating. F15= 3: Low noise activated in cooling and heating.

N.B. The variation in the set point is not active during defrost

- Cooling set point di erential

F16: Di erential added to the condenser control set point when low noise is active (valid for both

temperature and pressure control).

- Heating set point di erential

F17: Di erential subtracted from the condenser control set point when low noise is active (valid

for both temperature and pressure control).

• Unit settings: parameters: (H*)

- Unit model H01:

Used to select the type of unit being controlled: H01= 0: 0: air/air units H01= 1: AIR/AIR heat pump H01= 2: AIR/WATER Chiller H01= 3: AIR/WATER heat pump H01= 4:WATER/WATER Chiller H01= 5: water/water heat pump with rev. on gas (*) H01= 6: water/water heat pump with rev. on water (*) H01= 7: air-cooled condensing unit H01= 8: air-cooled condensing unit with reversal on gas circuit H01= 9: water-cooled condensing unit H01= 10: water-cooled unit condensing with reversal on gas circuit H01= 11: cooling-only air-air unit with electric heating (*) Note: Set H21= 4 (Condenser pump always on), if H02= 1 (Two condensers).

- Number of condenser fan circuits/water condensers H02: This establishes the number of fan circuits present in the con gurations with two circuits.

With one fan circuit (H02=0) the unit may have 1 or 2 refrigerant circuits:

• with one refrigerant circuit, the fans are exclusively controlled based on the pressure or

temperature read by the sensor in the  rst circuit;

• with two refrigerant circuits, the fans are controlled based on the higher temperature/pressure

of the two circuits. In heat pump mode, the output depends on the lower temperature or pressure. The output used is Y1. Vice-versa, with 2 ventilation circuits (H02=1) each PWM output is independent and depends on its own condenser probe (B3 or B4 for circuit 1 and B7 or B8 for circuit 2).

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Number of evaporators H03:

This establishes the number of evaporators present when there are 2 or 4 compressors, obviously with 2 circuits (including the expansion). With one evaporator (H03=0), the management of the heaters and the antifreeze function is performed only on B2. Vice-versa, with 2 evaporators (H03=1) antifreeze control will be performed using B2 and B6, while input B5 is used to control the water outlet temperature.

- Number of compressors/circuits H04: This establishes the number of compressors per circuit and the number of circuits. For

further details see Table 4.g.

- Evaporator pump/fan operating mode H05: This establishes the operating mode for the evaporator water pump or the outlet fan (in air/

air units). H05 = 0: pump disabled, (the  ow switch alarm is ignored) H05 = 1: always ON (the alarm is managed) H05 = 2: ON when called by compressor (the alarm is managed) H05 = 3: the pump will be started and stopped at regular intervals (independently from the compressors) as per the Burst setting (see parameters c17 and c18). H05= 4: follow hot keep or hot start in heating, always on in cooling H05= 5: follow hot keep or hot start in heating, follow the compressors in cooling. When the heating or cooling signal is received,  rst the evaporator pump/outlet fan starts (always ON), and then the compressor, after the set times (c07, c08). The pump will not be stopped until all the compressors are O .

- Cooling/heating digital input H06: Establishes whether the cooling/heating selection from digital input is enabled. see

parameters P08, P09, P10, P11, P12 and P13). The open status places the unit in cooling operation, vice-versa, in heating. D-IN Open = Cooling D-IN Closed = Heating

- ON/OFF digital input H07: Establishes whether the ON/OFF selection from digital input is enabled or disabled. If the

selection is enabled (H07= 1), the “open” status switches the unit O , while in the “closed” status, the unit may be OFF or ON, as controlled by the keypad. This parameter is not valid for condensing units.

- μC2SE network con guration

H08: Establishes the layout of the tLan network.

0= µC2SE only 1= µC2SE + valve 2= µC2SE + exp. 3 = C2SE + exp.+ 2 valves 4 = C2SE + exp.+ 1valve

- Enable keypad H09: Used to disable the modi cation of the DIRECT and USER parameters from the keypad. The

value of the parameters can always be displayed. The enable/disable cooling, heating and reset counter functions are also available. Values: 0: keypad disabled 1: keypad enabled (default)

- Serial address H10: Establishes the address of the instrument for the serial connection, via an optional board, to

a PC for supervision and/or telemaintenance.

- Selection map outputs H11: This parameter is used to arbitrarily associate some digital outputs to the devices on the

unit.

H11= 0: standard (default); for units with one compressor per circuit (H04=0, 2). H11= 1: For cooling only units with two compressors (H01=0, 2, 4, 7, 9 and H04=1, 3, 5) H11= 2: The outputs of the expansion follow the same logic for the 2nd circuit. For H01= 1, 3, 5, 6,

8, 10 and H04= 1, 3, 5

H11= 3: The outputs of the expansion follow the same logic for the 2nd circuit. For H01= 1, 3, 5, 6,

8, 10 and H04= 1, 3, 5

H11= 4: For H01= 1, 3, 5, 6, 8, 10 and H04= 0, 1 H11= 5: For cooling only units with two compressors (H01= 0, 2, 4, 7, 9, and H04= 0) H11= 6: 1 compressor per circuit, heat pump H11= 7: 1 compressor per circuit, cooling only, solution 1 H11= 8: 1 compressor per circuit, cooling only, solution 2 H11= 9: 2 compressors per circuit, heat pump H11= 10: 2 compressors per circuit, cooling only, solution 1 H11= 11: 2 compressors per circuit, cooling only, solution 2

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

H11= 12:

associated device

outputs

H11=0 H11= 1 H11= 2 H11= 3 H11= 4 H11= 5

compressor 1 compressor 1 compressor 1 compressor 1 compressor 1 compressor 1

heater 1 heater 1 heater 1 reversing valve 1 reversing valve 1 heater 1

Pump/evaporator (fan) (on

air/air units)

Pump/evaporator (fan) (on

air/air units)

Pump/evaporator (fan) (on

air/air units)

Pump/evaporator (fan) (on

air/air units)

evaporator pump Pump/evaporator (fan) (on

air/air units)

reversing valve 1 Compressor 2 (or capacity

control comp. 1)

Compressor 2 (or capacity

control comp. 1)

Compressor 2 (or capacity

control comp. 1)

Compressor 2 (or capacity

control comp. 1)

condenser fan 1

alarm alarm reversing valve 1 alarm alarm alarm

compressor 2 compressor 3 compressor 3 compressor 3 not used compressor 2

heater 2 heater 2 heater 2 reversing valve 2 heater 1 heater 2

Condenser pump/backup Condenser pump/backup Condenser pump/backup Condenser pump/backup Condenser pump/backup Condenser pump/backup

reversing valve 2 Compressor 4 (or capacity

control comp. 2)

Compressor 4 (or capacity

control comp. 2)

Compressor 4 (or capacity

control comp. 2)

not used condenser fan 2

C10

Warning Warning reversing valve 2 Warning Warning Warning

associated device

outputs

H11= 6 H11= 7 H11= 8 H11= 9 H11= 10 H11= 11 H11= 12

compressor 1 compressor 1 compressor 1 compressor 1 compressor 1 compressor 1 compressor 1

1 step heater 1 step heater 1 step heater compressor 2 compressor 2 compressor 2 P25

outlet fan outlet fan outlet fan outlet fan outlet fan outlet fan P26

reversing valve 1 2 step heater condenser fan 1 reversing valve 1 heating step 1 heating step 1 P27

alarm alarm alarm alarm alarm alarm P28

compressor 3 compressor 3 compressor 3 compressor 3 compressor 3 compressor 3 compressore 3

2 step heater P29 2 step heater compressor 4 P29

open freecooling/

freeheating

open freecooling open freecooling open freecooling/

freeheating

open freecooling/

freeheating

open freecooling/

freeheating

P30

reversing valve 2 humidi er (ON/OFF) condenser fan 2 1 step heater heating step 2 humidi er P31

C10

close freecooling/

freeheating

close freecooling close freecooling close freecooling/

freeheating

close freecooling/

freeheating

close freecooling/

freeheating

P32

Parameters P25 to P32 can have the following meanings: 0 = no function associated with the relay 1 = compressor 2 2 = Heater 1 3 = Reversing valve 1 4 = Pump/inside fan 5 = Open freecooling/freeheating 6 = Close freecooling/freeheating 7 = Humidi er 8 = Condenser fan 1 on/o 9 = Heater 2 10 = Alarm 11 = Boiler contact 12 = compressor 4 13 = Reversing valve 2 14 = Pump/inside fan 2nd evaporator 15 = Condenser fan 2 on/o 16 = Warning 17 = Condenser pump/Backup

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Capacity-control logic H12:

Speci es the logic for the activation of the capacity-control steps for the compressors and the 4-way reversing valve. H12 = 0: 4-way reversing valve and capacity-control normally energised H12 = 1: 4-way reversing valve and capacity-control normally de-energised. Default value. H12 = 2: 4-way reversing valve normally de-energised and capacity-control normally energised H12 = 3: 4-way reversing valve normally energised and capacity-control normally de-energised.

Note: in the event of capacity-control, the rotation between compressor and corresponding valve

is disabled. FIFO or time logic can be used between the 2 circuits to optimise the starts or the operating hours of the 2 compressors (1 per circuit).

- Enable pump down H13: This function allows the unit to be stopped while avoiding the possible formation of liquid

refrigerant inside the evaporator. When the only active compressor is called to stop, the expansion valve is closed so as to depressurise the circuit. Valid only when the driver is installed, as the driver pressure probe is used.

- Minimum pumpdown pressure H14: Limit pressure below which the compressor is deactivated.

- Maximum pumpdown time H15: Maximum time after which the compressor is deactivated.

- SmartSET “CAREL patent” (cannot be used on air/air units) H16: Activate smartSET, this function optimises the operation of the unit by calculating the

e ciency of the heat exchangers.

In smartSET mode, the following values are saved:

• Only when R06= 0 or 4;

• DTE: di erence between evaporator inlet temperature (B1) and outlet temperature (B2/B5),

calculated at full load (all compressors on) when reaching the user set point. Saved to memory on the E2P;

• DTC 1: di erence between outside exchanger temperature (B3) and outside temperature (B4,....)

(this implies the con guration of a dedicated probe, optional setting). It is calculated whenever condenser fan 1 runs at maximum speed for 30s, irrespective of the status of the compressors;

• DTC 2: (calculated only when there are 2 condensers) di erence between outside exchanger

temperature (B7) and outside temperature (B4,....) (this implies the con guration of a dedicated

probe, optional setting). It is calculated whenever condenser fan 2 runs at maximum speed for 30s irrespective of the status of the compressors.

With proportional inlet control, the dynamic set point (STD) and the corresponding proportional band are adapted according to the DTE.

With outlet control and dynamic logic, that is, dead zone and activation/deactivation times, the dead zone has a dynamic value. In this case too, control will be optimised according to the actual DTE measured.

- Minimum DTE value allowed H17: Even if there is not danger involved, beyond the limit a warning is sent (“dEL”) to check the

water  ow-rate, which is perhaps too high, or low condenser e ciency.

- Maximum DTE value allowed H18: Maximum value allowed for DTE, above the limit the evaporator risks freezing, the

anomalous behaviour is signalled by “dEH”.

- Maximum DTC value allowed H19: Maximum value allowed for DTC, above this value the condenser may be dirty (chiller) or

dirty/frozen (heat pump).

1 bar 1,5 bar 2 bar F08-F09

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Function of the second pump H21:

This parameter de nes how the output dedicated to the second pump must be managed. H21= 0: the second pump is disabled. H21= 1: the second pump is used only as a backup. If the  ow switch and corresponding alarm are activated, the pumps are switched over:

• if the alarm passes, a warning is shown on the display and the warning relay is activated, while

the unit continues to operate with the Backup pump. When the next alarm is activated the pumps will be switched over.

• if the alarm remains active even with the second pump on for longer than the time set for P1,

the generic alarm is generated and the unit is switched OFF.

H21= 2: the second pump represents a backup pump. The two pumps are never used at the

same time but each 24 hours, are switched over. In the event of  ow alarms, the logic is the same as for setting 1. After being switched over due to the  ow alarm, the 24-hour timer is set to zero.

H21= 3: the second pump is used as an ON/OFF device in the same way as the condenser fan

(which in this case is not present), in ON/OFF mode, with the same settings (in fact in this case the pump replaces the fan, including the symbol).

H21= 4: the second pump is used for the condenser but is always ON. In this case the pump

symbol is not managed.

Note: In the event of  ow alarms with automatic reset, 10 attempts are made to restart the pump

every 90 seconds, for a maximum time of P02; after the 10 attempts, the alarm becomes manual reset. With the second pump, the attempt consists in switching over the pump that is on, with the same logic.

- Disable load default values H22: If this parameter is set to 1, it disables the possibility of restoring the default parameters

using the PRG button at power ON.

- select supervisor protocol H23: establishes the protocol used for the connection to the supervisor from the serial board

RS485 H23 = 0: CAREL protocol (baud rate 19200,…) H23 = 1: Modbus protocol

• Alarm settings: parameters (P*)

- Flow switch alarm delay when starting pump P01: Establishes a delay in the recognition of the  ow switch alarm when starting the pump (this

allows the  ow-rate to stabilise). In the event of alarms, the compressors are stopped immediately, ignoring the times.

- Flow switch alarm delay in steady operation P02: Establishes a delay in the recognition of the  ow switch alarm in steady operation, so as to

 lter any variations in  ow-rate or air bubbles present in the water circuit. In the event of alarms, the compressors are stopped immediately, ignoring the times.

- Low pressure alarm delay at compressor start P03: Establishes a delay in the recognition of the low pressure alarm when the compressor

starts, so as to allow stable operating conditions to be reached. This delay is also counted when reversing the 4-way valve in the refrigerant circuit.

Part load in high pressure and low pressure in heat pump

P04:

enable or disable the part load operation of the circuit in high pressure. The function is valid if the unit is  tted with tandem or capacity controlled compressors and pressure transducers. In the event of high pressure alarms, that is, for values over P18 (hysteresis

0.5 bar), the controller deactivates a load step in the circuit in question and waits 10 seconds. After this interval, if the alarm is still active, the unit is stopped, otherwise it continues to operate in part load mode. In this situation, the display shows the message PH1 and/or PH2, depending on the circuit. This condition remains active until the pressure falls below the value corresponding to the maximum speed of the condenser fans (F05+F06). Below this value, the unit reactivates the load step that had previously been deactivated.

P04=0: capacity control not activated P04=1: capacity control activated for high pressure P04=2: capacity control activated for low pressure P04=3: capacity control activated for high and low pressure

With the unit operating in heat pump mode, due to low outside temperatures or the load the pressure may fall and stop the unit due to the low pressure alarm. If the circuit has 2 compressor steps and the pressure remains below the value of one bar for the time P22, the circuit can operate at part load. This capacity control is not activated when the alarm comes from the digital input. In the event of low pressure, the controller deactivates one step and if the pressure does not return above the threshold in 10 seconds, the alarm is activated and the circuit is stopped. This function is valid for all units with pressure transducers.

Fig. 5.b.b

all LP

pressure

Part load in low pressure

parz LP

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Alarm reset P05:

Enables automatic reset for all those alarms that normally feature manual reset (high

pressure, low pressure,  ow switch/antifreeze) as per the following table:

P05= 0: (default) high pressure, low pressure and antifreeze (low temperature) with manual reset; P05= 1: all the alarms with automatic reset; P05= 2: high pressure and antifreeze (low temperature) manual, low pressure automatic; P05= 3: high pressure manual, low pressure and antifreeze (low temperature) automatic; P05= 4: high and low pressure manual, antifreeze (low temperature) automatic; P05= 5: high and low pressure manual after the third activation in one hour*, antifreeze (low

temperature) automatic;

P05= 6: high and low pressure manual after the third activation in one hour*, antifreeze (low

temperature) manual.

- Cooling/Heating logic P06: If this parameter is set to 1, the operating logic of the Cooling/Heating logic is reversed (from

the keypad, the remote control and the digital input).

Symbol P06= 0 P06= 1

Cooling (Chiller) Heating (heat pump) Heating (heat pump) Cooling (Chiller)

- Low pressure alarm with pressure probes P07: P07=0: this function is disabled.

P07=1: if in heat pump mode the evaporator (external exchanger) pressure is less than 1 bar (and if the presence of the condenser pressure probe is enabled), the low pressure alarm is activated (while still considering the delay P03).

Note: P07=1 the LP digital inputs in heat pump are ignored.

- Select digital input ID1

P08= 0: none; P08= 1:  ow switch with manual reset (normally closed); P08= 2:  ow switch with automatic reset (N.C.); P08= 3: general thermal overload with manual reset (N.C.); P08= 4: general thermal overload with automatic reset (N.C.); P08= 5: thermal overload circuit 1 with manual reset (N.C.); P08= 6: thermal overload circuit 1 with automatic reset (N.C.); P08= 7: thermal overload circuit 2 with manual reset (N.C.); P08= 8: thermal overload circuit 2 with automatic reset (N.C.); P08= 9: cooling/heating (open = Cooling, closed = Heating) if H06= 1; P08= 10: cooling/heating with delays d12 and d13 (open = Cooling, closed = Heating) if H06= 1; P08= 11: alarm signal with manual reset (N.C.); P08= 12: alarm signal with automatic reset (N.C.); P08= 13: second set point from external contact (cooling and heating), (normally open); P08= 14: second cooling set point from external contact and heating from time band (N.O.); P08= 15: end defrost from external contact circuit 1 (N.C.); P08= 16: end defrost from external contact circuit 2 (N.C.); P08= 17: end defrost from external contact circuit 1 (N.C.); P08= 18: end defrost from external contact circuit 2 (N.C.); P08= 19: condenser step 1 (N.O.); P08= 20: condenser step 2 (N.O.); P08= 21: condenser step 3 (N.O.); P08= 22: condenser step 4 (N.O.); P08= 23: remote ON/OFF; P08= 24: compressor 1 failure; P08= 25: compressor 2 failure; P08= 26: compressor 3 failure; P08= 27: compressor 4 failure.

- Select digital inputs ID2, ID6, ID7, ID10, ID5 P09, P10, P11, P12, P34: Con guration of digital inputs ID2, ID6, ID7, ID10, and ID5 respectively

(as per the table above for digital input ID1).

Note: Cooling/heating (9, 10) cannot be set on P10, P11, P12, and P14.

- Select input B4 if /04 = 1 P13: If input B4 is used as ON/OFF (/04 = 1) the same options are valid as for P08.

- Select input B8 if /08 = 1 P14: If input B8 is used as ON/OFF (/08 = 1) the same options are valid as for P08.

- Select low pressure alarm P15: Used to select whether the low pressure alarm is detected when the compressor is OFF

(P15=1) or alternatively only when the compressor is ON (P15=0, default). When the compressor starts the alarm is in any case ignored for the time P03.

- High temperature/high system start-up temperature alarm delay P16: Represents the high temperature alarm threshold detected by probe B1; the di erential is set at

2 °C and the alarm is reset automatically (the warning relay is activated, signal only, and the message “Ht” is shown). When starting the system, this alarm is ignored for the time P17. If the system start-up protection is enabled (see parameter P20) and the alarm is activated, the time P17 is ignored and the alarm has no hysteresis.

*: the high and low pressure alarms are managed in the same way both for the transducers and the pressure switches (digital input); if the unit is in standby the count (3 times in one hour) is reset.

note 1: if P08 is set to 10, the change in state considers

the times d12 and d13, and respects the compressor protection times, both from the digital input and the keypad.

note 2: if the digital input is used to switch the unit ON/

OFF or change the operating mode, these functions are disabled on the keypad.

note 3: ID5 for the condensing unit with reverse cycle

has the function of cooling/heating changeover

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- High temperature alarm delay on power-up P17:

High temperature alarm delay when the control is switched on (power ON), from the remote ON/OFF contact or from the keypad.

- High pressure alarm from transducer set point P18: Sets the value beyond which the high pressure alarm is generated. Each circuit will be

managed by its own transducer.

P18= 0: the function is disabled.

For all other values greater than 3.0, due to the hysteresis (3 bars), the alarm is managed according to the set value.

- Low system start-up temperature alarm set point P19: Represents a threshold for the low temperature (measured by probe B1) alarm, without

hysteresis; it is reset automatically (the alarm relay is not activated and the display shows the message “ALt”).

- System start-up protection for high/low temperature P20: If set to 1, this parameter enables the system protection function when starting, both at

power ON and when switching ON from Standby. In chiller mode (cooling), for values of B1 greater than the set point P19, an alarm is activated and the unit is not started (display “AHt”). In heat pump mode (heating), for values lower than the set point P19, an alarm is activated and the unit is not started (display “ALt”). The alarm is reset automatically.

P20=0: the function is not enabled.

- Low pressure alarm waiting time in heat pump

P22: Delay in generating the low pressure alarm in heat pump mode

If the pressure remains below 1 bar for the time p22 and the circuit has 2 compressor steps, the circuit can operate at part load (see P04). This preventive capacity control function remains active until the pressure rises above F08-F09.

- Low pressure alarm waiting time during defrost

P23: Delay in generating the low pressure alarm in heat pump mode during defrost

- Deactivate compressors in capacity control for HP and LP

P24: Decide which compressor must be stopped in each circuit during capacity control

P24= 0 stops compressors 1 and 3 P24= 1 stops compressors 2 and 4

- Low pressure alarm set point from transducer P33: : Sets the value beyond which the low pressure alarm is generated when the unit is

operating in heat pump mode. Each circuit will be managed according to its own transducer. P33= 0 the function is disabled.

- Mute alarm relay using “PRg/mute” button

P35=0 the PRG/mute button does not alter the status of the relay, if the alarm is active and in progress. P35=1 the PRG/mute button alters the status of the relay even if the alarm is active and in progress, as if it were a buzzer or a siren.

- High pressure alarm management

P36: the parameter is used to consider the high pressure alarm even when the compressor is

o or consider it only when the compressor is on, depending on whether the pressure switch is directly connected to the digital input on the controller or via another circuit. P36=0: high pressure alarm always considered (pressure switch connected directly to the digital input). P36=1: high pressure alarm considered 2 seconds after starting the compressor.

• Control settings: parameters (r*)

- Cooling set point r01: between r13 and r14 r02: cooling di erential value of DTE when the unit is  rst started (autotuning enabled)

- Heating set point (heat pump) r03: between r15 and r16 r04: heating di erential value of DTE when the unit is  rst started (autotuning enabled)

- Compressor rotation r05: The rotation of the compressors allows the operating hours to be balanced either statistically,

using FIFO logic, or absolutely, by counting the e ective operating hours. Settings: r05=0: rotation disabled; The customer can use compressors with di erent power ratings according to the desired logic or manage the capacity-control functions. The compressors are started/stopped in proportional mode. r05=1: rotation with FIFO logic ( rst ON,  rst OFF, and vice-versa  rst OFF,  rst ON); in this mode the operating hours are optimised together with the number of starts, even if the compressor safety times are always respected. r05=2: rotation with control of operating hours; in this way the compressors will have the same operating hours, as the compressor with the least operating hours is always started  rst, again observing the safety times. This does not however consider FIFO logic and does not optimise the starts and stops. In the case of capacity controlled compressors (1 per circuit), FIFO logic or timed operation will refer to the actual circuit and not the compressor valves. If, for example, when capacity is required from circuit 1, compressor 1 starts  rst, capacity controlled (not at full capacity), and then the valve is managed as a second step, so that the compressor will work at maximum e ciency. If

OFF r01 r01+r07+r02/4

r01+r07+r02*3/4

r01+r07 r01+r07+r02/2r01+r07+r02/2 r01+r07+r02r01+r07+r02

OFF

r03-r07-r02/4r03-r07-r04

r03-r07+r04/4

r03

r03-r07

r03-r07+r04*3/4r03-r07+r04*3/4

r03 r03+r12

r10

r11

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

less capacity is required, the second step will be deactivated  rst, and then the compressor. There is no rotation between the compressor and the valve. If extra capacity is required, the second circuit will start with compressor 2 and then, if required, the valve is operated. When stopping, the valve is managed  rst and then the actual compressor as a whole. Both FIFO logic and timed operation will involve either one circuit or the other. The activation and deactivation of the valves are not subject to timers, but rather only a hysteresis that is equal to the set point and the di erential of the step (in fact the valve performs the same function as a hermetic compressor). r05=3: direct correspondence between the digital inputs and the compressor relays (condensing units only).

- Type of compressor control r06: This parameter is used to set the logic for maintaining the set point:

r06= 0: proportional on inlet r06= 1: proportional on inlet + dead zone (see Dead zone, below) r06= 2: proportional on outlet r06= 3: proportional on outlet with dead zone r06= 4: on outlet by time with dead zone (see timed outlet temperature control)

DEAD ZONE

The dead zone essentially shifts the proportional band from the set point by the value set for the parameter r07.This parameter is valid in all con gurations if enabled (for r070: dead zone set and enabled).

Key Figure 5.b.c:

r06: enable the dead zone (enabled if r06=1 or 3) r07: dead zone r01: cooling set point r02: cooling di erential

In chiller (cooling) mode, the dead zone moves the cooling proportional band above the set point by the value r07.

Key Figure 5.b.d:

r06: enable the dead zone (enabled if r06=1 or 3) r07: dead zone r03: heating set point r04: heating di erential

In heat pump (heating) mode, the dead zone moves the heating proportional band below the set point by the value r07.

Outlet temperature control by time r06 = 4 (only chiller) This type of control is based on the need to maintain the outlet temperature as constant as possible, despite the load being variable or the reduced inertia of the system. The logic has the aim of keeping the temperature inside the dead zone. If outside the zone, the compressors will be activated with the logic described below, so as to return inside the dead zone, neither too quickly (using an integral or derivative), nor too slowly, with  xed time logic. There are two logical times involved: the activation time and deactivation time.

- Dead zone di erential r07: ( see dead zone)

- Activation delay at lower limit of r07 (if r06 = 4) r08: The value set is used in the control algorithm (see timed outlet temperature control) as the

maximum time (at the start of the di erential) for the activation of the compressors.

- Activation delay at upper limit of r07 (if r06 = 4) r09: The value set is used in the control algorithm (see timed outlet temperature control) as the

minimum time (at the end of the di erential) for the activation of the compressors.

Activation time (cooling) The activation time is not a set parameter, but rather the combination of two set parameters, that is, r08 and r09. When the temperature leaves the dead zone, the activation time is equal to r08, while at the end of the di erential r02 the activation time is equal to r09. Inside the di erential r02, the activation time varies linearly between r08 and r09. This means that as the temperature moves away from the set point, the times are reduced and the esponse of the process becomes more dynamic.

- Deactivation delay at upper limit of r12 (if r06 = 4) r10: The value set is used in the control algorithm (see timed outlet temperature control) as the

maximum time (at the set point) for the deactivation of the compressors.

- Deactivation delay at lower limit of r12 (if r06 = 4) r11: The value set for this parameter is used in the control algorithm (see timed outlet

temperature control) as the minimum time (at the end of the deactivation di erential) for the deactivation of the compressors.

Fig. 5.b.c

Fig. 5.b.d

Fig. 5.b.e

activation time

temperature

time

dead zone comp. act.

di erential

A1 r01-r12

r01

r03+r07 r03r03+r07-4

r08

r09

r03 r03+r12

r10

r11

r18

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

In heating:

With autotuning active and inlet control, this represents the delay from switching the compressor o to reach the outlet set point, before the next deactivation.

- Compressor deactivation di erential (if r06 = 4) r12: This represents the temperature di erential for the deactivation of the compressors,

according to the procedure described in “Deactivation time”.

Deactivation time (cooling) Fig. 5.b.f In the same way as for the activation time, the deactivation time also varies between a maximum value, set for the parameter r10 and corresponding to the set point temperature, and a minimum, set for the parameter r11 corresponding to the end of the di erential for the deactivation of the compressors, set by the parameter r12.

Below this value, the deactivation time will be equal to the minimum set until reaching the temperature A04, after which all the compressors will be switched OFF, irrespective of the times. As the temperature moves away from the set point, the response of the process becomes more dynamic.

Activation time (heating) Fig. 5.b.g In heating mode, the activation time will increase as the deviation from the set point increases. The set point is the heating set point r03 with the corresponding di erential r04. The parameters for setting the activation times are always r08 and r09.

Deactivation time (heating) In heating mode, if the temperature rises above the set point, the deactivation time will decrease more the further the temperature moves away from the heating set point r03. At the end of the di erential r12, the time will be the minimum set by parameter r11.

- Minimum Cooling set point r13: Establishes the minimum limit for setting the Cooling set point.

- Maximum Cooling set point r14: Establishes the maximum limit for setting the Cooling set point.

- Minimum heating set point r15:

Establishes the minimum limit for setting the heating set point.

- Maximum heating set point r16: Establishes the maximum limit for setting the heating set point.

- Cooling compensation constant (chiller mode): r17: Sets the coe cient that controls the cooling compensation algorithm. In cooling mode,

if r17 is positive, the set point increases as the outside temperature increases (measured by the outside probe); if on the other hand r17 is negative the set point decreases as the outside temperature increases. This di erence in the set point from the set value can have a maximum absolute value equal to the setting of r18. The values for the parameters shown on the graph are: r17=±2, r01=25, r19=32 and r18=5).

Key:

1. temperature;

2. time;

3. external temperature (probe B3/B4);

4. comp. start temperature (r19);

5. positive compensation (r17= 2);

6. set point (r1);

7. negative compensation (r17=-2).

Fig. 5.b.f

Fig. 5.b.g

Fig. 5.b.h

Fig. 5.b.i

deactivation time

temperature

time

compressor

compressor stop

deactivation time

activation time

temperature

time

deactivation time

temperature

time

comp.

deactivation time

r04 r02r24

r07 r07

r04 r02r24

r07 r07

r25 r25+1 °C

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Maximum deviation from the set point r18:

Indicates the maximum deviation from the set point beyond which compensation is stopped

(maximum and minimum limits in reference to the set point).

- Start compensation temperature in cooling (outside probe) r19: Sets the temperature (measured by the outside probe) above which the compensation

function starts (cooling), value between -40T80 °C.

- Start compensation temperature in heating (outside probe) r20: Sets the temperature (measured by the outside probe) below which the compensation

function starts (heating), the value must be between -40T80 °C.

- Second cooling set point from external contact r21: Represents the alternative to r01 if an associated digital input is closed (see parameter P08),

between r13 and r14.

- Second heating set point from external contact r22: Represents the alternative to r03 if an associated digital input is closed (see parameter P08),

between r15 and r16.

- Select automatic changeover probe r23: Select automatic changeover probe.

r23=0: automatic changeover disabled (to be selected when the micro ad is used, as in this case the changeover is managed completely by the terminal) r23=1: automatic changeover enabled on probe B1 r23=2: automatic changeover enabled on probe B2 r23=3: automatic changeover enabled on probe B3 r23=4: automatic changeover enabled on probe B4 r23=5: automatic changeover enabled on probe B5 r23=6: automatic changeover enabled on probe B6 r23=7: automatic changeover enabled on probe B7 r23=8: automatic changeover enabled on probe B8

- Automatic changeover set point r24: Automatic changeover set point, the change from cooling to heating occurs: by decreasing

temperature until reaching the set point r24-r07, observing the reversing times. The change for heating to cooling occurs: by increasing temperature until reaching the set point r24+r07, observing the reversing times.

The changeover is managed di erently depending on the type of unit, water source (air/water and water/water) or air/air. Air/water and water/water units: Changeover is disabled if the selected probe (r23) is not con gured or is a pressure probe. When changeover is enabled, in any cooling/heating inputs are ignored. If the acqua terminal is used, set point r24 can be set on the terminal. During defrost, automatic changeover is disabled. Only when the defrost ends can the operating mode change. The same is true for the autostart function in antifreeze (see A10). At power on the controller operates in the previous mode if the probe reading is within the hysteresis 24-r07 and 24+r07, otherwise it starts with the new mode.

Air/air units: On this type of unit, the changeover probe decides both cooling-heating mode and the compressor steps, and as a consequence parameter R06 has no meaning when changeover is enabled.

If the changeover probe reading is out-of-range the probe alarm is activated and the outputs are deactivated. If r07= 0 the di erential for reversing the cycle is dictated by the  rst compressor step di erential.

Key:

1. changeover;

2. changeover probe (r23);

3. heating;

4. cooling.

- Outside temperature set point to stop compressors r25: To avoid energy e ciency lower than electrical heating, the compressors are stopped if the

outside temperature falls below r25, the di erential to start them again is set to 1 degree. The heaters can then be activated according to the corresponding set point. Setting 25 to “-40” (default value) disabled the function.

Fig. 5.b.j

Fig. 5.b.k

Fig. 5.b.l

Example of changeover for air/water and water/ water units

Example of changeover for air/air units

Example of compressor deactivation due to outside temperature

r01 r01 + r29

off

r01 r01 + r02

off

r03 - r04 r03

off

r03 - r30 r03

off

1 2

5 5

r32-r33

hoot keep hoot start

r32

OFF

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Cooling set point in dehumidi cation r26:

Alternative set point to r01 when the dehumidi cation function is active, as sent to the µC2SE by the terminal. The di erential remains the same as for chiller mode (r02).

- Bu er tank suppression (low load) r27: The low load condition is determined when only one compressor is started and then is

stopped after operating for less than the time set for parameter r28. The settings are: r27=0: the function is disabled; r27=1: enabled only in chiller mode; r27=2: enabled only in heat pump mode; r27=3: enabled in chiller and heat pump modes.

- Minimum compressor on time to determine low load condition r28: This parameter represents the minimum compressor on time below which the low load

condition is determined. Whenever the compressor stops, the controller analyses the load status. If already in low load condition, the time considered by the controller for the analysis becomes “r28 x r29: r02” in chiller mode, or “r28 x r30 : r04” in heat pump mode. This parameter also has the meaning of damper travel time when freecooling/heating is enabled. When the sum of the opening times reaches 2*damper travel time, the damper is no longer moved. The sum is reset when the damper is closing. Operation is the same in closing.

- Di erential during the low load condition in chiller mode r29: This parameter represents the new di erential considered by the controller in chiller mode

during the low load condition. Speci cally, r02 is replaced by r29. This also has the meaning of freecooling di erential.

- Di erential during the low load condition in heat pump mode r30: This parameter represents the new di erential considered by the controller in heat pump

mode during the low load condition. Speci cally, r04 is replaced by r30. This also has the meaning of freeheating di erential.

Fig. 5.b.m

Fig. 5.b.n

Key:

1. chiller;

2. chiller in low load;

3. heat pump;

4. heat pump in low load;

5. temperature.

- Heating compensation constant (mode Heat pump) r31: Sets the coe cient that controls the heating compensation algorithm. In heating mode,

if r31 is positive, the set point decreases as the outside temperature decreases (measured by the outside probe); if, on the other hand, r31 is negative, the set point increases as the outside temperature decreases. This maximum deviation of the set point from the set value is equal to parameter r18. See, for example, parameter r17.

- Set point B2 in hot start

r32:

The fan, after reaching the hot start set point, cannot be stopped if at least one compressor is

on or the electric heaters are operating.

Hot start di erential

r33: Hot start di erential

Key:

1. outlet fan;

2. probe B2.

Fig. 5.b.o

Hot keep/hot start example

ON OFF

OFF

234

100%

r38

r02r07

r37

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Enable freecooling/freeheating

r34: Sets the type of freecooling/heating with or without compressors

r34= 0: disabled r34= 1: freecooling / without compressors / cooling only r34= 2: freecooling / with compressors / cooling only r34= 3: freeheating / without compressors / heating only r34= 4: freeheating / with compressors / heating only r34= 5: freecooling and freeheating / without compressors / freecooling in cooling only and freeheating in heating only r34= 6: freecooling and freeheating / with compressors / freecooling in cooling only and freeheating in heating only r34= 7: freecooling / without compressors / always r34= 8: freecooling / with compressors / always r34= 9: freeheating / without compressors / always r34= 10: freeheating / with compressors / always r34= 11: freecooling and freeheating / without compressors / always r34= 12: freecooling and freeheating / with compressors / always The purpose of the function is to exploit the outside climatic conditions when such can cool or heat the controlled environment by modulating the inlet of outside air into the room. Freecooling can be enabled when: room T - outside T > freecooling di erential (r29).

Key Fig. 5.b.p:

1. room T (B1);

2. room T - f/cool di ;

3. out T (e.g. B3);

4. outlet T (A1);

5. freecooling OFF;

6. time.

Key to Fig. 5.b.q:

1. freecooling;

2. room T - out T;

3. FC di -hysteresis;

4. freecooling di .

Freeheating can be enabled when: outside T - room T > freeheating di erential (r30).

Key to Fig. 5.b.r:

1. out T;

2. room T;

3. out T - f/heat di ;

4. freeheating ON;

5. freeheating OFF

6. time.

The compressors can be used to support freecooling/freeheating if the latter are insu cient to provide for the thermal load. The proportional control band is respectively:

1. divided by the number of compressor steps, when freecooling/heating is disabled (Fig. 5.b.s);

2. managed with fr

eecooling/heating operating and the compressors activated (Fig. 5.b.t).

Key to Fig. 5.b.s:

1. damper disabled;

2. set point;

3. utility temperature;

4. operation with 4 compressors;

5. proportional band.

Special cases:

1. If the compressors are on and freecooling is disabled, when the conditions for starting freecooling are reached, the controller will behave as follows:

• the compressors are switched o , and can only be started again if the damper is 100% open,

according to the control diagram shown in  g. 5.b.t

2. If control is performed with the compressors on and freecooling enabled, when the conditions for stopping freecooling are reached, the controller will behave as follows:

•  rst the damper is closed for 110% of r28

• then the control diagram is changed (from Fig. 5.b.t to Fig. 5.b.s)

3. When starting the controller, changing from cooling to heating and vice-versa, or switching from standby to ON, and with favourable of freecooling or freeheating conditions, the compressors are not started until the following conditions are satis ed::

• the time r35 has elapsed

• the sum of the opening times is equal to 2*r28.

4. When switching from On -> Standby, cooling/heating or vice-versa, the damper will be closed for 110% of r28.

5. When switching from On -> Stand by, cooling/heating or vice-versa, the control diagram changes back to the one shown in Fig. 5.b.t.

- Compressor deactivation time

r35: Compressor deactivation time when waiting for freecooling/heating.

- Damper cycle time

r36: Time used to calculate the duty cycle for opening and closing the damper.

Fig. 5.b.p

Example of freecooling

Fig. 5.b.q

Activation/Desactivation freecooling

Fig. 5.b.r

Example of freeheating

Fig. 5.b.s

Example of freeheating

Fig. 5.b.t

Example of freecooling with the compressors on

Key to Fig. 5.b.t:

1. damper movement cycle time;

2. working set point;

3. cycle;

4. dead zone r02/4.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- Damper opening duty cycle di erential

r37: used to calculate the duty cycle for opening the damper.

- Damper closing duty cycle di erential

r38: used to calculate the duty cycle for closing the damper.

Key:

1. opening time;

2. cycle time.

- Autotuning correction coe cient

r39: when changing the step in autotuning, prevents sudden variations in the controlled values

from altering the control logic.

- Management of minimum damper opening r40: enables and sets the management of the minimum damper opening.

r40= 0 the damper is always closed if control is not active r40= 1 the damper is moved to the minimum opening when control is not active and only if the freecooling conditions are satis ed r40= 2 the damper is moved to the minimum opening when control is not active, and only if the freeheating conditions are satis ed r40= 3 the damper is moved to the minimum opening when control is not active, and only if the freecooling and freeheating conditions are satis ed r40= 4 the damper is moved to the minimum opening when control is not active, and only if the freecooling and freeheating conditions are not true r40= 5 the damper is moved to the minimum opening when control is not active, and only if the freeheating conditions are not true r40= 6 the damper is moved to the minimum opening when control is not active, and only if the freecooling conditions are not true r40= 7 the damper is moved to the minimum opening when control is not active, regardless of the freecooling and freeheating conditions r40= 8 in cooling r40= 9 in heating

- Minimum damper opening position r41: de nes the percentage of the damper travel time for the minimum damper opening position.

The damper is moved to the minimum opening only when control is not active and after having been completely closed so as to reset the correct evaluation of the position following control, or alternatively directly to the minimum opening position set if the damper was previously in the completely open position.

- Disable compressors for low outside temperature in Freecooling r42: de nes the outside temperature threshold in freecooling mode below which the

compressors are disabled, being considered unnecessary. Above the threshold, on the other hand, the compressors operate to support freecooling.

- Electric heater set point relationship r43: de nes the relationship between the absolute set point, considered as the activation threshold

for the electric heaters, and the relative set point, that is, the activation threshold for the electric heaters referred o a working set point (set point sent by AD, r01 or r04 or from time band) depending on the various applications and the mode, cooling or heating, and more precise: r40= 0 electric heater set point A4, A8 and A11 on absolute values r40= 1 electric heater set point A4 absolute value, A8 and A11 values relative to the working set point r40= 2 electric heater set point A4 value relative to the working set point, A8 and A11 absolute values r40= 3 electric heater set point A4, A8 and A11 values relative to the working set point

- Damper inactivity time in control r44: represents the time, expressed in seconds, of inactivity between one opening or closing of

the damper and the next. This time is used to adapt the dynamics of the system to the di erent applications, thus allowing the damper to reach a stable position, according to the load and the environment.

• Firmware parameters: (F-r*)

These parameters cannot be set (display only:

H96-H97: software version of Driver 1, 2; H98: software version of the expansion; H99: software version of the µC

SE controller.

Functions available with the clock board

The alarm log is only active and operative if the clock board is  tted. The terminal shows whether the clock board is  tted by displaying the following parameters:

- RTC hours

t01: RTC hours

- RTC minutes

t02: RTC minutes

- RTC day

t03: RTC day

- RTC month

t04: RTC month

Fig. 5.b.u

Duty cycle di erential example

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

- RTC year

t05: RTC year

The alarms are only shown on the local display. The controller saves the signi cant events that stop (alarms) or limit (warnings) the operation of the unit. Up to 25 events can be saved, highlighting:

— Event code; — Start hours; — Start minutes; — Start day; — Start month; — End hours; — End minutes; — End day; — End month.

The log is accessed by pressing PRG+SEL for 5s and entering the password 44. The alarms saved are complete, as they include both the start and end of the event. The alarms can be deleted individually by pressing UP and DOWN for 5s when the desired event is displayed. If there are no alarms saved, “noH” is displayed. The table shows the possible alarms that can be saved:

SV Display Type

All. Circ. 1 HP1 High pressure circuit 1 All Circ. 2 HP2 High pressure circuit 2 All. Circ. 1 LP1 Low pressure circuit 1 All Circ. 2 LP2 Low pressure circuit 2 All. Gen. TP General thermal overload All. Circ. 1 tC1 Thermal overload circuit 1 All. cir. 2 tC2 Thermal overload circuit 2 All. Gen FL Flow switch alarm All. Sonde E1 Probe B1 alarm All. Sonde E2 Probe B2 alarm All. Sonde E3* Probe B3 alarm All. Sonde E4* Probe B4 alarm

SV Display Type

All. Sonde E5 Probe B5 alarm All. Sonde E6 Probe B6 alarm All. Sonde E7* Probe B7 alarm7 All. Sonde E8* Probe B8 alarm All. Gen. ESP Expansion error All. Circ. 1 A1 Frost alarm circ. 1 All. Circ. 2 A2 Frost alarm circ. 2 All. Gen. EHS High power supply voltage All. Evd 1 Ed1 EVD1 tLAN error All. Evd 2 Ed2 EVD2 tLAN error OFF SH1 EVD1 overheat alarm All. Evd 2 SH2 EVD2 overheat alarm

SV Display Type

All. Evd 1 EP1 EEPROM error EVD 1 All. Evd 2 EP2 EEPROM error EVD 2 All. Evd 1 ES1 Probe error EVD 1 All. Evd 2 ES2 Probe error EVD 2 All. Evd 1 EU1 Valve open error EVD 1 start All. Evd 2 EU2 Valve open error EVD 2 start All. Evd 1 Eb1 EVD 1 battery alarm All. Evd 2 Eb2 EVD 2 battery alarm All. Sonda µAD Et uAD terminal probe alarm

- Start hours for 2nd set point in cooling

t06 (I92): Hour when the second cooling set point starts(r21).

- Start minutes for 2nd set point in cooling

t07 (I93): Minutes when the second cooling set point starts (r21).

- End hours for 2nd set point in cooling

t08 (I94): Hour when the second cooling set point stops (r21).

- End minutes for 2nd set point in cooling

t09 (I95): Minutes when the second cooling set point stops (r21).

- Start hours for 2nd set point in heating

t10 (I96): Hours when the second heating set point starts (r22).

- Start minutes for 2nd set point in heating

t11 (I97): Minutes when the second heating set point starts (r22).

- End hours for 2nd set point in heating

t12 (I98): Hours when the second heating set point stops (r22).

- End minutes for 2nd set point in heating

t13 (I99): Minutes when the second heating set point stops (r22).

If a digital input is con gured as the second set point from external contact (e.g. p08 = 13) the time bands are ignored. If a digital input is con gured as the second cooling set point from external contact and heating set point from time band (e.g. p08 = 14), the cooling time bands are ignored. The second set point from external contact input has priority over the second cooling set point from external contact and heating set point from time band.

- Start hours for low noise in cooling

t14: Start hours for low noise in cooling

- Start minutes for low noise in cooling

t15: Start minutes for low noise in cooling

- End hours for low noise in cooling

t16: End hours for low noise in cooling

- End minutes for low noise in cooling

t17: End minutes for low noise in cooling

- Start hours for low noise in heating

t18: Start hours for low noise in heating

- Start minutes for low noise in heating

t19: Start minutes for low noise in heating

- End hours for low noise in heating

t20: End hours for low noise in heating

- End minutes for low noise in heating

t21: End minutes for low noise in heating

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

6. TABLE OF ALARMS

Key to the table of alarms:

*: if the probe is set for the compensation function, in the event of probe faults, the unit continues to operate. ON*: if the expansion card is not present.

EVD 1= EVD400 connected to µC2SE (1st circ.)

EVD 2= EVD400 connected to the expansion (2nd circ.) alarm display

alarm type resetting Compressor pump fan heater Valve alarm warning superv.

variable

superv. variab. description

variab. type

HP1 High pressure Depends on P05 OFF C1-2 - ON(60”) - - ON - 41 (R) Circuit 1 alarm Digital HP2 High pressure Depends on P05 OFF C3-4 - ON(60”) - - ON - 42 (R) Circuit 2 alarm Digital LP1 Low pressure Depends on P05 OFF C1-2 - OFF 1 - - ON - 41 (R) Circuit 1 alarm Digital LP2 Low pressure Depends on P05 OFF C3-4 - OFF 2 - - ON - 42 (R) Circuit 2 alarm Digital PL1 Capacity-control for low pressure

circuit 1

Automatic OFF C2 - - - - - ON - Signal on display -

PL2 Capacity-control for low pressure

circuit 2

Automatic OFF C4 - - - - - ON - Signal on display -

TP General overload Depends on P08 OFF OFF OFF - - ON - 45 (R) General warning Digital tC1 Circuit 1 overload Depends on P08 OFF C1-2 - OFF 1 - - ON - 41 (R) Circuit 1 alarm Digital tC2 Circuit 2 overload Depends on P08 OFF C3-4 - OFF 2 - - ON - 42 (R) Circuit 2 alarm Digital LA advice Depends on P08 - - - - - ON* ON 50 (R) General advice Digital FL Flow controller alarm Depends on P08 OFF OFF OFF - - ON - 45 (R) General alarm Digital FLb Backup pump warning Automatic - - - - - - ON 50 (R) General advice Digital E1 Probe B1 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E2 Probe B2 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E3* Probe B3 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E4* Probe B4 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E5 Probe B5 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E6 Probe B6 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E7* Probe B7 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital E8* Probe B8 alarm Automatic OFF OFF OFF OFF - ON - 46 (R) Probe alarm Digital Hc1-4 Hour warning C1-4 Automatic - - - - - - ON 47 (R) Compressor

advice

Digital

EPr EEPROM error during operation Automatic - - - - - - ON 50 (R) General advice Digital EPb EEPROM error at the start-up Automatic OFF OFF OFF OFF OFF OFF OFF 45 (R) General alarm Digital ESP Expansion Error Automatic OFF OFF OFF OFF OFF ON - 45 (R) General alarm Digital EL1-2 Zero cross Automatic - - 100% - - ON* ON 52 (R) Fan advice Digital dF1-2 Defrosting error Automatic - - - - - - ON 50 (R) General warning Digital d1-2 Defrost on circuit in question - - - - - - - - - Signal on display Fd Dirty  lter warning Automatic - - - - - - -ON - Signal on display A1 Frost alarm circ. 1 Depends on P05 OFF C1-2 - OFF 1 - - ON - 41 (R) Circuit 1 alarm Digital A2 Frost alarm circ. 2 Depends on P05 OFF C3-4 - OFF 2 - - ON - 42 (R) Circuit 2 alarm Digital Ht High temperature Automatic - - - - - ON* ON 51 (R) Temperature

advice

Digital

Lt Low ambient temp. Depends on P05 - - - - - ON* ON 51 (R) Temperature

advice

Digital

AHt High temperature at the start-up Automatic OFF - OFF OFF - - ON 50 (R) General warning Digital ALt Low temperature at the start-up Automatic OFF - OFF OFF - - ON 50 (R) General warning Digital ELS Low supply voltage Automatic - - - - - - ON 50 (R) General warning Digital EHS High supply voltage Automatic OFF OFF OFF OFF OFF OFF OFF 45 (R) General alarm Digital tEr Terminal communication error Automatic OFF OFF OFF OFF OFF ON - - Signal on display Ed1 EVD 1 tLAN error Automatic OFF C1-2 - OFF - - ON - 43 (R) EVD 1 warning Digital Ed2 EVD 2 tLAN error Automatic OFF C3-4 - OFF - - ON - 44 (R) EVD 2 warning Digital SH1 EVD 1 superheat alarm - OFF C1-2 - OFF- - - ON - 43 (R) EVD 1 warning Digital SH2 EVD 2 superheat alarm - OFF C3-4 - OFF- - - ON - 44 (R) EVD 2 warning Digital nO1 MOP 1 warning Automatic - - - - - - ON 48 (R) EVD 1 advice Digital nO2 MOP 2 warning Automatic - - - - - - ON 49 (R) EVD 2 advice Digital LO1 LOP 1 warning Automatic - - - - - - ON 48 (R) EVD 1 advice Digital LO2 LOP 1 warning Automatic - - - - - - ON 49 (R) EVD 2 advice Digital HA1 High inlet temperature warning

circ.1

Automatic - - - - - - ON 48 (R) EVD 1 advice Digital

HA2 High inlet temperature warning

circ. 2

Automatic - - - - - - ON 49 (R) EVD 2 advice Digital

EP1 EVD 1 Eeprom error Automatic OFF C1-2 - OFF- - - ON - 43 (R) EVD 1 warning Digital EP2 EVD 2 Eeprom error Automatic OFF C3-4 - OFF- - - ON - 44 (R) EVD 2 warning Digital ES1 EVD 1 probe error Automatic OFF C1-2 - OFF- - - ON - 43 (R) EVD 1 warning Digital ES2 EVD 2 probe error Automatic OFF C3-4 - OFF- - - ON - 44 (R) EVD 2 warning Digital EU1 Open valve EVD 1 error at the

start-up

Automatic OFF C1-2 - OFF - - ON - 43 (R) EVD 1 warning Digital

EU2 Open valve EVD 2 error at the

start-up

Automatic OFF C3-4 - OFF - - ON - 44 (R) EVD 2 warning Digital

Eb1 EVD 1 battery alarm Automatic OFF C1-2 - OFF - - ON - 43 (R) EVD 1 warning Digital Eb2 EVD 2 battery alarm Automatic OFF C3-4 - OFF - - ON - 44 (R) EVD 2 warning Digital L Low load warning Automatic - - - - - - - - Signal on display Ed1 tLan EVD 1 communication error Automatic OFF C1-2 - OFF - - ON - 43 (R) EVD 1 warning Digital Ed2 tLan EVD 2 communication error Automatic OFF C3-4 - OFF - - ON - 44 (R) EVD 2 warning Digital PH1 Low pressure circ. 1 warning - - - - - - - - - Signal on display PH2 Low pressure circ. 2 warning - - - - - - - - - Signal on display SUL Low outlet temperature warning - - - - - - - - - Signal on display CP1 compressor 1 alarm Automatic OFF C1 - - - - ON - 25 (R) Compr. error alarm Digital CP2 compressor 2 alarm Automatic OFF C2 - - - - ON - 25 (R) Compr. error alarm Digital CP3 compressor 3 alarm Automatic OFF C3 - - - - ON - 25 (R) Compr. error alarm Digital CP4 compressor 4 alarm Automatic OFF C4 - - - - ON - 25 (R) Compr. error alarm Digital

Table 6.a

Note: The warning relay di ers from the alarm relay as it is only activated for warnings, that is, signals only, which

have no direct e ect on the operation of the unit, and the display does not show the alarm symbol (bell).

Compressor

N.B. The alarm relating to the circuit with the fault must not interact with the operation of the other circuit, as

long as the condenser is not shared in common.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

HP1: High pressure circuit 1

The alarm is detected irrespective of the status of the pump and the compressors. The compressors corresponding to circuit 1 are immediately stopped (ignoring the set protection times), the buzzer and alarm relay are activated, and the display starts  ashing. The fans corresponding to the condenser in circuit 1 are activated at maximum speed for 60 s, so as to oppose the alarm situation, after which they are switched OFF. This alarm may also be generated when the high pressure limit is exceeded (valid only when the pressure transducer is  tted) set by the parameter P18, which to be enabled must be greater than 3.0 bars, due to the corresponding hysteresis.

HP2: High pressure circuit 2

As for HP1 but relating to circuit 2.

LP1: Low pressure circuit 1

The alarm depends on P15, P7 and P3. P15= 0, P07= 0: the alarm is detected only if the compressors in circuit 1 are ON, and after the time P03 from when the compressors started, otherwise it is immediate. P15= 1, P07= 0: the alarm is detected even if the compressors in circuit 1 are o , after the time P03. P15= 0, P07= 1: the alarm is detected only if the compressors in circuit 1 are ON, and after the time P03 from when the compressors started, otherwise it is immediate, and if in heat pump mode, is activated for pressure values less than 1 bar. P15= 1, P07= 1: the alarm is detected also if the compressors in circuit 1 are O , after the time P03, and if in heat pump mode, is activated for pressure values lower then 1 bar. The hysteresis for this alarm is 1 bar.

LP2: Low pressure circuit 2

As for LP1 but relating to circuit 2.

PL1: Capacity-control for low pressure circuit 1

Indicates that circuit 1 on the unit is operating in capacity control mode, due to low pressure (heat pump only).

PL2: Capacity-control for low pressure circuit 2

As for PL1, but for circuit 2.

PH1: Compressor part load circuit 1

Indicates the part load of circuit 1 due to high pressure. This situation is signalled by the message “PH1” on the display the activation of the warning relay.

PH2: Compressor part load circuit 2

As for PC1, but for circuit 2.

tP: General thermal overload

The alarm is detected irrespective of the status of the pump and the compressors. The compressors, the pumps and fans stop (without observing the protection times) or are inhibited from starting, the alarm relay is activated, the display  ashes the corresponding message, and the LED  ashes. It can be reset either manually or automatically (see par. P08, P09, P10, P11, P12, P13).

tC1: Thermal overload circuit 1

As for tP but relating to circuit 1

tC2: Thermal overload circuit 2

As for tC1 but relating to circuit 2.

LA: generic warning

This represents a generic warning that appears on the display, from digital input, without modifying the operation of the unit. With the 1st circuit module only, the alarm relay is activated, while with the expansion card the warning relay can be used.

FL:  ow alarm

This alarm is detected only if the pump is ON (excluding the delays when starting P01 and in steady operation P02), irrespective of the status of the compressor. All of the outputs are disabled: pump, compressor (without observing the OFF times), condenser fan, and the buzzer sounds, the alarm relay is activated and the display  ashes. The presence of the utility water pump must be enabled (H50). It can be reset either manually or automatically (see P08, P09, P10, P11, P12, P13).

FLb: Backup pump warning

The warning activates the warning relay and displays the message “FLb”; reset is manual. This indicates the operation of the backup pump (if present) due to a probable fault on the main pump, suggesting that maintenance is required. If the  ow alarm features automatic reset, the controller will make 10 attempts to re-start the pumps, after which the FL alarm will replace FLb. If the  ow alarm features manual reset, when  rst activated the controller will display the alarm FLb, switching over the pumps; when activated again the FL alarm will replace FLb.

E1 to E8: probe error detected even when the unit is in Standby

The presence of a probe alarm causes the deactivation of the compressor, the condenser fans, the pump (outlet fan in AIR/AIR units) and the heaters (so as to avoid  res in the air/air units); the buzzer and alarm relay are activated, and the display starts  ashing. If the probe has a compensation function, the unit will continue a operate correctly, with the exception of the corresponding function, and the warning relay will be activated and a message shown on the display, from E1 to E8 for probes from B1 to B8.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Hc1 to Hc4: compressor operating hour limit exceeded warning

When the number of operating hours for the compressor exceeds the maintenance threshold (as default equal to zero, and consequently the function is disabled), the maintenance request signal is activated. The buzzer and the alarm relay are not activated, however the warning relay is activated (with the expansion card  tted).

Epr, EPb: EEPROM error

A problem has occurred when saving the parameters to the unit’s non-volatile memory (EEPROM); in the event of an Epr error, the µC

SE continues to perform the control functions with the data present in the volatile memory (RAM), where there is a physical copy of all of the data. After the  rst power failure the con guration will be lost. The buzzer and the alarm relay are not activated. If the occurs when starting the unit, “EPb”, the controller will not operate.

ESP: communication error with expansion card

If the controller loses communication with the expansion card, the entire system will be stopped to avoid adversely a ecting the unit. The alarm relay is activated and the display will show the message, with the red LED on steady.

EL1-2: warning, zero crossing error circuit 1-2

If the controller detects errors in the power supply, control may be lost over the fan speed. In this case, the display will show a warning, and the fans will be controlled at maximum speed. The alarm is reset automatically, so as to not a ect the operation of the unit. If the expansion card is used, the warning relay is activate)

dF1-2: warning, end defrost circuit 1-2 due to maximum time

If the defrost ends after the maximum time when end defrost by temperature or from external contact has been selected, the unit displays the text dF1 for circuit 1 or dF2 for circuit 2. The message is cancelled using the delete alarm procedure or when the next correct defrost cycle is completed. The buzzer and the alarm relay are not activated. If the expansion card is used, the warning relay is activated (if used).

A1: antifreeze alarm outlet limit circuit 1

The alarm is only detected in water chillers (H01= 2, 3, 4, 5 or 6) by the evaporator water outlet probe (B2/B6) or, if the electronic expansion driver (EVD) is connected to the tLAN, based on the evaporation temperature sent by the driver. The evaporator water outlet temperature is compared against the threshold A01, while the evaporation temperature is compared against the threshold A14. The compressors in circuit 1 and the condenser fans in circuit 1 are immediately stopped, the buzzer and alarm relay are activated, and the display starts  ashing. If the µC2SE is in Standby, the alarm condition is not detected, and only the heaters are managed. Reset depends on parameter P5:

1. in the event of automatic reset, the unit restarts automatically if the temperature is above the

value A01+A02 or A14+A02.

2. in the event of manual reset, the unit can restart manually even if the alarm is active. After the time A03, if the alarm persists the unit will stop again. For air/air units the parameter becomes the antifreeze-outlet limit alarm set point. If the outlet limit is active, the freecooling damper is forced closed and the message SUL is shown on the display.

A2: antifreeze alarm circuit 2

As for A1 but relating to circuit 2

Ht: high temperature warning

This alarm is activated when the threshold is exceeded (read by B1), set for the parameter P16. It is delayed at power ON by the parameter P17 and causes the activation of the alarm relay and the buzzer, without deactivating the outputs. It is reset automatically when conditions that caused the alarm are no longer present.

Lt: low temperature warning

For direct expansion units (H01=0, 1) the alarm is used to measure a low room temperature using probe B1 or B2 (depending on par. A06). The alarm may be reset manually or automatically, and depends on the parameter P05. If the expansion is present, the corresponding relay is activated; in the event of µC2SE module only, the alarm relay will be used.

AHt: high temperature warning when starting the system

The advice does not activate the relay, and displays the message “AHt”.

ALt: low temperature warning when starting the system

The advice does not activate the relay, and displays the message “ALt”.

ELS/EHS: warning, low/high power supply alarm

If the power supply voltage is too low or too high, the corresponding message is displayed. In these cases, the correct operation of the µC

SE is no longer guaranteed. In the low voltage conditions only the requests to deactivate the loads are e ected. Any start-up requests remain pending. The high voltage condition involves the deactivation of all the energised relays.

L: Low load warning

The warning does not activate the relay and displays the message “ L ”; reset is automatic.

tEr: terminal communication error

This alarm is only shown if µC2SE has been connected to a terminal. The alarm is generated a  xed time (30 s) after µC2SE loses contact with the terminal. In this case the unit is disabled for safety reasons.

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

D1: defrost signal circuit 1

When the defrost is on circuit 1, the display shows the message D1.

D2: defrost signal circuit 2

When the defrost is on circuit 2, the display shows the message D2.

Fd: dirty  lter warning

This warning is only shown if the temperature di erence between the exchanger inlet and outlet is higher than parameter A12.

Driver

All the driver alarms on the µC2SE that stop the unit feature automatic reset. Consequently, the

possibility to select the automatic resetting of the entire system must be selected for the drivers by setting the corresponding parameters. The µC2SE can send the Go Ahead command according to the normal procedure for resetting the alarms from the keypad.

Ed1: tLan communication error with Driver 1

The alarm is generated after a  xed time (5 s) from when the µC2SE loses contact with Driver 1. In this case, circuit 1 is disabled for safety reasons.

Ed2: tLan communication error with Driver 2 (expansion card)

As for Ed1, but relating to driver 2.

SH1: low superheat alarm circuit 1

The low superheat alarm for circuit 1, after a  xed time (5 s), inhibits the circuit 1 for safety reasons. The risk is that the compressors will  ood.

SH2: low superheat alarm circuit 2

As for SH1, but relating to driver 2

nO1: MOP warning (maximum operating pressure) circuit 1

The warning appears on the display and, if the expansion card is  tted, the corresponding relay is activated.

nO2: MOP warning (maximum operating pressure) circuit 2

The warning appears on the display and, if the expansion card is  tted, the corresponding relay is activated.

LO1: LOP warning (lowest operating pressure) circuit

The warning appears on the display and, if the expansion card is  tted, the corresponding relay is activated.

LO2: LOP warning (lowest operating pressure) circuit 2

As for LO1, but relating to driver 2

HA1: high evaporator temperature warning circuit 1

The warning appears on the display and, if the expansion card is  tted, the corresponding relay is activated.

HA2: high evaporator temperature warning circuit 2

As for HA1, but relating to driver 2.

EP1: EEPROM error driver 1

The circuit 1 is disabled for safety reasons, as the status of Driver 1 is not known.

EP2: EEPROM error driver 2

As for EP1, but relating to driver 2.

ES1: probe error driver 1

The circuit 1 is disabled for safety reasons, as the status of Driver 1 is not known.

ES2: probe error driver 2

As for ES1, but relating to driver 2.

EU1: EVD 1 error, valve open when starting

If when starting the system the Driver detects that the valve is still open, an alarm is sent to the µC2SE that stops the compressors and the fans in the corresponding circuit.

EU2: EVD 2 error, valve open when starting

As for EU1, but relating to EVD 2.

Eb1: EVD 1 battery alarm

The EVD 1 battery alarm stops the compressors from starting so as to prevent the risk of liquid returning to circuit 1, and disables the corresponding fans.

Eb2: EVD 2 battery alarm

The EVD 2 battery alarm stops the compressors from starting so as to avoid the risk of liquid returning to circuit 2, and disables the corresponding fans.

G0 B1 B2 B3 ID5 ID3 ID1

GND

GNDYGND

ID4 ID2

No1

C1/2 C1/2 C3/4

x C5

N02 No3 No4

C3/4

x No5

cond. probe

outlet probe

inlet probe

low press.

multi funct.

high press.

Line

To program key

To serial link

RS485 option

EV driver ESP

tLAN

Tx/Rx GND

GNDB4V+

pressure probe

multi funct.

temperature probe

digital imput

Key/SPV

Line

EV Driver

Expansion

board

EV driver

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

7.1 Connection diagram

Below is the connection diagram for the µC2SE.

Panel version

I/O layout

µC2SE Description

B1 Control probe (Evaporator inlet/ambient) B2 Protection probe (evaporator outlet/outlet) B3 Condenser/outside temperature probe B4 ( universal) Condenser pressure probe ID1* Flow switch – thermal overload circuit 1 – cooling/heating – end defrost circuit 1 – step

1 condensing unit – second set point

ID2* Flow switch – thermal overload 1 circuit – cooling/heating – end defrost circuit 1 – step

2 condensing unit – second set point ID3 High pressure circuit 1 ID4 Low pressure circuit 1 ID5 Remote ON/OFF – reverse cycle condensing unit if reversible Y1 Ramp circuit 1 (condenser) C1/2-NO1 Compressor 1 C1/2-NO2 Heater or reversing valve in 1st circuit C3/4-NO3 Fan 1/evaporator pump C3/4-NO4 Compressor 2 (capacity-control compressor 1) C5-NO5 Alarm or reversing valve

Table 7.a

Expansion Description

B5 Output probe in common with 2 evaporators (only with 2 circuits) B6 Circuit 2 protection probe (2nd evaporator output) B7 2

condenser temperature probe B8 ( universal) 2nd condenser pressure probe ID6** Flow switch – thermal overload circuit 2 – end defrost circuit 2 – step 4 condensing

unit – second set point

ID7** Flow switch – thermal overload circuit 2 – end defrost circuit 2 – step 4 condensing

unit– second set point ID8 High pressure circuit 2 ID9 Low pressure circuit 2 ID10 Y2 Ramp circuit 2 (condenser) C6/7-NO6 Compressor 3 (1 in 2nd circuit) C6/7-NO7 Heater or reversing valve in 2nd circuit C8/9-NO8 Fan 2/condenser pump/backup C8/9-NO9 Compressor 4 (capacity-control compressor 2) or reversing valve circuit 1 or reversing

valve circuit 2 C10-NO10 Warning or reversing valve circuit 2

Table 7.b

*= Any of the options for P08 can be selected (see Table 5.11) **= Any of the options for P08 can be selected, except for E/I and E/I delay.

Fig. 7.a

G0 B5 B6 B7 ID10 ID8 ID6

GND GNDYGND

ID9 ID7

cond. probe

outlet probe

inlet probe

low press.

multi funct.

high press.

GNDB8V+

pressure probe

temperature probe

digital input

Line

Tx/RxGND

Bottom

No6

C6/7 C6/7 C8/9

x C10

No7 No8 No9

C8/9xNo10

Line

Tx/Rx GND

To p

EV Driver

t-LAN

EV driver

Expansion board

multi funct.

G Vbat DI1

S4V

S3 S2 S1

GND

DI2

S4I

Vr1 Vr2 OC

GNX

RT+

RT-

MOLEX¡ Mini-Fit

538-39-01-2140

GND

COM NO

MOLEX¡ Mini-Fit

538-39-01-2060

PHOENIX¡

GMSTB 2,5/2 ST

PHOENIX¡

MC1,5/3-ST-3,81

EEV driver

FCSER00000

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

7.2 Expansion card

This device allows the µC2SE to manage the second refrigerant circuit on chillers, heat pumps and condensing units with up to 4 hermetic compressors. The following  gure shows the connection diagram for the µC2SE expansion card, code MCH200002*.

Fig. 7.b

NOTE: The expansion features two LEDs on the main board (to see these, remove the top or

bottom door), which display its status by the following messages:

ON Flashing

green LED Board powered Board powered and serial communication with µC2SE in

progress

red LED 1  ash: Probe fault alarm

2  ashes: Zero crossing alarm (mains frequency not detected) 3  ashes: Serial communication alarm with EVD 4  ashes: Serial communication alarm with µC

Table 7.c

The alarms are displayed in sequence and are separated from each other by pauses.

7.3 EVD4*: Electronic expansion valve driver

This device is used to control electronic expansion valves. The device is connected to the µC2SE via a tLAN serial line. The condensing pressure probe must be connected to the µC2SE, which then sends the reading to the driver.

Nota: for all other information on the connections, refer to the EVD4* driver manual.

Fig. 7.c

LOAD LINE

220 Vac

GND

24 Vac

No Com Nc

YGND

1234

5678

24 Vac

G0 G00-10V 4-20mA

YGND

1234

5678

LOAD

LINE

Vac?

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

7.4 Fan speed control board (code MCHRTF*)

The phase cutting boards (code MCHRTF****) are used to control the speed of the condenser fans.

IMPORTANT: The power supply to the µC

SE (G and G0) and the MCHRTF**** board must be in phase. If, for example, the power supply to the µC2SE system is three-phase, make sure that the primary of the transformer supplying the µC2SE board is connected to the same phase that is connected to terminals N and L on the speed control board; therefore, do not use 380 Vac/24 Vac transformers to supply the controller if the phase and neutral are used to directly power the speed control boards. Connect the earth terminal (where envisaged) to the earth in the electrical panel.

Key:

1. to µchiller;

2. earth;

3. to motor.

7.5 Fan ON/OFF control board (code CONVONOFF0)

The relay boards (code CONVONOFF0) are used for the ON/OFF management of the condenser fans. The control relay has a switchable power rating of 10 A at 250 Vac in AC1 (1/3 HP inductive).

7.6 PWM to 0 to 10Vdc (or 4 to 20 mA)conversion board for fans (code CONV0/10A0)

The CONV0/10A0 boards convert the PWM signal at terminal Y on the µC2SE to a standard 0 to 10 Vdc (or 4 to 20 mA) signal. The FCS series three-phase controllers can be connected to the µC2SE without using this module.

7.7 Minimum and maximum fan speed calculation

This procedure should only be performed when the fan speed control boards are sued (code MCHRTF*). it must be stressed that if the ON/OFF modules (code CONVONOFF0) or alternatively the PWM to 0 to 10 V converters (code CONV0/10A0) are used, parameter F03 should be set to zero, and parameter F04 to the maximum value. Given the di erent types of motors existing on the market, the user must be able to set the voltages supplied by the electronic board corresponding to the minimum and maximum speeds. In this regard (and if the default values are not suitable), proceed as follows:

• set parameter F02= 3 and set F03 and F04 to zero;

• the condenser control set point (evaporator in HP mode) has been modi ed to take the output

signal to the maximum value (PWM);

• increase F04 until the fan operates at a su cient speed (make sure that, after having stopped it,

it can rotate freely when released);

• “copy” this value to parameter F03; this sets the voltage for the minimum speed;

• connect a voltmeter (set for AC, 250V) between the two “L” terminals (the two external

contacts);

• increase F04 until the voltage stabilises at around 2 Vac (inductive motors) or 1.6, 1.7 Vac

(capacitive motors). Once the value has been found, it will be evident that even when increasing F04 the voltage no longer decreases. In any case do not increase F04 further so as to avoid damaging the motor;

• restore the correct condenser set point (evaporator in HP mode).

The operation is now completed.

Fig. 7.d

Fig. 7.e

to µchiller

Fig. 7.f

to µchiller

Fig. 7.g

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

7.8 Programming key (code PSOPZKEYA0)

The programming keys PSOPZKEY00 and PSOPZKEYA0 for CAREL controllers are used for copying the complete set parameters for µC2SE. The keys must be connected to the connector (4 pin AMP)  tted on the controllers, and can work with the instruments ON or OFF, as indicated in the operating instructions for the speci c controller. The two main functions (upload/download) that can be selected through two dip-switches (which are placed under the battery cover). They are:

• Loading to the key the parameters of a controller (UPLOAD);

• Copying from the key to one or more controllers (DOWNLOAD).

Warning: the copying of the parameters is allowed only between instruments with the same

code. Data loading operation to the key is always allowed. To make identi cation of the key easier CAREL has inserted a label on which you can describe the loaded programming or the machine to which you are referring.

IMPORTANT NOTE: the key can be used only with controllers µC

SE that have the same

Firmware version.

UPLOAD - copying the parameters from an instrument to the key:

• open the rear hatch of the key and place the two dip-switches in the OFF position (see Fig.

7.j.a). Close the hatch;

• connect the key to the connector of the instrument;

• press the button on the key and keep it pressed, checking the LED signal sequence: at  rst it is red, after a few seconds it becomes green;

• if the sequence of signals is as indicated above, the copying operation has been completed correctly (green LED ON), the button can be released and the key disconnected from the instrument; in case of di erent signals: if the green LED doesn’t turn on or if there are some  ashes, there’s a problem. Refer to the corresponding table for the meaning of the signals.

DOWNLOAD - copying the parameters from the key to the instrument:

• open the rear hatch of the key and place the dip-switch n. 1 in the OFF position and the dipswitch n. 2 in the ON position (see Fig. 7.j.b). Close the hatch;

• connect the key to the connector of the instrument;

• press the button on the key and keep it pressed, checking the LED signal sequence: at  rst it is red, after a few seconds it becomes green;

• if the sequence of signals is as indicated above, the copying operation has been completed correctly (green LED ON), the button can be released; after a few seconds the LED turns o and the key can be disconnected from the instrument;

• in case of di erent signals: if the green LED doesn’t turn on or if there are some  ashes there’s a problem. Refer to the corresponding table for the meaning of the signals.

The operation takes maximum 10 seconds to complete. If after this period the completed operation signal hasn’t yet appeared, i.e. the green LED ON, try releasing and pressing the button again. In the event of  ashes, refer to the corresponding table for the meaning of the signals.

LED signal error meaning and solution

red LED  ashing Flat batteries at the

beginning of the copying

The batteries are  at, the copying cannot be carried out. Replace the battery (only on PSOPZKEY00).

green LED  ashing

Flat batteries at the end of the copying (only on PSOPZKEY00)

The copying operation has been carried out correctly but at the end of the operation the voltage of the batteries is low. It is advisable to replace the batteries.

Alternate red/ green LED  ashing (orange signal)

Not compatible instrument

The setup of the parameters cannot be copied since the model of the connected parameters is not compatible. Such error happens only with the DOWNLOAD function, check the

controller code and make the copy only on compatible codes. red and green LEDs ON

Copying error

Error in the copied data. Repeat the operation; if the problem

persists, check the batteries and the connections of the key. red LED always ON Data transmission

error

The copying operation hasn’t been completed because

of serious data transmission or copying errors. Repeat the

operation, if the problem persists, check the batteries and the

connections of the key. LEDs OFF Batteries

disconnected

Check the batteries (for the PSOPZKEY00)

Power supply not connected

Check the power supply (for the PSOPZKEYA0)

Table 7.d

Technical speci cations

Power supply to the PSOPZKEY00

- Use three 1.5 V 190 mA batteries (Duracell D357H or equivalent)

- Maximum current supplied 50 mA max. Power supply to the PSOPZKEYA0

- switching power supply:

Input 100 to 240 V~; (-10%, +10%); 50/60 Hz; 90 mA. Output: 5 Vdc; 650

mA Operating conditions 0T50°C r.H. <90% non-condensing Storage conditions -20T70°C r.H. <90% non-condensing Case Plastic, dimensions 42x105x18 mm including prod and connector Figs.

1 and 2

Table 7.e

( Here we have dealt only with the base functions of the instrument. For the remaining speci c functions, see the manual of the instrument that is being used).

Fig. 7.h Fig. 7.i

Fig. 7.j.a

Fig. 7.j.b

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

7.9 RS485 serial options

RS485 serial option for μC2SE panel version (code MCH2004850)

The MCH2004850 serial option is used to connect the µC2SE controller to a supervisor network via a standard RS485 serial line. This option uses the input normally associated with the programming key, which has the dual function of key connector/serial communication port.

Fig. 7.k

7.10 Terminals

The µCSE features the following user interfaces:

Remote terminal

The remote terminal allows the complete con guration of the µC2SE from a remote position. The buttons and indications on the display faithfully reproduce the µC2SE user interface. In addition, PlantVisor can be connected to the remote terminal using the special accessory.

Product code:

MCH200TP00 for panel installation MCH200TW00 for built-in assembly

For further information see the instruction sheet +050001065.

μAD

µAD is the µC2SE room terminal. This terminal,  tted with built-in temperature and humidity probes, controls the temperaturehumidity conditions in the environment where its is installed, interacting with the units controlled by the µC2SE. The µAD can be used to set time bands, the temperature and humidity set point, switch the system on/o and change operating mode simply and intuitively.

Product code:

ADMA001000: with NTC probe ADMB001010: with NTC probe, RTC and buzzer ADMG001010: with NTC and humidity probe, RTC and buzzer ADMH001010: with NTC and humidity probe, RTC, buzzer and backlighting

For further information see the instruction sheet +05000750 and the manual +030220465.

μAM

AM is the µArea controller compatible with the µC2SE. This can control up to 10 fan coils ( tted with the e-droFAN electronic controller). By analysing the temperature-humidity conditions in the di erent rooms, µAM optimises the temperature of the water produced by the chiller/HP, improving power consumption, performance and comfort.

In addition, the µAM centralises the data, such as set point, heat/cool mode and on/o for the individual fan coil and the entire system, including time bands.

Product code:

ADEC001010: with NTC probe, RTC, buzzer and backlighting ADEH001010: cwith NTC and humidity probe, RTC, buzzer and backlighting

For further information see the instruction sheet +050000740 and the manual +030220460.

Fig. 7.l

Fig. 7.m

Fig. 7.n

Sel

PRG

c om

x10

75 64

110

Expansion boar d

36 60

56 59

75 85

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

8. DIMENSIONS

The following are the mechanical dimensions of each component in the µC2SE controller; all the values are expressed in millimetres.

Note: the dimensions include the free connectors inserted.

Fig. 8.a

Fig. 8.b Fig. 8.c

Fig. 8.d

MCH200000* μC2SE panel mounting version

drilling template

71x29 mm

overall dimensions 91,5x36x5 mm

panel mounting

Expansion board for μC2SE

CONVONOFF0 and CONV0/10 A modules

DIN rail mounting

RS485 serial card: codeMCH2004850

8 e 12 A

74.5

1950

29.535.519

12.53

74.5 12.53

Ø4

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Model A (component

side)

B C D E

MCHRTF04C0 43 100 40 50 107 MCHRTF08C0 75 100 58 82 107 MCHRTF12C0 75 100 58 82 107

Note: the version with screw teminals code MCHRTF*D0 is available on request

Table 8.a

MCHRTF series single-phase speed controllers

Fig. 8.e

Fig. 8.f

Model

MCHRTF10C0

Table 8.b

120 Vac

250 Vac 30 Vdc

AC 120 V cosø =0.7

AC 250 V cosø =0.7

250 Vac cosø =0.4 30 Vdc

120 Vac cosø =0.4

30 Vdc

300

200

100

30 20

3 2

012345

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Description Code

µC2SE single circuit, 2 compressors, panel mounting MCH2001030 µC

SE single circuit, 2 compressors, panel mounting (20 pcs. multiple package) MCH2001031

µC

2SE

expansion board for 2nd. circuit maximum 4 compressors MCH2000020

µC

2SE

expansion board for 2nd. circuit maximum 4 compressors (10 pcs. multiple

package)

MCH2000021

RS485 optional board for µC

SE panel version MCH2004850 Programming key for µC2SE PSOPZKEY00 ON/OFF fan card (only screw terminals) CONVONOFF0 PWM - 0 to 10 V fan card (only screw terminals) CONV0/10A0 Temperature probes for regulation or condensation control ***depending on the length (015= 1.5 m, 030= 3 m, 060=6 m)

NTC***WP00

Pressure probes for condensing pressure control ** depending on the pressure (13= 150 PSI, 23= 75 PSI, 33= 500 PSI)

SPK*R*

Connectors kit for code MCH2000001 (multiple package 20 pcs) MCH2CON001 Connectors kit for code MCH2000001 (multiple package 10 pcs) MCH2CON021 Mini t connectors kit + 1 meter length for code MCH2** MCHSMLCAB0 Mini t connectors kit + 2 meter length for code MCH2** MCHSMLCAB2 Mini t connectors kit + 3 meter length for code MCH2** MCHSMLCAB3 Remote terminal for MCH20000** for panel installation MCH200TP0* MCH200TP0* Remote terminal for MCH20000** for wall-mounting MCH200TW0* MCH200TW0* Supervisor serial connection kit for remote terminal MCH200TSV0 Fan speed PWM 4 A/230 Vac MCHRTF04C0 Fan speed PWM 8 A/230 Vac MCHRTF08C0 Fan speed PWM 12 A/230 Vac MCHRTF12C0 Fan speed PWM 10 A/230 Vac 1 Pc. Nor. Ind. MCHRTF10C0 Fan speed PWM 10 A/230 Vac 10 Pc. Nor. Ind. MCHRTF10C1

Table 9.a

10. TECHNICAL SPECIFICATIONS AND SOFTWARE UPDATES

10.1 Technical speci cations

Electrical speci cations

In the following speci cations “Group A” de nes the grouping of the following outputs: valve, pump, compressor, heater.

Power supply 24 Vac, range +10/–15 %; 50/60 Hz

Maximum power input: 3W Fuse (compulsory) in series with the power supply to the µC

SE: 315mAT

12 pin connector Max. current 2 A for each relay output, extendable to 3 A for one single

output

Relays Max current at 250 Vac: EN60730: resistive: 3A, Inductive: 2A cos =0.4

60,000 cycles UL: Resistive: 3A, 1 FLA, 6 LRA cos =0.4 30,000 cycles For further information refer to the characteristics shown in Figure 10.a Minimum interval between communications (each relay): 12 s (the manufacturer of the unit that the device is integrated into must ensure the correct con guration so as to respond to this speci cation Type of microswitching: 1 C Insulation between relays in group A: functional Insulation between the relays in group A and the very low voltage parts: reinforced Insulation between relays in group A and the signal relays: primary Insulation between the signal relays and the very low voltage parts: reinforced Insulation between the relays and the front panel: reinforced

Digital inputs Electrical standard: voltage-free contacts

Closing current to earth: 5 mA Maximum closing resistance: 50 W

Analogue inputs B1, B2, B3, B4: NTC CAREL temperature probes (10 kW at 25 °C)

The response time depends on the component used, typical value 90 s B4: NTC temp. probes (10 kW at 25 °C) or CAREL 0 to 5 V ratiometric pressure probes SPKT00**R*

Fan output Control signal for CAREL modules MCHRTF****, CONVONOFF* and

CONV0/10A* Phase width modulation (settable width) or modulation of the duty cycle No-load voltage: 5V ± 10% Short-circuit current: 30 mA

Minimum output load: 1 kW Front panel index of protection

IP55

Storage conditions -10T70 °C – humidity 80 % rH non-condensing Operating conditions -10T55 °C – humidity <90 % rH non-condensing Degree of pollution Normal Cat. of resist. to heat and  r e

D (RU94 V0)

PTI of the insulating materials

All the insulating materials have PTI250 V

Software class and structure A Period of electric stress across insulating parts

Long

Homologations CE/RU (File EI98839 sez.16)

Table10.a

Nota: all the relays must have the common terminals (C1/2, C3/4, C6/7, C8/9) connected

together.

Fig. 10.a

current on contacts (A)

number of operations (x 10

)

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

Functional characteristics

Resolution of the analogue inputs Temperature probes: range -40T80 °C, 0.1 °C Temperature measurement error Range -20T20 °C, ±0.5 °C ( excluding probe)

Range -40T80 °C, ±1.5 °C ( excluding probe)

Pressure measurement error The % error with a voltage reading with a range of input from 0.5

to 4.5 is ± 2% (excluding probe). The error in the converted value may vary according to the settings of parameters /9, /10, /11, /12

Table 10.b

Characteristics of the connectors

The connectors may be purchased using CAREL code (MCHCON0***) or from the manufacturer Molex

Molex® codes of the connector Number of pins

39-01-2120 12 39-01-2140 14

Table 10.c

Max. number of insertion/removal cycles for the connectors: 25 cycles

Code of the contacts according to the cross-section of the connection cables to the 12- and 14pin connectors (use the special Molex® tool code 69008-0724 for crimping

Molex® code of the contact Cross-section of cables allowed

39-00-0077 AWG16 (1.308 mm2) 39-00-0038 AWG18-24 (0.823 to 0.205 mm2) 39-00-0046 AWG22-28 (0.324 to 0.081 mm2)

Table 10.d

In addition, the pre-wired kits MCHSMLC*** are also available

WARNINGS

• If one transformer is used to supply both the µC2SE and the accessories, all the G0 terminals on the various controllers or the various boards must be connected to the same terminal on the secondary, and all the G terminals to the other terminal on the secondary, so as to avoid damaging the instrument;

• For use in residential environments, use shielded cable (two wires + shield earthed at both ends, AWG 20-22) for the tLAN connections (EN 55014-1).

• Avoid short-circuits between V+ and GND so as to not damage the instrument;

• Perform all the maintenance and installation operations when the unit is not connected to the power supply;

• Separate the power cables (relay outputs) from the cables corresponding to the probes, digital inputs and serial line;

• Use a transformer dedicated exclusively to the electronic controllers for the power supply.

Protection against electric shock and maintenance warnings

The system made up of the control board (MCH200003*) and the other optional boards (MCH200002*, MCH200485*, MCHRTF****, CONVONOFF*, CONV0/10A*, EVD000040*) represents a control device to be integrated into class 1 or class 2 appliances. The class of protection against electric shock depends on how the control device is integrated into the unit built by the manufacturer. Disconnect power before working on the board during assembly, maintenance and replacement. The protection against short circuits must be guaranteed by the manufacturer of the appliance that the controller will be  tted on.

Maximum length of the NTC/ratiometric probe

NTC/ratiometric probe connection cables 10 m digital input connection cables 10 m power output connection cables 5 m fan control output connection cables 5 m power cables 3 m

Table 10.e

10.2 Software updates

10.2.1 Notes for version 1.1

First release.

10.2.2 Notes for version 1.2

Optimised use of the programming key.

10.2.3 Notes for version 1.3

Implemented direct current operation. Use EXP. version 1.5 or higher.

10.2.4 Notes for version 1.4

Implemented a di erential relating to the working set point for electric heaters in air- and water-source units. Implemented cooling only air-source unit with electrical heaters operating in heating mode only. Implemented new logic for the activation of the alarm relays. Implemented new logic for the management of the high pressure alarm. Implemented management of minimum damper opening. Implemented damper inactivity time in freecooling or freeheating mode. Optimised management of damper closing for minimum outlet temperature limit. Implemented alarm reset from AD.

10.2.5 Notes for version 1.6

Improved Modbus® communication with supervisory system

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

10.2.6 Notes for version 1.7

Implemented second antifreeze set point (A14)

10.2.7 Notes for version 1.8

Improved broadcast of Modbus® communication with supervisory system

10.2.8 Notes for version 1.9

Improved DO management with DC power supply

10.2.9 Notes for version 2.0

• Implemented the option to connect µC2SE, expansion board and one EVD400 which increases the number of I/Os available even in single circuit applications.

• Increased the options for the parameters (P25~P32) corresponding to the digital output settings (function also available for the outputs on the expansion if the  rmware version on the latter is 1.7 or higher).

• Implemented a new type of alarm (CP1~CP4), relating to the individual compressors.

• Implemented a settable delay time (C19) between pre-opening of the electronic expansion valve (by EVD400) and compressor start.

10.2.10 Notes for version 2.1

Improved the set point compensation algorithm for the supplementary heater in heat pump mode.

10.2.11 Notes for version 2.2

Improved integration with the µAD room terminal in heating and cooling modes

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

ENGLISH

µC2SE - +030220426 - rel. 2.1 - 09.06.2010

CAREL INDUSTRIES HQs

Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com

Agence/Agency:

µC

SE - +030220426 - rel. 2.1 - 09.06.2010

CAREL reserves the right to modify the features of its products without prior notice

Carel ?C2SE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
