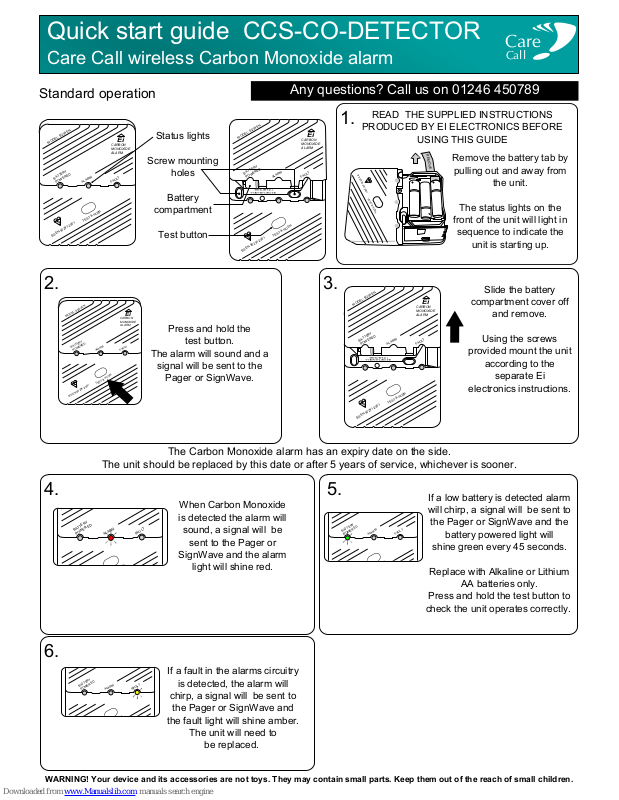

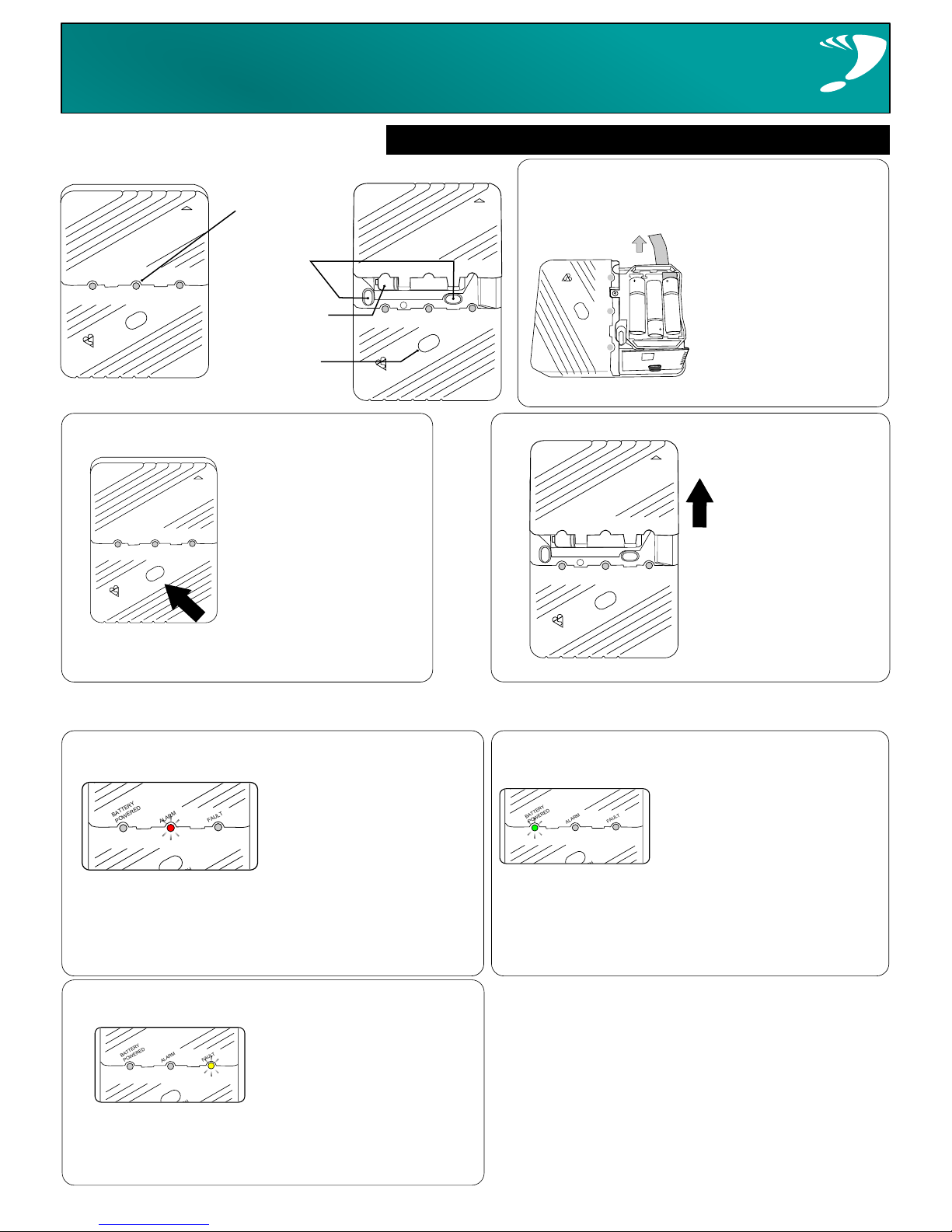

Standard operation
1.
CARBON
MONOXIDE
ALARM
BATTERY
POWERED
ALARM
FAULT
MODEL: Ei204EN
BS EN 50291:2001
TEST & HUSH
Ei
BS EN 50291:2001
TEST & HUSH
REMOVE
Remove the battery tab by
pulling out and away from
the unit.
The status lights on the
front of the unit will light in
sequence to indicate the
unit is starting up.
BS EN 50291:2001
TEST & HUSH
USE ONLY ALKALINE AA
TYPE BATTERIES
CARBON
MONOXIDE
ALARM
BATTERY
POWERED
ALARM
FAULT
MODEL: Ei204EN
Ei
Status lights
Screw mounting
holes
Battery
compartment
Test button
2.
CARBON
MONOXIDE
ALARM
BATTERY
POWERED
ALARM
FAULT
MODEL: Ei204EN
BS EN 50291:2001
TEST & HUSH
Ei
Press and hold the
test button.
The alarm will sound and a
signal will be sent to the
Pager or SignWave.
Slide the battery
compartment cover off
and remove.
Using the screws
provided mount the unit
according to the
separate Ei
electronics instructions.
3.
BS EN 50291:2001
TEST & HUSH
USE ONLY ALKALINE AA
TYPE BATTERIES
CARBON
MONOXIDE
ALARM
BATTERY
POWERED
ALARM
FAULT
MODEL: Ei204EN
Ei
4. 5.
CARBON
MONOXIDE
ALARM
MODEL: Ei204EN
Ei
6.
The Carbon Monoxide alarm has an expiry date on the side.
The unit should be replaced by this date or after 5 years of service, whichever is sooner.
Quick start guide CCS-CO-DETECTOR
Care Call wireless Carbon Monoxide alarm
Care
Call
READ THE SUPPLIED INSTRUCTIONS
PRODUCED BY EI ELECTRONICS BEFORE
USING THIS GUIDE
WARNING! Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
BATTERY
POWERED
ALARM
FAULT
When Carbon Monoxide
is detected the alarm will
sound, a signal will be
sent to the Pager or
SignWave and the alarm
light will shine red.
BATTERY
POWERED
ALARM
FAULT
If a low battery is detected alarm
will chirp, a signal will be sent to
the Pager or SignWave and the
battery powered light will
shine green every 45 seconds.
Replace with Alkaline or Lithium
AA batteries only.
Press and hold the test button to
check the unit operates correctly.
BATTERY
POWERED
ALARM
FAULT
If a fault in the alarms circuitry
is detected, the alarm will
chirp, a signal will be sent to
the Pager or SignWave and
the fault light will shine amber.
The unit will need to
be replaced.
Page 2
Any questions? Call us on 01246 450789
CARBON
MONOXIDE
ALARM
MODEL: Ei204EN
Ei
Advanced settings CCS-CO-DETECTOR
Care Call wireless Carbon Monoxide alarm
Care
Call
Changing the system channel code
NOTE. In most cases it is not necessary to change the system code. However, when one or
more systems are in close proximity, system codes can be used to avoid interference from
other Care Call systems using up to a maximum of 16 system channels.
The monitor is supplied with no
system code switches set (system code 1).
For reference this is the factory setting
should you need to re-set the unit.
System codes can be set using
key switches 1 - 4.

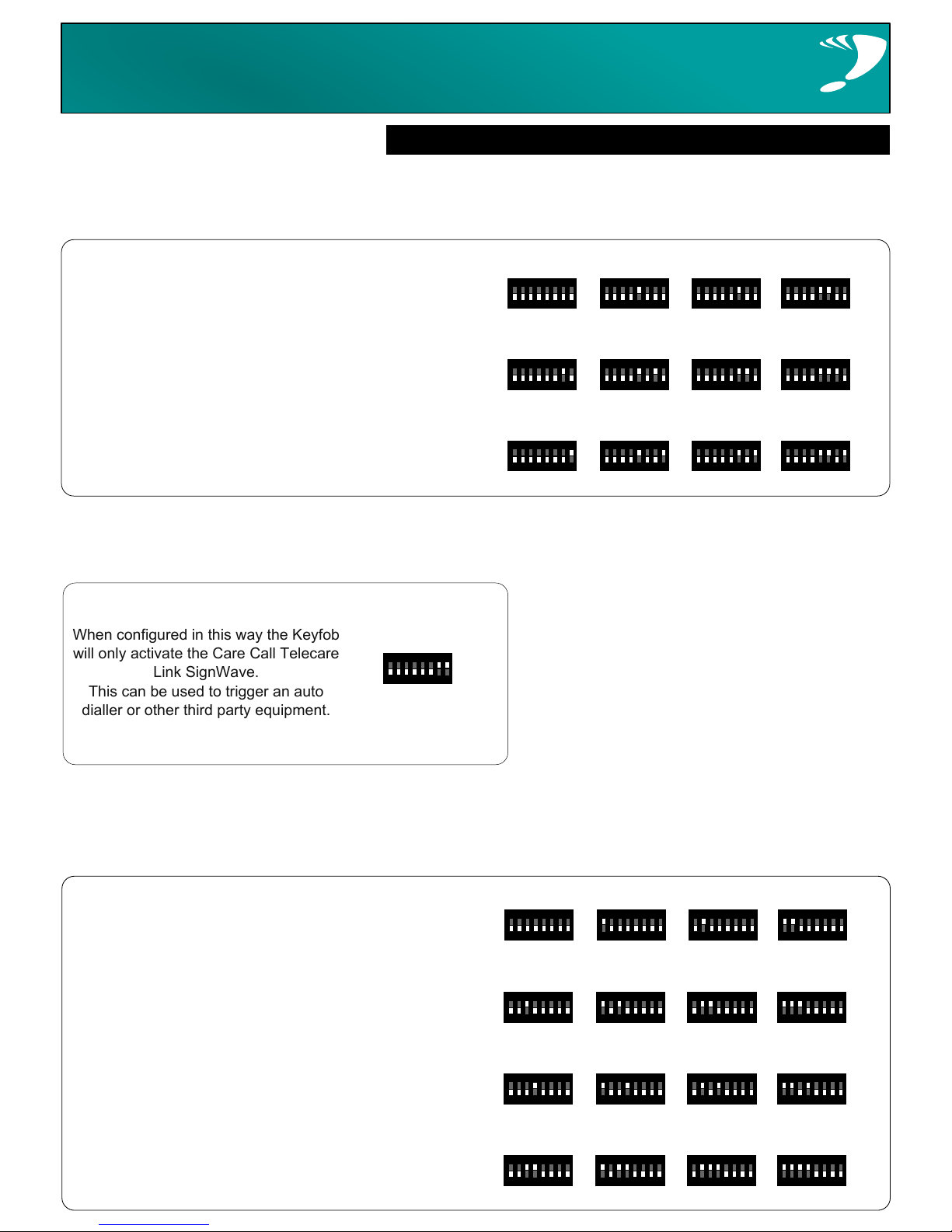

The diagram to the right shows the 16
possible combinations.
Be sure that the same system code is set on
the receiver to be used and any other
monitors in that system.
13
1 2 3 4 5 6 7 8
14
1 2 3 4 5 6 7 8151 2 3 4 5 6 7 8161 2 3 4 5 6 7 8
2 3
4
1
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
9
1 2 3 4 5 6 7 8
10
1 2 3 4 5 6 7 8
12
1 2 3 4 5 6 7 8
11
1 2 3 4 5 6 7 8
5
6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 81 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
1 2
3
4
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
5
6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
9 10
11 12
Changing the zone
NOTE. If you have a monitor already set to zone one, the Carbon Monoxide alarm can be
configured to another zone as follows.
The monitor is supplied with no
zone switches set (zone 1).
For reference this is the factory setting
should you need to re-set the unit.
Zones can be set using
key switches 5 - 8.
The diagram to the right shows the 12
possible combinations.
Telecare SignWave activation
NOTE. The following setting will not activate a standard Care Call Pager & SignWave. Only use
them with the Care Call CCS3A-2217-EU-TL.
1 2 3 4 5 6 7 8
When configured in this way the Keyfob
will only activate the Care Call Telecare
Link SignWave.
This can be used to trigger an auto
dialler or other third party equipment.
