Assembly and operating instructions
ErgometerBX30
Art. No. CST-BX30
BX30
2
3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand cardiostrong,
the brand that makes athlete‘s hearts beat faster. cardiostrong oers a wide range
of home tness equipment like elliptical cross trainers, ergometers, treadmills and
rowing machines. cardiostrong equipment is the optimal equipment for all those who
want to train at home independent of goals and tness level. For further information
please visit www.sport-tiedje.com or www.cardiostrong.de.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst
use. These instructions are intended to ensure speedy assembly and
explain safe usage. Make sure that all people exercising with the
equipment (in particular children and persons with limited physical, sensory, mental or
motor capabilities) are informed about these instructions and its content in advance.
In case of doubt, a responsible person must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As
far as possible, potential safety hazards which could cause injury have been eliminated.
Make sure to follow the instructions carefully and that all parts are securely in place. If
required, read through the instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The
contract partner cannot be held liable for damage to health, accidents or damage to
the equipment when it is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for
semi-professional (e. g., hospitals, clubs, hotels, schools, etc.) and commercial or
professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when
ordering replacement parts.
BX30
4
CONTENTS
1 GENERAL INFORMATION 6
1.1 Technical data 6
1.2 Personal safety 7
1.3 Electrical safety 8
1.4 Set-up place 8
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 9
2.1 General instructions 9
2.2 Faults and Troubleshooting 10
2.3 Maintenance and service calendar 11
3 ASSEMBLY 12
3.1 Package contents 12
3.2 Assembly instructions 13
4 OPERATING MANUAL 18
4.1 Console display 18
4.2 Button functions 20
4.3 Turning on the equipment 21
4.4 User prole 21
4.5 Programs 21
4.5.1 M - Manual program 22
4.5.2 Training program 22
4.5.3 H.R.C. - Heart rate controlled program 23
4.5.4 W - Watt controlled program 23
4.5.5 U - User dened program 24
4.5.6 Body fat test (BODY-FAT) 24
4.5.7 RECOVERY - recovery frequency 25
5 WORKOUT INSTRUCTIONS 26
5.1 Heart-rate measuring 26
5.2 10 tips for eective ergometer training 29
5.3 Designing a workout 30
5.4 Stretching exercises for leg & chest muscles 32
5.5 Workout journal 34
5
6 WARRANTY INFORMATION 35
7 DISPOSAL 37
8 ORDERING ACCESSORIES 38
9 ORDERING SPARE PARTS 39
9.1 Service hotline 39
9.2 Serial number and model name 39
9.3 Parts list 40
9.4 Exploded drawing 42
BX30
6
1 GENERAL INFORMATION
1.1
Technical data
LED display of
+ speed in km/h
+ training time in min
+ training distance in km
+ step rate (revolutions per minute)
+ calories burnt
+ heart rate (when using the hand sensors or a chest strap)
+ watt
+ resistance level
Resistance system: electronic magnetic brake system
Resistance level: 32
Watts: 10 - 350 watts
User memory: 4
Total number of training programs: 19
Manual programs: 1
Pre-set programs: 12
Watt-controlled programs: 1
Heart rate controlled programs: 4
User dened programs: 1
Body fat test
Flywheel mass: 9 kg
Pedal arm length: 17 cm
Bottom bracket width: 12.5 cm
Weight and dimensions
Article weight (gross, including packaging): 39 kg
Article weight (net, without packaging): 35.2 kg
Packaging dimensions (L x W x H): approximately 950 mm x 260 mm x 700 mm
Set-up dimensions (L x W x H): approximately 900 mm x 570 mm x 1400 mm
Maximum user weight: 130 kg (286 lbs)
7
1.2 Personal safety
+ Before you start using the equipment, you should consult your physician that
this type of exercise is suitable for you from a health perspective. Particularly
aected are persons who: have a hereditary disposition to high blood pressure
or heart disease, are over the age of 45, smoke, have high cholesterol values, are
overweight and/or have not exercised regularly in the past year.
+ Please note that working out excessively can seriously damage your health. Please
also be aware that heart rate monitoring systems might be imprecise.
+ The equipment may only be used for its intended purpose; that means for cycle
training for adults.
+ Any other usage is prohibited and potentially dangerous. The contract partner
cannot be held liable for damage resulting from improper use.
+ The equipment is strictly for use by one person at a time.
+ Children should not be allowed unsupervised access to the equipment.
+ Before starting your training, make yourself familiar with all of the equipment‘s
functions and setting options. Have an expert explain the correct usage of the
product to you.
+ Make sure that nobody is in the range of motion of the equipment while exercising.
+ Keep your hands, feet and other body parts, hair, clothing, jewelry and other
objects well clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.
When selecting sports shoes, think about the suitability of the sole – preferably
this should be made of rubber or other non-slip materials. Shoes with heels,
leather soles, studs or spikes are not suitable. Never work out in bare feet.
+ It is also important to take note of the information given in the workout instructions
for creating a workout plan.
+ At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or
other abnormal symptoms, stop your workout immediately and, if necessary,
consult your physician.
+ Without prior agreement from your authorized contract partner, opening the
equipment is prohibited.
BX30
8
1.3 Electrical safety
+ The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+ The equipment should be connected directly to a grounded plug socket only by
means of the power cable supplied. The use of multi-socket adapters or similar
is not recommended. Extension leads must comply with local electrical safety
guidelines. Always fully unwind the power cable.
+ The outlet should be secured with a fuse with a minimum value of „16 amperes,
slow“.
+ In order to reduce the risk of an electric shock, always unplug the equipment from
the mains socket immediately after your workout, before assembly or dismantling,
and before maintenance or cleaning. Do not pull on the cable.
+ When plugged in, do not leave the equipment unattended at any time. To avoid
use by anyone unfamiliar with the operating instructions, the power cable should
be removed when the equipment is not in use.
+ Keep the power cable away from heat, oil and sharp edges. Do not route the power
cable underneath the equipment or under a carpet or rug, and do not place any
objects on top of it.
+ Make no modications to either the power cable or the mains plug.
+ If the power cable or the plug are damaged or defective, contact your authorized
contract partner. Do not use the equipment in the meantime.
+ Do not keep electrical devices (e. g., mobile phones) in close proximity to the
console or the control electronics, otherwise display values (e. g., pulse measuring)
could be inaccurate.
1.4 Set-up place
+ The equipment should only be used indoors, in a suciently heated and dry area
(ambient temperature between 10°C and 35°C). The equipment should not be
used outdoors or in rooms with high humidity (over 70%) like swimming pools. The
equipment should only be stored in surroundings with an ambient temperature
between 5°C and 45°C.
+ The training room should be well ventilated during training and not be exposed to
any draughts.
+ Choose a location in which to place the equipment such that there is enough free
space/clearance to the front, the rear and to the sides of the equipment (at least
1.50 m). Furthermore, the equipment should not be set up in main entrances or on
escape routes.
+ Always keep the power cable away from hot surfaces and grounds and make sure
that the cable is not stuck somewhere or becomes a „trip hazard“.
+ No objects of any type should be inserted into the openings of the equipment.
9
+ The equipment should be placed on a level and solid surface, any unevenness in
the oor should be leveled out.
+ A oor protective mat / equipment underlay can help to protect high-quality oor
coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to
level out slight unevenness.
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+ Please check if all parts and tools belonging to the equipment are included in the
delivery and if there is any transport damage. If there are any complaints, please
contact your contract partner directly.
+ Some of the nuts and bolts to be used in assembly are already pre-mounted in
order to make set-up as easy as possible.
+ The equipment must be assembled by adults. In case of doubt, ask for assistance
from another person with technical skills.
+ Keep children away from the equipment during assembly, because small parts are
included in the delivery and may be swallowed.
+ Make sure that you have enough space (at least 1.50 m) in every direction during
assembly.
+ Do not leave any tools and packaging materials like plastic sheeting laying around
to avoid danger of suocation for children.
+ Assemble the equipment on an underlay mat or on the cardboard packaging in
order to avoid damage to the equipment and to the oor (scratches).
+ Before starting assembly, all individual parts should be placed on the oor next to
each other.
+ Read the assembly instructions carefully and assemble the equipment according
to the illustrations. Proceed carefully and cautiously.
+ First loosen all parts and check for their correct tting. Then tighten the screws
using a tool.
+ Modications to the design or improper repairs may pose a hazard to the user and
should not be carried out. The product warranty may be void as a result.
+ Only authorized service technicians are permitted to carry out all servicing and/or
repairs – it excludes maintenance and care.
+ Damaged or worn components may impair your safety and the lifespan of
the equipment. You should therefore immediately replace damaged or worn
components. Please contact your contract partner in such a case. The equipment
should no longer be used until it has been repaired. When needed, only use
original cardiostrong spare parts.
BX30
10
+ Check the tightness of all screw connections once a month.
+ In order to be able to guarantee the constructively dened safety level of this
equipment, we recommend having the equipment regularly maintained (at least
once a year) by specialists (service technicians of your contract partner).
+ The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The
use of solvents should be strictly avoided. Also, make sure that no liquids (e. g.
sweat) get into the openings of the equipment (e. g. console).
2.2 Faults and Troubleshooting
The equipment runs through regular quality controls during production. Nevertheless,
errors or malfunctions on the equipment may occur. Individual parts are often the
cause of faults and replacement is usually sucient. Please use the following overview
to see the ve most common errors and how to repair them. If the equipment still
does not work properly, please contact your contract partner.
Error Cause Repair
Crackling noise in
pedal area
Loose pedals Tighten the pedals
Equipment wobbles Equipment is not level Adjust the supporting feet
Handlebar/saddle
wobbles
Screws are loose Tighten screws
Display doesn‘t turn onPower is disconnected Check all screw connections
and see if the plug is plugged
in
No pulse reading • Interference in the room
• Using a chest strap:
- unsuitable chest strap
- chest strap is
incorrectly positioned
- batteries are empty
• Eliminate sources of
interference (e. g. mobile
phone, loudspeaker, etc.)
• Use a suitable chest strap (see
recommended accessories)
• Reposition the chest
strap and/or moisten the
electrodes
• Change the batteries
11
2.3 Maintenance and service calendar
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x annually Annually
Display console C I
Tighten the pedals
I
Plastic covers
C I
Seat rail
I
Legends: C = cleaning; I = inspect
BX30
12
3 ASSEMBLY

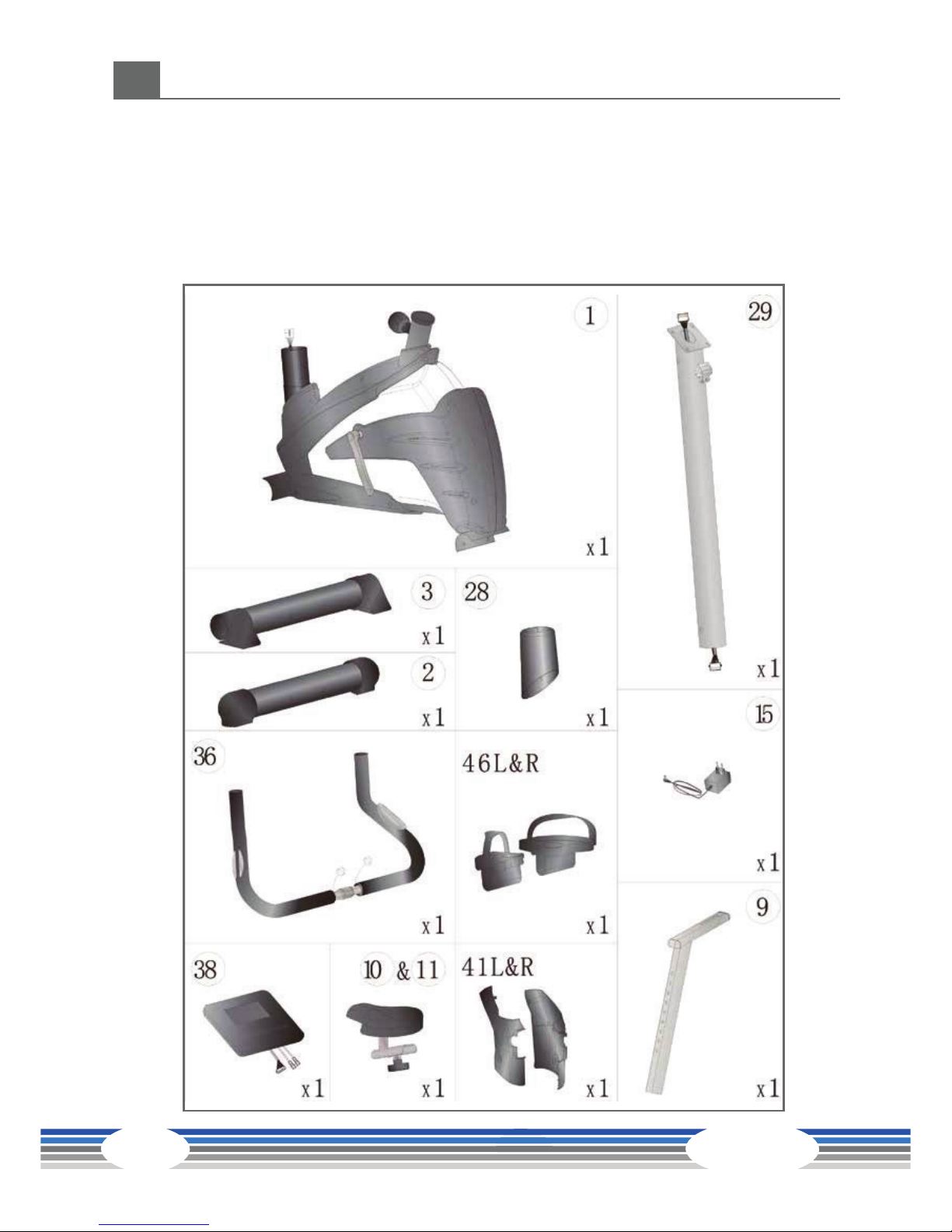

3.1
Package contents
The package contains the parts represented in the illustration, including a power
cable with mains plug. If one of the illustrated parts is missing, please contact your
contract partner.
13
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown
and assemble the equipment in the order indicated.

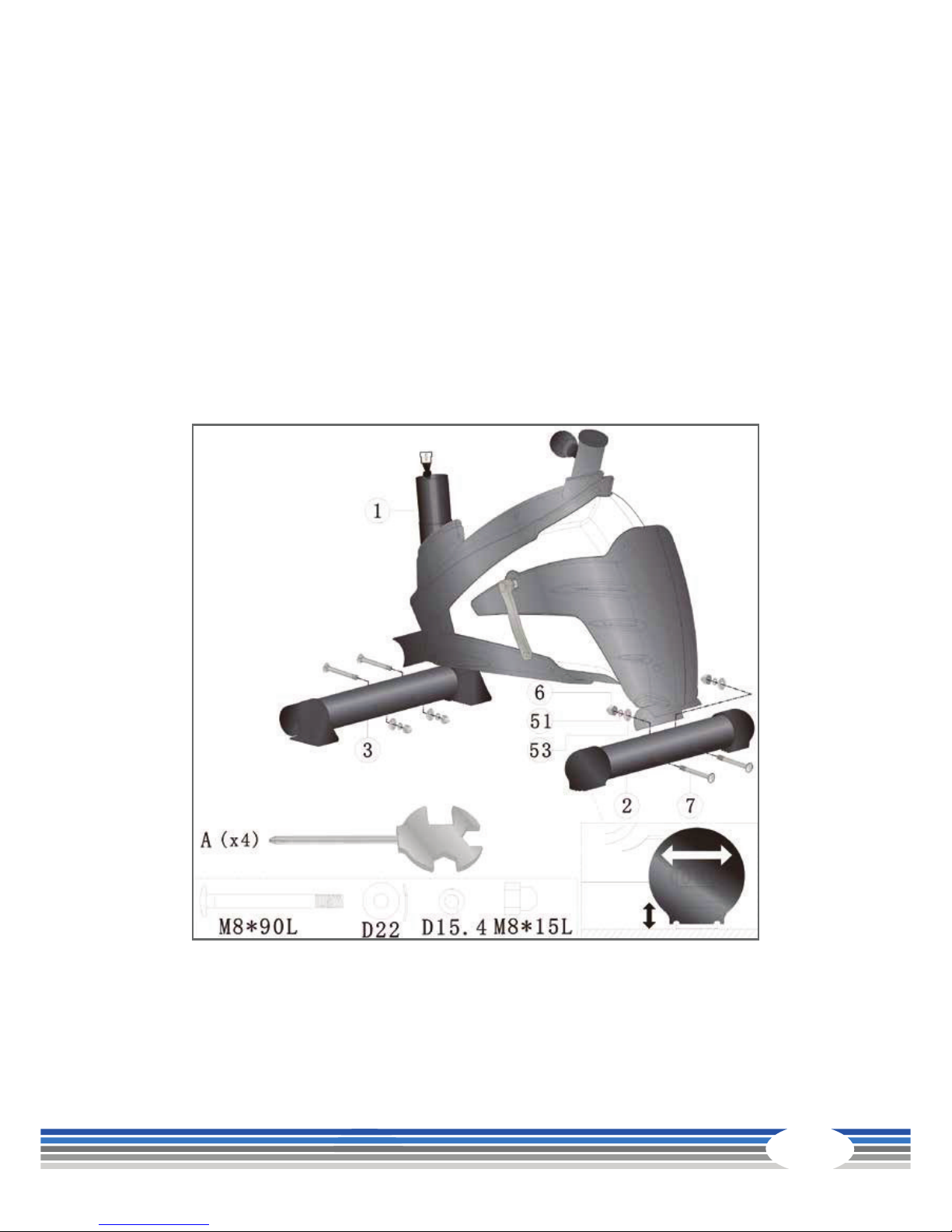

Step 1: Assembly of the front and back feet
(1) Secure the front (3) and rear foot (2) to the base (1) with each two screws (7), two
washers (53), two spring washers (51) and two nuts (6).
(2) If the equipment is not stable after assembly, you can change the height on the
underside of the underside of the rear foot.
BX30
14

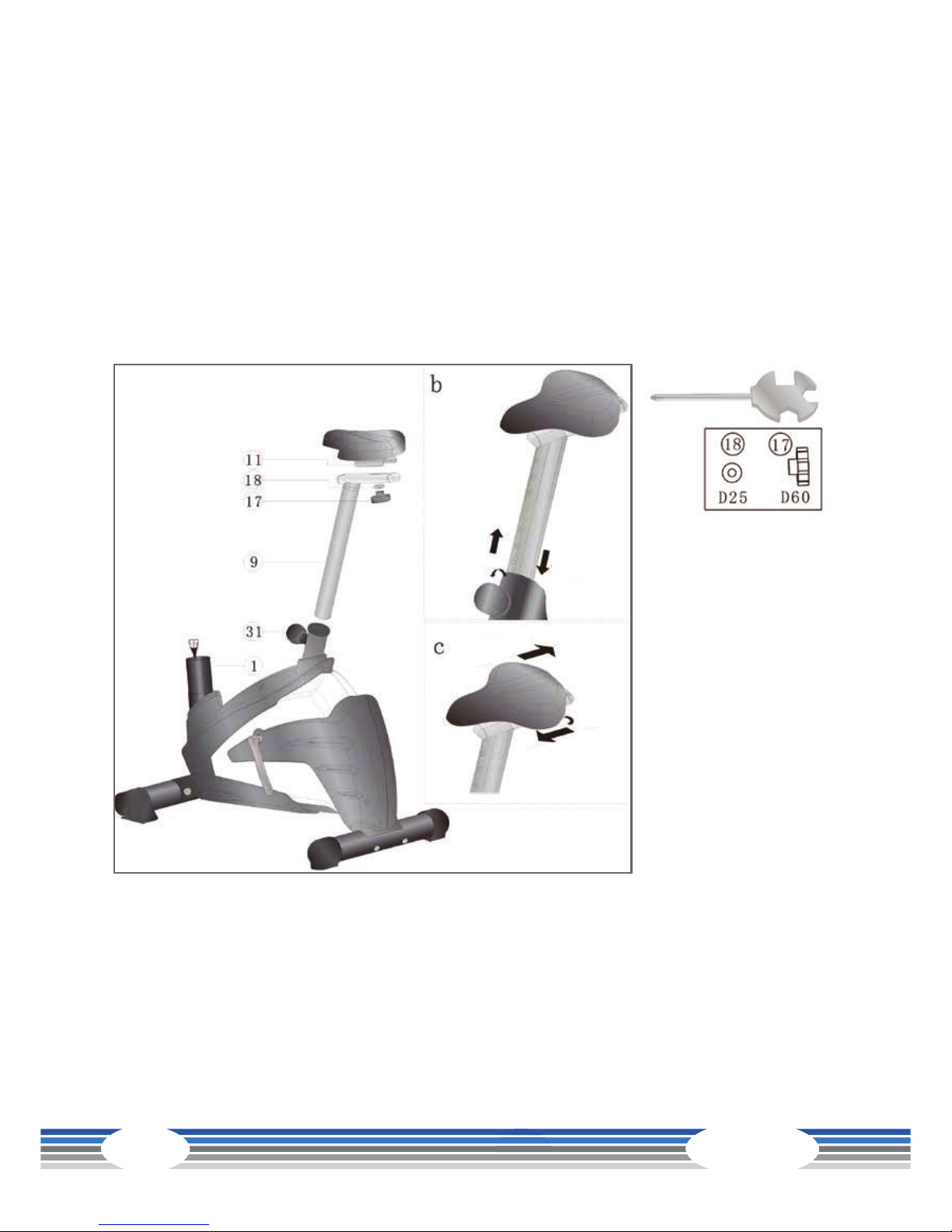

Step 2: Assembly of the saddle
(1) Install the seat (10) on the adjustable saddle tube (11) with three washers (12) and
three nylon nuts (13) as in gure a.
(2) Place the saddle tube (9) in the frame (1). You can move the seat up and down and
lock it with the adjusting knob (31); see gure b.
(3) The seat (10) can be adjusted horizontally as well by moving the adjusting knob
(17) as in gure c.
UP
DOWN
Forwards
Backwards
Loading...
