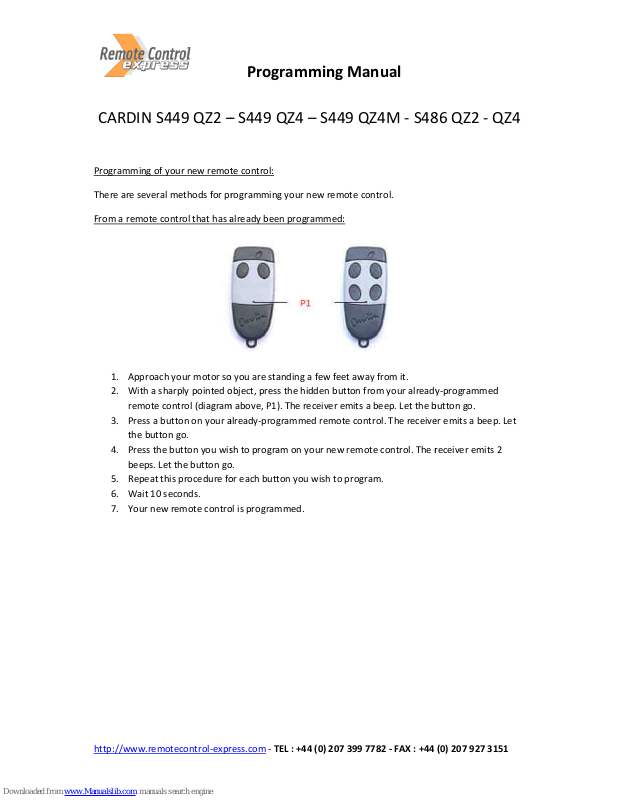

CARDIN S449 QZ2
–
Program
ming of your new remote control
There are several
methods for programming your new
From a remote control t
hat has already been programmed
1.
Approach your motor so you are
2.
With a sharply pointed object, press the hidden button from your already
remote control (diagram above, P1). The receiver emits a beep. Let the button
3. Press a button on
your already
the button go.
4.
Press the button you wish to program
beeps. Let the button
go
5.
Repeat this procedure for each button you wish to program.
6. Wait 10 seconds.
7. Your new remote
control is programmed.
Programming Manual
- TEL : +44 (0) 207 399 7782 - FAX :
+44 (0) 207 927 3151
S449 QZ4 – S449 QZ4M -
S486 QZ2
:
remote control.
:
standing a few feet away from it.
-programmed remote control.
The receiver emits a beep. Let
on your new remote control.
The receiver emits 2
.
- QZ4
-programmed
go.
Page 2
http://www.remotecontrol-
express.com
From the receiver :
1.
Open the casing of your receiver. It is located next to your motor.
2.
On the receiver circuit board (diagram above), press the programming button (MEMO). Keep
it pressed down. The LED light of the
3.
While keeping pressed down the button MEMO, press the button you wish to program
your new remote control until the LED light of the receiver turns off.
4. Let the buttons go.
5.
The LED light of the receiver blinks.
6. Press the button on
your n
7.
The LED light of the receiver turns off.
8.
Repeat this procedure for each button you wish to program.
9. Wait 10 seconds.
10.
Your new remote control is programmed.
Programming Manual
- TEL : +44 (0) 207 399 7782 - FAX :
+44 (0) 207 927 3151
receiver blinks.
ew remote control again. Let it go.
