Car Audio Systems RL4UCON8CP User guide

r.LiNK Video-inserter

RL4-UCON8-CP

Compatible with

Jeep vehicles

with Uconnect Smarttouch 8.4“ infotainment

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

 Video-inserter for factory-infotainment systems
 1 CVBS Input for rear-view camera
 1 CVBS Input for front camera
 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
 Automatic switching to rear-view camera input on engagement of the reverse gear
 Automatic front camera switching after reverse gear for 10 seconds
 Video-in-motion (ONLY for connected video-sources)
 Video-inputs NTSC and PAL compatible

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the interface compatibility of vehicle and accessories

1.3. Connectors

1.3.1. Connectors – video interface

1.3.2. Connectors - daughter PCB)

1.4. Dip-switch settings

1.4.1. 8 dip – black

1.4.1.1. Activating the front camera input (dip 1)

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.1.4. Monitor size (dip 8)

1.4.2. 4 dip - red

2. Installation

2.1. Place of installation

2.2. Connection scheme

2.3. Installation - Ribbon cables into the monitor panel

2.3.1. Warning notes, concerning the installation of ribbon cables

2.4. Connection - picture signal cable

2.5. Connection – 10pin Power / CAN cable

2.6. Analogue power supply

2.7. Power supply output

2.8. Connection – video inputs

2.8.1. Audio insertion

2.8.2. After-market front camera

2.8.3. After-market rear-view camera

2.8.3.1. Case 1: Interface receives the reverse gear signal

2.8.3.2. Case 2: Interface does not receive the reverse gear signal

2.9. Connection – external keypad

3. Interface operation by external keypad

4. Picture settings

5. Specifications

6. Frequently asked questions

7. Technical support

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.

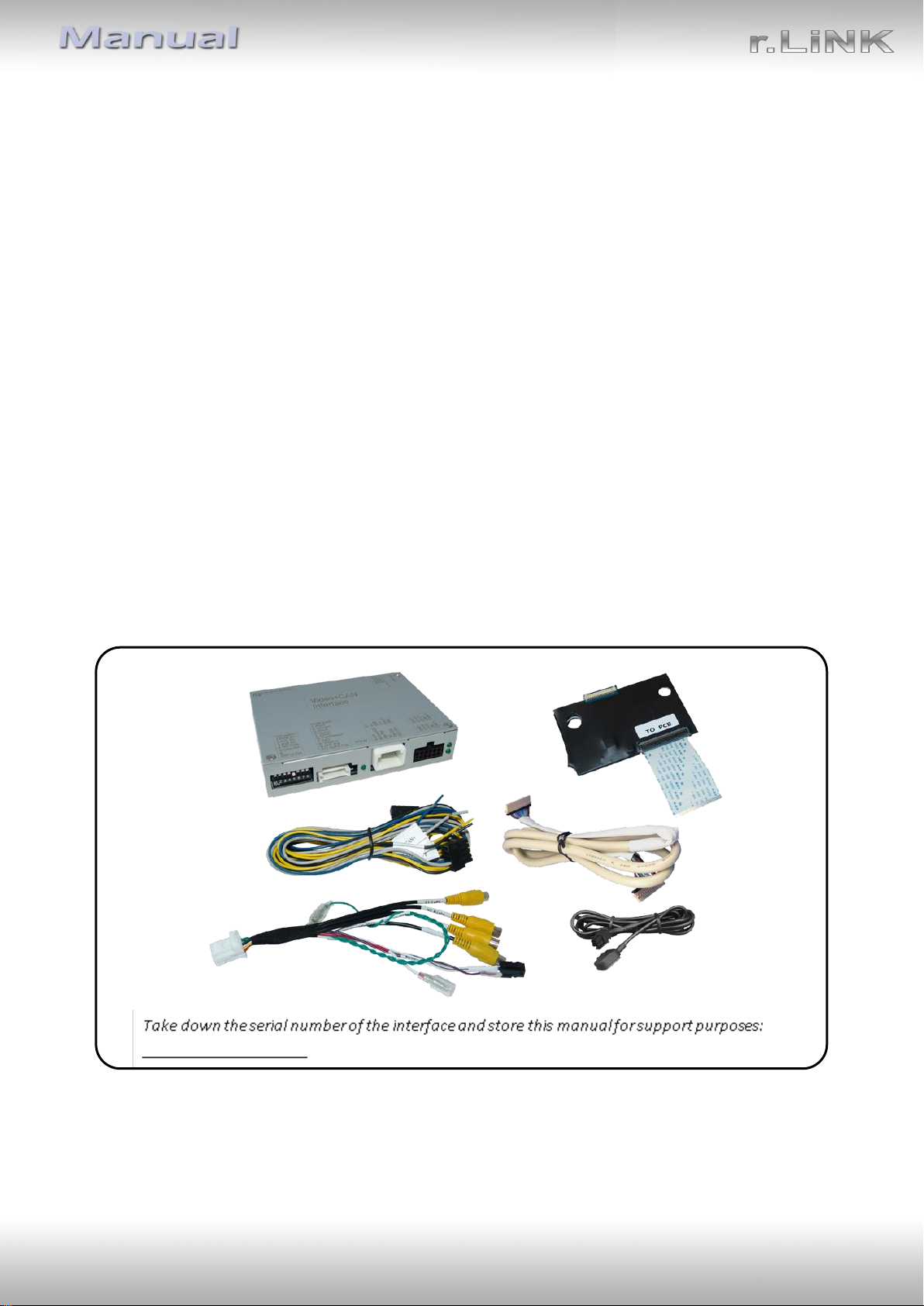

1.1. Delivery contents

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page4

Requirements

Brand

Compatible vehicles

Compatible systems

Jeep

Compass since model year 2018
Renegade since model year 2018
Wrangler since model year 2019

Uconnect Smarttouch with

8.4inch monitor and all-in-one
head-unit with capacitive
touch

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory audio-AUX-input
or a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio switching will
require additional electronic.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera

is only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is possible by
external keypad.

1.2. Checking the compatibility of vehicle and accessories

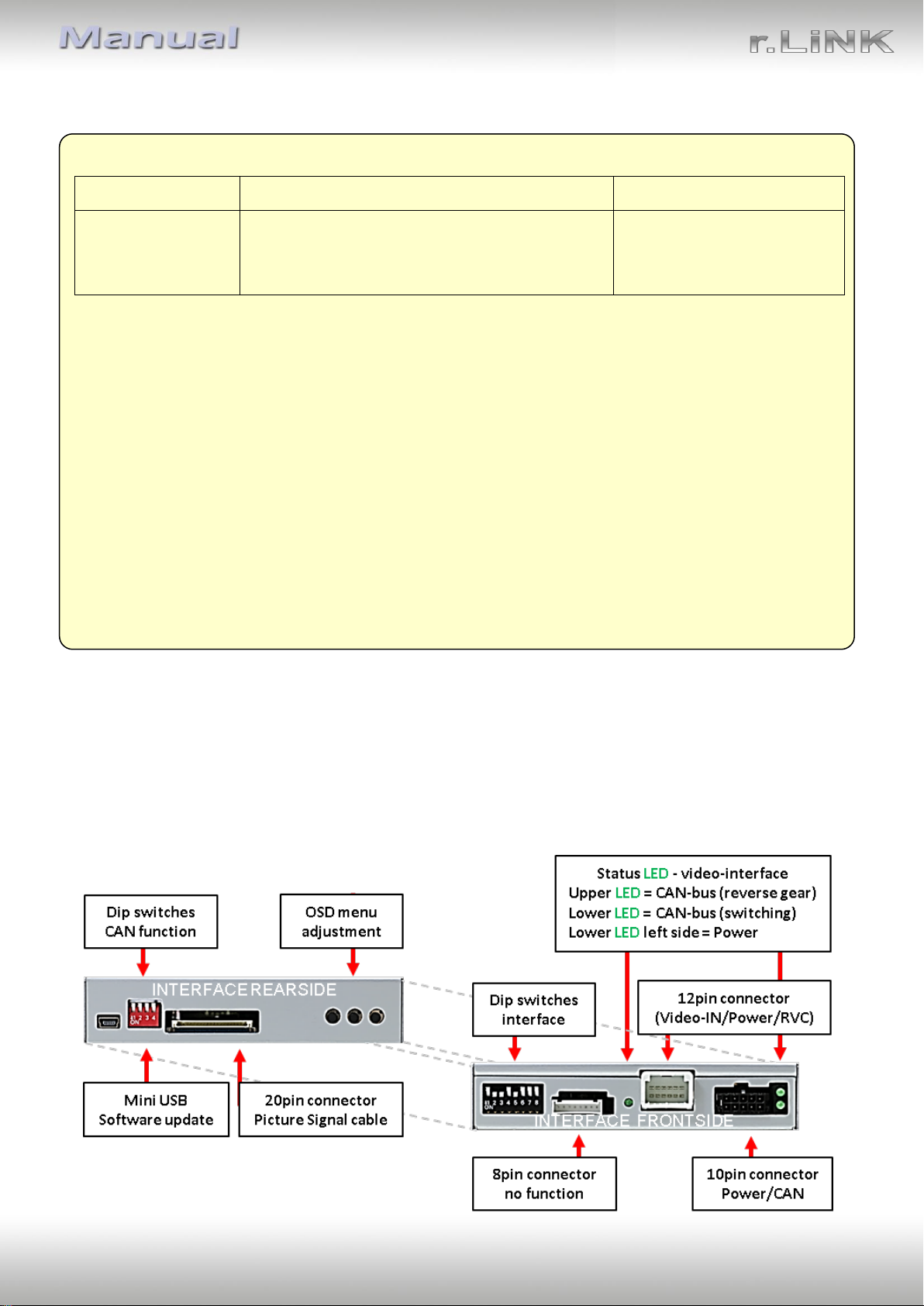

1.3. Connectors

1.3.1. Connectors - video-interface

The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page5

1.3.2. connectors – daughter PCB

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page6

Dip

Function

ON (down)

OFF (up)

1

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay
and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

2

CVBS AV1-input

enabled

disabled

3

CVBS AV2-input

enabled

disabled

4

No function

Set to OFF

5

Rear-view cam type

after-market

factory or none

6

No function

Set to OFF

7

No function

Set to OFF

8

Monitor size

8,4inch

1.4. Dip-switch settings

1.4.1. 8 dip - black

Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.

*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.

See the following chapters for detailed information.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page7

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

OFF

OFF

OFF

1.4.1.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the
reverse gear is engaged.

1.4.1.4. Monitor size (dip 8)

Dip switch position ON supports all vehicles with 8.4inch monitor

Note: Dips 4, 6 and 7 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

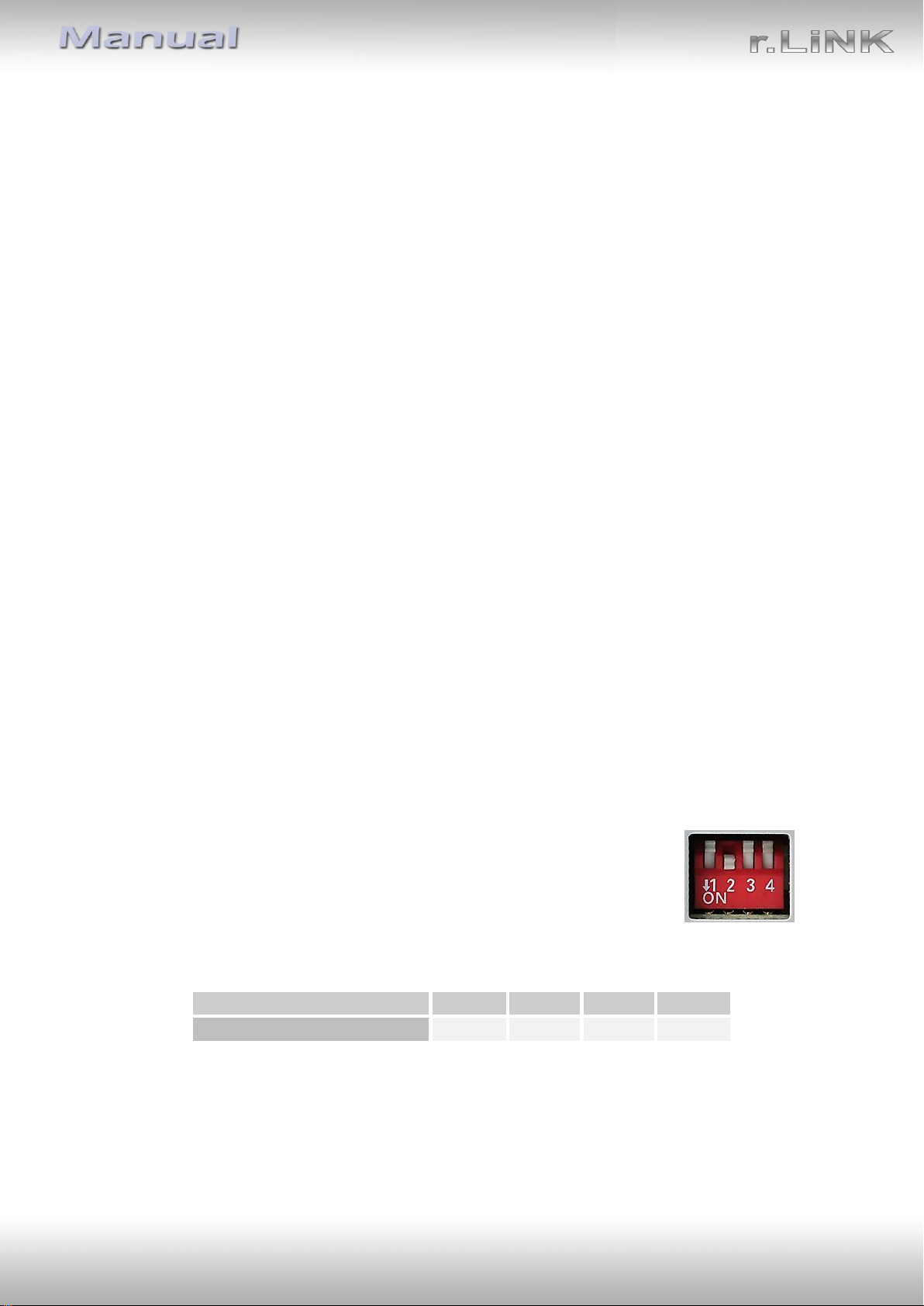

1.4.2. 4 dip - red

By using the Dip-switches, the factory Head-unit or vehicle can be chosen
which the interface will be connected to.

Dip position down is ON and position up is OFF.

Set all dip switches to off

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page8

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!

2.1. Place of installation

The video interface is designated to be connected behind the vehicle`s head unit.
The daughter PCB shell be installed and connected inside the factory head unit behind the
monitor panel.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page9

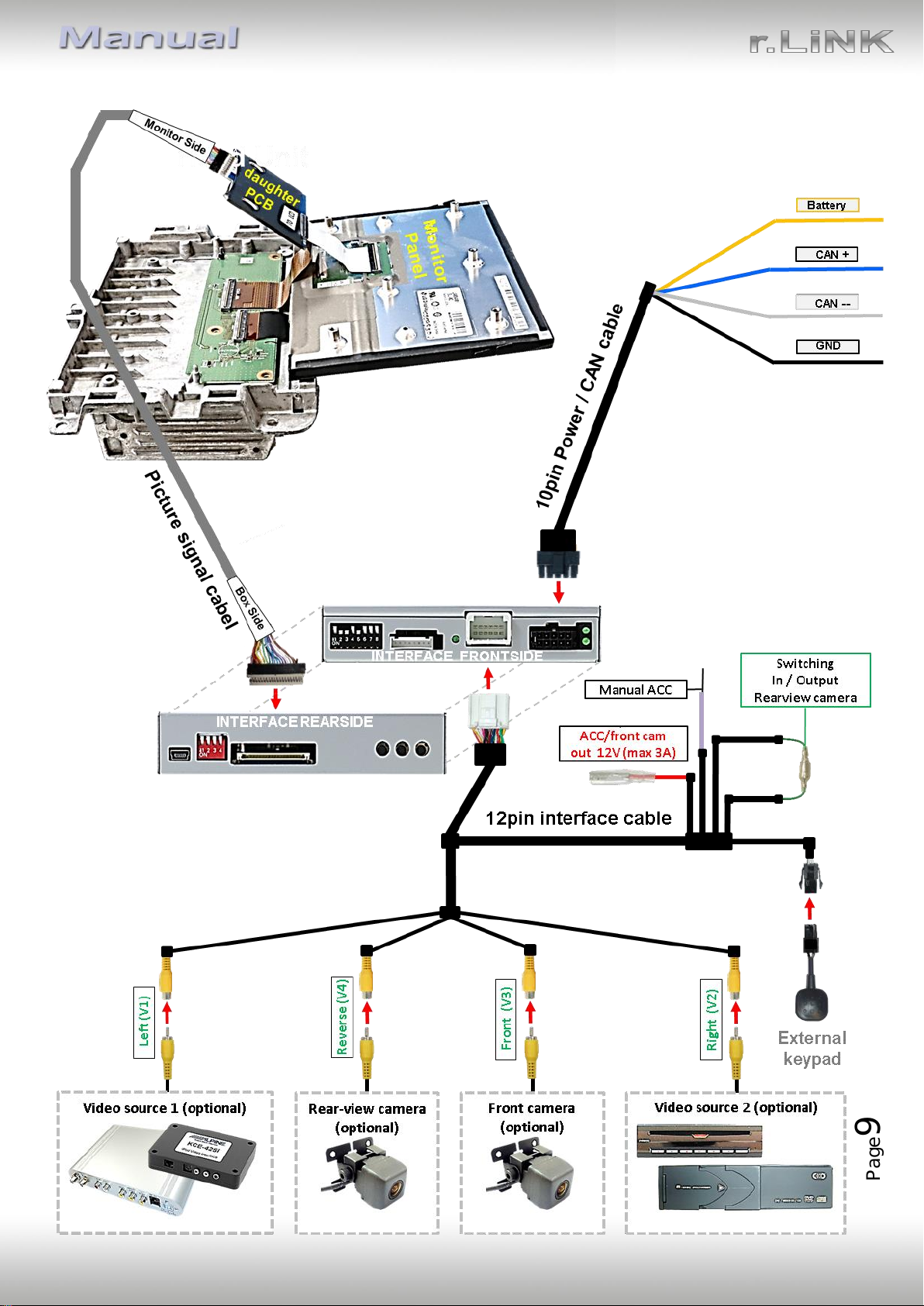

2.2. Connection Scheme

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page10

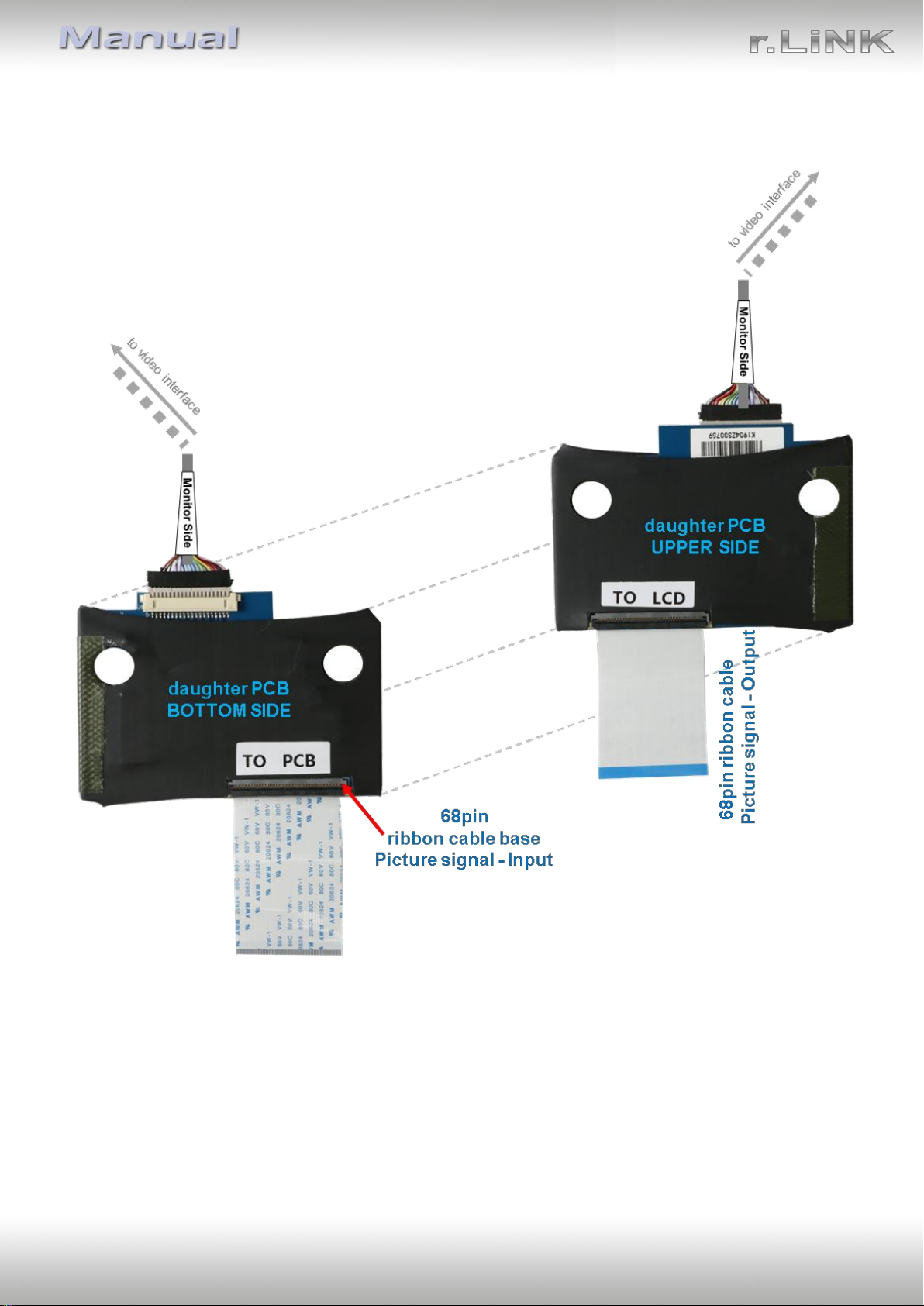

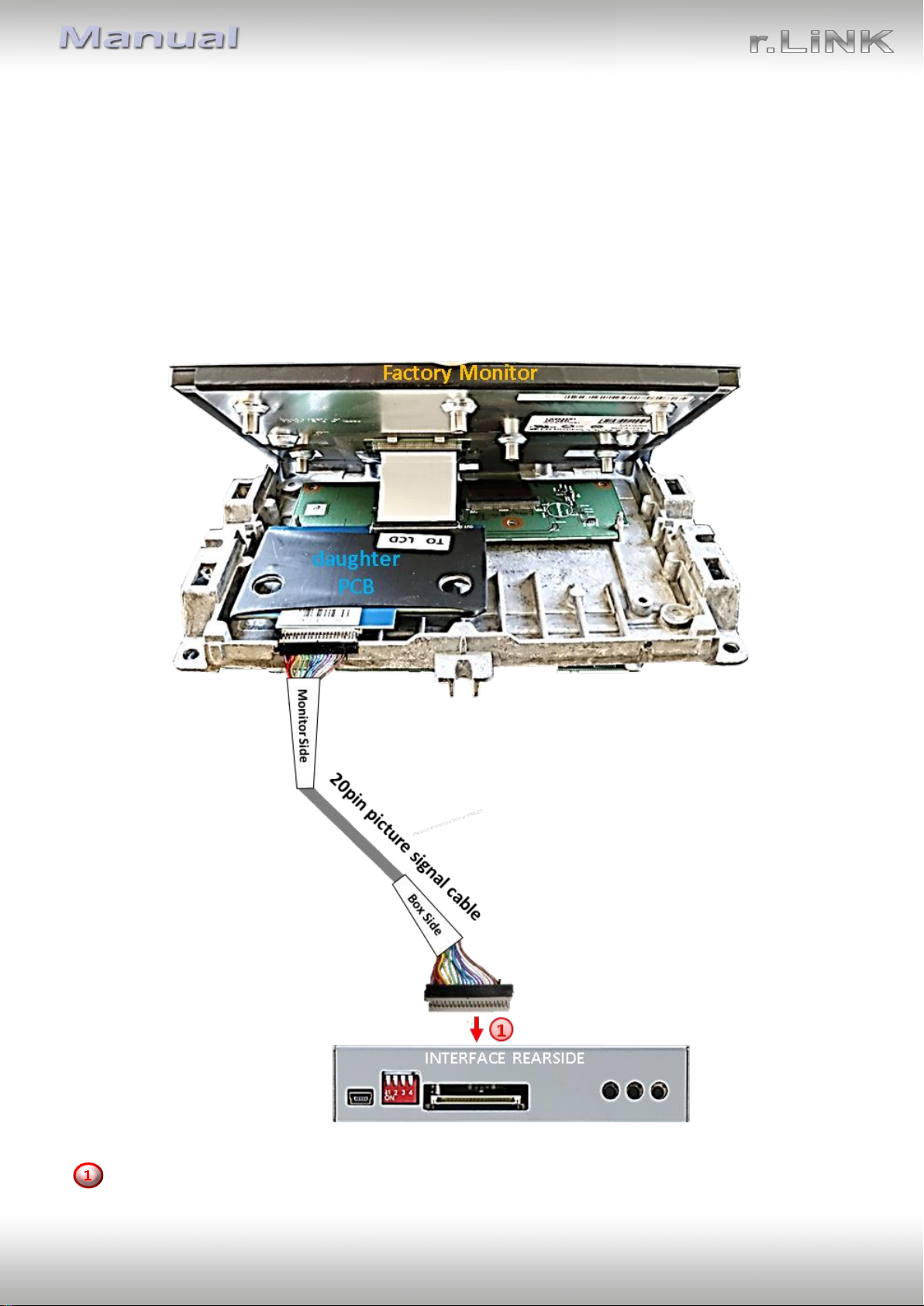

2.3. Installation - ribbon cables into the monitor panel

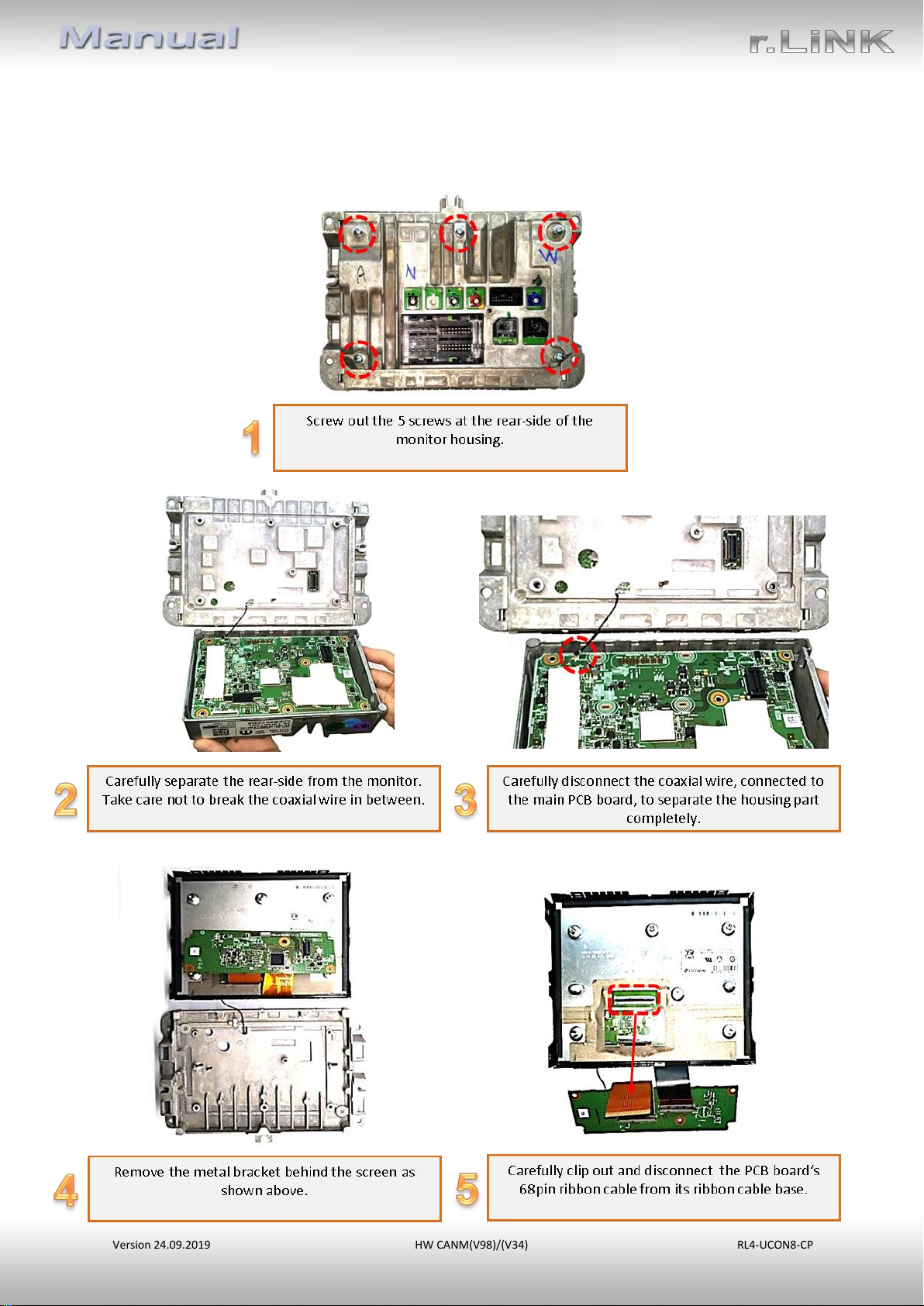

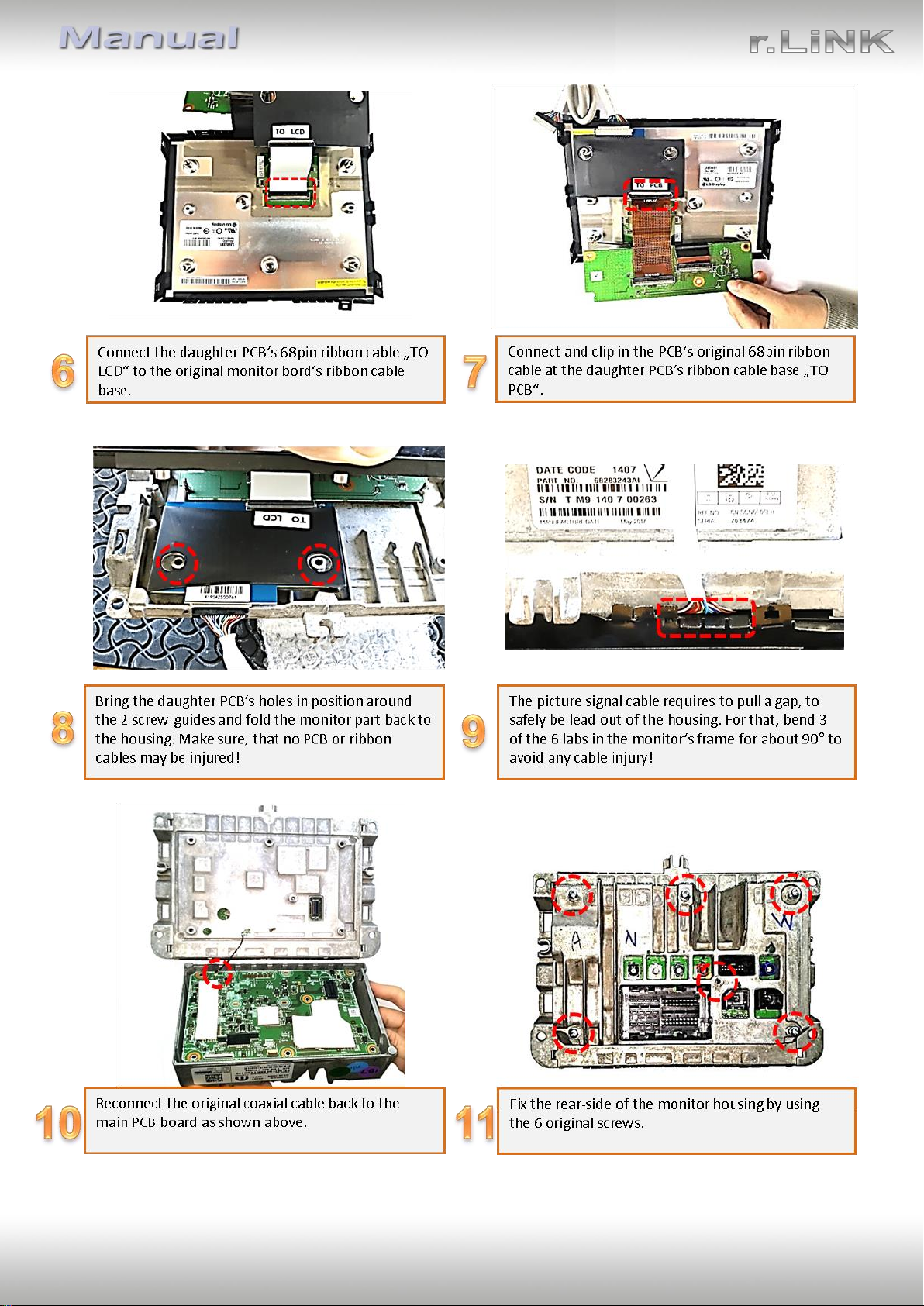

Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed into the
optical lead between the monitor panel and mainboard of the vehicles monitor.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page11

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page12

2.3.1. Warning notes, concerning the installation of ribbon cables

1) The contacting ends of ribbon cables always have to be installed in a straight and precise
180° position to the connector. Each deviation from a perfect contact position will curse
faulty contact and even danger of short circuit

2) The ribbon cable’s contacting side always has to correspond to the contacting side of the
connector, concerning the mounting position.

2.4. Connection – picture signal cable

Connect the opposite female 20pin connector of the pre-connected 20pin picture signal
cable to the male 20pin connector of the video interface.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page13

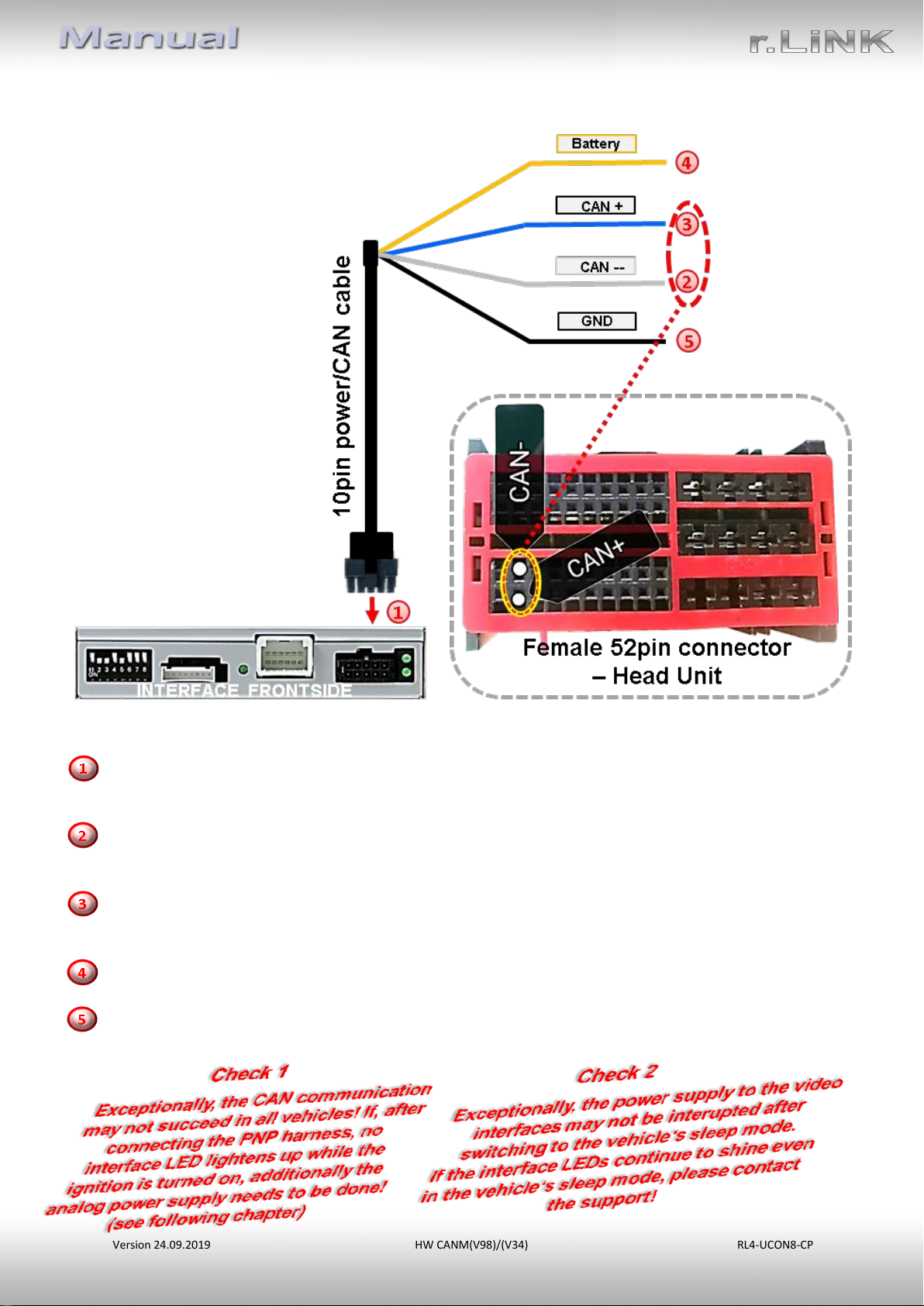

2.5. Connection – 10pin Power / CAN cable

Connect the enclosed 10pin Power / CAN cable’s female10pin connector to the male 10pin

connector of the video interface.

Connect the single grey wire „CAN LOW“ of the 4 cables to the vehicle’s CAN low wire and
isolate the connection (Pins – see diagram).

Connect the single blue wire „CAN HIGH“ of the 4 cables to the vehicle’s CAN high wire and
isolate the connection (Pins – see diagram).

Connect the single red wire to stabile +12V terminal 30.

Connect the single brown cable to the vehicle’s negative Ground.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page14

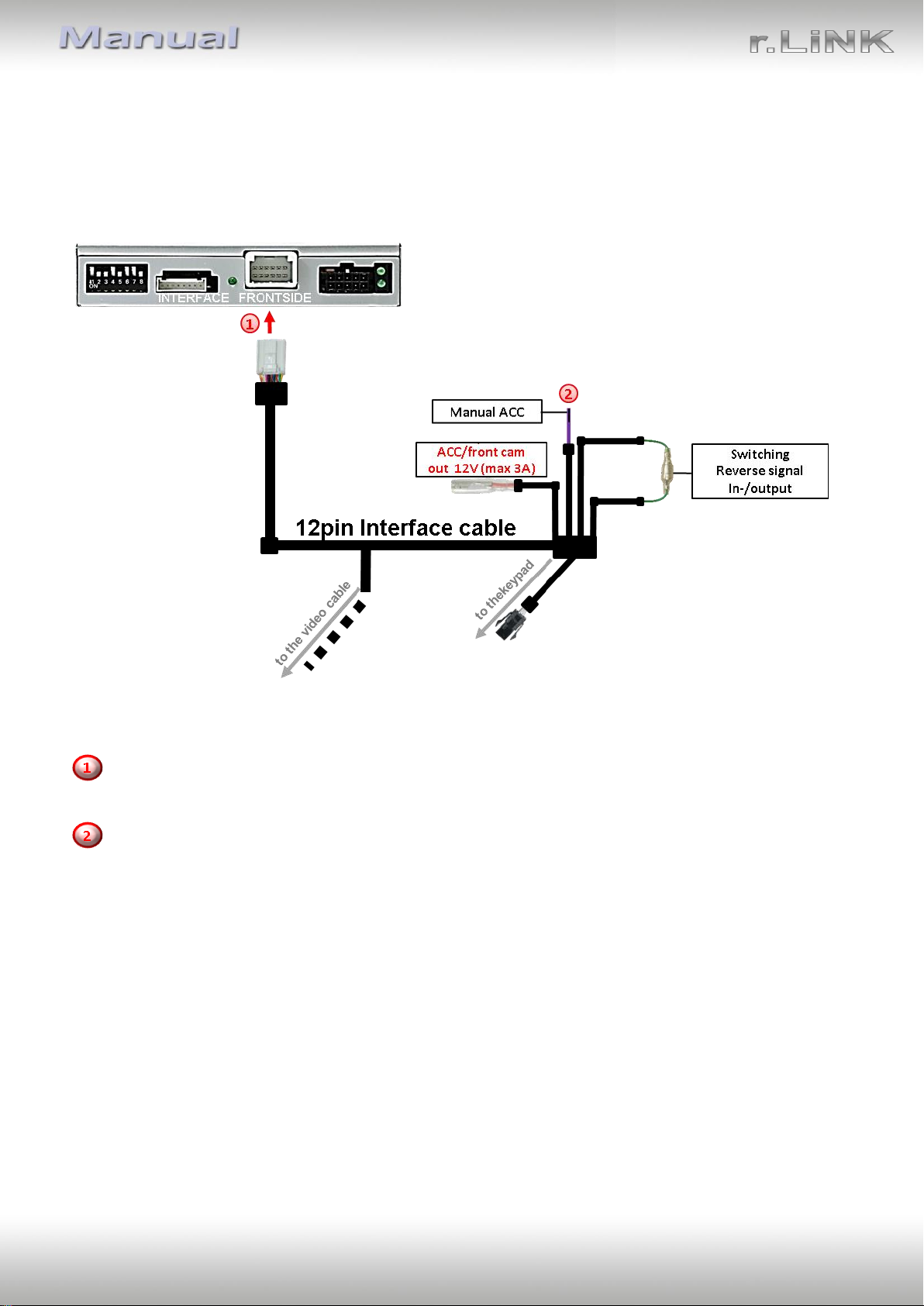

2.6. Analog power supply

If the communication between the CAN box and the vehicle’s CAN bus does not

succeed (not all vehicles are compatible), an analogue connection is required.

Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.

Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition

power or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination).

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page15

Dip

Function

Dip 1 ON

+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)

Dip 1 OFF

+12V (max. 3A) ACC

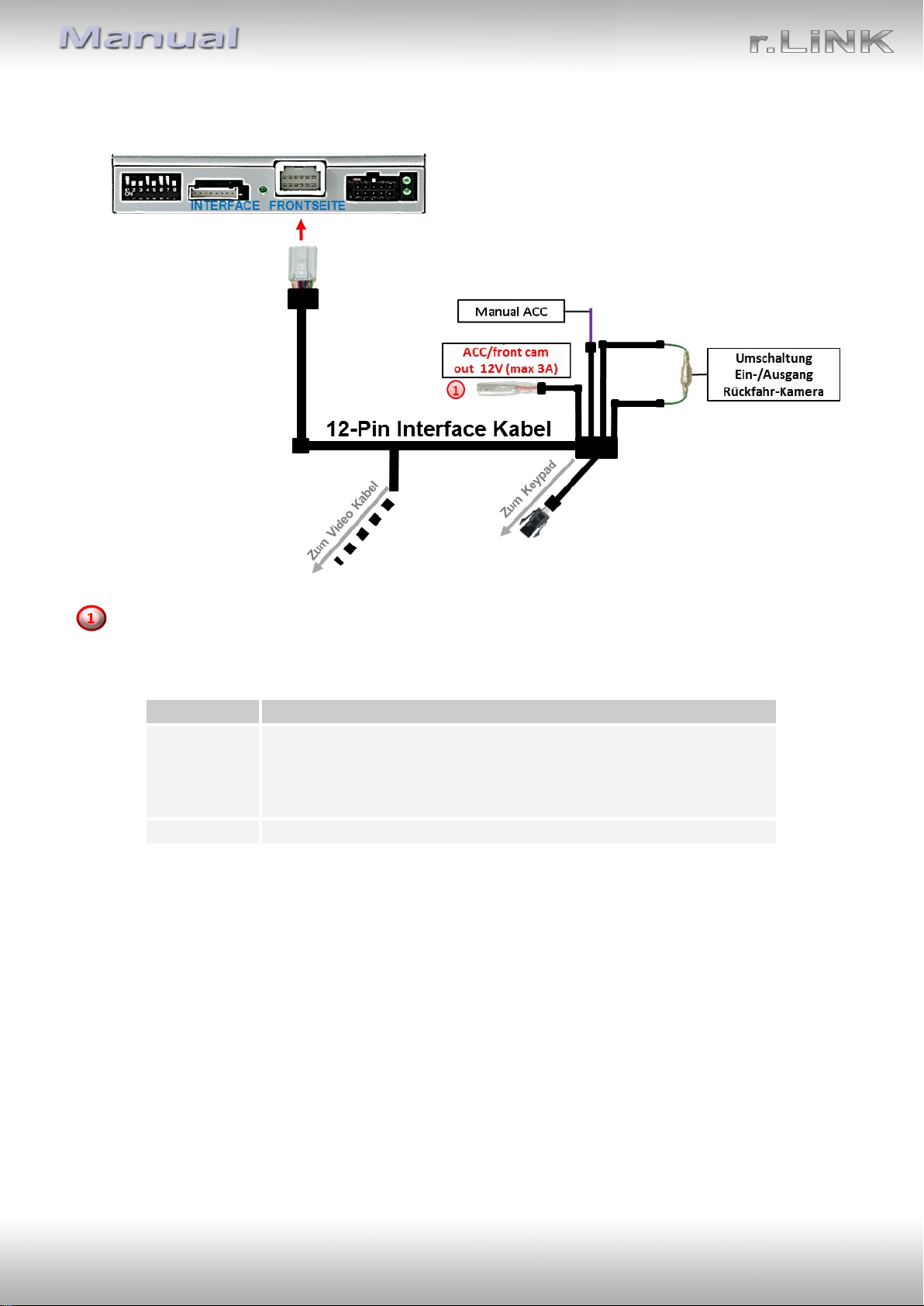

2.7. Power supply output

The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment depending on the position of dip switch 1 (of
the black 8 dips):

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page16

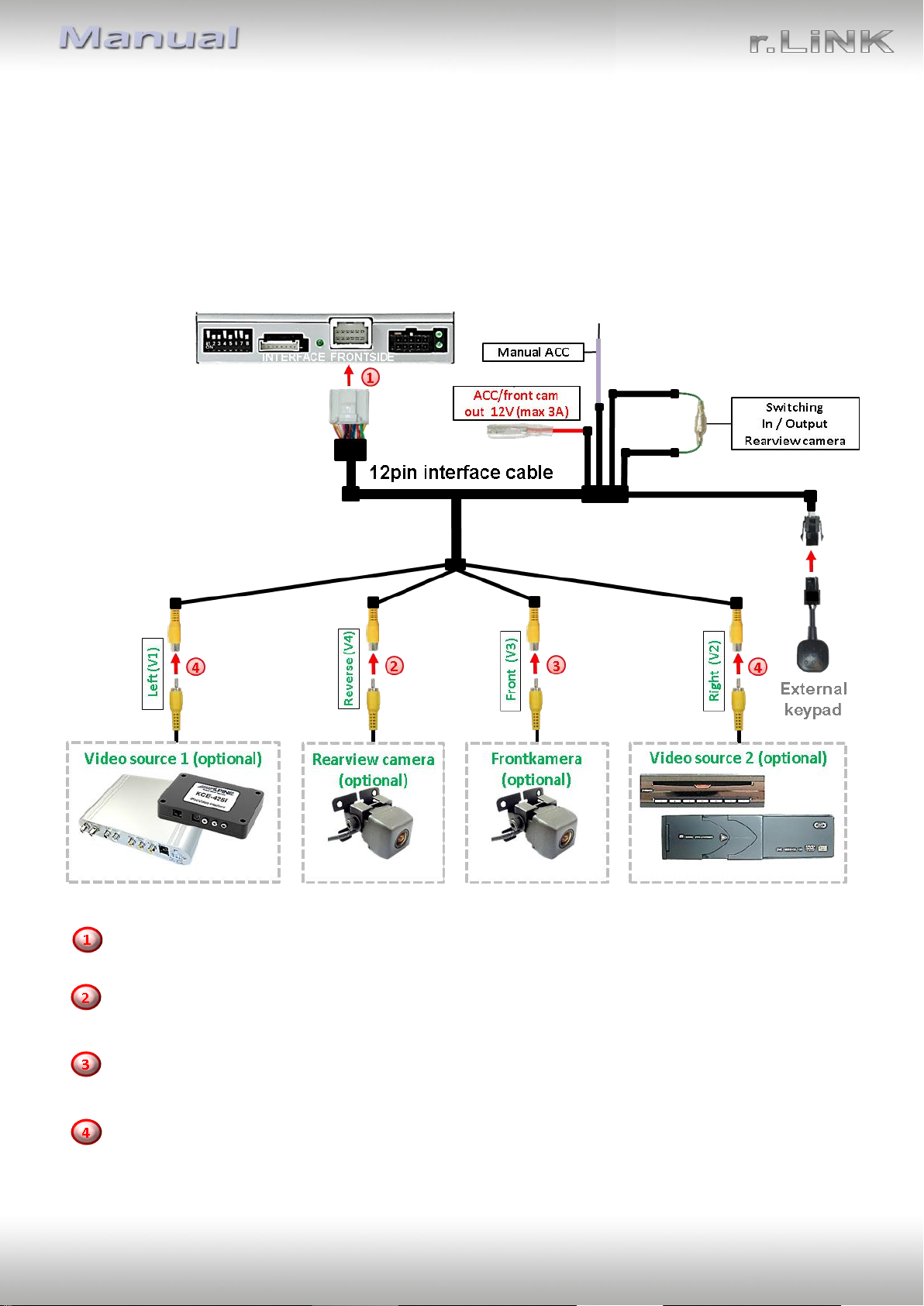

2.8. Connecting Video sources

It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.

Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.

Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of

the video-interface.

Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.

Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.

Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA

connector “Left (V1)” and ”Right (V2)”.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page17

2.8.1. Audio-insertion

This interface is only able to insert video signals into the factory infotainment. If an AV­source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio­mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.

2.8.2. After-market front camera

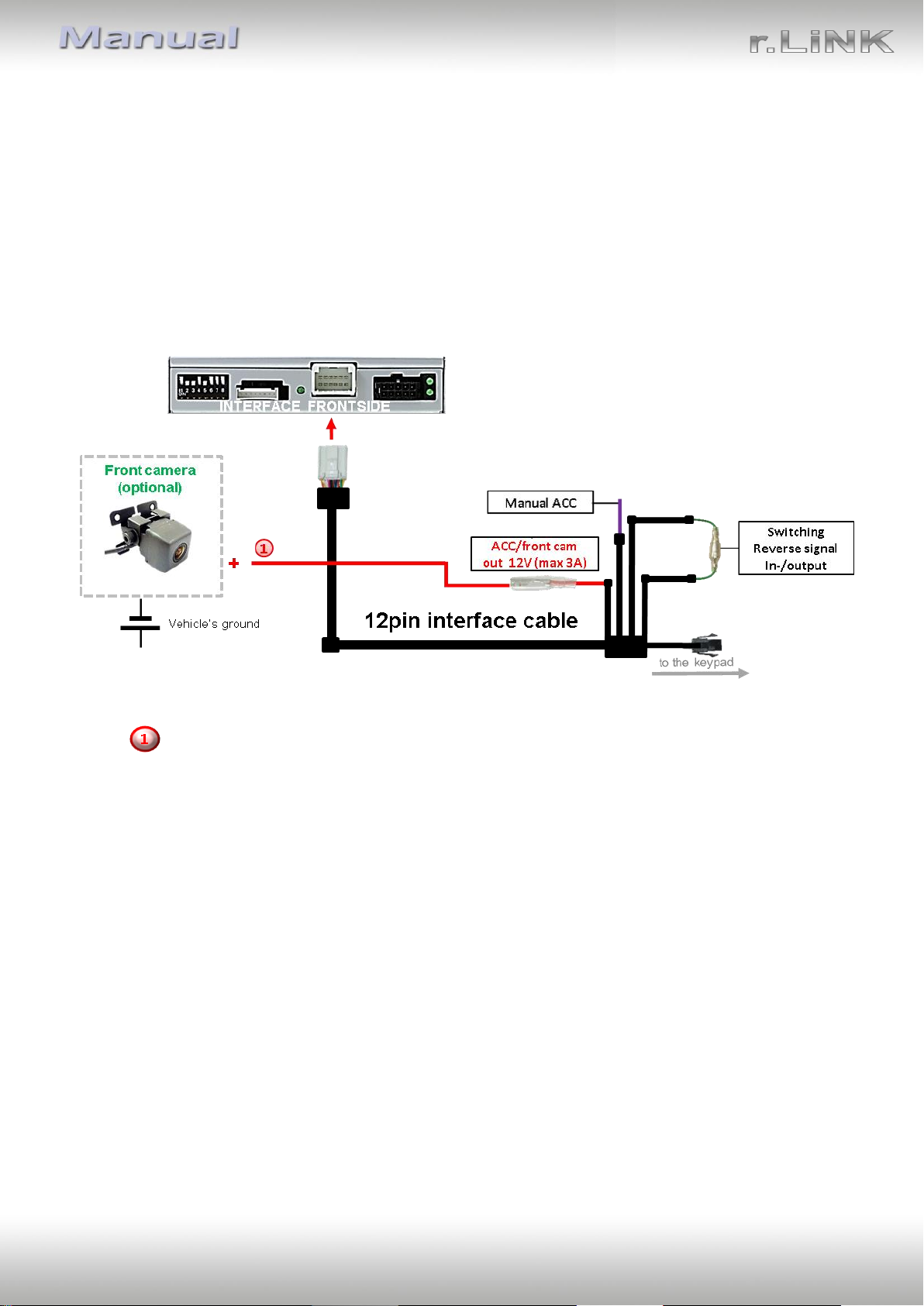

The red power supply output ACC/front cam out 12V (max 3A) can be used to power
a front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives
+12V (max 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear
is disengaged.

Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).

Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page18

2.8.3. After-market rear-view camera:

Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 6pin to 12pin cable should carry +12V while the reverse gear is engaged.

Note: Do not forget to set dip5 of video-interface to ON before testing.

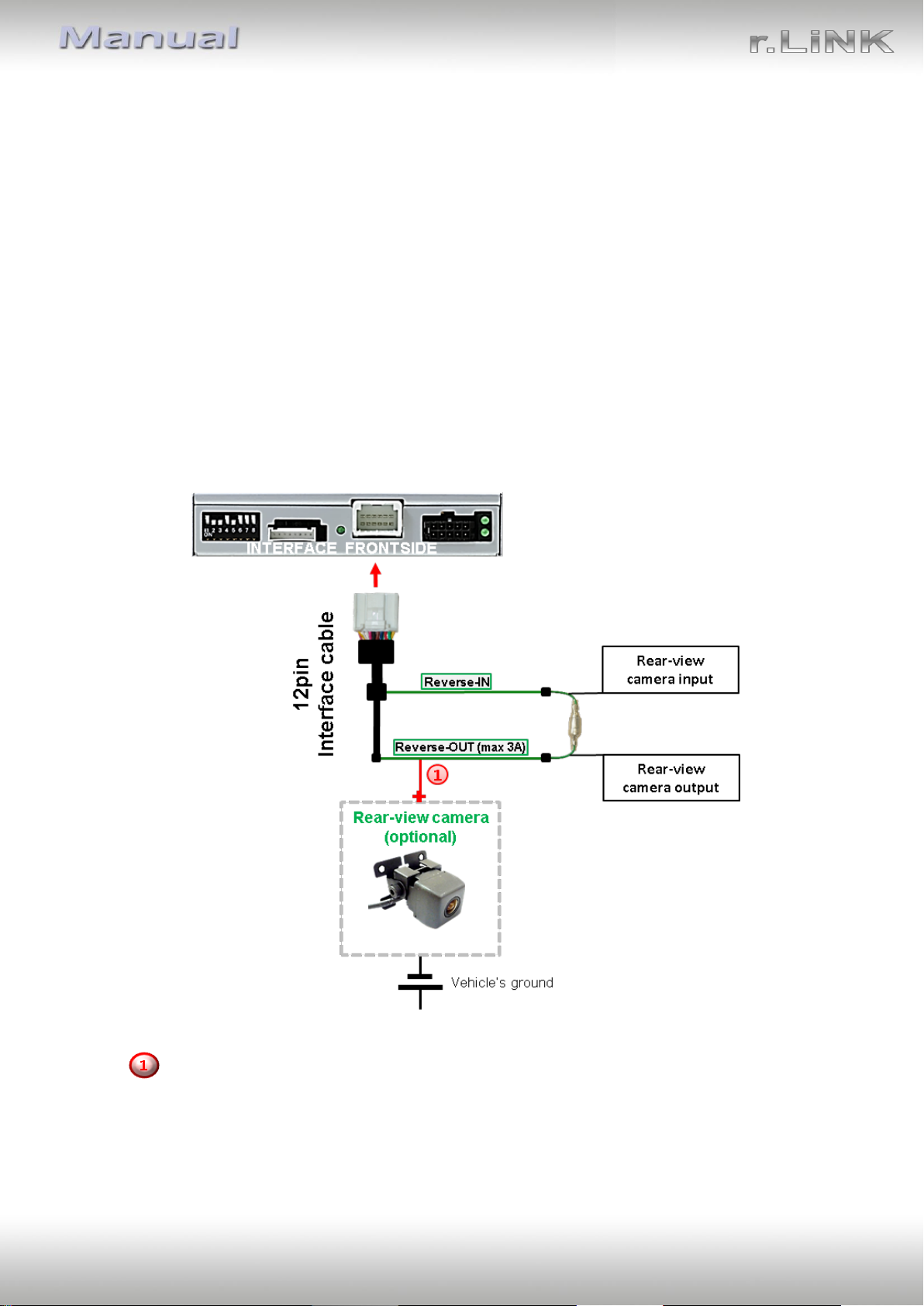

2.8.3.1. Case 1: Interface receives the reverse gear signal

If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN” while the reverse gear is engaged.

The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary,
permanent power supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page19

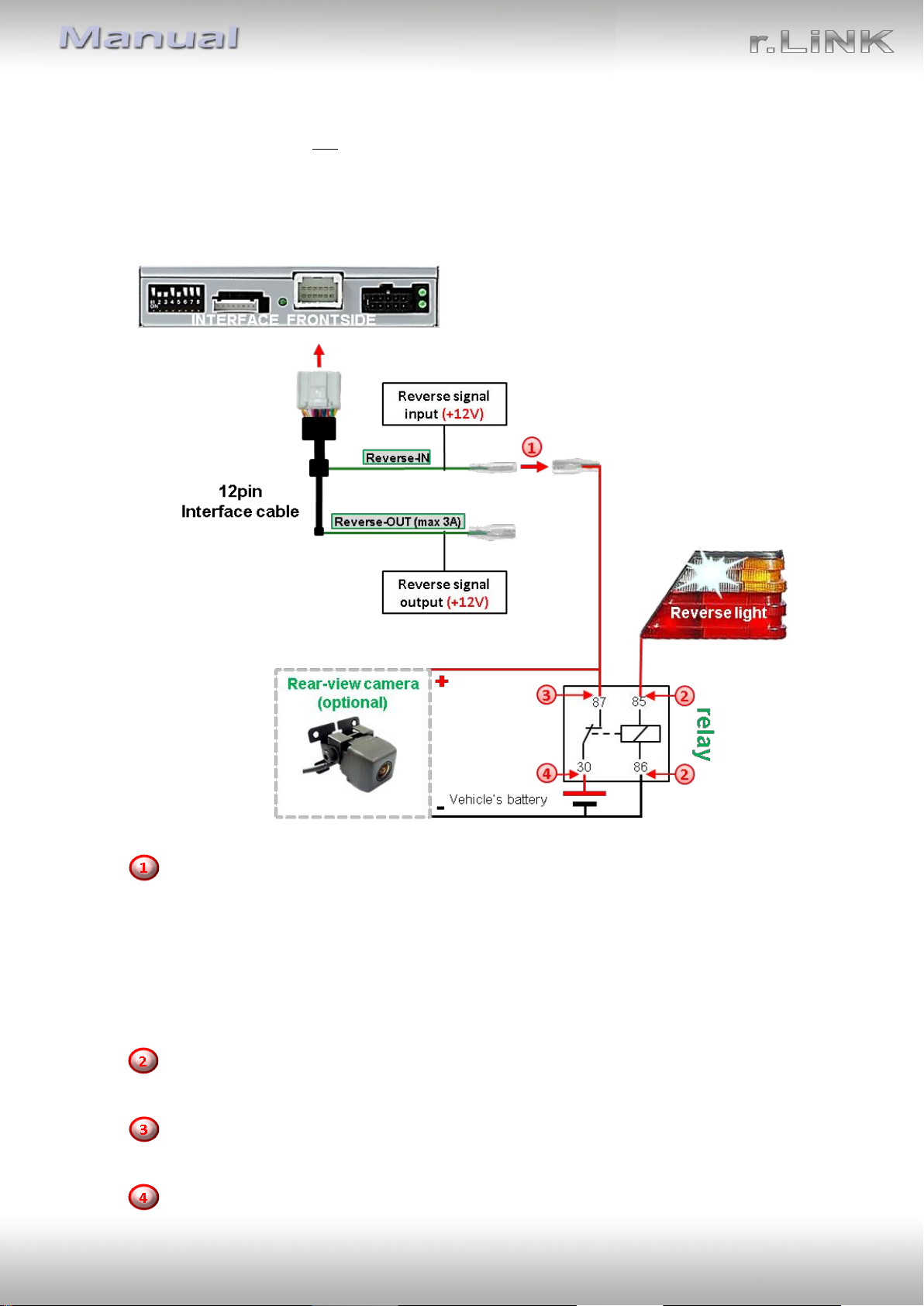

2.8.3.2. Case 2: Interface does not receive the reverse gear signal

If the video interface does not receive +12V on the green wire of the 12pin interface cable
when reverse gear is engaged (not all vehicles are compatible), an external switching signal
from the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage­stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.

Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.

Note: Not least to avoid short circuits, the best solution should be, to crimp a male

4mm connector to the relay’s output cable and connect it to the green cable’s female

4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.

Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.

Connect the output connector (87) of the relay to the rear-view camera’s power­cable, like you did it to the green “Reverse-IN” cable before.

Connect permanent power / 12V to the relay’s input connector (30).

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page20

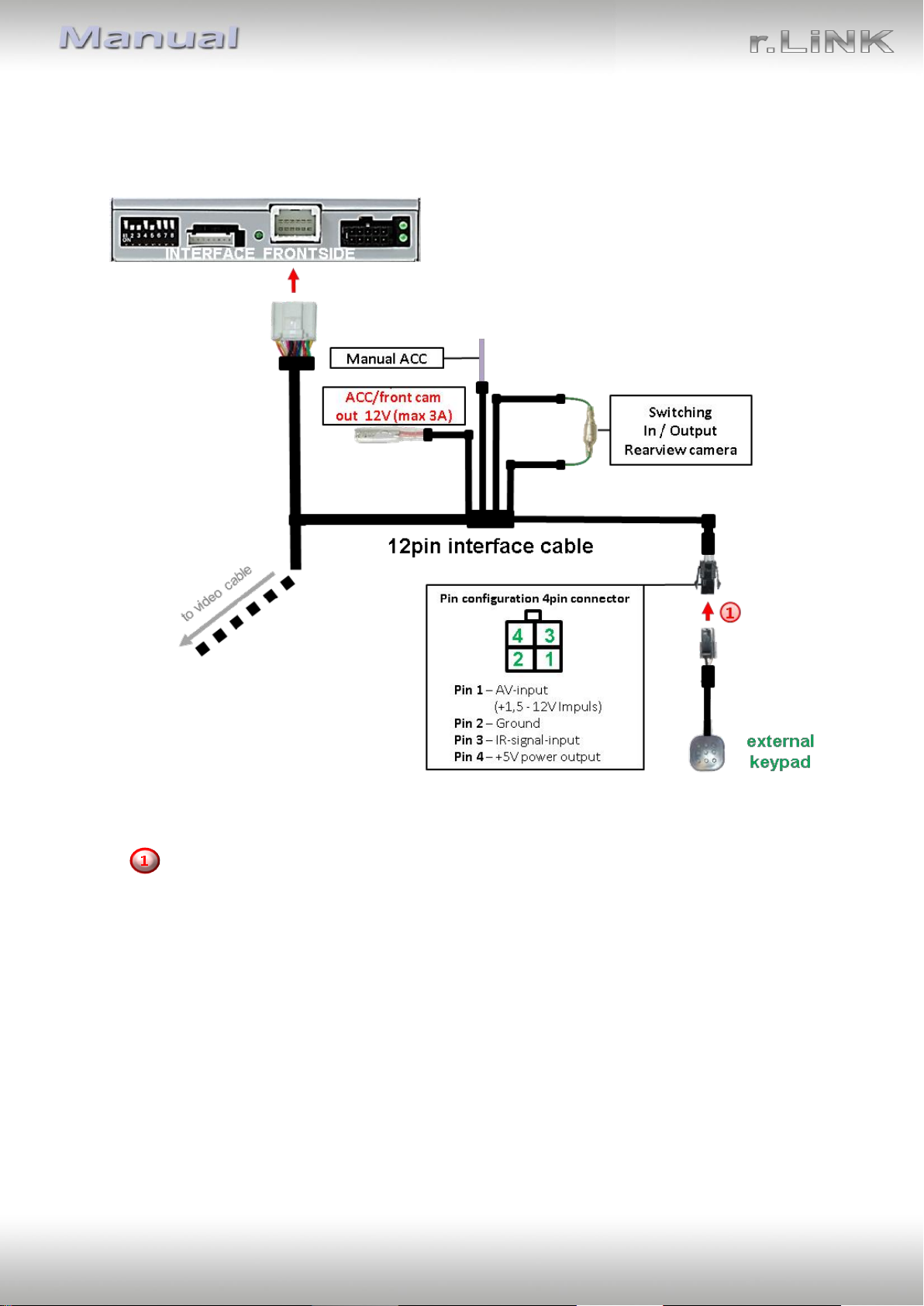

2.9. Connection - external keypad

Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin
connector.

Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page21

3. Interface operation by external keypad

The interface’s external keypad can be used to switch the enabled inputs.

 Long press of keypad (2-3 seconds)

By long pressing the external keypad (2-3 seconds), the video interfaces witches the input
from the factory video to the inserted video sources.

Each press (approx. 2 sec) will switch to the next enabled input. If all inputs are enabled the
order is:

Factory video video IN1  video IN2  factory video …

Disabled inputs will be skipped.

Note: The interface switches after releasing the switch (after long pressure).

 Short press of keypad (only if DIP 1 is set to ON)

By short pressing the external keypad, the video interfaces switches from the factory video
to the front camera input and back to factory video.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page22

1. Picture settings

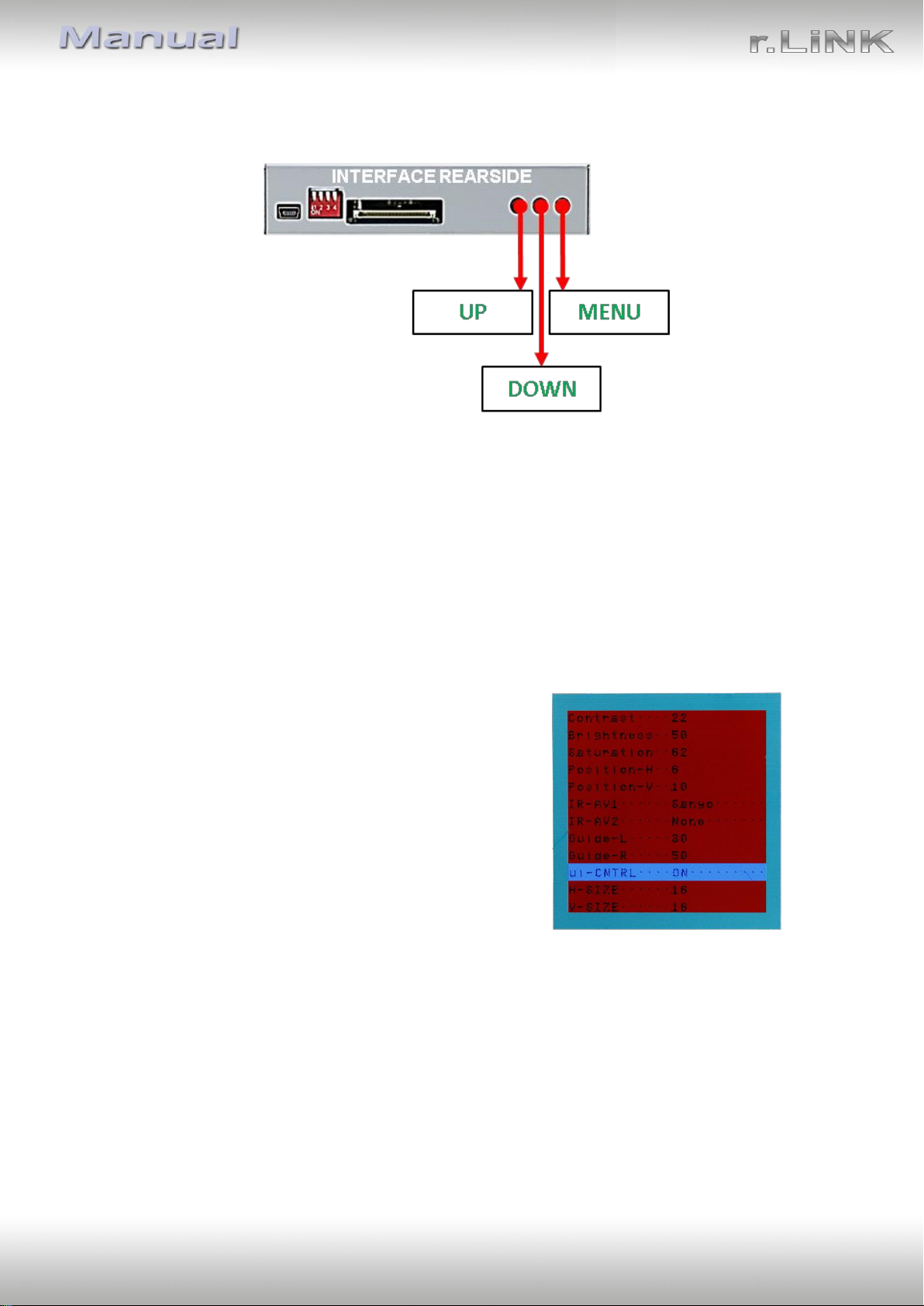

The picture settings are adjustable by the 3 push-buttons of the daughjter PCB’s menu
keypad. Press the 1. button to open the OSD settings menu or to switch to the next menu
item. By pressing the other both push buttons the selected value will be changed. To avoid
accidental changes during or after the installation, we recommend to disconnect the keypad
from the pushbutton cable after the adjustments are done. Adjustments have to be done,
while the selected input is visible on the monitor.

Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.

The following settings are available:

Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1/2 (no function)
Guide L/R (no function)
UI-CNTRL (no function)
Size H/V (picture size horizontal/vertical)

Note: To adjust the reverse picture settings, engage the reverse gear.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page23

2. Specifications

BATT/ACC range 7V - 25V
Stand-by power drain 25mA
Power 150mA @12V
Video input 0.7V - 1V
Video input formats PAL/NTSC
Temperature range -40°C to +85°C
Dimensions daughter PCB 118 x 25 x 104mm (W x H x D)

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page24

Symptom

Reason

Possible solution

No picture/black picture
(factory picture).

Not all connectors have been
reconnected to factory head­unit or monitor after
installation.

Connect missing connectors.
The ribbon cables have been

damaged

Check the ribbon cables and the connectors,
Change if necessary.

Not all connectors have been
reconnected to the head unit
and the monitor.

Check the connectors and reconnect all
disconnected connections.

No power on video-interface
(daughter PCB)

Make sure that the orange colored wire has been
connected to +12 V S-Contact.

No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.

No picture from video
source.

Check on other monitor whether video source is
OK.

No video-source connected
to the selected interface
input.

Make sure that the video source has been
connected to the according input.

Ribbon cable connection has
been reversed

Make sure that the ribbon cable connection is
done correctly:

“MONITOR OUT or TO LCD” to panel and
“TO PCB” to mainboard

Some interfaces can only
handle NTSC input.

Check manual whether there is a limitation to
NTSC mentioned. If yes, set source fixed to NTSC
output.

Inserted picture distorted,
flickering or running
vertically.

Camera input picture
flickers.

Camera is being tested
under fluorescent light
which shines directly into the
camera.

Test camera under natural light outside the
garage.

Camera input picture black.

Camera power taken directly
from reverse gear lamp.

Use relay or electronics to "clean" reverse gear
lamp power. Alternatively, if CAN-bus box is
compatible with the vehicle, camera power can
be taken from green wire of 6pin to 8pin cable.

Camera input picture has
distortion.

Not possible to switch
video sources by external
keypad.
Not possible to switch
video sources by external
keypad.

Pressed too short.

For video source switching a longer press of
about 2.5 seconds is required.

Interface does not switch to
camera input when reverse
gear is engaged.

The grey wire of the 6pin

cable doesn’t receive the

+12V reverse signal

Apply +12V from the reverse light. Use a relay or
electronics to "clean" reverse gear lamp power.

3. FAQ – Trouble shooting Interface functions

For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP

Page25

Made in China

4. Technical Support

Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.

NavLinkz GmbH

distribution/tech dealer-support

Eurotec-Ring 39

D-47445 Moers

Tel [phone]

Email [email protected]

10R-03 5384

Version 24.09.2019 HW CANM(V98)/(V34) RL4-UCON8-CP
