Car Audio Systems RL4SY3 User guide

r.LiNK Video-inserter

RL4-SY3

Compatible with Ford vehicles with

Sony Sync3 Touch with 6.5, 7 or 8inch monitor

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

 Video-inserter for factory-infotainment systems
 1 CVBS Input for rear-view camera
 1 CVBS Input for front camera
 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
 Automatic switching to rear-view camera input on engagement of the reverse gear
 Automatic front camera switching after reverse gear for 10 seconds
 Activatable parking guide lines for rear-view camera (not available for all vehicles)
 Video-in-motion (ONLY for connected video-sources)
 Video-inputs NTSC and PAL compatible

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors – video interface

1.4. Dip switch settings

1.4.1. 8 dip – black

1.4.1.1. Activating the front camera input (dip 1)

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.1.4. Enabling the Guide lines (dip 7)

1.4.2. 4 dip - red

2. Installation

2.1. Place of installation

2.2. Connection schema

2.3. Connection - picture signal cable

2.3.1. ALL-IN-ONE head unit

2.3.2. Separate head unit with tablet monitor

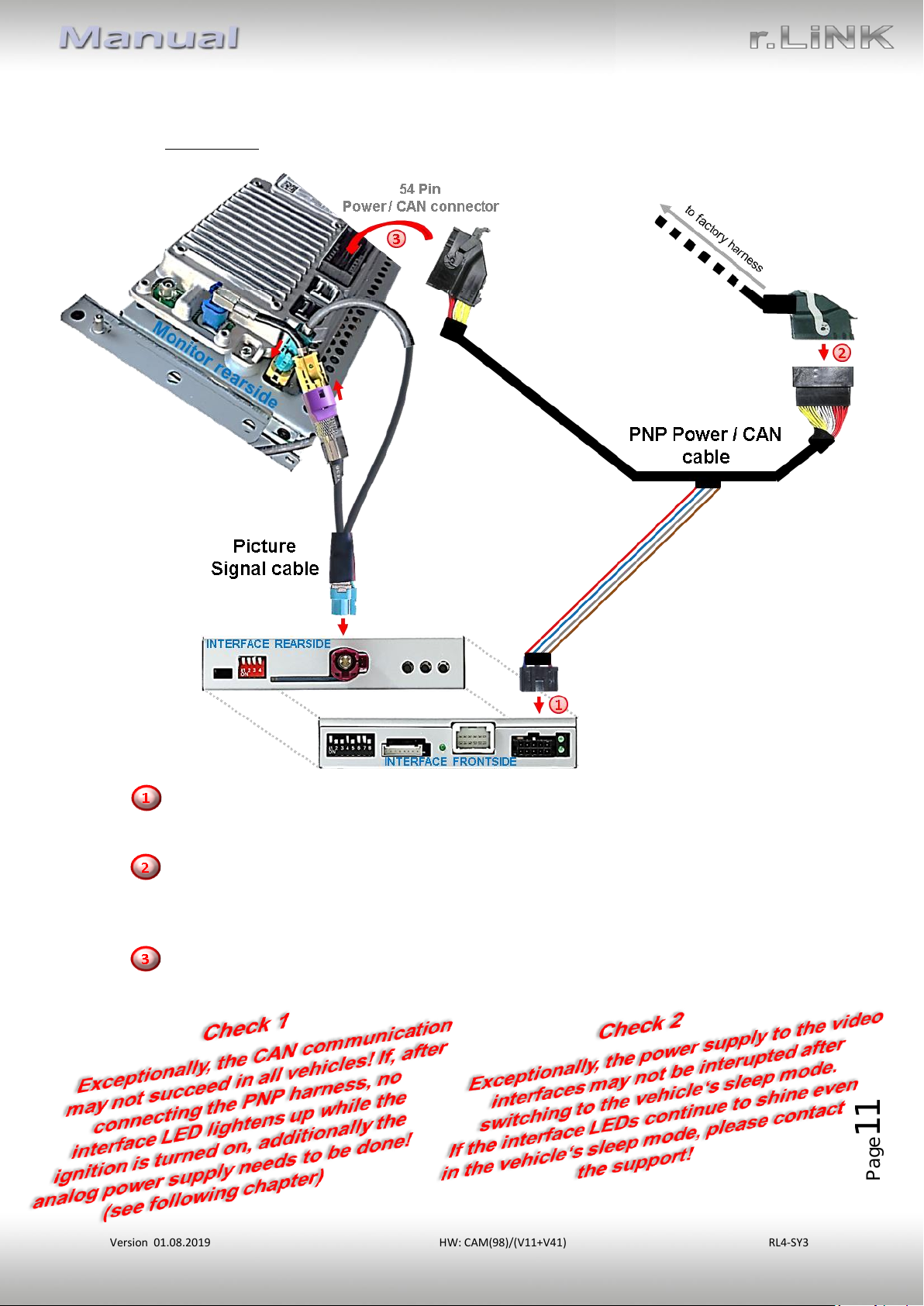

2.4. Connection – PNP Power / CAN cable

2.4.1. ALL-IN-ONE head unit

2.4.2. Separate head unit with tablet monitor

2.5. Analog power supply

2.6. Power supply output

3. Connection – video sources

3.1. Audio insertion

3.2. After market front camera

3.3. After-market rear-view camera

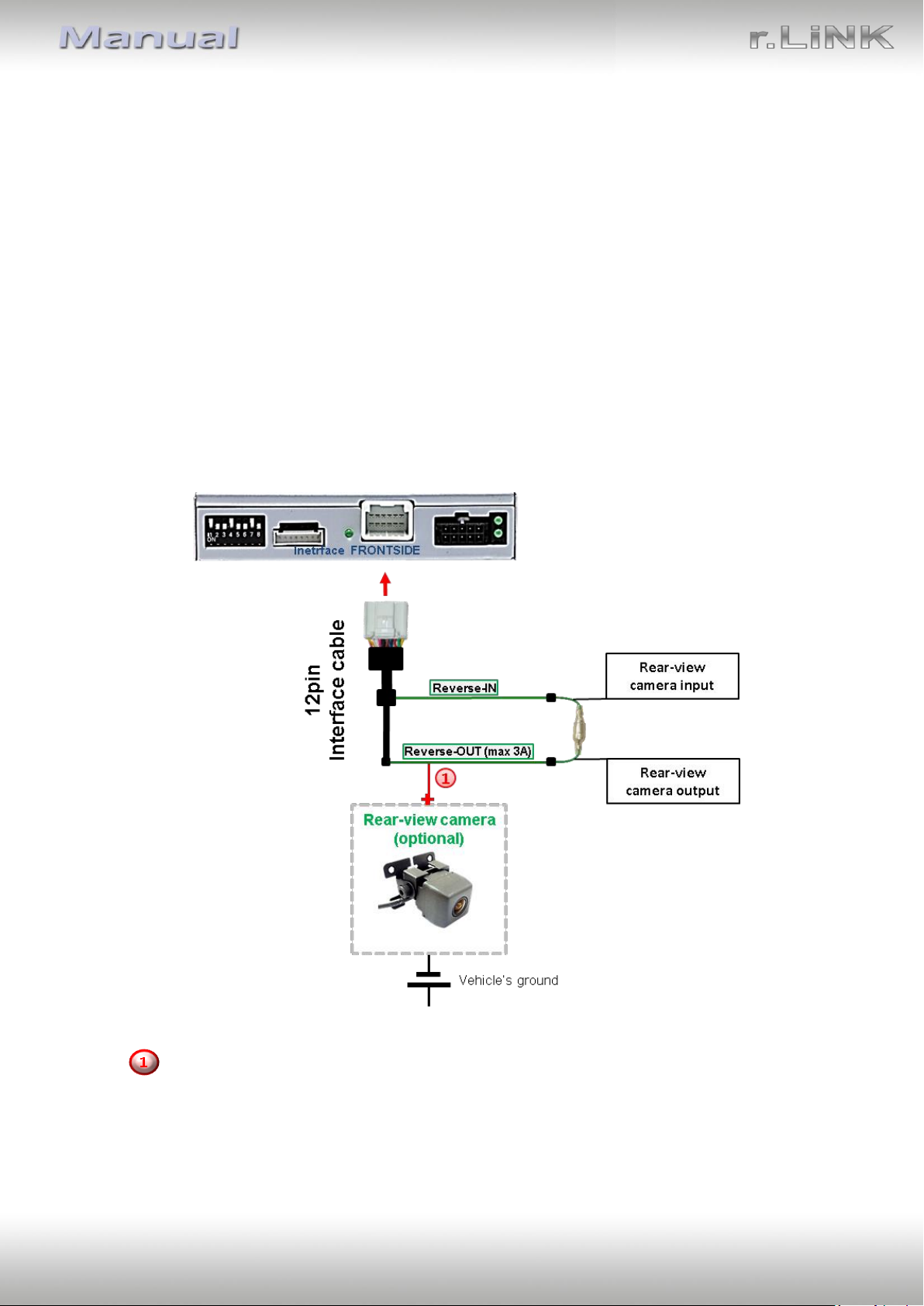

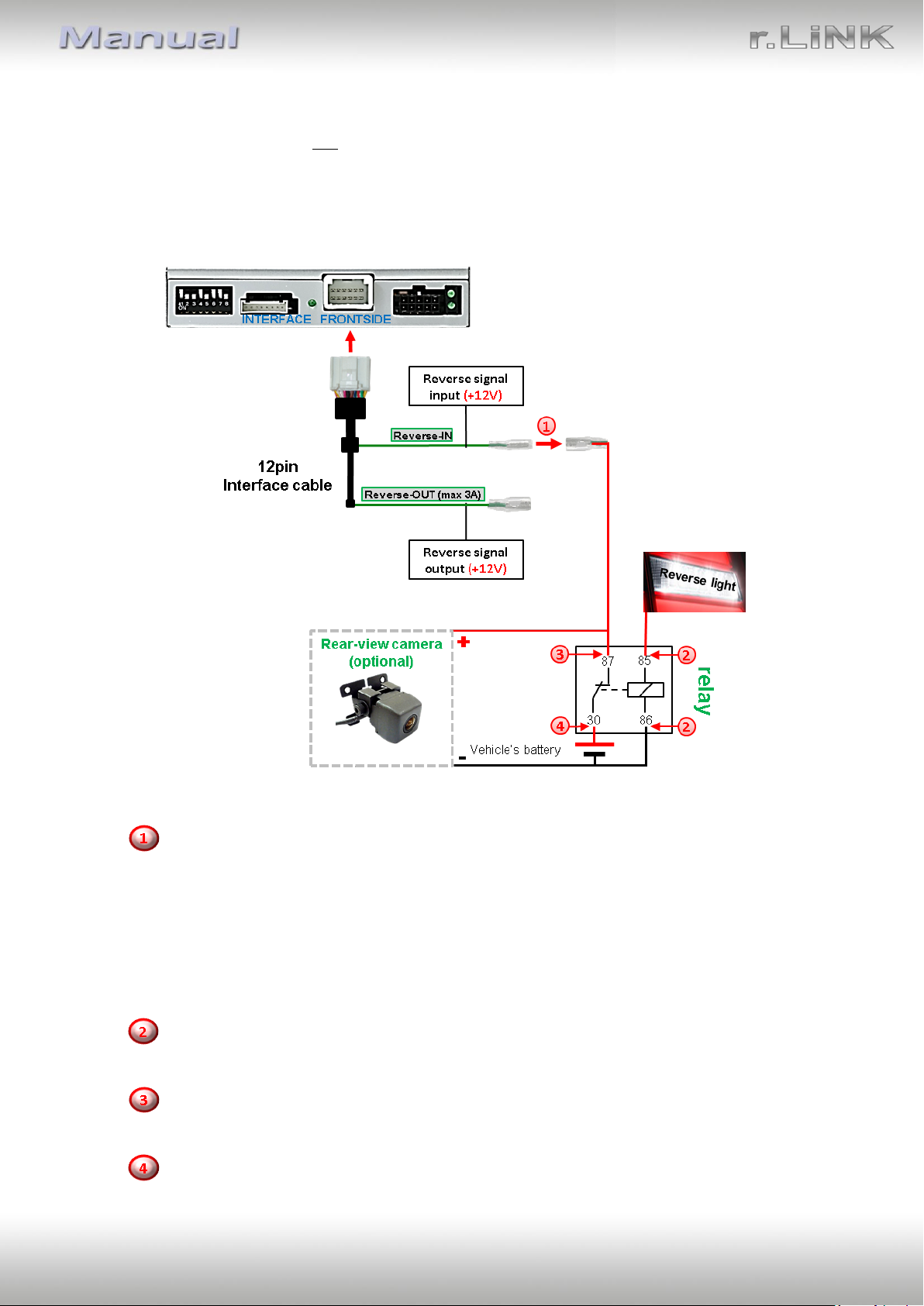

3.3.1. Case 1: Interface receives the reverse gear signal

3.3.2. Case 2: Interface does not receive the reverse gear signal

3.4. Connecting video-interface and keypad

3.5. Picture settings

4. Interface operation

4.1. By infotainment button

4.2. By keypad

5. Specifications

6. FAQ – Trouble Shooting-Interface functions

7. Technical support

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page3

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view­camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Please read the manual thoroughly BEFORE starting the installation. Technical knowledge is
imperatively required. The place of installation has to be free of moisture and away from
heat sources.

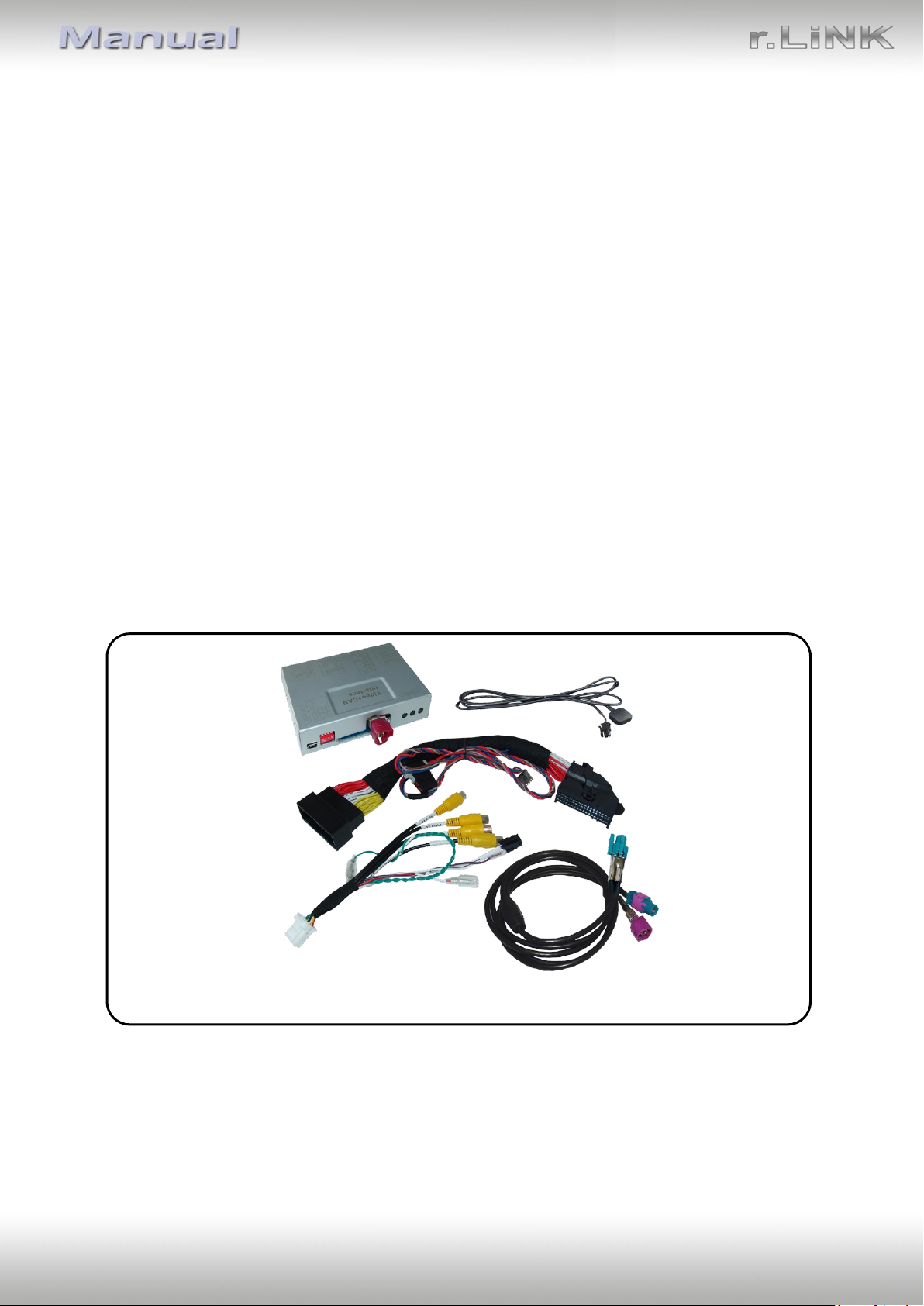

1.1. Delivery contents

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page4

Compatibility

Brand

Compatible vehicles

Infotainment systems

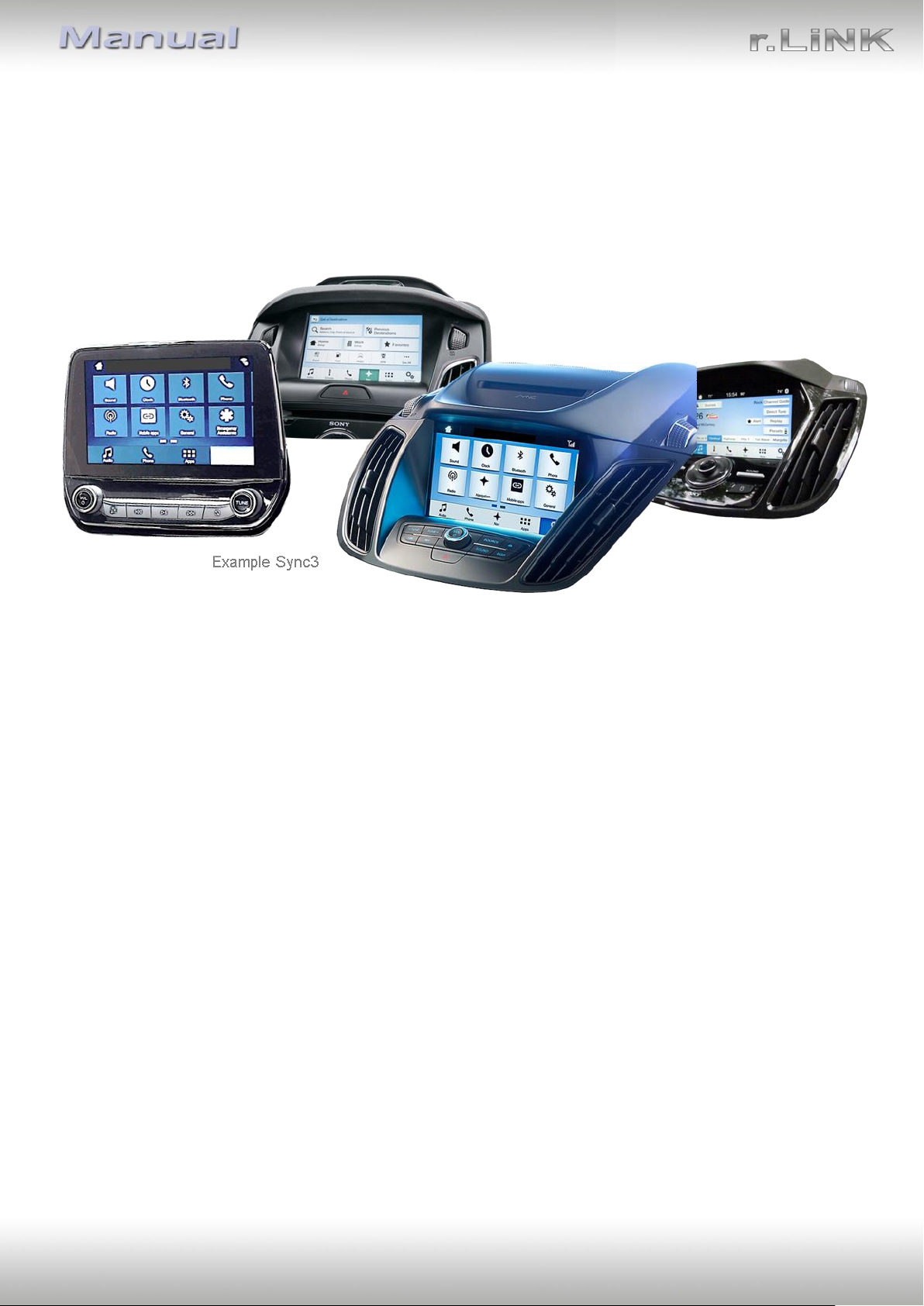

Ford

Fiesta ’18 from 08/2017

Galaxy from model year 2016
Kuga from model year 2018
Ranger from model year 2017
S-Max from model year 2016
Transit Custom from facelift 2018
and other vehicles with

Sony Sync3 Touch – 6.5inch, 7inch
or 8inch monitor

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory audio­AUX-input or a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio
switching will require additional electronic.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-

view camera is only possible while the reverse gear is engaged. To
delay the switch-back an additional electronic part is required.

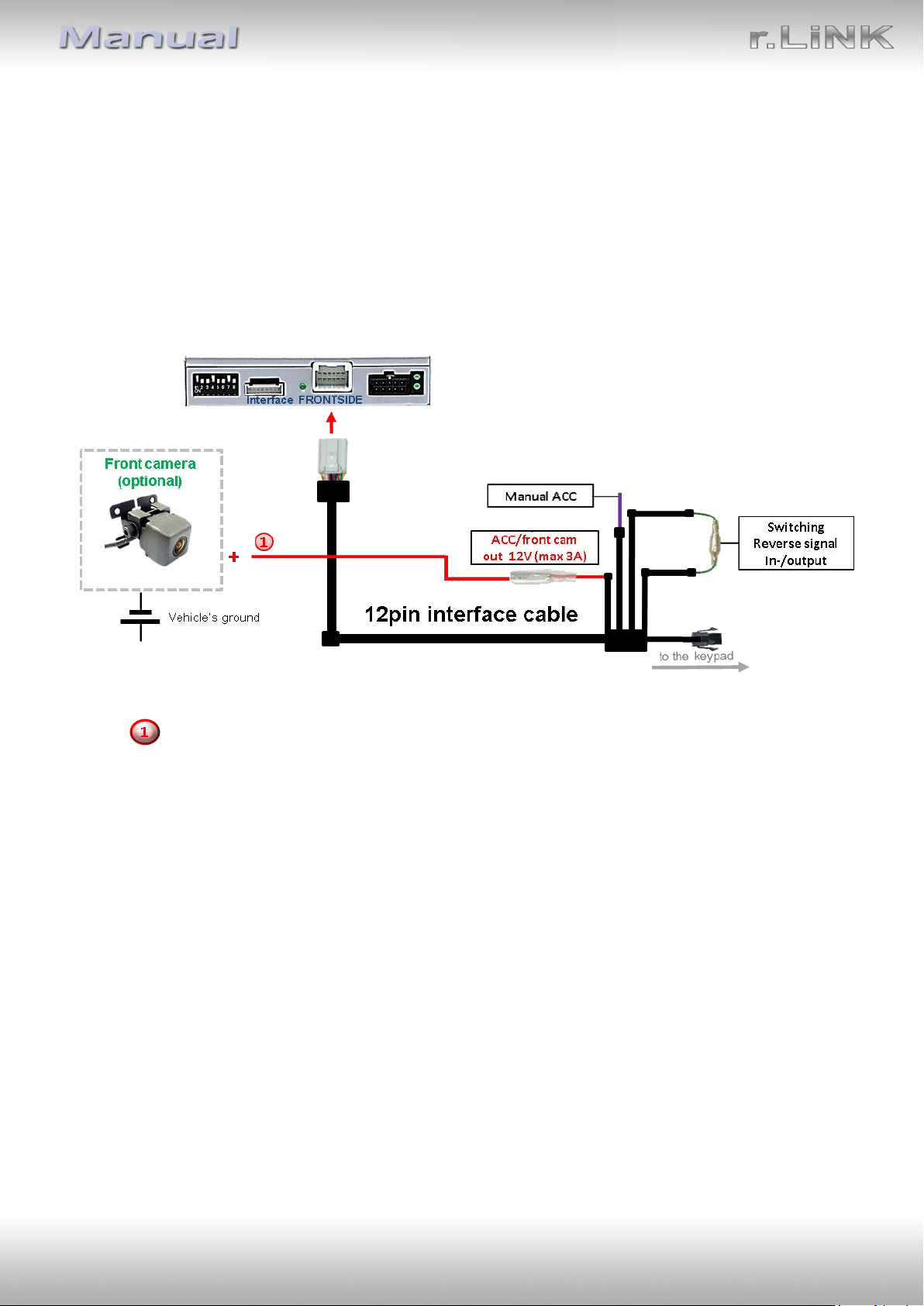

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is
possible by external keypad.

Guidelines Displayed guidelines are not available in all vehicles.

1.2. Checking the compatibility of vehicle and accessories

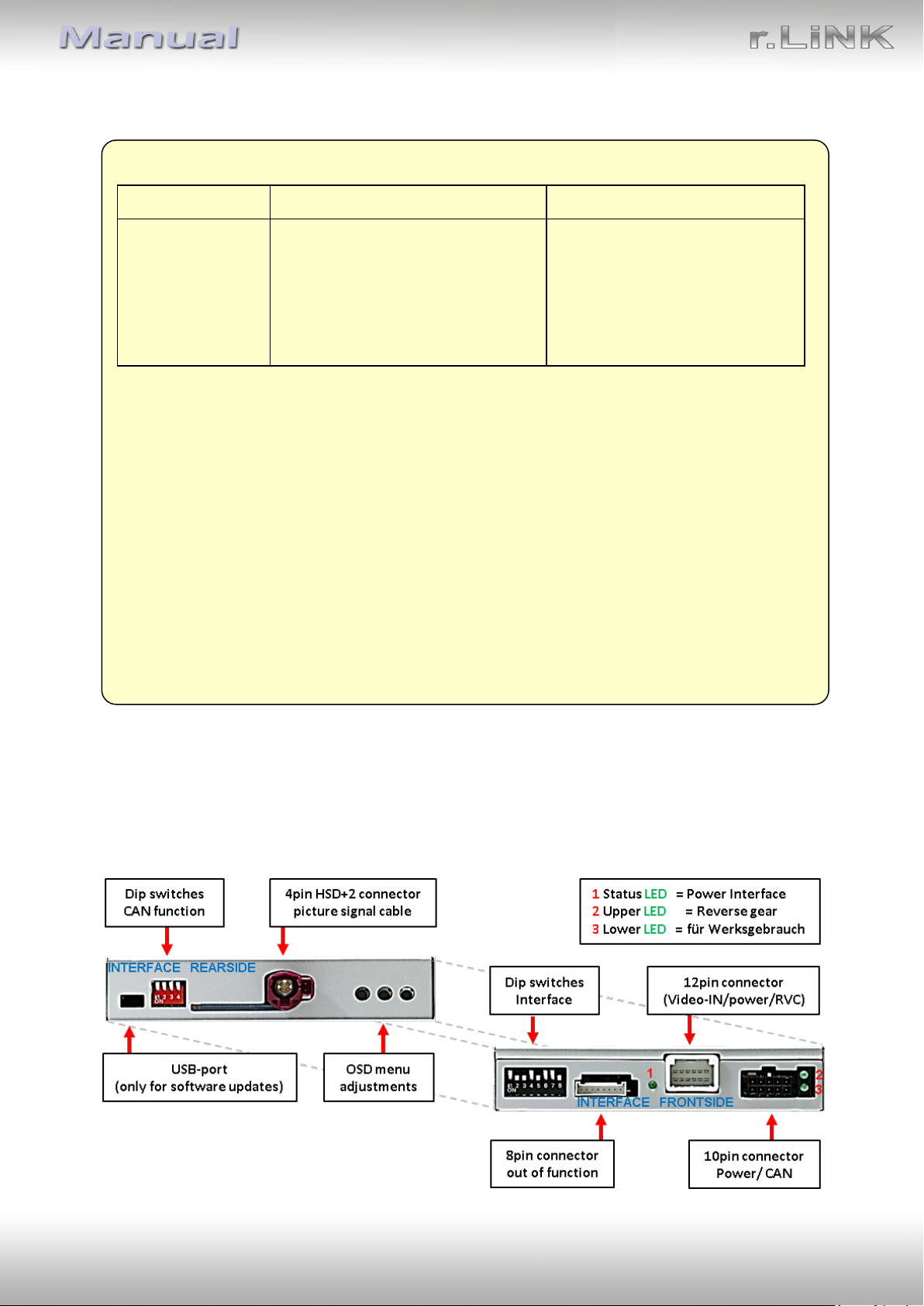

1.3. Connectors – video interface

The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page5

Dip

Function

ON (down)

OFF (up)

1

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay
and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

2

CVBS AV1-input

enabled

disabled

3

CVBS AV2-input

enabled

disabled

4

No function

Set to OFF

5

Rear-view cam type

after-market

factory or none

6

No function

Set to OFF

7

Guide lines

enabled

disabled

8

No function

Set to OFF

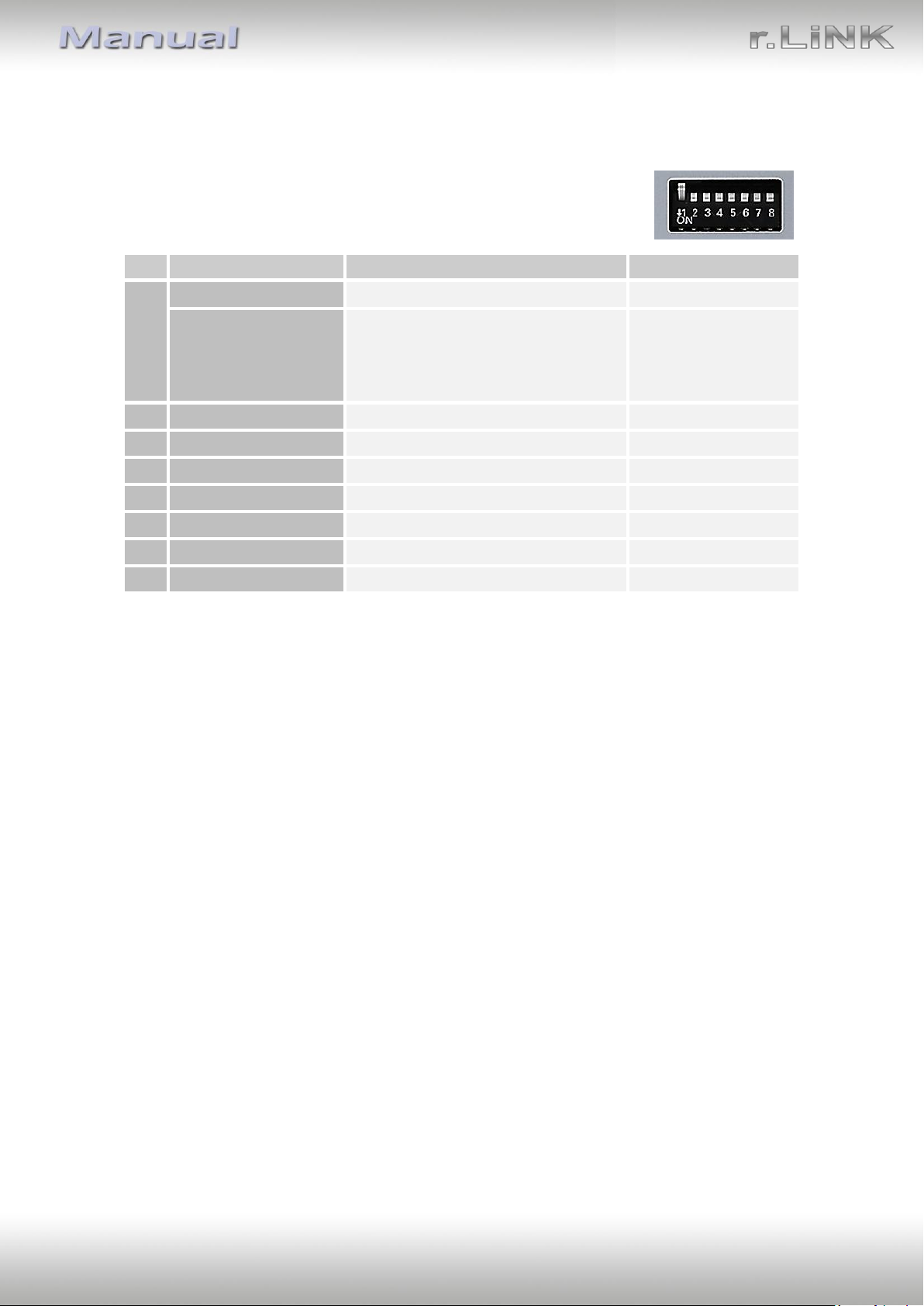

1.4. Dip-switch settings

1.4.1. 8 dip - black

Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.

*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.

See the following chapters for detailed information.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page6

1.4.1.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the
reverse gear is engaged.

1.4.1.4. Enabling the Guide lines (dip 7)

If set to ON, the interface is activated to show the guide lines for the rear-view camera while
the vehicle is in reverse mode (not available for all vehicles).

Note: Some vehicles have a different code on the CAN-bus which the video-interface is not
compatible with. If the interface does not communicate completely with the vehicle CAN
bus, the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they
in some vehicles once appear after having switched the system to powerless!

Note: Dips 4, 6 and 8 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page7

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

OFF

OFF

OFF

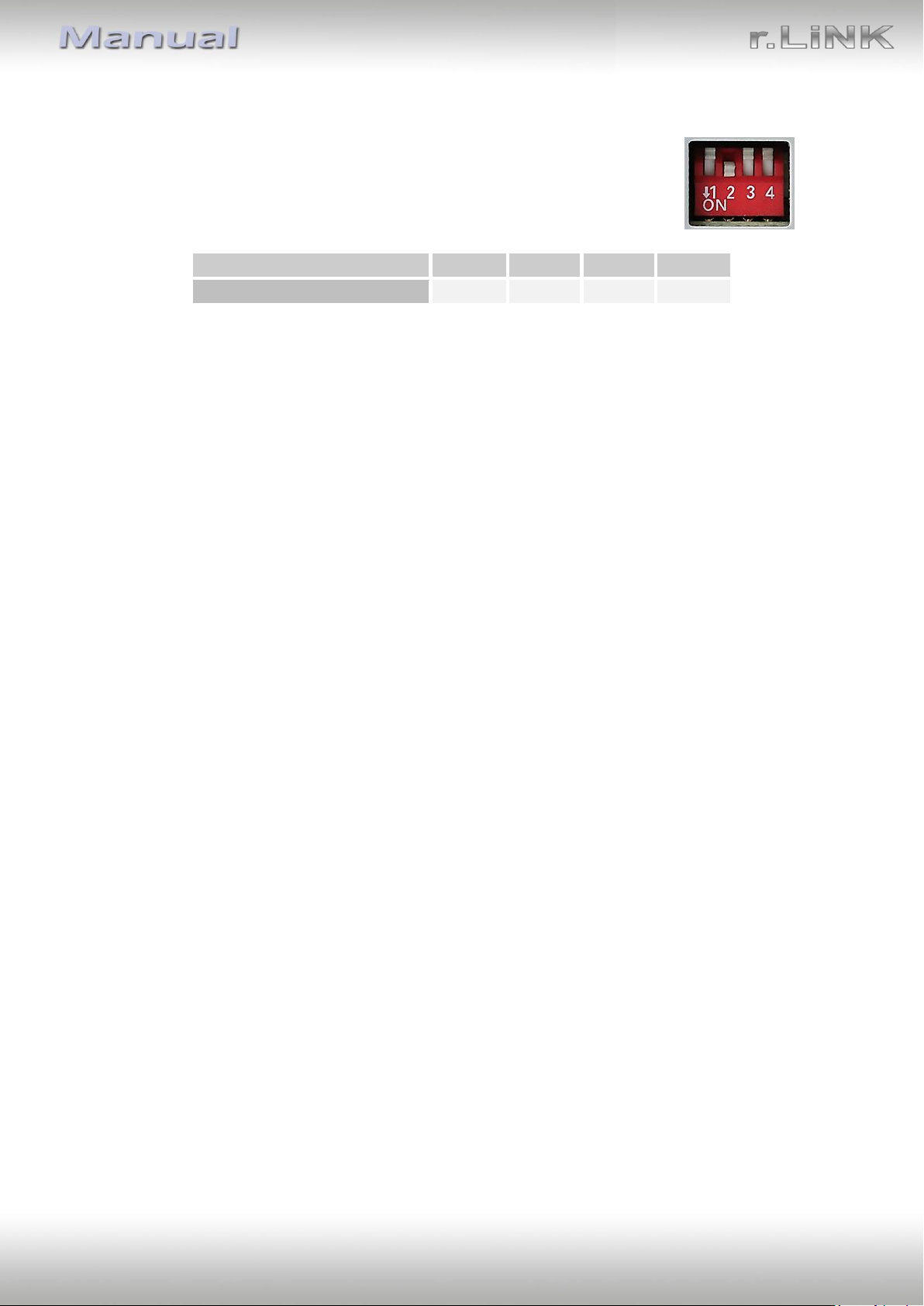

1.4.2. 4 dip - red

By using the Dip-switches, the factory Head-unit or vehicle can be chosen
which the interface will be connected to.

Dip position down is ON and position up is OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!

2.1. Place of installation

The interface is designated to be connected behind the vehicle`s head unit.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page8

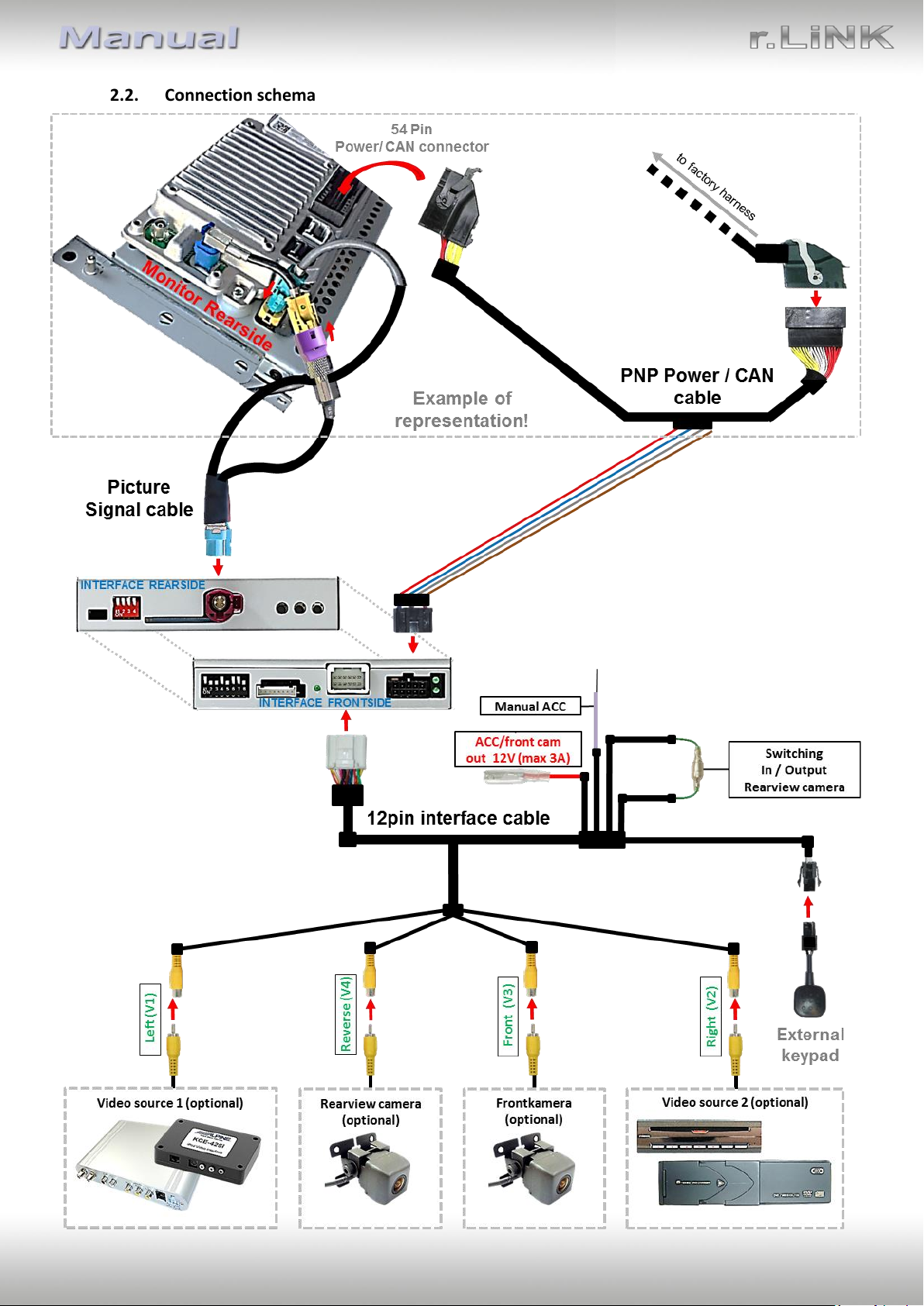

2.2. Connection schema

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page9

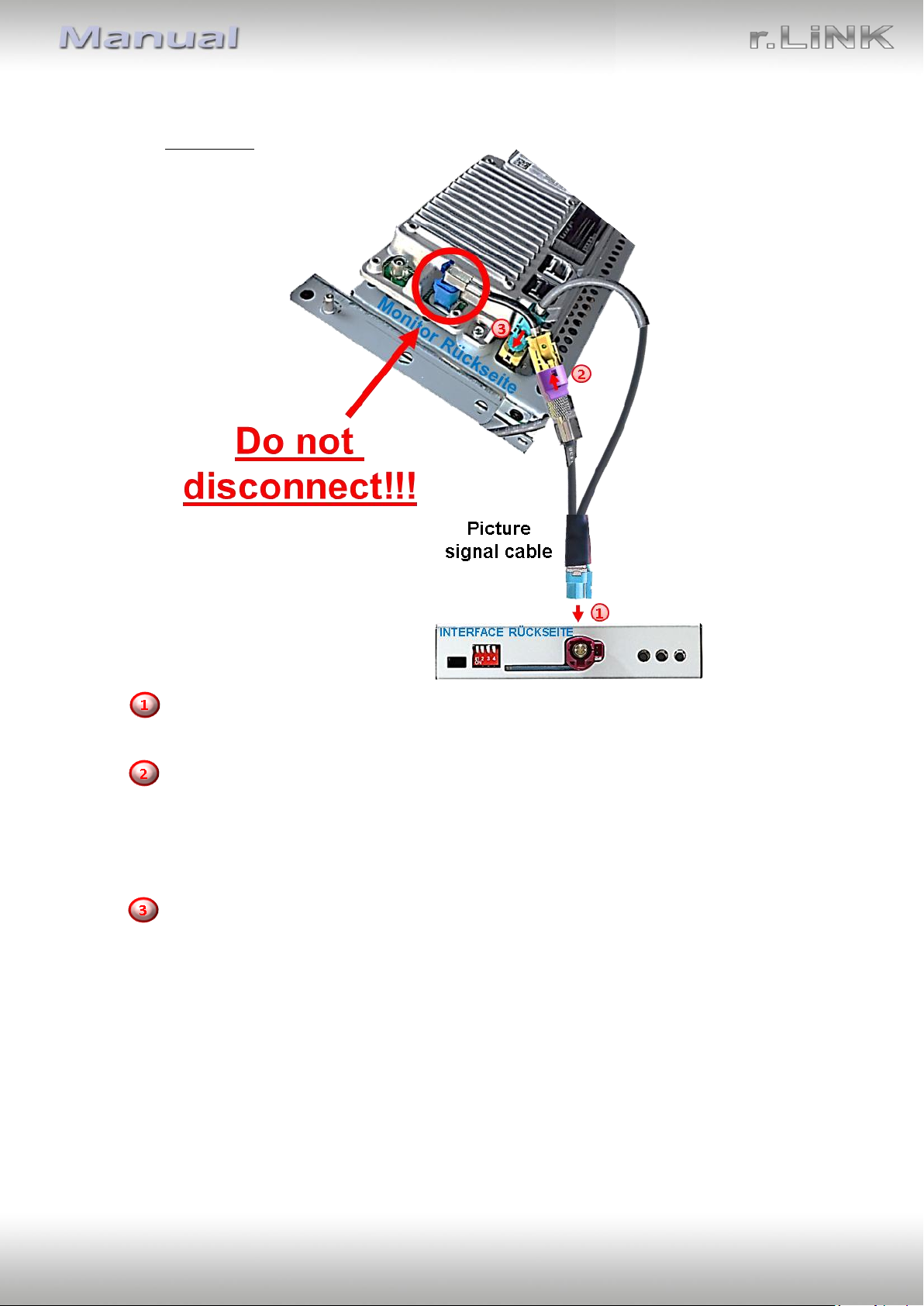

2.3. Connection – picture signal cable

2.3.1. ALL-IN-ONE head unit

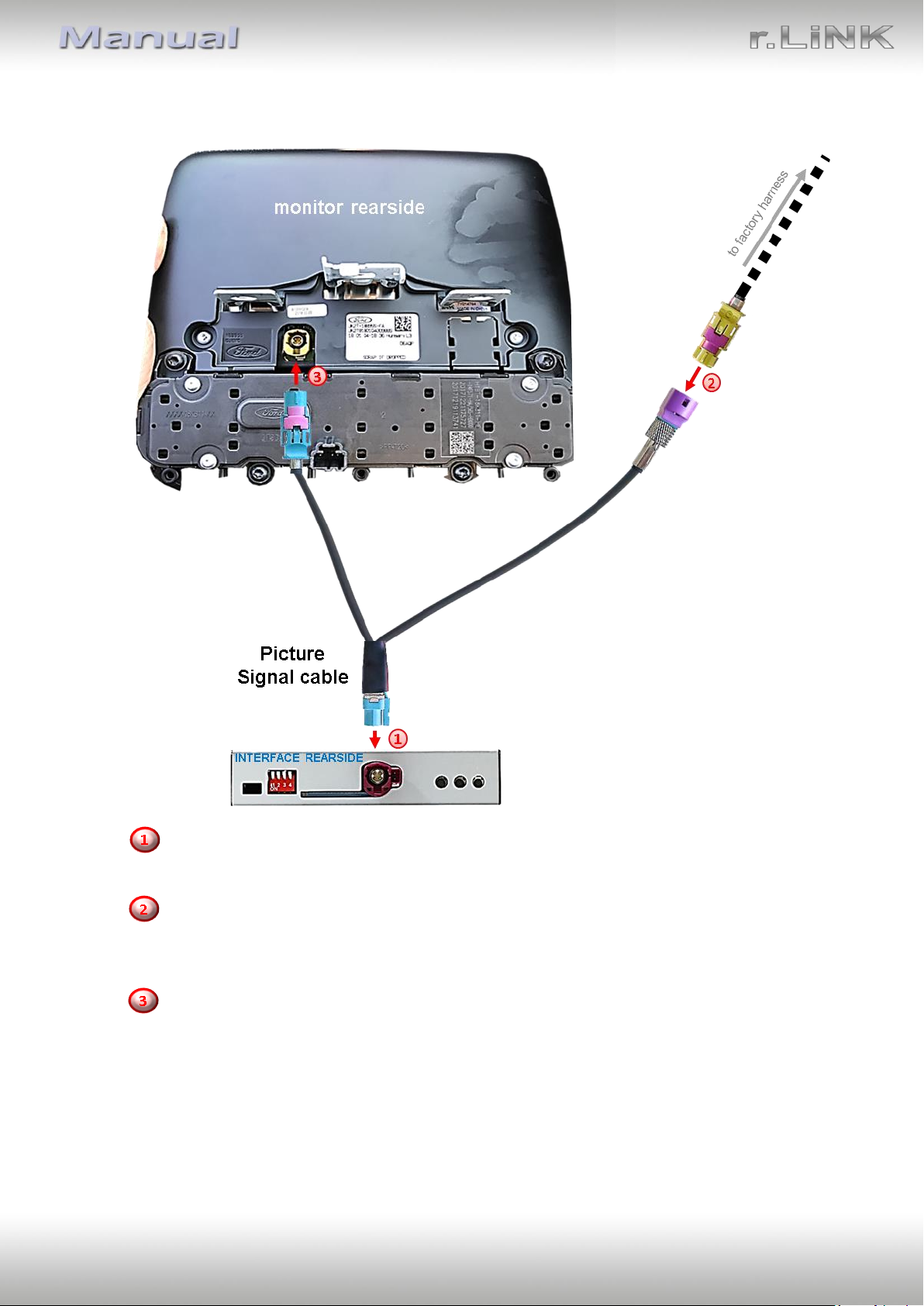

Connect the female picture signal cable’s WATERBLUE coloured HSD+2 connector to
the male WATERBLUE coloured HSD+2 connector of the video interface.

Disconnect the CURRY coloured female 4pin HSD connector of the HSD bridge at the
rear side of the monitor and connect it to the male PURPLE coloured HSD connector
of the enclosed 4pin HSD LVDS cable. Caution: The female blue coloured HSD
connector of the HSD bridge must never be disconnected from the monitor’s rear
side!

Connect the female WATERBLUE coloured HSD connector of the enclosed 4pin HSD
picture signal cable to the previously become free male CURRY coloured HSD
connector at the monitor’s rear side.

Caution: The BLUE female HSD connection at the monitor HSD bridge has to remain

connected in the monitor’s rear side during the hole process and must never be

disconnected from its original place.

The picture signal cable has to be connected to the monitor. Connection to the head unit

may cause damage to the system!

Note: No liability for vehicle wire colours and pin definition!

Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page10

2.3.2. Separate head unit with tablet monitor

Connect the female picture signal cable’s WATERBLUE coloured HSD+2 connector to
the male WATERBLUE coloured HSD+2 connector of the video interface.

Disconnect the CURRY coloured female 4pin HSD connector of the factory harness at
the rear side of the monitor and connect it to the male PURPLE coloured HSD
connector of the enclosed 4pin HSD LVDS cable.

Connect the female WATERBLUE coloured HSD connector of the enclosed 4pin HSD
picture signal cable to the previously become free male CURRY coloured HSD
connector at the monitor’s rear side.

Caution: The picture signal cable has to be connected to the monitor. Connection to the

head unit may cause damage to the system!

Note: No liability for vehicle wire colours and pin definition!

Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page11

2.4. Connection – PNP Power / CAN cable

2.4.1. ALL-IN-ONE head unit

Connect the enclosed PNP Power / CAN cable’s female10pin connector to the male
10pin connector of the video interface.

Disconnect the female 54pin connector of the vehicle harness at the rear side of the
monitor and connect it to the male 54pin connector of the enclosed PNP Power/CAN
cable.

Connect the enclosed PNP Power / CAN cable’s opposite female54pin connector to
the previously become free male 54pin connector of the monitor.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page12

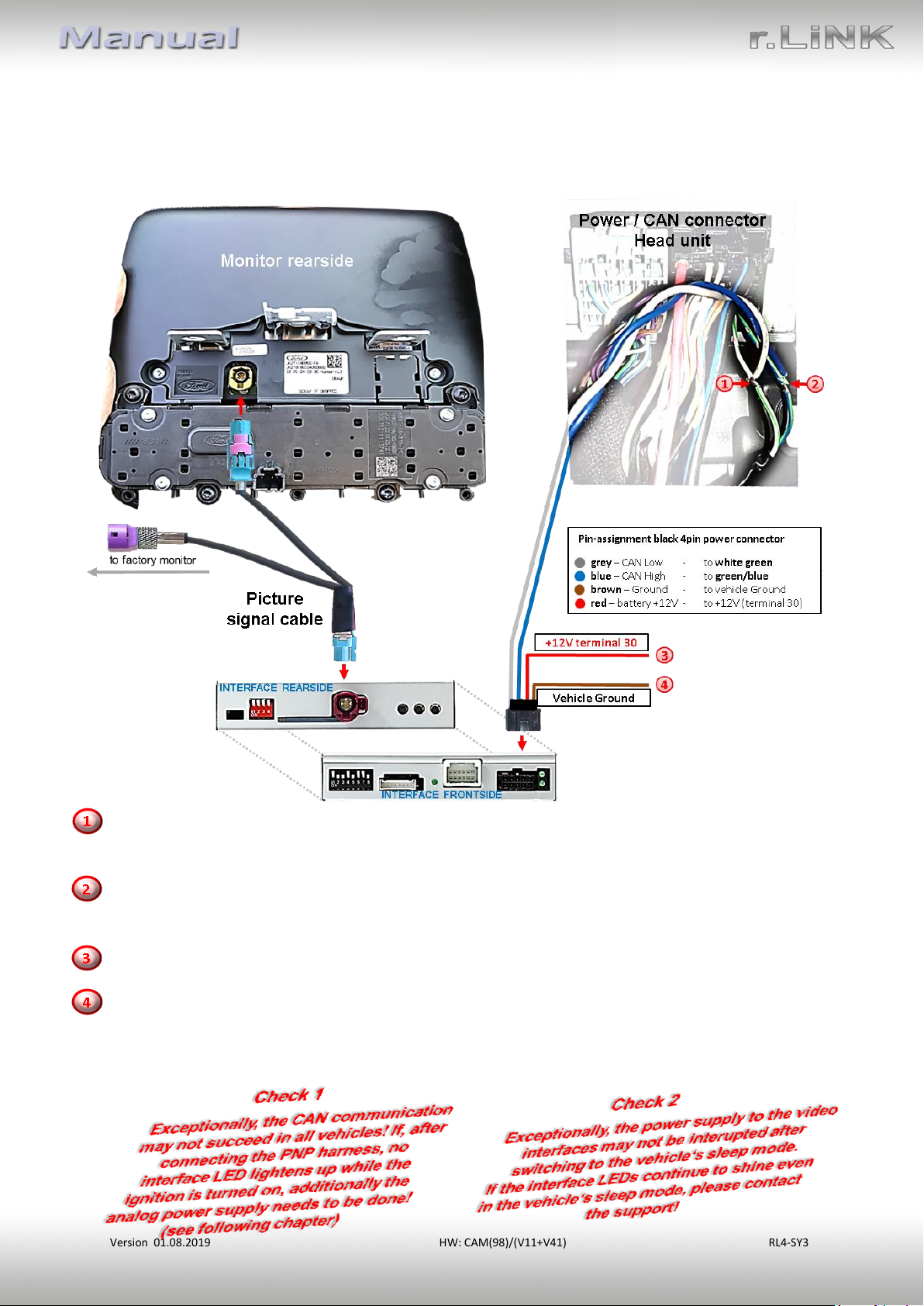

2.4.2. Separate head unit with tablet monitor

To connect the tablet style infotainment (monitor and head unit separated), the

PNP Power / CAN cable’s 4 single wires have to be cut near the big 54pin harness. The 54pin

connection can`t be used!

Connect the single grey wire „CAN LOW“ of the 4 cables to the head unit main connector’s
white/green cable (bottom/right side) and isolate the connection.

Connect the single blue wire „CAN HIGH“ of the 4 cables to the head unit main connector’s
green/blue cable (right beside) and isolate the connection.

Connect the single red wire to stabile +12V terminal 30.

Connect the single brown cable to the vehicle’s Ground.

Note: No liability for vehicle wire colours and pin definition!

Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page13

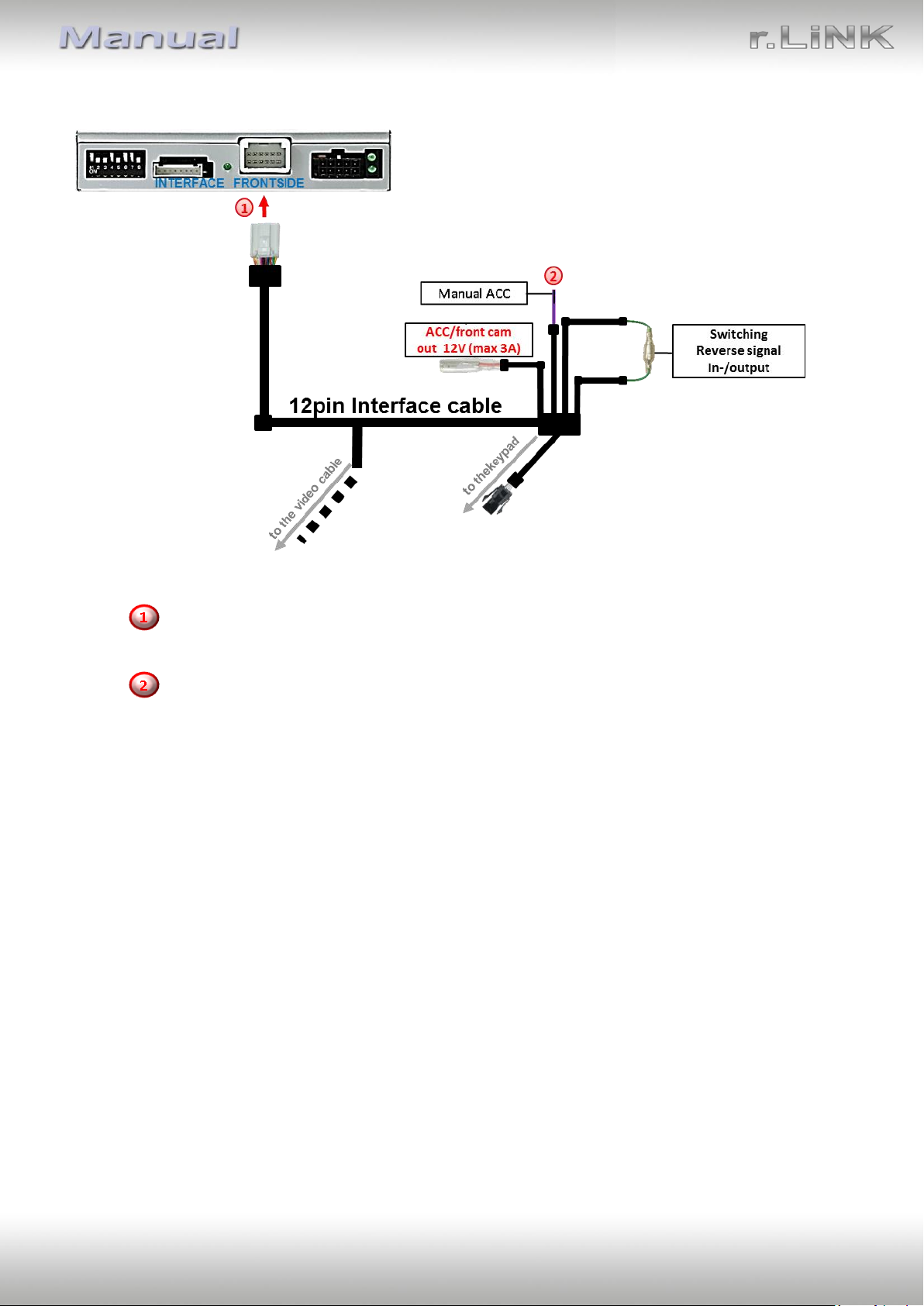

2.5. Analog power supply

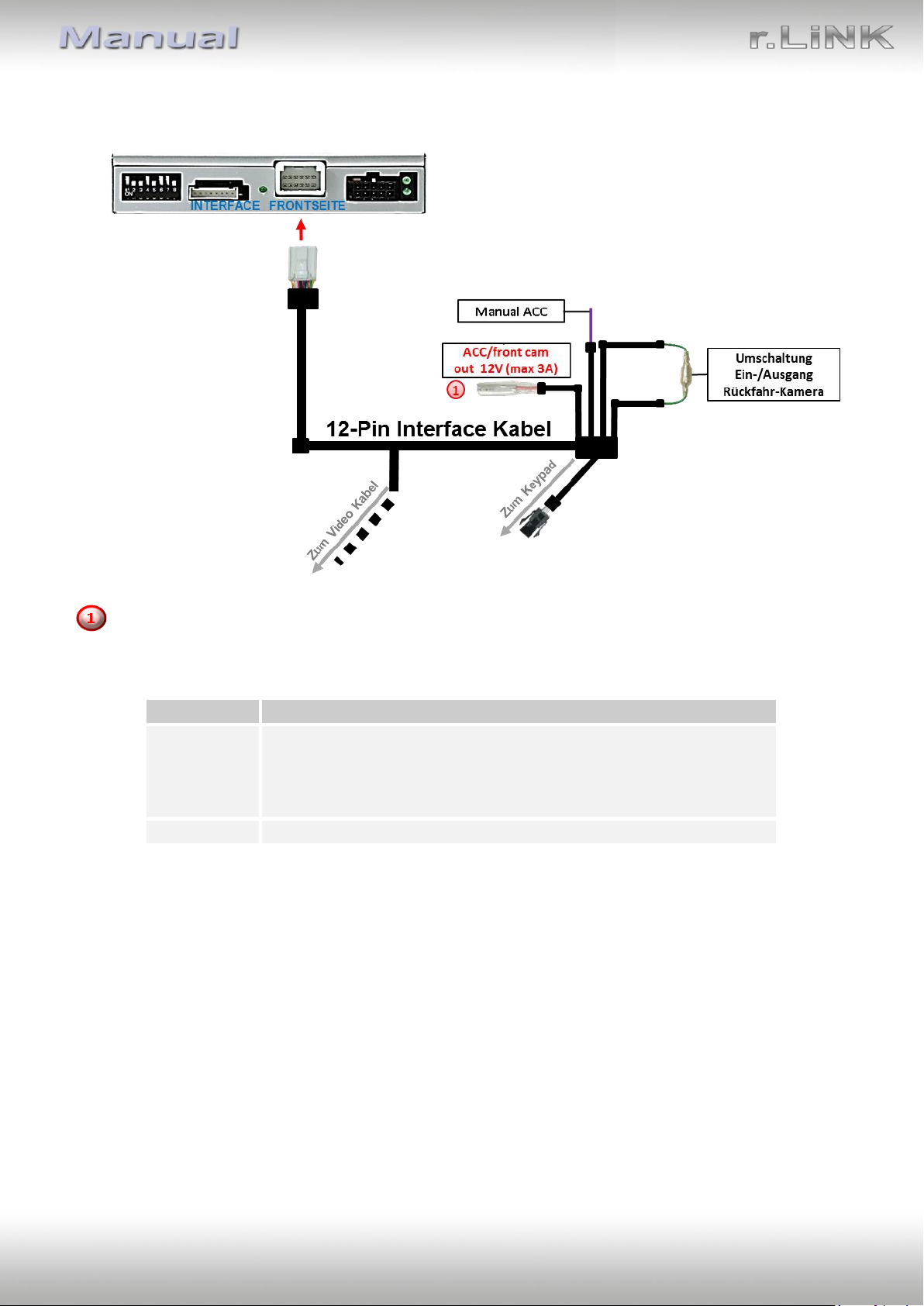

Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.

Connect the 12pin interface cable’s red coloured wire ACC-out (max 3A) and the
purple coloured wire Manual ACC both to S-contact terminal 86s +12V

(e.g. glove compartment illumination).

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page14

Dip

Function

Dip 1 ON

+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)

Dip 1 OFF

+12V (max. 3A) ACC

2.6. Power supply output

The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment depending on the position of dip switch 1 (of
the black 8 dips):

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page15

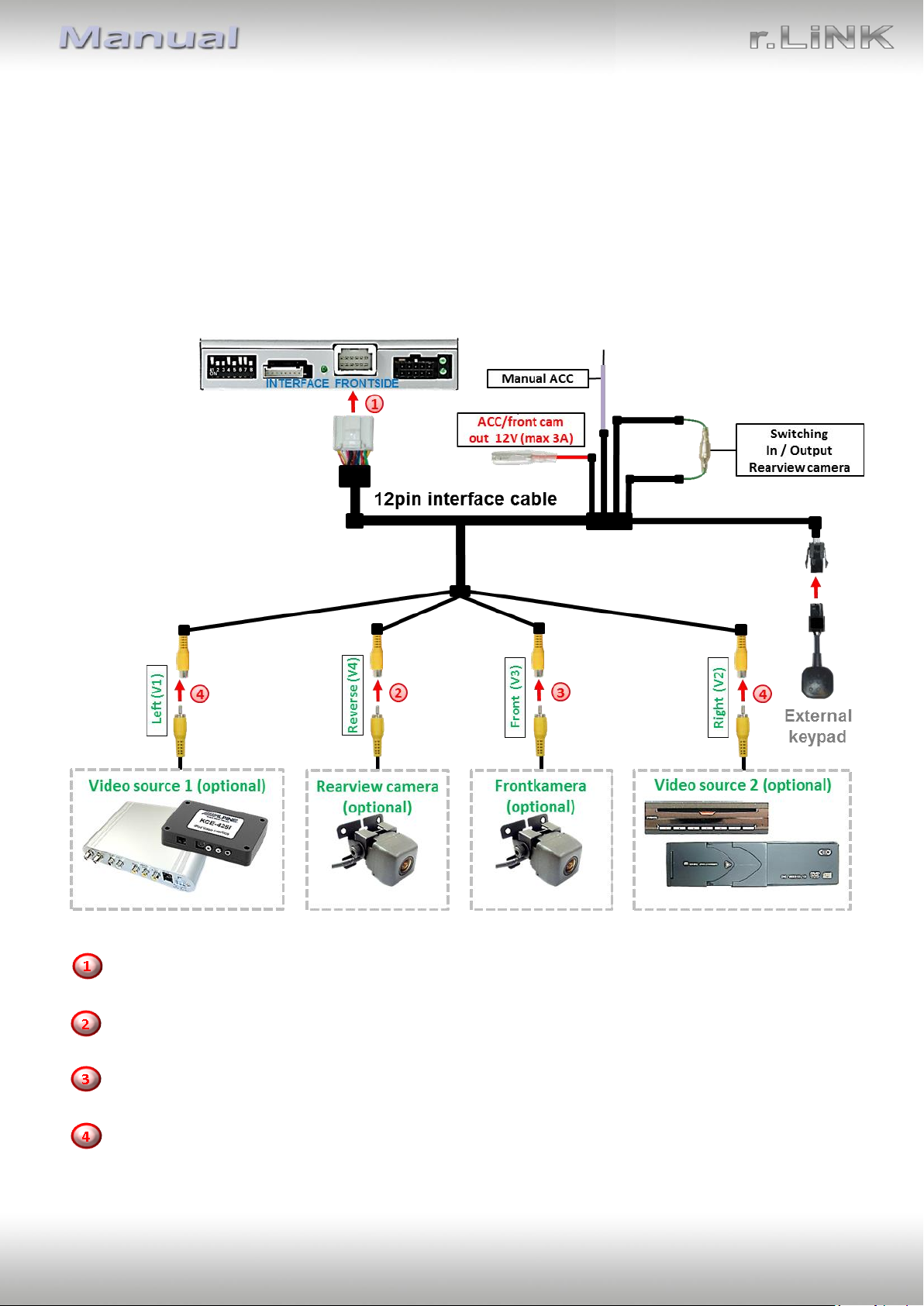

3. Connecting Video sources

It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.

Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.

Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.

Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.

Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.

Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA

connector “Left (V1)” and ”Right (V2)”.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page16

3.1. Audio-insertion

This interface is only able to insert video signals into the factory infotainment. If an AV­source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio­mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.

3.2. After-market front camera

The red power supply output ACC/front cam out 12V (max 3A) can be used to power
a front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives
+12V (max 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear
is disengaged.

Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).

Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page17

3.3. After-market rear-view camera

Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 6pin to 12pin cable should carry +12V while the reverse gear is engaged.

Note: Do not forget to set dip5 of video-interface to ON before testing.

3.3.1. Case 1: Interface receives the reverse gear signal

If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN” while the reverse gear is engaged.

The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary,
permanent power supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page18

3.3.2. Case 2: Interface does not receive the reverse gear signal

If the video interface does not receive +12V on the green wire of the 12pin interface cable
when reverse gear is engaged (not all vehicles are compatible), an external switching signal
from the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage­stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.

Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.

Note: Not least to avoid short circuits, the best solution should be, to crimp a male

4mm connector to the relay’s output cable and connect it to the green cable’s female

4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.

Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.

Connect the output connector (87) of the relay to the rear-view camera’s power­cable, like you did it to the green “Reverse-IN” cable before.

Connect permanent power / 12V to the relay’s input connector (30).

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page19

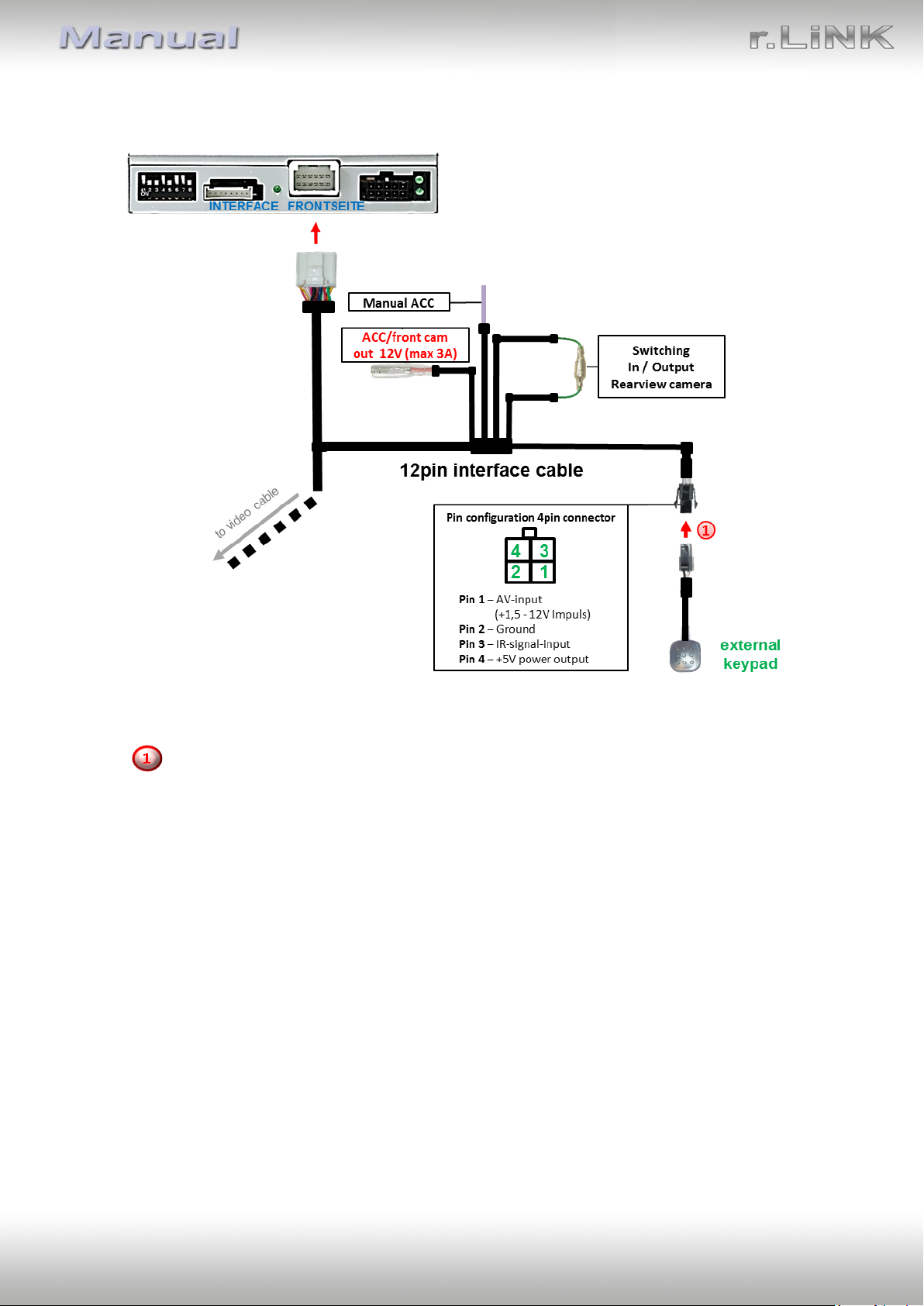

3.4. Connecting video-interface and external keypad

Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin
connector.

Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page20

3.5. Picture settings

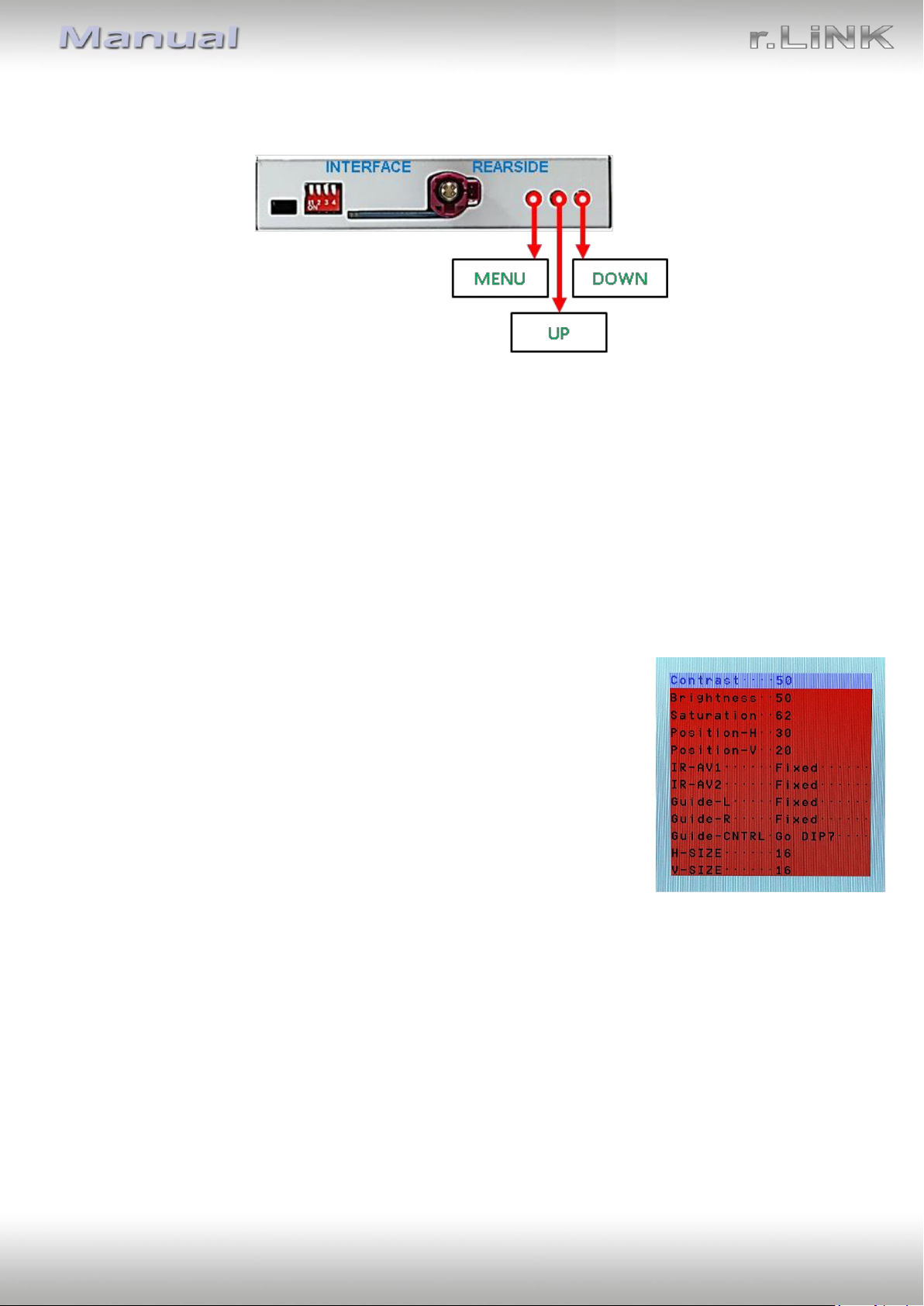

The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu. To switch to the next menu item, pressing UP and

DOWN will change the selected value. The buttons are embedded in the housing to avoid

accidental changes during or after installation. The picture settings have to be done
separately for AV1, AV2 and CAM while the corresponding input is selected and visible on
the monitor.

Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.

The following settings are available

Contrast
Brightness
Saturation
Position H (horizontal) out of function
Position V (vertical) out of function
IR-AV1 out of function
IR-AV2 out of function
Guide-lines left out of function
Guide-lines right out of function
Guide lines CNTRL out of function (Dip switch 7 for guide lines)

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page21

4. Interface operation

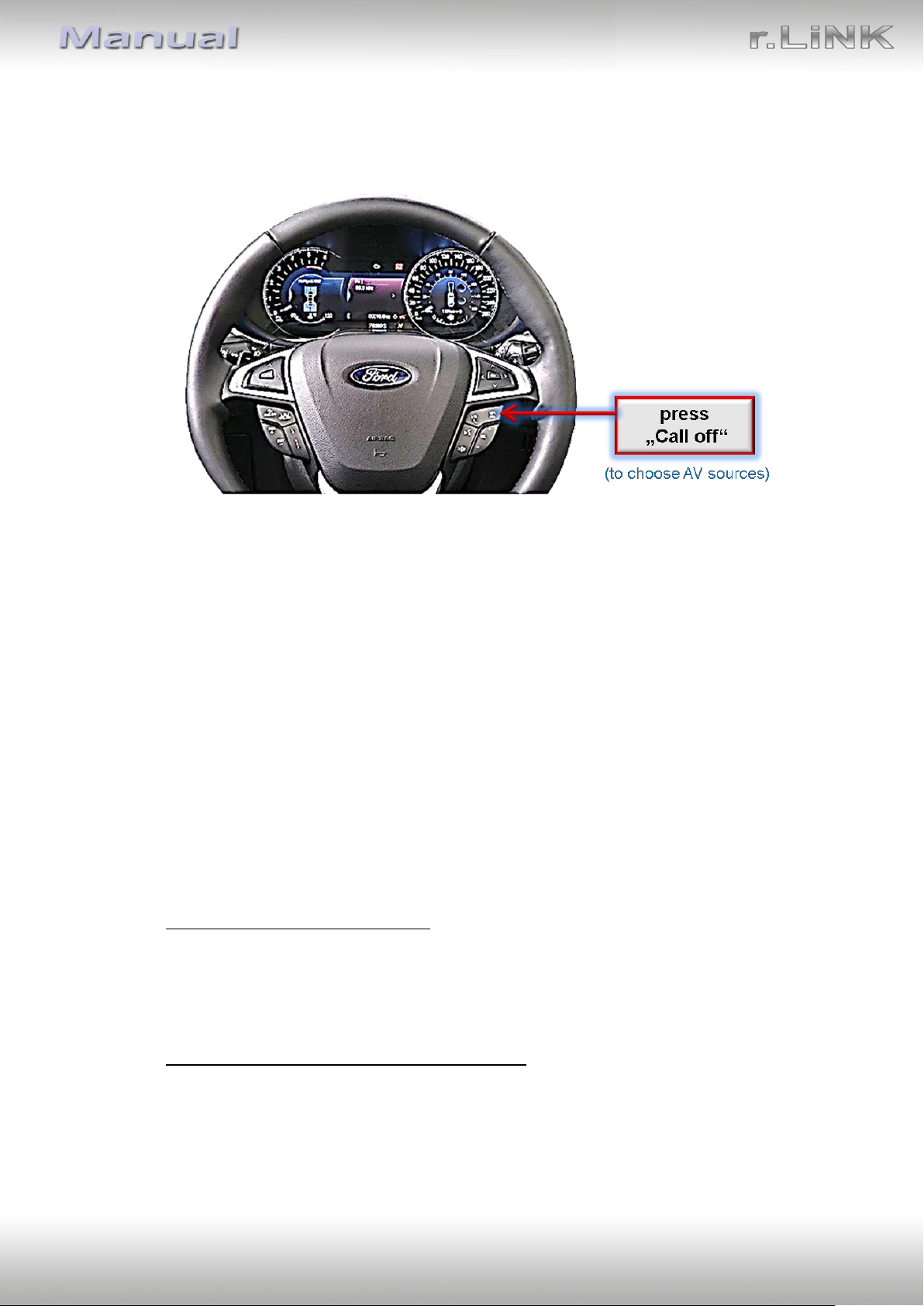

4.1. By Call-Off button

Switching the video sources can be done by a long press of the vehicle’s Call-Off button

Each press (approx. 2 sec) will switch to the next enabled input. If all inputs are enabled the
order is:

Factory video video IN1  video IN2  factory video …

Disabled inputs will be skipped.

Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external

keypad has to be used.

4.2. By keypad

Alternatively or additionally to the factory infotainment buttons, the interface’s external
keypad can be used to switch the enabled inputs.

 Long press of keypad (2-3 seconds)

By long pressing the external keypad (2-3 seconds), the video interfaces witches the input
from the factory video to the inserted video sources.

Note: The interface switches after releasing the switch (after long pressure).

 Short press of keypad (only if DIP 1 is set to ON)

By short pressing the external keypad, the video interfaces witches from the factory video to
the front camera input and back to factory video.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page22

5. Specifications

BATT/ACC range 7V - 25V
Stand-by power drain 10mA
Power consumption 300mA
Video input 0.7V - 1V
Video input formats NTSC / PAL
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 104 mm (W x H x D)

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page23

Symptom

Reason

Possible solution

No picture/black
picture (factory
picture).

Not all connectors have been
reconnected to factory head­unit or monitor after
installation.

Connect missing connectors.
No power on CAN-bus box (all

LED CAN-bus box are off).

Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.

CAN-bus box connected to
CAN-bus in wrong place.

Refer to the manual where to connected to the CAN­bus. If not mentioned, try another place to connect to
the CAN-bus.

No power on video-interface
(all LED video-interface are
off).

Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.

No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.

No picture from video source.

Check on other monitor whether video source is OK.

No video-source connected to
the selected interface input.

Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).

LVDS cables plugged in wrong
place.

Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head­unit does not work when the manual says to plug into
monitor and vice versa.

Wrong monitor settings of
video-interface.

Try different combinations of dips 7 and 8 of video­interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.

Inserted picture double
or 4 times on monitor.

Inserted picture
distorted, flickering or
running vertically.

Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.

Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.

If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.

Set all video sources to the same standard.
Some interfaces can only

handle NTSC input.

Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.

Inserted picture b/w.

Inserted picture qual.
bad.

Picture settings have not been
adjusted.

Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.

Inserted picture
position wrong.

Camera input picture
flickers.

Camera is being tested under
fluorescent light which shines
directly into the camera.

Test camera under natural light outside the garage.

Camera input picture is
bluish.

Protection sticker not
removed from camera lens.

Remove protection sticker from lens.

6. FAQ – Trouble shooting Interface functions

For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3

Page24

Symptom

Reason

Possible solution

Camera input picture
black.

Camera power taken directly
from reverse gear lamp.

Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.

Camera input picture
has distortion.

Camera input picture
settings cannot be
adjusted.

Camera input picture settings
can only be adjusted in AV2
mode.

Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.

Graphics of a car in
camera input picture.

Function PDC is ON in the
interface OSD.

In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.

Chinese signs in
camera input picture

Function RET or ALL is ON
(function for Asian market) in
the interface OSD.

Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.

Not possible to switch
video sources by OEM
button.

CAN-bus interface does not
support this function for
vehicle.

Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.

Pressed too short.

For video source switching a longer press of about 2.5
seconds is required.

Not possible to switch
video sources by
external keypad.

SW-version of interface does
not support external keypad.

Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.

Interface does not
switch to camera input
when reverse gear is
engaged.

CAN-bus interface does not
support this function for the
vehicles.

Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.

Interface switches
video-sources by itself.

CAN-bus interface
compatibility to vehicle is
limited.

Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.

Made in China

7. Technical Support

Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.

NavLinkz GmbH

distribution/tech dealer-support

Eurotec-Ring 39

D-47445 Moers

Tel [phone]

Email [email protected]

10R-03 5384

Version 01.08.2019 HW: CAM(98)/(V11+V41) RL4-SY3
