Video inserter
RL4-SC15
Compatible with Volvo vehicles with
Sensus Connect infotainment
and 8.7inch touch-monitor
Video-inserter for rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 2
Pag
e2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors – video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Activating the front camera (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Front camera activation type (Dip 6)
1.4.5. Video representation
1.5. Settings of the 4 Dip switches (CAN function – red)
2. Installation
2.1. Place of connection
2.2. Connection schema
2.3. Connection - picture signal cable
2.4. Connection – 10pin Power / CAN cable
2.5. Analog power supply for the video interface
2.6. Power supply output
2.7. Connection - video-sources
2.7.1. Audio insertion
2.7.2. After-market front camera
2.7.3. After-market rear-view camera

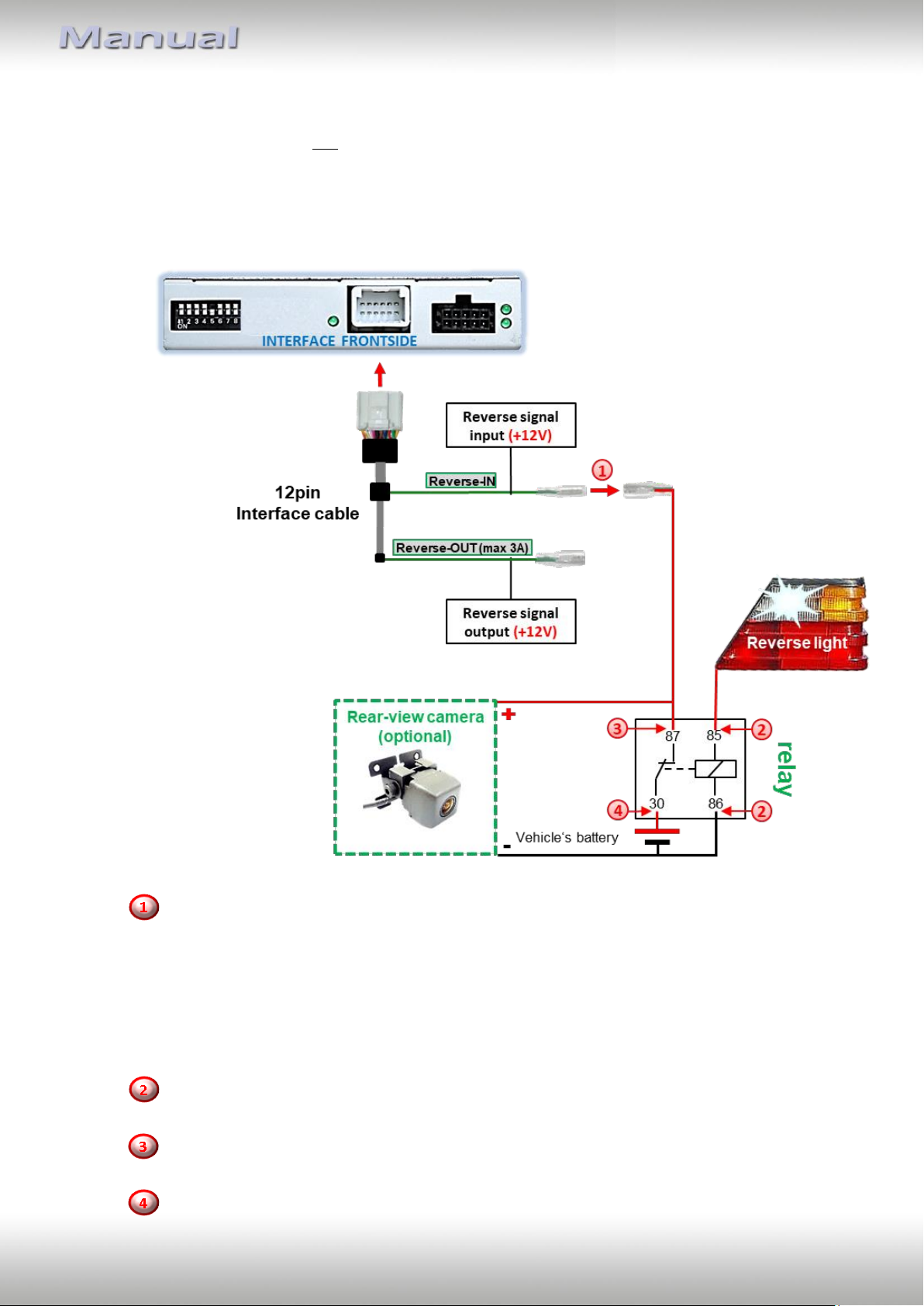

2.7.3.1. Case 1: Interface receives the reverse gear signal
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
2.8. Connection - video-interface and external keypad
2.9. Picture settings
3. Interface operation
3.1. By factory infotainment button
3.2. By external keypad
4. Specifications
5. FAQ – Trouble Shooting-Interface functions
6. Technical support
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 3
Pag
e3
Take down the serial number of the interface and store this manual for support
purposes: ____________________
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-viewcamera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.

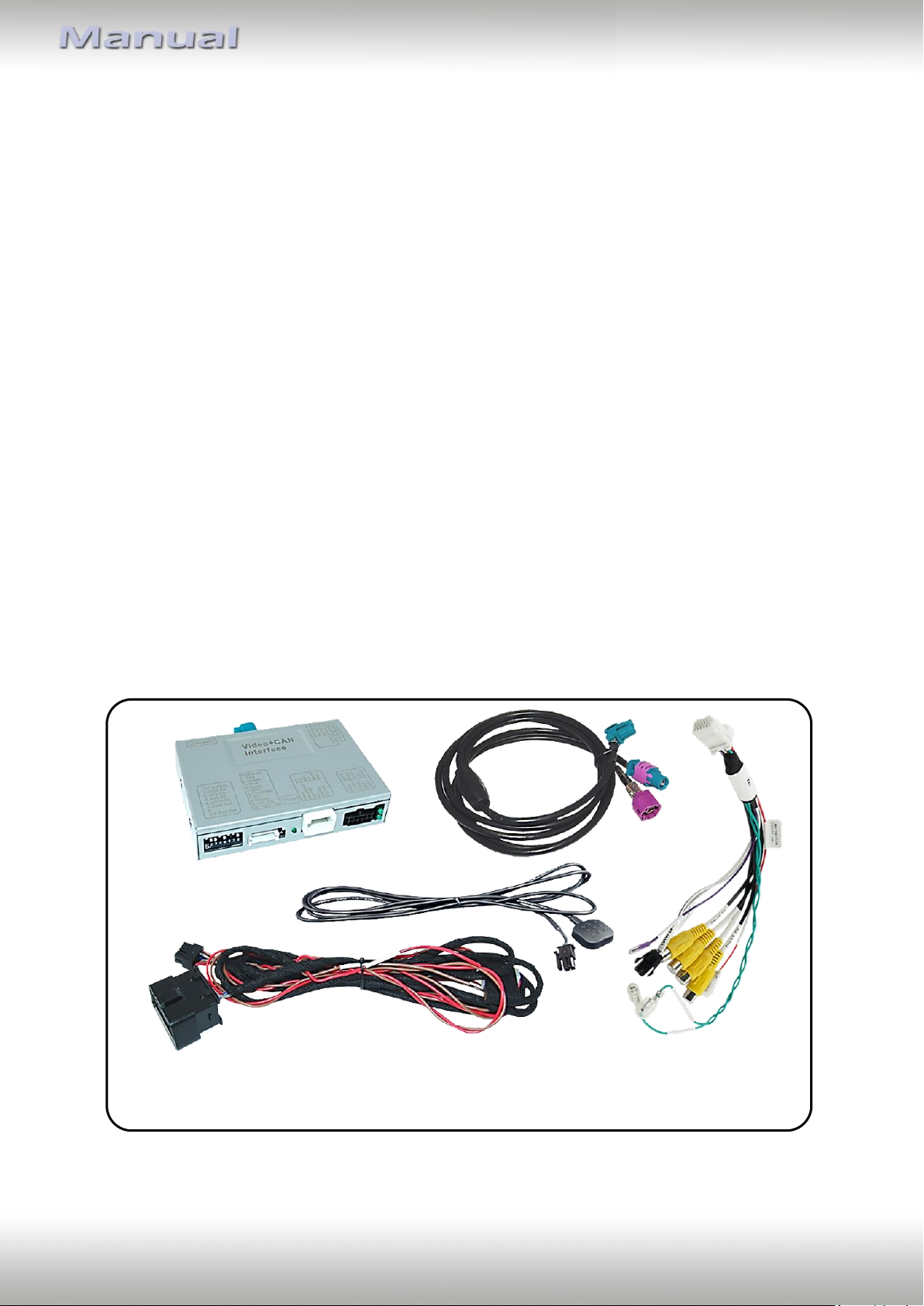

1.1. Delivery contents
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 4
Pag
e4
Compatibility
Brand
Compatible vehicles
Compatible systems
Volvo
S60 from model year 2020,
S90 from model year 2017,
V60 from model year 2016,
V90 from model year 2016,
XC40 from model year 2019,
XC60 from model year 2018,
XC90 from model year 2015
Sensus Connect with 8,7”
monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For
inserting Audio signals either the possibly existing factory audio-AUXinput or a FM-modulator can be used. If 2 audio sources shall be
connected to the infotainment, an additional electronic is necessary
to switch them.
Video sources NTSC video sources compatible only.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay
the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is
possible by external keypad.
Video input signal NTSC video sources compatible only
1.2. Checking the compatibility of vehicle and accessories

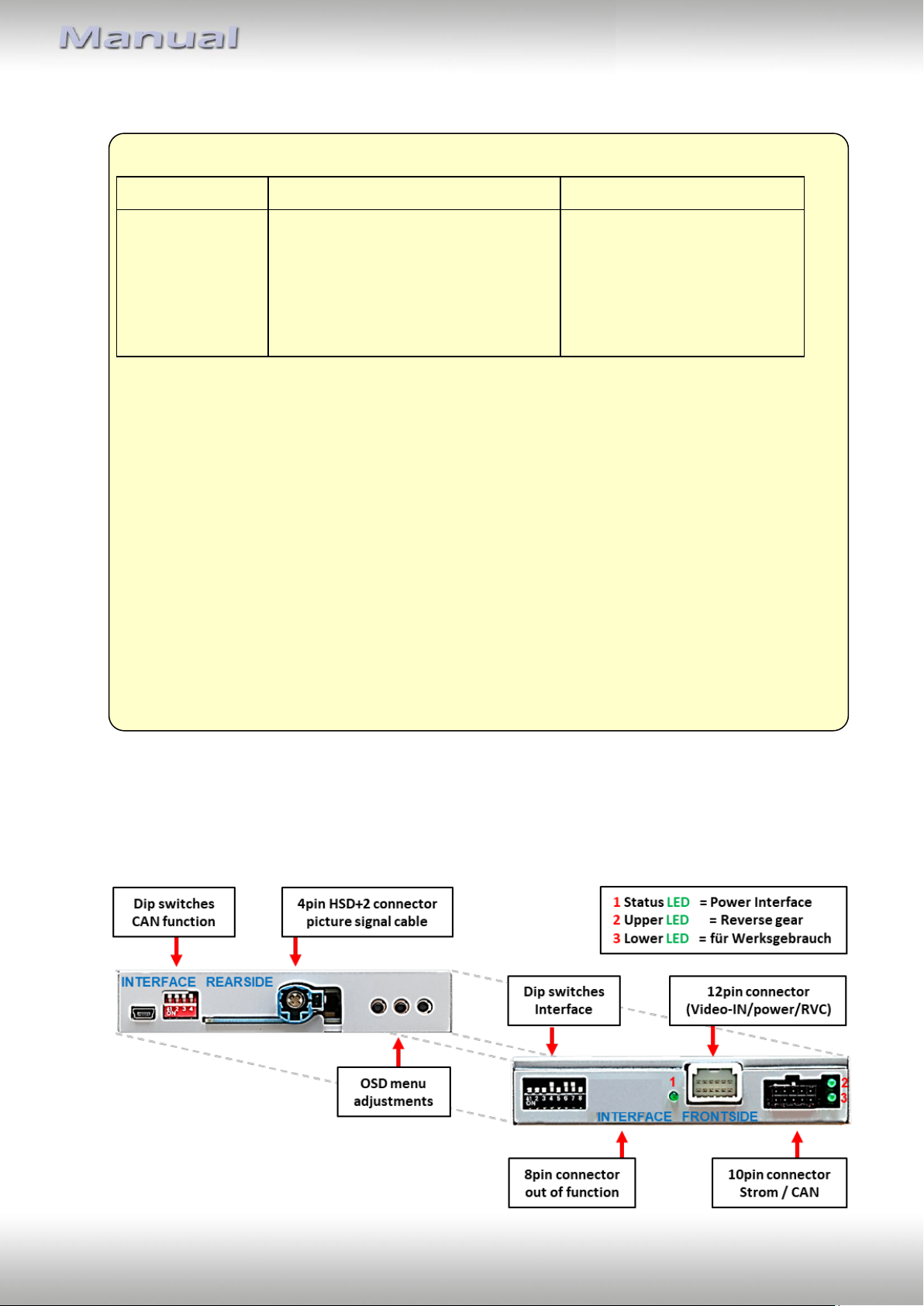

1.3. Boxes and connectors – video interface
The video-interface converts the connected after-market sources video signals into a LVDS signal
which is inserted in the factory monitor using separate trigger options. Further it reads the
vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 5
Pag
e5
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
Type of front camera
activation
for 10 seconds after disengaging
the reverse gear and manually by
keypad
only manually by
keypad
7
Video reprtesentation
big size picture
small size picture
8
No function
set to OFF

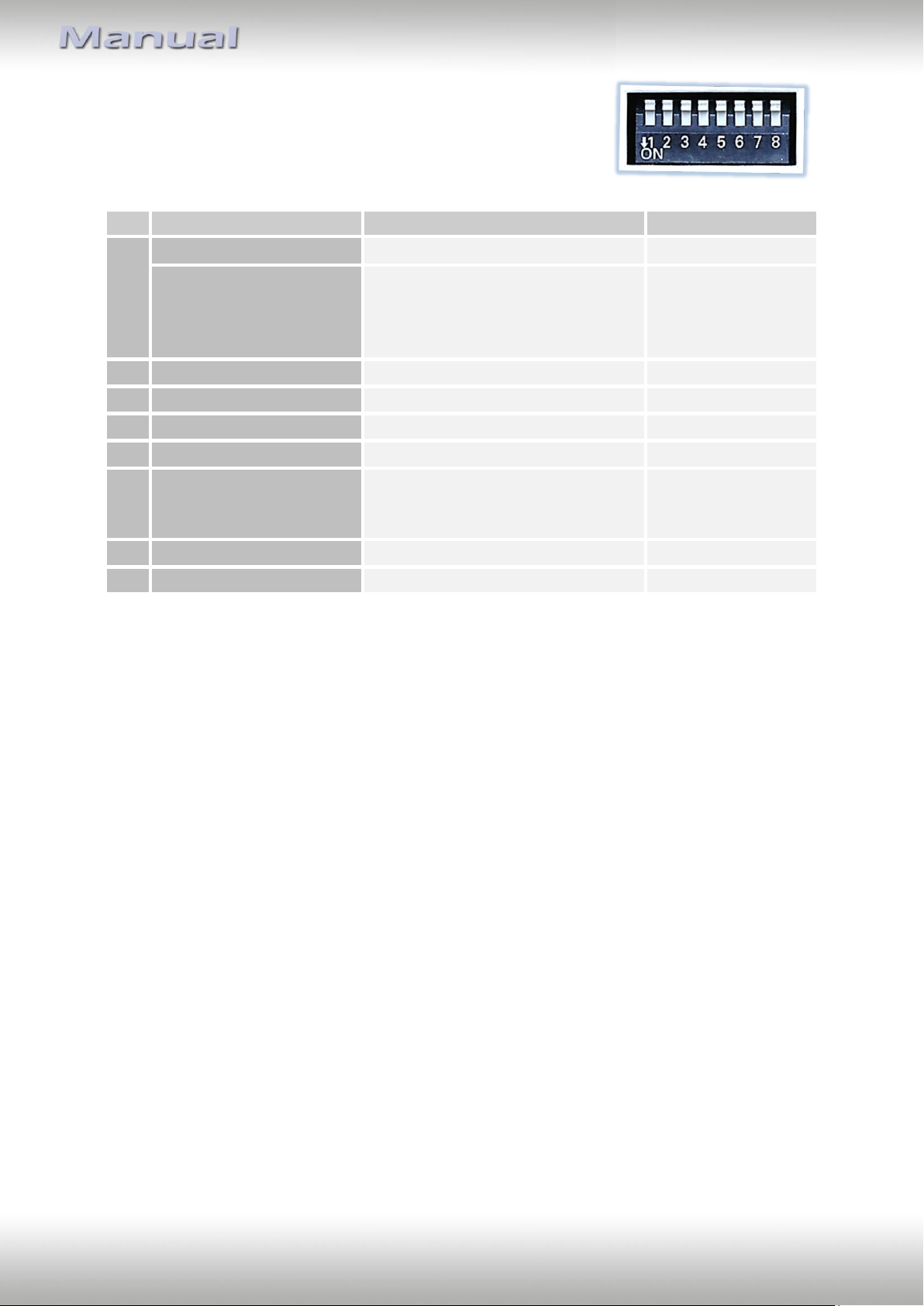

1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
*The front camera will only be switched automatically for 10 seconds after disengaging the
reverse gear, if dip6 is also set to ON (see following information).
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
See the following chapters for detailed information.
1.4.1. Activating the front camera (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode. The
selection of automatic or manual front camera switching is controlled by dip6.
Description of the front camera Power supply: see chapter "Power supply output".
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 6
Pag
e6
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „V4 Reverse“ while the
reverse gear is engaged.
1.4.4. Front camera activation type (Dip 6)
If the dip switch is set to ON (and dip1 is set to ON), the interface switches from the rear
camera to the front camera input for 10 seconds after reverse gear is disengaged. In
addition, manual switching to the front camera input is also possible from any image mode
by pressing the button (short press).
With the dip switch set to OFF (and dip1 set to ON), automatic switch-back tot he front
camera is deactivated, but the manual front camera switching option via external keypad
remains.

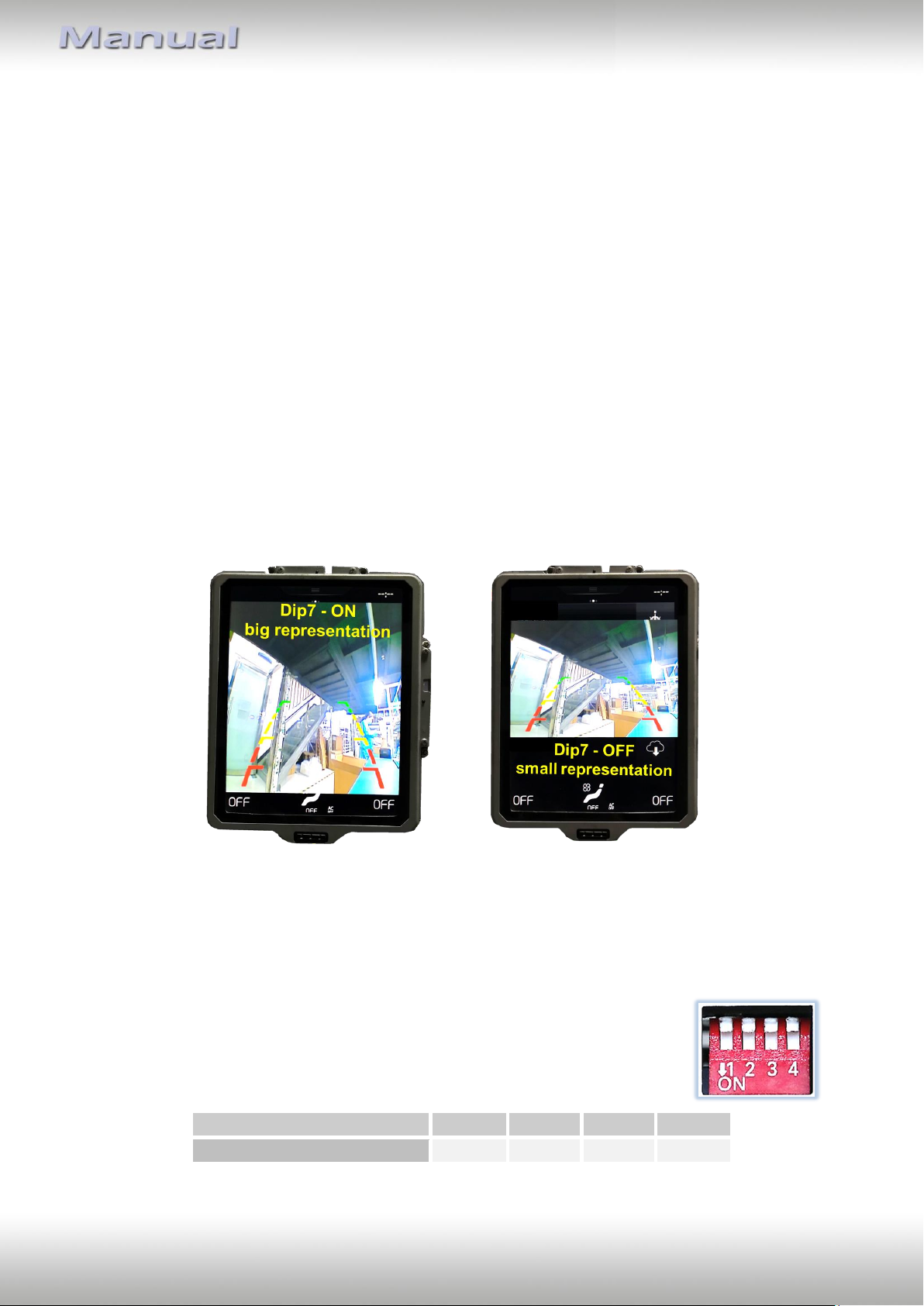

1.4.5. Video representation (dip7)
If dip7 is set to ON the inserted video is shown with big size.
If set to OFF the inserted video is shown with small size.
Note: Dips 4 and 8 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
1.5. Settings of the 4 Dip switches (CAN functions – red)
All 4 dip-switches of the video interface have no function for normal use
and have to be set to OFF.
Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 7
Pag
e7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of connection
The interface has to be connected at the factory monitor.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 8
Pag
e8

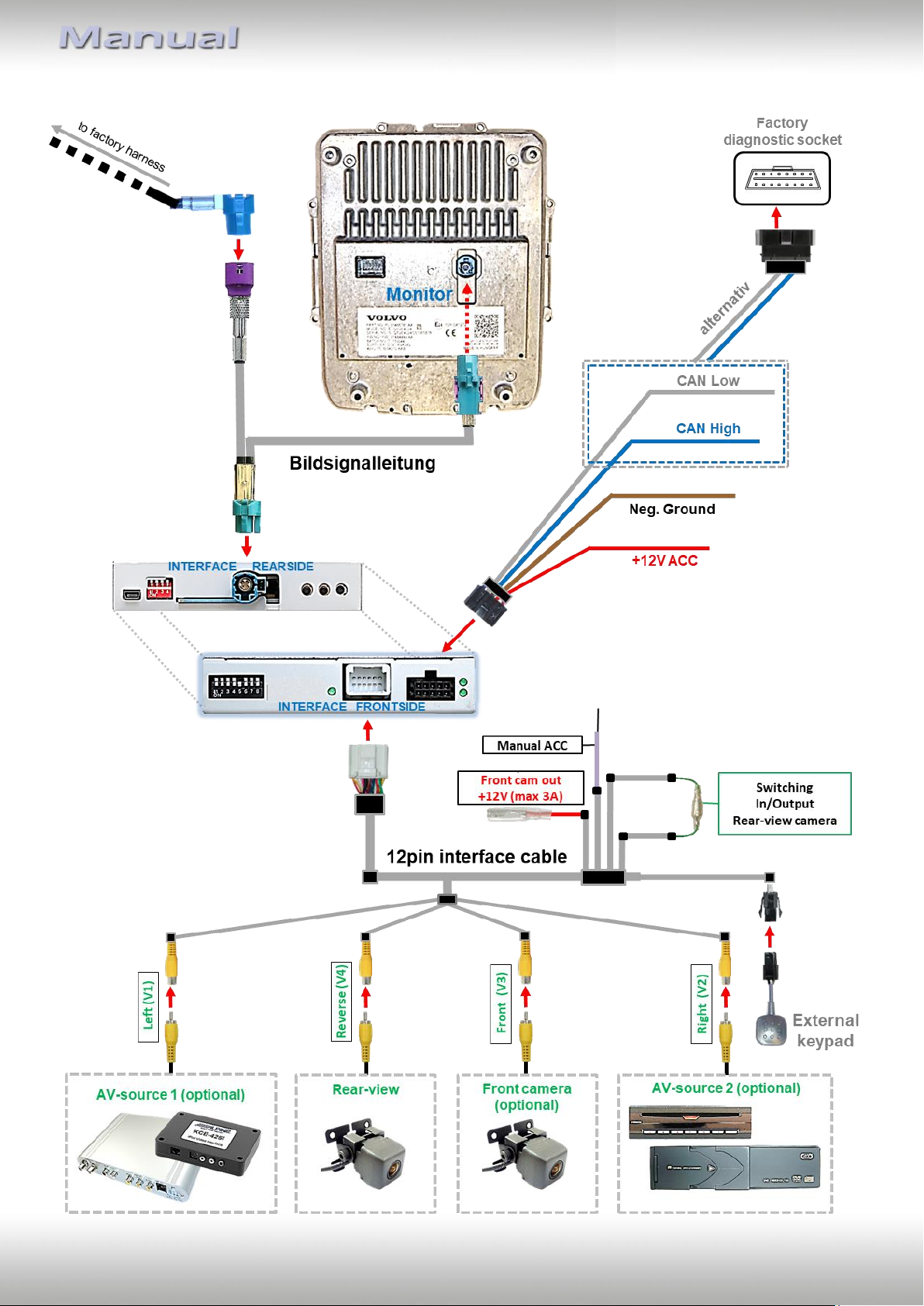

2.2. Connection schema
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 9
Pag
e9

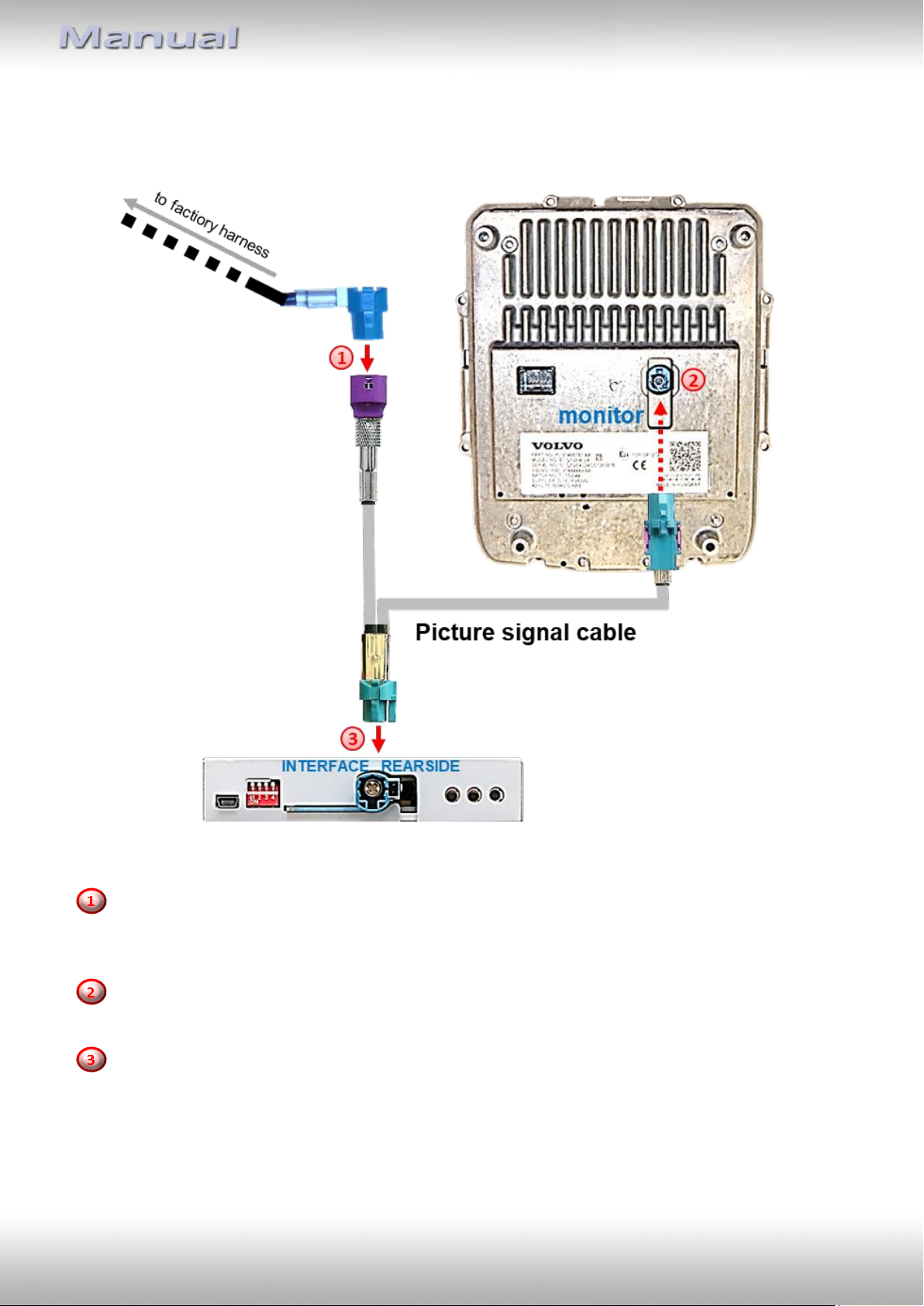

2.3. Connection – picture signal cable
Remove the head unit
Disconnect the factory picture signal cable’s blue coloured female HSD connector from the
monitor’s rear-side and connect it to the purple coloured HSD connector of the enclosed
picture signal cable.
Connect the waterblue coloured female HSD connector of the enclosed picture signal cable
to the monitor’s previously become free blue coloured male HSD connector.
Connect the opposite female waterblue coloured HSD+2 connector of the picture signal
cable to the waterblue coloured male HSD+2 connector of the video interface.
Note: The colours of the HSD connector of head unit and factory harness may vary.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 10
Pag
e10

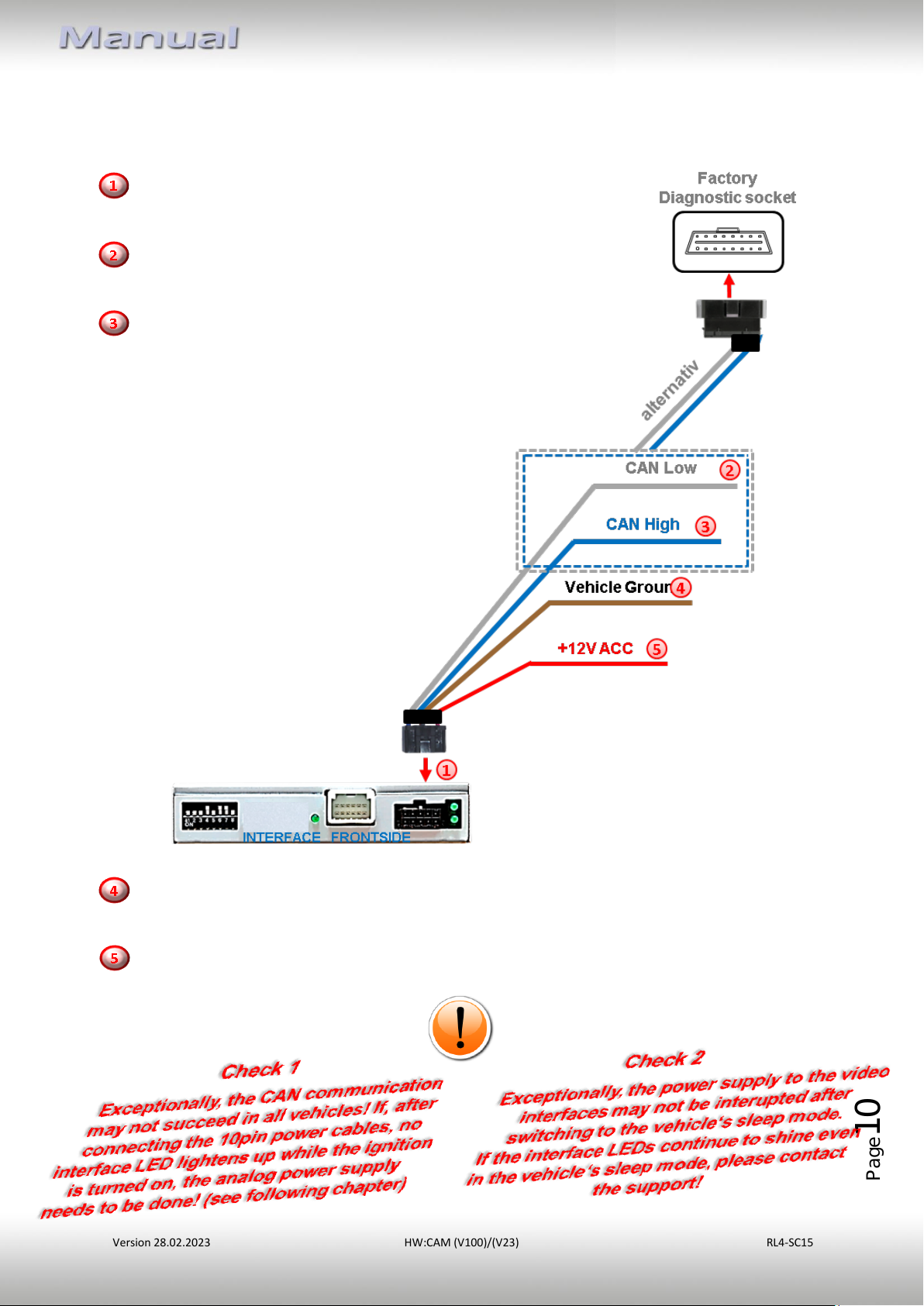

2.4. Connection – 10pin Power / CAN cable
Connect the 10pin power / CAN cable’s female 10pin connector
to the 10pin connector of the video interface.
Connect the single grey wire of the 10pin power / CAN cable
to the vehicle’s CAN-Low.
Connect the blue wire of the 10pin Power / CAN Cable
to the vehicle’s CAN-High.
Note: To handle the CAN+ and the CAN- connection, the enclosed
20pin OBD connector can alternatively be used,but a
perfect connection from behind without that connector
will avoid loose problems and dysfunction.
Connect the single brown wire of the 10pin Power / CAN Cable to vehicle’s negative
ground.
Connect the single red wire of the 10pin power/CAN cable to +12V ACC power supply.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 11
Pag
e11

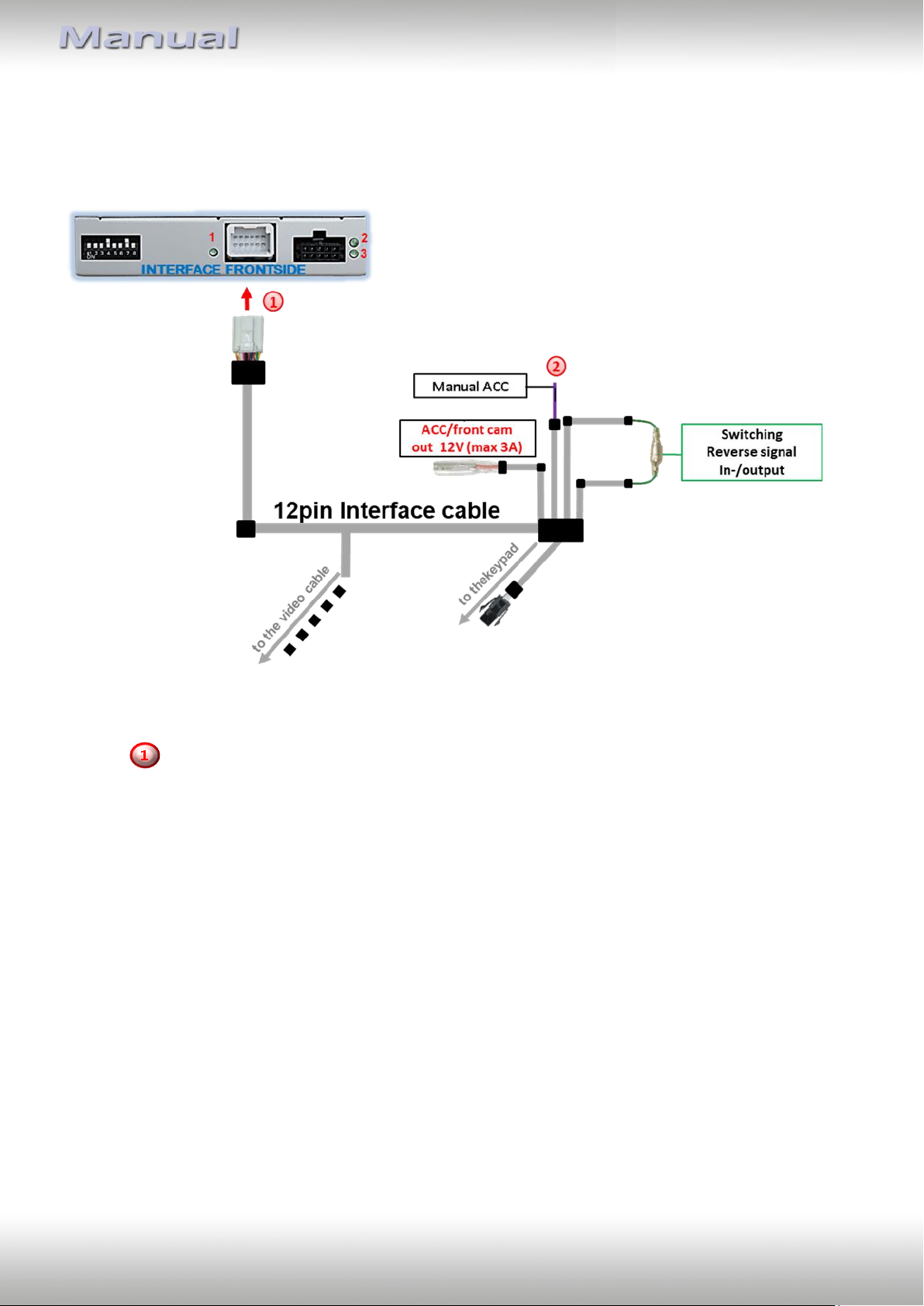

2.5. Analogue power supply for the video interface
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), the analogue connection is required.
Connect the red wire ACC-OUT and the purple coloured wire Manual ACC of the
12pin interface cable to +12V ACC power supply.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 12
Pag
e12
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay
after reverse gear is disengaged and
+12V when manually switched to front camera by keypad (short press)
Dip 1 OFF
+12V permanent (max. 3A) ACC

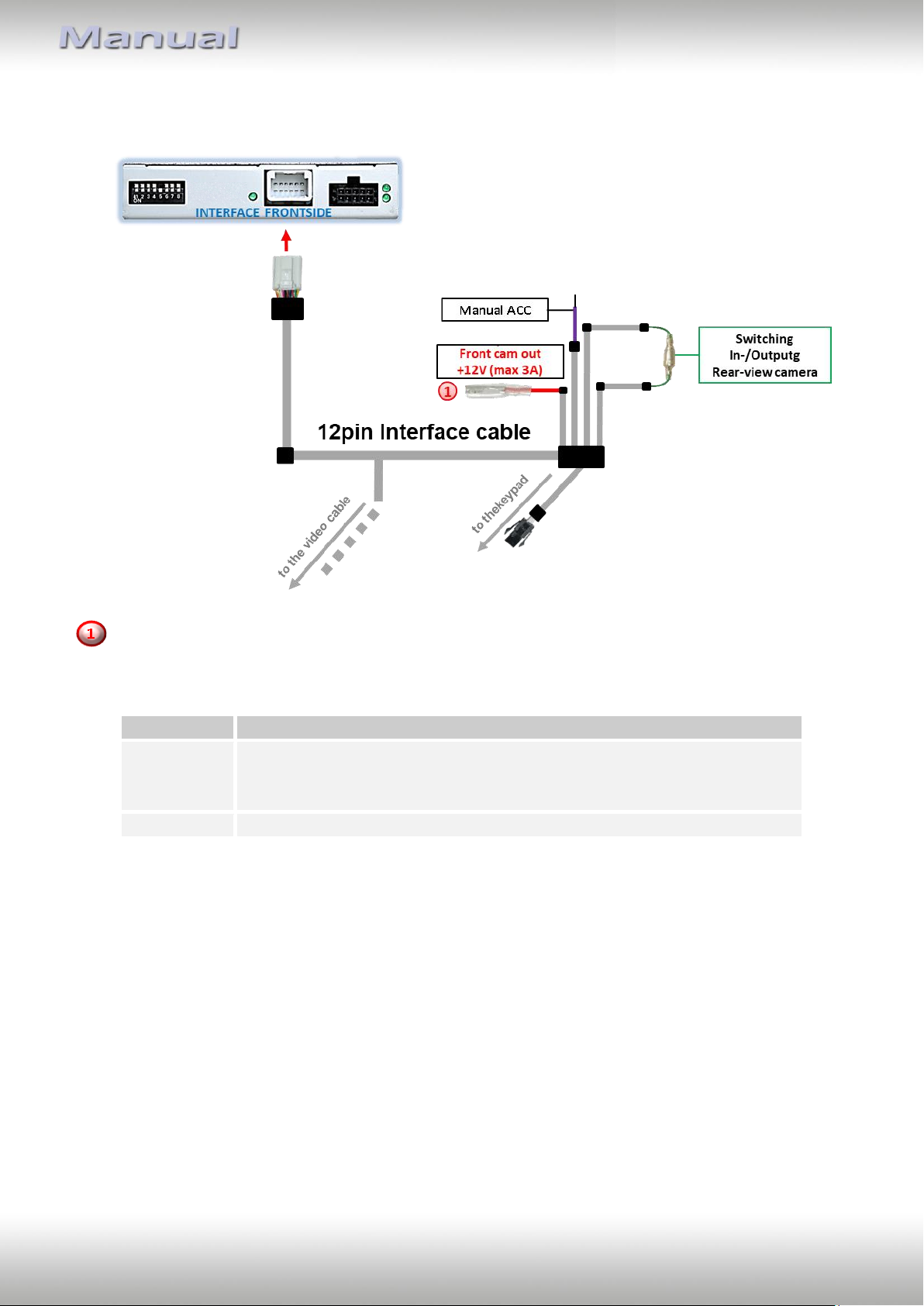

2.6. Power supply output

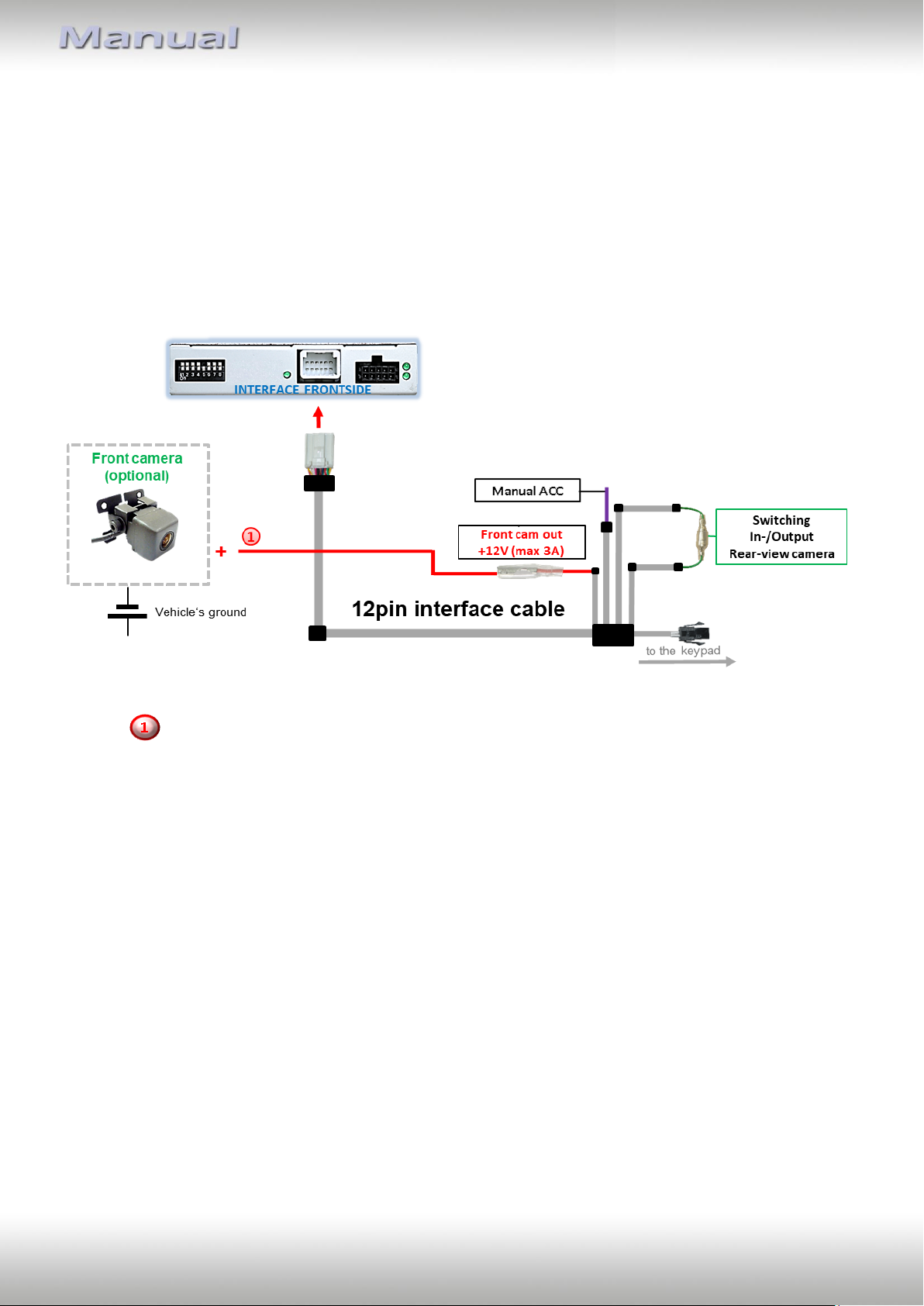

The red power supply output Front cam out +12V (max 3A) can be used to power an
external source and has a different assignment, depending on the position of dip switch 1
(of 8 dips):
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 13
Pag
e13

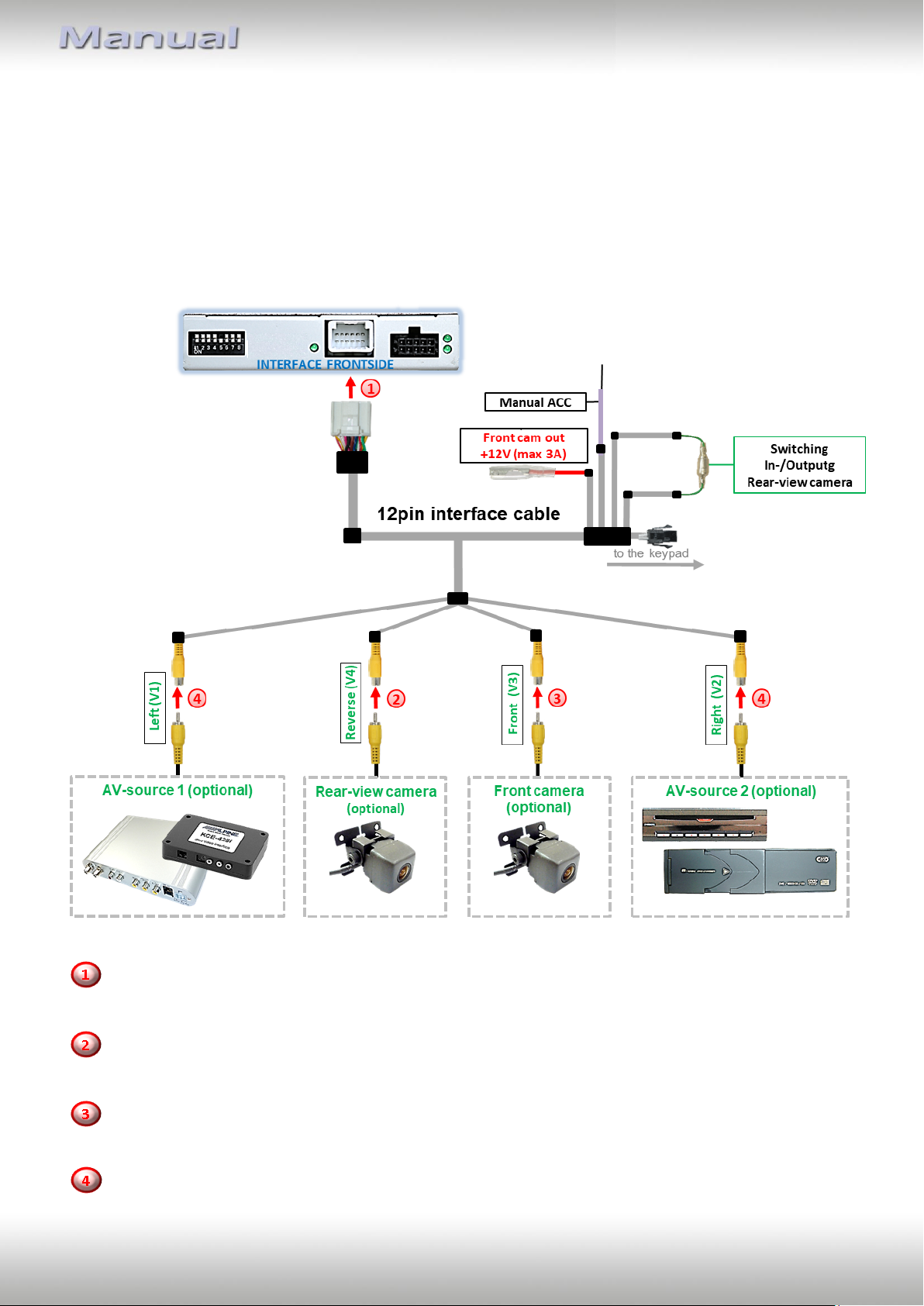

2.7. Connection - video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 14
Pag
e14
2.7.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AVsource is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audiomode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.7.2. After-market front camera
The red power supply output Front cam out +12V (max 3A) can be used to power a
front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives +12V
(max 3A) when reverse gear is engaged
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Attention: A long press of the external keypad push button will switch the interface to the
next source.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 15
Pag
e15
2.7.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.

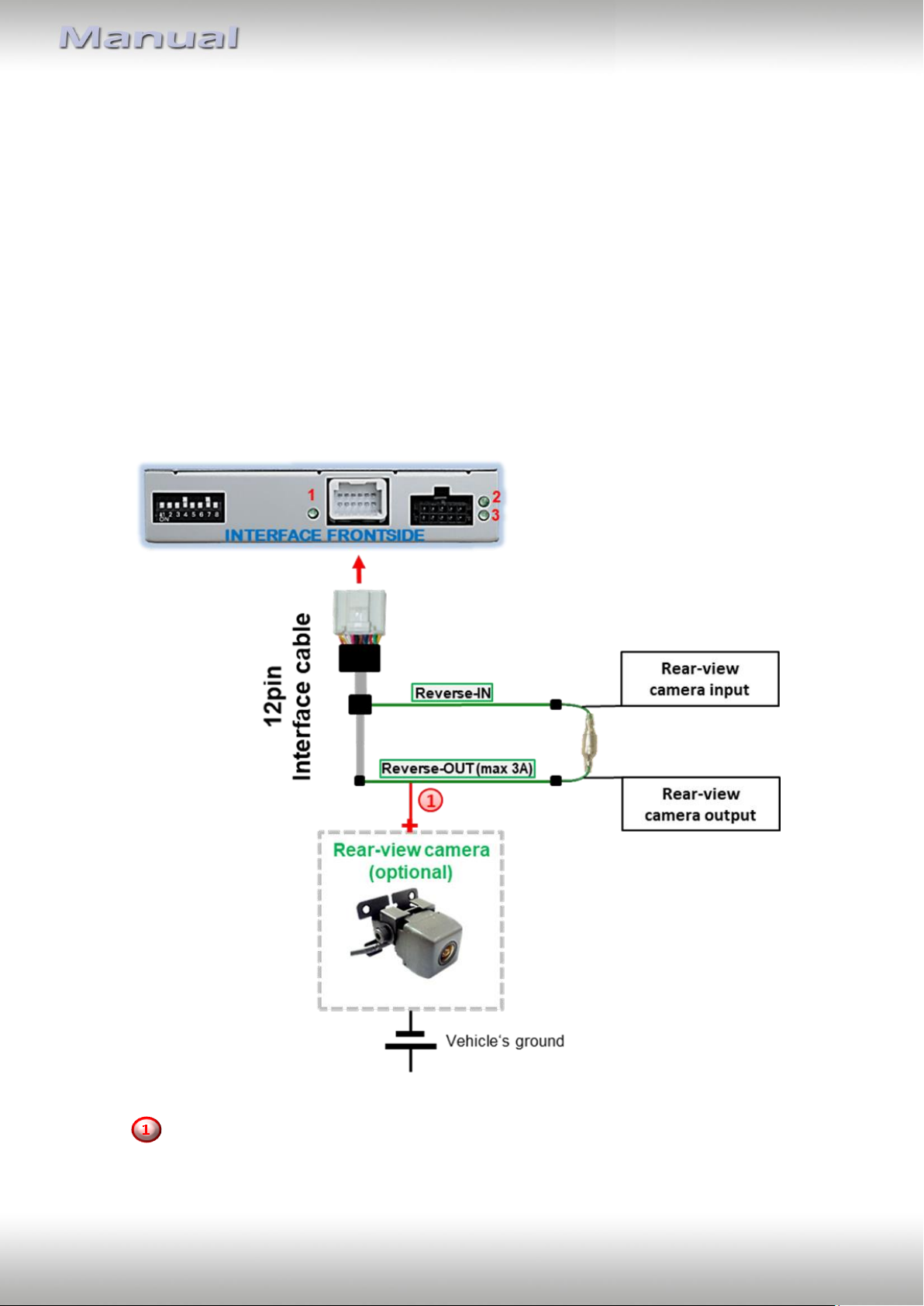

2.7.3.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken
from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary,
permanent power supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 16
Pag
e16
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltagestabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
interface cable and connect the green input cable “Reverse-IN” to the output
connector (87) of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 17
Pag
e17

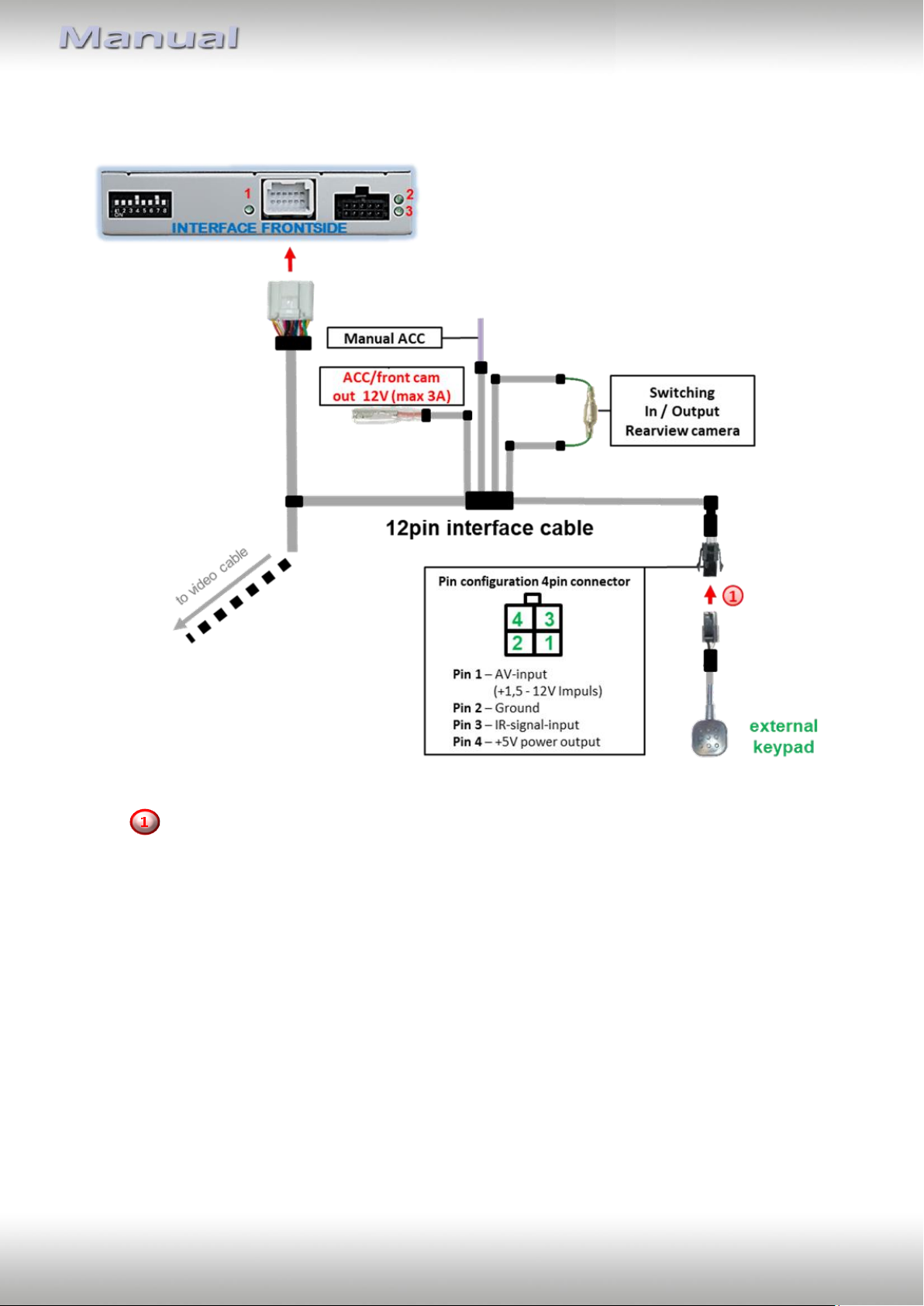

2.8. Connection - video-interface and external keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
12pin interface cable.
Note: Even if switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 18
Pag
e18
2.9. Picture settings

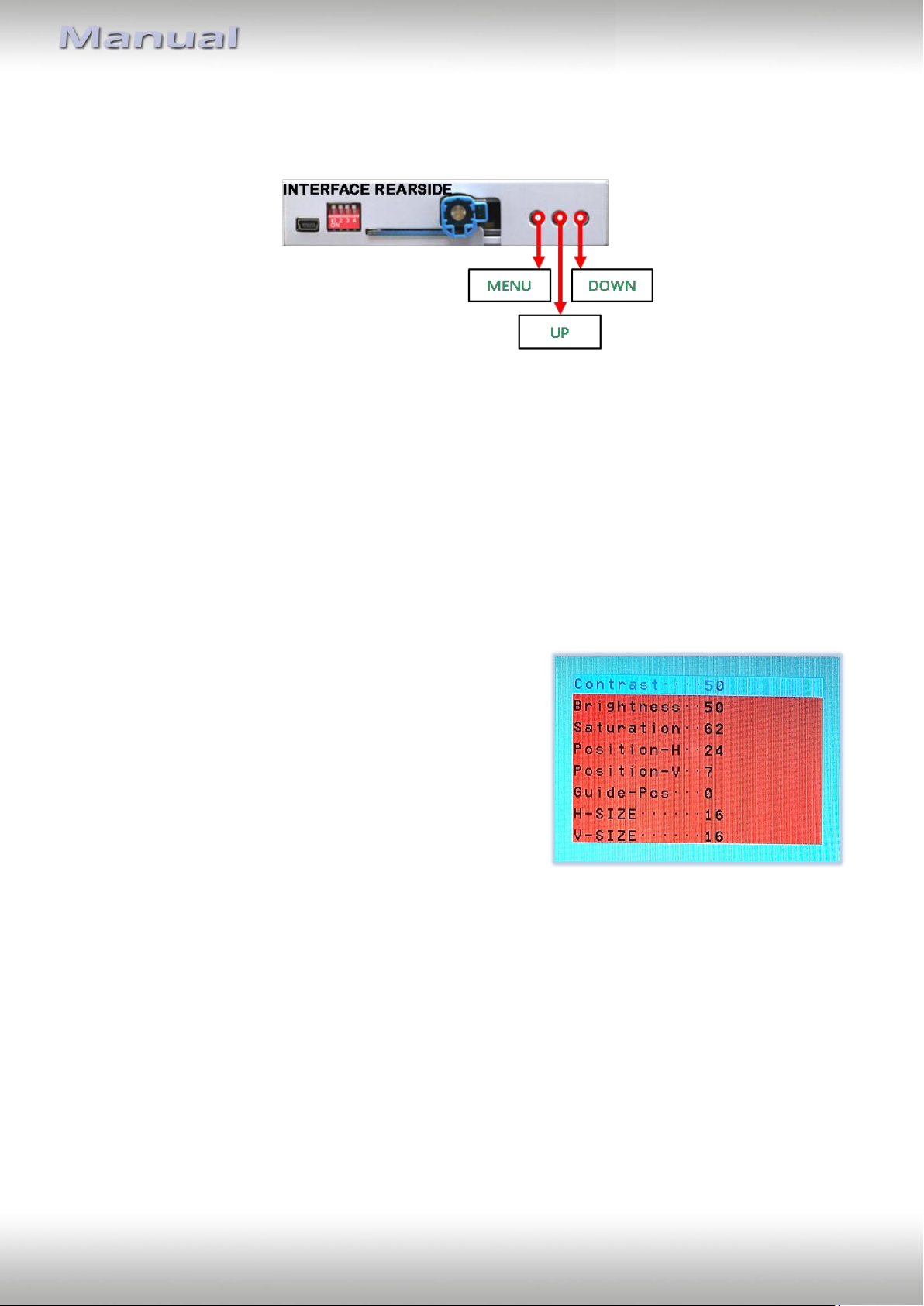

The picture settings are adjustable by the 3 push-buttons at the rear-side of the videointerface. Press the MENU button to open the OSD settings menu or to switch to the next
menu item. Press UP and DOWN to change the selected value. The buttons are placed inside
in the housing to avoid accidental changes during or after the installation. Picture settings
must be done separately for all video inputs while the corresponding input is selected and
visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
Contrast
Brightness
Saturation
Position H = horizontal picture position)
Position V = vertical picture position)
Guide-Pos = no function
H-SIZE = horizontal picture size
V-SIZE = vertical picture size
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 19
Pag
e19
3. Interface operation

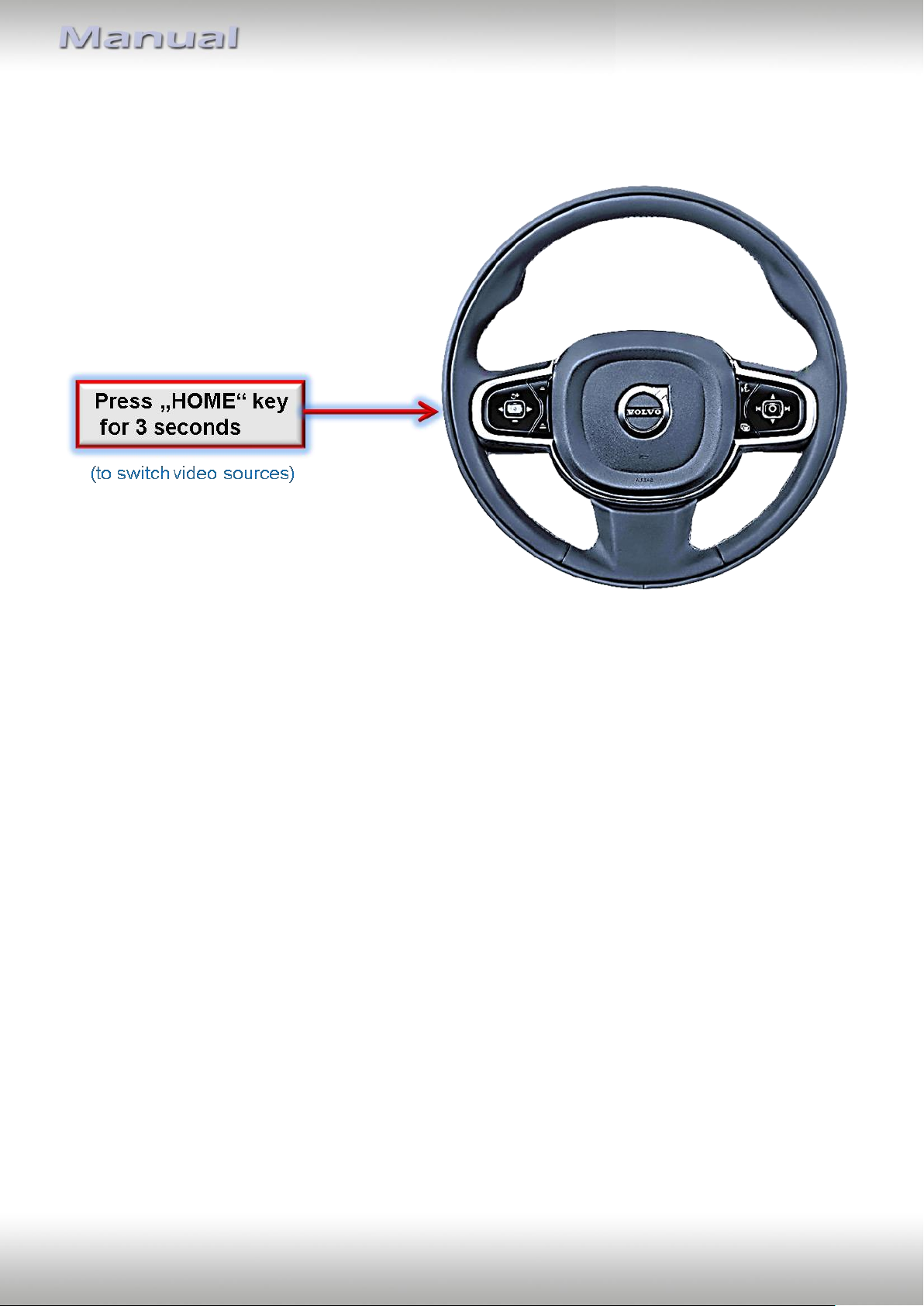

3.1. By factory infotainment button
To switch the interface’s activated video sources, the factory infotainment buttons can be
used.
Press the according infotainment button to switch the input from the factory video to the
inserted video sources. If all inputs are activated by dip switch settings, the order is the
following:
Factory video Video IN 1 Video IN 2 factory video
Each press will switch to the next enabled input. Inputs which are not enabled will be
skipped.
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad has to be used.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 20
Pag
e20
3.2. By keypad
Alternatively or additionally to the factory infotainment buttons, the interface’s external
keypad can be used to switch the enabled inputs. Even if not needed, the keypad should
always remain connected to the video interface for support purposes.
Long press of keypad (2-3 seconds)
By long pressing the external keypad (2-3 seconds), the video interfaces witches the input
from the factory video to the inserted video sources. Each long press will switch to the next
enabled input. Inputs which are not enabled will be skipped.
Note: The interface switches after releasing the switch (after long pressure).
Short press of keypad (only if DIP 1 is set to ON)
By short pressing the external keypad, the video interfaces witches from the factory video to
the front camera input and back to factory video.
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 10mA
Power 250mA @12V
Video input 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 104 mm (W x H x D)
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 21
Pag
e21

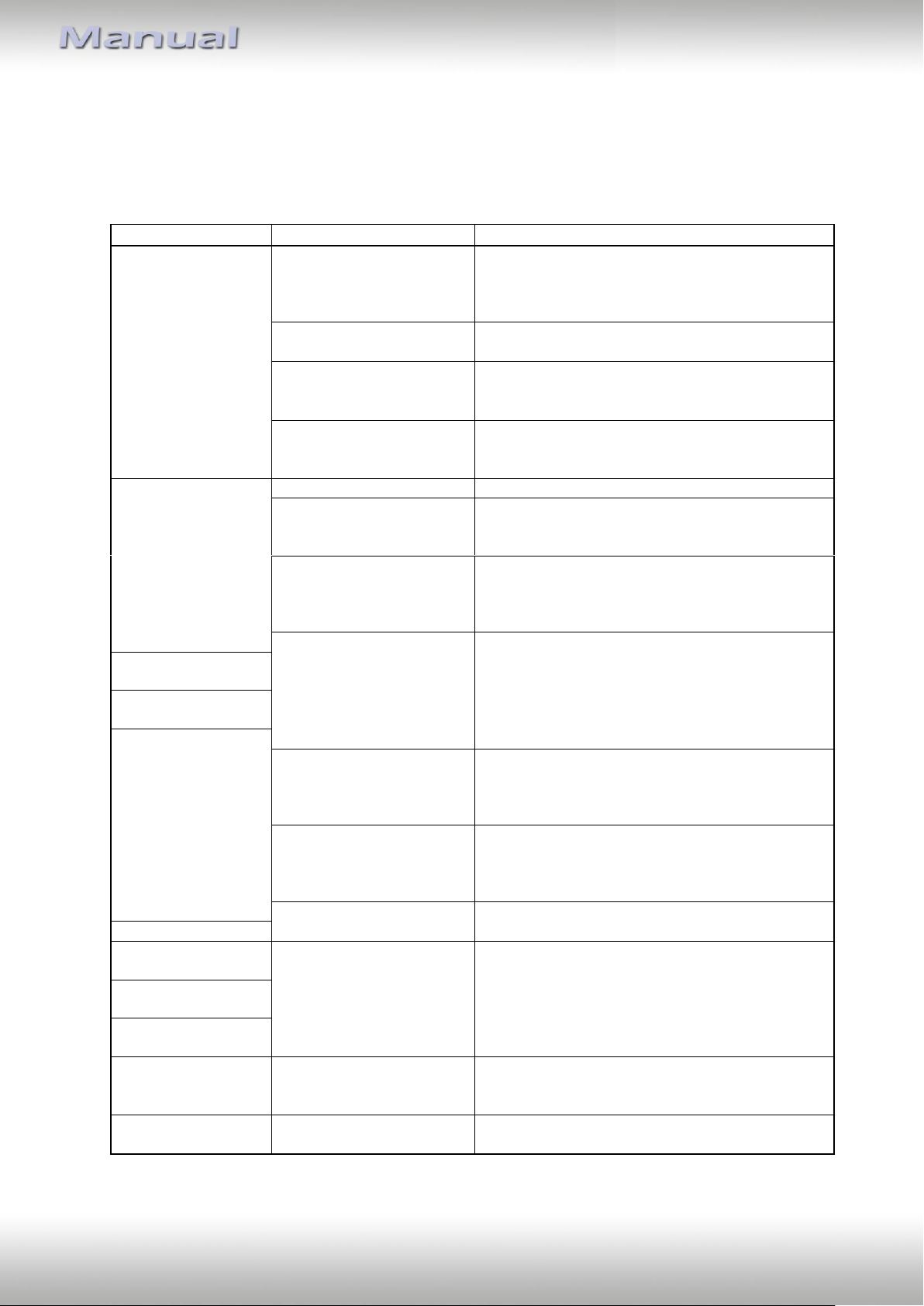

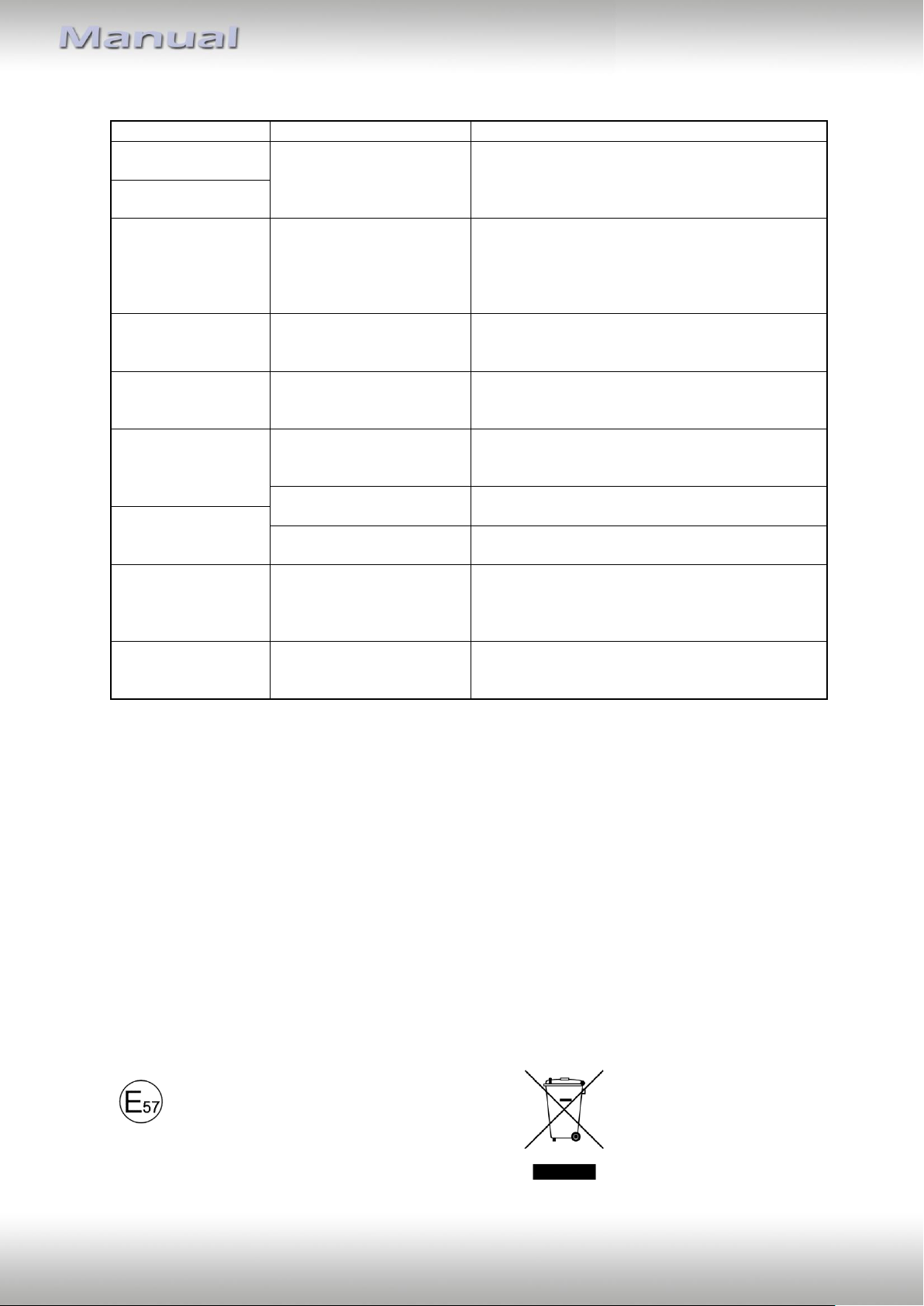

Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory headunit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CANbus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into headunit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of videointerface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.
5. FAQ – Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Page 22
Pag
e22
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
Made in China
6. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Heidberghof 2
D-47495 Rheinberg
Tel +49 2843 17595 00
Email [email protected]
10R-05 0068
Version 28.02.2023 HW:CAM (V100)/(V23) RL4-SC15
Loading...
