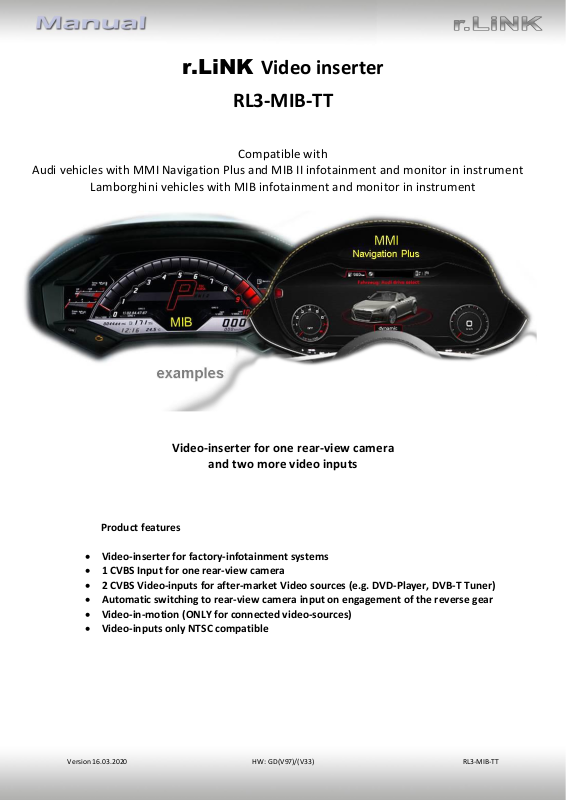

r.LiNK Video inserter
RL3-MIB-TT

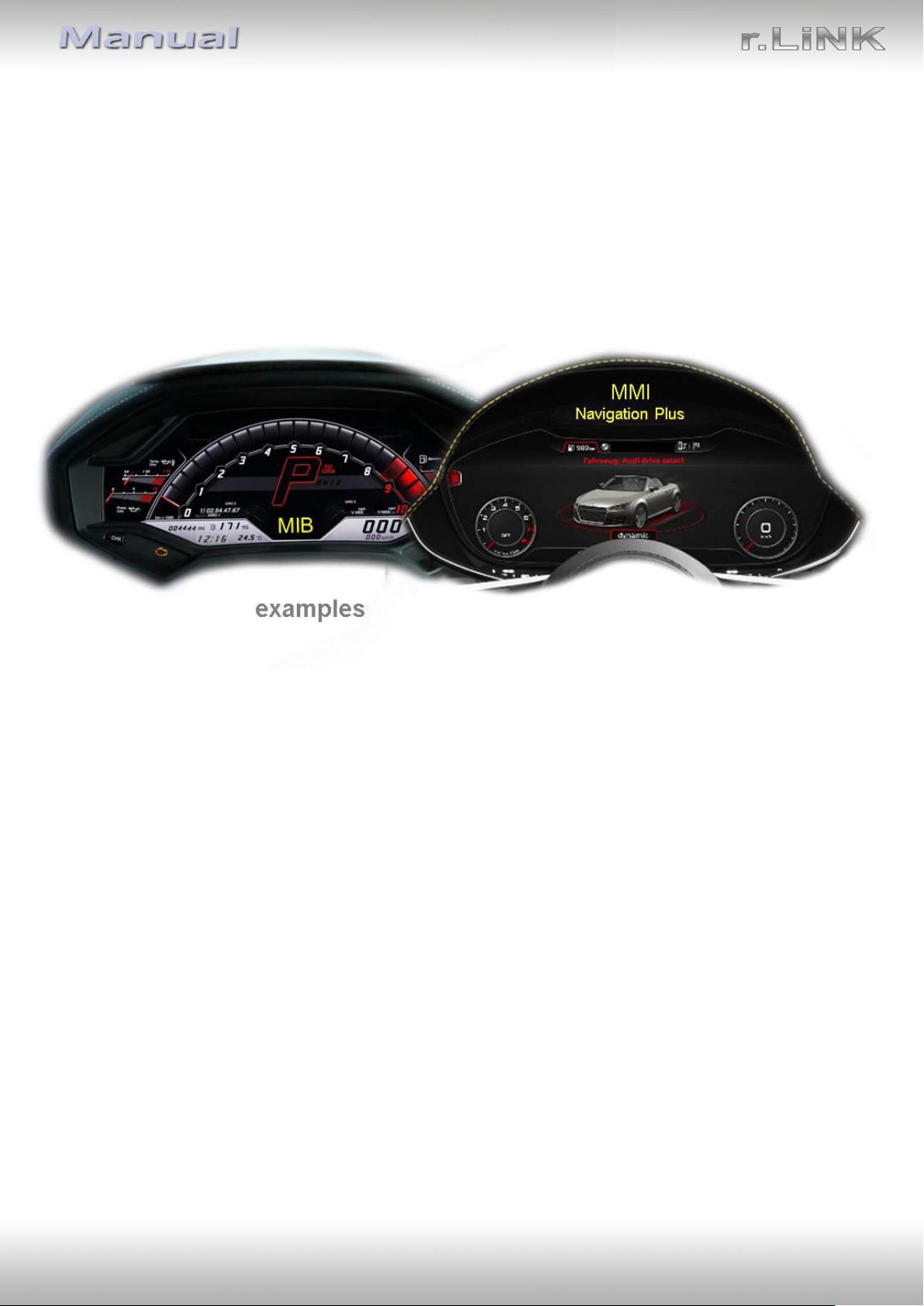

Compatible with
Audi vehicles with MMI Navigation Plus and MIB II infotainment and monitor in instrument
Lamborghini vehicles with MIB infotainment and monitor in instrument
Video-inserter for one rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs only NTSC compatible
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 2
Pag
e2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors – video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1.1. Enabling the interface’s video inputs (dip 2-3)
1.4.1.2. Vehicle selection (dip 4)
1.4.1.3. Rear-view camera setting (dip 5)
1.4.1.4. Monitor selection (Dip 6, 7,-8)
1.5. Settings of the 4 Dip switches (CAN function – red)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection to the factory head unit
2.4. Power – and CAN connection for the video interface
2.5. Analog power supply for the video interface
2.6. Connection of video-sources
2.6.1. Audio insertion
2.6.2. After-market rear-view camera
2.6.2.1. Case 1: Interface receives the reverse gear signal
2.6.2.2. Case 2Interface does not receive the reverse gear signal
2.6.2.3. Rear-view camera – presentation in instrument
2.7. Connecting video-interface and external keypad
2.8. Picture settings
3. Interface operation by external keypad
4. Specifications
5. FAQ – Trouble Shooting-Interface functions
6. Technical support
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 3
Pag
e3
Take down the serial number of the interface and store this manual for support
purposes: ____________________
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-viewcamera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.

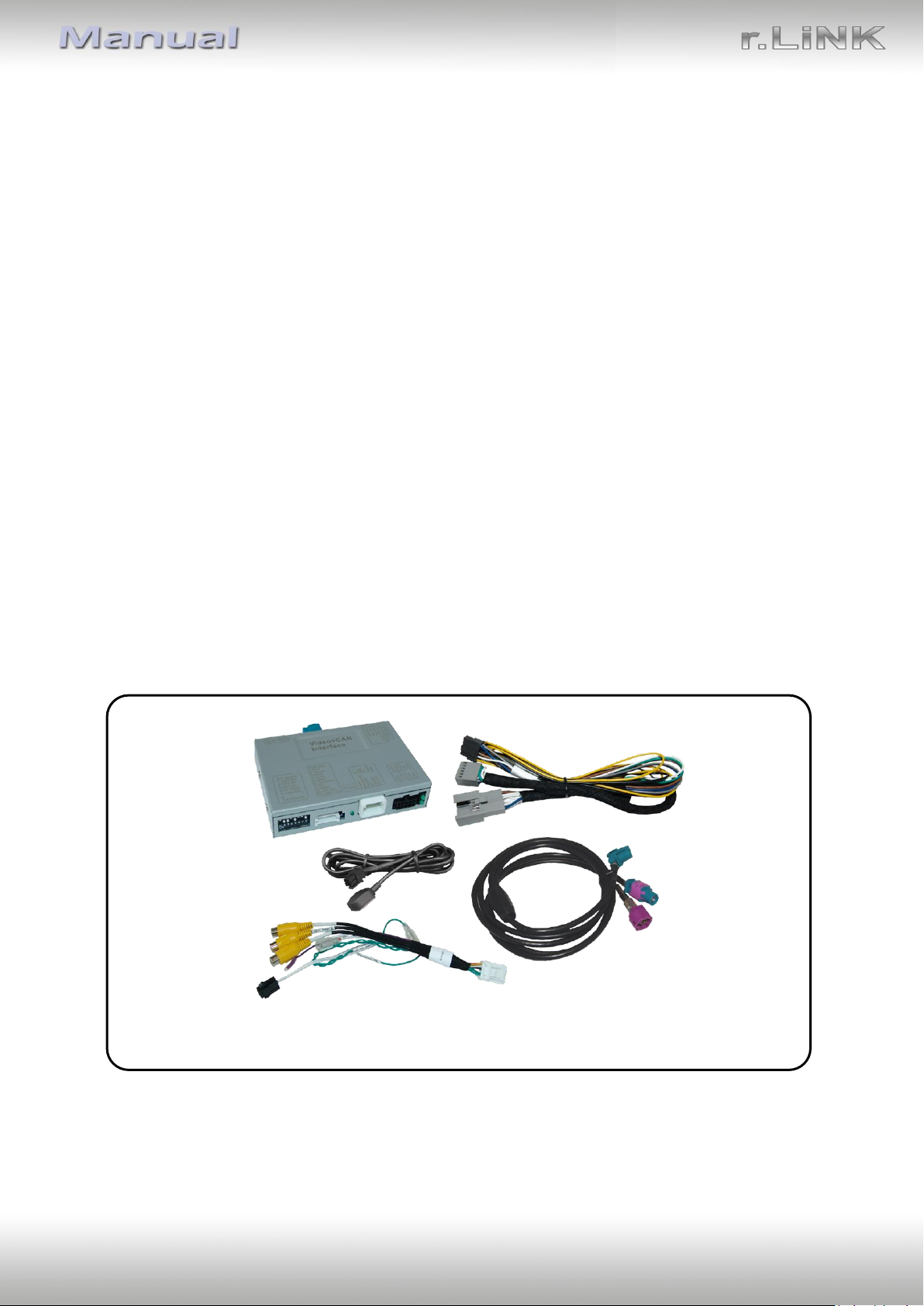

1.1. Delivery contents
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 4
Pag
e4
Requirements
Brand
Compatible vehicles
Compatible systems
Audi
R8 (4S) since model year 05/2015
TT (8S) since model year 07/2014
MMI Navigation Plus - MIB II
main-Unit with monitor in
instrument
Lamborghini
Huracan since model year 2016
MIB with monitor in instrument
Limitations:
Video only The interface inserts ONLY video signals into the infotainment. For
inserting Audio signals either the possibly existing factory audio-AUXinput or a FM-modulator can be used. If 2 audio sources shall be
connected to the infotainment, an additional electronic is necessary to
switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back an additional electronic part is required.
Video input signal only NTSC compatible
1.2. Checking the compatibility of vehicle and accessories

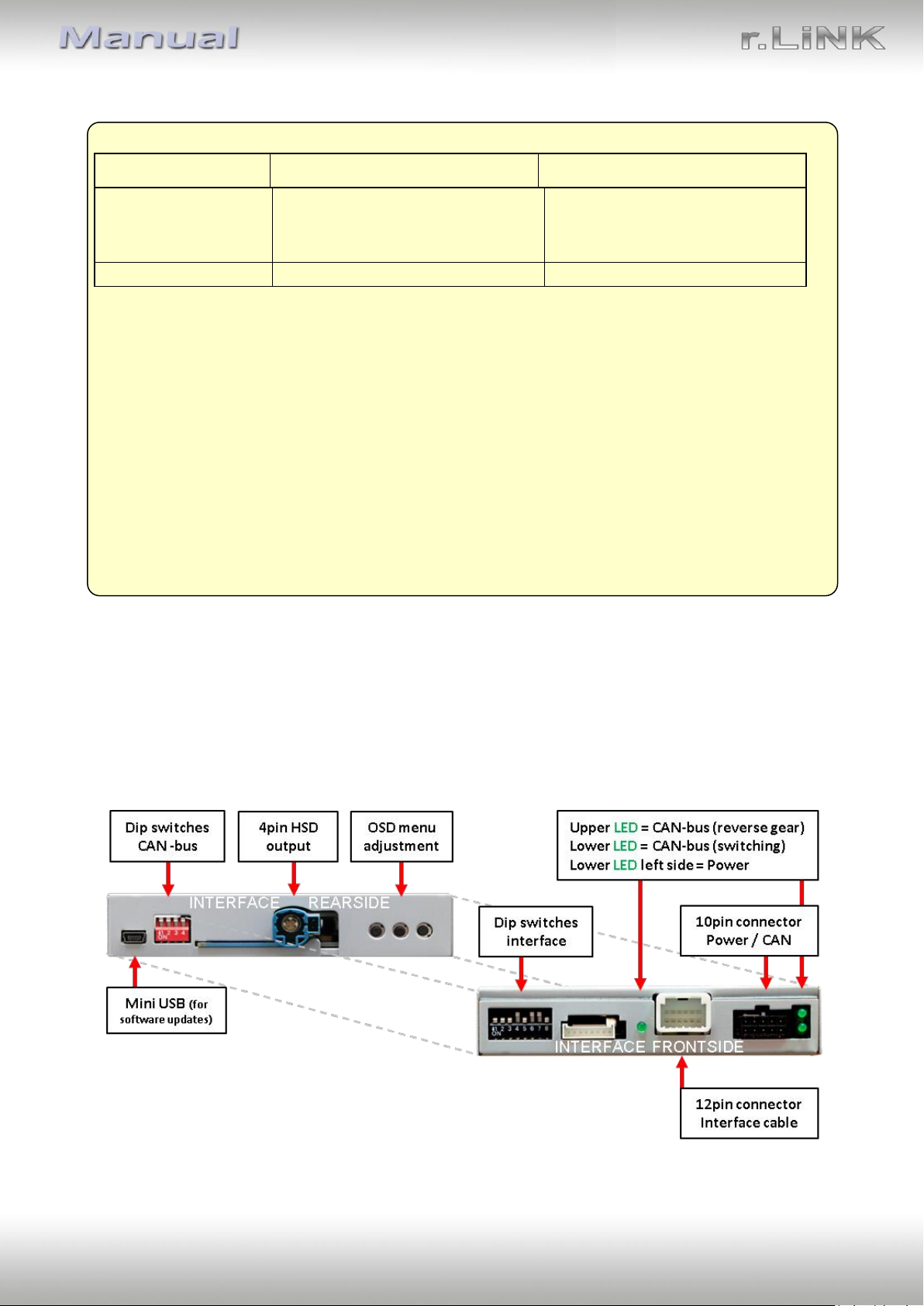

1.3. Boxes and connectors – video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 5
Pag
e5
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
CVBS Video 1-input
enabled
disabled
3
CVBS Video 2-input
enabled
disabled
4
Vehicle selection
Audi
Lamborghini
5
Rear-view cam type
after-market
factory or none
6
7
8
Monitor
adjustment
For Lamborghini try all 6
possible combinations of
Dips 6, 7 and 8 to receive
the best picture (quality
and size) or see chapter
“Monitor adjustment (Dip
6-8)”
For Audi set to OFF

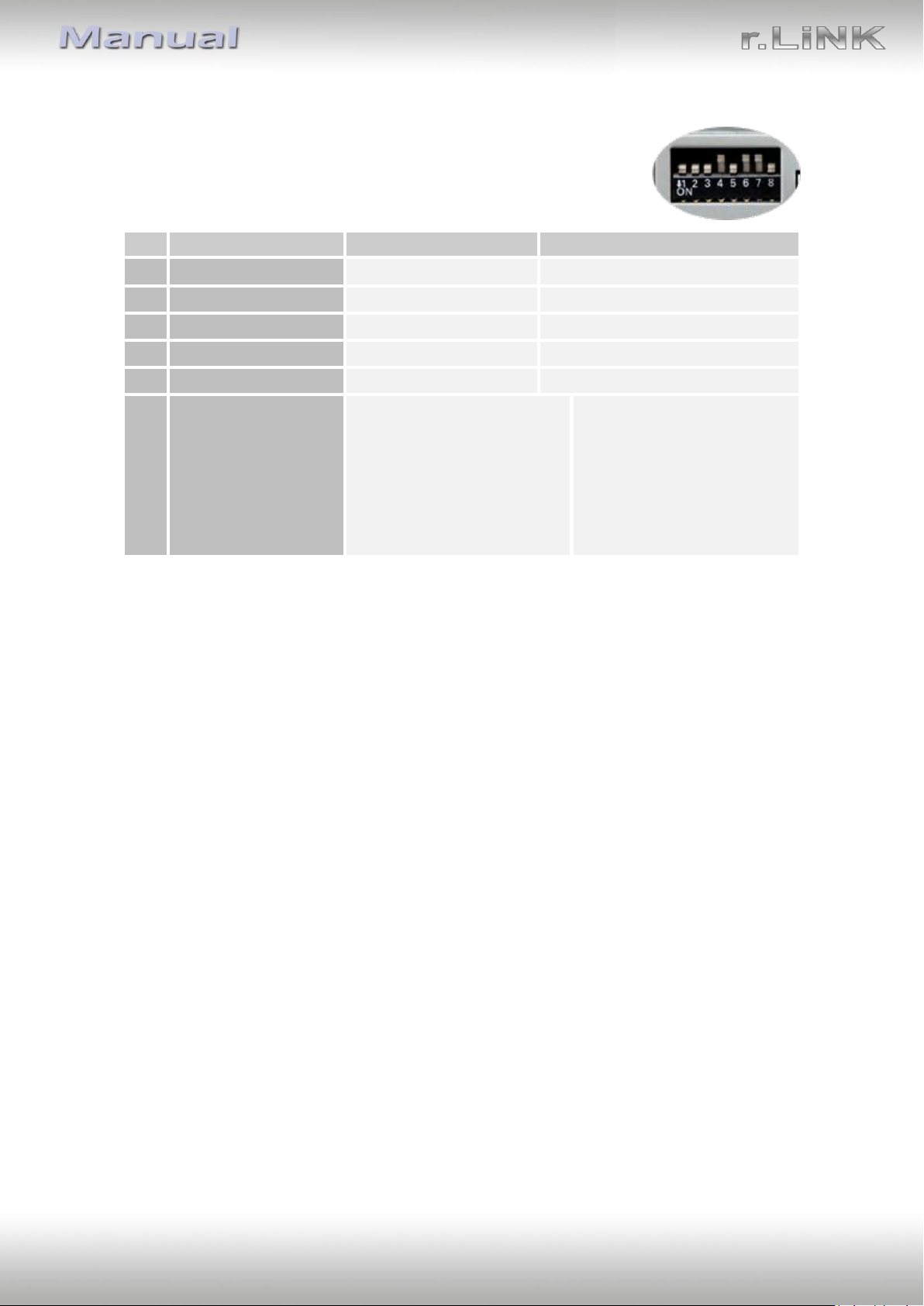

1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
1.4.1.1. Enabling the interface’s video inputs (dip 2-3)
Only by dip switches enabled video inputs can be accessed by switching through the
interface’s video sources. It is recommended to enable only the required inputs. Disabled
inputs will be skipped while switching through the video interfaces inputs.
1.4.1.2. Vehicle selection (dip 4)
Dip switch setting ON = Audi vehicles
Dip switch setting OFF = Lamborghini vehicles
1.4.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 6
Pag
e6
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
1.4.1.4. Monitor selection (Dip 6,7,8) - only for Lamborghini vehicles
For Audi vehicles, set all 3 dips to OFF.
For Lamborghini vehicles dips 6, 7 and 8 customize the monitor-specific video settings which
sometimes even vary within head units of the same version, caused by different monitor
specifications. It is necessary to try all possible combinations while a working video source is
connected to the chosen input of the interface. One of the six combinations will show the
best picture size and quality (some may give no picture). It is possible to first hot plug
through the dip combinations. If there is no change of picture visible after trying all 6
options, retry and disconnect the 10pin plug of the Quadlock connector between every
change of the dip setting.

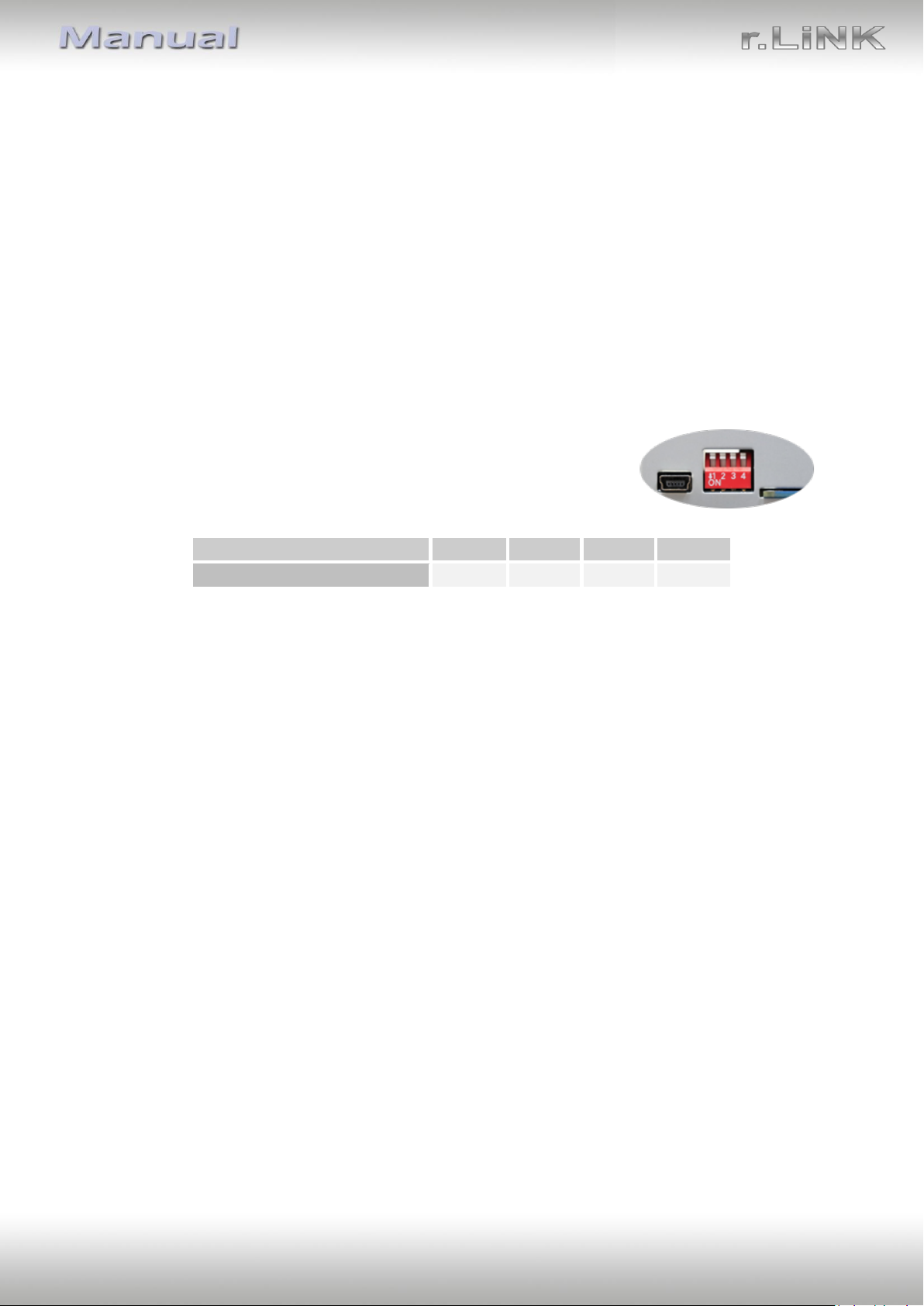

1.5. Settings of the 4 Dip switches (CAN functions – red)
All 4 dip-switches of the video interface have no function for
normal use and have to be set to OFF.
Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The interface has to be installed at a suitable location behind the Radio or behind the glove
compartment, depending on the place where the vehicle’s head unit is installed.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 7
Pag
e7

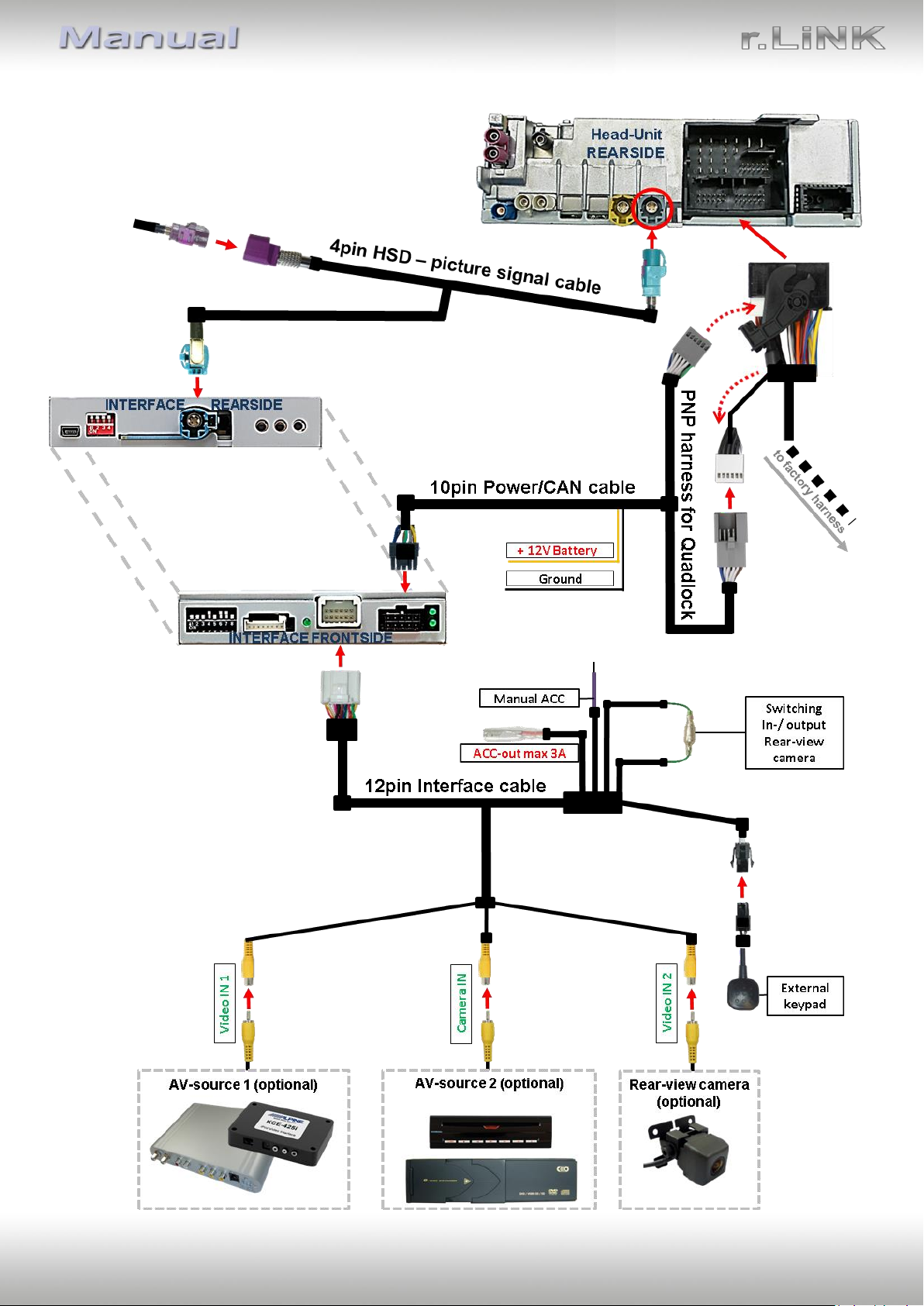

2.2. Connection schema
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 8
Pag
e8

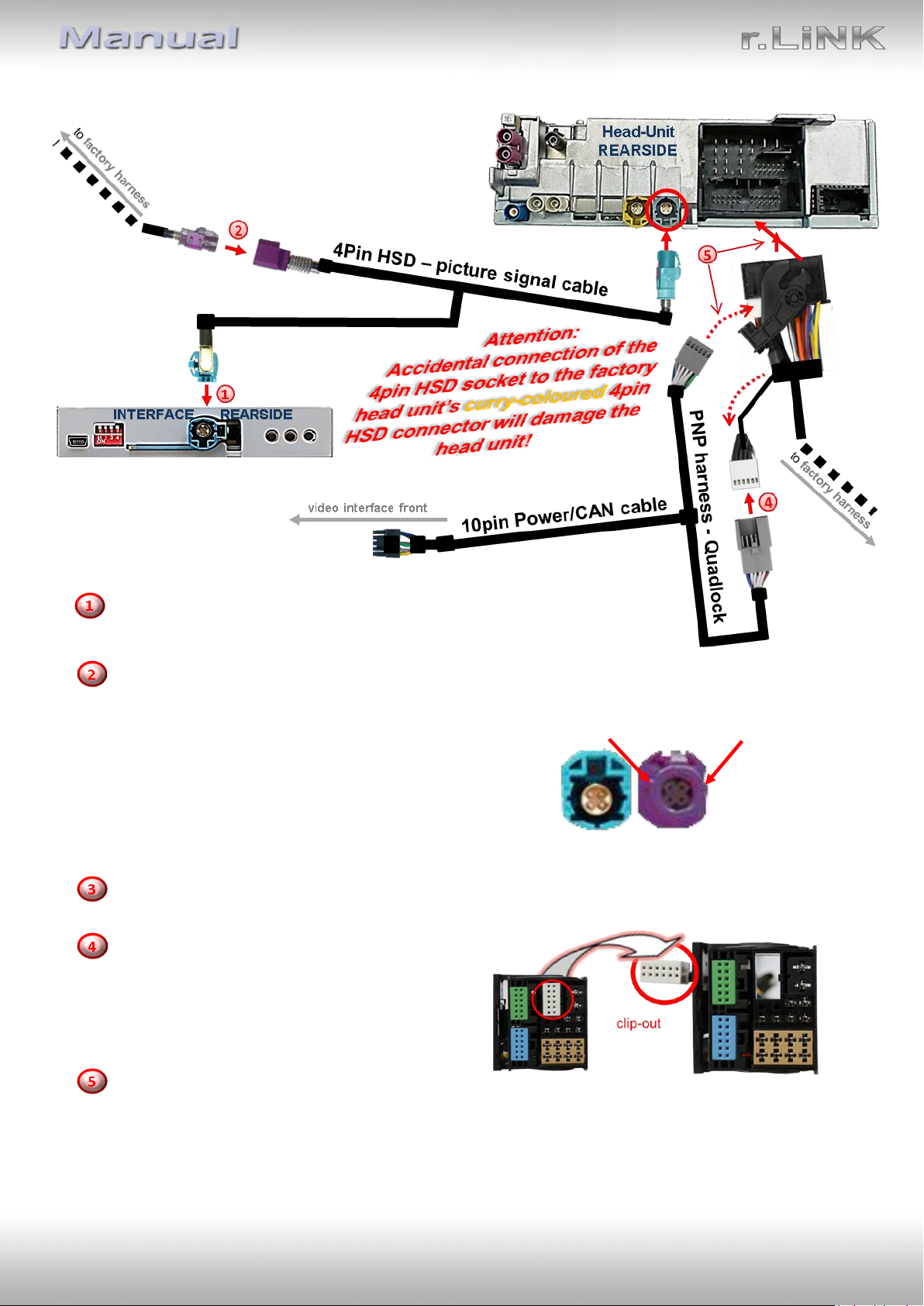

2.3. Connections to the factory head-unit
Remove the head-unit.
Connect the female HSD+2 connector of the 4pin HSD picture signal cable
to the video-interface’s male HSD+2 connector.
Disconnect the female 4pin HSD connector of the vehicle harness from the rear of the
head-unit and connect it to the male 4pin HSD connector of the 4pin HSD picture signal
cable.
Note: If required, the marked lugs of the
female 4pin HSD LVDS connector have to be
cut off! Further, the colour of the female
4pin HSD connector may vary between
pink and grey, depending on the installed monitor.
Connect the female 4pin connector of the 4pin HSD picture signal cable to the male 4pin
HSD LVDS connector of the head-unit (colours may vary!).
Remove the female Quadlock connector of the vehicle
harness from the rear of the head-unit and
connect the previously clipped out white
female 12pin connector (see graphic) to the
male 12pin connector of the PNP harness.
Clip in the female 12pin connector of the PNP
harness in the previously become free position of the female Quadlock connector before
finishing the Quadlock reconnection at the rear of the head-unit.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 9
Pag
e9

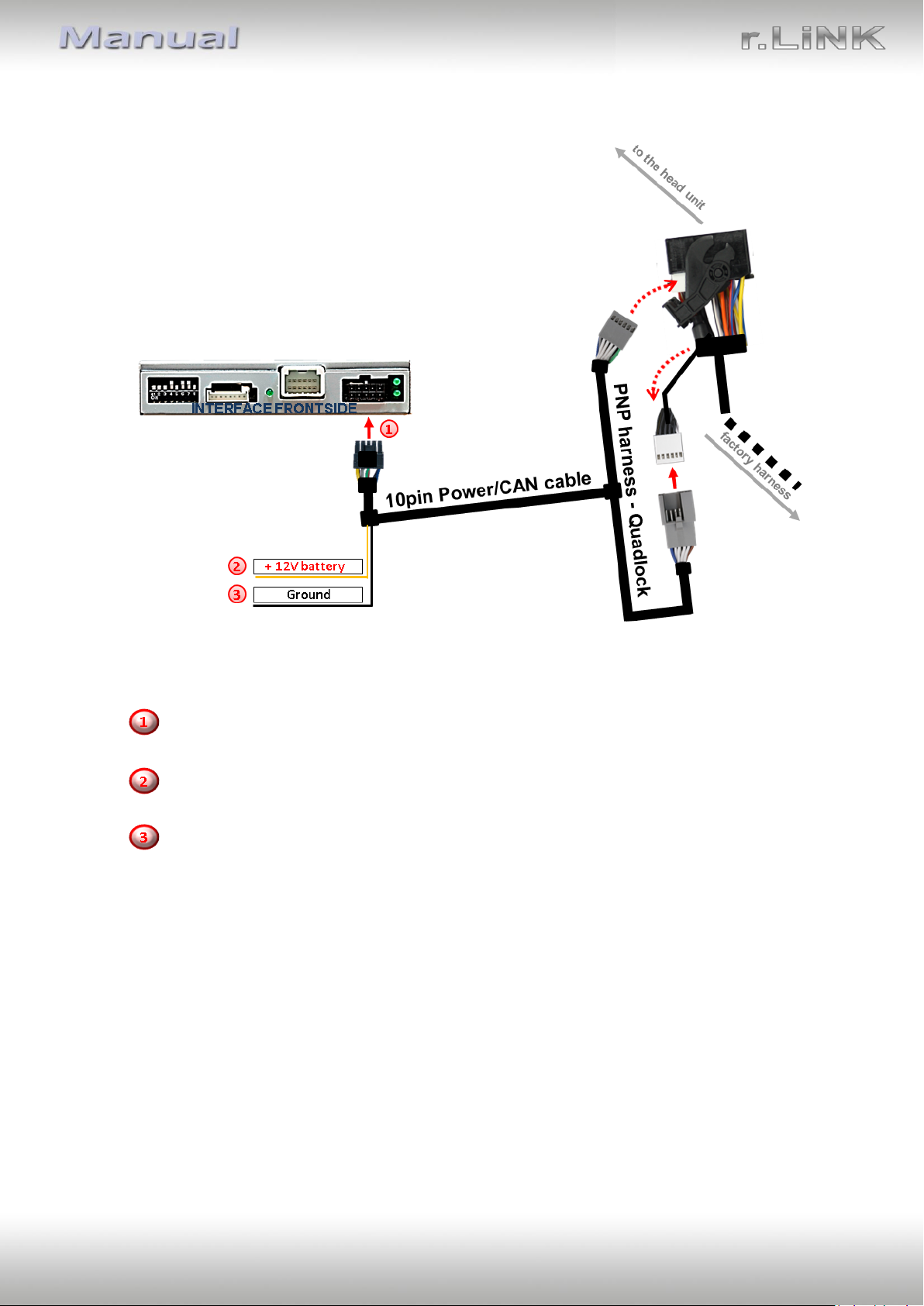

2.4. Power – and CAN connection for the video interface
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin
connector of the interface
Connect the single, yellow wire of the 10pin power/CAN cable to +12V permanent
and stabile power supply.
Connect the single, black wire of the 10pin power/CAN cable to the vehicle’s negative
ground.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 10
Pag
e10

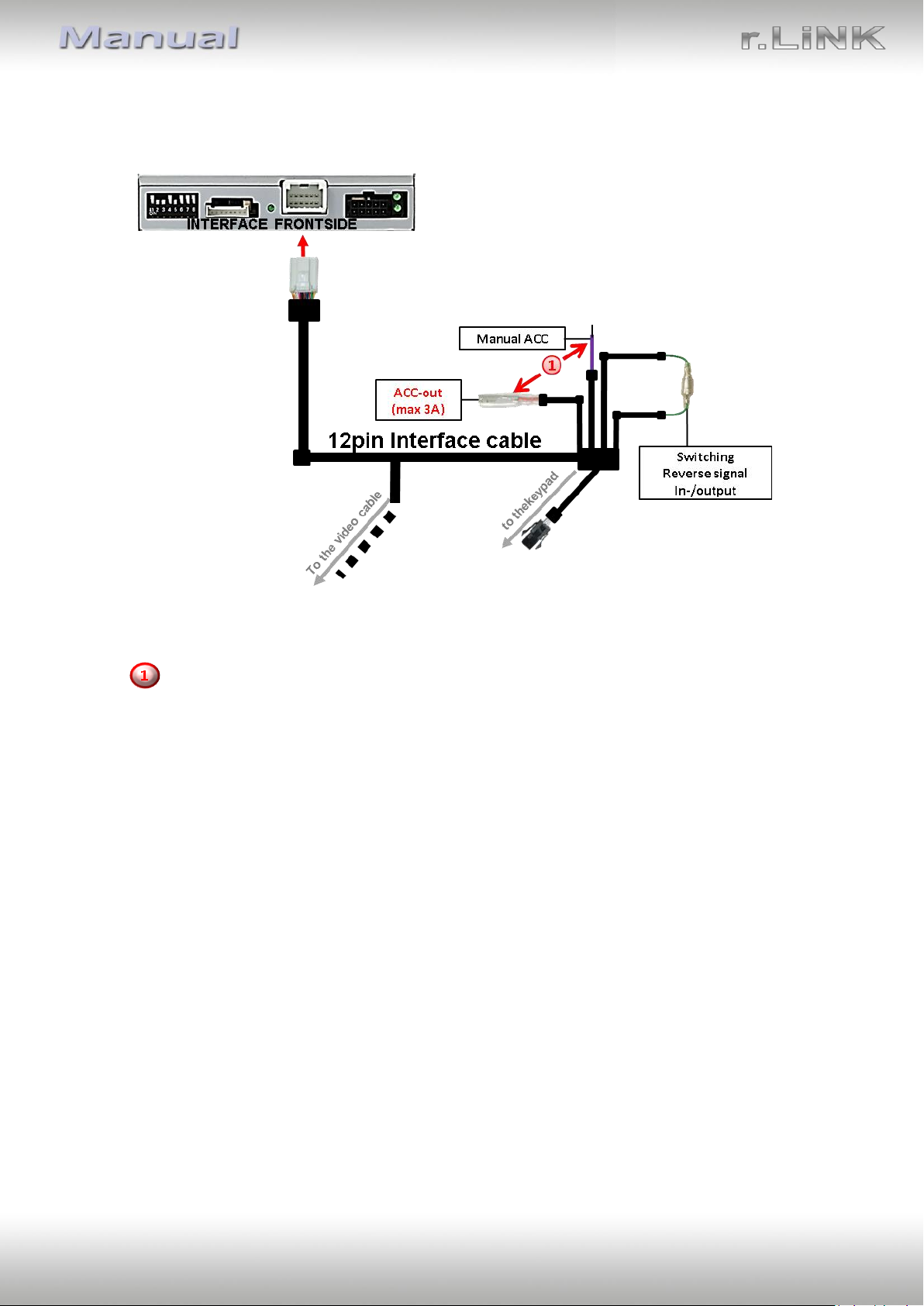

2.5. Analog power supply for the video interface
If, after connecting the PNP harness, no interface LED lightens up while the ignition is
turned on, the single red wire ACC-out (max 3A) and the purple coloured wire
Manual ACC of the 12pin interface cable both have to be connected additionately to
S-contact terminal 86s +12V (e.g. glove compartment illumination).
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 11
Pag
e11

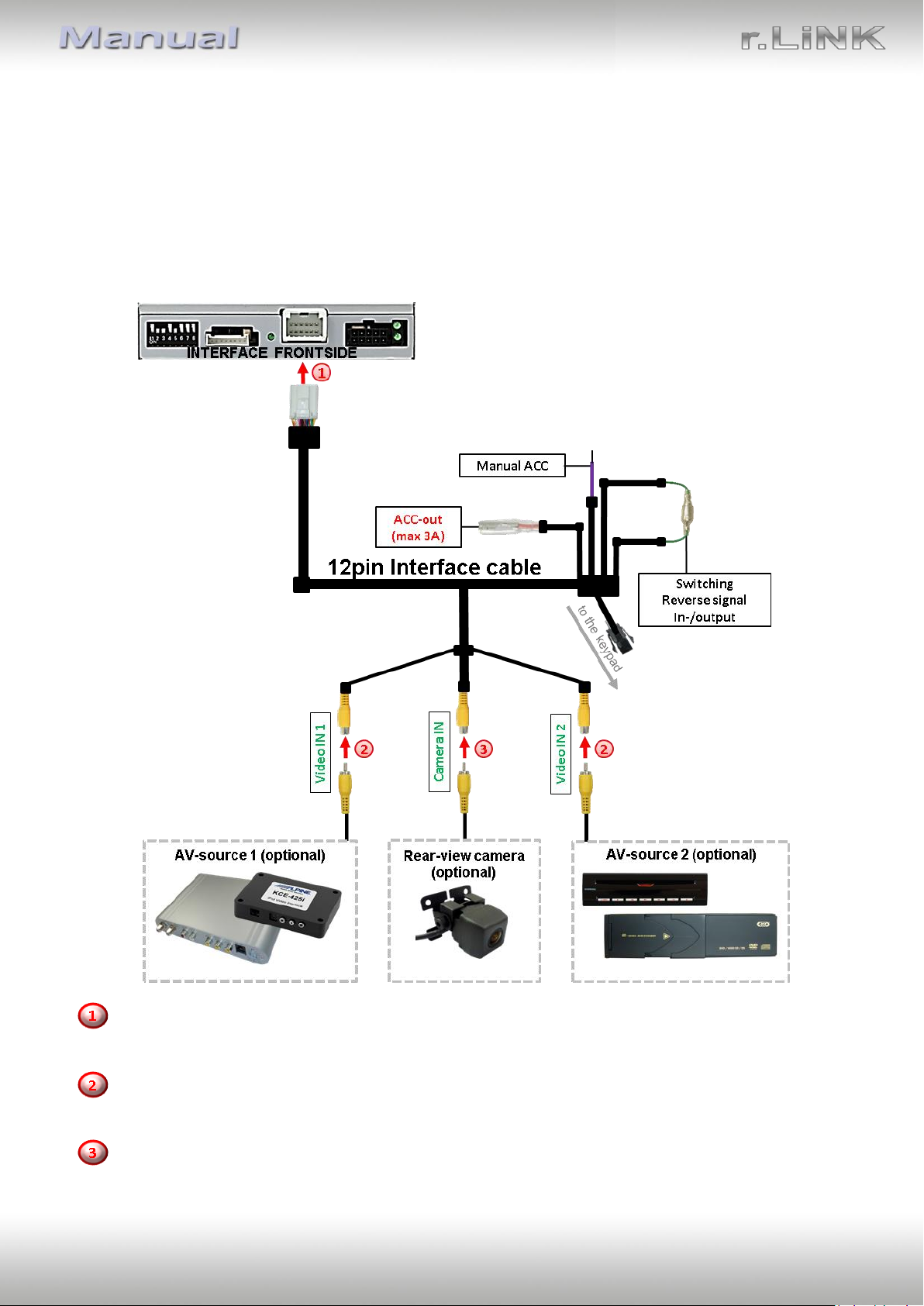

2.6. Connecting video sources
It is possible to connect an after-market rear-view camera and two more AV sources to the
video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the AV source 1 and 2 to the female RCA connector “Video IN1”
and ”Video IN 2” of the 12pin interface cable.
Connect the video RCA of the Rear-view camera to the female RCA connector “Camera IN”
of the 20pin interface cable (refer also to chapter “Video signal connection of the rear-view
camera”)
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 12
Pag
e12
2.6.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AVsource is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audiomode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.6.2. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.

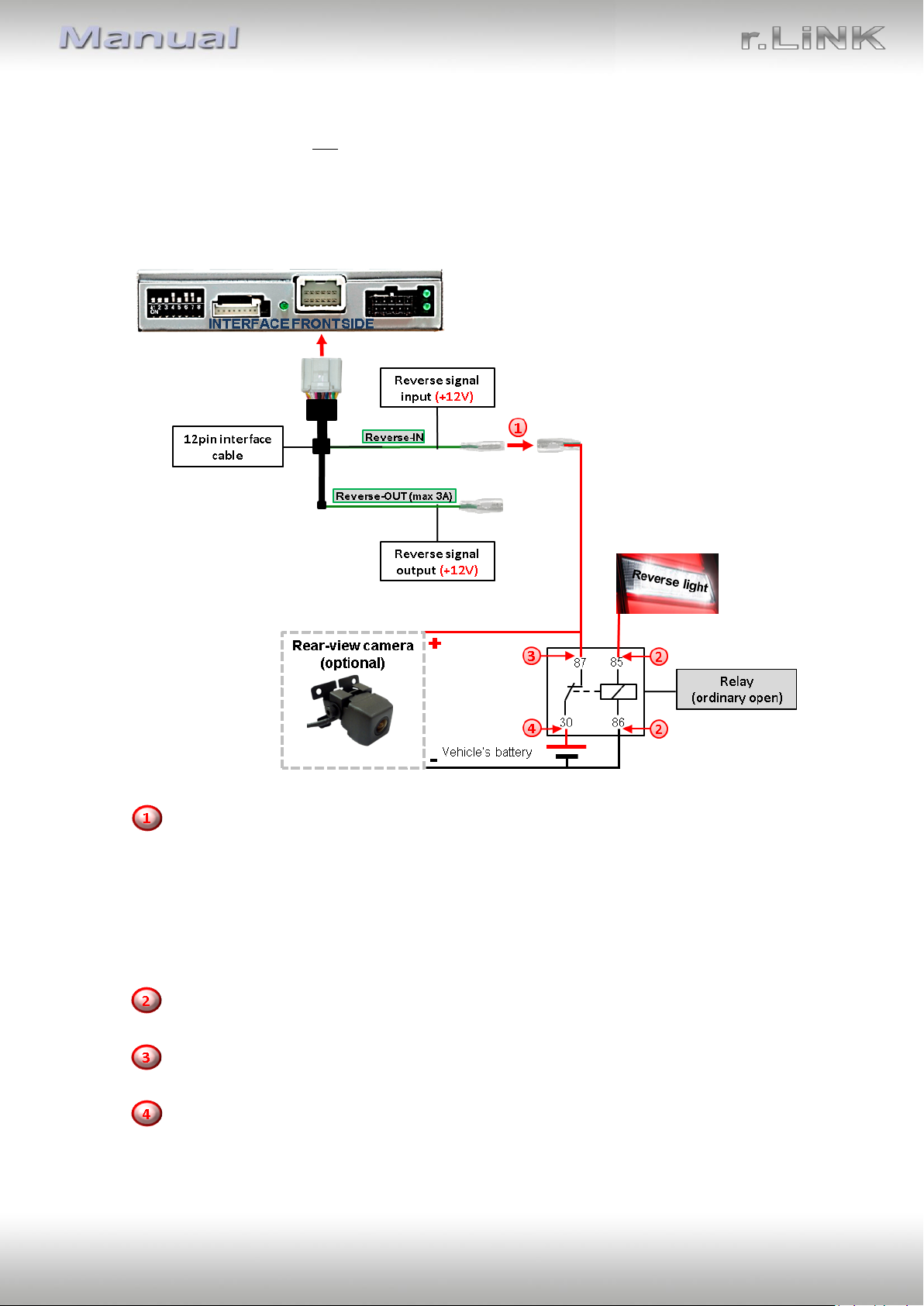

2.6.2.1. Case 1: Interface receives the reverse gear signal

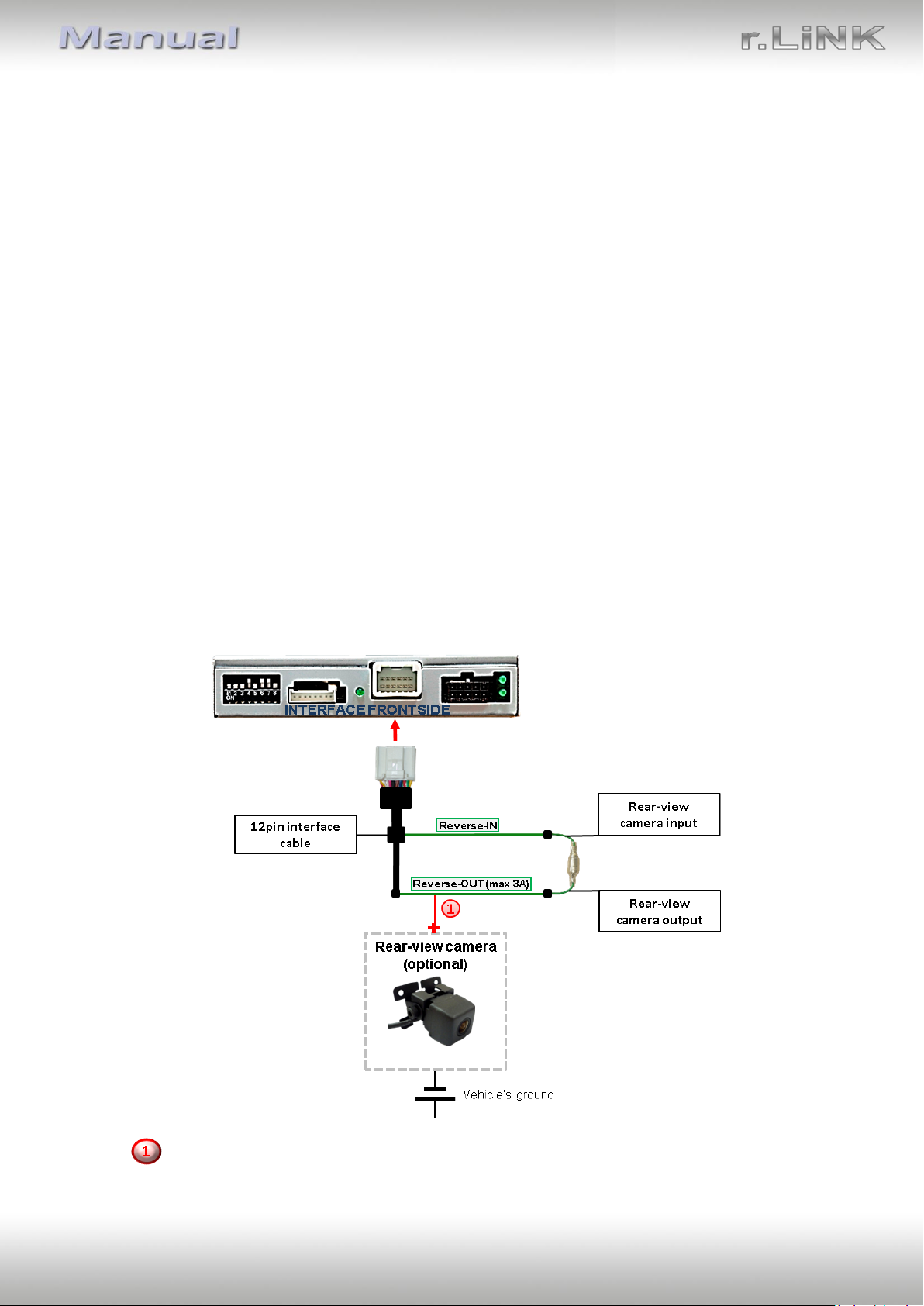

If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken
from the green wire of the 12pin interface cable.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 13
Pag
e13
2.6.2.2. Case 2: CAN-box does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltagestabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
cable and connect the green input cable “Reverse-IN” to the output connector (87)
of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 14
Pag
e14

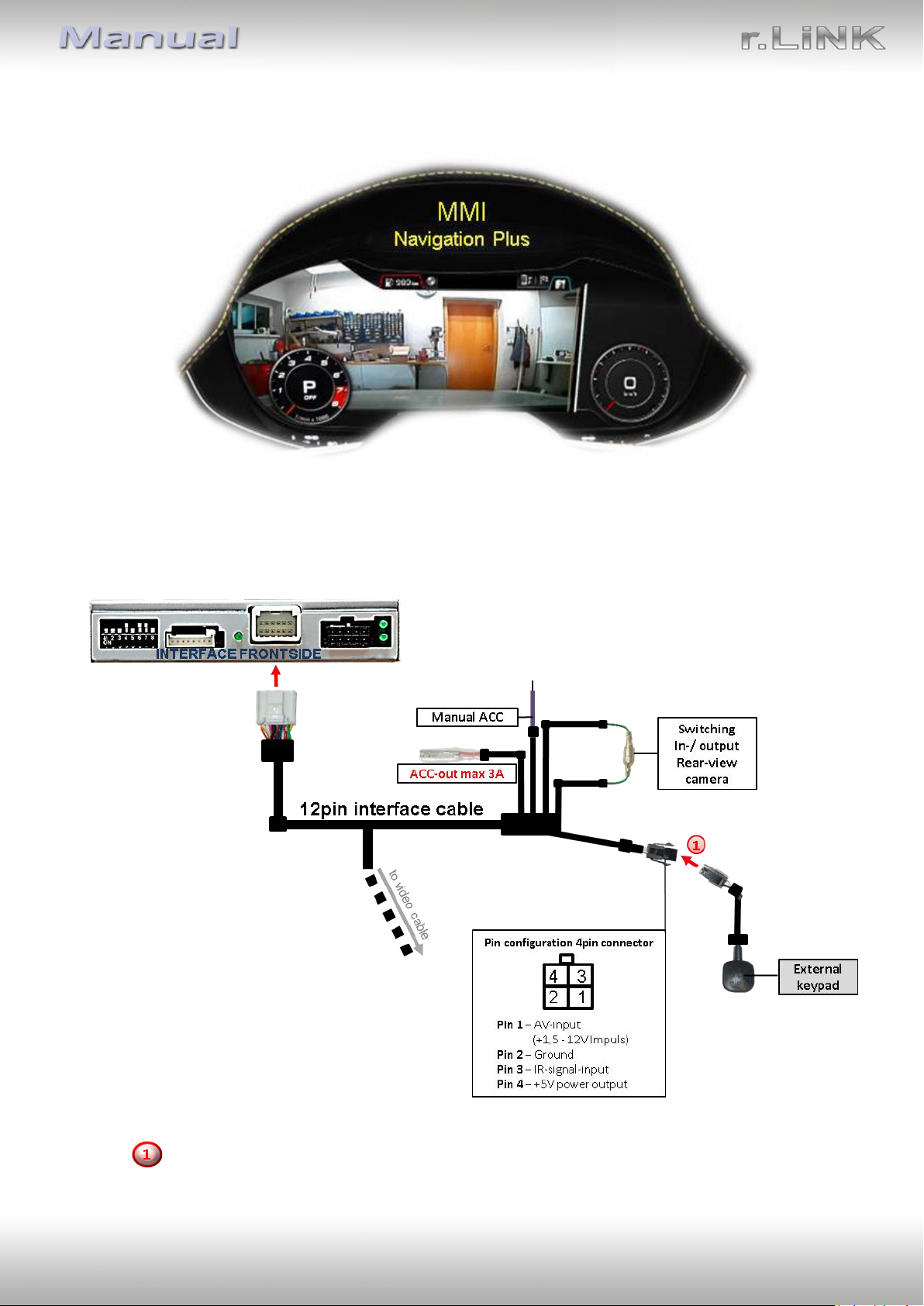

2.6.2.3. Rear-view camera – presentation in instrument
2.7. Connecting video-interface and keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
12pin interface cable.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 15
Pag
e15
2.8. Picture settings

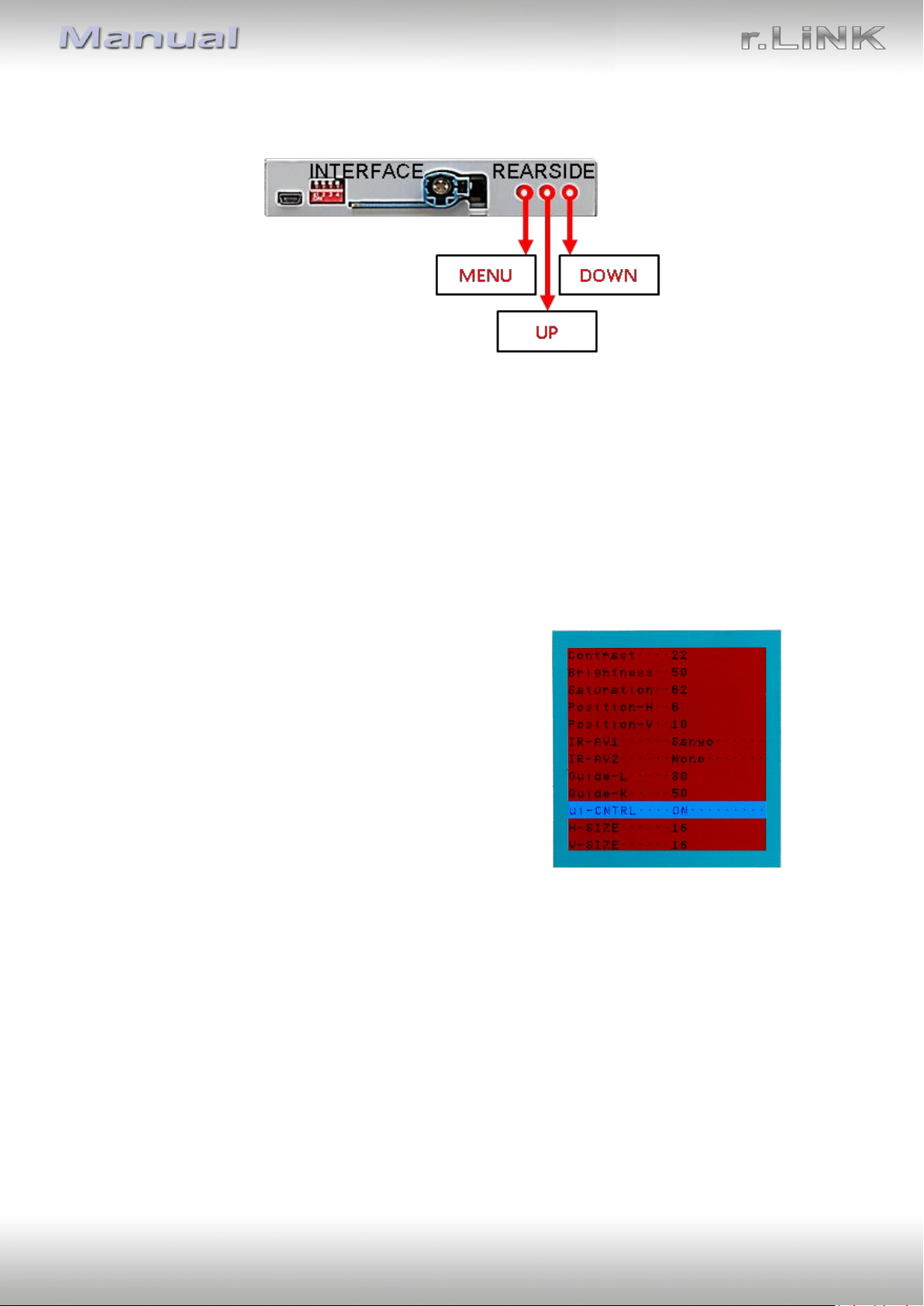

The picture settings are adjustable by the 3 push-buttons on the video-interface. Press the
MENU button to open the OSD settings menu or to switch to the next menu item. Press UP
and DOWN to change the selected value. The buttons are placed inside in the housing to
avoid accidental changes during or after the installation. Picture settings must be done
separately for AV1 and AV2 while the corresponding input is selected and visible on the
monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1/2 (no function) – set to “none”
Guide L/R (no function)
UI-CNTRL (guide lines ON/OFF) – set to “OFF”
Size H/V (picture size horizontal/vertical)
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 16
Pag
e16
3. Interface operation by external keypad
The interface’s external keypad can be used to switch the enabled inputs.
Pressing the external keypad button switches the input from the factory video to the
inserted video sources. Inputs which are not enabled will be skipped.
If both video inputs are activated by dip switch settings, the order is the following:
Factory video Video IN 1 Video IN 2 factory video
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 12mA
Power 210mA @12V
Video input 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 119 x 24 x 114 mm (W x H x D)
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 17
Pag
e17
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory headunit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CANbus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into headunit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of videointerface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.
5. FAQ – Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Page 18
Pag
e18
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
Made in China
6. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Heidberghof 2
D-47495 Rheinberg
Tel +49 2843 17595 00
Email [email protected]
10R-05 0068
Version 16.03.2020 HW: GD(V97)/(V33) RL3-MIB-TT
Loading...
