CAPTOR BP760 User Manual

CAPTOR BP760

DIRECT THERMAL BAR CODE PRINTER

USER’S

MANUAL

1. PRODUCT INTRODUCTION

Thank you very much for purchasing CAPTOR barcode printer. The
attractive desktop printer delivers superior performance at an economical price.
Both powerful and easy-to-use, this printer is your best choice among desktop
direct thermal .

This printer offers both direct thermal printing, 32-bit RISC multi-tasking
processor, print speed up to 150mm/s per second features. It can accept a wide
range of media, including continuous, die-cut, and fan-fold labels or tags for
both direct thermal printing. All of the most frequently used bar code formats are
available. Fonts and bar codes can be printed in any one of four directions. And it
provides a choice of eight different sizes of alphanumeric fonts. By using font
multiplication, an even greater range of sizes is possible. Smooth fonts can be
downloaded from the software. In addition, It is capable of independently
executing BASIC programming functions, including arithmetic, logical operation,
loop, flow-control and file management, among others. This programming
capability provides the greatest efficiency in label printing. The status of printer
and error messages may either be printed out or viewed on a monitor by means
of the connection.

Specifications, accessories, parts and programs are subject to change without notice.

1.1 Compliances

FCC Class A, CE Class A, C-Tick Class A, TÜV/Safety, CCC

CAUTION

1. HAZARDOUS MOVING PARTS IN CUTTER MODULE. KEEP FINGER AND OTHER BODY
PARTS AWAY.

2. THE MAIN BOARD INCLUDES REAL TIME CLOCK FEATURE HAS LITHIUM BATTERY
CR2032 INSTALLED. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE.

3. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURERINSTRUCTIONS.

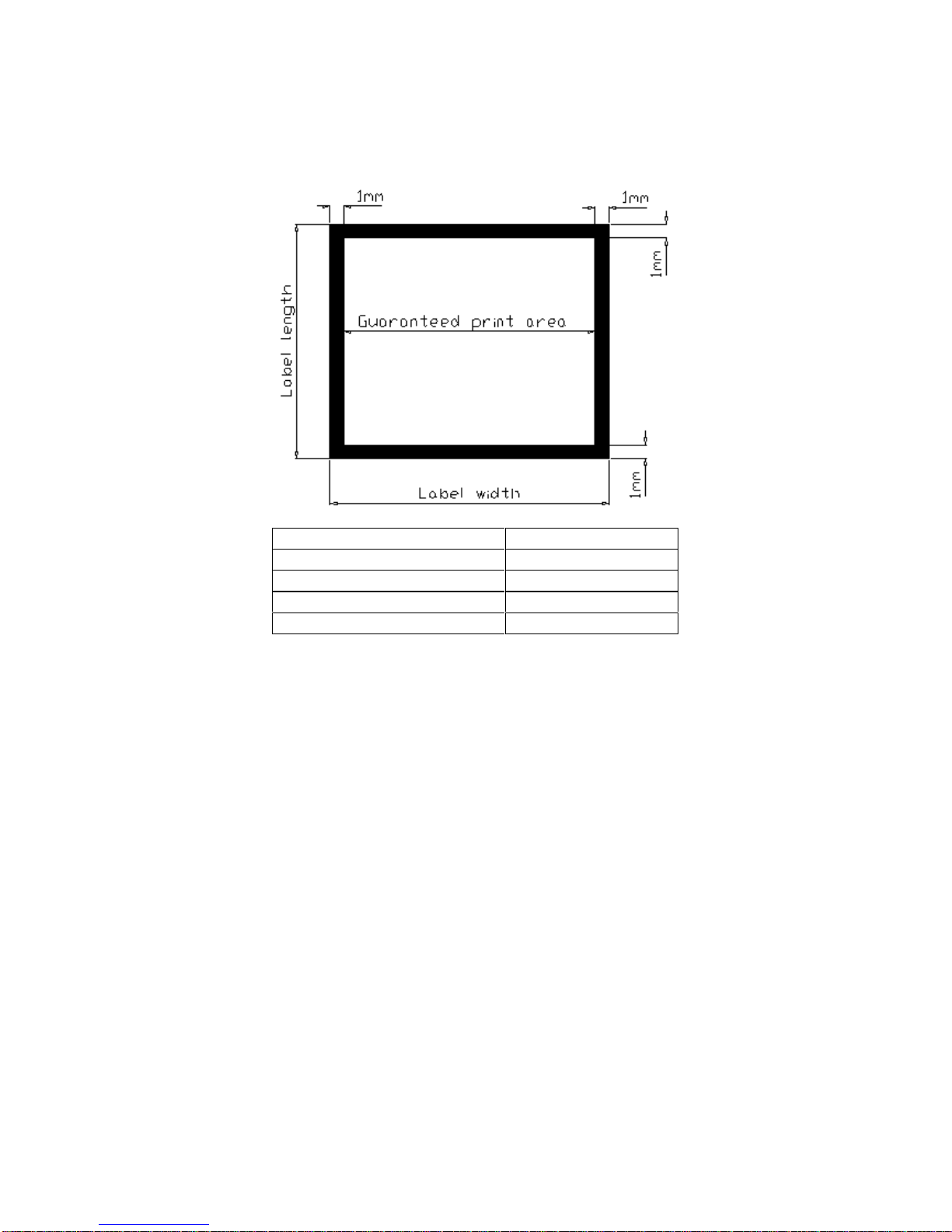

1.2 Effective Print Area

Label/Ticket Print Length

12 mm~2286 mm

Effective Print Length

10 mm~2284 mm

Label/Ticket Print Width

25 mm~104 mm

Effective Print Width

23 mm~102 mm

No Print Area

1 mm

1.3 Available Bar Codes

UPC-A
UPC-E
EAN8
EAN13
CODE39
ITF
CODABAR

CODE93
CODE128
PDF417
QRCODE

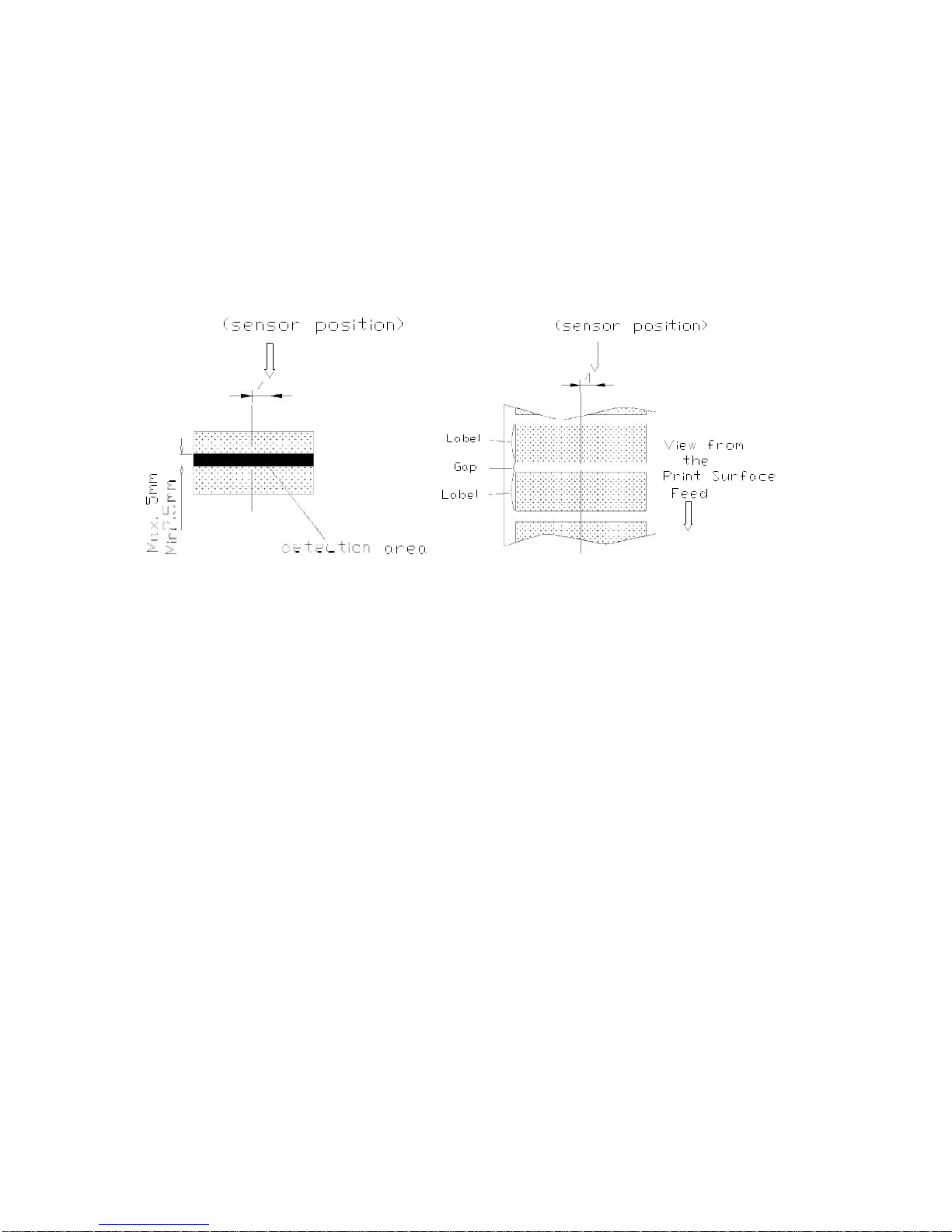

1.4 Various Sensors

Feed Gap Sensor

The feed gap sensor detects a label gap to locate the starting print position of the next
label. The sensor is mounted 4 mm off the center line of the main mechanism.

.
In case of Label

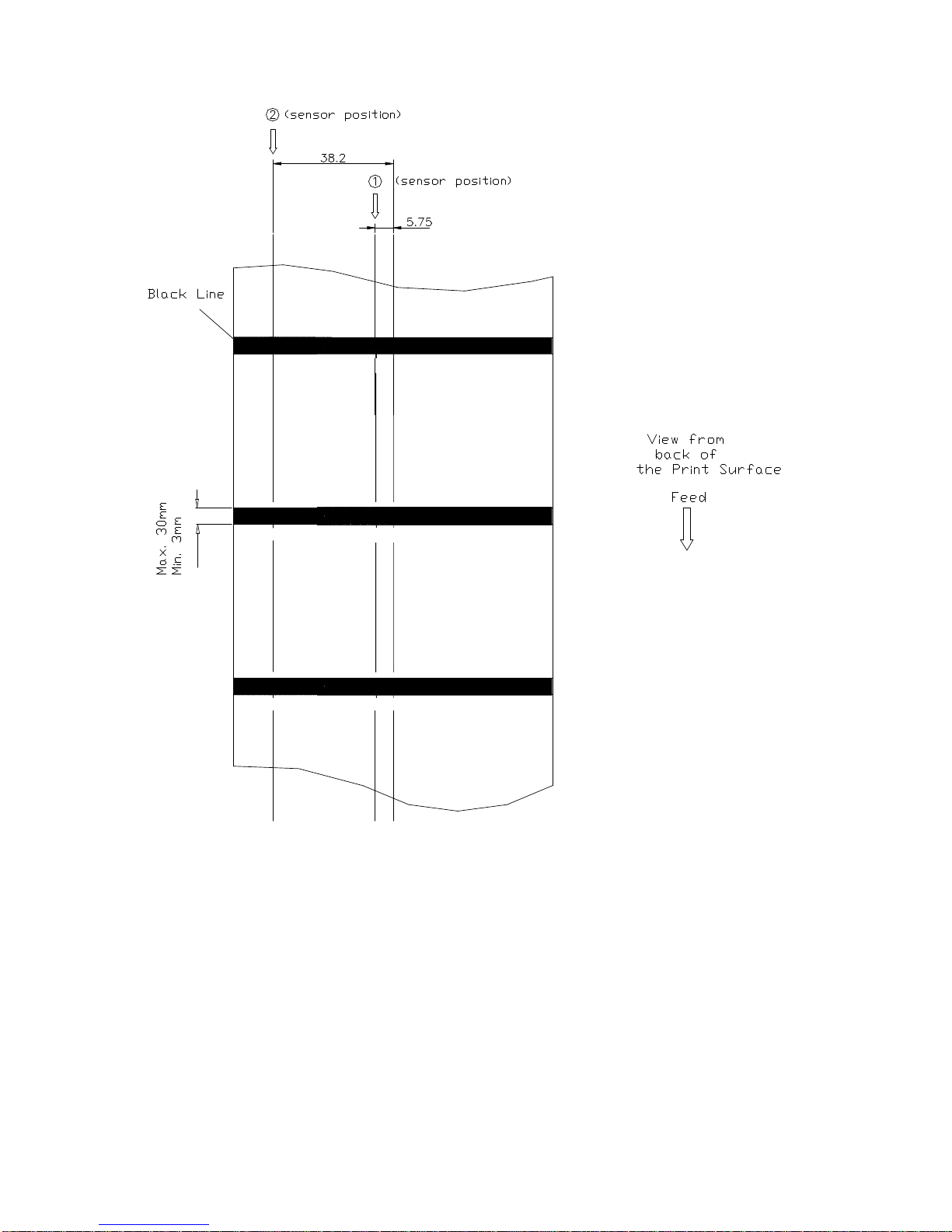

Black Mark Sensor

The black mark sensor locates the position of label by emitting infrared rays onto
the black mark at the back of the ticket. The sensor is mounted 5.75 mm off the
center line of the ticket roll width on the mechanism.

In case of Ticket

The default sensor position is (1) as shown on the figure below. To change to the
(2) position, the customer should notify the manufacturer in advance. There can
be only one position for the sensor. Once the sensor position is agreed upon, it
can not be changed afterwards.

Ribbon End Sensor

The sensor detects the end portion of the ribbon. The ribbon end must be transparent.

Label End Sensor

The sensor detects the end portion of the label.

Peel off Sensor

The sensor detects the backing paper of a label.

Ribbon encoder

The encoder is used to detect if the ribbon is broken.

Parameters

Printing
Capability

Printing Method

Direct Thermal Printing

Resolution

203dpi

Paper Width

24 ~ 82mm

Printing Speed

150mm/s，127mm/s

Interface

Serial,Parallel,USB,Ethernet

Memory

DRAM:2M，FLSH:2M

Heating Head Temperature
Detection

Thermistor

Paper End Detection

Photoelectricity Sensor

Paper Exist Detection

Photoelectricity Sensor

Printing Head Position Detection

Micro Switch

Barcode and
Character

Barcode

UPC-A/UPC-E/EAN8/EAN13/CODE39/ITF/CODABAR
/CODE93/CODE128/PDF417/QRCODE

Character Enlarge/Rotation

Enlarge into 1~8 times both Horizontal and Vertical；Rotary Printing at 90°/270°

Graphic

Support BMP,ICO,EMF,WMF etc. format image file to download to
FLASH,DRAM

Medium

Paper Type

Thermal Roll Paper，Sticker，Thermal Label Pager etc.

Medium Width

24 ~ 82mm

Paper Roll Diameter

Maximun 85mm，Minumun 25mm

Paper Out Method

Tear or Strip

Power Supply

Input

24DC，2.0A

Physical
Specification

Weight

About 1.5kg

Printer Dimension （L×W×H）

237mmx146mmx130mm

Environmental
Specification

Working Temperature/Humidity

5 ~ 45℃，20 ~ 80%RH（noncondensing）

Storage Temperature/Humidity

-40 ~ 55℃，≤90%RH（noncondensing）

Reliability

Machinery Lifespan

100km

product featur

1.6 inch/sec high printing speed

2..Support various label printing softwares

3.Label paper automatic positioning, automatic stripping, paper detection

4.Using thermal paper, thermal label paper or adhesive thermal paper.

5.Label paper automatic checking function, adaptive temperature control

2. GETTING STARTED

2.1 Unpacking and Inspection

The printer has been specially packaged to withstand damage in the shipping
process. However, for fear that unexpected damage might occur, upon receiving
the bar code printer, carefully inspect the package and the device. In case of
evident damage, contact the carrier directly to specify the nature and extent of
the damage. Please retain the packaging materials in case you need to reship
the printer.

2.2 Equipment Checklist

* One bar code printer unit
* One Windows labeling software/Driver CD disk
* One quick start guide
* One external auto switching power supply
* One power cord
* One label spindle
* Two fixing tabs
* Two ribbon spindles
* One paper core for ribbon rewind spindle

If any parts are missing, please contact the Customer Service Department of
your purchased reseller or distributor.

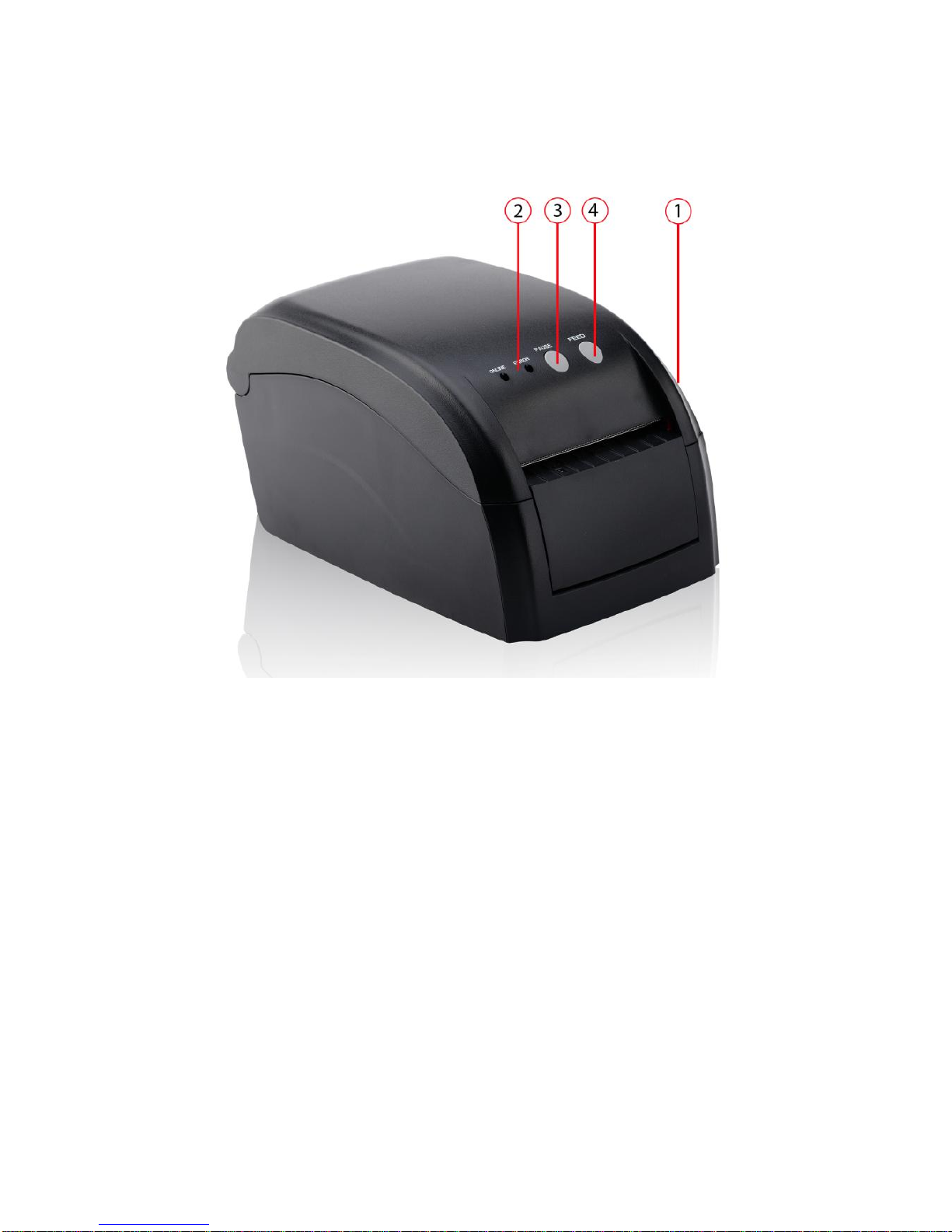

2.3 Printer Parts

1. Cover Release Button

2. PWR., ON-LINE and ERR. Indicators

3. PAUSE Button

4. FEED Button

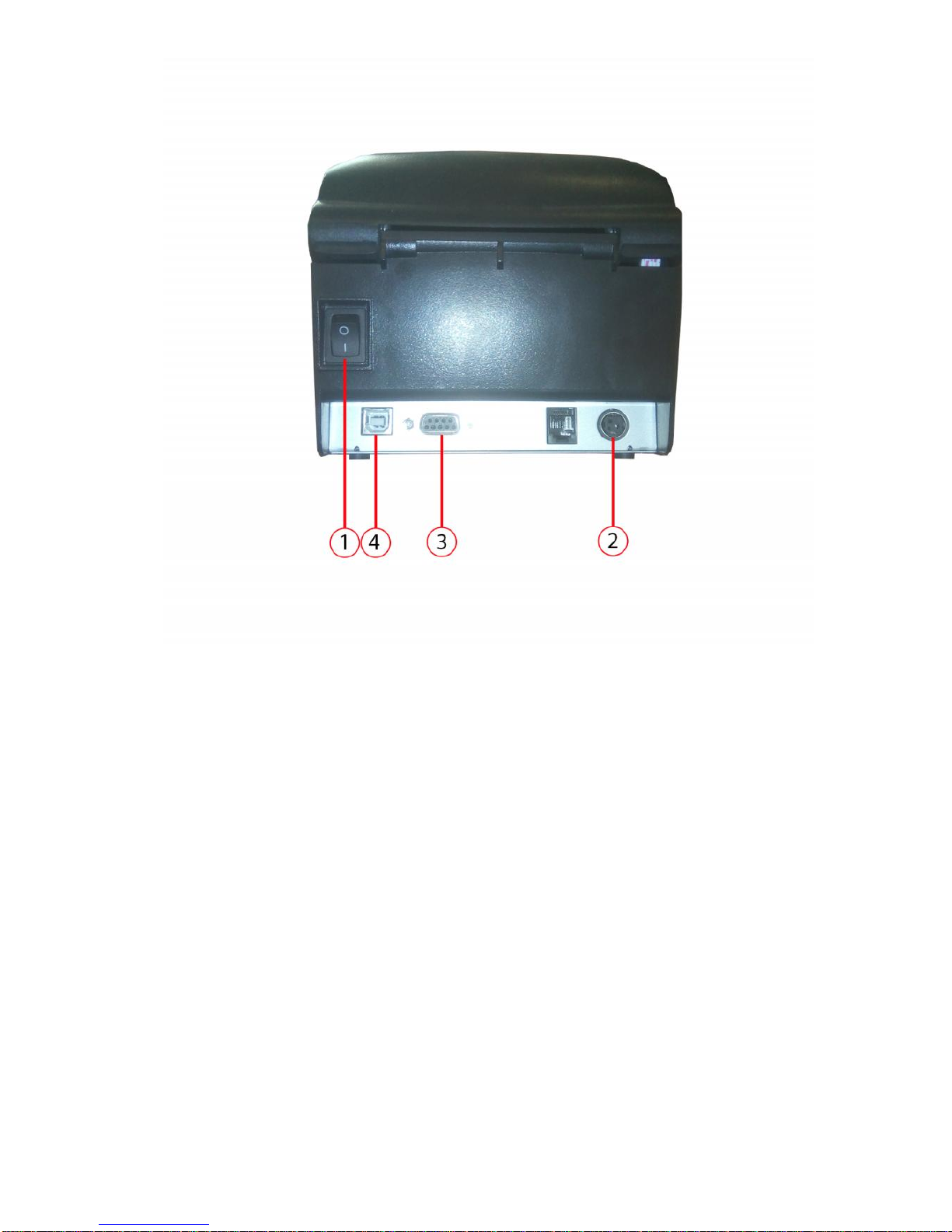

1. Power On/Off Switch

2. Power Supply DC Jacket

3. RS-232C Interface Connector

4. USB Interface Connector

Note:
The interface picture here is for reference only. Please refer to the product specification
for the interfaces availability.

2.5 Buttons and Indicators

PWR. (POWER) Indicator

The green PWR. indicator illuminates when the POWER switch is turned on.

ON-LINE Indicator

The green ON-LINE indicator illuminates when the printer is ready to print. When
PAUSE button is pressed, the ON-LINE indicator flashes.

ERR. Indicator (Error/Paper Empty)

The red ERR. indicator illuminates in the event of a printer error, such as
memory error, syntax error, and so forth. For a full list of error messages, please
refer to section 4.2, Troubleshooting Guides.

PAUSE Button

The PAUSE button allows the user to stop a print job and then continue the
printing with a second depression of the button. By pressing the PAUSE button:
(1) the printer stops printing after the printing label, (2) the PAUSE LED flashes,
and (3) the printer will hold all data in memory. This allows for trouble-free
replacement of label stock and thermal transfer ribbon. A second depression of
the PAUSE button will restart the printer.

Note: If the PAUSE button is held down for more than 3 seconds, the

printer will be reset and all data of the previous printing job will be
lost.

FEED Button

Press the FEED button to feed the label to the beginning of the next label.

3. SET UP

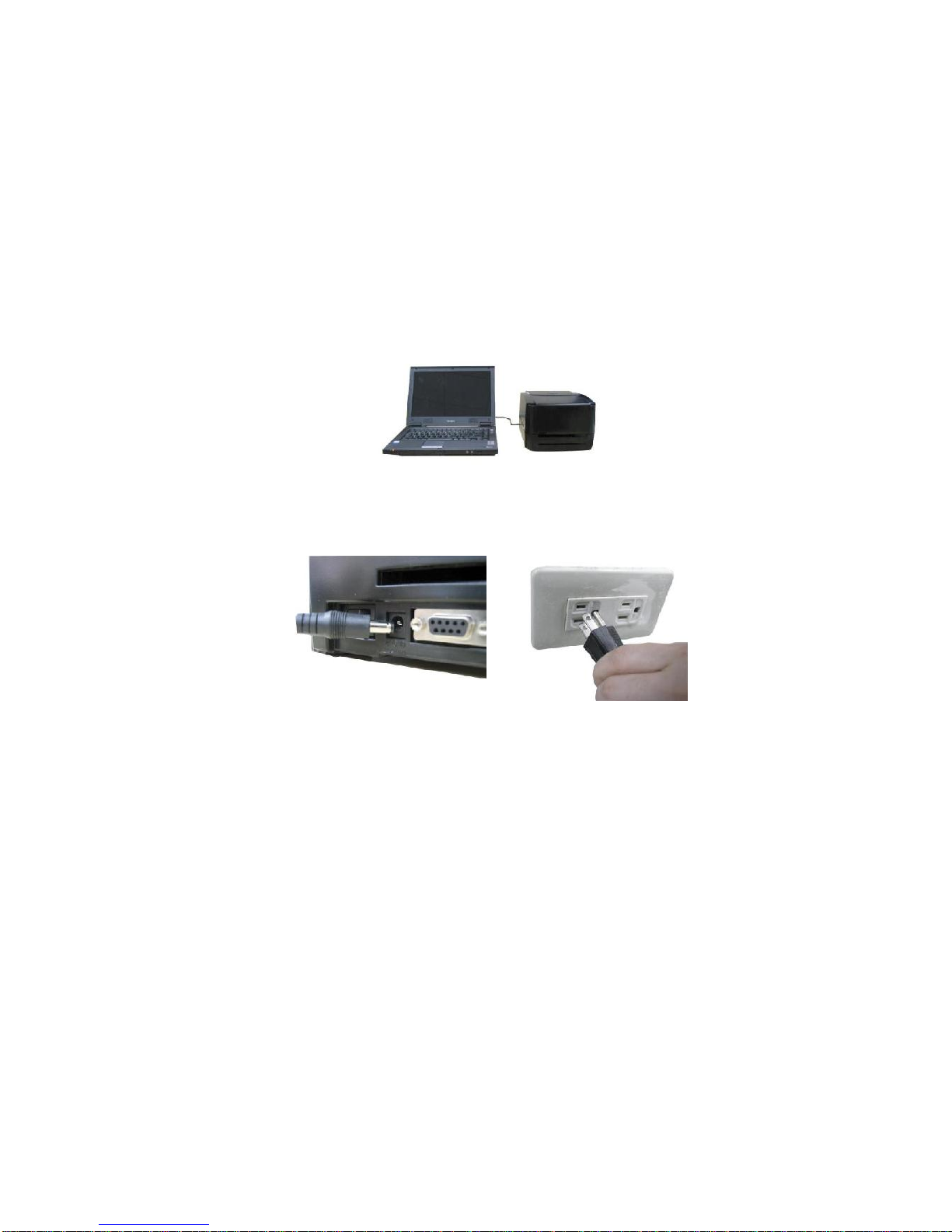

3.1 Setting Up the Printer

1. Place the printer on a flat, secure surface.

2. Make sure the POWER switch is off.

3. Connect the printer to the computer mainframe with the RS-232C or USB
cable.

4. Plug the power cord into the power jacket at the rear of the printer, and then
plug the power cord into a properly grounded receptacle.

Note:

Please switch OFF printer power switch prior to plug in the power cord to printer power
jack.

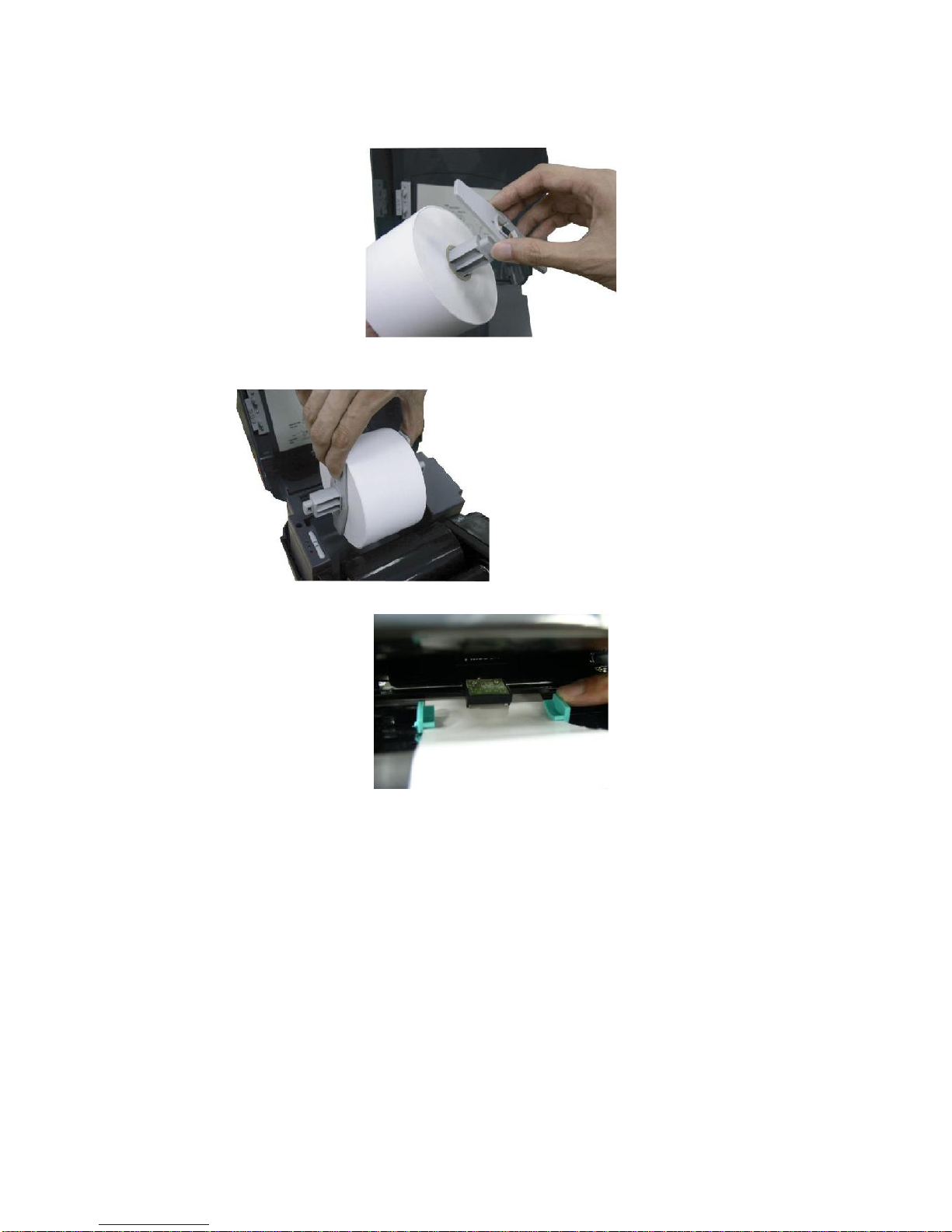

3.2 Loading Label and Tag Stock

1. Open the printer cover.

2. Disengage the printer carriage by pulling the printer carriage release lever on
the left side of the platen.

3. Slide the label supply roll spindle through the core of a label roll and attach the
fixing tabs onto the spindle.

4. Place the label roll into the label roll mount. Feed the label under the carriage
and over the platen.

5. Adjust the label guide to fit the width of the media.

6. Engage the printer carriage.

7. Wind the label roll until it becomes adequately taut.

8. Close the printer cover and press the PAUSE button for calibre papier

ASCII dat

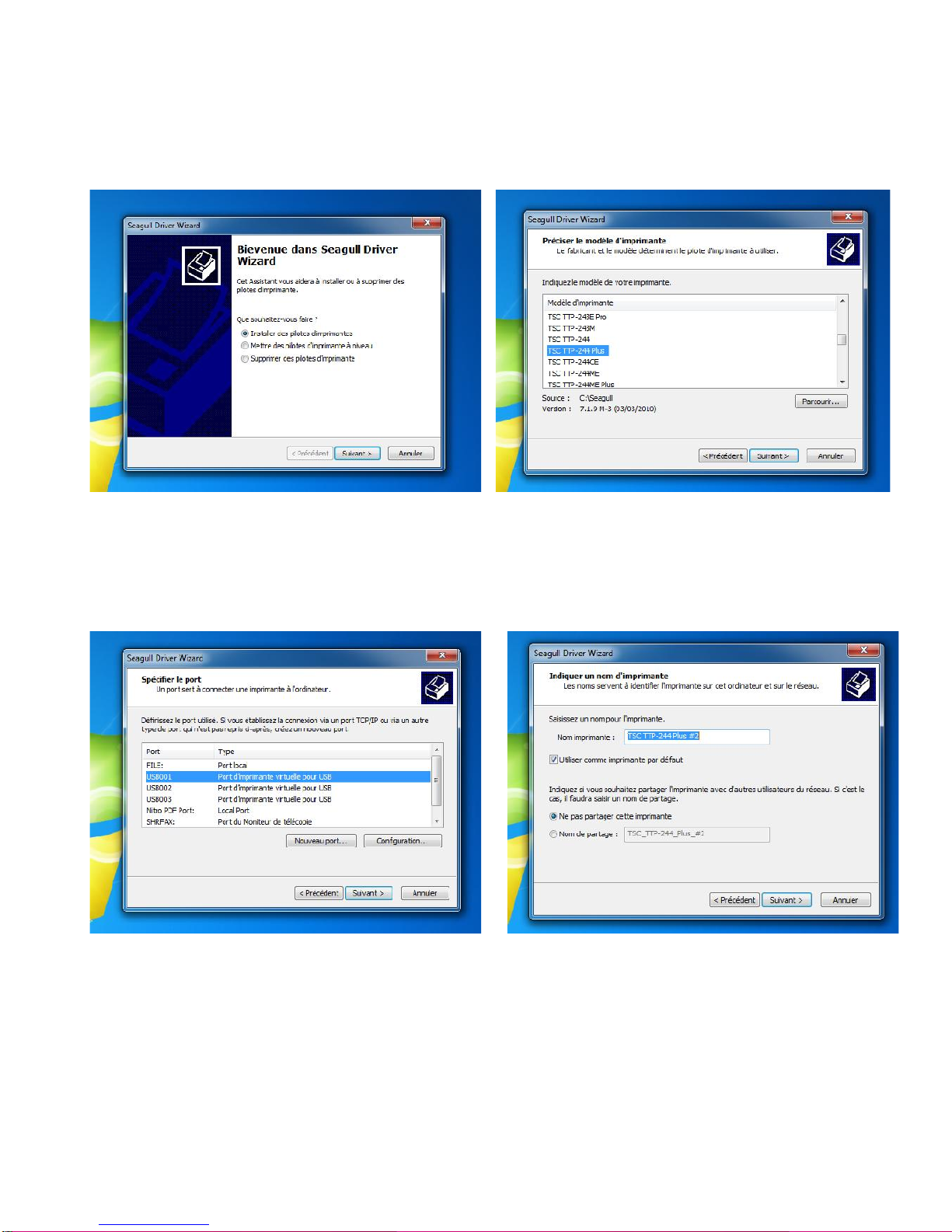

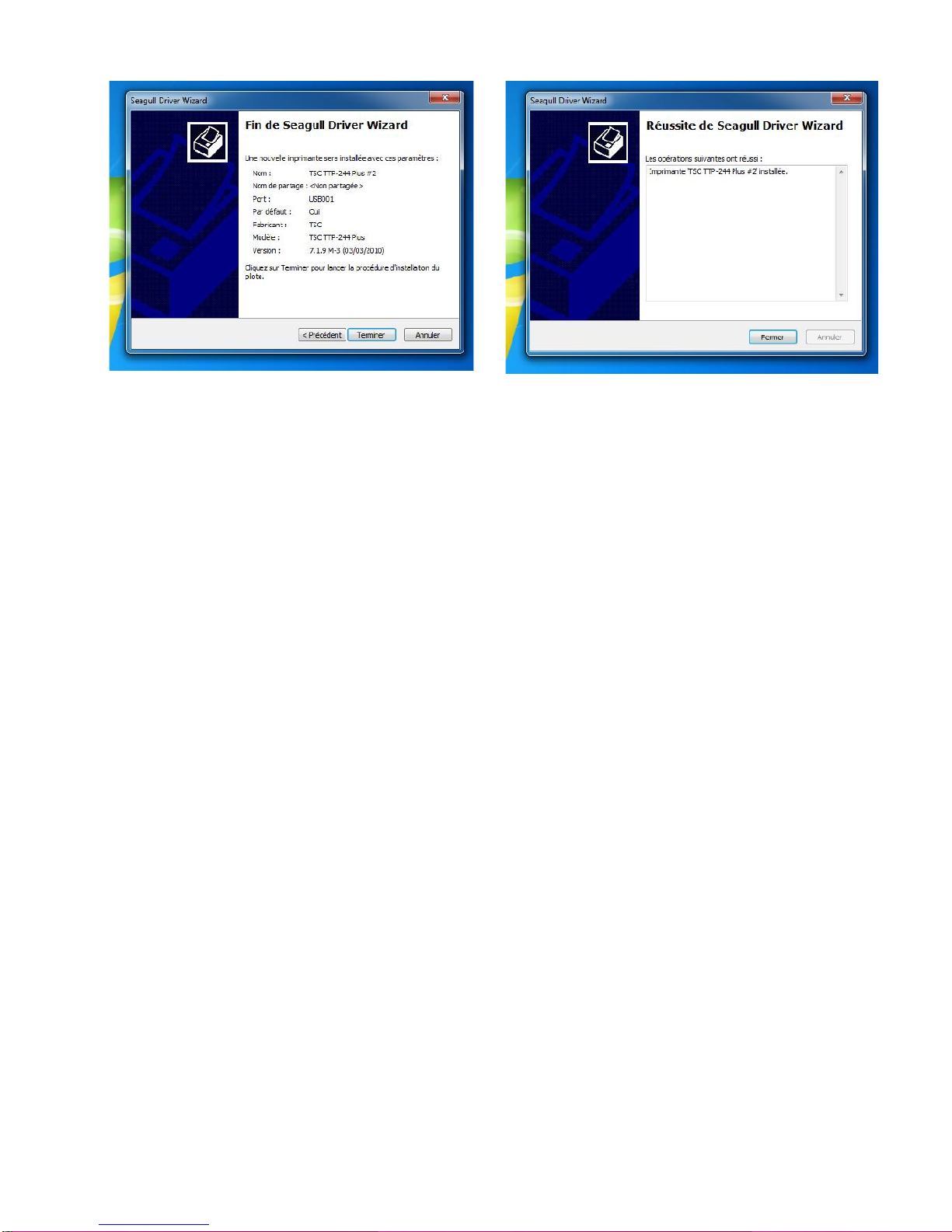

in windows :

star wizard choice model :TSC TTP-244plus

choice USB

4. USING PRINTER

4.1 Power-on

Utilities

There are three power-on utilities to set up and test hardware. These utilities are
activated by pressing the FEED or PAUSE button and turning on the printer
power simultaneously. The utilities are listed as below:

1. Self-test

2. Gap sensor calibration

3. Printer initialization

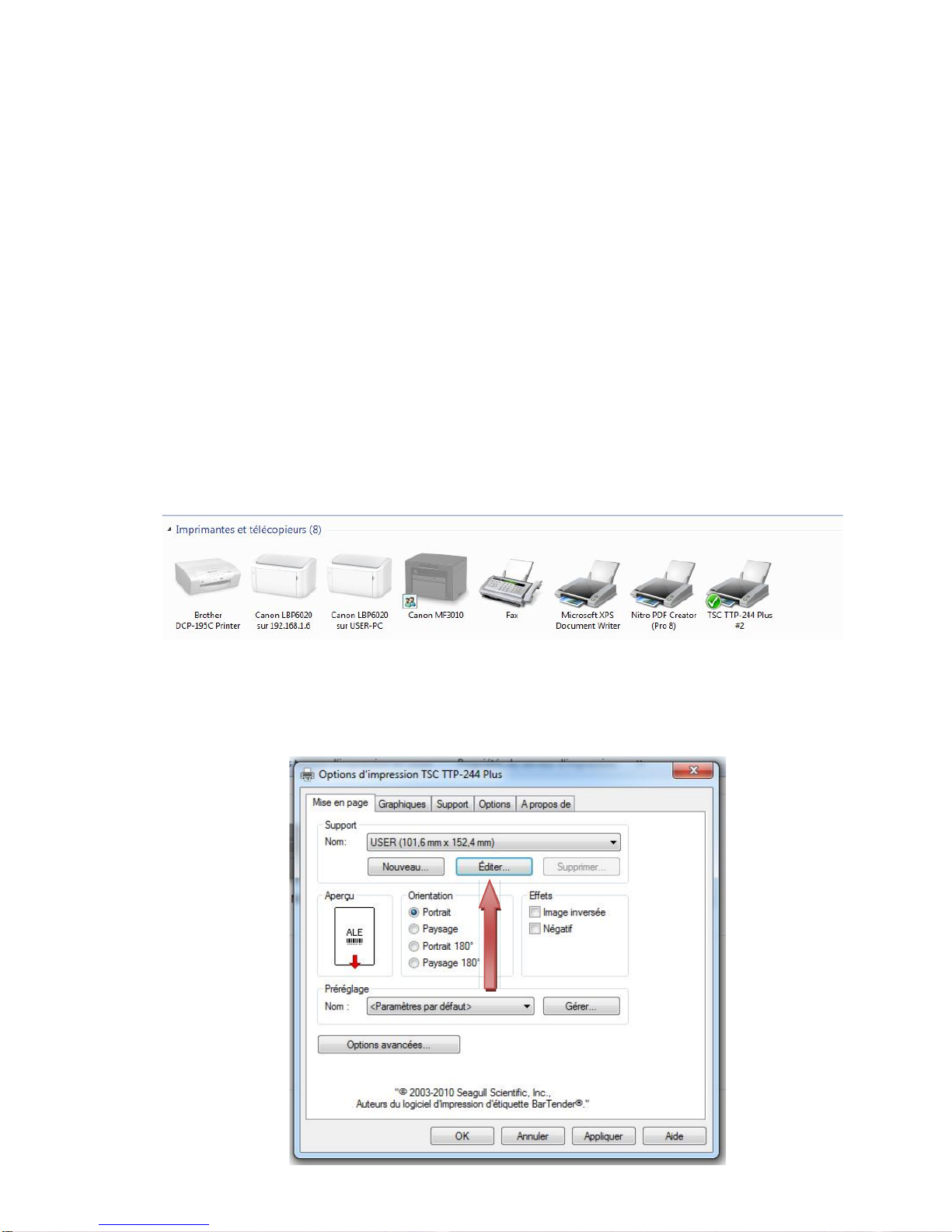

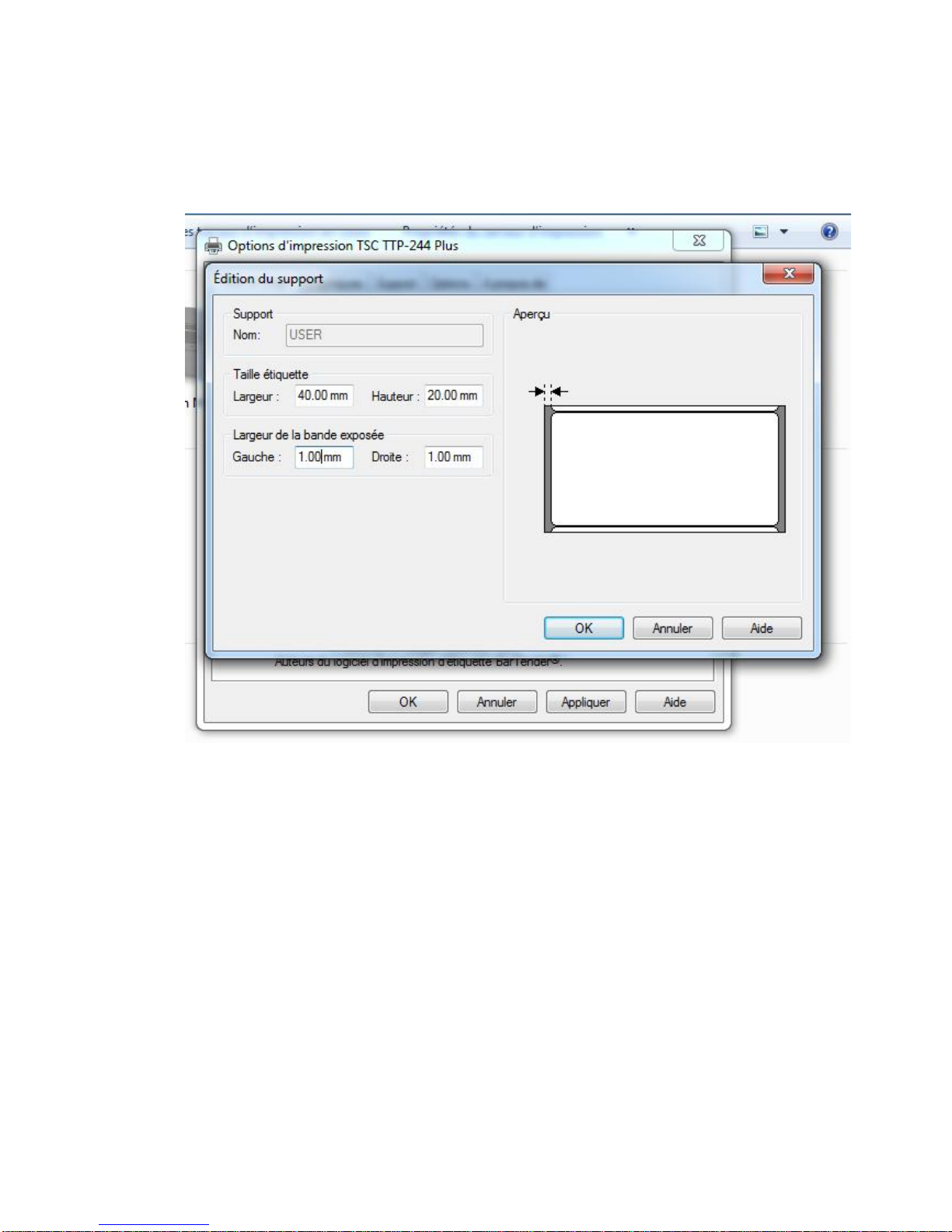

4.1.1 configuration

click right in mouse choice option printer then :

click éditer

Note: choice dimention of your ticket .

4.2 TroubleshootingGuide

The following guide lists some of the most common problems that may be
encountered when operating the bar code printer. If the printer still does not
function after all suggested solutions have been invoked, please contact the
Customer Service Department of your purchased reseller or distributor for
assistance

Problem

Solution

Ribbon does not advance or rewind

1. The media and ribbon must be installed
then engage the print head mechanism
prior to turning on printer power.

2. Install the black ribbon spindle at the
correct direction.

3. Please check the "Media settings method"
in the driver if it is set to direct thermal
mode.

Poor print quality

1. Clean the thermal print head.

2. Adjust the print density setting.

3. Ribbon and media are not compatible.

4. Media thickness is over spec.

5. Check if correct power supply is connected
with printer.

Power indicator on printer does not

illuminate

1. Check the power cord, see whether it is
properly connected.

2. Check if the LED on the power supply is
illuminated. If it is not lit on, then the power
supply is damaged.

3. Check if correct power supply is connected
with printer.

ON-LINE indicator is off, ERR.

indicator is on

1. Out of paper or out of ribbon

If there is one beep sound when printer
is error, then it's gap sensor problem.
Please check the following items.

(1) Calibrate gap sensor or setup

the paper length in labeling
software/program properly.

(2). Install the paper at the correct

If there are two beeps sound when
printer is error then it's ribbon sensor
problem. Please check the following
items.

(1) Is outside wound ribbon is used

with this printer?

(2) Is ribbon threaded correctly in

CAPTOR Electronic Security .

Eurl Miniprix Computer
TEL: [phone]
Web site : www.miniprixcomputer.com

E-mail : [email protected]

2015
