Instruction Manual rel. 1.1
Capricorn RC
Step 1.0
Made in Italy
01
- Front Transmission -
1 2 2 3
4 4
55
6
6
Parts List
Cap170301 3x6 round head screw
Cap2102A2
Front Spool Pulley
38T kevlar
Cap220033 Spool Axle Alu
Parts List
Cap1701542x9.8mm Pin (2pcs)
Cap230015Spool Outdrive(2pcs)
Cap18018
6
10x15x4mm
Ball Bearing(2pcs)
Step 1
Step 1
Step 2
Step 2
Capricorn RC
Step 2.0
Made in Italy
02
- Rear Transmission -
1
2 3 764
8
1
5
Parts List
Cap200111
Eccentric Hub ergal
(2pcs)
Cap211102 Diff Gears (with Axle)
Cap230243 Gear Diff Shim Set
Cap1705204 O'ring 5x2 soft (1pcs)
Parts List
Cap2102E5Rear Diff Case kevlar
Cap230256Gear Diff Shims Set
7
Cap22001
8
Gear Diff Outdrive Alu
(2pcs)
Cap17015 2x9.8mm Pin (1pcs)
Step 1
Step 2
Capricorn RC
Step 3.0
Made in Italy
03
- Rear Transmission -
1 2 653
7
8
9
10
4
Parts List
Cap211101 Diff Gears (with Axle)
Cap2102E4 Rear Diff Case kevlar
Cap230255 Gear Diff Shims Set
6 Cap22001
Gear Diff Outdrive Alu
(2pcs)
Cap230242 Gear Diff Shim Set
Cap1705203
O'ring 5x2 soft (1pcs)
Parts List
Cap170157 2x9.8mm Pin (1pcs)
Cap211108 Diff Gears (with Axle)
Cap230239
10
Gear Diff Shim Set
Cap24005
O'Ring 26x1 For Diff
Case(1pcs)
Step 1
Step 2
Capricorn RC
Step 4.0
Made in Italy
04
- Rear Transmission -
Diff case direction
needs to match as below.
Fill differential up to the top of the pins
with silicon oil.
Initial Setting
1.000 with stock motor
1.500 with modified motor
Capricorn RC
Step 5.0
Made in Italy
05
- Rear Transmission -
3
3
1
1
2
Parts List
Cap180181 10X15mm Ball Bearing (2pcs)
Cap170222 2.5x8 flat head screw
Cap200113 Eccentric Hub ergal (2pcs)
Capricorn RC
Step 6.0
Made in Italy
06
- Shock Damper -
65
1
87
2 3 4
Parts List
Cap301001 Shock Low Cap
Cap301012 Cap Shim
Cap301093 Quad-ring
Cap291624 Shock ADJ Nut Alu
Cap301025 Shock Body
Cap301036 Shock Shaft Tin
Cap301107 Shock Piston Big Bore 3 Hole 1.1
Cap180268 E-clip 1.9mm Damper (1pcs)
Apply Oil before assembly
Apply Oil before assembly
Capricorn RC
Step 7.0
Made in Italy
07
- Shock Damper -
Silicon Oil
#500
Fill the oil to shock body till full
12.5mm
Capricorn RC
Step 8.0
Made in Italy
08
- Shock Spring -
55 34
1
2
3
Parts List
Cap29148-61
Shock absorber
members
Cap291612
Shock cup alu
Parts List
Cap291724Front Shock Spring 0.30 Yellow
Cap14036
3
Shock uniball mount
+ spring retainer
Cap29173 Rear Shock Spring 0.28 Green
Cap16086
5
5.8mm Ball End ergal hard
coated (2pcs)
Capricorn RC
Step 9.0
Made in Italy
09
- Main Transmission-
Step 1
Step 3
Step 2
Step 3
1 2 3
6 7
5 54
Parts List
Cap220041 Spur Axle Alu
Cap2102C4 19T Belt Pulley kevlar
Cap291122 Spur gear 112T
Cap180213
3x4 round head screw
Parts List
Cap2102C5 19T Belt Pulley kevlar
Cap255026 C-Clip (2pcs)
Cap170167 2x11.8mm Pin (2pcs)
Capricorn RC
Step 10.0
Made in Italy
10
- Main Chassis -
1 2 3
4
Parts List
Cap20009B1 Bulkhead Alu FL/RR
Cap170314 3x8 Flat Head Screw
Cap20010B2 Bulkhead Alu FR/RL
Cap301043
Chassis 2.25mm
Use CA Glue
to seal the
chassis edge
Notice:
Capricorn RC
Step 11.0
Made in Italy
11

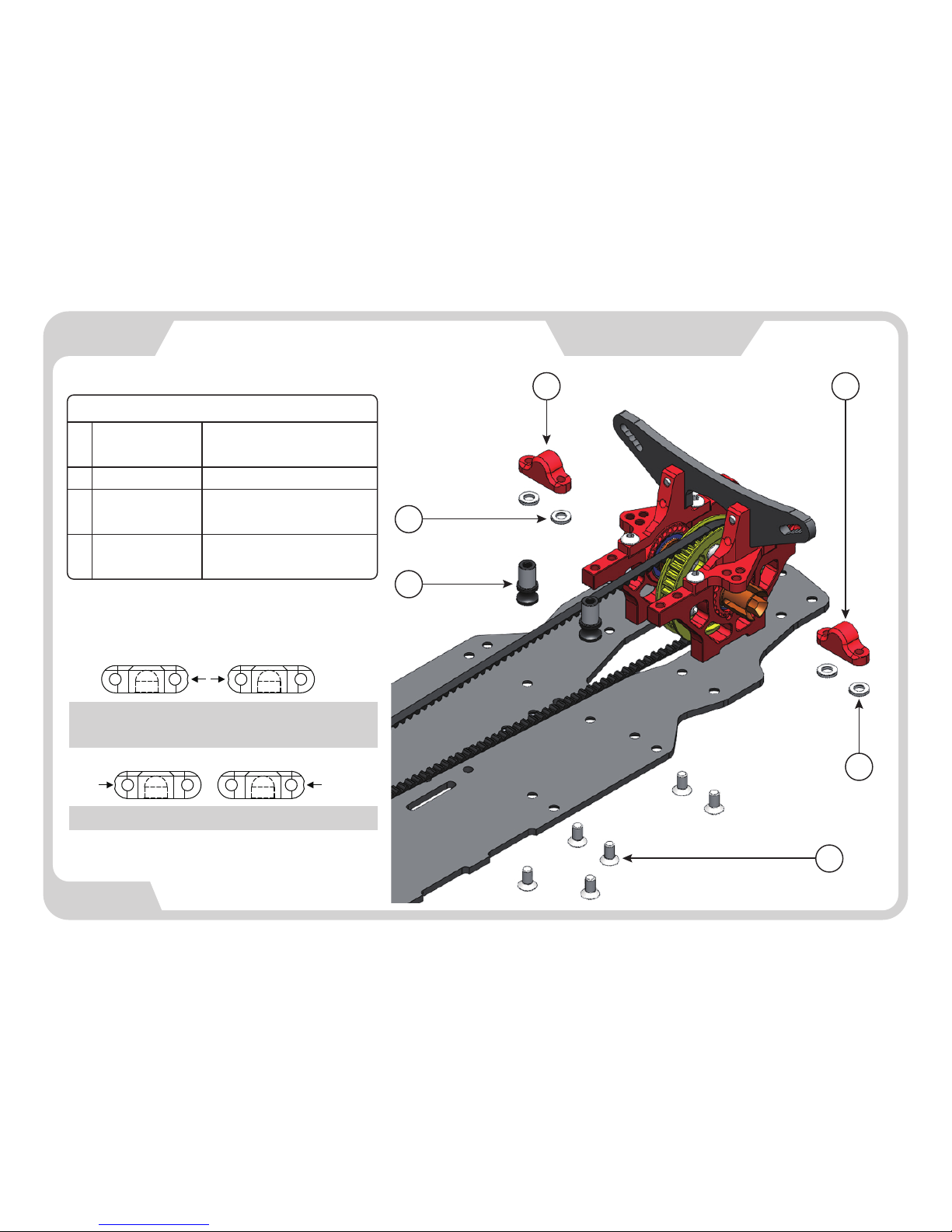

- Rear Bulkhead -
5
3
6
1
4
2
Parts List
Cap220212 Shims 1mm
Cap170293 Screw 3x6 Flat Head
Cap290121
Rear Separate Bracket
Parts List
Cap20010B4 Bulkhead Alu FR/RL
Cap20009B5 Bulkhead Alu FL/RR
Cap170316
Screw 3x8 Flat Head
Capricorn RC
Step 12.0
Made in Italy
12
- Transmission -
6 7
3
4
2
1
5
Parts List
Cap22506K5 Motor Mount
Cap22506K6
Cap17023
7
Motor Mount
Screw 3x10 Bottom Head
Parts List
Cap24050RB1 Front Belt 510-3mm
Cap24051RB2 Rear Belt 3mm
Cap17029
3
Screw 3x6 Flat Head
Cap22506C4 Motor Mount column
8
8
Cap17021
Screw 3x6 Flat Head
Capricorn RC
Step 13.0
Made in Italy
13

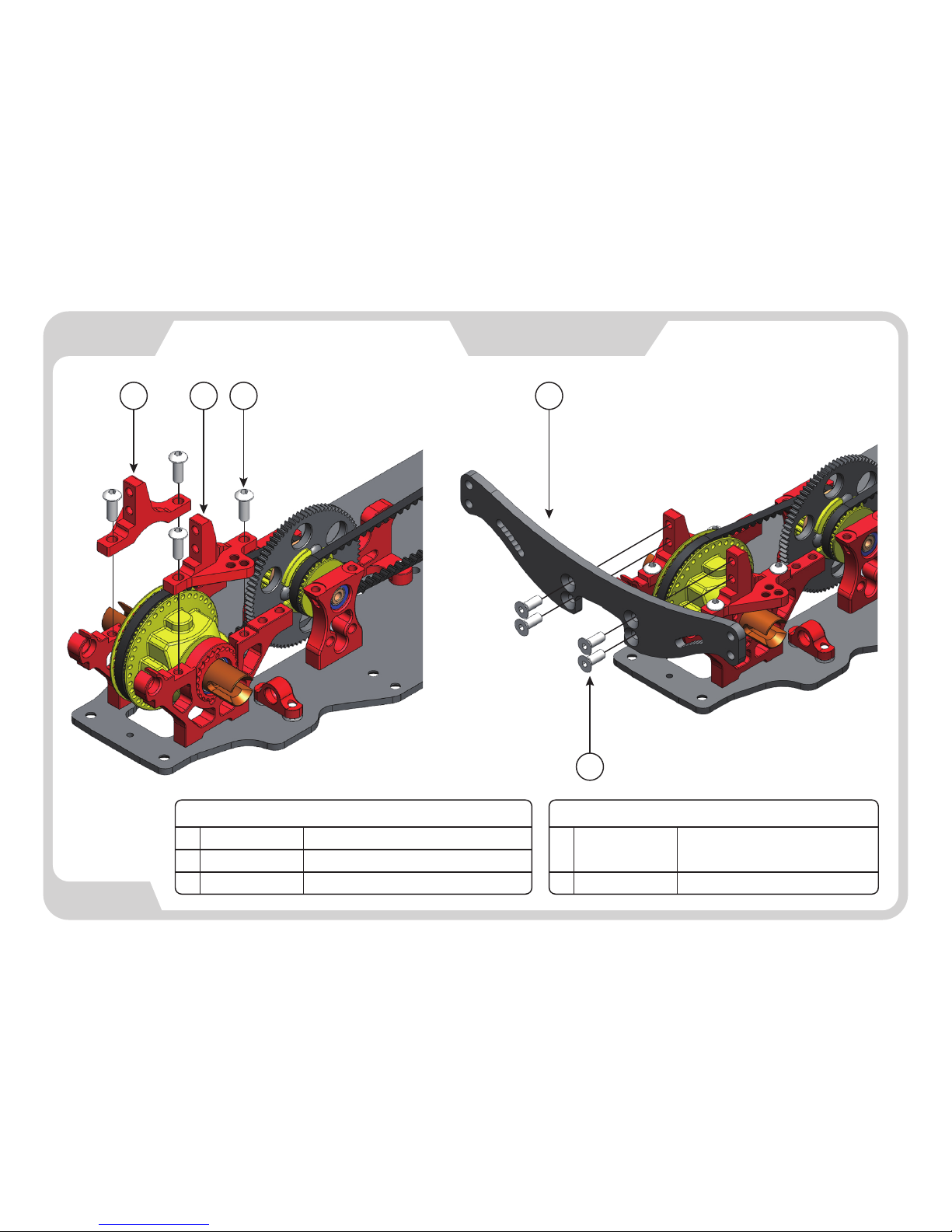

- Front Bulkhead -
5
1 2 3 4
Parts List
Cap225031 Bulkhead Upper Alu FL/RR
Cap225042 Bulkhead Upper Alu FR/RL
Cap170323
3x8 round head screw
Parts List
Cap291454
Low Profile Front Shock
Tower
Cap170315 3x8 flat head screw
Capricorn RC
Step 14.0
Made in Italy
14
- Rear Shock Tower -
5
1 2 3 4
Parts List
Cap225031 Bulkhead Upper Alu FL/RR
Cap225042 Bulkhead Upper Alu FR/RL
Cap170323
3x8 round head screw
Parts List
Cap291464
Low Profile Rear Shock
Tower
Cap170315 3x8 flat head screw
Capricorn RC
Step 15.0
Made in Italy
15
- Front Suspension Bracket -
11
2
2
3
4
Parts List
Cap290111
Front split
suspension bracket
Cap220212 Shims 1mm
Cap230063
Steering Shaft
(2pcs)
Cap170294
3x6 flat head
screw(6pcs)
#1
#2
Cut point Inside=#1 Suspension Bracket
(Defalut Setup)
Cut point Outside=#2 Suspension Bracket
Separate suspension bracket Front
Capricorn RC
Step 16.0
Made in Italy
16

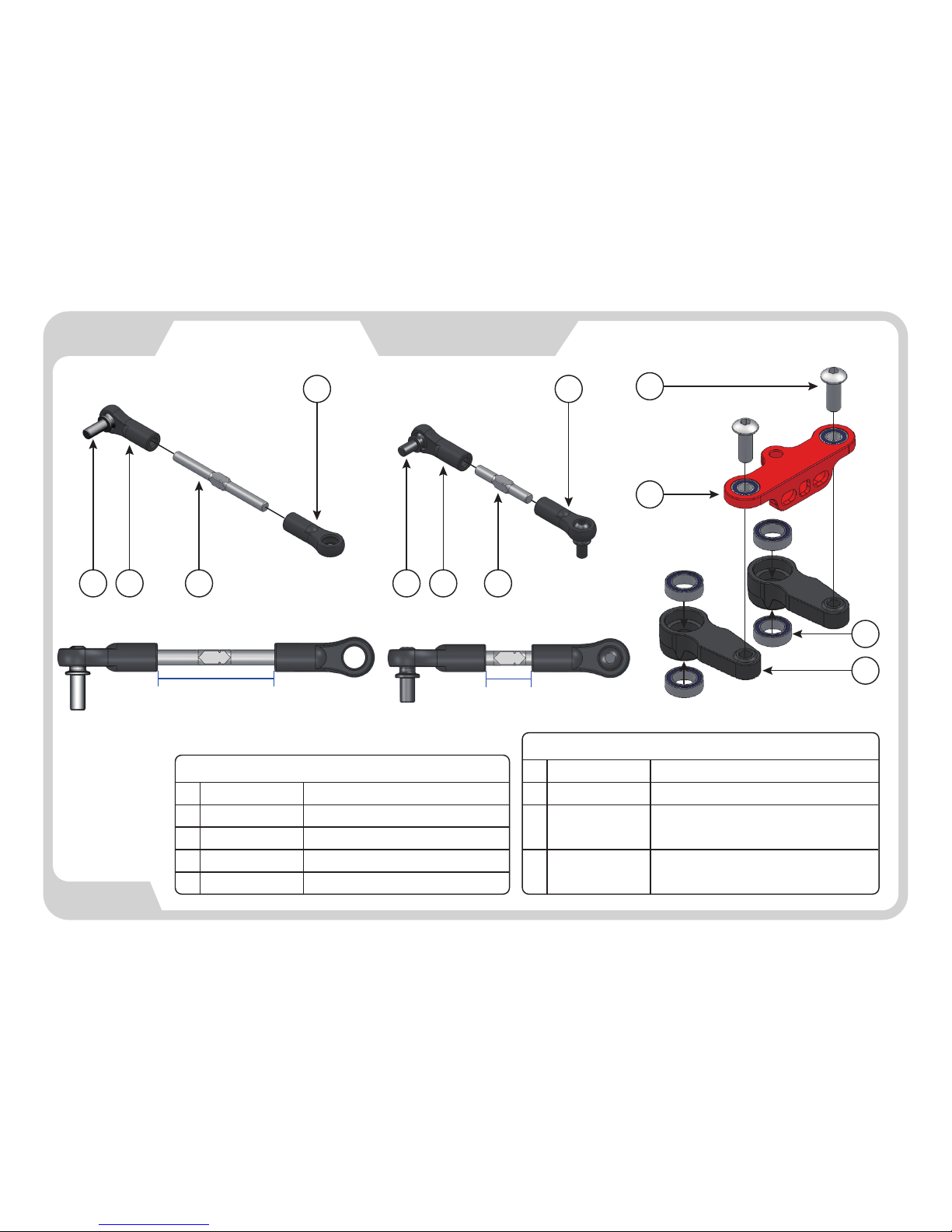

- Turnbuckle -
2 2 5431
2 2
Parts List
Cap221011 4.9mm Ball End Med Alu
Cap221002 4.9mm Ball End Short Alu
Cap230323
Turnbuckle 3x35mm
Cap221004 4.9mm Ball End Alu
Cap230305 Turnbuckle 3x20mm
Length 24mm
Length 8.5mm
6
7
8
9
Parts List
Cap170326 3x8 round head screw(2pcs)
Cap275017 Adjust Steering Plate
Cap160198
5X8X2.5mm
Ball Bearing(4pcs)
Cap21060P9
Plastic Servo Horn Dual
Steering Arm
Capricorn RC
Step 17.0
Made in Italy
17

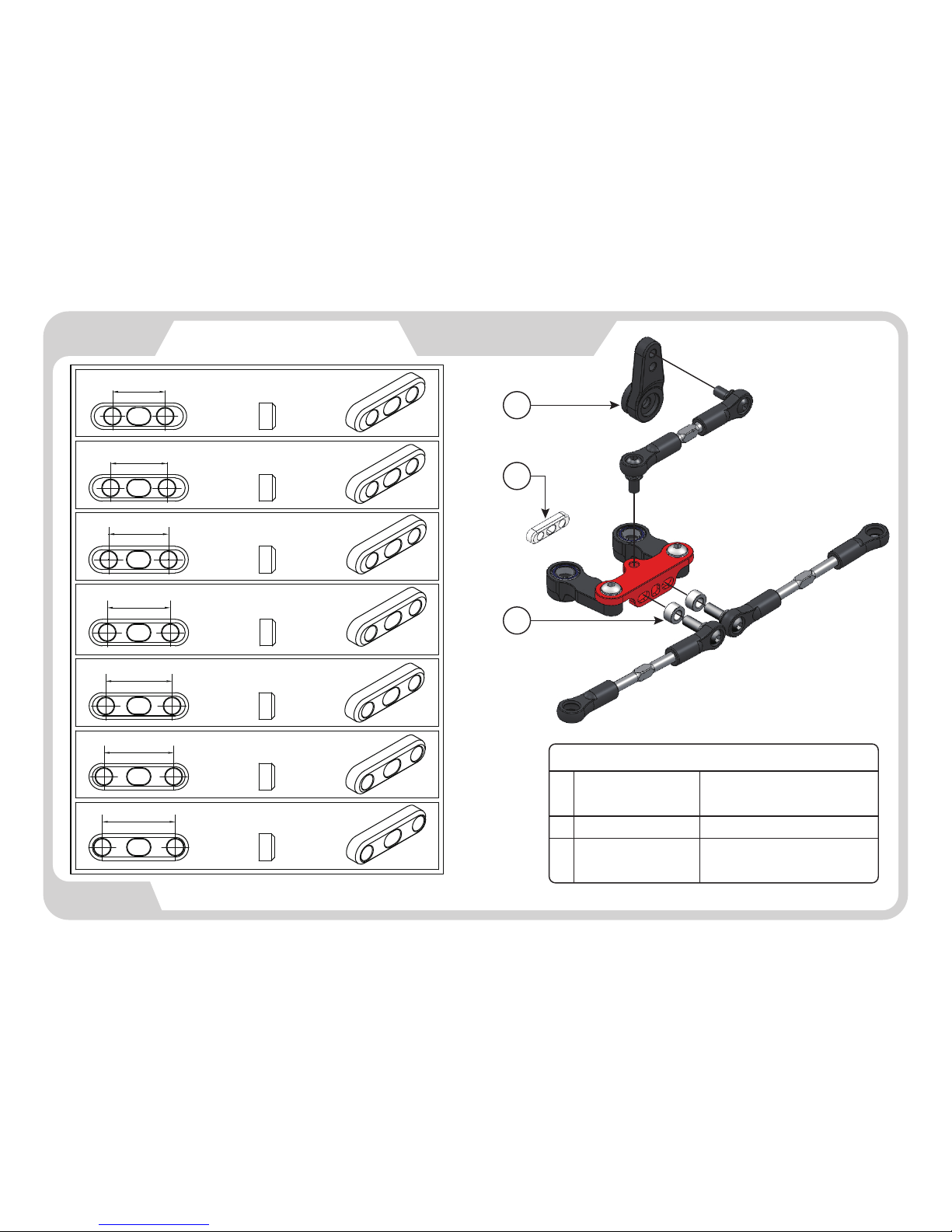

- Steering Rack -
3
2
1
2 Ackerman Plate8.5
Parts List
Cap21060P
Cap27052-8.5
1
Plastic Servo Horn
Dual Steering Arm
Cap220173
3X6X3mm
Alu Shims (2pcs)
Cap27052-9
Cap27052-10
Cap27052-11
Cap27052-8.5
Cap27052-9.5
Cap27052-10.5
8,5±0,03
9,5±0,03
10±0,03
10,5±0,03
11±0,03
9±0,03
Cap27052-8
8±0,03
Capricorn RC
Step 18.0
Made in Italy
18
- Steering Rack -
1
Parts List
Cap170301 3x6 round head screw
Capricorn RC
Step 19.0
Made in Italy
19

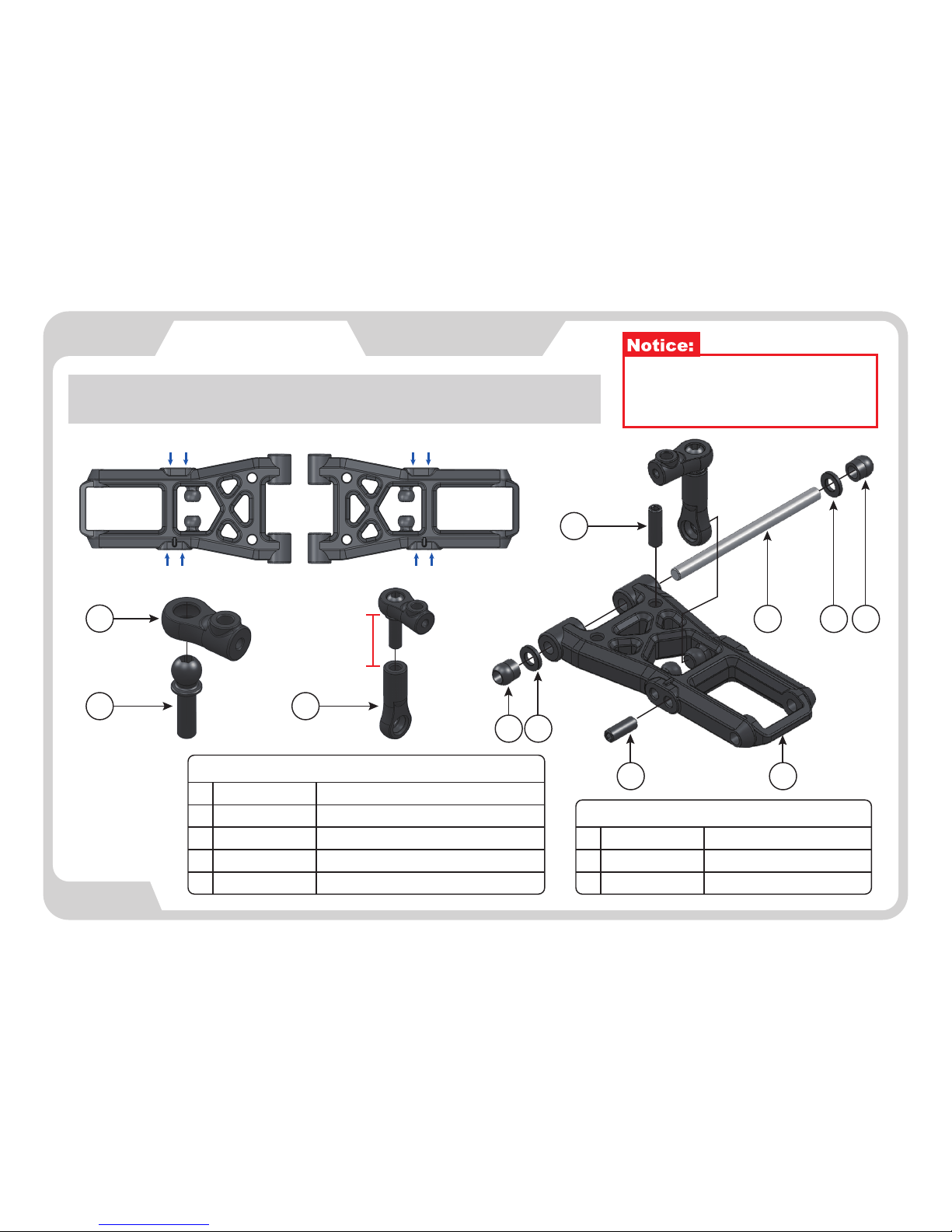

- Front Arm -
1
2 3
6
658
7 5
5
4
Parts List
Cap2107C1 Anti-Roll Bar Joint
Cap221022 4.9mm Ball End Long Alu
Cap2107A3
Ball Joint 4.9mm Open
Cap180224
3x10 screw set
Cap301065
Low Arm Front 30%
Parts List
Cap230086 Ball 5mm(2pcs)
Cap170087 3x8 screw set
Cap230148 Pivot Pin Inner
Front lower arms have 4 different shock positions.
Make sure left and right sides are both symmetrical during assembly.
33mm 33mm28.6mm
Assembled
Distance
4.0mm
32mm 27.6mm 27.6mm 32mm
28.6mm
Please fix the plastic shim
thickness thinner if suspension
arm moving not free.
Step 20.0
Made in Italy
20
Capricorn RC

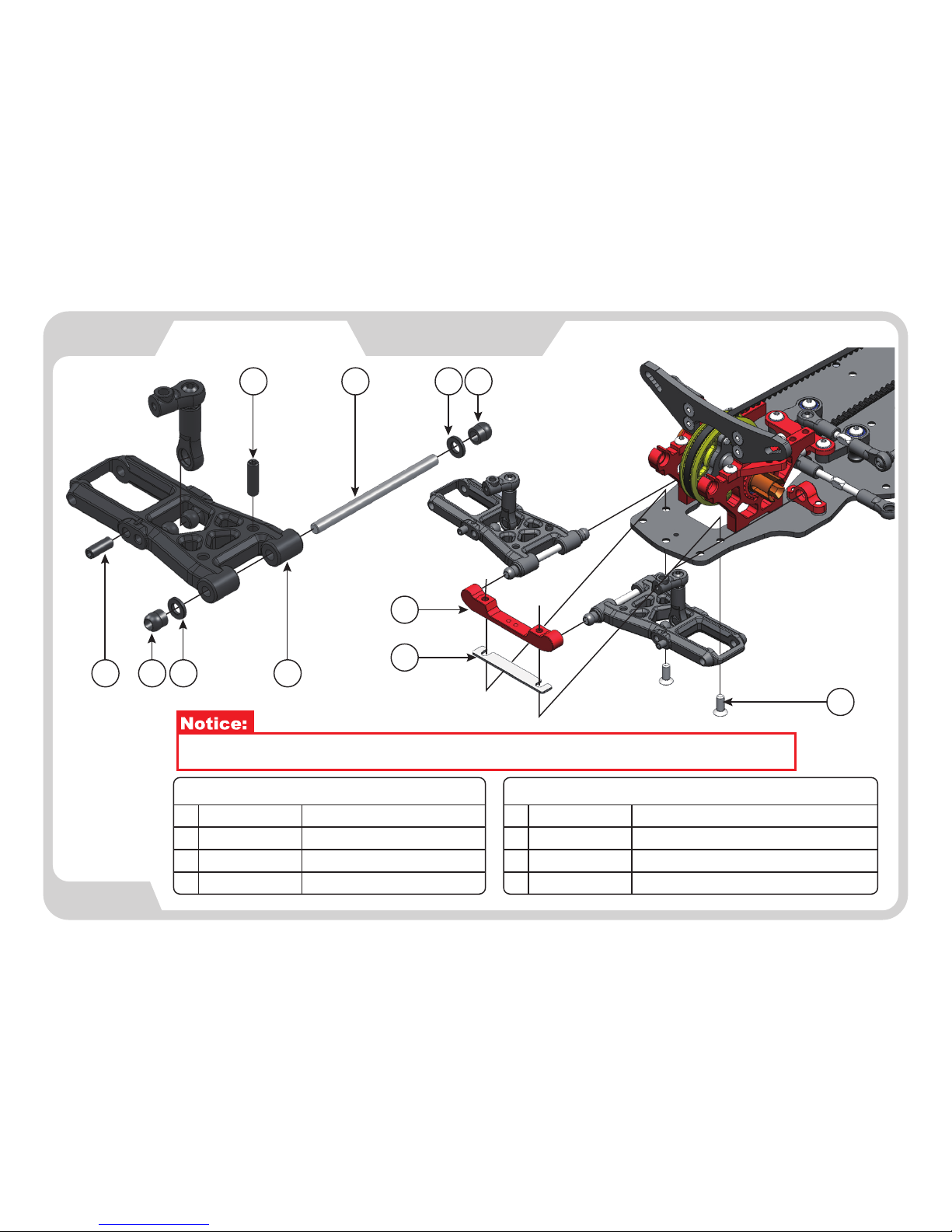

- Front Arm -
1 2 3 3
45 3 2
6
8
7
Parts List
Cap170081 3x8 screw set
Cap230082 Ball 5mm(2pcs)
Cap301063
Low Arm Front 30%
Cap230144
Pivot Pin Inner
Parts List
Cap225146 Suspension Alu Bracket #2
Cap180225 3x10 screw set
Cap230227 Roll Center Shim 1.0mm
Cap170318 3x8 flat head screw
Please fix the plastic shim thickness thinner if suspension arm moving not free.
Step 21.0
Made in Italy
21
Capricorn RC

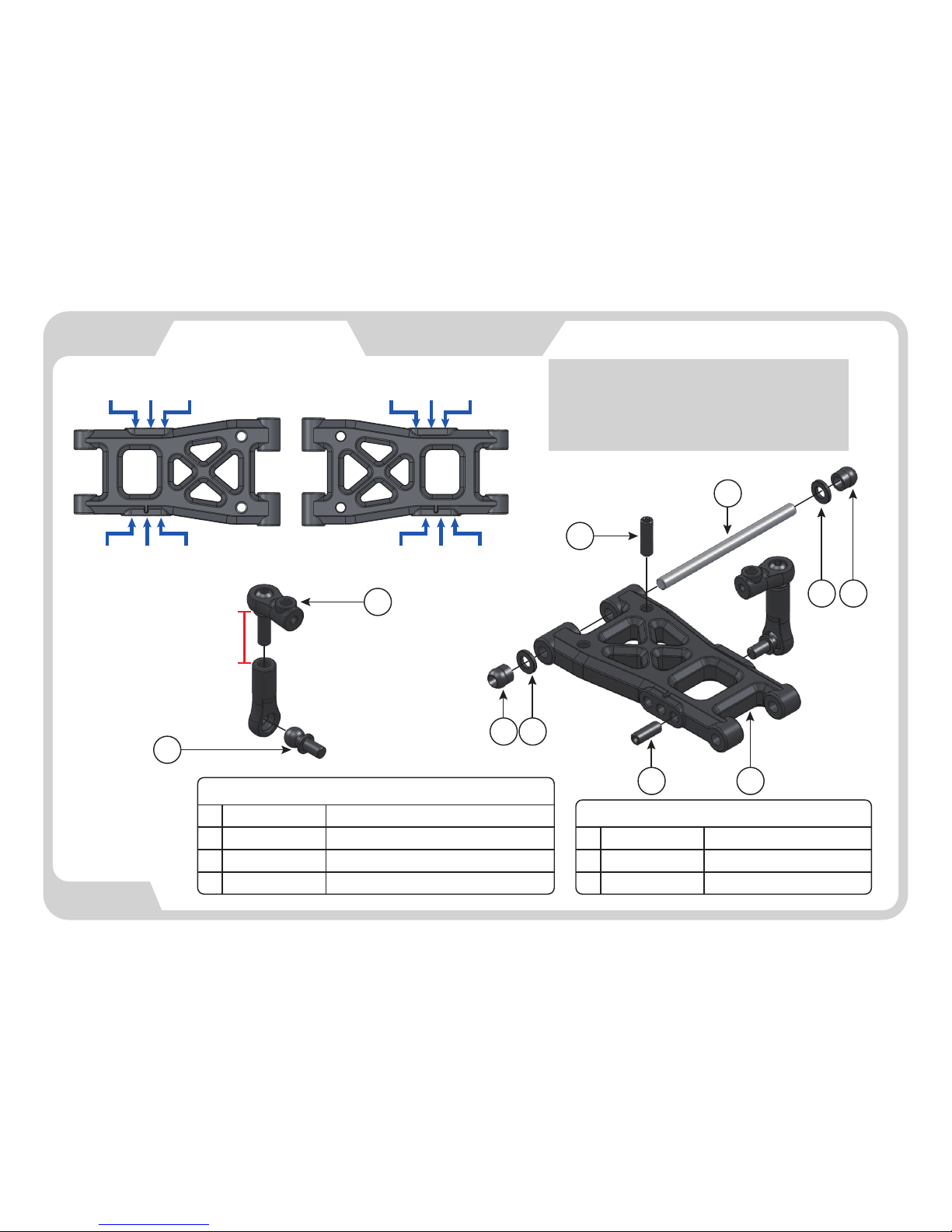

- Rear Arm -
1
2
5
54
7
6 4
4
3
Parts List
Cap221021 4.9mm Ball End Long Alu
Cap221002 4.9mm Ball End Short Alu
Cap180223
3x10 screw set
Cap301074
Low Arm Rear 30%
Parts List
Cap230085 Ball 5mm(2pcs)
Cap170086 3x8 screw set
Cap230147 Pivot Pin Inner
Rear lower arms have 6 different
positions for shocks and anti-roll bars.
Make sure left and right sides are
symmetrical during assembly.
40.5mm 40.5mm36.1mm 36.1mm31.7mm 31.7mm
39.5mm 39.5mm35.1mm 35.1mm30.7mm 30.7mm
Assembled
Distance
4.6mm
Step 22.0
Made in Italy
22
Capricorn RC
- Rear Arm -
1 2 3 3
45 3 2
6
8
7
Parts List
Cap170081 3x8 screw set
Cap230082 Ball 5mm(2pcs)
Cap301073
Low Arm Rear 30%
Cap230144
Pivot Pin Inner
Parts List
Cap225166 Suspension Alu Bracket #3
Cap180225 3x10 screw set
Cap230227 Roll Center Shim 1.0mm
Cap170318 3x8 flat head screw
Capricorn RC
Step 23.0
Made in Italy
23
- Rear CVD -
9
8
10
11
1 2 5 6 673
4
Parts List
Cap270011 CVD G-Clip
Cap230022 Wheel Axle(pcs)
Cap170153
2x9.8mm Pin
Cap230054
CVD Insert
Cap230035
CVD Rear 44mm
Cap4186
5x10x4mm Ball Bearing (2pcs)
Cap210907
Steering Block / Rear Upright
Parts List
Cap220059 Hex Wheel Hub aul
Cap210308 C cap2 3.5mm
Cap1802310 2x5 round head screw
Cap1701511 2x9.8mm Pin
Step 1
Step 2
Step 3
Apply slight amount of anti wear grease.
Capricorn RC
Step 24.0
Made in Italy
24

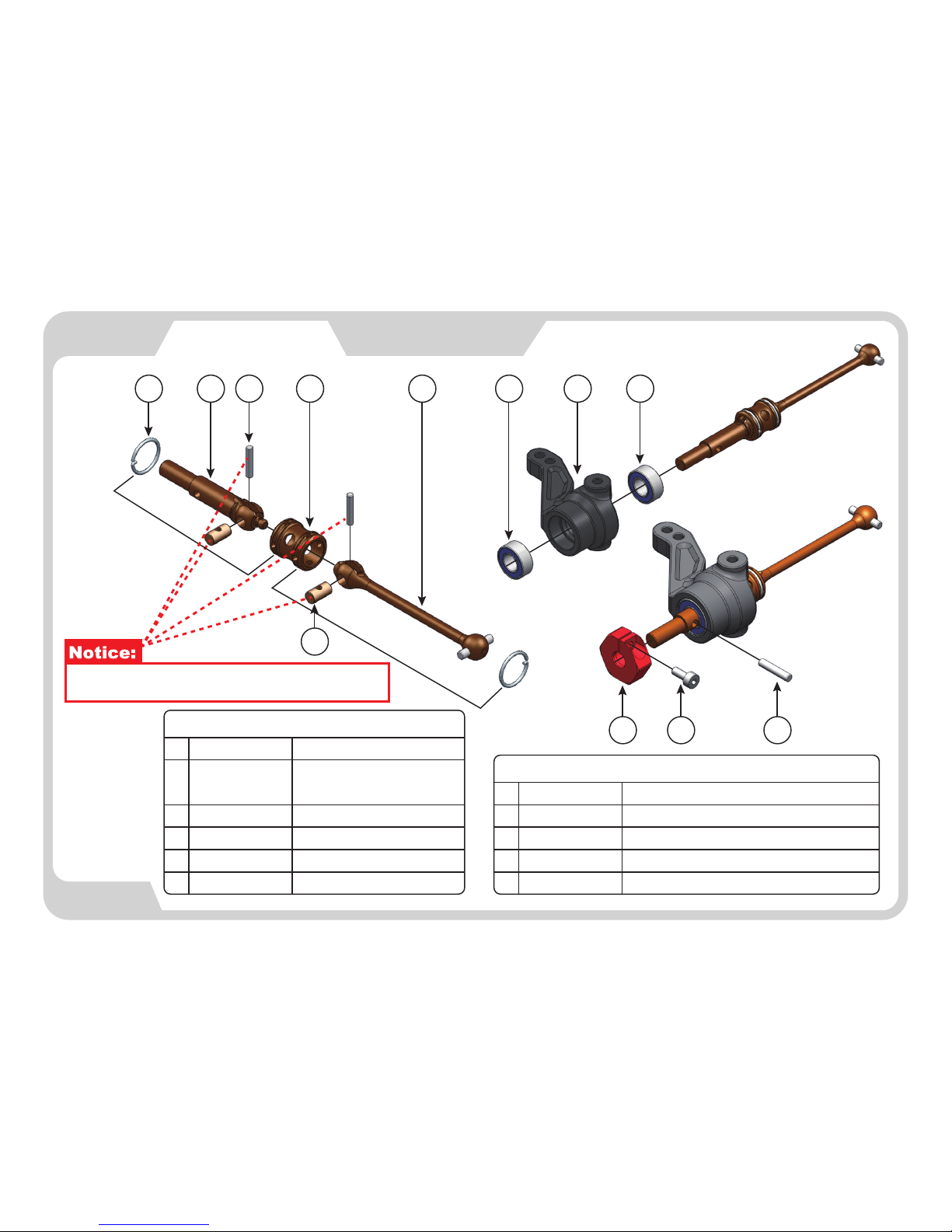

- D.J CVD -
9
6
1110
1 2 5 7 7843
Parts List
Cap270011 CVD G-Clip
Cap231012
D.J CVD
Front Wheel Shaft
Cap261053
1.5x8mm Pin
Cap23103
5
D.J CVD Insert
Cap231044
D.J CVD Joint
Cap23102
6
D.J CVD Shaft
Parts List
Cap220059
11
10
Hex Wheel Hub aul
Cap210918 Steering Block Front upring
Cap4187 5x10x4mm Ball Bearing (2pcs)
Cap17032 3x8 round head screw
Cap17015 2x9.8mm Pin
Step 1
Step 2
Step 3
Step 4
Apply slight amount of anti wear grease.
Capricorn RC
Step 25.0
Made in Italy
25
- Steering Block -
1
3
1 12 2
3
1
Parts List
Cap230071
2
3
Steering Block Bushing(4pcs)
Cap21080 C-Hub 4 Right -Left
Cap17032 3x8 round head screw
LEFT SIDE
RIGHT SIDE
Capricorn RC
Step 26.0
Made in Italy
26
- Rear Suspension -
1
32
9
7
5
6
8
10
4
Parts List
Cap230106 4.9mm Ball End Open
Cap180245 3x14 round head screw
Cap220187 3x6x4mm Alu Shims
Cap220178
3x6x3mm Alu Shims
Cap170069
3x3 screw set
Cap2301610
Pivot Pin Rear-Out
Parts List
Cap230312 Turnbuckle 3x25mm
Cap2107A1 Ball Joint 4.9mm Open
Cap2107B3 Ball Joint 4.9mm Closed
Cap221024 4.9mm Ball End Long Alu
Length 13.9mm
Capricorn RC
Step 27.0
Made in Italy
27
- Steering Block -
3
4
2
1
5
6
Parts List
Cap230105 4.9mm Ball End Open
Cap230154 Pivot Pin Front-Out
Cap170236 3x10 round head screw
Parts List
Cap220182 3x6x4mm Alu Shims
Cap180241 3x14 round head screw
Cap170063 3x3 screw set
Capricorn RC
Step 28.0
Made in Italy
28
- Anti Roll Bar -
3
1 2 4
5
5
Parts List
Cap170062 3x3 screw
Cap20131 3x6x2.5 Flanged
Cap200063 Anti-Roll Bar Holder
Cap270134
Anti-Roll Bar Rear
1.2mm (Black)
Cap170065 3x3 screw set
4mm
Initial Setup
4mm
Initial Setup
Capricorn RC
Step 29.0
Made in Italy
29
- Anti Roll Bar -
3
1 2 4
5
5
Parts List
Cap270124
Anti-Roll Bar Front
1.4mm (Black)
Cap170065 3x3 screw set
5mm
Initial Setup
5mm
Initial Setup
Cap170062 3x3 screw
Cap20131 3x6x2.5 Flanged
Cap200063 Anti-Roll Bar Holder
Capricorn RC
Step 30.0
Made in Italy
30
- Upper Deck -
1
1 2 3
Parts List
Cap290063 Belt Tensioner
Cap301052 Upper Deck 2mm
Cap170301 3x6 round head screw

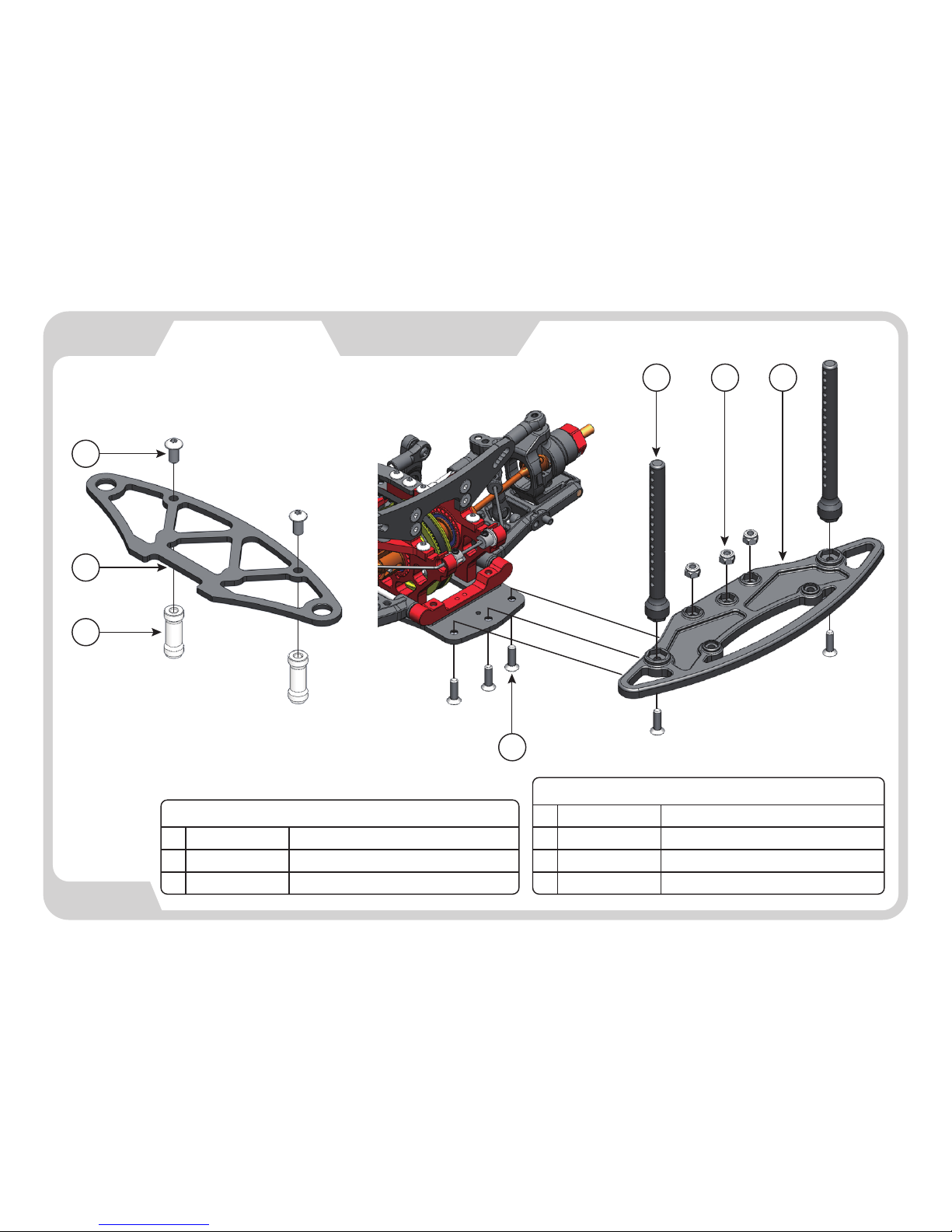

Capricorn RC
Step 31.0
Made in Italy
31
- Bumper -
5
6 4 7
1
3
2
Parts List
Cap210513 Bumper Column
Cap210492 Carbon Upper Bumper Plate
Cap170301 3x6 round head screw
Parts List
Cap170404 Nylon Nut M3
Cap170275 3x10 flat head screw(5pcs)
Cap15011B6 Front Body Column
Cap210507 Plastic Bumper Plate
Capricorn RC
Step 32.0
Made in Italy
32
- Bumper -
54
1
2
3
Parts List
Cap170164 2x11.8mm Pin
Cap15011B3 Front Body Column
Cap270025 R-Clip
Parts List
Cap170322 3x8 round head screw
Cap240101 Bumper Foam

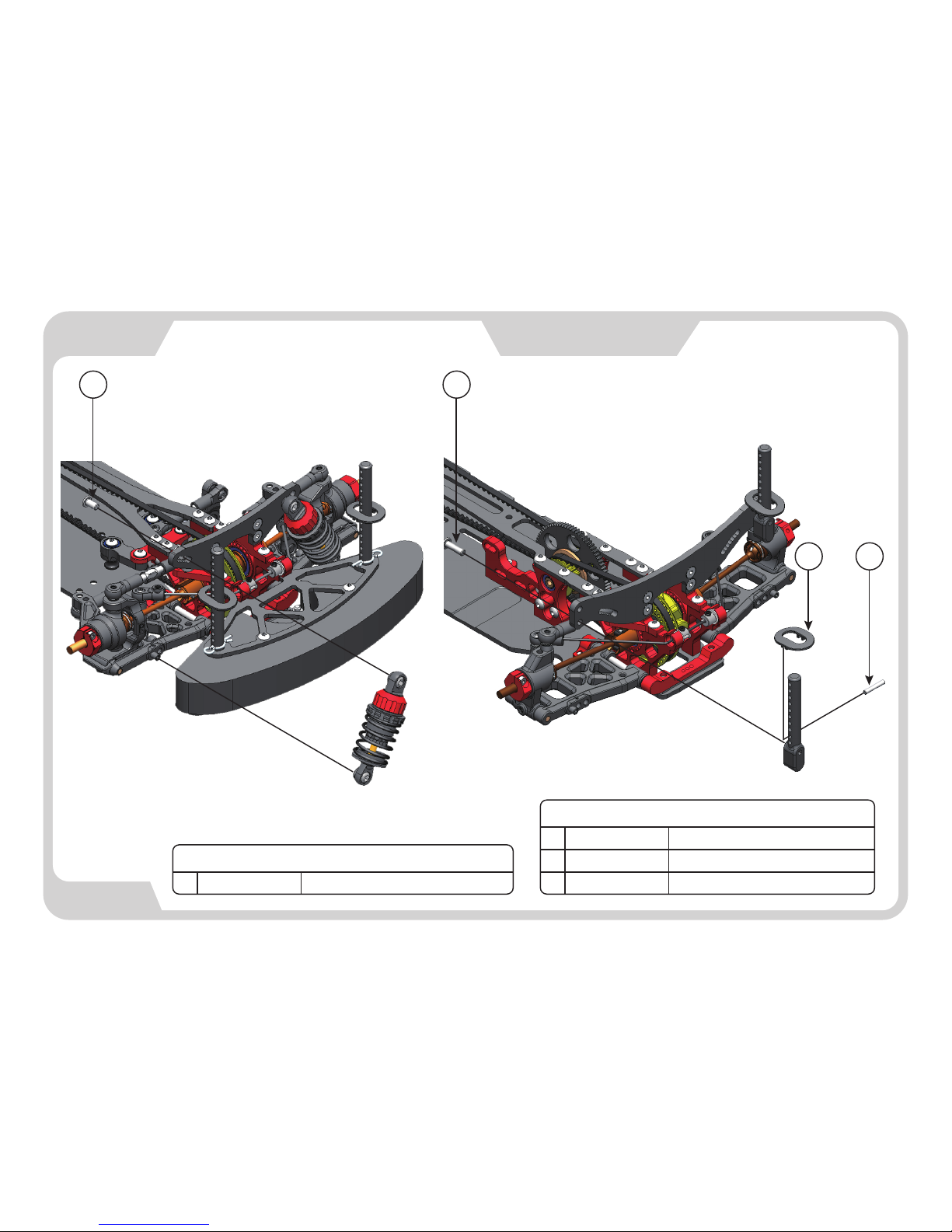

Capricorn RC
Step 33.0
Made in Italy
33
- Shock & Body Tower -
41
2 3
Parts List
Cap170163 2x11.8mm Pin
Cap15012B2 Rear Body Column
Cap170234 3x10 round head screw
Parts List
Cap170301 3x6 round head screw

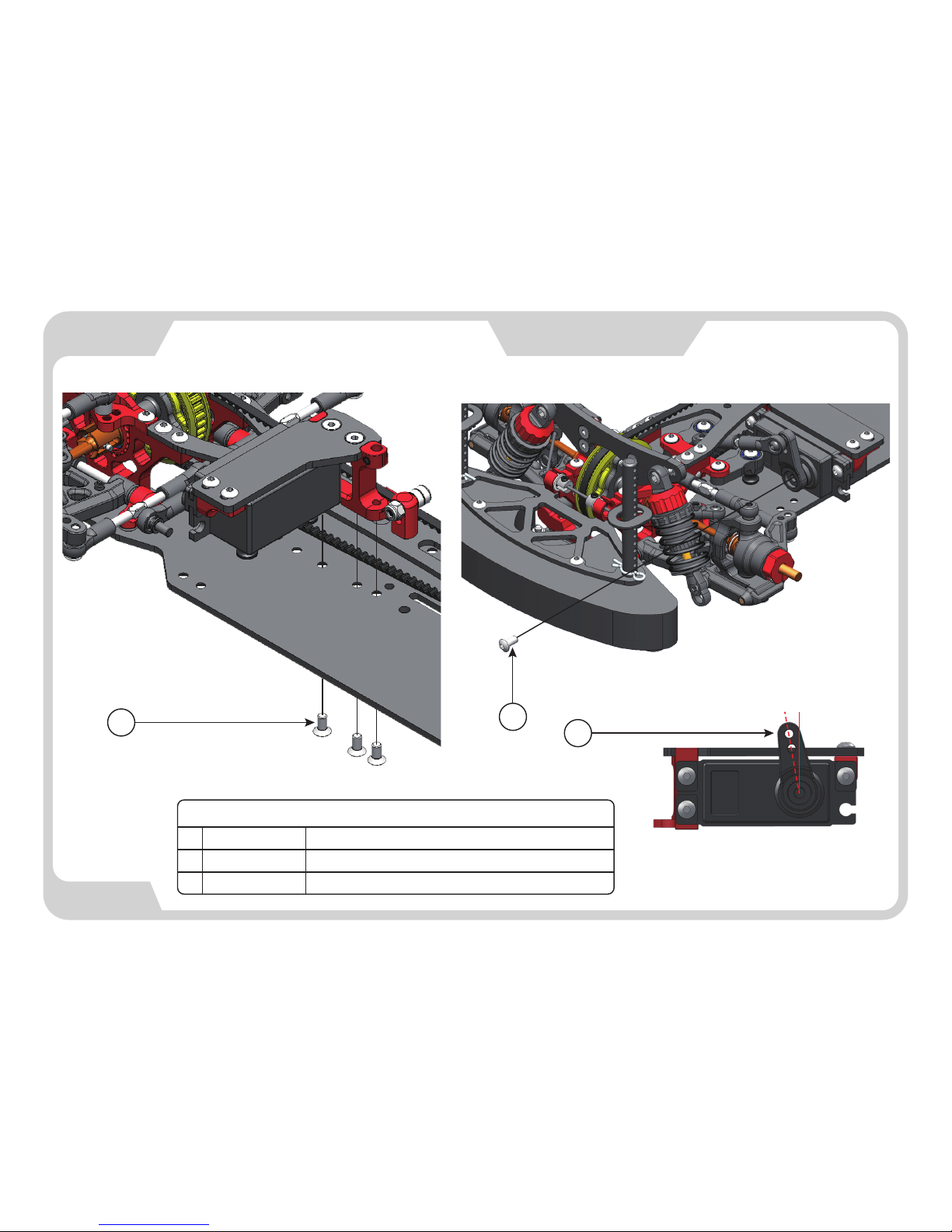

Capricorn RC
Step 34.0
Made in Italy
34
- Shock & Servo -
2
3
4
5
1
64
Parts List
Cap170325 3x8 round head screw
Cap170306 3x6 round head screw
Parts List
Cap170301 3x6 round head screw
Cap170292 3x6 flat head screw
3 Flex floating servo plate
with carbon plate
Cap30108
4
Not Included
It is recommended to
use servo mount rubber.
Capricorn RC
Step 35.0
Made in Italy
35
- Floating Servo Mount -
2
1
3
Parts List
Cap170302 3x6 round head screw
Cap170291 3x6 flat head screw
Cap21060P3 Plastic Servo Horn Dual Steering Arm
10°

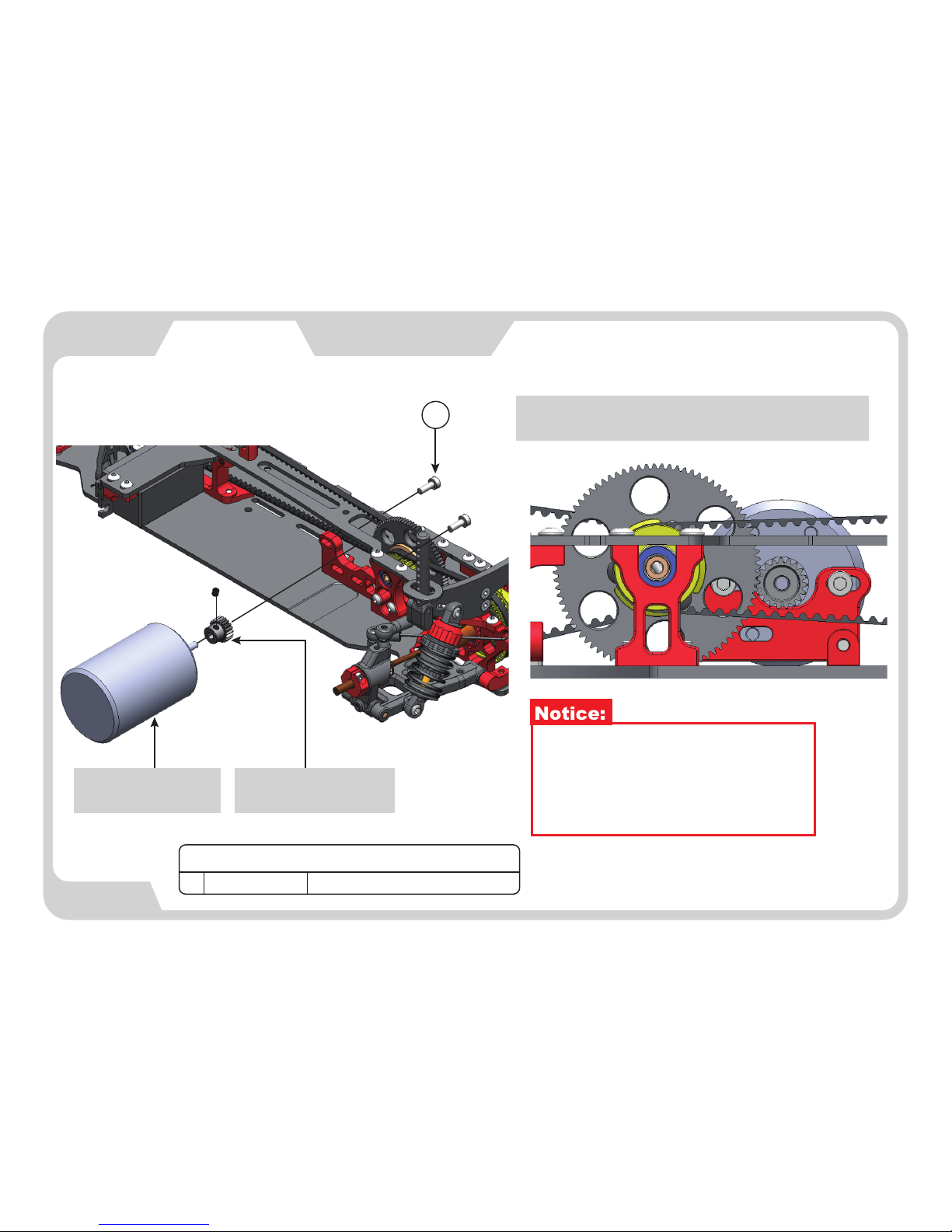

Capricorn RC
Step 36.0
Made in Italy
36
- Motor -
1
Parts List
Cap180271 3x10 Cylinder head screw
Motor Pinion 64DP
(Not included)
Gear mesh should have a minimal amount
of play between spur and pinion.
Brushless Motor
(Not Included)
A gear mesh that is too tight will
put extra strain on the spur gear.
A gear mesh that is too loose will
strip the spur.
Capricorn RC
Step 37.0
Made in Italy
37
- Botter Holder -
Parts List
Cap22110F/R5 Low Arm F/R Set with Shims
Cap170404 Nylon nut M3
Cap280066 Battery Mount Plate Carbon
Parts List
Cap170292 3x6 Flat head screw
Cap2101A1 Antenna Mount Set
Cap170243 3x12 Flat haed screw
2
5 6 3 654 4
3
1
Use a small file to shape
the battery holder edge.

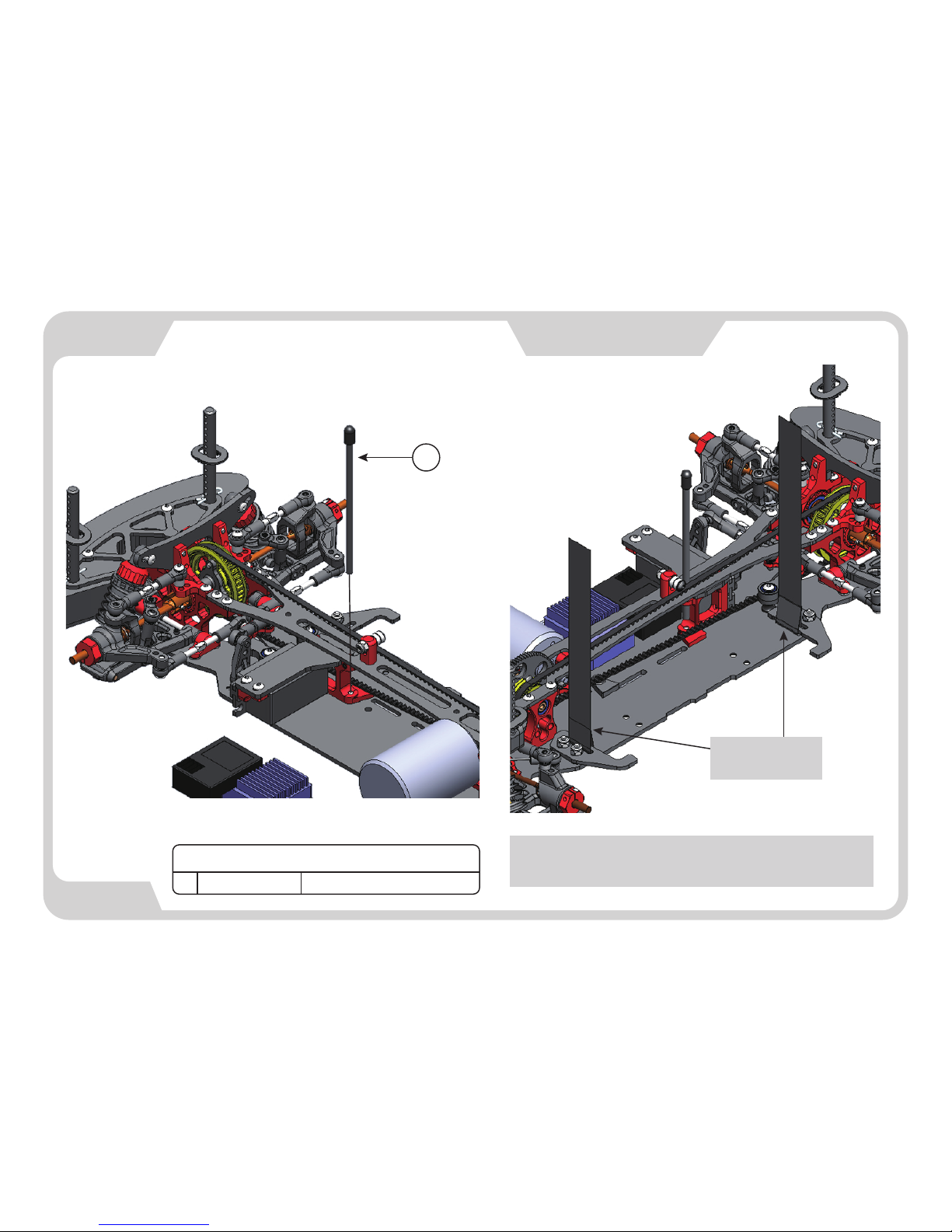

Capricorn RC
Step 38.0
Made in Italy
38
- Electronical Accessory -
Parts List
Cap140011 Antenna (3set)
1
Fiber Tabe
Not Included
Use glass fiber tape attached to the battery
mount plate to secure the battery.

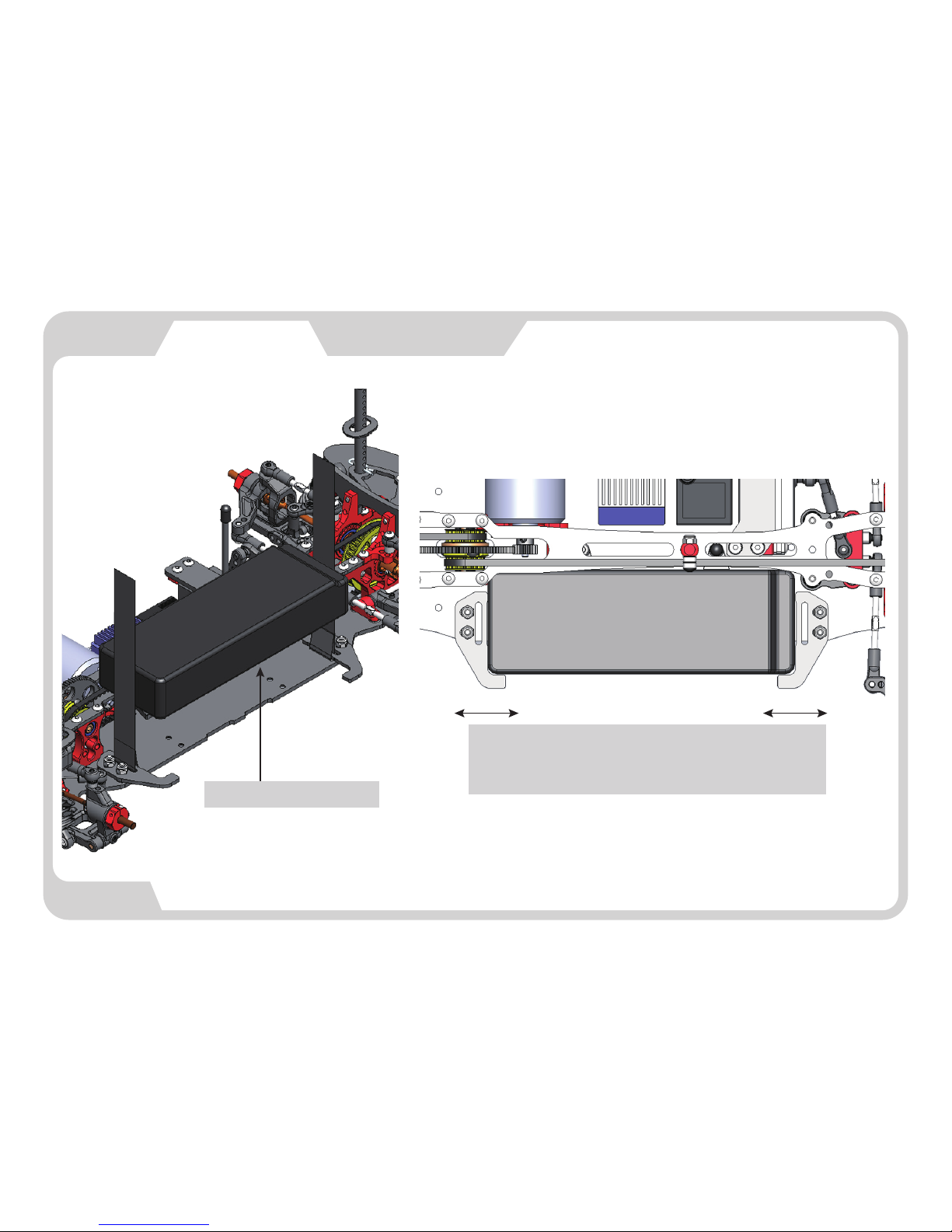

Capricorn RC
Step 39.0
Made in Italy
39
- Battery -
Battery Not Included
Battery location can be adjusted by
moving the battery holder.
It can be used to adjust weight distribution.
Loading...
