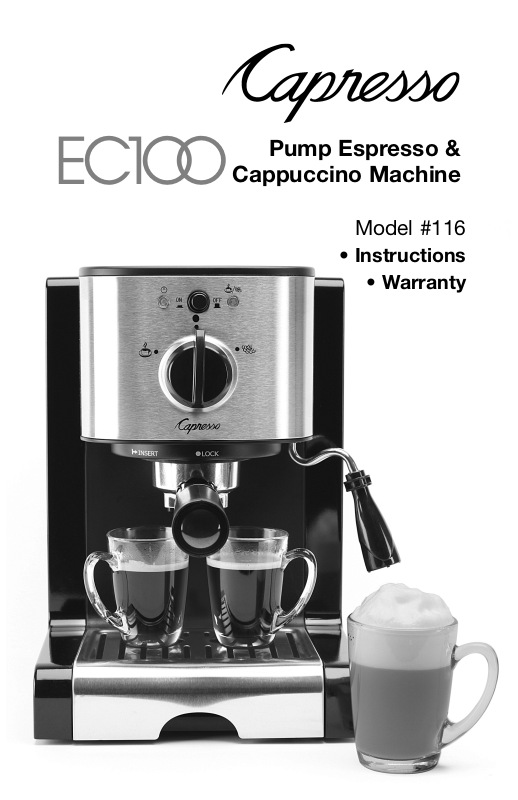

Capresso EC1OO User Manual

Pump Espresso &

EC1OO

Cappuccino Machine

Model #116

• Instructions

• Warranty

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be
followed, including:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.
3 To protect against fire, electrical shock or personal injury, do not immerse

cord, plugs or appliance in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug appliance from outlet when not in use and before cleaning. Allow
appliance to cool before putting on or taking off parts, and before cleaning
the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return appliance
to the nearest authorized service facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock, or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter top, or touch any hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always attach plug to appliance first, then plug the cord into the wall outlet.
To disconnect, turn any control ‘OFF’, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Use extreme caution when dispensing hot steam.

14. For household use only.

SAVE THESE INSTRUCTIONS
SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord (or detachable power-supply cord) is provided to

reduce risks resulting from becoming entangled in or tripping over a longer
cord.

2. Longer detachable power-supply cords or extension cords are available and

may be used if care is exercised in their use.

3. If a longer detachable power-supply cord or extension cord is used,

a. The marked electrical rating of the detachable power-supply cord or extension

cord must be as great as the electrical rating of the appliance,

b. If the appliance is of the grounded type, the extension cord should be a

grounding type 3-wire cord, and

c. The longer cord should be arranged so that it will not drape over the counter

top or table top where it can be puled on by children or tripped over.

4. This appliance has a polarized plug (one blade is wider than the other). To

reduce the risk of electric shock, this plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.

2.

CAUTION

This appliance is for household use. Any servicing other than cleaning and
user maintenance should be performed by an authorized service agent.

1. Do not immerse in water or try to disassemble appliance.

2. To reduce the risk of fire or electric shock, do not remove the base. No

user serviceable parts are inside. Repair should be done by authorized
service personnel only.

3. Never use warm or hot water to fill the water container. Use cold water only!

4. Keep hands and cord away from hot parts of the appliance during operation.

5. Never clean with scouring powders or hard implements.

6. Operate the appliance with the drip tray and support grid in place.

7. Never heat inflammable liquids using steam.

8. Clean the steam tube only when the appliance is not under pressure and

the ON/OFF switch is in the ‘OFF’ position.

9. Follow the instructions for Decalcifying.

TABLE OF CONTENTS Page

Important Safeguards ................................................................................... 2

Line Drawing / Reference Images ................................................................. 4

1. The Capresso EC100 Espresso/Cappuccino Machine ............................ 5

2. Before Using for the First Time ................................................................ 5

3. Filling the Water Container ....................................................................... 5

4. Control Panel ............................................................................................ 5

5. Warming the Internal Components and Cups ......................................... 6

6. Filling and Inserting the Porta Filter ......................................................... 6

7. Preparing Espresso .................................................................................. 6

8. Preparing Cappuccino ............................................................................. 7

9. Cleaning the Frother ................................................................................. 8

10. Preparing Latte ....................................................................................... 8

11. Turning OFF the EC100 .......................................................................... 8

12. Cleaning & Maintenance ........................................................................ 8

13. Decalcifying ............................................................................................ 9

14. Troubleshooting ...................................................................................... 9

15. Recipes ................................................................................................. 11

16. Warranty ............................................................................................... 12

17. Customer Service ................................................................................. 12

Appliance Specifications

Name: Capresso EC100
Voltage: 120V 60Hz
Rated Input: 1350 W
Heating System: thermostatically controlled thermoblock heater
Pump Pressure: 15 bar max.
Water Tank Capacity to MAX line: 46 oz.
Dimensions: 10¼” d x 8¼”w x 11¾” h (260 x 209 x 298 mm)
Weight: 9 lbs, (4 kg)

3.

Fig. 1 Capresso EC100 User Components

j

m

n

q

p

g

h

i

a. Water Container Lid
b. Removable Water Container
c. Steam Wand
d. Black Frothing Sleeve (removable)
e. Porta Filter
f. Thumb Guard
g. Brew Head

(with Screen and Center Screw)

h. Stainless Steel Grid (removable)
i. Drip Tray (removable)
j. Stainless Steel Cup Warming

Plate (removable)
k. Measuring spoon with tamper
l. Sieve (one-cup or two-cup)
m.On/Off Button

Fig. 2

bump

a

b

o

r

c

d

l

e

f

k

n. ON light indicator (Orange)
o. Ready light indicator (Green)
p. Selector Dial (Coffee/Steam)
q. Coffee Symbol
r. Steam Symbol

Fig. 3

2-cup sieve 1-cup sieve

Fig. 4

notch

Align bump on sieve with notch in
the porta filter. Insert and twist.

Steam Wand (remove Black
Frothing Sleeve) for steaming only

4.
