Page 1
HIGH SPEED REFRIGERATED CENTRIFUGE

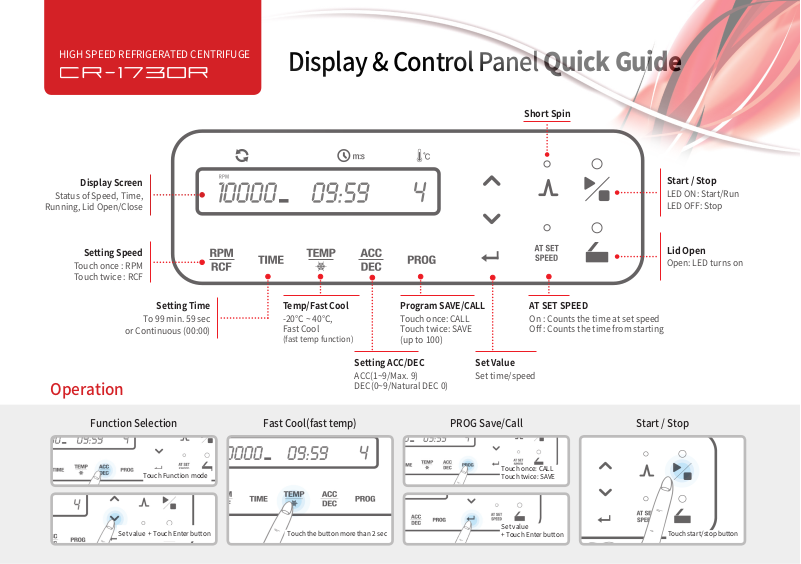

Display & Control Panel Quick Guide
Short Spin
Display Screen
Status of Speed, Time,
Running, Lid Open/Close
Setting Speed
Touch once : RPM
Touch twice : RCF
or Continuous (00:00)
Operation
Set value + Touch Enter button
Setting Time
To 99 min. 59 sec
Touch Function mode
Start / Stop
LED ON: Start/Run
LED OFF: Stop
Lid Open
Open: LED turns on
Temp/Fast Cool
-20℃ ~ 40℃,
Fast Cool
(fast temp function)
Setting ACC/DEC
ACC(1~9/Max. 9)
DEC(0~9/Natural DEC 0)
Touch the button more than 2 sec
Program SAVE/CALL
Touch once: CALL
Touch twice: SAVE
(up to 100)
Set Value
Set time/speed
PROG Save/CallFast Cool(fast temp)
AT SET SPEED
On : Counts the time at set speed
O : Counts the time from starting
Touch once: CALL
Touch twice: SAVE
Set value
+ Touch Enter button
Start / StopFunction Selection
Touch start/stop button
Page 2
1
2
3
4
1
2
3
4
HIGH SPEED REFRIGERATED CENTRIFUGE
Precaution before Operating the Centrifuge
O-ring
Motor shaft & rotor
Clean the motor shaft.
Remove the foreign substances
not to cause any vibration.
Easy lock lid
One step clicking action is enough to make a closure
of rotor lid.
Keep the lid open after every use
Keep the instrument dry after use
for prolonged durability.
Take the rotor out and clean the
shaft with the dry soft cloth.
Buckets or samples balanced
Load the sample tubes symmetrically.
O-ring maintenance
Check the O-ring is put on the right place of
the rotor. Make the rotor lid loose when not
using the centrifuge which is for prolonged
durability of O-ring.
CR-17-24 for 24 x 1.5 ㎖ / 2.0 ㎖ microtubes
CR-17-30 for 30 x 1.5 ㎖ / 2.0 ㎖ microtubes
CR-17-18 for 18 x 1.5 ㎖ / 2.0 ㎖ microtubes or lter tubes
CR-17-5 for 12 x 5 ㎖ snap cap microtubes
CR-17-PCR for 64 x 0.2 ㎖ PCR tubes or 8 rows of PCR strips
CR-17-D8 for 8 x 1.5 ㎖ / 2.0 ㎖ microtubes
CR-17-D16 for 16 x 1.5 ㎖ / 2.0 ㎖ microtubes
Interchangeable rotors
Rotor checking
Check the rotor is installed correctly
and is sitting rmly on the motor shaft.
