Caple WC6215 User Manual

Instruction manual for in-column wine cabinet

Model code: WC6215

Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

1

WARNING

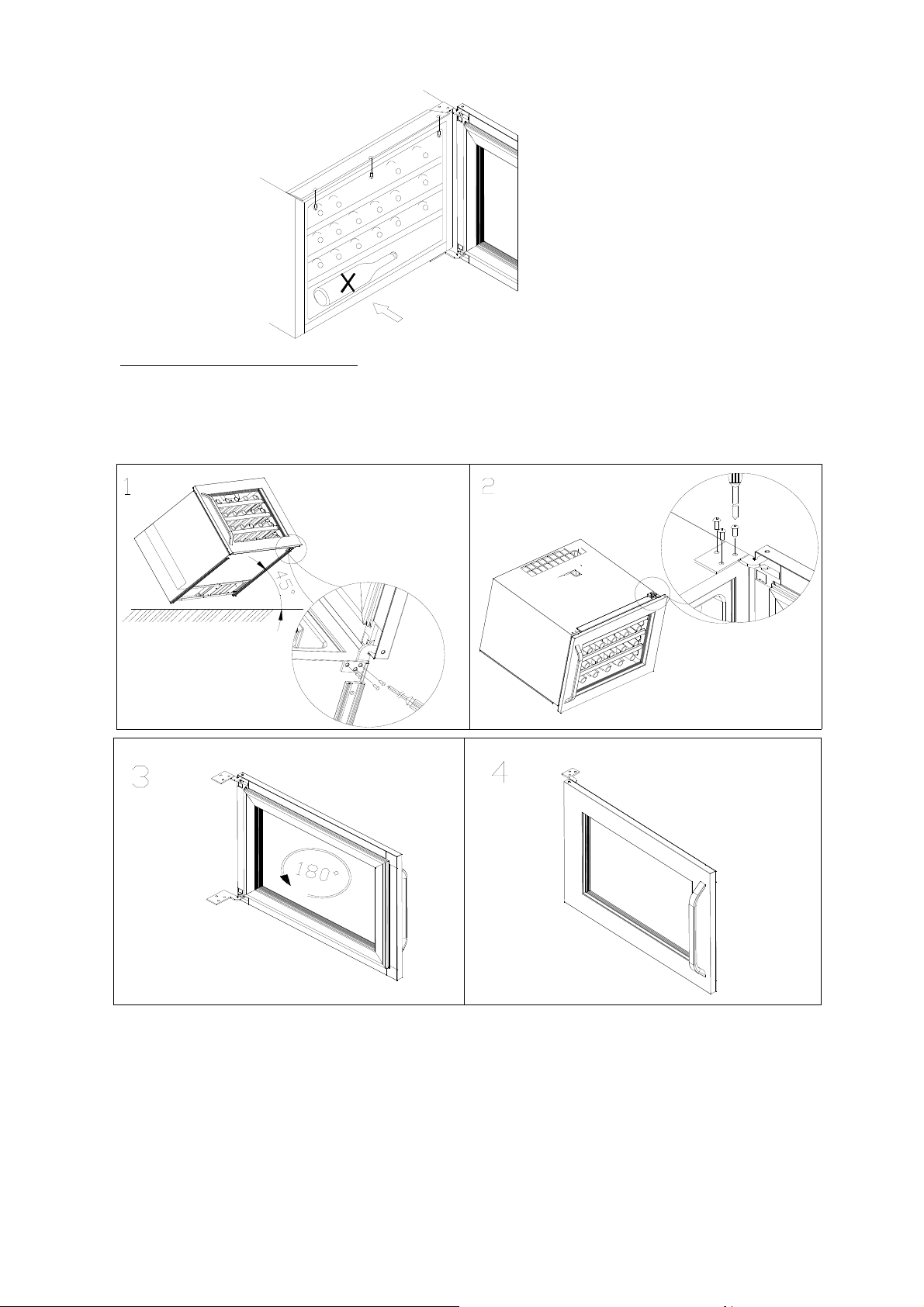

z To prevent damaging the door gasket, make sure to have the door all the way

opened when pulling shelves out of the rail compartment.

z The appliance must be positioned so that the plug is accessible. Release the

electric cord. Move your cabinet to its final location. Do not move your Cabinet

while loaded with wine. You might distort the body. The wine cellar should be
installed in a suitable place in order to avoid Touching the compressor with the
hand.

z If the supply cord is damaged, it must be replaced by a Caple

Service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS

aWARNINGa

To reduce the risk of fire, electrical
shock, or injury when using your
appliance, follow these basic precautions:

• Read all instructions before using the Wine cabinet.

• DANGER or WARNING: Risk of child entrapment.

Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous . . . even if they will “just sit in the
garage a few days”.

• Before you throw away your old Wine cabinet: Take off the door. Leave the shelves

in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

• Never clean appliance parts with flammable fluids. The fumes can create a fire

hazard or explosion.

• Do not store or use gasoline or any other flammable vapors and liquids in the

vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.

• The refrigerant of these appliances are R600a ,

Flammable and explosive articles

should not be put in or near the cabinet, to avoid the risk of fire or explosion

-Keep these instructions-

2

INSTALLATION INSTRUCTIONS

¾ Before Using Your Wine cabinet

• Remove the exterior and interior packing.

• Before connecting the Wine cabinet to the power source, let it stand upright for

approximately 12 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

• When disposing your appliance, please choose an authorised disposal site.

¾ Installation of Your Wine cabinet

• Place your Wine cabinet on a floor that is strong enough to support it when it is fully

loaded. To level your Wine cabinet, adjust the front levelling leg at the bottom of the
Wine cabinet.

• Locate the Wine cabinet away from direct sunlight and sources of heat (stove, heater,

radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption. Extreme cold ambient temperatures may also cause the
unit not to perform properly.

• Avoid locating the unit in moist areas.

• Plug the Wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed toward a certified
electrician or an authorised Caple service centre.

¾ Attention

• Store wine in sealed bottles;

• Do not overload the cabinet;

• Do not open the door unless necessary;

• Do not cover shelves with aluminium foil or any other shelf material which may prevent

• Should the Wine cabinet be stored without use for long periods it is suggested, after a

air circulation;

careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in
order to avoid possible formations of condensation, mould or odours.

3

OPERATING YOUR WINE CABINET

AND SETTING THE TEMPERATURE CONTROL

Please use the cabinet within a ambient temperature of 5-32 ºC. If the ambient
temperature is higher or lower than this, it will cause a temperature fluctuation in the
cabinet, impairing its performance.

¾ Controls

LCD touch panel.

• “POWER”

When the indicator light is on, the power for the machine is on.

• “ ”

This shows the temperature of the internal cabinet.

•

“ ” Button

This button controls the upper compartment setting temperature. When you press this button,
the temperature will increase by 1 ºC.

• “ ” Button

This button controls the lower compartment setting temperature. When you press this button,
the temperature will decrease by 1 ºC.

• “ ” Button

To control the inner light by turning on/off.

（Press this button, the light is on, and the light is not controlled by door. Press this
button again, the light is off, and the light is controlled by door.）

• “ ” Button
To turn this appliance on/off.

（Press this button, the power is on. Press this button for 3 seconds again, the power is
off.）

• “ ”

Alarm Indicator light

4
