Caple RiF178 User Manual

Instruction manual for integrated freezer
Model code:RIF178
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk
European Safety Certificate
Compliance Declaration
The manufacturer assumes full responsibility for the compliance of products manufactured with relevant safety, health and environmental protection requirements set out in European Directives. Test reports are available for verification upon request. The manufacturer will present the quality certificate or manufacture license to a refrigerator dealer if so required.
Furthermore, the manufacturer declares that all parts intended to be in contact with fresh food as described in this User’s Manual are free of toxic substances.
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal serice or the shop where you purchased the product.
1. Compression-type appliances which use flammable refrigerants shall be marked with the symbol “Caution: risk of fire”.
Cautionrisk of fire
The height of the triangle in the symbol “Caution: risk of fire” shall be at least 15 mm.
2. – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. – WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. – WARNING: Do not damage the refrigerant circuit. – WARNING: Do not use electrical appliances inside the food storage compartments of the
liance, unless they are of the type rec
app
ommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
3. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervis
ion or instruction concerning u
se of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Content Page
1. Environmental Protection and Proper Disposal........2
2. Location....................................................................2
3. Installation ...............................................................2-3
4. Rating Plate..............................................................3
5. Electric Connection ..................................................3
6. Operation Instructions...............................................3-4
7. Freezer Compartment ..............................................4
8. Ice & Ice Cream Making ...........................................5
9. Preparing for Vacation .............................................5
10.Cleaning & Maintenance .........................................5
11.Defrosting ...............................................................5-6
12.Problem Diagnosis ..................................................6
13.Troubleshooting ......................................................6-7
14.During a Power Interruption.....................................7
15.Making A Service Call .............................................7
16.Installation In Kitchen ..............................................7
17.Warranty..................................................................7
18.Illustration of Parts...................................................7
Please read these instructions carefully before use. Underline the important in structions. Keep the User ’s
Manual in a safe place for later reference. Remember to hand it over to the owner, if you ever sell the appliance.
What you have bought is a safe and reliable refrigerator. With appropriate use and maintenance, it will be in service for years. The last page of this User’s Manual sets out specifications of this appliance and the performance dat a indicated in the rating plate are test results obtained at an ambient temperature range of 16~32°C.
Important!
It must be noted that a refrigeration system contains
refrigerants, which require specialised waste disposal.
Contact your local waste disposal center for proper disposal of an old appliance and contact your local authority or your dealer if you have any question. Please
ensure that the pipe work of your refrigerator does not get
damaged prior to being picked up by the relevant waste disposal center, and contribute to environmental awareness by insisting on an appropriate, anti-pollution method of disposal. Please see the rating plate for the type of refrigerant and insulation used.
The plug should be accessible after the appliance is positioned.
If the power c ord is damaged, it must be replaced with a new power cord from the manufacturer or an authorised service agent.
Caution:
The appliance should be installed in a well ventilated place.
The packaging should be removed.
Caution:
Do not use a sharp or pointed items to defrost.
Important!
It is intended strictly for household use. Not to be used for industrial or commercial purpose. Be sure to observe the
relevant norms and regulations.
A leakage test has been conducted in accordance with relevant safety standard.
To avoid the risk of child entrapment, please make sure your old refrigerator is inoperative and safe by removing the latches and bolt locks before disposal.
Caution:
Make sure the refrigeration system is not damaged.
Caution:
Do not use electrical appliances inside the food storage
compartments of the appliance, other than models
recommended by the manufacturer.
This User Manual is applicable to a variety of models and there may be slight changes in certain aspects from model to model.
1
1.Environmental Protection and
Proper Disposal
Package materials
The appliance is packaged in a way to prevent damages during transportation. Recyclable materials are used.
The packing box is made of corrugated board / cardboard (mainly from recycled paper).
·Polystyrene parts (CFC-free foamed polystyrene)
·Linings and polyethylene bags
·Polypropylene straps
3.Installation
a) Remove all packaging materials.
b) Remove items in the refrigerator.
c) Make sure to remove film and tape on the cabinet and
the door.
d) Remove polystyrene chips (if any) around the
refrigerator.
e) Take out accessories and literature in the refrigerator.
f) Clean the inside of the refrigerator with luke warm
water and vinegar and then dry it with a soft cloth.
g) Use the spanners supplied to adjust the leveling leg to
ensure the refrigerator is stable.
All these valuable materials may be taken to a waste collecting center and used again after adequate recycling.
All waste materials should be disposed of properly.
2.Location
Make sure the refrigerator is kept upright during handling. If an inclination is required, it should not exceed 45 degrees. Other wise the appliance may get damaged
resulting ompromised refrigeration performance.
To avoid product damage or person injury, the refrigerator should be unpacked by two persons after it is located in a previously selected position.
Before installation, make sure the refrigerator has no visible exterior damage.
When handling the refriger ator, do not lift it by holding the worktop, to prevent any damage to the refrigerator.
Do not start up a refrigerator that is damaged.
Check the refrigerator carefully for:
- Damaged package due to inappropriate handling
during transportation
- Damage in the exterior
- Damage in power cord / plug
Any doubt, please contact Customer Service for a
thorough inspection of the appliance. Take necessary measures to prevent leakage of
refrigerant at the start-up of refrigerator that may resu lt in environmental pollution.
Do not us e detergents, sharp or pointed instruments
or soda-based cleansers to clean the refrigerator.
· Before installation, make sure the refrigeration system
is free of any damage.
· The refrigerator should be used for its intended purpose only.
· The refriger ator should be positioned on a solid and
even floor to ensure refrigerant circulation and refrigerating performance.
· If possible, position the refrigerator in a cool and dr y
well ventilated room.
· Do not expose the refrigerator to direct sunshine and make sure the ambient temperature is not extremely high.
· Keep the refrigerator from a heat source, such as
heating sustem, oven or cookers. Otherwise the compressor will operate more frequently resulting in extra power consumption.
If the refrigerator will be placed near a h eat source, it is recommended to install a thermal barrier between the
refrigerator and the heat source (asbestos is prohibited) or maintain adequate space between the refrigerator and
the heat source as follows:
the heat source as follows:
Cooker or electric stove 3 cm Radiator or oven 30 cm Another refrigerator 2 cm
Do not place any rad iating apparatus, such as microwave oven or toaster, on top of the refrigerator.
Make sure the air vent is not obstructed.
Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly and pull it strai ght out from the outlet.
2
Warning!
After the refrigerator is positioned, allow it to stand still for at least 12 hours before starting it up to ensure stable refrigerant circulation and faultless operation.
Before starting up the refrigerator, make sure the inner compartment is dry (especially corners).
Danger!
Depending on the chemical composition, the refrigerant may be flammable. The leak-proofness of refrigerant circulation system is test proven. Unauthorised intervention of the refrigerant circulation system may cause fire.
Make sure the refrigerant circulation system and the peripheral parts of compressor are not affected.
Any intervention of the refrigerating system should be conducted only by qualified engineers.
Warning!
Refrigerant getting into eyes can cause serious inj ury. In
this case, rinse the eyes under running water and consult an ophthalmologist without delay.
Write down the technical data for later reference to avoid the need for moving the refrigerator when such data is needed.
Model / Type
Storage............................................................... Liter
Working voltage…………………………………… Volt Max input power (W) ……………………………… Watt Current……………………………………………... Amp Energy consumption …………………………….. kWH/24hr Freezing capacity ………………….. kg/24hr
5.Electric Connection
The refrigerator should use a properly grounded outlet which should be checked by a qualified electrician. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating and a fuse rating in conformity with the rating plate.
In case of nonconformity, consult the local service center or the dealer immediately.
The refrigerator should not be connected with a converter (such as solar cell)
Do not use an extension cord.
The refrigerator should be used within an appropriate range of room temperature by its climate type.
The range of room temperature for a sp ecific climate type
should be observed. See the rating plate for the climate type of your appliance.
Climate type Room temperature
SN +10°C~+32°C
N +16°C~+32°C
ST +18°C~+38°C T +18°C~+43°C
4. Rating Plate
A rating plate is found on the side panel or back panel of
the refrigerator, indicating important technical data. Write down these technical data.
Write down the following technical data.
6.Operation instructions
a) Power on the refrigerator (or power off), and select
temperature settings
· Temperature regulator (thermostat)
· Temperature regulator is used to power on/off the refrigerator, and select temperature settings.
b) Startup
Turn the temperature regulator clockwise to startup the refrigerator. (Turn to restricted position at most, or you may break the temperature regulator).
Compressor starts operation, until the interior temperature
satisfies the settings.
c) Setting temperature In order to adjust the setting of temperature regulator of freezer compartment, use the key supplied by the manufacturer and turn the temperature regulator clockwise or anticlockwise to a desired setting.
To select a lower temperature: Turn clockwise
To select a higher temperature: Turn anti-clockwise
3
Turn temperature reg ulator counterclockwise to the lowest setting = lightest cooling;
(Turn the regulator counterclockwise to the most will power off the refrigerator, compressor will stop)
Turn temperature regulator counter clockwise to the
highest setting = coldest setting;
Temperature setting should conform to the following conditions:
· Ambient temperature;
· Quantity of food stored;
· Door openings;
Through observation, you’ll soon learn how to select an
appropriate temperature setting.
Appropriate t emperature setting is very important for food
storing. Microbes can get food spoiled very quickly, unless
there growth is stunted by low a temperature environment.
It is recommended to set the t emperature to 18°C or lower
which may effectively eliminate food spoiling process by
microbes.
storage, select a medium setting.
4 Normally, when food requires a long period of storage,
select a high setting.
NOTE!
· Never add canned or bottled carbon dioxide drinks to the freezer, as carbon dioxide may expand when under freezing, and lead to an explosion hazard.
· Bottled food which needs immediate c ooling should be
stored in the freezer for no more than one hour befor e
they’re taken out, otherwise bottles may burst.
· Ice cream should be allowed several
minutes before using, as lips and tongue may get
frostbite (chap may occur in skin). Mean while, avoid
touching inner walls of freezer with wet hands.
IMPORTANT!
· Food to be added to freezer must be well wrapped.
d). Stopping Turn temperature regulator fully counterclockwise.
The compressor should then stop.
Unplug from wall outlet.
7.Freezer compartment
3-star or 4-star freezer are suitable for storing deep frozen
food (alre ady frozen before added to the freezer), storing
fresh food for a short period (2-3 weeks) b y freezing it, or making ice, ice cream and water ice.
Recommended expiration date of food must be observed.
Freezer can be used to produce ice cubes.
1.Temperature within the freezer can be adjusted by
setting tempeature regulator. For fresh food and food
which needs to be stored for a long period, -18°C or below
is recommended, as microbes can barely survive under this temperatur e. Once the temperature is higher than -10°C,
microbes will start to caus e spoil ing of food, and storage
period of food will be effectively red uced. If you need to
freeze food which is already partly or totally thawed, please cook it before adding it to the freezer again. The high temperature of cooking process can eliminate most microbes.
2 The higher the temperature regulator is set, the lo wer
the temperature within the freezer will be.
3 Normally, when food requires only short period of
· Observe expiration date of frozen food.
· Only high quality fresh food is suitab le for freezer storage.
· Food stored in freezer should be properly sized.
· Weight of a single package of frozen food should not exceed 2 kg.
· Please use reusable plastic film, aluminum film for
packing food, or put food in containers.
· Food packages should not entrap too much air inside.
· Use bunge, clip, rope or freezing-resistant tape for sealing of food package.
· Film welding device can be used to seal the plastic packages.
· Place the wide side of food package downward to obtain a faster freezing process.
· Wipe the packages dry before adding them to the
freezer, as they may stick together when frozen.
· If you need to freeze food which is already partly or
totally thawed, please cook it before adding it to the freezer again.
· Don’t use food which is already expired, as they may
cause poisoning.
8.Making ice cubes, ice cream
4
Making ice cubes:
· Add water to ice tray to 3/4 of its volume , place it at the bottom area of the freezer. When ice cubes are read y, flush the ice tray with running water, then, you cnn easily take out the ice cubes.
Making ice cream:
If a heat exchanger, i.e. condenser, is mounted on the back of refrigerator, dust and lint should be removed regularly to enable efficient heat dissipation and avoid excessive power consumption. Use a soft brush or a duster to clean the outside of heat exchanger.
The defrost water drains away through the gutter. The drain hole should be cleaned regularly by use of a swab or similar instrument.
· Remove separators of the ice tray. Please note the creamier your ice cream is, the longer it will take to make it. When ice cream is ready, flush the ice tray with running water, then, you can easily take out the ice cream.
9.Preparing for Vacation
For long vacation or absence, unplu g the refrigerator and clean the refrigerator as described in “ Cleaning and Maintenance”. Leave the doors open to prevent formation of mould or odour.
10. Cleaning and Maintenance
Unplug or disconnect the appliance before cleaning.
Keep the outside clean. Use furniture po lishe or finishing
conditioner to clean the outside regularly (do not use these
cleaners to cle an the inside). Wipe the door gasket with a
cloth lightly dampened with lukewarm water. No detergent is allowed. Never use oil or grease to clean the door gasket.
Clean the inside regularly.
· Clean the refrigerator compartment on a monthly basis and clean the freezer compartment after a defrost cycle.
· Take out foods from refrigerator and freezer compartments and kept these foods in a cool place.
· Remove all detachable parts.
· Interior parts are not suitable to be washed in a dishwasher. Wash them manually using luke warm water and some dish detergent. Do not use concentrated detergent, abrasive agents and chemicals such as acids. Mild dish detergent is recommended.
Steam cleaners are dangerous and strictly prohibited.
Wash the inner compartment with lukewarm clean water and dry with a soft cloth. It is absolutely dry after waiting for 3-4 minutes. Do not destroy or remove the rating plate of the refrigerator. It could be needed for after-sales service or relevant processes. Make sure water doesn’t get into electric parts in the refrigerator.
Make sure water doesn’t run down the drain hole during cleaning. Otherwise water may spill or splash on the ground due to evaporation.
11. Defrosting
Freezer compartment (if applicable)
The freezer compartment, intended for storage of frozen food, doesn’t have automatic defrosting.
The freezer compartment should be defrosted regularly. Defrost the freezer compartment whenever the thickness of ice layer reaches 5cm.
Unplug the refrigerator before defrosting. Take out foods from the freezer compartment and kept these foods in a cool place. Use an ice scraper to remove the ice. To speed up the process, place a bowl of hot water in the freezer compartment. Clean and reload the freezer compartment after defrosting.
POTENTIAL SAFETY HAZARD!
Do not use electrical devices such as hair dryer, electrical fan, steam cleaner, defrost spray or open fire (such as candle) to defrost the freezer compartment. The plastic parts of inner compartment may get melted and any spark or open fire may cause fire in presence of explosive gas. Never use a steam cleaner to defrost the freezer compartment – danger of electric shock!)
Cautions!
Take out the drawer, and wrap up the frozen foods with newspaper or blanket.
·Keep these foods in a cool place before the defrosting process is finished.
·Keep the door of freezer compartment open.
· Ice and frost form on the surface of evaporator during operation. A thick layer of ice or frost acts as heat insulation and hinders thermal conduction.
· Defrost the freezer compa rtment in the shortest time possible to avoid thawing of frozen foods.
· Do not remove the ice or frost in the freezer compartment with a sharp or pointed item. Otherwise
5
the evaporator surface may get damaged.
· Wipe off defrosted water from time to time with a sponge.
· Place a container of hot water (do not use boiling
water) near the door of freezer compartment to speed up the defrosting process.
· Dry the freezer compartment and place the frozen food back.
· Reconnect the refrigerator after defrosting.
· Start up the refrigerator by adjusting the temperature
control knob.
· Close the door of freezer compartment.
12. Problem Diagnosis
The latest manufacture techniques a nd state-of-the-art refrigeration and freezing technology are adopted to ensure safe and reliable operation of your appl iance. In doubt of fault, make sure to check first as described
below before making a service call:
Things to be noted: The compressor (also kn own as refrigerating unit) doesn’t operate all the time without stop.
The compressor is controlled by the automatic temperature re gulator represented b y a temperature dia l. When the interior temperature exceeds the preset temperature, the compressor starts automatically and when the interior temperature falls below the present temperature, the compressor stops automatically.
It’s normal that compressor makes noise during operation.
The noise comes from the motor. The flo w of refrigerant through the refrigerating system may maky a gurgling
noise. These noises don’t mean a fault of the refrigerator.
The exterior surface may be wet when it’s cold and the
ambient tempe rature is low. It’s normal and the e xterior surface will become dry as the ambient temperature rises.
If the reasons of such phenomena can’t be identifi ed an d solved, please consult the service center.
13. Troubleshooting
a) Problem: Refrigerator does not ope rate (doe s not
work)
Please check:
· Is the power cord in good conditi on? Is the refrigerat or properly plugged in the outlet?
· Is there a power int erruption? (Us e a small ap pliance to check out, e.g. agitator or hair dryer)
· Is the refrigerator star ted up? (T he te mperature dial should not be set at “0”.)
· Is the fuse broken? Or in poor contact?
b) Problem: The inner compartment is not cool
enough; the compressor cycles on and off
frequently;
Please check:
· The refriger ator/freezer compartment should stand still for at least 12 hours after installation to stabilize the
refrigerant circulation system. See “Start-up”. If it
doesn’t work, unplug the refrigerator and tilt the refrigerator to one side for a while or place it on an inclined p lane and then place it to the original position.
Connect the re frigerator after 12 hours. Keep the door(s) closed for 12 hours.
· Is the door properly closed? If so, the door gasket should press on the external cabinet securely and
evenly.
Test: It should be difficult to pull out a piece of paper caught up between the door gasket and the external cabinet. If the paper slips away easily, consult the service center.
· If there is thick ice in the freezer compartment. (See “Cleaning and Maintenance”)
· Is the refrigerator e xposed to direct suns hine or near a heat source (oven, radiator, etc.)?
What to do: Do not expose the refrigerator to direct sunshine; keep the refrigerator away from any heat source; install a thermal barrier netween the
refrigerator and the heat source (see “Location”).
· Is the inner compartment overloaded?
· Is the room well ventilated? Is the air vent obstructed? Is the heat exc hanger (condenser) on the back covered by dust?
c) The temperature of refrigerator compartment is too
low
Please check:
· Is the temperature regulator properly set?
· Is the door of freezer compartment properly closed?
· Is there a lot of fresh food (more than 1kg) in the
freezer compartment? (If the freezer compartment
operates for long periods, the temperature of refrigerator compartment falls accordingly.)
d) The freezer compartment is too warm and frozen
foods are thawed
· Is the ambient temperature too low? (If so, the refrigerating unit will malfunction, resulting in higher temperatures in the freezer compartment.)
What to do: Raise the ambient temperature.
e) There is thick ice in the freezer compartment. Please check:
· Is the door of freezer compartment properly closed?
· If some food gets frozen to the inner walls, try to remove it with a blunt instrument such as a spoon
6
handle.
· Defrost and clean the freezer compartment (see “Defrosting”). A thick ice layer will impede refrigeration
performance and increase power consumption.
f) Unusual noise
Please check:
· Is the refrigerator solidly positioned? Is the refrigerator rubbing against other furniture or items? Is there anything stuck between the back of refrigerator and the wall?
· Move the items in contact with the refrigerator out of way and keep adequate space between the refrigerator and the surroundings.
· Is the movable parts securely retained in place?
· Are bottles or containers in the inner compartment rubbing against each other?
Note!
It’s normal that there is noise of refrigerant flowing through the refrigerating system. It’s normal that moisture forms around the door handle in summer. Dry with a soft cloth.
The refrigerator is not user-serviceable and do not attempt to intervene with the normal operation of the appliance.
14. During a Power Interruption
17. Warranty
The terms and conditions as well as the period of warranty are indicated in the Letter of Warranty enclosed hereto. The dealer will brief you of the same upon purchase.
The manufacturer reserves the right to improve the design, construction and technology from time to time without further notice.
18. Illustration of Parts
There is no need to take out the frozen foods in the freezer compartment if the power interruption lasts no more than 2 hours. Otherwise, take out the foods after 2 hours.
15. Making A Service Call
Servicing and repair should be conducted by qualified Caple engineers. The manufacturer is not responsible for the risk of damages or injuries due to failure to comply with this provision and the warranty will be voided. The warranty and the list of service centers indicate the authorised after-sales service providers for your appliance. Please consult your dealer if the there is no service center in your neighborhood. For faults or problems caused due to improper use or breach of the instructions contained herein, the costs and expenses incurred in servicing and repair should be paid by the user and the dealer is not responsible for such costs and expenses. In order to receive prompt assistance, the following information is necessary:
Type and model of refrigerator (see the rating plate)
·
· Date of purchase.
· Name and address of the dealer.
· Description of fault / problem.
16. Installation in Kitchen
If you want to place the refrigerator in the kitchen, you should contact with professional installer or local service supplier.Please do not do it yourself.
1 Thermostat
2 Drawer
3 Lower hinge Levelng leg
7

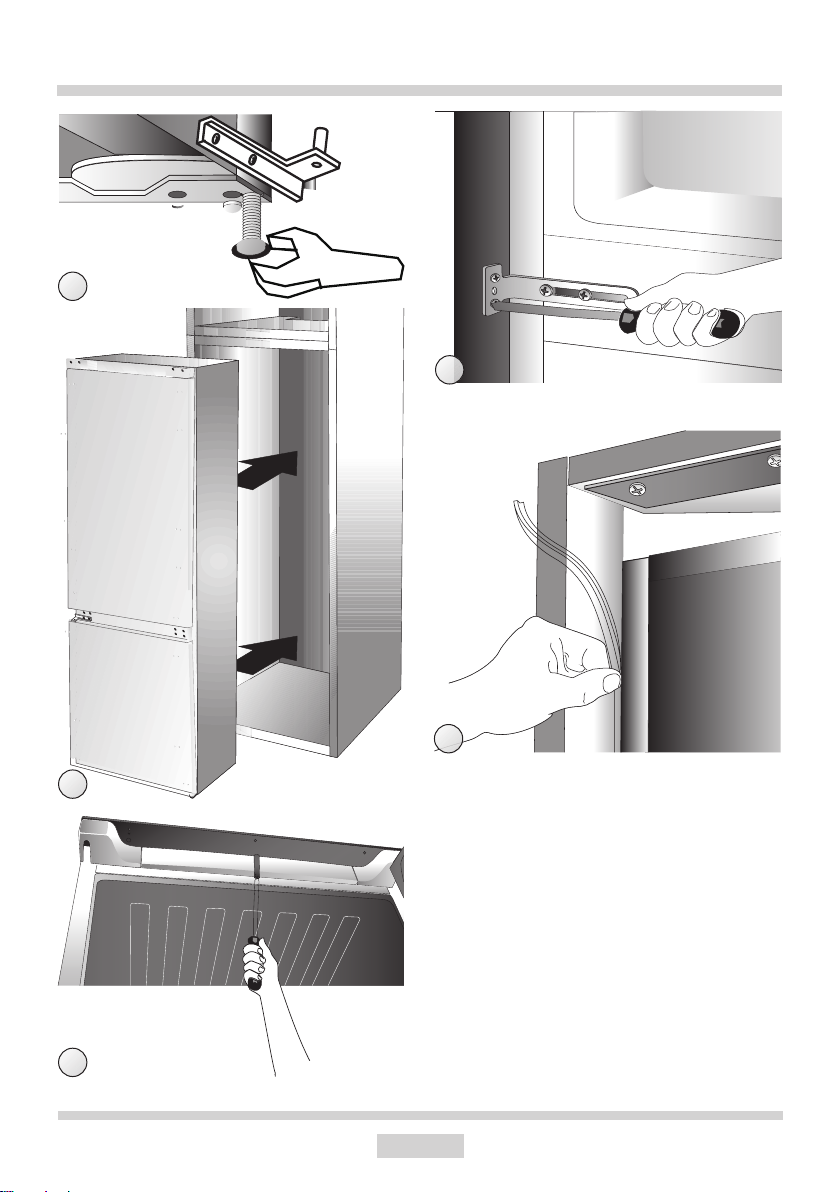

Installation guide for built-in refrigeration
Please carefully read this guide before installing the appliance.
x
xx
y
yy
z
zz
Model X Y Z XX YY ZZ
RI734 540 1773 - 1778 540 550 - 560 1774 - 1782 560 2 RI733
RIR177 RI555 540 1773 - 1778 540 550 - 560 1774 - 1782 560 2 RI554 540 1773 - 1778 540 550 - 560 1774 - 1782 560 2 RIL177 540 1773 - 1778 540 550 - 560 1774 - 1782 560 1 RIF177 540 1773 - 1778 540 550 - 560 1774 - 1782 560 1 RIL122 540 1222 - 1224 540 550 - 560 1225 - 1233 560 1 RIF122 1 RIL88 540 873 - 875 540 550 - 560 874 - 882 560 1 RIF88 540 873 - 875 540 550 - 560 874 - 882 560 1
550 1773 - 1778 540 560 1774 - 1782 560 2 540 1773 - 1778 540 550 - 560 1774 - 1782 560
540 1222 - 1224 540 550 - 560 1225 - 1233 560
1
1 2
2
20 2 - 4 - 1 1 1,8m 411 1
20 2 - 4 - 1 1 1,8m 411 1
14 2 1 4 - 1 1 1,3m 2 1 - -
14 2 1 4 - 1 1 1,3m 2 1 - -
12 214 1 - - 0,9m 2 1 - -
12 214 1 - - 0,9m 2 1 - -

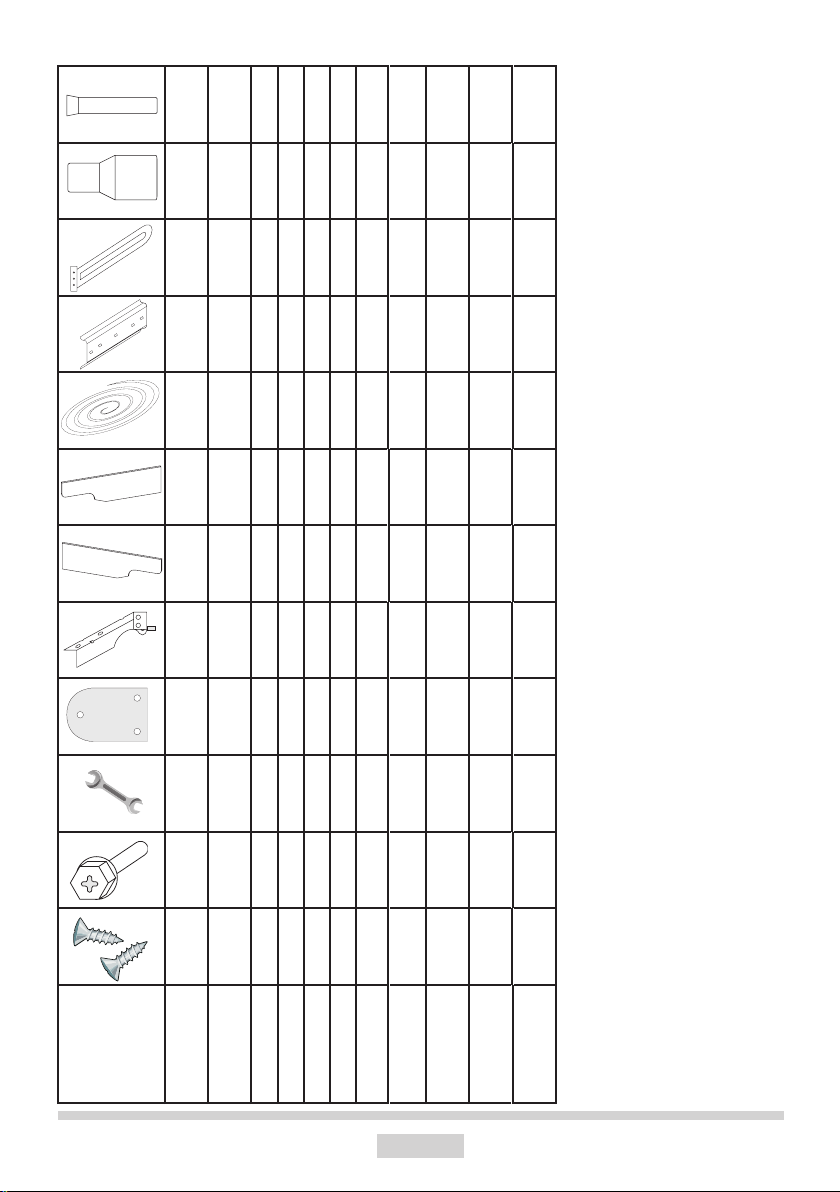

Model
RI734
RI733
RIR177 20 2 - 4 - 1 1 1,8m 411 1
RI554 20 2 1 4 - 1 1 1,8m 411 1
RI555 20 2 1 4 - 1 1 1,8m 411 1
RIF177 20 2 1 4 - 1 1 1,8m 4 1 - -
RIL177 20 2 1 4 - 1 1 1,8m 4 1 - -
RIL122
RIF122
RIF88
RIL88
3
4
3
4
5
2
1
56 6
7
Loading...
