Caple Ri732FA Instruction Manual

Model Ri732FA

Domestic Refrigerator

Operation Instructions

Contents

Cautions--------------------------------------------------------1~2 Refrigerator diagram-------------------------------------------3 Location------------------------------------------------------------4 Preparation----------------------------------------------------5~7 Functions-------------------------------------------------------8~9 Operation--------------------------------------------------------10 Refrigerator storage-------------------------------------------11 Cautions----------------------------------------------------------12 Suggestions------------------------------------------------------13 Freezer storage-------------------------------------------------14 Cautions----------------------------------------------------------15 Defrosting,Cleaning and Cesstion-------------------16~19 Questions and Answers---------------------------------20~22

CautionsCautions

Cautions

CautionsCautions

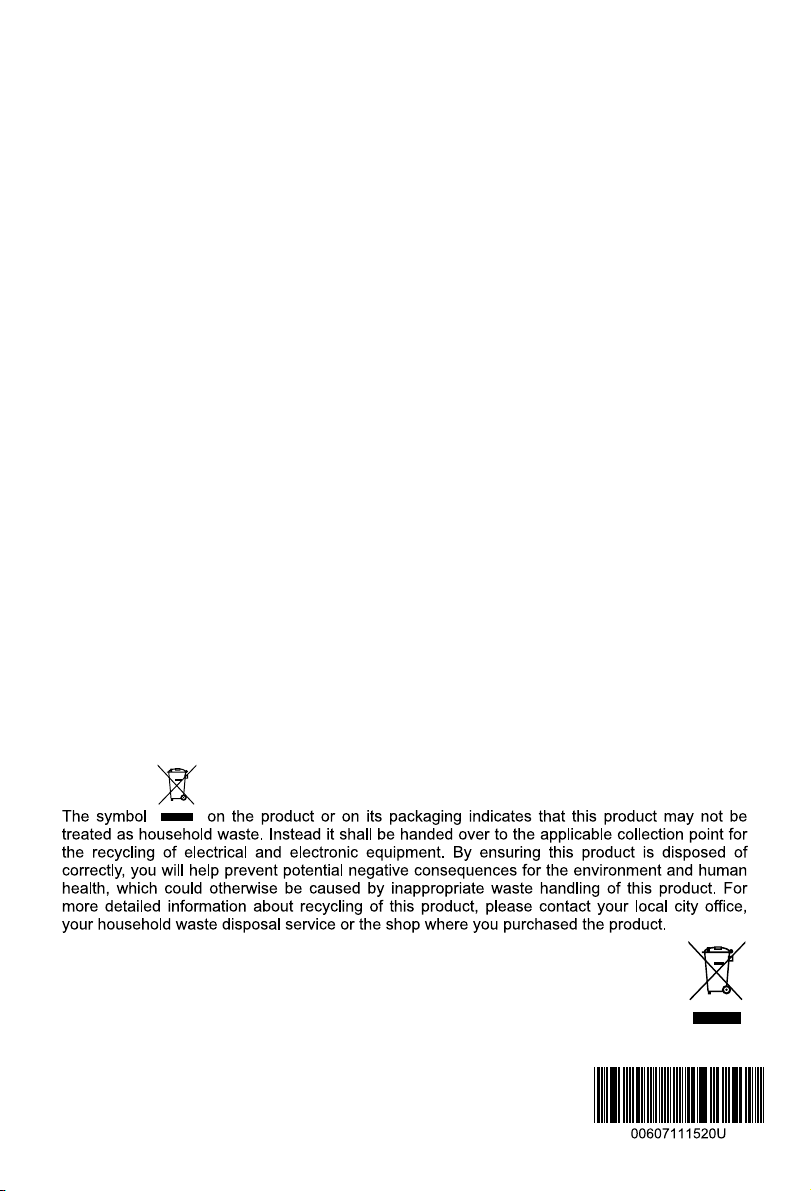

Disposal of the old appliance

Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug

the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to

avoid the risk of child entrapment.

It must be noted that the refrigeration system contains insulating gases and refrigerants,

which require specialized waste disposal. The valuable materials contained in a refrig-

erator can be recycled. Contact your local waste disposal center for proper disposal of

an old appliance and contact your local authority or your dealer if you have any ques-

tion. Please ensure that the pipe work of your refrigerator dose not get damaged prior to

being picked up by the relevant waste disposal center, and contribute to environmental

awareness by insisting on an appropriate, any-pollution method of disposal.

Disposal of the packaging of your new appliance

All the packaging materials employed in the package of your new appliance may be

disposed without any danger to the environment.

The cardboard box may be broken or cut into smaller pieces and given to a waste paper

disposal service. The wrapping foil is made of polyethylene and the polyethylene pads

and stuffing contain no fluorochloric hydrocarbon.

All these valuable materials may be taken to a waste collecting center and used again

after adequate recycling.

Consult your local authorities for the name and address of the waste materials collect-

ing centers and waste paper disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the appliance, read the information given in the User’s Guide carefully.

The User’s Guide contains very important observations relating to the assembly,

operation and maintenance of the appliance.

Keep the User’s Guide in a safe place and remember to hand it over to the subsequent

owner, if you ever sell the appliance.

The manufacturer does not accept responsibility for any damages that may arise due to

non-observation of the following instruction.

CautionsCautions

Cautions

CautionsCautions

*Damaged appliances are not to be put into operation. In case of doubt ,consult your

supplier.

*Connection and installation of the appliance are not to be carried out in strict compliance

with the relative instructions set forth in the Use’s Guide.

*For the purpose of safety ,the appliance must be properly grounded in accordance with

specifications.

*The plug should be accessible after the appliance positioned.

*Power cable should inly be replaced by factory authorized service shop.

*Always remember to unplug the appliance before cleaning.To disconnect the appliance,

pull at the plug itself not the cord.

*Keep alcoholic beverages in airtight bottles or containers and always store in an upright

position. In addition, do not store any explosive substances inside the appliance-Danger

of explosion!

*Do not damage any parts of the appliance that carry refrigerant by piercing or perforating

the refrigerant’s grooves with sharp or pointed items,crushing or twisting any tubes, or

scraping the coatings off the surfaces. If the refrigerant spurts out and gets into eyes, it

may result in serious eye injuries.

*Do not obstruct or cover the ventilation grille of the appliance.

*Do not allow children to play with the appliance. In no case should children be allowed to

sit on the drawers or hang onto the door.

*After installation of the appliance the plug should be easily accessible.

*If the power cable is damaged, an approved cable provided by a manufacturer or a service

agent must be used for replacement.

*Warning: Keep the appliance well ventilated; remove any transport supports from cavity.

*Warning: Do not use hard objects to remove frost.

*Warning: Ensure the refrigeration pipeline cannot be damaged.

*Warning: Do not use electric appliances within the food storage compartment except for

models recommended by the manufacturer.

Specifications

*This appliance is designed for food refrigeration, ice making and frozen food storage.

*It is intended strictly for household use. If using it for industrial or commercial purpose ,

be sure to observe the relevant norms and regulations.

*The refrigerating circuit is leak-proof.

Refrigerator DiagramRefrigerator Diagram

Refrigerator Diagram

Refrigerator DiagramRefrigerator Diagram

① ②

③

④

⑤

⑥ ⑦

⑧

⑨

① Control panel ② Lamp ③ Food shelf ④ Fresh food container ⑤ Drawers ⑥ Low bottle holder cover ⑦ Low bottle holder ⑧ Small bottle holder cover ⑨ Small bottle holder High bottle holder

This diagram may very slightly with the layout of theThis diagram may very slightly with the layout of the

This diagram may very slightly with the layout of the

This diagram may very slightly with the layout of theThis diagram may very slightly with the layout of the refrigerator you have just purchased due to technicalrefrigerator you have just purchased due to technical

refrigerator you have just purchased due to technical

refrigerator you have just purchased due to technicalrefrigerator you have just purchased due to technical improvements.improvements.

improvements.

improvements.improvements.

LocationLocation

Location

LocationLocation

*The refrigerator should be placed on a flat and solid

surface. If the refrigerator is placed on a plinth, flat,

strong and fire-resistant materials must be used.

The front black foot of the refrigerator can be

adjusted clockwise or anti-clockwise to lift or lower

the refrigerator if it is placed on an uneven surface.

*Prevent the refrigerator from heat sources or direct

sunlight.

*The area for built-in refrigerator should be well

ventilated with a space over 6cm around the

refrigerator.

Adjustable Foot

>6cm

Spanner

anti-clockwise

clockwise

>6cm

*Never place the refrigerator near to a water source.

Clean and dry any water splashes and stains with

soft cloth.

*Never place the refrigerator in an area with an

ambient temperature below zero. Never operate

the refrigerator in an open area.

PreparationPreparation

Preparation

PreparationPreparation

1.1.

1.Unpacking

1.1.

Remove all packing materials.

2.2.

2.Check attached accessories and materials.

2.2.

Checking should be conducted with reference to the Packing

List. Contact the local distributor if shortage is found.

3.3.

3.Ensure that the refrigerator is properly lo-

3.3.

cated.

(Refer to the section of "Location")

4.4.

4.Clean the refrigerator before using.

4.4.

(Refer to the section of "Cleaning")

5.5.

5.Standby status

5.5.

Connect the power source a minimum of 30 minutes after the

refrigerator has been sited and cleaned.

Caution: After unpacking, write down the model and delivery number of the refrigerator on the Warranty for future inquiries.

PreparationPreparation

Preparation

PreparationPreparation

Left/Right Door OpeningLeft/Right Door Opening

Left/Right Door Opening

Left/Right Door OpeningLeft/Right Door Opening

The door of the refrigerator can be opened both from the left or

right as required. The following are the steps required to

position the door to open to the right.

Lower hinge

1. Firmly hold the refrigerator door and remove the

screws from the right lower hinge. Remove the door

and place aside. Remove the lower pivot pin and

install it in the left lower hinge hole.

2. Remove the middle hinge and the washer on the

middle connection and then the freezer door. Put the

door aside.

3. Remove the upper right hinge cover and the hinge

screws. Install the right upper hinge cover.

4. Fix the left upper hinge to the left side and then the

left upper hinge cover.

5. Mount the refrigerator door to the left of the housing

with the middle hinge connected.

Pivot pin hole

Middle hinge

Middle pivot pin

Lower pivot pin

Lower pivot pin hole

Middle pivot pin

Washer

Upper hinge

Hinge cover

Hole stoppers

6. Mount the refrigerator door with the top left hole on

the down pivot pin of the middle hinge.

7. After installation, open and close the door several

times and fix tighten the hinge screws when the door

operates normally.

Washer

Lower pivot pin

Middle hinge

Lower hinge

PreparationPreparation

Preparation

PreparationPreparation

Built-in installationBuilt-in installation

Built-in installation

Built-in installationBuilt-in installation

1. Ensure that the doors of the kitchen unit and the

refrigerator are of the same opening direction. (Take

the right-opening door as an example)

Joint socket

2. Fix the joint sockets to the freezer and refrigerator

doors with the provided screws (Figure 1).

3. Move the refrigerator into the kitchen unit,

ensuring the left side panel of the refrigerator as

close as possible to the wall. (Figure 2)

4. Insert the connecting pad into the joint socket

and then fix the connecting pad on the door of the

kitchen unit with a margin of 20-22mm. (Figure 3)

5. Properly place the refrigerator with a 3-4mm

space between the left side to the wall, ensuring

that the doors of the refrigerator and the kitchen

unit can be easily opened and closed, and the

connecting pad is correctly settled in the joint

socket.

6. Fix the upper and lower stiffeners to the upper

connection and base panel. The screw holes shall

be plugged with the plastic stoppers. (Figure 4)

（Figure 2）

（Figure 4）

（Figure 1）

Connecting pad

Plastic stopper

door gasket

20~22mm

（Figure 3）

（Figure 5）

7. Fill the left gap of the kitchen unit with the gasket.

(Figure 5)

8. Remove the screws and the hole stoppers on the

left of the middle connection, and fix the connecting

pivot to the refrigerator with one end in the hole

which was plugged by the stopper and the other

end to the inside wall of the kitchen unit. (Figure 6)

（Figure 6）
