Dear Customer,

Thank you for having purchased and given your pref-

erence to our product.

The safety precautions and recommendations within this
booklet are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.

Please preserve this booklet carefully. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.

This appliance must be used only for the task it has
explicitly been designed for, that is for cooking food­stuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or illog­ical use of the appliance.

DECLARATION OF CECONFORMITY

– This oven has been designed to be used only for cooking. Any other use (such as

heating a room) is improper and dangerous.

– This oven has been designed, constructed, and marketed in compliance with:

- safety requirements of EEC Directive “Low voltage” 73/23

- safety requirements of EEC Directive “EMC” 89/336;

- requirements of EEC Directive 93/68.

3

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

– After having unpacked the appliance, check to ensure that it is not damaged.

If you have any doubts, do not use it and contact the store from where you
purchased it.

– Packing materials (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.)

should not be left around within easy reach of children, as these may cause serious
injuries.

– Do not attempt to modify the technical characteristics of the appliance as it may

become dangerous to use.

– Do not carry out cleaning or maintenance operations on the appliance without having

previously disconnected it from the electric power supply.

– If you should decide not to use this appliance any longer (or decide to substitute an

older model), before disposing of it, it is recommended that it be made inoperative in
an appropriate manner in accordance to health and environmental protection regula­tions, ensuring in particular that all potentially hazardous parts be made harmless,
especially in relation to children who could play with old appliances.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL
APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
– Never touch the appliance with wet hands or feet;
– do not operate the appliance barefooted;
– do not allow children or disabled people to use the appliance without your supervision.

The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.

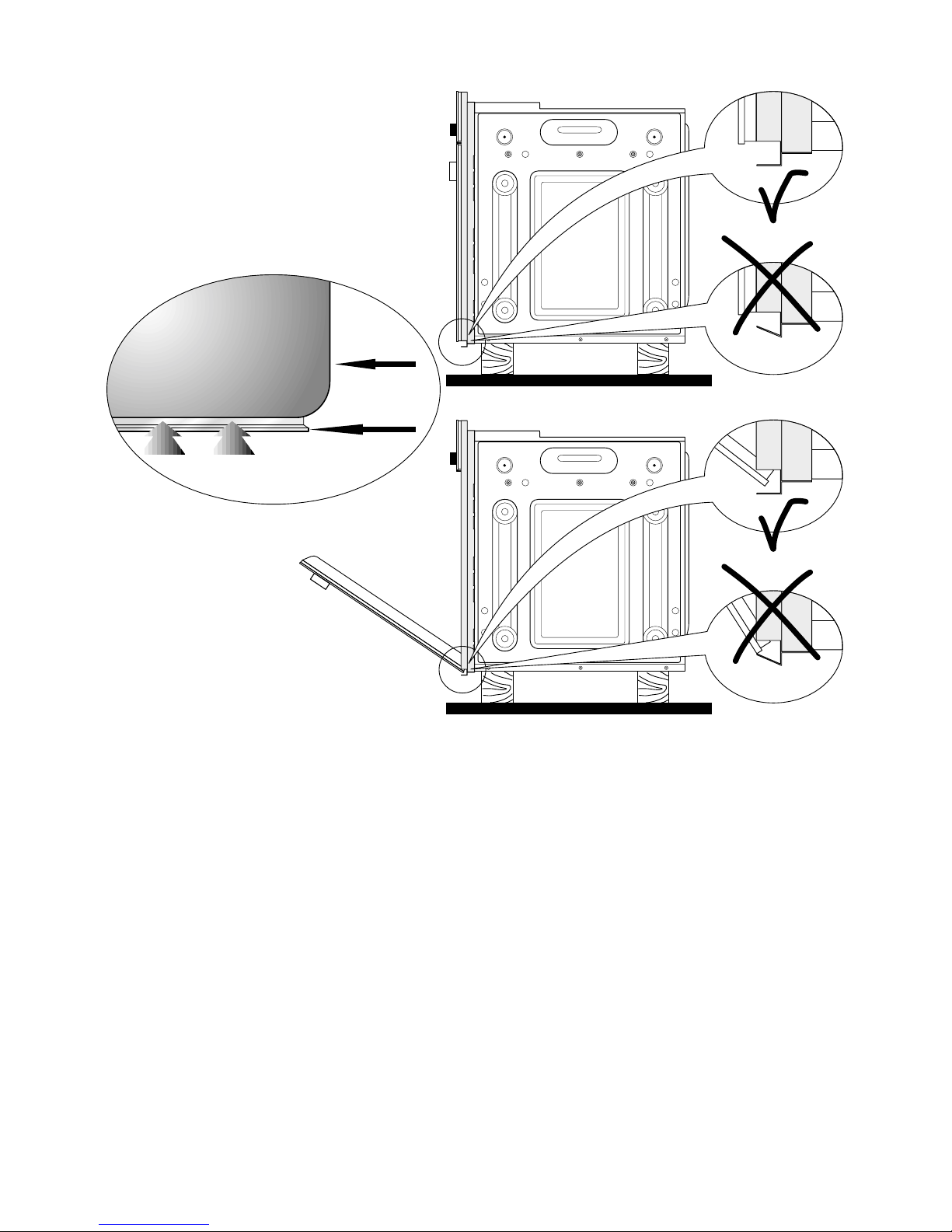

USING THE OVEN FOR THE FIRST TIME

You are advised to carry out the following operations:
– Assemble the interior of the oven as described under the heading “Cleaning and main-

tenance”

– Switch the empty oven ON at maximum temperature for about two hours to eliminate

traces of grease and smell from the components.

– Let the oven cool down, switch off the electrical supply, then clean the inside of the

oven with a cloth soaked in water and neutral detergent and dry thoroughly.

4

Control panel

11

Fig. 1.1

A
U
T
O

40

50

60

100

30

0

20

10

90

80

70

110

120

2

3

6-71(A or B)

4

A
U
T
O

P

2

3

51(A or B)

4

2

3

8-9-101(A or B)

4

2

3

11-121(A or B)

4

TYPES OF THERMOSTAT

Depending on the models the thermostat
could be of type A (50 to 225°C) or type
B (50 to 250°C)

A

Fig. 1.2

Fig. 1.3

Fig. 1.4

B

CONTROL PANEL

1. Oven thermostat knob (type A or B)

2. Function selector knob

3. Power on indicator lamp

4. Oven temperature indicator lamp

5. Electronic programmer

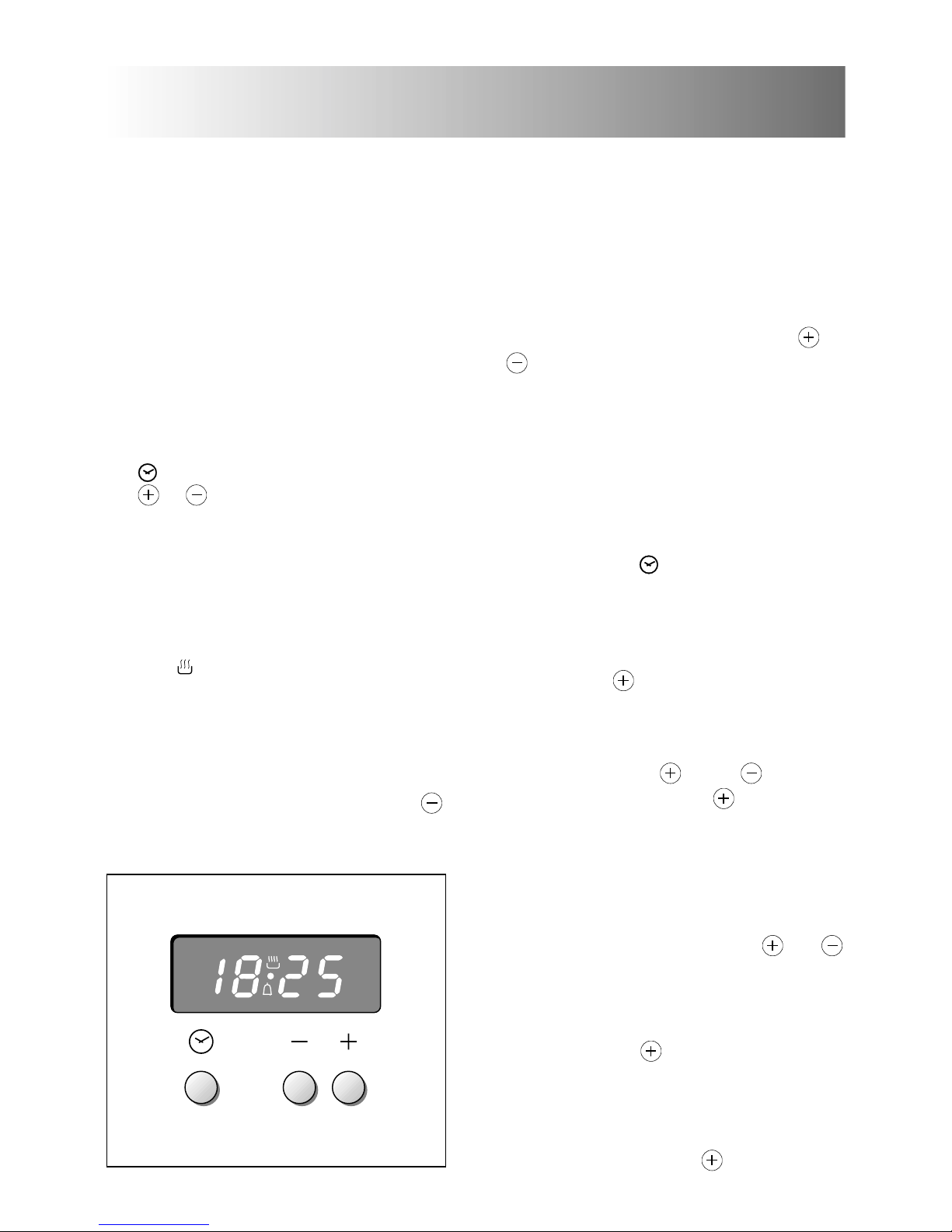

6. Electronic clock/end cooking timer

5

55

50

45

40

35

30

25

20

15

10

5

0

2

3

6-7 1(A or B)

4

A
U
T
O

P

2

3

5 1(A or B)

4

2

3

1(A or B)

4

2

3

1(A or B)

4

8-9-10

11-12

A
U
T
O

Fig. 1.5

Fig. 1.6

Fig. 1.7

Fig. 1.8

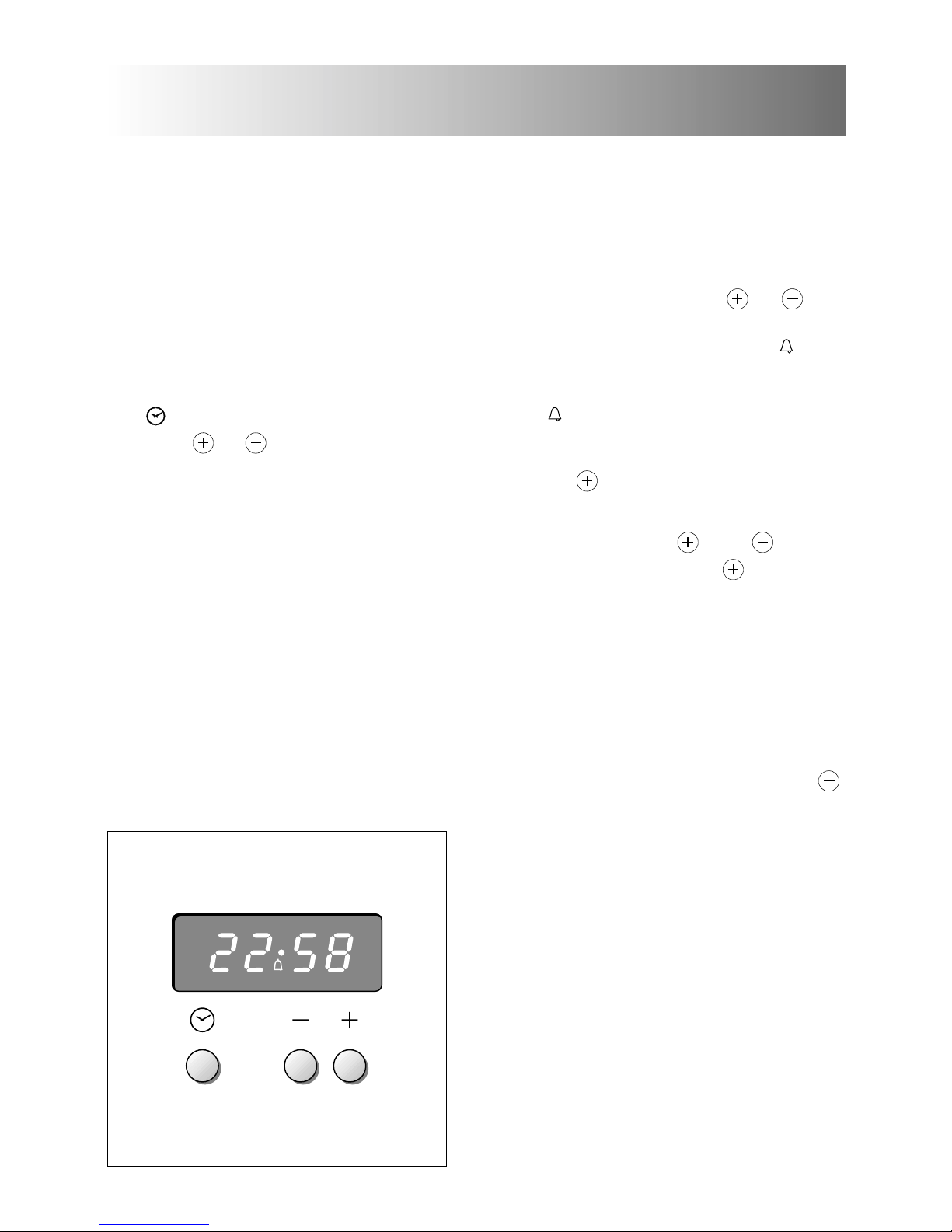

7. Electronic clock

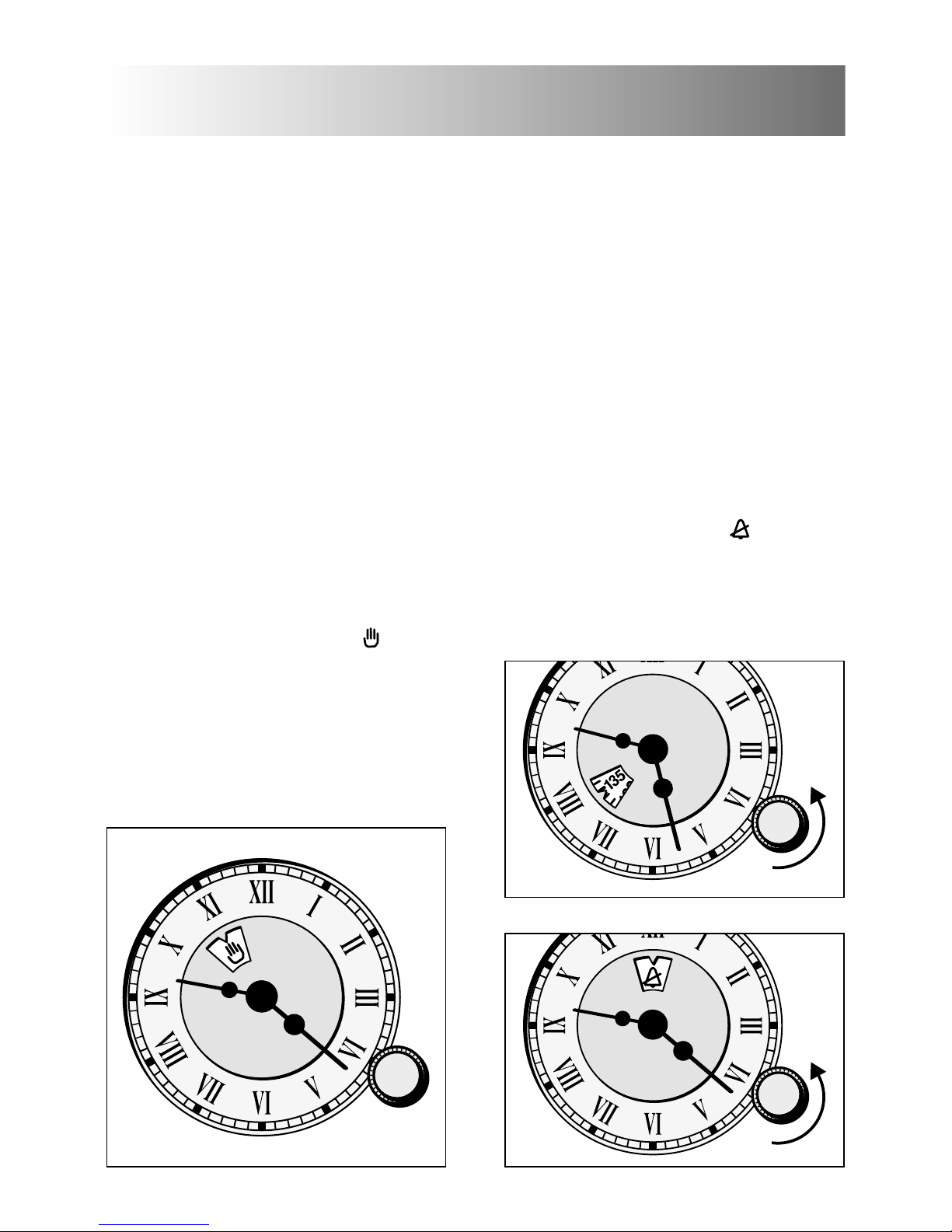

8. Clock programmer (start-end)

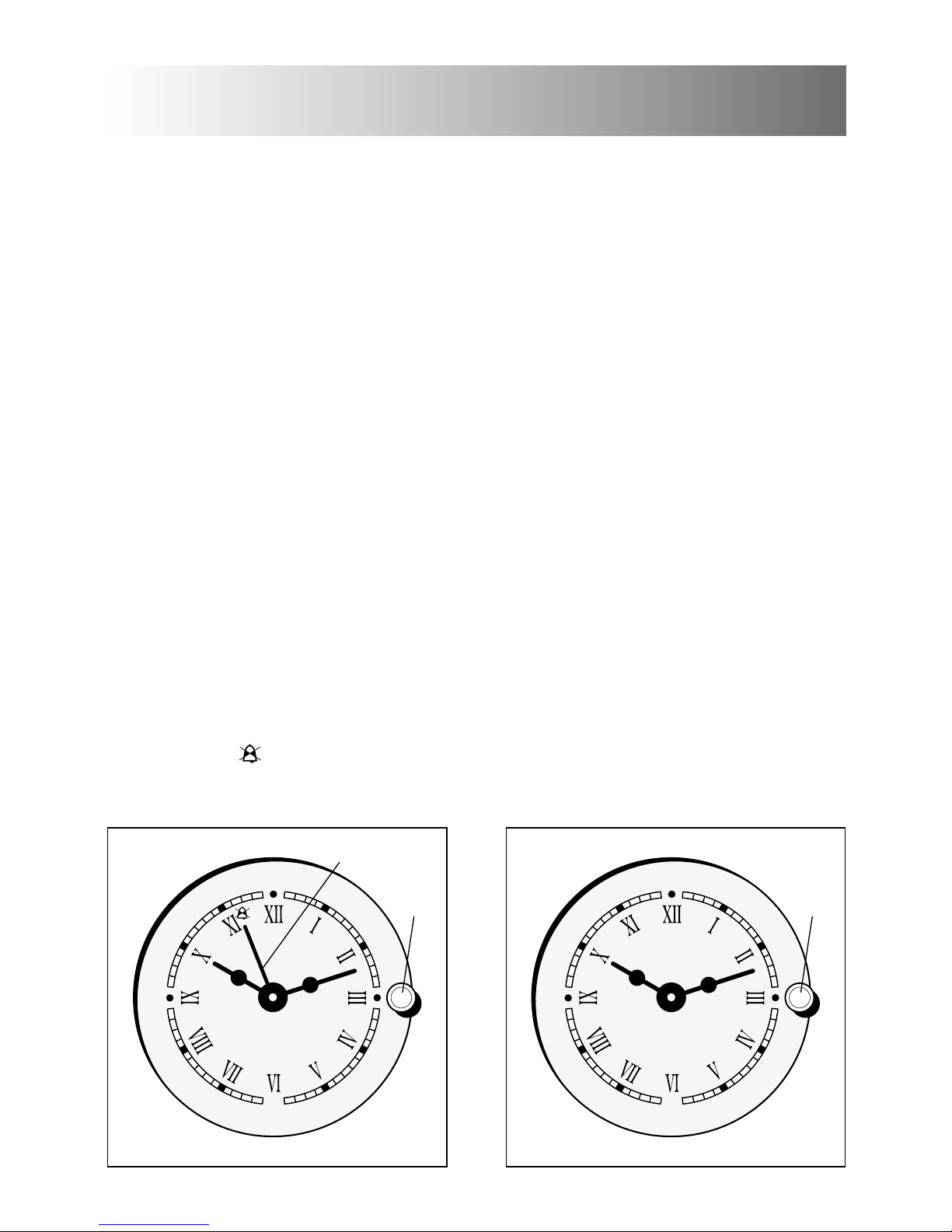

9. Electric clock with alarm

10. Electric clock

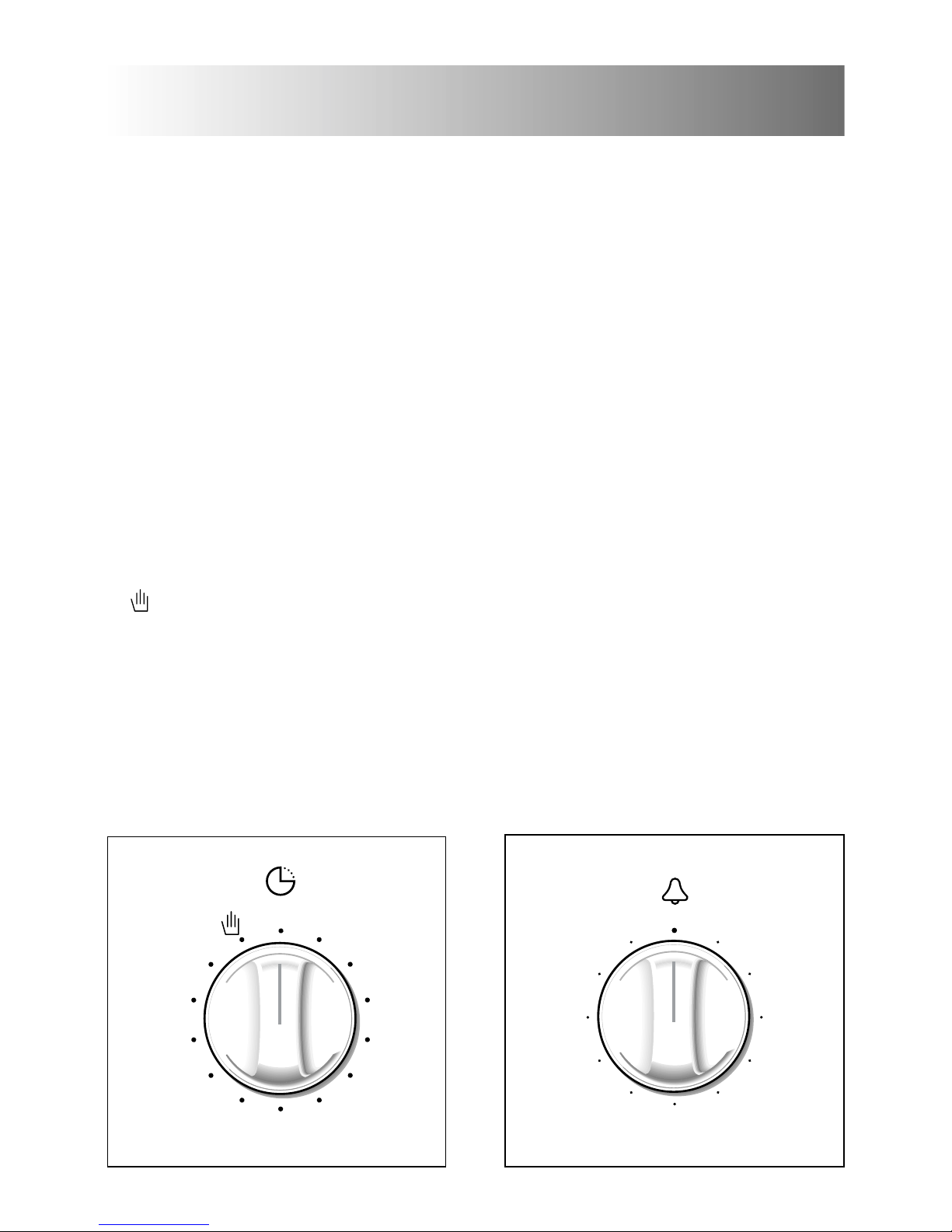

11. Timer (120’ cut-off)

12. 60’ alarm

6

GENERAL FEATURES

The heating and cooking in electrical hot
air ovens take place by forced convec­tion.

The two elements which make this pro­cess take place are:

- Grill element 2000 W

- Circular element 2200 W

NOTE:

Upon first use, it is advisable to operate
the oven at the maximum temperature
(thermostat knob on the maximum posi­tion) for 60 minutes in the position
to eliminate possible traces of grease on
the heating elements.

Repeat the operation for another 15
minutes with the grill element on as
explained in the chapters GRILLING
and USE OF THE GRILL.

OPERATING PRINCIPLES

Heating and cooking in the fan oven are
obtained in the following ways:

a. by forced convection

A fan sucks in the air contained in the
oven, which circulates it through the
circular heating element and then
forced back into the oven by the fan.
Before the hot air is sucked back
again by the fan to repeat the
described cycle, it envelops the food
in the oven, provoking a complete and
rapid cooking. It is possible to cook
several dishes simultaneously.

b. by radiation

The heat is radiated by the infra red
grill element.

c. by ventilation

The food is defrosted by using the
fan only function without heat.

Fig. 2.1A

How to use the oven

22

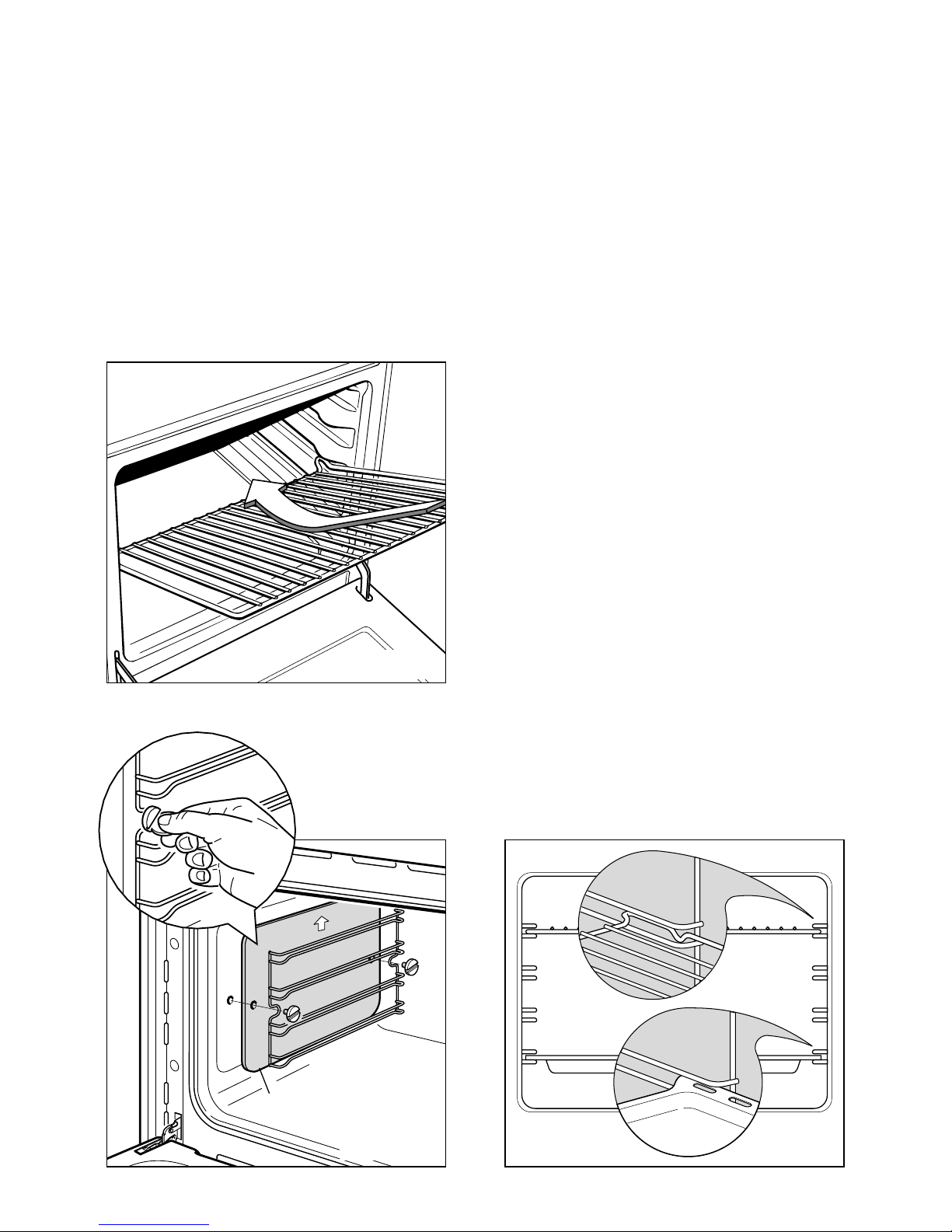

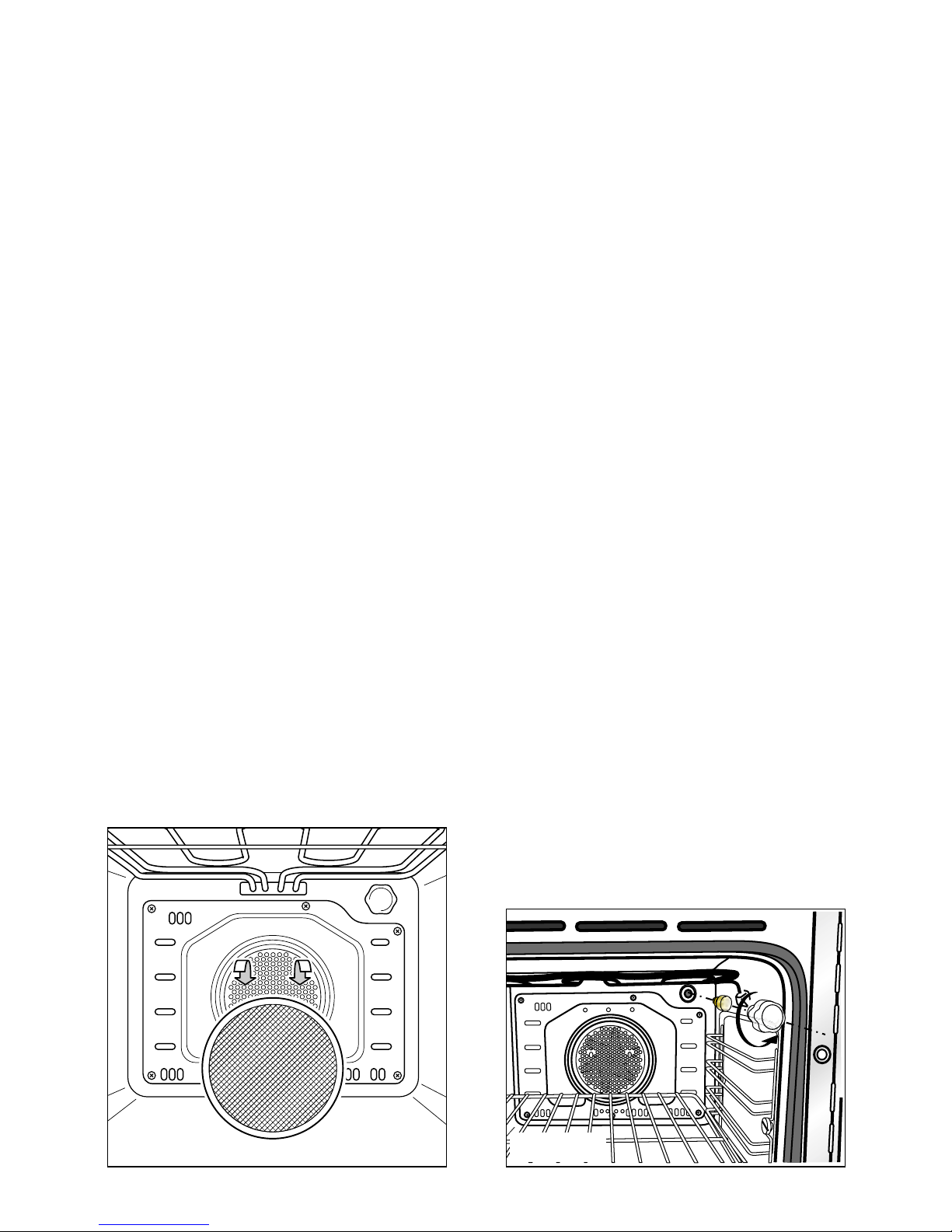

GREASE FILTER (some models only)

– A special screen is provided at the

back of the oven to catch grease par­ticles, mainly when meat is being
roasted (see page 23).

– When baking pastry etc. this filter

should be removed.

– Always clean the filter after cooking as

any solid residues on it might adverse­ly affect the oven performance.

7

THERMOSTAT KNOB (fig. 2.1A - 2.1B)

To turn on the heating elements of the
oven, set function selector knob to the
required position and the thermostat
knob to the desired temperature.
To set the temperature, turn the thermo­stat control knob indicator mark to the
required temperature.
The elements will turn on or off automat­ically which is determined by the thermo­stat.
The operation of the heating elements is
signalled by a light placed on the control
panel.

0

Fig. 2.2

Attention: the oven door becomes
very hot during operation.
Keep children away.

Fig. 2.1B

FUNCTION SELECTOR KNOB (fig. 2.2)

Rotate the knob clockwise to set the
oven to one of the following functions:

OVEN LIGHT

By turning the function selector knob to
this setting, the oven light will illuminate
in the oven cavity (15W).
The oven light will operate on all select­ed functions.

DEFROSTING FROZEN FOODS

Only the oven fan is on.
To be used with the thermostat knob in
the off “●” position because the other
positions have no effect.
The defrosting is done by simple venti­lation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilo­gram requires about one hour.
The defrosting times vary according to
the quantity and type of foods to be
defrosted.

8

REGENERATION

Set the switch to position and the
thermostat knob to position 150° C.
Bread becomes fragrant again if wet with
a few drops of water and put into the
oven for about 10 minutes.

COOKING ADVICE

STERILIZATION

Sterilization of foods to be conserved, in
full and hermetically sealed jars, is done
in the following way:

a. Set the switch to position
b. Set the thermostat knob to position

175 °C and preheat the oven.

c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan

making sure they do not touch each
other and the door and set the ther­mostat knob to position 125 °C.

When sterilization has begun, that is,
when the contents of the jars start to
bubble, turn off the oven and let cool.

GRILLING

The infra-red heating element is switched
on. The heat is diffused by radiation.

Use with the oven door closed and the
thermostat knob must be regulated
between 50°C and the maximum posi­tion.

For correct use see chapter “USE OF THE
GRILL”.

Recommended for:

Intense grilling action for cooking with the
broiler; browning, crisping, “au gratin”,
toasting, etc.

It is recommended that you do not
grill for longer than 30 minutes at any
one time.
Attention: the oven door becomes
very hot during operation.
Keep children away.

HOT AIR COOKING

The circular element and the fan are on.
The heat is diffused by forced convec­tion and the temperature must be regu­lated between 50°C and the maximum
position with the thermostat knob.
It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the
outside and tender or rare on the inside,
i. e. lasagna, lamb, roast beef, whole
fish, etc.

COOKING DIFFERENT DISHES AT
THE SAME TIME

With the function selector in position
, the ventilated oven allows you to cook
different types of food at the same time.

Fish, cakes and meat can be cooked
together without the smells and flavours
mixing.
The only precautions required are the
following:

– The cooking temperatures must be as

close as possible with a maximum dif­ference of 20° - 25°C between the dif­ferent foods.

– Different dishes must be placed in the

oven at different times according to
the cooking time required for each
one. This type of cooking obviously
provides a considerable saving on
time and energy.

9

ROASTING

To obtain classical roasting, it is neces­sary to remember:

– that it is advisable to maintain a tem-

perature between 180 and 200 °C.

– that the cooking time depends on the

quantity and the type of foods.

USE OF THE GRILL

Set the switch to position and the
thermostat knob between 50°C and the

maximum position.

Leave to warm up for approximately 5
minutes with the door closed.

Introduce the food to be cooked, posi­tioning the rack as close to the grill as
possible.

The dripping pan should be placed
under the rack to catch the cooking
juices and fats.

Grilling with the oven door closed.
Grilling with the oven door closed and

do not for longer than 30 minutes at
any one time.

Attention: the oven door becomes
very hot during operation.
Keep children away.

10

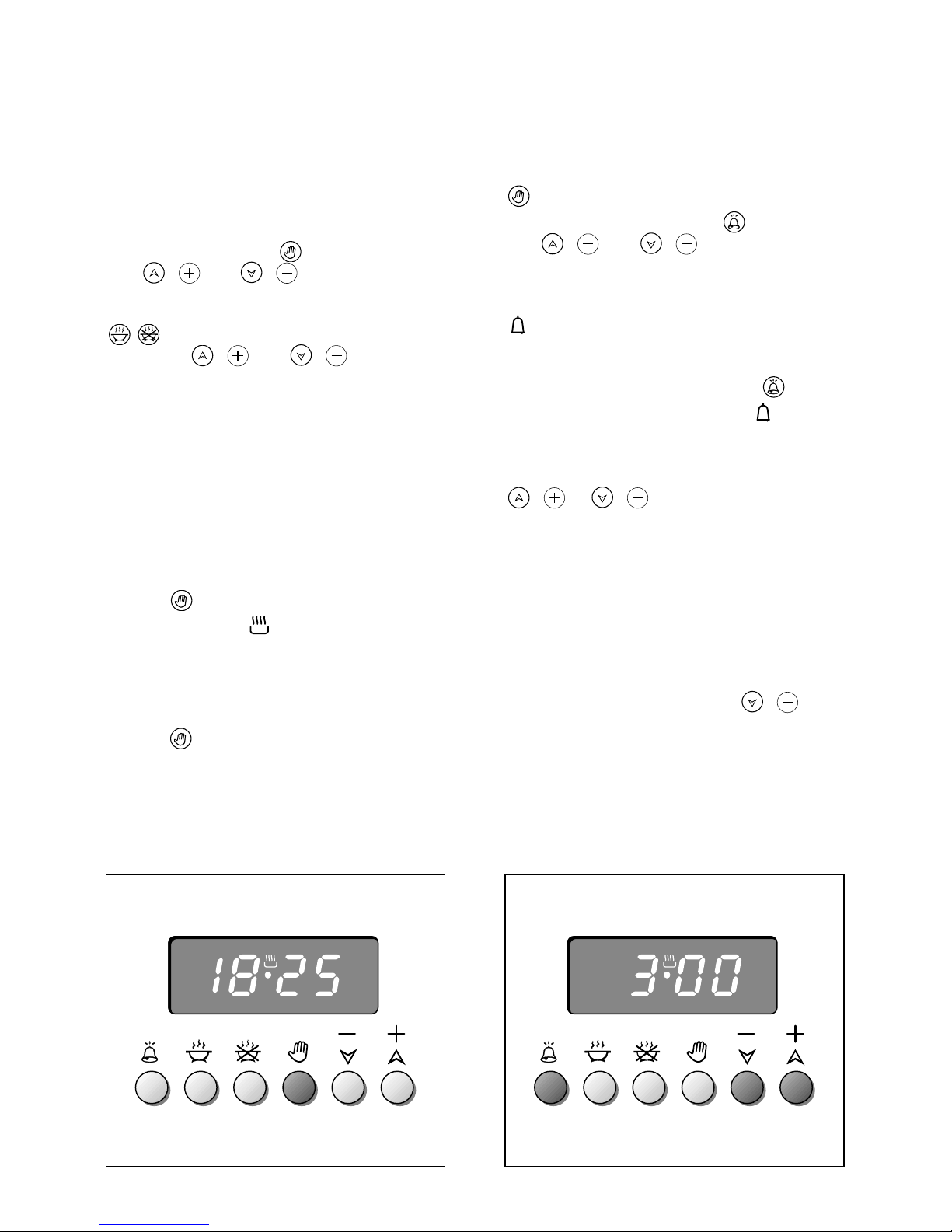

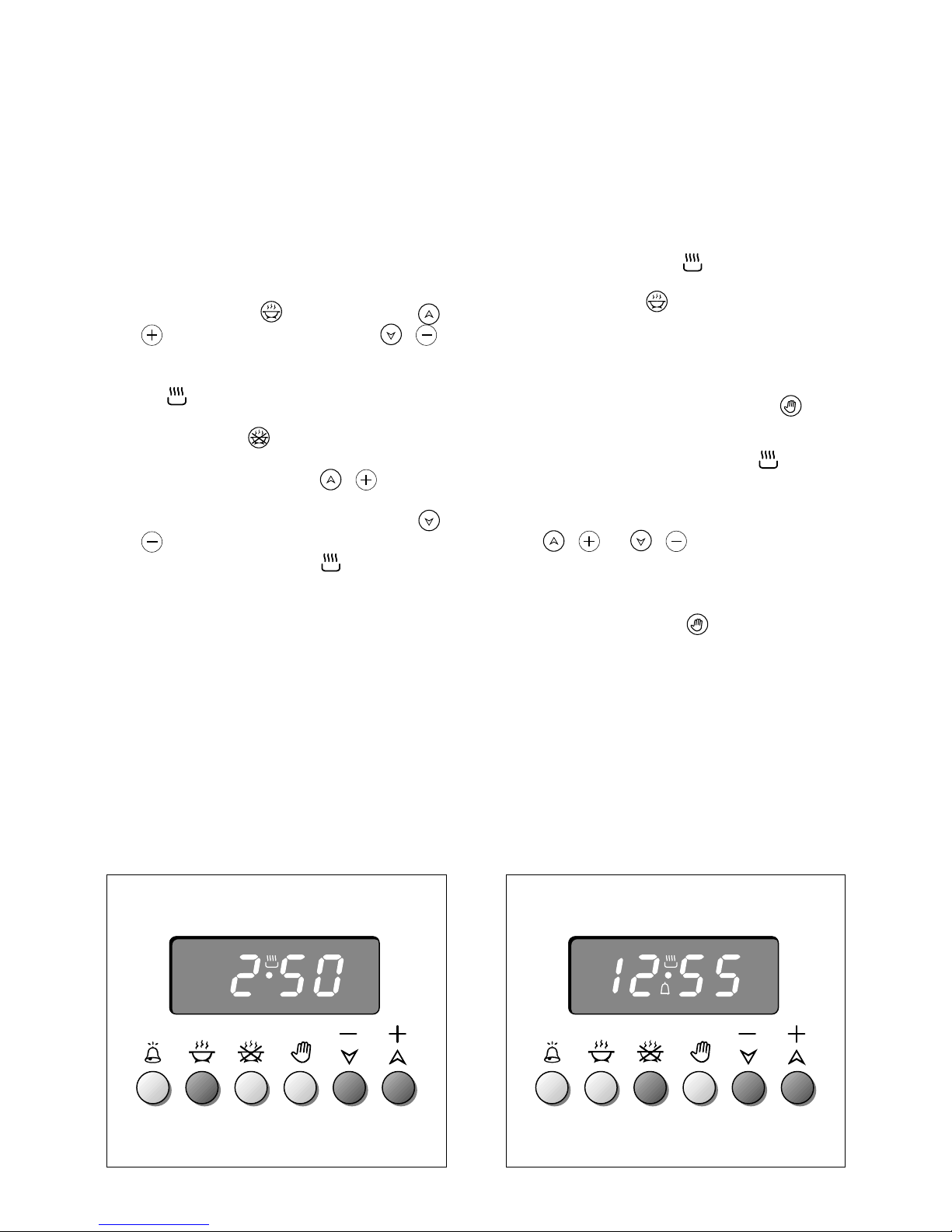

Electronic programmer

33

A
U
T
O

P

Fig. 3.1

Fig. 3.2

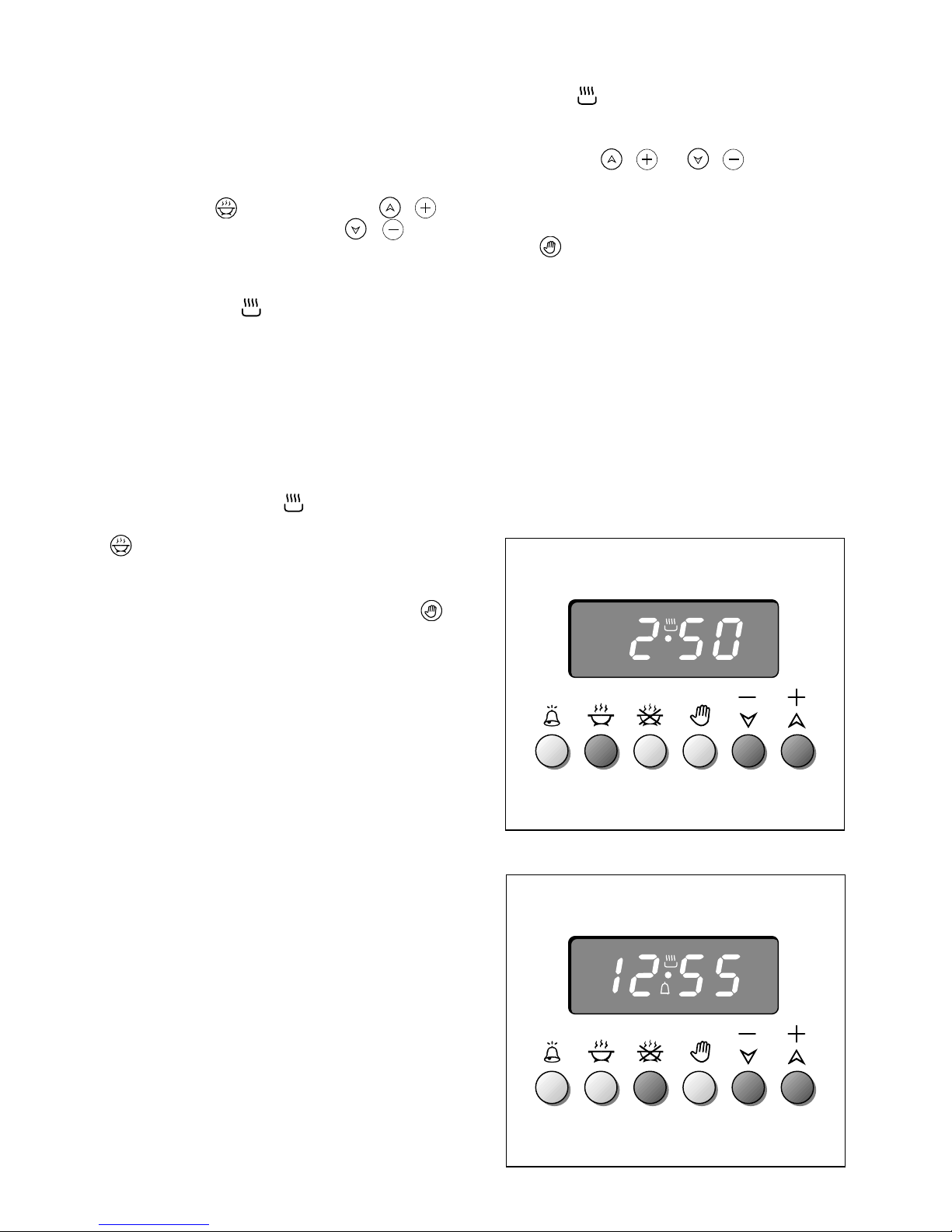

Description of the buttons:

Timer
Cooking time
End of cooking time
Manual position and cancellation of

the inserted cooking program

or To increase the numbers on

the digital display

or To decrease the numbers on

the digital display.

The electronic programmer is a device
which groups together the following func­tions:
– 24 hours clock with illuminated display

– Timer (up to 23 hours and 59 minutes)
– Program for automatic oven cooking
– Program for semi-automatic oven

cooking.

Description of the illuminated
symbols:

AUTO - flashing - Programmer in auto-

matic position but not pro­grammed

AUTO - illuminated - Programmer in

automatic position with program
inserted.

Automatic cooking taking place

Timer in operation

and AUTO - flashing - Program
error.
(The time of day lies between the
calculated cooking start and end
time).

Note:
Select a function by the respective but­ton and, in 5 seconds, set the required
time with the ( ) / ( ) buttons
(“one-hand” operation).
After a power cut the display resets to
zero and cancels the set programs.
