Instruct ion manual for deluxe elec tronic dishwasher
Model code: Di614
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you touse and maintain the
dishwasher properly.
Keep it torefer to itat a later date.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
If you cannot solve the problems by yourself ,
pleaseask for the help of professional technicians.
ControlPanel...................................................3
Dishwasher Features............................ ........ ...3.
A、Water Softener...........................................4
B、Loading theSalt into the Softener........... ......5.
C、Fill the Rinse Aid Dispenser
D、Function of Detergent ........... ............. .........7.
How to use the 3 in 1 program............. .. ..... 9....... .
Attention before or after loading the Dishwasher
Baskets..........................................................10

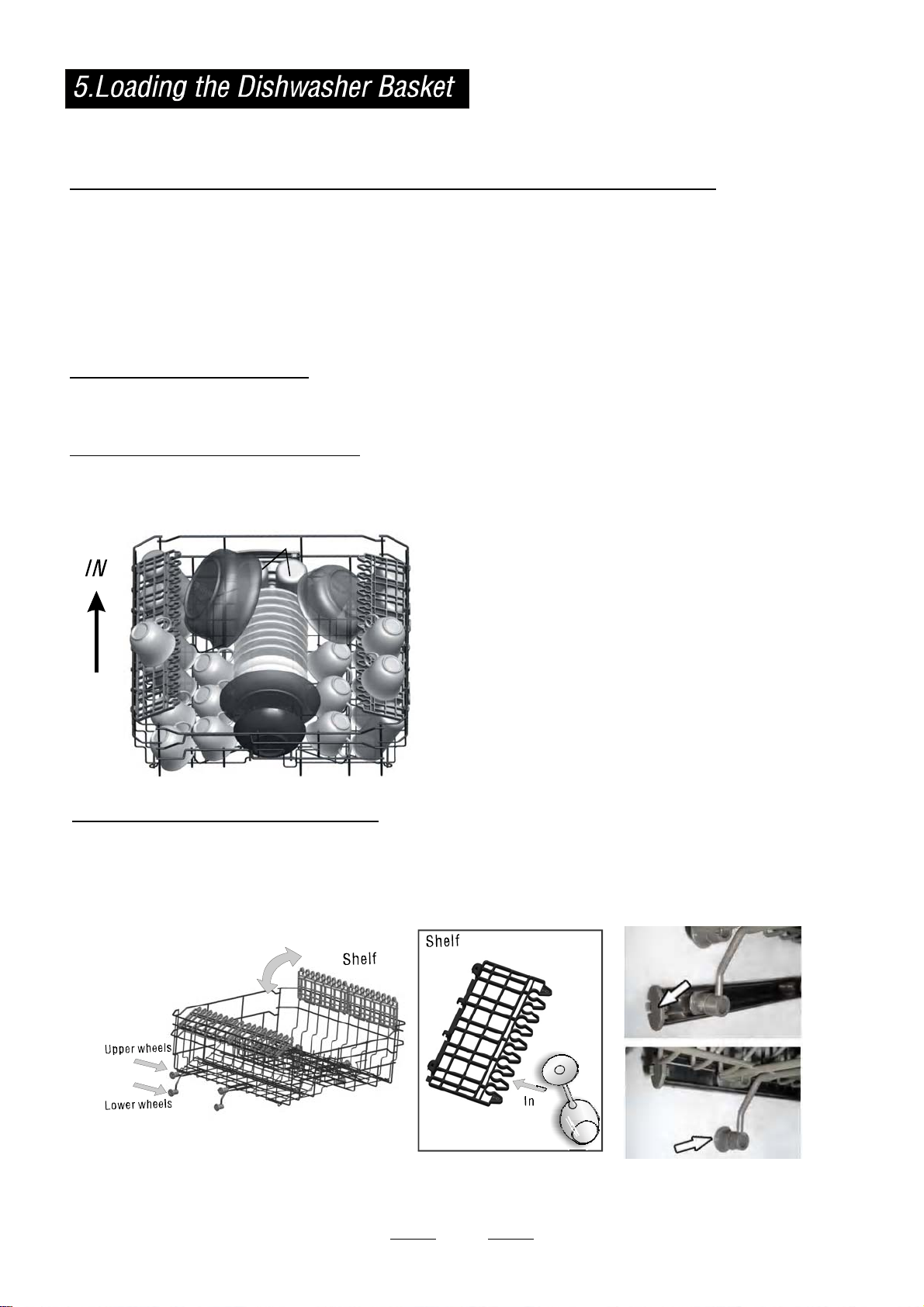

Loading the upper Basket.................................10

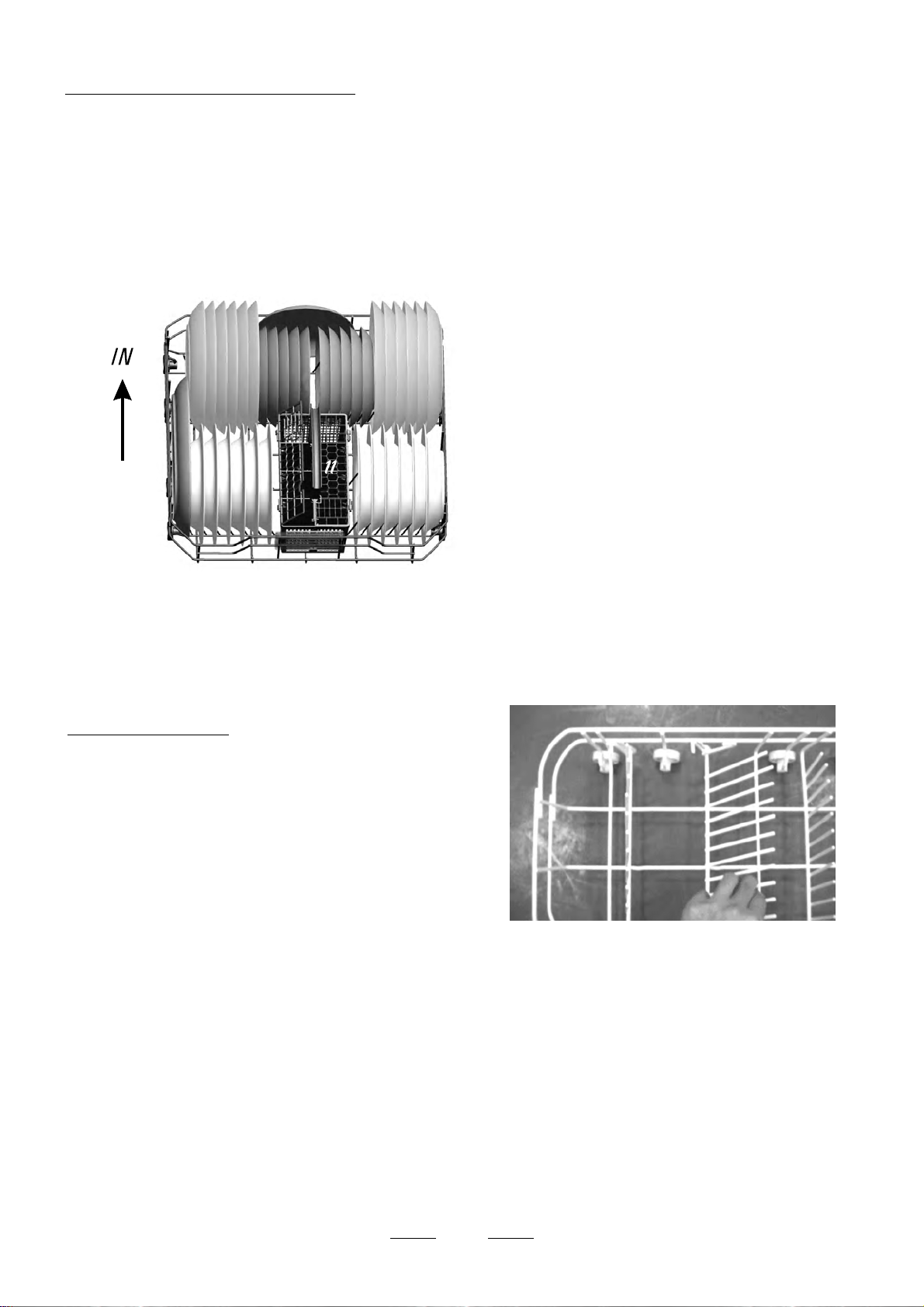

Loading the Lower Basket....................... .......11...
Cutlery Basket........................................... ..12...
Wash Cycle Table...........................................14
Turning on the Appliance................................15
Change the Programme...................... ...........15..
At the End of the Wash Cycle...................... .....15.
Filtering System.............................................16
Caring for the Dishwasher...............................17
................. ........5
.
The manufacturer, following a policy of constant
development and updating of the product, may
make modificationswithout giving prior notice.
Please carefully read the installation instruction
.....................................................................
Furniture door dimensions and installation........19
Tension adjustment of the door spring .21..............
Connection of drain hoses................................... ....21.
Dishwasher installation steps...................... ....22.
Water Connection...................................... .....24.
Before calling for service.................................25
Error codes...................................................26
Technical information.....................................27
19
WARNING!
When using your dishwasher, follow the precautions listed below:
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
theriskof anelectricshockbyprovidingapathof
least resistanceof electric current. This appliance
is equipped with a cord having an equipmentgrounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heati ng element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1)Locate sharp items so thattheyare not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
withtheir pointsdown or placed in a
horiz o ntal posi tion.
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicableto machines with a visual heating
element.)
Check that the detergent comparment is empty
after completion of the wash cycle.
Do not wash plastic items unlessthey are marked
dishwasher safe or the equivalent. For plastic items
n
ot so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance, If it does not fit
the outlet.Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
This appliance is not intended for use by persons
(including children )with reducedphysical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been givensupervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerousif swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
The door should not be left open,
since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Remove the door to the washing compart ment when
removing an old dishwasher from service or discarding it.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
During installation, the power supply must not
beexcessivelyor dangerouslybentor flattened.
Do not tamper with controls.
The appliance is to be c onnected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 12.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible i nlet water pressure is
0.04Mpa.
1
Dispose of the dishwasher packagingmaterial correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
WARNING!
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut
off the power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and shouldbe disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for theenvironment and humanhealth, whichcouldotherwise becaused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
cityoffice and yourhousehold waste disposalservice.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatmentis necessary.
2
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
4
2
3
Di614
5
Program button :To select washing program
when button is pressed.
Program indicator light: when you select washing
2
program, the correspond light will display.
SaltandRinseAidWarningLight:Tocomeonwhen
3
the softener or dispenserneeds to be refilled.
Front view
1
Poweronlight:TocomeonwhenPowerON/OFF
4
button is pre ssed down.
ON/OFFButton:Toturnon/offthepowersupply.
5
Back View
7
2
3
8
4
5
9
11 12
6
on
Off
Upper Basket
1
Spray Arms
2
Lower Basket
3
Salt Container
4
Main Filter
5
DetergentDispenser
6
10
CupShelf
7
Cutlery Basket
8
Coarse Filter
9
3
Rinse Aid Dispenser
10
Drain pipe connector
11
Inletpipe connector
12
Before using your dishwasher for the first time:
A. Set the water softener
B. Pour 1／2 litre of waterinside the saltcontainer and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Fill in detergent
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals andsalts from the water, which would have
a detrimental or adverse effect on the operation of the appliance. The higherthe
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the waterused. This is intended to optimiseand customise the level o f salt consumption.
Please follow the steps below for adjustment in salt consumption.
1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see figure
on the side), if necessary, rotate the ring in the anticlockwise
direction from the "-" Setting toward the "+" sign, based on the
hardness of the water being used.
It is reco mmended that adjustments should be made in
accordance with the following scheme:
WATERHARDNESS
dH
45~60 80~107 56~75 8~11
Note:1
°
dH=1.25 Clarke=1.78 fH=0.178mmol/l
1
DH: German degree
°
fH: French degree
°
Clark: British degree
°
fH
0~140~8 0~1.4
14~398~22 1.4~3. 9
39~8022~45 3.9~8
°
Clarke
0~10
10~28
28~56
°
mmol/l
Selector Position
/
-2050
Mid
+
Note:2
"/"
"-"
"+"
"Mid"
Salt consumption
(gram/cycle)
0
40 25
60 16
No salt need added
Setting toward the"-" sign
Setting toward the"+" sign
Setting towardbetween
the "-" sign and "+" sign
Contact your local water board for information on the hardness of your water supply.
If your model does not have any water softener, you may skip this section.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and mineralsfrom the water.
Auto nomy
(cycles/1kgs)
/
4
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every othertypeof
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remainingonthebottomofthemachineforanyperiodoftime,whichmaycause
corrosion.
A Remove the lower basket and then unscrew and remove the cap from the salt container.
B Before the first wash, fill 1lt. of water in the salt container of your machine.
C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
It is normal for a small amount of water to come out of the salt container.
D After filling the container , screw the cap tightly back clockwise.
E Usually, the salt warning light will stop being illuminated within 2-6 daysafterthesaltcontainerhasbeenfilledwithsalt.
F Immediately after fillingthe salt into the salt container, a washing program should be started
by salty water.
This will not be covered by the warranty.
Otherwise the filter system, pump or other important parts of the machine may be damaged
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasheris
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automaticallyaddedduring the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser withany other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
5
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level
indicator "C" located next to the cap. When the rinse-aid container is full, thewholeindicator will be dark .As therinse-aid
diminishes, the size of thedark dot decreases. Youshould never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
1
Pour the rinse aid into the dispenser, being careful not to overfill.
2
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
3
Be careful not to overfill the dispenser, because this could cause excess foaming. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split duringfilling with an absorbent cloth to avoid excess foaming
during the next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six scales. Always start with the dispenser set on "4".
If spots and poor drying are a problem, increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are show spots, adjust the dialto the next higher lever until your
dishes are spot-free. The recommended setting is "4". (Factory value is "4".)
NOTE:
Increase the dose if there are drops of water or limespots on thedishes afterwashing.
Reduce it if there are sticky whitish s tains on your dishes or a blui sh film on glassware or
knife blades.
6
Detergents with its chemical ingredients are necessary to removedirt, crush dirtand transport it out ofthe dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, detergents can be split in two basic types:
conventional, alkalinedetergents with caustic components
low alkaline concentrated detergents with natural enzymes
The use of“normal” washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
tothedirt-dissolving properties of theenzymesof the concentrated detergent. For this reason
“normal”wash programs in which concentrated detergents are used can achieve the same
resultsthat can otherwise only be achievedusing “intensive” programs.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensurethe complete removalof detergent residue.
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinseaid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soileditems need more detergent. Always add the
detergent just before startingthe dishwasher, otherwise it could getdampandwillnot
dissolveproperly.
Amount of Detergent to Use
If the lid is closed: press release button. The lid will spring open.
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
Detergent powder
Detergent tablet
WARNING!
Proper Use of Detergent
Use only detergent specificallymade for the use in dishwashers. Keep your detergent freshand dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take careto keep it out of reach of children.
7
Fill in detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustratedon theright:
The placeof main wash cycle detergent placed ,
A
“MIN”means approximately 20g of de tergent.
Theplaceof pre-washcycle detergent placed ,
B
approximately 5gof detergent
Please observe the manufacturers dosing and storage
recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishesare heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
NOTE:
Youfindinformationabout the amountof detergent for thesingle programmes on the last pag e.
Please be aware that the level of soiling and the water hardness ma y effect this.
Please observe the manufacturer'srecommendations on the detergent packaging.
Detergents
There are 3 types of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate an d without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener functio n of
phosphate is not given. In this case we recommend to fillsalt in the salt container even when
the hardnessof water is only 6 °dH.If detergentswithout phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergentto achieve
better results. Detergents without chlorine do only bleach a little. Strong and coloured s pots will not
be removed compl etely. In this case please choose a program with a higher temperature.
Attention
Keep all detergents in a safe place out ofchildren's reach.
Always add the detergent in the dispenser just before starting the dishwasher.
8

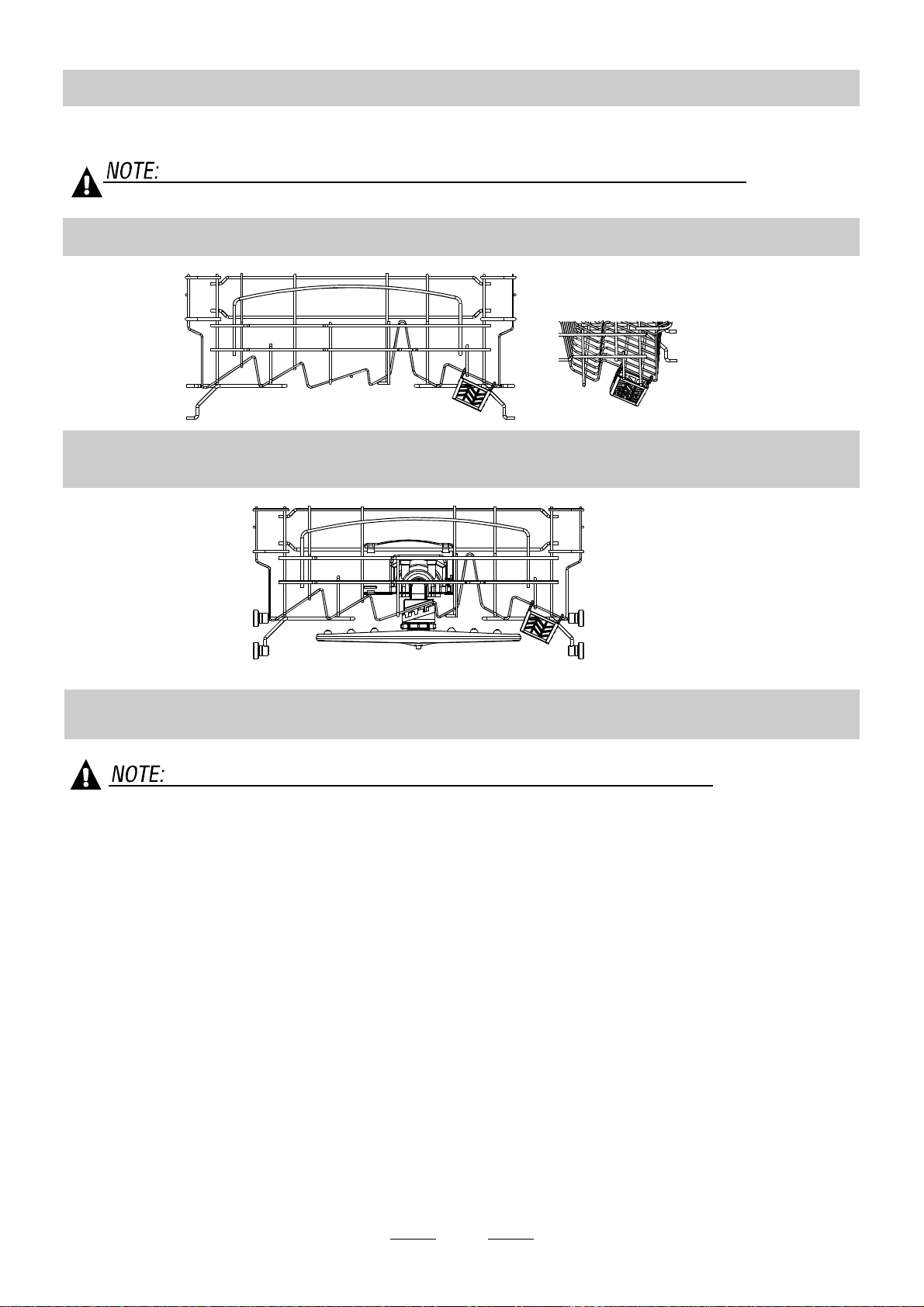

How To Use The 3 in 1 Program
Your dishwasher has a 3 in 1 program which needs no salt an d rinse aid but a 3 in 1tablet.
This dishwasher comes with a 3 in 1 tablet container as an accessory.
Only the 3 in 1 program can be used with 3 in 1 tablets. If you use 3 in 1 tablets in other programs,
The appliance will not achieve a good performance.
1. The figure below shows how to hang the 3 in 1 tablet container on the upper basket.
2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not
obstructed by the 3 in1 tablet container. Refer to the figure below for reference.
3. Put the 3 in 1 tablet into the container ,then start the 3 in 1 program.
When using 3 in 1 combination / compact Detergents ,please pay attention to make sure that
the size of the combination detergents fits to the dispenser，so that combination
detergents can be eas ily put into the dispenser, and the dispenser would notbebroken.
9
For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of baskets and cutlery baskets may vary from your model.
Attention before or after Loading the Dishwasher Baskets
Scrape off any large amounts of leftover food. Soften remnants of burnt foodinpans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded at a slant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.
Removing the Dishes
To prevent water dripping from the upper basket into the lower back, we recommend that you
empty the lower basket first and then the upper basket.
Loading the Upper Basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as theyare
not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
4
3
1
5
1
4
1
7
1
6
2
1
1
Cups
1
Small serving bowl
2
3
Large serving bowl
4
Glasses
5
Saucers
Dish
6
Dessert dishes
7
4
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket. The height of the upper basket can be adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.
10
Loading the Lower Basket
We recommend that you place large itemswhich are most difficult to clean into the low er basket:
pots, pans, lids, serving dishesand bowls, as shown in the figurebelow.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking
therotationof the topspray arm.
Pots, servingbowls, etc.mustalways beplacedtopdown.
Deep pots should be slanted to allow water to flow out.
The bottom basket feature folds down in rows so that larger or more pots and pans can be loaded.
7
77
99
8
1010
Folding spikes
Forbetter stacking of pots and pans, the spikescan be folded down as
show in the pic ture right .
Dessert dishes
7
8
Oval platter
9
Dinner plates
Soup plates
10
Silverware basket
11
11
Cutlery Basket
Cutlery should be placedin the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
2
4
4
2
3
2
2
3
32
525
555
1
1
1
1
1
1
3
5
4
4
4
4
4
4
4
4
8
555
33
1
1
1
1
1
1
555
33
2
3
2
2
3
Forks
1
Soup spoons
2
Dessert spoons
3
Teaspoons
4
Knives
5
Serving spoons
6
Gravy ladles
7
Serving forks
8
2
2
4
Do not let any item extend
through bottom.
4
632367
For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
NOTE:
Do not put in items that are soiled with cigarette ash, candle wax, lacquer orpaint.
If you buy new dishes please make sure that they are suitablefor dishwashers.
NOTE:
Please do not overload your dishwasher. Do not use dishes that are not suitable for
dishwashers. This is important for good results and for reasonable energy consumption.
Loading cutlery and dishes
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Beforeloading thedishes,you should:
Remove large left-overs
Soften remnants of burnt food in pans
When loading the dishes and cutlery, please note:
Dishes and cutlery must not impede the rotation of the spray arms
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that
water cannotcollect in thecontainer or a deepbase
12
Di
shes and items of cutlery must not lie inside one another, or cover each other
To
avoid damage to glasses, they must not touch
Load large items which are most difficult to clean into the lowerrack
T
he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Attention!
Long bladed knives stored in an upright positionare a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally inthe upper basket.
Damage to glassware and other dishes
Possible causes:
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that havebeen marked dishwasher-proof by the
manufac turer
Use a mild detergent that is described as kind of dishes If necessary, seek further
information from detergent manufacturers.
Select a programme with as low a tempe ratur e as possible.
To prevent damage, take glass and cutlery out of the di shwasher as soon as possible
after the programme has ended.
13
Intensive
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
beensittingwithdriedfood
on them for a while.
Pre-wash
-wash( 5℃
Pre 5 )
Wash (70 ℃)
Rinse
Rinse (60℃)
Drying
5/25g.
130
1.5
21
Economy
(IEC-EN 50242)
Rapid
3in1
For soiled loads,such
normally
as plates,glasses,bowls and
lightly soiledpans.
standard daily cycle.
A shorter wash for lightly
soiled loadsthat do not
need drying.
For normally soiled loads,
such as ,plates,glasses
pots
and lightly soiled pans.
Pre-wash
Pre-wash
Wash (55 ℃)
Rinse (65 ℃)
Drying
Wash (45 ℃)
Rinse
50℃）
Rinse（
Pre-wash
（℃）
Wash 55
Rinse
Rinse 70
（℃）
Drying
5/25g.
20 g.
3in1
160
30
160
1.05
0.5
1.2 14
16
12
14
Turning on the Appliance
Starting a wash cycle...
1
Draw out the lower and upper basket, load the dishes and
push them back. It is recommendedto load the lower basket
first then the upper one (see the section entitled
“Loading the Dishwasher”).
Pour in the detergent (see the section entitled “Salt,
2
Detergent and Rinse Aid”).
3
Insert the plug into the socket. The power supply is 220-240
VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
Make sure that the water supply is turned on to full pressure.
Open the door,press the ON/OFF button,and the ON/OFF light will turn on.
4
Pre
ss the prog. Button to select a desired Wash cycle.(see
the section ent itled. Wash Cycle Tab le.)
Ensure the door is properly closed.
5
NOTE: A click could be heard when the door is closed perfectly.
When the washingis over, you can switch off by
6
pressing ON/OFF button.
A cycle that is underway can only be modified if it
has only been running for a short time. Otherwise, the detergent
mayhavealreadybeenreleased,andtheappliancemayhave
alreadydrainedthewashwater.Ifthisisthecase,thedetergent
dispenser must be refilled (see the section entitled " Loadingthe
Detergent " ).
Open the door,Press current prog. Button more than three
seconds to cancel the program ,then you can change the
program to the desired cycle setting (see the section entitled
" Starting a wash cycle. . . " ). Then, close the door.
NOTE: If you open the door when washing, the machine
will pause. When you close the door , the machine will
keep on working after 10 seconds.
NOTE:
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
main power and water supply before calling a service.
A forgotten dish can be added at any time before the detergent cup opens.
Open the door a little to stop the washing.
1
After the spray arms stop working, you can open the door
2
completely.
It is dangerous to open the door when washing,because the hot water may scaldyou.
When the work ing cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are stillhot and more susceptible to breakage. They will also dry better.
Load the forgotten dishes.
3
Close the door, the dishwasher will start running again
4
after 10 seconds.
15
Switch Off the Dishwasher
The buzzer of the dishwasher sounds for 8 seconds, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leaveit ajar and wait a few minutesbefore removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block thefilter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter)
And a microfilte r (Fine filter).
Main filter
2
1
3
- Inspect the filters for blocking after each time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the
filters under running water.
Food and soil particles trapped in this filter are dissolved by a
special jet on the lower spray arm and washed down the
drain.
Coarse filter
Larger items, such as pieces of bones or glass, that could clog
the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.
Fine filter
This filter holds soil and food residues in the sump area and
prevents it from being redeposited on the dishes during a cycle.
1
1
2
3
１：
step
then lift it up
Turn the filter in anti-clockwise direction,
2
3
NOTE：
step２：lift the Main filter up
step 3： lift the Fine filter up
When following this procedure from step1 to step 3, the filter system will beremoved;
whenfollowingitfromStep3toStep1,thefiltersystemwillbeinstalled.
16
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food
particles from the wash water, allowing it to be recycled during the cycle. For best performance and results,
the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles
trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
To remove the filter device, pull the cup handle in the upward direction. The entire filterassembly should be
cleanedonce a week.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter
parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning
in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance and
damage dishes and utensils.
Cleaning the Spray Arms
It is necessary to clean thespray arms regularly for hard water chemicals will clogthe spray arm jets and bearings.
Remove the upper spray arm
To remove the upper spray arm, screw off the nut clockwise then remove
the arm.
Remove the lower spray arm
To remove the lower spray arm, pull out .the spray arm upward
Wash the arms
Wash the arms in soapy and warm water and use a soft brush to clean
the jets. Replace them after rinsing them thoroughly.
Caring for the Dishwasher
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning,makesure todryit thoroughly.
For the exterior, use a good appliance polis h wax.
Neveruse sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
Please take frost protection measureson the dishwasher in winter. Every time after washing cycles,
please operate as follows：
1.Cut off the electrical power to the dishwasher.
2.Turn off thewater supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water inthesump.
17
To clean the edge around the door, you should use a soft warm, damp cloth.
To avoid penetration ofwater into the door lock andelectrical components,donot
use a spray cleaner of any kind.
Never use a spraycleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots
on the stainless steel surface.
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odours are not trapped inside.
Before cleaning or performing maintenance, always
removethe plug from the socket. Do not run risks.
To clean the exterior and rubber parts of the dishwasher ,
do not use solvents or abrasive cleaning products.
Rather,use onlya cloth and warm soapywater.
To remove spotsor stainsfromthe surface of the
interior, use a cloth dampenedwith water anda little
vinegar, or a cleaning product made specifically for
dishwashers.
The installation of the pipes
and electrical equipments
When you go on holiday, it is recommend that you run a
wash cycle with the dishwasher empty and then remove
the plugfrom the socket, turn off the water supplyand
leave the door of the appliance slightly ajar. This will help
the seals to last longer and prevent odours from forming
withinthe appliance.
If the appliance must be moved, try to keep it in the vertical
position. If absolutely necessary,it can be positioned on
its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
should be done by professionals.
Failuretodosocanresultindeathor
electrical shock.
●
Installation preparation
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection ofdrainhosesof
the dishwasher.
Note: please check the accompanying installation accessories(hook for aesthetic panel
,screw)
18
【Figure1】
Cabinet dimensions
Less than 5mm
between the top
of dishwasher and
cabinet and the
outerdooraligned
to cabinet.
820mm
580mm
90 °
Electrical, dra in and
water supply line
entrance s
Space betwee n cabinet
bottom and floor
600 mm
90 °
80
100
【Figure
2】
Minimum space when
thedoorisopened
●
1
The furniture door could be fitted according to Figure 3.
dimensions and installationFurniture door
Minimum space of 50mm
540
568
Dishwasher
Cabinet
Door of
dishwasher
15
【Figure3】
The furniture door should
be fitted in accordance
with the illustrated dimensions
(Unit: mm)
19
254
38
250
594
2
Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
Hop hook
【Figure
4a】
Installation of aesthetic panel
St4 countersunk
head screw
Lower hook
【Figure4b】
Installation of aesthetic
wooden panel
.Takeawaythecover
1
2
.Pinupthescrew
. Get back the cover
3
Outerdoorof
dishwasher
4X18 screw
Cover
Spacerfor furniture door
Hook for aesthetic door
Furniture door
20
●
Tension adjustment of the door spring
The door springs are set at the factory to the proper tension for the outer door. If aesthetic
wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting
screw to drive the adjustor to strain or relax the steel cable(see figure 5).
Adjust the door spring
tension until the door
remains balance in the
fully-opened position.
relax
【Figure
Tension adjustment
of the door spring
●
Connection of drain hoses
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the speical
plastic support that comes with the appliance (figure 6).The top of the hosemustbeat
a height between 40 and 100cm. The free end of the hose must not be immersed in
water to avoid the back flow of it. ATTENTION: The special plastic hose supportmustbe
solidly fastened to the wall to prevent the drain hose from moving and allowing water
to spill outside the drain.
5】
【Figure6】
Drain pipe connection
Close the drain hose hook to the counter
Drain hose hook
Front
NOTE
The top of the hos e
must be at a height
between
40 and 100cm.
The free end of the
hose must not be
immersed in water.
Drain pipe
Counter
A
B
C
φ 40mm
21
●
Dishwasher installation steps
1
Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
2
Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2)
3
Connect the inlet hose to the cold water supply
.
.
4
Connect the drain hose. Refer to diagram (Figure 6)
5
Connect the power cord
Put the dishwasher to slide rails(Illustration4)
6
7
Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
.
.
.
strip is flush with edge of work surface.
8
Place the dishwasher into position.
9
Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning
thescrewsontheleftandrighthandsideofthecabinet(Illustration6A).To adjust the frontfeet,
use a wrench and turn the front feet until the dishwasher is level (Illustration 6B).
10
The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface-secure to the work surface by using two woodscrews ensuring the
dishwasher weight is not being hit by the surface (Illustration 7).
B. Marble or granite work top-secure the bracket to the side panel of the dishwasher and secure
the dishwasher to the furniture housing. Put the rubber cap over the screw (Illustration 8).
2
SCREW
CONEGEAR
7
5
4
6A
6
6B
【Figure
8
7】
RUBBER
SCREW
COVER
Important:
Condensation strip must be fitted.
22
Dishwasher must be level for proper dish rack operation and wash performance.
1
Place level on door and rack track inside the tub as shown to check that the
dishwasher is level.
level the dishwasher by adjusting the four leveling legs individually.
2
3
When level the dishwasher, pl s pay attention not to let the dishwasher tip over.
ea e
【Figure 8】
Illustration of feet adjustment
Check
Level
Front
to Back
NOTE:
The maximum adjustment
height of the feet is 60 mm.
Check level
side to side
For personal safety:
WARNING!
Please look at the rating label to know the rating voltage and connect the dishw asher to the a ppropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separatecircuit serving
only this appliance.
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connectedisnot
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing a
path of least resistance for the electric current. This
appliance is equipped with a cord having an
equipment-earthing conductor and an earthing
plug. The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local standards and requirements.
23
Improper connection of the equipment-
grounding conductor can result in the risk
of an electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
providedwith the appliance; If it is not fit
for the outlet. Have aproperoutlet installed
by a qualified electrician.
In order to avoid excess water in the inlet hose,
please close the hydrant after using.(For the models: no safety inlet hose.)
Connect thecold water supply hose toa threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time,letthe
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. Thedishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drainhose. The drain hose mustbe correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hoseextension, make sure to use a similar drain hose.
It must be no longerthan 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon Connection
The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of
the hose must not be immersed in water.
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2 Theinletvalveisopen
3 Check fill hose for leaks
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are not trapped or kinked
7 All packing materials and printings should be taken out from the dishwasher
After installation, please make sure to keep this manual.
The content of this manual is very helpful to the users.
24
Fuse blown,or the
circuit breaker activated
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Technical
problems
Power supply is not
turned on
Error code:E1;
Water pressure islow
Door of dishwasher
notproperlyclosed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Improper detergent
Spilled rinse-aid
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Check that the water supply is connected properly and
the water is turnedon.
Make sure to close the door properly and latch it.
Check drain hose.
Check coarse filter
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.
Always wipe up rinse-aid spills immediately.
General
problems
Noise
Detergent with
colourant w as u sed
Hard water minerals
The affected items are
notcorrosion resistant.
Aprogrammewasnot
run after dishwasher
salt was added.
Traces of salt have
gotten into thewash cycle.
Thelidofthesofter
is loose
Asprayarmis
knockingagainst
an item in a basket
Items of crockery
areloose in the
washcabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
Make sure that t he detergent is the one without
colourant.
To clean the interior, use a damp sponge with
dishwasher detergentandwearrubbergloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the quick wash programme .
without any crockery in the dishwasher and
withoutselecting the Turbo function(if present),
after adding dishwasher salt.
Check the lip .Ensure it closes.
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Interruptthe programme,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
25
Thedishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Unsatis
-factory
washing
result
Theprogramme was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the pathof sprayarms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This maycause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbedagainst
dishes.
Dishesblock
detergentcups.
Improper loading
Too little rinse-aid
Select a more intensive programme.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Unsatis
-factory
drying
result
Dishes are removed
too soon
Wrong program
has been selected
Useof cutlerywith
alow-qualitycoating
Longer inlet time.
Longer drainingtime.
Overfilled.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once
the dishes are barely warm to the touch. Empty the
lower basket first. This prevents water form dropping
off dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in th e dishwasher.
Faucets is not opened.
The installation position of the drain pipe is too high.
Too much inlet water.
WARNING!
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
26
595
820
Height : 820mm(adjustable+60mm)
Width : 595mm
Depth : 540mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
water connection : max 60 ℃
Power supply: see rating label
Capacity: 12 Place settings
27
Loading...
