Caple DF625 Instruction Manual

Instruct ion manual for deluxe elec tronic dishwasher

Model code: Df625

Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

Df625

To review the section on troubleshooting Tips
will help you to solve s ome common problems
by yourself .

Dear Customer,

Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.

The manufacturer, following a policy of constant
development and updating of the product, may
make modificationswithout giving prior notice.

Keep it toreferto it at a laterdate.

Ifyoucannot solvethe problems by yourself ,
pleaseask for the help of professional technicians.

Dishwasher Features............................ . ....... ...3.

A、Water Softener...........................................4

Attention before or after loading the Dishwasher

Baskets...................................................... ..10..

Filtering System.............................................16

Caring for the Dishwasher...............................17

B、Loading the Salt into the Softener........... ......5.

C、Fill the Rinse Aid Dispenser

................. ........5

.

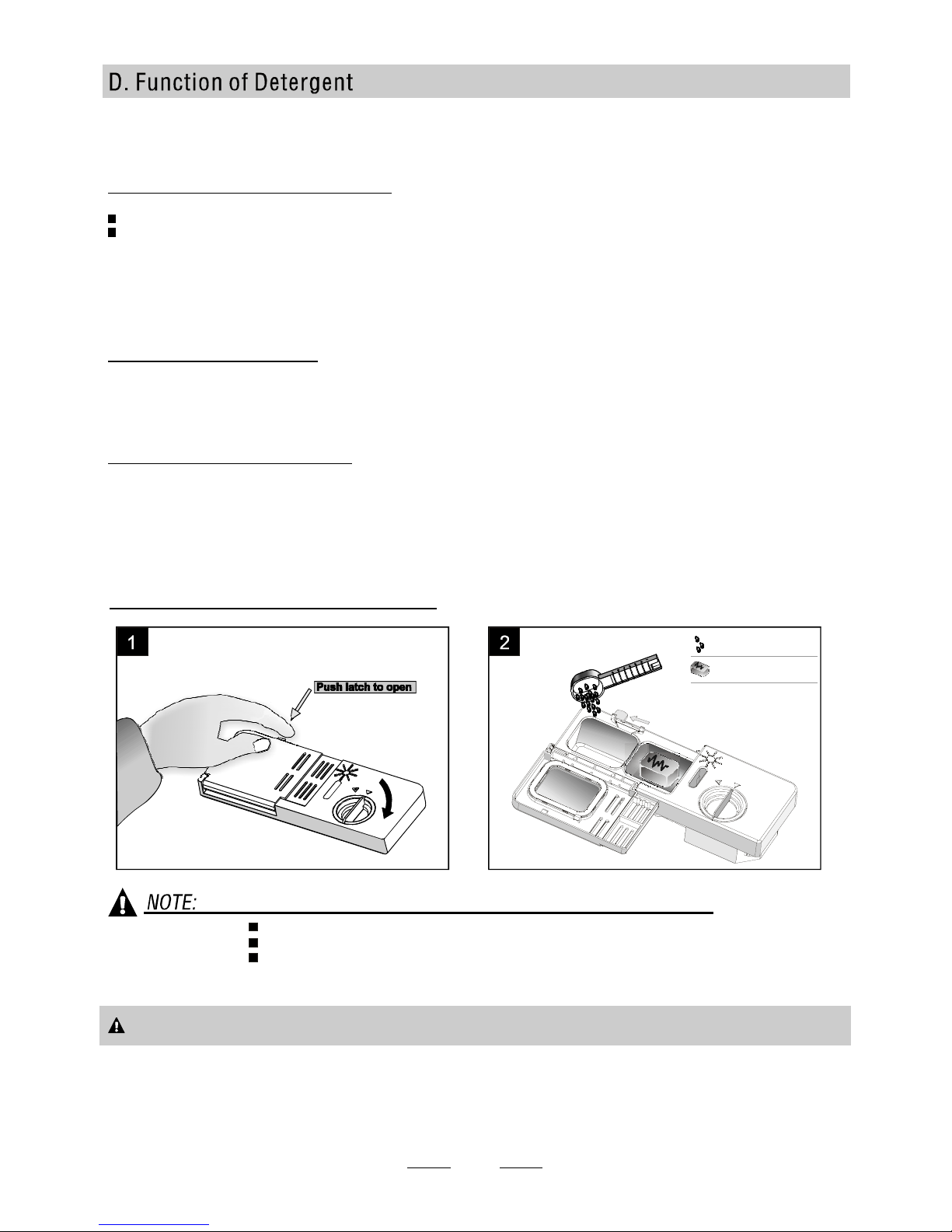

D、Function of Detergent ........................ .........7.

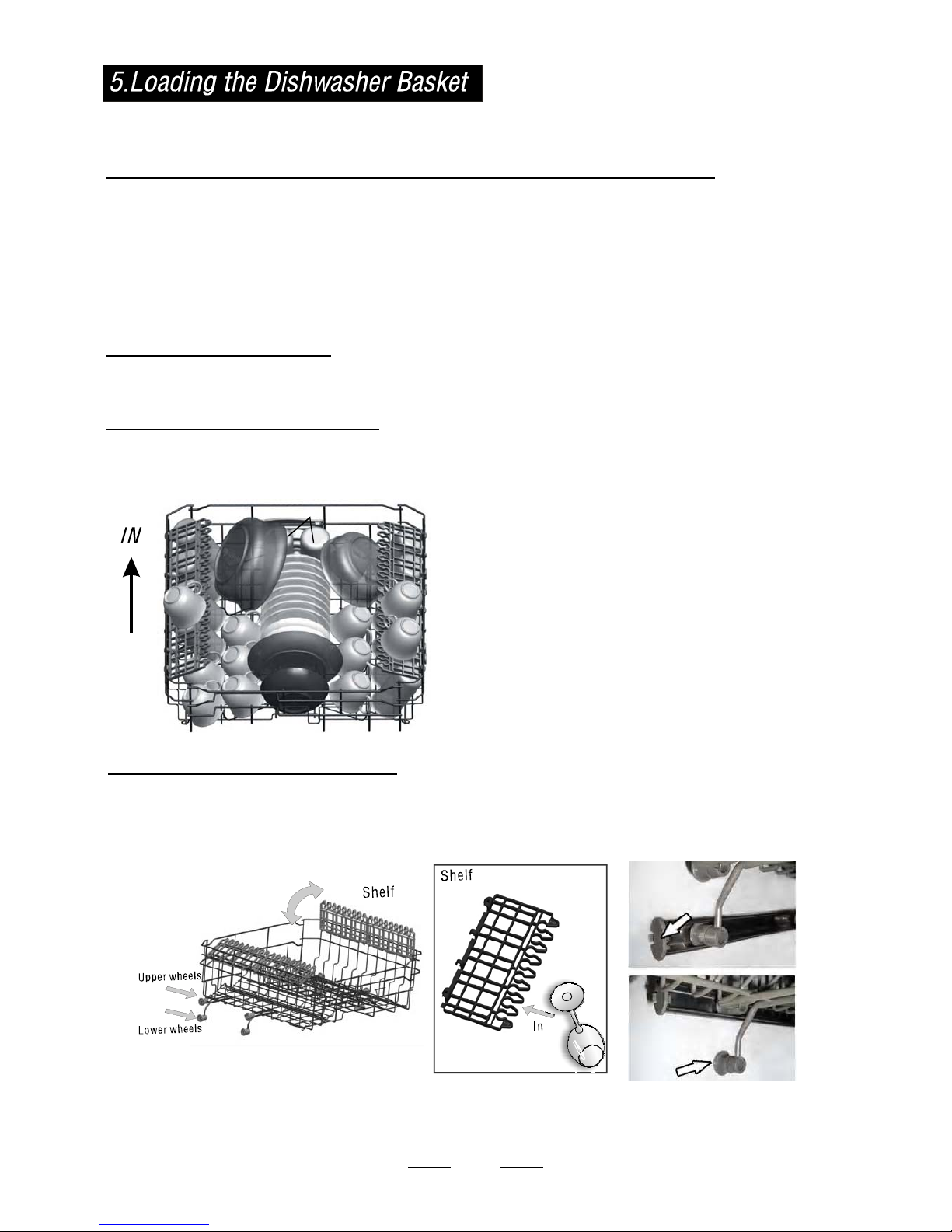

Loading the upper Basket............................ ...10..

Loading the Lower Basket....................... .......11...

Cutlery Basket........................................... ..12...

Wash Cycle Table...........................................14

Turning on the Appliance................................15

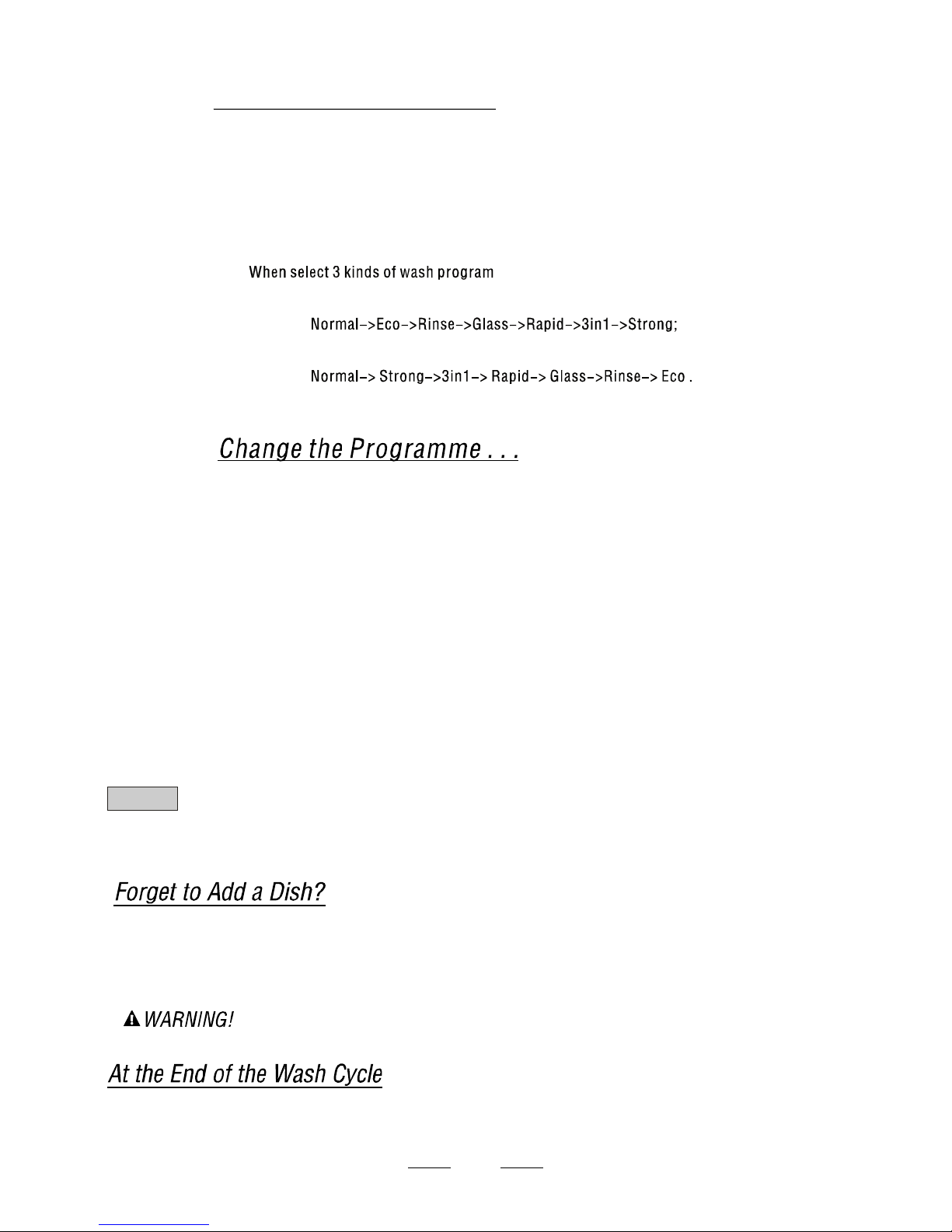

Change the Programme...................... ...........15..

At the End of the Wash Cycle...................... .....15.

Before calling for service.................................21

Error codes...................................................22

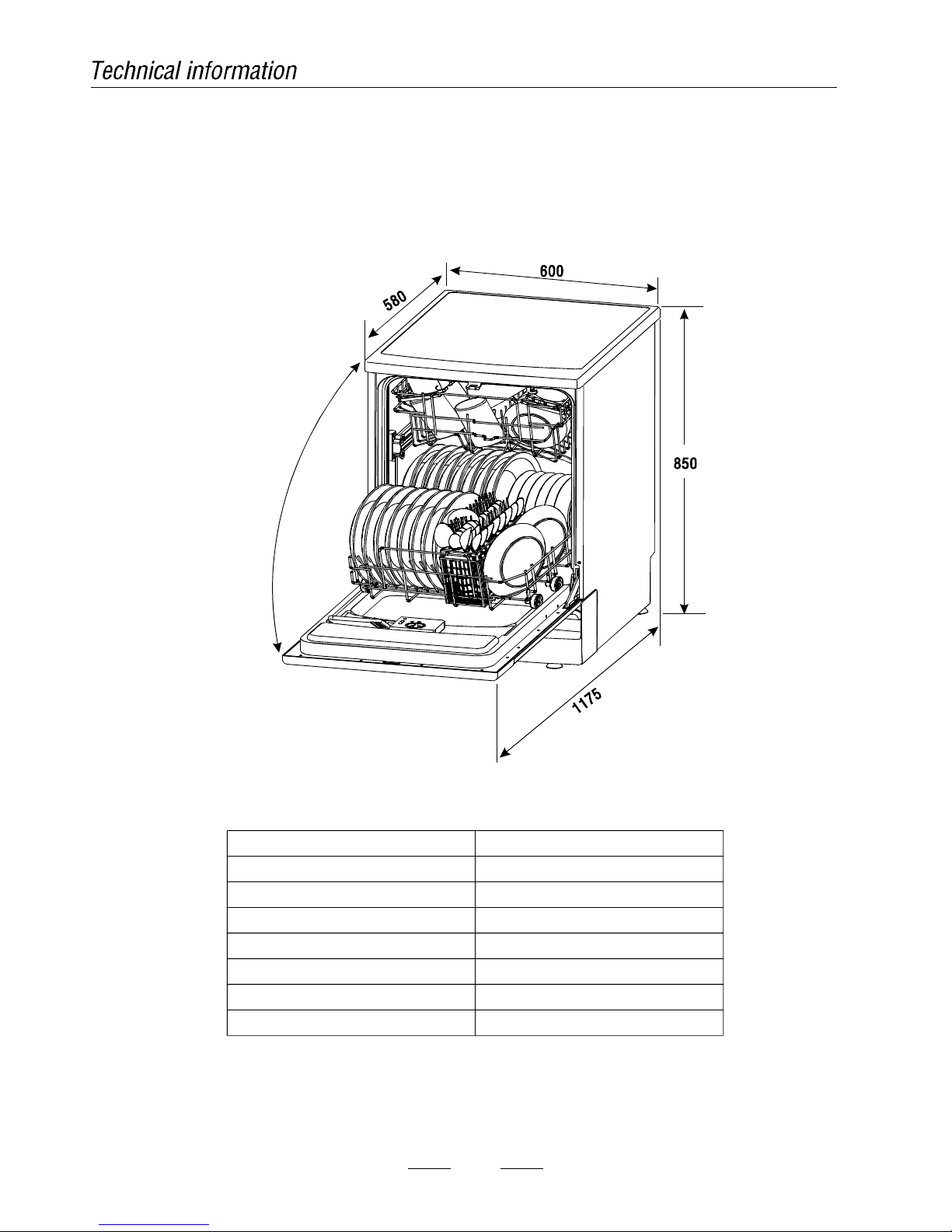

Technical information.....................................23

ControlPanel...................................................3

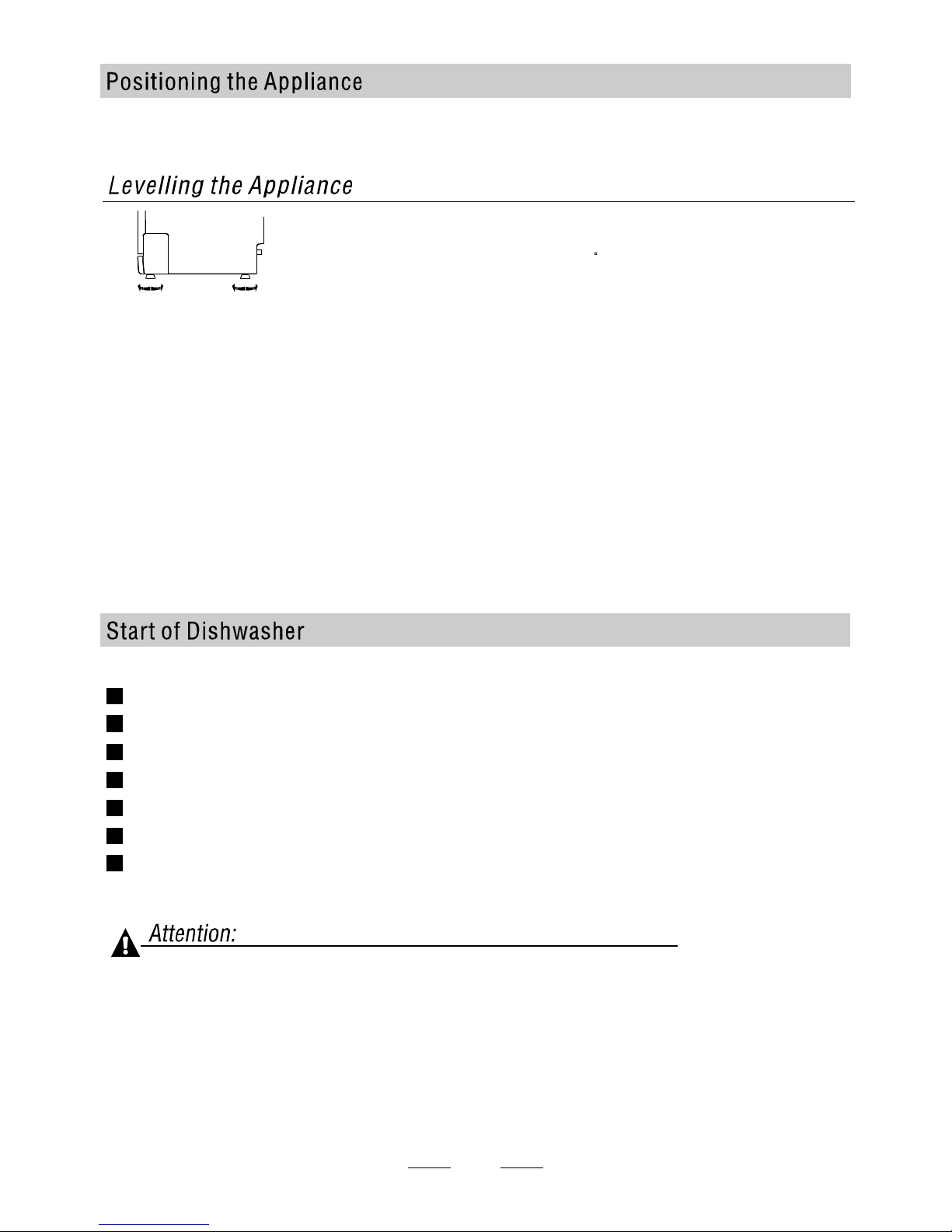

Positioning the Appliance.............................. ..........20.

Start of Dishwasher .....................20....................

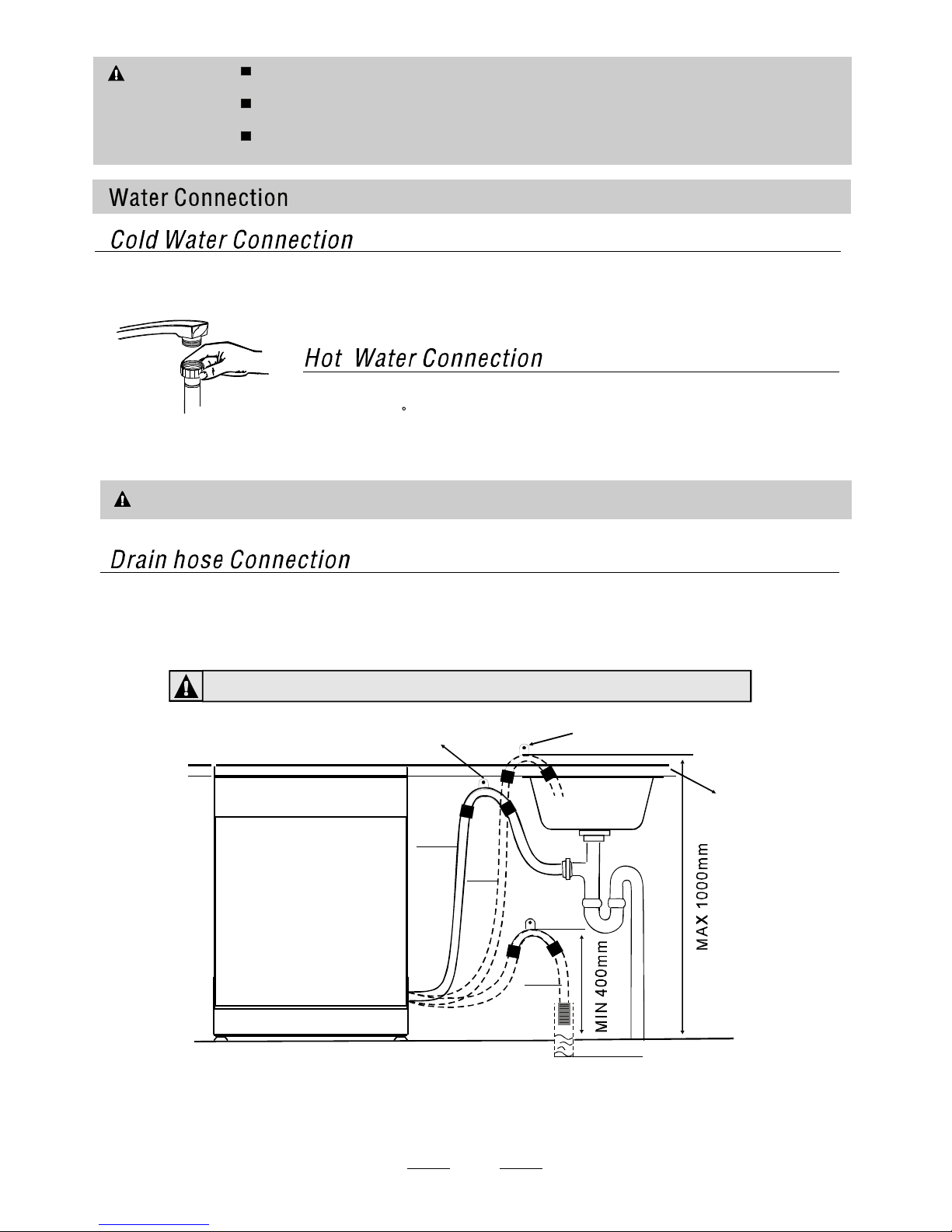

Water Connection............................................19

How to use the 3in1 program..............................9

1

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
theriskof anelectricshockbyprovidingapathof
least resistanceof electric current. This appliance
is equipped with a cor d having an equipment­grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.

Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some de tergent left inside.

Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines

with a visual heating element.)

Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
n

ot so marked, check the manufacturer's

recommendations.

Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.

During installation, the power supply must not
beexcessivelyor dangerously bent or flattened.

Do not tamper with controls.

Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.

When loading items to be washed:

1)Locate sharpitems so thatthey are not likely
to damage the door seal;

2) Warning: Knivesand other utensils with
sharp points must be loaded in the basket
withtheir pointsdownor placedin a
horizo ntal position.

When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicableto machines with a visual heating
element.)

If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.

Please dispose of packing materials properly.
Use the dishwasher only for its intended function.

Remove the door to the washing compart ment when
removing an old dishwasher from service or discarding it.

Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.

Check that the detergent comparment is empty
after completion of the wash cycle.

The appliance is to be connected to the w ater
mains using new hose sets and that old hose-sets
should not be reused.

The maximum number of place settings to be
washed is 12 .

The maximum permissible inlet water pressure is
1Mpa.

The minimum permissible inlet water pressur e is

0.04Mpa.

Children should be supervised to ensure that they do
not play with the appliance.

This appliance is not intended for use by persons
(includingchildren )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge,unless they have been givensupervision
or instruction concerning use of the appliance by a
person responsib le for their safety.

When using your dishwasher, follow the precautions listed below:

WARNING!

The door should n ot be left open,
since this could increase the risk of tripping.

Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Improper connectionof the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If i t does not fit
the outlet.Have a properoutlet installedby a
qualified electrician.

2

Dispose of the dishwasher packagingmaterial correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:

PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .

Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut
off the power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and humanhealth,which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
cityofficeand yourhousehold wastedisposalservice.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.

WARNING!

To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.

3

11 12

Back View

1

2

3

4
5

6

7

8

9

10

on
Off

Front view

Main Filter

DetergentDispenser

CupShelf

Cutlery Basket

Coarse Filter

Rinse Aid Dispenser

Inletpipe connector

Drain pipe connector

Lower Basket

Spray Arms

Upper Basket

1

Salt Container

5
6

7
8

9

10

12

11

3

2

4

2 Power Light : To come on when the ON/OFF Button is

Presseddown.

5 Door Handle: Pull it to open the door.

1 ON/OFF Button: To turn ON/OFF the power supply.

4 Salt WarningLight and Rinse Aid Warning Light :

To come on when the Salt aid dispenser or Rinse aid
dispenser needs to be refilled.

7 Start / Reset Button: Press this button to start or pause the

dishwasher, the one of four program lights will blink when
starting.

6 Washing Program Selector: Turn the knob clockwise

To select wash cycles.

3 Program indicator light: when you select washing

program, the correspond light will display.

1

2

4

3

5

6

7

Strong

Normal

Eco

Rinse

Glass

Rapid

3in1

PO
PGG

Tubsu

Sft fu

Df625

Before using your dishwasher for the first time:

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverseeffect on the operation of the appliance. The higher the
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used. This is intended to optimise and customise the level o f salt consumption.

1. Unscrew the cap from the salt container.

2. There is a ring on the container with an arrow on it (see figure
on the side), if necessary,rotate the ring in the anticlockwise
direction from the "-" Setting toward the "+" sign, based on the
hardness of the water being used.
It is reco mmended that adjustments should be made in
accordance with the following scheme:

WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.

Contact your local water board for information on the hardness of your water supply.

dH

mmol/l

0~140~8 0~1.4

/

0

/

14~398~22 1.4~3.9

-2050

39~8022~45 3.9~8

Mid

40 25

+

60 16

fH

0~10
10~28
28~56

Clarke

WATERHARDNESS

Selector Position

Salt consumption

(gram/cycl e)

Auto nomy
(cycles/1kgs)

Please follow the steps below for adjustment in salt consumption.

"/"
"-"
"+"

"Mid"

Note:2

Setting toward the"+" sign

Setting toward the"-" sign

Setting toward between
the "-" sign and "+" sign

No salt need added

45~60 80~107 56~75 8~11

4

If your model does not have any water softener, you may skip this section.

A. Set the water softener

B. Pour 1／2 litreof waterinsidethe salt containerand then fill with dishwasher salt

C. Fill the rinse aid dispenser

D. Fill in detergent

°

Clark: British degree

°

fH: French degree

°

DH: German degree

Note:1

dH=1.25 Clarke=1.78 fH=0.178mmol/l

°

°

°

1

It is normal for a small amount of water to come out of the salt container.

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.

2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:

Attention!

Only use salt specifically designed for the use in dishwashers! Every othertypeof
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.

Only fill with salt jus t before starting one of the complete washing programs .
This will prevent any grains of salt or salty water, which may have been spilled,
remainingonthebottomofthemachineforanyperiodoftime,whichmaycause
corrosion.

5

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is a bout 110ml.

Rinse Aid Dispenser

Function of Rinse Aid

Rinse aid is automaticallyadded during the lastrinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances

(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

A Remove the lower basket and then unscrew and remove the cap from the salt container.
B Before the first wash, fill 1lt. of water in the salt container of your machine.
C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.

D After filling the container , screw the cap tightly back clockwise.
E Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with

salt.

F Immediatelyafter filling the salt into the salt container,a washing program should be started

Otherwise the filter system, pump or other important parts of the machine may be damaged

by salty water. This is out of warranty.

6

RINSE AID DISPENSER

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth.Don't forget to replace the cap beforeyou close dishwasher door.

Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming
during the next wash.

Adjusting Rinse Aid Dispenser

1
2
3

As the rinse aid diminishes, t he size of the b lack dot
on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty

If there is no rinse-aid warni ng light in the control panel, you can judge the amount of rinse-aid by the color of the optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

The rinse aid dispenser has six scales. Always start with the dispenser set on "4".

If spots and poor drying are a problem, increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are show spots, adjust the dial to the next higher lever until your
dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

Increase the dose if there are drops ofwateror lime spots on the dishes afterwashing.
Reduce it if there are sticky whitish stains on you r dishes or a bluish film on glassware or
knife blades.

NOTE:

When to Refill the Rinse Aid Dispenser

7

Amount of Detergent to Use

Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

WARNING!

Based on their chemical composition, detergents can be split in two basic types:

The use of“normal”washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched

tothedirt-dissolvingproperties of the enzymesof theconcentrated detergent. For this reason
“normal”wash programs in which concentrated detergents are used can achieve the same
resultsthat can otherwise only be achieved using “intensive” programs.

Detergent tablets of different brands dissolve at different speeds. For this reasonsome
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensurethe complete removal of detergent residuals.

The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get dampandwillnot
dissolveproperly.

Concentrated Detergent

Detergent Tablets

Detergent Dispenser

Always add the detergent just before startingeach wash cycle.
Only use branded detergent aid for dishwasher.

If the lid is closed: press release button. The lid will spring open.

conventional, alkalinedetergents with caustic components
low alkaline concentrated detergents with natural enzymes

Detergents with its chemical ingredients are necessary to remove dirt, crush dirtand transport it out of the dishwasher.
Most of th e commercial quality detergents are suitable for this purpose.

Detergent tablet

Detergent powder

8

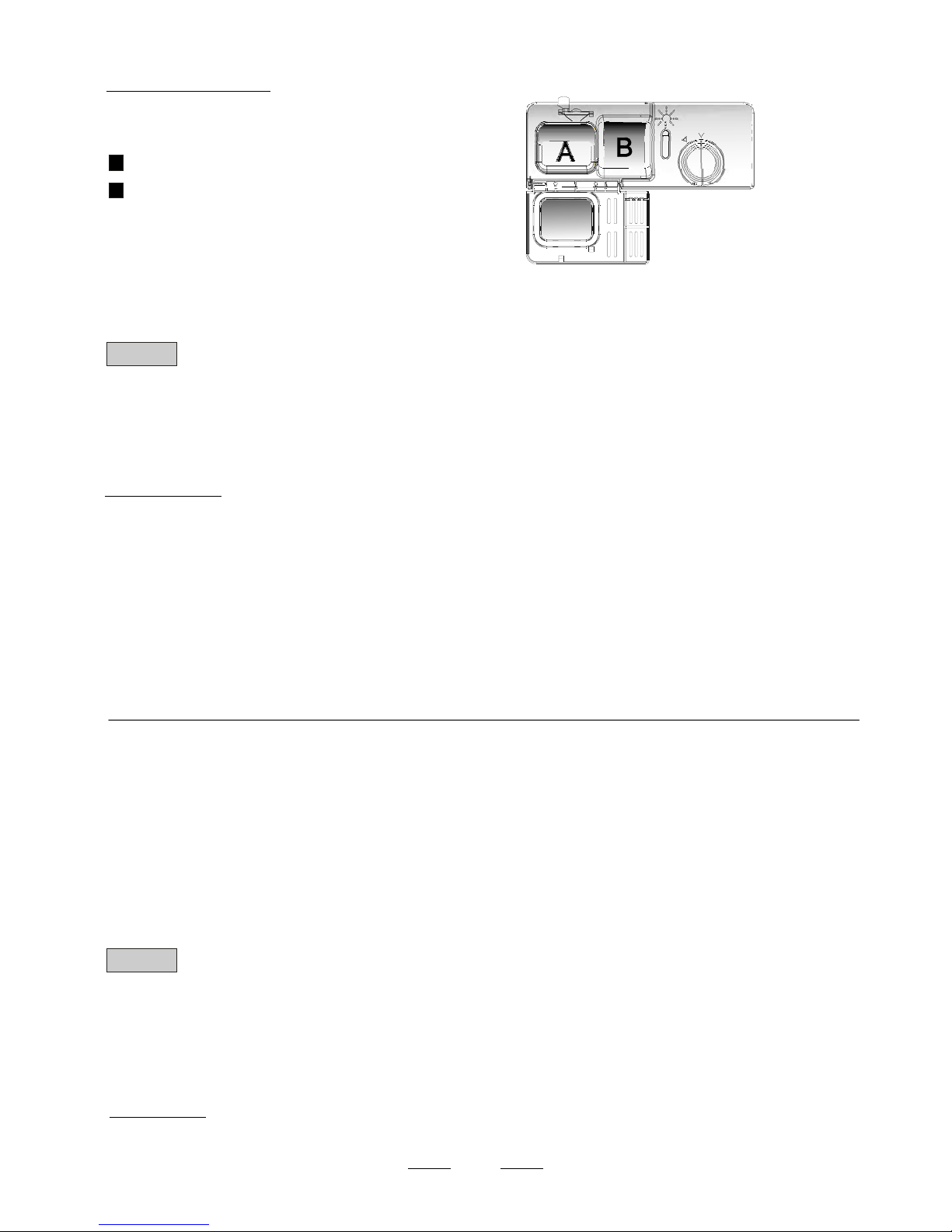

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustratedon the right:

The place of main wash cycle detergent placed ,

“MIN”means approximately 20g of deterg ent.

Theplace of pre-washcycledetergent placed,
approximately 5g of detergent

Please observe the manufacturers dosing and storage
recommendations as stated on th e det erge nt packaging.

Close the lid and press until it locks in plac e.

If the dishes are heavily soiled, place an additional detergent dose in the pre-washdetergent
chamber. This detergent will take effect during the pre-wash phase.

Youfindinformation about the amountofdetergent for the single programmes on the
last page. Please aware, that according to the level soiling and the specifichardnessof
water differences are possible.

Please observe the manufacturer's recommendations on the detergent packaging.

Detergents

There are 3 sorts of detergents

1.With phosphate and with chlorine

2.With phosphate and without chlorine

3.Without phosphate an d without chlorine

NOTE:

NOTE:

A
B

Fill in detergent

Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 °dH. If detergentswithout phosphate areused in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.

Attention

Keep all detergents in a safe place out of children's reach.
Always add the detergent in the dispenser just before starting the dishwasher.

Use of “2 in 1”、“3 in 1”、“4 in 1” and “5 in 1” Combination / Compact Detergents

These products are detergents with integrated and combined detergent/rinseaidand
salt functions. Before using these products you should first check that the water hardness
in your supply is compatible with the use of these products as per the detergent manu­facturers (on the product packaging). These products should be strictly used according to
the detergent manufacturer'sinstructions. In general detergents that include rinse aid or
water softener are only able to serve good results under certain conditions: rinse aid and
water softener can not adapted to specific conditions. For this reasons in so me cases
there might be unwanted cleaning or drying results. Please ask the detergent manufac­turer to inform you about the best consume conditions. If you encounter problems when
usingthese productsfor the first time then please contact the detergent manufacturers
care line. The manufacturer of your dishwasher is not liable for damages caused by
compact detergents nor gives warranty if you use compact detergents.

When use 2 in 1 3 in 1 4 in 1 or 5 in 1 Combination / Compact Deter­gents ,please pay attention to make sure that the size of the Combination Detergents
is fitted to the dispenser so that Combination Detergents can be ease to put in the
dispenser ,and dispenser would not be broken.

“ ”、“ ”、“ ” “ ”

，

9

The appliance will not achieve a good performance.

Only the 3in1 program can be used with 3in1 tablets. If you use 3in1 tablets inotherprograms,

When using 3in1 combination / compact Detergents ,please pay attention to make sure that
the size of the combinatio n detergents fits to the dispenser，so that com bination
detergents can be easily p ut in to th e dispenser, and the dispenser would notbebroken.

Your dishwasher has a 3in1 program which needs no salt and rinse aid but a 3In1tablet.
This dishwasher comes with a 3in1 tablet container as an accessory.

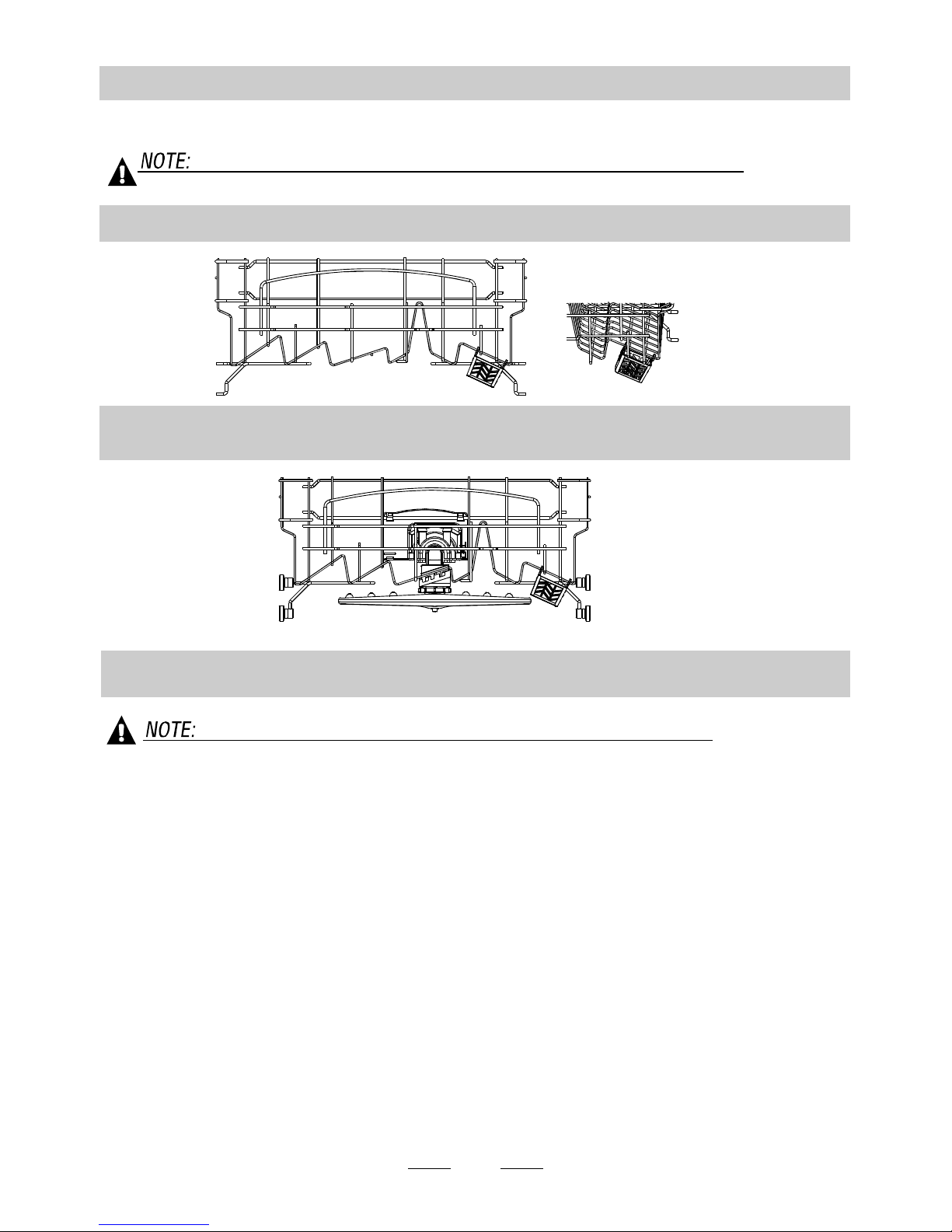

1. The figure below shows how to hang the 3in1 tablet container on the upper basket.

2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not
obstructed by the 3in 1 tablet container. Refer to the figure below for reference.

3. Put the 3in1 tablet into the container ,then star t the 3in1 program.

How To Use The 3IN1 Program

10

For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of baskets and cutlery baskets may vary from your model.

Attention before or after Loading the Dishwasher Baskets

Scrape off any large amounts of leftover food. Soften remnants of burnt foodinpans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:

1.Items such as cups, glasses, pots/pans, etc. are faced downwards.

2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.

3.Allutensils are stacked securely and can not tip over.

4.Allutensils are placed in the way that the spray arms can rotate freely during washing.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

Removing the Dishes

To prevent water dripping from the upper basket into the lower back, we recommend that you
empty the lower basket first and then the upper basket.

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are
not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket. The height of the upper basket can be adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.

1

Cups

2

Small serving bowl

3

Large serving bowl

4

Glasses

Saucers

5

6

Dish

Dessert dishes

7

1

1

4

1

7

2

3

5

6

1

4

1

4

1

11

Loading the Lower Basket

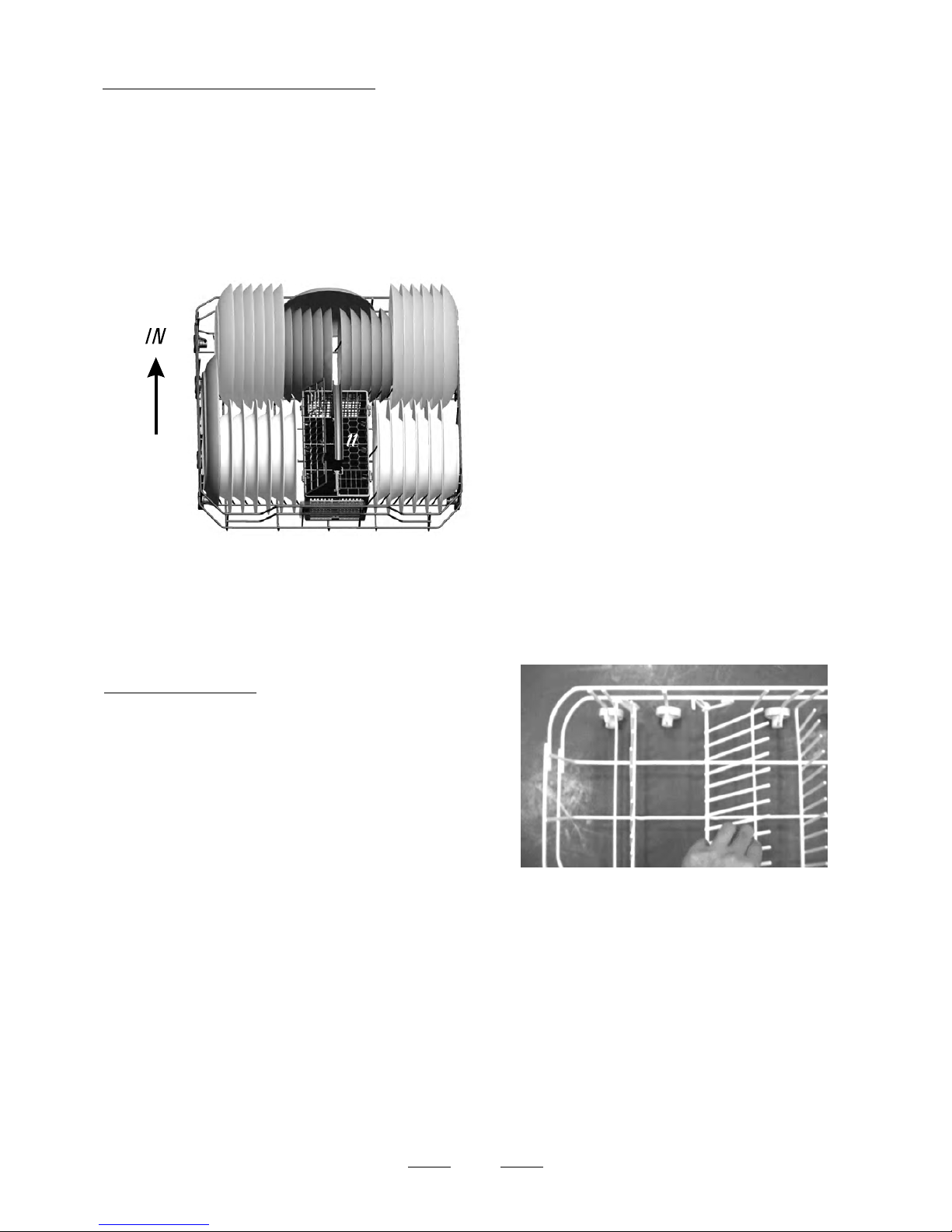

We recommend that you place large items which are most difficult to clean into the lower b asket:
pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.
It is p referable to place serving dishes and lids on the side of the racks in order to avoid blocking
therotation of thetopspray arm.

Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Thebottom basket featurefold downtine rowsso that larger or morepots and pans can be loaded.

Folding spikes

Forbetter stacking of potsand pans, thespikes canbe foldeddown as
show in the picture right.

8

Oval platter

10

Soup plates

Dessert dishes

7

9

Dinner plates

11

Silverware basket

1010

8

99

77

7

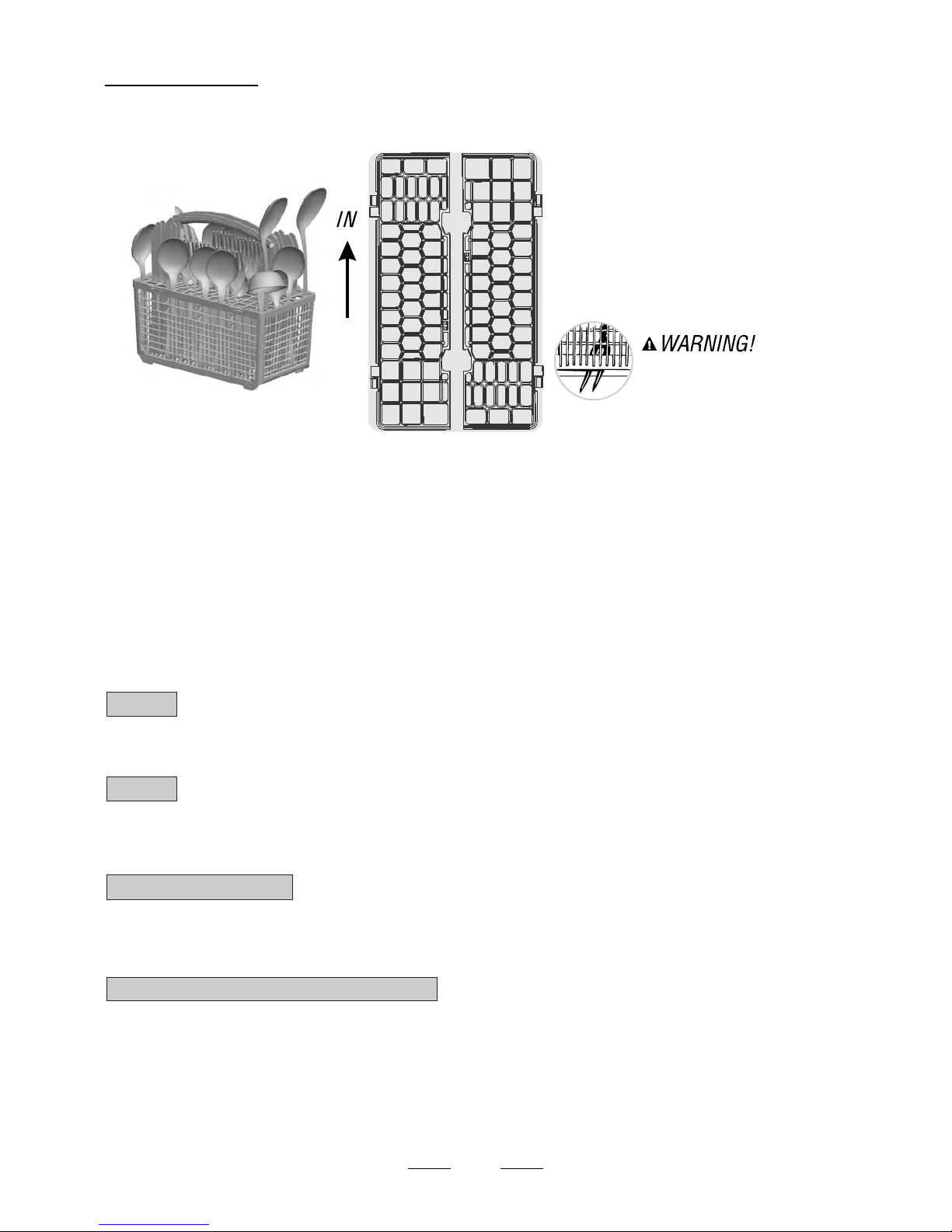

Cutlery Basket

For washing in the dishwasher the following cutlery/dishes

Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres

Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint.
If you buy new dishes please make sure that they are suitable for dishwashers.

Some types of glasses can become
dull after a large number of was hes

Silver and aluminum parts have a
tendency to discolour during washing

Glazed patterns may fade if machine
washed frequently

Please do not overload your dishwasher. Do not use dish that is not suitable for
dishwashers.This is important for good results and for reasonable energy
consume.

Beforeloading thedishes, you should:
Remove large left-over
Soften remnants of burnt food in pans

Dishes and cutlery must not impede the rotation of the spray arms
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that
water cannotcollectin the containeror a deepbase

12

NOTE:

NOTE:

Are not suitable

Are of limited suitability

Loading cutlery and dishes

When loading the dishes and cutlery, please note:

Cutleryshould be placed in the cutlery basketwith the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.

Teaspoons

4

Soup spoons

2

Forks

1

Serving forks

8

Serving spoons

6

Knives

5

3

Dessert spoons

7

Gravyladles

Do not let any item extend
through bottom.

2

4

525

32

3
2

1
1
1

1
1

555

4

555

4

632367

3

2
3

4

555

1
1
1

1
1

5

4

2
2

3

33

33

2

2
3

2
2

1

4
4
4
4

8

4
4
4

1

13

Di
To

T

shes and items of cutlery must not lie inside one another, or cover each other

avoid damage to glasses, they must not touch

Load large items which are most difficult to clean into the lower rack

he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee

and tea cups

Attention!

Long bladed knives stored in an uprightposition are a potential hazard!
Long and/or sharp items of cutl ery such as ca rving knives must be positioned
horizontally in the upper basket.

Damage to glassware and other dishes

Possible causes:

Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.

Suggested remedy:

Use glassware or porcelain dishes that have been marked dishwasher-proof by the
manufacturer
Use a mild detergent that is described as kind of dishes If necessary, seek further

information from detergent manufacturers.
Select a program me with as low a te mperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as po ssible
after the programme has ended.

14

For normally soiled lo ads,
such as , plates,glasses
and lightly soiled pans.
standarddaily cycle.

pots

For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.

For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishe s that have
been sitting with dried food
on them for a while.

A shorter w ash for lightly
soiled loads that do not
need drying.

For dishes that need to be
rinsed and dried only.

Normal

Eco

Strong

Rapid

Rinse

For lightly soiled loads,
such as glasses, crystal and
fine china.

Glass

For normally soiled loads,
such as , plates,glasses
and lightly soiled pans.
standarddaily cycle.

pots

5/25 g.

25 g.

5/25 g.

20 g.

155

105

160

30

95

1.05

0.8

1.4

0.4

1.00

17

13.4

17

8.9

9.9

3in1

20 g.

160

110

17.2

13.4

1.15

0.95

Pre-wash

-wash( 0℃
Wash (60 ℃)
Rinse (70 ℃)
Drying

Pre 5 )

Pre-wash
Pre-wash
Wash (50 ℃)
Rinse (70 ℃)
Drying

Pre-wash

Wash (45 ℃)
Rinse (60 ℃)
Drying

Wash (40 ℃)
Rinse (45 ℃)

Wash(45 )

℃
Rinse (70 ℃)
Drying

Pre-wash
pre-wash
wash45
rinse68
drying

℃

Pre-wash
wash(40 )
rinse(70 )
drying

℃

℃

(IEC-EN 50242)

15

A forgotten dish can be added at any time before the detergent cup opens.

Open the door a little to stop the washing.

After the spray arms stop working, you can open the door
completely.

Load the forgotten dishes.

Close the door, the dishwasherwill start running again
after 10 seconds.

4

3

2

1

It is dangerous to open the door when washing,because the hot water may scaldyou.

When the work ing cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handl ing the di shes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.

Turning on the Appliance

Starting a wash cycle...

Draw out the lower and upper basket, load the dishes and push them back.
It is commended that loading the lower basket first, than the upper one
(see the section entitled “Loading the Dishwasher”).
Pour in the detergent (see the section entitled “Salt, Detergent and Rinse Aid”).
Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, the
specification of the socket is 10 A 250 VAC.
Make sure that the water supply is turnedon to full pressure.

1

2

3
4

Turn the program knob in clockwise direction, the wash program will
changeas follows direction

When Turn the program knob in counterclockwise direction, the wash
program will changeas follows direction

When a program is selected , the response light will light. Then press the
Start/resetbutton, the program is running.

Premise: A cycle that is underway can only be modified if ithas only been running
for a short time. Otherwise, the detergent May have alreadybeen released, and the
appliance may have already drained the wash water. If this is the case, the detergent
dispenser must be refilled (see the section entitled " Loading the Detergent " ).

Press start/reset button more than three seconds the machine will be in stand by
state ,then you can change the program to the desired cycle setting (see the
section entitled " Starting a wash cycle. . . " ).

NOTE: If you open the door when washing, the machine will pause. When you
close the door and press the start/reset button, the machine will keep on working
after 10 seconds.
The programlightsshowsthestateofthedishwasher:
a) One of the program lightson --> stand by
b) One of the program lights on --> pause
c) One of the program lights blinking --> run
d)some of the left three program lights fast blinking error-->

If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the

main power and water supply before calling a service.

NOTE:

16

The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.

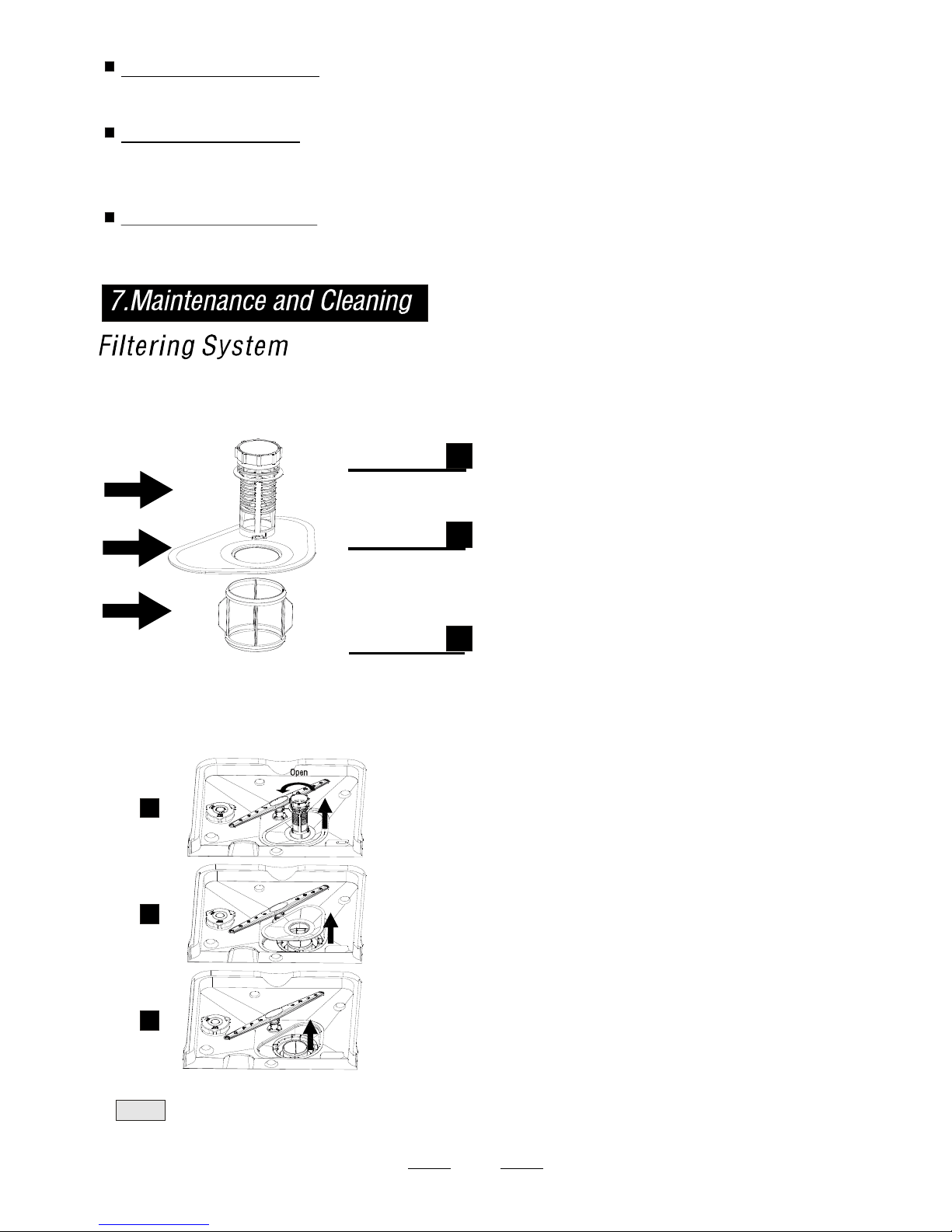

The filter system consists of a coarse filter, a flat (Main filter)
And a microfilter (Fine filter).

Main filter
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down the
drain.

Coarse filter
Larger items, such as pieces of bones or glass, that could clog
the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.

Fine filter
This filter holds soil and food residues in the sump area and
prevents it from being redeposit on the dishes during a cycle.

2

3

1

2

3

1

- Inspect the filters for blocking after every time the dishwasher has been used.

- By unscrewing the coarse filter. you can remove the filter system. Remove any food remnants and clean the
filters under running water.

NOTE

：

Switch Off the Dishwasher

The program light isn't blinking and is light , only in this case the program is ended.

1.Switch off the dishwasher by pressing the ON/OFF button.

2.Turn off the water tap!

Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.

When following this procedure from step1 to step 3, the filter system will beremoved;
whenfollowingitfromStep3toStep1,thefiltersystemwillbeinstalled.

step

１：

Turn the filter in anti-clockwise direction,

then lift it up

step２：lift the Main filter up

step 3： lift the Fine filter up

1

2

3

17

Cleaning the Spray Arms

Caring for the Dishwasher

Protect Against Freezing

Filter assembly

To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter
parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning
in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils.

For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food
particles from the wash water, allowing it to be recycled during the cyc le. For best performance and results,
the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles
trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
To remove the filter device, pull the cup handle in the upward direction. The entire filter assembly should be
cleanedonce a week.

The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance and
damage dishes and utensils.

1.Cut off the electrical power to the dishwasher.

2.Turn off the water supply and disconnect the water inlet pipe from the water valve.

3.Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)

4.Reconnect the water inlet pipe to the water valve.

5.Remove the filter at the bottom of the tub and use a sponge to soak up water inthesump.

please take frost protection measureson the dishwasher in winter.Every time after washing cycles,
please operate as follows

：

The control panel can be cleaned by using a lightly dampened cloth.
Aftercleaning,makesureto dry it thoroughly.

For the exterior, use a good appliance polis h wax.
Neveruse sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

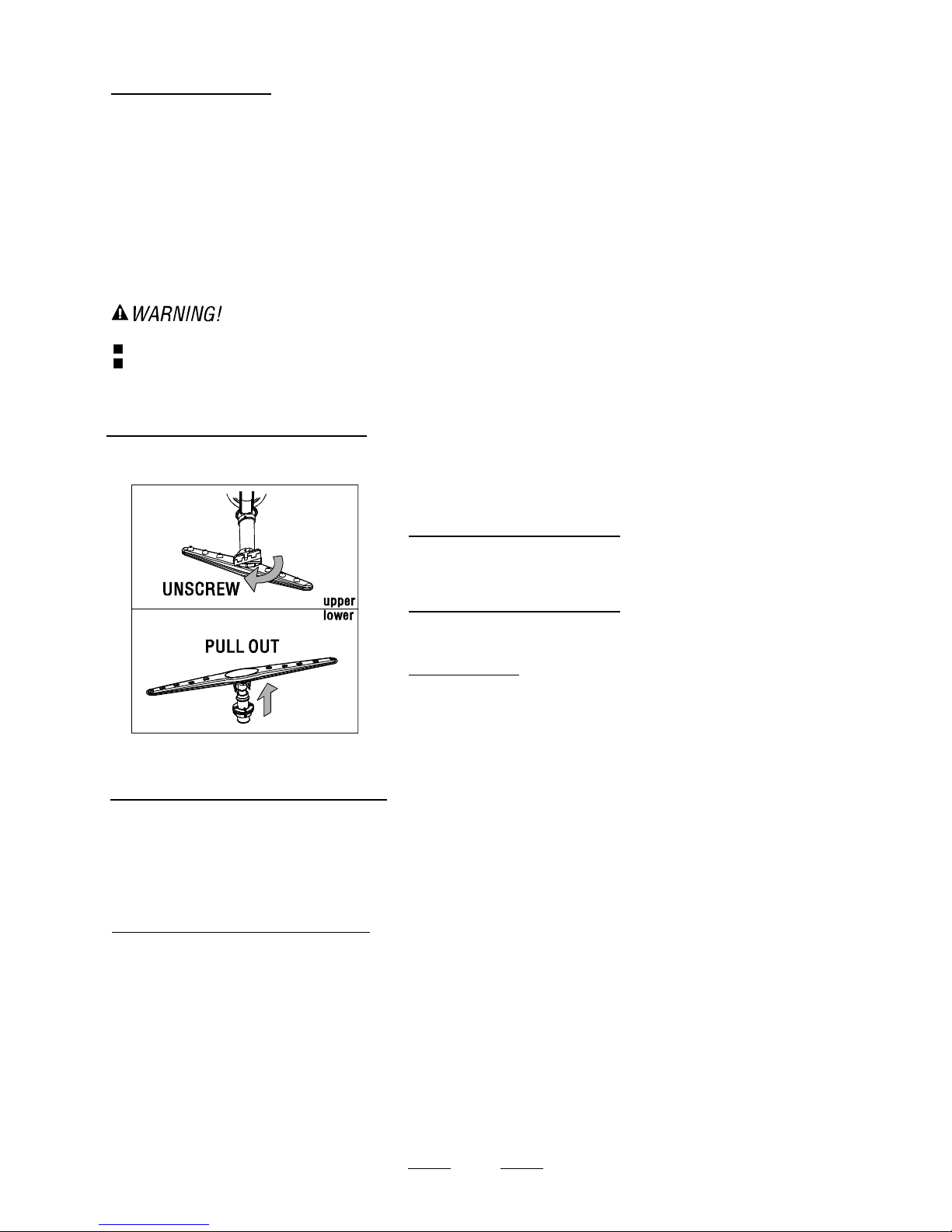

It is necessary to clean the spray arms regularly for hard water chemicalswill clog the spray arm jets and bearings.

To remove the upper spray arm, screw off the nut clockwise then remove
the arm.

Remove the upper spray arm

To remove the lower spray arm, pull out .the spray arm upward

Remove the lower spray arm

Wash the arms

Wash the arms in soapy and warm water and use a soft brush to clean
the jets. Replace them after rinsing them thoroughly.

18

After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odours are not trapped inside.

Before cleaning or performing maintenance, always
removethe plug from the socket. Do not run risks.

To clean t he ex terior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather,useonlya cloth and warmsoapywater.
To remove spotsor stains fromthe surfaceof the
interior, use a cloth dampenedwith water and a little
vinegar, or a cleaning product made specifically for
dishwashers.

When you go on holiday, it is recommend that you run a
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
the seals to last longer and prevent odours from forming
withinthe appliance.

If the appliance must be moved, try to keep it in the vertical
position. If absolutely necessary, it can be positioned on
its back.

One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.

To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components,donot
use a spray cleaner of any kind.

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots
on the stainless steel surface.

Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electricalsocket to which the appliance mustbeconnectedisnot
appropriate for the plug , replace the socket, rather than using a adaptors or the li ke as
they c ould cause overheating and burns.

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breakerrecommended and provide separate circuit serving
only this appliance.

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of

electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a

cord having an equipment-earthing conductor and an earthing plug. The plugmustbepluggedintoan

appropriate outlet that is in stalled and earthed in accordance with all local stan dards and requirements.

WARNING!

For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTERPLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.

for personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE

FROM THE POWER CORD.

EARTHING

CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightlyin place.
If the water pipes are new or have not been used for an extended period of time,letthe
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.

The water supply to the appliance can also be connected to the house hold hot water
line (such as, central system, heatingsystem),aslong as it does not exceeda
temperature of 60 C. In this case, the wash cycle time will be shortenedby about 15
minutes and the wash efficiency slightly reduced.
The connection must be made to the hot water line following the same procedures as
described in the section for the connection to the cold water line.

WARNING!

Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representativeif you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.

In order to avoid that there is more water staying in the inlet hose, please close
the hydrant after using.(Not applicable to appliances without aqua-stop.)

WARNING!

19

PLEASEHANG UP THE DRAIN HOSE EITHERWAYOFA, B, C

φ

40mm

A

B

C

Counter

Front

Drain pipe

Drain hose hook

Close the drain hose hook to the counter

NOTE
The top of the hose
must be at a height
between
40 and 100cm.
Thefreeendofthe
hose must not be
immersed in water.

Insert the drain hose into a d rain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to
avoid bending or crimping it. Use the spec al plastic support that comes with the appliance . The top of the hose
must be at a height between 40 and 100cm. The free end of the hose mustnot be immersed in water to avoid the
back flow of it.

i

20

The following things should be checked before starting the dishwasher.

The content of this manual is very helpful to the users.

After installation, please make sure to keep this manual.

1 The dishwasher is level and fixed properly
2 Theinletvalveisopen
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.

Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined more than 2 .

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted t o avoid water leaks.
Ensure that the water drain hose is not kinkedor squashed.

Syphon Connection

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwashercould be reduced.

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of
the hose must not be immersed in water.

21

Fuse blown,or the
circuit breaker acted

Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher

Spilled rinse-aid

Always wipe up rinse-aid spills immediately.

Hard water minerals

The affected items are
notcorrosionresistant.

Thelidofthesofter
is loose

Asprayarmis
knockingagainst
an item in a basket

Items of crockery
areloosein the
washcabinet

This may be caused
by on-site installation
or the cross-section of
the piping.

Aprogrammewasnot
run after dishwasher
salt was added.
Traces of salt have
gotten into the wash cycle.

To clean the interior, use a damp sponge with
dishwasher detergentandwear rubbergloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.

Always run the quick wash programme .
without any crockery in the dishwasher and
withoutselectingthe Turbofunction(if present),
after adding dishwasher salt.

Check the lip .Ensure the fix is fine.

Interrupt the programme, and rearrange the items
which are obstructing the spray arm.

Interruptthe programme,
and rearrange the items of crockery.

This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.

Detergent with
colourant w as used

Make sure that the detergent is the one without
colourant.

Improper detergent

Make sure the dishwasher is turned on and the door is
closed securely.

Check that the water supply is connected properly and
the water is turned on.

Make sure to close the door properly and latch it.

Make sure the power cord is properly plugged into the
wall socket.

Power supply is not
turnedon

Error code:E1;
Waterpressure islow

Door of dishwasher
notproperlyclosed.

Kink in drain hose

Filter clogged

Kitchen sink clogged

Check drain hose.

Check coarse the filter
(see section titled " Cleaning The Filter ")

Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.

Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.

Technical
problems

General
problems

Noise

22

Thedishes were not
loaded correctly.

See notes in " Loading the Dishwasher Baskets ".

Select a more intensive programme.
See" Wash Cycle Table ".

Use more detergent, or change your detergent.

Rearrange the items so that the spray can rotate freely.

Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".

Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.

Use a mild abrasive cleaner to eliminate those marks.

Re-loading the dishes properly.

Load the dishwasher as suggested in the directions.

Increase the amount of rinse-aid/refill the rinse-aid
dispenser.

Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.

In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.

Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.

Theprogramme was
not powerful enough.

Not enough detergent
was dispensed.

Items are blocking
the path of spray arms.

The filter combination
in the base of wash
cabinet is not cl ean o r
is not correctly fitted.
This maycause
the spray arm jets
to get blocked.

Combination of soft
water and too much
detergent.

Aluminum utensils
have rubbedagainst
dishes.

Dishesblock
detergentcups.

Improper loading

Too little rinse-aid

Dishes are removed
too soon

Wrong program
has been selected

Useof cutlery with
alow-qualitycoating

Unsatis

-factory
washing
result

Unsatis

-factory
drying
result

WARNING!

If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.

Longer inlet time.

Faucets is not opened, or water intake is restricted,or water pressure
is too lo w.

Malfunction of temperature sensor or of heating element.

Toomuchinletwater..

Short circuit or break of temperature sensor

Open circuit or break of temperature sensor

Longer heating time,
but not reaching required temperature

Overfilled.

Failure of temperature sensor

Failure of temperature sensor

23

Height : 850mm
Width : 600mm

Depth : 580mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Hot water connection : max 60 ℃
Power supply: see rating label
Capacity: 12 Place settings
