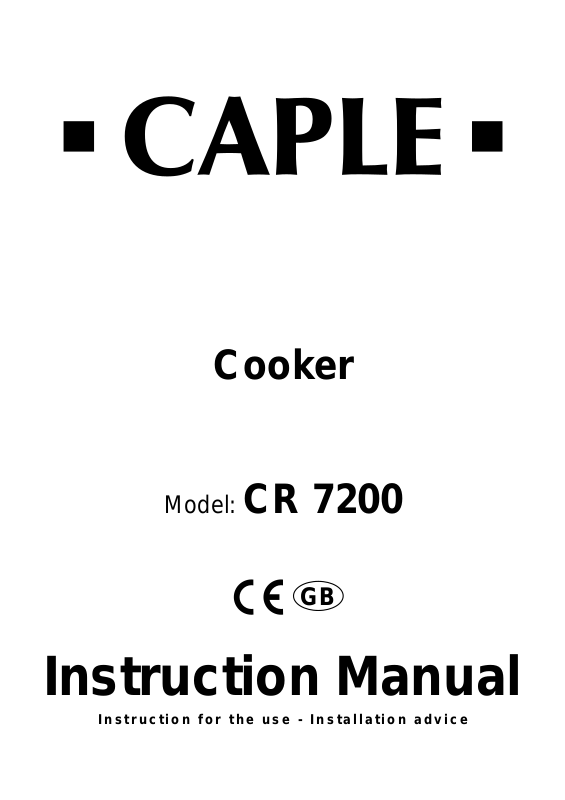

Caple CR7200 User Manual

Cooker

Model: CR 7200

Instruction Manual

Instruction for the use - Installation advice

GB

2

For Spare Parts, Technical Advice

or Product Service call the

CAPLE HELPLINE on 0870 241 1142

(Answerphone outside office hours)

The CEmarking confirms that the appliance conforms to the following EU directives:

- safety requirements of EEC Directive “Gas” 90/396;

- safety requirements of EEC Directive “Low voltage” 73/23;

- protection requirements of EEC Directive “EMC” 89/336;

- requirements of EEC Directive 93/68.

Thank you for buying your new CAPLE cooker. To ensure that you get the best
results from your new CAPLE cooker, we strongly suggest that you read this instruc­tion manual thoroughly before use. This manual contains installation advice, cleaning
tips and a cooking guide, as well as other important facts about your CAPLE cooker.
If treated with care, your CAPLE appliance should give you years of trouble-free
cooking.

Important:

This appliance is designed and manufactured solely for the cooking of domestic
(household) food and is not suitable for any non domestic application and therefore
should not be used in a commercial environment.
This appliance guarantee will be void if the appliance is used within a non domestic
environment i.e. a semi commercial, commercial or communal environment.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH
EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must
be taken to a special local authority differentiated waste collection cen­tre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropri­ate disposal and enables the constituent materials to be recovered to
obtain significant savings in energy and resources. As a reminder of the
need to dispose of household appliances separately, the product is
marked with a crossed-out wheeled dustbin.

3

Safety Reminders

Instruction Book

This appliance should only be used for
it’s intended purpose as described in
these instructions.
Ensure that you fully understand these
instructions before operating this appli­ance.

Space Requirements

Ensure that the specified ventilation
space around the appliance is not
obstructed.

Food Splashes

Always wipe clean the oven after use.
Food splashes can carry on cooking next
time and may become a fire hazard.

Hot Surfaces

It is important to remember that the sur­faces of cooking appliances get hot dur­ing use and retain the heat for some time
after switching off.
It is therefore advisable to keep small
children away from the appliance.

The Grill and Top oven element

(Top oven only)

are exposed, so take great care when
placing food in the ovens or removing it.
Use the grill pan handles or gloves.

DO NOT line the ovens, grids, trays etc.

with aluminium foil as this could adverse­ly affect the heating elements and it
could also damage the interior surfaces.
Do not place baking trays or the drip tray
on the base of the oven chamber.

DO NOT place flammable materials in

the ovens.

Faults

Do not continue to use this appliance if it
appears to be faulty.

After Use

After use, ensure that the hob knobs are
in position ● (off), and close the main
gas delivery valve or the gas cylinder
valve.

Switch the oven controls off.
Always switch off at the isolating
switches before cleaning the appliance,
or attempting any maintenance task.

CAPLE Service

To ensure the continued safe and effi­cient operation of this appliance, we rec­ommend that any servicing or repairs are
carried out only by an authorised CAPLE
SERVICE ENGINEER.

Before Use

Check that all accessories have been
removed from the oven interior.

Set the temperature to the maximum
position using the temperature control
knob.

Leave on for approximately 30 min­utes. This will burn off any protective
coating applied to the oven during
manufacture.

The kitchen should be well ventilated
during this time as there may be an
odour given off.

When cool, wash the accessories and
the oven with warm water and mild
detergent.

4

1 - Electrical Installation - Wall box connection

IMPORTANT: The appliance must
be installed in accordance with
the manufacturer’s instructions.
Incorrect installation, for which
the manufacturer accepts no
responsibility, may cause dam­age to persons, animals and
things.

General

– Connection to the mains must be

carried out by qualified personnel in
accordance with current regulations.

– The appliance must be connected to

the mains checking that the voltage
corresponds to the value given in the
rating plate and that the electrical
cable sections can withstand the load
specified on the plate.

– The cooker can be connected directly

to the mains placing an omnipolar
switch with minimum opening
between the contacts of 3 mm
between the appliance and the mains.

– The power supply cable must not

touch the hot parts and must be
positioned so that it does not exceed
75°C at any point.

– Once the cooker has been installed,

the switch must always be accessible.

N.B. For connection to the mains, do
not use adapters, reducers or
branching devices as they can cause
overheating and burning.

If the installation requires alterations to
the domestic electrical system call an
expert.
He should also check that the socket
cable section is suitable for the power
absorbed by the appliance.

The connection of the appliance to
earth is mandatory.
The manufacturer declines all
responsability for any inconvenience
resulting from the inobservance of
this condition.

IMPORTANT: This cooker must be
connected to a suitable double pole
control unit adjacent to the cooker.

NO DIVERSITY CAN BE APPLIED TO
THIS CONTROL UNIT.

WARNING!
Before effecting any intervention on
the electrical parts the appliance
must be disconnected from the net­work.

Feeder cable section
type H05RR-F

230V 3 x 2,5 mm2(**)
(**) – Connection with wall box connection.

Fig. 1.1

230 V

L

1

(L2)

PEN

5

Technical data

230 V AC - 50 Hz

Top conventional oven

– Top element 0.700 kW
– Bottom element 1.000 kW
– Grill element 2.000 kW

Bottom fan oven

– Fan element 2.200 kW

Maximum power rating

– Top oven 2.000 kW
– Bottom oven 2.200 kW

Oven lamp 0.015 kW
300 °C, miniature edison screw

Fan motor 0.025 kW
Maximum power
usable simultaneusly 4,275 kW

Electrical feeder cable
connection

To connect the feeder cable to the cook­er it is necessary to:

– Remove the 2 screws that hold shield

A behind the cooker.
– Open completely the cable clamp D.
– Insert the feeder cable into the cable

save P. The supply cable must be of a

suitable size for the current require-

ments of the appliance; see the

section “Feeder cable section”.
– Connect the phase and earth cables to

terminal B according to figures 1.2 and

1.1.

– Pull the feeder cable and block it with

the cable clamp D.
– Re-mount shield A.

N.B. The earth conductor must be left
about 3 cm longer than the others.

P

D

B

A

Fig. 1.2

6

200 mm

650 mm

500 mm

450 mm

2 - Location

FOR THE INSTALLER

The cooker must be installed by a qualified technician and in compliance with
local safety standards.

Fig. 2.1

This cookers has class “2/1” overheating protection so that it can be installed next to
a cabinet.

The furniture walls adjacent to the cooker must be made of material resistant to heat.
The veneered syntetical material and the glue used must be resistant to a temperature of

105°C in order to avoid ungluing or deformations.
If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop, a

gap of at least 200 mm must be left between the side of the cooker and the furniture.
The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a

room containing a bath or shower.
Curtains must not be fitted immediatly behind appliance or within 500 mm of the sides.
The cooker is equipped with 4 levelling feet which must be fitted to the base of the cook-

er.
It is essential that the cooker is positioned as stated below.

If the cooker is located on a pedestal it is necessary to provide safety measures to pre­vent falling out.

7

Backguard

Before installing the cooker, assemble the backguard “C” (fig. 2.3).

■ Before assembling remove any protective film/adhesive tape.

■ Remove the two spacers “A” and the screw “B” from the rear of the cooktop.

■ Assemble the backguard as shown in figure 2.3 and fix it by screwing the central

screw “B” and the spacers “A”.

It is mandatory to install the backguard.

A

B

C

Adjustable feet

■ Before installing the cooker level the appliance by screwing or unscrewing the six
adjustable feet fitted below.

WARNING!

For safety reasons unscrew
the feet (from screwed posi­tion) to the maximum extent of
5 mm (fig. 2.2).

Fig. 2.2

Fig. 2.3

8

WARNING

When moving cooker to its final position

DO

NOT DRAG (fig. 2.6).

Lift feet clear of floor (fig. 2.4).

WARNING
When raising cooker to upright position always ensure two people carry out this
manoeuvre to prevent damage to the adjustable feet (fig. 2.4).

MOVING THE COOKER

WARNING
Be carefull: do not lift the cooker by
the door handle when raising to the
upright position (fig. 2.5).

Fig. 2.4

Fig. 2.5 Fig. 2.6

9

The room containing the cooker should have an air supply in accordance with BS.5540:
Part 2: 1989.
All rooms require an openable window or equivalent while some rooms require a perma­nent vent in addition to the openable window.
The cooker should not be installed in a bed-sitting room, of volume less than 21 m

3

.
Where a DOMESTIC COOKER is installed in a room or internal space, that room or inter­nal space shall be provided with a permanent opening which communicates directly with
outside air and is sized in accordance with table below. In domestic premises the perma­nent opening shall be an air vent.
If there are other fuel burning appliances in the same room, BS.5540: Part 2: 1989 should
be consulted to determine the requisite air vent requirements.
If the cooker is installed in a cellar or basement, it is advisable to provide an air vent of
effective area 100 cm

2

, irrespective of the room volume.

(❊) If the room or internal space containing these appliances has a door which opens
directly to outside, no permanent opening is required.

MINIMUM PERMANENT OPENING FREE AREA FOR FLUELESS APPLIANCE

5 m3to 10

m

3

Openable

window or

equivalent also

required

Maximum
appliance

rated input

limit

Room volume

11 m3to

20 m

3

> 20 m

3

< 5 m

3

Type of appliance

Domestic oven, hotplate,

grill or any combination

thereof.

None

50 (❊)

cm

2

Nil

cm

2

Nil

cm

2

100

cm

2

Yes

Provision for ventilation

10

3 - Gas connection

Gas installation

Important note

This appliance is supplied for use on NATURAL GAS only and cannot be used on any
other gas without modification.

This appliance is manufactured for conversion to LPG if required and is supplied with
a conversion kit.

The cooker must be installed by a qualified person in accordance with the Gas Safety
(Installation and Use) (Amendment) Regulation 1990 and the relevant building/l.E.E.
Regulations.

The following British Standards should be used as reference when installing this
appliance.
BS6172 1990, BS5440 part 2 1989 and BS6891 1988.

Failure to install the appliance correctly could invalidate any manufacturers warranty and
lead to prosecution under the above quoted regulation.

In the UK C.O.R.G.I registered installers are authorised to undertake the installation and
service work in compliance with the above regulations.

gas pipe

cooker
rear protection

Fig. 3.1

Gas connection

The installation of the cooker to Natural Gas or LP Gas must be carried out by a
qualified gas engineer. Installer shall take due account of the provisions of the relevant
British Standards Code of Practice, the Gas Safety Regulations and the Building
Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development
Department.

Installation to Natural Gas

Installation to Natural Gas must conform to the Code of Practice, etc. The supply pres­sure for Natural Gas is 20 mbar.

Installation to LP Gas

This appliance must only be connected to LPG after an LPG conversion kit has been fit­ted, (see pages from 12 to 13).
When operating on Butane gas a supply pressure of 28-30 mbar is required.
When using Propane gas a supply pressure of 37 mbar is required.
The installation must conform to the relevant British Standards.

Warning: Only a qualified gas engineer, also with technical knowledge of electricity
should install the cooker. He should observe the Regulations and Codes of Practice gov­erning such installation of gas cookers.

Note: It is recommended that the gas connection to the cooker is installed with a flexible
connecting tube made to BS 5386.

11

Gas connection

The gas supply must be connected to the gas inlet which is located at the rear of the
appliance (see figure 3.1). If the connection pipe cross the cooker, it must be positioned
under the cooker rear protection.
To screw the connecting tube operate with two spanners (see fig. 3.2).

After connecting to the mains, check
that the coupling are correctly sealed,
using soapy solution, but never a
flame.

Fig. 3.2

12

Conversion to LPG

J

J

Fig. 3.3

Fig. 3.4

Conversion procedure

Injectors replacement

Select the injectors to be replaced
according to the “Table for the choice of
the injectors”.

To replace the injectors proceed as fol­lows:

- Remove pan supports and burners

from the cooktop.

- Using a wrench, substitute the nozzle

injectors “J” (fig. 3.3, 3.4) with those
most suitable for the kind of gas for
which it is to be used.

The burners are conceived in such a
way so as not to require the regula­tion of the primary air.

Minimum burner setting adjust­ment

In the minimum position the flame must
have a length of about 4 mm and must
remain lit even when turned quickly from
the maximum position to minimum.

The flame adjustment is done in the fol­lowing way:

- Turn on the burner

- Turn the tap to the MINIMUM position

- Take off the knob

- With a small flat screwdriver turn the

screw inside the tap rod to the correct
regulation (fig. 3.5).

Normally for G30/G31, the regulation
screw is tightened up.

Fig. 3.5

13

Lubrication of the gas taps

TABLE FOR THE CHOICE OF THE INJECTORS

Cat: II 2H3+

GB

If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with gasoline
and spread a bit of special grease resistant to high temperatures on it.

The operations must be executed by a qualified technician.

INCREASE OF AIR NECESSARY FOR GAS COMBUSTION (2 m

3

/h x kW)

BURNERS Air necessary for combustion [m

3

/h]

Auxiliary (A) 2,00
Semi-rapid (SR) 3,50
Rapid (R) 6,00
Triple-ring (TR) 7,00

BURNERS

Auxiliary (A) 1,00 0,30 50 72 (X)
Semi-rapid (SR) 1,75 0,45 65 97 (Z)
Rapid (R) 3,00 0,75 85 115 (Y)
Triple-ring (TR) 3,50 1,50 95 135 (T)

Nominal

Power

[kW]

Reduced

Power

[kW]

Ø injector

[1/100 mm]

Ø injector

[1/100 mm]

G 20

20 mbar

G 30 - 28-30 mbar

G 31 - 37 mbar

IMPORTANT
All intervention regarding installation maintenance and conversion of the appli­ance must be fulfilled with original factory parts.
The manufacturer declines any liability resulting from the non-compliance of this
obligation.

14

4 - Features and Technical Data

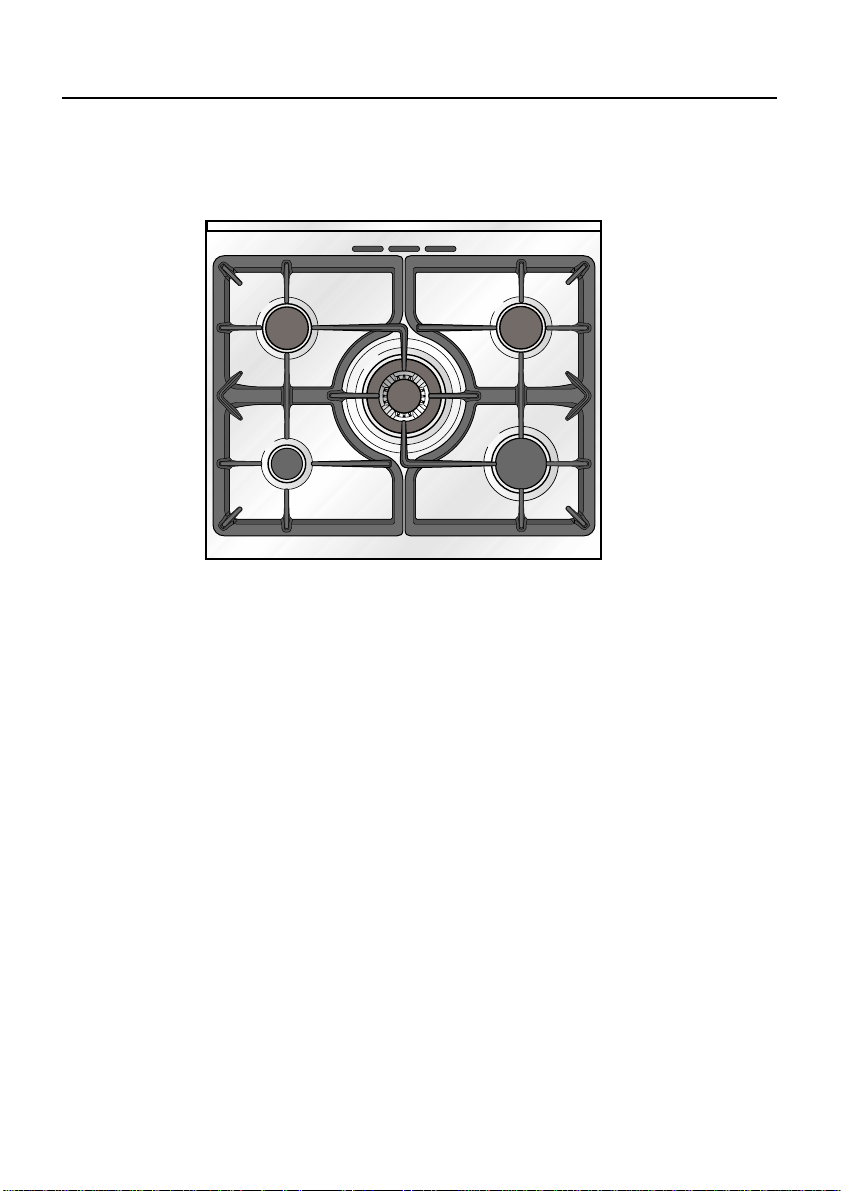

Cooking hob

1. Auxiliary burner (A) - 1,00 kW

2. Semi-rapid burner (SR) - 1,75 kW

3.

Rapid burner (R) - 3,00 kW

4.

Triple ring burner (TC) - 3,50 kW

2

4

2

3

1

Fig. 4.1

Note:
The electric ignition is incorporated in the knobs.

Cooker - Cat: II 2H3+

15

Fig. 4.2

Control panel - Controls description

1. Front right rapid burner control knob (3)

2. Rear right semi-rapid burner control knob (2)

3. Central triple-ring burner control knob (4)

4. Rear left semi-rapid burner control knob (2)

5. Front left auxiliary burner control knob (1)

6.Conventional oven thermostat knob (top oven)

7. Conventional oven switch knob (top oven)

8.Fan oven switch/thermostat knob (bottom oven)

9.Electronic programmer

(

bottom

oven only)

10.Indicator light (bottom oven)

11.Indicator light (top oven)

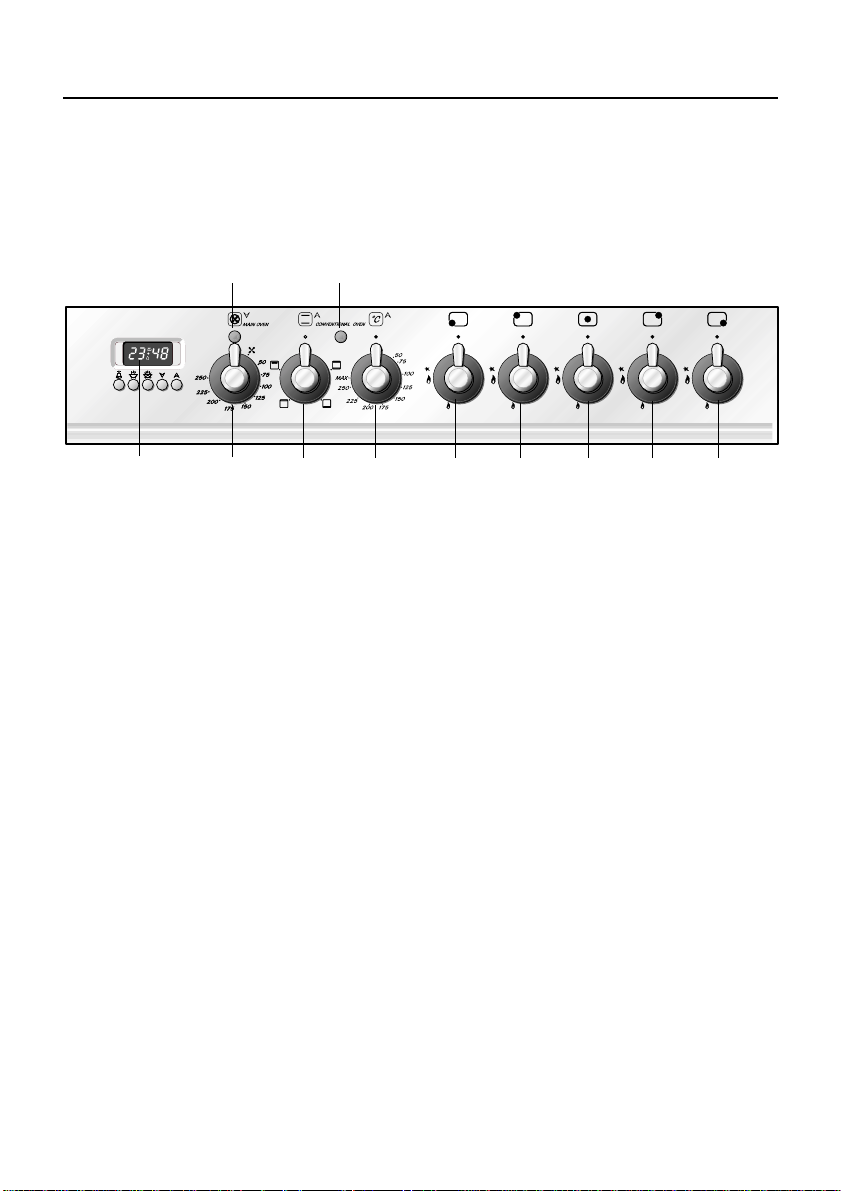

Control Panel

Please note: This appliance incorporates a safety cooling fan which you will hear

operating whenever the top/bottom oven are in use. The cooling fan may also
operates when the oven is switched off.

A

9876543 12

1110

16

How To Use the Hob Burners

Hob burners

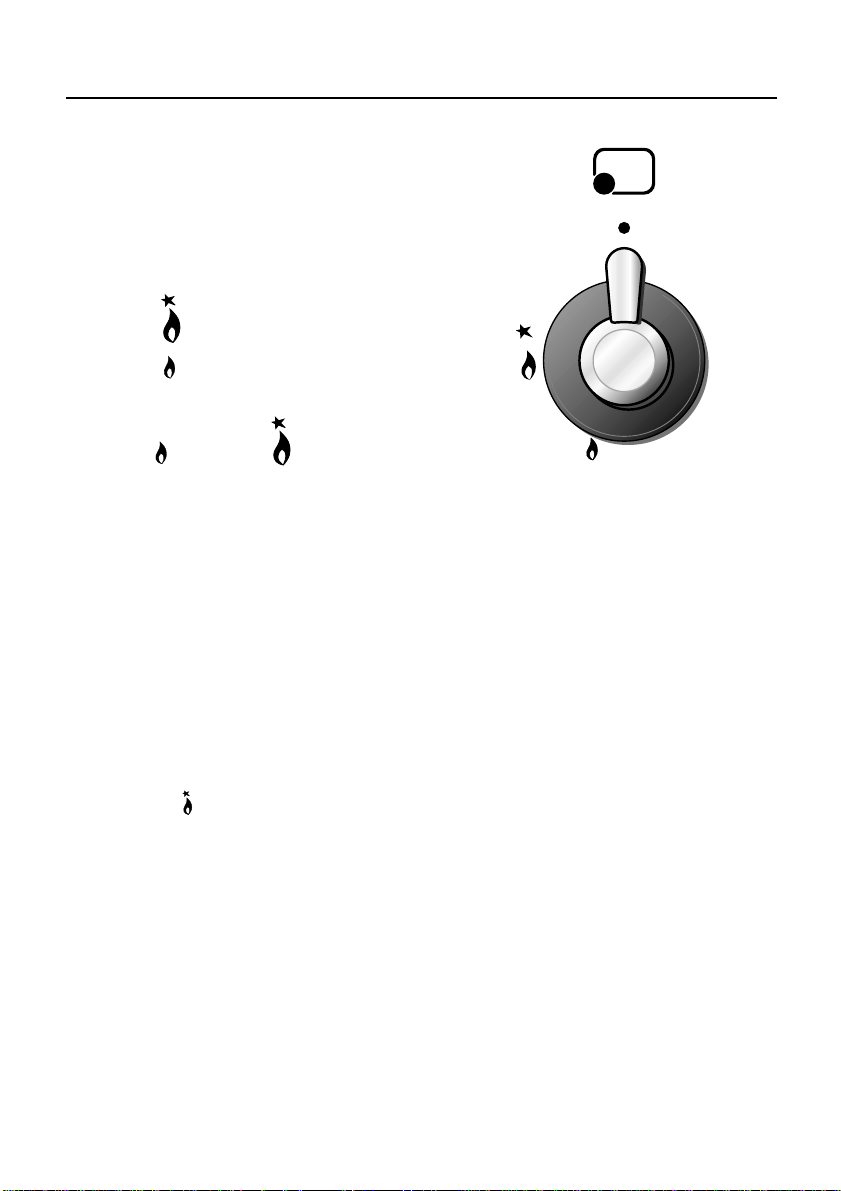

Each hob burner is controlled by a sepa­rate gas tap operated by a control knob
(fig. 4.3) which has 3 positions marked
on the knob, these are:

– Symbol ● : tap closed (burner off)
– Symbol : High (maximum)
– Symbol : Low (minimum)

Push in and turn the knob anti-clockwise
to the selected position.

Low High

Lighting of the hob burners

To ignite the burner, the following instructions are to be pursued:

1) Lightly press and turn the knob anti-clockwise, and make knob indicator to mach with

the symbol printed on the control panel (fig. 4.3).

2) Press the knob to operate the electric ignition; or, in case of power cut, approach a

flame to the burner.

3) Adjust the burner according to the power required.

To turn the burner off, fully rotate the knob clockwise to the off position: ●.
The maximum setting of the control tap is for boiling, the minimum setting is for slow
cooking and simmering.
All working positions must be chosen between the maximum and minimum setting, never
between the maximum setting and the “OFF” position.

Fig. 4.3

Electric ignition

The sparks generated by the electrodes close to the burners will ignite the chosen burn­er. Whenever the lighting of the burners will result difficult due to peculiar conditions of
the gas features or supply, it is advised to repeat the ignition with the knob on “minimum”
position.

17

Choice of burner

Fig. 4.4

The burner must be chosen according to the diameter of the pans and energy required.

Saucepans with handles which are excessively heavy, in relationship to the weight of the
pan, are safer as they are less likely to tip.
Pans which are positioned centrally on burners are more stable than those which are off­set.
It is far safer to position the pan handles in such a way that they cannot be accidentally
knocked.
When deep fat frying fill the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the infortunate event of a fire, leave the pan where it is and turn off all controls.
Place a damp cloth or correct fitting lid over the pan to smother the flames.
DO NOT use water on the fire.
Leave the pan to cool for at least 30 minutes.

Burners Pan diameter

Auxiliary 12 ÷ 14 cm
Semi-rapid 16 ÷ 24 cm
Rapid 24 ÷ 26 cm
Triple-ring 26 ÷ 28 cm
Wok max 36 cm

do not use pans with concave or convex bases

Caution!
The cooking hob becomes very hot during operation.
Keep children well out of reach.

18

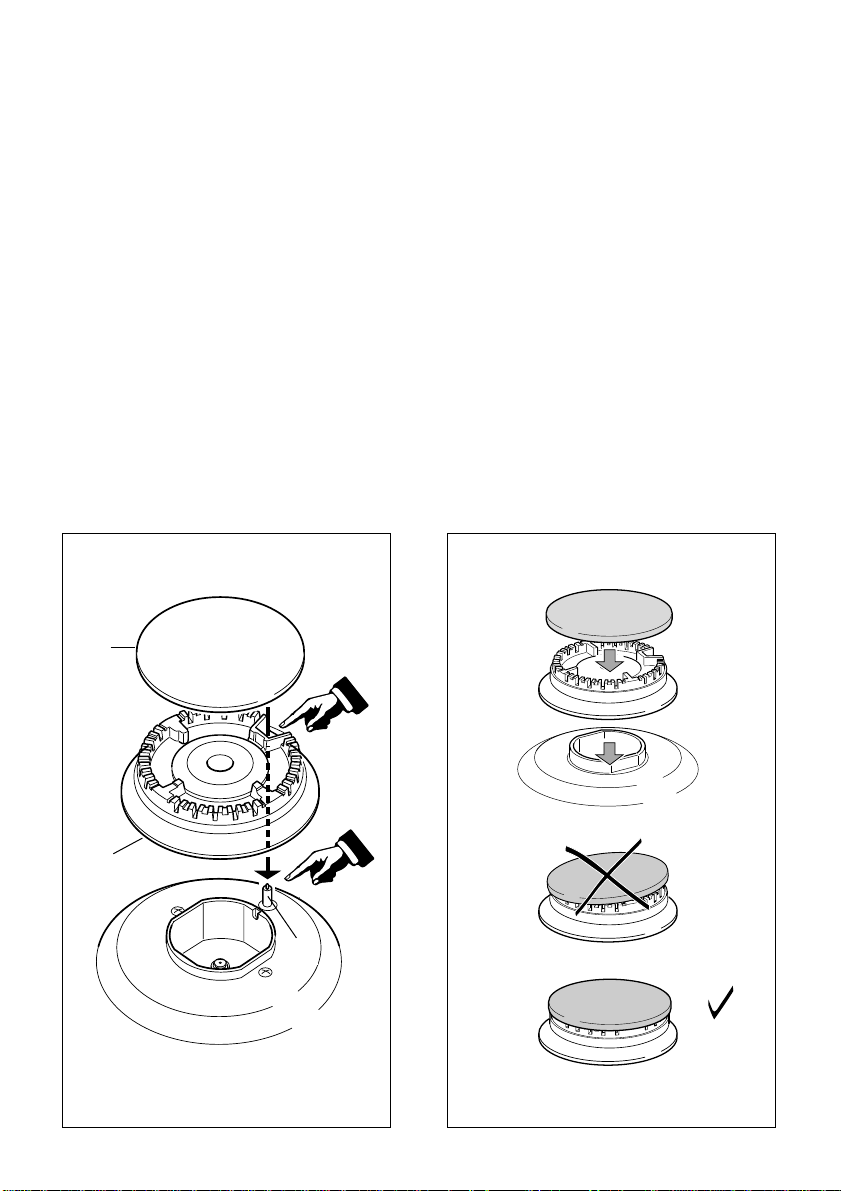

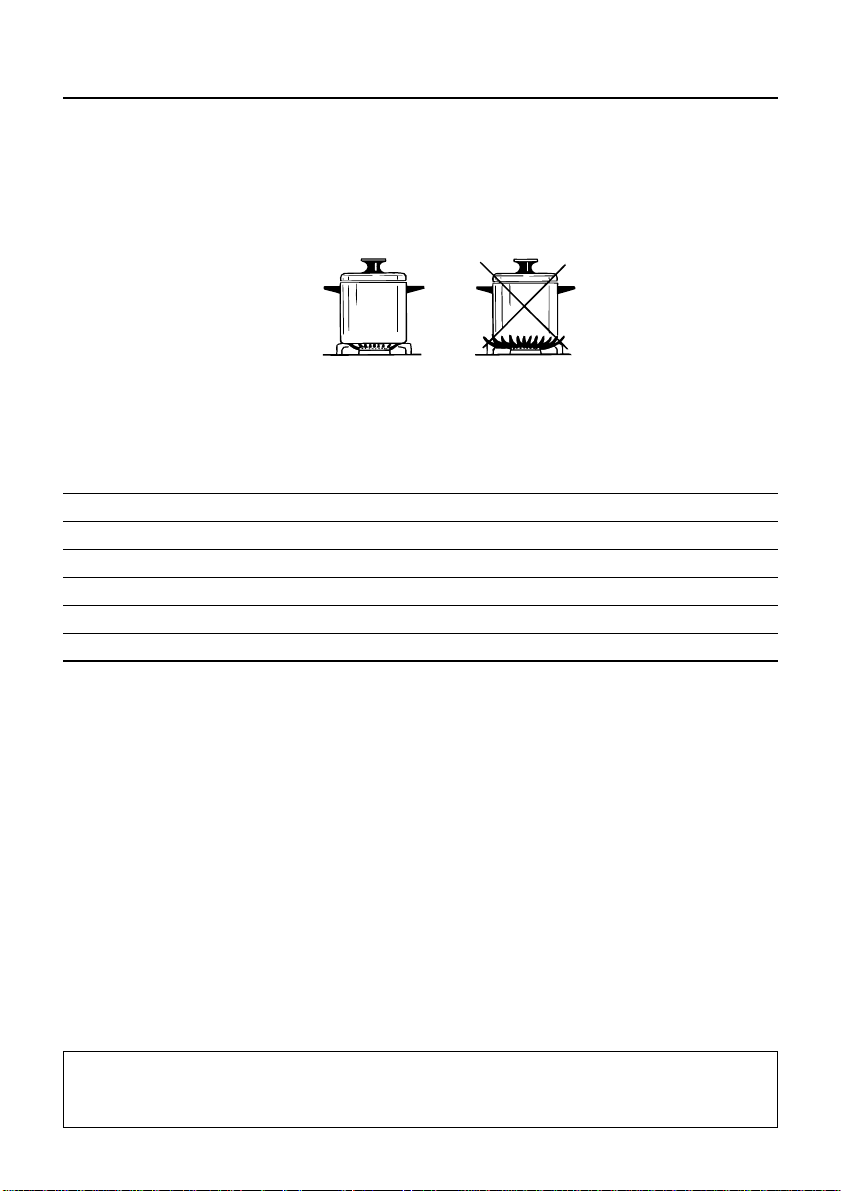

Correct use of triple-ring burner

The flat-bottomed pans are to be placed directly onto the pan-support.

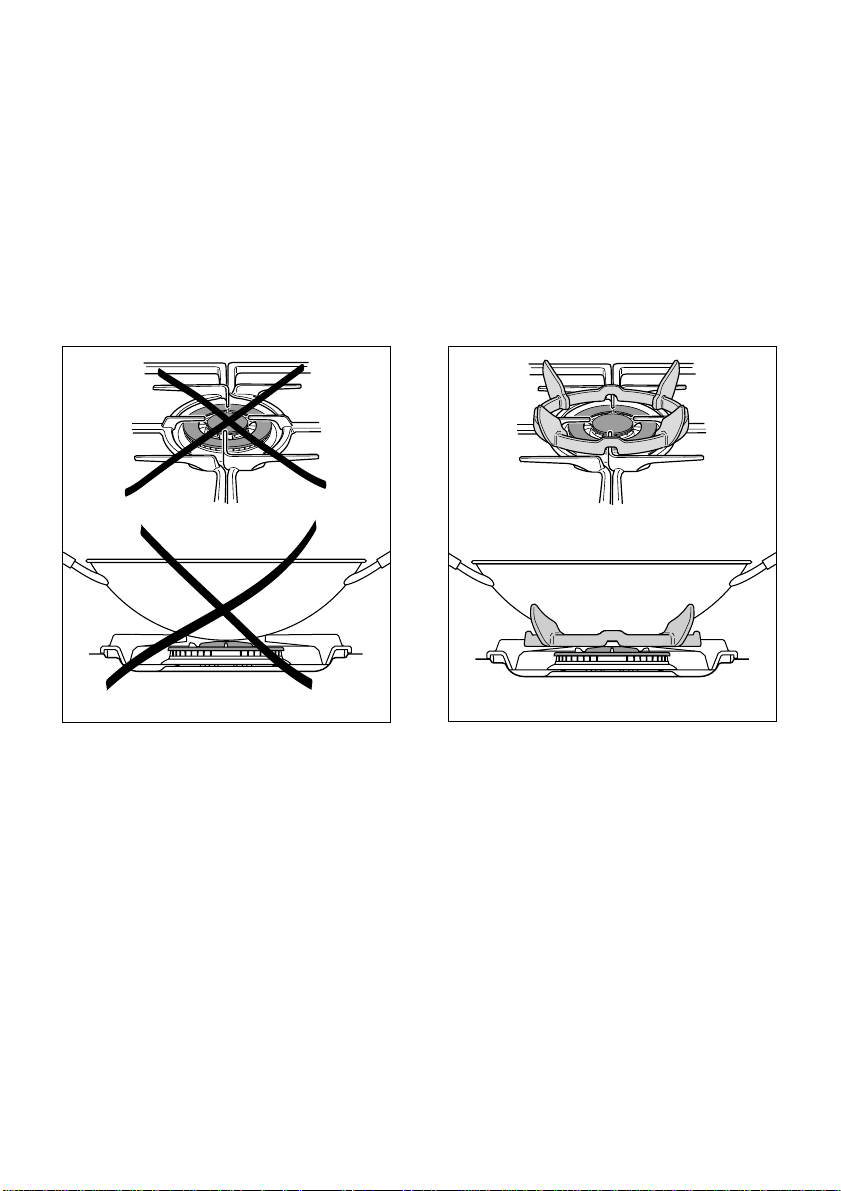

When using a WOK you need to place the supplied stand in the burner to avoid any faulty

operation of the triple-ring burner (Fig. 4.5 - 4.6).

IMPORTANT:

The special grille for wok pans (fig. 4.6) MUST BE PLACED ONLY over the pan-rest
for the triple-ring burner.

Fig. 4.5

Fig. 4.6

WRONG

CORRECT

19

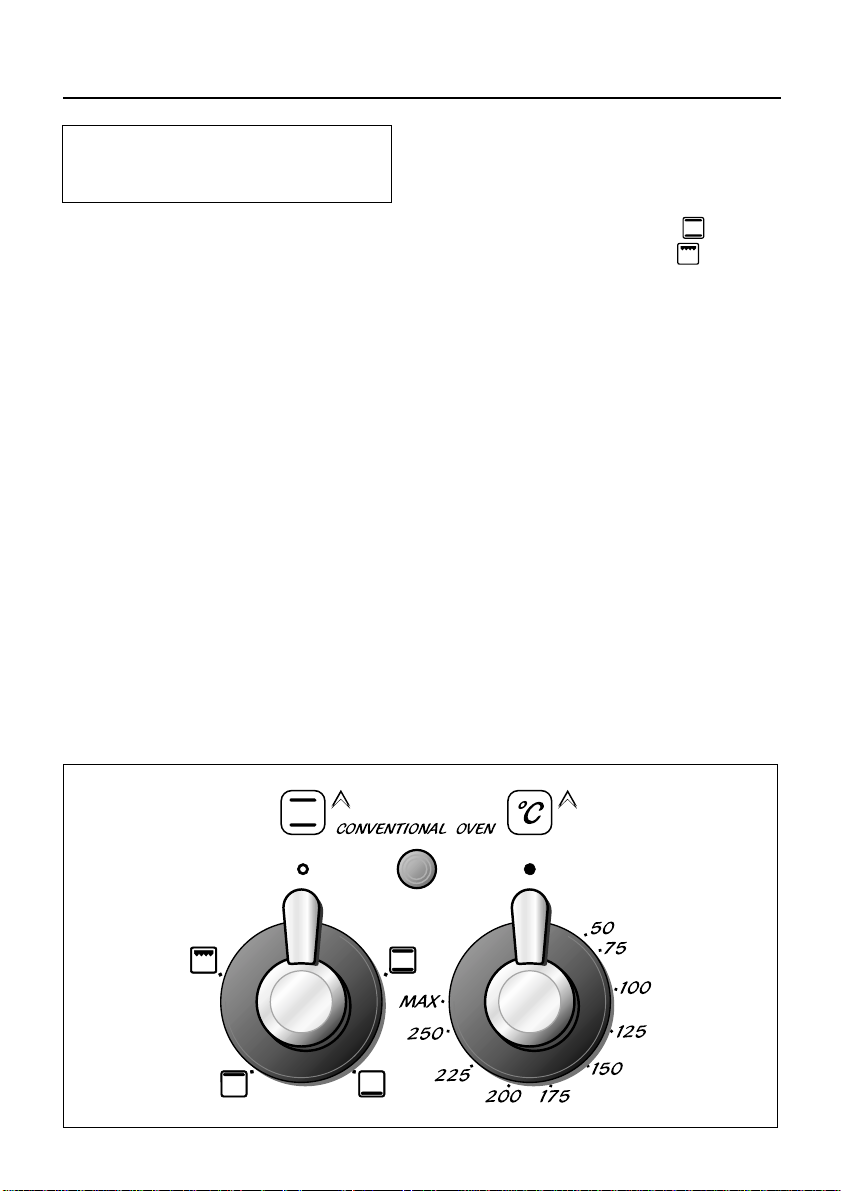

5 - How To Use the Top Conventional oven

Attention: the oven door becomes
very hot during operation.
Keep children away.

Fig. 5.1 Fig. 5.2

General features

The convection oven is equipped with 3
electrical heating elements:

– 2 elements (upper and lower) for nor-

mal oven cooking

– 1 grill element, on the top of the oven,

for grilling which must be done with
the oven door closed.

The input of the elements is:
– Upper element, 700 W
– Lower element, 1000 W
– Grill element, 2000 W

NOTE:

Upon first use, it is advisable to operate
the oven at the maximum temperature
(thermostat knob on position MAX) for
60 minutes in the position and for
another 15 minutes in the mode in
order to eliminate any traces of grease
from the electrical resistances.

Operating principles

Heating and cooking in the CONVEN­TIONAL oven are obtained in the follow­ing ways:

a. by natural convection

The heat is produced by the upper and

lower heating elements.

b. by radiation

The heat is radiated by the infra red
grill element (use with the oven door
closed).

WARNING:
The door is hot, use the handle.

20

Traditional convection cooking

The upper and lower heating elements come on.
The heat is dispersed by natural convection and the temperature must be set to between
50° and MAX°C via the thermostat knob.
The oven must be preheated before cooking.

Recommended for:

Food that requires the same degree of cooking both inside and out, for example roasts,
spare pork ribs, meringues etc.

Lower heating element

In this position only the lower element is switched on. Heat is distributed by natural con­vection. The thermostat can be set between 50 and 150°C; higher temperatures are not
available.

Recommended for:

This mode is particularly suitable to complete cooking of dishes that require higher tem­perature at the bottom.

Upper heating element

In this position only the upper element is switched on. Heat is distributed by natural con­vection. The thermostat can be set between 50 and 150°C; higher temperatures are not
available.

Recommended for:

This mode is particularly suitable to complete cooking of dishes that require higher tem­perature at the top.

Thermostat knob (Fig. 5.2)

This only sets the cooking temperature and does not switch the oven on.
Rotate clockwise until the required temperature is reached (from 50°C to MAX).

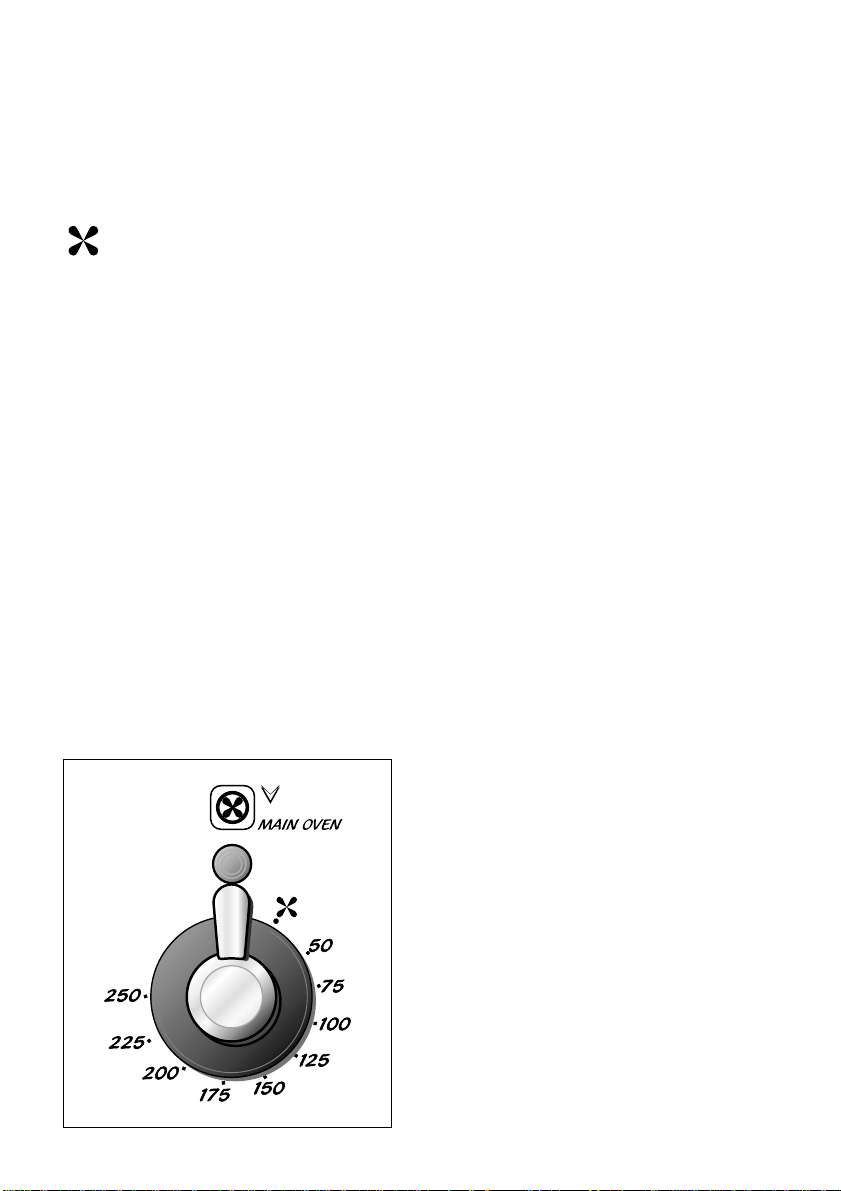

Function selector knob (Fig. 5.1)

Rotate the knob clockwise to set the oven for one of the following functions.

Oven light

The oven is equipped with a light that illuminates the oven to enable visually controlling
the food that is cooking.
This light is controlled by the function selector knob (fig. 5.1).
It remains on in all the cooking modes.

21

Grilling

The infra-red heating element is switched on. The heat is diffused by radiation.
Use with the oven door closed and the thermostat knob to between 50°C and 200°C.
For correct use see chapter “USE OF THE GRILL”
Before using the grill, preheat for about five minutes.
Always grill with the oven door closed and do not use the grill for longer than 30 minutes
at any one time.

Recommended for:

Intense grilling, browning, cooking au gratin and toasting etc.

Note: It is recommended that you do not grill for longer than 30 minutes at any one
time.
Attention: the oven door becomes very hot during operation. Keep children away.

Use of the grill

Leave to warm up for approximately 5 minutes with the door closed.
Place the food inside positioning the rack as near as possible to the grill.
Insert the drip pan under the rack to collect the cooking juices.

Grilling with the oven door closed.
Do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation.
Keep children away.

Oven cooking

Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.

22

Attention: the oven door becomes
very hot during operation.
Keep children away.

6 - How To Use the Bottom Main oven

General features

Fan cooking is more economical and
quicker than cooking in a conventional
oven.
The moving hot air surrounds the food
and penetrates it more quickly than in a
conventional oven.

The oven is equipped with a circular ele­ment (2200 W) and a fan.

Note:

Upon first use, it is advisable to operate
the oven at the maximum temperature
(thermostat knob on position 250) for 60
minutes to eliminate any traces of grease
from the electrical resistance.

Operating principles

Heating and cooking in this oven are
obtained by forced convection.

A fan sucks in the air contained in the
oven muffle, which sends it through the
circular heating element and then sends
it back through the muffle. Before the hot
air is sucked back again by the fan to
repeat the described cycle, it envelops
the food in the oven, provoking a com­plete and rapid cooking.
It is possible to cook several dishes
simultaneously.

Attention: the oven door becomes
very hot during operation.
Keep children away.

IMPORTANT

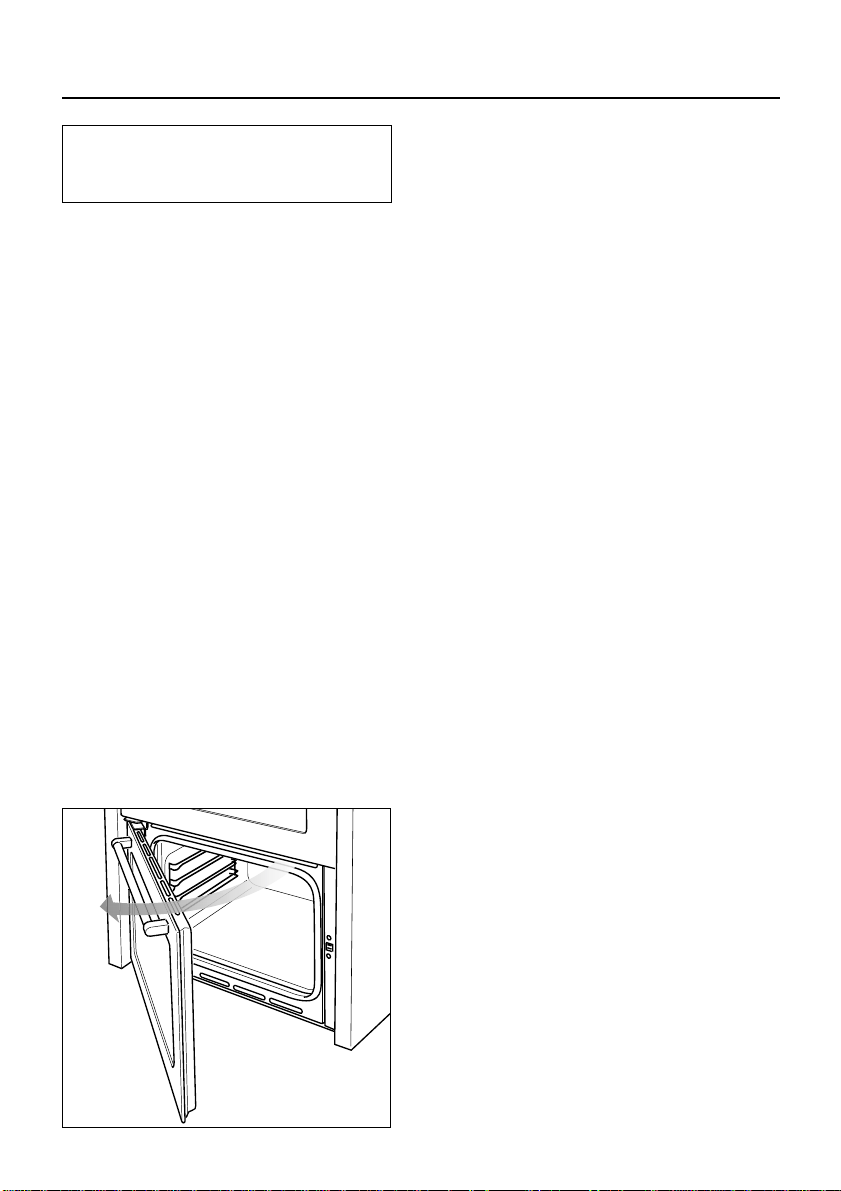

To open the bottom door operate as
indicated in fig. 6.1.

WARNING:
The door is hot, use the handle.

Fig. 6.1

23

Switch and temperature selector (fig. 6.2)

Rotate the knob clockwise to set the oven for one of the following functions:

Off as per fig. 6.2

Only the oven fan is on.
The fan operates without the heating element, this function can be used for
defrosting.

The oven light is switched on.
The oven temperature can be set between 50°C - 250°C.
The set temperature has been reached when the temperature indicator light
goes off.
Several different meals may be cooked simultaneously on various shelves, as
the heated air circulates evenly throughout the oven.
The hot air system cooks more quickly than conventional static system, there­fore the temperature should be set 15°C - 20°C below the values recommend­ed in your recipe books.

50

to

250

Fig. 6.2

24

Cooking Advice

Sterilization

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the
following way:

a. Set the selector knob to position 185 °C and preheat the oven.
b. Fill the dripping pan with hot water.
c. Set the jars onto the dripping pan making sure they do not touch each other and the

door and set the knob to position 135 °C.
When sterilization has begun, that is, when the contents of the jars start to bubble, turn
off the oven and let cool.

Regeneration

Set the selector knob to position 150° C.
Bread becomes fragrant again if wet with a few drops of water and put into the oven for
about 10 minutes at the highest temperature.

Roasting

To obtain classical roasting, it is necessary to remember:
– that it is advisable to maintain a temperature between 180 and 200 °C.
– that the cooking time depends on the quantity and the type of foods.

Oven cooking

Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.

Simultaneous cooking of different foods

The fan consents a simultaneous heterogeneous cooking of different foods. Different
foods such as fish, cake and meat can be cooked together without mixing the smells and
flavours together. This is possible since the fats and vapours are oxidized while passing
through the electrical element and therefore are not deposited onto the foods.

The only precaution to follow are:
– The cooking temperatures of the different foods must be as close to as possible, with a

maximum difference of 20° - 25 °C.

– The introduction of the different dishes in the oven must be done at different times in

relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

25

Recommended cooking temperature

N.B. For fan ovens reduce the tempera-

ture by 10-20°C. For any dish taking one
hour or over to cook, reduce the cooking
time by 10 minutes per hour.

* Shelf positions have been counted

from the top of the oven to the base.
A fan oven creates more even tempera­ture throughout, therefore the shelf posi­tions are not as critical.

Food °C °F Gas Shelf Cooking

Mark Position* Time (approx)

CAKES

Victoria sandwich 190 375 5 2 or 3 20-25 mins
Small cakes/buns 190 375 5 1 and 2 15-20 mins
Maidera cake 180 350 4 2 or 3 20 mins
Fruit cake 170 325 3 3 1

3

/4 hours

Rich fruit cake 150 300 2 3 or 4 2

1

/2 hours

Scones 225 425 8-9 2 8-10 mins

PASTRY

Puff 225 425 8-9 2 10-20 mins
Short crust 200 400 6 2 20-30 mins
Plate tarts 200-210 400-410 6 1 or 2 30-35 mins
Quiches and flans 200-210 400-410 6 1 or 2 40-45 mins

YEAST

Bread loaf 225 425 7-8 2 35-55 mins
Bread rolls 220 425 7 1 or 2 15-20 mins
Pizza dough 230 450 8 2 20 mins

ROAST MEAT

Beef – Medium 190 375 5 2 or 3 20 mins/lb + 20 mins
Lamb 190 375 5 2 or 3 25-30 mins/b + 25 mins
Pork 190-200 375-400 5-7 2 or 3 30 mins/lb + 30 mins
Veal 190 375 5 2 or 3 30 mins/b + 30 mins
Chicken 190 375 5 2 or 3 30 mins/b + 30 mins
Turkey up to 10lb 180 350 4 2 or 3 18-20 mins/b + 20 mins
Stews/casseroles 150-170 300-325 2-3 2 or 3 1

1

/2 2 hours

26

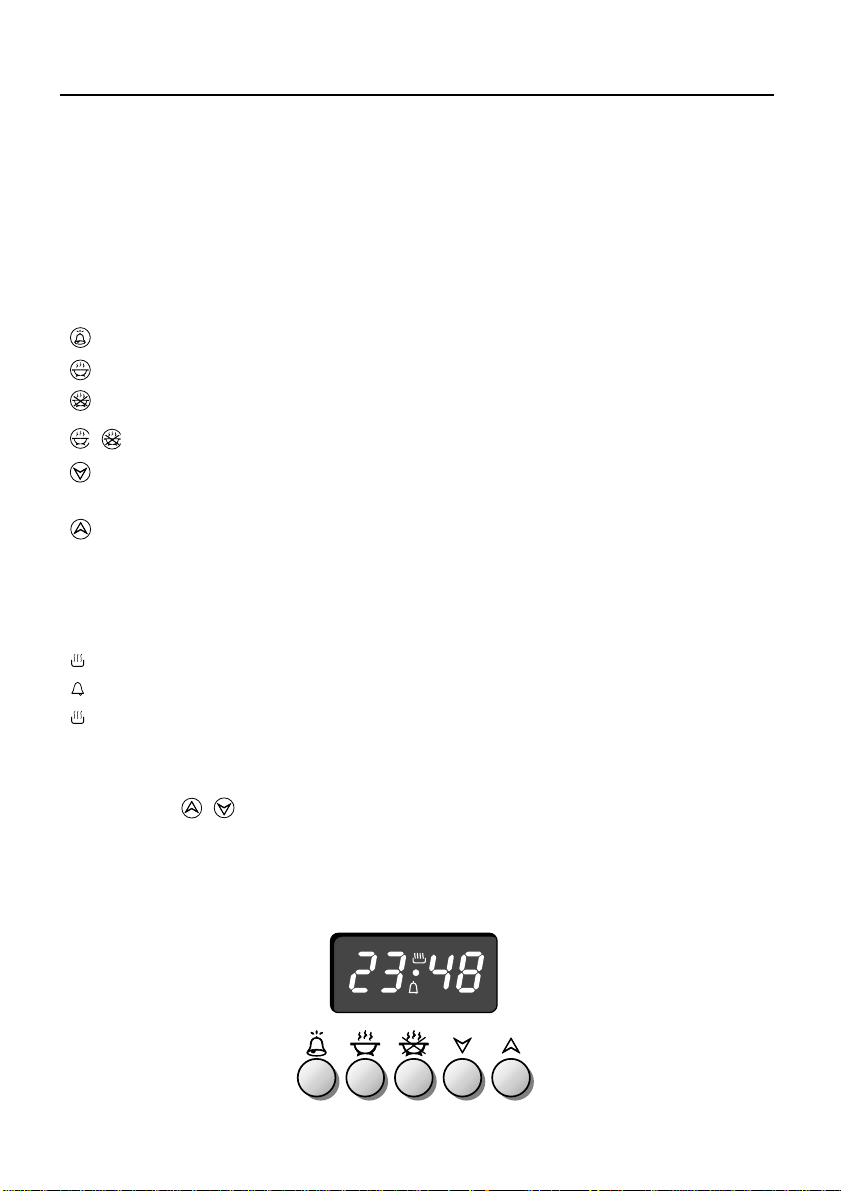

The electronic programmer is a device with the following functions:

■ 24 hours clock with illuminated display

■ Timer (up to 23 hours and 59 minutes)

■ Program for automatic oven cooking

■ Program for semi-automatic oven cooking

7 - Electronic programmer (Bottom main oven only)

Fig. 7.1

A

Description of the buttons:

Timer
Cooking time
End of cooking time

simultaneously: Switching to manual and program reset

Minus function to decrease the number shown on the display or to change the
buzzer frequency

Plus function to increase the number shown on the display

Description of the illuminated symbols:

A flashing: Programmer in automatic position but not programmed
A always illuminated: Programmer in automatic position with program inserted.

Automatic cooking taking place
Timer in operation

and A flashing: Program error.

(The time of day lies between the calculated cooking start and end time).

Note:

Select a function by pressing the respective button and, in 5 seconds, set the required
time with the / buttons (“one-hand” operation).
A power cut makes the clock go to zero and cancels the set programs.

27

SETTING TIME OF DAY (fig. 7.2)

The programmer is provided with an electronic clock
with luminous figures showing the hour and minutes.
The first time the oven is connected up to the electricity
supply and after a power cut, three zeroes will flash on
the programmer display.
To adjust the time, the two buttons must be
pressed simultaneously and then the button or
until the correct time is set.
Setting speed automatically increases if you keep the
setting buttons pressed.

MANUAL OPERATION

To use the oven manually, i.e. without the programmer,
you must cancel the flashing A by pressing the two but­tons simultaneously (the letter A will go out and
the symbol will come on).

CANCELLING A PROGRAMME

If the letter A is not flashing (which means that a cooking
program has already been set) by pressing the two
buttons simultaneously you will cancel the
program and switch to manual.

If the oven is on, you must switch it off manually.

Fig. 7.2

Fig. 7.3

28

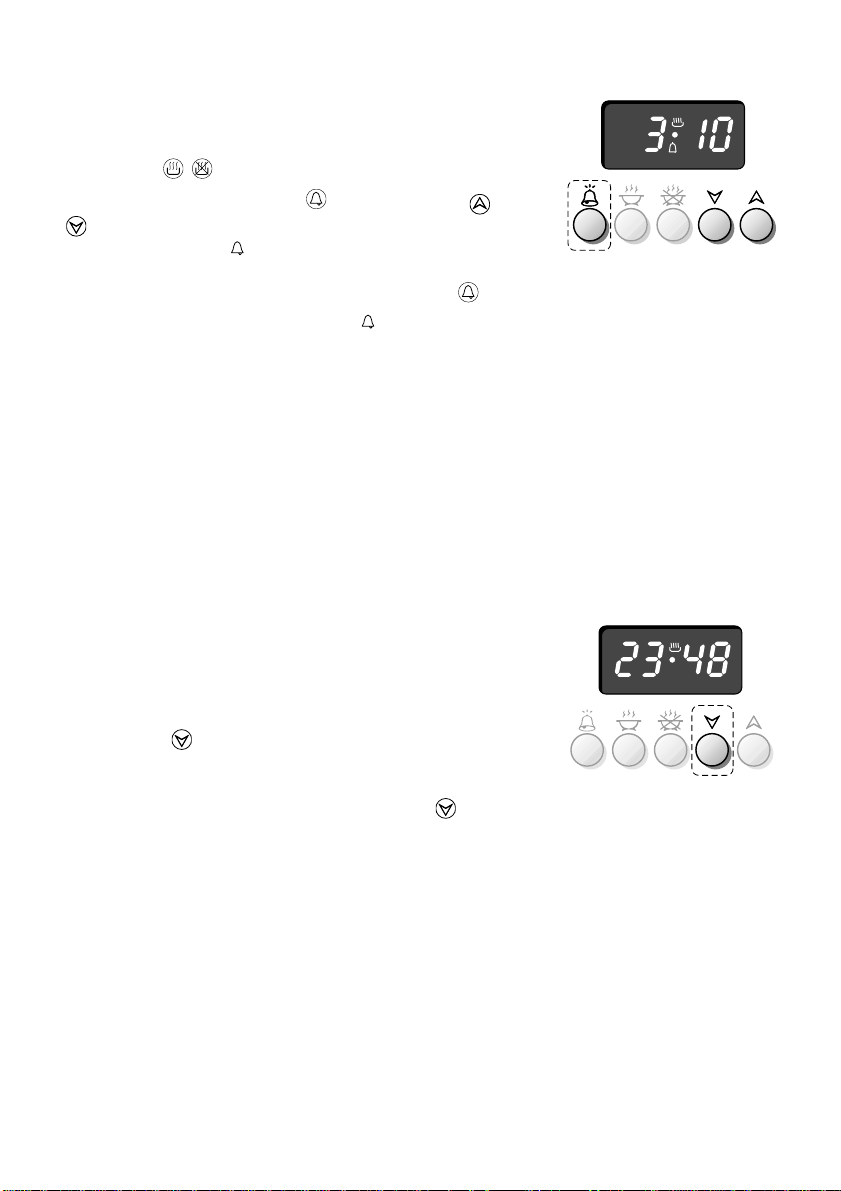

MINUTE MINDER

The minute counter function consists simply of an
acoustic signal which can be set for a maximum of 23
hours 59 minutes. If the letter A is flashing, press the
two buttons simultaneously

.

To set the time, press button and then button or

until the required time appears on the display (Fig.

7.4). The symbol will come on.
Countdown will begin immediately and can be seen on
the display at any time by simply pressing button .

When the time expires, the symbol will go out and
an intermittent acoustic signal will come on which can
be switched off by pressing any of the buttons.

AUDIBLE SIGNAL

The audible signal sounds at the end of a minute minder
cycle or of a cooking programme for a period of 7
minute.
The signal can be cancelled by pressing any function
button.
Pressing the button without having previously select­ed a function the frequency of the signal change. You
can choose from three variations.

The selected signal is audible as long as the button
is pressed.

Fig. 7.4

Fig. 7.5

29

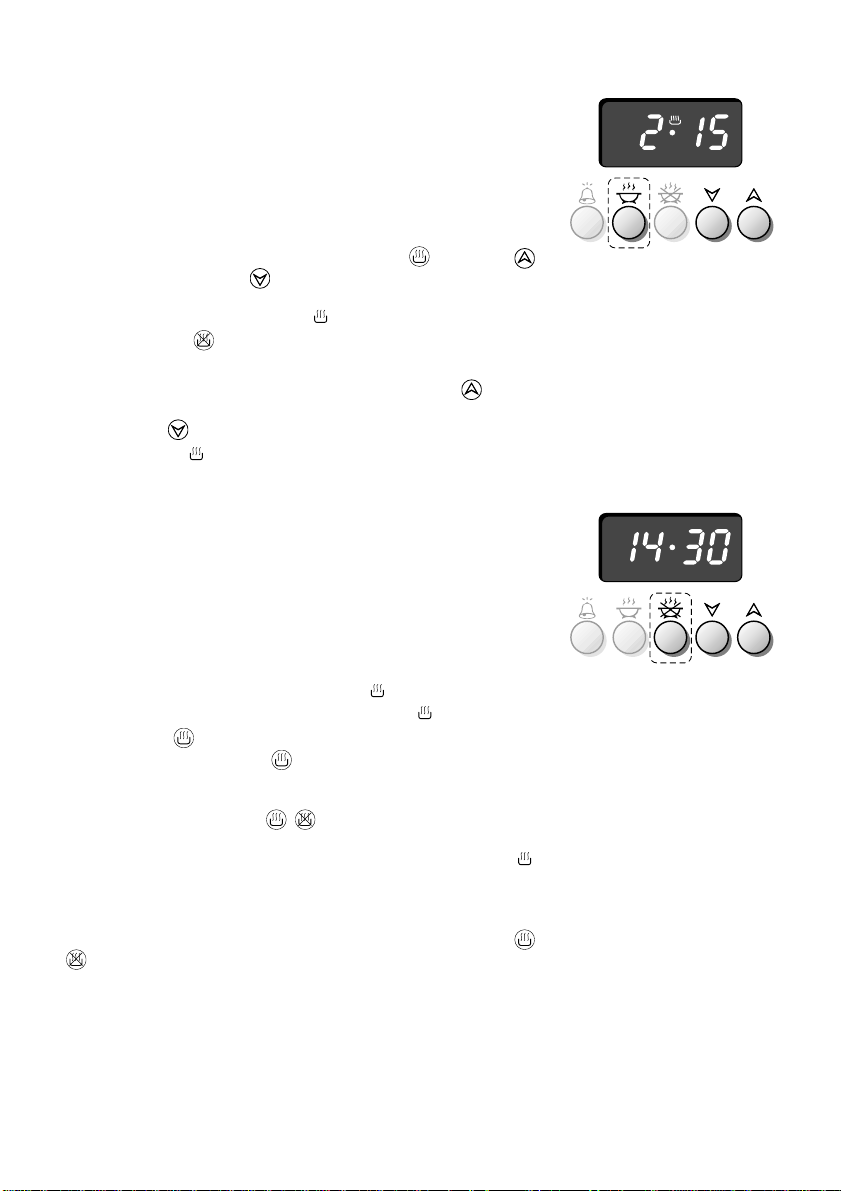

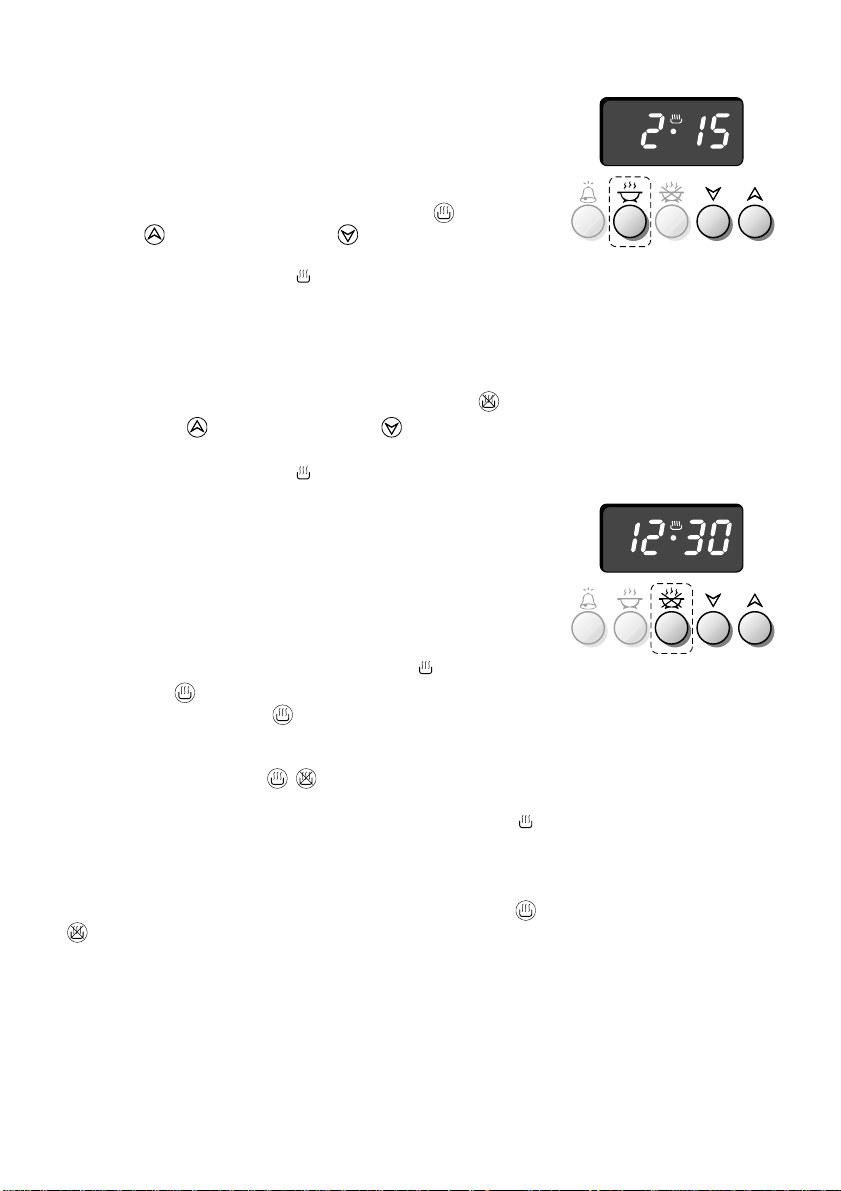

SEMI-AUTOMATIC COOKING

This automatically switches the oven off after the required
cooking time. There are two methods of semi-automatic
cooking:

1°

METHOD: Programming the cooking time (Fig. 7.6)

– Set the cooking time by pressing button and then

button to move forward or to move
back if you have gone beyond the required time.

The letter A and the symbol will appear.

2° METHOD: Programming the end of cooking

time

(Fig. 7.7)

– Set the end of cooking time by pressing button and

then button to move forward or to move back if
you have gone beyond the required time.

The letter A and the symbol will appear.
Having programmed according to one of the above meth-

ods, set the temperature and function via the function
selector and thermostat knob (see specific chapters).

The oven will come on immediately and when the set time
or programmed end of cooking time expires, it will automat­ically switch off.
During cooking the letter A and the symbol remains on;
press button to display the remaining time until end of
cooking or press button to display the end of cooking
time.
The cooking program can be cancelled at any time by
pressing the two buttons simultaneously.

At the end of cooking, the oven switch off, the symbol
go out, the letter A flash and the acoustic signal come on ­this can be switched off by pressing any of the buttons.
Reset the function selector and thermostat knob and set
the programmer to manual by pressing the two buttons

simultaneously.

Fig. 7.6

Fig. 7.7

A

A

30

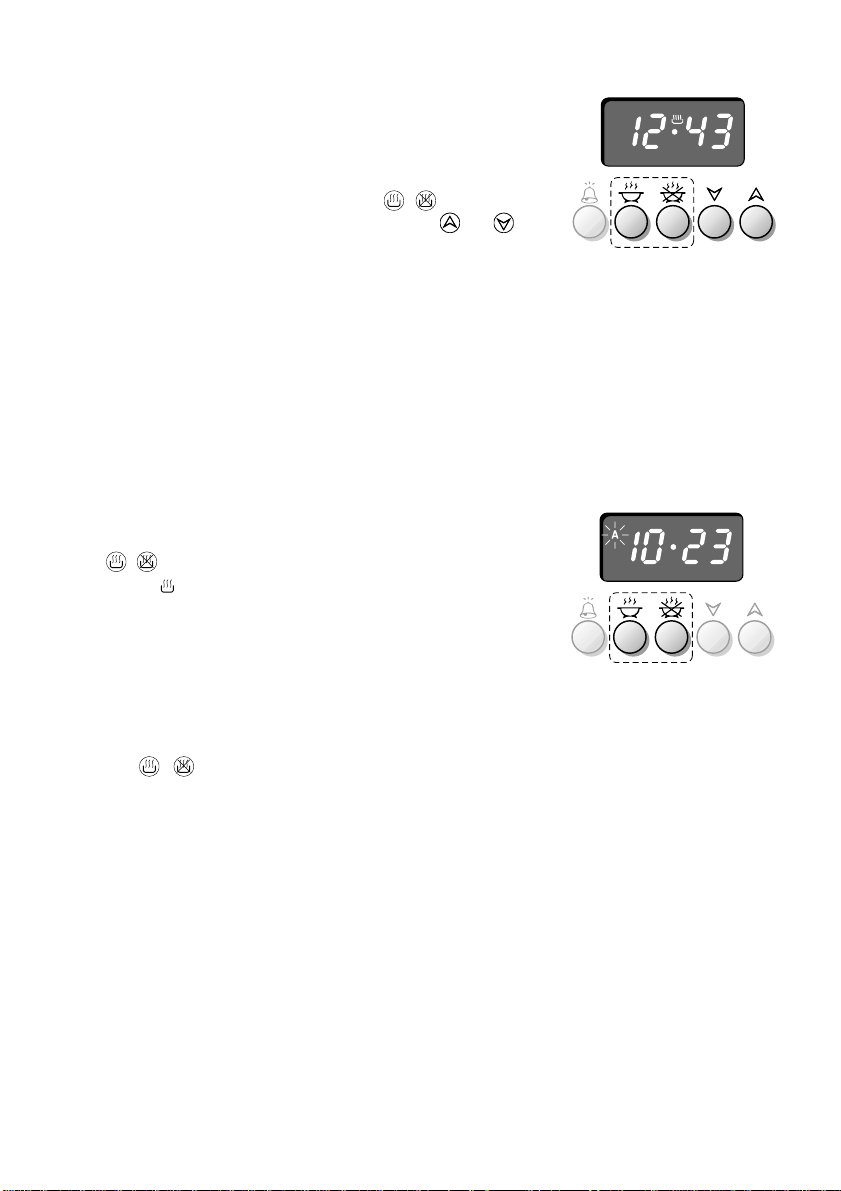

AUTOMATIC COOKING

To cook in the oven in automatic mode follow the instruc­tions below:

1. Set the cooking time

2. Set the end of cooking time

3. Set the cooking temperature and function
These operations are carried out as follows:

1. Set the cooking time by pressing button and then

to move forward or to move back if you have gone
beyond the required time (fig. 7.8).
The letter A and the symbol appear.

2. Press button ; the cooking time already added to the

clock time appear.
Set the end of cooking time by pressing button ; if you

go beyond the required time, you can go back by press­ing button .

The symbol go out and the letter A remains on (fig.

7.9). If during the setting the letter A begins to flash on
the display and the acoustic signal comes on, this indi­cates a programming error, i.e. the cooking cycle has
been superimposed on the clock time. In this case alter
the end of cooking time or the cooking time as above.

3. Set the cooking temperature and function via the func-

tion selector and thermostat knob (see specific chap­ters). The oven is now programmed and everything will
work automatically; the oven will come on as required
and finish cooking at the programmed time.

At the start of the cooking the symbol appear.
During cooking the letter A and the symbol remains on;
press button to display the remaining time until end of
cooking or press button to display the end of cooking
time.

The cooking program can be cancelled at any time by
pressing the two buttons simultaneously.

At the end of cooking, the oven switch off, the symbol
go out, the letter A flash and the acoustic signal come on ­this can be switched off by pressing any of the buttons.
Reset the function selector and thermostat knob and set
the programmer to manual by pressing the two buttons

simultaneously.

Caution: If the electricity supply is cut off (the display
numbers will flash), the clock will reset and all the pro­grams entered will be cancelled.

Fig. 7.8

Fig. 7.9

A

A

31

General advice

– Important:

Before any operation of cleaning and maintenance disconnect the appliance
from the electrical network.

– It is advisable to clean when the appliance is cold.

– When the appliance is not being used, it is advisable to keep the gas tap closed.
– Every now and then check to make sure that the flexible tube that connects the gas

line or the gas cylinder to the appliance is in perfect condition and eventually substitute

it if it shows signs of wearing or damage.
– The periodical lubrication of the gas taps must be done only by specialized personnel.
– If a tap becomes stiff, do not force; contact your local Service Centre.

Attention
The appliance gets very hot, mainly around the cooking areas. It is very
important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance
thus make it unsafe.

8 - Cleaning and Maintenance

32

Cleaning

All the enamelled parts must be cleaned
with a sponge and soapy water or other
non-abrasive products.
Dry preferably with a soft cloth.
Acidic substances like lemon juice,
tomato sauce, vinegar etc. can damage
the enamel if left too long.

Stainless steel surfaces
(coated)

CAUTION

The STAINLESS STEEL front panels on
this cooker (facia, oven doors) are pro­tected with a Special Lacquer to reduce
finger-print marks.
To avoid damaging this lacquer, do not
clean the stainless steel with abrasive
cleaners or abrasive cloths or scouring
pads.

ONLY SOAP/WARM WATER MUST
BE USED TO CLEAN THE STAINLESS
STEEL SURFACES.

Stainless steel surfaces
(uncoated)

The hob + sides are made from un-coat­ed stainless steel and can be cleaned
with an appropriate stainless steel
cleaner.

Gas tap

If a tap becomes stiff, do not force; con­tact your local Service Centre.

Flexible tube

From time to time, check the flexible
tube connecting the gas supply to the
cooker.
It must be always in perfect condition; in
case of damage arrange for it to be
replaced by a C.O.R.G.I. registered
installer.

Cleaning oven parts after
use

The oven interior and the chromium plat­ed shelves can be cleaned by damp
soapy cloth. Obstinate stains can be
removed with nylon scouring pads and
gentle, non-abrasive, liquid cleaner.
Provided the oven is wiped over immedi­ately after roasting, only the minimum of
cleaning should be necessary.

33

Inside of ovens

This must be cleaned regularly.
Remove and refit the side runner frames
as described in the next chapter.
With the oven warm, wipe the inside
walls with a cloth soaked in very hot
soapy water or another suitable product.
Side runner frames, tray and rack can be
removed and washed in the sink.

Attention: Do not store flammable
material in the ovens.

Assembling and removing
the side racks

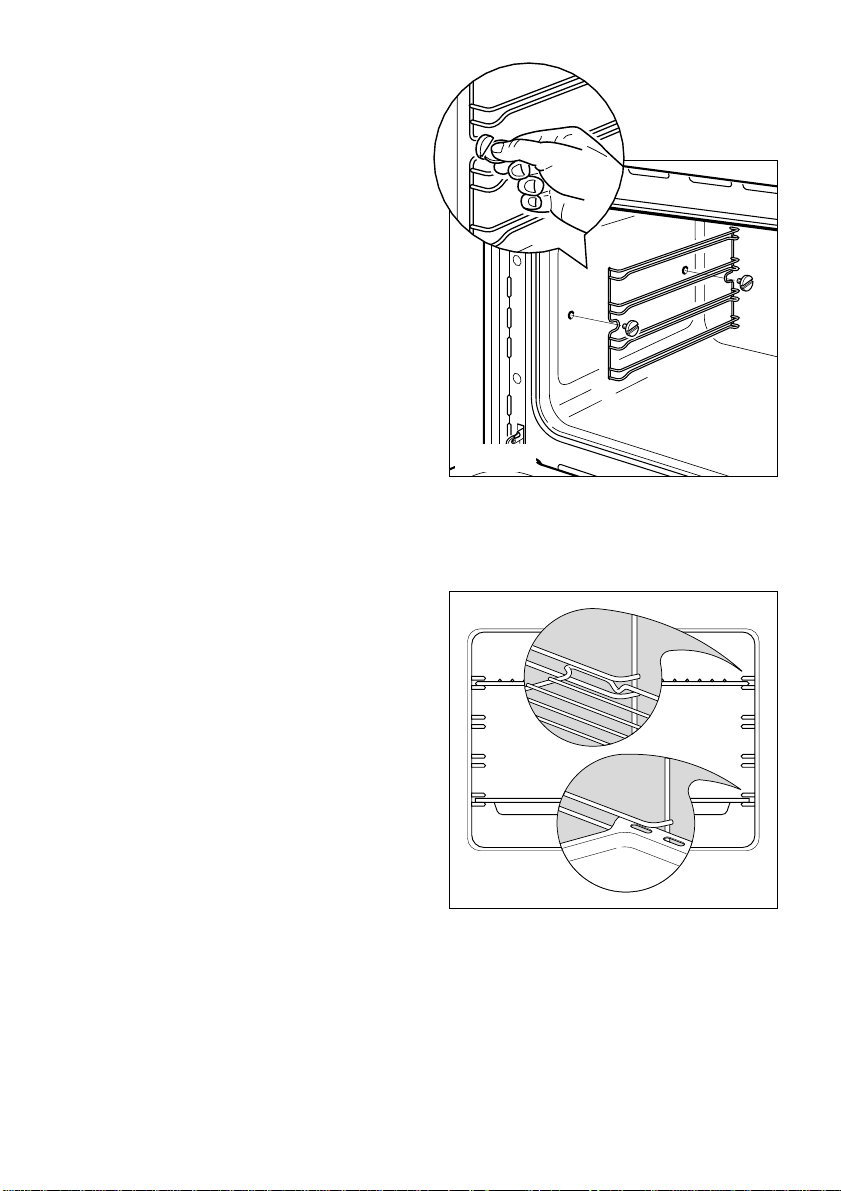

– Assemble the wire racks to the oven

walls using the 2 screws (Fig. 8.1).

– Slide the tray and rack into the runners

fig. 8.2.
The rack must be fitted so that the
safety catch, which stops it sliding out,
faces the inside of the oven.

– To dismantle, operate in reverse

order.

Fig. 8.1

Fig. 8.2

34

Burners

They can be removed and washed only with soapy water.
Detergents can be used but must not be abrasive or corrosive.
Do not use abrasive sponges or pads.
Do not put in dishwasher.
After each cleaning, make sure that the burner-caps, as well as the burners, have been
well wiped off and CORRECTLY POSITIONED.

It is essential to check that the burner flame distributor “F” and the cap “C” has been cor­rectly positioned (see fig. 8.3-8.4) - failure to do so can cause serious problems.

Check that the electrode “S” (fig. 8.3) is always clean to ensure trouble-free sparking.

Note:

The electrode “S” must be very carefully cleaned.
To avoid damage to the electric ignition do not use it when the burners are not in place.

Fig. 8.3

S

F

C

Fig. 8.4

35

Triple ring burner

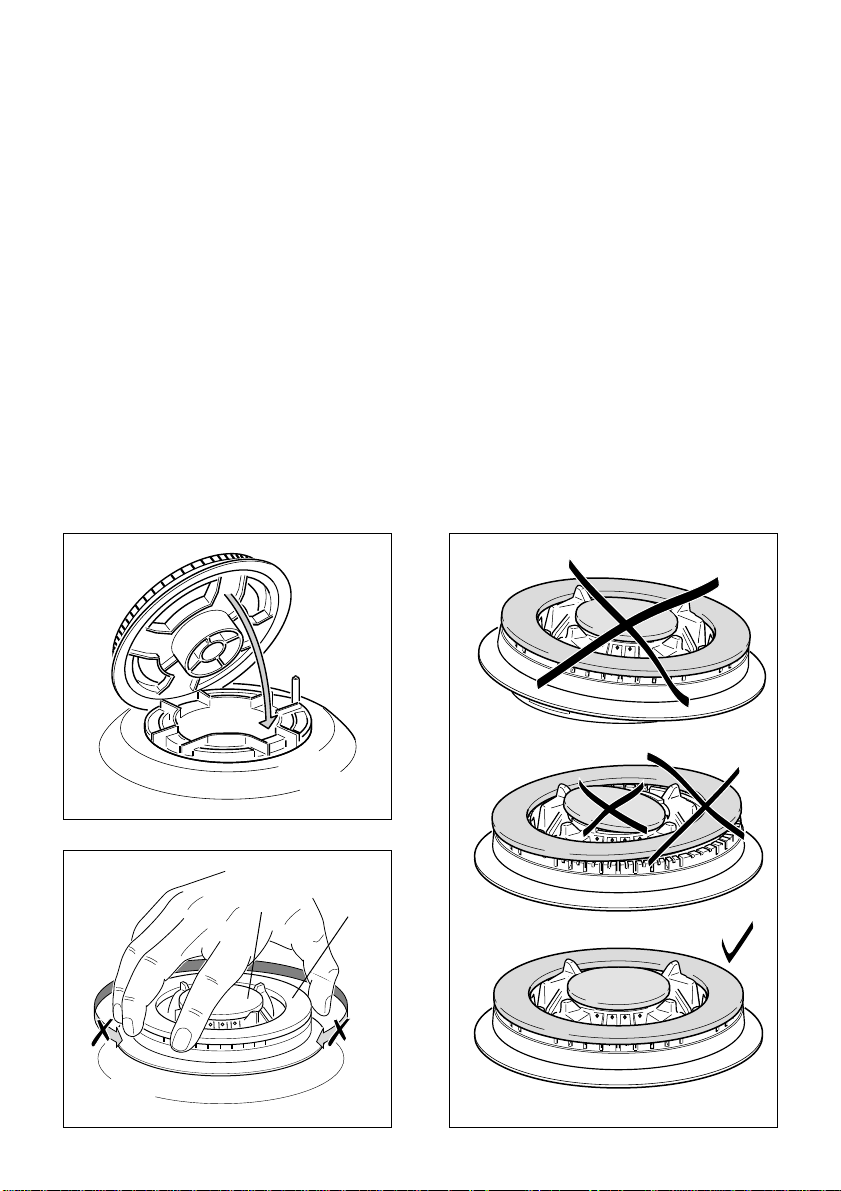

The triple ring burner must be correctly positioned (see fig. 8.7); the burner rib must be
enter in their logement as shown by the arrow (see fig. 8.5).

Then position the cap A and the ring B (fig. 8.6 - 8.7).
The burner correctly positioned must not rotate (fig. 8.6).

Fig. 8.7

Fig. 8.5

Fig. 8.6

A

B

36

Removing the bottom oven
door

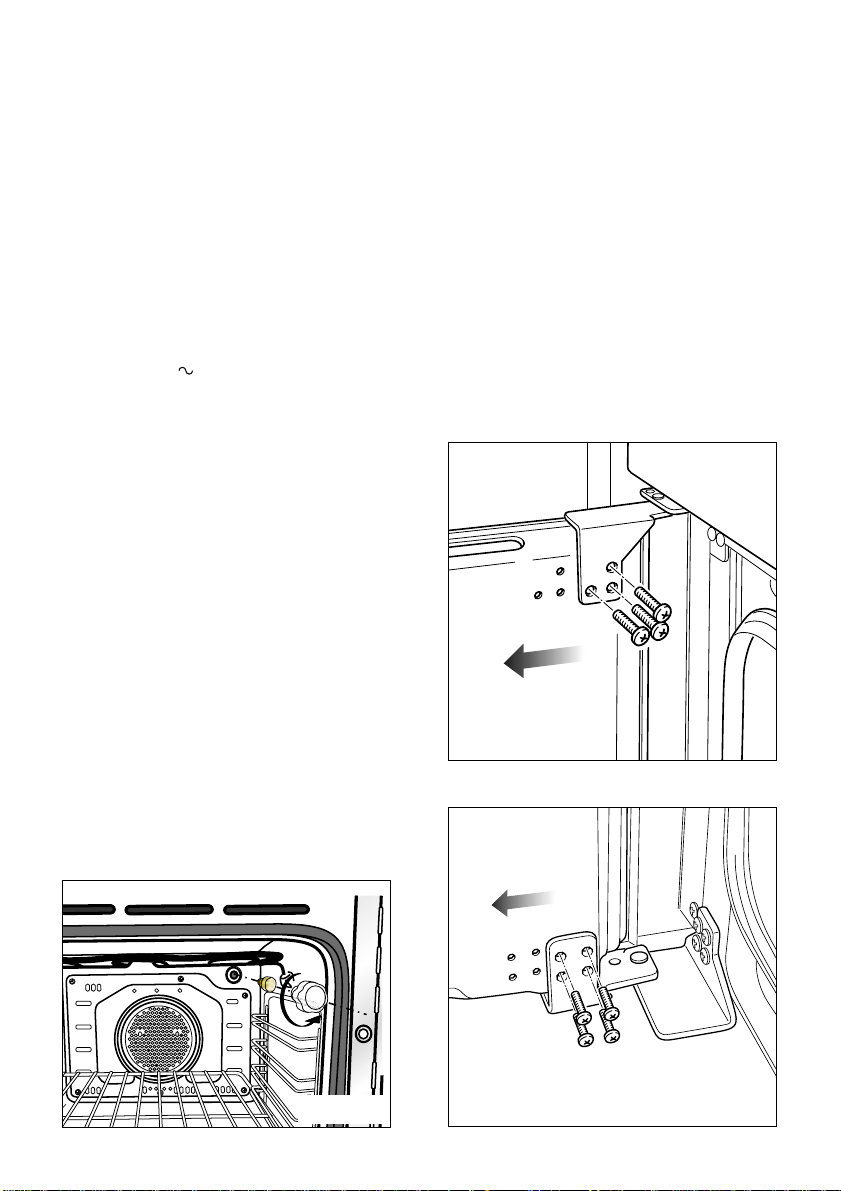

The oven door can easily be removed as
follows:

– Open the door.
– Unscrew the 4 screws of the bottom

hinge (fig. 8.10)

– Hold the door and unscrew the 3

screws of the upper hinge (fig. 8.9).

– Remove the door following the arrow C

(fig. 8.9 - 8.10)
– Rest the door on a soft surface.
– To replace the door, repeat the above

steps in reverse order.

c

c

Replacing the ovens light

Before any maintenance is started
involving electrical parts of the appliance,
it must be disconnected from the power
supply.

– Let the oven cavity and the heating

elements cool down;
– Switch off the electrical supply;
– Unscrew the protective cover (fig. 8.8);
– Unscrew and replace the bulb with a

new one suitable for high temperatures

(300°C) having the following specifica-

tions: 230 V 50 Hz, 15W, E14
– Refit the protective cover
NOTE: Oven bulb replacement is not

covered by your guarantee

Fig. 8.8

Fig. 8.9

Fig. 8.10

2

1

37

Fig. 8.11

Fig. 8.11d

Fig. 8.11c

Fig. 8.11b

Fig. 8.11a

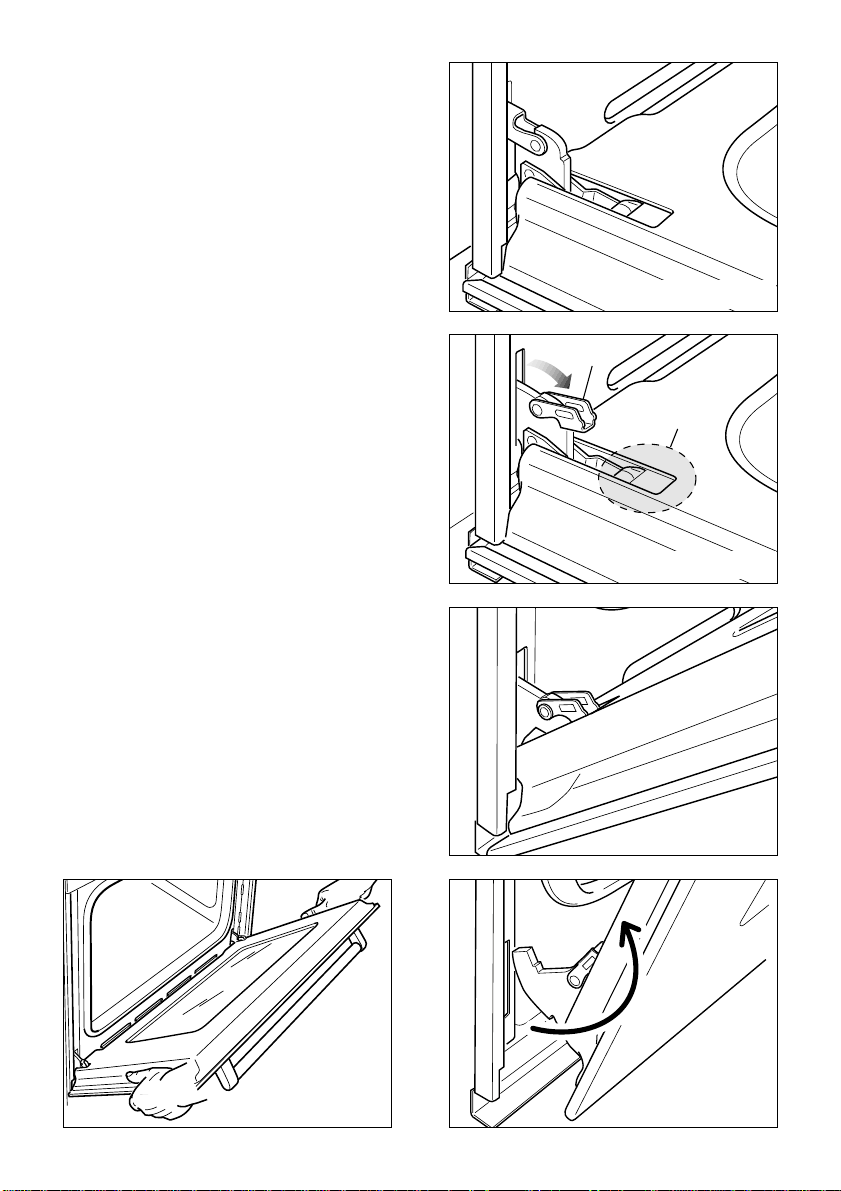

Removing the top oven door

The oven door can easily be removed as
follows:

– Open the door to the full extent (fig.

8.11a).

– Open the lever “A” completely on the

left and right hinges (fig. 8.11b).
– Hold the door as shown in fig. 8.11.
– Gently close the door until left and

right hinge levers “A” are hooked to

part “B” of the door (figs. 8.11b -

8.11c).

– Withdraw the hinge hooks from their

location following arrow “C” (fig.

8.11d).
– Rest the door on a soft surface.
– To replace the door, repeat the above

steps in reverse order.

A

B

C

38

Trouble shooting

Problem

Food too brown but not cooked.

Remedy

Turn down the oven temperature slightly and cook a little longer

Problem

Food cooked but not brown enough.

Remedy

Increase temperature.

Problem

Food baking unevenly.

Remedy

1. The temperature may be slightly high turn it down

2. Position the food in the centre of the shelves rather than towards the sides of tho oven.

3. Rotate the food a half turn in the oven.

4. Try pre-heating the oven for 5-15 minutes prior to baking.
Always remove cooked items as soon as they are ready and continue cooking the under-

cooked items until they are completely finished.

Changing the Oven Cavity Light Bulb.

If the oven light falls:

1. Turn off the cooker by switching the oven selector knob to the OFF position, switch off
at the cooker point.

2. When the oven is cool, reach back and upwards inside the oven, the bulb is in the top
right corner.

3. Unscrew the light glass cover, replace the bulb with a new one of the same specifica­tion and screw the cover back until it is hand tight.

NOTE: Oven bulb replacement is not covered by your guarantee.

Other bulbs cannot be changed by yourself and should be replaced by an authorised
CAPLE Service Engineer.

Helpful Advice

39

IMPORTANT: Ovens get hot. Keep children away from this appliance at all times.

If Your Oven Does Not Work

Before calling a CAPLE service engineer run through the following checklist.

1. The cooker is connected to the power supply and that the fuse is intact.

2. Make sure the timer control is set to the manual position, and that the oven has not
been set inadvertently for an automatic or timed programme (bottom main oven only).

If you are in any doubt about carrying out these checks, call the CAPLE Helpline on

0870 241 1142.

A charge will be made if the appliance is found to be in working order, or if it has not been
installed in accordance with these instructions, or if it is has been used incorrectly.

Cod. 1102674 - ß2

CAPLE “Built-in” Service

Should you require service at any time,
please contact the Caple Helpline on

0870 241 1142.
Caple have a nationwide service net-

work of engineers who will respond
quickly to your call.

YOUR GUARANTEE

CAPLE guarantees all parts of this product for one year from the date of pur-

chase. During that time, should it become necessary CAPLE engineers will

replace or repair all defective parts free of charge, except for parts subject to fair

wear and tear, such as lightbulbs.

Parts and the engineers labour costs are chargeable after the first 12 months.

To qualify for benefits under the guarantee, you must be able to provide proof of

date of purchase and the appliance must have been supplied, installed and used

for domestic purposes only in accordance with CAPLE instructions.

Consequential losses and accidental damage to the product are not covered by

the guarantee.

This guarantee does not affect your statutory or common law rights.

CAPLE cannot be responsible for the results of using this appliance for any other

purposes other than those described in these instructions.

Always replace spare parts with genuine
Caple spares. These are available from
authorised Caple Service Centres or by
mail order from our National Service

Stores, simply telephone [phone]

1142.

When ordering parts always quote the
model number and serial number of your
appliance.
