Caple CM110 Instruction Manual

Download
Page 1
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Sense combination microwave
instruction manual
CM110
Page 2
Instruction manual CM110
CONTENTS
Warnings 3
Environmental protection 10
Warranty 10
Installation 11
Dimensions 12
Electronic connection 13
Control panel / display 14
Accessories 15
Operation 16
Microwave oven functions 18

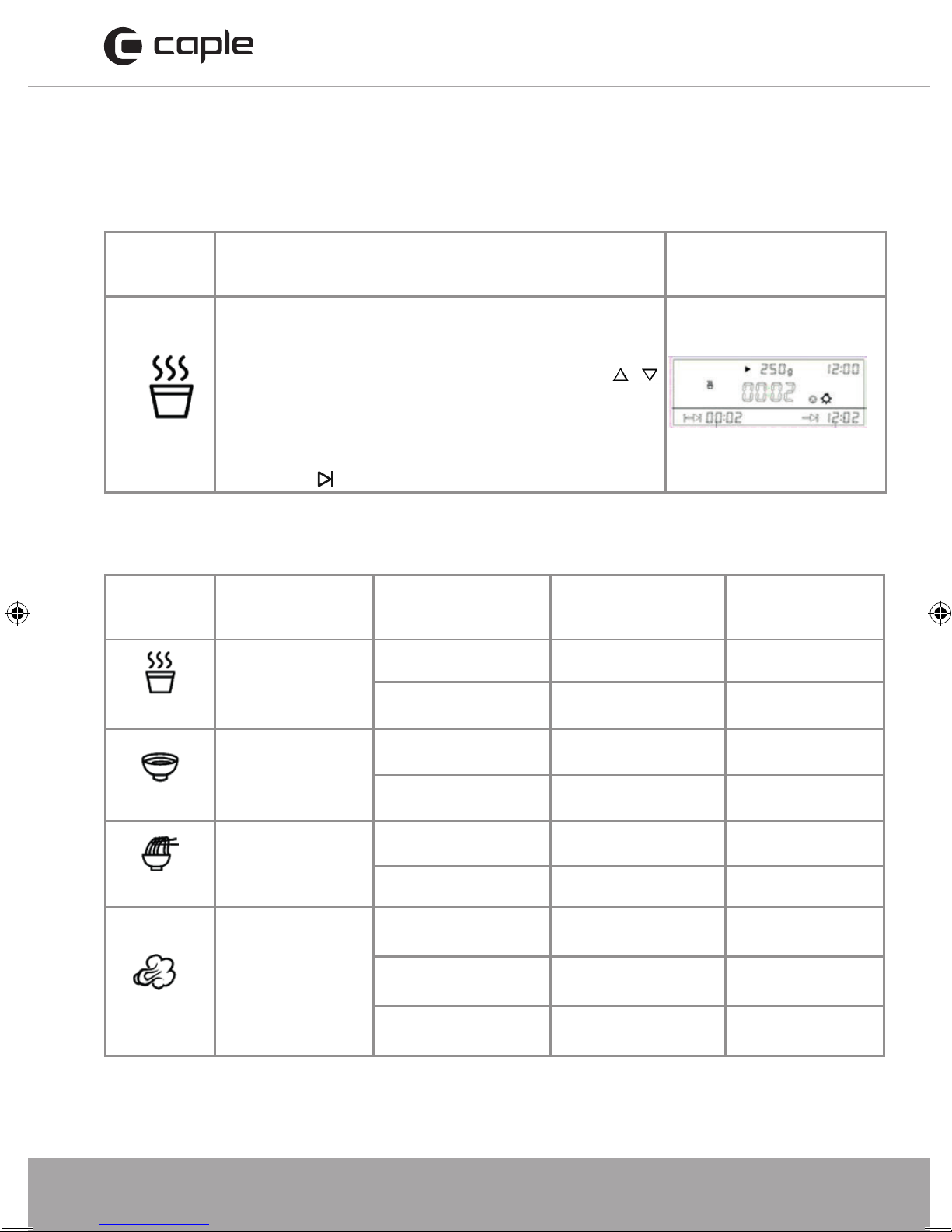

Auto cooking 20
Defrost time table 23
Care and maintenance 24
Removing the oven door 25
Troubleshooting 26
Technical data 26
Caple contact details 28
2
Page 3
Instruction manual CM110
GENERAL WARNINGS
Read carefully all the instructions contained in this manual. It provides you with important information regarding the safe installation, use and maintenance of the appliance as well as useful advice for getting the best out of your microwave oven. Keep this booklet in a safe place for future reference. After removing the packing, check that the appliance is not damaged in any way.
Be careful not to leave the packing materials (plastic sheeting, expanded polystyrene etc.) where children can get at them, as they can be dangerous.
IMPORTANT: do not use the oven door handle to move the appliance, such as to remove it from the packaging.
ATTENTION
The microwave oven is an appliance which, for its nature, becomes hot during use, especially the glass door.
It is therefore a good rule that children do not approach the microwave oven when it is functioning, particularly when the grill is in use.
Before you use the microwave oven for the first time, heat the empty oven at max. temperature for 1 hour, removing any unpleasant smells and smoke caused by working residues and thermal insulation. Make sure you do this in a well ventilated area.
3
Page 4
Instruction manual CM110
Never roast or bake on the oven base. This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used in:
- Staff kitchen areas in shops, offices and other working environments.
- Bed and breakfast type environments.
- By clients in hotels, motels and other residential type environments.
The electrical system of this appliance may be used safely only when it is correctly connected to an efficient earthing system in compliance with the safety standards currently in effect.
The manufacturer will not be held liable for any damages that might arise out of incorrect or improper use of the appliance.
The following items are potentially dangerous, and therefore, appropriate measures must be taken to prevent children and the disabled from coming into contact with them:
- Controls and the appliance in general;
- Packaging (bags, polystyrene, nails, etc.);
- The appliance immediately after use of the oven or grill due to the heat generated;
- The appliance when no longer in use (potentially dangerous parts must be made safe).
4
Page 5
Instruction manual CM110
WARNING
Accessible parts will become hot when in use. To avoid burns and scalds children should be kept away.
During use the appliance becomes hot, Care should be taken to avoid touching heating elements inside the oven.
- If the door or door seals are damaged, the oven must not be operated until it has been repaired by a Caple approved engineer.
- It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
- Liquids and other foods must not be heated in sealed containers since they are liable to explode.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire
- The oven should be cleaned regularly and any food
5
Page 6
Instruction manual CM110
deposits removed
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
WARNING
To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:
- Make sure that all the packing materials are removed from the inside of the door.
- WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact Caple service immediately.
- This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
- Do not place the microwave oven where heat, moisture, or high humidity are generated, or near combustible materials.
6
Page 7
Instruction manual CM110
- Do not operate the microwave oven when empty.
- Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by Caple or an approved engineer in order to avoid a hazard.
- WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
- Microwave heating of liquids can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
- Do not fry food in the microwave oven. Hot oil can damage oven parts and utensils and even result in skin burns.
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
- Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
- The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
- Utensils should be checked to ensure that they are
7
Page 8
Instruction manual CM110
suitable for use in microwave oven..
- WARNING: It is hazardous for anyone other a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless the have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- When heating food in plastic or paper containers, check the oven frequently for the possibility of ignition.
- Remove wire ties from paper or plastic bags before placing bag in oven.
- If smoke is observed. Switch off or unplug the appliance and keep the door closed in order to stifle any flames.
- Do not leave paper products, cooking utensils or food in the cavity when not in use.
8
Page 9
Instruction manual CM110
WARNING
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless
continuously supervised This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
WARNING: Accessible parts may become hot during use. Young children should be kept away.
9
Page 10
Instruction manual CM110
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number (placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only available from Caple Service and spare parts authorised centres.
ATTENTION
- Before use, remove all plastic films protecting some parts of the appliance (fascia -
panel, parts in stainless steel, etc)
- Do not use the appliance to heat a room.
- When the appliance is not in use, we recommend you turn it off, isolate it from
the electrical supply.
CE DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with safety requirements in force. This appliance has been manufactured to the strictest standards and complies with all applicable legislation.
10
Page 11
Instruction manual CM110
INSTALLATION
Fig.2
Fig.1
IMPORTANT:
ISOLATE YOUR MICROWAVE OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING INSTALLATION OR MAINTENANCE.
Installation should be carried out according to the instructions by a professionally qualified person only.
The manufacturer declines all responsibility for any damage to persons, animals or materials due to incorrect installation.

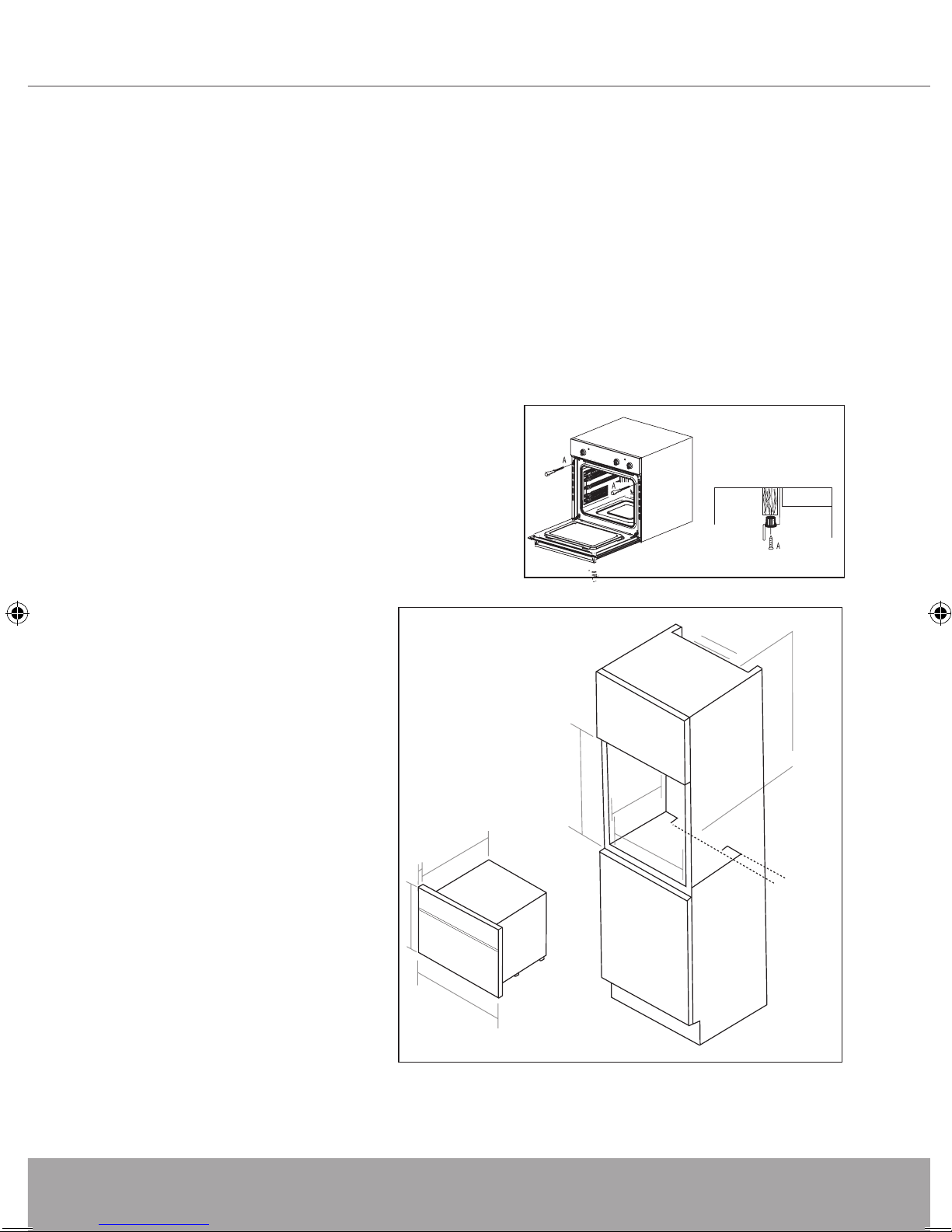

FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a worktop or above another appliance in a tall housing) by inserting screws and plastic covers into the 4 holes (A - fig.3) that can be seen in the frame of the oven when the door is open.

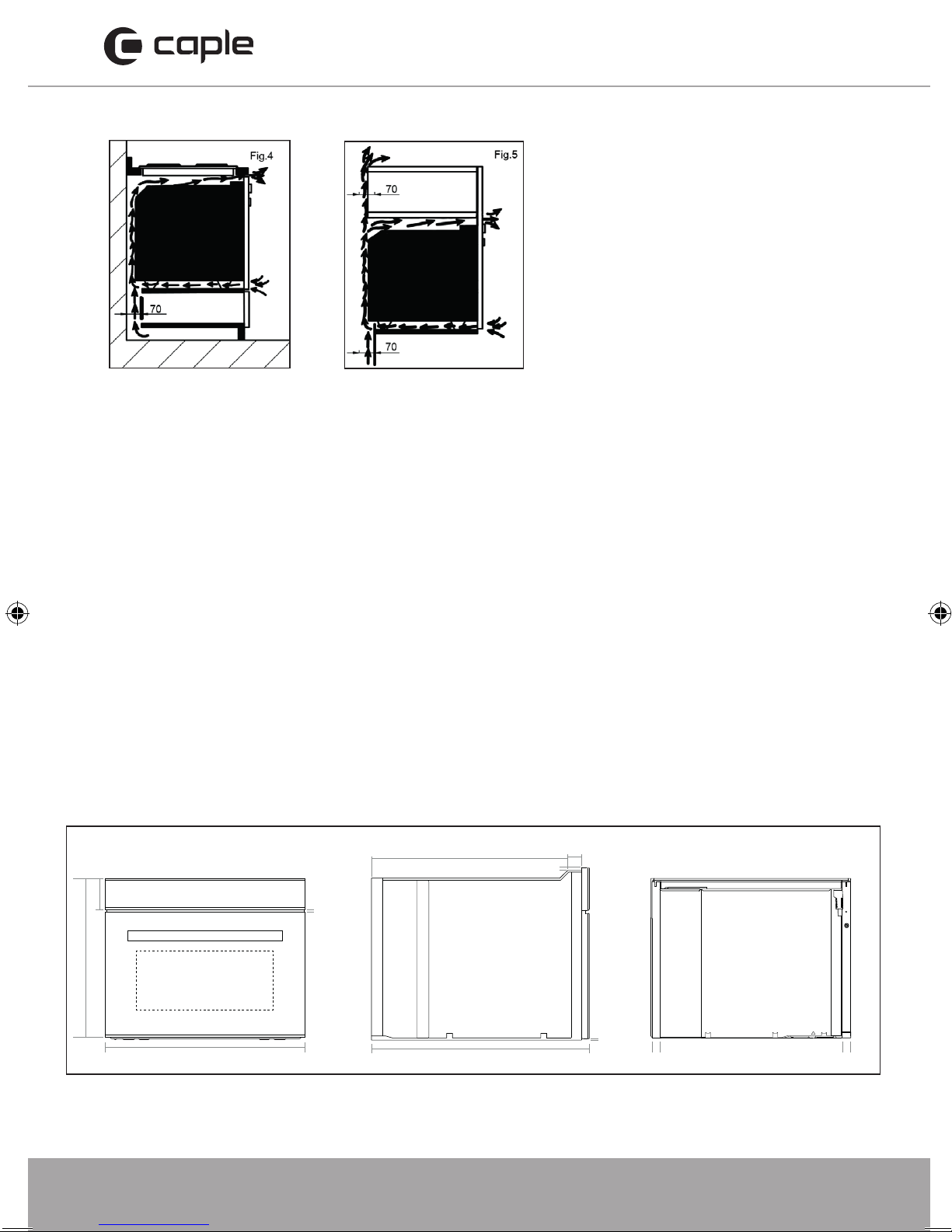

For the most efficient air circulation, the microwave oven should be fitted according to the dimensions shown in fig.1.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which the microwave oven is fitted should have a gap of at least 70 mm at the rear for ventilation (fig.4 & fig.5).
21.6mm
453.6mm
547.4mm
Fig.3
Plastic cover
70mm
Ventilation Slot
450mm
min 550mm
565mm
70mm
595mm
11
Page 12
Instruction manual CM110
See below for full dimensional drawings of your microwave oven to help with installation.
For a built-in oven microwave to work well the cabinet must be of the right type.
The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture is made of veneered wood, the adhesives should be able to withstand a temperature of 120ºC. Plastic materials or adhesive which cannot withstand this temperature may become deformed or unstuck.
To comply with safety regulations, once the appliance has been fitted it should not be possible to make contact with the electrical parts.
All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool.
MICROWAVE OVEN DIMENSIONS
116mm
453.6mm
595mm
12
8mm
515.6mm
569mm
31.8mm
8.6mm
2.8mm
26.4mm 26.4mm
Page 13
Instruction manual CM110
ELECTRICAL CONNECTION
WARNING: THIS APPLIANCE MUST BE EARTHED
Check that the power rating of the mains supply is suitable for the maximum power of the appliance as indicated on the rating label.
The fuse rating for this appliance is 13amp.
The appliance is supplied with a mains lead it should be “Hard wired” as follows:
The “yellow/green” earth wire, which must be connected to a terminal, and has to be about 10mm longer than the other wire.
The neutral wire has to be connected to the terminal marked with a letter N.
The Live wire should only be connected to the terminal marked L.
Mains connection can also be made by fitting a double pole switch with a minimum gap between the contacts of 3mm, proportionate to the load and complying with the regulations in force.
The yellow/green earth wire should not be controlled by the switch.
When a double pole switch is used for mains supply connection it should be easily accessed, once the appliance is in position.
IMPORTANT:
The mains supply cable should be positioned so that it is never subjected to temperatures which are more than 50ºC above ambient temperature.
The electrical safety of the appliance can only be guaranteed when it has been correctly connected to a properly earthed mains electrical supply, as laid down in the current regulations for electrical safety.
The manufacturer cannot be held responsible for any damage to persons or objects due to lack of an earth connection.
The ovens are designed to operate with a mono-phase alternating current of 220-240V, 50Hz.
Before the installation of the appliance, check the specifications on the rating label.
13
Page 14
Instruction manual CM110

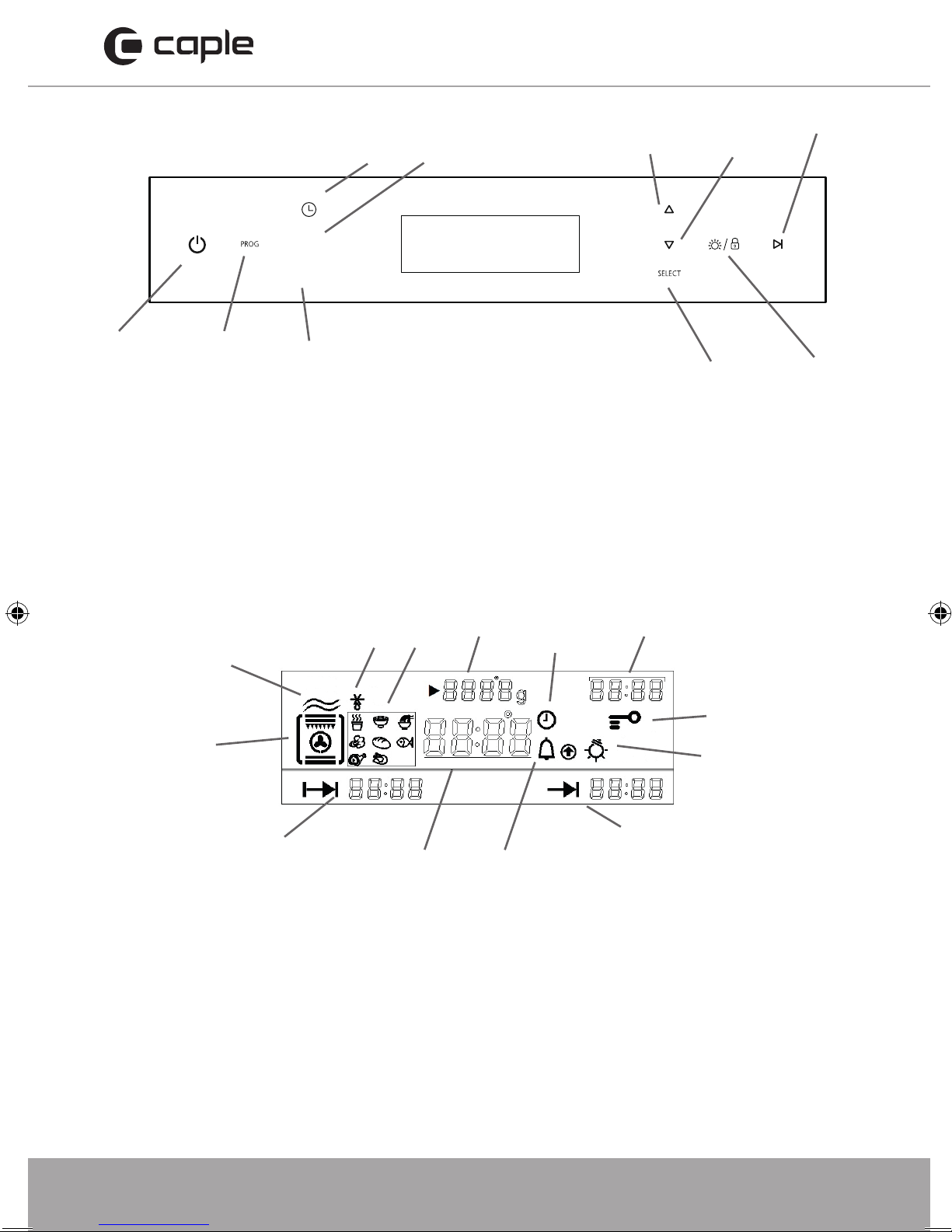

CONTROL PANEL
CONTROL PANEL
6
. Up
7. Down 8
. Select
9
. Light / Child lock
10
. Start/pause
˚C / W / g
AUTO
10
3
4
6
7
1
2
1. Power
2. Programme
3. Timer
4. Temperature ºC / Power (watts) / Weight (grams)
DISPLAY
2
1
5
8
9
5. Auto cooking
6. Up
7. Down
8. Select
9. Light / Child lock
10.Start / Pause
3
4
5
6
7
8
9
12
1. Programme / Function
2. Microwave
3. Defrost
4. Auto cooking
5. Temperature / Power / Weight (grams)
14
13
6. Timer
7. Time
8.Child lock
9. Light
10. Alarm
11. End time
11
10
12. Duration time
13. Temperature / Time Display
Page 15
Instruction manual CM110
ACCESSORIES
Fig.1
S
O
R
IES
h
e
lf
(
Fig
.1)
le
d
t
r
a
y
(
Fig
.2
)
: Do not use the enameled tray with any microwave function. This could
e
s
he
lf
su
ppo
r
t
s
(
Fig
.3
)
Fig.1
Fig.3

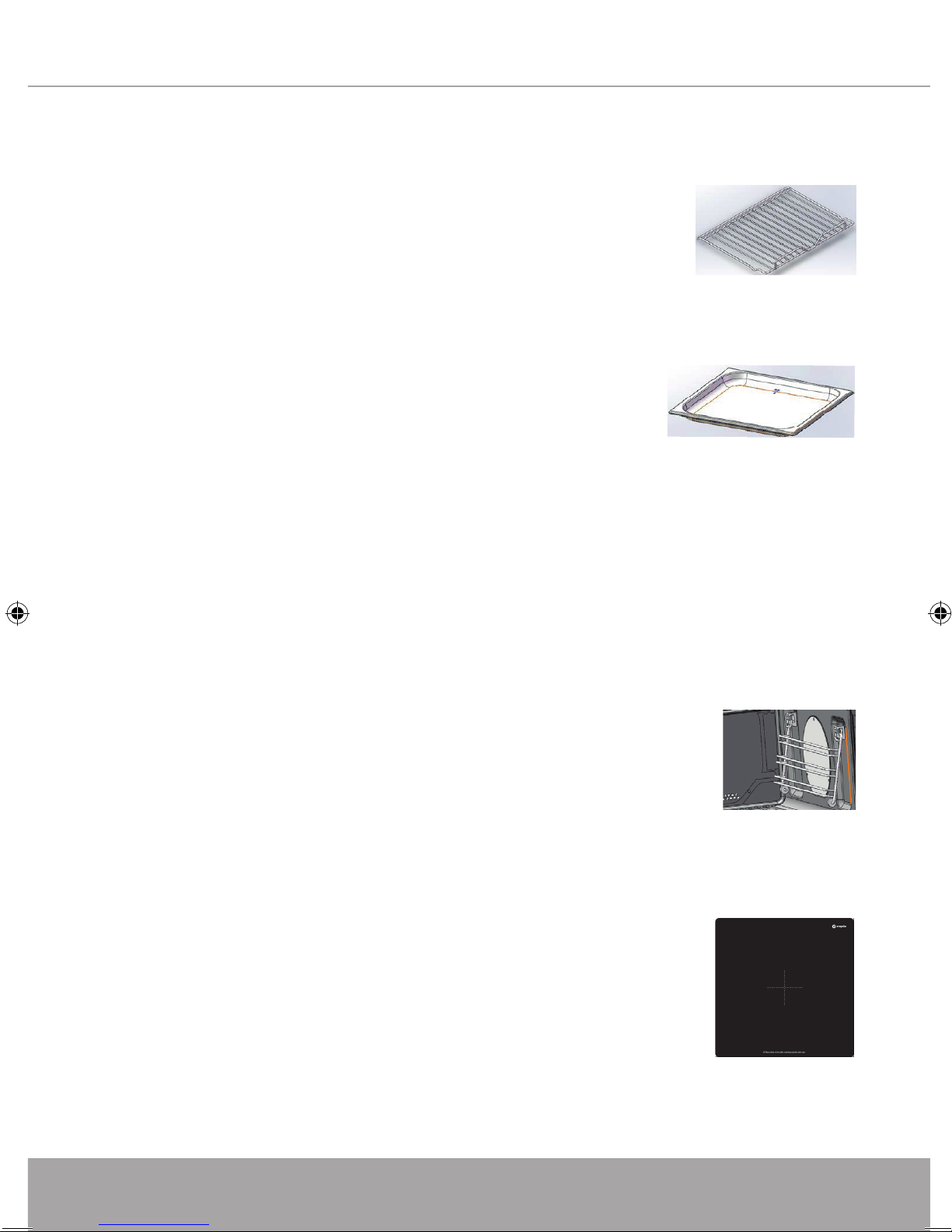

WIRE SHELF (FIG.1)
The wire shelf allows you to brown or grill food. The shelf can be used for normal fan heat, conventional cooking and grilling functions only. It must not be used for any microwave function. If a microwave function is selected, ensure the wire shelf has been removed before the start.
ENAMELED TRAY (FIG.2)
The enameled tray allows you to cook foods on normal fan heat, conventional cooking, and grilling functions. The silicone corners applied to the enameled tray also allows it to be used in microwave functions.
NOTE Do not remove the silicone corners, as this could damage the oven.
WARNING
Fig. 1
Fig. 2
Do not use the wire shelf with any microwave function. This could damage the shelf or even your microwave oven. The wire shelf is for normal convection/Fan cooking or grilling only.
THE SIDE SHELF SUPPORTS (FIG.3)
2 hook-on shelf supports allow you to use the accessories on three levels. Three cooking levels are available, depending on the method used and the type of food. With the Grill or Grill + Microwave setting, the accessories (shelf or tray) are placed on the first level for thick foods like roasts and on the third level for thinner foods like sausages. In normal cooking modes, or microwave functions, the shelf or tray should be used on the first or second levels depending on the item(s) being cooked.
GLASS BASE PLATE (FIG.4)
When microwaving only, foods and beverages can be placed on the Glass base plate. The Glass base plate protects the bottom of the microwave cavity from any scratches, marks or spillages. It can also be easily removed for cleaning by either hand or in the dishwasher.
Fig. 3
NOTE Always remove the wire shelf when using microwave functions, as this could damage the oven.
Fig. 4
15
Page 16
Instruction manual CM110
OPERATION
OPERATION
Press the button to turn the oven on. When turned on, the display will light up and the
time of day will be shown.
P
rogramme / function To select a function, press the PROG button to toggle through the functions and press SELECT once you have reached the required function. Press the °
C / W / g button to enter the temperature(°C), power(W) or weight(g) mode depending on what function has been selected. To adjust the temperature, power or weight, use the / keys followed by S
ELECT to confirm.
Once confirmed, press the button to start cooking. The main timer will show the actual temperature, with the set temperature shown above this.

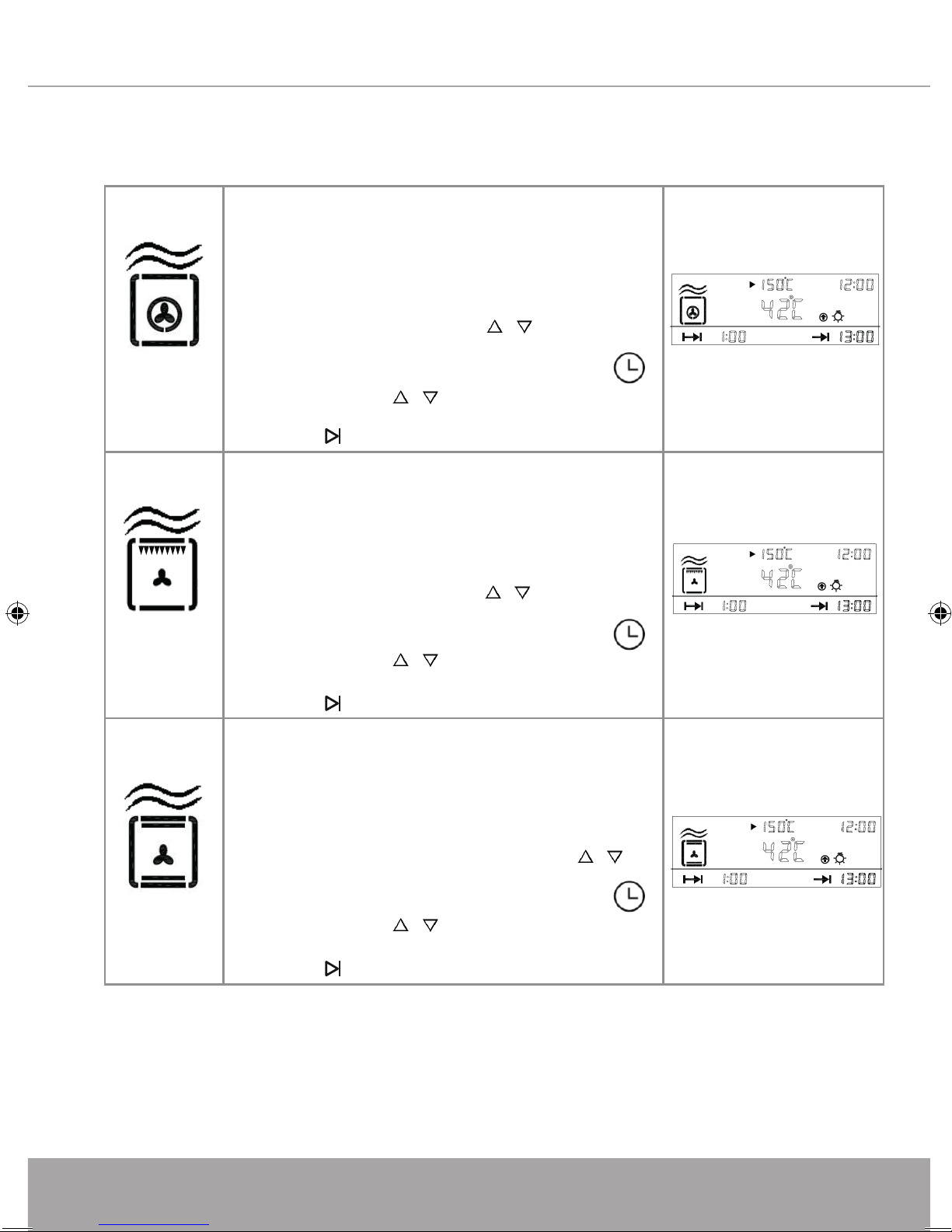

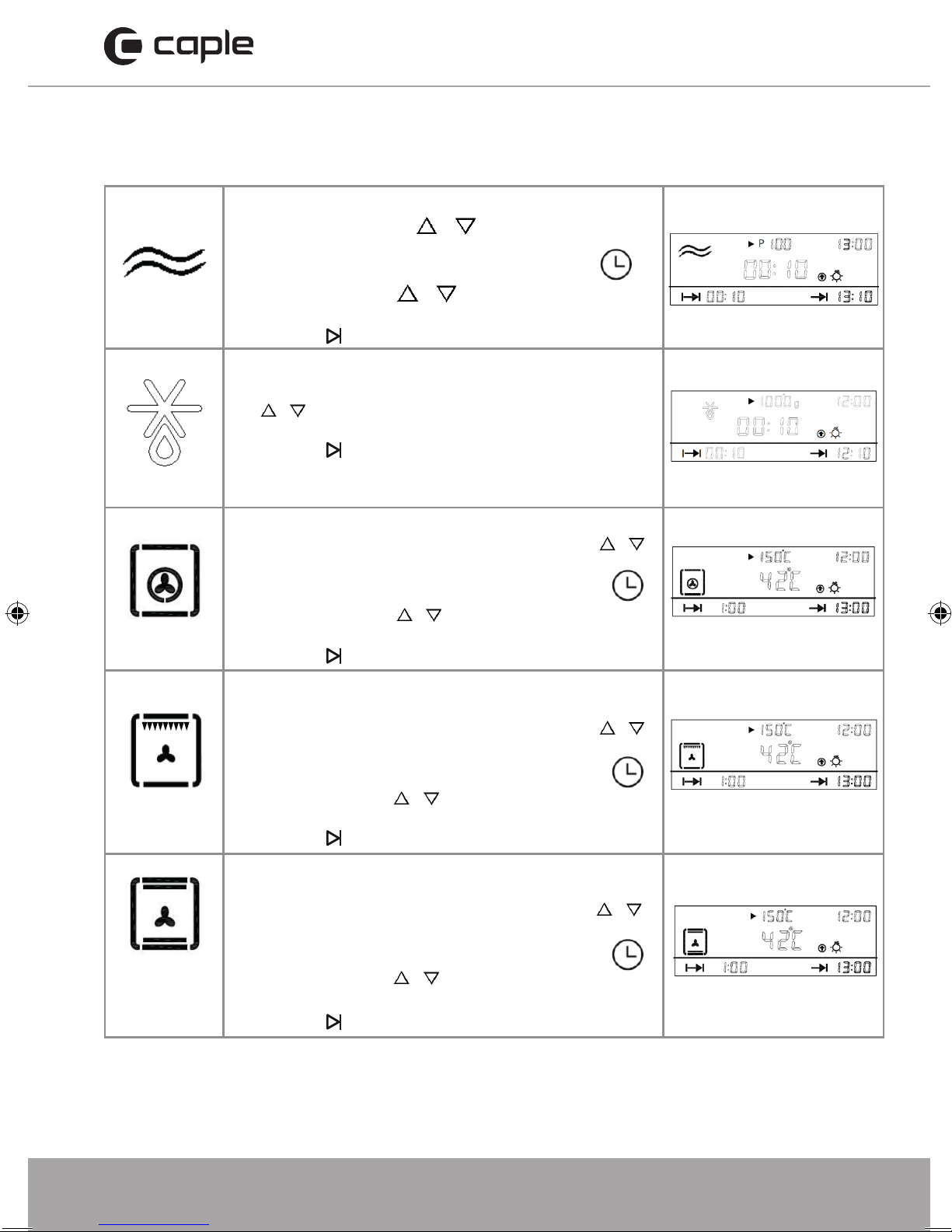

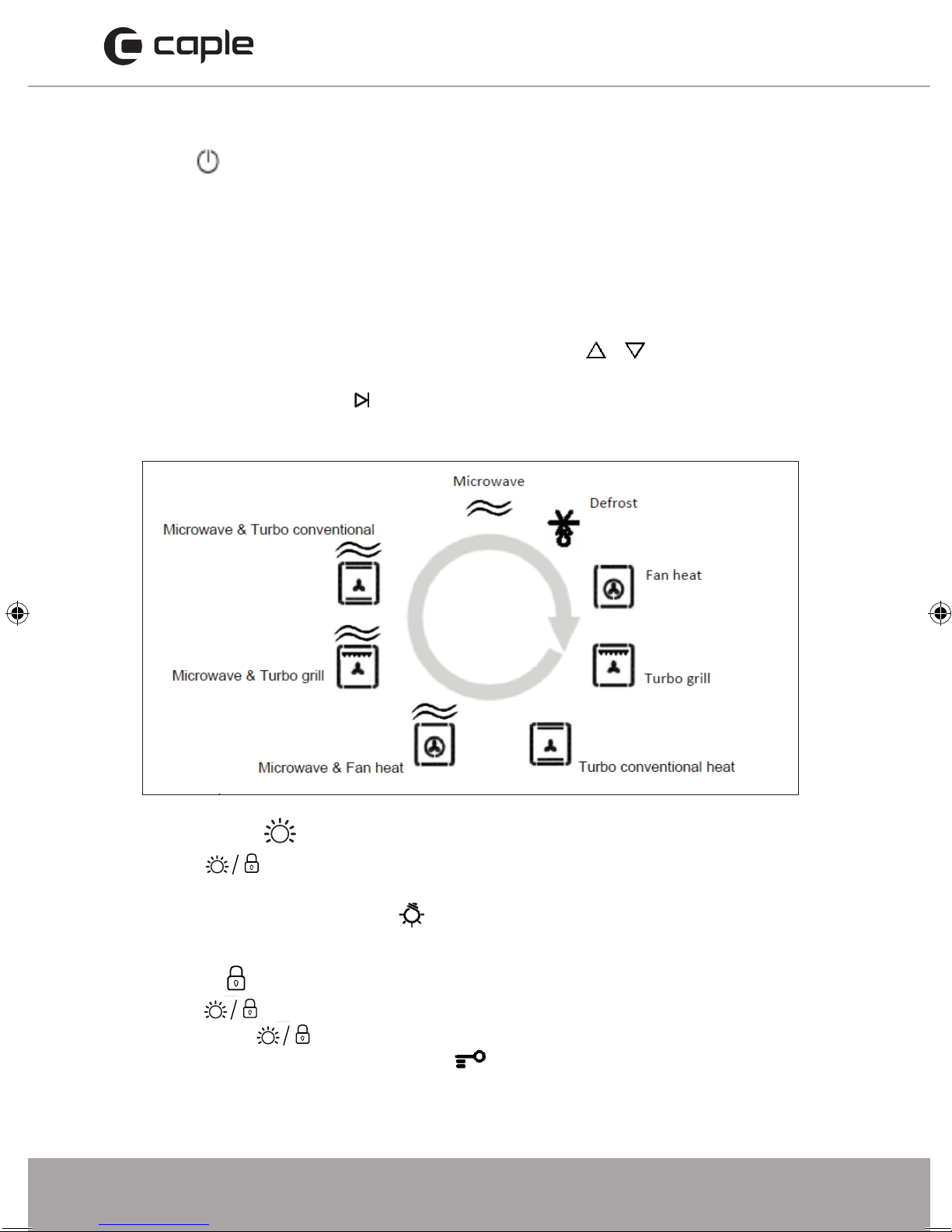

The functions are in the below order:
OPERATION
C / W / g button to enter the
C), power(W) or weight(g) mode depending on what function has been selected.
ELECT to confirm.
OPERATION
C / W / g button to enter the
ELECT to confirm.
OPERATION
C / W / g button to enter the
C), power(W) or weight(g) mode depending on what function has been selected.
ELECT to confirm.
OPERATION
C / W / g button to enter the
C), power(W) or weight(g) mode depending on what function has been selected.
ELECT to confirm.
OPERATION
ELECT to confirm.
OPERATION
C / W / g button to enter the
C), power(W) or weight(g) mode depending on what function has been selected.
ELECT to confirm.
ELECT to confirm.
OPERATION
, SELECT, and
Press the button to turn the oven on. When turned on, the display will light up and the time of day will be shown.
Programme / Function
To select a function, press the PROG button to toggle through the functions and press SELECT once you have reached the required function. Press the °C/W/g button to enter the temperature (°C) , power (W) or weight (g) mode depending on what function has been selected. To adjust the temperature, power or weight, use the keys followed by SELECT to confirm. Once confirmed, press the button to start cooking. The main timer will show the actual temperature, with the set temperature shown above this.
/
Light function
Press the button once to turn the internal microwave oven lights on & off. The lights will automatically turn off after 3 minutes of no operation. When the light is activated the symbol will be shown on the display.
Child lock
Hold the button for 2-3 seconds to activate the child lock. To deactivate, press and hold the button again for 2-3 seconds. When the Child lock is activated, the symbol will be shown on the display.
16
Page 17
Instruction manual CM110
Alarm setting
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
/
, SELECT, and
To set the Alarm/minute minder, press the button until the symbol starts to flash. Use to adjust the time, and then press SELECT to confirm. If you want
/
to cancel the alarm, set the alarm time back to ‘0.00’ and press SELECT to confirm. When the time is up, the alarm will sound for 90 seconds, and the symbol will begin to flash. To stop the alarm, press any button.
Setting the time
To set the time, turn the oven on, and then press and hold the button for 3 seconds until the time begins to flash. Adjust the time using the and then
/
press SELECT to confirm. When the oven is first turned on or restarts, the time must be set before using the oven.
Duration cooking(0-10hrs)
Once a function and temperature have been selected, press the button and the Duration time will start to flash. Press to adjust the time, and then SELECT
/
to confirm. Once the time is up, the alarm will sound and the oven will switch off. Press any of the buttons to turn off the alarm , SELECT, and
/
To cancel Duration cooking set the cooking time to ‘0:00’ and confirm.
End cooking time
Once the Duration cooking time has been set, press twice and the End cooking time should start to flash. Adjust the time to the time you wish cooking to stop and press SELECT to confirm. Your oven will then work out when to turn on, so that it cooks for the required duration time, and finishes at the required end time. E.g. Duration time set at 30 minutes, and the end time set to 18.15, the oven will automatically turn on at
17.45 and cook for 30 minutes on the set function and temperature (start time =
End time - duration time).
17
Page 18
Instruction manual CM110
MICROWAVE OVEN FUNCTIONS
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo conventional - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Press the PROG button to select the following functions.
Microwave - Default power P100 (power range P10-P100). To adjust the power, press until the correct power
is reached followed by Default time is 1 minute. To Adjust the time, press the
button followed by the and
Finally press to start the programme.
Defrost -Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by
the and
Finally press to start the programme. The default time will be adjusted according to the set weight (See the ‘Defrost time table’ for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by .
Press The default time is 1.00hr. To Adjust the time, press the
button followed by the and
/
SELECT to confirm.
/
SELECT.
/
SELECT to confirm.
/
SELECT to confirm.
SELECT to confirm.
/
18
Finally press to start the programme.
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by .
Press
SELECT to confirm.
The default time is 1.00hr. To Adjust the time, press the button followed by the and
Finally press to start the programme.
Turbo conventional - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by .
Press
SELECT to confirm.
The default time is 1.00hr. To Adjust the time, press the button followed by the and
Finally press to start the programme.
/
/
SELECT to confirm.
/
/
SELECT to confirm.
Page 19
Instruction manual CM110
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Fan heat
Microwave default power P50 (Power range P10-P50). Fan heat default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the fan heat temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Symbol Description
Display
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo conventional - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Fan heat
Microwave default power P50 (Power range P10-P50). Fan heat default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the fan heat temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Symbol Description
Display
Microwave & Turbo grill
Microwave default power P50 (Power range P10-P50). Turbo grill default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the Turbo grill temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo conventional - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo grill - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Fan heat
Microwave default power P50 (Power range P10-P50). Fan heat default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the fan heat temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Symbol Description
Display
Microwave & Turbo grill
Microwave default power P50 (Power range P10-P50). Turbo grill default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the Turbo grill temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Turbo conventional heat
Microwave default power P50 (Power range P10-P50). Turbo grill default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the Turbo conventional temperature mode. These can both then be adjusted using the / keys followed by SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Microwave – Default power P100 (power range P10-P100). To adjust the power, press / until the correct power is reached followed by SELECT. Default time is 1 minute. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g). To adjust the weight press the °C/W/g button followed by the / and SELECT to confirm. Finally press to start the programme. The default time will be adjusted according to the set weight (See the 'Defrost time table' for more info).
Fan heat - Default temperature 200°C To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo conventional - Default temperature 200°C (Temperature range 50-220°C). To adjust the temperature press °C/W/g followed by / . Press SELECT to confirm. The default time is 1.00hr. To Adjust the time, press the button followed by the / and SELECT to confirm.
Finally press to start the programme.
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
, SELECT, and
Display
Display
Display
Display
Display
Display
Microwave & Fan heat - Microwave default power P50 (Power range P10-P50). Fan heat default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the fan heat temperature mode. These can both then be adjusted using the keys followed by
SELECT to confirm.
The default time is 1.00hr. To Adjust the time, press the button followed by the and
Finally press to start the programme.
Microwave & Turbo grill - Microwave default power P50 (Power range P10-P50). Turbo grill default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the Turbo grill temperature mode. These can both then be adjusted using the keys followed by
SELECT to confirm.
The default time is 1.00hr. To Adjust the time, press the button followed by the and
Finally press to start the programme.
Microwave & Turbo conventional heat - Microwave default power P50 (Power range P10-P50). Turbo grill default temperature 200°C (Temperature range 50-220°C). Press °C/W/g once to enter the Microwave power mode, and then again to enter the Turbo conventional temperature mode. These can both then be adjusted using the
keys followed by The default time is 1.00hr. To Adjust the time, press the
button followed by the and
Finally press to start the programme.
/
/
SELECT to confirm.
SELECT to confirm.
SELECT to confirm.
/
SELECT to confirm.
/
/
/
19
Page 20
Instruction manual CM110
AUTO COOKING
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（
g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（
g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（
g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Noodles
300
300
Microwave
5
600
Microwave
8
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Noodles
300
300
Microwave
5
600
Microwave
8
Vegetables
200g
100
Microwave
2
200
Microwave
4
300
Microwave
5
400
Microwave
6
Symbol
Description
Display
, SELECT, and
Display
Example
SYMBOL DESCRIPTION DISPLAY
Milk (Auto programme) Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected.
Finally press to start the programme.
Auto Cooking Functions
/
DEFAULT
SYMBOL
WEIGHT
20
250g
500g
300g
200g
WEIGHT
ALTERNATIVES
250 Microwave 2
500 Microwave 4
500 Microwave 19
800 Microwave 22
300 Microwave 5
600 Microwave 8
100 Microwave 2
200 Microwave 4
300 Microwave 5
FUNCTION DURATION
Page 21
Instruction manual CM110
400 Microwave 6
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（
g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Noodles
300
300
Microwave
5
600
Microwave
8
Vegetables
200g
100
Microwave
2
200
Microwave
4
300
Microwave
5
400
Microwave
6
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（
g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Noodles
300
300
Microwave
5
600
Microwave
8
Vegetables
200g
100
Microwave
2
200
Microwave
4
300
Microwave
5
400
Microwave
6
500
Microwave
7
600
Microwave
8
Bread
200g
100
Microwave
1
200
Microwave
2
300
Microwave
3
Symbol
Description
Display
Milk (Auto programme)
Press the Auto programme button until the Milk symbol is displayed. Press the °C/W/g to enter the Weight selection. Use the / to adjust the weight and press SELECT to confirm. The default time will be adjusted according to the weight selected. Finally press to start the programme.
Symbol
Default
weight
Weight
Alternatives
（g）
Function
Duration
(Minutes)
Milk
250g
250
Microwave 2
500
Microwave 4
Soup
500g
500
Microwave
19
800
Microwave
22
Noodles
300
300
Microwave
5
600
Microwave
8
Vegetables
200g
100
Microwave
2
200
Microwave
4
300
Microwave
5
400
Microwave
6
500
Microwave
7
600
Microwave
8
Bread
200g
100
Microwave
1
200
Microwave
2
300
Microwave
3
500g
100
Microwave
3
200
Microwave
5
300
Microwave
6
400
Microwave
7
500
Microwave
8
600
Microwave
9
700
Microwave
10
Symbol
Description
Display
200g
500 Microwave 7
600 Microwave 8
200g
Fish
500g
100 Microwave 1
200 Microwave 2
300 Microwave 3
100 Microwave 3
200 Microwave 5
300 Microwave 6
400 Microwave 7
500 Microwave 8
600 Microwave 9
700 Microwave 10
800 Microwave 11
900 Microwave 12
1000 Microwave 13
21
Page 22
Instruction manual CM110

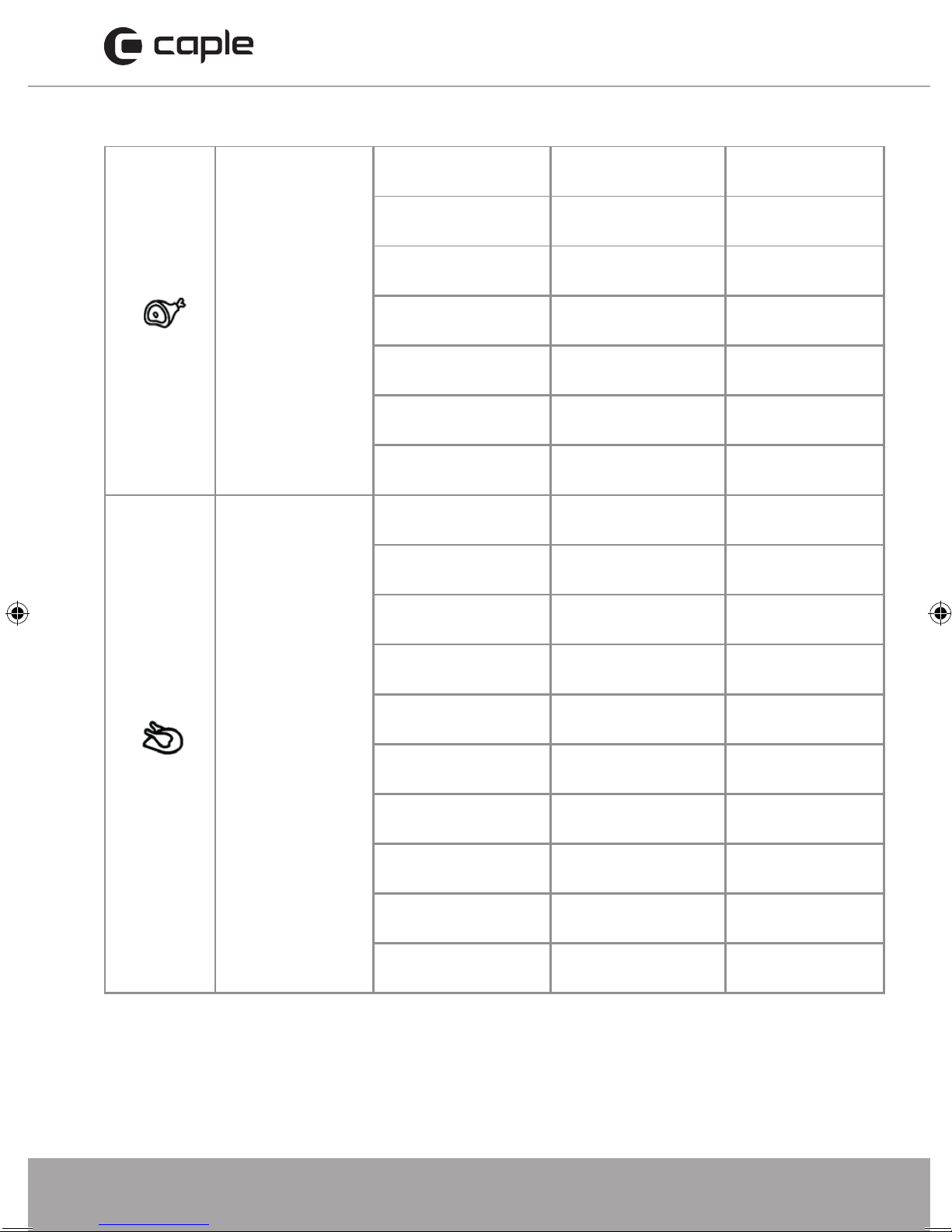

200 Microwave 7
Meat
400
Microwave
10
500
Microwave
12
600
Microwave
14
500g
200
Microwave
7
300
Microwave
8
Meat
400
Microwave
10
500
Microwave
12
600
Microwave
14
800
Microwave
16
1000
Microwave
19
Chicken
1000g
200
Microwave + Grill
15 400 20 600 25 800 30
1000 32 1200 35 1400 40
500g
200
Microwave
7
300
Microwave
8
300 Microwave 8
400 Microwave 10
500g
1000g
500 Microwave 12
600 Microwave 14
800 Microwave 16
100 Microwave 19
200 Microwave + Grill 15
400 Microwave + Grill 20
600 Microwave + Grill 25
800 Microwave + Grill 30
1000 Microwave + Grill 32
1200 Microwave + Grill 35
22
1400 Microwave + Grill 40
1600 Microwave + Grill 46
1800 Microwave + Grill 52
2000 Microwave + Grill 56
Page 23
Instruction manual CM110
DEFROST TIME TABLE
The maximum weight for defrost is 2000g. The default defrost time will be adjusted according to different weight selected.
WEIGHT
(GRAMS)
TIME
(MINUTES)
WEIGHT
(GRAMS)
100 3 1100 22
200 5 1200 24
300 6 1300 26
400 8 1400 28
500 10 1500 30
600 12 1600 32
700 14 1700 34
800 16 1800 36
900 18 1900 38
TIME
(MINUTES)
1000 20 2000 40
23
Page 24
Instruction manual CM110
CARE AND MAINTENANCE
IMPORTANT
Unplug your oven before cleaning, or performing maintenance! To extend the life of your microwave oven, it must be cleaned frequently, keeping in mind that
DO NOT USE STEAM EQUIPMENT TO CLEAN THE APPLIANCE
- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance!
- Don’t clean the appliance when it still hot! The inside and external surface of the oven should preferably be cleaned by damp cloth when it is cooled down.
- Wash all accessories in hot soapy water or in a dishwasher, wipe dry with a paper or cloth towel.
- If you use your oven for an extended period of time, condensation may form. Dry it using a soft cloth.
- There is a seal surrounding the oven opening which guarantees its perfect functioning. Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact Caple service. We recommend you avoid using the oven until it has been repaired.
- Never line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel.
- Clean the glass door using damp cloth and dry it with a soft cloth.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
24
Page 25
Instruction manual CM110
REMOVING THE OVEN DOOR
shown in figure 2.
door backwards and forward slightly);
the door again.

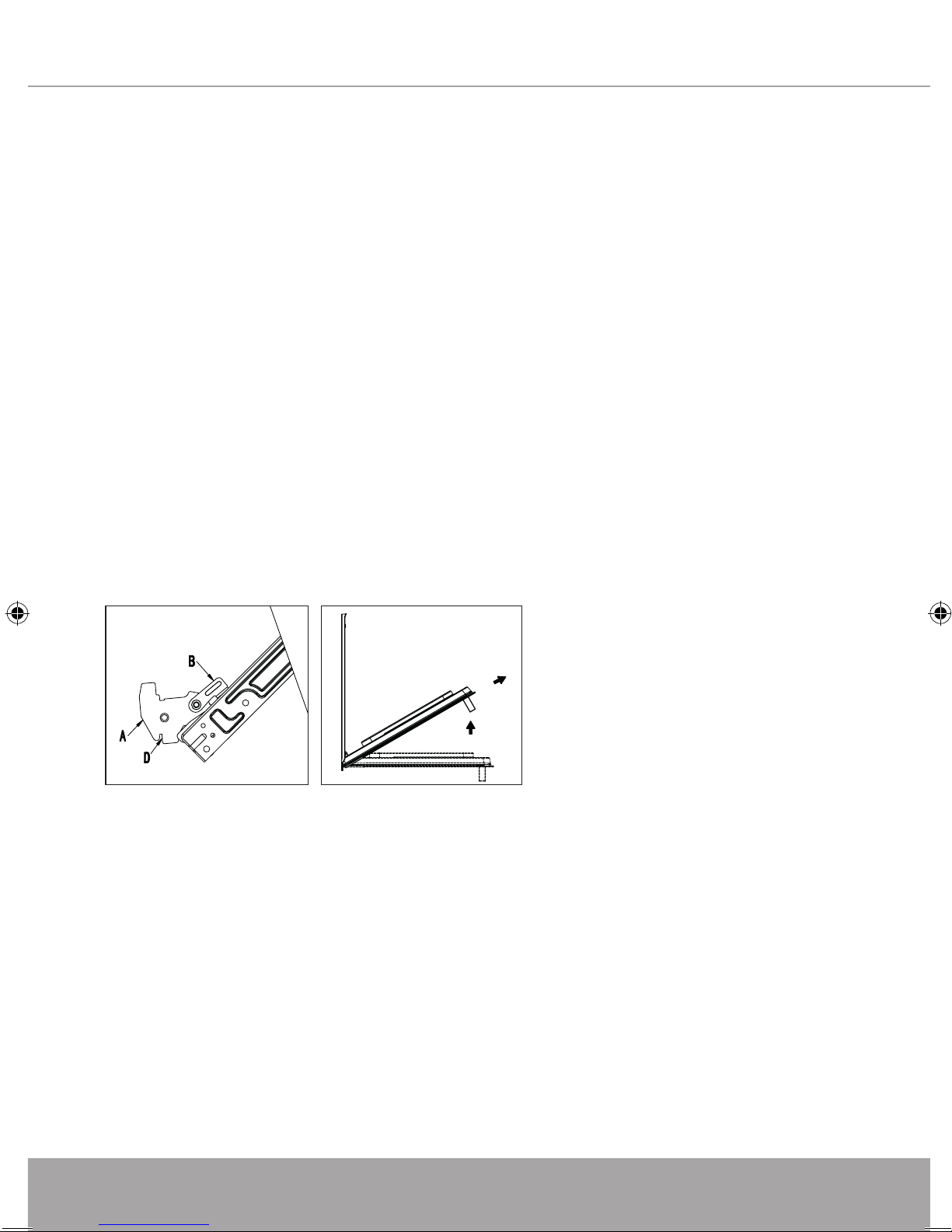

To make it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as follows (fig. 11):
- Open the door completely and lift the 2 levers “B” (fig.11-1);
- Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as shown in figure 2.
- To reassemble the door:
- With the door in a vertical position, insert the two hooks “A” into the slots;
- Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven door backwards and forward slightly);
- Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut the door again.
Fig.11-1 Fig.11-2
25
Page 26
Instruction manual CM110
TROUBLESHOOTING
The oven does not operate Check it is switched on at the mains
There has been a power cut The time is not set
The control panel is not working Check to see if the child lock is on. If so, hold the
lock key to turn it off.
The interior lamp does not illuminate Contact Caple service
E2 error code appears on the screen Interior sensor error. Contact Caple service
TECHNICAL DATA
Built-in
Combination
Microwaves
Built-in Microwave
Model CM110 CM108
Rated voltage 220 - 240V ~ 220 - 240V ~
Rated frequency 50Hz 50Hz
Rated Grill power 2550W -
Rated Microwave Input Power 1500W 1500W
Combination Power 2550W -
Microwave rated output power 1000W 1000W
Volume 40L 40L
26
Page 27
Instruction manual CM110
27
Page 28
Instruction manual CM110
Caple Service Fourth Way Avonmouth Bristol BS11 8DW
t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk
28
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
