Caple C950I Instruction Manual

Instruction manual for induction hob

Model code: C950I

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Summary

Safety ................................................................................................................................ 4

Precautions before using ................................................................................................. 4

Using the appliance ......................................................................................................... 5

Precautions not to damage the appliance ........................................................................ 6

Precautions in case of appliance failure ............................................................................ 6

Other protections ............................................................................................................ 7

Description of the appliance ........................................................................................... 8

Technical data ................................................................................................................. 8

Control panel .................................................................................................................. 8

Using the hob ................................................................................................................... 8

Display ............................................................................................................................. 8

Ventilation ....................................................................................................................... 9

Starting-up and appliance management ....................................................................... 9

Before the first use .......................................................................................................... 9

Induction principe ............................................................................................................ 9

Touch controls ................................................................................................................. 9

Power selection zone and timer setting zone ................................................................... 9

Starting-up .................................................................................................................... 10

Pan detection ................................................................................................................ 10

Residual heat indication ................................................................................................. 10

Booster function ............................................................................................................ 11

Timer ............................................................................................................................. 11

Automatic cooking ........................................................................................................ 12

Pause function ............................................................................................................... 12

Recall Function .............................................................................................................. 13

Keep warm Function ..................................................................................................... 13

Control panel locking .................................................................................................... 13

Cooking advice ............................................................................................................... 14

Pan quality..................................................................................................................... 14

Pan dimensions ............................................................................................................. 14

Examples of power settings ........................................................................................... 15

Maintenance and cleaning ............................................................................................ 15

What to do in case of a problem .................................................................................. 15

Environment protection ................................................................................................ 16

Installation instructions ................................................................................................. 17

4

Safety

Precautions before using

 Unpack all the materials.
 The installation and connecting of the appliance have to be done

by approved specialists. The manufacturer cannot be responsible
for damage caused by installation or connection errors.

 To be used, the appliance must be well-equipped and installed in

a kitchen unit and an adapted and approved work surface.

 This domestic appliance is exclusively for the cooking of food, to

the exclusion of any other domestic, commercial or industrial
use.

 Remove all labels and self-adhesives from the ceramic glass.
 Do not change or alter the appliance.
 The cooking plate cannot be used as freestanding or as a work

surface.

 The appliance must be grounded and connected conforming to

local standards.

 Do not use any extension cables to connect it.
 The appliance cannot be used above a dishwasher or a tumble-

dryer as steam may damage the electronic components.

 The appliance is not intended to be operated by means of an

external timer or separate remote control system.

5

Using the appliance

 Switch the heating zones off after using.
 Keep an eye on the cooking especially when using grease or oils,

which may quickly ignite.

 Be careful not to burn yourself while or after using the appliance.
 Make sure no cable of any fixed or moving appliance makes

contact with the glass or the hot saucepan.

 Magnetic objects (credit cards, floppy disks, calculators) should

not be placed near to the engaged appliance.

 Metallic objects such as knives, forks, spoons and lids should not

be placed on the hob surface since they can get hot.

 In general do not place any metallic object except heating

containers on the glass surface. In case of accidental engaging or
residual heat, objects may heat, melt or even burn.

 Never cover the appliance with a cloth or a protection sheet. This

will become very hot and could catch fire.

 This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

 Children should be supervised to ensure that they do not play

with the appliance.

6

Precautions not to damage the appliance

 Raw pan bottoms or damaged saucepans (not enamelled cast

iron pots,) may damage the ceramic glass.

 Sand or other abrasive materials may damage ceramic glass.
 Avoid dropping objects, even little ones, on the hob glass.
 Do not hit the edges of the glass with saucepans.
 Make sure that the ventilation of the appliance works according

to the manufacturer’s instructions.

 Do not put or leave empty saucepans on the induction hobs.
 Sugar, synthetic materials or aluminium sheets must not make

contact with the heating zones. These may cause breaks or other
alterations of the hob glass by cooling: switch on the appliance
and take them immediately out of the hot heating zone (be
careful: do not burn yourself).

 WARNING: Danger of fire: do not store items on the cooking

surface.

 Never place any hot container over the control panel.

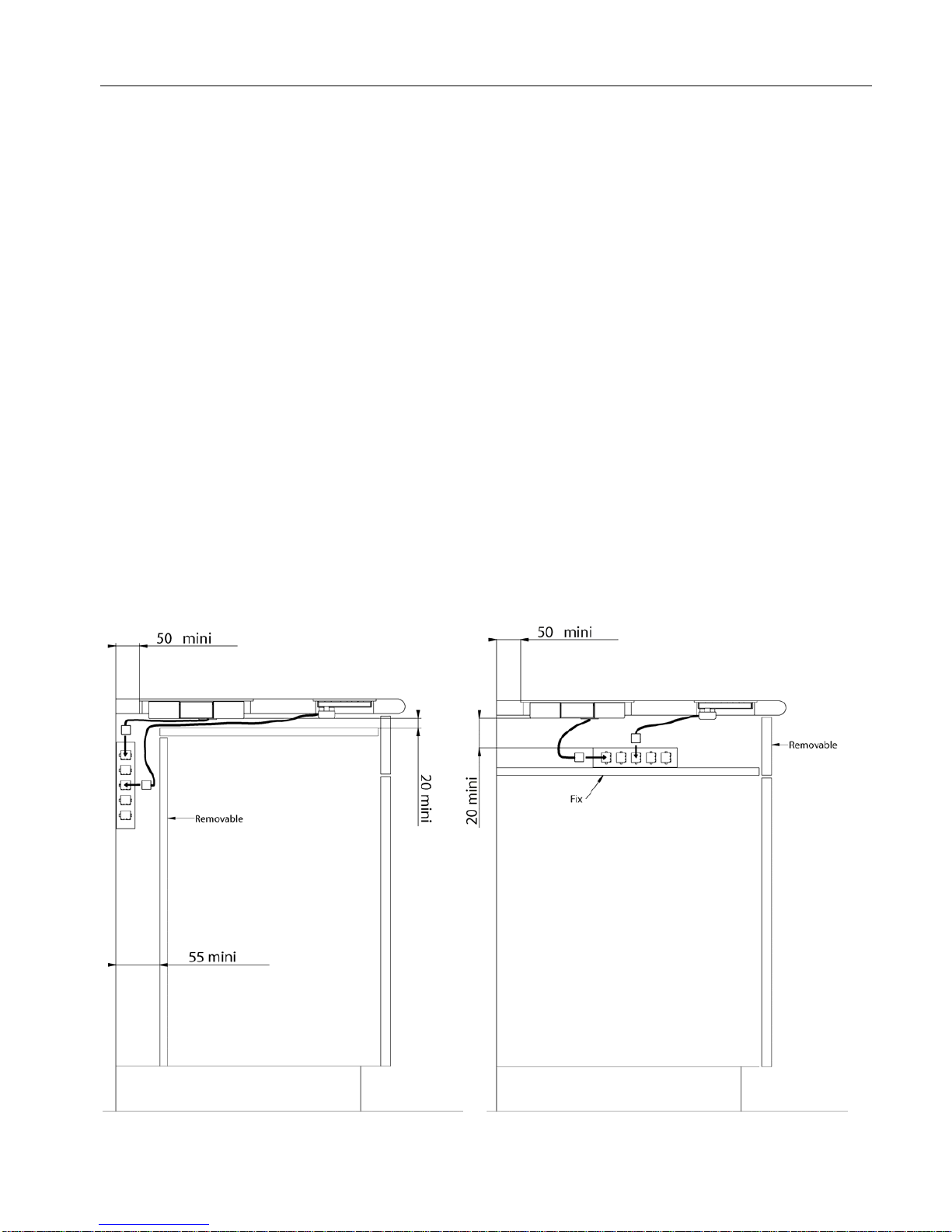

 If a drawer is situated under the embedded appliance, make sure

the space between the contents of the drawer and the lower
part of the appliance is large enough (2 cm). This is essential to
ensure the correct ventilation.

 Never put any inflammable object (for example sprays) into the

drawer situated under the induction hob. Any cutlery drawers
must be resistant to heat.

Precautions in case of appliance failure

 If a defect is noticed, switch off the appliance and turn off the

electrical supply.

 If the ceramic glass is cracked or damaged, you must unplug the

appliance and contact the after sales service.

 Any repairs must be carried out by specialists. Do not open the

appliance by yourself.

 WARNING: If the surface is cracked, switch off the appliance to

avoid the possibility of electric shock.

7

Other warnings

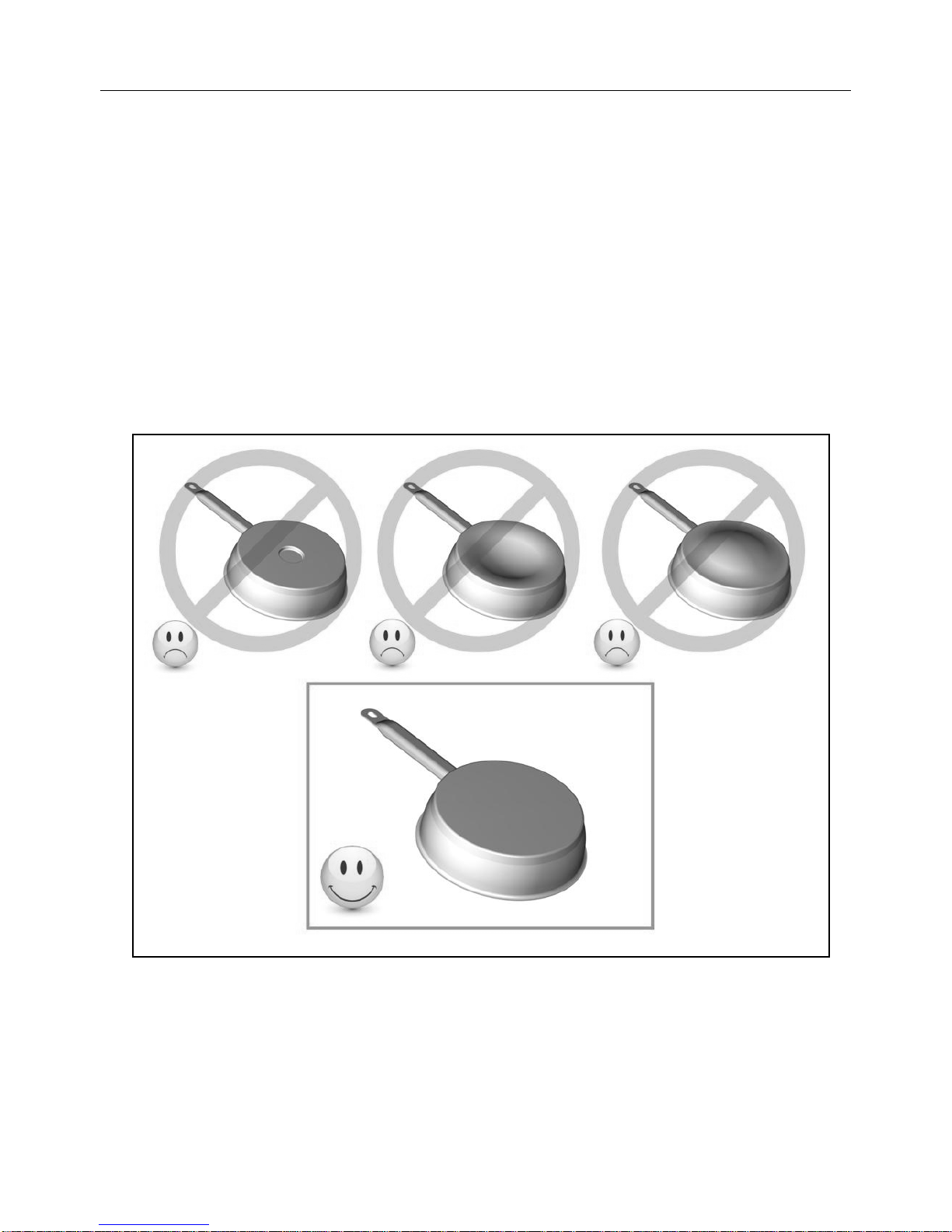

 Make sure that the pot or pan is always centred on the cooking

zone. The bottom of the pan must cover as much of the cooking
zone as possible.

 For users with a pacemaker, the magnetic field could influence

its operation. We recommend getting information from the
retailer or your doctor before using this appliance.

 Do not to use aluminium or synthetic material containers: they

could melt on hot cooking zones (from residual heat).

 NEVER try to extinguish a fire with water, but switch off the

appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POTS OR ANY

INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC

COOKWARE RESULTS IN A WARRANTY BREACH.

IN THIS CASE, THE MANUFACTURER CANNOT BE HELD

RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB

AND/OR ITS ENVIRONMENT.

8

Description of the appliance

Technical data

Type

Total

Power

Diameter Nominal Power * Booster Power *

Minimum diameter

detection

C950I 7400 w

2 zones: 300mm
2 zones: 270mm

2300 W
1100 W

3000 W
1400 W

120 mm

90 mm

* The given power may change according to the dimensions and material of the pan.

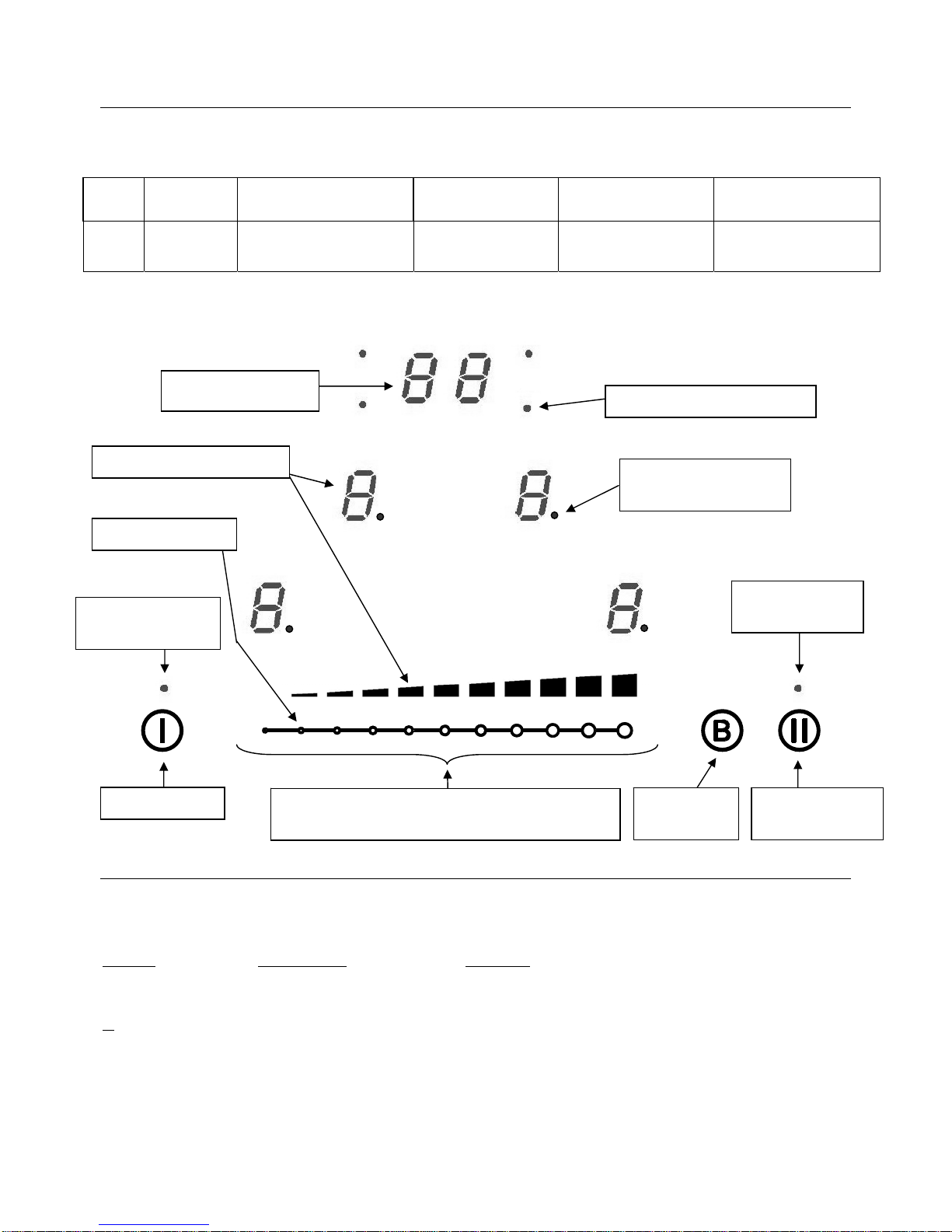

Control panel

Using the hob

Display

Display Designation Function

0. Zero The heating zone is activated.
1…9 Power level Selection of the cooking level.
U Pan detection No pan or inadequate pan.
A Heat accelerator Automatic cooking.
E Error message Electronic failure.
H Residual heat The heating zone is hot.
P Booster The boosted power is activated.
L Lock Control panel is locked.
U Keep warm Automatically maintains a temperature of 70°C.
II Pause The hob is in pause mode.

Power selection zone “Slider” and timer

setting zone

Timer indicator light

Timer display

On/Off key

cooking zone

indicator light

Booster

key

Pause/recall

key

Power display

on/off

indicator light

Pause/Recall

indicator light

Keep warm key

9

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the heat
brought out by the electronic system reach a certain level. The ventilation starts at high speed when
the hob is intensively used. The cooling fan reduces speed and stops automatically when the
electronic circuit is cooled enough.

Starting-up and appliance management

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent
which can cause a blue-tinted colour on the glass surface.

Induction principe

An induction coil is located under each heating zone. When it is engaged, it produces a variable
electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the
pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be made of the correct material:

 All ferromagnetic pans are recommended (please verify it with a small magnet): cast iron

and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms…

 The following are not suitable: copper, pure stainless-steel, aluminium, glass, wood,

ceramic, stoneware…

The induction heating zone adapts automatically to the size of the pan. With a diameter too small
the pan will not work. This diameter is varying in function dependent on the heating zone
diameter.

If the pan is not adapted to the induction hob the display will show [ U ].

Touch controls

Your induction hob is equipped with electronic sensitive touch control keys. When your finger
touches the key, the corresponding command is activated. This activation is validated by a control
light, a letter or a number in the display and/or a “beep” sound.

Note: Touch only one key at a time.

Power selection zone and timer setting zone

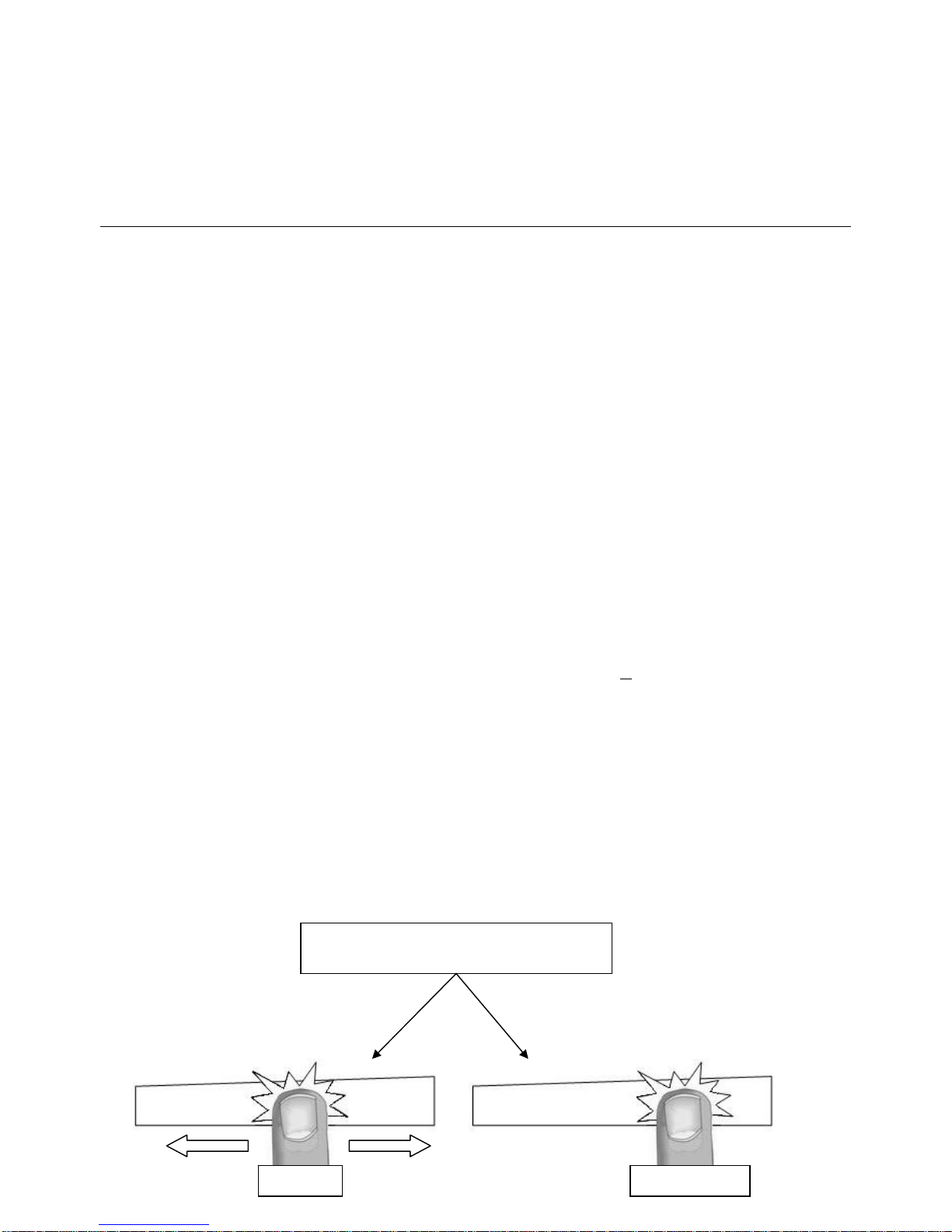

To select the power with the slider, slide your finger on the slider zone. Alternatively you can have a
direct access if you put your finger directly on the chosen level.

Power selection zone “slider” and

timer setting zone

Slider Direct access

10

Starting-up

 Start / switch off the hob:

Action Control panel Display

To start press key [ ] [ 0 ]

To stop press key [ ] nothing or [ H ]

 Start / switch off a heating zone:

Action Control panel Display

Zone selection press display [ 0 ] selected [ 0 ] and control light

on
To set slide on the “slider” [ 0 ] to [ 9 ]
(adjust the power) to the right or to the left

To stop slide to [ 0 ] on “slider” [ 0 ] or [ H ]

If no action is made within 20 second the electronics will return to standby mode.

Pan detection

The pan detection ensures a perfect safety. The induction doesn’t work:

 If there is no pan on the heating zone or if this pan is not adapted to the induction. In this

case it is impossible to increase the power and the display shows [ U ]. This symbol
disappears when a pan is put on the heating zone.

 If the pan is removed from the heating zone the operation is stopped. The display will show

[ U ]. The symbol [ U ] disappears when the pan is put back on the heating zone. The
cooking continues with the power level set before.

After use, switch the heat element off: don’t wait for the pan detection [ U ] to activate.

Residual heat indication

After the switching off of a heating zone or the complete stop of the hob, the heating zones are
still hot and this is indicated by a [ H ] on the display.
The symbol [ H ] disappears when the heating zones can be touched without danger.
As far as the residual heat indicators are illuminated, don’t touch the heating zones and don’t put
any heat sensitive objects on them. There is a risk of burning and fire.

11

Booster function

The booster function [ B ] grants a boost of power to the selected heating zone.
If this function is activated the heating zones work for 10 minutes with an ultra-high power.
The booster is used for example to heat up rapidly big quantities of water, for cooking noodles etc.

 Start / stop the booster function:

Action Control panel Display

Zone selection press key [ 0 ] from the zone [ 0 ] and control light on
Start up the booster press key [ B ] [ P ]
Stop the booster slide on the “slider” [ P ] to [ 0 ]
or press on [ B ] [ 9 ]

 Power management:

The whole cooking hob has a maximum power limit. When the booster function is activated, to
stop the hob exceeding the maximum power, the electronic system automatically reduces the
power level of another heating zone. The display will flash on [ 9 ] for a few seconds and then
shows the maximum power allowed :

Heating zone selected The other heating zone: (example: power level 9)

[ P ] is displayed [ 9 ] goes to [ 6 ] or [ 8 ] depending the type of zone

Timer

The timer is able to be used simultaneous with all 4 heating zones and this can be with different
time settings (from 0 to 99 minutes) for each heating zone.

 Setting and modification of the cooking time :

Example for 16 minutes at power 7 :
Action Control panel Display

Zone selection press display [ 0 ] selected [ 0 ] and indicator light on
Select the power level slide on the “slider “ to [ 7 ] [ 7 ]
Select « Timer » press display [ CL ] [ 00 ]
Set the units slide on the “slider “ to [ 6 ] [ 0 fixed ] [ 6 flashing ]
Validate the units press display [ 06 ] [ 0 flashing] [ 6 fixed ]
Set the tens slide on the “slider “ to [ 1 ] [ 1 flashing] [ 6 fixed ]
Validate the tens press display [ 16 ] [ 16 ]

The time is confirmed and the cooking starts.

 To stop the cooking time:

Example for 13 minutes at power 7 :
Action Control panel Display

Zone selection press display [ 0 ] selected [ 0 ] and indicator light on
Select « Timer » press key [ 13 ] [ 13 ]
Deactivate the units slide on the “slider “ to [ 0 ] [ 1 fixed ] [ 0 flashing]
Validate the units press display [ 10 ] [ 1 flashing] [ 0 fixed ]
Deactivate the tens slide on the “slider “ to [ 0 ] [ 0 flashing] [ 0 fixed ]
Validate the tens press display [ 00 ] [ 00 ]

 Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays a flashing [ 00 ] and a alarm rings.

To stop the sound and the flashing press the key [ 00 ].

12

 Egg timer function :

Example for 29 minutes :
Action Control panel Display

Activate the hob press display [ ] zone control lights are on
Select« Timer » press display [ CL ] [ 00 ]
Set the units slide on the “slider “ to [ 9 ] [ 0 fixed ] [ 9 flashing]
Validate the units press display [ 09 ] [ 0 flashing] [ 9 fixed ]
Set the tens slide on the “slider “ to [ 2 ] [ 2 flashing] [ 9 fixed ]
Validate the tens press display [ 29 ] [ 29 ]

After a few seconds the control light stops flashing.
As soon as the selected cooking time is finished the timer displays a flashing [ 00 ] and a alarm rings.
To stop the sound and the flashing press the display [ 00 ]. The hob now switches off.

Automatic cooking/automatic warm up

All the cooking zones are equipped with an automatic preheat cooking device. The cooking zone
starts at full power for a certain time, then automatically reduces its power to the pre-selected
level.

 Start :

Action Control panel Display

Zone selection press display [ 0 ] selected [ 0 ] and control light on
Full power setting slide on the “slider “ to [ 9 ] pass from [ 0 ] to [ 9 ]
Automatic cooking re-press on display “slider “ [ 9 ] [ 9 ] is flashing with [ A ]
Power level selection slide on the “slider “ to [ 7 ] [ 9 ] pass to [ 8 ] [ 7 ]
(for example « 7 ») [ 7 ] is flashing with [ A ]

 Switching off the automatic cooking :

Action

Control panel Display

Zone selection press [ 7 ] from the zone [ 7 ] flashing
with [ A ]
Power level selection slide on the “slider “ [ 1 ] to [ 9 ]

Pause function

If you need to leave the kitchen, maybe to take a phone call this function stops all the hob’s
cooking activity and allows you to restart with the exact same settings.

 Start/stop the pause function :

Action Control panel Display

Engage pause press [ ] key and hold for 2s displays [ II ] in the
heating zone displays

Exit the pause function press [ ] key and hold for 2s pause indicator light is

flashing
press another touch or pause indicator light is off
slide on the “slider “

13

Recall Function

After switching off the hob, it is possible to recall the last settings:

 cooking stages of all cooking zones (power)
 minutes and seconds of programmed cooking zone-related timers
 Heat up function

The recall procedure is following:

 Press the key [ ]
 Then press the key [ ] for 6 seconds

The previous settings are now activated.

Keep warm function

This function allows to reach and automatically maintain a temperature of 70°C.
This will help to avoid liquids overflowing and fast burning on the bottom of the pan.

 To start the keep warm function:

Action Control panel Display

Zone selection press display [ 0 ] selected [ 0 ] to [ 9 ] or [ H ]
To engage press [ KEEP WARM KEY ] [ U ]
To stop press on display [ U ] selected [ U ]

slide on the “slider “ [ 0 ] to [ 9 ] or [ H ]

This function can be started independently on all the heating zones.
When the pan leaves the cooking zone, the "Keep warm" function remains active for
approximately 10 minutes.
The maximum duration of this function is 2 hours.

Control panel locking/Child lock

To avoid modifying a setting of the cooking zones, in particular during cleaning, the control panel
can be locked (with exception to the on/off key [ ]).

 To lock :

Action Control panel Display

Start press on key [ ] [ 0 ] or [ H ]
Lock function press simultaneously [ B ] and [ 0 ] no modification

from the right zone display

re-press on display [ 0 ] [ L ]

 To unlock :

Action Control panel Display

Start press on key [ ] [ L ]

Within the 5 seconds after starting :

Unlocking the hob press simultaneously [ B ] and [ 0 ] or [ H ]

[ L ] from the right zone display

press on key [ B ] no indicator light on the

displays

14

Cooking advice

Pan quality

Recommended materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel,

aluminium with a ferromagnetic bottom.

Materials not suitable: aluminium and stainless-steel without a ferromagnetic bottom,

copper, brass, glass, ceramic, porcelain.
The manufacturers specify if their products are compatible induction.
To check if pans are compatible:

 Put a little water in a pan placed on an induction heating zone set at level [ 9 ].This water

should heat in a few seconds.

 Check to see if a magnet sticks to the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise
doesn’t mean any failure on the appliance and doesn’t influence the cooking operating. It is
normal.

Pan dimensions

The cooking zones until a certain limit, automatically adapt to the diameter of the pan. However
the bottom of this pan must have a minimum diameter according to the corresponding cooking
zone.

To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

15

Examples of power setting

(The values below are indicative)

1 to 2 Melting

Reheating

Sauces, butter, chocolate, gelatine
Dishes prepared beforehand

2 to 3 Simmering

Defrosting

Rice, pudding, sugar syrup

Dried vegetables, fish, frozen products
3 to 4 Steam Vegetables, fish, meat
4 to 5 Water Steamed potatoes, soups, pasta,

fresh vegetables
6 to 7 Medium cooking

Simmering

Meat, liver, eggs, sausages

goulash, roulade, tripe
7 to 8 Cooking Potatoes, fritters, wafers
9 Frying, roasting

Boiling water

Steaks, omelettes, fried dishes

Water
P Frying, roasting

Boiling water

Scallops, steaks

Boiling significant quantities of water

Maintenance and cleaning

Switch-off the appliance before cleaning.
Do not clean the hob if the glass is too hot because there is a risk of burning.

 Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then

rinse with cold water and dry the surface thoroughly.

 Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches

must be absolutely avoided.

 Do not ever use any steam-cleaner or pressure washer.
 Do not use any object that may scratch the ceramic glass.
 Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic

hob or on the pan. Sliding rough saucepans will scratch the surface.

 Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the

surface being damaged.

What to do in case of a problem

The hob or the cooking zone doesn’t start-up

 The hob is badly connected on the electrical network.
 The protection fuse has cut-off
 The lock function is activated
 The touch control keys are covered with grease or water.
 An object has been put on a key.

The symbol [ U ] displays

 There is no pan on the cooking zone.
 The pan is not compatible with induction.
 The bottom diameter of the pan is too small.

The symbol [ C ] or [ E ] displays

 Contact Caple Service by telephoning 0117 938 7420 or emailing [e-mail]

The control panel displays [ L ]:

Refer to the chapter control panel locking.

16

One or all cooking zones switch off

 The safety system has functioned
 You forgot to switch off the cooking zone for a long time.
 One or more touch control keys are covered.
 The pan is empty and its bottom has overheated.
 The hob also has an automatic reduction of power level and automatic overheating

protection.

Continuous ventilation after switching off the hob

 This is not a failure, the fan is continuous to protect the electronic devices.
 The fan cooling will stop automatically once the hob has cooled.

The automatic cooking system « go and stop » doesn’t start-up:

 The cooking zone is still hot [ H ]
 The highest power level is set [ 9 ]

The control panel displays [ II ]:

 Refer to the chapter covering the pause function.

The control panel displays [ ] or [ Er03 ] :

 An object or liquid is covering the touch control keys. The symbol will disappear as soon as

the key is released or cleaned.

The control panel displays [ E2 ] :

 The hob has overheated, let it cool and then turn it on again.

The control panel displays [ E3 ] ou [ E7 ] :

 The pan is not suitable for induction cooking, change the pan.

If one of the symbols above persists, contact Caple Service by telephone [phone] or by
email [e-mail].

Environment protection

Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.

This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.

17

Installation instructions

The installation comes under the exclusive responsibility of specialists.
The installer is held to respect the legislation and the standards enforce in his home country.

How to apply the gasket

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
The installation has to be done carefully, in conformity of the following drawing.

 Ensure that there is a distance of 50 mm between the hob and the wall or sides.
 The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed

with plenty of space on either side. There may be a wall at the rear and tall units or a wall at
one side. On the other side, however, no unit or divider must stand higher than the
hob.

 The piece of furniture or the support in which the hob is to be fitted, as well as the edges of

furniture, the laminate coatings and the glue used to fix them, must be able to resist
temperatures of up to 100 °C.

 Any mural edges rods must be heat-resistant.
 Materials which are often used to make worktops expand on contact with water. To protect

the cut edge, apply a coat of varnish or special sealant. Particular care must be given to
applying the adhesive joint supplied with the hob to prevent any leakage into the supporting
furniture. This gasket ensures a correct seal when used in conjunction with smooth work top
surfaces.

 Not to install the hob to the top of a not ventilated oven or a dishwasher.
 Ensure there is a space of 20 mm under the bottom of the hob casing to ensure the correct

air circulation of the electronic device.

 If a drawer is placed under the worktop, avoid putting flammable objects (for example:

sprays) or not heat-resistant objects in to this drawer.

 The safety gap between the hob and the cooker hood placed above must respect the

indications of the hood manufacturer. In the absence of instructions a minimum distance of
760 mm must be used.

 The connection cable should not be subjected after installation to any mechanical constraint,

for example that of a drawer.

 WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or

indicated by the manufacturer of the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

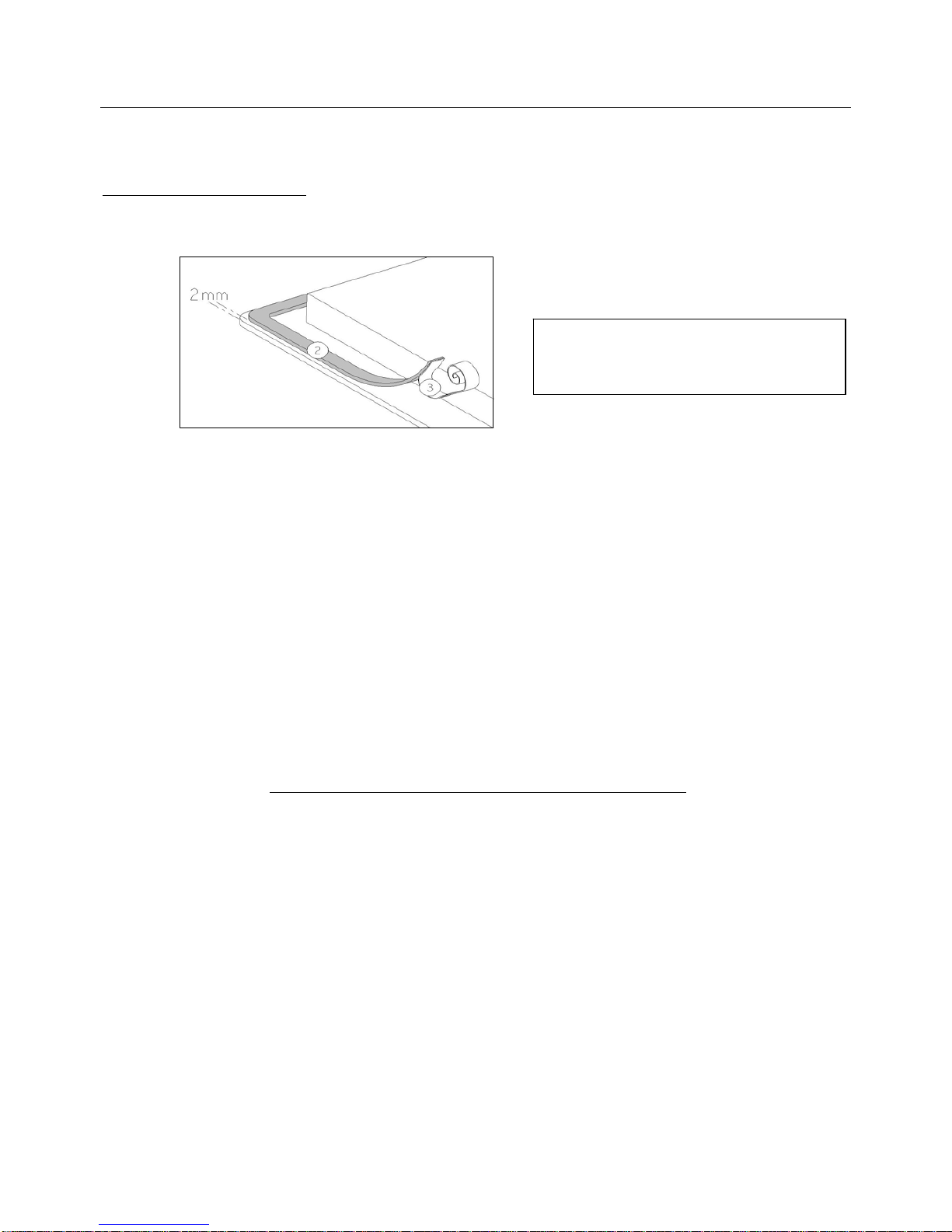

Stick the gasket (2) two millimeters from
the external edge of the glass, after
removing the protection sheet (3).

CE Declarations of Conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low
Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC).

Caple

Fourth Way

Avonmouth

Bristol

BS11 8DW

www.caple.co.uk

19566/0

Installation guide for induction hob

Model code: C950I

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

2

Summary

Description of the appliance ...................................................................................................... 3

Appliances and installation dimensions ....................................................................................... 3

Installation of the multizones ................................................................................................... 3

Installation ................................................................................................................................. 4

Ventilation ................................................................................................................................. 4

Installation instructions .............................................................................................................. 5

Connecting the different elements ........................................................................................... 6

Connecting the cooking zones ................................................................................................... 6

Configeration procedure ............................................................................................................ 7

What to do in case of a problem ............................................................................................... 7

Electrical connection ................................................................................................................... 8

3

Description of the appliance

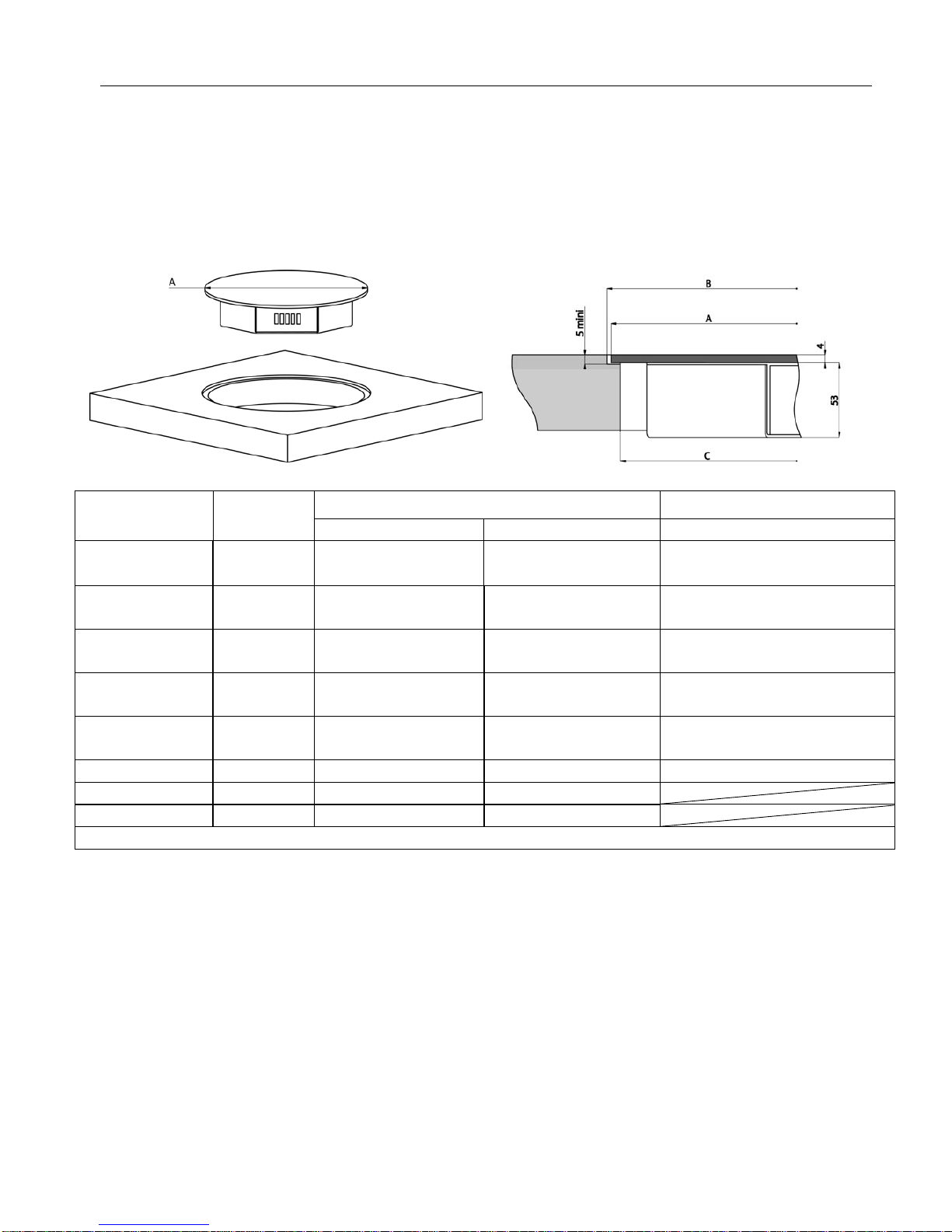

Appliances and installation dimensions

Please refer to the worktop manufacturer for the minimum spacing required between each
zone cut out to maintain the required supporting strength.

Dimension

Heating zone Finger touch

5 7 C

Part reference C950I-002 C950I-003 C950I-001

Dimension of

glass

A 270mm 300mm 275 x 150 – R75

Diameter of the

throat

B 272mm 302mm 279 x 154 – R77

Thickness of

glass

4mm 4mm 4mm

Cut-out

Dimension

C 254mm 284mm 265 x 140 – R70

Height total 57mm 57mm 35mm

Power 1100W 2300W

Booster power 1400W 3000W

The dimensions of technical box C950I-004 are: 270x210x48mm

Flush line installation Standard installation

4

Installation of the multizones

Installation

 Unpack all the components.
 The installation and connection of the appliance must be done by approved specialists. The

manufacturer cannot be held responsible for damage caused by the installation or any
connection errors.

 The appliance must be installed into a kitchen unit and an adapted and approved work surface.
 This domestic appliance is to be used exclusively for the cooking of food, it must not be used

for any other domestic, commercial or industrial use.

 Remove all labels and self-adhesives from the ceramic glass.
 Do not transform or modify the appliance.
 The cooking zones and the control panel should not be used as a support or worktop.
 The appliance must be grounded and connected conforming to all local standards.
 Do not use any extension cables to connect it.
 The appliance cannot be used above a dishwasher or a tumble-dryer as steam may damage the

electronic components.

 Please refer to the worktop manufacturer for the minimum spacing required between each

zone cut out to maintain the required supporting strength.

Ventilation

Important: the cooling system needs adequate airflow.

Ensure you adhere to the ventilation space shown in the below diagrams:

5

Installation instructions

The installation comes under the exclusive responsibility of specialists.
The installer is held to respect the legislation and the standards used in his home country.

Fitting - installing:

 Ensure that there is a distance of 50mm between the hob and the wall or sides.
 The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with

plenty of space on either side. There may be a wall at the rear and tall units or a wall at one
side. On the other side, however, no unit or divider must stand higher than the hob.

 The worktop or the support in which the hob is to be fitted, as well as the edges of furniture,

the laminate coatings and the glue used to fix them, must be able to resist temperatures of up
to 100°C.

 The mural rods at the edge must be heat-resistant.
 Materials which are often used to make worktops expand on contact with water. To protect

the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to
applying the foam joint strip supplied with the hob to prevent any leakage into the supporting
furniture. This gasket helps to guarantee a good seal when used in conjunction with smooth
work top surfaces. Further to this each zone and the control panel should be sealed in position
with a silicone sealent. We recommend using one which either matches the work surface or
hob glass ot provide the best finish.

 When sealing the hob sections into the cutout with silicone, please cafefully place some weight

on the top of each zone including the control panel while the silicone sets (for example a pan
filled with cold water). This will help to ensure the hob seals and fixes into the correct position.

 NOTE: although you are sealing the hob with silicone, the foam joint strip supplied with the

hob must also be used.

 Do not install the hob onto the top of a non ventilated oven or a dishwasher.
 Ensure there is a space of 20 mm beneth the hob casing to allow for good air circulation

around the electronic devices.

 If a drawer is placed under the worktop, avoid putting flammable objects (for example: sprays)

and any other non heat-resistant objects into this drawer.

 The safety gap between the hob and the cooker hood placed above must respect the

indications of the hood manufacturer. In the absence of any instructions a minimum distance
of 760 mm should be used.

 After installation the connection cable should not be subjected to any mechanical constraint,

for example a drawer.

 WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or

indicated by the manufacturer of the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

 NOTE : Please refer to the worktop manufacturer for the minimum spacing required between

each zone cut out to maintain the required supporting strength.

 If any of the above is unclear, please contact Caple Service for advice on the installaiton before

begining the proceedure.

6

Connecting the different elements

The installation of this appliance and the connection to the electrical network should be made by an
electrician perfectly aware, and in respect of the normative regulations

Connecting the cooking zones

Each connector of the cooking zones, is located by a sticker with the classification from
5 to 8 corresponds to:

 5: Heating zone 1100 W / Glass diameter 270mm
 7: Heating zone 2300 W / Glass diameter 300mm
 The touch control electronic is located in “C” on the connector

On the technical box, near the female connectors are written: 5-6-7-8-C.

Connect the touch control with the “C” of the technical box.
Connect the heating zones with the corresponding number on the technical box.
To connect easily, begin with the largest number of the heating zones.

Note: - It is strictly forbidden to lengthen or shorten the wire of the cooking zones.

- We do not take any responsibility in the case of not respecting the connections
indicated and the safety warnings.

7

Configeration procedure

The table must be configured. Please implement the following steps:

I) Important! Before you start, make sure there are no pots or pans on the hob
II) Disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off
III) Reconnect the hob to the grid
IV) Procedure:

* Take a pot with a ferromagnetic bottom with a minimum diameter of 16 cm
* start the procedure within 2 minutes after reconnecting the hob to the grid

* don’t use the [ ] touch

V) First step: cancel the existing configuration

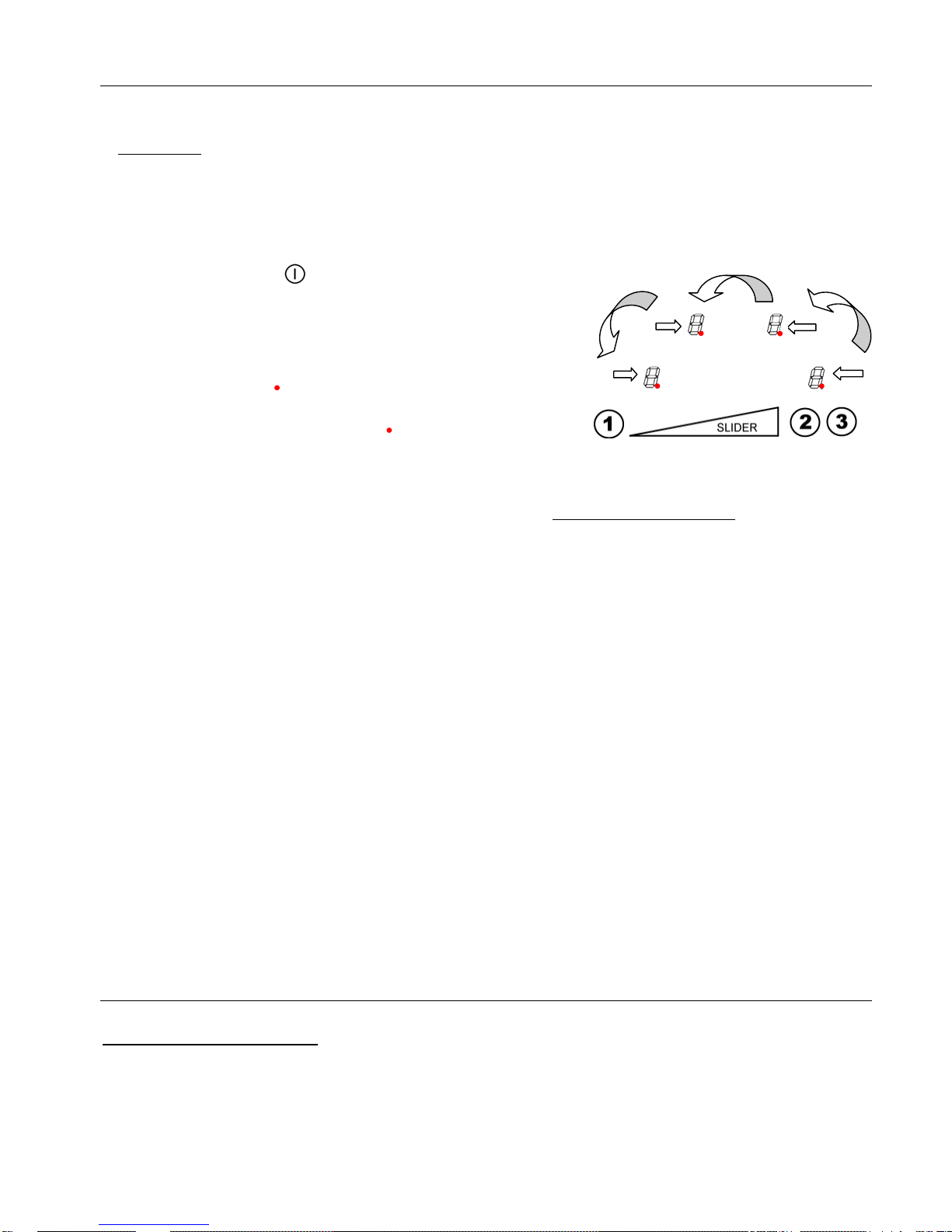

1) Press the touch n°2 and hold down

2) The symbol [ ] will appear on each display

3) With your other hand, press successively and

quickly (less than 2s) on each [ ] display.
Begin from the front right side and go counter
clockwise, as shown on the picture (a -> b -> c -> d)).
A double "beep" means an error has occurred. If so, start again from step 1).

4) Remove your fingers from the touch control, then push again on touch 1 for a few
seconds, until a blinking [ E ] symbol appear.

5) Wait until the [ E ] symbol stop blinking.

6) After few seconds, [ E ] is automatically transformed in [ C ].

The existing setup has been cancelled.

VI) Second step: new setup

1) Take a pot with a ferromagnetic bottom with a minimum diameter of 16 cm

2) Select a cooking zone by pushing on the corresponding [ C ] display

3) Place the pot on the area to be set

4) Wait until the [ C ] display becomes a [ - ]. The selected cooking zone is now

configured.

5) Follow the same procedure for each cooking zone with a [ C ] display.

6) All the cooking zones are configured once all the displays are turned off.

Note: …..Please use the same pot for the whole procedure.
Never put several pots together on the zones during the setup-process.

What to do in case of a problem

The symbol [ E4] appears :

 Reconfigure the table
 If the symbol remains, please contact Caple service on 0117 938 7420 or by

email [e-mail]

8

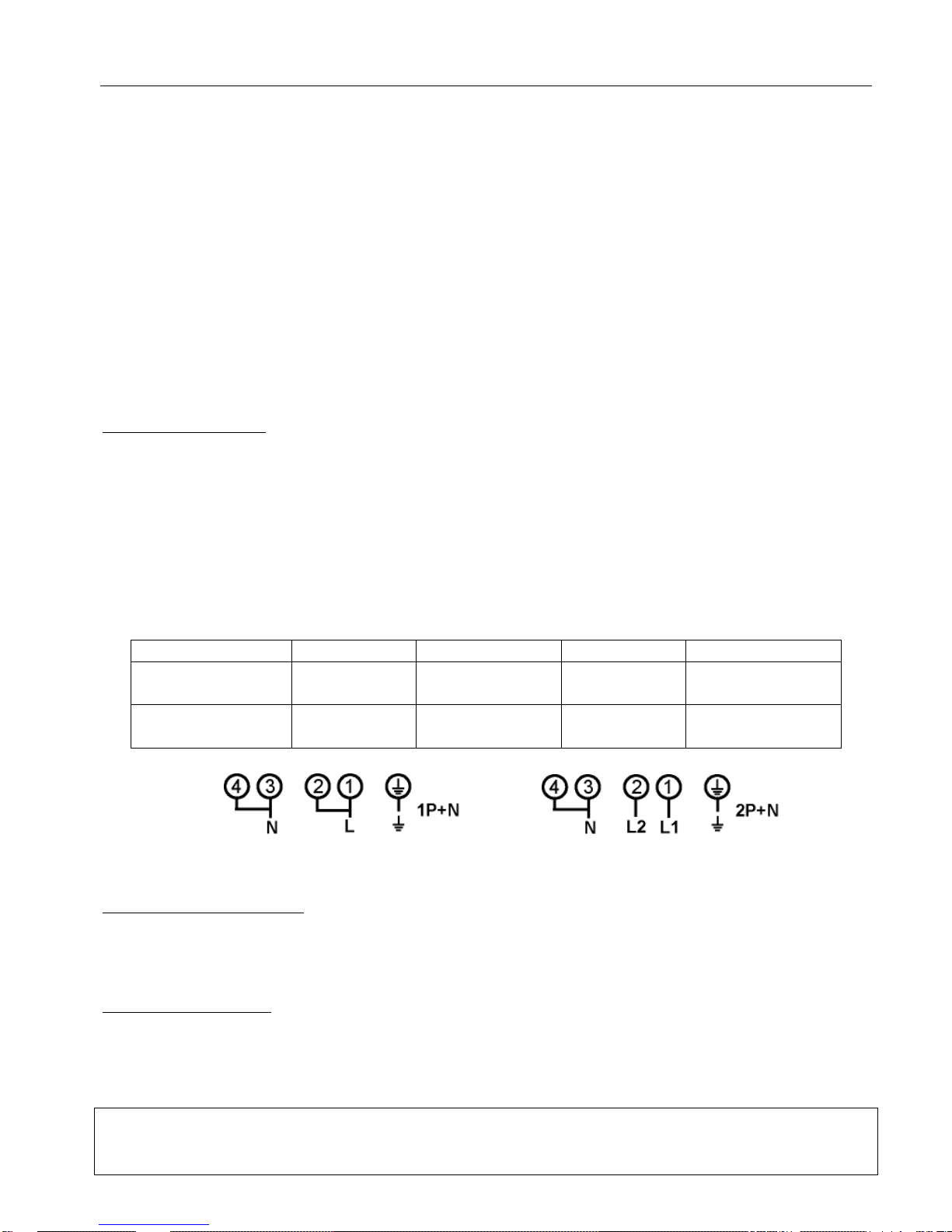

Electrical connection

 The installation of this appliance and the connection to the electrical network should be en-

trusted only to an electrician who will comply to the normative regulations and who respects
them scrupulously.

 Protection against parts under tension must be ensured after the installation.
 The necessary data for connection is on the stickers placed on the hob casing near the connec-

tion box.

 The connection to the mains must be made using an earthed plug or via an omnipolar circuit

breaking device with a contact opening of at least 3 mm.

 The electrical circuit must be separated from the network by adapted devices, for example: cir-

cuit breakers, fuses or contactors.

 If the appliance is not fitted with an accessible plug, disconnecting means must be incorpo-

rated in the fixed installation, in accordance with the installation regulations.

 The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or

oven.

Connecting the hob

For the various kinds of connection, use the brass bridges which are supplied in the box next to the
terminal.

Caution!

- Always connect the earth wire.

- Respect the connection diagram.

- This device is intended for a supply of 230 V ~ 50/60 Hz

- The connection box is located underneath at the back of the hob casing. To open the cover use a
medium size screwdriver. Place it in the slits and open the cover.

* calculated with the simultaneous factor following the standard EN 60 335-2-6

Important
It is forbidden to extent or to shorten the liaison wires area of the cooking zones ( 5,6,7,8) Only the
control panel © may be extended (Only use our original extension cable ref: A10506/0).

Monophase 230V~1P+N:

Put the 1st bridge between terminal 1 and 2, the 2nd between 3 and 4.
Attach the earth to the terminate “earth”, the neutral N to terminal 3 or 4, the Phase L to one of the
terminals 1 or 2.

Biphase 400V~2P+N:

Put a bridge between terminal 3 and 4.
Attach the earth to the terminate “earth”, the neutral N to terminal 3 or 4, the Phase L1 to the
terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.
We cannot be held responsible for any incident resulting from incorrect connection or which

could arise from the use of an appliance which has not been earthed or has been equipped
with a faulty earth connection.

Mains Connection Cable diameter Cable Protection calibre

230V~ 50/60Hz 1 Phase + N 3 x 2,5 mm²

H 05 VV - F
H 05 RR - F

25 A *

400V~ 50/60Hz 2 Phases + N 4 x 1.5 mm²

H 05 VV - F
H 05 RR - F

16 A *

9

10

11

12

Caple

Fourth Way

Avonmouth

Bristol

BS11 8DW

www.caple.co.uk

19565/0
