Caple C876I Instruction Manual

Page 1

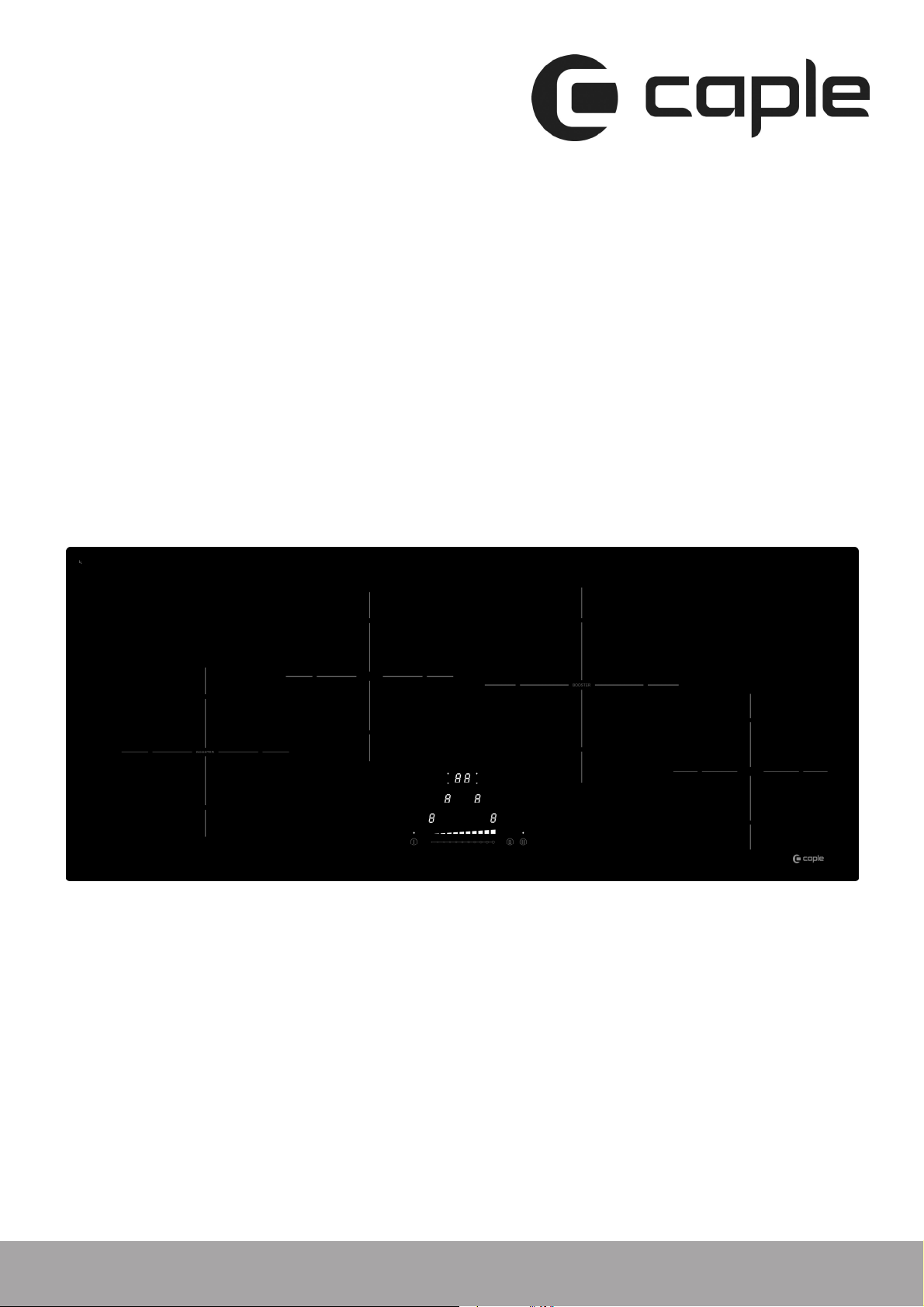

Instruction manual for induction hob
Model code: C876I
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
www.caple.co.uk
Page 2
SUMMARY
SAFETY ......................................................................................................................................... 3
PRECAUTIONS BEFORE USING ........................................................................................................ 3
USING THE APPLIANCE .................................................................................................................. 3
PRECAUTIONS IN CASE OF APPLIANCE FAILURE ................................................................................ 5
OTHER PROTECTIONS ................................................................................................................... 5
DESCRIPTION OF THE APPLIANCE ........................................................................................... 6
TECHNICAL CHARACTERISTICS ....................................................................................................... 6
CONTROL PANEL .......................................................................................................................... 7
USE OF THE APPLIANCE ............................................................................................................ 7
DISPLAY ...................................................................................................................................... 7
VENTILATION ................................................................................................................................ 7
STARTING-UP AND APPLIANCE MANAGEMENT ..................................................................... 8
BEFORE THE FIRST USE ................................................................................................................. 8
INDUCTION PRINCIPLE ................................................................................................................... 8
SENSITIVE TOUCH ......................................................................................................................... 8
POWER SELECTION ZONE “SLIDER” AND TIMER SETTING ZONE ........................................................ 8
STARTING-UP .............................................................................................................................. 9
PAN DETECTION .......................................................................................................................... 9
RESIDUAL HEAT INDICATION ......................................................................................................... 9
BOOSTER FUNCTION .................................................................................................................... 9
TIMER ....................................................................................................................................... 10
AUTOMATIC COOKING ................................................................................................................. 11
PAUSE FUNCTION ....................................................................................................................... 11
RECALL FUNCTION ..................................................................................................................... 11
BRIDGE FUNCTION ..................................................................................................................... 12
“KEEP WARM FUNCTION ............................................................................................................. 12
CONTROL PANEL LOCKING ........................................................................................................... 12
COOKING ADVICES ................................................................................................................... 13
PAN QUALITY ............................................................................................................................. 13
PAN DIMENSION .......................................................................................................................... 13
EXAMPLES OF COOKING POWER SETTING ...................................................................................... 14
MAINTENANCE AND CLEANING .............................................................................................. 14
TROUBLESHOOTING.................................................................................................................. 14
ENVIRONMENTAL PROTECTION................................................................................................ 16
INSTALLATION INSTRUCTIONS ................................................................................................ 17

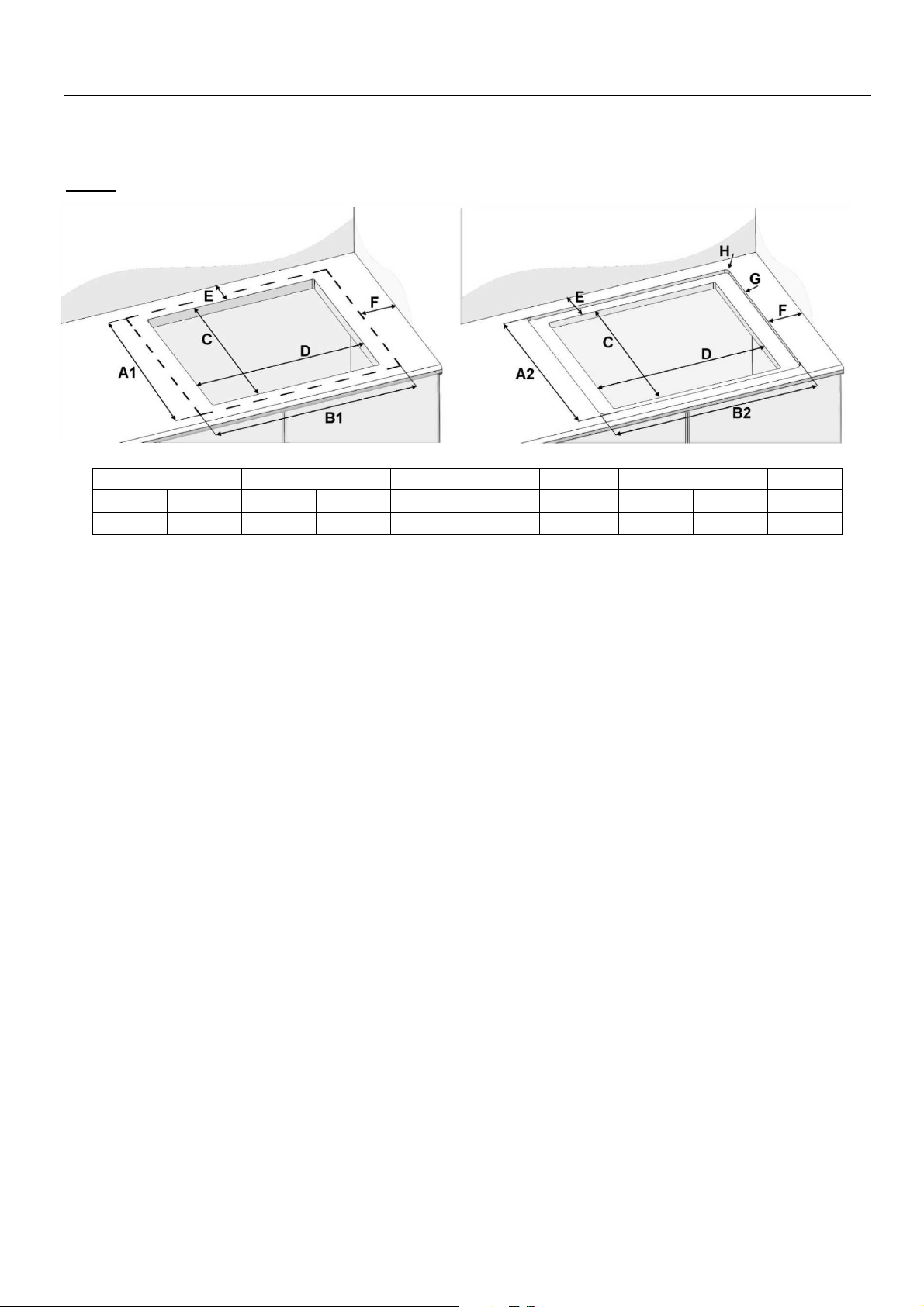

CUT OUT AND FLUSH MOUNTING ............................................................................................ 19
ELECTRICAL CONNECTION ....................................................................................................... 19
Page 3
SAFETY
Precautions before using
Unpack the hob and all associated components, taking care not to
lose or mishandle any parts.
The appliance must be installed by a suitably qualified professional
and connected to the electricity supply by a qualified electrician who will comply with the local regulations. The manufacturer cannot be held responsible for damage caused by wrong installation or connection.
The appliance must be installed in a purpose-designed kitchen unit
and worktop cut out as specified below
This hob has been designed for use only as a domestic cooking
appliance. Any other use is potentially dangerous and will invalidate the guarantee
Remove all labels and other packaging materials from the ceramic
surface prior to use
Do not modify the appliance in any way as this will invalidate the
guarantee and is potentially dangerous
The hob must not be used as a freestanding appliance or as a
worktop.
This appliance must be connected to the electricity supply
according to the local regulations. It must be suitably earthed.
Do not use any extension cable to connect the hob.
This appliance must not be installed above a dishwasher or tumble
dryer as steam may damage the electronic components.
This appliance must not be controlled by external tools like
separate timer or separate remote control system.
Using the appliance
Always switch cooking zones off after use.
Take particular care when cooking with oils or fats that may ignite.
Cooking pans and ustensils and the hob itself become hot during
use. Caution, risk of injury to people and pets both during and after use.
Ensure no cable from any other appliance can come into contact
with the hob top or pans during use.
3
Page 4
Magnetic objects (such as credit cards, portable electronic
devices; etc.) must not be placed near the appliance during use.
Metal objects such as knives, forks, lids etc. must not be placed
on the hob as they may become hot.
Don’t place any metallic object other than suitable pans on the
hob. In case of untimely activation or residual heat, metallic objects may become hot, melt or even burn.
Never cover the hob with any cloth or other cover. This
may become hot and create a fire hazard.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Precautions not to damage the appliance
Use of damaged pans or those with raw cast iron bottoms may
damage the hob ceramic glass.
Abrasive materials such as scouring cleaners and grits may
damage the ceramic glass.
Avoid dropping objects onto the ceramic glass.
Take care not to strike the edges of the hob with saucepans.
Ensure that ventilation remains free from obstructions and complies
with instructions specified by the manufacturer.
Do not place empty saucepans on the hob.
Sugar, synthetic materials or aluminium foil must not come into
contact with the heating zones. These may cause permanent damage to the ceramic. If these should accidentally fall onto the hob, turn it off immediately and carefully remove them. Take care not to burn yourself.
WARNING: Danger of fire: do not store items on the cooking
surface.
4
Page 5
Never place any hot items on the control panel.
If a drawer is located below the hob, ensure that a minimum air gap
of at least 2 cm is left between the drawer contents and the base of the hob. This is essential to guarantee correct ventilation. A horizontal divider made of material capable of withstanding 65°C above ambient temperature can be used to ensure this air gap.
Never place inflammable items or materials (like sprays) in a
drawer or cupboard below the hob. Cutlery drawers must be resistant to heat.
Precautions in case of appliance failure
If a fault is noticed, switch off the appliance and turn off
the electricity supply.
There are no user-serviceable parts inside the appliance.
Don’t open the appliance by yourself. All repairs must be performed by a suitably qualified service engineer or similar.
WARNING: If the ceramic glass is broken or cracked, don’t use
the appliance and turn off the electricity supply to avoid the possibility of electric shock. Contact Caple service immediately.
See the troubleshooting section in this manual.
Other protections

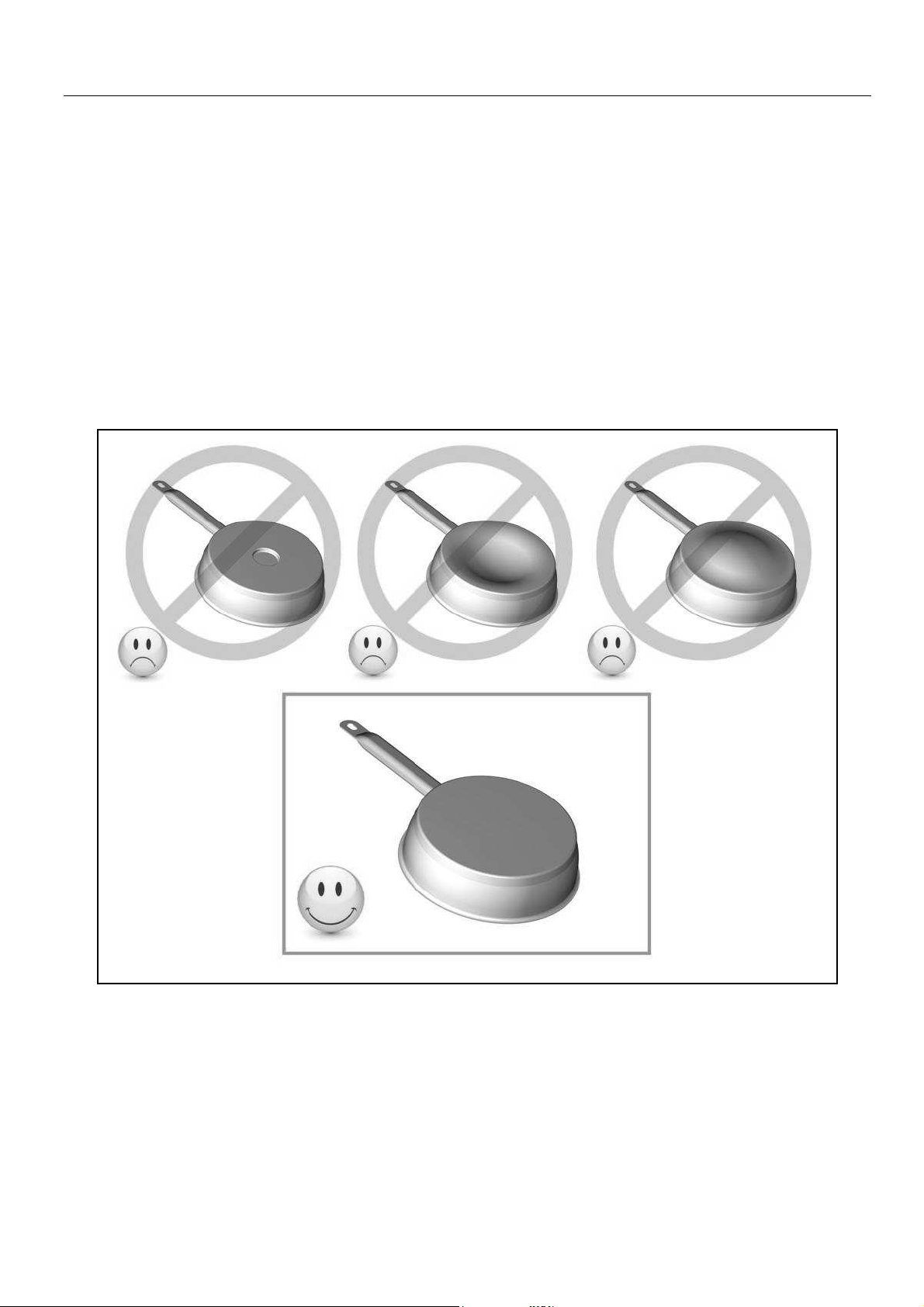

Ensure that each pan is well centred on its cooking zone. The
pan base must cover as much of the cooking zone as possible.
For those with heart pacemakers or active implants, the
magnetic field could influence its operating. You should obtain information from the retailer, your attending physician or the pacemaker manufacturer.
Do not to use aluminium or plastic containers: they could melt
onto hot cooking zones.
NEVER try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a fire blanket.
THE USE OF INCORRECT COOKWARE OR ANY INDUCTION
ADAPTOR PLATE DESIGNED FOR NON-MAGNETIC
COOKWARE WILL INVALIDATE THE GUARANTEE. THE
MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR
ANY DAMAGE TO THE HOB AND/OR ITS ENVIRONMENT
AS A RESULT OF SUCH USE.
5
Page 6
DESCRIPTION OF THE APPLIANCE
C876I
hob
Front
left heating zone
Rear
left
heating zone
Rear
right
heating zone
Front
right
heating zone
Technical characteristics
Type Total power 7100 W Energy consumption for the hob EC
Minimum detection Ø 90 mm Nominal power* 1400 W Booster power* 2000 W Standardised cookware category** B Energy consumption ECcw** 177.3 Wh/kg
Minimum detection Ø 90 mm Nominal power* 1400 W Booster power* ­Standardised cookware category** B Energy consumption ECcw** 177.3 Wh/kg
** 176.9 Wh/kg
Ø 190 mm
Ø 190 mm
Ø 220 mm Minimum detection Ø 100 mm Nominal power* 2300 W Booster power* 3000 W Standardised cookware category** C Energy consumption ECcw** 171.1 Wh/kg
Ø 175 mm Minimum detection Ø 90 mm Nominal power* 1400 W Booster power* ­Standardised cookware category** A Energy consumption ECcw** 181.9 Wh/kg
* The given power may change according to the dimensions and material of the pan. ** calculated according to the method of measuring performance (EN 60350-2).
6
Page 7

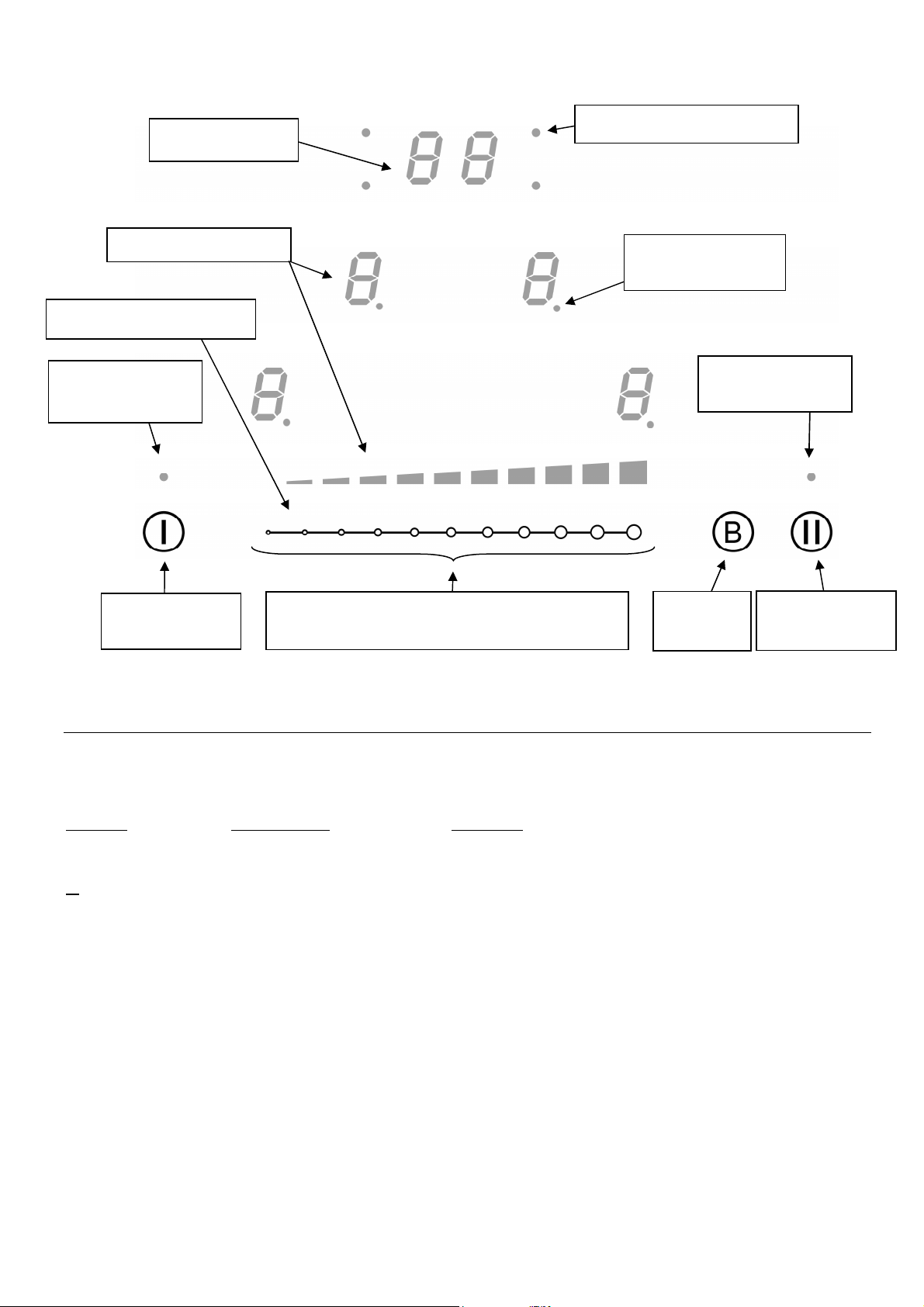

Control panel
Booster
Pause/Recall
Control light
Power selection zone
“SLIDER” and
Control light
Power display
Control light
Timer display
Keep warm key
on/off
Control light timer
cooking zone
Pause/Recall
On/Off key
timer setting zone
key
USE OF THE APPLIANCE
Display
Display Designation Function 0 Zero The heating zone is activated. 1…9 Power level Selection of the cooking level. U Pan detection No pan or inadequate pan. A Heat accelerator Automatic cooking. E Error message Electronic failure. H Residual heat The heating zone is hot. P Booster The boosted power is activated. L Locking Control panel locking. U Keep warm Maintain automatically of 70°C. II Pause The hob is in pause. Bridge 2 cooking zones are combined.
key
Ventilation
The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The cooling fan changes to high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.
7
Page 8

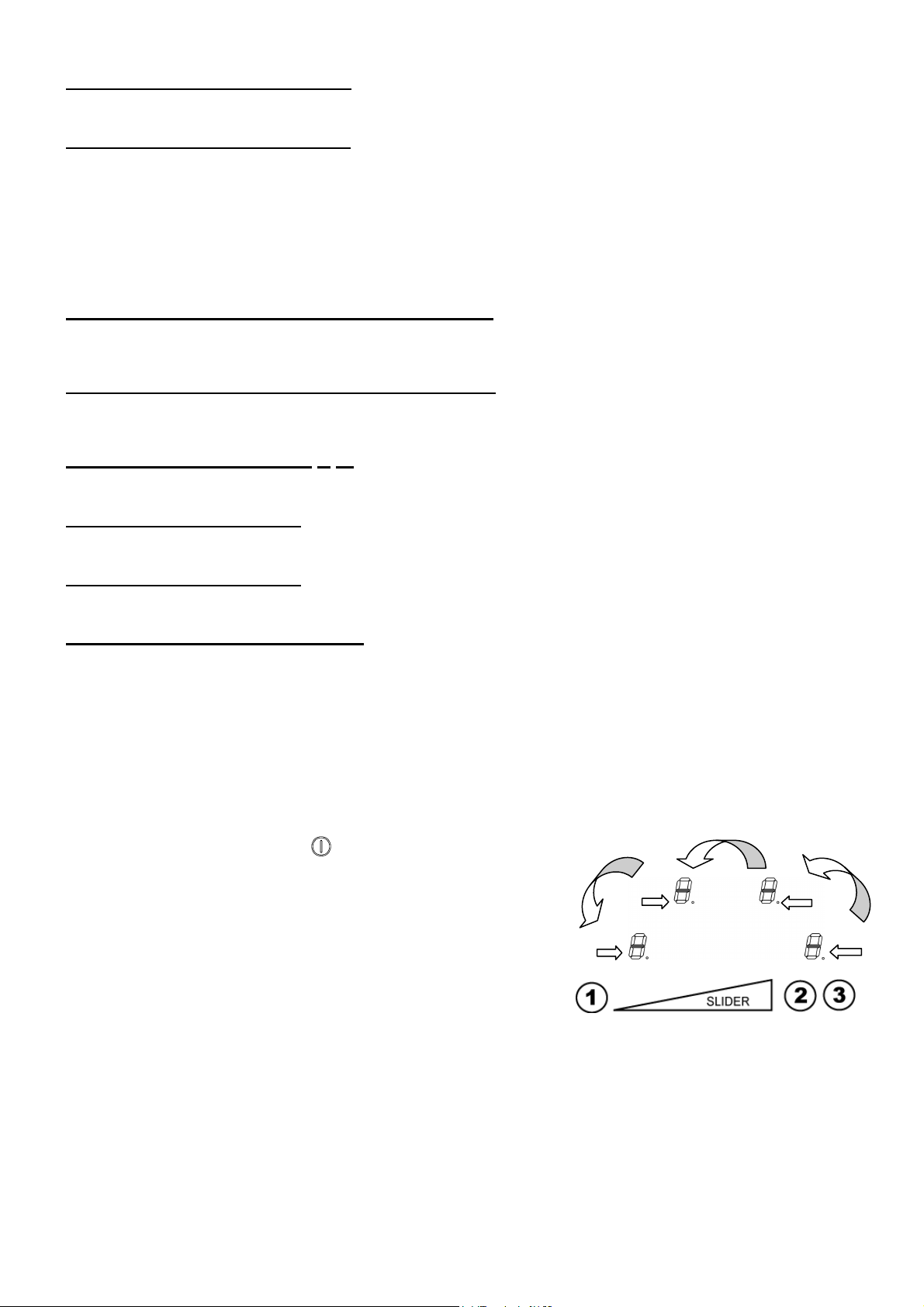

STARTING-UP AND APPLIANCE MANAGEMENT
Power selection zone “SLIDER”
and
“SLIDER“
Direct access
Before the first use
Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.
Induction principle
An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.
Of course the pan has to be adapted:
All ferromagnetic pans are recommended (Verify with a small magnet): cast iron and steel
pans, enameled pans, stainless-steel pans with ferromagnetic bottoms…
Are excluded: copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,…
The induction heating zone adapts automatically to the size of the pan. With a too small diameter the pan doesn’t work. This diameter is varying in function of the heating zone diameter. If the pan is not adapted to the induction hob the display will show [ U ].
Sensitive touch
Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.
In the case of general use press only one key at the same time.

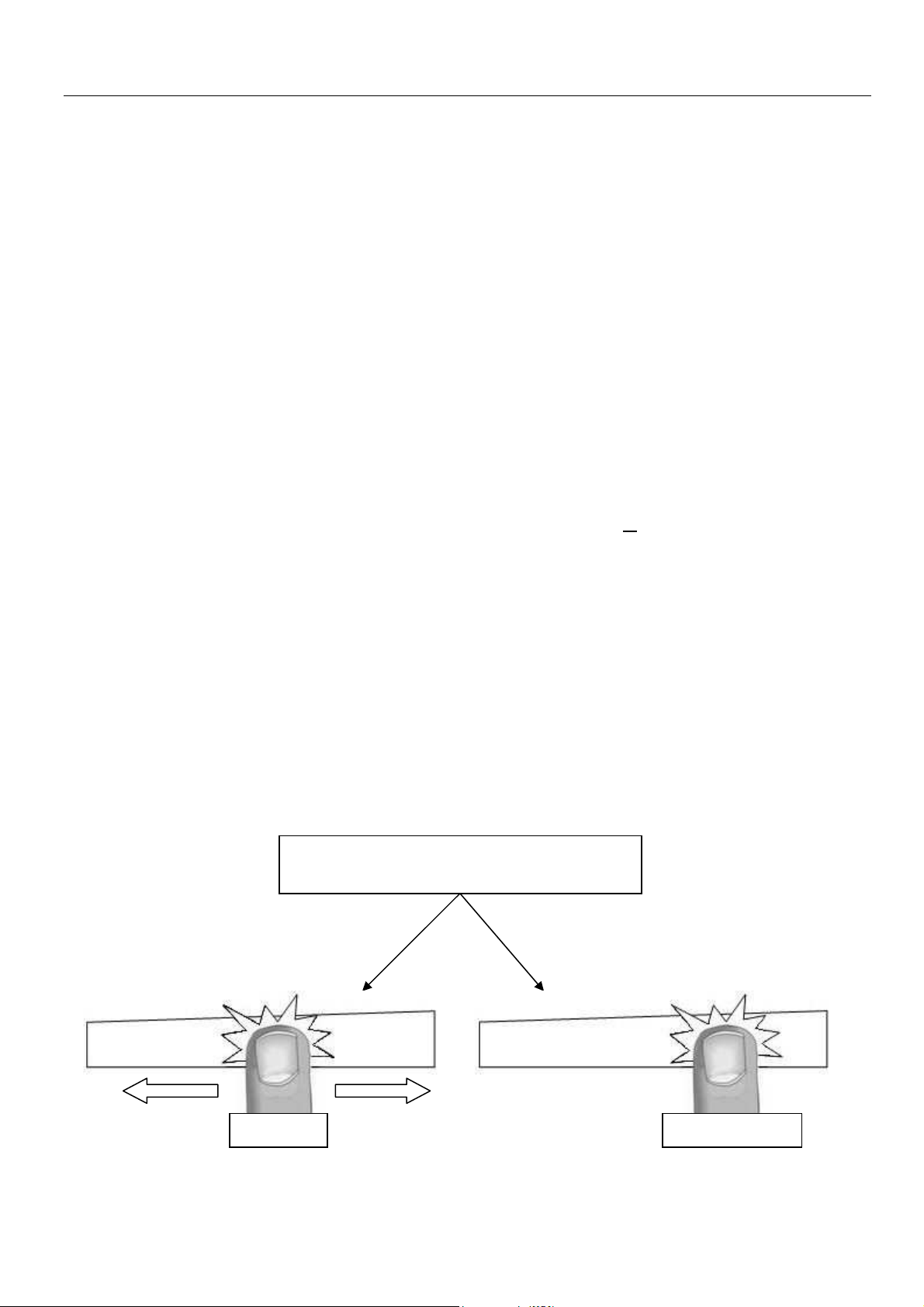

Power selection zone “SLIDER” and timer setting zone
To select the power with the slider, slide your finger on the “SLIDER” zone. You can have direct access if you put your finger directly on the chosen level.
timer setting zone
8
Page 9
Starting-up
tart up / switch off the hob:
S
Action Control panel Display
To start press key [ ] [ 0 ] are blinking To stop press key [ ] nothing or [ H ]
Start up / switch off a heating zone:
Action Control panel Display
Zone selection press display [ 0 ] selected [ 0 ] and control light on To set slide on the “SLIDER“ [ 0 ] to [ 9 ] (adjust the power) to the right or to the left
To stop slide to [ 0 ] on “SLIDER“ [ 0 ] or [ H ]
or press on [ 0 ] [ 0 ] or [ H ]
If no action is made within 20 second the electronics returns in waiting position.
Pan detection
The pan detection ensures a perfect safety. The induction doesn’t work:
If th
If the pan is removed from the heating zone the operation is stopped. The display shows [ U
ere is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ U ]. This symbol disappears when a pan is put on the heating zone.
]. The symbol [ U ] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.
After use, make sure that the heating elements have been switched off: don’t leave the pan detection [ U ] active.
Residual heat indication
After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [ H ] on the display. The symbol [ H ] disappears when the heating zones may be touched without danger. As far as the residual heat indicators are on light, don’t touch the heating zones and don’t put any heat sensitive objects on them. There are risks of burn and fire.
Booster function
The booster function [ P ] grants a boost of power to the selected heating zone. If this function is activated the heating zones work during 10 minutes with an ultra high power. The booster is foreseen to rapidly heat up big quantities of water, for example when cooking
pasta.
Start up / Stop the booster function:
Action Control panel Display Zone
Zone selection press key [ 0 ] from the zone [ 0 ] and control light on Start up the booster press key [ ] [ P ]
Stop the booster slide on the “SLIDER“ [ P ] to [ 0 ]
or press on [ P ] [ 9 ]
9
Page 10
Power management:
The hole cooking hob is equipped by a maximum of power. When the booster function is activated, and not to exceed the maximum power, the electronic system orders to reduce automatically the power level of another heating zone. The display is blinking on [ 9 ] during a few seconds and then shows the maximum of power allowed :
Heating zone selected The other heating zone: (example: power level 9)
[ P ] is displayed [ 9 ] goes to [ 6 ] or [ 8 ] depending the type of zone
Timer
The timer is able to be used simultaneous with all 3 heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.
Setting and modification of the cooking time :
Example for 16 minutes at power 7 : Action Control panel Display
Zone selection press display [ 0 ] selected [ 0 ] and control light on Select the power level slide on the “SLIDER“ to [ 7 ] [ 7 ] Select « Timer » press display [ CL ] [ 00 ] Set the units slide on the “SLIDER“ to [ 6 ] [ 0 fixed ] [ 6 blinking ] Valid the units press display [ 06 ] [ 0 blinking ] [ 6 fixed ] Set the tens slide on the “SLIDER“ to [ 1 ] [ 1 blinking ] [ 6 fixed ] Valid the tens press display [ 16 ] [ 16 ]
The time is confirmed and the cooking starts.
To stop the cooking time:
Example for 13 minutes at power 7 : Action Control panel Display
Zone selection press display [ 0 ] selected [ 0 ] and control light on Select « Timer » press key [ 13 ] [ 13 ] Deactivate the units slide on the “SLIDER“ to [ 0 ] [ 1 fixed ] [ 0 blinking ] Valid the units press display [ 10 ] [ 1 blinking ] [ 0 fixed ] Deactivate the tens slide on the “SLIDER“ to [ 0 ] [ 0 blinking ] [ 0 fixed ] Valid the tens press display [ 00 ] [ 00 ]
Automatic stop at the end of the cooking time:
As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings.
To stop the sound and the blinking it is enough to press the key [ 00 ].
Egg timer function :
Example for 29 minutes : Action Control panel Display
Activate the hob press display [ ] zone control lights are on Select« Timer » press display [ CL ] [ 00 ] Set the units slide on the “SLIDER“ to [ 9 ] [ 0 fixed ] [ 9 blinking ] Valid the units press display [ 09 ] [ 0 blinking ] [ 9 fixed ] Set the tens slide on the “SLIDER“ to [ 2 ] [ 2 blinking ] [ 9 fixed ] Valid the tens press display [ 29 ] [ 29 ]
After a few seconds the control light stops with blinking. As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings. To stop the sound and the blinking it is enough to press the display [ 00 ]. The hob switches off.
10
Page 11
Automatic cooking
All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the pre­selected level.
Start-up :
Action Control panel Display
Zone selection press display [ 0 ] selected [ 0 ] and control light on Full power setting slide on the “SLIDER“ to [ 9 ] pass from [ 0 ] to [ 9 ] Automatic cooking re-press on display “SLIDER“ [ 9 ] [ 9 ] is blinking with [ A ] Power level selection slide on the “SLIDER“ to [ 7 ] [ 9 ] pass to [ 8 ] [ 7 ] (for example “ 7 “) [ 7 ] is blinking with [ A ]
Switching off the automatic cooking :
Action Control panel Display
Zone selection press [ 7 ] from the zone [ 7 ] blinking
with [ A ]
Power level selection slide on the “SLIDER“ [ 1 ] to [ 9 ]
Pause function
This function brakes all the hob’s cooking activity and allows restarting with the same settings.
Startup/stop the pause function :
Action Control panel Display
Engage pause press [ ] during 2s displays [ II ] in the
heating zone displays
Stop the pause press [ ] during 2s pause control light is
blinking press another touch or pause control light is off slide on the “SLIDER“
Recall function
After switching off the hob (
cooking stages of all cooking zones (power)
minutes and seconds of programmed cooking zone-related timers
Heat up function
The recall procedure is following:
Press the key [ ]
Then press the key [ ] within 6 seconds
The precedent settings are activated.
), it is possible to recall the last settings.
11
Page 12
Bridge function
This function allows you to combine the 2 cooking zones on the left and use at the same time with the same features as a single cooking zone. Booster function isn’t allowed.
Action Control panel Display
Activate the hob Press display [ ] [ 0 ] or [ H ] on the
4 displays
Activate the bridge Press on the 2 cooking zones left [ 0 ] appears on the front
zone
[ ] on the rear zone.
Increase bridge Slide on the “SLIDER “ [ 1 to 9 ] or [ U ] Stop the bridge Press on the 2 cooking zones links [ 0 ] or [ H ] on the 2 zones
“Keep warm” function
This function allows to reach and maintain automatically a temperature of 70°C. This wi
Action Control panel Display
Zone selection Press display [ 0 ] selected [ 0 ] to [ 9 ] or [ H ] To engage Press between 0 and 1 on the“ [ U ]
To stop Press between 0 and 1 selected [ U ]
This function can be started independently on all the heating zones. When the pan leaves the cooking zone of the "Keep warm" function remains active during approximately 10 minutes. The maximum duration of "keep warm" function is 2 hours.
ll avoid liquids overflowing and fast burning at the bottom of the pan.
To engage, to start the function « Keep warm » :
“SLIDER
Slide on the “SLIDER“ [ 0 ] to [ 9 ] or [ H ]
Control panel locking
To avoid modifying a setting of cooking zones, in particular during of cleaning the control panel can be locked (with exception to the On/Off key [ ]).
Locking :
Action Control panel Display
Start press on key [ ] [ 0 ] or [ H ] on the displays
Hob locking press simultaneously [ ] and [ 0 ] no modification
from the front right zone display re-press on display [ 0 ] [ L ] on the displays
Unlocking :
Action Control panel Display
Start press on key [ ] [ L ] on the displays
In the 5 seconds after start :
Unlocking the hob press simultaneously [ ] and [ 0 ] or [ H ] on the displays
[ L ] from the front right zone display
press on key [
] no light on the displays
12
Page 13
COOKING ADVICES
Pan quality
Adapted materials : steel, enameled steel, cast iron, ferromagnetic stainless-steel,
aluminium with ferromagnetic bottom.
Not adapted
The manufacturers specify if their products are compatible with induction hobs. To check if pans are compatible:
Put a little water in a pan placed on an induction heating zone set at level [ 9 ].This water
must heat in a few seconds.
A magnet sticks on the bottom of the pan.
Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn’t mean any failure on the appliance and doesn’t influence the cooking operating.
materials : aluminium and stainless-steel without ferromagnetic bottom,
copper, brass, glass, ceramic, porcelain.
Pan dimension
The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.
13
Page 14
Examples of cooking power setting
(the values below are indicative)
to 2 Melting
1
Reheating
2 to 3 Simmering
Defrosting 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water Steamed potatoes, soups, pasta,
6 to 7 Medium cooking
Simmering 7 to 8 Cooking 9 Frying, roosting
Boiling water P Frying, roosting
Boiling water
Sauces, butter, chocolate, gelatine Dishes prepared beforehand Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
fresh vegetables Meat, liver, eggs, sausages
Goulash, roulade, tripe Potatoes, chips, wafers Steaks, omelettes, fried dishes
Water scallops, steaks Boiling significant quantities of water
MAINTENANCE AND CLEANING
Switch-off the appliance before cleaning. Do not clean the hob if the glass is too hot because they are risk of burn.
Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then
rinse with cold water and dry the surface thoroughly.
Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches
must be absolutely avoided.
Do not ever use any steam-driven or pressure appliance to clean the hob.
Do not use any object that may scratch the ceramic glass.
Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic
hob or on the pan. Sliding rough saucepans will scratch the surface.
Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the
surface being damaged.
TROUBLESHOOTING
The hob or the cooking zone doesn’t start-up :
The hob is badly connected on the electrical network.
The protection fuse cut-off.
The locking function is activated.
The sensitive keys are covered with grease or water.
An object is put on a key.
The control panel displays [ U ]:
There is no pan on the cooking zone.
The pan is not compatible with induction.
The bottom diameter of the pan is too small.
The control panel displays [ E ] :
Contact Caple service.
T - 0117 938 7420
E - service@caple.co.uk
14
Page 15
a
d
c
b
The control panel displays [ L ] :
Refer to the chapter control panel locking page.
One or all cooking zone cut-off :
The safety system functioned.
You forgot to cut-off the cooking zone for a long time.
One or more sensitive keys are covered.
The pan is empty and its bottom overheated.
The hob also has an automatic reduction of power level and breaking Automatic
overheating
Continuous ventilation after cutting off the hob :
This is not a failure, the fan continuous to protect the electronic device.
The fan cooling stops automatically.
The automatic cooking system doesn’t start-up :
The cooking zone is still hot [ H ].
The highest power level is set [ 9 ].
The control panel displays [ U ] :
Refer to the chapter “Keep warm“.
The control panel displays [ II ]:
Refer to the chapter “Pause “.
The control panel displays [ ]:
Refer to the chapter “Bridge“.
When the symbol [ E 4 ] appears :
The table must be reconfigured. Please implement the following steps :
I) Important : before you start, make sure there is no pots/pans on the hob II) Disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off III) Reconnect the table to the grid IV) Procedure :
* take a pot with a ferromagnetic bottom and a minimum diameter of 16 cm * start the procedure within 2 minutes after reconnecting the hob to the grid
* don’t use the [
V) First step : cancel the existing configuration
1) Press button 2 and hold down
2) The symbol [ - ] will appear on each display
3) With your other hand, press successively and
quickly (less than 2s) on each [ - ] display. Begin from the front right side and turn anti clockwise, as described on the picture (from a to d). A double "beep" means an error occured. If so, start again from step 1).
4) Remove your fingers from the touch control, then push again on button 1 during few seconds, until blinking [ E ] symbols appear.
5) Wait until [ E ] symbols stop blinking.
6) After few seconds, [ E ] are automatically transformed in [ C ]. The existing setup
has been cancelled.
] button
15
Page 16
VI) Second step : new setup
1) Take a ferromagnetical pot with a minimum diameter of 16 cm
2) Select a cooking zone by pushing on the corresponding [ C ] display
3) Place the pot on the area to be set
4) Wait until the [ C ] display becomes a [ - ]. The selected cooking zone is now configured.
5) Follow the same procedure for each cooking zone with a [ C ] display.
6) All the cooking zones are configured once all the displays are turned off. Please use the same pot for the whole procedure. Never put several pots together on the zones during the setup-process.
If [ E 4 ] displaying remains, please call Caple service.
The control panel displays [
An object or liquid covers the control keys. The symbol disappears as soon as the key is
released or cleaned.
The control panel displays [ E2 ] or [ E H ] :
The hob is overheated, let it cool and then turn it on again.
The control panel displays [ E3 ] :
The pan is not adapted, change the pan.
The control panel displays [ E6 ] :
Defective network. Control the frequency and voltage of the electrical network.
The control panel displays [ E8 ] :
The air inlet of the ventilator is obstructed, release it.
The control panel displays [ E C ] :
Configuration error. Set the table again, referring to the chapter "The [E 4] appears."
If one of the symbols above persists, call Caple service.
T - 0117 938 7420 E - service@caple.co.uk
] or [ Er03 ] :
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.
16
Page 17

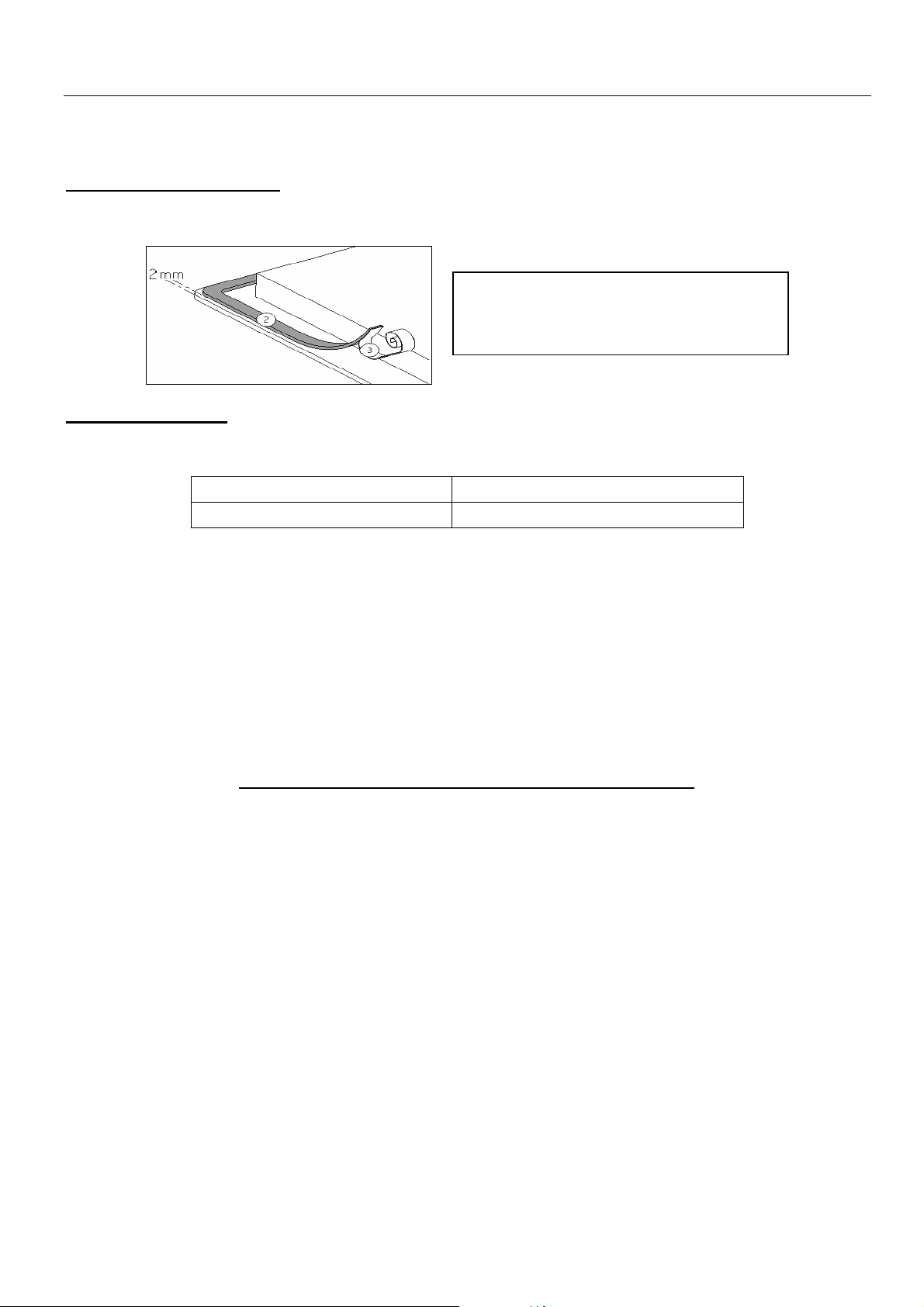

INSTALLATION INSTRUCTIONS
The installation comes under the exclusive responsibility of specialists. The installer is held to respect the legislation and the standards enforced in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation has to be done carefully, in conformity of the following drawing.
Stick the gasket (2) two millimeters
from the external edge of the glass,
after removing the protection sheet (3).
Fitting - installing:
The cut out sizes are:
Reference Cut-size
C876I 870 x 350 mm
Ensure that there is a distance of 50 mm between the hob and the wall or sides.
The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed
with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than
the hob.
The piece of furniture or the support in which the hob is to be fitted, as well as the edges of
furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
The mural rods of edge must be heat-resisting.
Not to install the hob to the top of a not ventilated oven or a dishwasher.
To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air
circulation of the electronic device.
If a drawer is placed under the hob, avoid to put into this drawer flammable objects
(for example: sprays) or non heat-resistant objects.
Materials which are often used to make worktops expand on contact with water. To protect
the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
The safety gap between the hob and the cooker hood placed above must respect the
indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.
The connection cord should be subjected, after building, with no mechanical constraint,
such for example of the fact of the drawer.
WARNING: Use only hob guards designed by the manufacturer of the cooking appliance
or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
17
Page 18
CUT-OUT AND FLUSH MOUNTING
Glas
s Cut size
Rear
Side
Radius
Cut size
Deep
C876I
A1 B1 C D E F H A2 B2 G
380 900 350 870 50 40 8 386 906 5
18
Page 19
ELECTRICAL CONNECTION
Protection
We cannot be held r
esponsible for any incident resulting from incorrect connection or
The installation of this appliance and the connection to the electrical network should be
entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
Protection against the parts under tension must be ensured after the building-in.
The data of connection necessary are on the stickers place on the hob casing near the
connection box.
The connection to the main must be made using an earthed plug or via an omnipolar
circuit breaking device with a contact opening of at least 3 mm.
The electrical circuit must be separated from the network by adapted devices, for example:
circuit breakers, fuses or contactors.
If the appliance is not fitted with an accessible plug, disconnecting means must be
incorporated in the fixed installation, in accordance with the installation regulations.
The inlet hose must be positioned so that it does not touch any of the hot parts of the hob
or even.
Caution!
This appliance has only to be connected to a network 230 V~ 50/60 Hz. Connect always the earth wire. Respect the connection diagram. The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.
Mains Connection Cable diameter
230V~ 50/60Hz 1 Phase + N 3 x 2,5 mm²
400V~ 50/60Hz 2 Phases + N
* calculated with the simultaneous factor following th
Connection of the hob
Setting up the configurations: For the various kinds of connection, use the brass bridges which are in the box next the terminal
Monophase 230V~1P+N
Put the 1st bridge between terminal 1 and 2, Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.
Biphase 400V~2P+N
Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L1 to the terminal 1 and the Phase L2 to the terminal 2.
Caution! Frequent loosening and screwing of the screws on the connection box risks
damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum. Ensure that the cables are correctly inserted and tightly screwed down.
4 x 1.5 mm²
e standard EN 60 335-2-6
Cable
H 05 VV - F
H 05 RR - F
H 05 VV - F
H 05 RR - F
calibre
25 A *
16 A *
which could arise from the use of an appliance which has not been earthed or has been
equipped with a faulty earth connection.
19
Page 20
CE Declarations of Conformity
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC).
Caple Service Fourth Way Avonmouth Bristol BS11 8DW
t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk
Please keep this instruction manual for future reference
24661-0
Loading...
