Caple C875I Instruction Manual

Instruction manual for induction hob

C875I

Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

SUMMARY

SAFETY ......................................................................................................................................... 4

P

RECAUTIONS BEFORE USING

........................................................................................................ 4

U

SING THE APPLIANCE

.................................................................................................................. 5

P

RECAUTIONS NOT TO DAMAGE THE APPLIANCE

.............................................................................. 6

P

RECAUTIONS IN CASE OF APPLIANCE FAILURE

................................................................................ 6

O

THER PROTECTIONS

................................................................................................................... 6

DESCRIPTION OF THE APPLIANCE ........................................................................................... 8

T

ECHNICAL CHARACTERISTICS

....................................................................................................... 8

C

ONTROL PANEL

.......................................................................................................................... 8

USE OF THE APPLIANCE ............................................................................................................ 9

D

ISPLAY

...................................................................................................................................... 9

V

ENTILATION

................................................................................................................................ 9

STARTING-UP AND APPLIANCE MANAGEMENT ..................................................................... 9

B

EFORE THE FIRST USE

................................................................................................................. 9

I

NDUCTION PRINCIPLE

................................................................................................................... 9

S

ENSITIVE TOUCH

......................................................................................................................... 9

P

OWER SELECTION ZONE

“SLIDER”

AND TIMER SETTING ZONE

...................................................... 10

S

TARTING-UP

............................................................................................................................. 10

P

AN DETECTION

......................................................................................................................... 10

R

ESIDUAL HEAT INDICATION

........................................................................................................ 11

B

OOSTER AND DOUBLE BOOSTER FUNCTION

................................................................................. 11

T

IMER

....................................................................................................................................... 12

A

UTOMATIC COOKING

................................................................................................................. 13

S

TOP&GO FUNCTION

.................................................................................................................. 13

R

ECALL FUNCTION

..................................................................................................................... 13

“K

EEP WARM” FUNCTION

............................................................................................................. 14

B

RIDGE FUNCTION

..................................................................................................................... 14

C

ONTROL PANEL LOCKING

........................................................................................................... 14

COOKING ADVICES ................................................................................................................... 15

P

AN QUALITY

............................................................................................................................. 15

P

AN DIMENSION

.......................................................................................................................... 15

E

XAMPLES OF COOKING POWER SETTING

...................................................................................... 16

MAINTENANCE AND CLEANING .............................................................................................. 16

WHAT TO DO IN CASE OF A PROBLEM .................................................................................. 16

ENVIRONMENT PRESERVATION ............................................................................................. 17

INSTALLATION INSTRUCTIONS ............................................................................................... 18

ELECTRICAL CONNECTION ..................................................................................................... 19

4

SAFETY

Precautions before using

• Unpack all the materials.

• The installation and connecting of the appliance have to be

done by approved specialists. The manufacturer can not be
responsible for damage caused by building-in or connecting
errors.

• To be used, the appliance must be well-equipped and installed
in a kitchen unit and an adapted and approved work surface.

• This domestic appliance is exclusively for the cooking of food,
to the exclusion of any other domestic, commercial or industrial
use.

• Remove all labels and self-adhesives from the ceramic glass.

• Do not change or alter the appliance.

• The cooking plate can not be used as freestanding or as

working surface.

• The appliance must be grounded and connected conforming to
local standards.

• Do not use any extension cable to connect it.

• The appliance can not be used above a dishwasher or a

tumble-dryer: steam may damage the electronic appliances.

5

Using the appliance

• Switch the heating zones off after using.

• Keep an eye on the cooking using grease or oils: that may

quickly ignite.

• Be careful not to burn yourself while or after using the
appliance.

• Make sure no cable of any fixed or moving appliance contacts
with the glass or the hot saucepan.

• Magnetic objects (credit cards, floppy disks, calculators) should
not be placed near to the engaged appliance.

• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.

• In general do not place any metallic object except heating
containers on the glass surface. In case of untimely engaging or
residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet.
This is supposed to become very hot and catch fire.

• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play
with the appliance.

6

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast
iron pots,) may damage the ceramic glass.

• Sand or other abrasive materials may damage ceramic glass.

• Avoid dropping objects, even little ones, on the vitroceramic.

• Do not hit the edges of the glass with saucepans.

• Make sure that the ventilation of the appliance works according

to the manufacturer’s instructions.

• Do not put or leave empty saucepans on the vitroceramic hobs.

• Sugar, synthetic materials or aluminium sheets must not

contact with the heating zones. These may cause breaks or
other alterations of the vitroceramic glass by cooling: switch on
the appliance and take them immediately out of the hot heating
zone (be careful: do not burn yourself).

• WARNING: Danger of fire: do not store items on the cooking
surface.

• Never place any hot container over the control panel.

• If a drawer is situated under the embedded appliance, make

sure the space between the content of the drawer and the
inferior part of the appliance is large enough (2 cm). This is
essential to guaranty a correct ventilation.

• Never put any inflammable object (ex. sprays) into the drawer
situated under the vitroceramic hob. The eventual cutlery
drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch on the appliance and turn off the
electrical supplying.

• If the ceramic glass is cracked or fissured, you must unplug the
appliance and contact the after sales service.

• Any repairs must be carried out by specialists. Do not open the
appliance by yourself.

• WARNING: If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.

7

Other protections

• Make sure that the pot or pan is always centred on the cooking
zone. The bottom of the pan must cover as much of the cooking
zone as possible.

• For users with a pacemaker, the magnetic field could influence
its operation. We recommend getting information from the
retailer or your doctor before using this appliance.

• Do not to use aluminium or synthetic material containers: they
could melt on hot cooking zones (from residual heat).

• NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER PO

OR QUALITY POT

S OR ANY

INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC

COOKWARE RESULTS IN A WARRANTY BREACH.

IN THIS CASE, THE MANUFACTURER CANNOT BE

HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO

THE HOB AND/OR ITS ENVIRONMENT.

8

DESCRIPTION OF THE APPLIANCE

Technical characteristics

Type

C875I

Total power 7400 W
Energy consumption for the hob EC

hob

** 187.4 Wh/kg

H

eating zone

220 x 180 mm
Minimum detection Ø 100 mm
Nominal power* 2100 W
1st Booster power* 2600 W
2nd Booster power* 3700 W

Cookware** Ø 150 mm
Energy consumption ECcw** 182.8 Wh/kg
Cookware** Ø 180 mm
Energy consumption ECcw** 190.6 Wh/kg
Cookware** Ø 210 mm (x2)
Energy consumption ECcw** 188.1 Wh/kg

* The given power may change according to the dimensions and material of the pan.
** calculated according to the method of measuring performance (EN 60350-2).

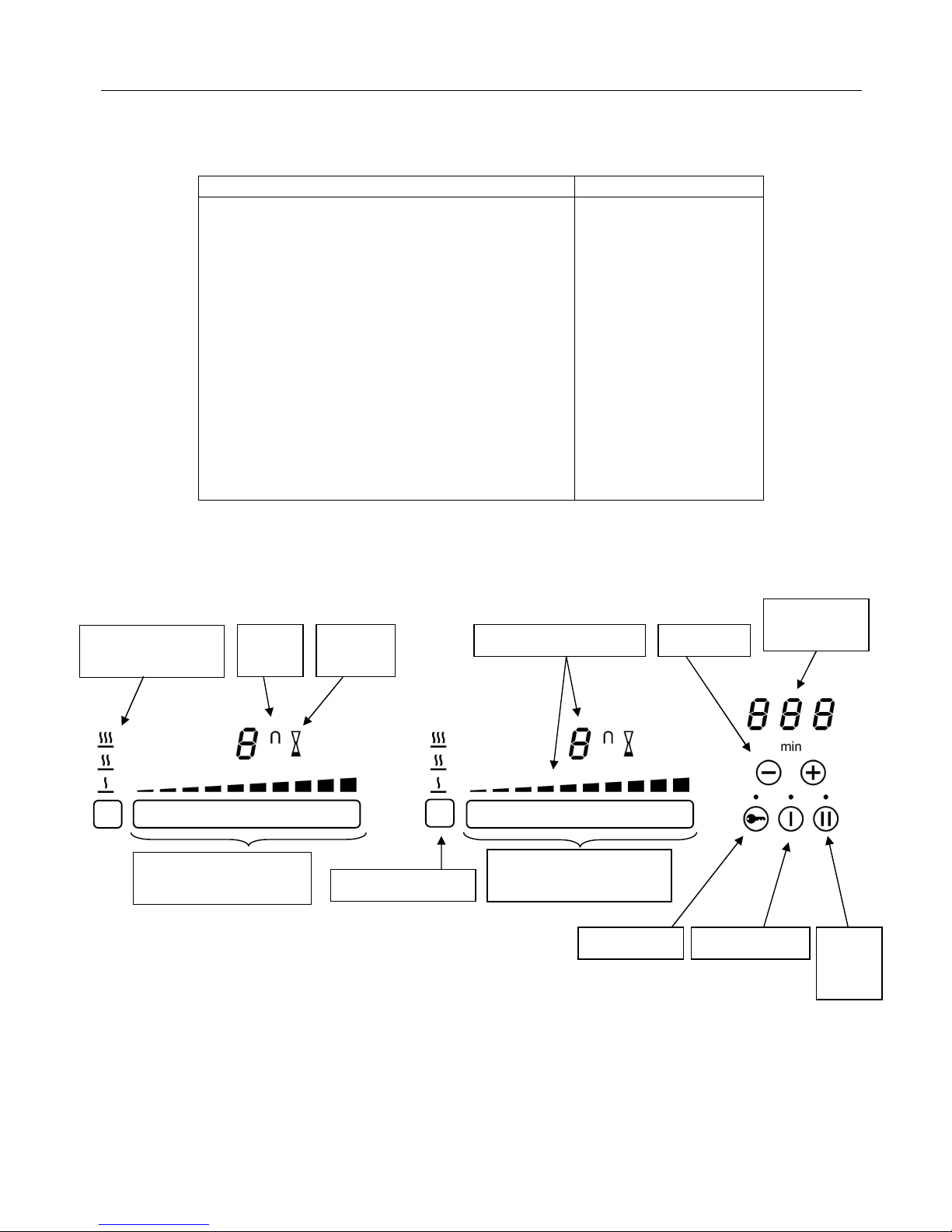

Control panel

Power selection zone

“Slider” (rear zone)

Power selection zone

“Slider” (front zone)

On/Off key Locking key

Timer keys

Timer

display

Power display

Keep warm

displays

Bridge

display

Timer

display

Pause/

Recal

key

Keep warm key

9

USE OF THE APPLIANCE

Display

Display Designation Description
0 Zero The heating zone is activated.
1…9 Booster level Selection of the cooking level.
U No pan detection No pan or inadequate pan.
A Heat accelerator Automatic cooking.
E Error message Electronic failure.
H Residual heat The heating zone is hot.
P Booster The Booster is activated.

Super Booster The double Booster is activated.
U Keep warm Maintain automatically of 42, 70 or 94°C.
II Stop&Go The hob is in pause.

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories
brought out by the electronic system reach a certain level. The ventilation starts his high speed
when the hob is intensively used. The cooling fan reduces his speed and stops automatically
when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent
which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable
electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the
pan. The result is a heating-up of the pan located on the heating zone.
Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron
and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms…

• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,…

The induction heating zone adapts automatically the size of the pan. With a too small diameter
the pan doesn’t work. This diameter is varying in function of the heating zone diameter.
If the pan is not adapted to the induction hob the display will show [ U ].

Sensitive touch

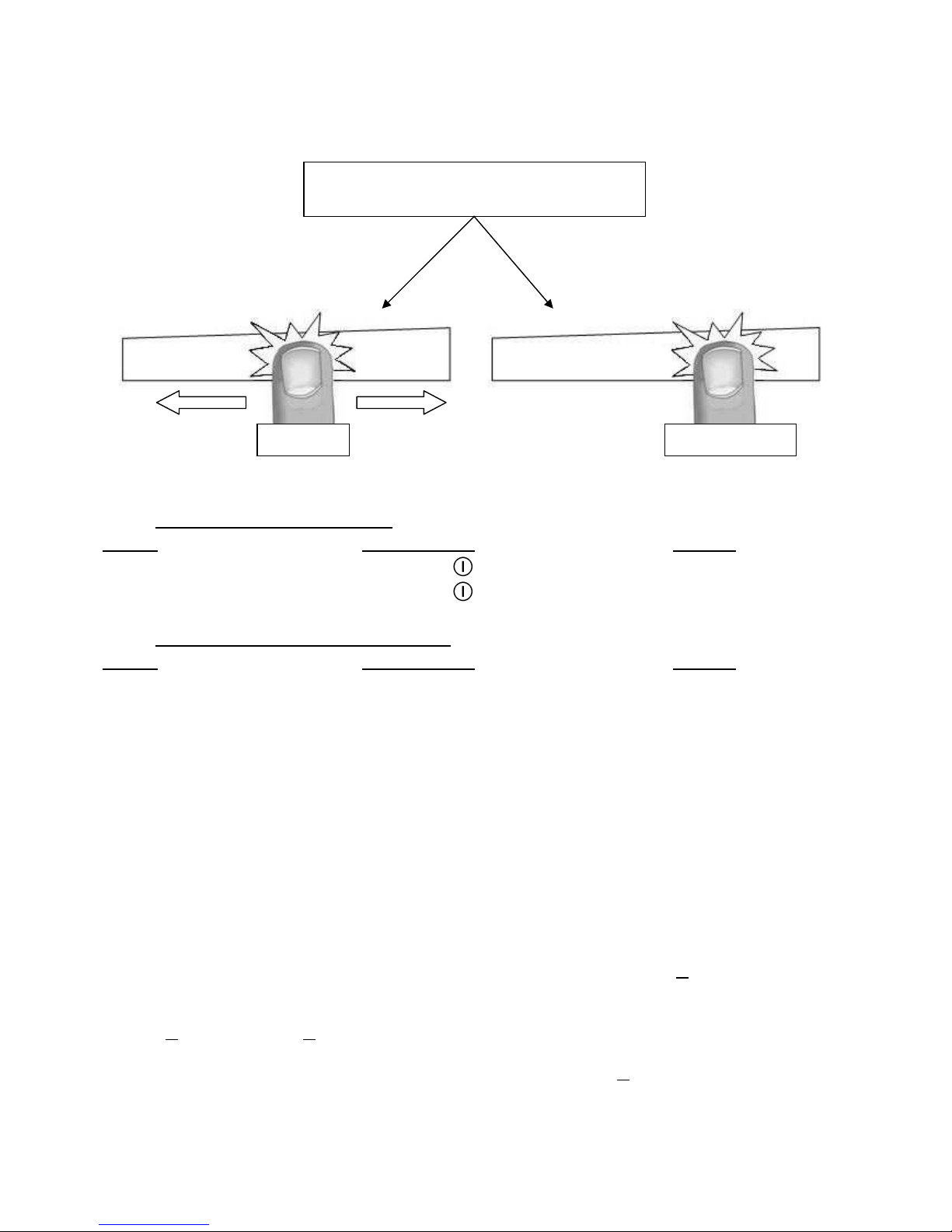

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger
presses the key, the corresponding command is activated. This activation is validated by a
control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

10

Power selection zone “SLIDER” and timer setting zone

To select the power with the slider, slide your finger on the “SLIDER” zone. You can already have
a direct access if you put your finger directly on the chosen level.

Starting-up

• Start up / switch off the hob:

Action Control panel Display

To start press key [ ] [ 0 ]
To stop press key [ ] nothing or [ H ]

• Start up / switch off a heating zone:

Action Control panel Display

To set slide on the “SLIDER“ [ 1 ] to [ P ]
(adjust the power) to the right or to the left
To stop slide to [ 0 ] on “SLIDER“ [ 0 ] or [ H ]

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

This cooktop is fitted with an interactive control system that makes it very easy and comfortable
to use. After switching on the cooktop, when you put a cookware on the glass, the control system
automatically detects it. This system also automatically indicates you which slider control to use
by displaying a [ 0 ] over it. You then just have to set the expected cooking level.
The pan detection ensures a perfect safety. The induction doesn’t work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this
case it is impossible to increase the power and the display shows [ U ]. This symbol
disappears when a pan is put on the heating zone.

• If the pan is removed from the heating zone the operation is stopped. The display shows
[ U ]. The symbol [ U ] disappears when the pan is put back to the heating zone. The
cooking continues with the power level set before.

After use, switch the heat element off: don’t let the pan detection [ U ] active.

Power selection zone “SLIDER”

and

timer setting zone

“SLIDER“

Direct access

11

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still
hot and indicates [ H ] on the display.
The symbol [ H ] disappears when the heating zones may be touched without danger.
As far as the residual heat indicators are on light, don’t touch the heating zones and don’t put any
heat sensitive object on them. There are risks of burn and fire.

Booster and double Booster function

Booster [ P ] and double Booster [ ] grant a boost of Power to the selected heating zone.
If this function is activated the heating zones work during 10 minutes with an ultra high Power.
This is foreseen for example to heat up rapidly big quantities of water, like pasta.

• Start-up / Stop the Booster:

Action Control panel Display

Start up the Booster slide to the end of the “SLIDER” [ P ]
or press directly on the end of
the “SLIDER”
Stop the Booster slide on the “SLIDER“ [ 9 ] to [ 0 ]

• Start up / Stop double Booster

Action Control panel Display

Start up the Booster slide to the end of the “SLIDER” [ P ]
or press directly on the end of
the “SLIDER”
Start up double Booster re-press directly on the end of
the “SLIDER” [ and P ]
Stop the double Booster slide on the “SLIDER“ [ P ] to [ 0 ]
Stop Booster slide on the “SLIDER“ [ 9 ] to [ 0 ]

• Power management:

The hole cooking hob is equipped with a maximum of Power. When the Power function is
activated, and in order to exceed the maximum Booster, the electronic system orders to reduce
automatically the power level of an other heating zone. The display is blinking on [ 9 ] during a
few seconds and then shows the maximum of power allowed:

Heating zone selected The other heating zone: (example: Booster level 9)
[ P ] is displayed [ 9 ] goes to [ 6 ] or [ 8 ] depending the type of zone

12

Timer

The timer is able to be used simultaneous with all heating zones and this with different time
settings (from 0 to 999 minutes) for each heating zone.

• Setting and modification of the cooking time:

Action Control panel Display

Select the power level slide on the “SLIDER“ [ 1 ] to [ P ]
Select theTimer press simultaneously key [ ]

and [ ] from the timer until

the desired display is on timer display on
Decrease the time press key [ ] from the timer [ 60 ] to 59, 58...
Increase the time press key [ ] from the timer time increase

After a few seconds, the [ min ] display stops with blinking.
The time is confirmed and the timer starts.

• To stop the cooking time:

Action Control panel Display

Select the Timer press simultaneously key

[ ] and [ ] from the timer

until the desired display is on timer display on
Stop the time press key [ ] from the timer [ 000 ]

If several timers are activated, repeat the process.

• Egg timer function:

Egg timer is an independent function. It stops as soon as a heating zone starts up.
If the egg timer is on and the hob is switched off, the timer continues until time runs out.

Action Control panel Display

Activate the hob press display [ ] [ 0 ]
Select the Timer press simultaneously key [ ]

and [ ] from the timer [ 000 ]
Decrease the time press key [ ] from the timer [ 60 ] to 59, 58...
Increase the time press key [ ] from the timer time increase

After a few seconds, the [ min ] display stops with blinking.
The time is confirmed and the timer starts.

• Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [ 000 ] and a sound
rings.

To stop the sound and the blinking, press the key [ ] and [ ].

13

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at
full power during a certain time, and then reduces automatically its power on the pre-selected
level.

• Start-up:

Action Control panel Display

Power level selection slide on the “SLIDER“ to [ 7 ]
(for example « 7 ») and stay 3s [ 7 ] is blinking with [ A ]

• Switching off the automatic cooking:

Action Control panel Display

Power level selection slide on the “SLIDER“ [ 0 ] to [ 9 ]

Stop&Go function

This function brakes all the hob’s cooking activity temporarily and allows restarting with the same
settings.

• Start up/stop the pause function:

Action Control panel Display

Engage pause press [ ] [ II ] and control light on
Stop the pause press [ ] “Slider” animated

press on the animated “slider” previous settings

Recall Function

After switching off the hob ( ), it is possible to recall the last settings.

• cooking stages of all cooking zones (Booster)

• minutes and seconds of programmed cooking zone-related timers

• Keep warm function

• Automatic cooking

The recall procedure is following:

• Press the key [ ]

• Then press [ ] before the light stops blinking.

The previous settings are again active.

14

“Keep warm” Function

This function allows the reach and automatically maintains at the temperature of 42, 70 or 94°C.
This will avoid liquids overflowing and fast burning at the bottom of the pan.

• To engage, to start the function « Keep warm »:

Action Control panel Display
42°C to engage Press once on key [Keep warm ] [ U ] and [ ]

70°C to engage Press twice on key [Keep warm ] [ U ] and [ ]
94°C to engage Press 3 times on key [Keep warm ] [ U ] and [ ]

To stop Slide on the “SLIDER“ [ 0 ] to [ 9 ]
or press key [Keep warm ] until [ 0 ] [ 0 ]

The maximum duration of keeping warm is 2 hours.

Bridge Function

This function allows the use of 2 cooking zones at the same time (left zones, middle zones, right
zones) with the same features as a single cooking zone. Booster function isn’t allowed.

Action Control panel Display

Activate the hob Press display [ ] [ 0 ]
Activate the bridge Press simultaneously on [Keep warm ]

of the 2 cooking zones [ 0 ] and [ ]
Increase bridge Slide on the “SLIDER“
witch indicates the power [ 1 ] to [ 9 ]
Stop the bridge Press simultaneously on [Keep warm ]

of the 2 cooking zones [ 0 ]

Control panel locking

To avoid modification of the setting of the cooking zones, in particular during cleaning, the control
panel can be locked (with exception to the On/Off key [ ]).

Action Control panel Display

Locking the hob Press [ ] during 6s locking light on
Unlock the hob Press [ ] during 6s locking light off

15

COOKING ADVICES

Pan quality

Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel,

aluminium with ferromagnetic bottom.

Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom,

cupper, brass, glass, ceramic, porcelain.
The manufacturers specify if their products are compatible induction.
To check if pans are compatibles:

• Put a little water in a pan placed on an induction heating zone set at level [ 9 ].This water
must heat in a few seconds.

• A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise
doesn’t mean any failure on the appliance and doesn’t influence the cooking operating.

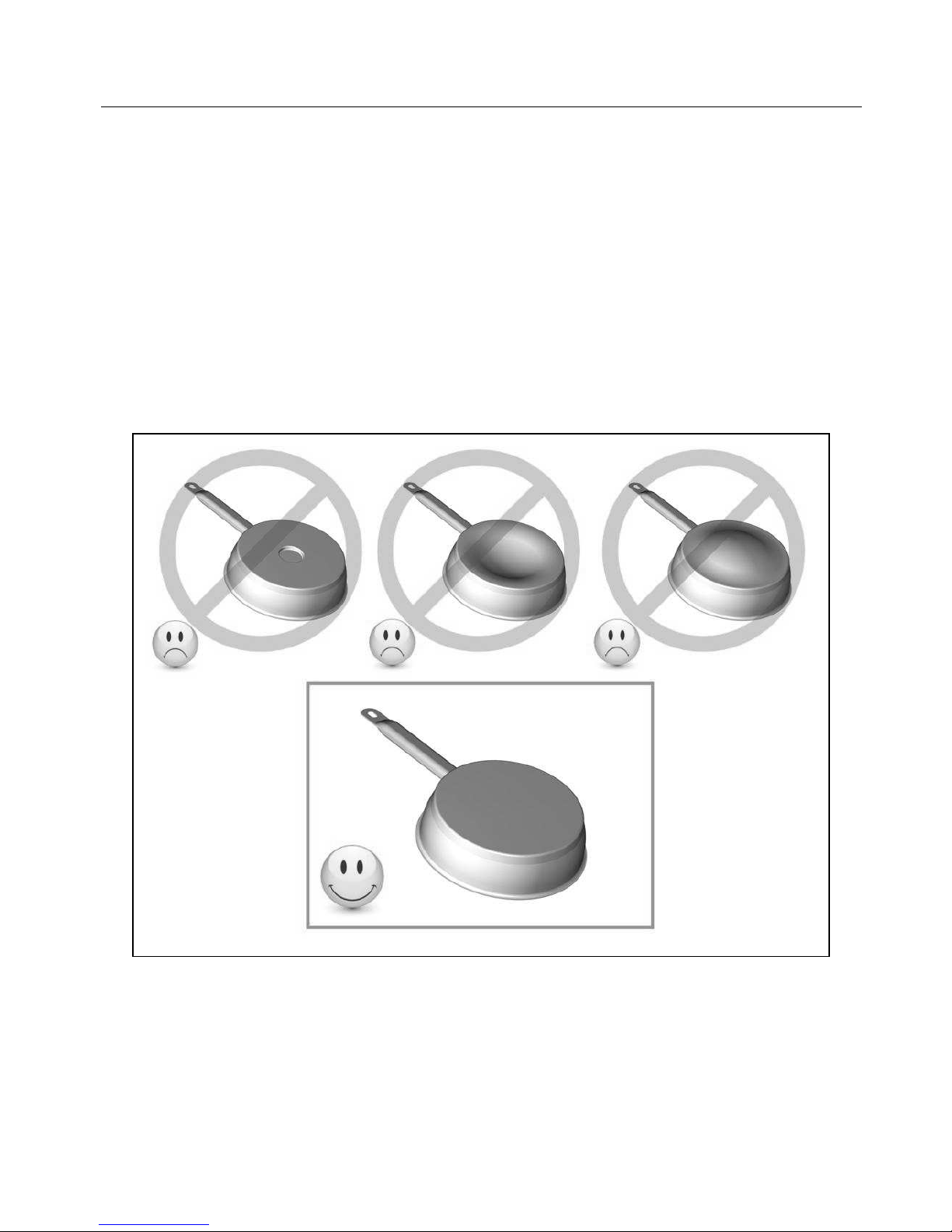

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan.
However the bottom of this pan must have a minimum of diameter according to the
corresponding cooking zone.
To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking
zone.

16

Examples of cooking power setting

(the values below are indicative)

1 to 2 Melting

Reheating

Sauces, butter, chocolate, gelatine
Dishes prepared beforehand

2 to 3 Simmering

Defrosting

Rice, pudding, sugar syrup

Dried vegetables, fish, frozen products
3 to 4 Steam Vegetables, fish, meat
4 to 5 Water Steamed potatoes, soups, pasta,

fresh vegetables
6 to 7 Medium cooking

Simmering

Meat, lever, eggs, sausages

Goulash, roulade, tripe
7 to 8 Cooking Potatoes, fritters, wafers
9 Frying, roosting

Boiling water

Steaks, omelettes, fried dishes

Water
P and

Frying, roosting
Boiling water

scallops, steaks

Boiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.
Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then
rinse with cold water and dry the surface thoroughly.

• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches
must be absolutely avoided.

• Do not ever use any steam-driven or pressure appliance.

• Do not use any object that may scratch the ceramic glass.

• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your

ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.

• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the
surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn’t start-up:

• The hob is badly connected on the electrical network.

• The protection fuse cut-off.

• The looking function is activated.

• The sensitive keys are covered of grease or water.

• An object is put on a key.

The control panel displays [ U ]:

• There is no pan on the cooking zone.

• The pan is not compatible with induction.

• The bottom diameter of the pan is too small.

17

The control panel displays [ E ]:

• The electronic system is defective.

• Disconnect and replug the hob.

• Call after sales

One or all cooking zone cut-off:

• The safety system functioned.

• You forgot to cut-off the cooking zone for a long time.

• One or more sensitive keys are covered.

• The pan is empty and its bottom overheated.

• The hob also has an automatic reduction of Booster level and breaking Automatic

overheating

Continuous ventilation after cutting off the hob:

• This is not a failure, the fan continuous to protect the electronic device.

• The fan cooling stops automatically.

The automatic cooking system doesn’t start-up:

• The cooking zone is still hot [ H ].

• The highest Booster level is set [ 9 ].

The control panel displays [ U ]:

• Refer to the chapter “Keep warm“.

The control panel displays [ II ]:

• Refer to the chapter “Stop&Go“

The control panel displays [ ] or [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is
released or cleaned.

The control panel displays [ E2 ] :

• The hob is overheated, let it cool and then turn it on again.

The control panel displays [ E8 ] :

• The air inlet of the ventilator is obstructed, release it.

The control panel displays [ U400 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

The control panel displays [ Er47 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the Caple Service.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials

for the environment, but necessary to the good running and the safety of the appliance.

•

Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your
commune that is adapted to the recycling of

the household appliances.

18

INSTALLATION INSTRUCTIONS

The installation comes under the exclusive responsibility of specialists.
The installer is held to respect the legislation and the standards enforce in his home country.

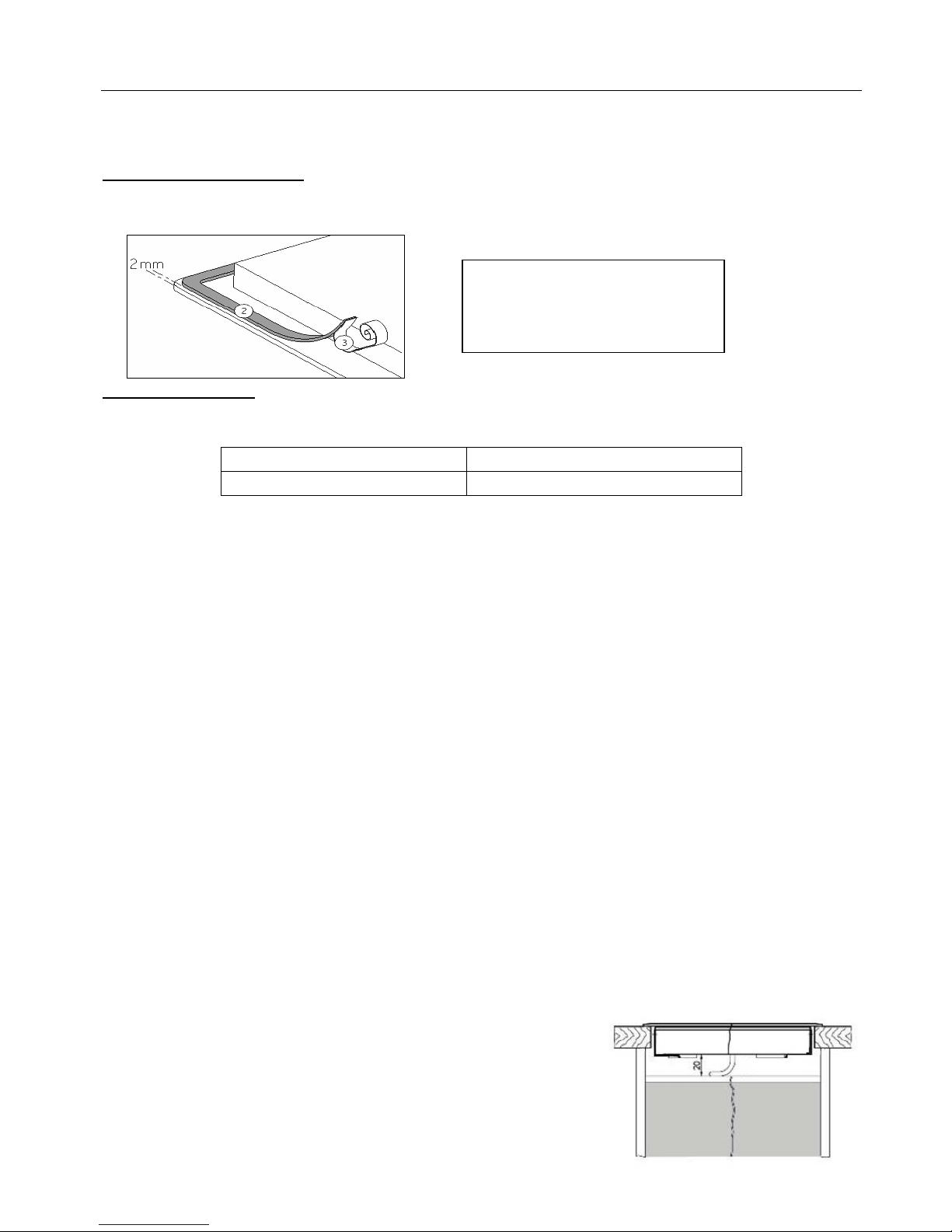

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
His installation has to be done carefully, in conformity of the following drawing.

Fitting - installing:

The cut out sizes are:

Reference Cut-size

C875I 890 x 390 mm

• Ensure that there is a distance of 50 mm between the hob and the wall or sides.

• The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed

with plenty of space on either side. There may be a wall at the rear and tall units or a wall
at one side. On the other side, however, no unit or divider must stand higher than
the hob.

• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of
furniture, the laminate coatings and the glue used to fix them, must be able to resist
temperatures of up to 100 °C.

• The mural rods of edge must be heat-resisting.

• Not to install the hob to the top of a not ventilated oven or a dishwasher.

• There must be a minimum ventilation space of 20mm from the base of the hob to any

other surface to ensure a good air circulation of the electronic device (image A below).

• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for
example: sprays) or not heat-resistant objects.

• Materials which are often used to make worktops expand on contact with water. To protect
the cut out edge, apply a coat of varnish or special sealant. Particular care must be given
to applying the adhesive joint supplied with the hob to prevent any leakage into the
supporting furniture. This gasket guaranties a correct seal when used in conjunction with
smooth work top surfaces.

• The safety gap between the hob and the cooker hood placed above must respect the
indications of the hood manufacturer. In case of absence of instructions respect a distance
minimum of 760 mm.

• The connection cord should be subjected, after building, with no mechanical constraint,
such for example of the fact of the drawer.

Stick the gasket (2) two

millimeters from the external

edge of the glass, after removing

the protection sheet (3).

Image A

19

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be
entrusted only to an electrician perfectly to the fact of the normative regulations and which
respects them scrupulously.

• Protection against the parts under tension must be ensured after the building-in.

• The data of connection necessary are on the stickers place on the hob casing near the

connection box.

• The connection to the main must be made using an earthed plug or via an omnipolar
circuit breaking device with a contact opening of at least 3 mm.

• The electrical circuit must be separated from the network by adapted devices, for example:
circuit breakers, fuses or contactors.

• If the appliance is not fitted with an accessible plug, disconnecting means must be
incorporated in the fixed installation, in accordance with the installation regulations.

• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob
or oven.

Caution!

This appliance has only to be connected to a network 230 V~ 50/60 Hz.
ALWAYS connect the earth wire.
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover use a
medium screwdriver. Place it in the slits and open the cover.

Connecting the hob :

* calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

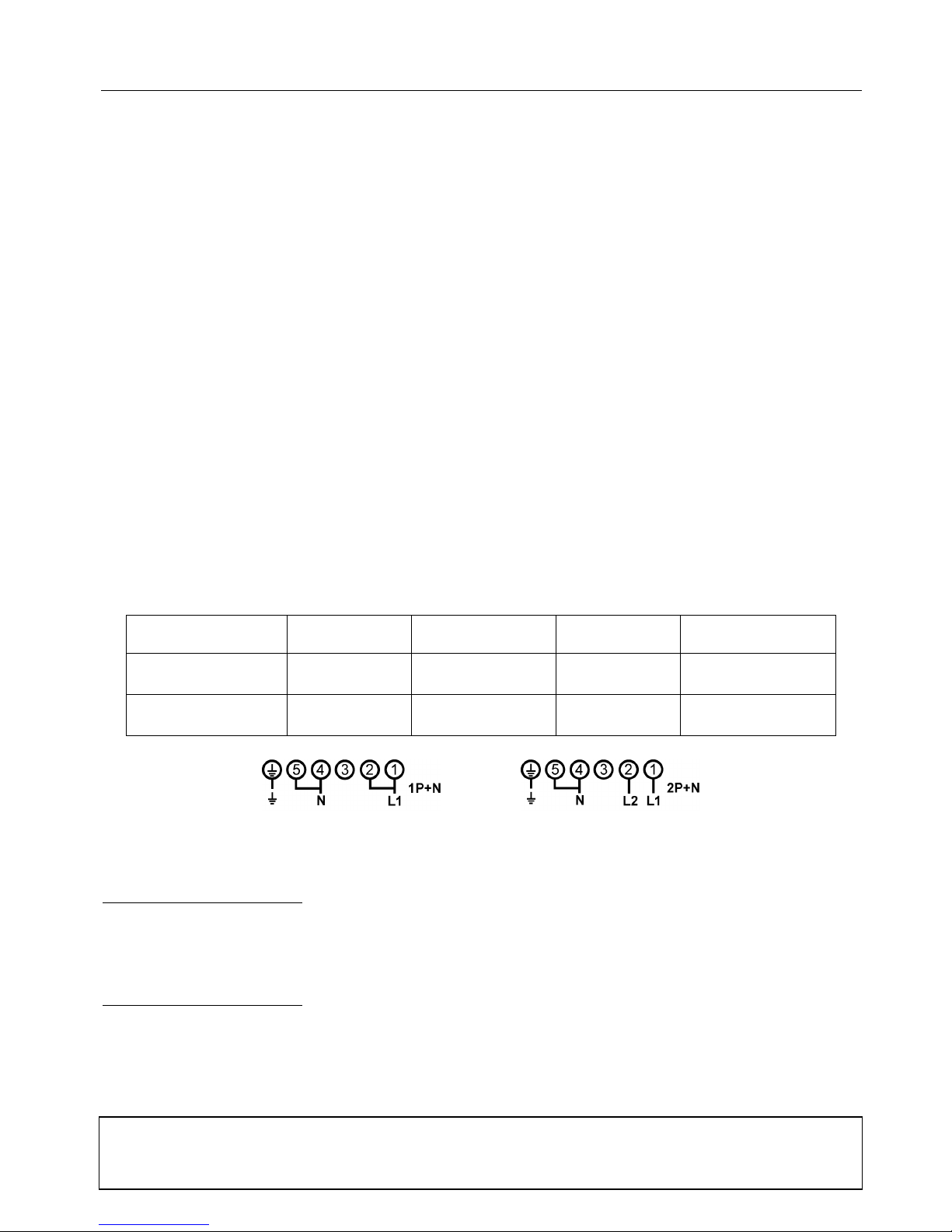

Setting up the configurations:
For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V~1P+N
Put the 1st bridge between terminal 1 and 2, the 2nd between 4 and 5.

Attach the earth to the terminate “earth”, the neutral N to terminal 4 or 5, the Phase L to one of
the terminals 1 or 2.

Biphase 400V~2P+N
Put a bridge between terminal 4 and 5.

Attach the earth to the terminate “earth”, the neutral N to terminal 4 or 5, the Phase L1 to the
terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.

Mains Connection Supply cord Supply cord Circuit braker

230V~ 50/60Hz 1 Phase + N 3 x 2,5 mm²

H 05 VV - F

H 05 RR - F

25 A *

400V~ 50/60Hz 2 Phases + N

4 x 1.5 mm²

H 05 VV - F

H 05 RR - F

16 A *

We cannot be

held responsible for any incident resulting from incorrect connection or

which could arise from the use of an appliance which has not been earthed or has been

equipped with a faulty earth connection.

18343/1
