Caple C2361SS Instruction Manual

OVENS

Installation - Use - Maintenance

GB

DEAR CUSTOMER,

We thank you and congratulate you on your choice.
This new carefully designed product, manufactured with the highest quality materials,
has been carefully tested to satisfy all your cooking demands.
We would therefore request you to read and follow these easy instructions which will
allow you to obtain excellent results right from the start.

THE MANUFACTURER

IMPORTANT

The oven’s data plate is accessible even with the oven fully installed. The plate is
visible simply by opening the door. Always quote the details from it to identify the
appliance when ordering spare parts.

2

CONTENTS

First use pag. 4

Self-cleaning panel 4

Respect for the environment 5

Control panel 6

INSTRUCTIONS FOR USE:

- conventional cooking 7

- fan cooking 7

- grill cooking 8

Thermostat 9

Cooking timer 9

Electronic timer 10

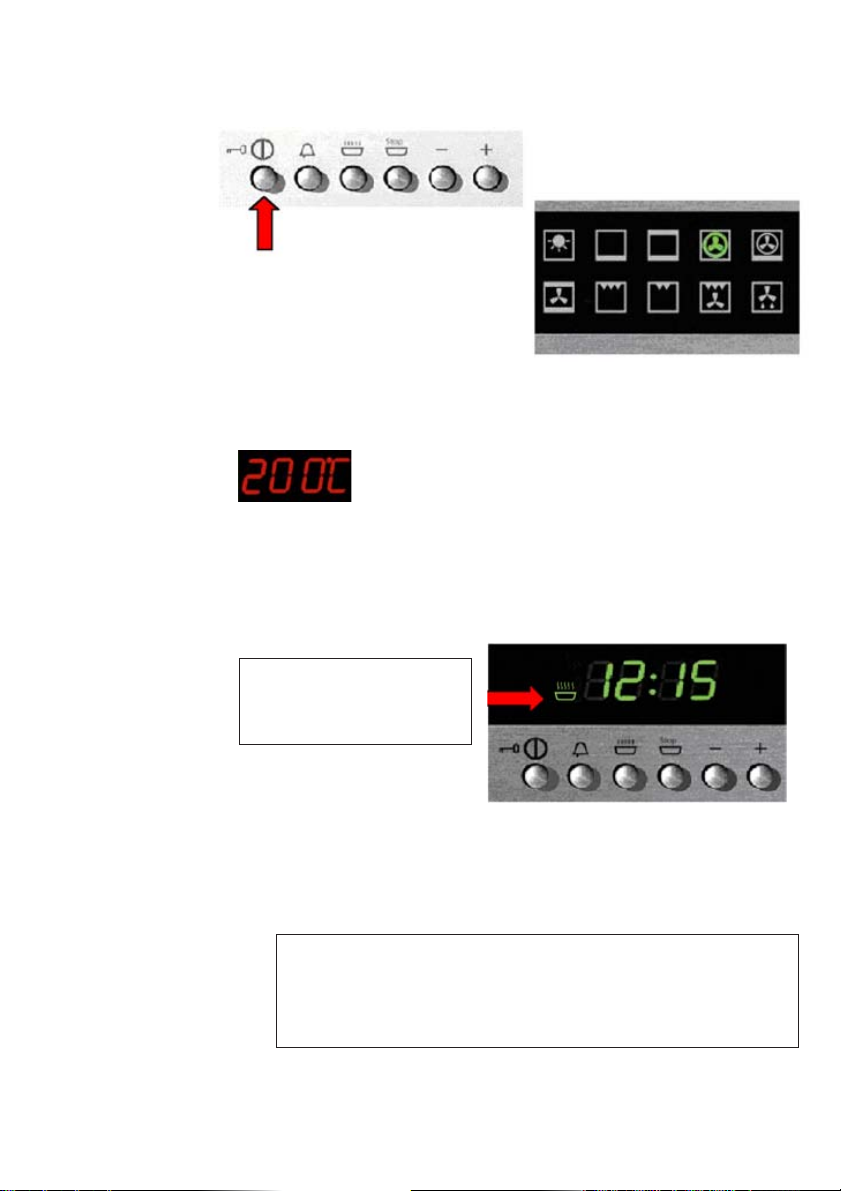

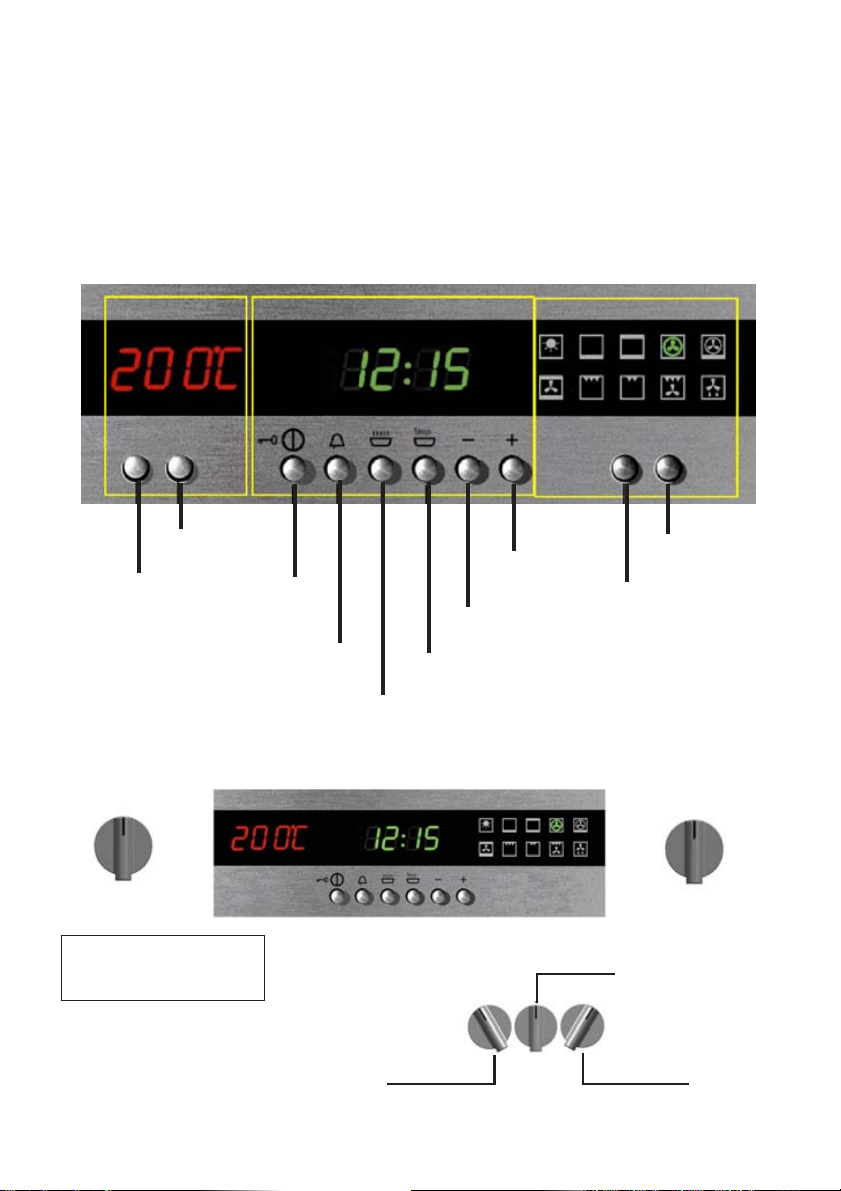

The control panel 11

Light replacement 22

Removing the oven door 22

INSTALLATION INSTRUCTIONS

Flush fitting 23

Electrical connections 24

3

THE FIRST TIME YOU USE THE OVEN

Clean the oven thoroughly with soapy water and rinse well. To remove the lateral
frames from smooth-walled ovens, proceed as shown in the figure.
Operate the oven for about 30 minutes at maximum temperature to burn off all traces
of grease which might otherwise create unpleasant smells when cooking.

Important:

As a safety precaution, before cleaning the oven, always disconnect the plug from the
power socket or the power cable from the oven. Do not use acid or alkaline substances
to clean the oven (lemon juice, vinegar, salt, tomatoes etc.). Do not use chlorine based
products, acids or abrasive products to clean the painted surfaces of the oven.

SELF-CLEANING CATALYTIC PANELS

Our smooth walled ovens can be fitted with self-cleaning panels to cover the inside
walls.
These special panels are simply hooked on to the walls before the side frames are
fitted. They are coated in a special, micro-porous catalytic enamel which oxidises and
gradually vaporises splashes of grease and oil at cooking temperatures above 200° C.
If the oven is not clean after cooking fatty foods, operate the empty oven for 60 mi­nutes (max.) at maximum temperature.
Never wash or clean self-cleaning panels with abrasive, acid, or alkaline products.

4

RESPECT FOR THE ENVIRONMENT

The documentation provided with this oven has been printed on chlorine free bleached
paper or recycled paper to show respect for the environment.

The packaging has also been designed to avoid environmental impact. Packaging
material is ecological and can be re-used or recycled.
By recycling the packaging, you will help save raw materials as well as reducing the
bulk of domestic and industrial waste.

5

CONTROL PANEL FUNCTIONS

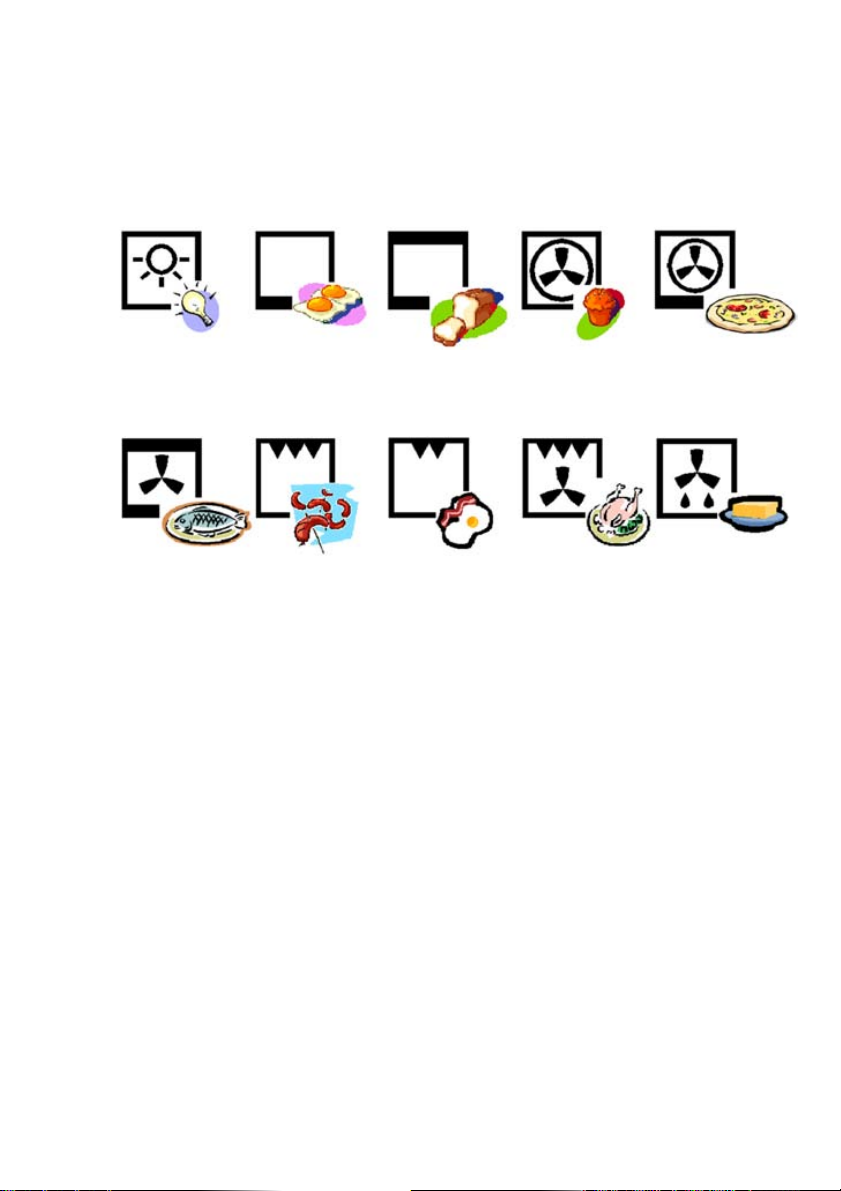

FUNCTION SYMBOLS ON THE SELECTOR

Oven light (stays on while oven is in use).

Bottom heating element.
Thermostat setting from 50°C to MAX.

Top and bottom heating elements.
Thermostat setting from 50°C to MAX.

Top and bottom heating elements with fan.
Thermostat setting from 50°C to MAX.

Circular heating element with fan.
Thermostat setting from 50°C to MAX.

Fan for defrosting.
Thermostat setting at 0°C.

Bottom heating element with fan.
Thermostat setting from 50°C to MAX.

Double top heating element with fan ( large area grill).
Thermostat setting from 50°C to 200°C.

Double top heating element (large area grill).
Thermostat setting from 50°C to 200°C.

Top heating element (small,low power grill).
Thermostat setting from 50°C to 200°C.

Bottom heating element + Circular heating element with fan.
Thermostat setting from 50°C to MAX.

6

INSTRUCTIONS FOR USE

CONVENTIONAL COOKING

Conventional cooking uses top and bottom heat to cook a single dish.
Place the food in the oven only once cooking temperature has been reached, i.e. when
the heating indicator goes out.
If you want to increase top or bottom temperature towards the end of the cooking
cycle, set the temperature control to the right position.It is advisable to open the oven
door as little as possible during cooking.

FAN COOKING

For this type of cooking a fan positioned at the back allows the circulation of hot air
inside the oven, creating uniform heat. In this way cooking is more rapid than
conventional cooking. It is a suitable method for cooking dishes on more than one
shelf, especially when the food is of different types (fish, meat etc.)

DEFROSTING

By selecting one of the fan cooking functions and setting the thermostat to zero, the fan
allows cold air to circulate inside the oven. In this way frozen food can be rapidly
defrosted.

It is not essential to pre-heat the oven, but you are advised to do so when cooking
pastries.

7

GRILL COOKING

Use the grill to grill or brown foods. KEEP THE DOOR CLOSED.
Some ovens may be equipped with an electric motor, spit and skewers for turning on
the spit.
Place the shelf with the food to be cooked in the 1st or 2nd position from the top.
Pre-heat the oven for 5 minutes. Turn the thermostat to a temperature between 50° and
200°.

COOLING FAN

The fan is positioned on the upper part of the oven and create a circle of cooling air on
the inside of the furniture and through the door of the oven.
It is turned on when the temperature of the outer shell of the oven reaches 60°C.
By switching on the oven with the thermostat at 200°C the fan starts working after
approx.10 min.
It is turned off when the temperature of the outer shell of the oven descends under
60°C.
By switching off the oven with the thermostat at 200°C the fan stops working after
approx. 30 min.

8

THERMOSTAT

Use the thermostat to set the cooking temperature you need. The thermostat can be
adjusted from 50° to 250° C.

0-11 HEAT REGULATOR

0-6 SELECTOR

Use these to adjust the heat in the cast iron or glass-ceramic plates. Increase the setting
from 0 to 6 or from 0 to 11 to raise the temperature.

ALARM TIMER

You can set this timer to sound a buzzer after 0 to 60 minutes of cooking. First turn the
knob fully clockwise, then turn it back to the desired alarm time.

COOKING TIMER

First, turn the cooking selector to the required cooking function, and the thermostat to
the desired cooking temperature.
Then, to set end of cooking time, turn the cooking timer to the right and to the desired
time. First turn the knob fully clockwise, then turn it back to the desired alarm time. A
buzzer sounds at the end of the timed cooking period, and the oven switches itself off.

To set only the start of cooking, turn the cooking timer to the left to the symbol.

PROGRAMMING END OF COOKING TIME WITH THE ANALOGUE TIMER

Setting the clock
Pull the knob out and turn it clockwise to set the clock.
First, turn the cooking selector to the required cooking function, and the thermostat to the
desired cooking temperature. Then, to set end of cooking time, turn the cooking timer to
the right and to the desired time. A buzzer sounds at the end of the timed cooking period,
and the oven switches itself off. Push the timer knob in to silence the buzzer

.

To set only the start of cooking, leave the knob in the manual position.
