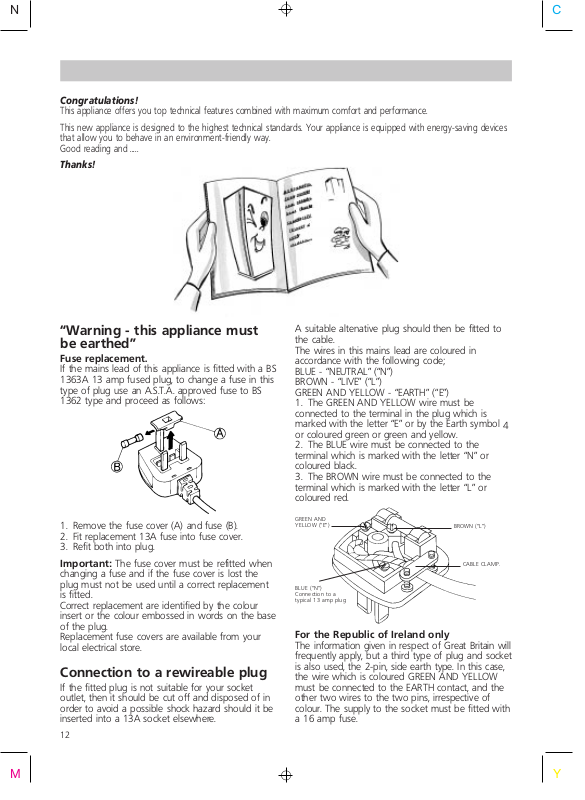

Congratulations!
This appliance offers you top technical features combined with maximum comfort and performance.
This new appliance is designed to the highest technical standards. Your appliance is equipped with energy-saving devices
that allow you to behave in an environment-friendly way.
Good reading and .....
Thanks!
“Warning - this appliance must
be earthed”
Fuse replacement.
If the mains lead of this appliance is fitted with a BS
1363A 13 amp fused pl ug, to change a fuse in this
type of plug use an A.S.T.A. approved fuse to BS
1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.
Important:
The fuse cov er must be refitted when
changing a fuse and if the fuse cover is lost the
plug must not be used until a correct replacement
is fitted.
Correct replacement a re i dentified by the colour
insert or the colour embossed in words on the base
of the plug.
Replacement fuse covers are available from your
local electrical store.
Connection to a rewireable plug
If the fitted plug is not suitable for your socket
outlet, then it should be cut off and disposed of in
order to av oi d a possi bl e shock hazard should it be
inserted into a 13A socket elsewhere.
12
A suitable altenative plug should then be fitted to
the cable.
The wires in this mains lead are coloured in
accordance wi th the following code;
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN AND YELLOW - “EARTH” (“E”)
1. The GREEN AND YELLOW wire must be
connected to the terminal i n the plug which is
marked with the letter “E” or by the Earth symbol
4
or coloured green or green and yellow.
2. TheBLUEwiremustbeconnectedtothe
terminal which is marked with the letter “N” or
coloured black.
3. The BROWN wire must be connected to the
terminal which is marked with the letter “L” or
coloured red.
GREEN AND
YELLOW (“E”)
BLUE (“N”)
Connection to a
typical 13 amp plug
BROWN (“L”)
CABLE CLAMP.
For the Republic of Ireland only
The information given in respect of Great Britain will
frequently apply, but a third type of plug and socket
is also used, the 2-pin, side earth type. In this case,
the wire which is coloured GREEN AND YELLOW
must be connected to the EARTH contact, and the
other two wi res to the two pins, irrespective of
colour. The supply to the socket must be fitted with
a16ampfuse.
TABLE OF CONTENTS GB
DESCRIPTION OF THE APPLIANCE Page 14
CONTROLS Page 15
BEFORE USING THE APPLIANCE Page 16
PRECAUTIONS AND GENERAL SUGGESTIONS Page 16
HOW TO USE THE REFRIGERATOR COMPARTMENT Page 17
HOW TO USE THE FREEZER COMPARTMENT Page 18
HOW TO DEFROST AND CLEAN THE APPLIANCE Page 19
TROUBLE-SHOOTING GUIDE Page 19
AFTER-SALE SERVICE Page 20
INSTALLATION Page 20
13
X
DESCRIPTION OF THE APPLIANCE
B
o u i
C
A
X
X
r
q
q
e
t
z
A) Refrigerator Compartment
(for storing fresh food)
1.
Shelves (partially adjustable in height)
2.
Fruit and vegetables drawers
3.
Inside of the door with
(if available):
a. Adjustable containers
b. Door box - top
c. Door box - bottom
4.
Pull-out drawer (telescopic)
5.
Defrost water run-off
6.
Rating plate
c
X
b
w
X
X
B) Freezer Compartment (if available)
(with the
and/or storing fresh and frozen food, storing
deep-frozen food and making ice cubes).
7.
Freezer rack (not shown in the drawing, if
available).
8.
Freezing section
9.
Icecubetrays
C) Control unit
3orç
a
symbol, for freezing
14
CONTROLS
3 4 1 25
1.
Thermostat knob
2.
Light switch
3.
Light shield
4.
Pilot light switch: press the pilot light switch
(if available) only when room temperature
drops below 6
o
C - and / or 2 hours before
freezing.
(see Instructions for Use).
turn the switch off after its utilization!
5.
Setting mark
5

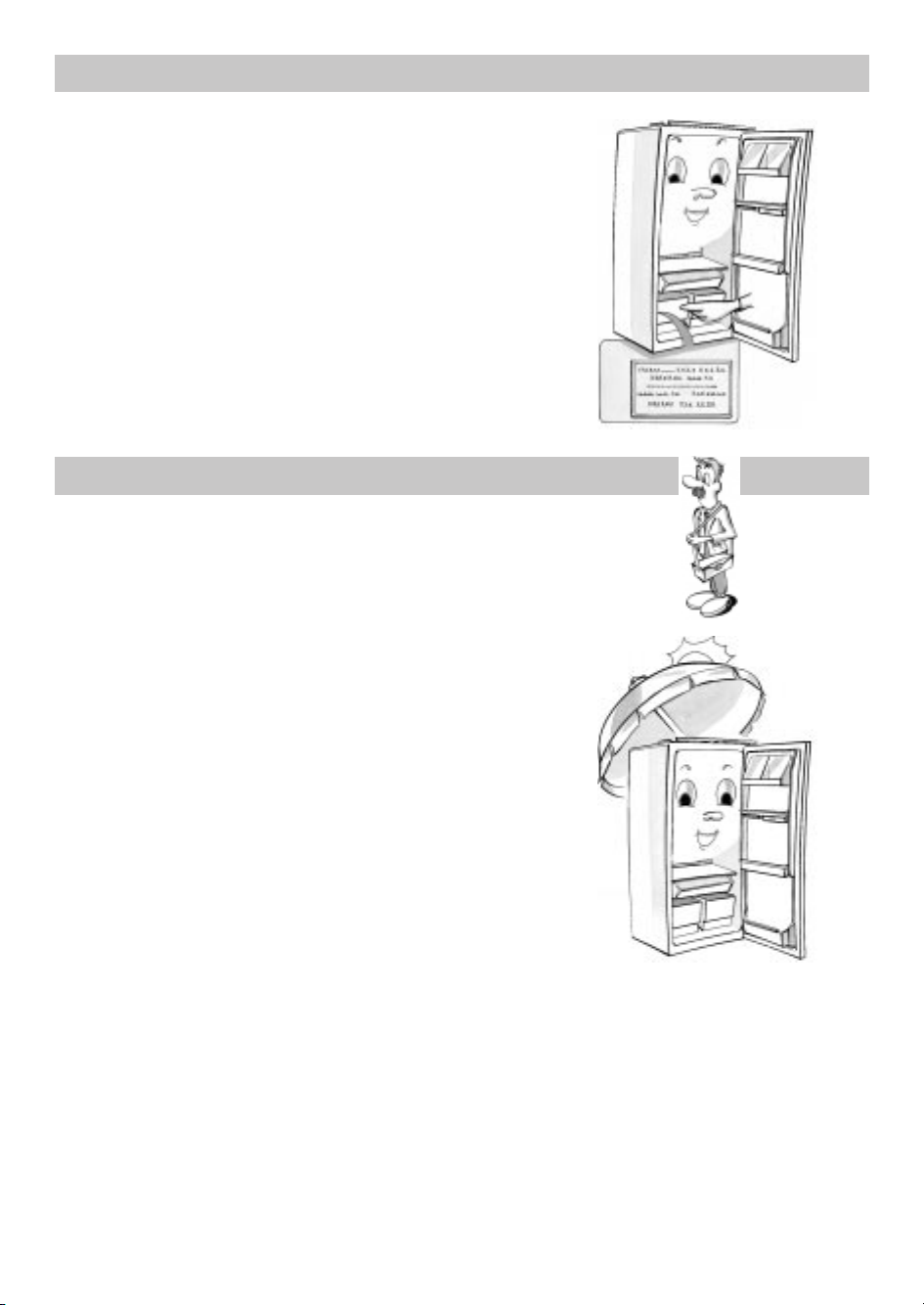

BEFORE USING THE APPLIANCE
x After unpacking, make sure that the appliance
is undamaged and that the door closes tightly.
Any damage must be reported to your retailer
within 24 hours after delivery of the appliance.
x
Wait at least 2 hours without moving t he
appliance before connecting it to the power
supply.
PRECAUTIONS AND GENERAL SUGGESTIONS
x Use the refrigerator compartment only for the
storage of fresh food and the freezer
compartment only for the storage of frozen
food, the freezing of fresh food and to make
ice cubes.
x Do not cover or close the air vents.
x Do not store liquids in glass containers. Glass
containers holding liquids can burst in the
freezer.
x Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer. Risk of
“cold” burns.
x Before cleaning or servicing, always unplug the
appliance or switch the power supply off.
x Do not allow children to play or hide inside the
freezer: risk of becoming trapped inside and
suffocating.
x If the appliance is to be scrapped, make it
unusable by cutting off the power cord.
x Dispose of the appliance at an authorised
collection centre for refrigerant gas.
x Do not ingest the contents of the ice packs!
x The appliance is built with recyclable material.
Follow local disposal regulations.
x Make sure appliance installation and electrical
connection are carried out by a qualified
technician according to the Manufacturer’s
instructions and local safety regulations.
Declaration of conformity
x This appliance is designed to store food
products and conforms to EEC directive n.89/
109.
x The appliance has been tested for leaks and it
conforms to VBG 20 safety standards for
refrigerating units.
x Perform electrical connection, installation and
assembly exactly as indicated by the
manufacturer. If you are in doubt, call a
qualified technician. The electrical system in
you home must conform to the electrical
supply data shown on the rating plate.
x All repairs or service operations must be
carried out by a qualified technician.
Information
x This appliance is free of CFC’s (refrigerant
circuit contains R134a) or free of HFC’s
(refrigerant circuit contains R600a - Isobutane).
For more details, please refer to the rating
plate on the appliance.
For appliances with Isobutane (R600a)
x The refrigerant Isobutane is a natural gas of
high environmental compatibility but which is
inflammable. Therefore, it is essential to ensure
that the ducts of the refrigerant circuit do not
get damaged.
16
HOW TO USE THE REFRIGERATOR COMPARTMENT
This appliance is either a refrigerator, or a refrigerator
3
with a
compartment, or a refrigerator with a
ç
compartment.
The appliance has been designed to run at a room
temperature ranging from +10
with a
3
o
Cto+38oC.
+16
1X.
Getting started
compartment without pilot light ( 4), from
o
Cto+38oC. For appliances
After the appliance has been connected to the power supply,
the inside light turns on when the refrigerator door is opened
and the thermostat knob is not on position
x
. After the
temperature has been set, as described below, the appliance
is ready for use.
2X.
To set the temperature:
x
Thermostat knob (1) onx: no cooling and light off.
x
Thermostat knob (1) on 1: minimum cooling
x
Thermostat knob (1) on 3-4: average cooling
x
Thermostat knob (1) on 7: maximum cooling
Important:
x
Press the pilot light switch (4) when you freeze food and/or
when room temperature drops below 16
o
C. The pilot light
(4) turns on.
x
When room temperature rises above 16oC turn the pilot light
switch (4) off.
x
Inside temperatures are affected by the position of the
appliance, room temperature and frequency of door openings.
Thermostat setting (1) may have to be changed depending
on these factors.
X
X
1
2
How to store food in the refrigerator
compartment
3X.
We suggest to arrange food as shown in the figure on the
side:
1. Cooked food
2. Dairy products, tinned products, cheese, butter
3. Fish, meet
4. Sliced food
5. Fruit and vegetables
6. Small tins, eggs
7. Tubes, small tins
8. Sausage
9. Bottles
Notes:
x
Do not store food in an open container since it would dry up.
x
Do not store food that is still warm in the refrigerator
compartment.
x
Make sure that air circulates freely between stored food.
Defrosting of the refrigerator compartment is
completely automatic.
X
3
17
HOW TO USE THE FREEZER COMPARTMENT
Only for appliances with
3
compartment or
ç
compartment:
4X.
In the
3
freezing compartment it is possible to
store frozen food.
In the
ç
freezing compartment it is possible to
store food for several months. Furthermore, it is
possible to freeze foods. The quantity in ki los of fresh
food that can be frozen within 24 hours is indi cated on
the plate (6).
Freezing of foods
5X.
Press the pilot light switch (4) 12 hours before introducing
the food. The pilot light turns on.
x
Set the thermostat (1) 12 hours before introducing the food.
x
Remove the rack (if available) (7) from the
ç
compartment.
x
For freezing put the food in the middle of the
ç
compartment (at the back).
Important:
x
Wrap and seal food in aluminium foil, cling film, air- and
watertight plastic bags, polyethylene containers with lids,
containers suitable for freezers.
When buying frozen food, make sure that:
x
Wrapper or package is intact as the food may deteriorate. If it
bulges or has spots of moisture on it, it means that it has not
been stored in adequate conditions and that the contents
may have started to thaw.
x
Always use thermal bags or cold boxes for transport.
x
Frozen food should always be purchased last.
x
When at home, immediately store it in the freezer.
x
Any food, even if partially thawed, cannot be re-frozen but
mustbeeatenwithin24hours.
x
Any rise in temperature of frozen food should be avoided or
kept as short as possible. Frozen food should not be kept
beyondthedateindicatedonthepackage.
x
Always follow the instructions on how to store frozen food
writtenonthepackaging.
X
X
4
5
Making ice cubes
x
Fill the ice cube trays (9) 3/4 full of water and place them on
the bottom of the freezer compartment.
x
Use the handle of a spoon to free the ice cube trays if they
are stuck.
Do not use sharp or pointed tools.
18
HOW TO DEFROST AND CLEAN THE APPLIANCE
Before carrying out any cleaning or maintenance, always
unplug the appliance.
You should defrost the freezer compartment when frost
build-up reaches 3 mm in thickness.
x
Remove all food from the
turn the thermostat knob to
x
Wrap the food in paper or a blanket and put it in a cool place.
x
Periodically clean the inside of the appliance with a sponge
3orç
x
.
compartment and
dampened in a solution of warm water and neutral pH
detergent.
x
Rinse and dry.
x
Defrosting of the refrigerator compartment is completely
automatic.
6X.
Regularly clean the defrost water run-off with a brush so that
the defrost water will flow down unhindered.
After having cleaned the appliance, plug it in.
Do not use abrasives.
Long vacation
x
Empty the appliance.
x
Unplug the appliance.
x
Defrost and clean the inside.
x
Leave the door open to prevent odour from setting in.
TROUBLE-SHOOTING GUIDE
1. The temperature is not cold enough
x
Is the food preventing the door from closing
properly?
x
Is the thermostat on the correct setting?
x
Is air circulation blocked?
2. The temperature in the refrigerator compartment
is too cold
x
Is the thermostat on the correct setting?
3. The appliance i s excessively noisy
x
Has the appliance been properly installed?
x
Do the pipes on the back touch and rattle?
x
Gurgling noises inside the refrigerating circuit
are normal.
4. The appliance does not work
x
Is there a power failure?
x
Is the plug properly inserted in the socket?
x
Has the fuse blown?
x
Is the appliance switched on?
5. There is water on the bottom of the refrigerator
compartment
x
Is the thermostat on the correct setting?
x
Is the defrost water run-off clogged?
6. The inside light does not work
First check point 4, then:
x
Unplug the appliance.
x
1. Press the light shield (3).
2. Remove the light shield (3).
x
Replace the bulb (220»240 V, 15 W).
X
7
.
6
X
1.
X
7
2.
19
AFTER-SALE SERVICE
8X.
If the freezer does not work correctly even after
you have consulted the trouble shooting guide,
contact after sales Service.
INSTALLATION
9X.
Do not install the appliance close to any heat source.
High room temperatures, direct sunlight, or location near
heating or stoves increase the power consumtion and shoul
be avoided. If it is not possible to avoid placing the appliance
next to a source of heat, note that the following spacings
should be maintained:
to coal oil ovens or heaters 30 cm
to electric cookers/Hotplates 3 cm
x
The appliance must be placed in a dry and well-ventilated
room.
x
Clean the interior (see “DEFROSTING AND CLEANING THE
APPLIANCE”).
x
Assemble the accessories.
x
Check the efficiency of the door seal, especially after the
appliance has been built in and the door opening direction
has been changed.
X
X
8
9
Electrical connection
x
Check that the voltage shown on the rating plate corresponds
to the voltage in your home.
x
The appliance must be earthed in accordance with the law.
The Manufacturer cannot be held liable for any injury to
persons or damage to property resulting from the failure to
comply with this requirement.
x
If the appliance plug and the wall socket are incompatible, the
socket must be replaced by a qualified electrician.
x
Do not use adapters, multiple sockets or extension cables.
20
Loading...
