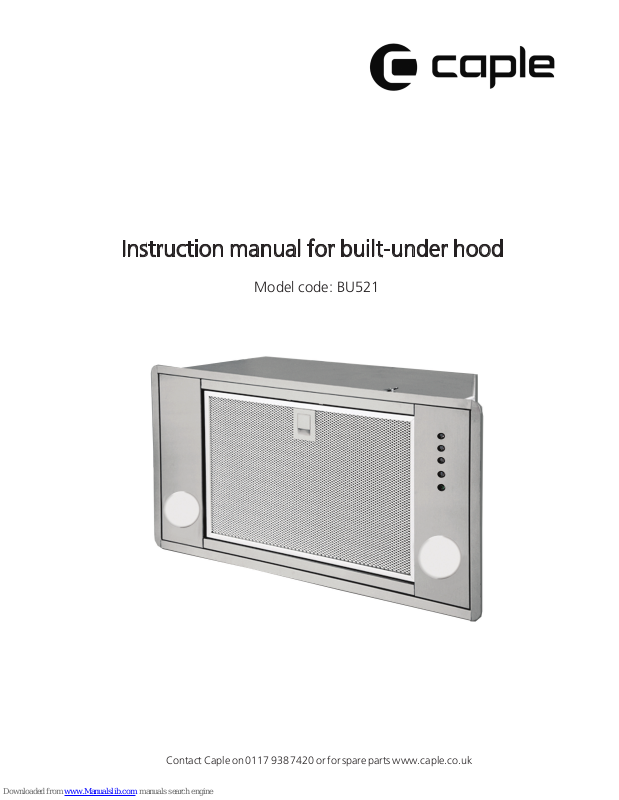

Instruction manual for built-under hood
Model code: BU521
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Page 2
2
Page 3
Environmental protection
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about recycling of this
product, please contact your local city oce, your household waste disposal service or
the shop where you purchased the product. This appliance is marked according to the
European directive 2012/19/EC on waste electrical and electronic equipment (WEEE).
3
CE Declarations of Conformity
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility
Directive (EMC).
Page 4
CONTENTS
Warnings 5
Installation 6
Control panel 7
Maintenance 7
4
GB
Dimensions 10
Extraction method 5
Page 5
5
* Before carrying out any cleaning or maintenance
operations, the appliance needs to be removed from
the electric grid. If the appliance is not provided
with a non-separable flexible cable and plug, or with
another device ensuring omnipolar disconnections
from the grid, with an opening distance between
the contacts of at least 3 mm, then such
disconnecting devices must be supplied within the
fixed installation.
If the fixed appliance is supplied with a supply cord
and a plug, the appliance has to be put in a place
where the plug can be reached easily.
*
The use of materials which can burst into flames
should be avoided in close proximity of the
appliance. When frying, please pay particular
attention to a fire risk due to oil grease being
highly inflammable, fried oil is especially
dangerous. Do not use uncovered electric grills. In
order to avoid possible fire risk, all instructions for
grease filter cleaning and for removing eventual
grease deposits should be strictly followed.
Warnings
* The appliance is not intended for use by
young children or infirm persons without
supervision. Young children should be supervised
to ensure they do not play with the appliance.
*
The hob surface and the lower part of the cooker
hood must be at a minimun distance of 65cm, 76cm
if installed above a gas hob. Always refer to the
guidelines stated in the hob installation guide. If a
greater distance is stated follow the hob details.
*
The air extracted cannot be conveyed through
or into a duct used to let out fumes from appliances
powered by energy other than electricity (eg. gas,
central heating, radiators, water heaters, etc.).
* To evacuate the air outlet, please comply
with the pertaining rules given by competent
authorities.
* Provide the room with an adequate aeration
when a cooker hood and appliances fed by energy
other than electric power (gas, oil, or coal stoves,
etc.) are used simultaneously. The cooker hood,
when evacuating the extracted air, could generate
a negative pressure in the room which must not
exceed the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat source.
Therefore the room should be provided with air
intakes to allow a constant flow of fresh air.
If the rating label in the cooker hood shows the
symbol , the appliance is built in class II° and it
does not need an earth connection.
If the rating lable in the cooker hood does not
show the symbol , the appliance is built in
class I° and it needs the earth connection.
* When performing the electrical connections on
the appliance, please make sure that the current
tap is provided with earth connection and that
voltage values correspond to those indicated on
the label placed inside the appliance itself.
Extraction method
The appliance is already produced both
for filtering and for ducted installations.
* In its filtering version (Fig.1), the air and fumes
conveyed by the appliance are cleaned both by a
grease filter and by an active charcoal filter, it is
then put back into circulation through the hole
made on the top of the cabinet.
* In its ducted version (Fig.2), fumes are directly
conveyed outside, through an evacuation duct
connected through the external wall or the ceiling.
Both the charcoal filter and air deflector are not
necessary for this method.
Page 6
6
Installation
Before installing the appliance, make sure that
none of the parts are damaged in any way. In case
of damaged parts, contact your retailer and do not
proceed with installation. Read all of the
following instructions with care before installing
the appliance.
- Use an air outlet pipe of the shortest possible
length.
- Limit the number of pipe bends.
- Use a material approved by standards and
regulations.
- Avoid any sudden changes in pipe sections
- The recommended constant ducting diameter
is 150 mm (or equal surface area).
* Before installing the appliance, in order not to
damage the appliance itself, the metal grease filter
should be removed. The filter can be removed by
pushing the special filter handle toward the back
side of the cooker hood and pulling it downwards
so to unfasten it from its slot (Fig.3).
Essential precautions to respect before installing
the appliance are the following:
- Make a cut-out in the bottom of the cabinet
which is suitable to hold the appliance in position
(fig.4).
- Prepare the power supply
- Prepare a hole for exhausting he air, both for the
recirculated and ducted installation.
To install the appliance, adjust the position of the
stop side-springs using the appropriate screws
(fig.5), according to the thickness of the board
previously drilled, on which the appliance will be
fixed.
Insert the built-in unit into the hole made in the
cabinet until the stop click of the side springs is
heard and the built-in unit is locked in position.
Insert the screws provided in the holes inside the
appliance (fig.6) to lock it completely.
Unblocking of the stop valve
Warning!
Before connecting the flexible exhausting pipe to
the motor, make sure the stop valve, which is on
the air outlet of the motor, can swing freely.
Exausting version
Connect the flange to the exhausting hole with an
appropriate pipe. Connect the appliance to the
electrical mains through the supply cord.
F
iltering version (recirculating)
Connect the flange with a pipe suitable to convey
the air to the top of the cabinet. Connect the
appliance to the electrical mains supply through
the supply cord.
Page 7
7
Control panel
Refer to (Fig. 9) :
A: Light switch on/off
B: Motor switch - speed 1 / OFF
C: Motor switch - speed 2
D: Motor switch - speed 3
E: Warning light
Maintenance
* An accurate maintenance guarantees good
functioning and long-lasting performance.
* Particular care is required for the grease filter panel.
It can be removed by pushing its handle toward
the back-side of the cooker hood and pulling the
filter downwards to unfasten it from its slot
* If the hood is being used in the recirculation mode
the active charcoal filter (Fig.7) needs to be
periodically replaced. The charcoal filter can be
removed by removing the grease filter first (Fig.3),
and by pulling its special plastic tongue until it is
unfastened from its slot. Re-insert the charcoal
filter by operating in the opposite way. The
charcoal filter needs replacing depending on the
use, but at lease every six months.
* To clean the appliance itself tepid water and
neutral detergent is recommended, abrasive
products should be avoided. For steel appliances
specialized cleaning products can also be used
(please follow the instructions indicated on the
product itself to obtain the desired results).
* To replace the halogen lamps, remove first the
glass fixing ring (Fig.8-A), by levering with a
screwdriver and thus removing the opaque glass
(Fig.8-B), when performing this hold the glass
carefully. Remove the lamp (Fig.8-C) without
touching it with uncovered hands. Replace it with
another lamp of the same kind, again not touching
the glass bulb. After the replacement, re-insert the
glass and fix the locking ring in place.
* Warning! To remove the appliance from the
cabinet, remove the fixing screws (fig. 6) using
a screwdriver, remove the grease filters (fig.3)
and the active charcoal filters, if they have been
inserted (fig. 7). Press on the small handle of the
springs, which are inside the built-in unit, with the
necessary strength to unhook the appliance from
the cabinet.
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice agent or
a similarly qualified person in order to avoid a
hazard. Contact Caple Service on 0844 800 3830
or by email service@caple.co.uk.
* To replace the halogen lamps, remove first the
glass fixing ring (Fig.8-A), by levering with a
screwdriver and thus removing the opaque glass
(Fig.8-B), when performing this hold the glass
carefully. Remove the lamp (Fig.8-C) without
touching it with uncovered hands. Replace it with
another lamp of the same kind, again not touching
the glass bulb. After the replacement, re-insert the
glass and fix the locking ring in place.
* Warning! To remove the appliance from the
cabinet, remove the fixing screws (fig. 6) using
a screwdriver, remove the grease filters (fig.3)
and the active charcoal filters, if they have been
inserted (fig. 7). Press on the small handle of the
springs, which are inside the built-in unit, with the
necessary strength to unhook the appliance from
the cabinet.
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice agent or
a similarly qualified person in order to avoid a
hazard. Contact Caple Service on 0844 800 3830
or by email service@caple.co.uk.
TIMING
As a result of the new EU65 “Energy label” and EU66 “
Ecodesign” regulations issued by the European Commission, which came into force as from January 1st,
2015 , our products have been adapted to comply
with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer
device that automatically switches the suction speed
from 4th to 3rd speed, after 5 minutes operation.
External motor models are equipped with re mote
Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand –
by mode is lower than 0.5W.
Control panel
Refer to (Fig. 9) :
A: Light switch on/off
B: Motor switch - speed 1 / OFF
C: Motor switch - speed 2
D: Motor switch - speed 3
E: Warning light
Maintenance
* An accurate maintenance guarantees good
functioning and long-lasting performance.
* Particular care is required for the grease filter panel.
It can be removed by pushing its handle toward
the back-side of the cooker hood and pulling the
filter downwards to unfasten it from its slot
To insert the filter just perform the opposite
operation.
The grease filter needs cleaning by regular
hand-washing or in your dishwashers at least
every two months, this will vary depending on its
use.
NOTE:If washing the grease filter in the dishwasher
please was the separately to prevent food particles
becoming trapped in the filter mesh.
* If the hood is being used in the recirculation mode
the active charcoal filter (Fig.7) needs to be
periodically replaced. The charcoal filter can be
removed by removing the grease filter first (Fig.3),
and by pulling its special plastic tongue until it is
unfastened from its slot. Re-insert the charcoal
filter by operating in the opposite way. The
charcoal filter needs replacing depending on the
use, but at lease every six months.
* To clean the appliance itself tepid water and
neutral detergent is recommended, abrasive
products should be avoided. For steel appliances
specialized cleaning products can also be used
(please follow the instructions indicated on the
product itself to obtain the desired results).
* To replace the halogen lamps, remove first the
glass fixing ring (Fig.8-A), by levering with a
screwdriver and thus removing the opaque glass
(Fig.8-B), when performing this hold the glass
carefully. Remove the lamp (Fig.8-C) without
touching it with uncovered hands. Replace it with
another lamp of the same kind, again not touching
the glass bulb. After the replacement, re-insert the
glass and fix the locking ring in place.
* Wa
rning! To remove the appliance from the
cabinet, remove the fixing screws (fig. 6) using
a screwdriver, remove the grease filters (fig.3)
and the active charcoal filters, if they have been
inserted (fig. 7). Press on the small handle of the
springs, which are inside the built-in unit, with the
necessary strength to unhook the appliance from
the cabinet.
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice agent or
a similarly qualified person in order to avoid a
hazard. Contact Caple Service on 0844 800 3830
or by email service@caple.co.uk.
Control panel
Refer to (Fig. 9) :
A: Light switch on/off
B: Motor switch - speed 1 / OFF
C: Motor switch - speed 2
D: Motor switch - speed 3
E: Warning light
Maintenance
* An accurate maintenance guarantees good
functioning and long-lasting performance.
* Particular care is required for the grease filter panel.
It can be removed by pushing its handle toward
the back-side of the cooker hood and pulling the
filter downwards to unfasten it from its slot
(Fig.3).
* To replace the h
alogen lamps, remove first the
glass fixing ring (Fig.8-A), by levering with a
screwdriver and thus removing the opaque glass
(Fig.8-B), when performing this hold the glass
carefully. Remove the lamp (Fig.8-C) without
touching it with uncovered hands. Replace it with
another lamp of the same kind, again not touching
the glass bulb. After the replacement, re-insert the
glass and fix the locking ring in place.
* Warning! To remove the appliance from the
cabinet, remove the fixing screws (fig. 6) using
a screwdriver, remove the grease filters (fig.3)
and the active charcoal filters, if they have been
inserted (fig. 7). Press on the small handle of the
springs, which are inside the built-in unit, with the
necessary strength to unhook the appliance from
the cabinet.
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice agent or
a similarly qualified person in order to avoid a
hazard. Contact Caple Service on 0844 800 3830
or by email service@caple.co.uk.
To replace the LED lamps, it is possible to access the
back of the lamp with your hand, removing the lter.
Push at the same time both support wings of the
lamp and push the lamp forward to remove it (Pic. 8).
Page 8
8
1
2
4
3
5
FIG.3
1
2
3
FIG.3
S
SSMM90
5
0
2
m
m
O
Only one filter fitted to the BU521
2
6
5
m
m
Page 9
9
7
6
8
FIG.3
FIG.6
FIG.3
FIG.6
FIG.7
NOTE: Only one filter required for BU521
9
Page 10
10
Dimensions
Page 11
Page 12
9001120521 - GM 04/15
Caple
Fourth Way
Avonmouth
Bristol
BS11 8DW
www.caple.co.uk
90001120521 - GM 07/16
Loading...
