OP E R ATO R MA NUA L OM-T S /9
P art Number 1210 40 R ev. B DO ME S TIC
MO DE L : TS /9 S tand [Only ]
TS /9S S tand [with Drain C art]
S ta inle s s S te e l
S e lf-Dr aining
F or Us e with T a ble-Top E quipment
F O R Y OUR S A F E T Y
DO NOT S T OR E O R US E GA S OLINE OR OT HE R F LA MMAB L E VA P OR S
AND L IQ U IDS IN T HE V IC INIT Y OF THIS O R A NY O T HE R A P P L IA NC E .
WA R NING
THIS DE V IC E IS INTE NDE D F OR P R OF E S S IONAL FOO D S E R V IC E US E
ONL Y, A S DE S C R IB E D IN THIS MANUA L . DO NOT S T AND OR C L IMB
ON IT AT A NY T IME . DO NOT US E IT F OR S TOR AG E OR ANY O T HE R
P UR P OS E F OR WHIC H IT W A S NOT DE S IG NE D.
S e e the appropriate equipme n t
Operator Ma nual for applic able
Ins talla tion , O perati o n an d
C leaning Ins tructions .
IMPORTANT INFORMATION I KEEP FOR OPERATOR I IMPORTANT INFORMATION
OPERATOR MANUAL
Part Number 121040 Rev. B
Information contained in this document is
known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated
product information and specifications.
OM-TS/9
IMPORTANT — READ FIRST — IMPORTANT
CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS,
CAUTIONS, AND SAFETY INSTRUCTIONS IN THIS MANUAL.
WARNING: THE EQUIPMENT AND SUPPORT STAND ARE INTENDED FOR USE IN
COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD
PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS AND THE
APPROPRIATE EQUIPMENT OPERATOR MANUAL. ANY OTHER USE COULD
RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO THE EQUIPMENT AND
WILL VOID WARRANTY.
WARNING: DO NOT STAND OR CLIMB ON THE STAND AT ANY TIME. DO NOT USE IT FOR
STORAGE OR ANY OTHER PURPOSE FOR WHICH IT WAS NOT DESIGNED.
WARNING: EQUIPMENT MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH
ELECTRICITY AND AS NECESSARY, WITH GAS. IMPROPER INSTALLATION CAN
RESULT IN INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
DANGER: ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED. FAILURE TO
GROUND UNIT COULD RESULT IN ELECTROCUTION AND DEATH.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT EQUIPMENT SURFACES. DIRECT SKIN
CONTACT COULD RESULT IN SEVERE BURNS.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN KETTLES AND
BRAISING PANS. DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION: DO NOT OVER FILL UNITS WHEN COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS A MINIMUM OF 2-3” (5-8 cm) BELOW THE BODY RIM TO ALLOW
CLEARANCE FOR STIRRING, BOILING AND SAFE PRODUCT TRANSFER.
WARNING: TAKE SPECIAL CARE TO AVOID CONTACT WITH HOT UNIT BODY OR HOT
PRODUCT WHEN ADDING INGREDIENTS, STIRRING OR TRANSFERRING
PRODUCT TO ANOTHER CONTAINER.
WARNING: WHEN TILTING EQUIPMENT FOR PRODUCT TRANSFER:
1) WEAR PROTECTIVE OVEN MITT AND PROTECTIVE APRON.
2) USE CONTAINER DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT
SPLASHING.
3) PLACE CONTAINER FULLY IN DRAIN BASIN OR ON TOP OF COMPLETELY
CLOSED SPLASH SHIELD COVER, AS CLOSE TO THE UNIT AS POSSIBLE.
4) POUR SLOWLY, MAINTAIN CONTROL OF UNIT BODY AT ALL TIMES, AND
RETURN IT TO THE UPRIGHT POSITION AFTER CONTAINER IS FILLED OR
TRANSFER IS COMPLETE.
5) DO NOT OVER-FILL CONTAINER(S). AVOID DIRECT SKIN CONTACT WITH HOT
CONTAINER AND CONTENTS.
CAUTION: KEEP
FLOORS IN FRONT OF WORK AREA CLEAN AND DRY. IF SPILLS OCCUR,
CLEAN
IMMEDIATELY, TO AVOID SLIPS OR FALLS.
WARNING: BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC
POWER SUPPLY.
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND ELECTRICAL
EQUIPMENT. NEVER SPRAY OR HOSE SUPPORT HOUSING OR ELECTRICAL
CONNECTIONS.
OM-TS/9
2
OM-TS/9
IMPORTANT — READ FIRST — IMPORTANT
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN. WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ
THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE
CLEANER TO BE USED.
CAUTION
: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN
OR
AUTHORIZED GROEN DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND
DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.
IMPORTANT
: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL
WILL VOID WARRANTIES.
OM-TS/9
3
OM-TS/9

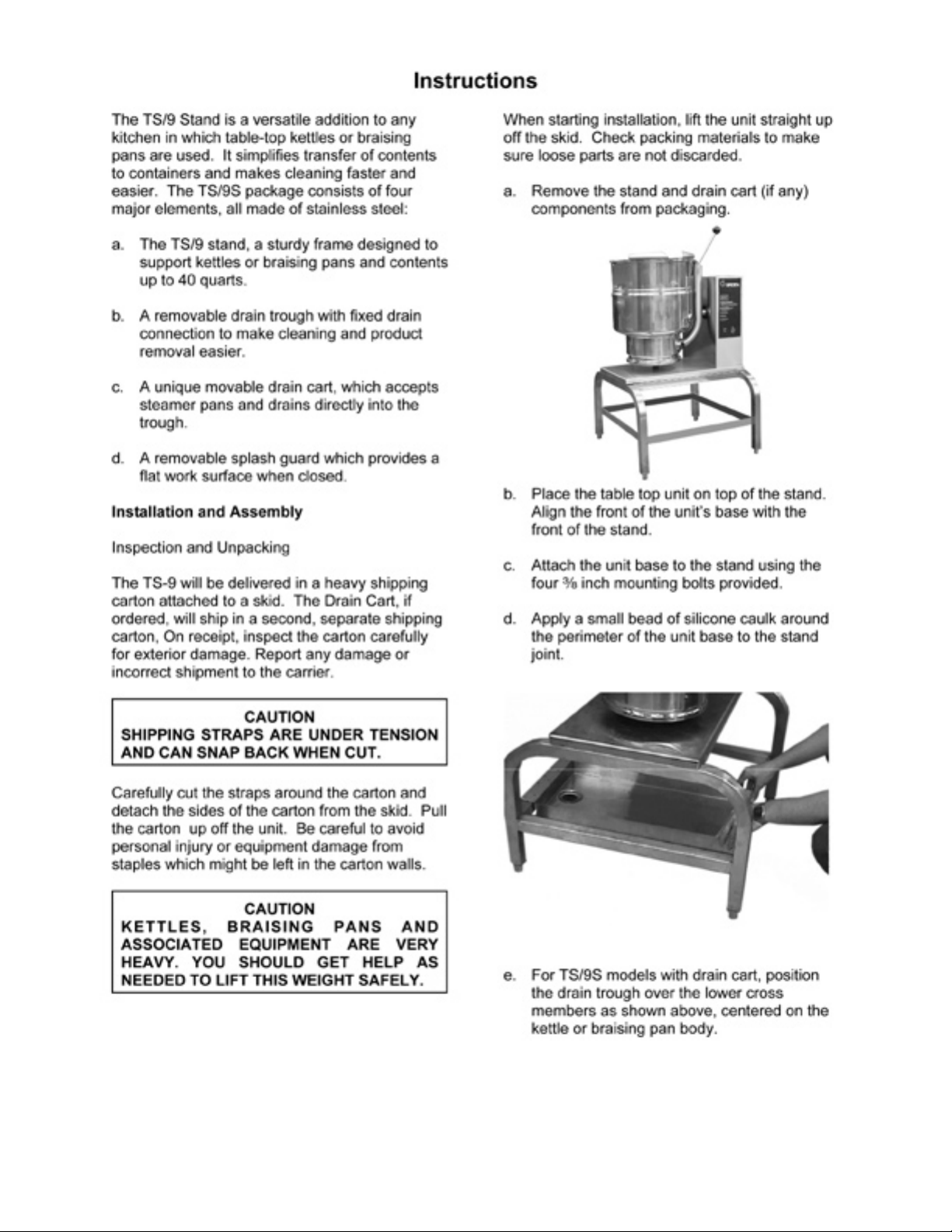

4
OM-TS/9
f. Lift and position the drain cart over the front
frame cross member and straddle the drain
trough, with casters just inside the
reinforcing cross bar. Align cart and drain
trough with the center of the kettle or
braising pan pour lip.

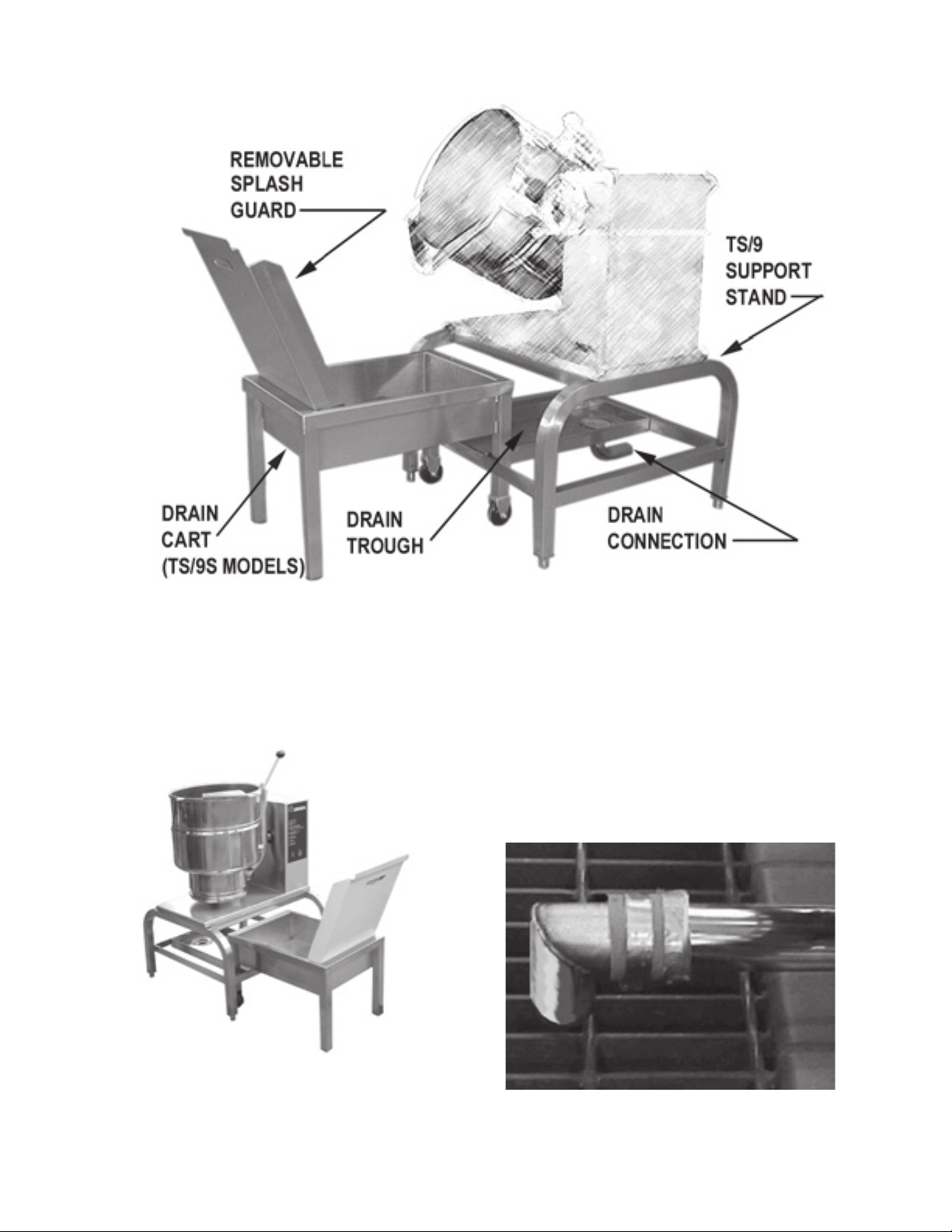

g. Fit the splash guard onto the drain cart hinge
pins.
h. Extend the drain line to the nearest floor sink
or drain. Refer to local plumbing codes for
drain line connections. A recommended 90∫
elbow installation is shown below.
Proceed with installation of the kettle or braising
pan as described in its Operator Manual.
OM-TS/9
5
OM-TS/9
Side-by-Side Stand Assembly
Several stands may be installed side by side,
using the Stand Clamp Kit (P/N 127240) as
follows (see photos):
a. Level stands so that the outsides of adjacent
legs are even (flush) with one another.
b. Remove adjacent mounting bolts (front and
rear) from under the stand, discarding their
flat washers.
c. Install the brackets (front and rear) as
shown.
d. Reinstall mounting bolts and tighten
securely.
TS/9 and TS/9S stands are extremely
versatile:
The cart
accepts
steamer pans,
and includes a
splash guard to
minimize spills
.
The Drain Cart
is conveniently
stored beneath
the kettle (or
braising pan).
...and pulls out
easily to be
used with the
drain
.
With the splash
guard down,
almost any
container size
may be used.
OM-TS/9
6
OM-TS/9
Limited Warranty
To Commercial Purchasers *
(Domestic U.S., Hawaii &
Canadian Sales Only)
