CapKold Cook-Chill Production Systems
Falling Film Evaporator Based
Chilled Water Production
General Description:
[Chilled Water Application & Sizing] A reliable and cost effective
source of chilled water is key to the rapid chilling of kettle cooked and
Cook Tank prepared foods and also a valuable resource in other food
prep and production applications. The sizing of a Falling Film Chiller
and supporting Refrigeration System is a function of the estimated
daily chilled water requirements for all applications.
Potential growth, future equipment additions, added production
shifts, physical layout and relationship of the Evaporator to production
areas will all impact proper sizing of Falling Film Systems.
Refrigeration/Chilled Water Production
Typical Production Equipment/Uses:
(A) Falling film chiller (D) Water circulation pump
(B) Refrigeration system (E) Internal water circulation pump
(C) Ice water control panel
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Please reference our website for the most
updated product information and specifications.
Groen CapKold Refrigeration, Page 28
CKFF 160672A
Revised 08/06
CKFF Falling Film Chiller
Falling Film Chiller
Overview:
Falling Film Chillers (FFC) use evaporator
plate technology with compressor condensers to make chilled water. A FFC is
a box with a group of vertical evaporator
plates and a water reservoir. Unlike the
coils in an Ice Builder, which stores ice
around them, these plates make chilled
water on an on-demand basis.
FFC systems are sized based on instantaneous chilled water requirements unlike
Ice Builders, which are sized by total daily
demand. However, FFC have groups of
chiller plates within the unit which can
be separated into “circuits”. A circuit is
one or more plates supported by circulation pumps and a compressor condenser.
This has some advantages:
• The unit can be sized for growth up
front. One establishes the maximum
load expected in the future and
chooses the FFC accordingly. The
FFC is purchased with the initial circuit or group of plates in place, with
adequate pumps and refrigeration.
• As the customer’s chilled water demands grow and additional Tumble
Chillers or Cook Tanks are added for
additional product chilling capacity,
additional plates and supporting
compressor condenser capacity can
be added. The internal and system
recirculation pumps are replaced as
needed for the increased water flow.
• If supplied by CapKold, the additional compressor condenser would
be configured with the features
outlined as necessary for proper
operation with FFC. If supplied
by others, modifications may be
required for full compatibility with
the FFC. Contact factory for details.
• For purposes of evaluation the
energy requirements of Falling Film
Systems versus Ice Builders, keep
the following information in mind.
Ice Builders and their associated
compressor condensers are sized to
make ice at night, during off peak
rate hours, and are based on making
ice 12 hours per day. In contrast,
compressor condensers for FFC operate on demand as they sense the
water temperature within the Chiller
reservoir and the need to reduce its
temperature. The compressor condenser operates on demand, much
as your refrigerator does at home.
It monitors water temperature and
turns on and off as needed.
System Component Information:
160673 REV A
Mini Spec/General Description:
Chilled Water Production System to provide cold water to the rapid chilling of packaged product
in: *Tumble Chillers; *Cook Tanks; *jacket cooling in one or more direct steam kettles; and *any
additional specified application. The Falling Film Chiller is sized for peak load BTU (heat) removal.
The system provides on demand cold water.
1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
© 2009 Unified Brands. All Rights Reserved. DOVER® and the DOVER® Logo are registered
trademarks in the United States [and various other countries] of Unified Brands, a
wholly-owned subsidiary of Dover Corporation.
3x5
2-6 Plates
4x8
2-8 Plates
3x5
2-6 Plates
4x8
2-8 Plates
3x5
2-6 Plates
CKFF Falling Film Chiller
Falling
Film
Chiller
Model:
To be used to
provide cold water on demand.
• Tank fabricated from 304
stainless steel
• Stainless steel
evaporator plates
• 2” insulation around
holding tank
• Water level control
• Internal chilled water
circulation pump
• Oil separator
• Standard expansion valve to
control refrigerant
Refrigeration
System Model:
Provides the chilling capacity for
the Falling Film Chiller.
• Outdoor weather hood
• Weatherproof control panel
• Condenser with
subcooling circuit
• Suction/discharge
vibration absorbers
• Head-pressure control valve
• Non-fused disconnect
• Oil pressure control
• High/low pressure control
• Manual pump down switch
• Accumulator with
heat exchanger
• Hot gas bypass
• Liquid injection
• Insulated and heated receiver
Available Options:
r Low ambient operation
r Water cooled condenser
(consult factory)
r Alternative refrigerants

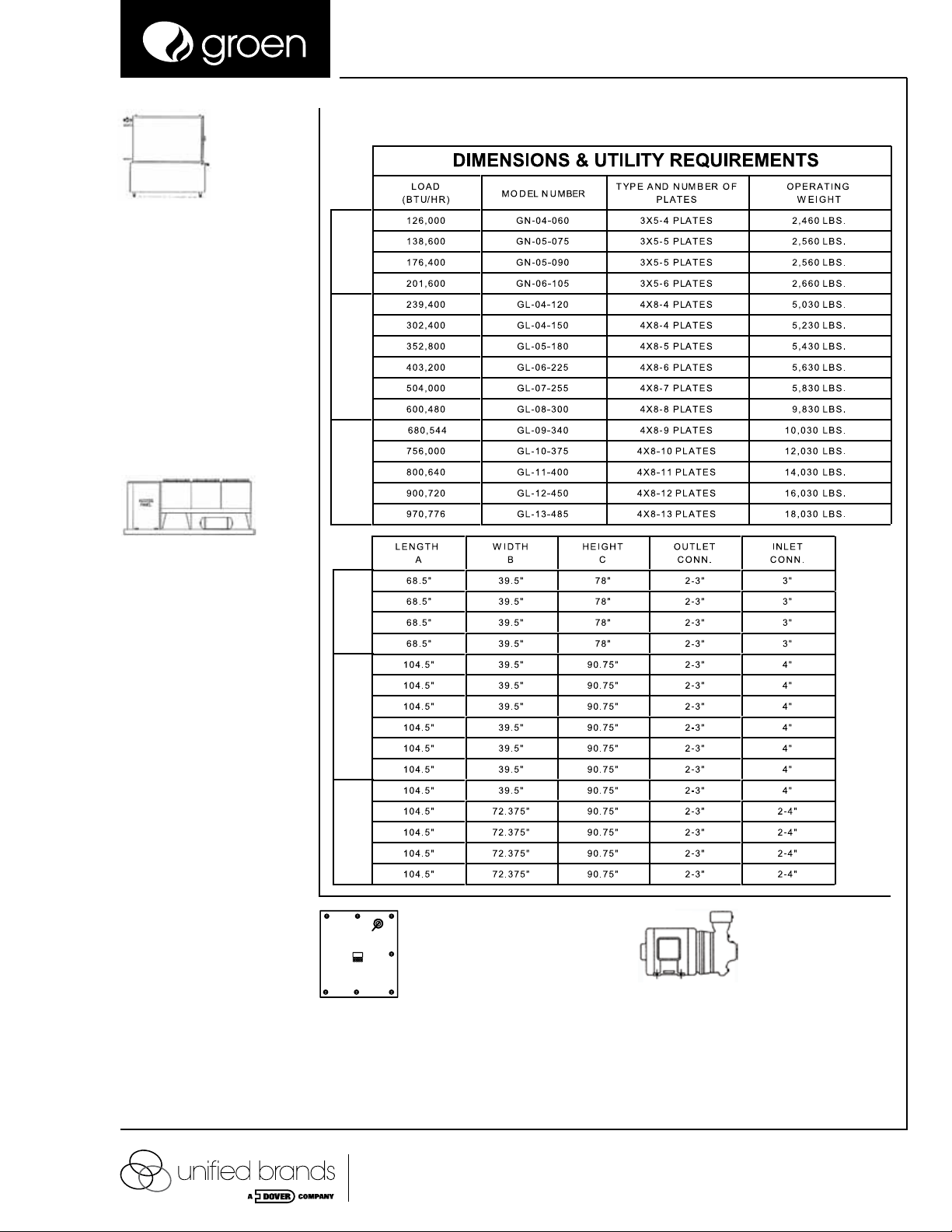

Falling Film Chiller Dimensions & Utilities:
3x5
2-6 Plates
4x8
2-8 Plates
4x8
9-16 Plates
3x5
2-6 Plates
4x8
2-8 Plates
4x8
9-16 Plates
Chilled Water
Control Panel:
• Stainless steel housing usually
installed in room with Falling Film
Evaporator:
r
On-Evaporator mounting
r
Wall mounting
•
Standard controls include: water circulation pump
pilot light, automatic air circulation pump switch
and indicator light, and automatic water makeup
To pump chilled water from Falling Film
Evaporator to remote CapKold Tumble
Chillers, Cook Tanks and Kettle jackets and
back to the Falling Film Evaporator. To
pump water from reservoir to cooling plates.
• ____Horsepower
160673 REV A
Internal &
External Water
Circulation
Pumps:
