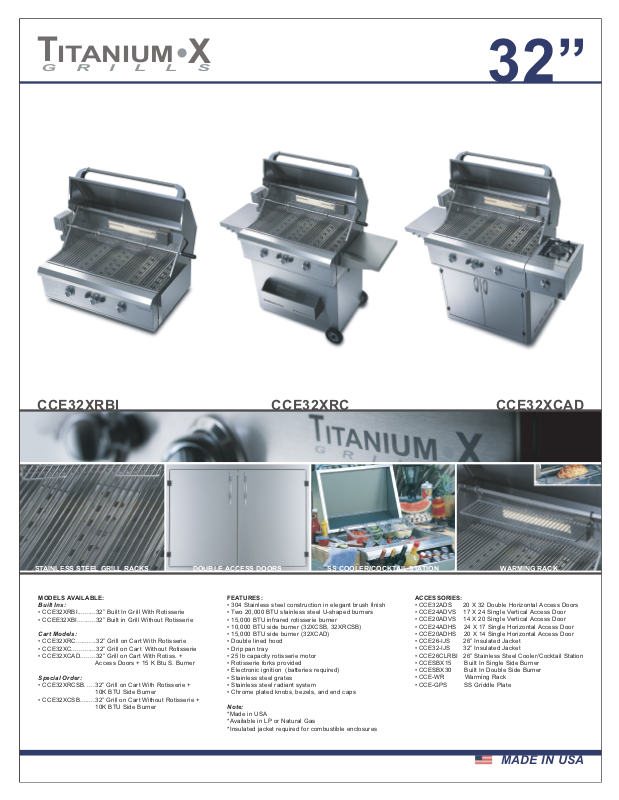

Capital TXG32 User Manual

STAINLESS STEEL GRILL RACKS

DOUBLE ACCESS DOORS

SS COOLER/COCKTAIL STATION WAR MING RACK

FEATURES:

• 304 Stainless steel construction in elegant brush finish

• Two 20,000 BTU stainless steel U-shaped burners

• 15,000 BTU infrared rotisserie burner

• 10,000 BTU side burner (32XCSB, 32XRCSB)

• 15,000 BTU side burner (32XCAD)

• Double lined hood

• Drip pan tray

• 25 lb capacity rotisserie motor

• Rotisserie forks provided

• Electronic ignition (batteries required)

• Stainless steel grates

• Stainless steel radiant system

• Chrome plated knobs, bezels, and end caps

Note:

*Made in USA
*Available in LP or Natural Gas
*Insulated jacket required for combustible enclosures

MODELS AVAILABLE:

Built Ins:

• CCE32XRBI..........32” Built In Grill W ith Rotisserie

• CCEE32XBI..........32” Built in Grill Without Rotisserie

Cart Models:

• CCE32XRC...........32” Grill on Cart With Rotisserie

• CCE32XC.............32” Grill on Cart Without Rotisserie

• CCE32XCAD........32” Grill on Cart With Rotiss. +

Access Doors + 15 K Btu S. Burner

Special O rder:

• CCE32XRCSB.....32” Grill on Cart With Rotisserie +

10K BTU Side Burner

• CCE32XCSB........32” Grill on Cart Without Rotisserie +

10K BTU Side Burner

ACCESSORIES:

• CCE32ADS 20 X 32 Double Horizontal Access Doors

• CCE24ADVS 17 X 24 Single Vertical Access Door

• CCE20ADVS 14 X 20 Single Vertical Access Door

• CCE24ADHS 24 X 17 Single Horizontal Access Door

• CCE20ADHS 20 X 14 Single Horizontal Access Door

• CCE26-IJS 26” Insulated Jacket

• CCE32-IJS 32” Insulated Jacket

• CCE26CLRBI 26” Stainless Steel Cooler/Cocktail Station

• CCESBX15 Built In Single Side Burner

• CCESBX30 Built In Double Side Burner

• CCE-WR Warming Rack

• CCE-GPS SS Griddle Plate

X

T

GRI LLS

ITANIUM

32”

CCE32XRBI

CCE32XRC CCE32XCAD

MADE IN USA

Litho in USA

32" TITANIUM X GRILLS

13211 Florence Ave. • Santa Fe Springs • CA • 90670 • USA

To ll free: 866-402-4600 • Main: 562-903-1168 • Fax: [phone] • Email: [e-mail] • Website: www.capital-cooking.com

* Due to ongoing product improvements, these specifications are subject to change without notice.

HEAD SIDE VIEW HEAD + CART SIDE VIEW

HEAD FRONT VIEW HEAD + CART FRONT VIEW CAD MODEL

CUT OUT DIMENSIONS

ORDERING INSTRUCTIONS

• A LIMITED LIFETIME WARRANTY covers all stainless
steel

components against manufacturing defects,
EXCLUDING discoloration or surface corrosion resulting
from

improper installation, proximity to chemicals,
improper use and/or failure to follow maintenance and
care instructions found in the use and care manual
accompanying

grill.

•

5 YEAR WARRANTY covers rotisserie grill burner.

• 2 YEAR WARRANTY covers the radiant plates.

• 1 YEAR FULL WARRANTY (parts and Labor) covers the

entire

product.

* Please read use and care manual thoroughly to learn
more about warranty information.

•

DO NOT install grill in combustible enclosure.

• DO NOT leave a lit grill unattended.

• For outdoor use only!

•

Use only in well ventilated areas.

GRILL PLACEMENT

• CCE32ADS 20 X 32 Double Horizontal A ccess Doors

• CCE24ADVS 17 X 24 Single Vertical Access Door

•

CCE20ADVS 14 X 20 Single Vertical Access Door

• CCE24ADHS 24 X 17 Single Horizontal A ccess Door

• CCE20ADHS 20 X 14 Single Horizontal A ccess Door

• CCE26-IJS 26” Insulated Jacket

• CCE32-IJS 32” Insulated Jacket

•

CCE26CLRBI 26” Stainless Steel Cooler/Cocktail Station

• CCESBX15 Built In Single Side Burner

•

CCESBX30 Built In Double Side Burner

• CCE-WR Warming Rack

• CCE-GPS SS Griddle Plate

AVAILABLE ACCESSORIES

WAR

RANTY

Please specify LP or Natural Gas when ordering

32”

THE POWER OF PERFORMANCE

GRIL

LS

TITANIUM X

CCE32X=42"

CCE32X=34 3/8"

CCE26X=36"

CCE26X=28 3/8"

GRILLS

TITANIUM X

TITANIUM X

GRILLS

24"

24 1/2"

47" ALL MODELS

20 1/2"

10"

25"

23 3/8"

19 1/2"

4“ CLEARANCE FOR TOP LID

7 1/2” CLEARANCE USING CCE COOLER

SUPPORT FLANGE

MODEL# CCE32XBI

GRILLING AREA SQ. IN.

522

522 522 522 522 522 522

SHI

PPING WEIGHT

POWER NEEDS

120V

60HZ

NATURAL GAS
OR PROPANE

CCE32XRBI

120V

60HZ

NATURAL GAS
OR PROPANE

CCE32XC

120V

60HZ

NATURAL GAS
OR PROPANE

CCE32XRC

120V

60HZ

NATURAL GAS

OR PROPANE

CCE32XCSB

120V

60HZ

NATURAL GAS
OR PROPANE

CCE32XRCSB

120V

60HZ

NATURAL GAS
OR PROPANE

CCE32XCAD

127 145 210 220 225 225 237

120V

60HZ

NATURAL GAS
OR PROPANE

FUEL NEEDS

BBQ's, SIDE BURNERS, COOLERS & ACCESS DOORS CUT-OUT SPECIFICATIONS

P/N 87066-10

E

BBQ’s CUT-OUT

COOLERS CUT-OUT

DOUBLE ACCESS

DOOR CUT-OUT

SINGLE VERTICAL

ACCESS DOOR CUT-OUT

SINGLE HORIZONTAL

ACCESS DOOR CUT-OUT

SIDE BURNER’S CUT-OUT

MODELS

CCE26XRBI

A

19.500

19.500

19

.500

19.500

19.500

19.500

12.375

19.500

20.350

20.350

20.375

14.375

24.375

17.375

20.313

B

26.750

26.750

32

.750

32.750

26.750

26.750

11.750

11.750

23.250

29.250

14.375

17.375

24.313

C

10

10

10

10

10

10

9

9

N/A

N/A

N/A

N/A

N/A

N/A

E(MIN)

6.0

N/A

6

.0

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

D

(MIN CLEARANCE)

7.500

7.500

7

.500

7.500

7.500

7.500

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

CCE26XBI

CCE32XRBI

CCE32XBI

CCE26XCH-BI

CCE26XCLR-BI

CCESB15X

CCESB30X

CCE26AD

CCE32AD

CCE20ADV-S

CCE20ADH-S

CCE24ADV-S

CCE24ADH-S

CUT-OUT DIMENSIONS

TIT

ANIUM X

GRIL

LS

CCE26X = 49 1/2"

CCE32X = 55 1/2"

56 1/2"

36 1/2"
