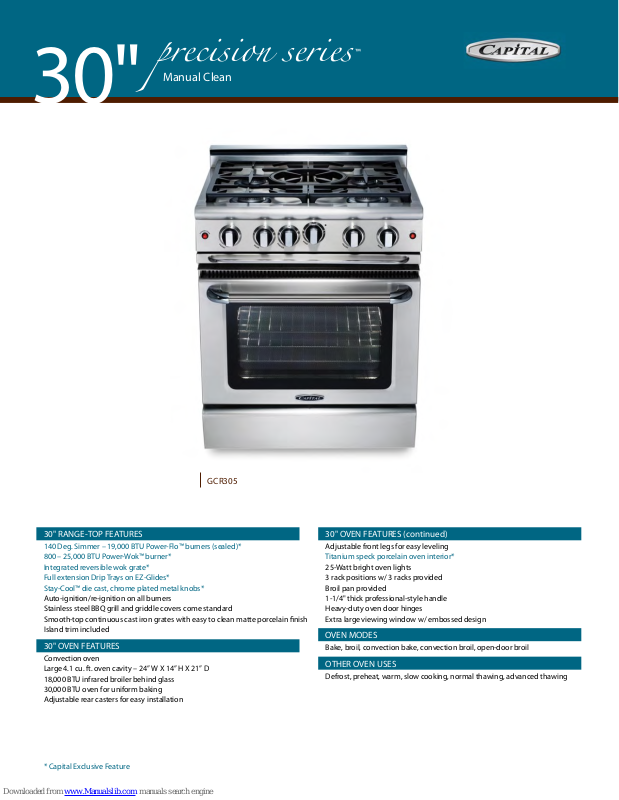

Page 1
precision series
Manual Clean
30"
™
GCR305
30" RANGE-TOP FEATURES
140 Deg. Simmer – 19,000 BTU Power-Flo™ burners (sealed)*
800 – 25,000 BTU Power-Wok™ burner*
Integrated reversible wok grate*
Full extension Drip Trays on EZ-Glides*
Stay-Cool™ die cast, chrome plated metal knobs*
Auto-ignition/re-ignition on all burners
Stainless steel BBQ grill and griddle covers come standard
Smooth-top continuous cast iron grates with easy to clean matte porcelain nish
Island trim included
30" OVEN FEATURES
Convection oven
Large 4.1 cu. ft. oven cavity – 24” W X 14” H X 21” D
18,000 BTU infrared broiler behind glass
30,000 BTU oven for uniform baking
Adjustable rear casters for easy installation
* Capital Exclusive Feature
30" OVEN FEATURES (continued)
Adjustable front legs for easy leveling
Titanium speck porcelain oven interior*
25-Watt bright oven lights
3 rack positions w/ 3 racks provided
Broil pan provided
1-1/4" thick professional-style handle
Heavy-duty oven door hinges
Extra large viewing window w/ embossed design
OVEN MODES
Bake, broil, convection bake, convection broil, open-door broil
OTHER OVEN USES
Defrost, preheat, warm, slow cooking, normal thawing, advanced thawing
Page 2
Power-Flo™ burners.
19,000 BTU - 140 deg. simmer
Infrared glass broiler 25,000 BTU Power-Wok™
Optional cabernet red knobsCapital exclusive feature:
GAS CONVECTION MODELS AVAILABLE (NON-SELF-CLEAN)*
GCR304 – 30" four burner
gas convection range
* Available in Natural Gas and Liquid Propane
GCR305 – 30" five
burner gas convection
range w/ wok burner
AVAILABLE ACCESSORIES
Conversion kits
CRK30 – cabernet red knobs for 30" range
P30SLB – 9" stainless steel wall mount low back
Wok ring
COMPLIMENTARY PRODUCTS
PSVH30L – 30" Performance Series vent hood w/ 600 CFM blower + lights
Duct covers
GRT24WK – 24" 30,000 BTU built in Power-Wok™ range-top
GRT30Q – 30" 40,000 BTU built in Infra-Q™ infrared BBQ-grill
SHIPPING WEIGHT
250-275 LBS
ELECTRICAL RATINGS
VOLTAGE CURRENT/POWER FREQUENCY
120 VAC 20 AMP 60 HZ
GAS RATINGS
NATURAL GAS PROPANE
Manifold pressure: 5.0" W.C. 10" W.C.
OTHER
“0” clearance base cabinet installation
Field convertible to LP or NG depending on gas type
ETL certified for USA and Canada
2 years full parts and labor covers entire product (conditions apply)
CABINET PREPARATION
Capital Cooking Equipment Inc.
13211 Florence Ave.
Santa Fe Springs, CA 90670
Phone: 562-903-1168
Toll Free: 866-402-4600
email: [email protected]
Made in the U.S.A.
Visit our web site: www.capital-cooking.com
© 2006 Capital Cooking Equipment, Inc.
