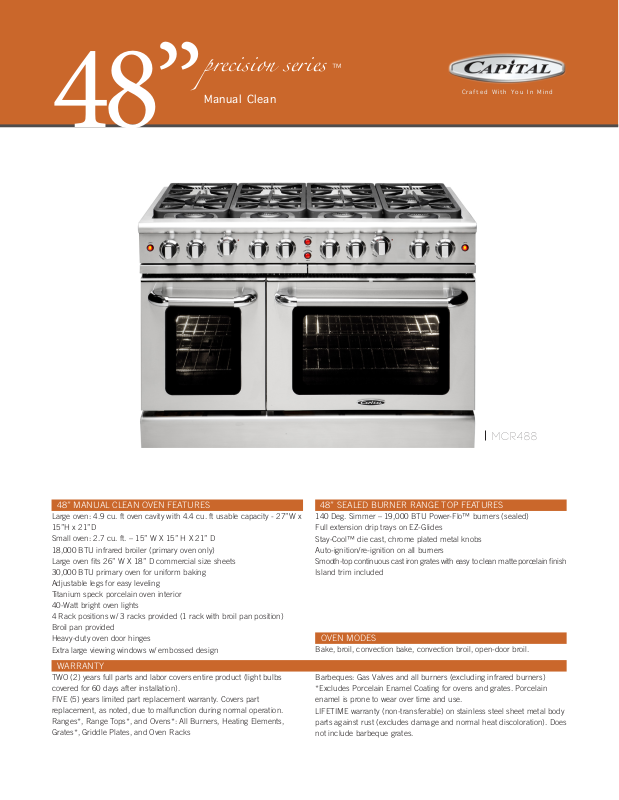

Capital MCR488N Specifications

precision series ™

48”

Manual Clean

Crafted With You In Mind

48” MANUAL CLEAN OVEN FEATURES

Large oven: 4.9 cu. ft oven cavity with 4.4 cu. ft usable capacity - 27”W x
15”H x 21”D
Small oven: 2.7 cu. ft. – 15” W X 15” H X 21” D
18,000 BTU infrared broiler (primary oven only)
Large oven ts 26” W X 18” D commercial size sheets
30,000 BTU primary oven for uniform baking
Adjustable legs for easy leveling
Titanium speck porcelain oven interior
40-Watt bright oven lights
4 Rack positions w/ 3 racks provided (1 rack with broil pan position)
Broil pan provided
Heavy-duty oven door hinges
Extra large viewing windows w/ embossed design

WARRANTY

TWO (2) years full parts and labor covers entire product (light bulbs
covered for 60 days after installation).
FIVE (5) years limited part replacement warranty. Covers part
replacement, as noted, due to malfunction during normal operation.
Ranges*, Range Tops*, and Ovens*: All Burners, Heating Elements,
Grates*, Griddle Plates, and Oven Racks

MCR488

48” SEALED BURNER RANGE TOP FEATURES

140 Deg. Simmer – 19,000 BTU Power-Flo™ burners (sealed)
Full extension drip trays on EZ-Glides
Stay-Cool™ die cast, chrome plated metal knobs
Auto-ignition/re-ignition on all burners
Smooth-top continuous cast iron grates with easy to clean matte porcelain nish
Island trim included

OVEN MODES

Bake, broil, convection bake, convection broil, open-door broil.

Barbeques: Gas Valves and all burners (excluding infrared burners)
*Excludes Porcelain Enamel Coating for ovens and grates. Porcelain
enamel is prone to wear over time and use.
LIFETIME warranty (non-transferable) on stainless steel sheet metal body
parts against rust (excludes damage and normal heat discoloration). Does
not include barbeque grates.

Power-Flo burners 19,0000

BTU-140 deg. simmer.

Infrared gas broiler

Optional red knobs Chopping block

accessory

ADD COLOR TO YOUR COOKING

All indoor ranges from Capital Cooking are available in a timeless
stainless steel or color nish.

Choose from the RAL color palette, one that really cooks for you.

MCR488 – 48”

AVAILABLE ACCESSORIES

Conversion kits
Birch wood chopping blocks
CRK48 – red knobs
P48SHS – 19” stainless steel wall mount high shelf
P48SLB – 9” stainless steel wall mount low back
Wok ring

COMPLIMENTARY PRODUCTS

PSVH48L – 48” Performance Series vent hood w/ 1200 CFM blower + lights
PSVH48HL – 48” Performance Series vent hood w/ 1200 CFM blower +
heat lamps + lights
Duct covers
GRT24WK – 24” 30,000 BTU built in Power-Wok range-top

SHIPPING WEIGHT

450-600 LBS

ELECTRICAL RATINGS

VOLTAGE

120 VAC

CURRENT/POWER

20 AMP

FREQUENCY

60 HZ

GAS RATINGS

Manifold:

NATURAL GAS

5.0” W.C.

PROPANE

10” W.C.

OTHER

“0” Clearance base cabinet installation
Field convertible to LP or NG depending on gas type
ETL certied for USA and Canada

CABINET PREPARATION

Capital Cooking Equipment Inc.
13211 Florence Ave.
Santa Fe Springs, CA 90670

25-1/8”

Phone: [phone]
Toll Free: 866-402-4600
E-mail: [e-mail]

Made in the U.S.A.
Visit our web site:
www.capital-cooking.com
