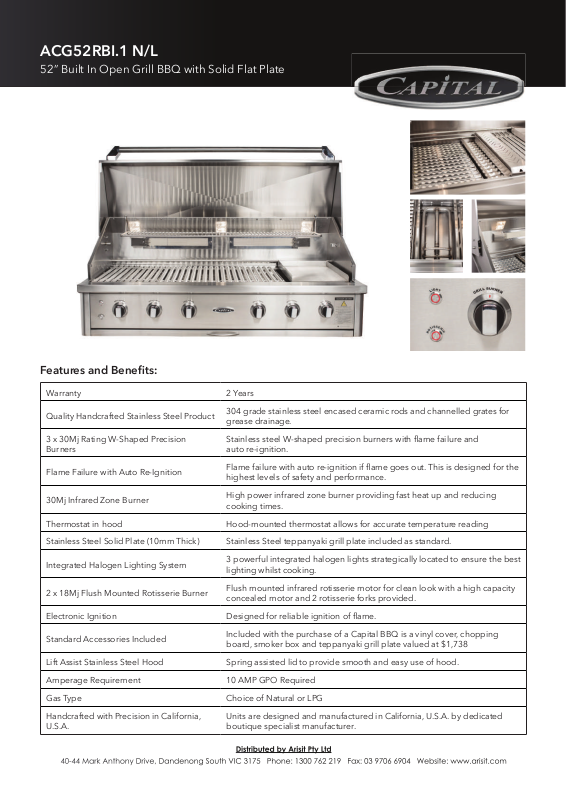

Page 1
ACG52RBI.1 N/L
52” Built In Open Grill BBQ with Solid Flat Plate
Features and Benefi ts:
Warranty 2 Years
Quality Handcrafted Stainless Steel Product
3 x 30Mj Rating W-Shaped Precision
Burners
Flame Failure with Auto Re-Ignition
30Mj Infrared Zone Burner
Thermostat in hood Hood-mounted thermostat allows for accurate temperature reading
Stainless Steel Solid Plate (10mm Thick) Stainless Steel teppanyaki grill plate included as standard.
Integrated Halogen Lighting System
2 x 18Mj Flush Mounted Rotisserie Burner
Electronic Ignition Designed for reliable ignition of fl ame.
Standard Accessories Included
304 grade stainless steel encased ceramic rods and channelled grates for
grease drainage.
Stainless steel W-shaped precision burners with fl ame failure and
auto re-ignition.
Flame failure with auto re-ignition if fl ame goes out. This is designed for the
highest levels of safety and performance.
High power infrared zone burner providing fast heat up and reducing
cooking times.
3 powerful integrated halogen lights strategically located to ensure the best
lighting whilst cooking.
Flush mounted infrared rotisserie motor for clean look with a high capacity
concealed motor and 2 rotisserie forks provided.
Included with the purchase of a Capital BBQ is a vinyl cover, chopping
board, smoker box and teppanyaki grill plate valued at $1,738
Lift Assist Stainless Steel Hood Spring assisted lid to provide smooth and easy use of hood.
Amperage Requirement 10 AMP GPO Required
Gas Type Choice of Natural or LPG
Handcrafted with Precision in California,
U.S.A.
Units are designed and manufactured in California, U.S.A. by dedicated
boutique specialist manufacturer.
Page 2
ACG52RBI.1 N/L
52” Built In Open Grill BBQ with Solid Flat Plate
Model ACG52RBI.1 N/L
Control Panel Die-Cast Chrome Plated; Black Trim & S/S Bevel
Gas Type
Total Mj Consumption 156 Mj/hr
LPG Gas Bottle Requirement Minimum 4.5kg, Maximum 9kg Gas Bottle
Standard Accessories Included Smoker Box, Birchwood Chopping Board & Vinyl Cover
Gas Hose for Natural Gas 1/2 Gas Pipe Line to be Used
Flame Failure YES
Auto Re-Ignition YES
Product Dimensions (W) 1321mm x (D) 732mm x (H) 584mm
Cut Out Product Dimensions (W) 1283mm x (D) 629mm x (H) 222mm
WARNING: Technical specifi cations and product sizes can be varied by the manufacturer, without notice. Cut outs for
appliances should only be physical product measurements. The above information is indicative only.
Available in Both Natural Gas & LPG (must be
ordered to suit gas)
Page 3
ACG52RBI.1 N/L
52” Built In Open Grill BBQ with Solid Flat Plate
Two Year Full Warranty
Capital offers a Two Year Full
Warranty covering all parts and
labour to ensure peace of mind.
Stainless Steel Ceramic Rods
Designed to evenly distribute
heat across the cooking surface
by reducing fl are ups and
preventing fl ames from directly
reaching food.
Stainless Steel Ceramic Rods are
a Capital exclusive.
Stainless Steel Grill Plate
12” wide, 10mm thick stainless
steel grill plate designed for
usage above the 30 Mj Infrared
Zone Burner, allowing it to reach
extremely high temperatures.
The thickness of the plate helps
to make it extremely durable
and maintain temperatures.
Removable Warming Rack
Provides additional cooking
space and room to cool your
perfectly cooked meats before
serving. Can be easily removed.
Smart Drip Tray
Smart drip system which
catches fats and oils. Sitting
below the grill surface, the tray
is supported by a ball bearing
slide system and is removable to
make it easy to clean.
Zone Cooking Feature
Zone cooking allows
optimisation of temperature
zones. Each burner has
a heat divider between
them which prevents
the heat diverting to the
neighbouring zone.
Stainless Steel Hood
Featuring Lift-Assist technology
to provide easy access and
reduce energy required to open
the hood. The double layered
hood reduces heat loss and
maintains safe external hood
temperatures while minimizing
heat discoloration and warping.
Quality Hand Crafted
Construction
High quality seamless stainless
steel product created to the
highest standards by Capital’s
expert manufacturing team.
Stainless Steel Channelled
Grates & Smoker Box
Solid Stainless Steel channeled
grates encourage oil drainage
and are designed for longer life
and reducing fl are-ups.
The stainless steel smoker box
will have you creating deep,
smoky fl avours in your BBQ.
W Shaped Burner
Our exclusive dual W shaped
burner is made of 100%
stainless steel and is engineered
to produce a larger heated area,
eliminating hotspots. Sparks up
with hot surface glow ignition
system, providing high heat for
zone style cooking results.
30Mj Infrared-Zone Burner
Infrared-Zone Cooking with a
10mm thick stainless steel fl at
plate gives you a quick sear with
high radiant temperatures of
up to 1000ºC that keeps food
tastier and healthier.
Flush Mounted Rotisserie
The high-powered integrated
hidden rotisserie motor helps
to provide a clean look and
boasts a fl ush mounted infrared
burner at the rear of the BBQ.
The stainless steel rod and 2
forks supplied will hold up to a
massive 25kg.
