CanyCom CMX 227, CM226, CMX186, CM185, CMX 253 Operator's Manual

Original Instructions

(in English)

5321 5311 003

Ride-on Brushcutter

CMX 227/ CM226/ CMX186/ CM185

Operator's Manual

Read this manual completely before operating or maintaining this machine.

Failure to follow safety precautions could result in serious injury or death.

Keep this manual for future reference by you and by all those who operate

and maintain this machine.

5347 5351 000

http://www.canycom.co.jp/

Authorized Dealer

90-1 Fukumasu, Yoshii-machi,
Ukiha-shi, Fukuoka, Japan 839-1396

Sales Headquarters (International) TEL [phone]
FAX [phone]

All rights reserved. Unauthorized use or reproduction of this material is prohibited.

Notice to Users and Maintenance Personnel

Thank you for purchasing this machine.
This manual provides information needed for safe and effective use of this machine to those
who operate or maintain machine. Make sure to read and understand the manual thoroughly
before operating this product. Also make sure to read the separate operator's manual for
engine.

• This machine can be very dangerous if the safety precautions in this manual

and on the labels attached to this machine are not followed. Read and

understand this manual and safety labels on machine thoroughly before using

this machine. Always follow the instructions and safety precautions, or serious

injury or death could result.

• This machine should only be used for its intended purpose: cutting grass and

bushes. Any other use could be dangerous.

• This machine may not be operated on public road or what is considered to

be public road. It is the sole responsibility of the operator to consult the local

regulations.

• Do not modify this machine, or do not operate this machine with the safety

covers removed or open. A serious accident could result.

• Store this manual in a safe, accessible place for easy reference.

Warning Term Denition

Indicates an imminently hazardous situation which will result

in death or serious injury if the user does not follow the

procedures or the instructions.

Indicates a potentially hazardous situation which could result

in death or serious injury if the user does not follow the

procedures or the instructions.

Indicates a potentially hazardous situation which could result

in minor to moderate injury or damage to the machine if the

user does not follow the procedures or the instructions.

Indicates important information which needs particular

attention.

In this manual, the following four warning terms are used to signal the four levels of hazard (or
seriousness of possible accidents). Read and understand what they mean and always follow
the instructions in this manual.

Warning Terms Used in this Manual

NOTE

Notice to Owner

• Be sure that everyone who uses this machine, including those who rent or

lease this machine, receives a copy of this Operator's Manual and understands

the importance of reading and following the information in this manual.

Location of Model Label

5332M-0005-010E

Location of Model Label

Model Label

5347M-0005-020E

The replacement or repair parts for this product shall remain available for seven years after
the production of this type of machine is discontinued.

Availability of Spare Parts

Warranty and After-Sales Service

CHIKUSUI CANYCOM, INC. guarantees this product, based on the terms of warranty.

Warranty

Consult your local CANYCOM dealer or our company’s sales department regarding service
orders or any questions or problems that may arise when using this machine. Please make
sure to have the product name, serial number, and the make and type of engine handy at
the time of contact. The model and serial number can be found on the model label as shown
below, and the make and type of the engine can be found in Chapter 3 "Specications" of
this manual (Page15).

After-Sales Service

Contents

1. Safety 1

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2. Controls and Components 11

Name and Function of Controls . . . . . . . . . . . . . . . . . . . 11

3. Specications 15

Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contents of Tool Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4. Operation 17

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Pre-start up Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Checking and Filling Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adjusting Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adjusting Seating Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adjusting Drive Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

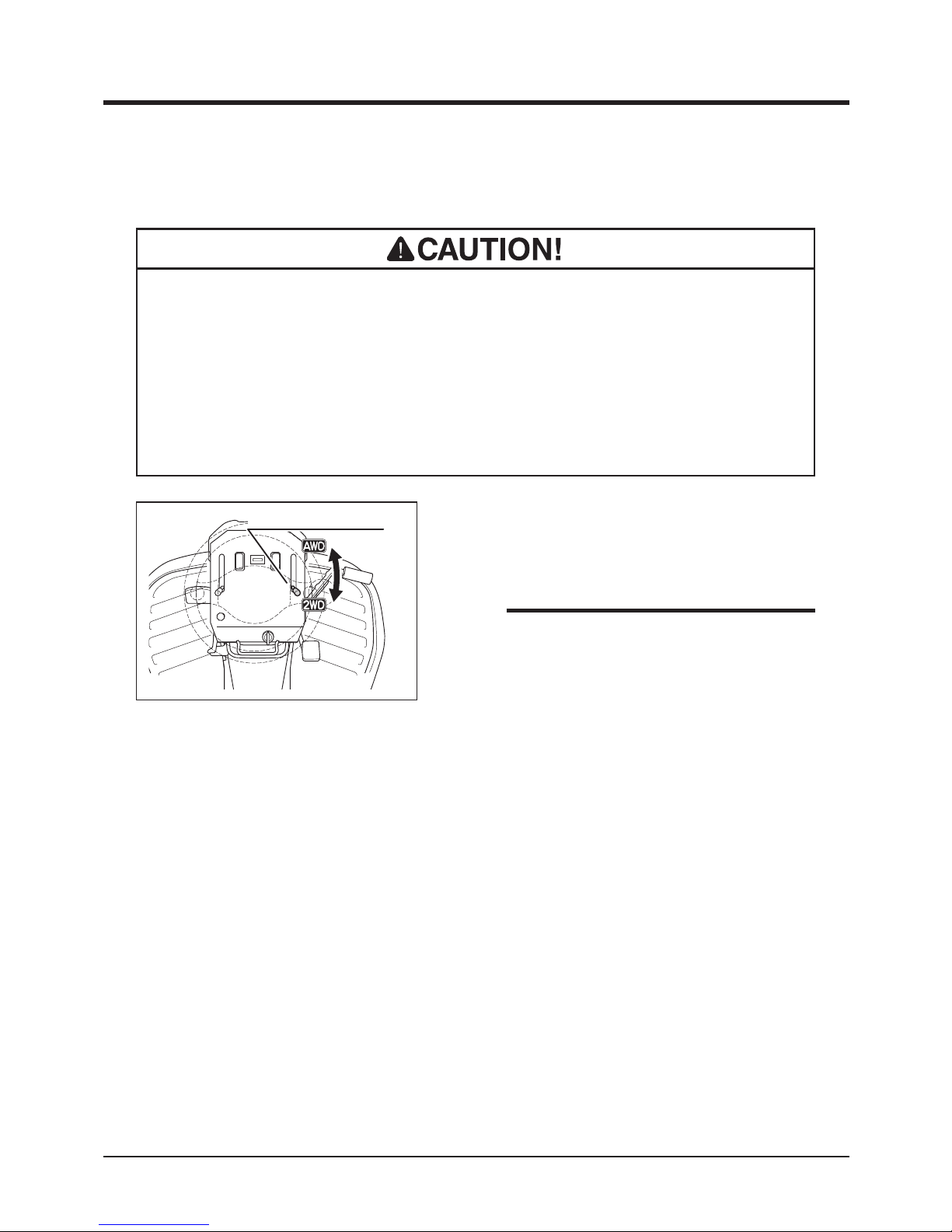

Shifting Between 2WD and AWD (AWD models) . . . . . . . . . . . . . . . . . . . . . 31

Locking Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Inspecting Cutting Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Adjusting Cutting Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Cutting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5. Maintenance 41

Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

List of Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 45

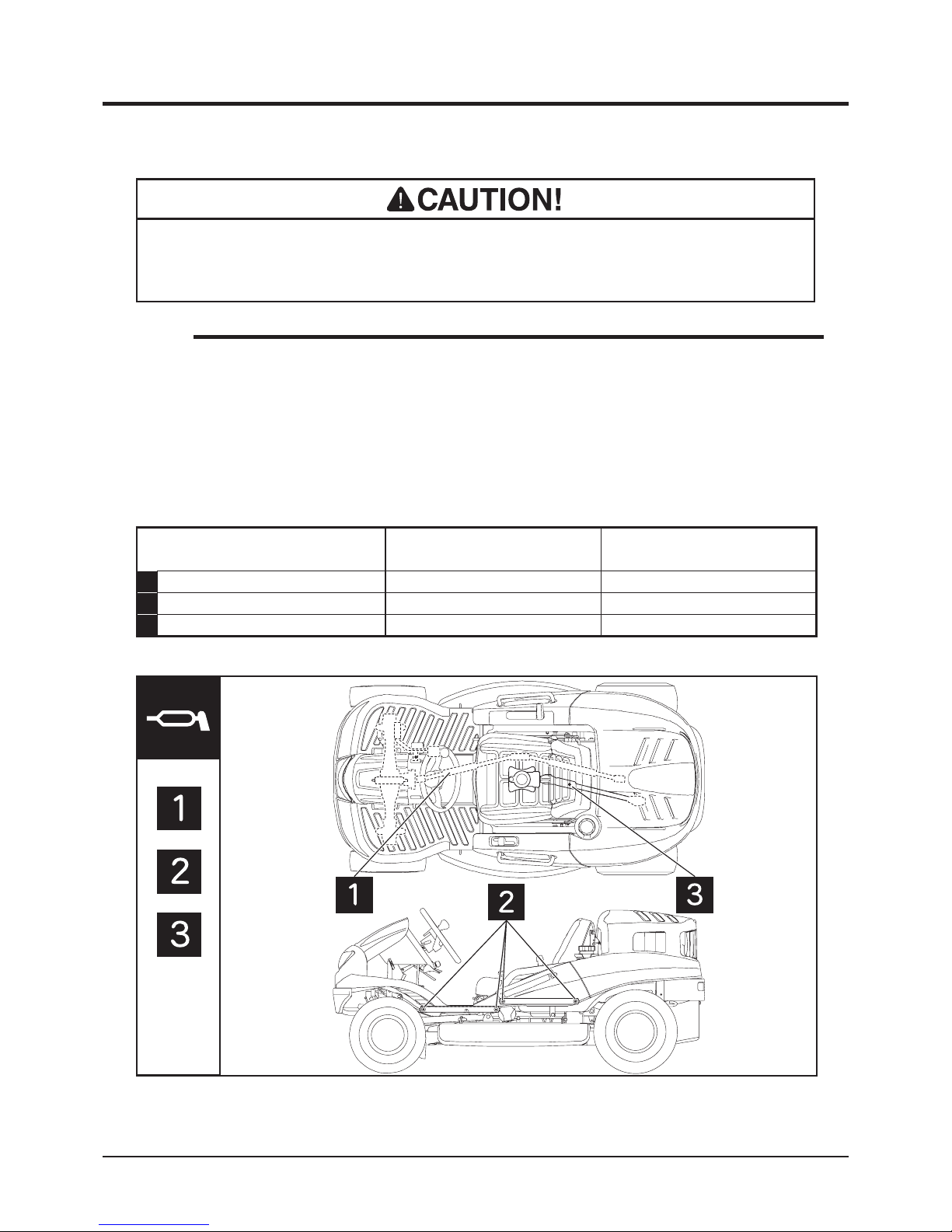

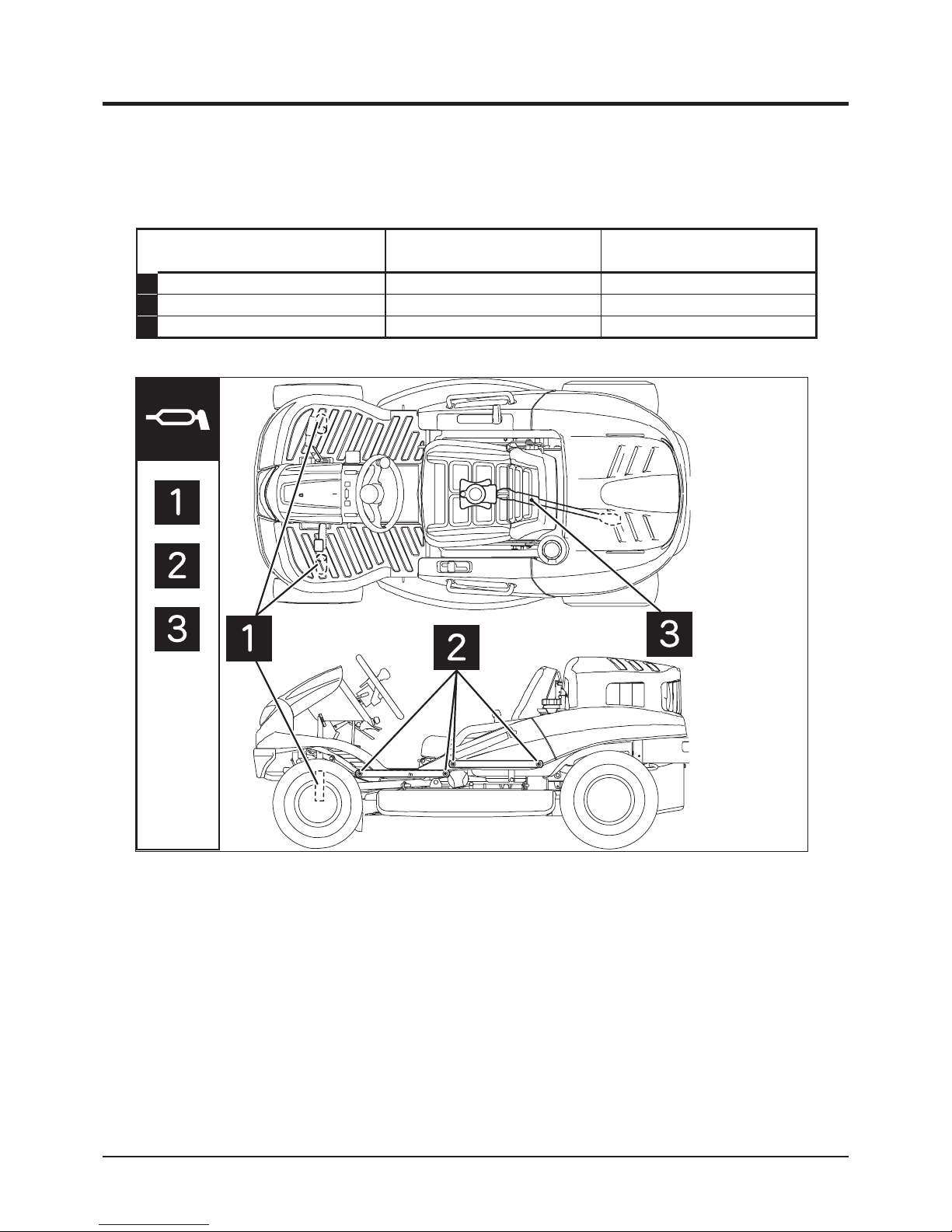

Greasing Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Greasing Points (CMX227H / CMX186H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Greasing Points (CM226H / CM185H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

List of Consumables and Spares . . . . . . . . . . . . . . . . . . 48

Removing and Installing Body Panels . . . . . . . . . . . . . . 50

Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Head Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Engine Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Lower Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Seat Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Cutting Blade Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Oil Filter Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Spark Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Drive Train . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Transmission Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Front Axle Oil (AWD models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

HST (Hydrostatic Transmission) Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cutting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Cutting Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

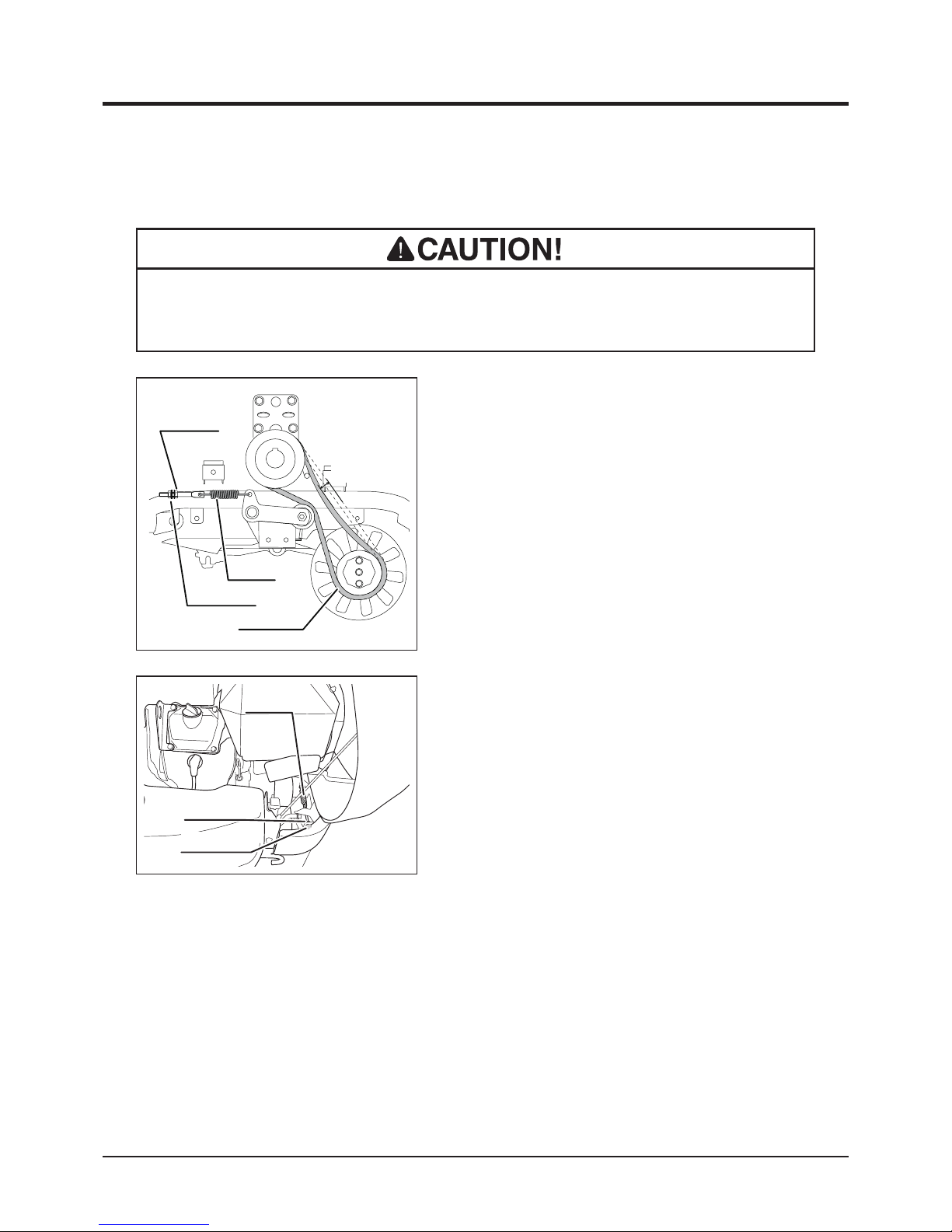

Cutting Rotary Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Cutting Rotary Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

After Use Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Cutting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

After Normal Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

After Cold Weather Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

6. Troubleshooting 82

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Warranty

Warranty Certicate is attached at the end of this manual.
* Have the warranty certicate signed after you have received and fully understood

the instructions for handling this machine and received the receipt.

Appendix

• Operator's Manual for the Engine
* Be sure to read and understand it together with this manual .

7. Transporting 87

Hauling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

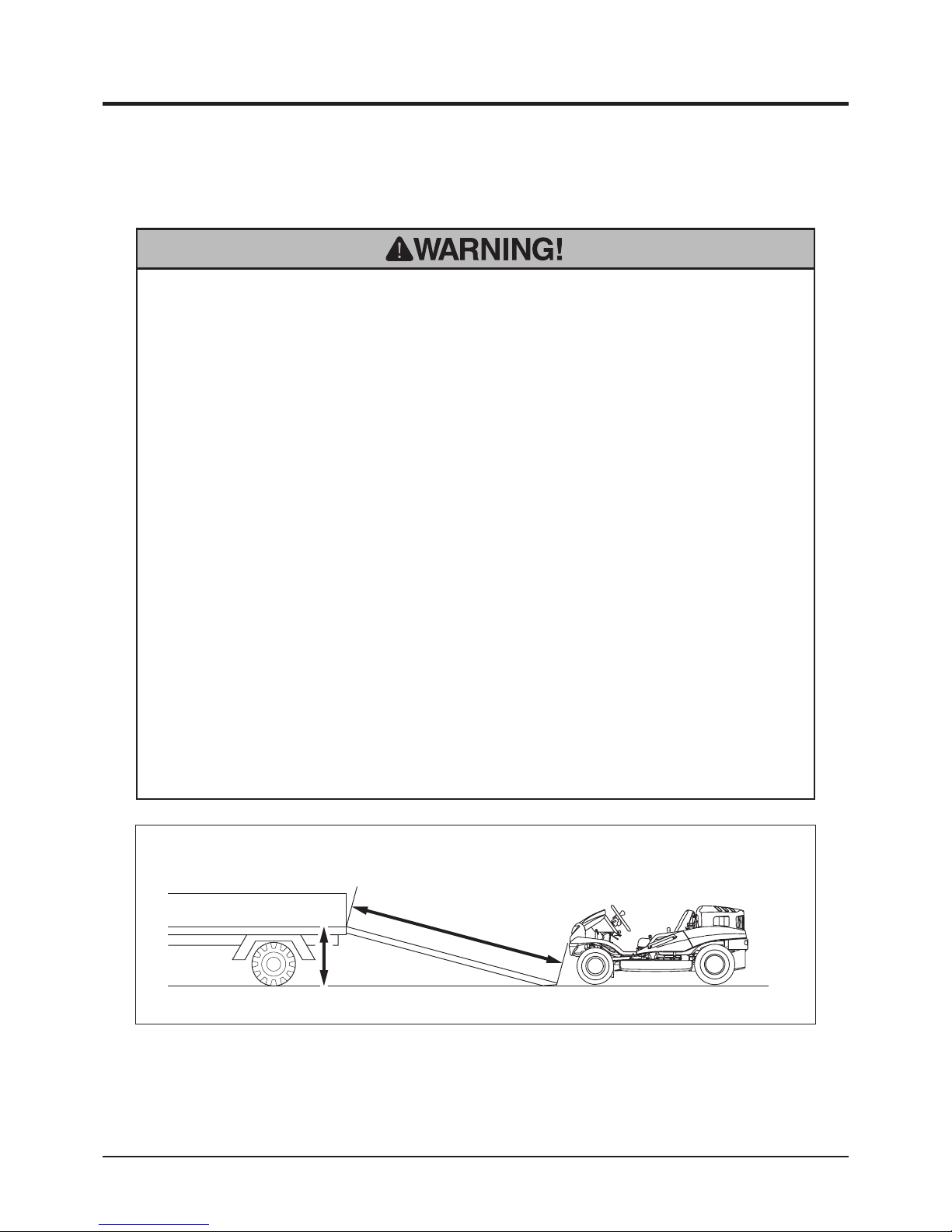

Loading and Unloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Hoisting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Noise and Vibration Levels

Noise and vibration levels are stated in the end of this manual.

Safety 1

-1-

Safety Labels

The safety labels shown on the next page are attached to the machine. See the illustration
below for the location and the illustration on the next page for the content of each label on
the machine.

• Locate all the warning labels attached to this machine. Read and follow the instructions
and precautions in them. Failure to do so could result in serious injury or death to the
operator or bystanders.

• Keep the labels clean and legible. Do not use solvents or gasoline to clean the labels.

• Replace these labels immediately if they have been removed, have fallen off or become
illegible. Use the part number, on the label or shown in this manual, to order a replacement
label from your CANYCOM representative.

5

2

4

3

6

8

6

10

9

1

7

5347M-0101-010E

(Models with the
Charge-pump only)

CMX227H and
CMX186H

11

Safety

-2-

1

5332 5127 0008

5332 5127 000

10

5347 5109 000

1

5332 5121 000

3

5332 5122 000

4

5332 5128 000

5

5321 5116 000

6

3667 5063 000

11

5347 5114 000

2

5347M-0101-020E

5305 5326 0007

5335 5125 000

9

Safety 1

-3-

Safety Mechanisms

This product is equipped with the following safety mechanisms.

Engine can be started only when parking brake is in [ (engaged)] position and cutting
rotary clutch in [OFF] position. This is to prevent unintended movement of machine or cutting
blade when starting engine.

Start Interlock Mechanism

Engine stops if operator is not seated while cutting blade is rotating. This is to reduce the
possibility of accident related to moving blade when machine is turned over.

Automatic Blade Stopping Mechanism

Safety

-4-

1

This section contains safety precautions to follow when operating and maintaining the
machine. Read and understand the precautions in this section as well as throughout this
manual and follow them when operating or maintaining the machine. Failure to follow safety
precautions could result in property damage, serious injury or death to the operator or
bystanders.

Safety Precautions

All operators and mechanics should receive practical instructions from their employer or
renter. Such instructions should cover the following issues:

• It is essential to familiarize yourself with the controls, safety labels and the proper use of
the machine.

• Never allow people unfamiliar with these instructions to operate or service the machine.
Do not let anyone under 18 years of age to operate this machine. Local regulations may
restrict the minimum age for operating the machine. Consult your local authority.

• The operator is responsible for the accidents or hazards caused to other people or their
property.

• This machine has a riding capacity for one person only. Do not carry passengers other
than the operator.

• Observe the weight limit of this machine: 120kg.

• Always keep in mind that care and concentration is required when working with ride-on
machines.

• Loss of control on a slope cannot be regained by the application of the brake. The main
reasons for loss of control are:

→ insufcient grip of tires.
→ excessive speed.
→ misjudging of the ground conditions, especially slopes.

Training

Safety 1

-5-

• Fuel is highly ammable. See Checking and Filling Fuel, page 17, for important safety

information on handling fuel.

• Always wear protective footwear, long trousers, hardhat, safety glasses and ear protection
when operating or servicing the machine. Proper clothing will minimize the chance of
injury. Do not operate the equipment if you have long hair, loose clothing, or jewelry; all of
which may get tangled in moving parts. Do not operate the machine barefoot or with open
sandals.

• Prepare beforehand the working rules and procedures such as signaling and trac control
for the work place. Following such rules will reduce the risk of accidents.

• Never handle fuel or grease, service the engine, or recharge the battery in the presence of
re or spark.

• Perform the daily pre-startup inspection (see Preparation, pages 17) before starting the
machine. Repair or replace damaged parts before starting the machine.

Preparation

Safety

-6-

1

Operation

• Do not operate the engine in a conned space where dangerous carbon monoxide fumes
can accumulate.

• Do not touch the engine, mufer or exhaust pipe while the engine is running or soon after
it has stopped. These areas will be very hot and can cause burns.

• Do not operate the machine under the inuence of alcohol or drugs. Do not operate the
machine when you are tired, ill, or not feeling well.

• Always check for obstacles before operating on new terrain. This includes overhead
obstacles such as the branches of a tree.

• Before starting the engine and moving the machine, scan around your surroundings and
make sure all persons and other vehicles are a safe distance away from the machine.

• On a slippery surface, travel slowly and exercise caution to reduce the chance of skidding
or sliding out of control. Never operate on ice.

• Always make certain that there is no obstacle or a person behind the machine when
backing up. After conrming that it is safe to back up, move slowly and avoid sharp turns.

• To reduce the risk of tip over, pay special attention when encountering an obstacle or a
slope, or when braking on a slope or during a turn. See Driving on a Slope on page 8.

• Never attempt to drive over a large obstacle such as rock or fallen tree.

This machine is intended for cutting grass and bushes. Any other use may pose hazard or
cause damage to the machine.

The stability of the machine is affected by the speed, rate of steering, terrain and the
operator's weight. Always pay close attention to these factors or a loss of control or tip over
could occur, resulting in property damage, serious injury or death.

General Driving

Safety 1

-7-

• Always travel slowly and use extra caution when operating on unfamiliar terrain. Be alert
when traveling on changing terrain.

• Never operate on terrain that you are not comfortable with. Avoid terrain that is so rough,
slippery or loose that you feel like you could tip over.

• Do not operate the machine near the edge of a cliff, an overhang or a slide area. Pay
special attention after heavy rain or earthquake.

• Do not make sudden maneuvers. A sudden start, stop, or turn can make the machine lose
control and could cause a tip over. Be especially cautious when traveling on soft or wet
ground.

• Drive at a safe speed, taking into account the surface gradient, surface conditions and
load.

Safety

-8-

1

Driving on a Slope

• Always follow proper procedures for driving on a slope as described in this manual.

• Driving on a slope in a wrong manner can cause a loss of control or a vehicle tip over.
Check the terrain carefully before attempting to drive on a slope.

• Never drive on a slope that you are not comfortable with. Avoid a slope that is so rough,
slippery, or loose that you feel like you could tip over.

• When driving up a slope, proceed at a steady rate of speed and throttle position.

• Never move the throttle lever, the drive lever, the drive pedal or the steering wheel
suddenly.

• If the engine stalls or loses traction during a climb and cannot make it to the top of the
slope, do not try to turn the machine around. Carefully back down slowly, straight down the
slope.

• Drive straight up or down slopes. Avoid turning on a slope.

• When going over the top of a slope, go slow; an obstacle, a sharp drop, or another vehicle
or person could be on the other side of the crest.

• Avoid driving the machine across a slope.

• Before driving down a slope, stop and shift auxiliary transmission to [L (low)] position. Drive
slowly. Use the engine speed to help keep the machine speed low.

• Never use on a slope steeper than 25 degrees for the CMX227H and the CMX186H,

and 15 degrees for the CM226H and CM185H.

• Driving on a slope can be dangerous. It can result in a tip over and cause serious

injury or death. Take the following precautions.

Safety 1

-9-

Cutting

When conducting cutting operation, take the following precautions.

• Always follow the proper procedures for cutting as described in this manual.

• Shutt off the work site. Post signs to inform of the cutting operation. Close off the site with
rope if necessary to keep people, especially children, off the work site.

• Pay attention to the surrounding area. Rotating cutting blade throws stones, rocks and
debris. This may cause property damage, injury, or death.

• Drive forward when cutting. This best prevents the cutting blades from throwing stones,
rocks, or debris.

• Pay attention to obstacles. This includes overhead obstacles such as the branches of a
tree.

Parking

• Park the machine on a at, level and stable surface. Never park on a slope steeper than
10 degrees. Avoid parking on a slope less than 10 degrees. If parking on a slope less than
10 degrees is absolutely unavoidable, apply the parking brake and block the wheels at the
lower end of the machine.

→ Park the machine facing uphill
→ Do not park sideways on a slope.

• Never park on an instable surface. Do not park near the edge of a cliff.

• Observe all the previous precautions for driving, driving on a slope, loading .

• Whenever you park the machine, apply the parking brake and stop the engine. Remove
the key whenever you leave the machine unattended to prevent unauthorized use or
accidental starting.

• Gasoline is extremely flammable and can be explosive. When parking the machine
indoors, make certain that the building is well ventilated and that the machine is not close
to any source of ame or spark, including appliances with pilot lights.

Safety

-10-

1

Servicing

• Do not service the machine when the engine is running. If it is absolutely necessary to run
the engine while servicing, pay attention to the moving parts.

• Do not operate the engine in a conned space where dangerous carbon monoxide fumes
can accumulate.

• Make sure all hydraulic line connectors are tight and all hydraulic hoses and lines are in
good condition and leak-free.

• Keep your body and hands away from pinhole leaks or nozzles that eject hydraulic
uid under high pressure. Use paper or cardboard, not your hands, to search for leaks.
Hydraulic uid escaping under pressure can have sufcient force to penetrate the skin and
cause serious injury.

• Check all fuel lines on a regular basis for tightness and wear. Tighten or repair them as
needed.

• If the engine must be running to perform a service, keep hands, feet, clothing and any
part of the body away from any moving part, especially the cooling fan and the belts at the
back of the engine.

• Do not touch the engine, mufer, or exhaust pipe while the engine is running or soon after
it has stopped. These areas will be very hot and can cause burns.

• The engine must be shut off before checking or adding oil.

-11-

Controls and Components 2

Name and Function of Controls

Steering Wheel

Cutting Blade
Shield, Right

Rear Lamp

(AWD Models Only)

Rear Tire

Engine Hood

Plastic Bottle Holder

Side Cover, Right

Rear Bumper

Lower Rear Cover

Forward

Fuel Filler Cap

Cutting Blade Shield, Left

Tool Box

(Under Front Cover)

Front Cover

Front Tire

Head Lamp

Side Cover, Left

Handrail

5347M-0201-010E

Seat

Front Bumper

Controls and Components

-12-

2

15

1816

6

7

8

910

2

1

3

14

13

4

5

11

12

17

5347M-0201-020E

-13-

Controls and Components 2

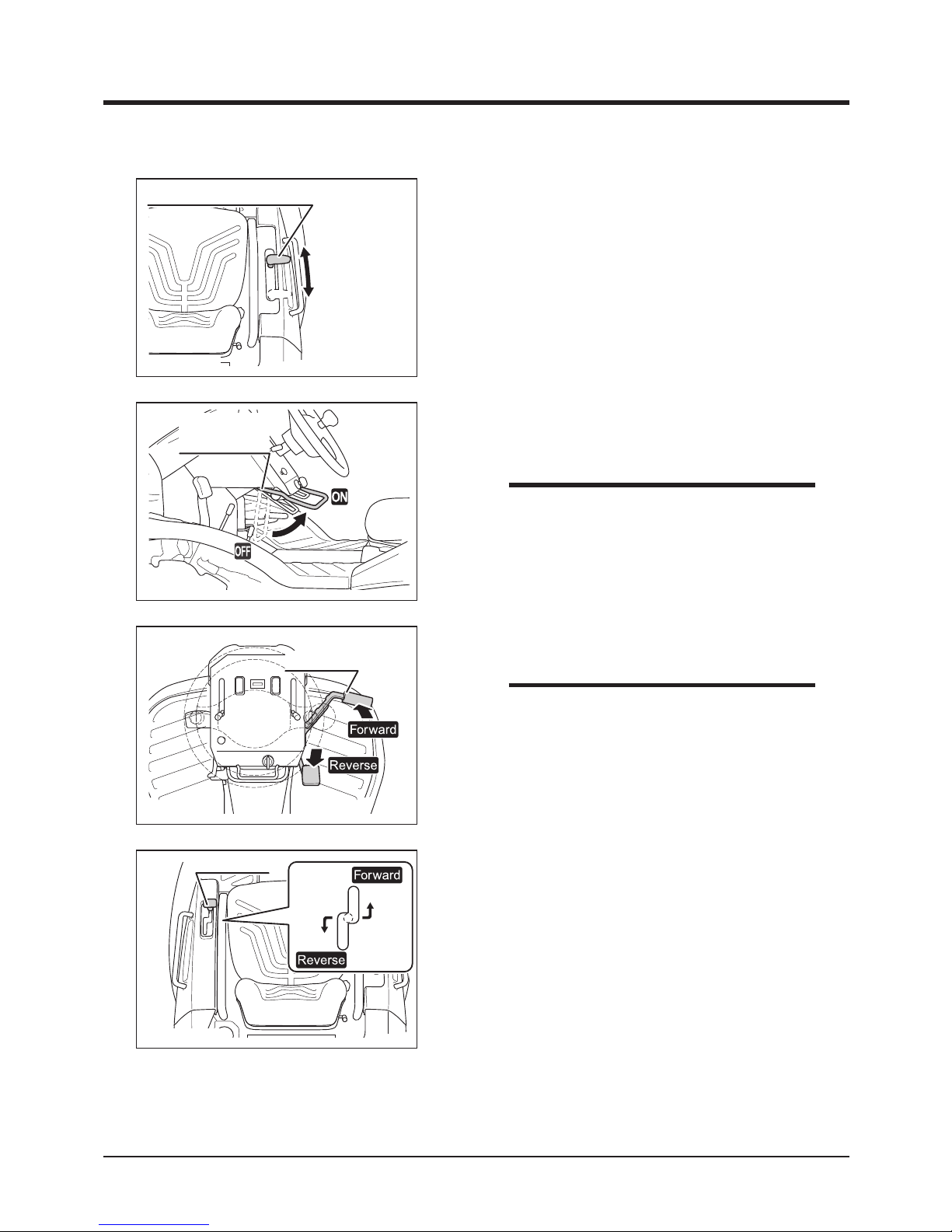

1 Main Switch . . . . . . . . . . . . . Main switch is used to start or stop engine.

2 Choke Knob . . . . . . . . . . . . . Choke Knob is used to help start engine by closing choke

valve.

3 Throttle Lever . . . . . . . . . . . Throttle lever is used to control engine speed.

4 Drive Pedal . . . . . . . . . . . . . . Drive pedal is used to control the traveling direction and

speed of the machine. Machine moves forward when the
front of drive pedal is depressed and backward when
the rear of drive pedal is depressed. Angle of drive pedal
determines the speed.

5 Drive Lever . . . . . . . . . . . . . . Drive lever is used to control the traveling direction and

speed of machine. Machine moves forward when lever is
tilted forward and backward when lever is tilted backward.
Angle of drive lever determines the speed. (On the right
lever model, this lever is on the right -hand side. See
illustration.)

6 Brake Pedal. . . . . . . . . . . . . . Brake pedal is used to stop machine. When brake pedal

is depressed, drive lever returns to neutral position and
brake is engaged. (On the right lever model, this lever is
on the right -hand side. See illustration.)

7 Parking Brake Lock . . . . . . . Parking brake lock lever is used when parking machine

securely. Pulling parking lock lever while brake pedal is
depressed locks brake pedal. (On the right lever model,
this lever is on the right -hand side. See illustration.)

8 Auxiliary Transmission . . . . Auxiliary transmission shift lever is used to shift auxiliary

transmission to change the speed of the machine.

9 2WD/AWD Shift Lever . . . . . 2WD/AWD shift lever is used to switch between 2WD

(rear-wheel drive) and AWD (all-wheel drive) modes.

Lever

Shift Lever

(on AWD models)

Controls and Components

-14-

2

10 Differential Lock Lever . . . . Differential lock lever is used to lock differential when rear

wheels slip. Tilting differential lock lever to [ON] position
locks differential.

11 Cutting Height Adjust . . . . . Cutting height adjust lever is used to adjust the cutting

height. Grab and hold cutting height adjust lock and move
cutting height adjust lever back or forth to adjust cutting
height.

13 Cutting Rotary Clutch . . . . . Cutting rotary clutch lever is used to start or stop rotating

cutting rotary.

14 Tilt Lever . . . . . . . . . . . . . . . . Tilt lever is used to adjust the angle of steering wheel.

15 Head Lamp Switch . . . . . . . . Head lamp switch is used to turn on or off head lamp.

When umain switch is on, head lamp switch illuminates.

16 Tail Lamp Switch . . . . . . . . . Tail lamp switch is used to turn on or off tail lamp. When

umain switch is on, head lamp switch illuminates.

17 Fuel Gauge . . . . . . . . . . . . . . Fuel gauge indicates the amount of fuel in fuel tank.

18 Hour Meter . . . . . . . . . . . . . . Hour meter indicates the cumulative total operating time of

the machine in 0.1 hour increments.

(AWD models Only)

12 Cutting Height Adjust

Lever

Lock

Lever

-15-

Specications 3

Product Specications

Model and Type

CMX227 CM226 CXM186 CM185

Machine Mass kg

350 330 330 325

Mowing Rate m

2

/h 7300

*1

7000

*1

Dimensions

Overall Length mm

1947 [1997]

*2

1947

Overall Width

mm

1020

Overall Height mm

860 [905]

*3

840

Wheelbase

mm

1300

Tread

Front

mm

860

Rear

mm

800

Ground Clearance

mm

130 110

Engine

Model Robin EH65DS Robin EH63DS
Type Air-cooled 4-cycle V-twin Gasoline
Cylinder (Bore×Stroke)

mm

80X65

Displacement cm

3

653
Maximum Output kw(PS)/rpm 16.4(22)/3600 13.4(18.3)/3600
Maximum Torque

N•m(kgf•m)/rpm

45.6(4.65) 43.3(4.42)

Starter System Electric

Fuel Automotive Unleaded Gasoline
Fuel Consumption

g/kW•h(g/PS•h)

310 (230)
Fuel Tank Capacity L 20
Ignition Contactless Magneto
Spark Plug NGK BPR5ES

Electrical

Battery Type 40B19R
Battery Capacity V/Ah 12/28

Performance

Speed

High

km/h

0 to 13.8 0 to 12.8

Low

km/h

0 to 7.7 0 to 7.2
Minimum Turning Radius m 1.8
Gradeability Degrees 25 15 25 15
Stability

Angle

Left Degrees 30
Right Degrees 30

*1 Estimated at the maximum speed with the auxiliary transmission in Low position (7.5km/h)

*2 [ ] indicates the Step Bumper model

*3 [ ] indicates the Extra Seat model

· Use this product properly after understanding its specications thoroughly.

Specications

-16-

3

Model and Type

CMX227 CM226 CMX186 CM185

Drive Train

Main Transmission

HST (Continuously

Variable)

Auxiliary Transmission

Constant Mesh

Tires

Left 4.00-7 (4PR) AGR 3.50-7 (2PR)

Right 17X8.00-8 (4PR) 16X7.00-8 (2PR)

Steering

mm

Rack and Pinion

Round Steering Wheel

Brakes Internally Expanding

Cutting System

Cutting Width

mm

975

Cutting Height

mm

0~150 (21 Steps) 0~130 (21 Steps)

Blade Type Free Knife & Stepped Stay
Number of Blades 2
Blade Drive Train Shaft Drive

*These specications are subject to change without notice.

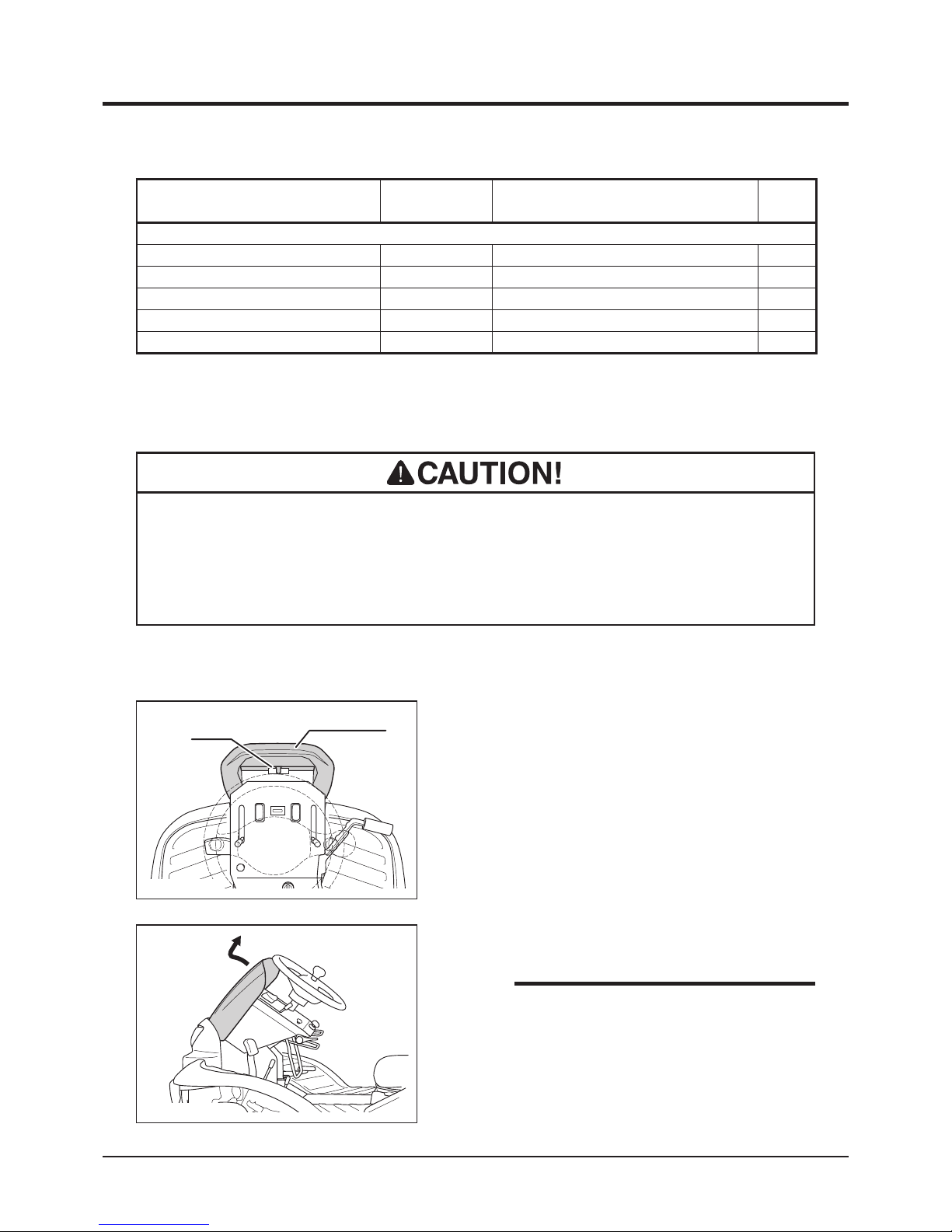

No. Content Quantity Note

1 Operator's Manual 1 This Manual
2

Operator's Manual for the Engine

1

4 Engine Service Tool 1

for Servicing Engine

Contents of Tool Bag

-17-

Operation 4

• Keep re and spark away when handling fuel.

• Always stop engine before refueling.

• Do not fill beyond the limit (bottom of the filler filter) so that fuel will not

overow. In case fuel is spilt, wipe out immediately.

Pre-start up Inspection

Preparation

Always perform an inspection before use.
Refer to the Maintenance Schedule (page 41) for the inspection schedule and procedure.

Checking and Filling Fuel

1. Check fuel gauge. If fuel level is low, ll fuel.

5347M-0401-010E

Fuel Gauge

• Always perform an inspection before every use. If a problem is found, solve or

repair it before use.

• Clean the mowing dust before use to avoid re.

• Make sure the cooling air intake is not blocked or clogged. If it is blocked, the

engine overheats.

Operation

-18-

4

Adjusting Height

1. Pull top edge of front cover to unlock latch.

5347M-0401-040E

Latch

Front Cover

• After adjusting steering wheel, try moving steering wheel back and forth and up

and down to make sure it is securely locked in its position.

Adjusting Steering Wheel

1. Pull up tilt lever to adjust steering wheel
angle.

2. There are five positions for steering wheel
angle.

3. After adjusting angle, return tilt lever to lock
steering wheel securely.

Adjusting Angle (Tilting)

5347M-0401-030E

Tilt Lever

Steering Wheel

2. Open fuel ller cap and ll fuel.

3. Put fuel filler cap back in place and close it
securely.

• Fuel : Automotive Unleaded Gasoline

• Fuel Tank Capacity : 20L

NOTE

5347M-0401-020E

Fuel Filelr Cap

-19-

Operation 4

5347M-0401-110E

2. Pull out front cover.

• Inside of the front cover is made as tool

box. Use this box to store items such as

tools or substitute cutting blades.

5332M-0401-120E

Fixing Pin

Steering Column

3. Remove fixing pin from steering column in
the front of machine.

• If fixing ping is in the difficult direction to

remove, steer the steering wheel to change

direction of the pin so that the pin can be

easily removed.

NOTE

NOTE

5332M-0401-130E

Hole

4. Adjust steering wheel height in prefered
position. Line up holes on steering shafts and
insert pin.

• Move steering wheel up and down to check

if the steering wheel is xed securely.

5332M-0401-140E

Front Cover

Clip

Rod

5. Raise steering wheel angle.

6. Fit clip on back side of front cover into the
rod.

7. Latch top edge of the front cover.

• Pay attention not to catch the front cover by

the plate on both sides when installing front

cover.

NOTE

NOTE

Operation

-20-

4

1. Pull slide lever to the right to slide seat
forward or backward.

2. When seat is in a desired position, release
slide lever and lock seat securely.

Sliding seat

5347M-0401-050E

Slide Lever

Seat

• Beware of pinch points when adjusting seating position.

• After adjusting seat, try moving seat back and forth and up and down to make

sure it is securely locked in its position.

Adjusting Seating Position

5347M-0401-060E

Seat Suspension
Stiffness Adjust Lever

Adjusting Stiffness

1. Move seat suspension stiffness adjust lever
to adjust desired seat stiffness.

5347M-0401-070E

Reclining Adjust Knob

Adjusting Reclining Angle

1. Rotate reclining adjust knob on the right of
seat to adjust reclining angle of the seat.

• Do not ajust seat posision to the end and

recline the seat. The seat may contact with

rear cover. This may activate seat switch

and stop engine. Adjust seat within the

range of not contacting with rear cover.

NOTE

-21-

Operation 4

5332M-0401-080E

Safety Pin

Adjusting Height (Rear Part)

1. Slide seat to the rear-most position.

2. Pull up seat and push safety pin toward
inside to hold seat lifted.

• Move seat and to check if the seat is locked

securely.

• Height at the rear can be adjusted in 4 levels

(2 for the Oceania version).

• Seat switch b r ac k e t is mounted i n the

hei g hest po si tion whe n shi pped fr o m

factory.

NOTE

Adjusting Height (Front Part)

1. Pull up seat and push safety pin toward
inside to hold seat lift up.

Height of seat at front can be set in one of two positions.

• Height of seat at front is set at the high position when shipped from the factory.

• Seat switch bracket needs to be in the highest position when setting the front in

high position.

NOTE

5347M-0401-150E

Bolt

Front Hole

Seat hinge Bracket

2. Remove 2 bolts that mount seat hinge
bracket. This bracket holds the entire seat,
so make sure to hold seat when removing
bolts.

3. Turn around bracket and mount it to floor,
with bolts through front holes.

4. Pull back seat safety pin and lower seat.

Operation

-22-

4

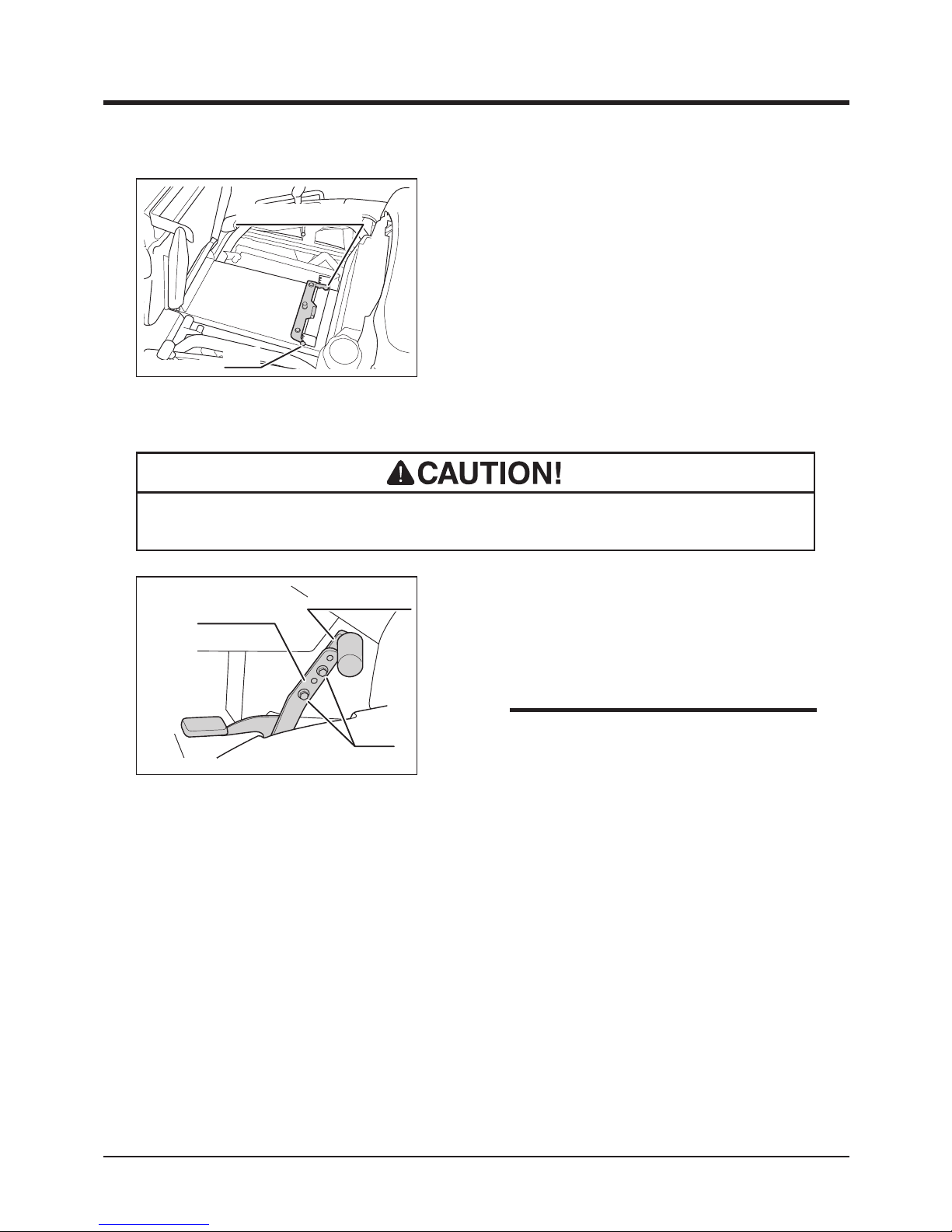

5332M-0401-100E

Pedal (Forward)

Drive Pedal

Bolts

Adjusting Drive Pedal

• Always check if the drive pedal is xed rmly after adjusting.

1. Remove two bolts fixing forward pedal with
drive pedal.

2. Adjust the pedal (forward) into the desired
position and x with bolts.

• Drive pedal can be adjusted in 3 positions

and angle.

NOTE

5335M-0401-010E

Seat Switch Bracket

Bolts

3. Remove 2 bolts xing seat switch bracket.

4. Move seat switch bracket into desired
position and x with bolts rmly.

5. Pull safety pin back and lower the seat.

-23-

Operation 4

Driving

• Always start and run engine in a well ventilated place.

• Always stay on seat when starting engine. Never attempt to start engine away

from machine. Run over accident may result.

• Do not turn main switch to [ (start)] position when engine is running. Starter

motor and/or engine may be damaged.

• Position throttle lever to [ (slow)] when starting.

• Do not turn the starter for more than 5 seconds. If the engine does not start,

turn main switch back to [ (off)] position and wait for 10 seconds or more

before attempting to start again.

• If engine does not start after starting procedure is performed several times, turn

off main switch and wait for 5 to 10 minutes and try again.

• Do not use this machine in temperatures above 40ºC or below -15ºC. This

machine cannot perform adequately in these temperature ranges. Using this

machine under such conditions may result in an accident or cause damage to

machine.

• In the winter or cold climate, warm up engine thoroughly before driving

machine. A cold engine delivers poor performance, which may result in an

accident. It also causes excessive wear.

• Do not use this machine in dusty places such as desert. Dust may clog air

cleaner or enter engine, which may reslt in loss of performance and an accident.

It also causes excessive wear.

Starting

Operation

-24-

4

5347M-0402-010E

Brake Pedal

Brake Lock Lever

1. Make certain brake pedal is depressed and
locked. If it is not, depress brake pedal and
pull lock lever to lock it.

• Safety feature: engine cannot be started

unless brake pedal is depressed.

5347M-0402-020E

Cutting Rotery
Clutch Lever

2. Make sure cutting rotary clutch lever is in
[OFF] position.

• Safety feature: engine cannot be started

unless cutting rotary clutch lever is in [OFF]

position.

53327M-0402-030E

Auxiliary
Transmission
Shift Lever

L

H

N

3. Make certain auxiliary transmission shift
lever is in [N (neutral)] position.

NOTE

NOTE

• Do not use this machine in the altitude above 1500m (4920ft.) in its original

configuration. This machine cannot perform adequately above that altitude.

Using this machine under such conditions may result in an accident or cause

damage to machine. If you need to use this machine above that altitude, contact

your CANYCOM representative.

-25-

Operation 4

5347M-0402-040E

Drive Lever

Neutral Position

4. Make certain drive lever is in neutral position.

• Drive lever returns to neutral position when

brake pedal is fully depressed.

5332M-0402-060E

Fuel Cock

Open

Close

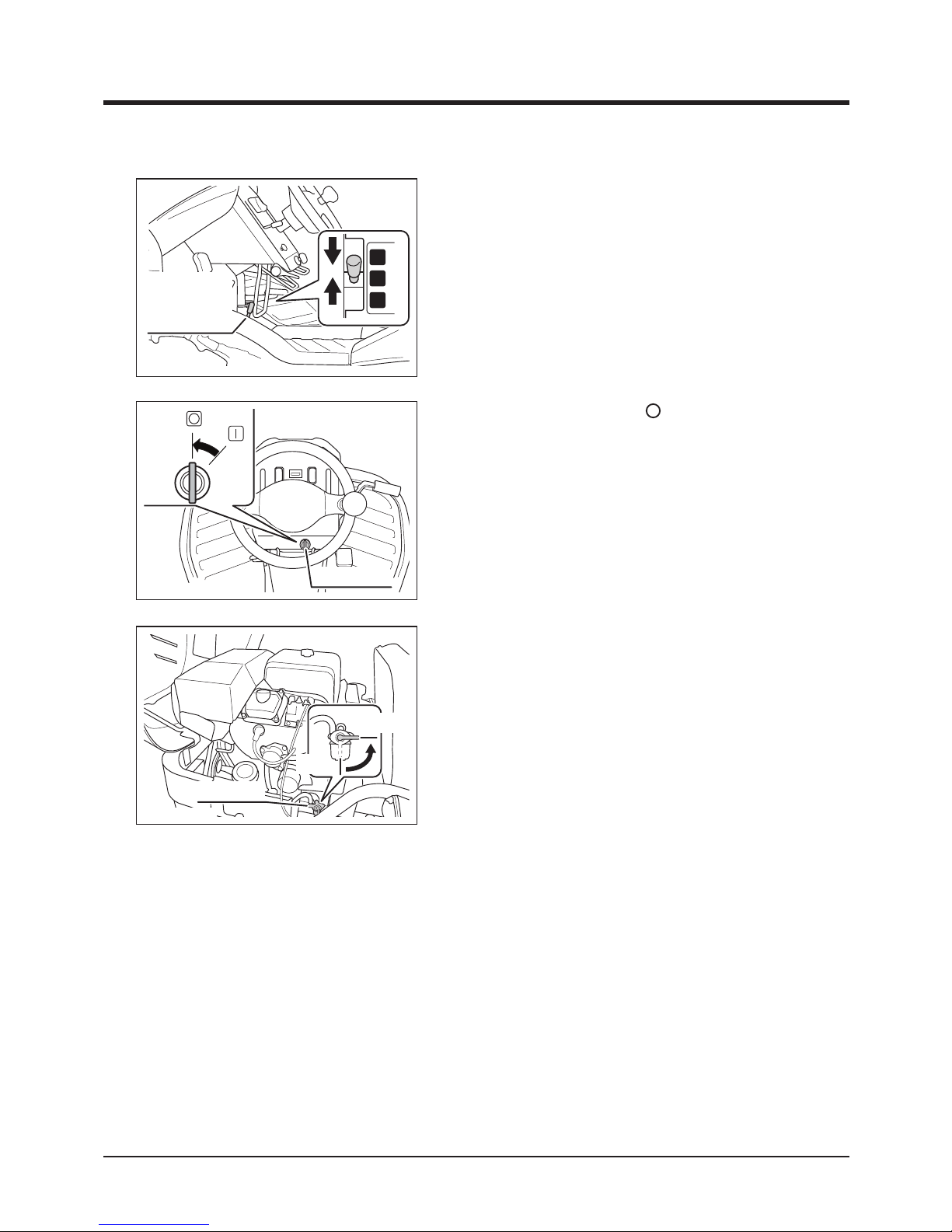

5. Open engine hood (see page 52). Open fuel
cock.

NOTE

6. Make sure throttle lever is in the [ (slow)]
position.

7. Pull choke knob to close choke valve and
insert ignition key into main switch.

5347M-0402-080E

Throttle Lever

5347M-0402-070E

Choke Knob

Operation

-26-

4

Driving

• Always wear protective footwear, long trousers, hardhat, safety glasses and

ear protection when operating or servicing the machine. Proper clothing will

minimize the chance of injury. Do not operate the equipment if you have long

hair, loose clothing, or jewelry; all of which may get tangled in moving parts. Do

not operate the machine barefoot or with open sandals.

• Do not allow bystanders to come near machine when driving.

• Always make certain of the safety of your surroundings before driving; start

slow.

• Always make certain of the safety of your surroundings before turning. Do

not make sudden starts, acceralation, change of speed, change of direction,

or stop. Do not turn at speed. Avoid sudden maneuvers; this may cause the

operator to fall or to be thrown, or machine to tip over.

• Use [L] mode and drive slow on an incline to avoid the operator to fall or to be

thrown, or machine to tip over.

• Avoid frequent restarting. Once engine

starts, run it for a while to charge battery.

• Drive machine gently in the first week (40

to 50 hours) of operation after purchase for

breaking-in.

NOTE

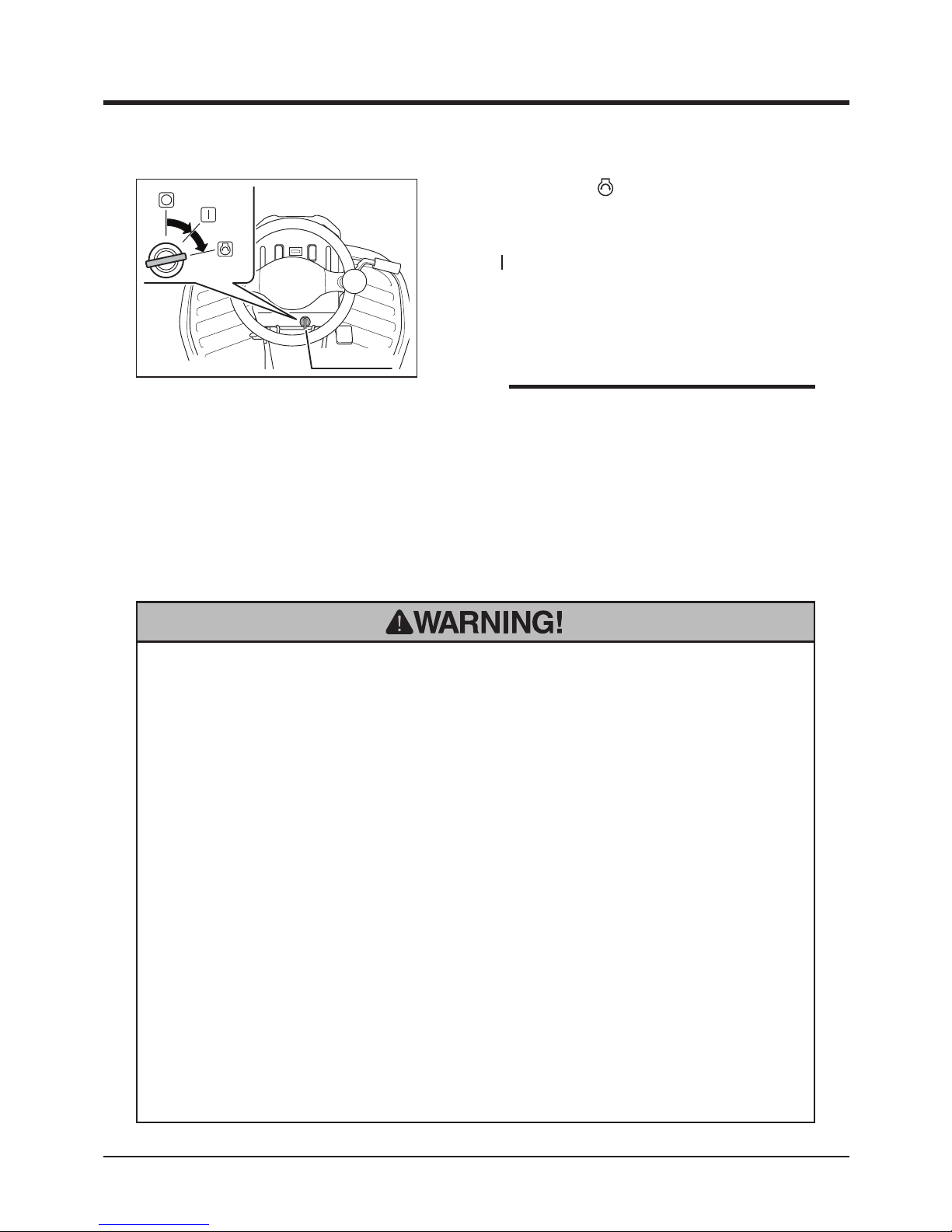

Main Switch

5332M-0402-070E

8. Turn key to [ (start)] position to start
engine. Release key immediately after
engine starts. Key automatically returns to
[ (ON)] position.

9. Push back choke knob to open choke valve.

10. Run engine without load for about 5 minutes
to warm up.

-27-

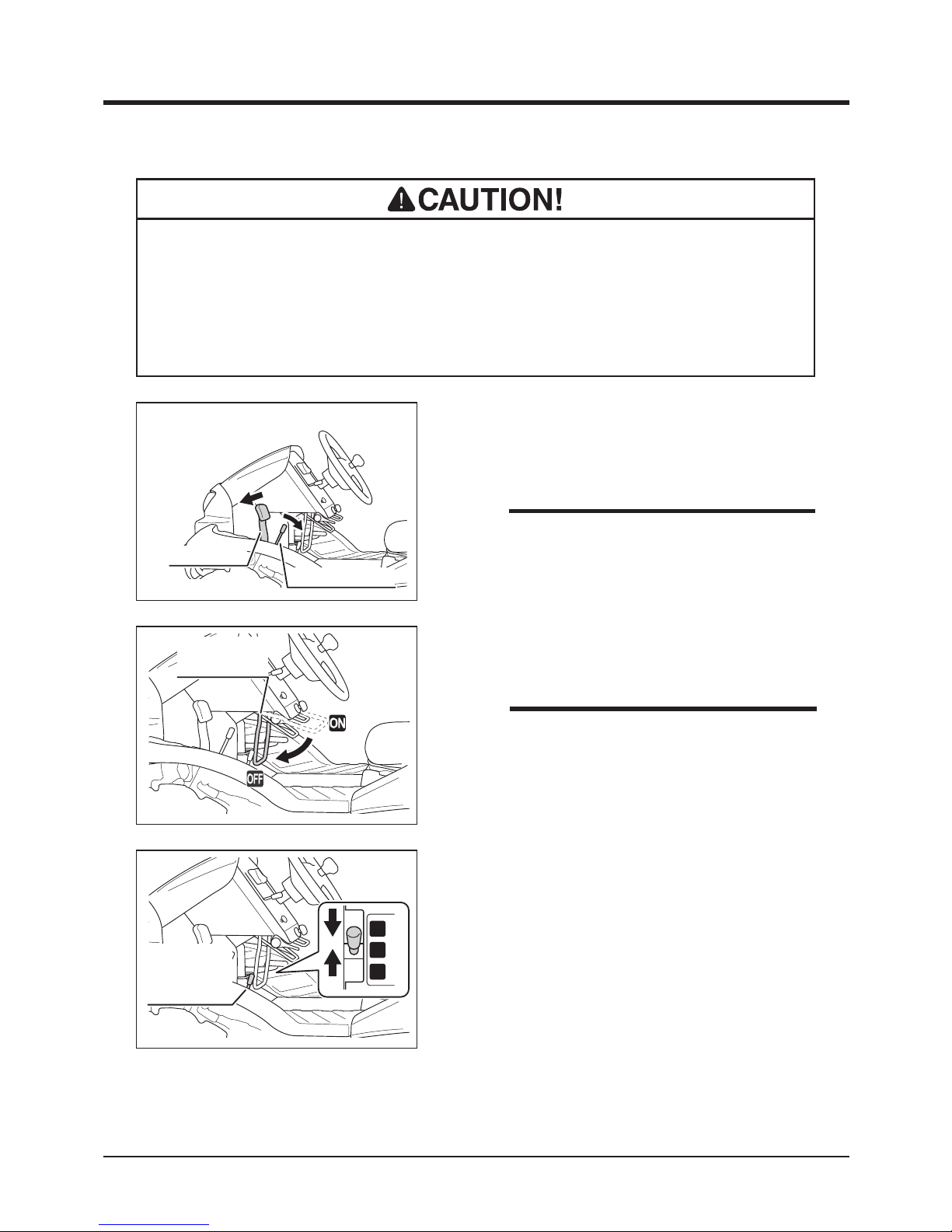

Operation 4

5347M-0402-100E

Auxiliary
Transmission
Shift Lever

L

H

N

1. M ak e cer t a i n of th e sa f e ty o f yo u r
surroundings.

2. Move auxiliary transmission shift lever to
either [H (high speed)] or [L (low speed)]
position.

• Do not operate drive pedal or drive lever when brake is locked with parking

brake lock lever. It can wear out brake.

5347M-0402-110E

Throttle Lever

3. Move the throttle lever toward [ (fast)]
position to increase engine speed.

• See Specications (page 15) for the speed

range in either gear position.

NOTE

• Do not operate drive pedal and drive lever simultaneously.

• Do not turn the key to [ (off)] position while traveling.

Operation

-28-

4

5347M-0402-140E

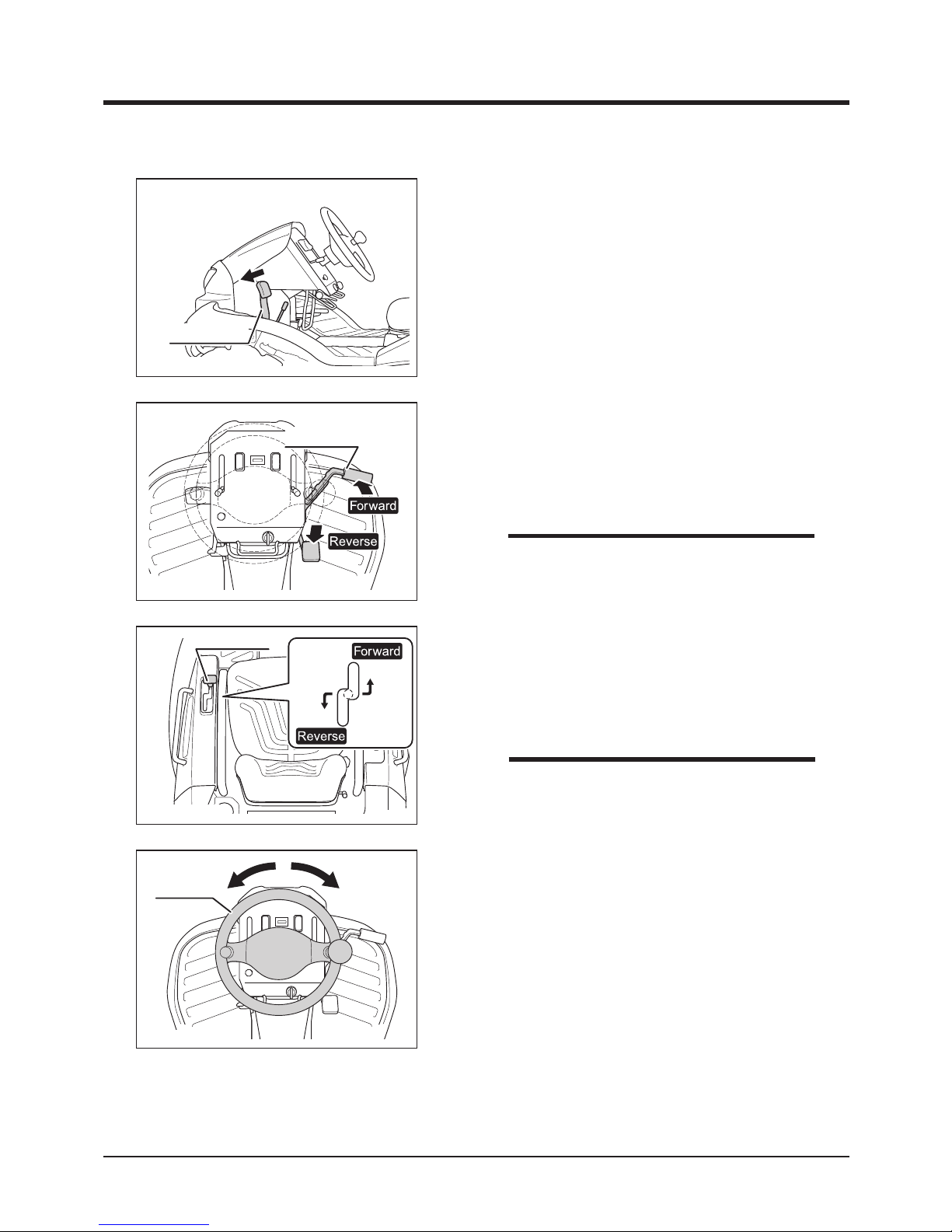

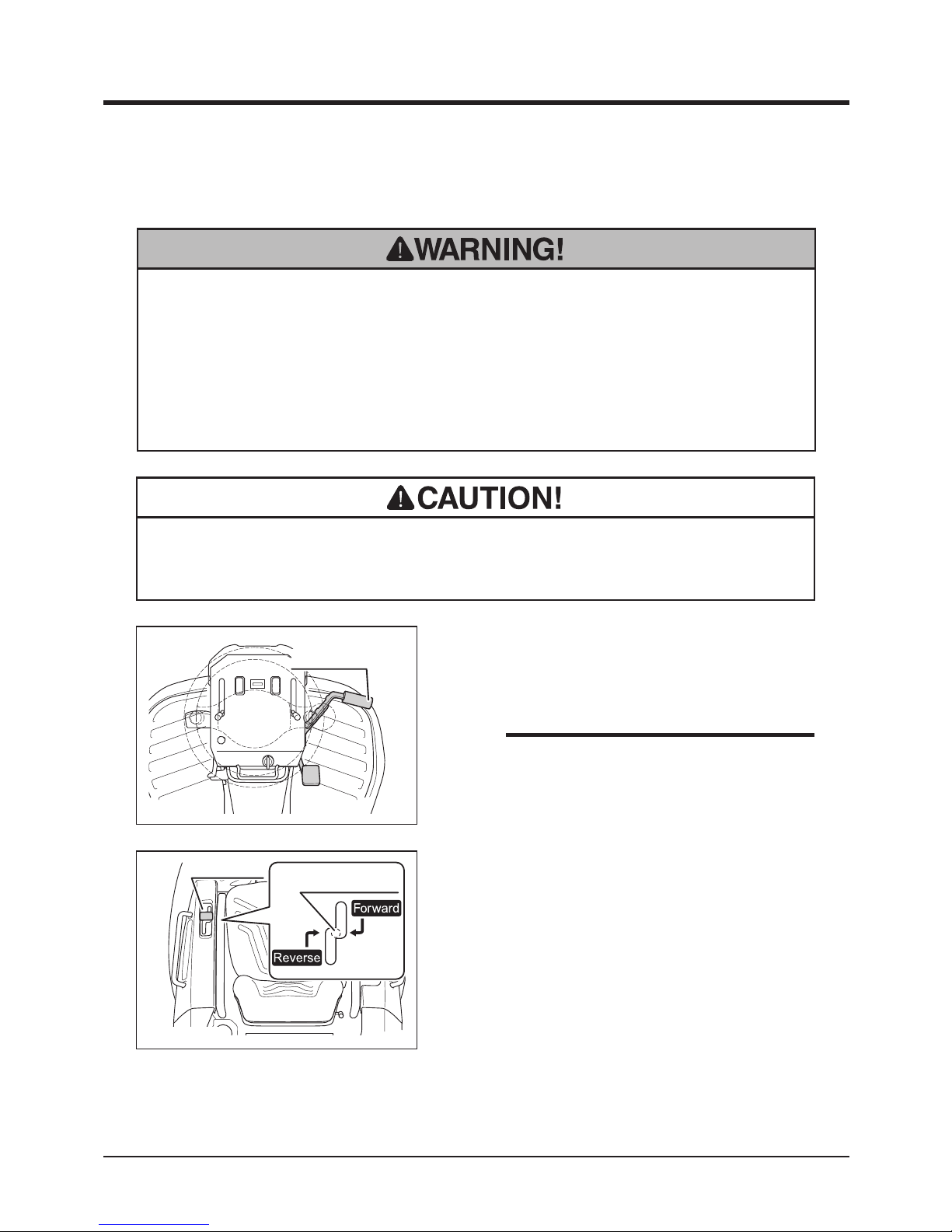

Drive Lever

5. Move drive le ver gra dually for ward or
backward to move in the corresponding
direction.

Driving with Drive Lever

• Speed can be adjusted continunously by the

position of drive lever.

NOTE

5347M-0402-150E

Steering
Wheel

6. Turn steering wheel to turn.

5. Depress gradually the forward or reverse side
of drive pedal to move in the corresponding
direction.

Driving with Drive Pedal

5347M-0402-130E

Drive Pedal

• Speed can be adjusted continunously by the

position of drive pedal.

NOTE

5347M-0402-120E

Brake Pedal

4. Depress brake pedal to release brake pedal
lock.

-29-

Operation 4

• Do not make a sudden stop. Operator may be thrown off, or machine may skid

or tip over.

• Always park on a rm, level place. Never park on a potentially dangerous place.

• Do not park near combustibles.

Stopping

1. Gradually return drive pedal to slow down.

2. Take foot off drive pedal.

When Driving with Drive Pedal

• Drive pedal returns automatically to neutral

when released.

NOTE

5347M-0402-040E

Drive Lever

Neutral Position

1. Gradually return drive lever to nutral position
to slow down.

2. Release hand off drive lever.

When Driving with Drive Lever

• Do not hold drive lever and depress brake pedal at the same time. Or, do not

depress drive and brake pedals at the same time. HST may be damage.

5347M-0402-160E

Drive Pedal

Operation

-30-

4

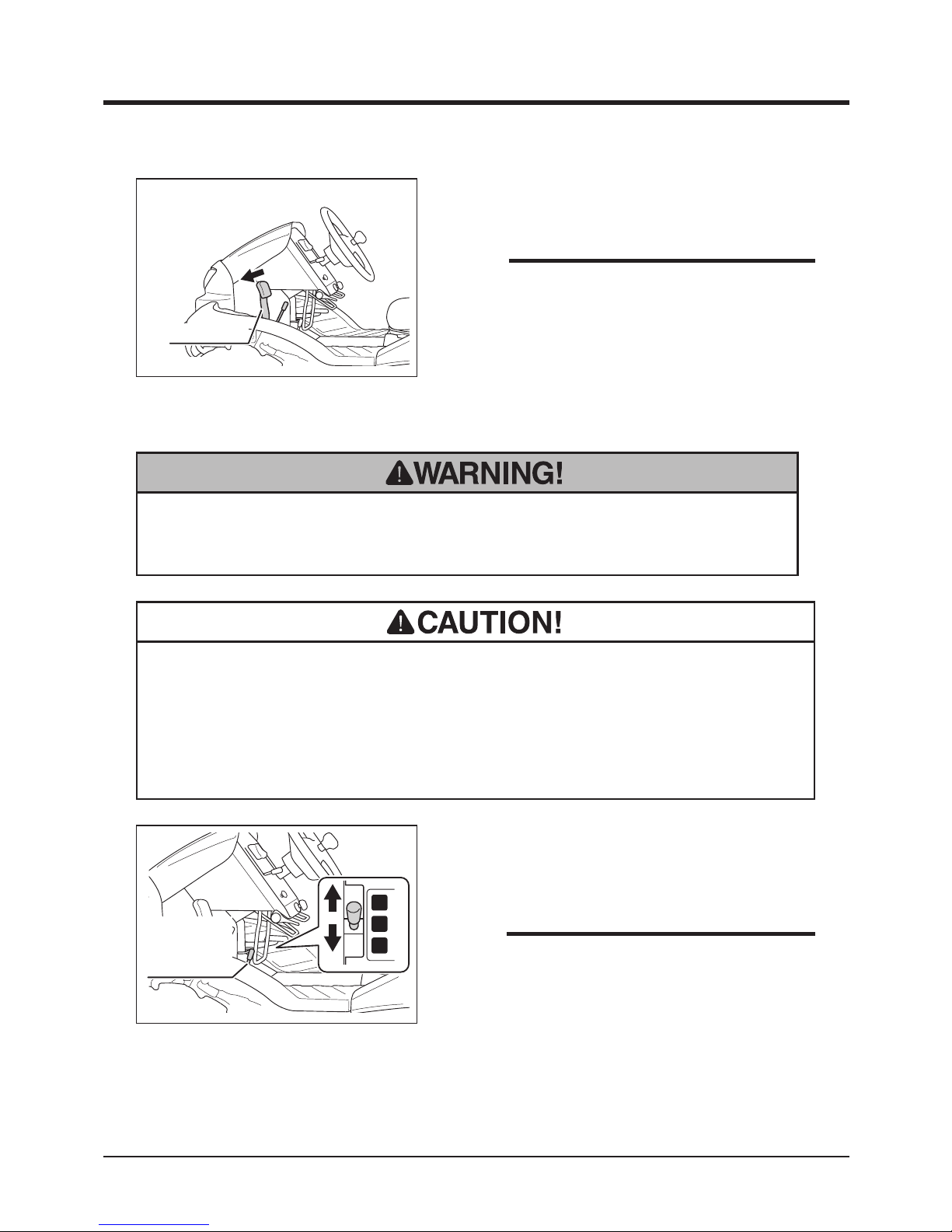

1. Stop machine.

2. Move auxiliary transmission shift lever to [H
(high speed)] or [L (low speed)] position rmly.

5347M-0402-100E

Auxiliary
Transmission
Shift Lever

L

H

N

• See Specications (page 15) for the speed

range in either gear position.

• Always stop machine to shift gears. Shifting gears while machine is in motion

can damage transmission.

• Use [L] mode when mowing. Mowing in [H] mode can put excessive strain and

damage the mowing mechanism.

NOTE

• Always shift gears rmly. When transmission is not rmly shifted, it may jump

out of gear, resulting in loss of control of machine.

Shifting

5347M-0402-120E

Brake Pedal

3. Depress brake ped al t o st op m achine
completely.

• When brake pedal is depressed, drive lever

returns to neutral position.

NOTE

-31-

Operation 4

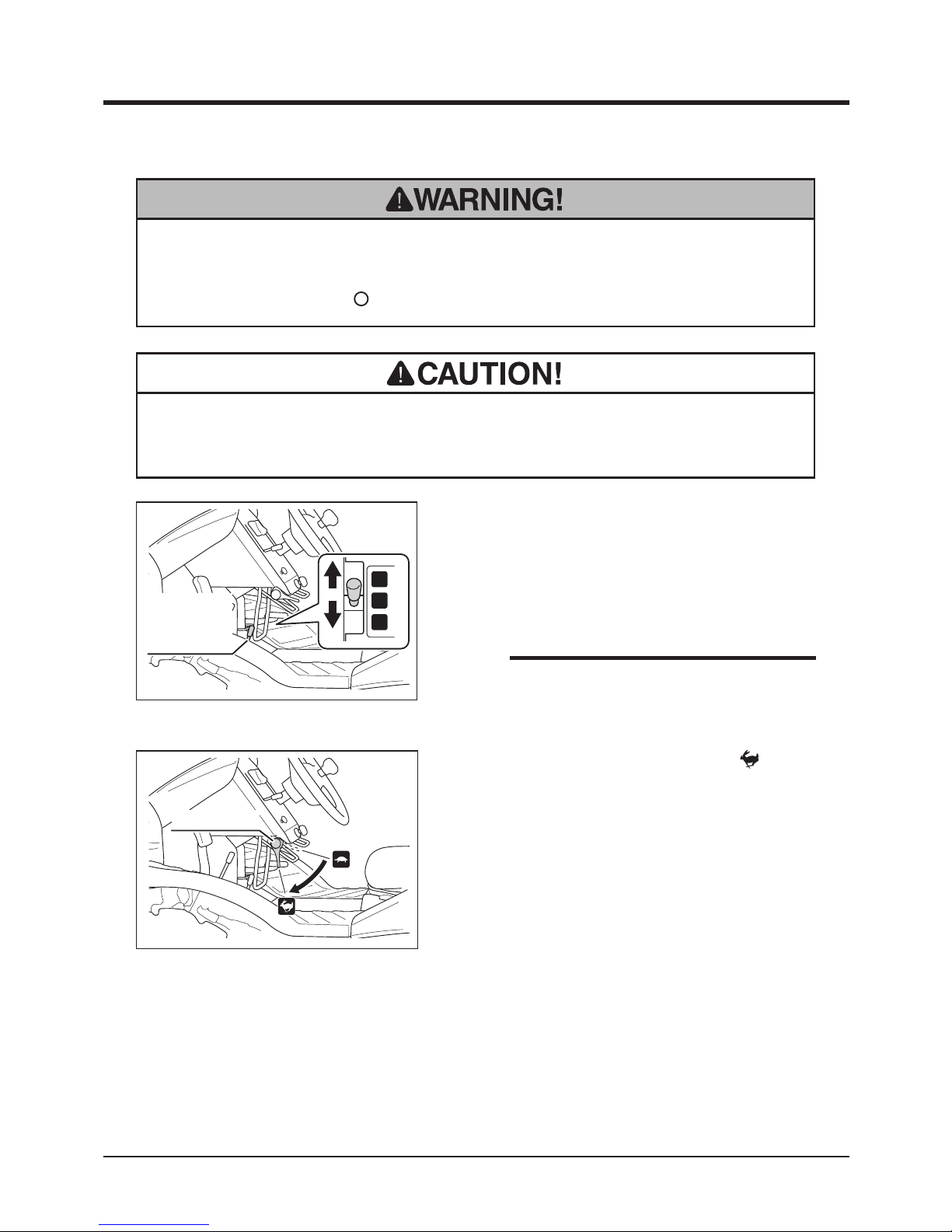

• Always stop machine to shift between 2WD or AWD (all-wheel-drive) modes.

Shifting gears while machine is in motion can damage transmission.

• Use 2WD mode under normal condition.

• Pay attention to the minimum turning radius in AWD mode. In AWD mode,

minimum turning radius is greater than that in 2WD mode.

5347M-0402-170E

2WD/AWD Shift Lever

1. Stop machine.

2. Move 2WD/AWD shift lever to [2WD] or
[AWD] position rmly.

Shifting Between 2WD and AWD

(AWD models)

• AWD Models: CMX227H, CMX186H.

NOTE

Operation

-32-

4

4. Once machine is out of the slippery area,
stop and move differential lock lever to [OFF]
position.

5347M-0402-190E

Differential Lock Lever

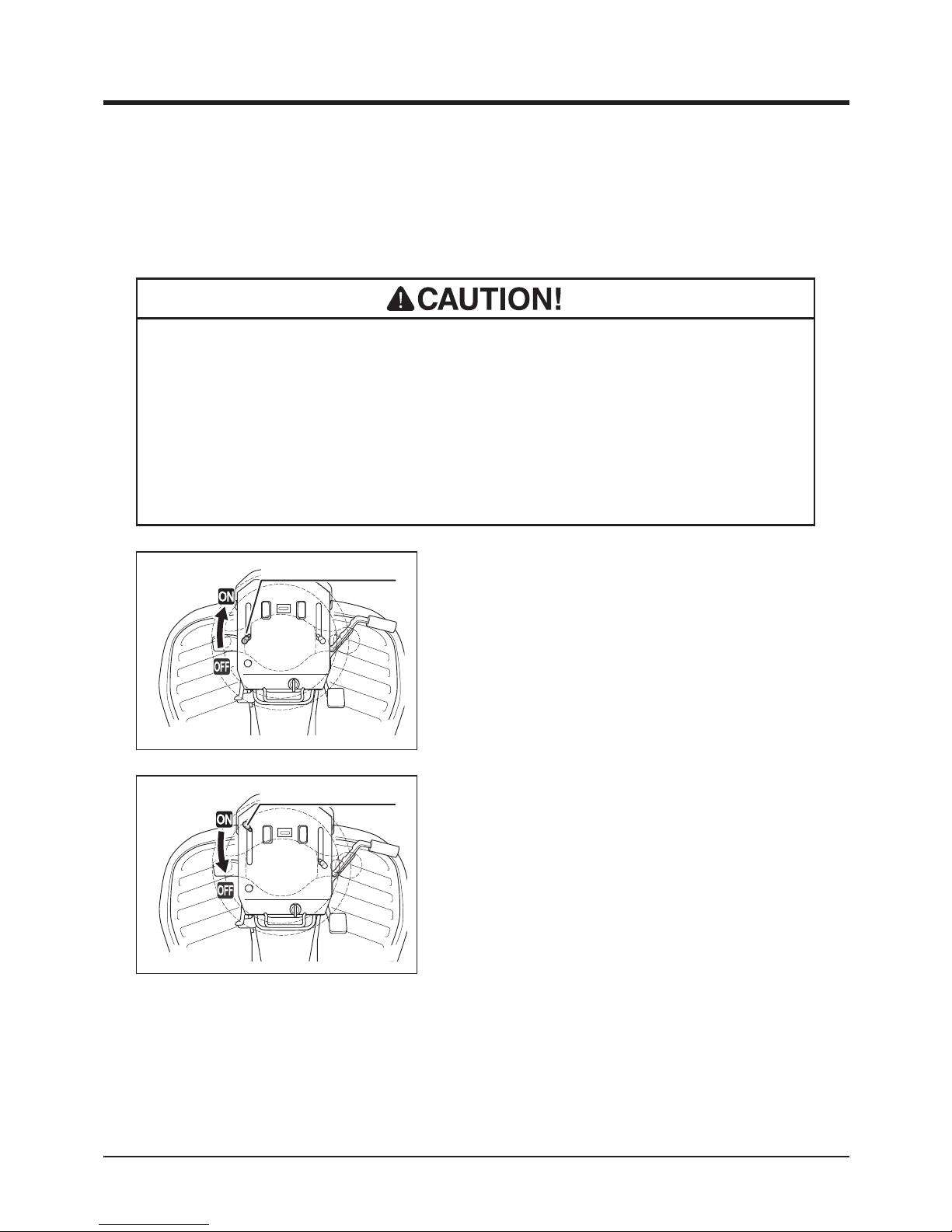

Locking Differential

Differential can be locked to minimize slipping on slippery surface.

• Always stop machine to operate differential lock lever. Operating differential

lock lever while machine is in motion can damage differential.

• Keep differential lock in [OFF] position under normal running condition.

Differential may be damaged.

• Do not turn machine when differential lock is in [ON] position.

5347M-0402-180E

Differential Lock Lever

1. Move differential lock lever to [ON] position.

2. Move auxiliary transmission shift lever to [L
(low speed)] position.

3. Drive slowly out of the slippery area.

-33-

Operation 4

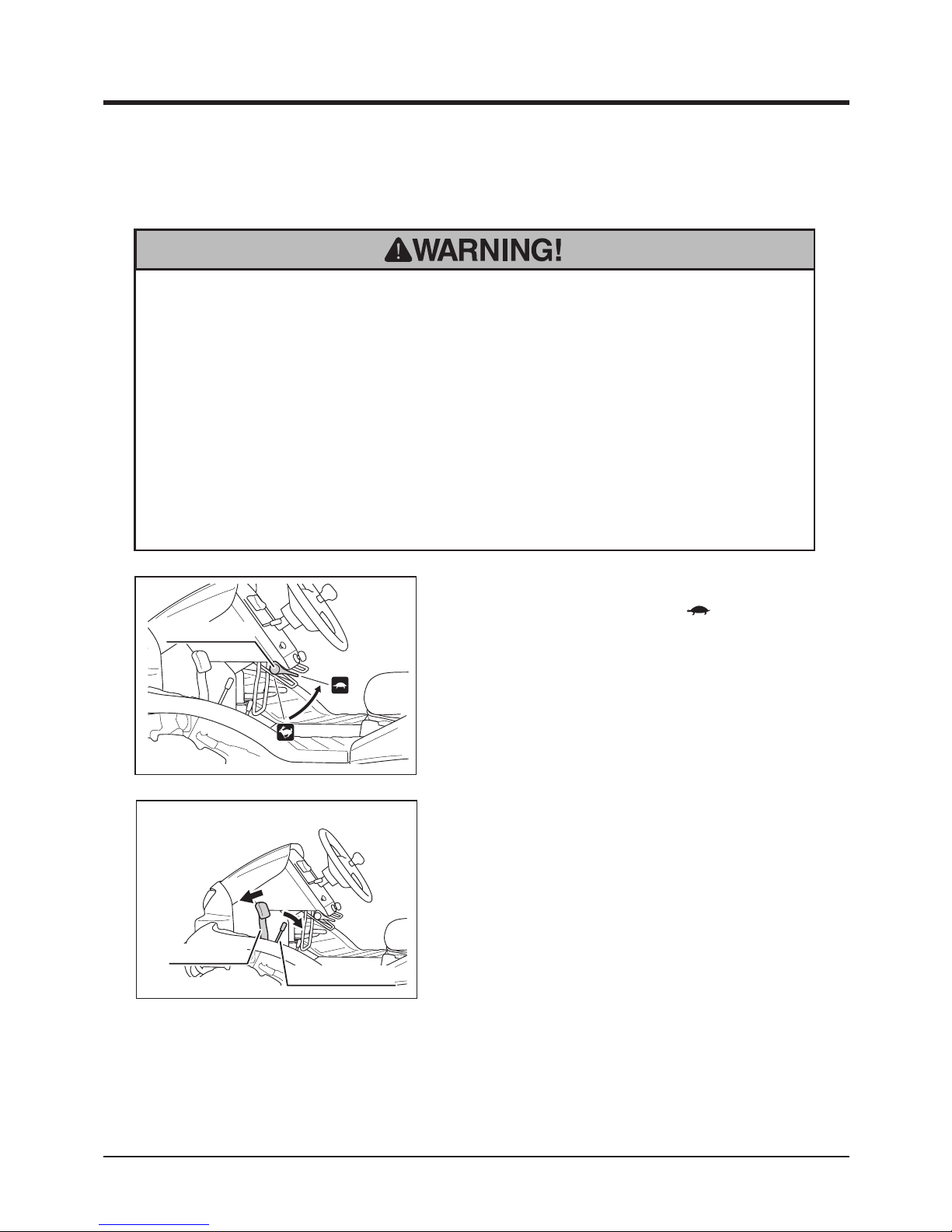

Parking

• Always park on a rm, level place. Never park on a potentially dangerous place.

• Avoid parking on a slope. Never park on a slope with an incline of 10 degrees

or steeper. If it is absolutely necessary to park machine on a slope less than

10 degrees, make certain to apply parking brake rmly and block wheels with

chocks.

• Apply brake and remove key when parking.

• Do not park near combustibles.

5347M-0402-200E

Throttle Lever

1. Stop machine.

2. Move throttle lever toward [ (slow)] to slow
engine speed.

5347M-0402-010E

Brake Pedal

Brake Lock Lever

3. Depress brake pedal and pull brake lock
lever to lock brake pedal in depressed
position.

Operation

-34-

4

53327M-0402-030E

Auxiliary
Transmission
Shift Lever

L

H

N

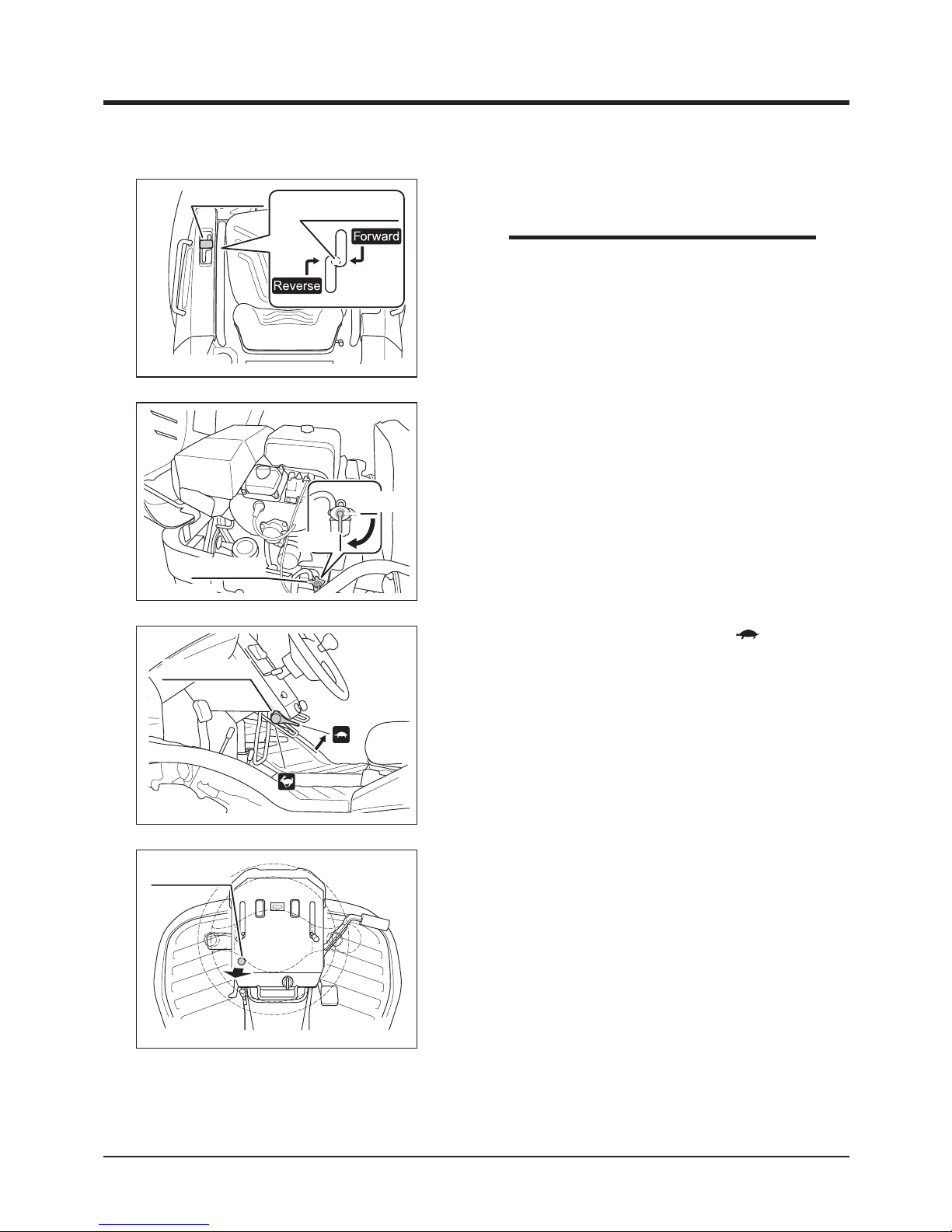

4. Move auxiliary transmission shift lever to [N
(neutral)] position.

Main Switch

5332M-0402-210E

5. Turn main switch to [ (off)] to stop engine.
Remove ignition key.

5332M-0402-090E

Fuel Cock

Open

Close

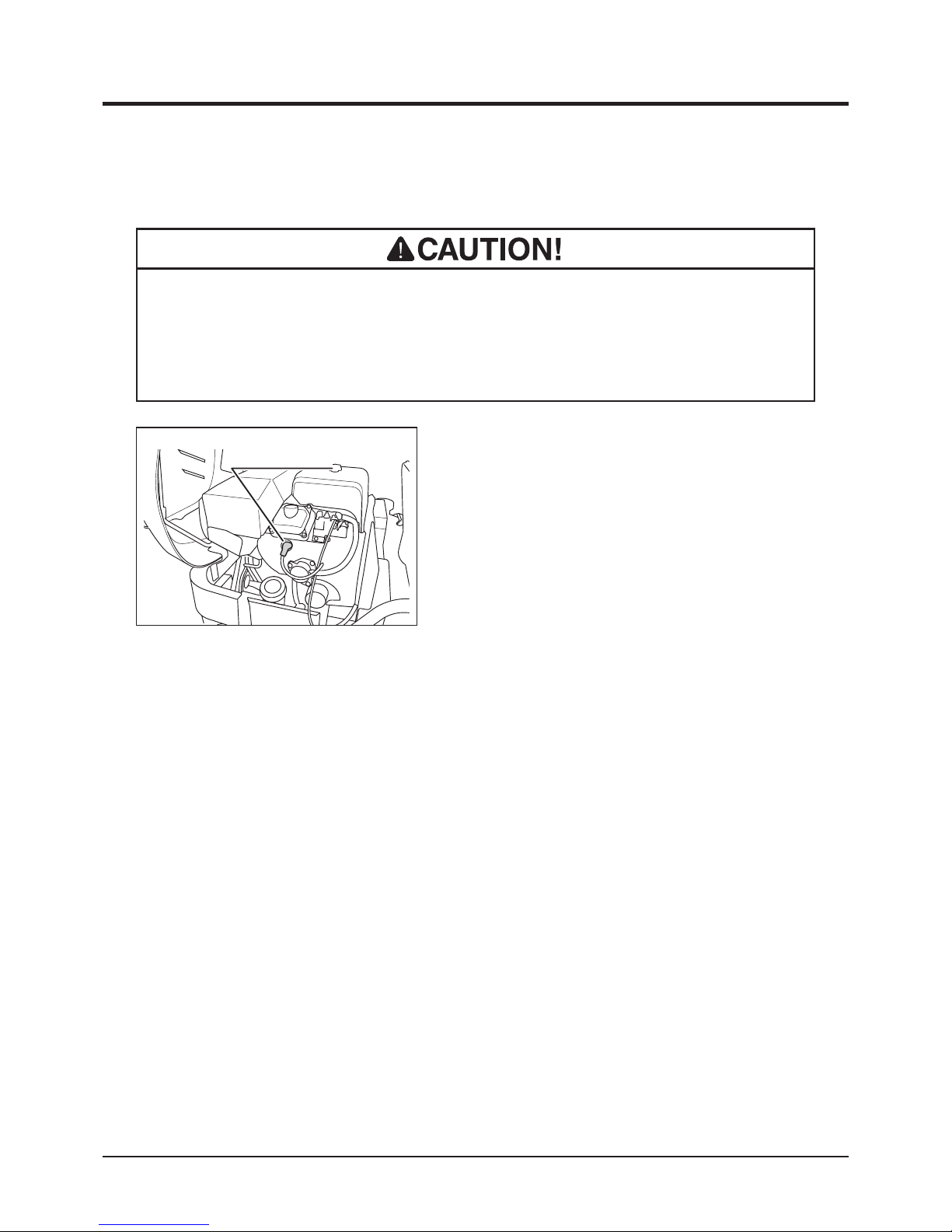

6. Open engine hood and close fuel cock. Close
engine hood.

-35-

Operation 4

Working

Inspecting Cutting Blade

Inspect cutting blade before work. Refer to Cutting Blades (page 67) for inspection
procedure.

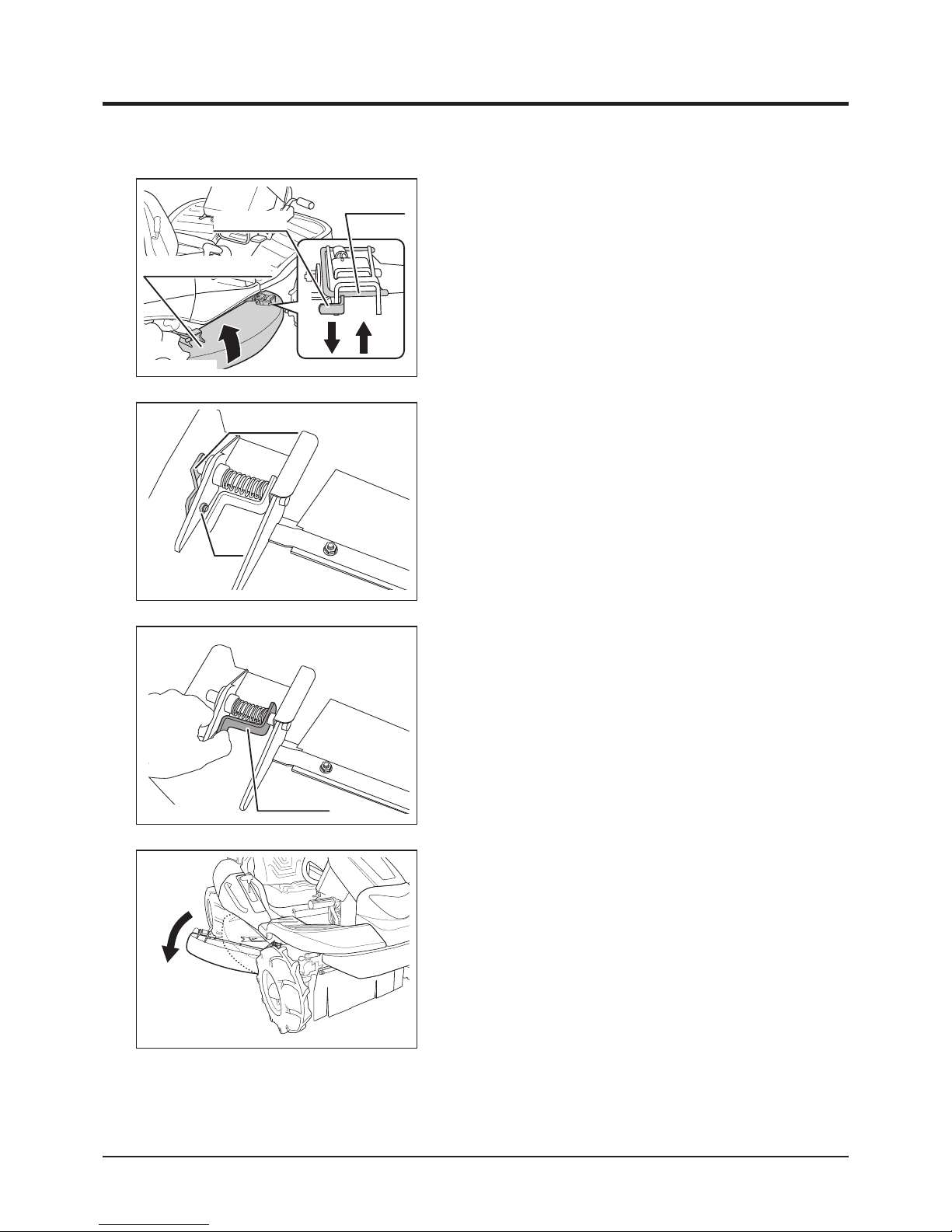

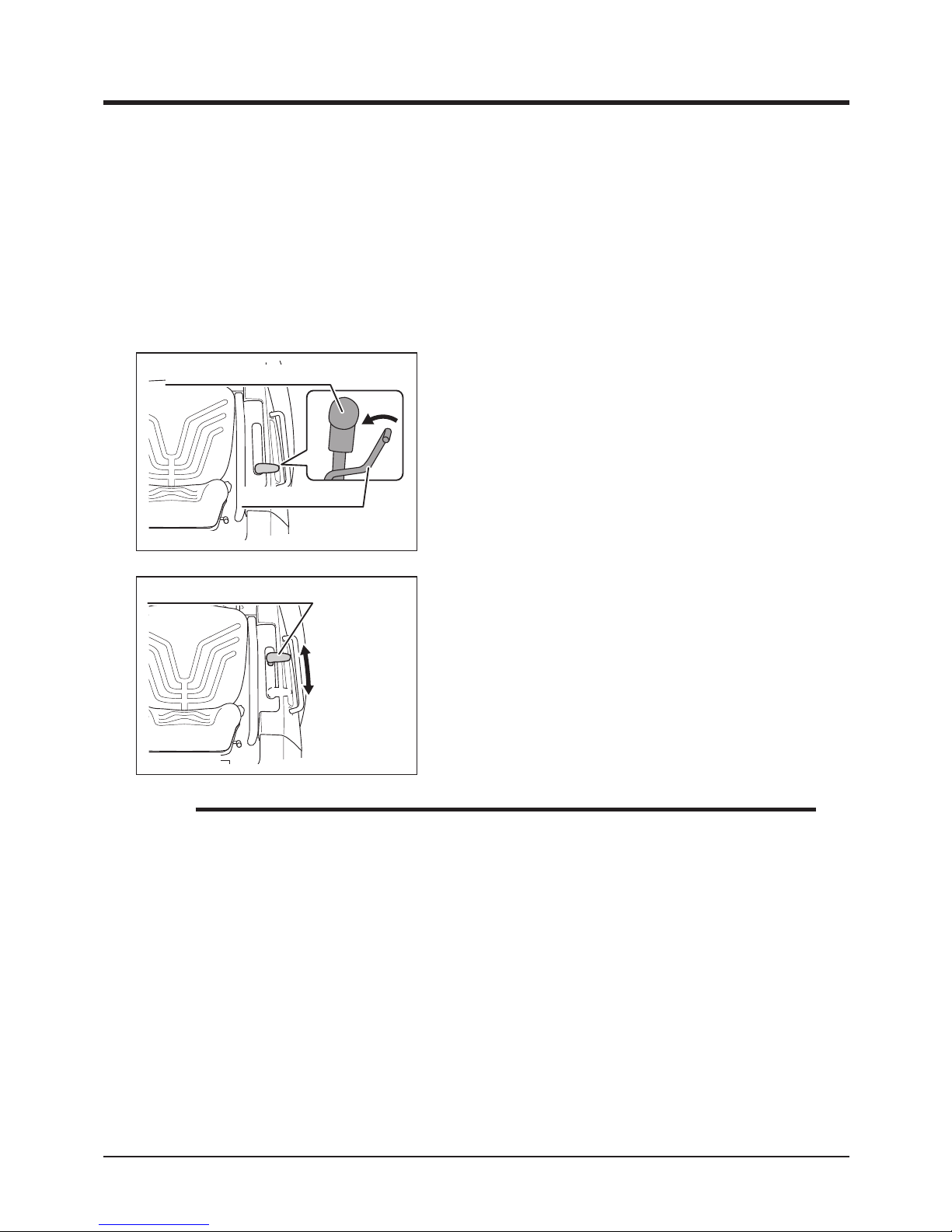

Adjusting Cutting Height

5347M-0403-010E

Cutting Height Lock

Cutting Height Adjust Lever

1. Grab cutting height lock to unlock cutting height
adjust lever.

5347M-0403-020E

Cutting Height Adjust Lever

2. With lock button pulled up, move cutting
height adjust lever to a desired position.

3. Release lock to lock cutting height adjust
lever.

• Cutting Height Range: 0mm - 150mm (CMX227H, CM226H)

0mm - 130mm (CMX186H, CM185H)

• Cutting Height indicated on the side of the adjust lever is for reference purpose

only; actual cutting height may vary due to the condition of ground or brush, and

other factors.

NOTE

Operation

-36-

4

• Never place any part of body under cutting blade shield.

Cutting

• Always wear protective footwear, long trousers, hardhat, safety glasses and

ear protection when operating or servicing the machine. Proper clothing will

minimize the chance of injury. Do not operate the equipment if you have long

hair, loose clothing, or jewelry; all of which may get tangled in moving parts. Do

not operate the machine barefoot or with open sandals.

• Do not allow bystanders to come near machine when mowing.

• Rotating cutting blades can throw stones or debris and cause injuries and

damages to nearby people, animals, crops, buildings, automobiles, etc. Pay

attention to the safety of surroundings and plan ahead when cutting.

• Never attempt to cut with cutting blade shield open.

• When mowing, drive forward. Machine is intended to mow brush while moving

forward, and this best prevents stones and debris from being thrown.

• Turn cutting rotary clutch to [ON] only when mowing. Keep it in [OFF] position

all the other times.

• Never attempt to mow brush on the edge of a ditch or bank. Shoulder of the

ditch or bank may collapse. Pay special attention after heavy rain or earthquake.

• Inspect the work site beforehand; inspect terrain and locate holes, drops, or

obstacles. Also inspect overhead obstacles such as the branches of a tree. Pay

special attention when working near these areas.

• Do not use this machine on an incline steeper than 25 degres for the AWD

model or 15 degrees for the 2WD model.

-37-

Operation 4

• When working in a dusty area, clean air cleaner element twice a day. Dirty air

cleaner element results in poor starting, poor performance, or short life.

• When a cutting blade is broken, replace it and the other blade with a new pair. A

broken blade causes excessive vibration, which damages machine.

• When something is tangled to cutting blade, stop engine immediately and

remove the tangled object. Such object causes excessive vibration, which

damages machine.

• Always clean cutting blades and cutting blade stay after every use ( see page

77). Remained foreign object may solidied or corrode and make cutting blades

hard to remove.

• In case cut grass, dust, or foreign object enters between cutting blade pin and

slot, making it difcult to remove cutting blade, use a athead screw driver or

similar tool to remove such object rst.

• Use [L] mode when mowing. Mowing in [H] mode puts excessive strain on

mowing mechanism and may damage it.

• Always stay on machine when mowing.

• Make sure air intake for cooling is not clogged or blocked. If it is clogged or

blocked, it causes overheating, resulting in damages to machine.

Operation

-38-

4

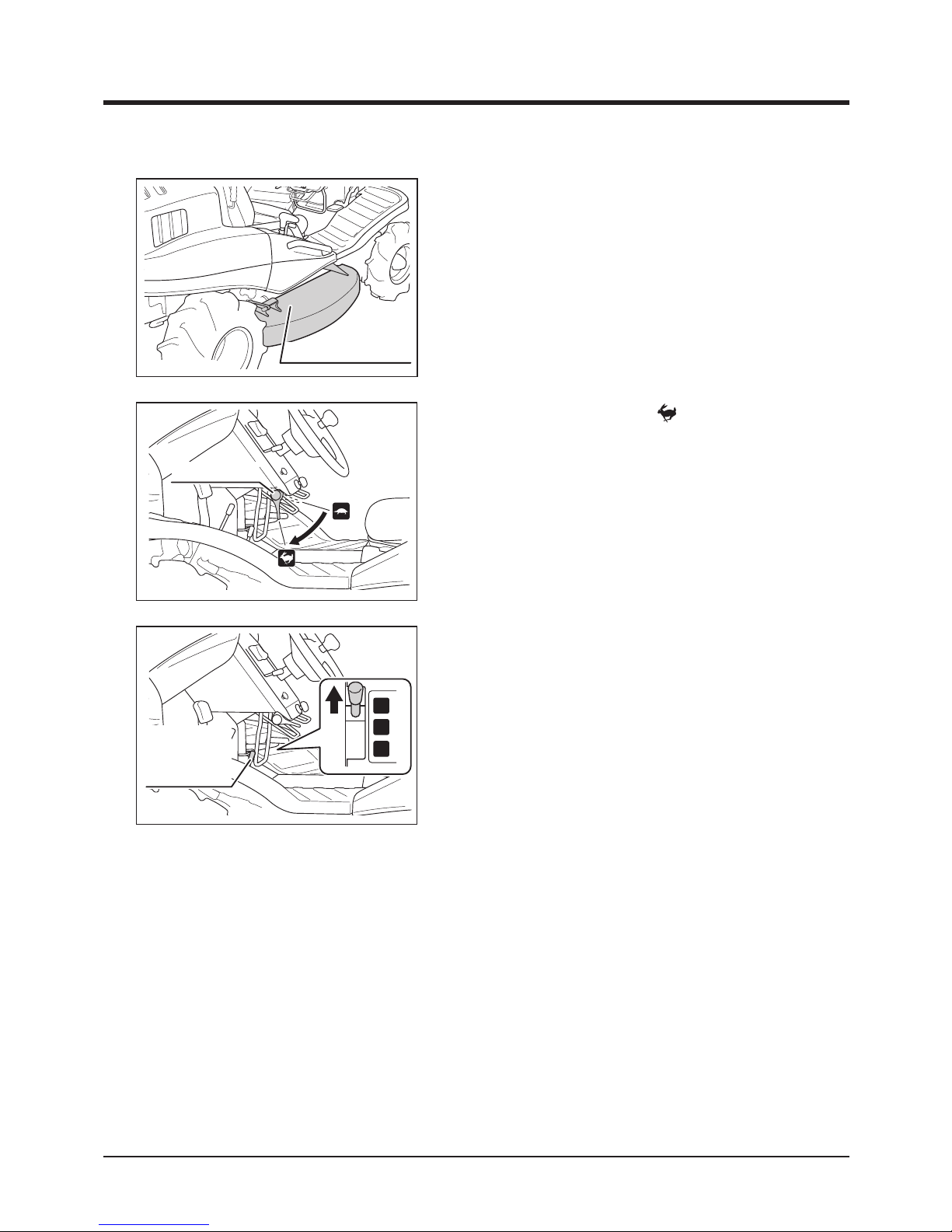

5332M-0403-060E

Cutting Blade Shield

1. Make sure cutting blade shield is closed.

2. Turn throttle lever to [ (fast)] position to
raise engine speed.

3. Move auxiliary transmission shift lever to

[L (low speed)].

5347M-0403-070E

Auxiliary
Transmission
Shift Lever

L

H

N

5347M-0402-110E

Throttle Lever

-39-

Operation 4

5347M-0403-080E

Cutting Rotary
Clutch Lever

5. Move rotary clutch lever to [ON] to start
cutting blade.

• Safety feature: engine stops automatically if

operator leaves seat while cutting blade is

rotating.

NOTE

5347M-0402-130E

Drive Pedal

6. Drive machine forward to mow.

5347M-0403-020E

Cutting Height Adjust Lever

4. Move cutting height adjust lever to a desired
height.

• When mowting with this machine for the

fi rst time, start on a flat su rface. Dr ive

slowly and in an overlapping pattern.

• If load to cutting blade is high, drive slowly,

or cut twice.

NOTE

5347M-0402-140E

Drive Lever

Operation

-40-

4

5347M-0402-020E

Cutting Rotery
Clutch Lever

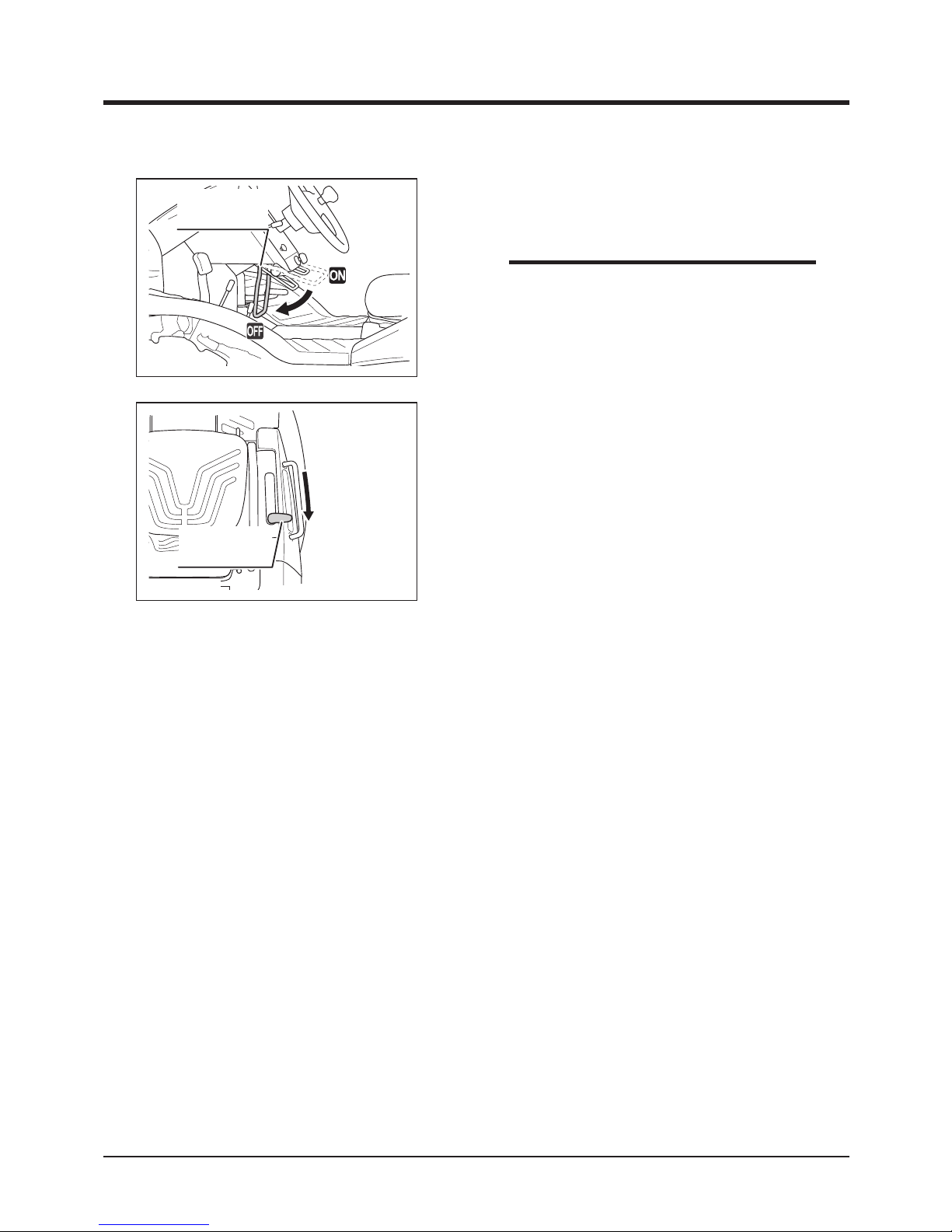

7. Move cutting rotary clutch lever to [OFF] to
stop cutting blade.

• Moving cutting rotary clutch lever to [OFF]

applies brake on cutting blade to stop.

8. Move cutting height adjust lever to the
highest position.

5347M-0403-090E

Cutting Height
Adjust Lever

NOTE

-41-

Maintenance 5

Maintenance Schedule

• Follow the scheduled maintenance as described below. Failure to do so may

result in mechanical or property damage, injury or death.

Engine

• Engine Oil - to be clean and at the correct level.

• Air Cleaner Element - to be clean and free of damage.

• Leaks - No fuel or oil leaks to be found.

• Bolts, Nuts, Fasteners - not to be loose or missing.

• Sound, Vibration - No abnormal noise or excessive vibration.

Daily Inspection

Scheduled Maintenance

Items

Frequency

Clean and check fastenrs

Every 8 hours (daily)

(clean more frequently in dusty place)

Check and fill oil

Every 8 hours (daily)

(clean more frequently in dusty place)

Clean air cleaner element

Every 8 hours (daily)

(clean more frequently in dusty place)
Change oil First time:20 hours. Every 50 afterward
Clean spark plugs Every 50 hours
Replace fuel strainer Every 200 hours

Replace air cleaner element

Every 200 hours

(contact Canycom representative for placement)

Check and adjust spark plug gap

Every 200 hours

(contact Canycom representative for placement)

Replace oil filter

First time:50 hours. Every 200 afterward

(contact Canycom representative for

placement)
Check and adjust tappets Every 300 hours (do more frequently in dusty place)
Remove carbon deposit from cylinder head Every 500 hours (do more frequently in dusty place)

Clean Oil pan

Every 500 hours (clean more frequently in dusty place)
Clean carburator Every 500 hours (clean more frequently in dusty place)
Perform valve lapping Every 500 hours (clean more frequently in dusty place)
Replace fuel hose Every two years
Overhaul 1000 hours (contact Canycom representative for overhaul)

Maintenance

-42-

5

• Perform a pre-startup inspection (PSI) before each use, a monthly inspection once a

month, and a yearly inspection once a year.

• Some maintenance procedures described below may require special knowledge

or tools and instruments. Contact your CANYCOM representative to perform such

procedures.

Chassis

Item Description

Schedule

Note

PSI

Mon

Year

Drive Train

Tires

Tires shall be inflated to the specified
pressure.

√ √ √

Page 59

Tires and wheels shall be free of crack,
damage, or uneven wear.

√ √

Wheel bolts shall not be loose or missing.

√ √ √

Wheel bearings do not exhibit excessive play
and no irregular noise or overheating shall
be observed.

√ √

Transmission

Irregular noise or overheating shall not be
observed when moving forward or backward.

√ √

There shall not be oil leaks in or around
transmission.

√ √

Auxiliary

Transmission

Transmission can be shifted to either position
positively and performs normally.

√ √

Lever shall not be loose or have excessive
play.

√ √

Front Axle

Irregular noise or overheating shall not be
observed when traveling.

√ √

There shall not be oil leaks in or around front
differential case or knuckles.

√ √

HST

HST shall perform normally.

√ √ √

Hydraulic fluid shall be filled to a proper
level and shall be clean and free of dirt or
contamination.

√ √

Page 61

Lever or pedal shall not be loose or have
excessive play.

√ √

-43-

Maintenance 5

Item Description

Schedule

Note

PSI

Mon

Year

Drive Train

V-belt

Belt tension shall be properly adjusted.

√ √

Belt shall be free of damage or excessive
wear.

√ √

Brake Brake shall work properly.

√ √ √

Page 66

Parking Brake

Parking brake shall be able to hold the
machine on a 20-degree slope.

√ √

Steering

Turn steering wheel right and left; front
wheels shall turn accordingly.

√ √

Steering can be adjusted in 5 positions and
locked securely.

√ √

Rods, Links,

and Wires

Rods, links, and wires in linkage shall be free
of deformation or damage.

√ √

Connections shall be free of looseness,
excessive play, or missing cotter pins.

√ √

Body, Chassis, Safety Devices

Chassis,

Frame

Shall be free of cracks, deformation, or
corrosion.

√ √

Fastening bolts or nuts shall not be loose or
missing.

√ √ √

Body Panels

Shall be free of cracks, deformation, or
corrosion.

√ √

Doors and lids shall open, close, and lock
properly.

√ √

Fastening bolts or nuts shall not be loose or
missing.

√ √ √

Labels

Warning labels and instruction plates shall be
clean, legible, and free of damage.

√ √ √

Cutting System

Cutting

System

Blades shall be free of cracks or damage.

√ √ √

Page 67
Blade mounting pins and wave washers shall
be free of cracks or damage.

√ √ √

Page 67

Cutting blade shield shall be free of cracks or
damage.

√ √ √

Skirts on cutting blade shield shall be free of
cracks or damage, and shall not be missing.

√ √ √

Belt tension shall be properly adjusted.

√ √ √

Page 70
Belt shall be free of damage or excessive

wear.

√ √ √

Page 70

When activated, cutting blade brake shall
stop cutting rotary.

√ √ √

Page 71

Greasing points shall be properly greased.

√ √

Page 46, 47

Maintenance

-44-

5

Item Description

Schedule

Note

PSI

Mon

Year

Electrical System

Charging

System

Charging system shall charge battery.

√

Battery

Battery fluid (electrolyte) shall be of proper
level.

√ √

Page 73

Terminals shall be free of looseness or
excessive corrosion.

√ √

Head Lamp

Tail Lamp *

1

Head and tail lamps shall work.

√ √ √

Lamp lens shall be free of cracks or chipping
and water shall not be in the lamp.

√ √

Wiring

Connections shall not be loose.

√ √

Wiring shall be free of damages.

√ √

*1 AWD models only.

-45-

Maintenance 5

List of Fluids and Lubricants

Item Schedule Grade Cap.

Fuel As needed. Automotive Unleaded Gasoline 20 L
Engine Oil Fill

Inspect daily. Fill as needed.
Change
Initially - After 20 hours of use.
Every 50 hours afterwards.

Gasoline Engine Oil
API rating: SE or better.
SAE rating: 10W-30 1.4L

Transmission Oil Change

Initially - After 50 hours of use.
Every 500 hours afterwards.

Gear Oil
API rating: GL-4 or 5
SAE rating: 80

0.9L

Front Axle Oil*1 Change

Initially - After 50 hours of use.
Every 500 hours afterwards.

Gear Oil
API rating: GL-4 or 5
SAE rating: 80

0.7L

HST Fluid Change

Once a year or every 500 hours
(whichever comes rst).*2
Every 300 hours.*3

Gasoline Engine Oil
API rating: SE or better.
SAE rating: 20W-50

4.0L*2

1.1L*3

Cutting Rotary
Grearbox Oil

Change
Initially - After 50 hours of use.
Every 500 hours afterwards.

Gear Oil
API rating: GL-4 or 5
SAE rating: 80

0.15L

Battery Electrolyte Fill

Inspect every 50 hours and fill
when necessary.

Distilled Water

-

*1 AWD models only, *2 Models with Charge-Pump, *3 Models without Charge-Pump

Maintenance

-46-

5

Greasing Points

• Grease regularly. Insufcient greasing may result in seizure or rusting, affecting

smooth operation of machine.

• When using a manual grease pump, push handle five to six times. When handle

becomes heavy, stop pushing.

• When using a pneumatic grease pump, charge for two to three seconds.

• Set cutting rotary height to the lowest to grease link pivots.

NOTE

Location Schedule Grade

1 Propeller shaft Every 6 Months Chassis Grease
2 Cutting rotary link pivots Every 6 Months Chassis Grease

3 Cutting rotary drive shaft Every 6 Months Chassis Grease

Greasing Points (CMX 227H / CMX 186H)

5332M-0503-010E

-47-

Maintenance 5

Greasing Points (CM 226H / CM 185H)

5335M-0503-010E

Location Schedule Grade

1 Front knuckles Every 6 Months Chassis Grease
2 Cutting rotary link pivots Every 6 Months Chassis Grease

3 Cutting rotary drive shaft Every 6 Months Chassis Grease

Maintenance

-48-

5

List of Consumables and Spares

• When replacing consumable or spare, always use CANYCOM genuine parts.

Using non-CANYCOM parts may reduce machine's performance or service life.

Note that it may also void warranty and certication for relevant standards.

*1: CMX227H, *2: CM 226H, *3: CMX186H, CM185H

Item Part No. Schedule Qty.

Engine

Oil Filter Cartridge 248-65801-00

Initially 50 hrs.
After - Every 200 hrs.
Replace if defective.

1

Air Cleaner Element 263-32610-A1

Every 200 hrs or seasonally.

1

Spark Plug (NGK BPR5ES)

065-01402-80

Clean: every 50 hrs.
Replace if defective.

2

Wire (Throttle)

53320101100 Replace if defective. 1

Wire (Choke)

53470112000 Replace if defective. 1

Fuel System

Hose (Carburator - Fuel Pump)

263-68006-B3 Every 2 years. 1

Hose (Fuel Pump - Fuel Filter)

263-68007-B3 Every 2 years. 1

Hose (Fuel Filter - Fuel Cock) 53320316000 Every 2 years. 1
Hose(Fuel Cock - Fuel Tank) 53320315000 Every 2 years. 1

Drive Train

V-belt (HST) 08521300036 Replace if defective. 1

Tire (Front)*1, *2 53472202000

Replace if defective
or reaches the wear limit.

2

Tire (Front)*3 53042204000

Replace if defective
or reaches the wear limit.

2

Tire (Rear)*1, *2 53472302000

Replace if defective
or reaches the wear limit.

2

Tire (Rear)*3 53042301100

Replace if defective
or reaches the wear limit.

2

Valve*1, *2 53472304000 Replace if defective. 4
Tire Tube (Front)*3 53042205000 Replace if defective. 2

Tire Tube (Rear)*3 42012543000 Replace if defective. 2
Brake Lining (Rear) 73019901000 Replace if defective (Replace in pairs). 2

Brake Lining (Front) 73069901000 Replace if defective (Replace in pairs). 2
Wire (Rear Brake) 53323305500 Replace if defective. 1

Wire (Front Brake) 53323306500 Replace if defective. 1
Wire (Drive Lever) 53473307000 Replace if defective. 1

-49-

Maintenance 5

*1: CMX227H, *2: CM 226H, *3: CMX186H, *4: CM185H

Item Part No. Schedule Qty.

Drive Train

Wire (Differential Lock) 53323402000 Replace if defective. 1
Wire (AWD)*1 53323452000 Replace if defective. 1

Cooling Fan 53352023000 Replace if defective. 1

HST Oil Filter*5 53212071200

When HST oil is changed
(once a year or every 500 hours).

1

Cutting System

Blade Set (Iai) Z3324202010 Replace if defective. 1
Rubber Plate (Front Skirt, Center)*1 53322114000 Replace if defective. 1

Rubber Plate (Front Skirt, Center)*2 53332109000 Replace if defective. 1
Rubber Plate (Front Skirt, Center)*3 53382114000 Replace if defective. 1

Rubber Plate (Front Skirt, Center)*4 53342109000 Replace if defective. 1
Rubber Plate (Front Skirt, Sides)*1 53322113000 Replace if defective. 2

Rubber Plate (Front Skirt, Sides)*2 53332108000 Replace if defective. 2
Rubber Plate (Front Skirt, Sides)*3 53382113000 Replace if defective. 2

Rubber Plate (Front Skirt, Sides)*4 53342108000 Replace if defective. 2
Rubber Plate (Front Diff.-Blade

Shield)*1,*3

53352111000 Replace if defective. 1

Rubber Plate (Front Diff.-Blade
Shield)*2, *4

53362114000 Replace if defective. 1

Rubber Plate (Front Axle, Rear
Right)*1

53212118000 Replace if defective. 1

Rubber Plate (Front Axle, Rear
Right)

*2, *4

53332112000 Replace if defective. 1

Rubber Plate (Front Wheel,
Inside)*1, *3

53322116000 Replace if defective. 1

Rubber Plate (Front Wheel, Inside)

*2,

*4

53062121000 Replace if defective. 1

Rubber Plate (Front Wheel, Rear
Inside)

*2,

*4

53232132000 Replace if defective. 1

Rubber Plate (Blade Shield, Rear) 53324113000 Replace if defective. 1
Rubber Plate (Blade Shield, Rear
Left)

53324114000 Replace if defective. 1

Brake Lining (Cutting Rotary)

53104301000 Replace if defective. 2

Wire (Cutting Rotary Clutch)

53472404500 Replace if defective. 1

Gas Spring
(Cutting Height Adjuster)

53474054000 Replace if defective. 1

Cutting Blade Stay 53324201000 Replace if defective. 1

Maintenance

-50-

5

Removing and Installing Body Panels

• Cut or pinch hazard exists when removing or installing body panels; beware of

sharp edges and pinch points.

• Make certain to reinstall panels after removing for repairs or inspection.

Front Cover

5347M-0401-040E

Latch

Front Cover

1. Pull top side of front cover to unlock latch.

5347M-0401-110E

2. Pull up front cover.

• Tool box is provided under the front cover.

Use this tool box to store tools or substitute

cutting blades.

NOTE

Item Part No. Schedule Qty.

Electrical System

Battery 37053901000

Replace if defective.

1

Fuse, 30A (Green, Main)

09801003002

Replace if defective.

1

Fuse 10A (Red, Lights) 09801001002

Replace if defective.

1

Light Bulb (Head Lamp) 53320203100

Replace if defective.

1

Light Bulb (Tail Lamp)

*1

09808121502

Replace if defective.

1

-51-

Maintenance 5

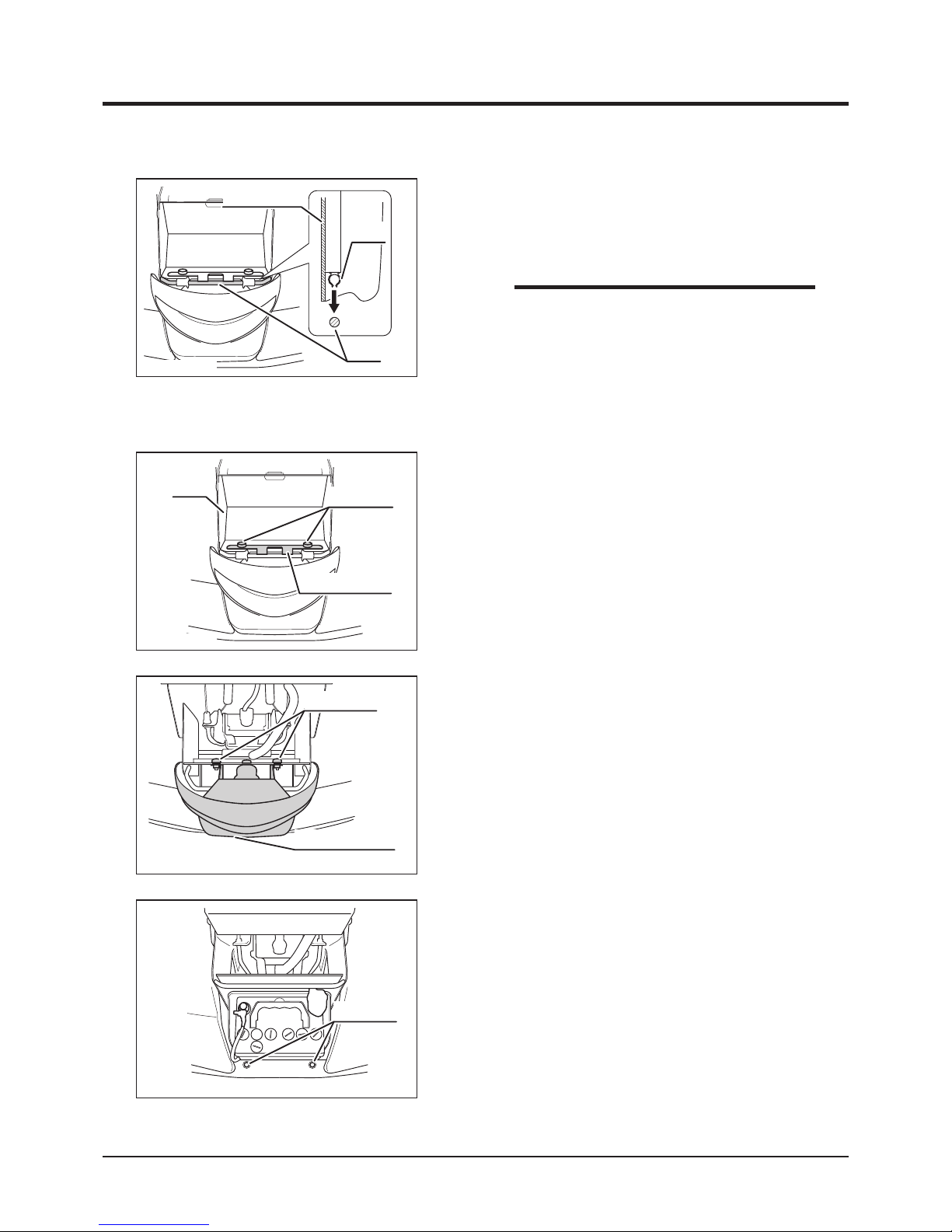

Head Lamp

Tray

Knob Bolt

Fixing Bracket

5332M-0509-030E

1. Remove front cover.

2. Remove 2 knob bolts xing the tray.

3. Remove xing bracket and lift tray.

Flange Bolt

Head Lamp Unit

5347M-0509-040E

4. Remove 2 ange bolts xing head lamp unit
to remove head lamp unit.

Grommet

5332M-0509-060E

5. Insert projections at the bottom of head lamp
unit into holes of grommet on bumper and
install it in reverse order.

5332M-0401-140E

Front Cover

Clip

Rod

3. Raise steering wheel to the maximum angle
and t clip on the back of front cover to rods.

4. Fit upper part of front cover.

• Beware not to catch front cover by the

plates on both sides when you installing

front cover.

NOTE

Maintenance

-52-

5

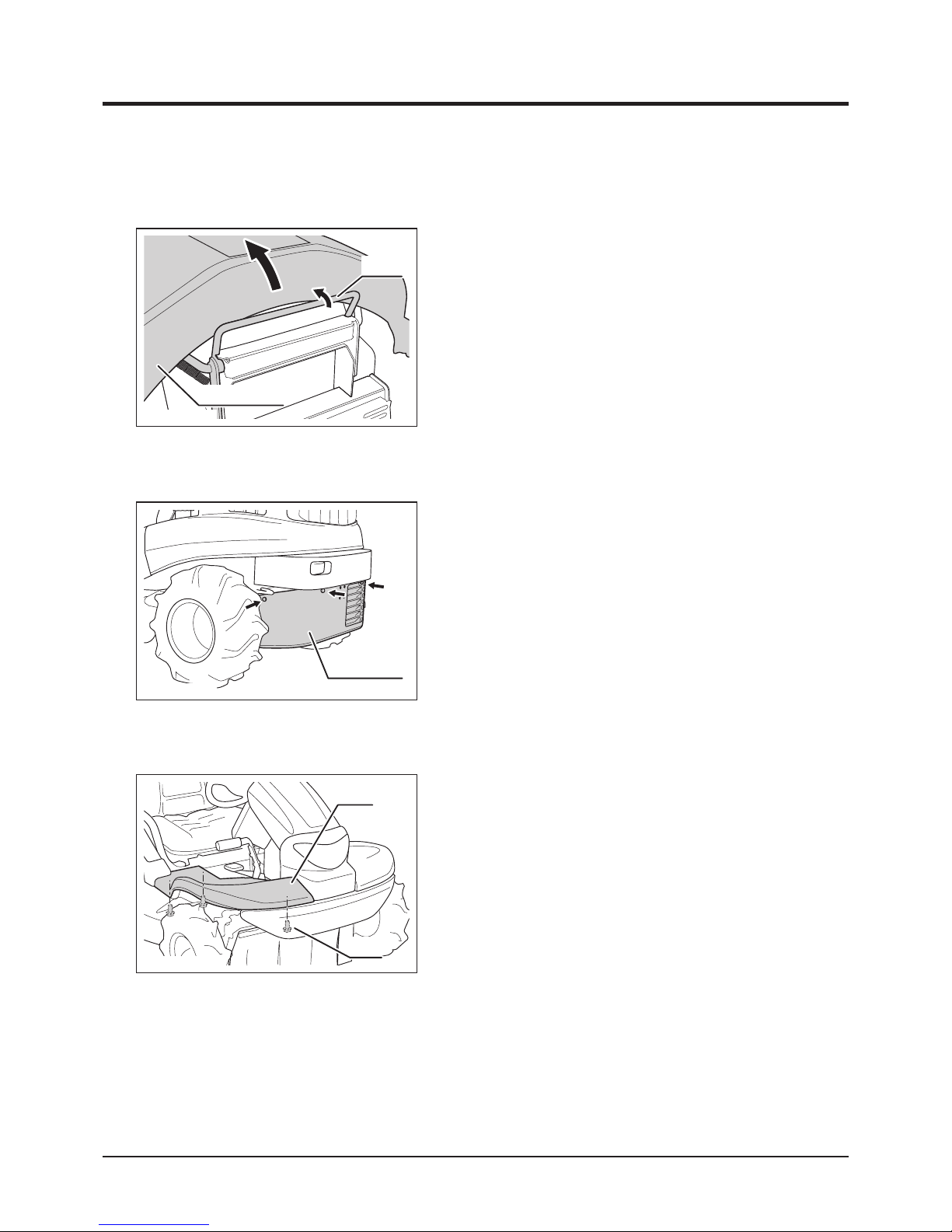

Engine Hood

Lever

5332M-0505-030E

Engine Hood

1. Pull lever and open engine hood.

Lower Rear Cover

5332M-0505-040E

Rear Cover

1. Remove 4 bolts.

2. Remove lower rear cover.

Step

1. Remove 3 bolts xing step.

2. Remove step.

3. Remove step on the other side in the same
way.

5332M-0505-080E

Step

Bolt

-53-

Maintenance 5

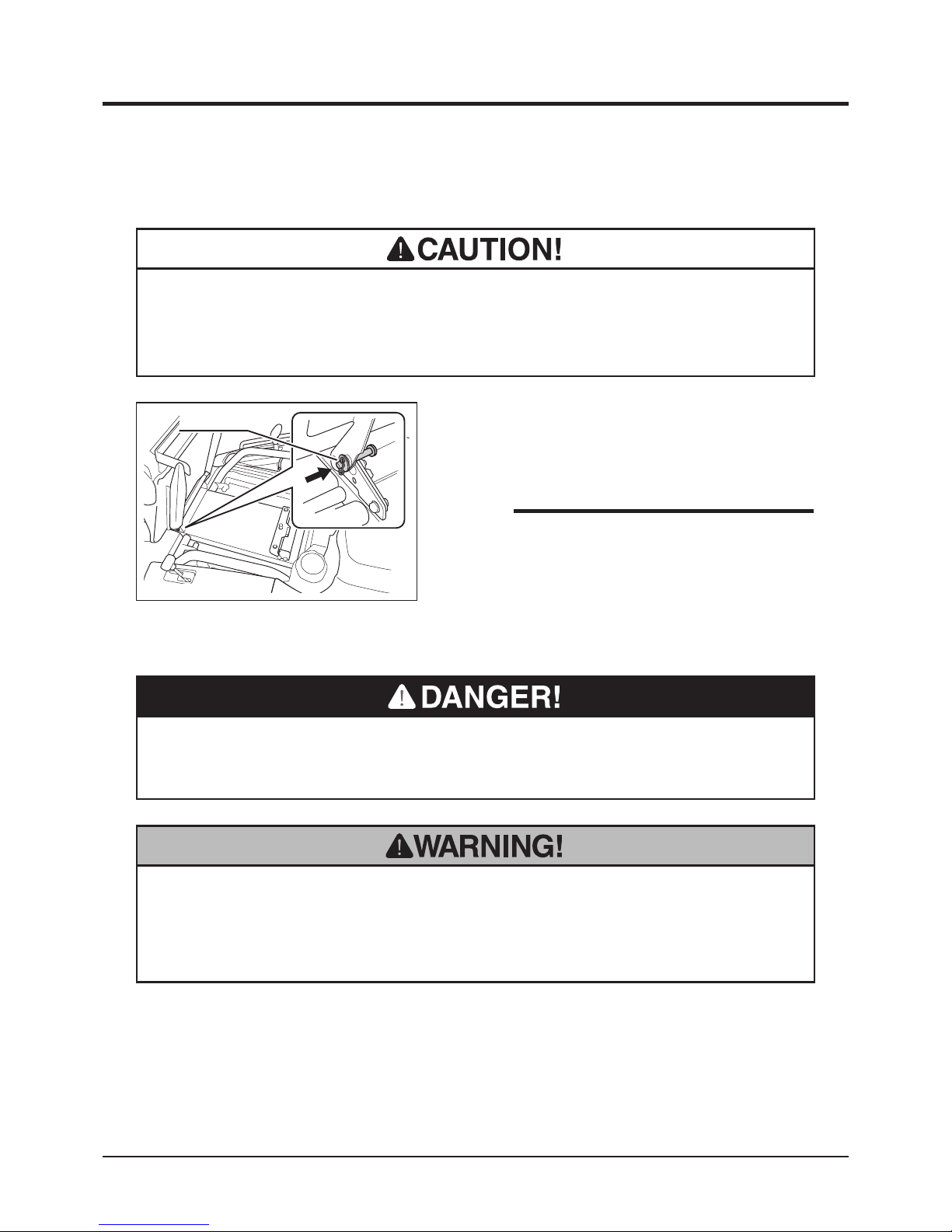

Seat Bracket

1. Slide seat to the rear-most position.

2. Lift seat and push safety pin toward inside to
hold seat.

• Move seat and check if the seat is held in

place rmly.

NOTE

5332M-0401-080E

Safety Pin

Cutting Blade Shield

• Always slide seat to the rear-most position when lifting seat. If seat is not in the

rear-most position, slide lever may interfere with step, preventing seat to be

lifted to the holding position.

• Make sure cutting blade shield is securely locked in the lowest position and

does not open to the side. Loose shield may allow objects to be thrown,

resulting in injury to the operator or by-standers or in property damage.

• Stop engine before opening cutting blade shield. Opening shield when cutting

blade is moving may result in injury or death.

Maintenance

-54-

5

1. Push lock pin to unlock shield.

2. Pull up lock lever and move shield up or
down to one of three positions.

3. Press down lock lever to lock shield. Lock pin
will also return to lock position automatically.

Flipping up shield

5335M-0505-070E

Cutting Blade Shield

Lock Pin

Lock Lever

5347M-0505-090E

Lock Lever

Opening shield to the side

1. Undo nut to remove lock plate.

5347M-0505-080

5347M-0505-100E

Lock Plate

Nut

2. Squeeze lock lever to open shield to the
side.

-55-

Maintenance 5

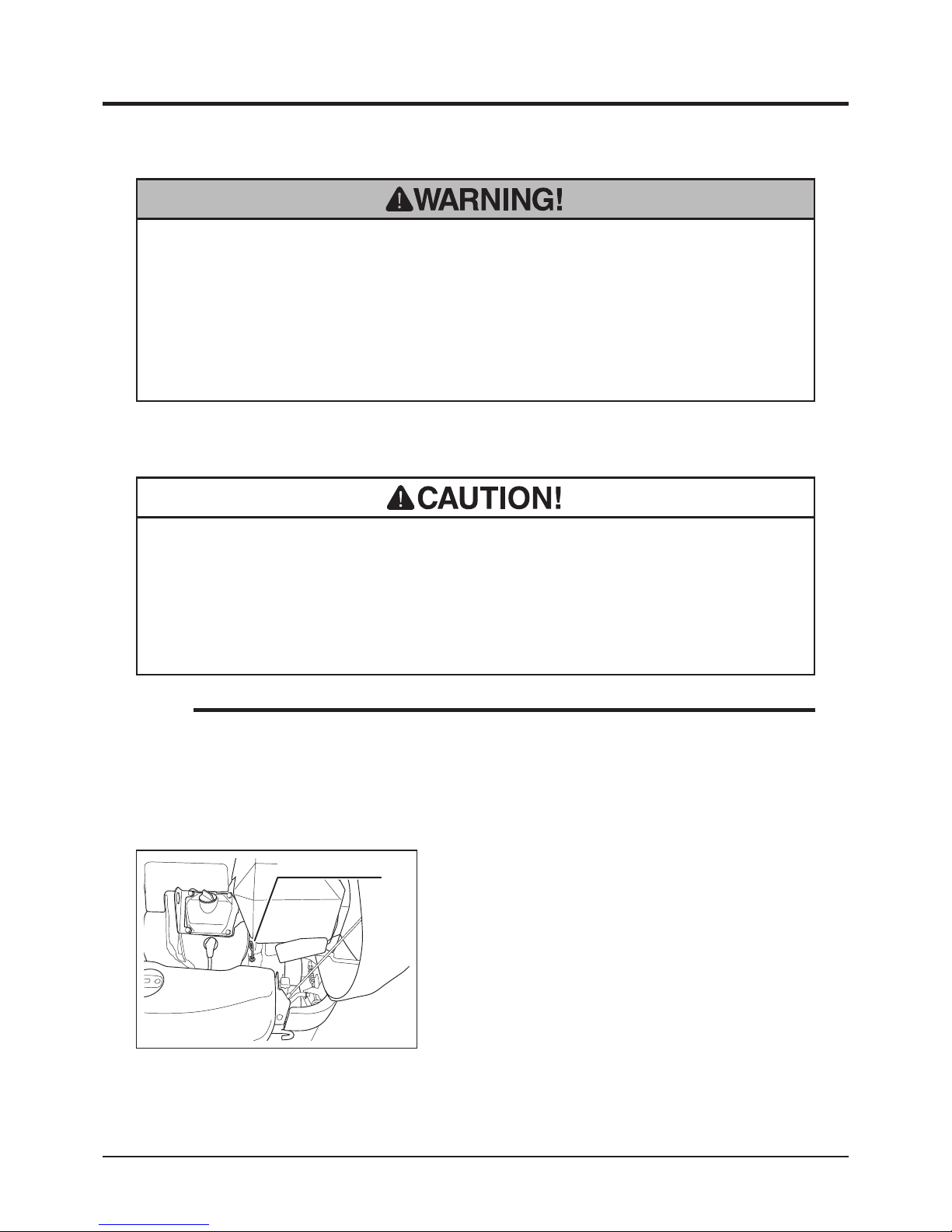

Engine

Engine Oil

• To obtain correct reading, check oil level before starting, or wait about 10 minutes

after stopping engine to allow oil to drain back to oil pan.

• Always check oil level on a level surface.

• Oil to use and capacity: Page 45.

NOTE

• Always stop engine and remove ignition key before servicing.

• An engine that has been running is very hot. Allow engine to cool before

servicing, or severe burns may result.

• Keep re and spark away when servicing.

• Make certain to fill engine with correct grade of oil to the specified level.

Insufcient amount or wrong grade of oil reduces performance and may cause

permanent damage to engine.

• Dispose of the drained oil properly.

5332M-0506-010E

Oil Level Gauge

1. Park machine on a level surface.

2. Open engine hood.

3. Pull out dipstick and wipe it clean.

4. Insert dipstick fully and pull it out.

Inspecting

Maintenance

-56-

5

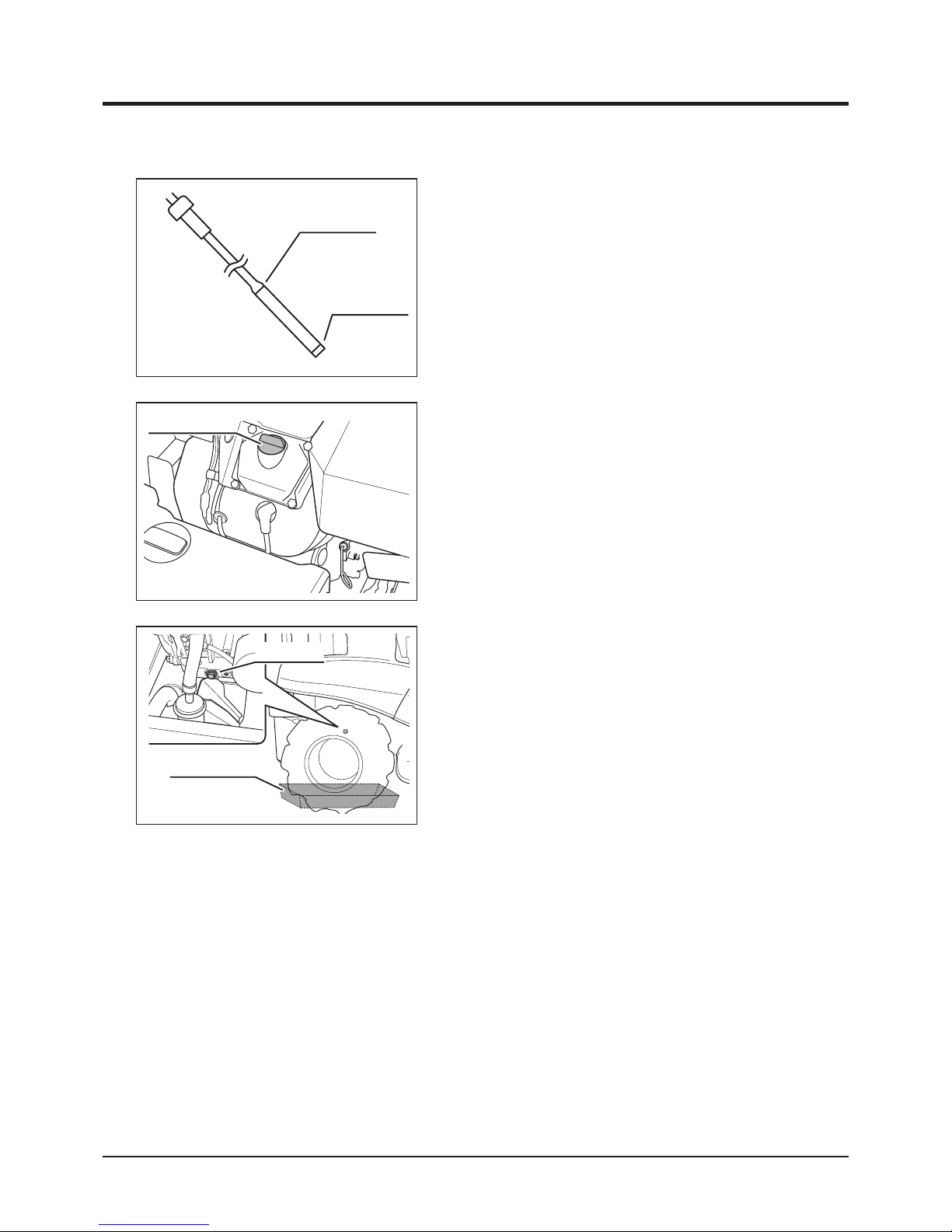

Upper Limit

Lower Limit

5321M-0506-020E

5. Visually inspect oil level. Make sure oil level
is between upper and lower limits. If it is
below lower limit, add oil.

6. Visually inspect condition of oil. If it is too
dirty or viscosity is not normal, change oil.

7. Put dipstick back in place.

8. Close engine hood.

5332M-0506-030E

Oil Filler Cap

Filling

1. Open engine hood.

2. Remove oil ller cap.

3. Fill specied amount of correct oil into ller.

4. Check oil l evel. Make sure oil level is
between upper and lower limits.

5. Put oil ller cap back in place.

6. Close engine hood.

Changing

1. Have an appropriate oil drain pan.

2. Open engine hood.

3. Remove oil ller cap.

4. Remove drain plug to drain oil.

5. Put drain plug back in place.

6. Fill oil.

7. Check oil level and to make sure oil level is
appropriate.

8. Put oil ller cap back in place.

9. Close engine hood.

5347M-0506-040E

Drain Plug

Oil Drain Pan

-57-

Maintenance 5

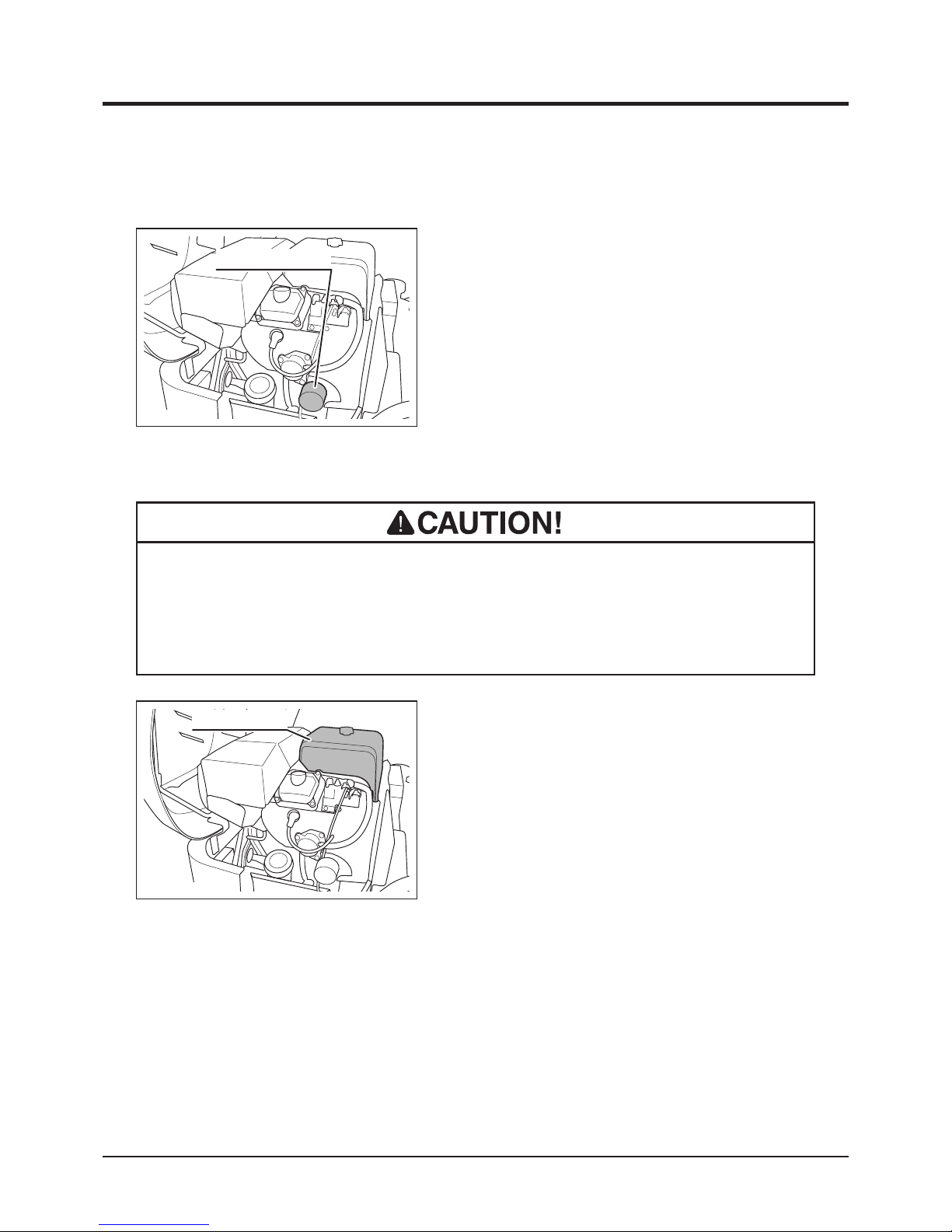

Air Cleaner

• Clean air cleaner element daily. Dirty air cleaner element causes poor starting,

reduces engine performance and shortens engine life.

• Replace air cleaner element if damaged.

Oil Filter Cartridge

1. Open engine hood.

2. Follow the instructions in Operator's Manual
for the engine to change oil lter cartridge.

3. Close engine hood.

5332M-0506-050E

Oil Filter Cartridge

5332M-0506-060E

Air Cleaner Lid

1. Open engine hood.

2. Follow the instructions in Operator's Manual
for the engine to inspect, clean or change
air cleaner element.

3. Close engine hood.

Maintenance

-58-

5

Spark Plugs

• Never pull ignition cable when removing a spark plug cap. Conductor in the

cable may be severed or damaged.

• If a spark plug is damaged, replace it with a new one.

Spark Plug Cap
(On both sides)

1. Open engine hood.

2. Follow the instructions in Operator's Manual
for the engine to inspect, clean, or change
spark plugs.

3. Close engine hood.

-59-

Maintenance 5

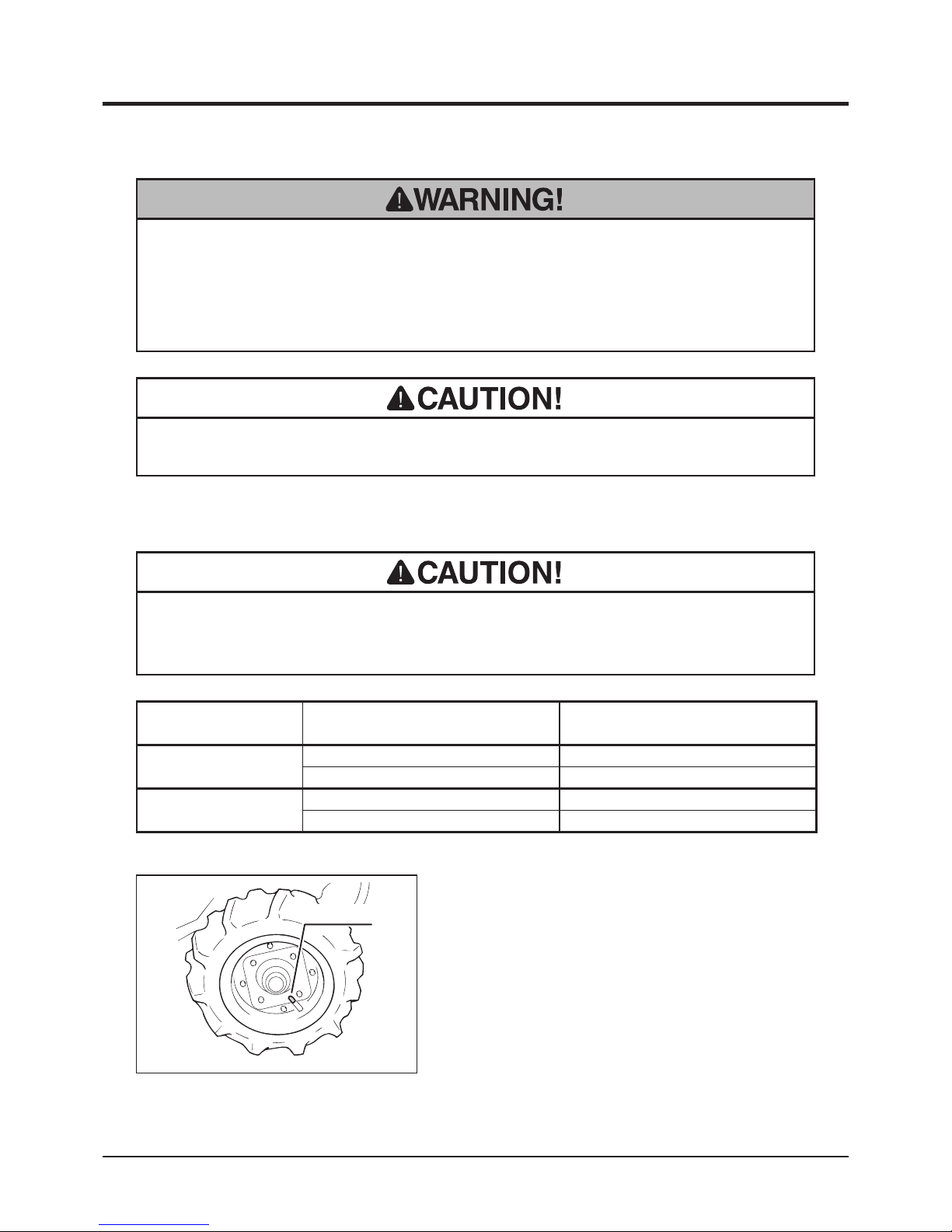

Drive Train

• Stop engine and remove ignition key when servicing drive train.

• Allow machine to cool off before servicing. Engine and its ancillaries are very

hot after operation and may pose a burn hazard.

Tires

• Inate tires to the specied pressure. Under- or over-ination causes uneven

wear or other damages to tires.

• Dispose of drained oil properly.

Tire Size Pressure KPa(kgf/cm2)

Front Wheel

4.00-7 (4PR) 240 (2.4)

AGR 3.50-7 (2PR) 110 (1.1)

Rear Wheel

17×8.00-8 (4PR) 240 (2.4)
16×7.00-8 (2PR) 110 (1.1)

5332M-0507-010E

Valve Cap

1. Park machine on level ground.

2. Remove valve cap.

3. Check tire air pressure. If different from the
specied values, adjust pressure.

4. Put valve cap back in place.

Maintenance

-60-

5

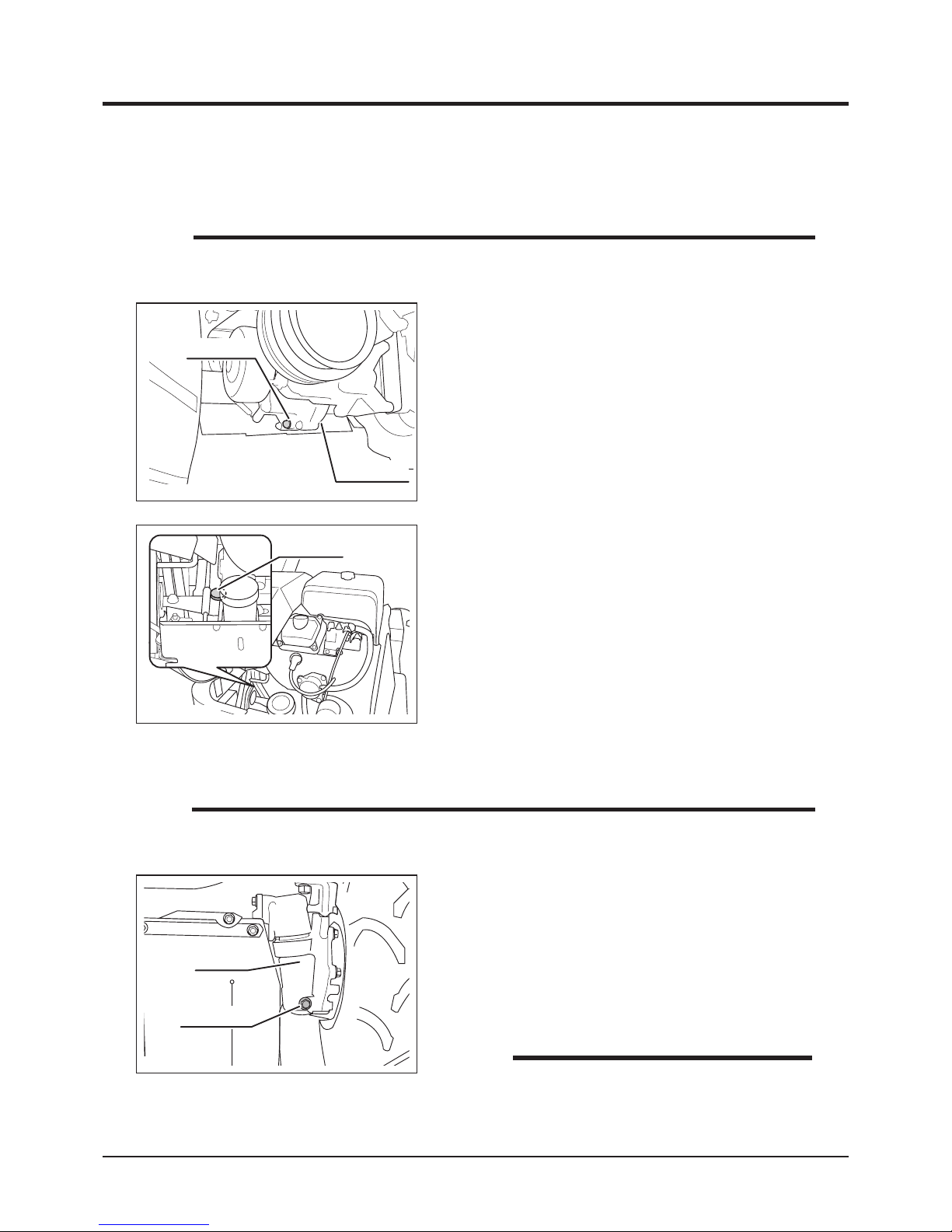

Front Axle Oil (AWD models)

• Oil to use and capacity: Page 45.

NOTE

5332M-0507-100E

Drain Plug

Knuckle

1. Park machine on level ground.

2. Have an appropriate oil drain pan.

3. Remove drain plug on the left front knuckle
to drain oil.

4. Remove drain plug on the right front knucle
to drain oil as well.

Transmission Oil

• Oil to use and capacity: Page 45.

NOTE

5332M-0507-040E

Drain Plug

Check Bolt

1. Park machine on level ground.

2. Have an appropriate oil drain pan.

3. Remove transmission oil drain plug to drain
oil.

4. Install drain plug back in place.

Filler Cap

5347M-0507-020E

5. Open engine hood.

6. Remove transmission oil ller cap.

7. Remove check bolt.

8. Fill specied amount of correct oil into ller,
up to check bolt hole.

9. Put check bolt back in place.

10. Put ller plug back in place.

11. Close engine hood.

• AWD Models: CMX227H, CMX186H

NOTE

-61-

Maintenance 5

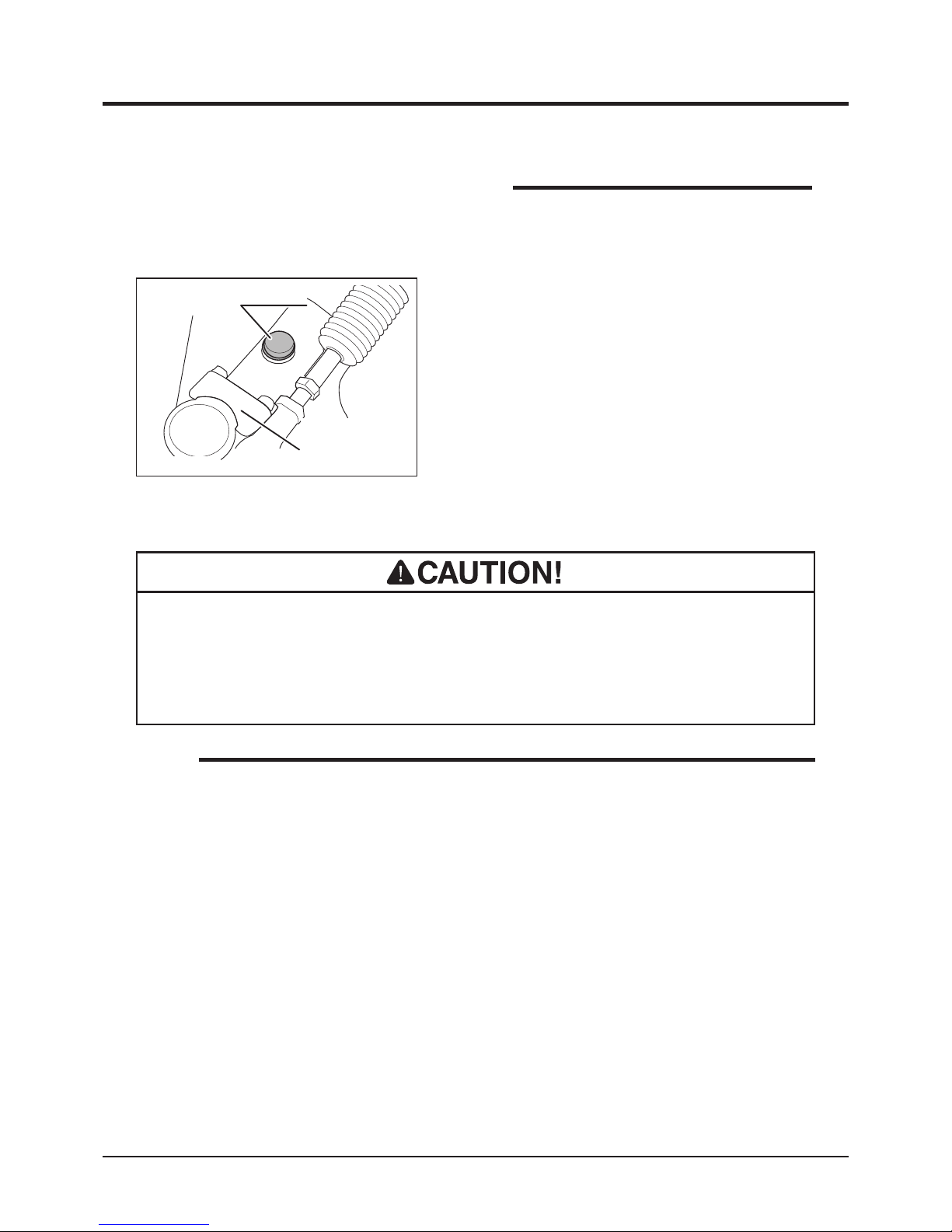

• Drain plug for the right front knucle is on

the back side of the front axle.

NOTE

5347M-0507-090E

Filler Plug

Front Wheel
Axle (Right)

5. Install both drain plugs back in place.

6. Remove right front step.

7. Remove oil ller cap.

8. Fill specied amount of oil into ller.

9. Install ller plug back in place.

10. Install right front step.

HST (Hydrostatic Transmission) Fluid

• To obtain correct reading, check HST uid level before starting, or wait until HST

uid cools off sufciently. Hot HST uid expands in volume and does not provide

correct reading.

• When oil is sufficiently cooled and is at the [MIN] level, its amount is sufficient.

• Do not exceed beyond [MAX] level. HST fluid may expand and overflow.

• Change HST oil once a year or every 500 hours, whichever comes rst.

• Oil to use and capacity: Page 46.

NOTE

• HST is a very delicate mechanism, and contamination of ten-micron-order

particles can damage it. When it is necessary to work on an HST, work in a

clean and dust-free environment, and make sure dust or dirt do not enter its

circuit.

Maintenance

-62-

5

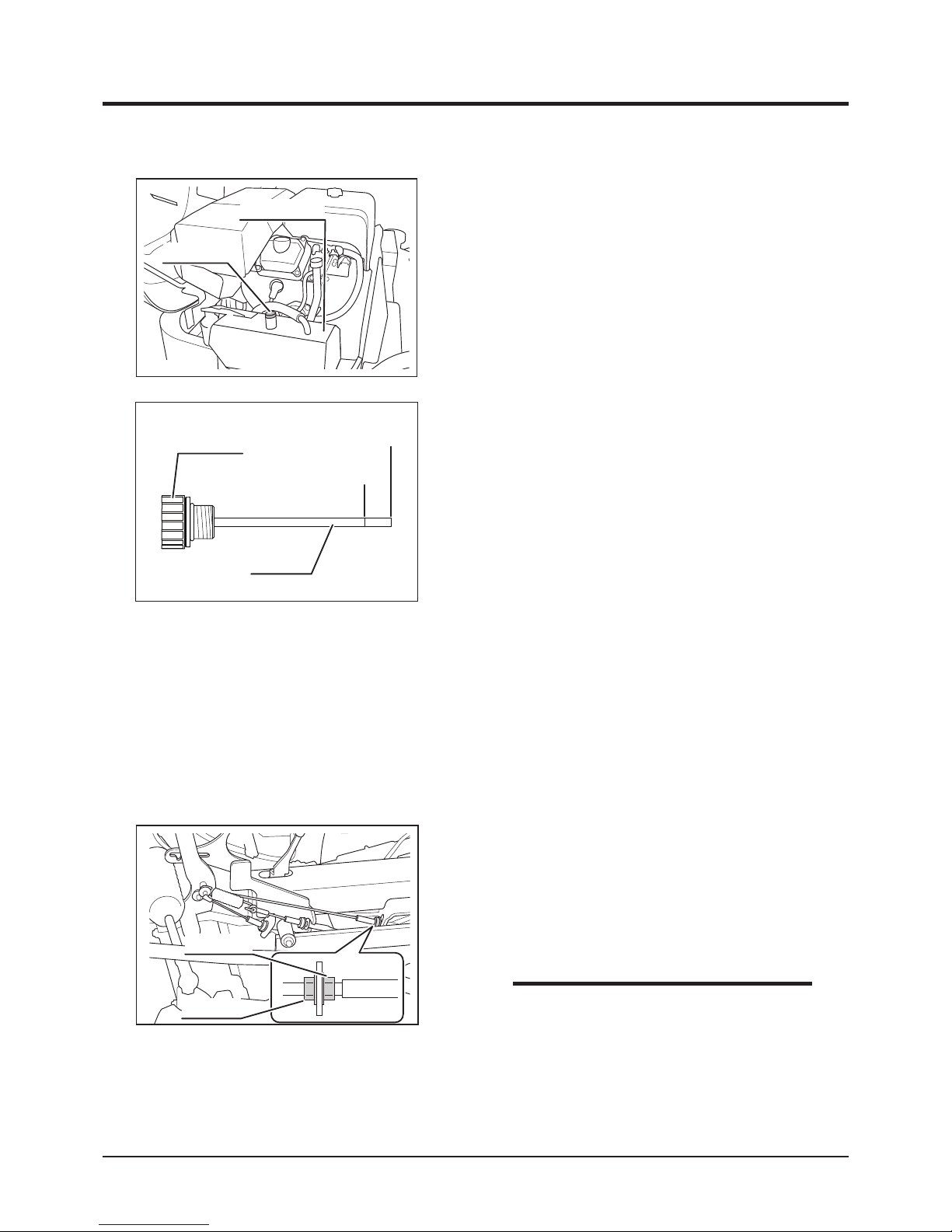

5335M-0507-010E

HST Oil Tank

Filler Cap

1. Park machine on level ground.

2. Open engine hood.

3. Unscrew and remove ller cap.

Inspecting - Models with charge-pump

Upper Limit

Lower Limit

5335M-0507-020E

Filler Cap

Dip Stick

1. Open engine hood.

2. Remove ller cap.

3. Fill specied HST uid into ller so that oil level is between upper and lower limits on
dipstick.

4. Reinstall ller cap back in place and screw it securely.

5. Close engine hood.

Filling - Models with charge-pump

4. Wipe dip stick with clean cloth. Reinstall ller
cap and screw it fully.

5. Unscrew and remove ller cap again. Visually
inspect that oil level is between the upper
and lower limits on dip stick. If it is below the
lower limit, ll oil.

6. Reinstall ller cap and screw it fully.

7. Close engine hood.

1. Open engine hood.

2. Have an appropriate oil drain pan.

3. Remove ller cap.

4. Remove drain plug to drain oil tank.

Changing - Models with charge-pump

• HST system cannot be fully drained due to

its design.

• Do not operate drive pedal or drive lever

wit h HST oil drained. Doin g so lets air

into the circuit, necessitating to bleed the

circuit.

NOTE

Adjust Nut

Lock Nut

-63-

Maintenance 5

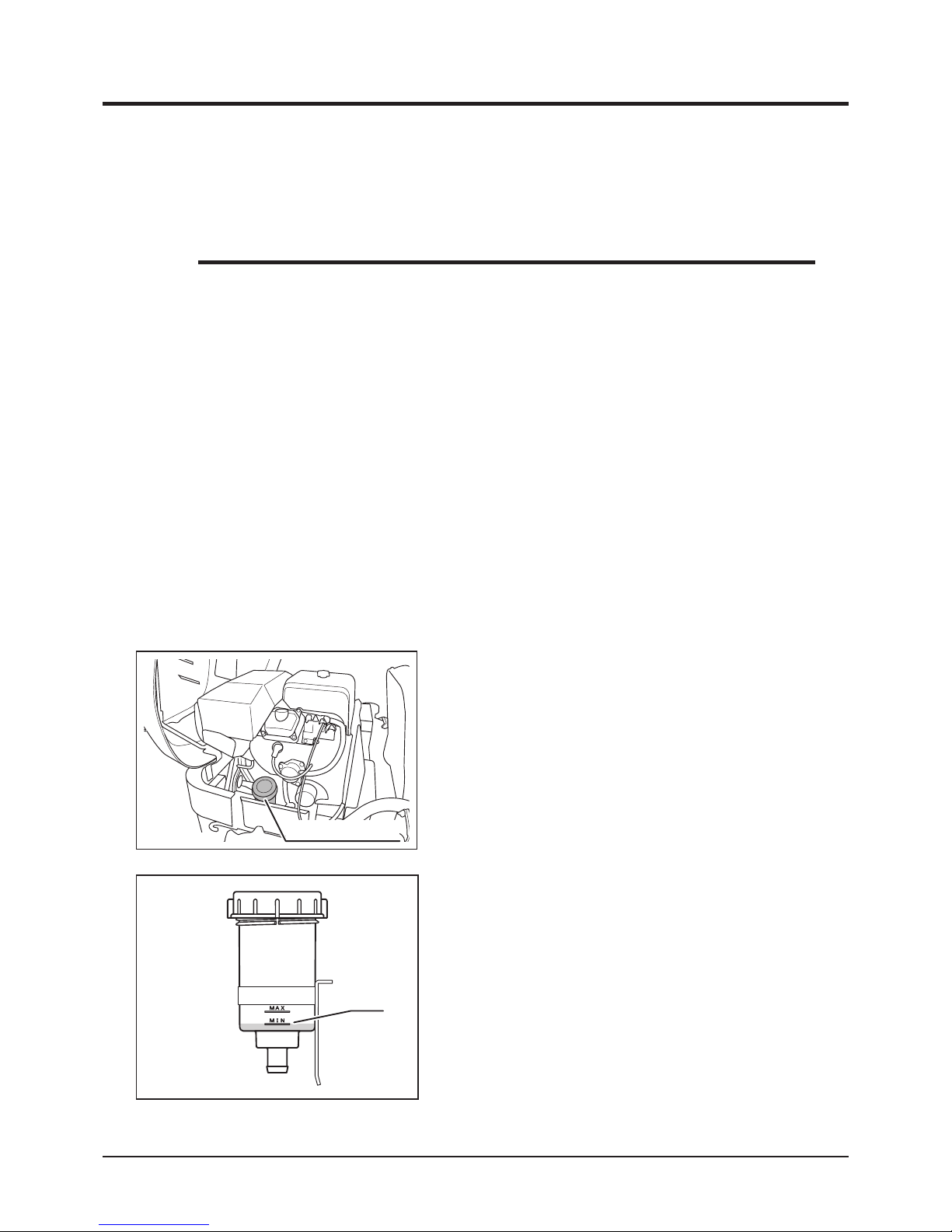

5335M-0507-030E

HST Oil Reservoir

1. Park machine on level ground.

2. Open engine hood.

3. Visually inspect that oil level is between [MIN]
and [MAX] lines on oil reservoir. If it is below
[MIN], ll oil.

4. Close engine hood.

Inspecting - Models without charge-pump

1. Open engine hood.

2. Remove cap on HST oil reservoir.

3. Fill specied HST uid into reservoir so that
oil level is above [MIN] line on reservoir.

4. Reinstall cap back in place and screw it
securely.

5. Close engine hood.

Filling - Models without charge-pump

5335M-0507-050E

MIN

5. Remove oil lter.

6. Have a new oil lter. Apply thin coat of oil onto its oil seal and install it.

• HST system cannot be fully drained due to its design.

• Do not operate drive pedal or drive lever with HST oil drained. Doing so lets air into

the circuit, necessitating to bleed the circuit.

NOTE

7. Reinstall drain plug.

8. Fill fresh oil to level.

9. Reinstall ller cap.

10. Start engine and run it for a while. Stop it and check HST oil level.

11. Restart engine and drive machine back-and-forth from standstill several times.

12. Check oil level. If it is lower, ll.

13. Perform 10-12 until oil level stabilizes.

14. Check if there is no oil leak.

15. After changing HST oil, check oil level every 10-30 minutes of use for a while and ll as
necessesary.

Maintenance

-64-

5

1. Open engine hood.

2. Remove lower rear cover.

3. Have an appropriate oil drain pan.

4. Remove ller cap.

5. Remove drain plug to drain HST oil.

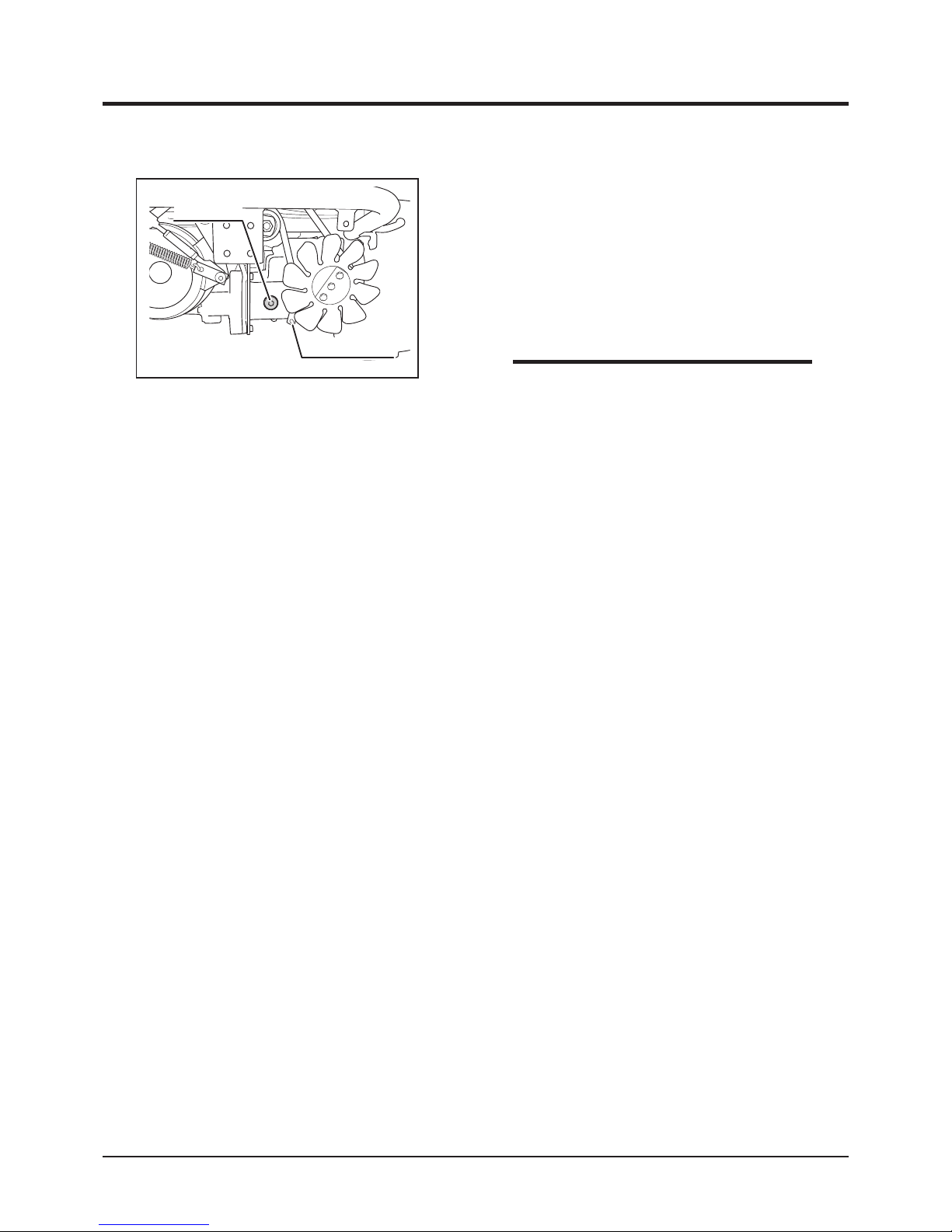

Changing - Models without charge-pump

• HST system cannot be fully drained due to

its design.

• Do not operate drive pedal or drive lever

wit h HST oil drained. Doin g so lets air

into the circuit, necessitating to bleed the

circuit.

NOTE

Release Lever

Drain Plug

5347M-0507-060E

6. Reinstall drain plug.

7. Fill fresh oil to level.

8. Reinstall ller cap.

9. Reinstall lower rear cover and close engine hood.

10. Start engine and run it for a while. Stop it and check HST oil level.

11. Restart engine and drive machine back-and-forth from standstill several times.

12. Check oil level. If it is lower, ll.

13. Perform 10-12 until oil level stabilizes.

14. Check if there is no oil leak.

15. After changing HST oil, check oil level every 10-30 minutes of use for a while and ll as
necessesary.

-65-

Maintenance 5

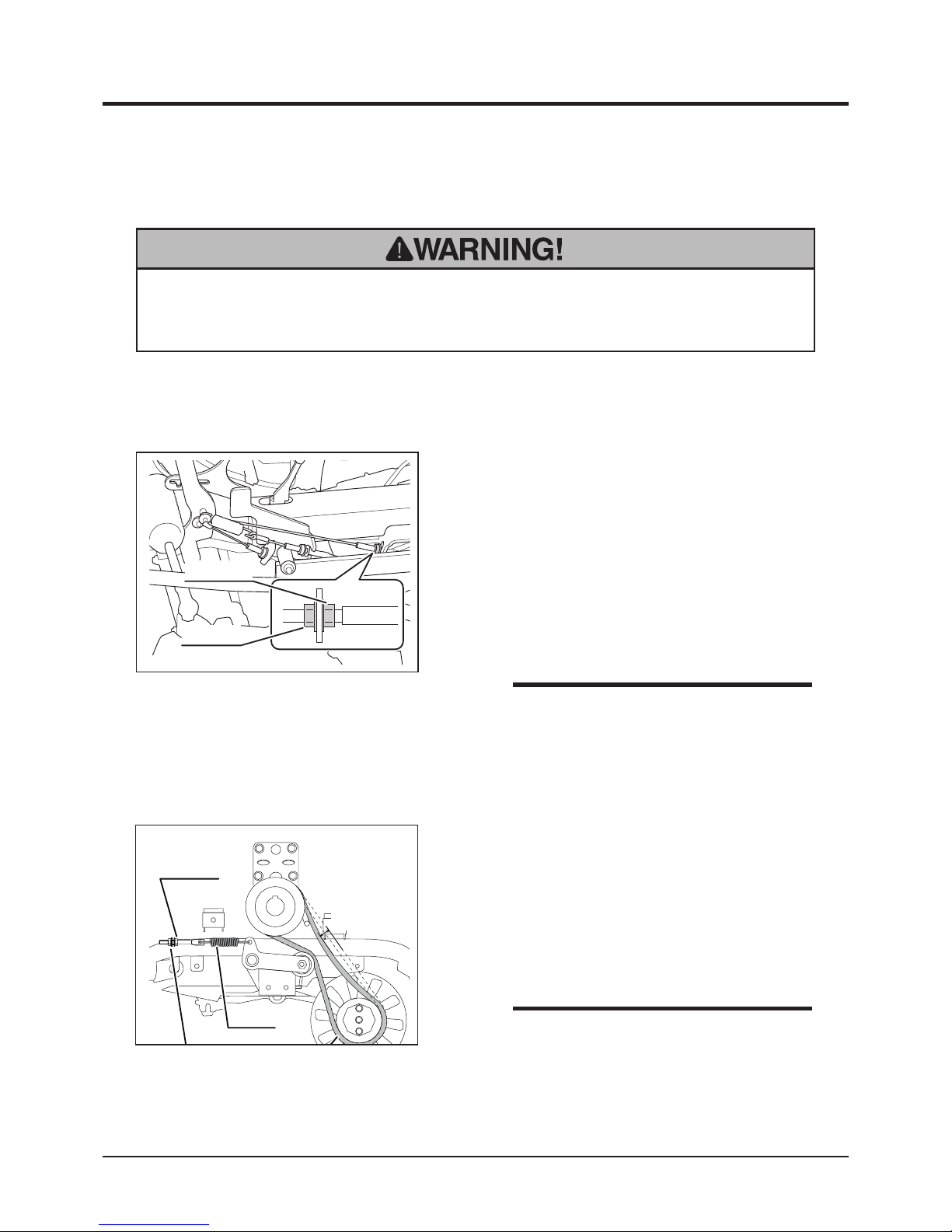

Drive Belt

• Adjust belt tension properly. Inproperly tensioned belt may reduce performance

and its service life.

5347M-0507-080E

A

Adjust Nut

Lock Nut

Drive Belt

Spring

1. Open engine hood.

2. Check V-belt tension. Push V- belt by nger
and check that deection at center point A is
in the range of 10 to 20 mm. If it is out of this
range, adjust with adjust nut.

3. Visually inspect belt. Replace belt if it is
damaged. For replacement, contact your
CANYCOM representative.

4. Close engine hood.

5332M-0507-110E

Adjust Nut

Lock Nut

Spring

Maintenance

-66-

5

1. Park machine on level ground.

2. Remove left step.

Adjust Nut

Lock Nut

5347M-0507-070E

3. Loosen lock nut

4. Adjust brake with adjust nut so that the brake
does not drag when brake pedal is free.

5. Adjust brake so that the brake works and the
brake pedal locks securely when brake pedal
is locked

6. Tighten lock nut.

Rear Brake

• If brake does not work even the brake pedal

is locked, the brake shoe is worn out. Please

contact your CANYCOM representative for

replacement.

• Always keep brake adjusted for maximum performance. Improperly adjusted

brakes may result in property damage, serious injury, or death.

Parking Brake

Front Brake (AWD Models)

7. Lock brake pedal and inspect that the strech
of spring is between 5mm and 8mm. If it is
not within this range, adjust it with adjust nut.

8. Tighten lock nut after adjustment

9. Install left step back in place.

A

Lock Nut

Spring

NOTE

• AWD Models: CMX227H, CMX186H

NOTE

-67-

Maintenance 5

Cutting System

Cutting Blades

• Blades and blade stay can become sharp due to wear. When handling blade or

blade stay, always wear thick gloves and handle carefully. Injury may occur.

• When replacing a blade, do not force it to remove. Blade can move suddenly,

causing injury. When it is difcult to remove, clean blade and remove foreign

object. Turn blade back and forth to remove.

• Stop engine and remove ignition key when servicing.

• Allow machine to cool off before servicing. Engine and its ancillaries are very

hot after operation and may pose a burn hazard.

• When a blade is damaged, replace it and the other blade immediately. Always

replace blades in pair. Damage due to vibration may occur.

• When replacing blades, always replace both blades. Replace blade pins and

wave washers also.

• When a foreign object is tangled with the blade, immediately stop the engine

and remove the foreign object. Damage due to vibration may occur.

• When replacing blades, inspect blade stay. If stay is worn beyond wear

limit, damaged or deformed, replace it immediately. Contact your CANYCOM

representative.

Maintenance

-68-

5

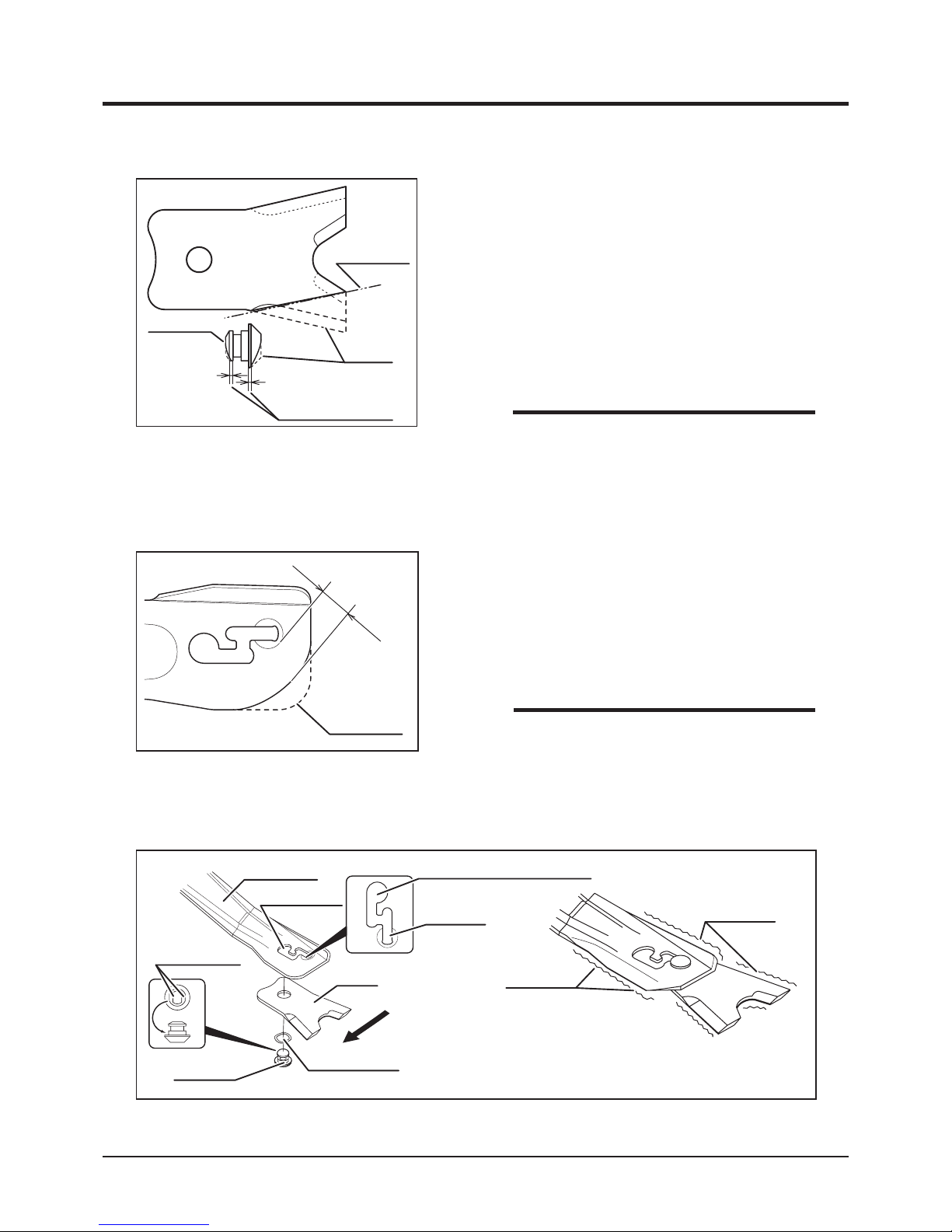

Inspecting

5331M-0508-010E

New

Wear Limit

Blade Pin

Replace when either

of the part wears out

• Wear Limit

Blade: Up to line connecting outer edge and

inner edge.

Blade Pin: Up to either of the shoulder.

NOTE

1. Open cutting blade shield.

2. Visually inspect blades and pin for wear
and damage. If blades are worn normaly,
turn them over and use. Replace if both
edges are worn. If blades or pin are worn
excessively, deformed, damged, or missing,
replace them with new ones.

3. Inspect cutting rotor stay. If stay is worn
excessively, deformed or damged, contact
your CANYCOM representative and have it
replaced with new one.

4. Close blade sheild.

• Wear Limit: U p to the sol i d line in the

left figure (should have more than 15mm

clearance between edge of rotor stay and

mounting slot.)

NOTE

5332M-0508-020E

Blade

Rotating Direction

Flat Surfaces

Blade Pin

Wave Washer

Mounting, Dismounting Hole

Wear Area

Mounting Slot

Lug Hole

Rotor Stay

Wear Area

Handle with care.

These parts may become sharp

5332M-0508-040E

15mm

When New

-69-

Maintenance 5

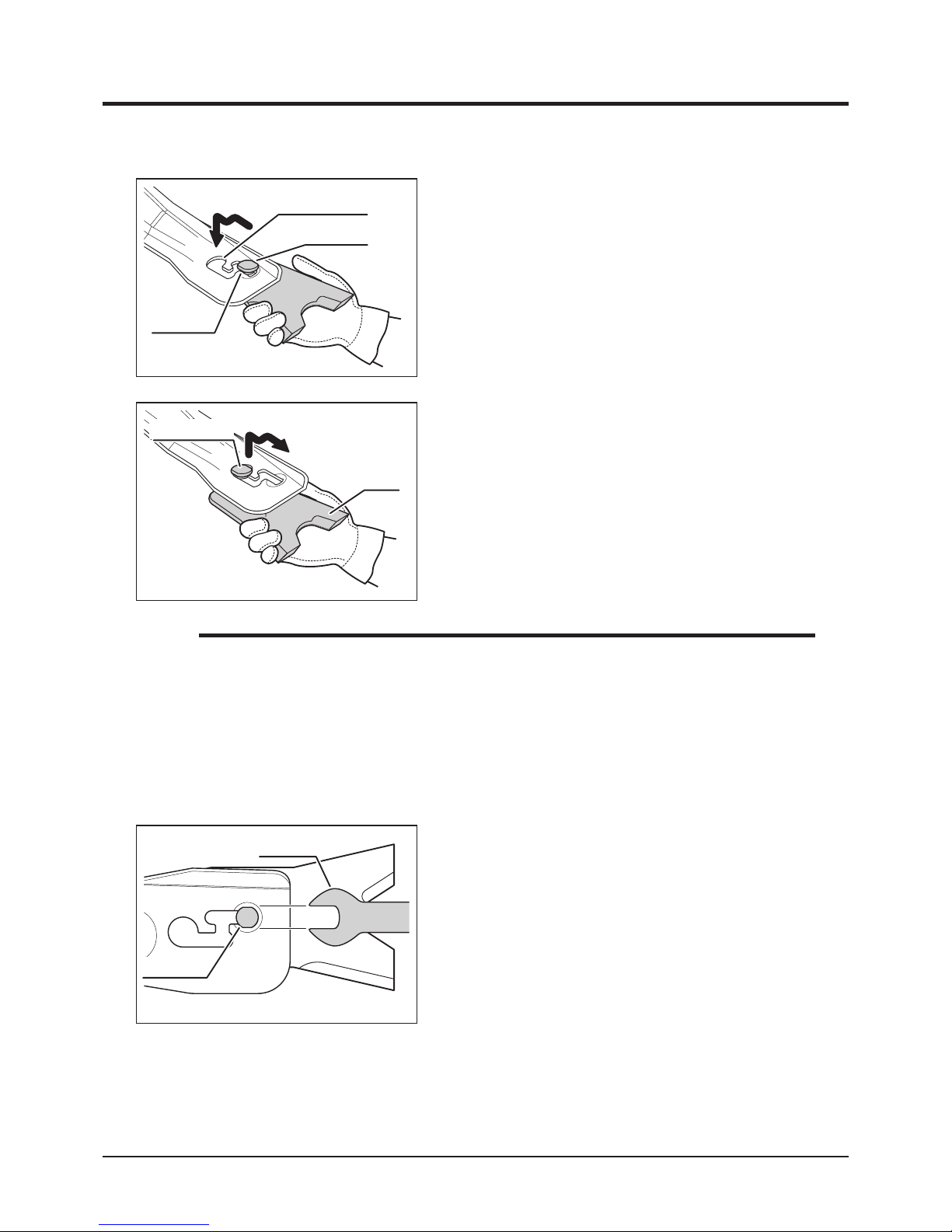

1. Open cutting blade shield.

2. Noting the direction of the flat faces on
mounting pin, shift blade along mounting slot
to remove blade.

Replacing

5332M-0508-050E

Mounting Slot

Flat Face

Flat Face

5332M-0508-060E

Blade

Mounting Pin

3. Install new mounting pin and wave washer
to blade and shift blade along mounting slot,
noting the direction of the at faces.

• Always put thick gloves on and be cautious when handling blade because both

edges of rotor stay can get sharp by wear.

• Wear Limit: See page 68

• If dirt or grass enters into mounting slot, making removal of blade difcult, remove

dirt or grass with a athead screw driver before removing blade.

• If it is difcult to remove blade, use 24mm spanner to remove

NOTE

24

5332M-0508-070E

Spanner

Blade Pin

Maintenance

-70-

5

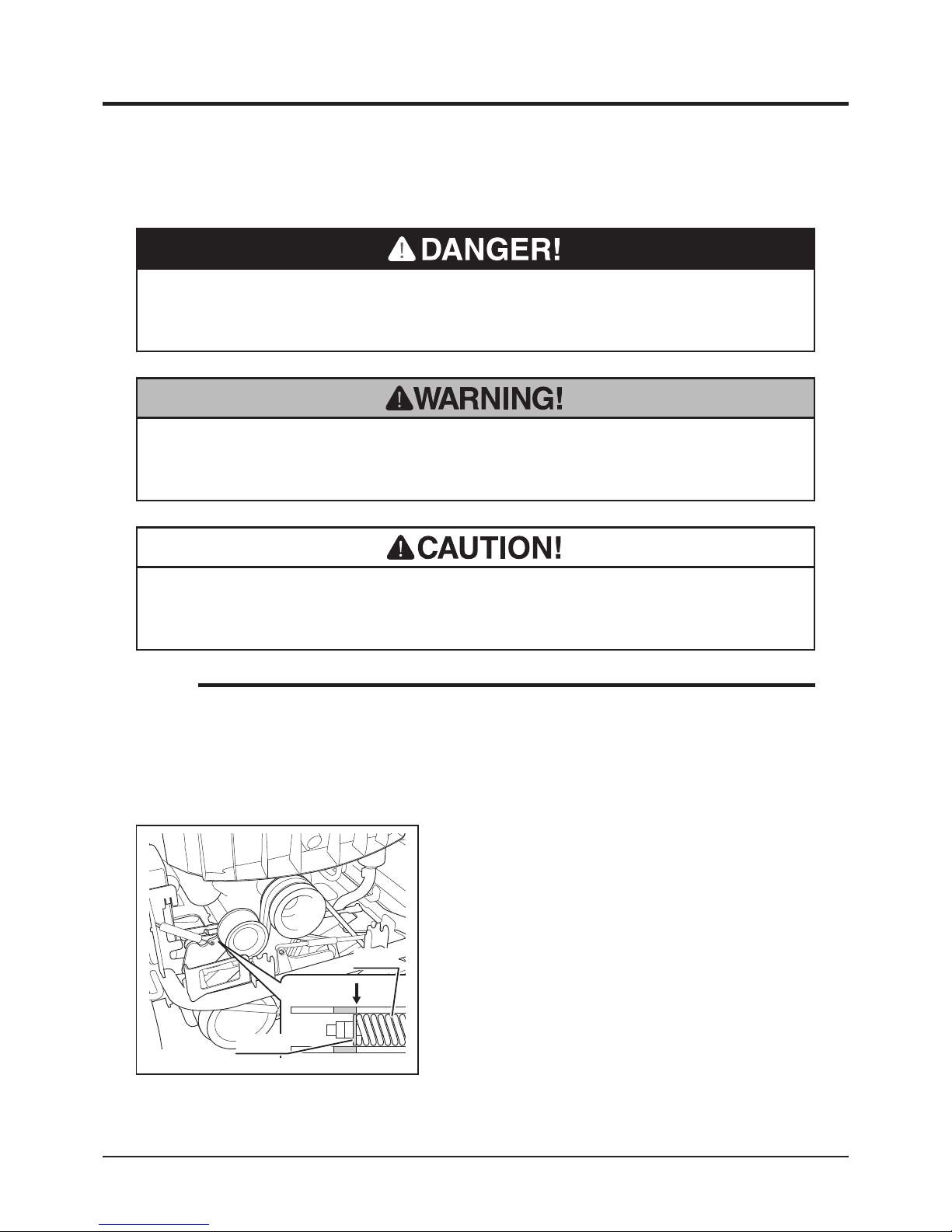

• Never place any part of body under cutting blade shield when cutting blade is

rotating.

• Do not allow bystanders to come near machine when inspecting cutting rotary

drive belt.

Cutting Rotary Drive Belt

• Adjust belt tension properly. Inproperly tensioned belt may reduce performance

and its service life.

• The V-belt stretches (breaks in) when it is new. Inspect and adjust the V-belt after

the rst day's (4 hours') use.

• For a longer service life, inspect and adjust (as necessary) the V-belt as the daily

pre-start up checks.

NOTE

Spring

Washer

5347M-0508-010E

Notch

1. Remove engine hood, lower rear cover and
rear bumper.

2. Turn cutting rotary clutch lever to [ON].

3. Inspect the condition of V-belt to be free of
damages or wear. Replace if damaged or
worn. Contact your CANYCOM

representative for replacement.

4. Visually inspect if washer that holds spring is
aligned with the right side of the notches on
plates as shown.

Inspecting and Adjusting

-71-

Maintenance 5

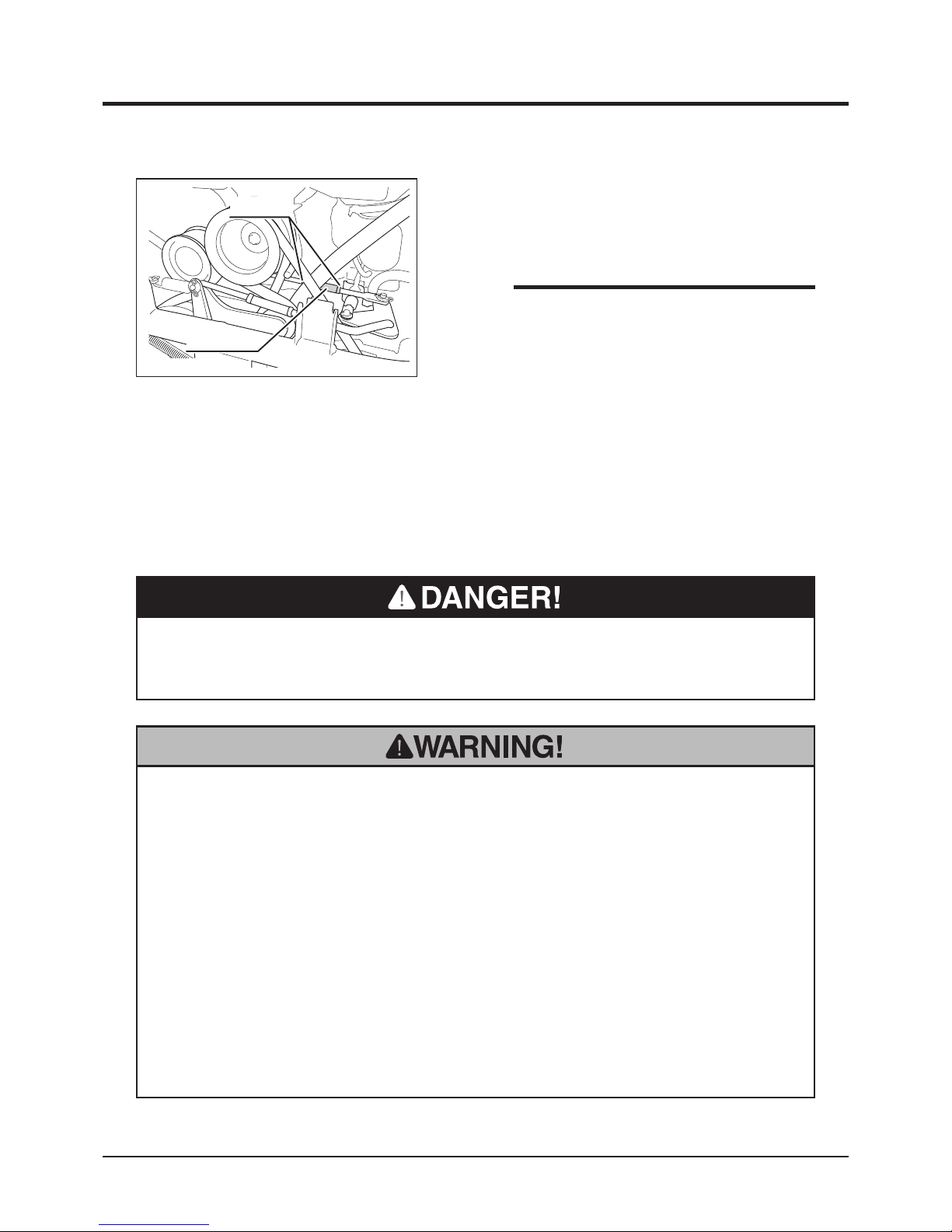

Lock Nut

Turnbuckle

5347M-0508-020E

5. If washer is not aligned with the notches,
loosen lock nut and adjust turnbuckle.

6. Tighten lock nut.

7. Reinstall lower rear cover, engine hood, and
rear bumper.

• If washer cannot be aligned to the nothces

by adjust ing turnbuckle (V-belt tension

cannot be set within the specified range),

V-belt needs to be replaced. Contact your

CANYCOM representative for replacement.

NOTE

• Do not allow bystanders to come near machine when inspecting cutting rotary

brake.

• Ride on machine when testing cutting rotary brake.

• Never attempt to check the performance of cutting rotary brake with cutting

blade shield open. Stones or rocks can be thrown and cause damage to

surrounding properties or persons.

• Inspect cutting rotary brake whenever the performance of it seems inadequate.

• Stop engine when adjusting cutting rotary brake.

Cutting Rotary Brake

• Never place any part of body under cutting blade shield when cutting blade is

rotating.

Maintenance

-72-

5

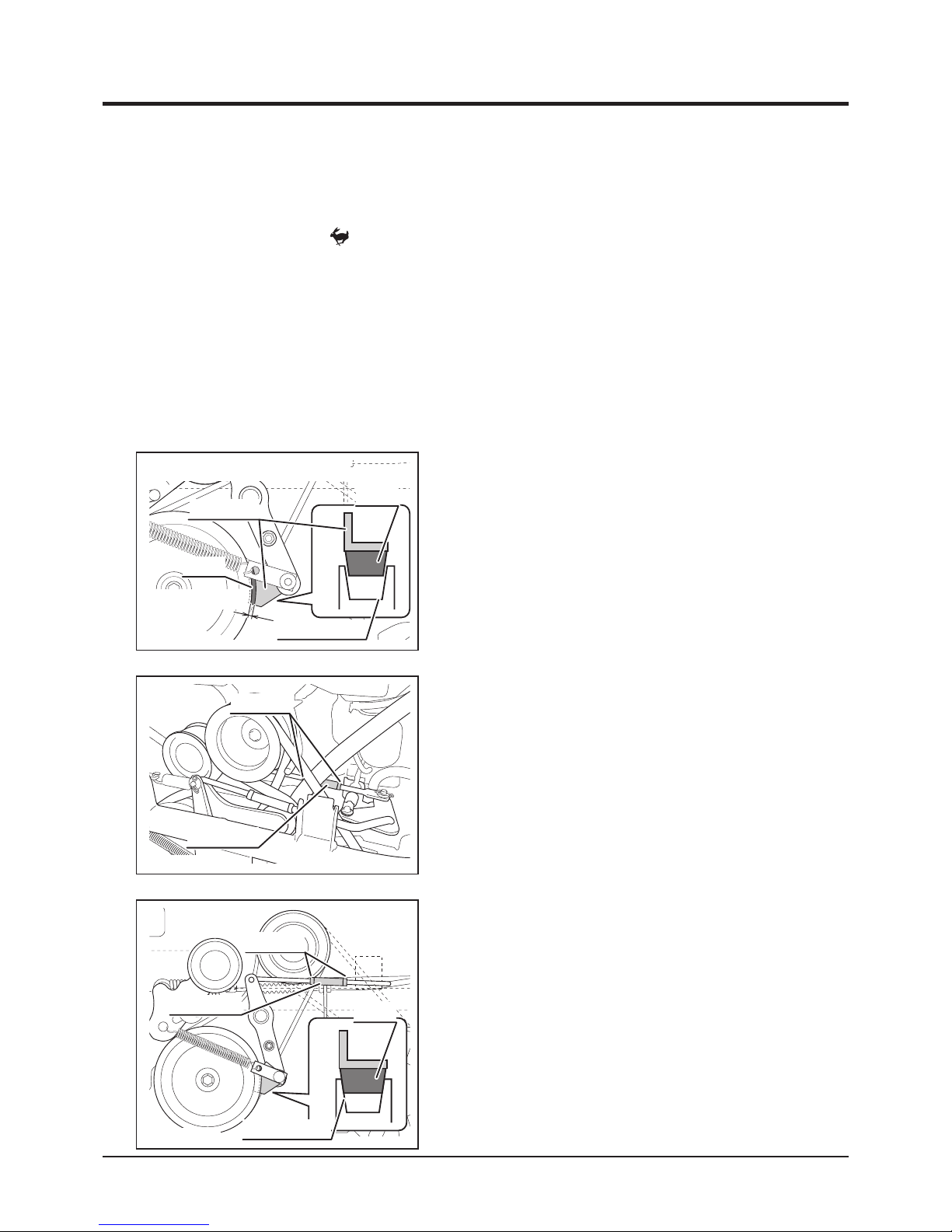

Less than 5mm

Lining

Lining

Lining Groove

Back Plate

5347M-0508-030E

Cutting Rotary Clutch Lever: [ON]

Inspecting

1. Start engine.

2. Turn throttle lever to [ (fast)] to raise engine speed.

3.

Move cutting height adjust lever to [150] for CMX227H and CM226H, or to [130] for
CMX186H and CM185H.

4. Move cutting rotary clutch lever to [ON] to rotate cutting blade.

5. Move cutting rotary clutch lever to [OFF] to observe if cutting blade stops. If it does not
stop (if it keeps turning by inertia), adjust cutting rotary brake. To see if cutting rotary
is running or not, observe the rotating sound of cutting blade, or open engine hood to
observe the rotation of cutting blade V-belt. Avoid observing cutting blade directly.

4. If lining is in contact with lining groove, or the
gap between back plate and pulley is greater
than 5mm, adjust turnbuckle.

Turnbuckle

Lining

Lining Groove

Lock Nut

5347M-0508-050E

Lock Nut

Turnbuckle

5347M-0508-020E

1. Remove engine hood, lower rear cover, and
bumper.

2. Move cutting rotary clutch lever to [ON].

3. Visually inspect if brake lining is not in
contact with lining groove on pulley. Also
inspect if the gap between back plate and
pulley is 5mm or less.

Adjusting

5. Move cutting rotary clutch lever to [OFF].

6. Visually inspect if lining is firmly in contact
with lining groove on pulley.

7. Shake turnbuckle to see if there is some play.

8. If lining is not firmly in contact with the
groove, or turnbuckle is too tight, readjust
turnbuckle.

9. Move cutting rotary clutch lever [ON] and
{OFF] several times, then perform checks 4
through 7. Adjust as necessary.

-73-

Maintenance 5

Electrical System

Battery

• Always stop engine and remove ignition key when servicing electrical system.

• Shock hazard. Do not handle electrical components with wet hands.

• Never charge battery when the uid level is below "lower level" line. Charging

battery with insufcient uid may shorten battery life or cause an explosion.

• Battery fluid (diluted sulfic acid) is corrosive and causes severe burns. Be

extremeley cautious when handling battery fluid. If battery fluid is spilt on

clothes, immediately rinse with plenty of water. If spilt on skin or in an eye,

immediately rinse with plenty of water and promptly consult a physician.

• Explosion hazard. Keep open flame or spark away from battery. Hydrogen

gas generated during charging is extremely explosive.• Never ll battery uid

beyond "upper level" line. Battery uid may spill and cause damage to machine

or injury to person.

• Always disconnect (-) terminal rst, and connect (+) terminal rst. Disconnecting

or connecting in the opposite order may cause a short circuit.

• When installing battery, make certain to connect (+) and (-) terminals to their

original positions. Avoid contact between terminals and other surrounding

parts.

10. Reinstall lower rear cover, engine hood, and
bumper.

Maintenance

-74-

5

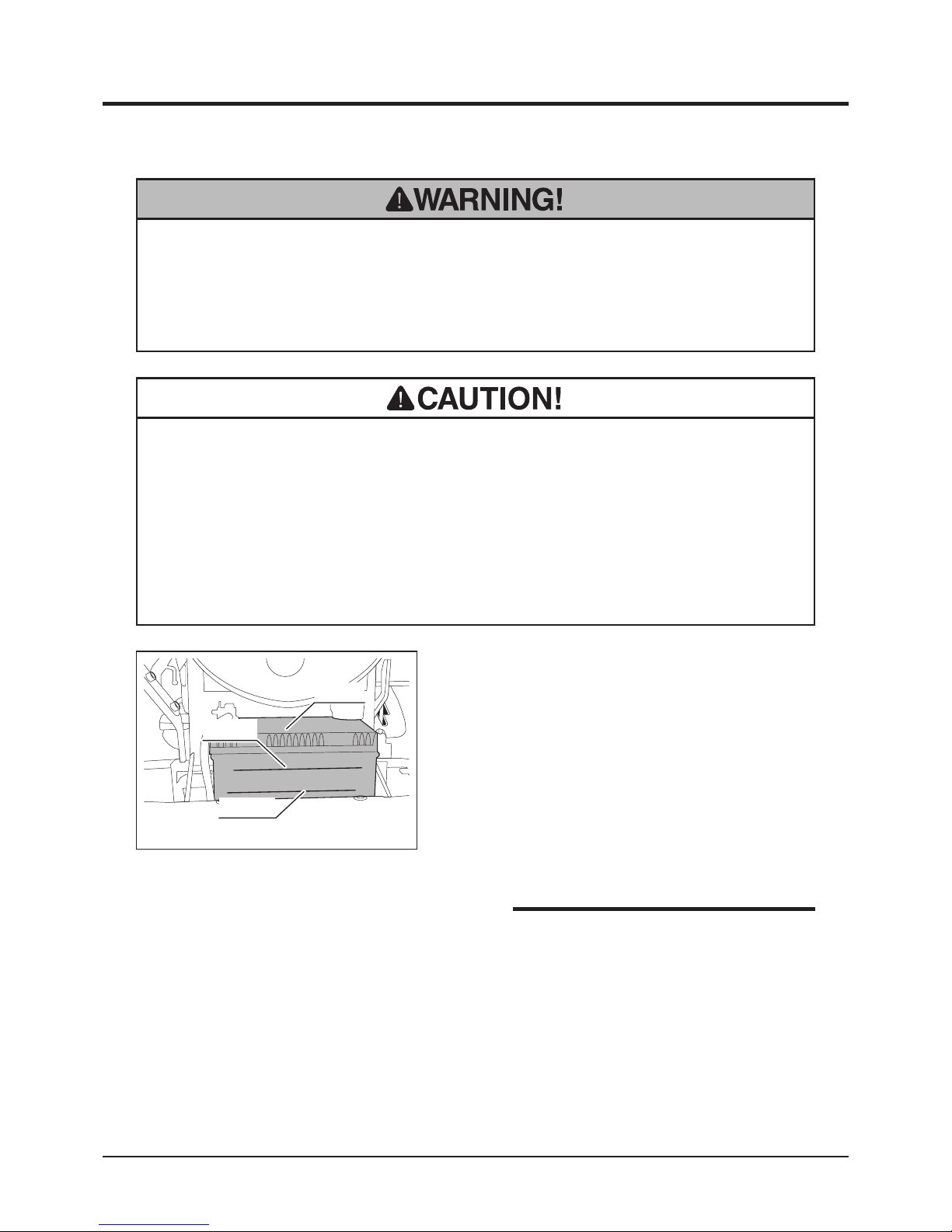

Inspecting

5332M-0509-010E

Battery

UPPER

LOWER

1. Park machine on level ground.

2. Remove front cover.

3. Visually inspect that battery fluid level is
between "UPPER" level and "LOWER" level
lines.

4. If uid level is near or below "LOWER" level
line, ll.

5. Install front cover back in place.

• Instruction for removing head lamp and

battery is indicated back of the front cover.

NOTE

• Always remove battery from machine before charging. Failure to do so causes

damage to electrical components and wiring.

• Follow battery charger user's manual when charging.

• When lling battery uid, do ll above [Upper Limit] line. Battery uid can spill

over and damage painted surfaces or corrode metal parts.

• Use wet cloth to clean battery. Dry cloth may generate static electricity, which

may cause explosion.

• Shock hazard: Do not touch terminals.

-75-

Maintenance 5

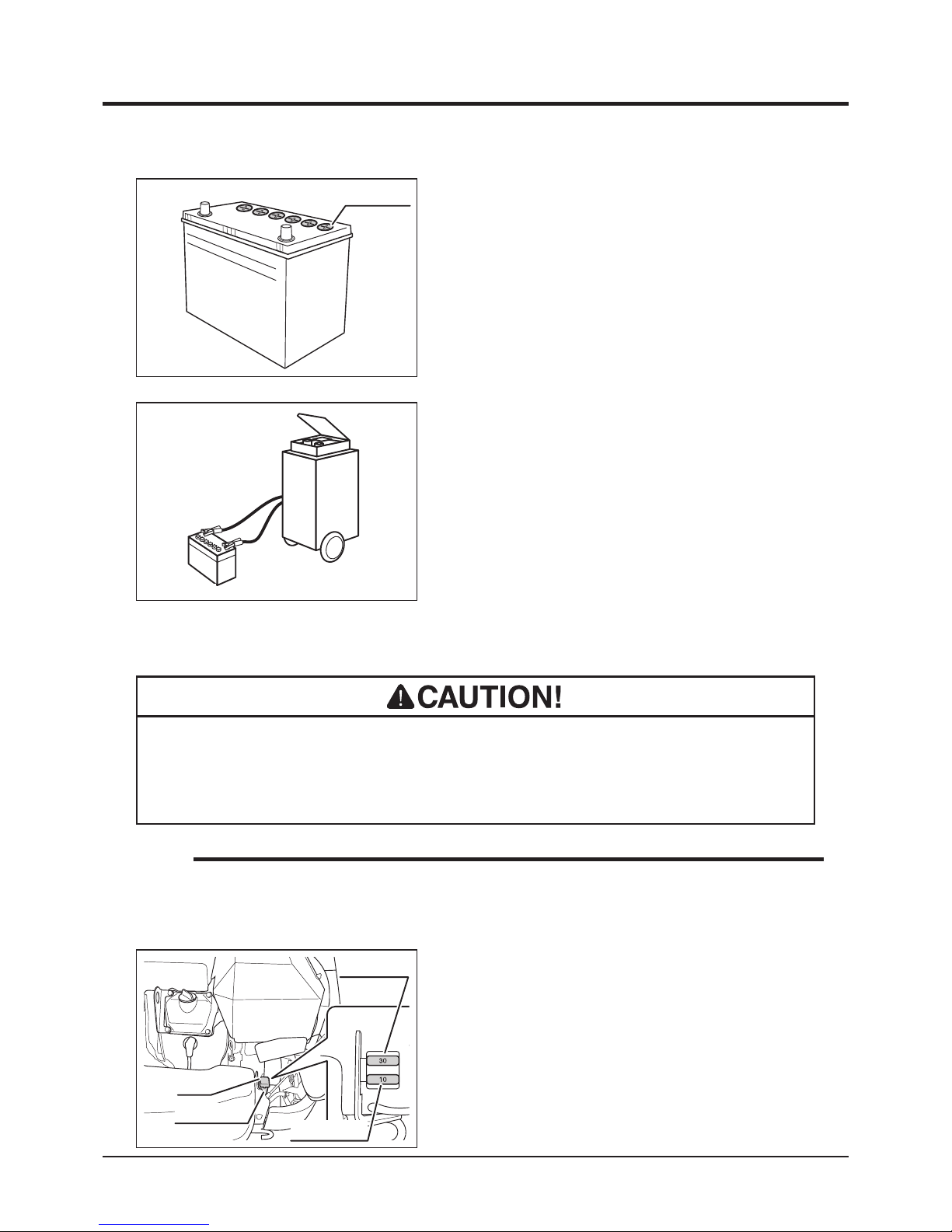

5332M-0509-020E

Main Fuse

Fuse Case

Cap

Lights Fuse

1. Open engine hood.

2. Open fuse case cap. Remove fuse and
visually inspect. If it is blown, replace it with
new one of the same rating.

3. Install fuse.

4. Install fuse case cap.

5. Close engine hood.

Fuses

• If a fuse blows, investigate the cause before replacing.

• Always replace a fuse with one of the correct rating.

• Main Fuse: 30A. Lights Fuse: 10A

• Replacement Fuse: Page 50.

NOTE

Filling

UPPER LEVEL

LOWER LEVEL

Filler Cap

5321M-0510-020E

1. Remove front cover.

2. Remove battery.

3. Remove ller cap.

4. Fill distilled water to "UPPER LEVEL" line.

5. Install ller cap.

6. Install battery.

7. Install front cover.

5116M-0509-040E

1. Remove front cover.

2. Remove battery from machine.

3. Follow instructions in battery charger user's
manual to charge battery.

4. When battery is fully charged, install battery
back in place.

5. Install front cover back in palce.

Charging

Maintenance

-76-

5

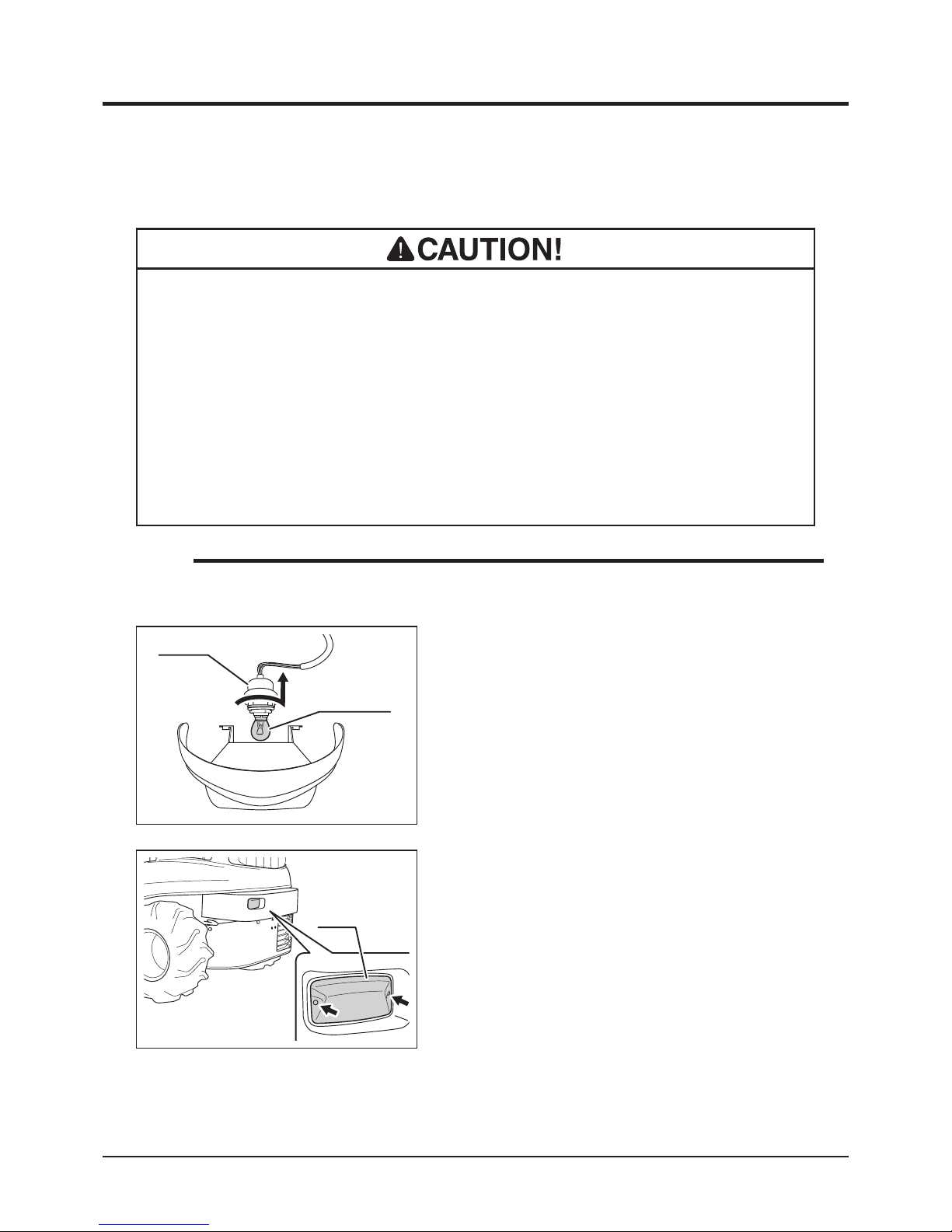

Light Bulbs

• When light bulb is burnt out, replace it with a new bulb.

• When replacing, always use a bulb of the correct rating. Wrong bulb may cause

malfunction or damge in electrical system.

• Do not touch bulb when it is hot. It may cause burns.

• Do not touch the glass part of light bulb directly with fingers. It may reduce

service life.

1. Remove 2 screws and remove lens.

Rear Lamp (AWD Models)

5332M-0509-070E

Lens

• Light Bulbs to use: Page 50.

NOTE

Head Lamp

Socket

Light Bulb

5332M-0508-050E

1. Remove front cover and head lamp unit.

2. Turn socket to remove.

3. Replace with new light bulb.

4. Install socket.

5. Install head lamp and front cover.

-77-

Maintenance 5

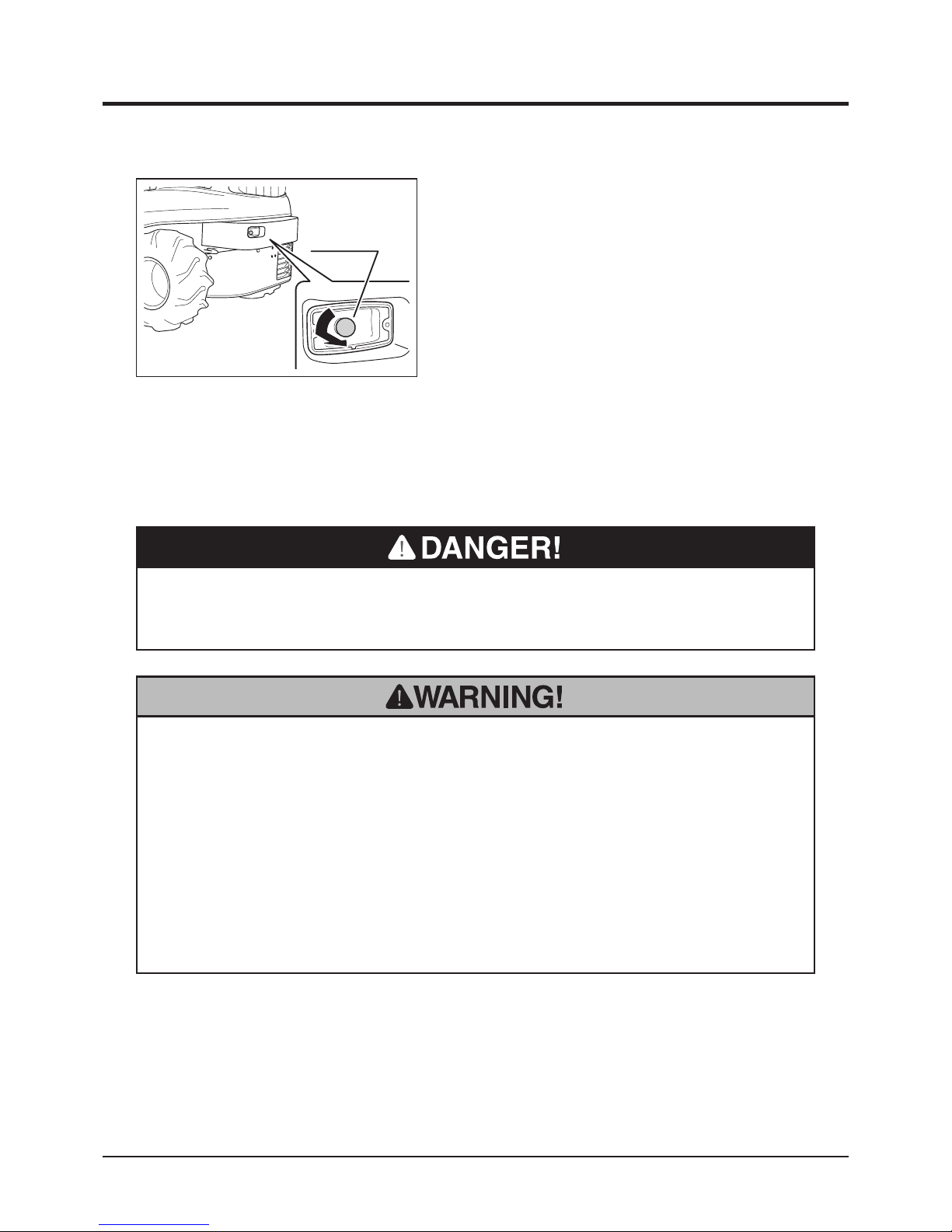

5332M-0509-080E

Light Bulb

2. Replace with a new light bulb.

3. Install lens back in place.

After Use Care

Cutting System

• Never place any part of body under cutting blade shield when cutting blade is

rotating.

• Do not allow bystanders to come near machine when cutting blade is rotating.

• Always stay on machine when performing this opeartion

• Never attempt to clean cutting system with cutting blade shield open. Stones or

rocks can be thrown and cause damage to surrounding properties or persons.

• Turn cutting rotary clutch to [ON] only when cleaning. Keep it in [OFF] position

all the other times.

Maintenance

-78-

5

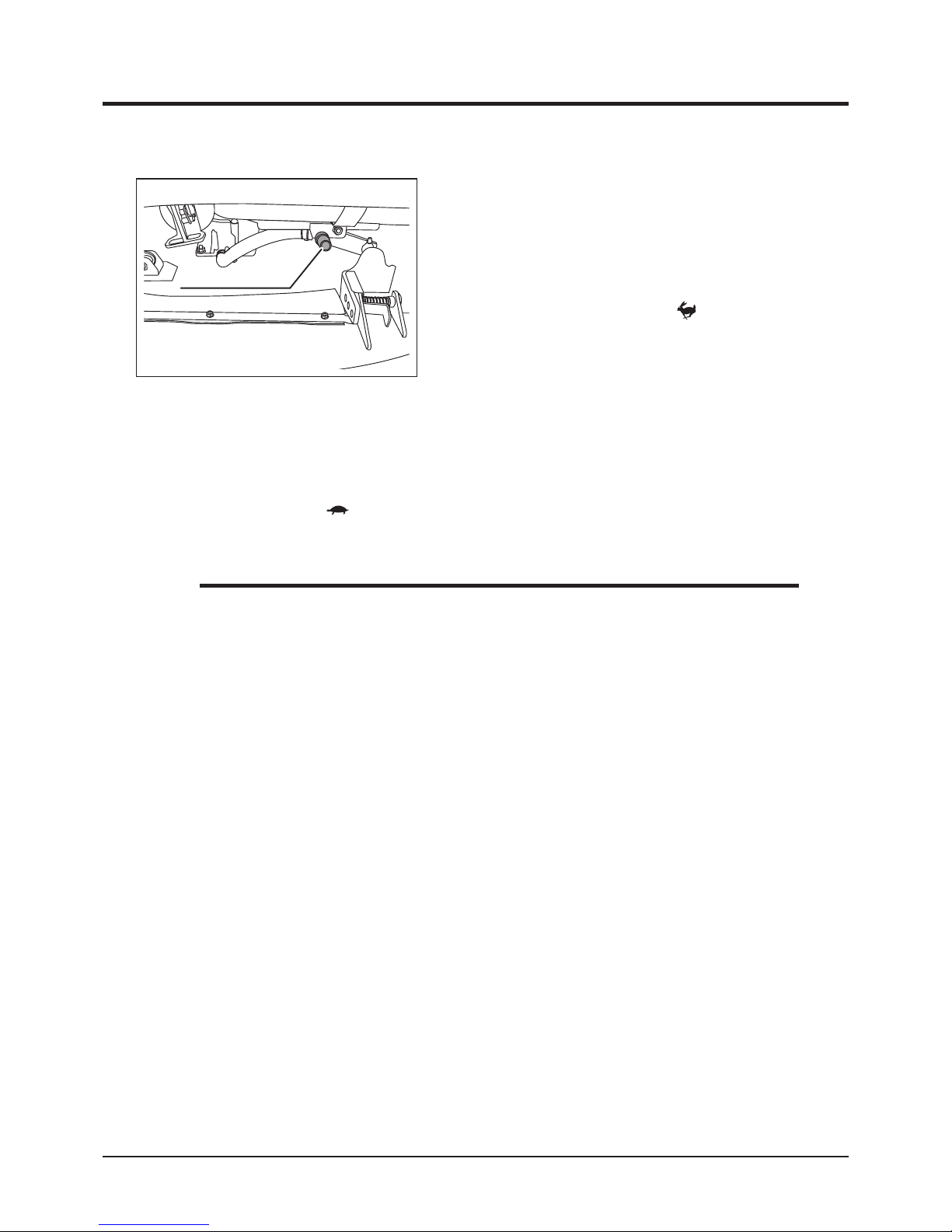

• Do not set cutting height too low. It may hit ground.

NOTE

6. Move cutting rotary clutch lever to [ON] to rotate cutting blade to clean.

7. When cleaning is done, move cutting rotary clutch lever to [OFF] to stop cutting blade.

8. Move cutting height adjust lever to [150] for CMX227H and CM226H, [130] for
CMX186H and CM 185H.

9. Turn throttle lever to [ (slow)] to lower engine speed.

10. Stop machine and remove hose.

Hose Connection

5335M-0510-010E

1. Park machine.

2. Set cutting height to about 50mm.

3. Connect hose to hose connection. Run
water through hose.

4. Start engine.

5. Turn throttle lever to [ (fast)] to raise
engine speed.

-79-

Maintenance 5

After Normal Use

solidify or

• Fire hazard; clean machine of cut grass and similar material after use. Cut grass

that is accumulated on the machine can catch re.

• Clean cooling air intake in front of the engine. If cooling air intake is clogged or

blocked, it causes overheating, resulting in damages to the machine.

• Do not wash engine or control panel with running water; water may enter inside

and cause rust or damage.

• Always clean cutting blades and blade pins after use. Dirt or foreign matters

may solidify or corrode blades and make it difcult to remove them.

1. Clean machine; wash off dirt, mud, and remove grass and other foreign materials after
use.

2. Clean cutting system. (See page 77)

3. Check if cutting blades can be rotate after removing foreign objects such as mud.

4. If machine is to be left outside, cover machine with protective, water-proof covering after
it is cooled off.

Maintenance

-80-

5

• Do not wash engine or control panel with running water; water may enter inside

and cause rust or damage.

• Clean machine after use; dirt or foreign objects may freeze and cause damage.

• Do not attempt to move machine when it becomes inoperable due to freezing

After Cold Weather Use

• Fire hazard; clean machine of cut grass and similar material after use. Cut grass

that is accumulated on the machine can catch re.

1. Clean machine; wash off dirt, mud, and remove grass and other foreign materials after
use.

2. Park machine on a paved or rm, dry surface, or on a bed of lumber.

3. If machine is to be left outside, cover machine with protective, water-proof covering after
it is cooled off.

-81-

Maintenance 5

Storage

1. Park machine.

2. Clean machine; wash off dirt, mud, and remove grass and other foreign materials after
use.

3. Check machine according to Maintenance Schedule (Page 41). If a problem is found,
repair.

4. Wipe clean steel parts with oiled cloth and grease specied grease points.

5. Change engine oil.

6. Clean air cleaner element.

7. Drain fuel from carburator and fuel tank.

8. Inate tires to a pressure slightly higher than the specied value. Chock front and back
of front wheels.

9. Remove battery from machine. Inspect, ll, and charge battery.

10. Cover machine with protective, water-proof covering after machine is cooled off.

• Do not wash engine or control panel with running water; water may enter inside

and cause rust or damage.

• Clean machine before storage; dirt or foreign objects may freeze and cause

damage.

• Do not store machine in a humid, dusty, or hot place.

• Fire hazard; do not store machine where there is a possiblity of ignition.

• Battery dischages even when it is not in use. A battery may hold charge for a few

months, but it is a good practice to charge battery before it goes at; it will extend

battery life.

• Refer to Operation Manual for the engine, for detailed instructions on preparing

engine for storage.

NOTE

Troubleshooting

-82-

6

Troubleshooting

• If any malfunction or abnormal condition is found, immediately stop using the

machine and take an appropriate measure according to the Troubleshooting chart

below. If the malfunction or abnormal condition is not listed in the chart, or the

suggested measure does not solve the problem, consult with your CANYCOM

representative.

• Some correc tive measu res listed below requ ire special knowledge and/or

equipment. Please contact your CANYCOM representative in such a case.

Area Malfunction Possible Cause Corrective Measure Ref.

Engine

Engine does not start,

or is difcult to start

Out of fuel. →Fill fuel. Page 17

Excessive fuel in the

engine.

→Wait a while and try

starting again.

Battery capacity is

insufcient.

→Add battery uid.

→Charge battery.

→Replace battery.

Page 73

Page 73

Battery cable is

disconnected.

→Connect the battery

cable.

Insufcient or wrong

oil.

→Fill or change oil. Page 55

Dirty or damaged spark

plug.

→Clean or replace the

spark plug.

Page 58

Other (other than the

above).

→Follow the

instructions in

"Starting" to restart.

If problem persists,

please contact

your CANYCOM

representative.

Page 23

Engine stalls.

Out of fuel. →Fill fuel. Page 17

Choke valve closed. →Open choke valve.
Other (other than the

above).

→Please contact

your CANYCOM

representative.

Engine stops abruptly.

Out of fuel →Fill fuel. Page 17
Other (other than the

above).

→Please contact

your CANYCOM

representative.

-83-

Troubleshooting

6

Area Malfunction Possible Cause Corrective Measure Ref.

Engine

Idling is not stable.

Insufcient intake air

(clogged air cleaner).

→Clean or replace the

air cleaner.

Page 57

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Poor power or

acceleration

Bad fuel →Change fuel.
Insufcient intake air

(clogged air cleaner).

→Clean or replace the

air cleaner.

Page 57

Loose drive belt. →Adjust Page 65

Excessive load →Reduce load.
Other (other than the

above).

→Please contact

your CANYCOM

representative.

Irregular noise or

vibration from or

around the engine

→Please contact

your CANYCOM

representative.

Excessive oil

consumption

→Please contact

your CANYCOM

representative.

Engine overheats

Insufcient amount of

engine oil.

→Fill oil. Page 55

Rotating screen or

cooling ns are clogged

or blocked.

→Clean.

Excessive fuel

consumption

Clogged air cleaner. →Clean or replace the

air cleaner.

Page 57

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Black smoke comes

out of exhaust

Choke valve closed. →Open choke valve.
Clogged air cleaner. →Clean or replace the

air cleaner.

Page 57

Other (other than the

above).

→Please contact

your CANYCOM

representative.

White or blue smoke

comes out of exhaust

Bad fuel. →Change fuel.
Engine oil level is too

high.

→Adjust the oil level. Page 55

Wrong engine oil. →Change oil. Page 55

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Troubleshooting

-84-

6

Area Malfunction Possible Cause Corrective Measure Ref.

Drive Train

Machine does not

move when drive lever

or pedal is operated.

Insufcient or

deteriorated HST uid.

→Add or change uid. Page 61

Parking brake is

applied

→Release the parking

brake.

V-belt is loose. →Adjust V-belt. Page 65

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Machine moves when

drive lever or pedal is

in neutral position.

HST is out of neutral. →Please contact

your CANYCOM

representative.

Transmission jumps

out of gear.

Transmission is not

positively shifted.

→Shift rmly.

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Machine does not turn

smoothly.

Tires are not properly

inated.

→Adjust tire pressure. Page 59

Differential lock

engaged.

→Disengage

differential lock

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Machine does not run

straight.

Tie-rod is not properly

adjusted.

→Please contact

your CANYCOM

representative.

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Brake

Brake or parking brake

does not work well, or

machine pulls to one

side when braked.

Brake is not proerly

adjusted.

→Adjust. Page 66

Brake is wet with water. →Apply brake a few

times to dry.

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Chassis

Machine vibrates

abnormally.

Improperly inated

tires.

→Adjust tire pressure. Page 59

Other (other than the

above).

→Please contact

your CANYCOM

representative.

-85-

Troubleshooting

6

Area Malfunction Possible Cause Corrective Measure Ref.

Electrical

System

Head lamp does not

illuminate properly.

Blown bulb. →Replace bulb. Page 76

Blown fuse. →Replace fuse. Page 76
Other (other than the

above).

→Please contact

your CANYCOM

representative.

Cutting

System

Cutting blade does not

rotate

Cutting rotary drive

belt is severed.

→Replace.

Cutting blade does not

stop

Brake lining is worn. →Replace.

Cutting rotary drive

belt slips.

Belt is loose. →Adjust belt tension. Page 70
Belt is worn. →Replace. Page 70

Cut grass or vines

accumulate in the

cutting blade shield.

→Clean. Page 77

Abnormal vibration

occurs when cutting

blade is rotated..

Cutting blade is

damaged or lost.

→Replace cutting

blades.

Page 67

Foreign object is

caught by cutting

blade.

→Remove or clean

foreign object.

Other (other than the

above).

→Please contact

your CANYCOM

representative.

Cut grass is not

discharged properly.

Grass is wet. →

Cut when grass is dry.

Grass is too long. →Cut in several steps

at different heights.

Cutting height is too

low.

→Raise cutting height.

Engine speed is too low.

→Raise engine speed.

Driving speed is too

high.

→Drive slow.

Some grass is left

uncut.

Grass is too long. →Cut in several steps

at different heights.

Engine speed is too low.

→Raise engine speed.

Driving speed is too

high.

→Drive slow.

Cutting blade is

damaged or worn.

→Replace.

Cut grass or vines

accumulate in the

cutting blade shield.

→Clean. Page 77

Troubleshooting

-86-

6

Area Malfunction Possible Cause Corrective Measure Ref.

Cutting

System

Cutting blade cuts into

ground.

Cutting height is too

low.

→Raise cutting height.

Machine turns too fast. →Turn slowly.

Work site has

undulations.

→Raise cutting height.

Cutting blade (knives

or stay) is bent.

→Replace.

Cutter load is too high.

Engine speed is too low.

→Raise engine speed.

Driving speed is too

high.

→Drive slow.

Cut grass or vines

are tangled to cutting

blade axle.

→Untangle.

-87-

Transporting

7

• Park transporter (truck) on a level ground. Always apply parking brake and use

chocks to secure wheels.

• Do not allow bystandars to come close to machine or transporter when loading

or unloading machine.

• Use only loading ramps with sufficient strength (to withstand the combined

weight of machine and operator), width (more than twice the width of tire.), and

length (more than 4 times the height of loading deck of transporter), and have

anti-slip ramp surfaces.

• Secure the hooks of loading ramps rmly and ush with loading deck.

• Move slowly forward when loading onto, and move slowly backward when

unloading off of transporter. Pay special care when going over the joint between

loading deck and ramps; machine may tip.

• Do not turn on loading ramps. Machine may fall.

• Tie down machine securely. Make sure machine does not move around.

Hauling

Loading and Unloading

1. Park the transporter on a level ground. Apply parking brake and secure wheels with
chocks.

5332M-0701-010E

More than 4 times

the height

Height

Transporting

-88-

7

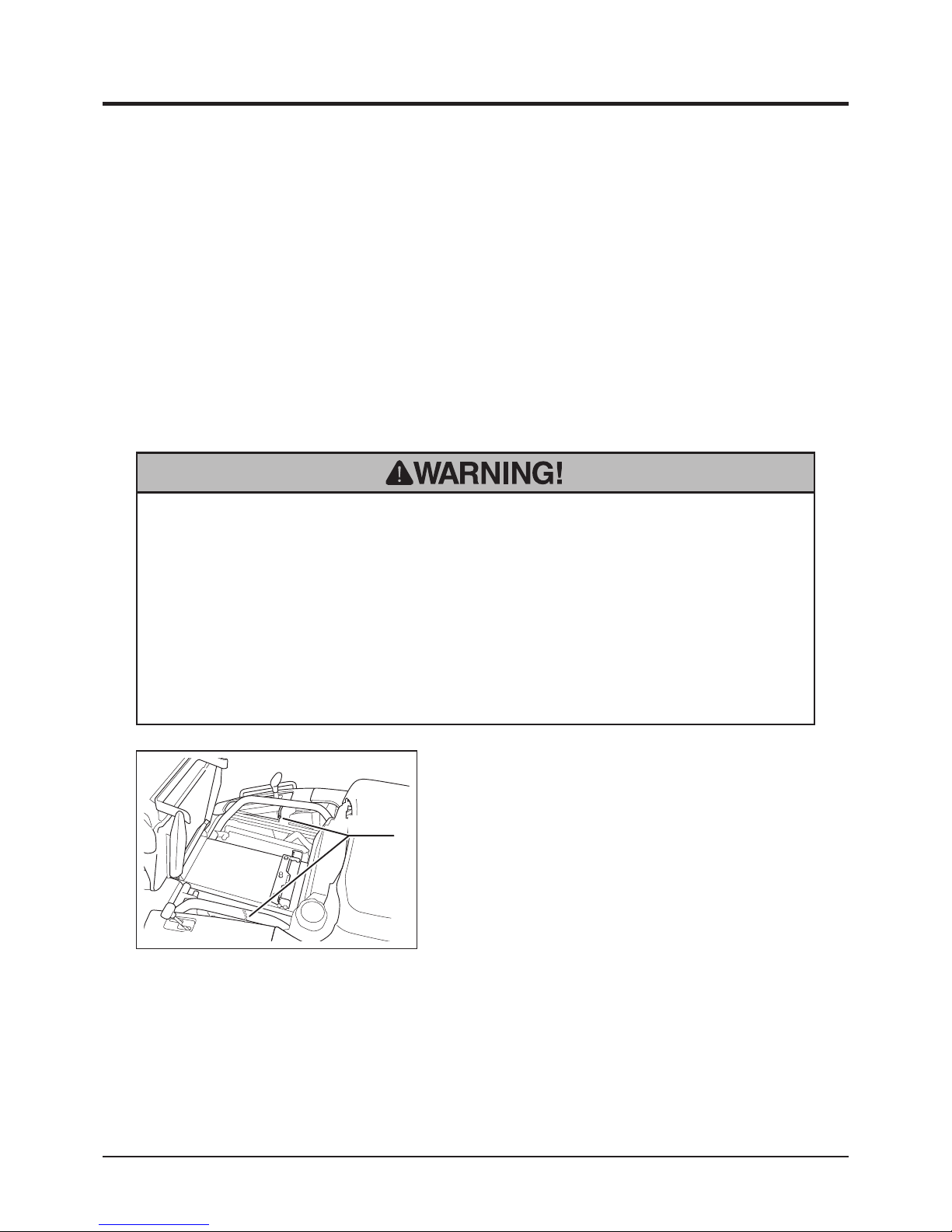

Hoisting

1. Lift seat.

2. Attach hoisting slings to 2 lift hooks and hoist
machine.

• Licence or certification is required to operate a crane. Check your local

regulations.

• Use hoisting sling of sufficient strength. Always use the slings of the same

length when more than one is used.

• Pay special attention to the center of gravitiy and the balance of machine when

hoisting.

2. Place loading ramps. Secure hooks oframps rmly and ush with loading deck.

3. Shift auxiliary transmission shift lever to [Low] and drive machine slowly forward onto
loading deck. Set cutting height adjust lever to [150] for CMX227H, CM226H, and [130]
for CMX186H, CM185H. Pay attention not to hit loading lamp or loading deck when
loading on a transporter.

4. Park machine according to the instructions in "Parking" (Page 33). Tie machine with
rope or tie-down belts and secure it onto loading deck of transporter securely.

5332M-0702-010E

Hooks

Model

Engine

LwA

Type Type Speed rpm

CMX227 / CM226 Robin EH65DS 3300 rpm 100 dB (A)

CMX186 / CM185 Robin EH63DS 3300 rpm 100 dB (A)

NOISE LEVEL evaluated based on factory standard.

NOISE LEVEL

Model

Engine

Rated revolution

Vibration

Mower Blade

Clutch

Steering

wheel (top)

Steering

wheel

(bottom)

Seat

CMX227 / CM226 3000 rpm

ON 22 m/s

2

20 m/s

2

2.5 m/s

2

OFF 13m/s

2

18 m/s

2

2.3 m/s

2

CMX186 / CM185 3000 rpm

ON 19m/s

2

16m/s

2

3.0m/s

2

OFF 11m/s

2

16m/s

2

2.6m/s

2

VIBRATION evaluated based on factory standard.

VIBRATION
