ASSEMBLY INSTRUCTIONS
Toll-free: 1-877-729-8315
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
SWIVEL ROCKER
NODEL NO. 088-0713-6
COVINGTON COLLECTION
2
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
Table of Contents
2
Important Safety Instructions
2
Parts List 3
Assembly 4-6
Cleaning and Maintenance 7
Technical Specifications 7
Warranty 7
IMPORTANT: Retain for future reference, and read carefully.
• SET UP YOUR FURNITURE PROPERLY
Ensure that all parts are assembled properly and fully tightened as per the instructions.
When placing in the desired location, ensure that all legs are resting on the same surface.
You may adjust the legs levelers as required to ensure that the item stands in a rigid position.
• EXAMINE YOUR FURNITURE
Examine occasionally to ensure that there are no loose parts. If loose parts are found,
they must be retightened fully before additional use.
• Do not completely tighten bolts and nuts until indicated in assembly step.
3
NODEL NO. 088-0713-6
PARTS LIST
Seat and back
-
1
Base
- 1
1
2
“T” shaped connector
- 1
3
centre post
- 1
4
Seat cushion
- 1
5
Back cushion
- 1
6
A
B
C
D
E
M8*40 bolt -
2
M8 lock washer - 2
M8 washer
-
2
M8 nut
-
2
Hex wrench
-
1
F
Open hex wrench - 1
4
Needed for assembly:
2 people
ASSEMBLY PREPARATION
Let us help you!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-877-729-8315
If you have questions regarding your product, require warranty
assistance, or have damaged or missing parts, please call our customer
service toll-free helpline. Contact us for assistance; we’re here to help.
IMPORTANT:
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents
list. If any part is missing, or if you have any questions, contact the service centre at
1-877-729-8315 (toll-free).
Place all parts from the box in a cleared area and position them on the floor in front of you.
Remove all packing materials and place them back into the box. Do not dispose of the packing
materials until assembly is comple
te. Read each step carefully before beginning any assembly
and make sure you understand each step. If you are missing a part, please call our toll-free
number for assistance: 1-877-729-8315 9:00AM-4:00PM
ASSEMBLY

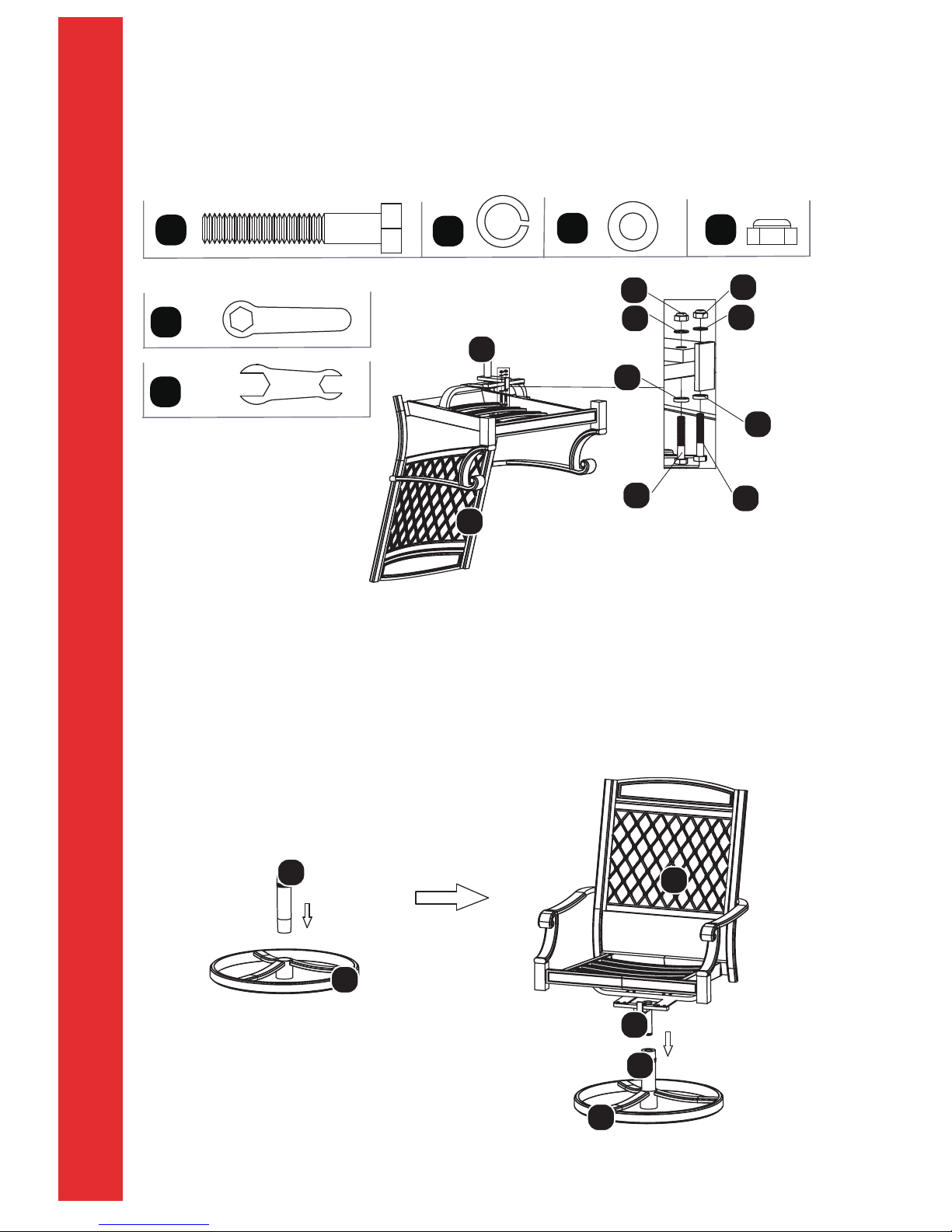

Step 1
5
NODEL NO. 088-0713-6
Requires
1, 3, A, B, C, D.
Attach seat and back 1 to
“T” shaped connector 3 with bolt A ,lock washer B,
washer C and secure with a nut D.
Washer & bolt shown at actual size.
A
B
C
Secure all bolts and nuts with hex wrench E and open hex wrench F.
Not actual size.
A
A
A
A A
A
A
A
1
3
A
A
B
B
C
C
D
D
D
E
Step 2
Requires
1, 2, 3, 4.
Insert the centre post 4 into the hole located at the centre of the base 2.
Align connector of the seat and back 1 with the hole in centre post 4 .
2
4
4
1
2
3
F
ASSEMBLY
Step 3
6
NODEL NO. 088-0713-6
Requires
1, 2, 5, 6.
5
6
1
2
Place seat cushion 5 and back cushion 6 onto the chair.
7
MAINTENANCE
TECHNICAL SPECIFICATIONS
Dimensions (L x W x H) 71 x 66.5 x 100 cm
28 x 26 1/4 x 39 1/2"
Product weight 12 kg
27 lb
NODEL NO. 088-0713-6
• Aluminum frames will never rust. In case of scratches to the powder-coated paint finish,
lightly sand the affected area and apply touch-up paint.
• Wash frames with a mild solution of soap and water; rinse thoroughly. Do not use
bleach or solvents.
WARRANTY
This CANVAS™ product carries a five (5) year warranty against defects in
workmanship and materials.
We warrant our products to be free of manufacturing defects to the original purchaser for
the period listed below. We reserve the right to make substitutions with similar merchandise,
if the model in question is no longer in production.
EXCLUSIONS
This warranty does not cover: lowercase used for commercial or non-residential purposes;
failures caused by improper care; unreasonable or abusive use; freeze damage; or acts of
nature. Steel products are not covered against rust. Tempered glass table tops are not
covered against breakage.
FINISH
Frame finish is warranted to be free of manufacturing defects for a period of one (1) year.
Discolouration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FABRIC
Fabric is warranted to be free of manufacturing defects for a period of one (1) year.
Discolouration or fading of the fabric as a result of exposure to the elements, chemicals, or
spills is not covered.
• CARING FOR OUTDOOR FURNITURE WITH CUSHIONS:
Wash frames and cushions with a mild solution of soap and water; rinse thoroughly.
Dry frame completely and allow cushions to drip-dry. Do not use bleach or solvents.
