XAVIER BOOKCASE
MODEL N0. 068-7588-0
ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list. If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll-free).
Made in China
Imported by
Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Table of Contents 3
Parts List 4
Assembly 6
Warranty 10
3
TABLE OF CONTENTS
Needed for assembly:
Hammer Screwdriver
IMPORTANT: Retain for future reference, and read carefully.
4
Toll-free: 1-888-670-6684 | model no. 068-7588-0
1 7
Top panel - 2 Upper shelf - 1
PARTS LIST
2
Left side panel - 1
3
Right side panel - 1
4
Bottom panel - 1
5
Back panel - 1
6
Lower shelf- 1
5
A
Wooden dowel - 20
B
Cam bolt - 12
C
Cam - 12
Shown at actual size
Shown at actual size
Shown at actual size
H
Pan head screw - 1
I
Wall anchor - 1
Shown at actual size
PARTS LIST
Shown at actual size
D
Hex bolt - 12
E
Lock washer - 12
F
Washer - 12
Shown at actual size
Shown at actual size
Shown at actual size
J
Wall screw - 1
K
Wall strap - 1
Shown at actual size
G
Hex wrench - 1
ASSEMBLY
6
Toll-free: 1-888-670-6684 | model no. 068-7588-0
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembly.
• Read each section carefully before starting. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly diculties will occur.
• Make sure all parts are included. Most board parts are labelled or stamped on the raw edge.
• Work in spacious area, preferably on a carpet, near the place the unit will be located.
• Do not use power tools to assemble your furniture. Power tools may strip or damage the parts.
HELPFUL HINTS
• Identify, sort and count the parts before beginning assembly.
• Compression dowels should be tapped in with a rubber mallet.
• Slides have a lip on the right side only.
• Back panels provide stability and support. Unit may collapse without the back panel installed.
• Clean the product with your choice of furniture polish and a soft cloth. DO NOT USE harsh chemicals or
abrasive cleaners.
• Move your new furniture carefully. Two people are needed to lift and carry the unit to its new location.
• Never push or drag your furniture (especially on a carpet).
Follow these steps in order to assemble your
furniture using the cam lock system.
21 3
4 5
180º

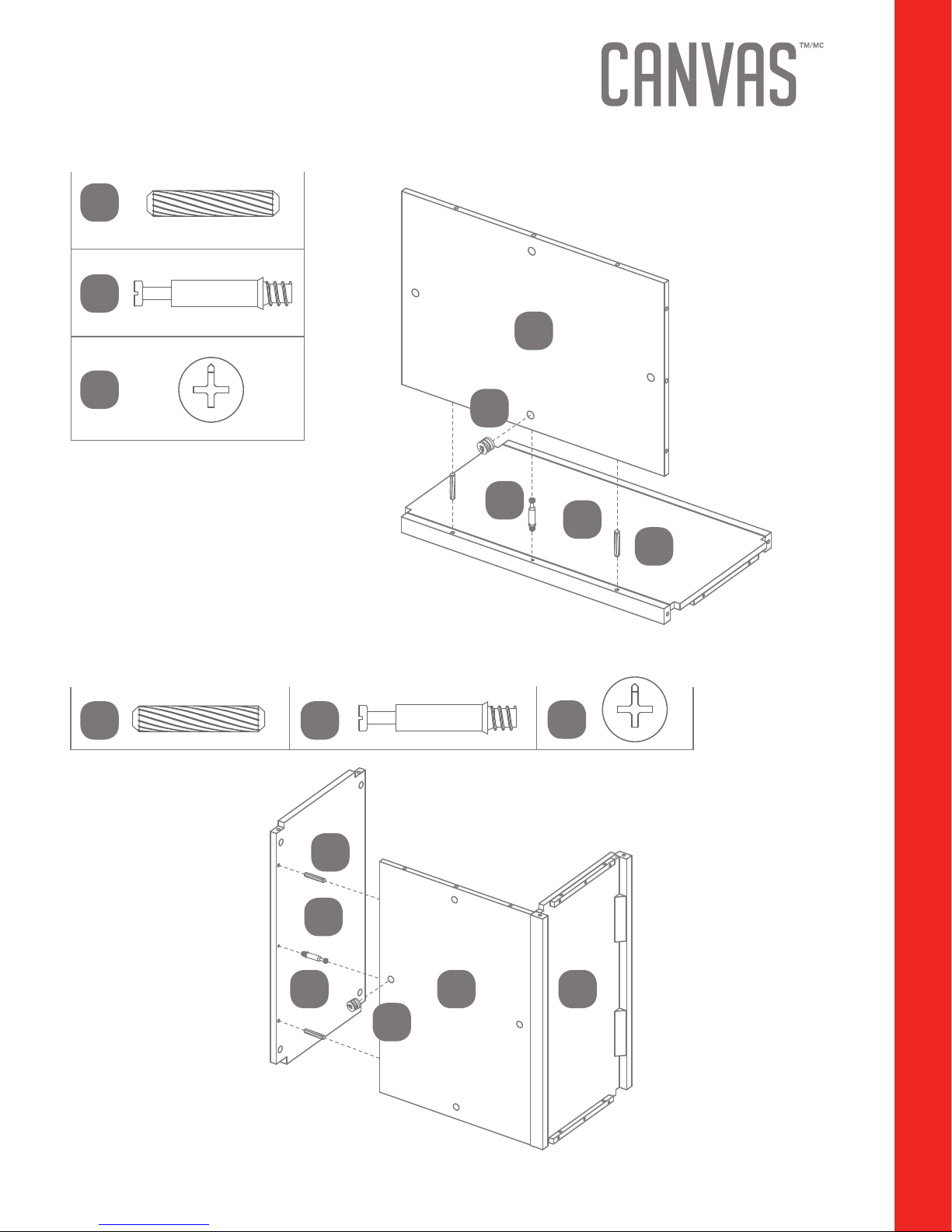

Step 1
Requires 4, 5, A, B, C
A
B
C
7
5
ASSEMBLY
C
B
4
Step 2
Requires 4, 5, 6, A, B, C
A B
A
6
B
5
A
C
4
C
8
Toll-free: 1-888-670-6684 | model no. 068-7588-0
Step 3
Requires 3, 4, 5, 6, A, B, C, D, E, F, G
ASSEMBLY
A
E
Step 4
3
F
B
G
C
5
6
4
C
D
D
E
F
AB
Requires 1, 7, A, B, C, D, E, F, G
A
E
F
Hole for
anti-tip strap
B
G
1
D
E
F
C
7
B
C
D
FRONT
1
A
Step 5
Requires 2, A, B, C, D, E, F, G
9
A
E F
F
E
D
B C
G
C
D
ASSEMBLY
2
B
A
Step 6
Requires H, I, J, K
H
I
K
Attach wall strap (K) to
back of product with
pan-head screw (H). Drill
a 1/4” (6.4 mm) diameter
hole in the wallboard.
Tap the wall anchor (I)
into the hole until it is
flush. Secure wall strap
(K) with wall screw (J).
This unit must be anchored
to a stud or wall, as shown.
Failure to do so could cause
severe injury.
J
J
K
C
H
11
I
C
ASSEMBLY
10
Toll-free: 1-888-670-6684 | model no. 068-7588-0
WARNING
!
Serious or fatal crushing injuries can occur
from furniture tip-over. To help prevent tip-over:
- Place heaviest items on the lowest shelves or
in the lowest drawers and as far back as possible.
- Unless specifically designed to accommodate,
do not set TVs or other heavy objects on top of
this product.
- Never allow children to climb or hang on drawers,
doors, or shelves.
- Use the wall strap (tip-over restraint) to secure
the furniture to the wall.
Use of tip-over restraints may only reduce,
but not eliminate, the risk of tip-over.
WARRANTY
WEIGHT LIMITS
This unit has been designed
to support the maximum
loads shown. Exceeding
these load limits could
cause sagging, instability,
product collapse, and/or
serious injury.
35 lb (15.9 kg)
per shelf
This CANVAS™ product carries a one (1) year warranty against defects in
workmanship and materials. Trileaf Distribution agrees to replace the defective
product free of charge within the stated warranty period, when returned by
the original purchaser with proof of purchase. This product is not guaranteed
against wear or breakage due to misuse and/or abuse.
