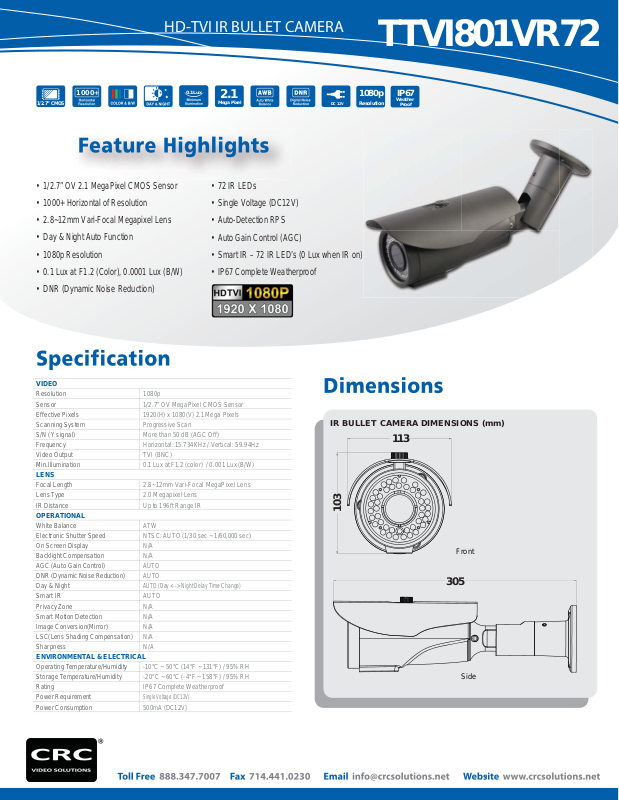

HD-TVI IR BULLET CAMERA

TTVI801VR72

1000+

1/2.7” CMOS

• 1/2.7” OV 2.1 MegaPixel CMOS Sensor

• 1000+ Horizontal of Resolution

• 2.8~12mm Vari-Focal Megapixel Lens

• Day & Night Auto Function

• 1080p Resolution

• 0.1 Lux at F1.2 (Color), 0.0001 Lux (B/W)

0.1Lux

• 72 IR LEDs

• Single Voltage (DC12V)

• Auto-Detection RPS

• Auto Gain Control (AGC)

• Smart IR – 72 IR LED’s (0 Lux when IR on)

• IP67 Complete Weatherproof

• DNR (Dynamic Noise Reduction)

VIDEO

Resolution
Sensor
Effective Pixels
Scanning System
S/N (Y signal)
Frequency
Video Output
Min.Illumination

LENS

Focal Length
Lens Type
IR Distance

OPERATIONAL

White Balance
Electronic Shutter Speed
On Screen Display
Backlight Compensation
AGC (Auto Gain Control)
DNR (Dynamic Noise Reduction)
Day & Night
Smart IR
Privacy Zone
Smart Motion Detection
Image Conversion(Mirror)
LSC(Lens Shading Compensation)
Sharpness

ENVIRONMENTAL & ELECTRICAL

Operating Temperature/Humidity
Storage Temperature/Humidity
Rating
Power Requirement
Power Consumption

1080p
1/2.7” OV MegaPixel CMOS Sensor
1920(H) x 1080(V) 2.1Mega Pixels
Progressive Scan
More than 50 dB (AGC Off)
Horizontal: 15.734KHz / Vertical: 59.94Hz
TVI (BNC)

0.1 Lux at F1.2 (color) / 0.001 Lux (B/W)

2.8~12mm Vari-Focal MegaPixel Lens

2.0 Megapixel Lens
Up to 196ft Range IR

ATW
NTSC: AUTO (1/30 sec ~ 1/60,000 sec)
N/A
N/A
AUTO
AUTO
AUTO (Day <--> Night Delay Time Change)
AUTO
N/A
N/A
N/A
N/A
N/A

-10°C ~ 50°C (14°F ~ 131°F) / 95% RH

-20°C ~ 60°C (-4°F ~ 158°F) / 95% RH
IP67 Complete Weatherproof

Single Voltage (DC12V)

500mA (DC12V)

2.1

Mega Pixel

DC 12V

1080p

Resolution

IP67

Weather

Proof

IR BULLET CAMERA DIMENSIONS (mm)

113

103

Front

305

Side
