Cantek aQ0400P-2TB, aQ0400S-6TB, D0412, D0824, D1648 User Manual

Standalone Digital Video Recorder

Premium DVR

4, 8, 16 Channel Models

User`s Manual

KM4201DQCI

This document contains preliminary information and is subject to change without notice.

MADE IN KOREA

DQ3_K

FCC Compliance Statement

Notice to Users

: This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part

15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at own expense.

CAUTION

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

ATTENTION

DES CHANGEMENTS OU DES MODIFICATIONS NON EXPRESSEMENT APPROUVEES PAR LE RESPONSABLE DE LA CONFORMITE POURRAIENT ANNULER L'AUTORISATION DE L'UTILISATEUR A EXPLOITER L'EQUIPEMENT.

The equipment complies with the requirement of FCC CFR 47 PART 15 SUBPART B, Class A.

Explanation of Graphical Symbols

This symbol indicates the presence of important operating and maintenance (servicing) instruction in the literature accompanying the product.

Ce symbole indique la présence d’instructions importantes et de maintenances dans le manuel accompagnant le produit

This symbol indicates the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Ce symbole indique la présence de « haute tension » non-isolé dans le produit qui peut avoir pour conséquence un risque de la décharge électrique aux personnes.

Warnings

 Installation and servicing should be performed only by qualified and experienced personnel.  Power off the DVR when connecting cameras, audio, or sensor cables.  The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for

the product.

 The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the DVR for

examination or attempting to fix the unit.

 The manufacturer may not be held liable for any issues with the unit if any labels are removed in the product.

Cautions

 This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.  This product uses a Lithium battery.  To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery.  Dispose of used batteries according to the manufacturer’s instructions.  This equipment and all communication wirings are intended for indoor use only.  To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

WEEE(Waste Electrical and Electronic Equipment)

Important Safeguards

1. Read Instructions

 To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

2. Retain Instructions

 The safety and operating instructions should be retained for future reference.

3. Cleaning

 Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for

cleaning.

4. Attachments  Never add any attachments and/or equipment without manufacturer approval as such additions may result in the risk of fire,

electric shock, or other personal injury.

5. Water and/or Moisture  Do not use this equipment near water or in contact with water.

6. Accessories  Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or

adult and serious damage to the equipment.

 Wall or shelf mounting should follow the manufacturer’s instructions and should use a mounting kit approved by the

manufacturer.

Customers in European Union countries are advised to dispose this product, at the end of its useful life, as per applicable local laws, regulations and procedures.

 Move this equipment and cart combination with care. Quick stops, excessive force and uneven surfaces may cause the

equipment and cart combination to overturn.

7. Power Sources  This equipment should be operated only from the type of power source indicated on the marking label. If not sure the type of

power, please consult to distributor or local power company.

8. Power Cords  Operator or installer must remove power, BNC, alarm and other connections before moving the equipment.

9. Lightning  For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of

time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

10. Overloading  Do not overload wall outlets and extension cords to avoid the risk of fire or electric shock.

11. Objects and Liquids  Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out

parts that could result in a fire or electric shock.

 Never spill liquid of any kind on the equipment.

12. Servicing  Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage Requiring Service  Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

① When the power-supply cord or the plug has been damaged. ② If liquid is spilled or objects have fallen into the equipment. ③ If the equipment has been exposed to rain or water. ④ If the equipment does not operate normally by following the operating instructions, adjust only those controls that are

covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.

⑤ If the equipment has been dropped or damaged the cabinet. ⑥ When the equipment exhibits a distinct change in performance—this indicates a need for service.

14. Replacement Parts

 When replacement parts are required, ensure the service technician uses replacement parts specified by the manufacturer

or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

15. Safety Check  Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to

determine that the equipment is in proper operating condition.

16. Field Installation  This installation should be made by a qualified service person and should conform to all local codes.

17. Correct Batteries

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

ATTENTION

RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UN TYPE INCORRECT DISPOSEZ DE BATTERIES EN ACCORS AVEC LES INSTRUCTIONS



18. Operating Temperature

 An operating temperature range is specified so that the customer and installer may determine a suitable operating

environment for the equipment.

19. Elevated Operating Ambient Temperature  If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be

greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the specified operating temperature range.

20. Reduced Air Flow  Installation of the equipment in the rack should be such that the amount of airflow required for safe operation of the

equipment is not compromised.

21. Mechanical Loading  Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical

22. Circuit Overloading  Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits

might have on over-current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

23. Grounding (Earthing)  Connection of ground wire is highly recommended to protect the DVR from external electric shock, such as lightening,

electrical surge.

Warning

WARRANTY IS VOID IF SEAL OR LABEL IS REMOVED OR DAMAGED.

The List of Configuration

A, D and E Type : 4 / 8 / 16CH

DVR Set

Manual / CMS CD

B, C and F Type : 4 / 8 / 16CH

Remote Controller

Manual

Screws

HDD Brackets

Rack Bracket

(Except A, D and E Type)

Data Cable

Power Cable

Adapter

Operation Precautions

 Power Off

 Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause

permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shut down completely. It is safe to wait for 5 seconds before turning the power on again.

 Do not turn DVR off, or plug off the power adapter while External storage device (e.g., USB memory stick, removable

external hard disk and the like) in use. Otherwise, it may cause permanent damage to the equipment. Make sure that the power switch is in the “ON” position until data storage is completed. Please be aware that removing the storage device cause the same damage to the equipment.

 Do not turn DVR off, or plug off the power adapter during the format of the hard disk. Otherwise, it may cause permanent

damage to the equipment. Make sure that the power switch is in the “ON” position until the formatting of the disk is completed.

 HDD Installation / Addition / Moving / Replacement / Removal

 For installation/addition/replacement/Removal of HDD (DVD-RW), make sure that DVR is turned off. Otherwise, it may

cause permanent damage to the HDD (DVD-RW).

 When wish to power DVR off, please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after

DVR is shut down completely.

 Installation/Addition/Moving/Replacement: Start ‘HDD initialization’ including formatting. Otherwise, DVR would not

recognize the hard disk and may begin to function abnormally. Please follow the below procedure for ‘HDD initialization’.

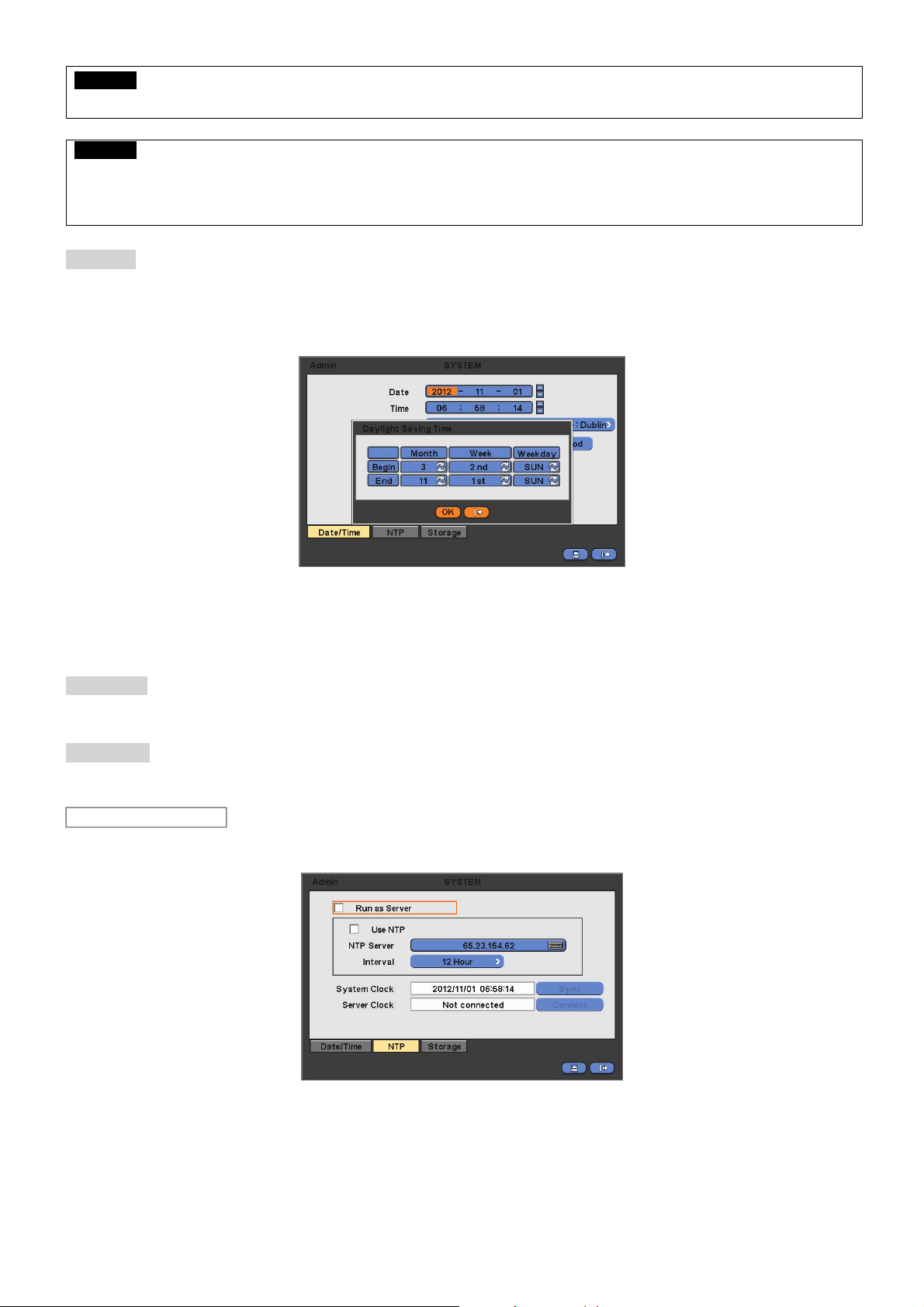

① (Date/Time setup) Set up the current date and time (SETUP>SYSTEM>Admin>Date/Time). ② (Initialization of system setup) All setup values are restored to original factory default settings.

(SETUP>SYSTEM>Information>Status>Setup>Default).

③ (HDD format) HDD format is done by SETUP>SYSTEM>Admin>Storage>Format. If there are more than two HDDs,

each must be formatted, separately. When the format is completed, DVR will auto-reboot.

 Removal: Follow the Remove procedure even when a pre-installed hard disk has been removed.

- SETUP>SYSTEM>Admin>Storage>Format, click ( ) ‘Removed’ item under the discrete Format headings of a corresponding HDD to discard ‘HDD’ item. When the Remove procedure is completed, DVR will auto-reboot.

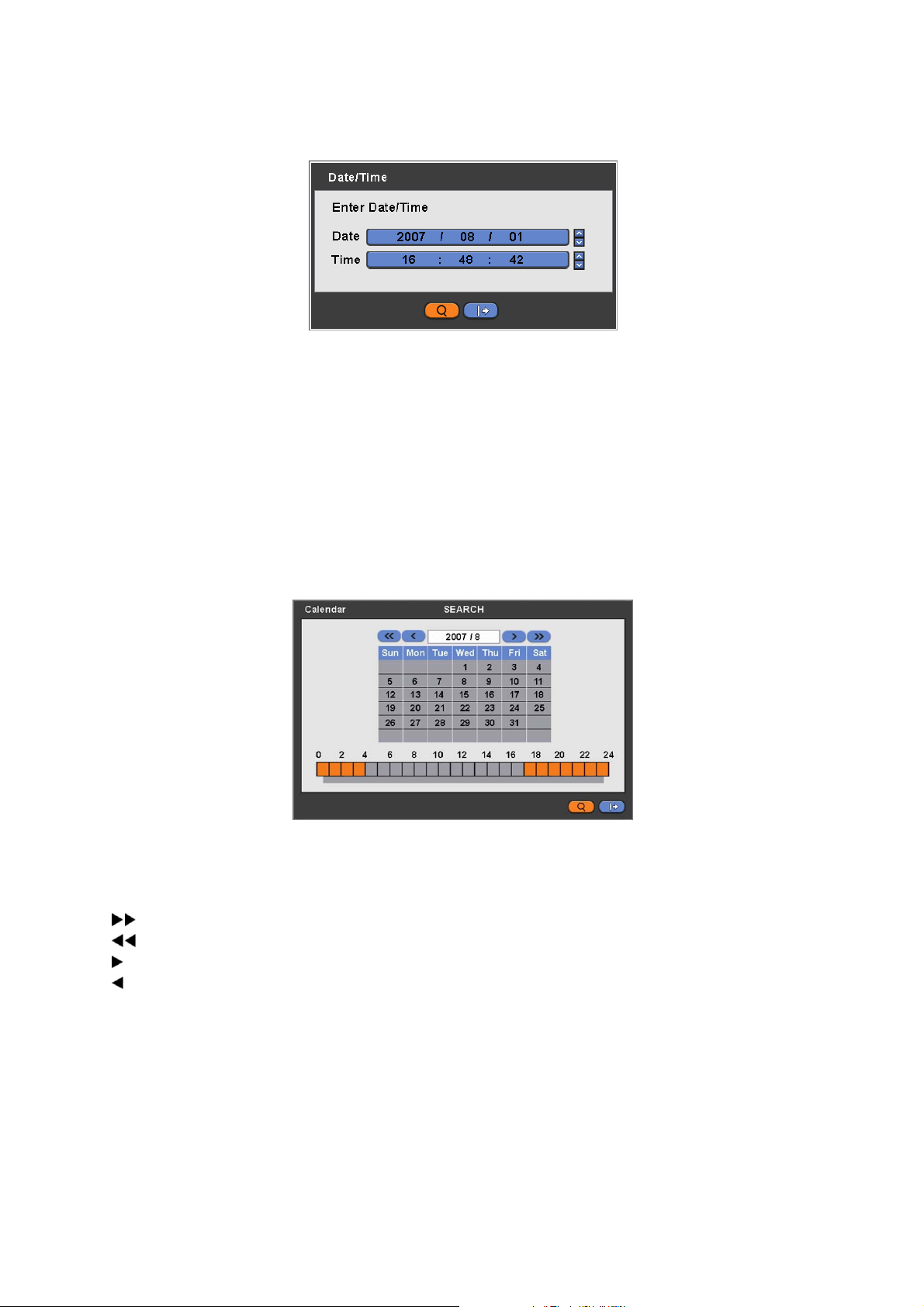

 Date / Time Change

 Any change in Date/Time is immediately applied onto live video (LIVE), but the date/time when the recording was done are

not changed.

 Make sure to reboot DVR after adjusting the Date/Time.  Also, do not forget to execute SETUP>SYSTEM>Shutdown in sequence before reboot.

 Upgrade

 Do not upgrade until install a hard disk drive. Make sure that upgrade when the hard disk drive is in proper operation.

 Using a Mouse

 Left mouse button: have the same function as Enter ( ) on the Front panel of DVR.  Central button (wheel): have the same function as Search key on the Front panel of DVR(display search menu).  Right mouse button: display a number of ‘Function keys’ (please see ‘Input Device and Screen Icons>Using a mouse’ in

this manual).

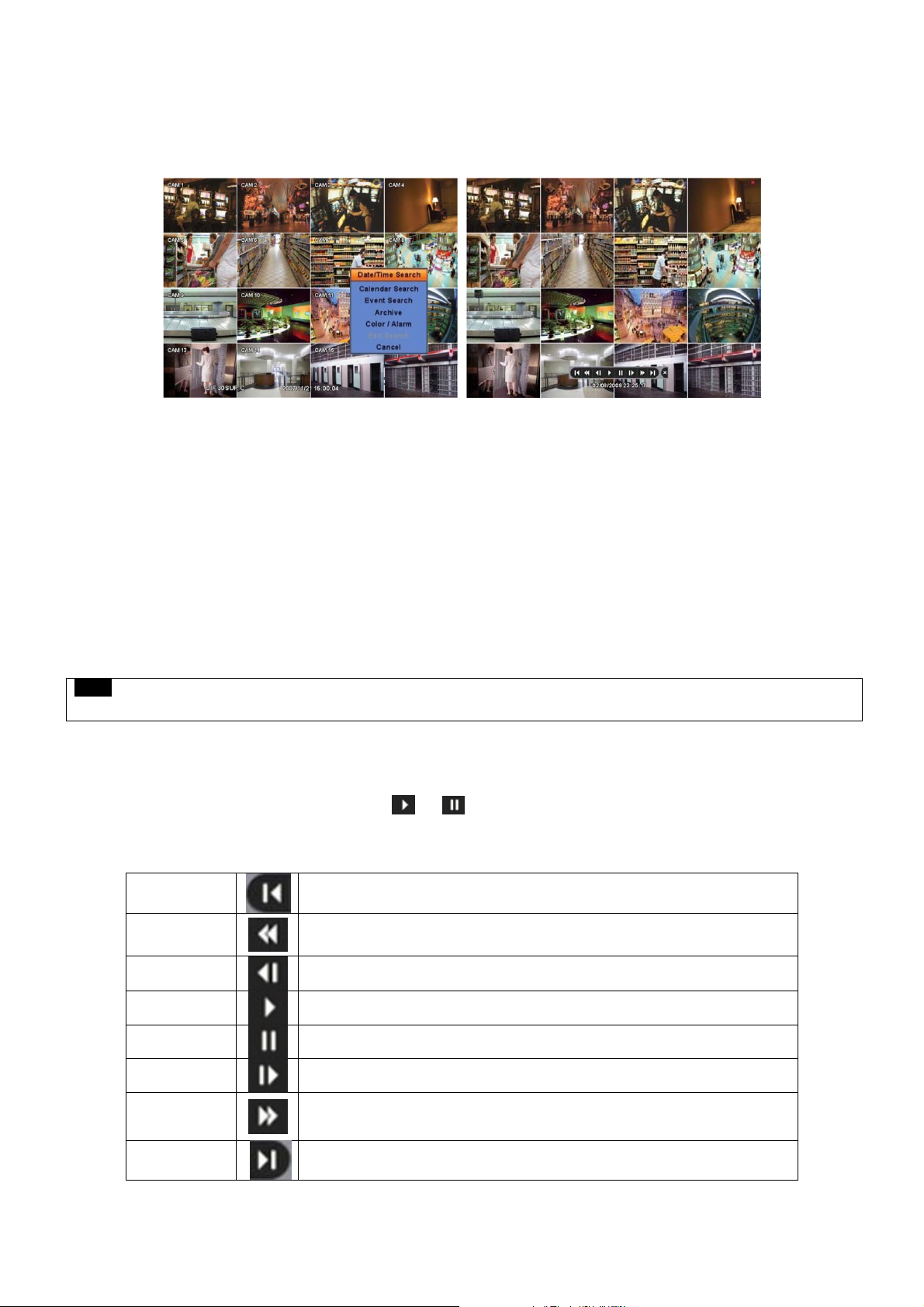

 PLAY / PAUSE Key

 Press the PLAY/PAUSE key to one-touch playback on the viewing screen (playback the recorded video from the last one

minute).

 Every time pressing the PLAY/PAUSE key during playback mode, it is changed to ‘1X PLAY’ and ‘PAUSE’. The displayed

sign on the screen also changes from to II.

 If wish to change mode (1X PLAY, REW, FF, BACKWARD, FORWARD) during playback, always press the PLAY/PAUSE

key first (please see if the sign II is shown on the screen).

 Press the PLAY/PAUSE key to back up. Make sure that the backup is done in ‘PAUSE’ mode.

 Camera Title

 Camera Title displayed in Record and Playback modes of DVR is set to CAM1 ~CAM16. Registering camera title in setup

menu (DEVICES>Camera/PTZ>Title) is to make every setup process easier.

Table of Contents

1. PRODUCT FEATURES ................................ 11

1.1 Unpacking ....................................................... 11

1.2 Service ............................................................ 11

1.3 System Connection Diagram ........................ 11

2. INSTALLATION ............................................ 17

2.1 Hard disk and DVD-RW Installation ............. 17

2.1.1 SATA Port .................................................... 17

2.1.2 Internal SATA Storage ................................. 17

2.1.3 e-SATA External Storage (B, C and F Type) 18

2.1.4 HDD Installation ........................................... 18

2.1.5 Maximum HDD Capacity .............................. 18

2.1.6 DVD-RW installation ..................................... 18

2.2 Connector Wiring ........................................... 19

2.2.1 Video-In/Loop Out Connections ................... 19

2.2.2 HD-SDI Camera Input Format ...................... 19

2.2.3 HD-SDI Input Signal detection ..................... 19

2.2.4 Monitor Connections .................................... 19

2.2.5 HDMI connections ........................................ 19

2.2.6 Audio Connections ....................................... 20

2.2.7 TCP/IP(Ethernet) Connections ..................... 20

2.2.8 Alarm Connections (TTL) ............................. 20

2.2.9 Alarm Connections(Relay (Dry Contact)) ..... 20

2.2.10 RS-485/422 Connections ............................. 20

2.2.11 RS-485 Over Coax Connection .................... 21

2.2.12 USB Connections ......................................... 21

2.2.13 RS-232 Connections .................................... 21

2.2.14 Grounding (Earthing) .................................... 21

2.2.15 Factory Reset Switch ................................... 21

2.2.16 Power Supply connections ........................... 21

2.2.17 Connections Guideline ................................. 21

3. INPUT DEVICE AND SCREEN ICONS ........ 22

3.1 Key and LE Ds ................................................. 22

3.2 Camera Select Keys for 16 Channel DVR .... 23

3.3 Front Panel ..................................................... 23

3.4 Using a Remote Controller ............................ 24

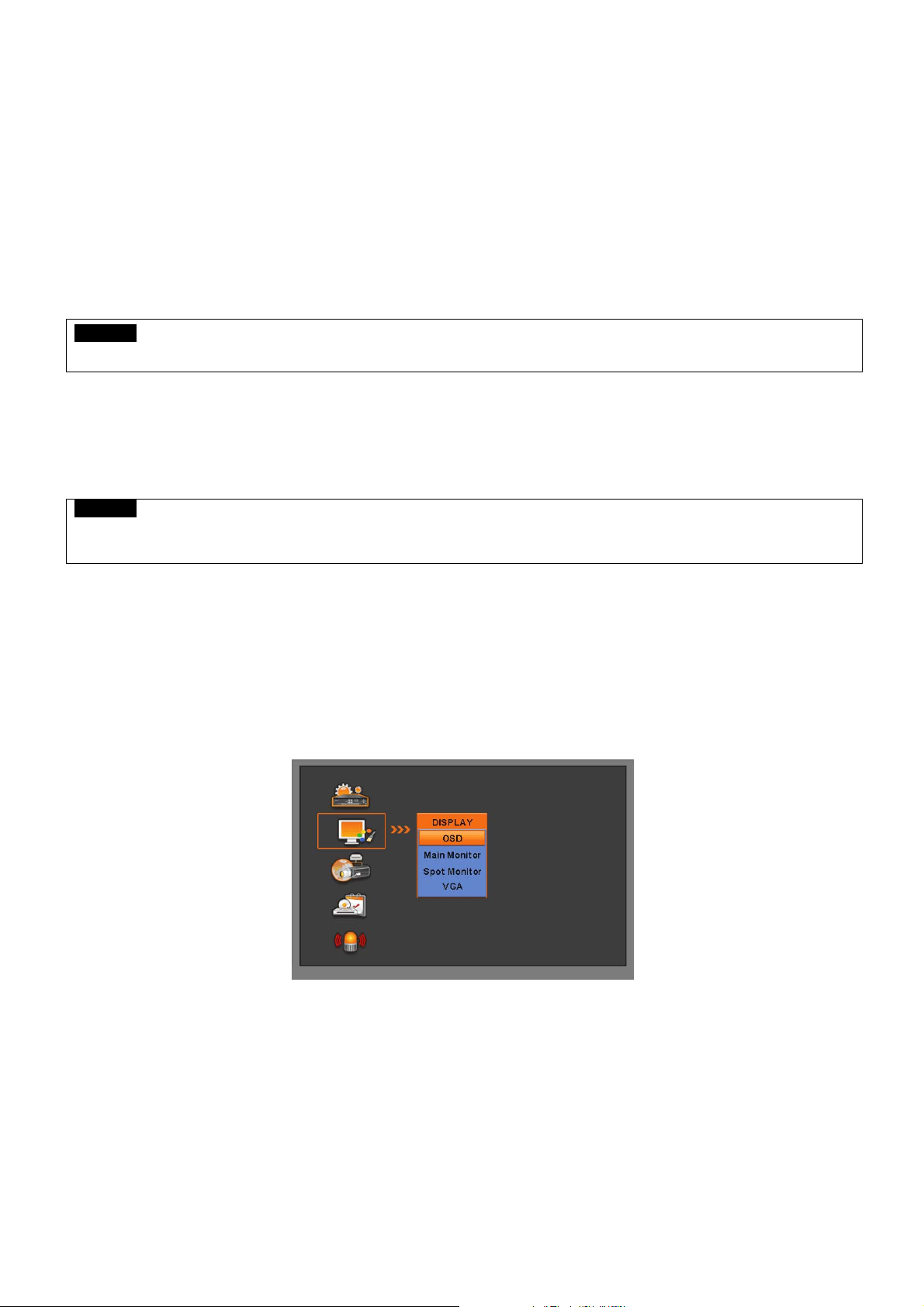

4.3 DISPLAY .......................................................... 37

4.3.1 OSD .............................................................. 38

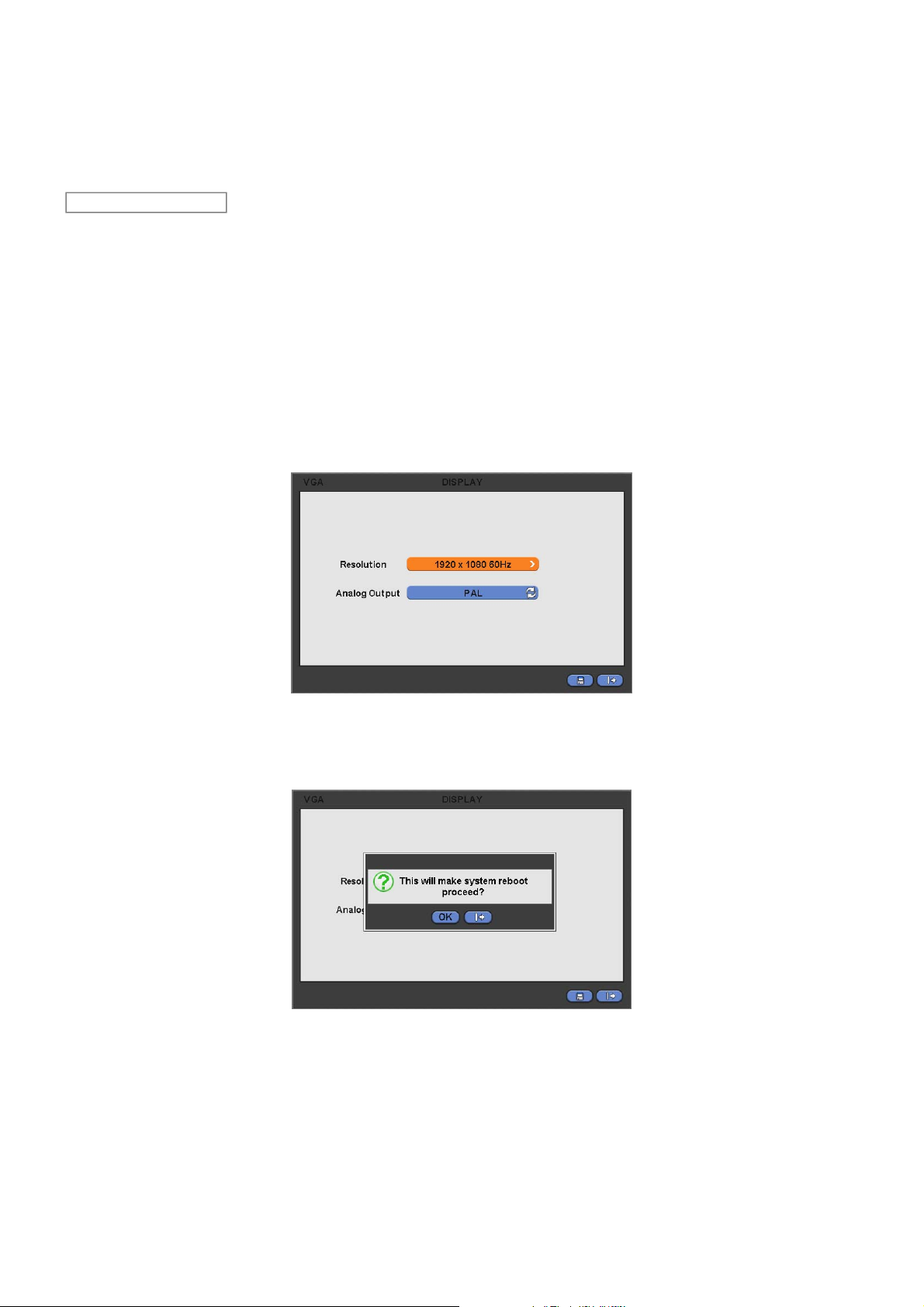

4.3.2 Main Monitor ................................................. 38

4.3.3 Multi Spot ...................................................... 39

4.3.4 VGA .............................................................. 40

4.4 DEVICES .......................................................... 41

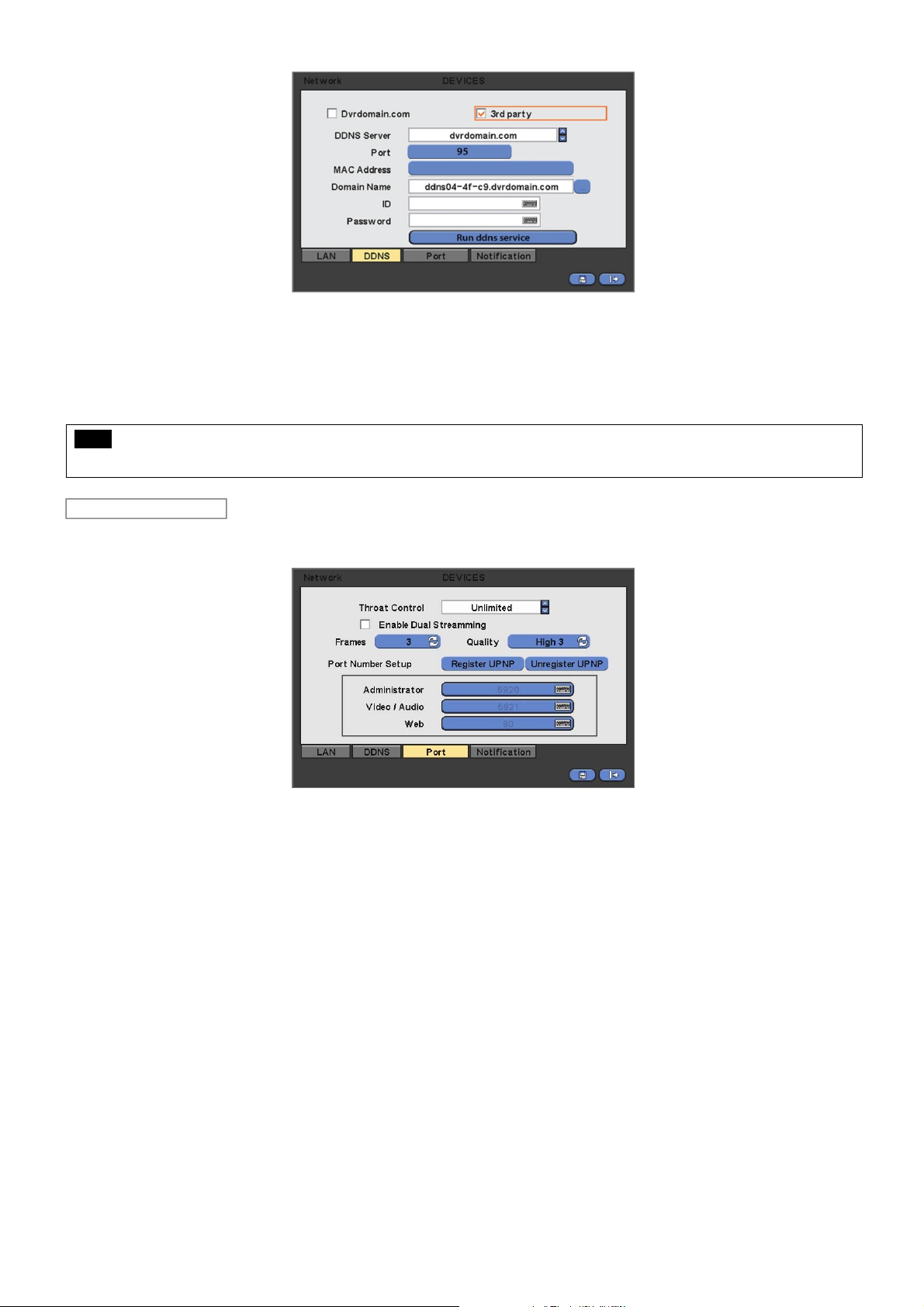

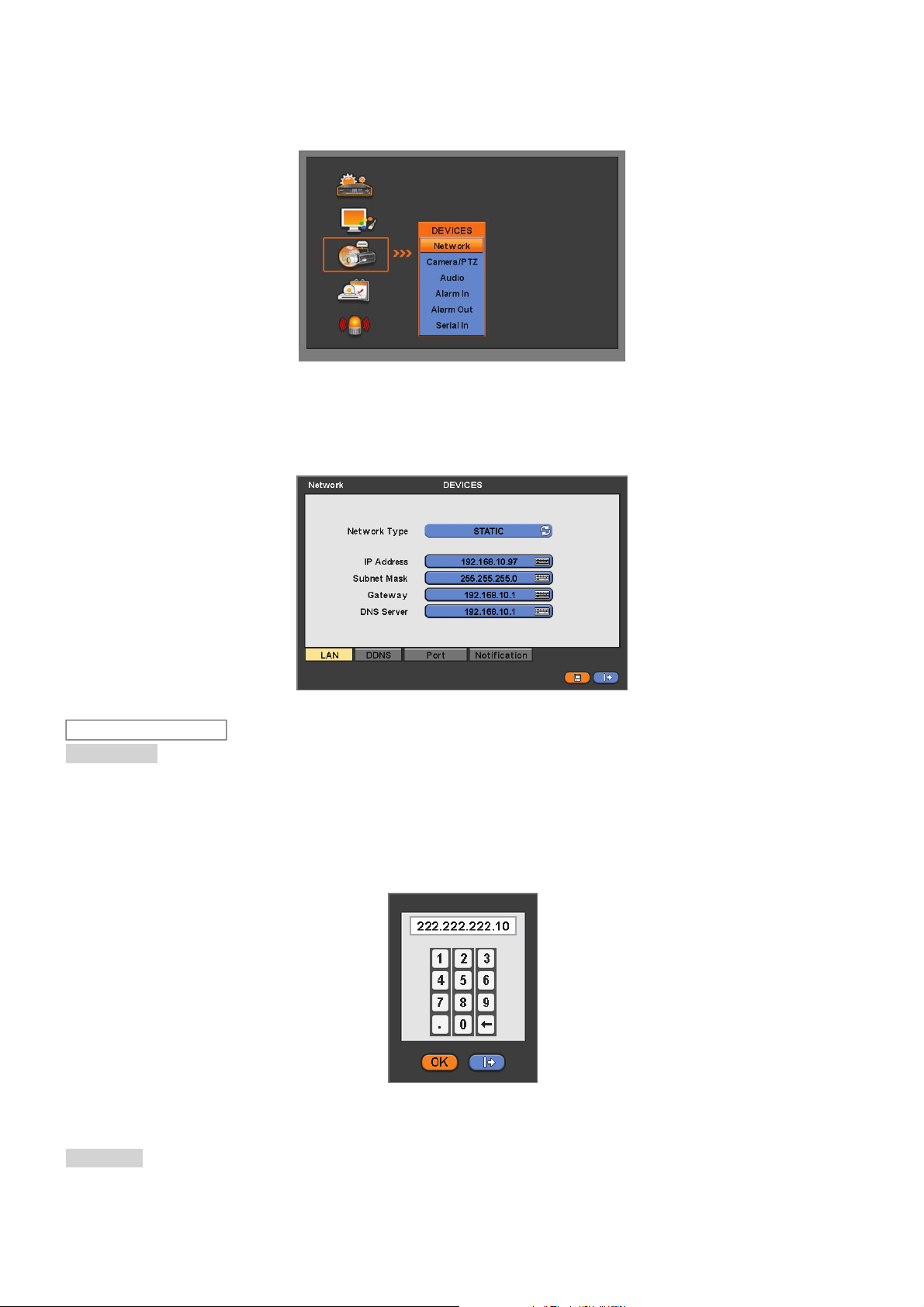

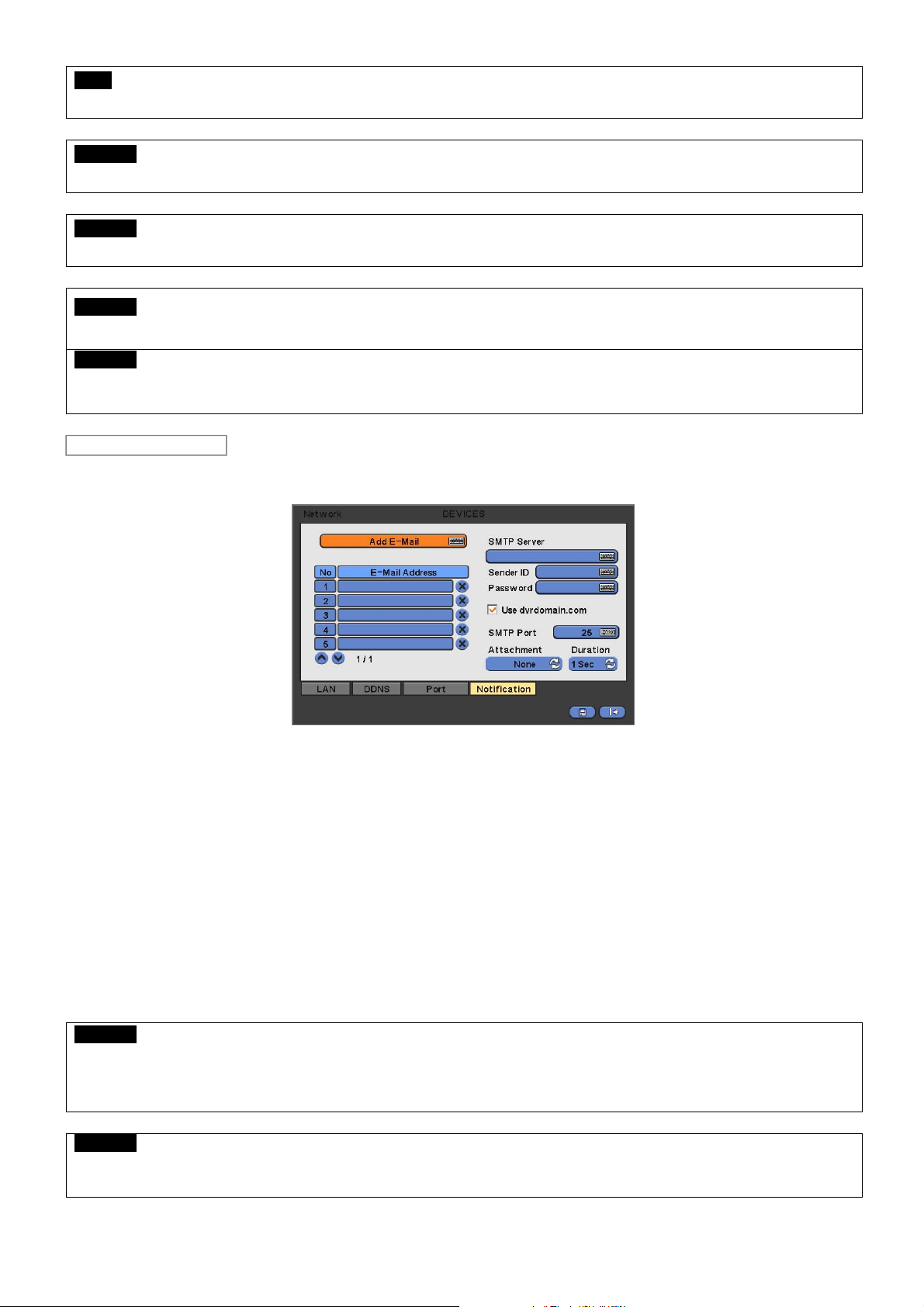

4.4.1 Network ......................................................... 41

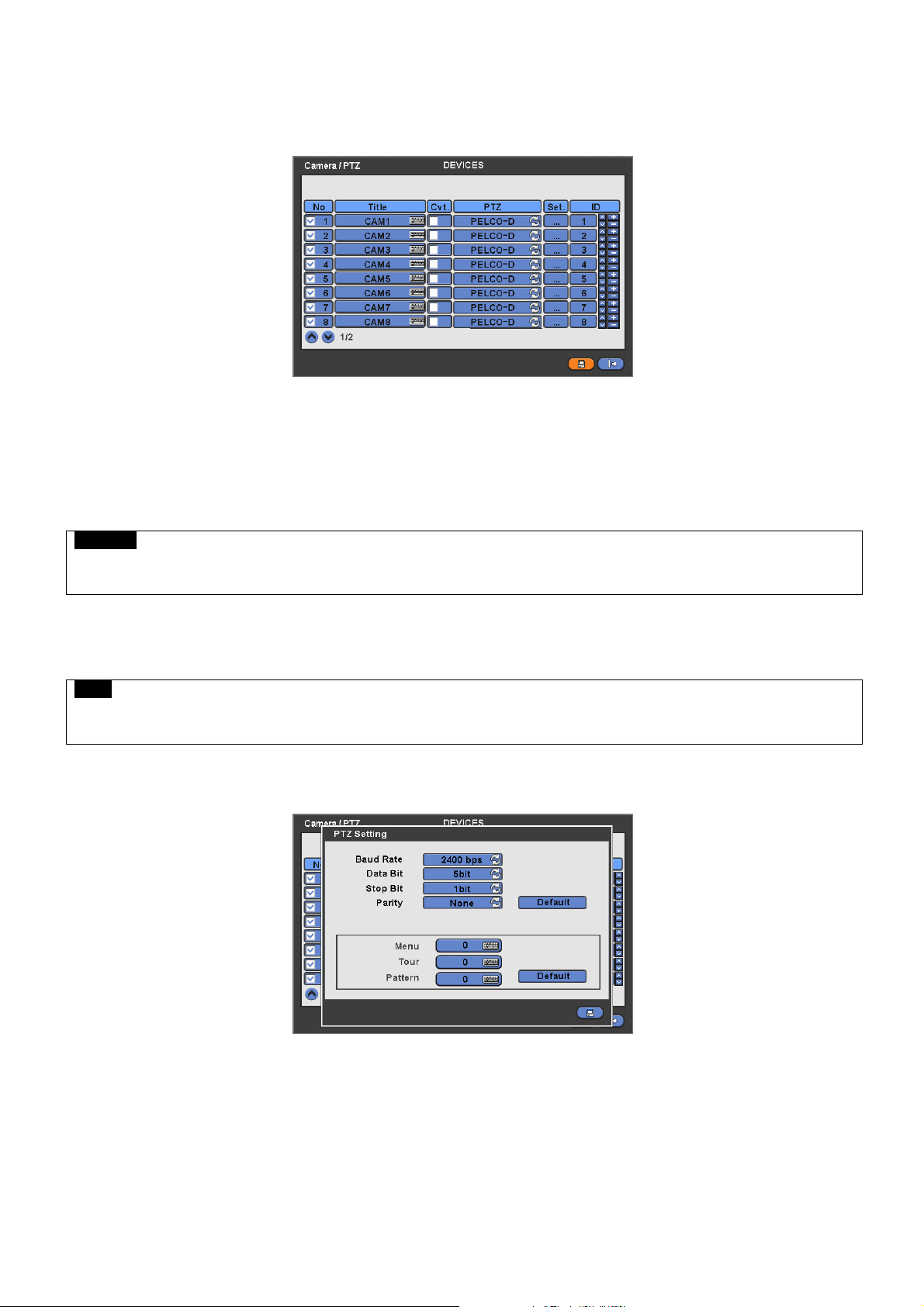

4.4.2 Camera / PTZ ............................................... 45

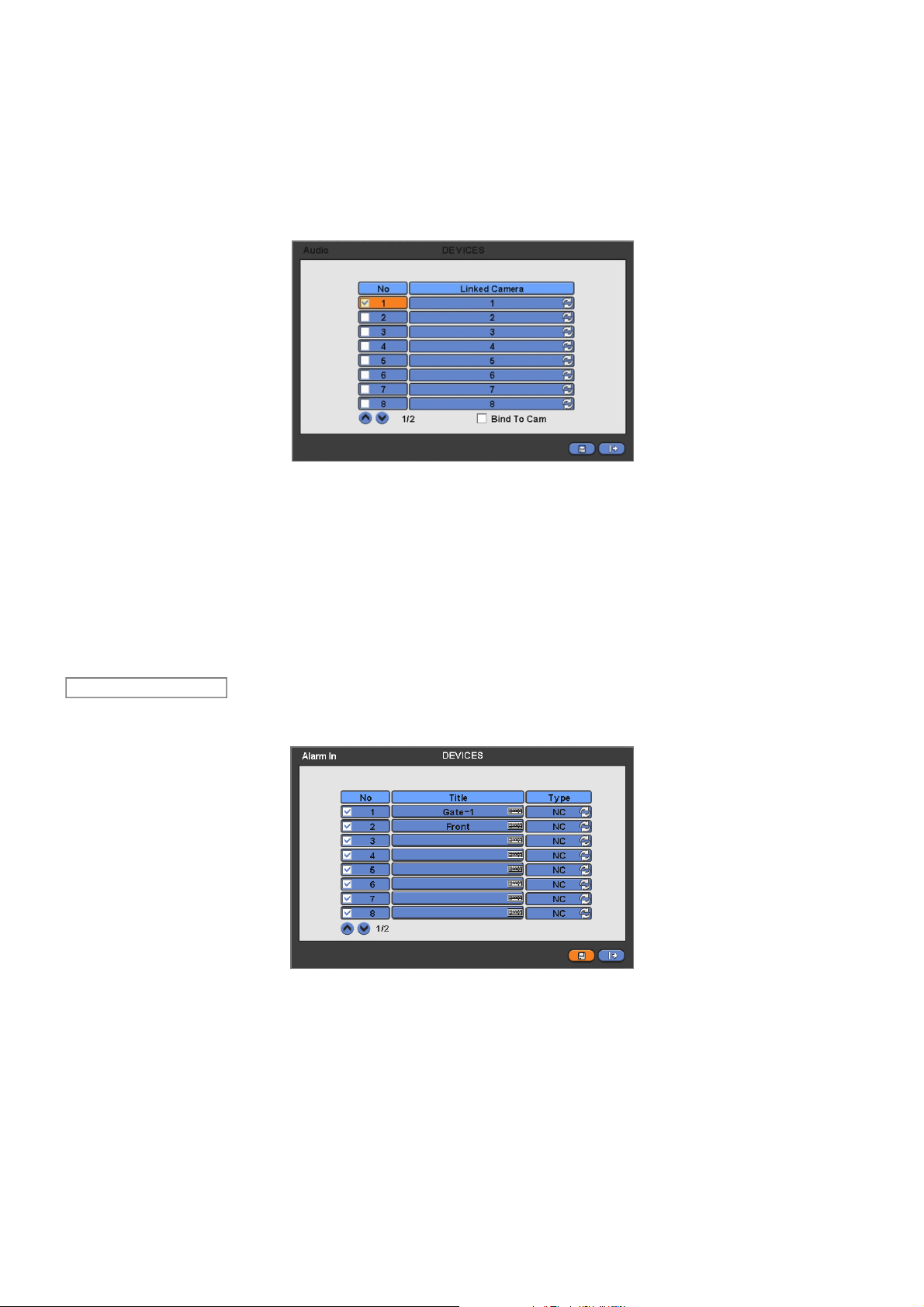

4.4.3 Audio ............................................................. 46

4.4.4 Alarm In ........................................................ 46

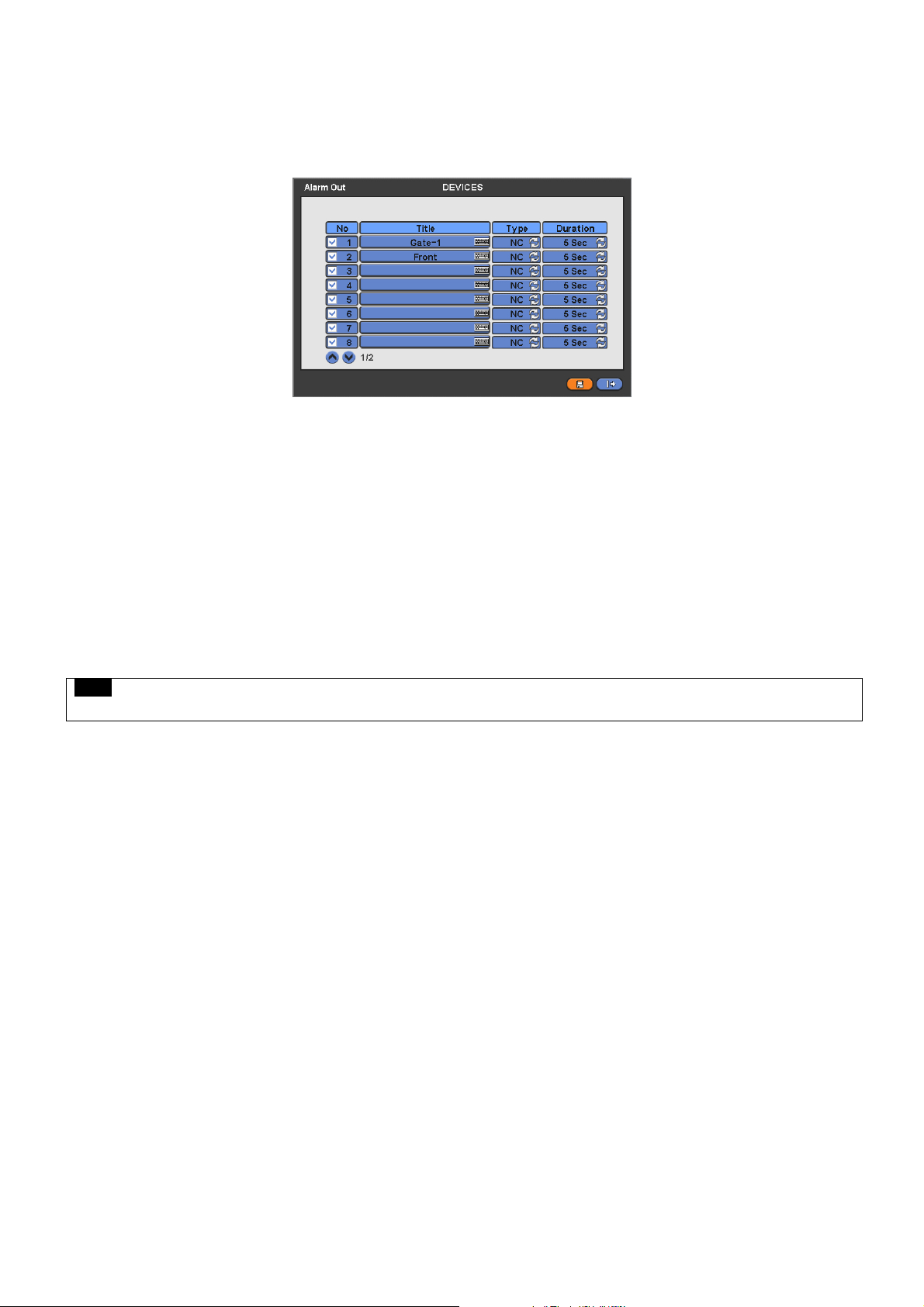

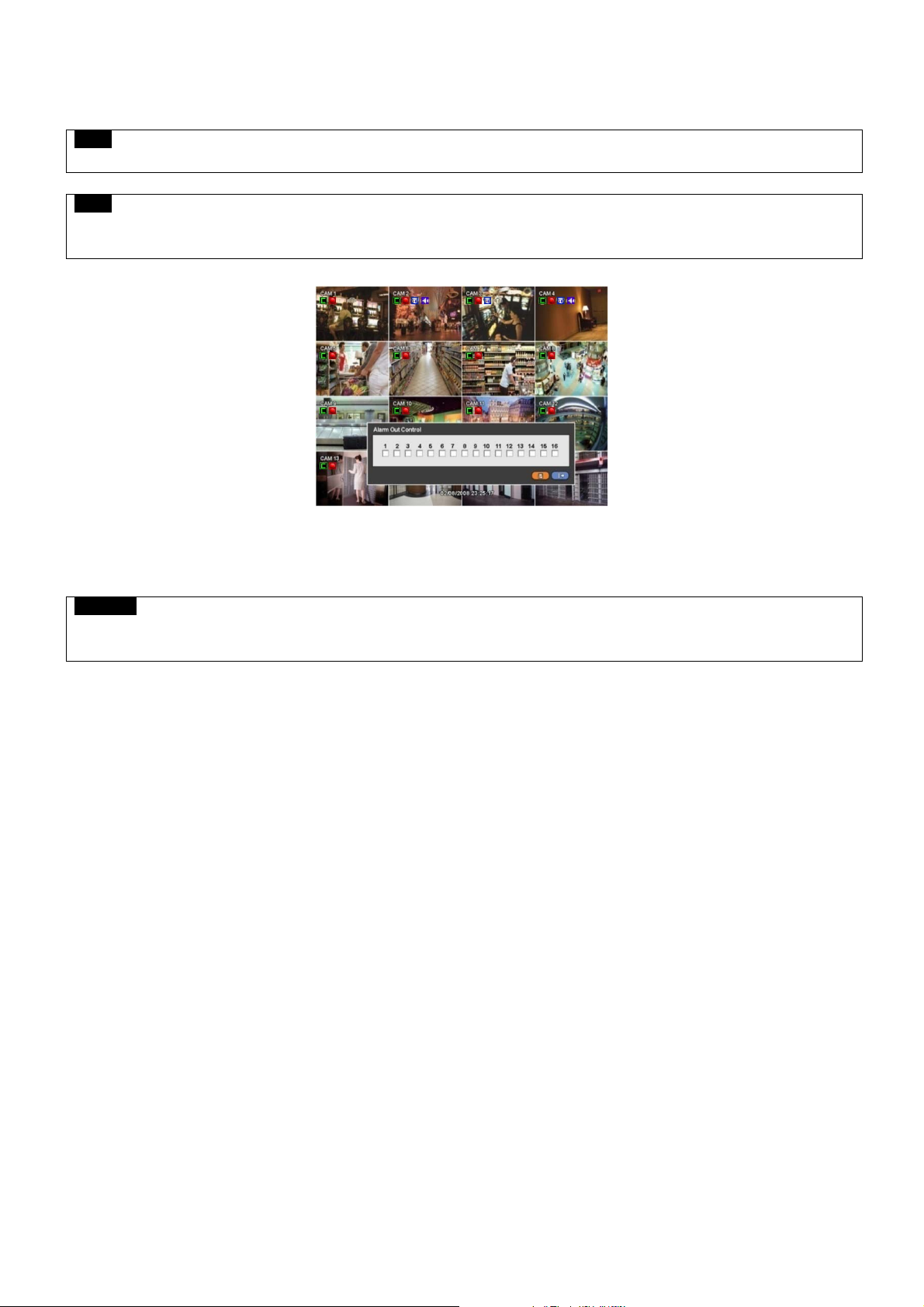

4.4.5 Alarm Out ...................................................... 47

4.4.6 Serial In ......................................................... 47

4.5 RECORD .......................................................... 48

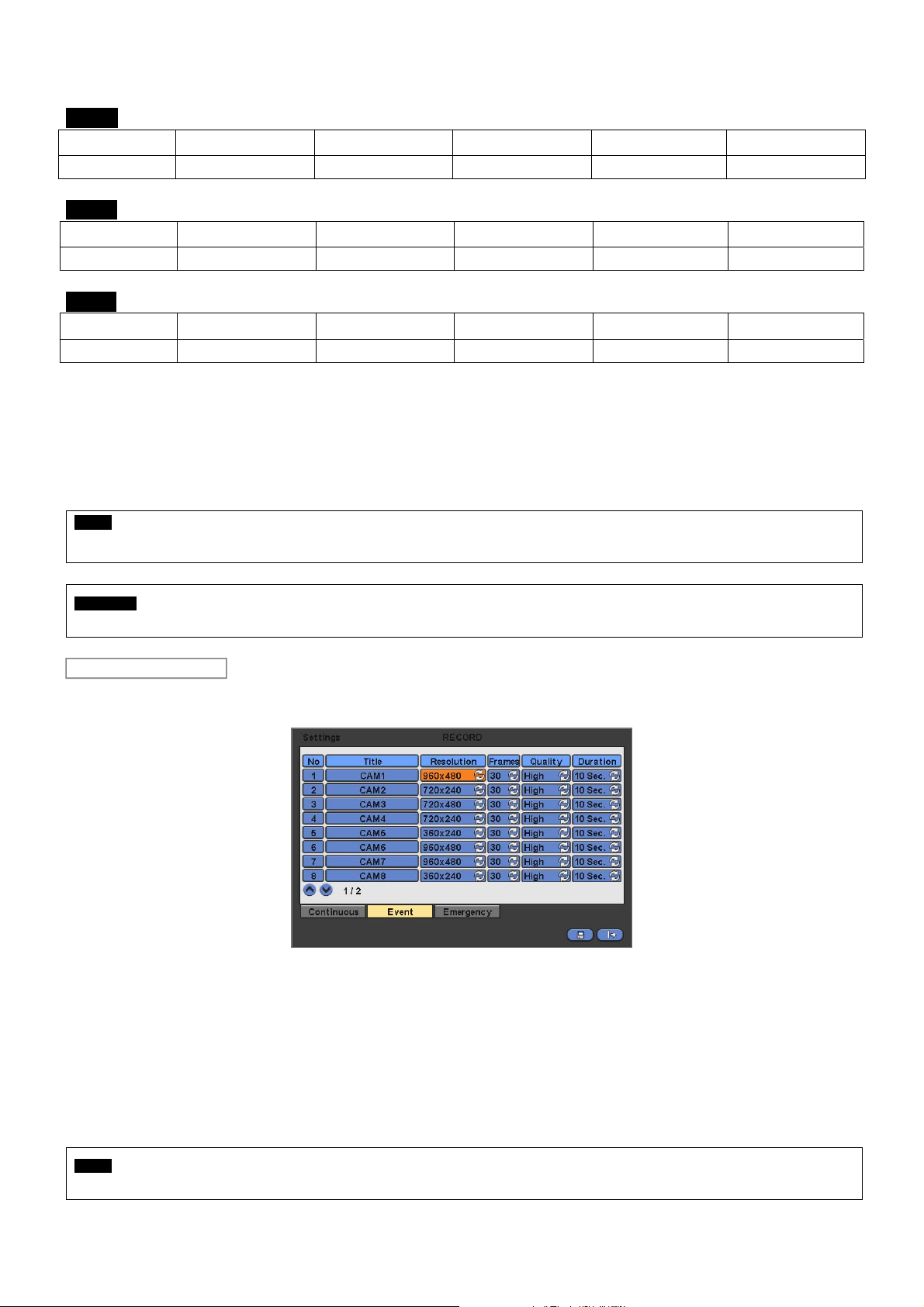

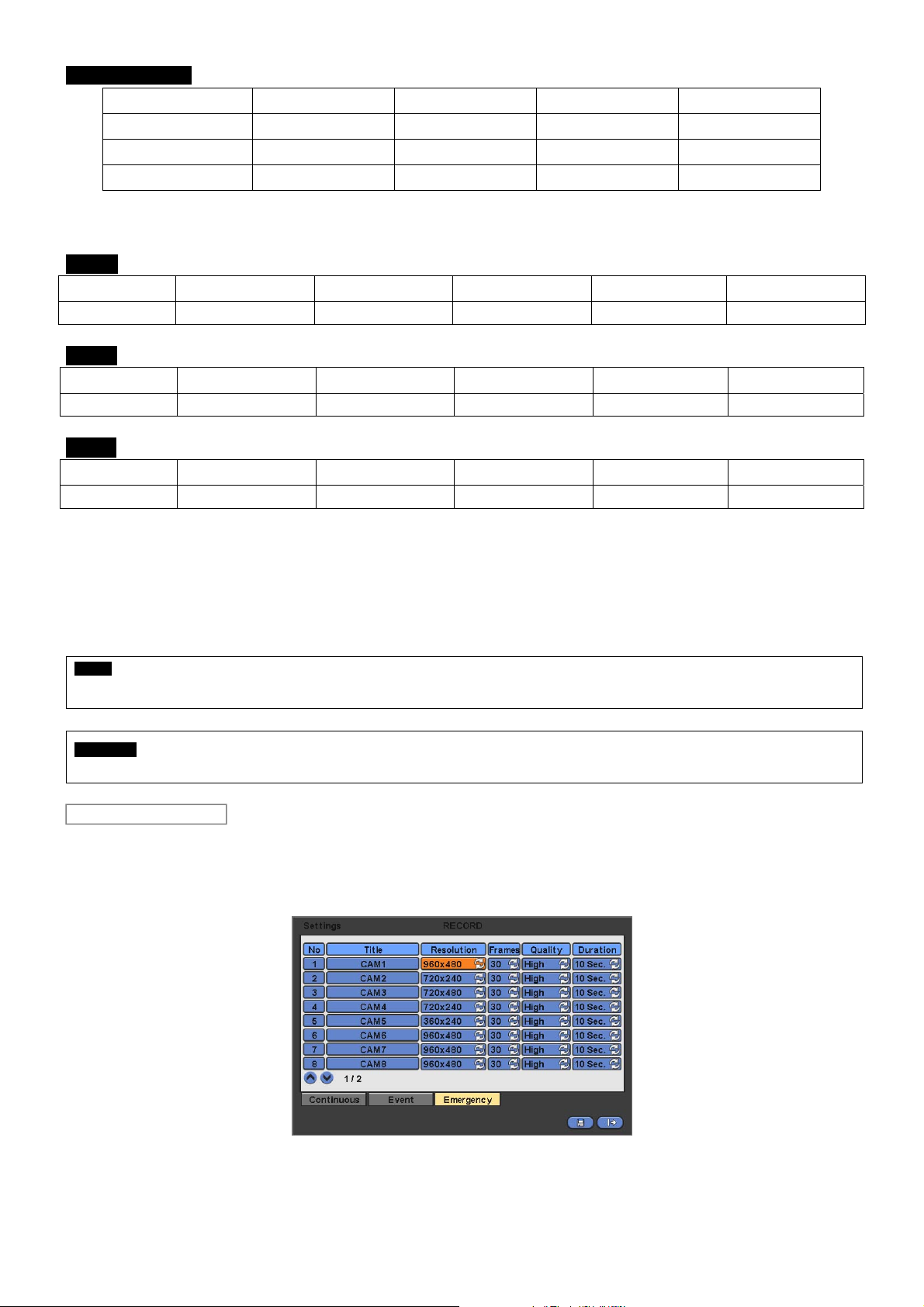

4.5.1 Setting ........................................................... 48

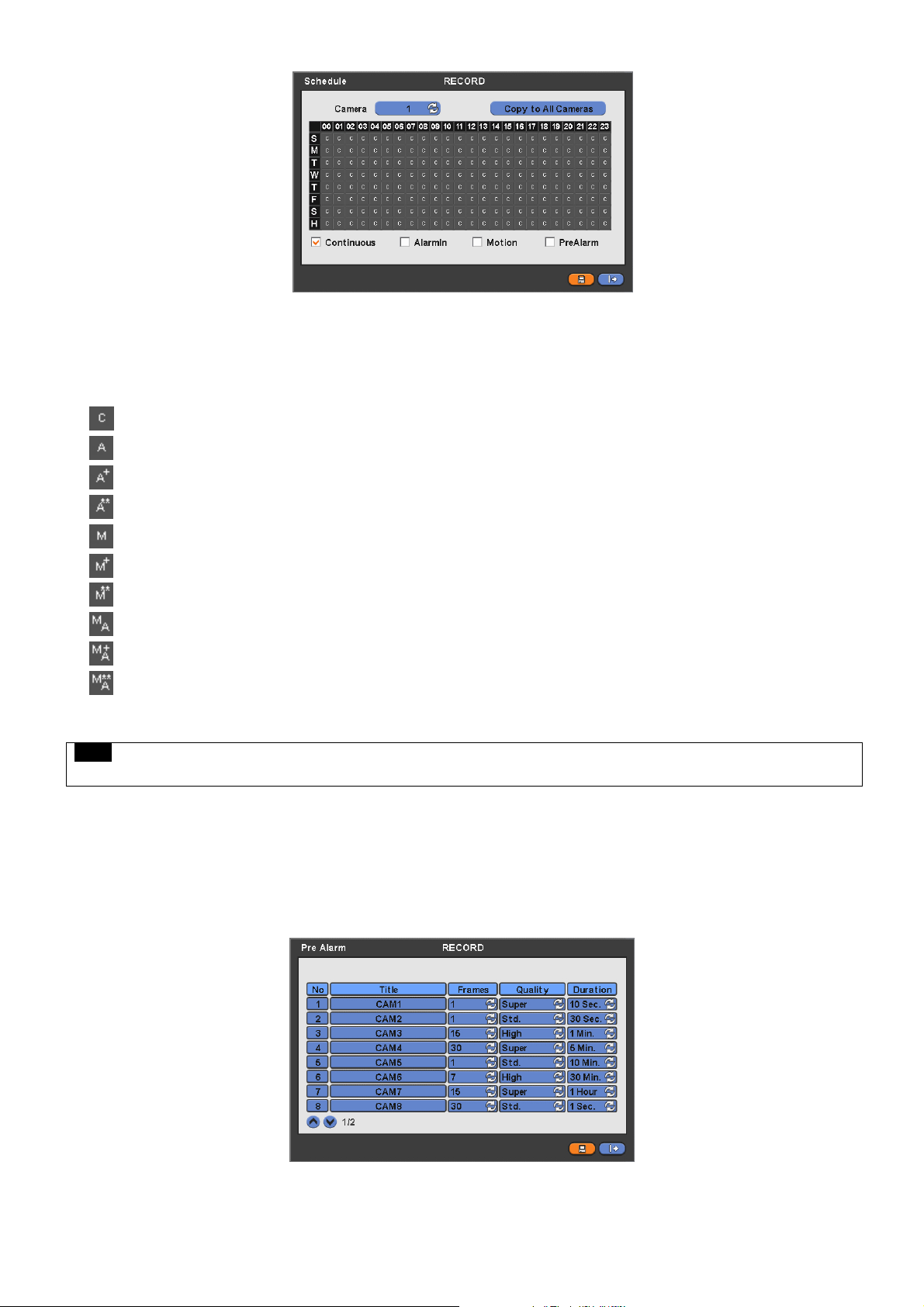

4.5.2 Schedule ....................................................... 51

4.5.3 Pre Alarm ...................................................... 52

4.5.4 Motion Detection ........................................... 53

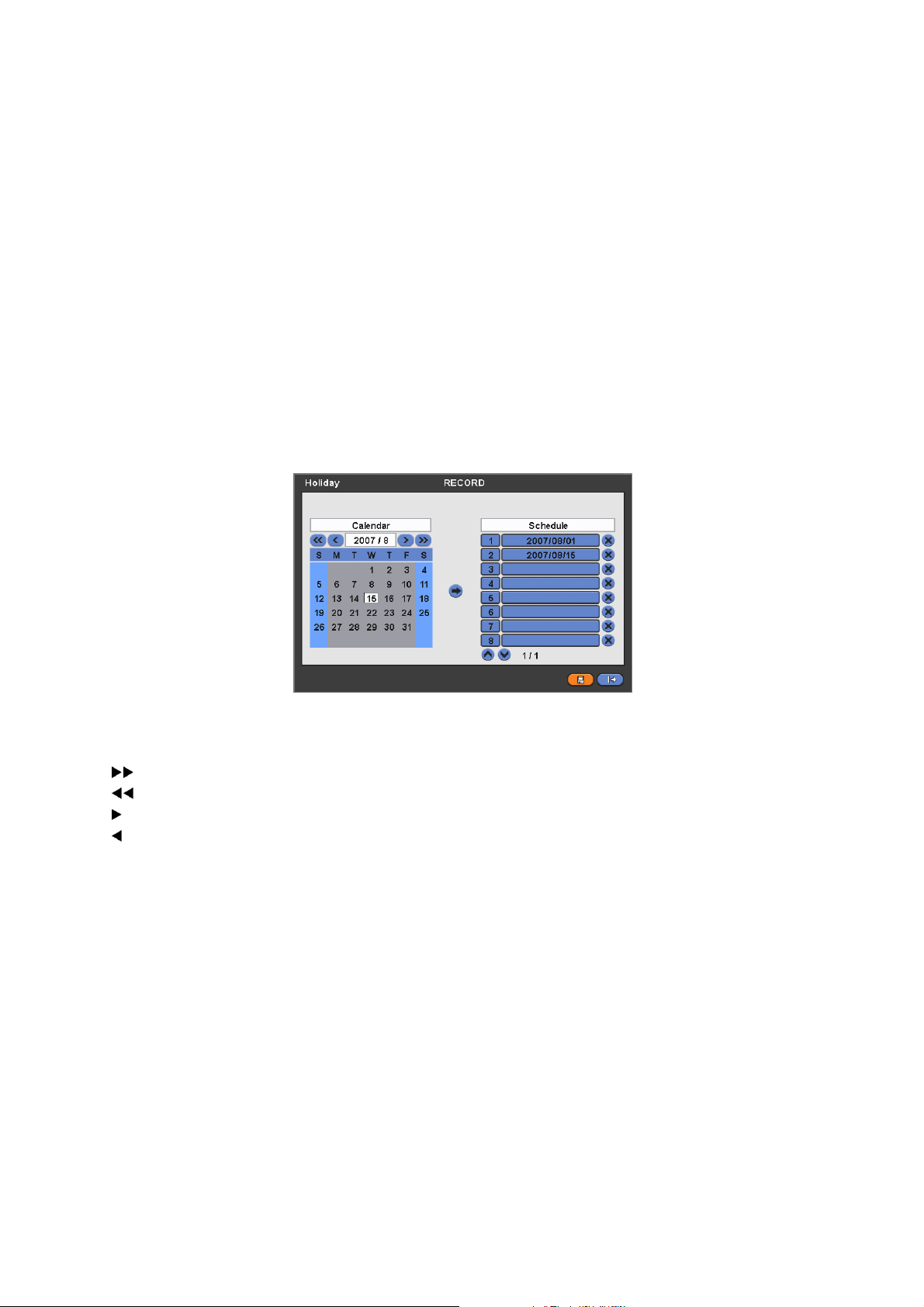

4.5.5 Holiday .......................................................... 54

4.6 LINK .................................................................. 55

4.6.1 Alarm In ........................................................ 55

4.6.2 Motion Event ................................................. 56

4.6.3 Video Loss .................................................... 56

4.6.4 System Event ................................................ 57

4.6.5 Popup Link .................................................... 57

5. OPERATION INSTRUCTION ....................... 58

5.1 Viewing ............................................................ 58

5.1.1 First Image .................................................... 58

5.1.2 View Format .................................................. 59

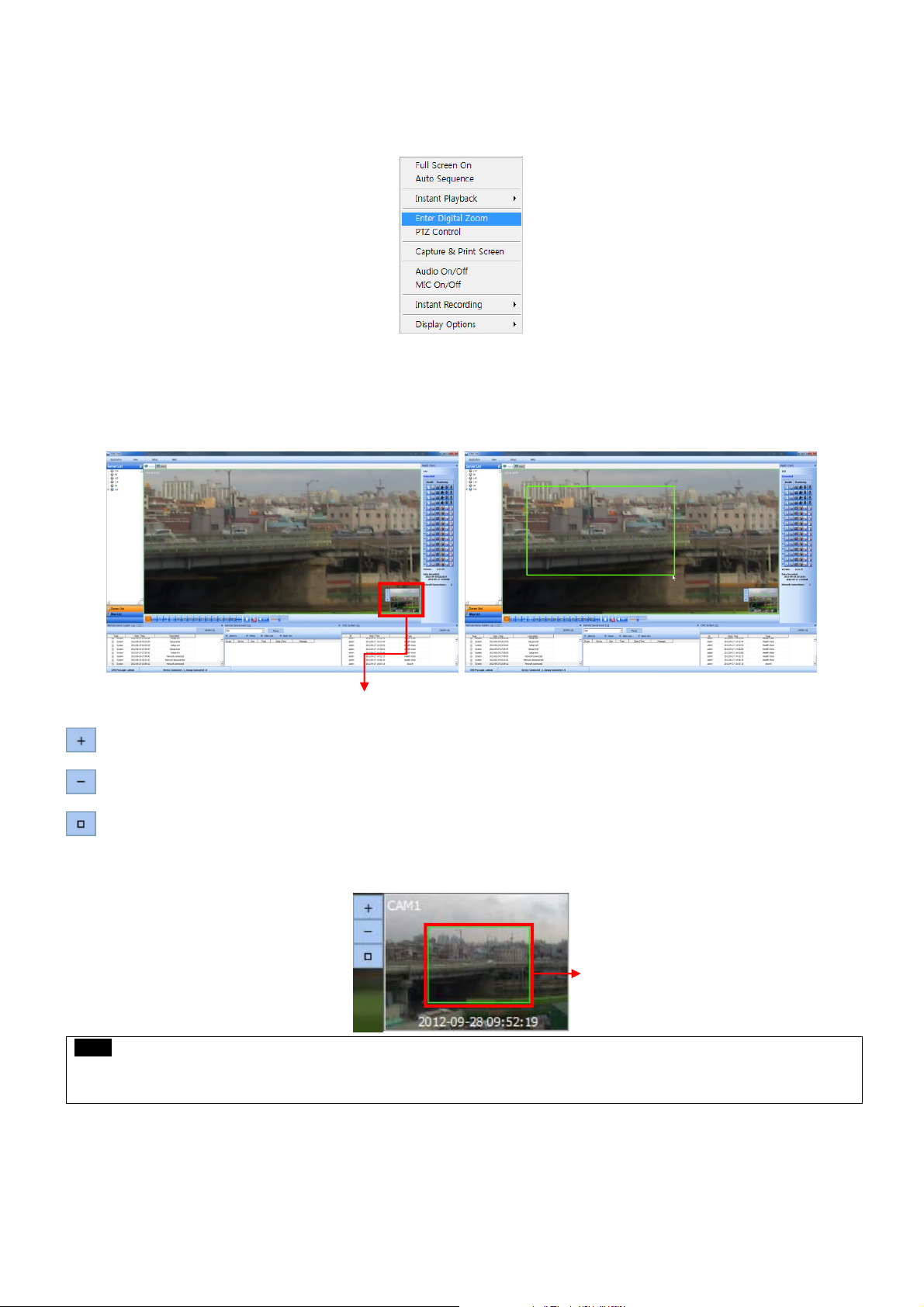

5.1.3 Digital Zoom .................................................. 59

5.1.4 Freeze Live Image ........................................ 59

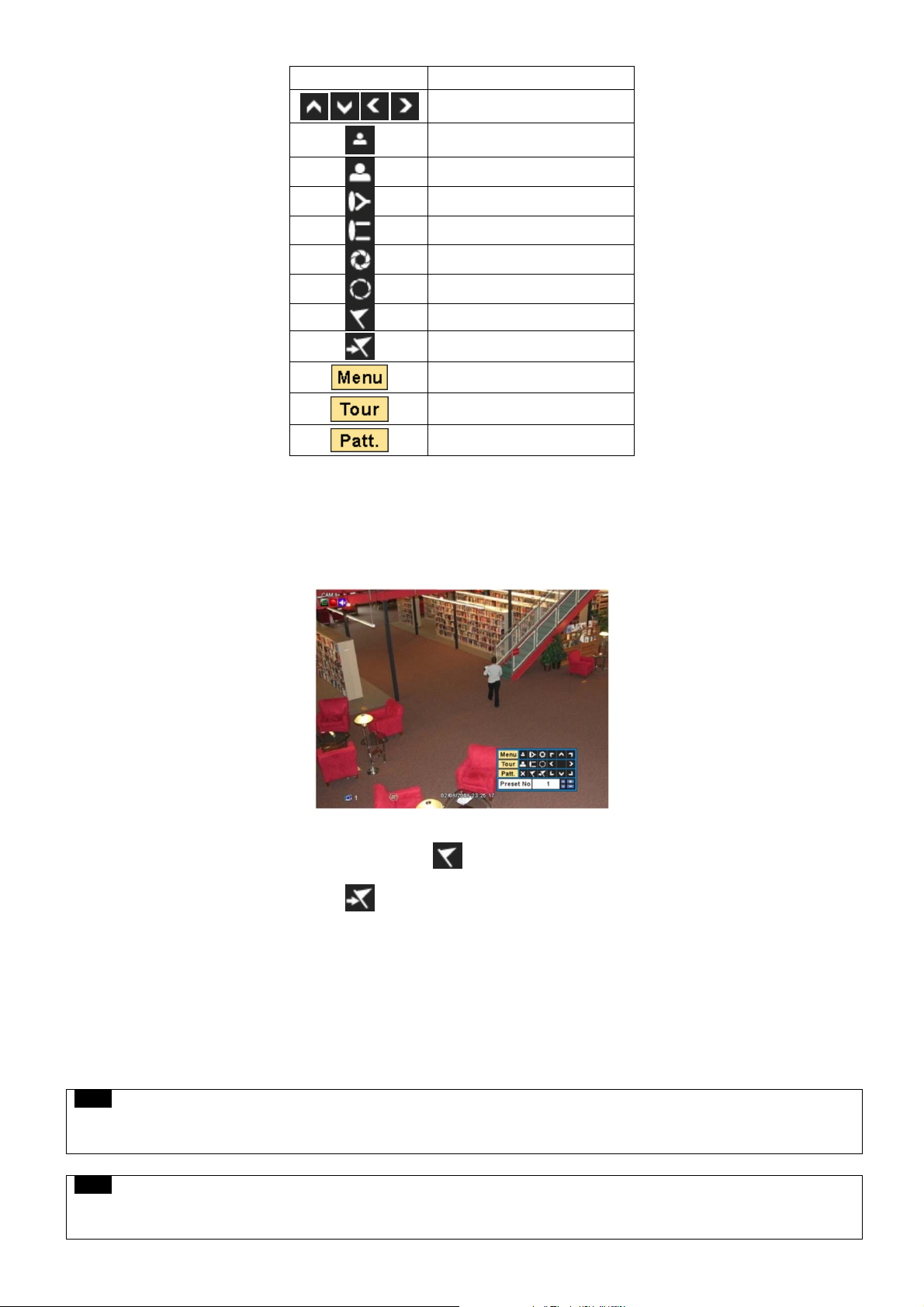

5.1.5 Pan / Tilt Control ........................................... 59

5.1.6 System Log ................................................... 61

5.1.7 Key Lock ....................................................... 61

5.1.8 Emergency Recording .................................. 61

5.2 Search .............................................................. 61

5.2.1 Date / Time Search ....................................... 62

5.2.2 Calendar Search ........................................... 62

5.2.3 Event Search ................................................ 63

3.5 Using a Mouse ................................................ 24

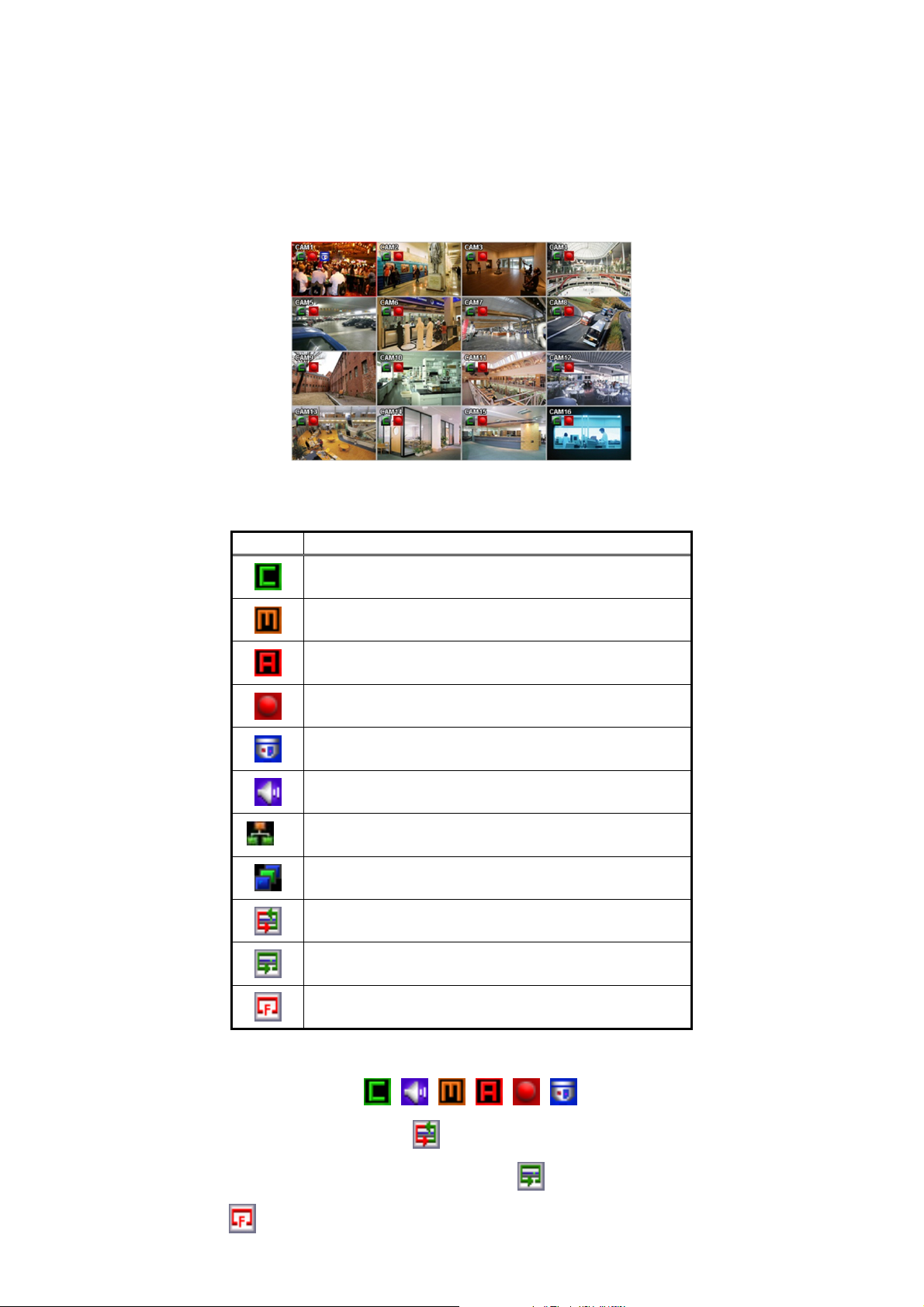

3.6 Screen Icon ..................................................... 25

4. SETUP .......................................................... 26

4.1 Login / Logout ................................................ 26

4.2 SYSTEM .......................................................... 27

4.2.1 Information ................................................... 27

4.2.2 Admin ........................................................... 30

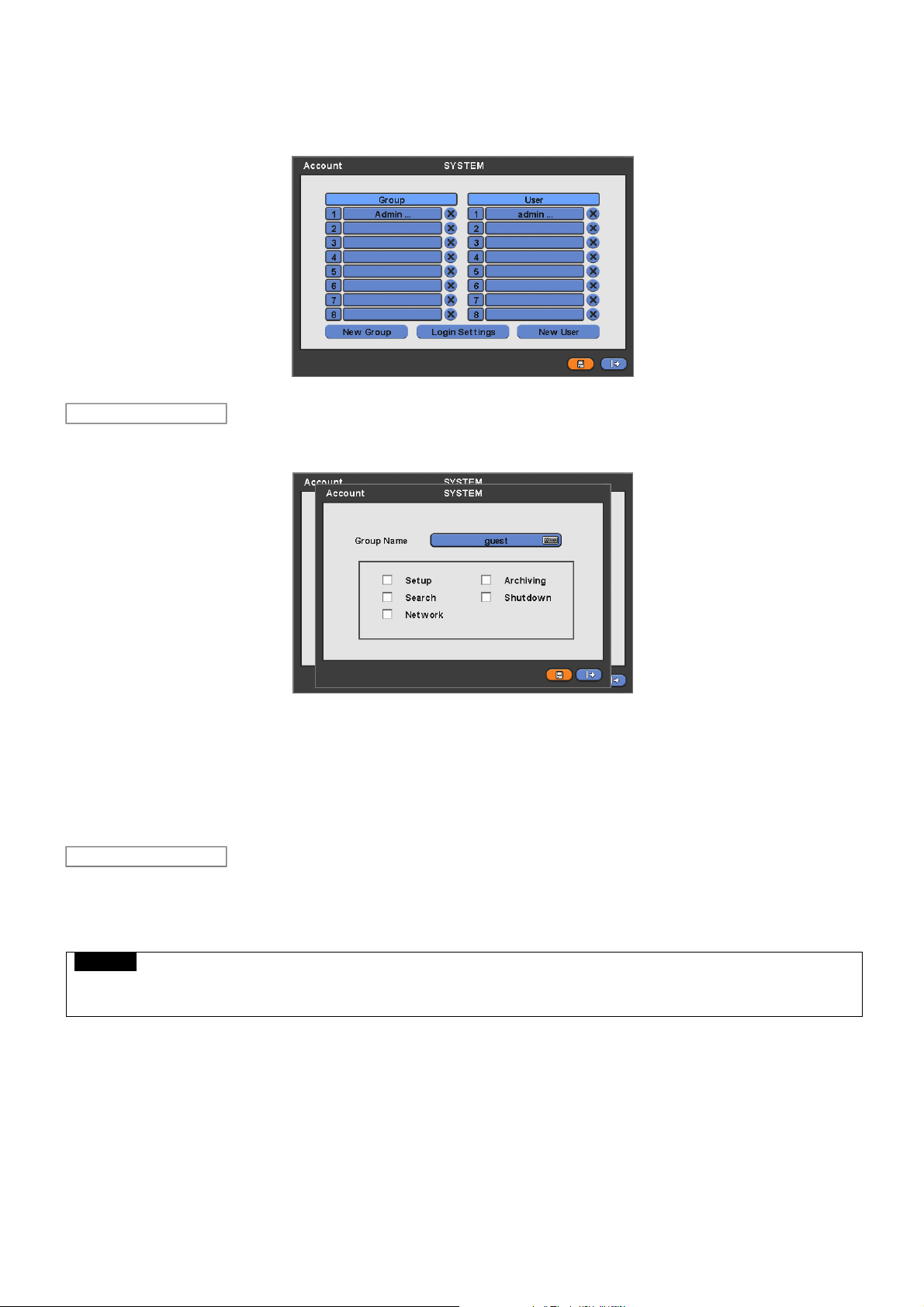

4.2.3 Account ........................................................ 34

4.2.4 System Log .................................................. 36

4.2.5 Exit ............................................................... 37

4.2.6 Shutdown ..................................................... 37

5.3 Playback .......................................................... 64

5.4 One-touch Playback ....................................... 65

5.5 Digital Zoom in Playback ............................... 65

5.6 Archive ............................................................. 65

5.7 Menu Bar .......................................................... 66

5.8 Alarm Out Control ........................................... 67

6. CMS PRO ..................................................... 69

6.1 CMS Pro Features ........................................... 69

6.1.1 Introduction ................................................... 69

6.1.2 Features ........................................................ 69

6.1.3 System Requirements .................................. 69

7.4.2 Local Setting ............................................... 108

6.2 Installation ...................................................... 70

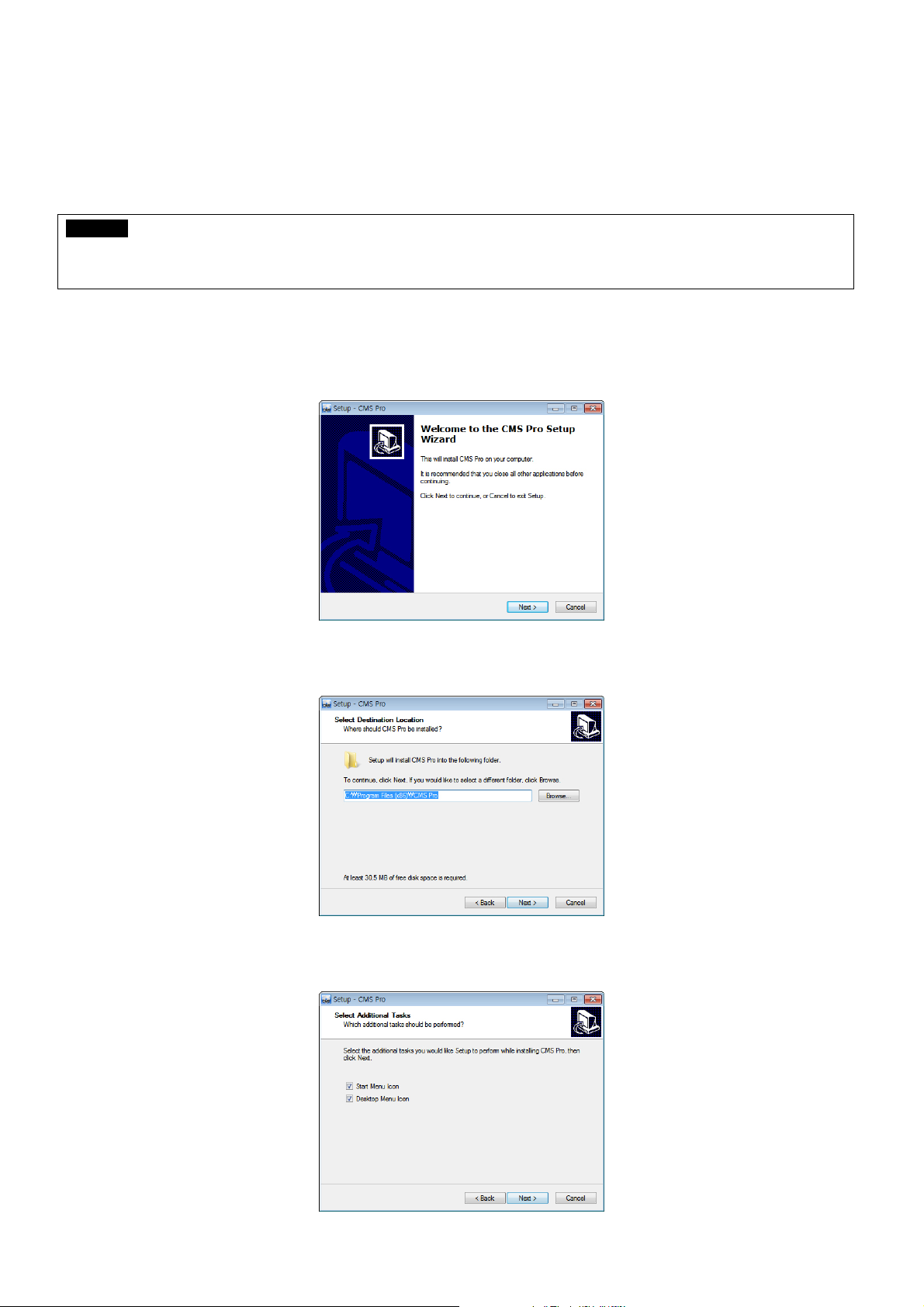

6.2.1 Software Installation ..................................... 70

6.2.2 Login ............................................................ 71

6.3 Menu ................................................................ 72

6.4 Setup ............................................................... 73

6.4.1 Local Setup - Device .................................... 73

6.4.2 Device Group Setup ..................................... 75

6.4.3 Local Setup - Environment ........................... 76

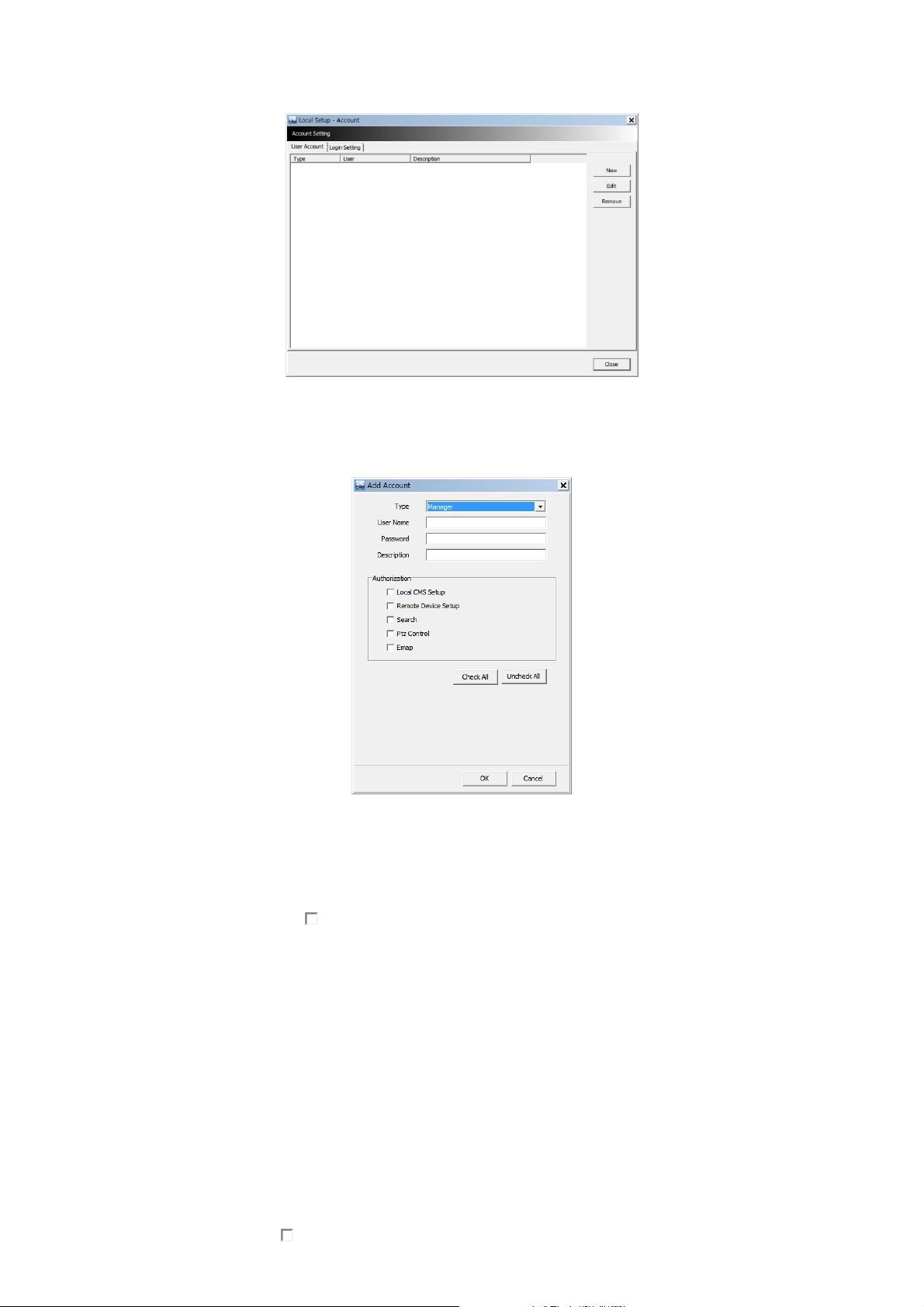

6.4.4 Local Setup - Account .................................. 78

6.4.5 Local Setup – E-map .................................... 80

6.4.6 Remote Device Setup .................................. 82

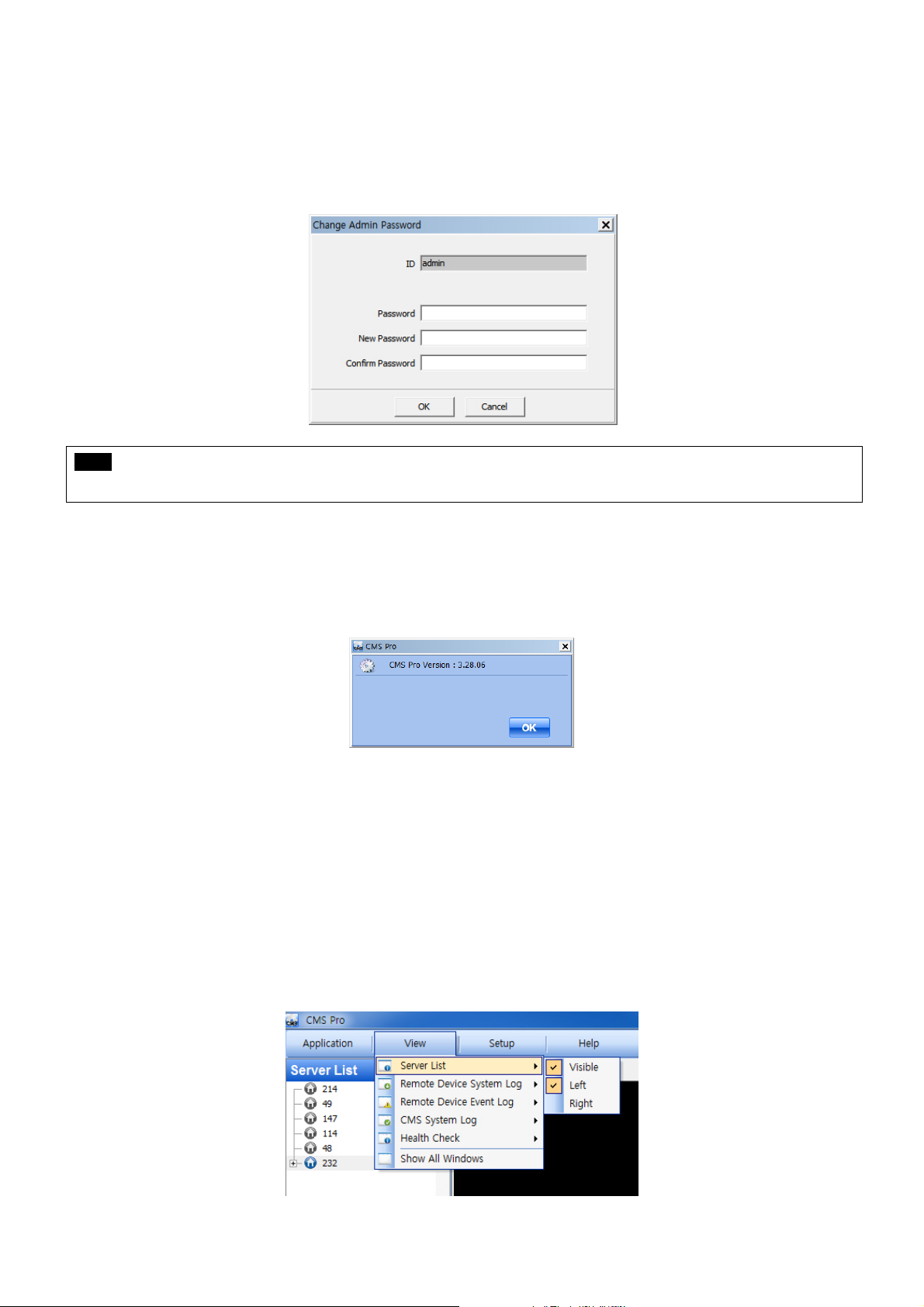

6.4.7 Change Password ........................................ 83

6.4.8 Help .............................................................. 83

6.5 View ................................................................. 83

6.5.1 Server List .................................................... 83

6.5.2 Remote Device System Log ......................... 84

6.5.3 Remote Device Event Log ............................ 84

6.5.4 CMS System Log ......................................... 85

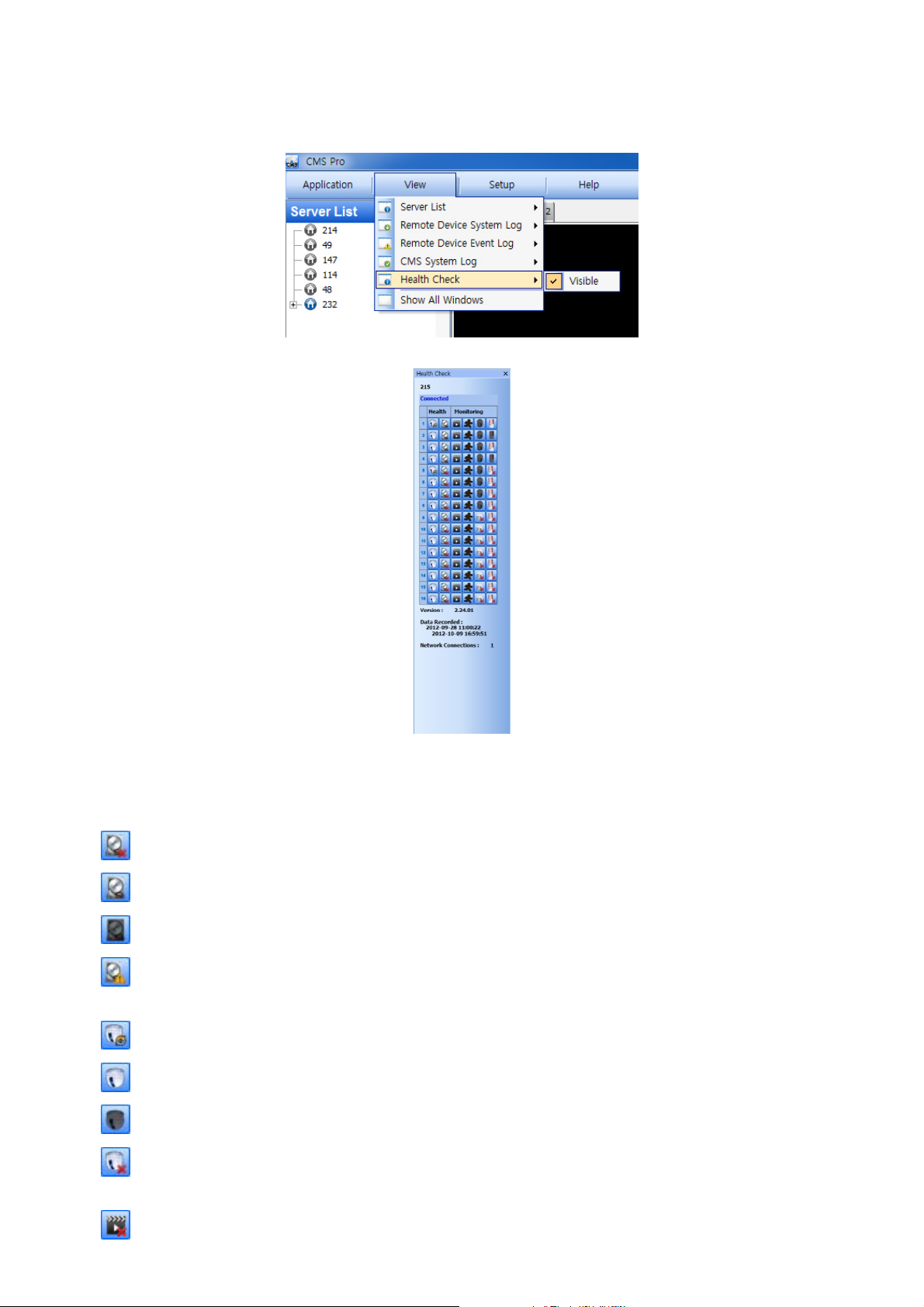

6.5.5 Health Check ................................................ 86

6.5.6 Show All Windows ........................................ 87

6.6 Application ...................................................... 88

6.6.1 Search .......................................................... 88

6.6.2 Exit ............................................................... 88

6.7 Live (Live Video Monitoring System) ........... 89

6.7.1 Overview ...................................................... 89

6.7.2 Live Monitor Menu ........................................ 89

6.7.3 Screen Layout Control .................................. 96

6.7.4 Change Division Display .............................. 96

6.7.5 Sequencing .................................................. 97

6.7.6 Audio Volume Control .................................. 97

7.5 Live View........................................................ 111

7.6 Search Mode ................................................. 114

7.6.1 Date/Time Search ....................................... 114

7.6.2 Event Search .............................................. 115

7.6.3 POS/ATM .................................................... 116

7.7 Disconnection ............................................... 117

7.8 Uninstall ......................................................... 118

8. XCMS VIEWER ........................................... 120

8.1 Program Installation ..................................... 120

8.2 Login .............................................................. 121

8.3 Watch Mode ................................................... 121

8.3.1 Login Screen ............................................... 121

8.3.2 Local Setting ............................................... 122

8.3.3 Live ............................................................. 125

8.4 Search Mode ................................................. 128

8.4.1 Date/Time Search ....................................... 128

8.4.2 Event Search .............................................. 129

8.4.3 POS/ATM .................................................... 130

8.5 Disconnection ............................................... 131

8.6 Uninstall ......................................................... 132

9. CMS WEB CLIENT PRO ............................ 134

9.1 System Requirements .................................. 134

9.2 Setup and Login ............................................ 134

9.3 Live Display ................................................... 135

9.4 Search Screen ............................................... 136

9.5 PTZ Control ................................................... 137

6.8 Search ............................................................. 98

6.8.1 Overview ...................................................... 98

6.8.2 Time Bar Search .......................................... 98

6.8.3 Event Search .............................................. 100

6.8.4 POS/ATM Search ....................................... 100

6.8.5 Thumbnail Search ...................................... 101

6.8.6 Smart Search ............................................. 101

6.9 E-Map ............................................................ 102

6.9.1 Overview .................................................... 102

6.9.2 Controls ...................................................... 102

6.9.3 E-map Camera – Instant Playback ............. 102

6.9.4 Alarm In/Out Control ................................... 103

6.9.5 Audio .......................................................... 103

6.10 Uninstalling CMS Pro ................................. 104

7. ICMS VIEWER ............................................ 106

7.1 System Recommendations ......................... 106

7.2 Program installation .................................... 106

7.3 Login ............................................................. 107

7.4 Watch Mode .................................................. 107

7.4.1 Log-in Screen ............................................. 107

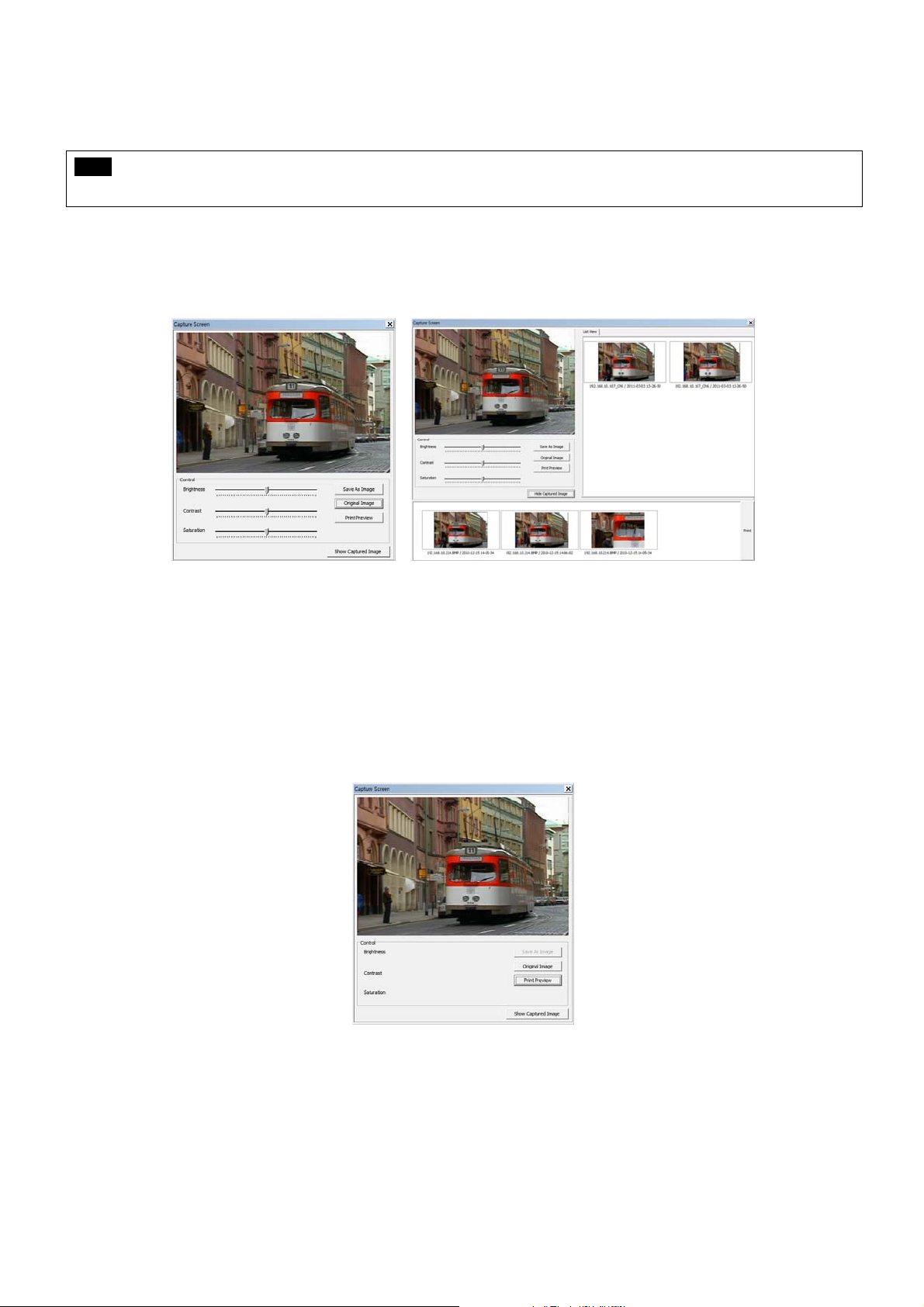

9.6 Capture .......................................................... 138

10. CMS MOBILE VIEWER ............................. 140

10.1 iPhone Mobile .............................................. 140

10.1.1 System Requirements ................................. 140

10.1.2 Installation ................................................... 140

10.1.3 Site Registration ......................................... 142

10.1.4 Connection .................................................. 143

10.1.5 Live View (Portrait View) ............................. 143

10.1.6 Live View (Landscape View) ....................... 144

10.1.7 PTZ Control ................................................ 144

10.1.8 Search ........................................................ 145

10.1.9 Snapshot gallery ......................................... 146

10.1.10 Setting .................................................... 147

10.1.11 Uninstallation .......................................... 147

10.2 iPad Mobile ................................................... 148

10.2.1 System Requirements ................................. 148

10.2.2 Installation ................................................... 148

10.2.3 Site Registration ......................................... 150

10.2.4 Connection .................................................. 150

10.2.5 Live View (Portrait View) ............................. 151

10.2.6 Live View (Landscape View) ....................... 152

10.2.7 PTZ Control ................................................ 152

10.2.8 Search ........................................................ 153

10.2.9 Snapshot gallery ......................................... 154

10.2.10 Setting ................................................... 155

10.2.11 Uninstallation ......................................... 155

10.3 Android Phone(mViewer Pro) .................... 156

10.3.1 System Requirements ................................ 156

10.3.2 Installation .................................................. 156

10.3.3 Site Registration ......................................... 157

10.3.4 Connection ................................................. 157

10.3.5 Live View (Portrait View) ............................ 158

10.3.6 Live view (Landscape View) ....................... 159

10.3.7 PTZ control ................................................. 160

10.3.8 Alarm Out Control ....................................... 160

10.3.9 Search ........................................................ 161

10.3.10 Snapshot Gallery ................................... 162

10.3.11 Setting ................................................... 162

10.3.12 Uninstallation ......................................... 163

10.4 Android Phone ............................................ 164

10.4.1 System Requirements ................................ 164

10.4.2 Installation .................................................. 164

10.4.3 Site Registration ......................................... 165

10.4.4 Connection ................................................. 166

10.4.5 Search ........................................................ 167

10.4.6 Audio .......................................................... 167

10.4.7 PTZ control ................................................. 168

10.4.8 Information ................................................. 168

10.4.9 Disconnection ............................................. 168

10.4.10 Uninstall ................................................. 169

10.5 Blackberry Mobile ....................................... 170

10.5.1 System Requirements ................................ 170

10.5.2 Installation .................................................. 170

10.5.3 Site Registration ......................................... 170

10.5.4 Connection ................................................. 171

10.5.5 PTZ Control ................................................ 172

10.5.6 Disconnection ............................................. 173

10.5.7 Uninstallation .............................................. 173

11. CP1200A KEYBOARD CONTROLLER.... 175

11.1 Connection .................................................. 175

11.1.1 Configuration Diagram I ............................. 175

11.1.2 Configuration Diagram II ............................ 175

11.1.3 Configuration Diagram III ........................... 176

11.2 Keyboard Setup in DVR ............................. 176

11.3 Keyboard Configuration ............................ 177

11.4 Operation ..................................................... 177

11.4.1 DVR/PTZ Mode conversion ........................ 177

11.4.2 DVR Control Mode ..................................... 177

11.4.3 PTZ Control Mode ...................................... 178

12. CP1300 KEYBOARD CONTROLLER ...... 180

12.1 Connection .................................................. 180

12.1.1 Configuration Diagram ............................... 180

12.1.2 USB Connection ......................................... 180

12.2 Keyboard Setup in DVR ............................. 180

12.3 Keyboard Configuration ............................. 181

12.4 Setup ............................................................. 182

12.4.1 DVR Control Mode ...................................... 182

12.4.2 Speed Dome Setup..................................... 183

12.4.3 Joystick Calibration ..................................... 183

12.5 Operation ...................................................... 183

12.5.1 DVR/SPD Mode conversion ........................ 183

12.5.2 DVR Control Mode ...................................... 183

12.5.3 SPD Control Mode(Speed Dome) ............... 185

13. SERIAL IN (POS) ...................................... 188

13.1 Usage of Serial-In Function ........................ 188

13.2 Connection Method ..................................... 188

13.3 Connection Diagram ................................... 188

13.4 Link ............................................................... 190

13.4.1 Link Setup ................................................... 190

13.4.2 Schedule Setup .......................................... 191

13.5 Setup ............................................................. 191

13.5.1 Title ............................................................. 191

13.5.2 Port Setting ................................................. 192

13.5.3 OSD Display ............................................... 192

13.5.4 Pattern Setting ............................................ 192

13.6 Search ........................................................... 195

14. HD-SDI VIDEO SIGNAL ACCESSORIES 198

14.1 HSC1100 ....................................................... 198

14.1.1 Introduction ................................................. 198

14.1.2 Features ...................................................... 198

14.1.3 Technical Specification ............................... 198

14.1.4 Unpacking ................................................... 198

14.1.5 Service ........................................................ 198

14.1.6 System Dimension Diagram ....................... 199

14.1.7 System Connection Diagram ...................... 199

14.1.8 Cable .......................................................... 199

14.1.9 Display ........................................................ 200

14.2 HSC1200 ....................................................... 200

14.2.1 Introduction ................................................. 200

14.2.2 Features ...................................................... 200

14.2.3 Technical Specification ............................... 200

14.2.4 Unpacking ................................................... 200

14.2.5 Service ........................................................ 201

14.2.6 System Dimension Diagram ....................... 201

14.2.7 Connector Wiring ........................................ 201

14.2.8 Cable .......................................................... 201

14.2.9 Operation Key ............................................. 202

14.3 HSC2110 ....................................................... 203

14.3.1 Introduction ................................................. 203

14.3.2 Features ...................................................... 203

14.3.3 Technical Specification ............................... 203

14.3.4 Unpacking ................................................... 203

14.3.5 Service ........................................................ 203

14.3.6 System Dimension Diagram ....................... 203

14.3.7 Connector Wiring ........................................ 204

14.3.8 PTZ Control ................................................ 204

14.3.9 Cable .......................................................... 204

14.3.10 Display ................................................... 204

14.4 HSC2410 ...................................................... 205

14.4.1 Introduction ................................................ 205

14.4.2 Features ..................................................... 205

14.4.3 Technical Specification ............................... 205

14.4.4 Unpacking .................................................. 205

14.4.5 Service ....................................................... 205

14.4.6 System Dimension Diagram ....................... 205

14.4.7 Connector Wiring ........................................ 206

14.4.8 Cable .......................................................... 206

14.4.9 Display ....................................................... 206

14.5 HSR1110 ...................................................... 207

14.5.1 Introduction ................................................ 207

14.5.2 Features ..................................................... 207

14.5.3 Technical Specification ............................... 207

14.5.4 Unpacking .................................................. 207

14.5.5 Service ....................................................... 207

14.5.6 System Dimension Diagram ....................... 207

14.5.7 Connector Wiring ........................................ 208

14.5.8 Cable .......................................................... 208

14.5.9 Display ....................................................... 208

14.6 HSR1440 ...................................................... 209

14.6.1 Introduction ................................................ 209

14.6.2 Features ..................................................... 209

14.6.3 Technical Specification ............................... 209

14.6.4 Unpacking .................................................. 209

14.6.5 Service ....................................................... 209

14.6.6 System Dimension Diagram ....................... 209

14.6.7 Connector Wiring ........................................ 210

14.6.8 Cable .......................................................... 210

14.6.9 Display ....................................................... 210

14.7 HQS1004 ...................................................... 211

14.7.1 Introduction ................................................ 211

14.7.2 Features ..................................................... 211

14.7.3 Technical Specification ............................... 211

14.7.4 Unpacking .................................................. 211

14.7.5 Service ....................................................... 211

14.7.6 System Dimension Diagram ....................... 211

14.7.7 Connector Wiring ........................................ 212

14.7.8 Cable .......................................................... 212

14.7.9 Display ....................................................... 212

14.8 HFO1100 & HFO1200 .................................. 213

14.8.1 Introduction ................................................ 213

14.8.2 Features ..................................................... 213

14.8.3 Technical Specification ............................... 213

14.8.4 Unpacking .................................................. 213

14.8.5 Service ....................................................... 213

14.8.6 System Dimension Diagram ....................... 214

14.8.7 Connector Wiring ........................................ 214

14.8.8 Cable .......................................................... 215

14.8.9 Display ....................................................... 215

1. Product Features

1.1 Unpacking

 This equipment is an electronic appliance, so it should be handled with special care.  After unpacking, please check if all the following items are included.

- DVR Main body

A, D and E Type

B, C and F Type

- Remote Control With 2 AAA batteries

- Installation CD (CMS Software & User’s Manual)

1.2 Service

 If there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel.

Warning

WARRANTY IS VOID IF SEAL OR LABEL IS REMOVED OR DAMAGED.

1.3 System Connection Diagram

: Power Supply Adapter (DC 12V, 5A) and Power Supply Cable : Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable

A Type –4 / 8 / 16 channel Series DVR

B Type –4 / 8 / 16 channel Series DVR

C Type –4 / 8 / 16 channel Series DVR

D Type –4 channel Series HD-SDI DVR

E Type –4 channel Series HD-SDI DVR

F Type –4 channel Series HD-SDI DVR

2. Installation

2.1 Hard disk and DVD-RW Installation

2.1.1 SATA Port

 When installing HDDs, make sure to connect from SATA 1 Port. 

A and E Type

- Main substrate of this DVR has one SATA port: it is indicated as SATA 2.



B, C and F Type

- Main substrate of this DVR has five SATA ports: they are indicated as SATA 1, 2, 3, 4 and SATA 5.

- Please mount DVD-RW at the SATA 5 port.



D Type

- Main substrate of this DVR has one SATA port: it is indicated as SATA 1.

 Up to five SATA devices (HDD and DVD-RW) are able to be connected to the SATA ports in serial; however the devices

must be connected onto correct SATA port.

 Refer to the table below to mount HDDs and DVD-RW.

A and E Type

4 / 8 / 16 CH DVR

B, C and F Type

4 / 8 / 16 CH DVR

D Type

4 / 8 / 16 CH DVR

Storage SATA 1, 2 Port

HDD 1

1 HDD --2 HDD HDD

Storage SATA 1, 2 Port SATA 3, 4 Port

HDD DVD-RW 1 2 3 4 5

1 1 HDD --- --- --- DVD-RW 2 1 HDD HDD --- --- DVD-RW 3 1 HDD HDD HDD --- DVD-RW 4 1 HDD HDD HDD HDD DVD-RW 4 0 HDD HDD HDD HDD ---

Storage SATA 1 Port

HDD 1

1 HDD

SATA 5

Port

2.1.2 Internal SATA Storage

 B, C and F Type DVR has 5 internal SATA Ports.  1-4 SATA Port: It is designed to mount HDD. Connect from SATA 1 port when installing HDDs.  5 SATA Port: Please mount DVD-RW.  Only one DVD-RW can be installed among the SATA Ports.

2.1.3 e-SATA External Storage (B, C and F Type)

 This series DVR has 1 external SATA Port; the picture above shows external SATA 6 Port.  6 SATA Port: It is designed to mount 4HDDs per each external SATA Port.

2.1.4 HDD Installation

 Securely fix a hard disk by using bracket and screws provided herewith.  Please do not use any different hard disk cables (data cable and power supply cable) other than ones we provide.  Otherwise, it may cause damage to the hard disk.

CAUTION

INSTALL HARD DISK AFTER DVR POWER IS OFF. OTHERWISE, IT MAY CAUSE PERMANENT DAMAGE TO THE HARD DISK. TO TURN OFF DVR, PLEASE CLICK ( ) SETUP>SYSTEM>SHUTDOWN. ALSO, WAIT FOR 5 SECONDS BEFORE PLUGGING IN POWER SUPPLY AGAIN.

CAUTION

 FOR INSTALLATION/ADDITION/REPLACEMENT/REMOVAL OF HDD (DVD-RW), MAKE SURE THAT DVR IS TURNED

OFF. OTHERWISE, IT MAY CAUSE PERMANENT DAMAGE TO THE HDD (DVD-RW)

 INSTALLATION/ADDITION/MOVING/REPLACEMENT: USER SHOULD START ‘HDD INITIALIZATION’ INCLUDING

FORMATTING. OTHERWISE, DVR WON’T RECOGNIZE THE HARD DISK AND MAY BEGIN TO FUNCTION ABNORMALLY. PLEASE FOLLOW THE BELOW PROCEDURE FOR ‘HDD INITIALIZATION’.

①

(DATE/TIME SETUP) SET UP THE CURRENT DATE AND TIME (SETUP>SYSTEM>ADMIN>DATE/TIME) (INITIALIZATION OF SYSTEM SETUP) ALL VALUES IN SETUP ARE RESTORED TO FACTORY DEFAULT SETTINGS.

②

(SETUP>SYSTEM>INFORMATION>STATUS>SETUP>DEFALUT)

③

(HDD FORMAT) HDD FORMAT IS DONE BY SETUP>SYSTEM>ADMIN>STORAGE>FORMAT. IF THERE ARE MORE THAN TWO HDDS, EACH MUST BE FORMMATED SEPARATELY. WHEN THE FORMAT IS COMPLETED, DVR WILL AUTO-REBOOT.

 REMOVAL: FOLLOW THE REMOVE PROCEDURE EVEN WHEN A PRE-INSTALLED HARD DISK HAS BEEN

REMOVED. – SETUP>SYSTEM>ADMIN>STORAGE>FORMAT, CLICK

FORMAT HEADINGS OF A CRRESPONDING HDD TO DISCARD ‘HDD’ ITEM. WHEN THE REMOVE PROCEDURE IS COMPLETED, DVR WILL AUTO-REBOOT.

( ) ‘REMOVED’ITEM UNDER THE DISCRETE

2.1.5 Maximum HDD Capacity

 Each model has a different HDD capacity recognition.  Below table shows the recommended maximum HDD capacity for each model.

Model A type B type C type D type E type F type

Capacity 6TB 16TB 16TB 3TB 6TB 16TB

2.1.6 DVD-RW installation

 Securely fix DVD-RW by using bracket and screws provided herewith.  Please do not use any different DVD-RW cables (data cable and power supply cable) other than the ones we provide.  Otherwise, it may cause damage to the DVD-RW.  Only one DVD-RW can be used. Mount it at the SATA 5 port (B, C and F Type).

CAUTION

INSTALL DVD-RW OR/AND HARD DISK AFTER DVR POWER OFF. OTHERWISE, IT MAY CAUSE PERMANENT DAMAGE TO THE HARD DISK. TO TURN OFF DVR, PLEASE CLICK ( ) SETUP>SYSTEM>SHUTDOWN. ALSO, WAIT FOR 5 SECONDS BEFORE PLUGGING IN POWER SUPPLY AGAIN.

2.2 Connector Wiring

2.2.1 Video-In/Loop Out Connections

A, B and C Type

 Connect a camera to ‘VIDEO IN’.  If user wishes to link camera input to another device, please connect the camera to ‘LOOP OUT’. (B Type).  Assure the ‘VIDEO IN’ and ‘LOOP OUT’ connections are connected properly, not oppositely.

D, E and F Type

 Connect cameras to ‘HD-SDI IN’ to channel 1 to 4.

NOTE

Only B Type model supports LOOP OUT connection.

2.2.2 HD-SDI Camera Input Format (D, E and F Type)

 HD-SDI recorder shall recognize following HD-SDI signals

720P 24, 720P 25, 720P 30, 720P 50, 720P 60, 1080I 50, 1080I 60, 1080P 24, 1080P 25, 1080P 30, 1080P 50 and 1080P 60.

2.2.3 HD-SDI Input Signal detection (D, E and F Type)

 These type of DVRs will automatically detect the input signals from 720P 24, 720P 25, 720P 30, 720P 50, 720P 60, 1080I 50,

1080I 60, 1080P 24, 1080P 25, 1080P 30, 1080P 50, 1080P 60 (Auto Detection) when the system starts.

 720P and 1080P HD-SDI inputs can be used simultaneously without any restriction on different channel.  1080I input cannot be used simultaneously with 720P and/or 1080P.

2.2.4 Monitor Connections (Video Out, VGA and Multi Spot)

 Video Out (A, B, C and F Type Only)

- Use with the CCTV monitor.

- Connect BNC cable between CCTV monitor and ‘VIDEO OUT’ of the DVR.

 VGA

- Use with the computer monitor.

- Connect VGA cable between computer monitor and ‘VGA’ of the DVR

 Multi Spot (A, B, C and F Type Only)

- This function supports Multi Channel Display on Spot Monitor

- Connect BNC cable between spot monitor and multi spot port of rear panel.

CAUTION

BLACK SCREEN WILL APPEAR IF THE MONITOR DOEST NOT SUPPORT THE SELECTED RESOLUTION. UNLESS USER PRESS ‘OK’ DURING BLACK SCREEN, SYSTEM WILL AUTOMATICALLY GO BACK TO THE PREVIOUS RESOLUTION IN 15 SECONDS.

2.2.5 HDMI connections

 Connect HDMI cable to HD out port of rear panel and HDMI port of HD output device.  Please click ( ) SETUP> DISPLAY> VGA and the following screen will appear.

 Click the box below to select resolution.

- User can select the resolution among ‘1920x1080 RB’, ‘1920x1080’, ‘1680x1050 RB’, ‘1680x1050’, ‘1280x1024’, and ‘1024x768’

- The default setting of DVR is ‘1280 x 1024’.

 Click the box below to select signal format.

- User can select the signal output among ‘NTSC’, ‘PAL’ and ‘AUTO’.

- The default setting of DVR is ‘AUTO’

CAUTION

HDMI CONNECTION MAY NOT BE COMPATIBLE WITH CERTAIN OUTPUT DEVICE. VIDEO NOISE MAY OCCUR DEPENDING ON THE TYPE OF HDMI CABLE USED. MAKE SURE TO USE AN HDMI-CERTIFIED CABLE

CAUTION

2.2.6 Audio Connections

 Connect an audio device to ‘AUDIO IN’ and a speaker system to ‘AUDIO OUT’. Please use a speaker system with volume

adjustable.

2.2.7 TCP/IP(Ethernet) Connections

 Connect to ‘ETHERNET’ connector with the LAN cable.  When connect to Internet, use an ordinary LAN cable (Non-cross cable). However, when connect directly to a PC, please

use only ‘Crossover cable’.

2.2.8 Alarm Connections(TTL)

 Connect Alarm Input (Sensor) to ‘AI 1~AI 4 (or AI 16)’ connectors and connect Sensor Common to ‘G’ connector.  Connect Alarm Output (buzzer, siren, etc.) to ‘AO 1~AO 4 (or AO 16)’ connectors and connect Common to ‘G’ connector.

2.2.9 Alarm Connections(Relay (Dry Contact))

 Connect Alarm Output (buzzer, siren, etc.) to ‘NO or NC 1~ NO or NC 2’ connectors, Power to ‘COM’ connector and Ground

to ‘GND’ connector.

2.2.10 RS-485/422 Connections

 PTZ Camera connector.  Please use TX+, TX-, RX+ and RX- terminals.

2.2.11 RS-485 Over Coax Connection (A and B Type ONLY)

 PTZ Camera Connector  Please connect Coax to ‘Video In’ and select any Protocol in Camera/PTZ setup..

NOTE

PTZ Camera must support Pelco-C Protocol in order to use this feature.

NOTE

When selecting Protocol, user can choose any protocol from the Protocol list other than ‘NONE’. If ‘NONE’ is selected then RS485 over Coax will not work.

2.2.12 USB Connections

 There are up to four identical USB ports in front and in rear. It is possible to connect a USB memory stick to archive data or

a mouse to control the device.

2.2.13 RS-232 Connections

 This port is not in use for users. Do not connect any devices through this port.

CAUTION

WHEN USING THE RS232 SERIAL PORT, USERS MUST REQUEST FOR ASSISTANT TO QUALIFIED TECHNICAL PERSON OR SERVICE REPRESENTATIVE.

2.2.14 Grounding (Earthing)

 Connection of ground wire is highly recommended to protect the DVR from external electric shock, such as lightening,

electrical surge.

2.2.15 Factory Reset Switch

 Reset the switch to restore all setup values of menus to factory default settings. It is also possible to use to initialize System

Log file.

 The switch is located in a pin hole of the back panel.  Put the clip pin into the switch hole on the monitor (Live) screen and keep pressing until the switch has clicked.

CAUTION

PRESS FACTORY RESET SWICH ONLY IN LIVE MODE NEVER PRESS IN SETUP MODE.

2.2.16 Power Supply connections

 A, D and E Type : Plug the power supply adapter (DC 12V, 5A) which include in this product to ’DC12V’ connector and

plug another side to power source. Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter because it may cause the DVR to malfunction.

 B, C and F Type : Plug the power supply adapter (DC 12V, 6.67A) which include in this product to ’DC12V’ connector and

plug another side to power source. Adapter input voltage is a free volt (100 VAC ~ 240 VAC). Please do not use any different power supply adapter because it may cause the DVR to malfunction.

 Please do not use any different power supply adapter because it may cause the DVR to malfunction.

2.2.17 Connections Guideline

 Video Out Connector: If only the monitor is connected to VIDEO OUT connector, please set the impedance switch on the

rear side of the monitor to 75 ohms to prevent abnormally bright or collapsed images. If wish to connect another device (e.g., a recorder) to the back of the monitor, please set the impedance switch on the rear side of the monitor to HIGH Z (High Impedance) and set the last device to 75 ohms.

 Alarm Input Connector: Do not input any type of voltage to the AI 1~AI4 (AI 16) connectors.

3. Input Device and Screen Icons

3.1 Key and LEDs

 B, C and F Type

KEYS Front Button Operating mode Setup mode

•Up/Down/Left/Righ

Direction ▲, ▼, ◄, ►

• Control Pan/Tilt rotation of up/down/left/right in PTZ mode

t on screen cursor control

1 ~ 16

DISPLAY

SEQUENCE

Cantek aQ0400P-2TB, aQ0400S-6TB, D0412, D0824, D1648 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
