Cantek CT-NVR5216-8P Specsheet

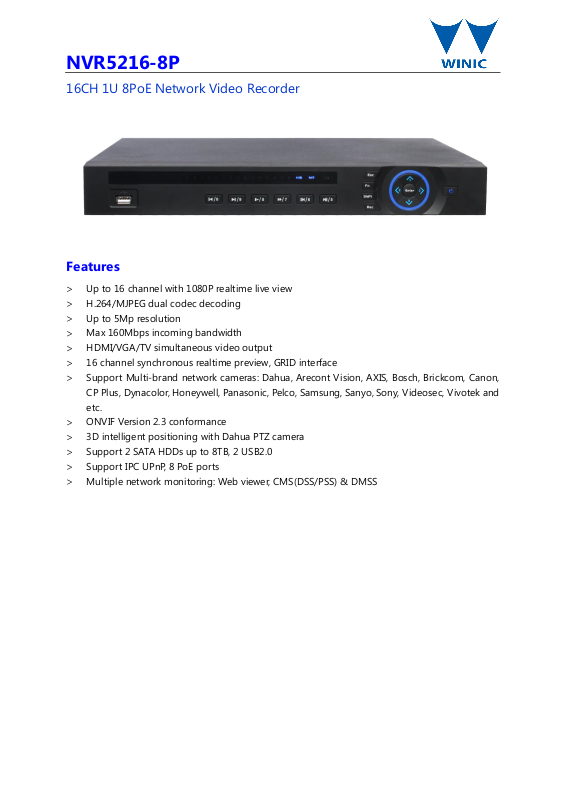

NVR5216-8P

16CH 1U 8PoE Network Video Recorder

Features

Up to 16 channel with 1080P realtime live view
H.264/MJPEG dual codec decoding
Up to 5Mp resolution
Max 160Mbps incoming bandwidth
HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime preview, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and
etc.
ONVIF Version 2.3 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB2.0
Support IPC UPnP, 8 PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Model

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Video & Audio

IP Camera Input

Two-way Talk

1 channel Input, 1 channel Output, BNC

Display

Interface

1 HDMI, 1 VGA, 1TV

Resolution

1920× 1080, 1280×1024, 1280× 720, 1024× 768

Display Split

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.264/MJPEG

Resolution

5Mp(2560× 1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/
D1(704× 576/704× 480) & etc.

Record Rate

Max 128Mbps ( eg. 16ch 5Mp@8Mbps, 16ch 1080P@8Mbps & etc.)

Bit Rate

48~8192kbps

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank

Alarm Input

8 channel

Relay Output

3 channel

Playback & Backup

Sync Playback

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next
camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,
Digital zoom

Backup Mode

USB Device/Network/Internal SATA burner

Network

Ethernet

1 RJ-45 port (10/100/1000Mbps)

PoE

8 ports (IEEE802.3af)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR,
NVS and etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

2 SATA ports

NVR5216-8P

Technical Specifications

NVR5216-8P

16 channel

1/4/8/9/16

1/4/9/16
