Cantek CT-IPC-VD244R-IR-Z Specsheet

IPC-VD244R-IR-Z

4MP WDR IR Motorized Dome Network Camera

· 4Mp

H.265+

30

m IR

IP67

Vandal-proof

• 1/3” 4Megapixel progressive CMOS

• H.265 & H.264 dual-stream encoding

• 20fps@4M(2688×1520)&25/30fps@3M(2304×1296)

• WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC

• Multiple network monitoring: Web viewer, CMS(DSS/

PSS) & DMSS

• Micro SD card slot, up to 128GB

• 2.7~13.5mm Motorized varifocal lens

• Max IR LEDs Length 30m

• IP67, IK10, PoE

IPC-VD244R-IR-Z

4MP WDR IR Motorized Dome Network Camera

System Overview

The IR Megapixel Vari-focal camera delivers 4MP resoluon with a

2.7mm ~13.5mm varifocal lens.The camera's elegant blend of aesthecs
combined with a range of easy mounng soluons provides an excellent
choice for a variety of small to mid-size applicaons at an aordable

price.

IR Technology

Smart

With IR illuminaon, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illuminaon
provides high performance in extreme low-light environments up to 30m
(98).

Funcons

Codec (H.265+ & H.264+)

Smart

Smart Codec is the opmized implementaon of standard video
compression (H.265 & H.264) that uses a scene-adapve encoding
strategy, dynamic GOP, dynamic ROI, exible mul-frame reference
structure and intelligent noise reducon to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.

Intelligent Video analysis (IVS)

The camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire and
Intrusion, to quickly and accurately respond to monitoring events in
specific area, It can enhance monitoring efficiency. In addition, the
camera supports intelligent tamper detection, which is to generate
warning message via detecting dramatic scene change and to
guarantee effective video surveillance.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast
lighng condions, using industry-leading wide dynamic range (WDR)
technology. For applicaons with both bright and low lighng condions
that change quickly, true WDR (120 dB) opmizes both the bright and
dark areas of a scene at the same me to provide usable video.

Protecon (IP67, IK10, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the
most unstable condions for outdoor applicaons. Its 2KV lightning
rang provides eecve protecon for both the camera and its structure
against lightning. Subjected and cered to rigorous dust and immersion
tests (IP67) and impact tests (IK10), The camera complies with an IK10
impact rang making it capable of withstanding the equivalent of 5 kg
(11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

Environmental

The camera operates in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.

Image ip

Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image ip
feature allows the camera's image to be rotated in 90° increments for
beer video opmizaon.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface
Forum) specicaons, ensuring interoperability between network video
products regardless of manufacturer.

IPC-VD244R-IR-Z

Technical Specificaon

Camera

Image Sensor 1/3” 4Megapixel progressive CMOS

Effec tive Pixels

RAM/ROM

Scanning System

Electronic Shut ter Speed

Minimum Illumination

S/N Ratio

IR Distance

IR On/Of f Control

IR LEDs

2688(H) x1520(V)

512MB/32MB

Progressive

Auto/Manual, 1/3~1/100000s

0.03Lux/F1.4( Color,1/3s,30IRE)

0.3Lux/F1.4( Color,1/30s,30IRE)
0Lux/F1.4(IR on)

More than 50 dB

Distance up to 30m(98ft)

Auto/ Manual

2

Lens

Lens Type Motorized

Mount Type Board-in

Focal Length 2.7mm~13.5mm

Max. Aperture F1.4

Angle of View H:104°~28°, V:55°~16°

Focus Control Motorize d(-ZS),Manual(-VFS)

Close Focus Distance 0.2m

Lens Detect Observe Recognize Idenfy

DORI Distance

W 64m(210) 26m(85) 13m(43) 6m(20)

T 222m(728) 89m(292) 44m(144) 22m(72)

PTZ

Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotaon:0° ~355°

Intelligence

Motion detection, Video tampering ,Scene

Event Trigger

IVS

changing,Network disconnection,IP address
conflict,Illegal acess,Storage anomaly

Tripwire, Intrusion

Video

Compression H.265/H.264H/MJPEG(Sub Stream)

Smart Codec Support H.265+/h.265+

Streaming Capability 2 Streams

(2688 x1520)/(256 0×1440)/

Resolution

Frame Rate

Bit Rate Control CBR/VBR

Bit Rate

(2304x1296)/1080 P(1920x108 0)/
SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/
D1(704×576/704×480)/VGA(640×480)
CIF(352×288/352×240)

Main Stream: 4M (1 ~ 20fps)/3M(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 20/25fps)

H.265: 12K ~ 844 8Kbps
H.264: 32K ~ 10240Kbps

Day/Night Auto(ICR) / Color / B/W

BLC Mode BLC / HLC / WDR(120dB)

White Balance Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection Off / On (4 Zone, Rectangle)

Region of Interest Off / On (4 Zone)

Electronic Image

Stabilization(EIS)

Smart IR Support

Digital Zoom 16x

Flip 0°/90°/180°/270°

Mirror Off / On

Privacy Masking Off / On (4 Area, Rectangle)

N/A

Audio

Compression N/A

Network

Ethernet RJ- 45 (10/100Base-T)

Protocol

Interoperability ONVIF Prof ile S&G,API

Streaming Method Unicast / Multicast

Max. User Ac cess 10 Users / 20 Users

Edge Storage

Web Viewer IE, Chrome, Firefox, Safari

Management Software Smar t PSS, DSS, DMSS

Smart Phone IOS, Android

HTTP;HTT PS;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC
P;DNS;DDNS;PPPOE;IPv4/v6;Qos;UPnP;NTP;Bonjour
;IEEE802.1x;Multicast;ICMP;IGMP;TLS;RTCP

NAS
Local PC fo r instant recording
Micro SD Card 128GB

Cercaons

Certifications

CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Par t 15 Subpart B

Interface

Video Interface N/A

Audio Interface N/A

RS485 N/A

Alarm N/A

Electrical

Power Suppl y DC12V PoE (IEEE802.3af)(Class 0)

Power Consumption <9W

IPC-VD244R-IR-Z

4MP WDR IR Motorized Dome Network Camera

Environmental

Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection IP67

Vandal Resistance IK10

Construcon

Casing Metal

Dimensions φ122mm×88.9mm(4.80''x3.50'')

Net Weight 0.4Kg (0.88lb)

Gross Weight 0.54Kg(1.19lb)

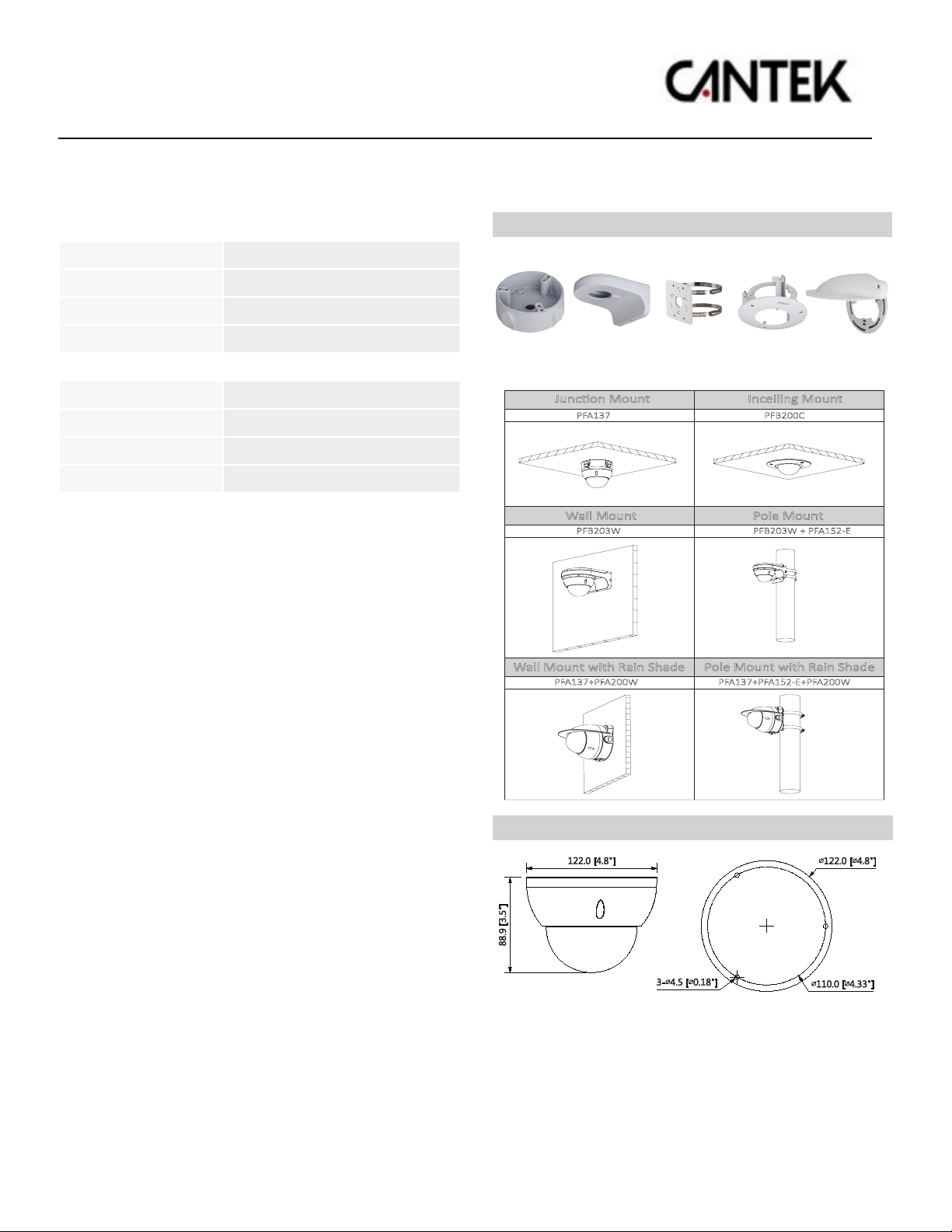

Accessories

Oponal:

PFA137

Funcon Box

Wall Mount with Rain Shade

PFB203W

Wall mount

Juncon Mount Inceiling Mount

PFA137 PFB200C

Wall Mount

PFA152-E

Pole mount

PFB200C

In-celling Box

Pole Mount

PFB203W + PFA152-EPFB203W

Pole Mount with Rain Shade

PFA137+PFA152-E+PFA200WPFA137+PFA200W

PFA200W

Rain shade

Dimensions (mm/inch)
