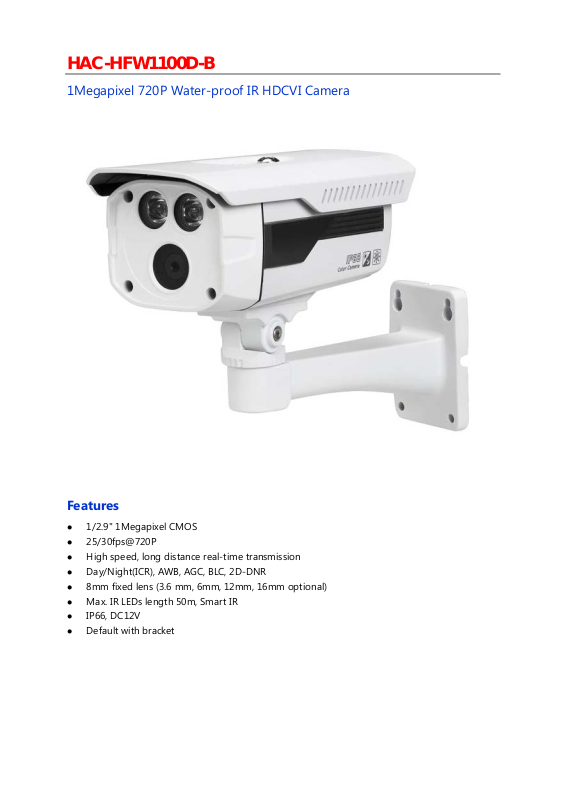

Cantek CT-HAC-HFW1100D-0360B Specsheet

HAC-HFW1100D-B

1Megapixel 720P Water-proof IR HDCVI Camera

Features

 1/2.9" 1Megapixel CMOS
 25/30fps@720P
 High speed, long distance real-time transmission
 Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
 8mm fixed lens (3.6 mm, 6mm, 12mm, 16mm optional)
 Max. IR LEDs length 50m, Smart IR
 IP66, DC12V
 Default with bracket

HAC-HFW1100D-B

Technical Specifications

Model HAC-HFW1100DP-B HAC-HFW1100DN-B

Camera

Image Sensor 1/2.9" 1Megapixel CMOS

Effective Pixels 1280(H)×720(V)

Electronic Shutter 1/50s~1/100,000s 1/60s~1/100,000s

Video Frame Rate 25fps@720P 30fps@720P

Synchronization Internal

Min. Illumination 0.01Lux@F1.2 (AGC ON), 0Lux IR LED on

Video Output 1-channel BNC HDCVI high definition video output

Camera Features

Max. IR LEDs Length 50m, Smart IR

Day/Night

Noise Reduction 2D

Lens

Focal length 8mm (3.6 mm, 6mm, 12mm, 16mm optional)

Angle of View

Mount Type M12

General

Power Supply DC12V±10%

Power Consumption Max 7W

Working Environment -30°C~+60°C/ Less than 95%RH (no condensation)

Transmission Distance Over 500m via 75-3 coaxial cable

Ingress Protection IP66

Dimensions(W×D×H) 200.2mm×89.1mm×161.2mm

Weight

Others

Auto(ICR) / Color / B/W

H: 39.9º(79.7º/52.2º/25.2º/18.7º)

0.58kg

Default: bracket included
